MSI MS-7309 Schematic 0A

5

www.kythuatvitinh.com

Digitally signed by fdsf
DN: cn=fdsf, o=fsdfsd,
ou=ffsdf,
email=fdfsd@fsdff,
c=US
Date: 2009.10.11
07:47:01 +07'00'

4

3

2

1

MS-7309

D D

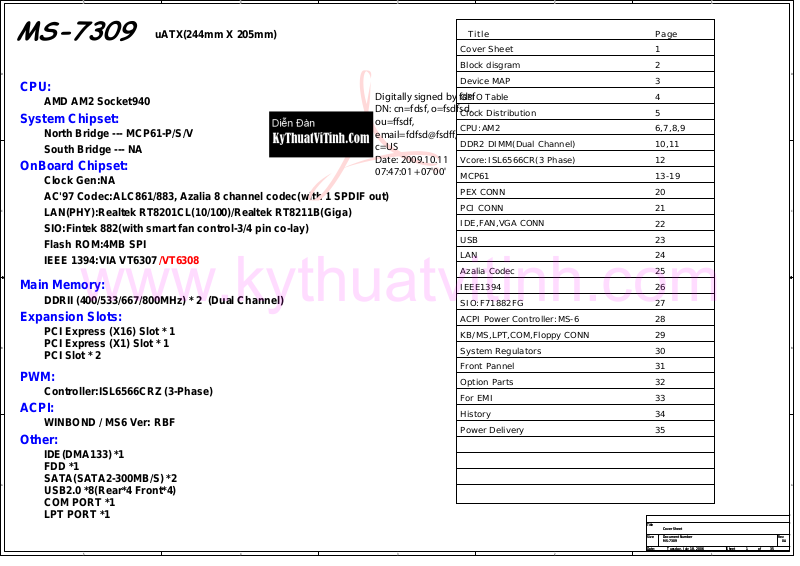

CPU:

AMD AM2 Socket940

System Chipset:

North Bridge --- MCP61-P/S/V
South Bridge --- NA

OnBoard Chipset:

Clock Gen:NA
AC'97 Codec:ALC861/883, Azalia 8 channel codec(with 1 SPDIF out)

C C

B B

LAN(PHY):Realtek RT8201CL(10/100)/Realtek RT8211B(Giga)
SIO:Fintek 882(with smart fan control-3/4 pin co-lay)
Flash ROM:4MB SPI
IEEE 1394:VIA VT6307/VT6308

Main Memory:

DDRII (400/533/667/800MHz) * 2 (Dual Channel)

Expansion Slots:

PCI Express (X16) Slot * 1
PCI Express (X1) Slot * 1
PCI Slot * 2

PWM:

Controller:ISL6566CRZ (3-Phase)

ACPI:

WINBOND / MS6 Ver: RBF

uATX(244mm X 205mm)

Cover Sheet 1

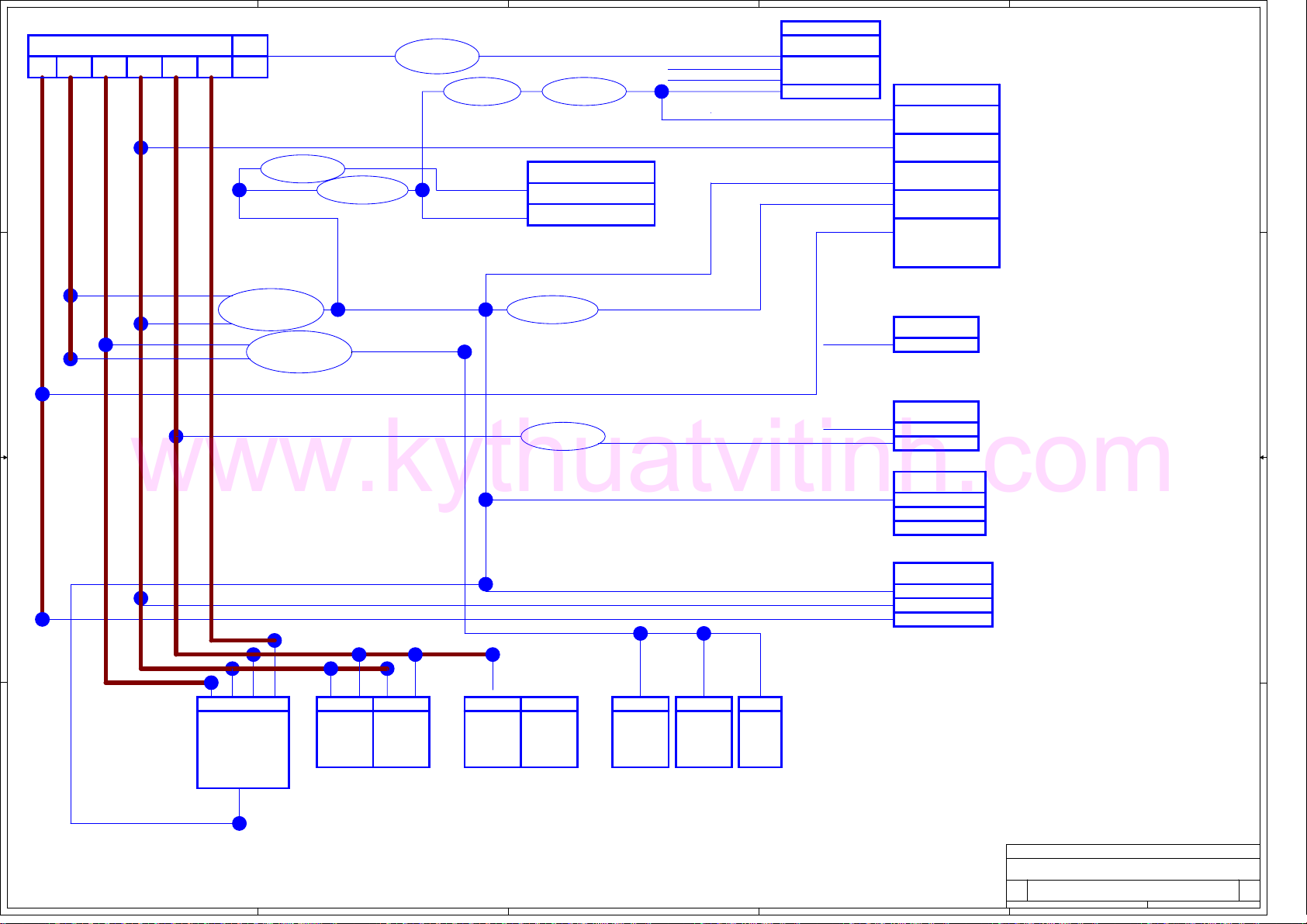

Block disgram 2
Device MAP
GPIO Table 4
Clock Distribution
CPU:AM2

DDR2 DIMM(Dual Channel)
Vcore:ISL6566CR(3 Phase)

MCP61
PEX CONN
PCI CONN

IDE,FAN,VGA CONN

USB
LAN
Azalia Codec

IEEE1394
SIO:F71882FG
ACPI Power Controller:MS-6

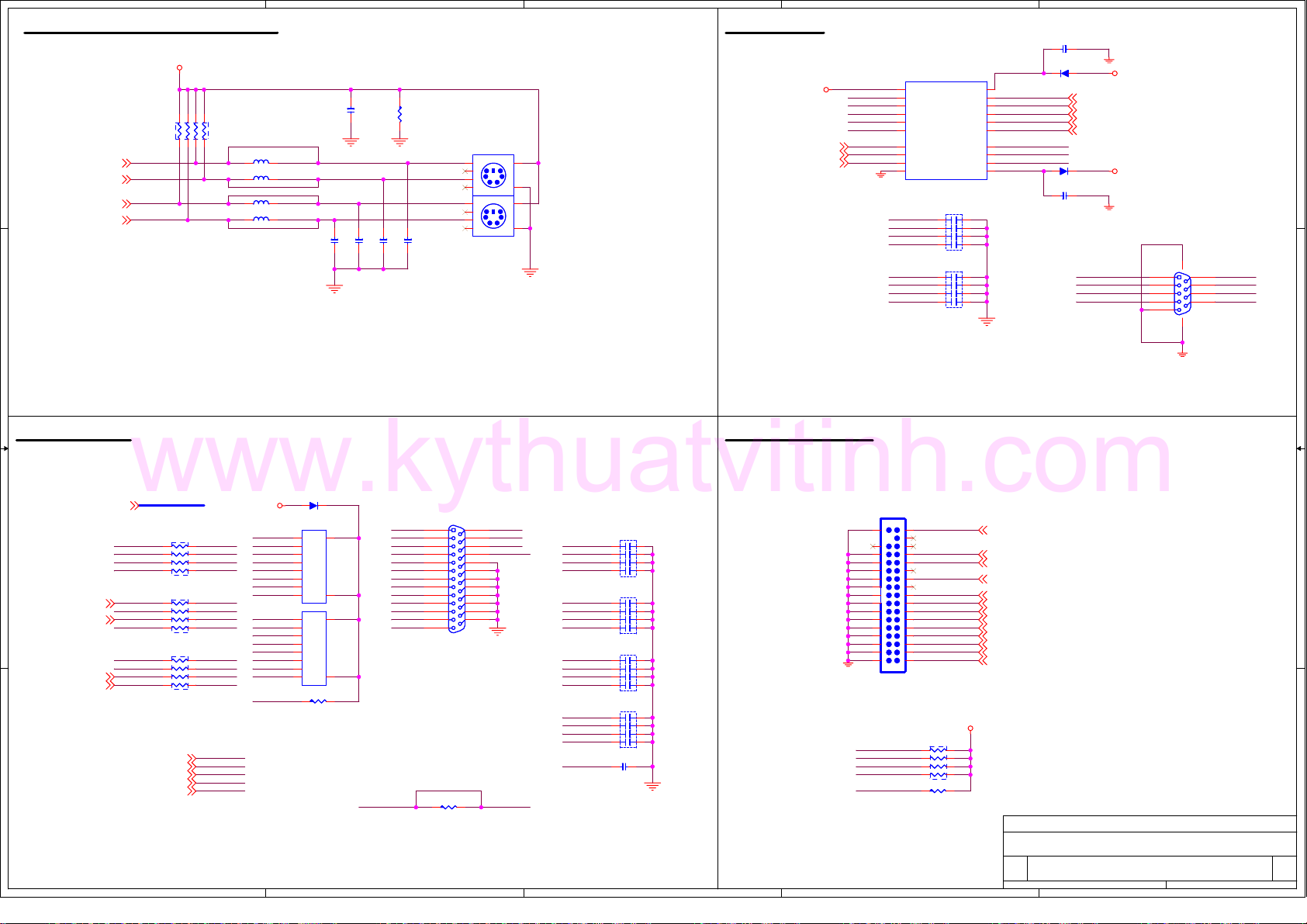

KB/MS,LPT,COM,Floppy CONN
System Regulators

Option Parts
For EMI
History 34
Power Delivery 35

PageTitle

3

5
6,7,8,9
10,11
12
13-19
20
21
22
23
24
25
26
27
28
29
30
31Front Pannel
32
33

Other:

A A

IDE(DMA133) *1
FDD *1
SATA(SATA2-300MB/S) *2
USB2.0 *8(Rear*4 Front*4)
COM PORT *1
LPT PORT *1

5

Title

Title

Title

Cover Sheet

Cover Sheet

Cover Sheet

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

4

3

2

Date: Sheet

1

of

135Tuesday, July 18, 2006

135Tuesday, July 18, 2006

135Tuesday, July 18, 2006

5

www.kythuatvitinh.com

4

3

2

1

AMD

VRM ISL6566CR
3-Phase PWM

D D

HyperTransport LINK0

PCIE X16

PCIE X1

Rear port x 4

C C

Front port x 4

Realtek
RT8201CL(10/100)

Realtek
RT8211B(Giga)

PCIE X16

PCIE X1

USB2.0

1G

nVIDIA

AM2-940

LINK0
16x16

MCP61

DDR400/533/667/800

DDRII

DDR400/533/667/800

CRT

AC LINK

SATA-II Link

VGA CON

UNBUFFERED DDR
DIMM1

240-PIN DDRII

UNBUFFERED DDR
DIMM2

240-PIN DDRII

Azalia CODEC

ALC861(8CH)

SATA-II Port
#1~2

ATA 66/100/133

IDE*1

PCI BUS

B B

A A

IEEE 1394
VIA
VT6307/6308

Rear x1

Front x1

5

PCI SLOT x2

ACPI MS6
CONTROLLER

MS11 for
DDR Power

Fintek 882

KB &

FLOPPY

LPT

*1 *1 *1 *1

MOUSE

4

SERIAL
PORTS

FAN
CONTROL

Vcore
CONTROL

LPC

LPC Pin
Header

3

SPI SPI

Header

SPI FLASH ROMSPI Pin

4M

Title

Title

Title

Block diagram

Block diagram

Block diagram

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

2

Date: Sheet of

1

of

235Monday, July 17, 2006

235Monday, July 17, 2006

235Monday, July 17, 2006

5

www.kythuatvitinh.com

4

3

2

1

PCI RESET DEVICE

MCP61

Signals

PCI_RESET0*
PCI_RESET1*

D D

PCI_RESET2* MS6
PCI_RESET3*
LPC_RESET*

Target

PCISLOT1
PCISLOT2

1394
LPC/SIO

MS6

Signals Target

HDD_RST# IDE

DDR DIMM Config.

DEVICE

C C

DIMM 1
CH-A

DIMM 2
CH-B

USB

Rear

B B

Front

10100000B

10100001B

Port DATA +/-

USB1

LAN_USB1

JUSB1

JUSB2

CLOCKADDRESS

MEM_MA0_CLK_H0/L0
MEM_MA0_CLK_H1/L1
MEM_MA0_CLK_H2/L2
MEM_MB0_CLK_H0/L0
MEM_MB0_CLK_H1/L1
MEM_MB0_CLK_H2/L2

OC#

USB0­USB0+
USB1­USB1+

USB2­USB2+
USB3­USB3+

USB4­USB4+
USB5­USB5+

USB6­USB6+
USB7­USB7+

USB_OC#0
( OC#0~1 )

USB_OC#2
( OC#2~3 )

USB_OC#4
( OC#4~5 )

USB_OC#6
( OC#6~7 )

PCI Config.

DEVICE MCP1 INT Pin

PCI_INT#Y

PCI Slot 1

PCI_INT#W
PCI_INT#X
PCI_INT#X

PCI Slot 2

IEEE1394 PCI_INT#Z

LPC

SIO

PCI_INT#Y
PCI_INT#Z
PCI_INT#W

REQ#/GNT#

PCI_REQ1#
PCI_GNT1#

PCI_REQ2#
PCI_GNT2#

PCI_GNT0#

IDSEL

AD26

AD25

AD24

CLOCK

PCI_CLKSLOT1PCI_INT#Z
(PCICLK1)

PCI_CLKSLOT2
(PCICLK2)

PCICLK_1394PCI_REQ0#
(PCICLK0)

LPC_PCLK

SIO_PCLK

CPU VID TABLE

VID

00000
00001
00010
00011
00100
00101
00110
00111
01000
01001
01010
01011
01100
01101
01110
01111
10000 1.1500V
10001
10010
10011 1.0750V
10100
10101
10110
10111
11000
11001
11010
11011
11100
11101
11110
11111

VOLTAGE

1.5500V

1.5250V

1.5000V

1.4750V

1.4500V

1.4250V

1.4000V

1.3750V

1.3500V

1.3250V

1.3000V

1.2750V

1.2500V

1.2250V

1.2000V

1.1750V

1.1250V

1.1000V

1.0500V

1.0250V

1.0000V

0.9750V

0.9500V

0.9250V

0.9000V

0.8750V

0.8500V

0.8250V

0.8000V

0.7750V

A A

Title

Title

Title

Device Map

Device Map

Device Map

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

5

4

3

2

Date: Sheet

Date: Sheet

Date: Sheet

of

335Monday, July 17, 2006

of

335Monday, July 17, 2006

of

335Monday, July 17, 2006

1

5

www.kythuatvitinh.com

4

3

2

1

MCP61 GPIO TABLE

D D

C C

B B

PIN NAME

THERMTRIP*/GPIO58
PROCHOT*/GPIO20

MII_RXER/GPIO36
MII_COL/GPIO13/MI2C_DATA
MII_CRS/GPIO14/MI2C_CLK
RGMII/MII_INTR*/GPIO35
RGMII/MII_PWRDWN*/GPIO37
MII_RESET*/GPIO12

DDC_CLK/GPIO17
DDC_DATA/GPIO19

PCI_REQ2*/GPIO40.RS232_DSR*
PCI_REQ3*/GPIO38/RS232_CTS*
PCI_GNT2*/GPIO41/RS232_DTR*
PCI_GNT3*/GPIO39/RS232_RTS*
PCI_PERR*/GPIO43/RS232_DCD*
PCI_PME*/GPIO30
LPC_PWRDWN*/GPIO54/EXT_NMI*
LPC_DRQ0*/GPIO50
LPC_DRQ1*/GPIO15/FANRPM1

CABLE_DET_P/GPIO63
SATE_LED*/GPIO57

HDA_SDATA_OUT0/GPIO45
HDA_SDATA_IN0/GPIO22
HDA_SDATA_IN1/GPIO23/MGPIO0
HDA_SYNC/GPIO44
GPIO_1
GPIO_2/NMI*/PS2_CLK0
GPIO_3/SMI*/PS2_DATA0
GPIO_4/SCI_INTR/PS2_CLK1
GPIO_5/INIT*/PS2_DATA2
GPIO_6/FERR*/SYS_FERR*
GPIO_7/NFERR*/SYS_PERR*
GPIO_8/SPI_DI
GPIO_9/SPI_DO
GPIO_10/SPI_CS
GPIO_11/SPI_CLK
USB_OC0*/GPIO25
USB_OC1*/GPIO26
USB_OC2*/GPIO27
USB_OC3*/GPIO28/MGPIO_1
USB_OC4*/GPIO29
A20GATE/GPIO55
EXT_SMI*/GPIO32
RI*/GPIO33
SIO_PME*/GPIO31
KBRDRSTIN*/GPIO56
SUS_CLK/GPIO34
THERM*/GPIO59
FANRPM0/GPIO60
FANCTL0/GPIO61
FANCTL1/GPIO62
THERM_SIC/GPIO48
THERM_SID0/GPIO49
PE_WAKE*/GPIO21

FUNCTION

CPU_THERMTRIP*
PROCHOT*

MII_RXER
MII_COL
MII_CRS
Pull High 10K to 3VDUAL

-­MII_RESET*

DDC_CLK
DDC_DATA

PCI_REQ2*
Pull High 10K to 3VDUAL
PCI_GNT2*

-­PCI_PERR*
PCI_PME*

-­LPC_DRQ0*

--

CABLE_DET_P
SATE_LED*

HDA_SDATA_OUT
HDA_SDATA_IN0

-­HDA_SYNC

--

--

--

--

--

--

--

--

--

--

-­USB_Rear_1_0OC*
USB_Rear_3_2OC*
USB_FNTPNL_5_4OC*
USB_FNTPNL_7_6OC*
Pull High 10K to 3VDUAL(USB not USE)
AGATE20
EXT_SMI*
Internal 10K pull-up to vcc3
SIO_PME*
SIO_KBRST*

-­THERM*

--

--

-­Internal 10K pull-up to vcc3

-­PE_WAKE*

SIO GPIO TABLE

GROUP

UART & SIR

Hardware Monitor

ACPI Function Pins

VID Controller

PIN NAME

IRTX/GPIO42
IRRX/GPIO43
GPIO17

FANIN3/GPIO40
FAN_CTL3/GPIO41
PME#/GPIO25
GPIO10/SPISLK/FININ4
GPIO11/SPI_CS0#/FAN_CTL4
FPIO12/SPI_MISO/FANCTL1_1
GPIO13/SPI_MOSI/BEEP
GPIO14/FWH_DIS/WDTRST#/SPI_CS1#

GPIO15/LED_VSB/ALERT#
GPIO16/LED_VCC/Turbo2#
PCIRST1#/GPIO20
PCIRST2#/GPIO21
PCIRST3#/GPIO22
GPIO23/RSTCON#
ATXPG_IN/GPIO24
PWROK/GPIO32
PWSIN#/GPIO26
PWSOUT#/GPIO27
S3#/GPIO30
PSON#/GPIO31
RSMRST#/GPIO33

VIDOUT0/GPIO0
VIDOUT1/GPIO1
VIDOUT2/GPIO2
VIDOUT3/GPIO3
VIDOUT4/GPIO4
VIDOUT5/GPIO5/SIC
SLOTOCC#/GPIO6
GPIO7/Turbo1#/WDTRST#

FUNCTION

--

--

--

--

-­PME#
SPI_SLK
SPI_CS0#
SPI_MISO
SPI_MOSI
SPI_CS1#

-­CPU_FAN_GPO

--

--

--

-­ATXPG_IN

-­PWSIN#
PWSOUT#
S3#
PSON#

--

VIDOUT0
VIDOUT1
VIDOUT2
VIDOUT3
VIDOUT4
SIC
SLOTOCC#

--

A A

Title

Title

Title

GPIO Table

GPIO Table

GPIO Table

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

435Monday, July 17, 2006

435Monday, July 17, 2006

435Monday, July 17, 2006

of

of

1

of

5

www.kythuatvitinh.com

4

3

2

1

AMD

AM2

MEMORY_A0_CLK[2:0]
MEMORY_A0_CLK[2:0]#

3 PAIR MEM CLK

DIMM1-CHADIMM2-CHB

HT_CPU_RXCLK[1:0]#

D D

HT_CPU_RXCLK[1:0]

HT_CPU_TXCLK[1:0]
HT_CPU_TXCLK[1:0]#

CPUCLK_IN
CPUCLK_IN#

MEMORY_B0_CLK[2:0]
MEMORY_B0_CLK[2:0]#

3 PAIR MEM CLK

Dual Chanel

NVIDIA

CLKOUT_200MHZ
CLKOUT_200MHZ#

C C

HT_CPU_TXCLK[1:0]
HT_CPU_TXCLK[1:0]#

HT_CPU_RXCLK[1:0]
HT_CPU_RXCLK[1:0]#

MCP61

B B

PE0_REFCLK
PE0_REFCLK#

PE1_REFCLK
PE1_REFCLK#

BUF_SIO

LPC_CLK0

PCI_CLK0

PCI_CLK1

PCI_CLK2

PCI_CLK3

PCI_CLK4

24MHZ

SIO_PCLK

PCICLK_1394

PCICLK_SLOT1

PCICLK_SLOT2

PEX_X16

PEX_X1

SIO

SPI_CLK

PCICLK

1394

PCICLK

SPI ROM

#1

SPI_CLK

#2

PCI_SLOT1

PCI_SLOT2

PCI_CLKIN

LPC_CLK1

LPC_PCLK

LPC HEADER

HDA CODEC

HDA_BITCLK

32.768 KHZ

A A

25 MHZ

RTC_XTAL

XTAL_IN

XTAL_OUT

MII_TXCLK

MII_RXCLK

BUF_25MHZ

5

4

HDA_BITCLK

MII_TXCLK

BUF_25MHZ

3

MII_RXCLK

HDA_BITCLK

LAN PHY

MII_TXCLK

MII_RXCLK

BUF_25MHZ

Title

Title

Title

Clock Distribution

Clock Distribution

Clock Distribution

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

2

Date: Sheet of

1

of

535Monday, July 17, 2006

535Monday, July 17, 2006

535Monday, July 17, 2006

5

www.kythuatvitinh.com

L0_CLKIN_H(1)
L0_CLKIN_L(1)
L0_CLKIN_H(0)
L0_CLKIN_L(0)

L0_CTLIN_H(1)
L0_CTLIN_L(1)
L0_CTLIN_H(0)
L0_CTLIN_L(0)

L0_CADIN_H(15)
L0_CADIN_L(15)
L0_CADIN_H(14)
L0_CADIN_L(14)
L0_CADIN_H(13)
L0_CADIN_L(13)
L0_CADIN_H(12)
L0_CADIN_L(12)
L0_CADIN_H(11)
L0_CADIN_L(11)
L0_CADIN_H(10)
L0_CADIN_L(10)
L0_CADIN_H(9)
L0_CADIN_L(9)
L0_CADIN_H(8)
L0_CADIN_L(8)

L0_CADIN_H(7)
L0_CADIN_L(7)
L0_CADIN_H(6)
L0_CADIN_L(6)
L0_CADIN_H(5)
L0_CADIN_L(5)
L0_CADIN_H(4)
L0_CADIN_L(4)
L0_CADIN_H(3)
L0_CADIN_L(3)
L0_CADIN_H(2)
L0_CADIN_L(2)
L0_CADIN_H(1)
L0_CADIN_L(1)
L0_CADIN_H(0)
L0_CADIN_L(0)

CADIP[0..15]
CADIN[0..15]
CADOP[0..15]
CADON[0..15]

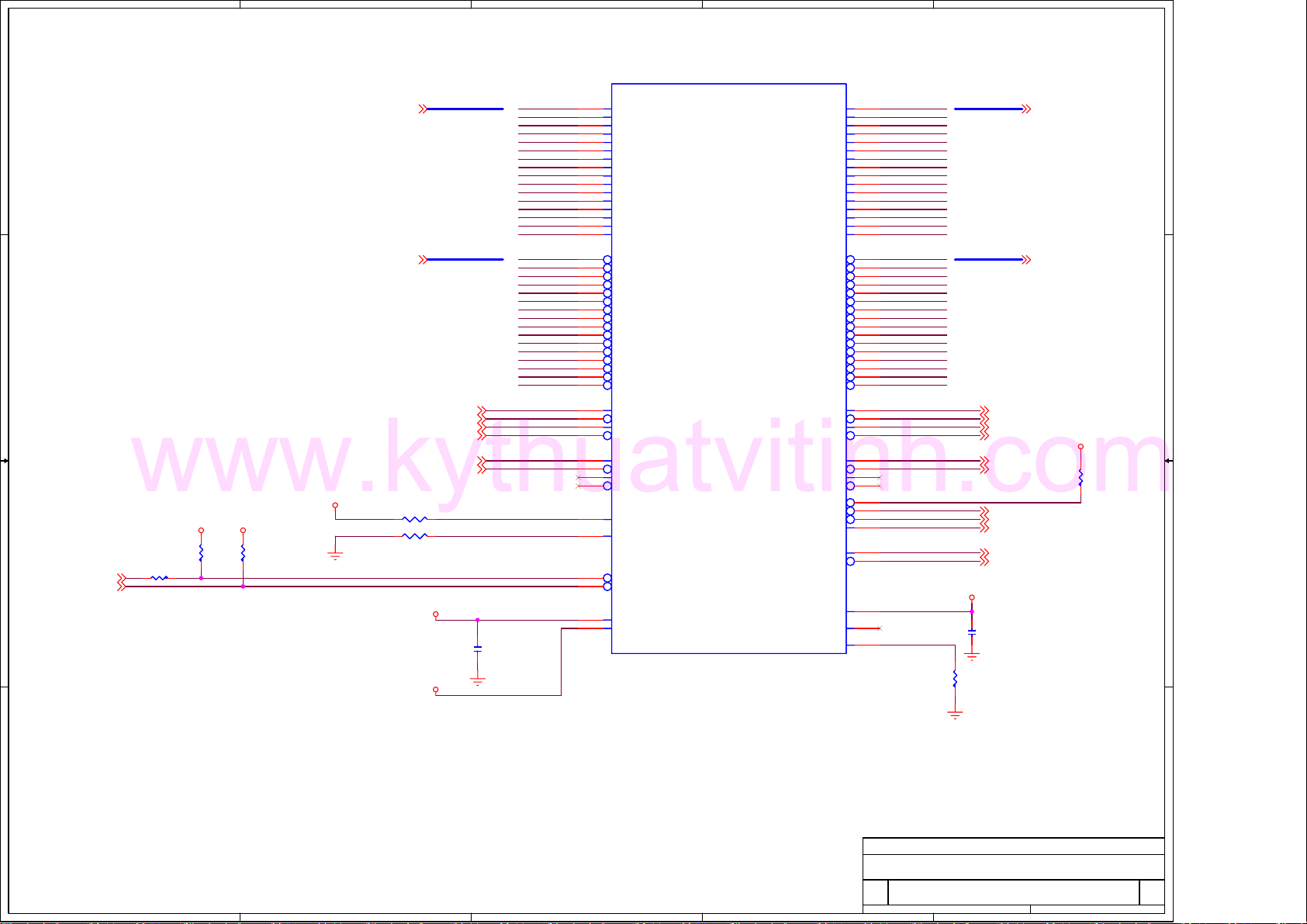

CPU1A

CPU1A

HYPERTRANSPORT

HYPERTRANSPORT

L0_CLKOUT_H(1)

L0_CLKOUT_L(1)

L0_CLKOUT_H(0)

L0_CLKOUT_L(0)

L0_CTLOUT_H(1)

L0_CTLOUT_L(1)

L0_CTLOUT_H(0)

L0_CTLOUT_L(0)

L0_CADOUT_H(15)
L0_CADOUT_L(15)
L0_CADOUT_H(14)
L0_CADOUT_L(14)
L0_CADOUT_H(13)
L0_CADOUT_L(13)
L0_CADOUT_H(12)
L0_CADOUT_L(12)
L0_CADOUT_H(11)
L0_CADOUT_L(11)
L0_CADOUT_H(10)
L0_CADOUT_L(10)

L0_CADOUT_H(9)
L0_CADOUT_L(9)
L0_CADOUT_H(8)
L0_CADOUT_L(8)

L0_CADOUT_H(7)
L0_CADOUT_L(7)
L0_CADOUT_H(6)
L0_CADOUT_L(6)
L0_CADOUT_H(5)
L0_CADOUT_L(5)
L0_CADOUT_H(4)
L0_CADOUT_L(4)
L0_CADOUT_H(3)
L0_CADOUT_L(3)
L0_CADOUT_H(2)
L0_CADOUT_L(2)
L0_CADOUT_H(1)
L0_CADOUT_L(1)
L0_CADOUT_H(0)
L0_CADOUT_L(0)

AD5
AD4
AD1
AC1

Y6
W6
W2
W3

CADOP15

Y5

CADON15

Y4

CADOP14

AB6

CADON14CADIN14

AA6

CADOP13

AB5

CADON13

AB4

CADOP12

AD6

CADON12

AC6

CADOP11

AF6

CADON11

AE6

CADOP10

AF5

CADON10

AF4

CADOP9

AH6

CADON9

AG6

CADOP8

AH5

CADON8

AH4

CADOP7

Y1

CADON7

W1

CADOP6

AA2

CADON6

AA3

CADOP5

AB1

CADON5

AA1

CADOP4

AC2

CADON4

AC3

CADOP3

AE2

CADON3

AE3

CADOP2

AF1

CADON2

AE1

CADOP1

AG2

CADON1

AG3

CADOP0

AH1

CADON0

AG1

CADIP[0..15]13

CADIN[0..15]13

CADOP[0..15]13

CADON[0..15]13

CLKIP113

D D

VCC1_2HT

C C

CLKIN113

CLKIP013

CLKIN013

R108 49.9R1%/4R108 49.9R1%/4
R109 49.9R1%/4R109 49.9R1%/4

CTLIP013

CTLIN013

CADIP15
CADIN15
CADIP14

CADIP13
CADIN13
CADIP12
CADIN12
CADIP11
CADIN11
CADIP10
CADIN10
CADIP9
CADIN9
CADIP8
CADIN8

CADIP7
CADIN7
CADIP6
CADIN6
CADIP5
CADIN5
CADIP4
CADIN4
CADIP3
CADIN3
CADIP2
CADIN2
CADIP1
CADIN1
CADIP0
CADIN0

N6
P6
N3
N2

V4
V5
U1
V1

U6
V6
T4
T5
R6
T6
P4
P5
M4
M5
L6
M6
K4
K5

J6

K6
U3

U2
R1
T1
R3
R2
N1
P1
L1
M1
L3
L2

J1

K1

J3
J2

4

CLKOP1 13
CLKON1 13
CLKOP0 13
CLKON0 13

TP11TP11
TP10TP10

CTLOP0 13
CTLON0 13

CPUCLKO_H13

Layout : Place R63
within 0.5 inch of CPU

CPUCLKO_L13

R99

R99
300R/4

300R/4

SIO_THERM_SIC27
SIO_THERM_SID27

If SI is not used,the SID
pin can be left unconnector
and SIC should have a 300
ohm pulldown to VSS

VCC_DDR

R105

R105

39.2R1%/6

39.2R1%/6

R106

R106

39.2R1%/6

39.2R1%/6

VCC_DDR

R58

R58
15R1%/6

15R1%/6

15 mils

CPU_M_VREF

C60

R57

R57
15R1%/6

15R1%/6

C63

C63
C0.1u10X/4

C0.1u10X/4

C60
C102p50X/6

C102p50X/6

VCC_DDR

C64

C64
C392p50X/6

C392p50X/6

C67

C67
C392p50X/6

C392p50X/6

MEMZN
MEMZP

3

VDDA_25

R101

R101
300R/4

300R/4

SIO_THERM_SIC
SIO_THERM_SID

R98

R98
X_300R/4

X_300R/4

10/5/10

VCC_DDR

L1
80S-2A/8L180S-2A/8

2 1

R63

R63
169R1%/6

169R1%/6

5/6/20

CPUCLKIN_H
CPUCLKIN_L

VCC_DDR

TP19TP19
TP15TP15
TP14TP14
TP21TP21

TP2TP2

COREFB_H12

COREFB_L12

TP9TP9

R59 510R/6R59 510R/6
R62 510R/6R62 510R/6

THERMDC_CPU27
THERMDA_CPU27

C53

C53
C4.7u16Y/1206

C4.7u16Y/1206

R107 1KR/4R107 1KR/4

CPU_TEST25_H

CPU_TEST25_L

R50 300R/4R50 300R/4
R51 300R/4R51 300R/4

TP5TP5
TP7TP7
TP8TP8
TP4TP4
TP12TP12

C59

C59
C0.22u16X/6

C0.22u16X/6

LDT_PWRGD_L
LDT_STOP#_L
LDT_RST#_L

CPU_PRESENT_L

CPU_TRST_L
CPU_TCK
CPU_TMS

CPU_DBREQ_L
COREFB_H

COREFB_L

CPU_VTT_SENSE

VDDA25

C57

C57
C332p50X/4

C332p50X/4

CPU_M_VREF

AL10

AJ10

AH10

AH11

AJ11

C10
D10

A8
B8

C9
D8
C7

AL3

AL6

AK6

AL9

A5
G2

G1

E12

F12

A10
B10
F10

E9

AJ7

F6
D6

E7
F8
C5

AH9

E5

AJ5
AG9
AG8
AH7

AJ6

CPU1D

CPU1D

MISC

MISC

VDDA1
VDDA2

CLKIN_H
CLKIN_L

PWROK
LDTSTOP_L
RESET_L

CPU_PRESENT_L

THERMTRIP_L

SIC
SID

TDI
TRST_L
TCK
TMS

DBREQ_L
VDD_FB_H

VDD_FB_L
VTT_SENSE

M_VREF
M_ZN
M_ZP

TEST25_H
TEST25_L
TEST19
TEST18
TEST13
TEST9

TEST17
TEST16
TEST15
TEST14
TEST12

TEST7
TEST6
TEST5
TEST4
TEST3
TEST2

2

VID(5)
VID(4)
VID(3)
VID(2)
VID(1)
VID(0)

PROCHOT_L

TDO

DBRDY

VDDIO_FB_H
VDDIO_FB_L

PSI_L

HTREF1
HTREF0

TEST29_H

TEST29_L

TEST24
TEST23
TEST22
TEST21
TEST20

TEST28_H

TEST28_L

TEST27
TEST26
TEST10

TEST8

D2
D1
C1
E3
E2
E1

AK7
AL7

AK10

CPU_DBRDY

B6

CPU_VDDIOFB_H

AK11

CPU_VDDIOFB_L

AL11

CPU_PSI_L

F1

V8
V7

C11
D11

AK8
AH8
AJ9
AL8
AJ8

J10
H9
AK9
AK5
G7
D4

VID4
VID3
VID2
VID1
VID0

CPU_THRIP#
PROCHOT#

CPU_TDOCPU_TDI

HTREF1
HTREF0

FBCLKOUT
FBCLKOUT#

8/5/20

R110 300R/4R110 300R/4

VCC_DDR

TP1TP1

CPU_THRIP# 13

TP17TP17

TP3TP3

TP6TP6

R56

R56

80.6R1%/6

80.6R1%/6

TP20TP20
TP16TP16
TP18TP18

TP13TP13

VCC_DDR

R75

R75
X_300R/4

X_300R/4

VCC_DDR

Layout :

1)Place R56 within

0.5 inch

R100

R100
300R/4

300R/4

VCC_DDR

1

R102

R102
X_300R/4

X_300R/4

VID[0..4] 27

C157

C157
C102p50X/4

C102p50X/4

PROCHOT# 13

Layout : Place
with in 1 inch

R103 44.2R1%/6R103 44.2R1%/6
R104 44.2R1%/6R104 44.2R1%/6

C158

C158
C102p50X/4

C102p50X/4

VCC1_2HT

For S3 issue(LDT RST can not still low)

If pop U4,remove RN6;

Else remove U4 & RN5, then pop RN6

VCC_DDR

RN7

RN7
8P4R-330R/6

8P4R-330R/6

1

2
4
6
8

-LDTSTOP
CPU_GD

-LDT_RST

LDT_RST#_L
LDT_PWRGD_L
LDT_STOP#_L

1
3
5
7

-LDTSTOP13

ATX_PWR_OK18,27,28,31

RN6

RN6
8P4R-0R/6

8P4R-0R/6

LDT_STOP#_L

2

LDT_PWRGD_L

4

LDT_RST#_L

6
8

B B

A A

5

3
5
7

4

-LDTSTOP

ATX_PWR_OK

-LDT_RST
CPU_GD

-LDTSTOP

VCC_DDR

147

1 2

VCC_DDR

147

3 4

RN5

RN5
X_8P4R-330R/6

X_8P4R-330R/6

1
3
5
7

U4A

U4A
X_7407_SOIC14

X_7407_SOIC14

U4B

U4B
X_7407_SOIC14

X_7407_SOIC14

3

2
4
6
8

VDDA_25

LDT_STOP#_L

CPU_GD13

ATX_PWR_OK18,27,28,31

ATX_PWR_OK18,27,28,31

ATX_PWR_OK LDT_PWRGD_L

ATX_PWR_OK

-LDT_RST13

CPU_GD

-LDT_RST

VCC_DDR

U4D

U4D

147

X_7407_SOIC14

X_7407_SOIC14

9 8

VCC_DDR

U4F

U4F

147

X_7407_SOIC14

X_7407_SOIC14

13 12

VCC_DDR

U4C

U4C

147

X_7407_SOIC14

X_7407_SOIC14

5 6

VCC_DDR

U4E

U4E

147

X_7407_SOIC14

X_7407_SOIC14

11 10

2

LDT_RST#_L

Title

Title

Title

CPU-HT & Straps

CPU-HT & Straps

CPU-HT & Straps

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

1

of

635Friday, September 22, 2006

635Friday, September 22, 2006

635Friday, September 22, 2006

5

www.kythuatvitinh.com

MEMORY INTERFACE A

D D

C C

B B

MEM_MA0_CLK_H210,11
MEM_MA0_CLK_L210,11

MEM_MA0_CLK_H110,11
MEM_MA0_CLK_L110,11
MEM_MA0_CLK_H010,11
MEM_MA0_CLK_L010,11

MEM_MA0_CS_L110,11
MEM_MA0_CS_L010,11

MEM_MA0_ODT010,11

MEM_MA_CAS_L10,11
MEM_MA_WE_L10,11
MEM_MA_RAS_L10,11

MEM_MA_BANK210,11
MEM_MA_BANK110,11
MEM_MA_BANK010,11

MEM_MA_CKE010,11

MEM_MA_ADD[15..0]10,11

MEM_MA_DQS_H710
MEM_MA_DQS_L710
MEM_MA_DQS_H610
MEM_MA_DQS_L610
MEM_MA_DQS_H510
MEM_MA_DQS_L510
MEM_MA_DQS_H410
MEM_MA_DQS_L410
MEM_MA_DQS_H310
MEM_MA_DQS_L310
MEM_MA_DQS_H210
MEM_MA_DQS_L210
MEM_MA_DQS_H110
MEM_MA_DQS_L110
MEM_MA_DQS_H010
MEM_MA_DQS_L010

MEM_MA_DM710
MEM_MA_DM610
MEM_MA_DM510
MEM_MA_DM410
MEM_MA_DM310
MEM_MA_DM210
MEM_MA_DM110
MEM_MA_DM010

MEM_MA0_CLK_H2
MEM_MA0_CLK_L2
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
MEM_MA0_CLK_H0
MEM_MA0_CLK_L0

MEM_MA0_CS_L1
MEM_MA0_CS_L0

MEM_MA0_ODT0

MEM_MA_CAS_L
MEM_MA_WE_L
MEM_MA_RAS_L

MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

MEM_MA_CKE0
MEM_MA_ADD15

MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA_DQS_H7
MEM_MA_DQS_L7
MEM_MA_DQS_H6
MEM_MA_DQS_L6
MEM_MA_DQS_H5
MEM_MA_DQS_L5
MEM_MA_DQS_H4
MEM_MA_DQS_L4
MEM_MA_DQS_H3
MEM_MA_DQS_L3
MEM_MA_DQS_H2
MEM_MA_DQS_L2
MEM_MA_DQS_H1
MEM_MA_DQS_L1
MEM_MA_DQS_H0
MEM_MA_DQS_L0

MEM_MA_DM7
MEM_MA_DM6
MEM_MA_DM5
MEM_MA_DM4
MEM_MA_DM3
MEM_MA_DM2
MEM_MA_DM1
MEM_MA_DM0

AG21
AG20

AC25
AA24

AC28
AE20

AE19

AD27
AA25

AC27

AB25
AB27
AA26

AA27

AC26

AD15
AE15
AG18
AG19
AG24
AG25
AG27
AG28

AF15
AF19
AJ25

AH29

G19
H19
U27
U26

G20
G21
V27
W27

N25
Y27

M25
M27

N24
N26

P25
Y25
N27
R24
P27
R25
R26
R27

U25
W24

D29
C29
C25
D25
E19

G15

B29
E24
E18
H15

L27

T25
T27

F19
F15

MEMORY INTERFACE A

MA0_CLK_H(2)
MA0_CLK_L(2)
MA0_CLK_H(1)
MA0_CLK_L(1)
MA0_CLK_H(0)
MA0_CLK_L(0)

MA0_CS_L(1)
MA0_CS_L(0)

MA0_ODT(0)
MA1_CLK_H(2)

MA1_CLK_L(2)
MA1_CLK_H(1)
MA1_CLK_L(1)
MA1_CLK_H(0)
MA1_CLK_L(0)

MA1_CS_L(1)
MA1_CS_L(0)

MA1_ODT(0)

MA_CAS_L
MA_WE_L
MA_RAS_L

MA_BANK(2)
MA_BANK(1)
MA_BANK(0)

MA_CKE(1)
MA_CKE(0)

MA_ADD(15)
MA_ADD(14)
MA_ADD(13)
MA_ADD(12)
MA_ADD(11)
MA_ADD(10)
MA_ADD(9)
MA_ADD(8)
MA_ADD(7)
MA_ADD(6)
MA_ADD(5)
MA_ADD(4)
MA_ADD(3)
MA_ADD(2)
MA_ADD(1)
MA_ADD(0)

MA_DQS_H(7)
MA_DQS_L(7)
MA_DQS_H(6)
MA_DQS_L(6)
MA_DQS_H(5)
MA_DQS_L(5)
MA_DQS_H(4)
MA_DQS_L(4)
MA_DQS_H(3)
MA_DQS_L(3)
MA_DQS_H(2)
MA_DQS_L(2)
MA_DQS_H(1)
MA_DQS_L(1)
MA_DQS_H(0)
MA_DQS_L(0)

MA_DM(7)
MA_DM(6)
MA_DM(5)
MA_DM(4)
MA_DM(3)
MA_DM(2)
MA_DM(1)
MA_DM(0)

CPU1B

CPU1B

4

MA_DATA(63)
MA_DATA(62)
MA_DATA(61)
MA_DATA(60)
MA_DATA(59)
MA_DATA(58)
MA_DATA(57)
MA_DATA(56)
MA_DATA(55)
MA_DATA(54)
MA_DATA(53)
MA_DATA(52)
MA_DATA(51)
MA_DATA(50)
MA_DATA(49)
MA_DATA(48)
MA_DATA(47)
MA_DATA(46)
MA_DATA(45)
MA_DATA(44)
MA_DATA(43)
MA_DATA(42)
MA_DATA(41)
MA_DATA(40)
MA_DATA(39)
MA_DATA(38)
MA_DATA(37)
MA_DATA(36)
MA_DATA(35)
MA_DATA(34)
MA_DATA(33)
MA_DATA(32)
MA_DATA(31)
MA_DATA(30)
MA_DATA(29)
MA_DATA(28)
MA_DATA(27)
MA_DATA(26)
MA_DATA(25)
MA_DATA(24)
MA_DATA(23)
MA_DATA(22)
MA_DATA(21)
MA_DATA(20)
MA_DATA(19)
MA_DATA(18)
MA_DATA(17)
MA_DATA(16)
MA_DATA(15)
MA_DATA(14)
MA_DATA(13)
MA_DATA(12)
MA_DATA(11)
MA_DATA(10)

MA_DATA(9)
MA_DATA(8)
MA_DATA(7)
MA_DATA(6)
MA_DATA(5)
MA_DATA(4)
MA_DATA(3)
MA_DATA(2)
MA_DATA(1)
MA_DATA(0)

MA_DQS_H(8)

MA_DQS_L(8)

MA_DM(8)

MA_CHECK(7)
MA_CHECK(6)
MA_CHECK(5)
MA_CHECK(4)
MA_CHECK(3)
MA_CHECK(2)
MA_CHECK(1)
MA_CHECK(0)

AE14
AG14
AG16
AD17
AD13
AE13
AG15
AE16
AG17
AE18
AD21
AG22
AE17
AF17
AF21
AE21
AF23
AE23
AJ26
AG26
AE22
AG23
AH25
AF25
AJ28
AJ29
AF29
AE26
AJ27
AH27
AG29
AF27
E29
E28
D27
C27
G26
F27
C28
E27
F25
E25
E23
D23
E26
C26
G23
F23
E22
E21
F17
G17
G22
F21
G18
E17
G16
E15
G13
H13
H17
E16
E14
G14

J28
J27

J25
K25

J26
G28
G27
L24
K27
H29
H27

MEM_MA_DATA63
MEM_MA_DATA62
MEM_MA_DATA61
MEM_MA_DATA60
MEM_MA_DATA59
MEM_MA_DATA58
MEM_MA_DATA57
MEM_MA_DATA56
MEM_MA_DATA55
MEM_MA_DATA54
MEM_MA_DATA53
MEM_MA_DATA52
MEM_MA_DATA51
MEM_MA_DATA50
MEM_MA_DATA49
MEM_MA_DATA48
MEM_MA_DATA47
MEM_MA_DATA46
MEM_MA_DATA45
MEM_MA_DATA44
MEM_MA_DATA43
MEM_MA_DATA42
MEM_MA_DATA41
MEM_MA_DATA40
MEM_MA_DATA39
MEM_MA_DATA38
MEM_MA_DATA37
MEM_MA_DATA36
MEM_MA_DATA35
MEM_MA_DATA34
MEM_MA_DATA33
MEM_MA_DATA32
MEM_MA_DATA31
MEM_MA_DATA30
MEM_MA_DATA29
MEM_MA_DATA28
MEM_MA_DATA27
MEM_MA_DATA26
MEM_MA_DATA25
MEM_MA_DATA24
MEM_MA_DATA23
MEM_MA_DATA22
MEM_MA_DATA21
MEM_MA_DATA20
MEM_MA_DATA19
MEM_MA_DATA18
MEM_MA_DATA17
MEM_MA_DATA16
MEM_MA_DATA15
MEM_MA_DATA14
MEM_MA_DATA13
MEM_MA_DATA12
MEM_MA_DATA11
MEM_MA_DATA10
MEM_MA_DATA9
MEM_MA_DATA8
MEM_MA_DATA7
MEM_MA_DATA6
MEM_MA_DATA5
MEM_MA_DATA4
MEM_MA_DATA3
MEM_MA_DATA2
MEM_MA_DATA1
MEM_MA_DATA0

MEM_MA_DATA[63..0] 10

3

MEM_MB0_CLK_H210,11
MEM_MB0_CLK_L210,11
MEM_MB0_CLK_H110,11
MEM_MB0_CLK_L110,11

MEM_MB0_CLK_H010,11
MEM_MB0_CLK_L010,11

MEM_MB0_CS_L110,11

MEM_MB0_CS_L010,11

MEM_MB0_ODT010,11

MEM_MB_CAS_L10,11
MEM_MB_WE_L10,11
MEM_MB_RAS_L10,11

MEM_MB_BANK210,11
MEM_MB_BANK110,11
MEM_MB_BANK010,11

MEM_MB_CKE010,11

MEM_MB_ADD[15..0]10,11

MEM_MB_DQS_H710
MEM_MB_DQS_L710
MEM_MB_DQS_H610
MEM_MB_DQS_L610
MEM_MB_DQS_H510
MEM_MB_DQS_L510
MEM_MB_DQS_H410
MEM_MB_DQS_L410
MEM_MB_DQS_H310
MEM_MB_DQS_L310
MEM_MB_DQS_H210
MEM_MB_DQS_L210
MEM_MB_DQS_H110
MEM_MB_DQS_L110
MEM_MB_DQS_H010
MEM_MB_DQS_L010

MEM_MB_DM710
MEM_MB_DM610
MEM_MB_DM510
MEM_MB_DM410
MEM_MB_DM310
MEM_MB_DM210
MEM_MB_DM110
MEM_MB_DM010

MEM_MB0_CLK_H2
MEM_MB0_CLK_L2
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CLK_H0
MEM_MB0_CLK_L0

MEM_MB0_CS_L1
MEM_MB0_CS_L0

MEM_MB0_ODT0

MEM_MB_CAS_L
MEM_MB_WE_L
MEM_MB_RAS_L

MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

MEM_MB_CKE0

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12
MEM_MB_ADD11
MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB_DQS_H7
MEM_MB_DQS_L7
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H0
MEM_MB_DQS_L0

MEM_MB_DM7
MEM_MB_DM6
MEM_MB_DM5
MEM_MB_DM4
MEM_MB_DM3
MEM_MB_DM2
MEM_MB_DM1
MEM_MB_DM0

AC31
AD29

AD31

AC29
AC30

AH17

AJ19
AK19

U31
U30

AE30

AL19
AL18

C19

D19
W29
W28

AE29
AB31

AB29

N31

AA31
AA28

M31
M29

N28

N29

AE31

N30

P29

AA29

P31

R29

R28

R31

R30

T31

T29

U29

U28

AA30
AK13

AJ13
AK17
AJ17
AK23
AL23
AL28
AL29

D31

C31

C24

C23

D17

C17

C14

C13

AJ14
AJ23

AK29

C30

A23

B17

B13

A18
A19

2

MEMORY INTERFACE B

MEMORY INTERFACE B

MB0_CLK_H(2)
MB0_CLK_L(2)
MB0_CLK_H(1)
MB0_CLK_L(1)
MB0_CLK_H(0)
MB0_CLK_L(0)

MB0_CS_L(1)
MB0_CS_L(0)

MB0_ODT(0)
MB1_CLK_H(2)

MB1_CLK_L(2)
MB1_CLK_H(1)
MB1_CLK_L(1)
MB1_CLK_H(0)
MB1_CLK_L(0)

MB1_CS_L(1)
MB1_CS_L(0)

MB1_ODT(0)

MB_CAS_L
MB_WE_L
MB_RAS_L

MB_BANK(2)
MB_BANK(1)
MB_BANK(0)

MB_CKE(1)
MB_CKE(0)

MB_ADD(15)
MB_ADD(14)
MB_ADD(13)
MB_ADD(12)
MB_ADD(11)
MB_ADD(10)
MB_ADD(9)
MB_ADD(8)
MB_ADD(7)
MB_ADD(6)
MB_ADD(5)
MB_ADD(4)
MB_ADD(3)
MB_ADD(2)
MB_ADD(1)
MB_ADD(0)

MB_DQS_H(7)
MB_DQS_L(7)
MB_DQS_H(6)
MB_DQS_L(6)
MB_DQS_H(5)
MB_DQS_L(5)
MB_DQS_H(4)
MB_DQS_L(4)
MB_DQS_H(3)
MB_DQS_L(3)
MB_DQS_H(2)
MB_DQS_L(2)
MB_DQS_H(1)
MB_DQS_L(1)
MB_DQS_H(0)
MB_DQS_L(0)

MB_DM(7)
MB_DM(6)
MB_DM(5)
MB_DM(4)
MB_DM(3)
MB_DM(2)
MB_DM(1)
MB_DM(0)

CPU1C

CPU1C

MB_DATA(63)
MB_DATA(62)
MB_DATA(61)
MB_DATA(60)
MB_DATA(59)
MB_DATA(58)
MB_DATA(57)
MB_DATA(56)
MB_DATA(55)
MB_DATA(54)
MB_DATA(53)
MB_DATA(52)
MB_DATA(51)
MB_DATA(50)
MB_DATA(49)
MB_DATA(48)
MB_DATA(47)
MB_DATA(46)
MB_DATA(45)
MB_DATA(44)
MB_DATA(43)
MB_DATA(42)
MB_DATA(41)
MB_DATA(40)
MB_DATA(39)
MB_DATA(38)
MB_DATA(37)
MB_DATA(36)
MB_DATA(35)
MB_DATA(34)
MB_DATA(33)
MB_DATA(32)
MB_DATA(31)
MB_DATA(30)
MB_DATA(29)
MB_DATA(28)
MB_DATA(27)
MB_DATA(26)
MB_DATA(25)
MB_DATA(24)
MB_DATA(23)
MB_DATA(22)
MB_DATA(21)
MB_DATA(20)
MB_DATA(19)
MB_DATA(18)
MB_DATA(17)
MB_DATA(16)
MB_DATA(15)
MB_DATA(14)
MB_DATA(13)
MB_DATA(12)
MB_DATA(11)
MB_DATA(10)

MB_DATA(9)
MB_DATA(8)
MB_DATA(7)
MB_DATA(6)
MB_DATA(5)
MB_DATA(4)
MB_DATA(3)
MB_DATA(2)
MB_DATA(1)
MB_DATA(0)

MB_DQS_H(8)

MB_DQS_L(8)

MB_DM(8)

MB_CHECK(7)
MB_CHECK(6)
MB_CHECK(5)
MB_CHECK(4)
MB_CHECK(3)
MB_CHECK(2)
MB_CHECK(1)
MB_CHECK(0)

AH13
AL13
AL15
AJ15
AF13
AG13
AL14
AK15
AL16
AL17
AK21
AL21
AH15
AJ16
AH19
AL20
AJ22
AL22
AL24
AK25
AJ21
AH21
AH23
AJ24
AL27
AK27
AH31
AG30
AL25
AL26
AJ30
AJ31
E31
E30
B27
A27
F29
F31
A29
A28
A25
A24
C22
D21
A26
B25
B23
A22
B21
A20
C16
D15
C21
A21
A17
A16
B15
A14
E13
F13
C15
A15
A13
D13

J31
J30

J29
K29

K31
G30
G29
L29
L28
H31
G31

MEM_MB_DATA63
MEM_MB_DATA62
MEM_MB_DATA61
MEM_MB_DATA60
MEM_MB_DATA59
MEM_MB_DATA58
MEM_MB_DATA57
MEM_MB_DATA56
MEM_MB_DATA55
MEM_MB_DATA54
MEM_MB_DATA53
MEM_MB_DATA52
MEM_MB_DATA51
MEM_MB_DATA50
MEM_MB_DATA49
MEM_MB_DATA48
MEM_MB_DATA47
MEM_MB_DATA46
MEM_MB_DATA45
MEM_MB_DATA44
MEM_MB_DATA43
MEM_MB_DATA42
MEM_MB_DATA41
MEM_MB_DATA40
MEM_MB_DATA39
MEM_MB_DATA38
MEM_MB_DATA37
MEM_MB_DATA36
MEM_MB_DATA35
MEM_MB_DATA34
MEM_MB_DATA33
MEM_MB_DATA32
MEM_MB_DATA31
MEM_MB_DATA30
MEM_MB_DATA29
MEM_MB_DATA28
MEM_MB_DATA27
MEM_MB_DATA26
MEM_MB_DATA25
MEM_MB_DATA24
MEM_MB_DATA23
MEM_MB_DATA22
MEM_MB_DATA21
MEM_MB_DATA20
MEM_MB_DATA19
MEM_MB_DATA18
MEM_MB_DATA17
MEM_MB_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_DATA13
MEM_MB_DATA12
MEM_MB_DATA11
MEM_MB_DATA10
MEM_MB_DATA9
MEM_MB_DATA8
MEM_MB_DATA7
MEM_MB_DATA6
MEM_MB_DATA5
MEM_MB_DATA4
MEM_MB_DATA3
MEM_MB_DATA2
MEM_MB_DATA1
MEM_MB_DATA0

1

MEM_MB_DATA[63..0] 10

A A

Title

Title

Title

CPU-Memory

CPU-Memory

CPU-Memory

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

1

of

735Friday, September 22, 2006

735Friday, September 22, 2006

735Friday, September 22, 2006

5

www.kythuatvitinh.com

SLOTOCC#_CPU 27

VCORE

CPU1F

CPU1F

VDD1

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20
VDD21
VDD22
VDD23
VDD24
VDD25
VDD26
VDD27
VDD28
VDD29
VDD30
VDD31
VDD32
VDD33
VDD34
VDD35
VDD36
VDD37
VDD38
VDD39
VDD40
VDD41
VDD42
VDD43
VDD44
VDD45
VDD46
VDD47
VDD48
VDD49
VDD50
VDD51
VDD52
VDD53
VDD54
VDD55
VDD56
VDD57
VDD58
VDD59
VDD60
VDD61
VDD62
VDD63
VDD64
VDD65
VDD66
VDD67
VDD68
VDD69
VDD70
VDD71
VDD72
VDD73
VDD74
VDD75
VDD150
VDD151

VDD1

A4
A6

AA8

AA10

D D

C C

B B

AA12
AA14
AA16
AA18

AB7
AB9

AB11

AC4
AC5
AC8

AC10

AD2
AD3
AD7
AD9

AE10

AF7
AF9
AG4
AG5
AG7
AH2
AH3

E10

F11

G10
G12

H11
H23

J12
J14
J16
J18
J20
J22
J24

K11
K13
K15
K17
K19
K21
K23

L10

L12
Y17
Y19

B3
B5

B7
C2
C4
C6
C8
D3
D5
D7
D9
E4
E6
E8

F5
F7
F9

G6
G8

H7

J8

K7
K9

L4

L5

L8

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74

VSS240
VSS241

A3
A7
A9
A11
AA4
AA5
AA7
AA9
AA11
AA13
AA15
AA17
AA19
AA21
AA23
AB2
AB3
AB8
AB10
AB12
AB14
AB16
AB18
AB20
AB22
AC7
AC9
AC11
AC13
AC15
AC17
AC19
AC21
AC23
AD8
AD10
AD12
AD14
AD16
AD20
AD22
AD24
AE4
AE5
AE9
AE11
AF2
AF3
AF8
AF10
AF12
AF14
AF16
AF18
AF20
AF22
AF24
AF26
AF28
AG10
AG11
AH14
AH16
AH18
AH20
AH22
AH24
AH26
AH28
AH30
AK2
AK14
AK16
AK18
Y14
Y16

VCORE

M11
M13
M15
M17
M19

N10
N12
N14
N16
N18

P11
P13
P15
P17
P19

R10
R12
R14
R16
R18
R20

T11
T13
T15
T17
T19
T21

U10
U12
U14
U16
U18
U20

V11
V13
V15
V17
V19
V21

W10
W12
W14
W16
W18
W20

Y11
Y13
Y15
Y21

L14

VDD1

L16

VDD2

L18

VDD3

M2

VDD4

M3

VDD5

M7

VDD6

M9

VDD7
VDD8
VDD9
VDD10
VDD11
VDD12

N8

VDD13
VDD14
VDD15
VDD16
VDD17
VDD18

P7

VDD19

P9

VDD20
VDD21
VDD22
VDD23
VDD24
VDD25

R4

VDD26

R5

VDD27

R8

VDD28
VDD29
VDD30
VDD31
VDD32
VDD33
VDD34

T2

VDD35

T3

VDD36

T7

VDD37

T9

VDD38
VDD39
VDD40
VDD41
VDD42
VDD43
VDD44

U8

VDD45
VDD46
VDD47
VDD48
VDD49
VDD50
VDD51

V9

VDD52
VDD53
VDD54
VDD55
VDD56
VDD57
VDD58

W4

VDD59

W5

VDD60

W8

VDD61
VDD62
VDD63
VDD64
VDD65
VDD66
VDD67

Y2

VDD68

Y3

VDD69

Y7

VDD70

Y9

VDD71
VDD72
VDD73
VDD74
VDD75

CPU1G

CPU1G

VDD2

VDD2

4

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75

AK20
AK22
AK24
AK26
AK28
AK30
AL5
B4
B9
B11
B14
B16
B18
B20
B22
B24
B26
B28
B30
C3
D14
D16
D18
D20
D22
D24
D26
D28
D30
E11
F4
F14
F16
F18
F20
F22
F24
F26
F28
F30
G9
G11
H8
H10
H12
H14
H16
H18
H22
H24
H26
H28
H30
J4
J5
J7
J9
J11
J13
J15
J17
J19
J21
J23
K2
K3
K8
K10
K12
K14
K16
K18
K20
K22
Y18

VCORE

AA20
AA22
AB13
AB15
AB17
AB19
AB21
AB23
AC12
AC14
AC16
AC18
AC20
AC22
AD11
AD23
AE12
AF11

L20

L22
M21
M23
N20
N22

P21

P23
R22

T23
U22

V23

W22

Y23

3

CPU1H

CPU1H

VDD3

VDD3

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20
VDD21
VDD22
VDD23
VDD24
VDD25
VDD26
VDD27
VDD28
VDD29
VDD30
VDD31
VDD32

5

GND

6

GND

7

GND

8

GND

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS65

N17
N19
N21
N23
P2
P3
P8
P10
P12
P14
P16
P18
P20
P22
R7
R9
R11
R13
R15
R17
R19
R21
R23
T8
T10
T12
T14
T16
T18
T20
T22
U4
U5
U7
U9
U11
U13
U15
U17
U19
U21
U23
V2
V3
V10
V12
V14
V16
V18
V20
V22
W9
W11
W13
W15
W17
W19
W21
W23
Y8
Y10
Y12
W7
Y20
Y22

VCC_DDR

VCC1_2HT

VTT_DDR

AJ4
AJ3
AJ2
AJ1

D12
C12
B12
A12

AB24
AB26
AB28
AB30
AC24
AD26
AD28
AD30
AF30

M24
M26
M28
M30
P24
P26
P28
P30
T24
T26
T28
T30
V25
V26
V28
V30
Y24
Y26
Y28
Y29

VLDT_A1
VLDT_A2
VLDT_A3
VLDT_A4

VTT1
VTT2
VTT3
VTT4

VDDIO1
VDDIO2
VDDIO3
VDDIO4
VDDIO5
VDDIO6
VDDIO7
VDDIO8
VDDIO9
VDDIO10
VDDIO11
VDDIO12
VDDIO13
VDDIO14
VDDIO15
VDDIO16
VDDIO17
VDDIO18
VDDIO19
VDDIO20
VDDIO21
VDDIO22
VDDIO23
VDDIO24
VDDIO25
VDDIO26
VDDIO27
VDDIO28
VDDIO29

CPU1I

CPU1I

VDDIO

VDDIO

2

VLDT_B1
VLDT_B2
VLDT_B3
VLDT_B4

VTT5
VTT6
VTT7
VTT8
VTT9

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28

H6
H5
H2
H1

AK12
AJ12
AH12
AG12
AL12

K24
K26
K28
K30
L7
L9
L11
L13
L15
L17
L19
L21
L23
M8
M10
M12
M14
M16
M18
M20
M22
N4
N5
N7
N9
N11
N13
N15

VLDT_RUN_B

VTT_DDR

C86

C86
C4.7u10Y/8

C4.7u10Y/8

C81

C81
X_C103p50X/6

X_C103p50X/6

C82

C82
X_C103p50X/6

X_C103p50X/6

1

C85

C85
X_C103p50X/6

X_C103p50X/6

A A

Title

Title

Title

CPU-Power & GND

CPU-Power & GND

CPU-Power & GND

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

835Friday, September 22, 2006

835Friday, September 22, 2006

835Friday, September 22, 2006

of

of

1

of

5

www.kythuatvitinh.com

4

3

2

1

VTT_DDR

C188

C194

C194
X_C180p50N/4

X_C180p50N/4

C189

C189
C180p50N/4

C180p50N/4

C466

C466
C10u6.3X/1206/B

C10u6.3X/1206/B

C188
C102p50X/6

C102p50X/6

C39

C39
C102p50X/6

C102p50X/6

C55

C55
C102p50X/6

C102p50X/6

C23

C23
C102p50X/6

C102p50X/6

C457

C457
C10u6.3X/1206/B

C10u6.3X/1206/B

C462

C462
C10u6.3X/1206/B

C10u6.3X/1206/B

C66

C48

C48
C0.22u16X/6

C0.22u16X/6

C177

C177
C0.22u16X/6

C0.22u16X/6

C66
C4.7u10Y/8

C4.7u10Y/8

C62

C62
X_C4.7u10Y/8

X_C4.7u10Y/8

C454

C454
C10u6.3X/1206/B

C10u6.3X/1206/B

C448

C448
C10u6.3X/1206/B

C10u6.3X/1206/B

C47

C47
C0.22u16X/6

D D

C C

B B

C0.22u16X/6

VTT_DDR

C181

C181
C0.22u16X/6

C0.22u16X/6

VCORE

C463

C463
C10u6.3X/1206/B

C10u6.3X/1206/B

VCORE

C458

C458
C10u6.3X/1206/B

C10u6.3X/1206/B

C58

C58
C4.7u10Y/8

C4.7u10Y/8

C192

C192
C4.7u10Y/8

C4.7u10Y/8

C259

C259
X_C180p50N/4

X_C180p50N/4

C168

C168
X_C180p50N/4

X_C180p50N/4

C443

C443
X_C22u6.3X/1206/B

X_C22u6.3X/1206/B

C440

C440
C10u6.3X/1206/B

C10u6.3X/1206/B

VCC_DDR

VCC_DDR

C447

C447
C10u6.3X/1206/B

C10u6.3X/1206/B

C453

C453
X_C22u6.3X/1206/B

X_C22u6.3X/1206/B

C456

C456
X_C22u6.3X/1206/B

X_C22u6.3X/1206/B

C171

C171
X_C22u6.3X/1206

X_C22u6.3X/1206

C469

C469
C0.22u16X/6/B

C0.22u16X/6/B

C450

C450
X_C0.22u16X/6/B

X_C0.22u16X/6/B

C442

C442
X_C22u6.3X/1206/B

X_C22u6.3X/1206/B

C155

C155
C2.2u6.3X/6

C2.2u6.3X/6

C173

C173
C0.22u16X/6

C0.22u16X/6

C439

C439
C10u6.3X/1206/B

C10u6.3X/1206/B

C136

C136
X_C22u6.3X/1206

X_C22u6.3X/1206

C90

C90
C0.22u16X/6

C0.22u16X/6

C444

C444
X_C0.22u16X/6/B

X_C0.22u16X/6/B

C92

C92
C2.2u6.3X/6

C2.2u6.3X/6

C97

C97
C2.2u6.3X/6

C2.2u6.3X/6

C73

C73
X_C22u6.3X/1206

X_C22u6.3X/1206

C146

C146
C103p50X/6

C103p50X/6

C461

C461
C10u6.3X/1206/B

C10u6.3X/1206/B

C91

C91
C180p50N/4

C180p50N/4

VCC1_2HT

C156

C156
C0.22u16X/6

C0.22u16X/6

VCC1_2HT

C191

C191
X_C4.7u16Y/1206

X_C4.7u16Y/1206

C159

C159
C0.22u16X/6

C0.22u16X/6

C166

C166
C4.7u16Y/1206

C4.7u16Y/1206

C174

C174
X_C0.22u16X/6

X_C0.22u16X/6

C179

C179
C0.22u16X/6

C0.22u16X/6

C162

C162
X_C0.22u16X/6

X_C0.22u16X/6

C187

C187
X_C0.22u16X/6

X_C0.22u16X/6

C182

C182
C4.7u16Y/1206

C4.7u16Y/1206

C185

C185
X_C0.22u16X/6

X_C0.22u16X/6

C93

C470

C437

C437
X_C0.22u16X/6/B

X_C0.22u16X/6/B

A A

C470
X_C0.22u16X/6/B

X_C0.22u16X/6/B

C436

C436
X_C0.22u16X/6/B

X_C0.22u16X/6/B

5

C93
C180p50N/4

C180p50N/4

C438

C438
X_C103p50X/6/B

X_C103p50X/6/B

Title

Title

Title

CPU-Decoupling

CPU-Decoupling

CPU-Decoupling

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

4

3

2

Date: Sheet

1

of

935Thursday, September 14, 2006

of

935Thursday, September 14, 2006

of

935Thursday, September 14, 2006

5

www.kythuatvitinh.com

DIMM1

DIMM1

102

68

19

MEM_MA_DATA[63..0]7

D D

C C

B B

MEM_MA_DATA0
MEM_MA_DATA1
MEM_MA_DATA2
MEM_MA_DATA3
MEM_MA_DATA4
MEM_MA_DATA5
MEM_MA_DATA6
MEM_MA_DATA7
MEM_MA_DATA8
MEM_MA_DATA9
MEM_MA_DATA10
MEM_MA_DATA11
MEM_MA_DATA12
MEM_MA_DATA13
MEM_MA_DATA14
MEM_MA_DATA15
MEM_MA_DATA16
MEM_MA_DATA17
MEM_MA_DATA18
MEM_MA_DATA19
MEM_MA_DATA20
MEM_MA_DATA21
MEM_MA_DATA22
MEM_MA_DATA23
MEM_MA_DATA24
MEM_MA_DATA25
MEM_MA_DATA26
MEM_MA_DATA27
MEM_MA_DATA28
MEM_MA_DATA29
MEM_MA_DATA30
MEM_MA_DATA31
MEM_MA_DATA32
MEM_MA_DATA33
MEM_MA_DATA34
MEM_MA_DATA35
MEM_MA_DATA36
MEM_MA_DATA37
MEM_MA_DATA38
MEM_MA_DATA39
MEM_MA_DATA40
MEM_MA_DATA41
MEM_MA_DATA42
MEM_MA_DATA43
MEM_MA_DATA44
MEM_MA_DATA45
MEM_MA_DATA46
MEM_MA_DATA47
MEM_MA_DATA48
MEM_MA_DATA49
MEM_MA_DATA50
MEM_MA_DATA51
MEM_MA_DATA52
MEM_MA_DATA53
MEM_MA_DATA54
MEM_MA_DATA55
MEM_MA_DATA56
MEM_MA_DATA57
MEM_MA_DATA58
MEM_MA_DATA59
MEM_MA_DATA60
MEM_MA_DATA61
MEM_MA_DATA62
MEM_MA_DATA63

55

NC

NC

3

RC118RC0

DQ0

4

DQ1

9

DQ2

10

DQ3

122

DQ4

123

DQ5

128

DQ6

129

DQ7

12

DQ8

13

DQ9

21

DQ10

22

DQ11

131

DQ12

132

DQ13

140

DQ14

141

DQ15

24

DQ16

25

DQ17

30

DQ18

31

DQ19

143

DQ20

144

DQ21

149

DQ22

150

DQ23

33

DQ24

34

DQ25

39

DQ26

40

DQ27

152

DQ28

153

DQ29

158

DQ30

159

DQ31

80

DQ32

81

DQ33

86

DQ34

87

DQ35

199

DQ36

200

DQ37

205

DQ38

206

DQ39

89

DQ40

90

DQ41

95

DQ42

96

DQ43

208

DQ44

209

DQ45

214

DQ46

215

DQ47

98

DQ48

99

DQ49

107

DQ50

108

DQ51

217

DQ52

218

DQ53

226

DQ54

227

DQ55

110

DQ56

111

DQ57

116

DQ58

117

DQ59

229

DQ60

230

DQ61

235

DQ62

236

DQ63

2

VSS

5

VSS

8

VSS

11

VSS

14

VSS

17

VSS

20

VSS

23

VSS

26

VSS

29

VSS

32

VSS

35

VSS

38

VSS

41

VSS

44

VSS

47

VSS

50

VSS

65

VSS

66

VSS

79

VSS

82

VSS

85

VSS

88

VSS

91

VSS

94

VSS

97

VSS

100

VSS

VSS

103

106

VSS

109

NC/TEST

VSS

VSS

112

115

VDD051VDD156VDD262VDD372VDD478VDD5

VSS

VSS

VSS

118

121

170

197

181

142

VDD7

VSS

175

VDD8

VSS

145

VDDQ0

VDDQ153VDDQ259VDDQ364VDDQ4

VSS

VSS

VSS

148

151

154

VDDQ469VDDQ7

VSS

VSS

VSS

157

160

163

172

166

191

194

75

VDD6

VDD3

VSS

VSS

VSS

VSS

VSS

VSS

124

127

130

133

136

139

187

VDDQ5

VSS

169

184

VDDQ6

VSS

198

178

VDDQ7

VSS

VSS

201

189

VDDQ8

VSS

204

67

VDDQ9

VSS

207

210

238

VSS

213

VDDSPD

VSS

4

CB042CB143CB248CB349CB4

VSS

VSS

216

219

222

VSS

225

161

DM0/DQS9

NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#

CK1#(CK0#)

VSS

VSS

228

231

162

167

168

CB5

CB6

CB7

MEM_MA_DQS_H0

7

DQS0

MEM_MA_DQS_L0

6

DQS0#

MEM_MA_DQS_H1

16

DQS1

MEM_MA_DQS_L1

15

DQS1#

MEM_MA_DQS_H2

28

DQS2

MEM_MA_DQS_L2

27

DQS2#

MEM_MA_DQS_H3

37

DQS3

MEM_MA_DQS_L3

36

DQS3#

MEM_MA_DQS_H4

84

DQS4

MEM_MA_DQS_L4 MEM_MB_DATA10

83

DQS4#

MEM_MA_DQS_H5

93

DQS5

MEM_MA_DQS_L5

92

DQS5#

MEM_MA_DQS_H6

105

DQS6

MEM_MA_DQS_L6

104

DQS6#

MEM_MA_DQS_H7

114

DQS7

MEM_MA_DQS_L7

113

DQS7#

46

DQS8

45

DQS8#

MEM_MA_ADD0

188

A0

MEM_MA_ADD1

183

A1

MEM_MA_ADD2

63

A2

MEM_MA_ADD3

182

A3

MEM_MA_ADD4

61

A4

MEM_MA_ADD5

60

A5

MEM_MA_ADD6

180

A6

MEM_MA_ADD7

58

A7

MEM_MA_ADD8

179

A8

MEM_MA_ADD9

177

A9

MEM_MA_ADD10

70

A10_AP

MEM_MA_ADD11

57

A11

MEM_MA_ADD12

176

A12

MEM_MA_ADD13

196

A13

MEM_MA_ADD14

174

A14

MEM_MA_ADD15

173

A15

MEM_MA_BANK2

54

A16/BA2

MEM_MA_BANK1

190

BA1

MEM_MA_BANK0

71

BA0

MEM_MA_WE_L

73

WE#

MEM_MA_CAS_L

74

CAS#

MEM_MA_RAS_L

192

RAS#

MEM_MA_DM0

125
126

MEM_MA_DM1

134
135

MEM_MA_DM2

146
147

MEM_MA_DM3

155
156

MEM_MA_DM4

202
203

MEM_MA_DM5

211
212

MEM_MA_DM6

223
224

MEM_MA_DM7

232
233
164
165

MEM_MA0_ODT0

195

ODT0

77

ODT1

52

CKE0

171

CKE1

MEM_MA0_CS_L0

193

CS0#

MEM_MA0_CS_L1

76

CS1#

MEM_MA0_CLK_H0

185

CK0(DU)

MEM_MA0_CLK_L0

186

CK0#(DU)

MEM_MA0_CLK_H1

137

CK1(CK0)

MEM_MA0_CLK_L1

138

MEM_MA0_CLK_H2

220

CK2(DU)

MEM_MA0_CLK_L2

221

CK2#(DU)

SMB_MEM_CLK

120

SCL

SMB_MEM_DATA

119

SDA

VDDR_VREF

1

VREF

239

SA0

240

SA1

101

SA2

VSS

VSS

VSS

DDRII-240_GREEN

DDRII-240_GREEN

234

237

ADDRESS: 1010 000(A0)

MEM_MA_DQS_H0 7
MEM_MA_DQS_L0 7
MEM_MA_DQS_H1 7
MEM_MA_DQS_L1 7
MEM_MA_DQS_H2 7
MEM_MA_DQS_L2 7
MEM_MA_DQS_H3 7
MEM_MA_DQS_L3 7
MEM_MA_DQS_H4 7
MEM_MA_DQS_L4 7
MEM_MA_DQS_H5 7
MEM_MA_DQS_L5 7
MEM_MA_DQS_H6 7
MEM_MA_DQS_L6 7
MEM_MA_DQS_H7 7
MEM_MA_DQS_L7 7

MEM_MA_ADD[15..0] 7,11

MEM_MA_BANK2 7,11
MEM_MA_BANK1 7,11
MEM_MA_BANK0 7,11

MEM_MA_WE_L 7,11
MEM_MA_CAS_L 7,11
MEM_MA_RAS_L 7,11

MEM_MA_DM[7..0] MEM_MB_DM[7..0]

MEM_MA0_ODT0 7,11

MEM_MA_CKE0 7,11

MEM_MA0_CS_L0 7,11
MEM_MA0_CS_L1 7,11

MEM_MA0_CLK_H0 7,11

MEM_MA0_CLK_L0 7,11

MEM_MA0_CLK_H1 7,11

MEM_MA0_CLK_L1 7,11

MEM_MA0_CLK_H2 7,11

MEM_MA0_CLK_L2 7,11

SMB_MEM_CLK 18

SMB_MEM_DATA 18

C42

C42
C0.1u10X/4

C0.1u10X/4

MEM_MB_DATA[63..0]7

MEM_MA_DM[7..0] 7 MEM_MB_DM[7..0] 7

3

DIMM2

MEM_MB_DATA0
MEM_MB_DATA1
MEM_MB_DATA2
MEM_MB_DATA3
MEM_MB_DATA4
MEM_MB_DATA5
MEM_MB_DATA6
MEM_MB_DATA7
MEM_MB_DATA8
MEM_MB_DATA9

MEM_MB_DATA11
MEM_MB_DATA12
MEM_MB_DATA13
MEM_MB_DATA14
MEM_MB_DATA15
MEM_MB_DATA16
MEM_MB_DATA17
MEM_MB_DATA18
MEM_MB_DATA19
MEM_MB_DATA20
MEM_MB_DATA21
MEM_MB_DATA22
MEM_MB_DATA23
MEM_MB_DATA24
MEM_MB_DATA25
MEM_MB_DATA26
MEM_MB_DATA27
MEM_MB_DATA28
MEM_MB_DATA29
MEM_MB_DATA30
MEM_MB_DATA31
MEM_MB_DATA32
MEM_MB_DATA33
MEM_MB_DATA34
MEM_MB_DATA35
MEM_MB_DATA36
MEM_MB_DATA37
MEM_MB_DATA38
MEM_MB_DATA39
MEM_MB_DATA40
MEM_MB_DATA41
MEM_MB_DATA42
MEM_MB_DATA43
MEM_MB_DATA44
MEM_MB_DATA45
MEM_MB_DATA46
MEM_MB_DATA47
MEM_MB_DATA48
MEM_MB_DATA49
MEM_MB_DATA50
MEM_MB_DATA51
MEM_MB_DATA52
MEM_MB_DATA53
MEM_MB_DATA54
MEM_MB_DATA55
MEM_MB_DATA56
MEM_MB_DATA57
MEM_MB_DATA58
MEM_MB_DATA59
MEM_MB_DATA60
MEM_MB_DATA61
MEM_MB_DATA62
MEM_MB_DATA63

DIMM2

122
123
128
129

131
132
140
141

143
144
149
150

152
153
158
159

199
200
205
206

208
209
214
215

107
108
217
218
226
227
110
111
116
117
229
230
235
236

102

68

19

55

NC

3

RC118RC0

DQ0

4

DQ1

9

NC/TEST

DQ2

10

DQ3
DQ4
DQ5
DQ6
DQ7

12

DQ8

13

DQ9

21

DQ10

22

DQ11
DQ12
DQ13
DQ14
DQ15

24

DQ16

25

DQ17

30

DQ18

31

DQ19
DQ20
DQ21
DQ22
DQ23

33

DQ24

34

DQ25

39

DQ26

40

DQ27
DQ28
DQ29
DQ30
DQ31

80

DQ32

81

DQ33

86

DQ34

87

DQ35
DQ36
DQ37
DQ38
DQ39

89

DQ40

90

DQ41

95

DQ42

96

DQ43
DQ44
DQ45
DQ46
DQ47

98

DQ48

99

DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63

2

VSS

5

VSS

8

VSS

11

VSS

14

VSS

17

VSS

20

VSS

23

VSS

26

VSS

29

VSS

32

VSS

35

VSS

38

VSS

41

VSS

44

VSS

47

VSS

50

VSS

65

VSS

66

VSS

79

VSS

82

VSS

85

VSS

88

VSS

91

VSS

94

VSS

97

VSS

VSS

VSS

VSS

VSS

100

103

106

109

NC

VDD051VDD156VDD262VDD372VDD478VDD5

VSS

VSS

VSS

VSS

112

115

118

121

191

75

VDD3

VSS

VSS

VSS

VSS

VSS

124

127

130

133

136

2

VCC3VCC_DDRVCC3VCC_DDR

170

197

172

187

184

189

67

VDDQ153VDDQ259VDDQ364VDDQ4

VSS

VSS

VSS

151

154

157

160

VDDQ5

VDDQ6

VDDQ469VDDQ7

VSS

VSS

VSS

VSS

163

166

169

198

178

VDDQ7

VSS

201

VDDQ8

VSS

VSS

204

194

181

175

VDD6

VDD7

VDD8

VDDQ0

VSS

VSS

VSS

VSS

139

142

145

148

VDDQ9

VSS

207

210

VSS

238

VDDSPD

VSS

213

216

CB042CB143CB248CB349CB4

VSS

VSS

219

222

VSS

VSS

225

161

162

CB5
DQS0#
DQS1#
DQS2#
DQS3#
DQS4#
DQS5#
DQS6#
DQS7#
DQS8#

A10_AP

A16/BA2

DM0/DQS9

NC/DQS9#
DM1/DQS10
NC/DQS10#
DM2/DQS11
NC/DQS11#
DM3/DQS12
NC/DQS12#
DM4/DQS13
NC/DQS13#
DM5/DQS14
NC/DQS14#
DM6/DQS15
NC/DQS15#
DM7/DQS16
NC/DQS16#
DM8/DQS17
NC/DQS17#

CK0(DU)
CK0#(DU)
CK1(CK0)

CK1#(CK0#)

CK2(DU)
CK2#(DU)

VSS

VSS

VSS

228

231

234

167

168

CB6

CB7

7

DQS0

6
16

DQS1

15
28

DQS2

27
37

DQS3

36
84

DQS4

83
93

DQS5

92
105

DQS6

104
114

DQS7

113
46

DQS8

45
188

A0

183

A1

63

A2

182

A3

61

A4

60

A5

180

A6

58

A7

179

A8

177

A9

70
57

A11

176

A12

196

A13

174

A14

173

A15

54
190

BA1

71

BA0

73

WE#

74

CAS#

192

RAS#

125
126
134
135
146
147
155
156
202
203
211
212
223
224
232
233
164
165

195

ODT0

77

ODT1

52

CKE0

171

CKE1

193

CS0#

76

CS1#

185
186
137
138
220
221

120

SCL

119

SDA

1

VREF

239

SA0

240

SA1

101

SA2
VSS

DDRII-240_ORANGE

DDRII-240_ORANGE

237

MEM_MB_DQS_H0
MEM_MB_DQS_L0
MEM_MB_DQS_H1
MEM_MB_DQS_L1
MEM_MB_DQS_H2
MEM_MB_DQS_L2
MEM_MB_DQS_H3
MEM_MB_DQS_L3
MEM_MB_DQS_H4
MEM_MB_DQS_L4
MEM_MB_DQS_H5
MEM_MB_DQS_L5
MEM_MB_DQS_H6
MEM_MB_DQS_L6
MEM_MB_DQS_H7
MEM_MB_DQS_L7

MEM_MB_ADD0
MEM_MB_ADD1
MEM_MB_ADD2
MEM_MB_ADD3
MEM_MB_ADD4
MEM_MB_ADD5
MEM_MB_ADD6
MEM_MB_ADD7
MEM_MB_ADD8
MEM_MB_ADD9
MEM_MB_ADD10
MEM_MB_ADD11
MEM_MB_ADD12
MEM_MB_ADD13
MEM_MB_ADD14
MEM_MB_ADD15

MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

MEM_MB_WE_L
MEM_MB_CAS_L
MEM_MB_RAS_L

MEM_MB_DM0
MEM_MB_DM1
MEM_MB_DM2
MEM_MB_DM3
MEM_MB_DM4
MEM_MB_DM5
MEM_MB_DM6
MEM_MB_DM7

MEM_MB0_ODT0

MEM_MB0_CS_L0
MEM_MB0_CS_L1

MEM_MB0_CLK_H0
MEM_MB0_CLK_L0
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MB0_CLK_H2
MEM_MB0_CLK_L2

SMB_MEM_CLK
SMB_MEM_DATA

VDDR_VREF

VCC3

MEM_MB_DQS_H0 7
MEM_MB_DQS_L0 7
MEM_MB_DQS_H1 7
MEM_MB_DQS_L1 7
MEM_MB_DQS_H2 7
MEM_MB_DQS_L2 7
MEM_MB_DQS_H3 7
MEM_MB_DQS_L3 7
MEM_MB_DQS_H4 7
MEM_MB_DQS_L4 7
MEM_MB_DQS_H5 7
MEM_MB_DQS_L5 7
MEM_MB_DQS_H6 7
MEM_MB_DQS_L6 7
MEM_MB_DQS_H7 7
MEM_MB_DQS_L7 7

MEM_MB_BANK2 7,11
MEM_MB_BANK1 7,11
MEM_MB_BANK0 7,11

MEM_MB_WE_L 7,11
MEM_MB_CAS_L 7,11
MEM_MB_RAS_L 7,11

MEM_MB0_ODT0 7,11

MEM_MB_CKE0 7,11

MEM_MB0_CS_L0 7,11
MEM_MB0_CS_L1 7,11

MEM_MB0_CLK_H0 7,11

MEM_MB0_CLK_L0 7,11

MEM_MB0_CLK_H1 7,11

MEM_MB0_CLK_L1 7,11

MEM_MB0_CLK_H2 7,11

MEM_MB0_CLK_L2 7,11

SMB_MEM_CLK 18

SMB_MEM_DATA 18

C41

C41
X_C0.1u10X/4

X_C0.1u10X/4

PLACE CLOSE TO DIMM PINPLACE CLOSE TO DIMM PIN

MEM_MB_ADD[15..0] 7,11

1

ADDRESS: 1010 001(A2)

VCC_DDR

C29

C29

R35

R35

X_C0.1u10X/4

X_C0.1u10X/4

56.2R1%/6

56.2R1%/6

R33

R33

56.2R1%/6

56.2R1%/6

C33

C33

C36

C36

X_C0.1u10X/4

X_C0.1u10X/4

C102p50X/6

C102p50X/6

A A

5

4

SMB_MEM_CLK SMB_MEM_DATAVDDR_VREF

3

2

D15

D15
BAV99_SOT23

BAV99_SOT23

1

3VDUAL3VDUAL

3

2

D13

D13
BAV99_SOT23

BAV99_SOT23

1

3

Title

Title

Title

DIMM-DDR II

DIMM-DDR II

DIMM-DDR II

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

2

Date: Sheet

1

of

of

of

10 35Friday, September 22, 2006

10 35Friday, September 22, 2006

10 35Friday, September 22, 2006

5

www.kythuatvitinh.com

RTT:Place Behind DIMMs

VTT_DDR

RN16

RN16
8P4R-47R/4

MEM_MA_BANK27,10
MEM_MA_ADD147,10

D D

C C

VTT_DDR

B B

VTT_DDR

MEM_MB_ADD97,10

MEM_MB_ADD117,10
MEM_MA_ADD127,10
MEM_MB_ADD77,10
MEM_MA_ADD117,10

MEM_MA_ADD87,10
MEM_MA_ADD67,10
MEM_MA_ADD57,10
MEM_MB_ADD57,10 MEM_MA_ADD17,10

MEM_MB_ADD37,10
MEM_MA_ADD27,10
MEM_MB_ADD17,10
MEM_MB_ADD27,10

MEM_MB_BANK07,10
MEM_MA_BANK17,10
MEM_MA_ADD107,10

MEM_MB_RAS_L7,10

MEM_MA_WE_L7,10

MEM_MB_WE_L7,10

MEM_MA_CAS_L7,10
MEM_MA0_ODT07,10

MEM_MA_ADD137,10

MEM_MA0_CS_L17,10

C127

C127
C0.1u10X/4

C0.1u10X/4

C178

C178
X_C0.1u10X/4

X_C0.1u10X/4

C126

C126
C0.1u10X/4

C0.1u10X/4

C172

C172
X_C0.1u10X/4

X_C0.1u10X/4

MEM_MA_BANK2
MEM_MA_ADD14
MEM_MA_ADD15
MEM_MB_ADD9 MEM_MB_ADD11

MEM_MB_ADD11
MEM_MA_ADD12
MEM_MB_ADD7
MEM_MA_ADD11

MEM_MA_ADD8
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MB_ADD5

MEM_MB_ADD3
MEM_MA_ADD2
MEM_MB_ADD1
MEM_MB_ADD2

MEM_MB_BANK0
MEM_MA_BANK1
MEM_MA_ADD10
MEM_MB_RAS_L

MEM_MA_WE_L
MEM_MB_WE_L
MEM_MA_CAS_L
MEM_MA0_ODT0

MEM_MA_ADD13

MEM_MA0_CS_L1

C183

C121

C121
C0.1u10X/4

C0.1u10X/4

C183
C0.1u10X/4

C0.1u10X/4

C129

C129
X_C0.1u10X/4

X_C0.1u10X/4

C180

C180
X_C0.1u10X/4

X_C0.1u10X/4

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

C115

C115
C0.1u10X/4

C0.1u10X/4

8P4R-47R/4

2
4
6
8

RN17

RN17
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN20

RN20
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN22

RN22
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN24

RN24
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN26

RN26
8P4R-47R/4

8P4R-47R/4

2
4
6
8

R113

R113
47R/4

47R/4
R117

R117
47R/4

47R/4

C110

C110
C0.1u10X/4

C0.1u10X/4

C123

C123
C0.1u10X/4

C0.1u10X/4

C106

C106
C0.1u10X/4

C0.1u10X/4

C108

C108
C0.1u10X/4

C0.1u10X/4

MEM_MB_CKE07,10
MEM_MB_ADD157,10MEM_MA_ADD157,10
MEM_MB_ADD147,10

MEM_MA_ADD97,10
MEM_MA_ADD77,10
MEM_MB_ADD87,10
MEM_MB_ADD67,10

MEM_MA_ADD47,10
MEM_MA_ADD37,10
MEM_MB_ADD47,10

MEM_MB_ADD07,10
MEM_MB_BANK17,10

MEM_MA_ADD07,10
MEM_MB_ADD107,10

MEM_MA_BANK07,10
MEM_MA_RAS_L7,10
MEM_MB0_CS_L07,10
MEM_MA0_CS_L07,10

MEM_MB_BANK27,10

MEM_MB_ADD127,10
MEM_MA_CKE07,10

MEM_MB_CAS_L7,10

MEM_MB0_ODT07,10
MEM_MB_ADD137,10
MEM_MB0_CS_L17,10

4

C193

C193
C0.1u10X/4

C0.1u10X/4

MEM_MB_CKE0
MEM_MB_ADD15
MEM_MB_ADD14

MEM_MA_ADD9
MEM_MA_ADD7
MEM_MB_ADD8
MEM_MB_ADD6

MEM_MA_ADD4
MEM_MA_ADD3
MEM_MB_ADD4
MEM_MA_ADD1

MEM_MB_ADD0
MEM_MB_BANK1
MEM_MA_ADD0
MEM_MB_ADD10

MEM_MA_BANK0
MEM_MA_RAS_L
MEM_MB0_CS_L0
MEM_MA0_CS_L0

MEM_MB_BANK2
MEM_MB_ADD12
MEM_MA_CKE0

MEM_MB_CAS_L
MEM_MB0_ODT0
MEM_MB_ADD13
MEM_MB0_CS_L1

C184

C184
C0.1u10X/4

C0.1u10X/4

C176

C176
C0.1u10X/4

C0.1u10X/4

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

1
3
5
7

C153

C153
C0.1u10X/4

C0.1u10X/4

RN14

RN14
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN18

RN18
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN21

RN21
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN23

RN23
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN25

RN25
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN15

RN15
8P4R-47R/4

8P4R-47R/4

2
4
6
8

RN28

RN28
8P4R-47R/4

8P4R-47R/4

2
4
6
8

VTT_DDR

C164

C164
C0.1u10X/4

C0.1u10X/4

3

C152

C152
C0.1u10X/4

C0.1u10X/4

C131

C131
C0.1u10X/4

C0.1u10X/4

2

Place Between Processor and DIMMs

VCC_DDR

MEM_MA_ADD15
MEM_MA_ADD14
MEM_MA_ADD13
MEM_MA_ADD12
MEM_MA_ADD11
MEM_MA_ADD10
MEM_MA_ADD9
MEM_MA_ADD8
MEM_MA_ADD7
MEM_MA_ADD6
MEM_MA_ADD5
MEM_MA_ADD4
MEM_MA_ADD3
MEM_MA_ADD2
MEM_MA_ADD1
MEM_MA_ADD0

MEM_MA_CAS_L
MEM_MA_WE_L
MEM_MA_RAS_L

MEM_MA_BANK2
MEM_MA_BANK1
MEM_MA_BANK0

C22p50N/4/BC446 C22p50N/4/BC446
C22p50N/4/BC441 C22p50N/4/BC441
C22p50N/4/BC479 C22p50N/4/BC479
C22p50N/4/BC445 C22p50N/4/BC445
C22p50N/4/BC449 C22p50N/4/BC449
C22p50N/4/BC476 C22p50N/4/BC476
C22p50N/4/BC455 C22p50N/4/BC455
C22p50N/4/BC459 C22p50N/4/BC459
C22p50N/4/BC452 C22p50N/4/BC452
C22p50N/4/BC465 C22p50N/4/BC465
C22p50N/4/BC460 C22p50N/4/BC460
C22p50N/4/BC464 C22p50N/4/BC464
C22p50N/4/BC467 C22p50N/4/BC467
C22p50N/4/BC468 C22p50N/4/BC468
C22p50N/4/BC471 C22p50N/4/BC471
C22p50N/4/BC474 C22p50N/4/BC474

C22p50N/4/BC475 C22p50N/4/BC475
C22p50N/4/BC478 C22p50N/4/BC478
C22p50N/4/BC477 C22p50N/4/BC477

C22p50N/4/BC451 C22p50N/4/BC451
C22p50N/4/BC472 C22p50N/4/BC472
C22p50N/4/BC473 C22p50N/4/BC473

MEM_MA0_CLK_H27,10

MEM_MA0_CLK_L27,10

MEM_MA0_CLK_H17,10

MEM_MA0_CLK_L17,10

MEM_MA0_CLK_H07,10

MEM_MA0_CLK_L07,10

MEM_MB0_CLK_H27,10

MEM_MB0_CLK_L27,10

MEM_MB0_CLK_H17,10

MEM_MB0_CLK_L17,10

MEM_MB0_CLK_H07,10

MEM_MB0_CLK_L07,10

MEM_MB_ADD15
MEM_MB_ADD14
MEM_MB_ADD13
MEM_MB_ADD12

MEM_MB_ADD10
MEM_MB_ADD9
MEM_MB_ADD8
MEM_MB_ADD7
MEM_MB_ADD6
MEM_MB_ADD5
MEM_MB_ADD4
MEM_MB_ADD3
MEM_MB_ADD2
MEM_MB_ADD1
MEM_MB_ADD0

MEM_MB_CAS_L
MEM_MB_WE_L
MEM_MB_RAS_L

MEM_MB_BANK2
MEM_MB_BANK1
MEM_MB_BANK0

1

C22p50N/4C101 C22p50N/4C101
C22p50N/4C95 C22p50N/4C95
C22p50N/4C160 C22p50N/4C160
C22p50N/4C98 C22p50N/4C98
C22p50N/4C100 C22p50N/4C100
C22p50N/4C142 C22p50N/4C142
C22p50N/4C109 C22p50N/4C109
C22p50N/4C103 C22p50N/4C103
C22p50N/4C107 C22p50N/4C107
C22p50N/4C116 C22p50N/4C116
C22p50N/4C105 C22p50N/4C105
C22p50N/4C120 C22p50N/4C120
C22p50N/4C111 C22p50N/4C111
C22p50N/4C118 C22p50N/4C118
C22p50N/4C124 C22p50N/4C124
C22p50N/4C132 C22p50N/4C132

C22p50N/4C133 C22p50N/4C133
C22p50N/4C150 C22p50N/4C150
C22p50N/4C147 C22p50N/4C147

C22p50N/4C102 C22p50N/4C102
C22p50N/4C125 C22p50N/4C125
C22p50N/4C130 C22p50N/4C130

MEM_MA0_CLK_H2

MEM_MA0_CLK_L2

MEM_MA0_CLK_H1

MEM_MA0_CLK_L1

MEM_MA0_CLK_H0

MEM_MA0_CLK_L0

MEM_MB0_CLK_H2

MEM_MB0_CLK_L2

MEM_MB0_CLK_H1

MEM_MB0_CLK_L1

MEM_MB0_CLK_H0

MEM_MB0_CLK_L0

VCC_DDR

C165

C165
C1.5p50N/4

C1.5p50N/4

C54

C54
C1.5p50N/4

C1.5p50N/4

C113

C113
C1.5p50N/4

C1.5p50N/4

C163

C163
C1.5p50N/4

C1.5p50N/4

C65

C65
C1.5p50N/4

C1.5p50N/4

C117

C117
C1.5p50N/4

C1.5p50N/4

VCC_DDR

A A

Title

Title

Title

DIMM-Termination

DIMM-Termination

DIMM-Termination

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet

Date: Sheet

11 35Friday, September 22, 2006

11 35Friday, September 22, 2006

11 35Friday, September 22, 2006

1

of

of

of

5

www.kythuatvitinh.com

4

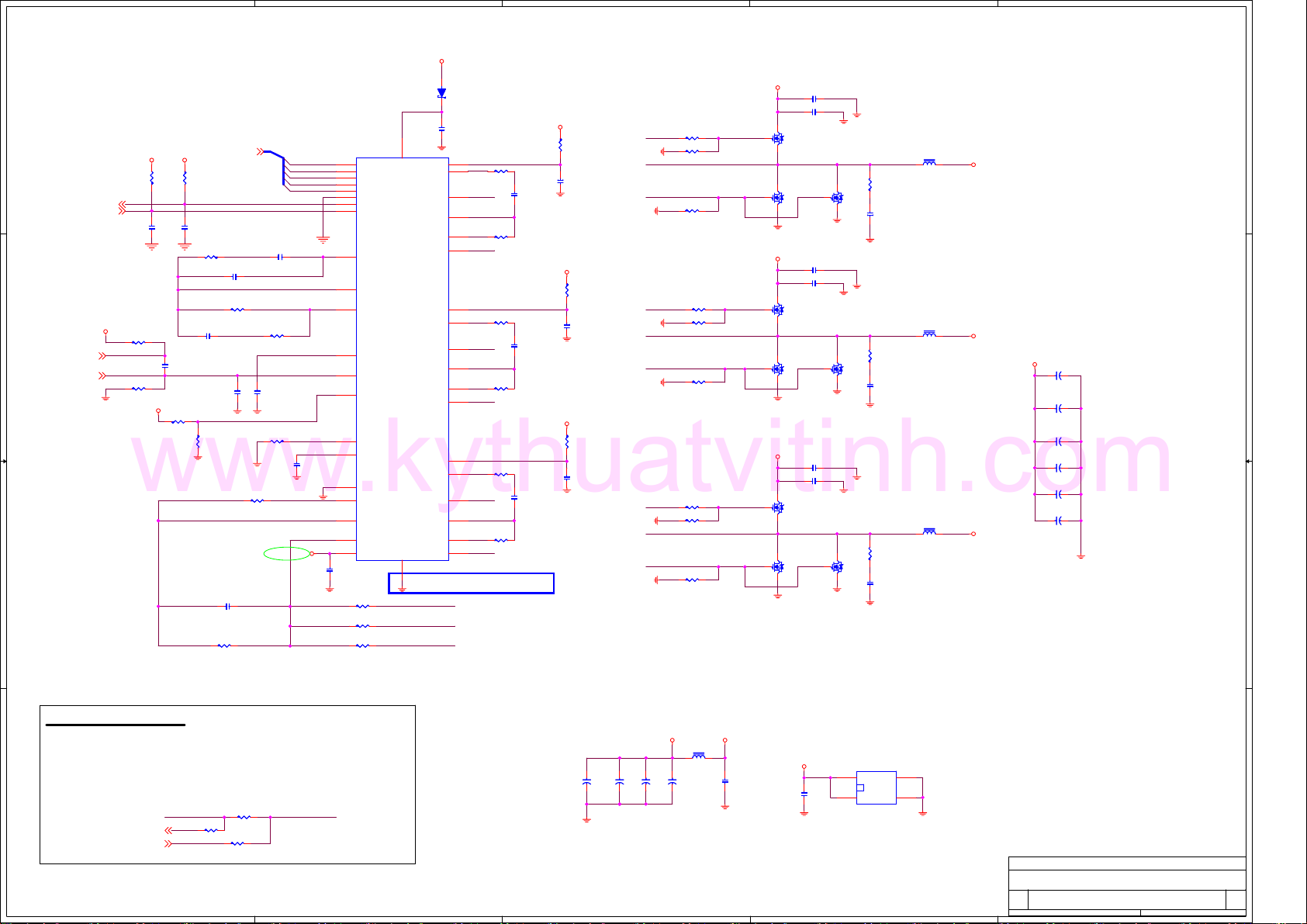

VCC5

3

2

1

DZ1

DZ1
1N5817

1N5817

VID4
VID3
VID2
VID1
VID0
DACSEL/VID5
PGOOD
ENLL

COMP

FB

VDIFF

VSEN

RGND

OFST

FS
REF

VRM10
OCSET

ICOMP

ISUM
IREF

R45

R45
12KR1%/6

12KR1%/6
R44

R44
12KR1%/6

12KR1%/6
R42

R42
12KR1%/6

12KR1%/6

PWM_VCC5

C7
C4.7u10Y/8C7C4.7u10Y/8

7

PVCC1

VCC

BOOT1

UGATE1

PHASE1

ISEN1

LGATE1

PVCC2

BOOT2

UGATE2

PHASE2

ISEN2

LGATE2

PVCC3

BOOT3

UGATE3

PHASE3

ISEN3

LGATE3

GND

41

BOTTOM PAD CONNECT TO GND
THROUGH 10 vias

PHASE1

PHASE2

PHASE3

12VP1

33

BOOT1

30

U_G1

31

PHASE1

29

IS1

32

L_G1

34

12VP2

24

BOOT2

26

U_G2

27

PHASE2

28

IS2

25

L_G2

23

12VP3

18

BOOT3

21

U_G3

20

PHASE3

22

IS3

19

L_G3

17

D D

U2

U2
ISL6566CRZ_QFN40

FB

VDIFF

FS
REF

COMPCOP

C31

C31
C103p50X/6

C103p50X/6

ISL6566CRZ_QFN40

38
39
40

1
2

3
35
37

8

9

10

12

11

6

36

5

4
13

14

15
16

VIDOUT[0..4]27

VCC5VCC5

R28

R28

R31

R31

4.7KR/4

4.7KR/4

1KR/4

VRM_GD28

PWM_EN28

VCORE

C C

B B

COREFB_H6

COREFB_L6

R27 51R/6R27 51R/6

COREFB_H

COREFB_L

R23 51R/6R23 51R/6

Close low side
mosfet

C22

C22
C0.1u16Y/4

C0.1u16Y/4

VCC5

1KR/4

C30

C30
C1u6.3X/4

C1u6.3X/4

C17

C17
X_C102p50X/6

X_C102p50X/6

R25

R25
130KR1%/6

130KR1%/6

獨立拉
電感端

R12

R12

5.1KR/4

5.1KR/4

C4

C4
X_C680p50X/6

X_C680p50X/6

R24

R24
X_63.4K/4

X_63.4K/4

trace to

C9

C9
C220p50N/6

C220p50N/6

R11

R11
1KR/4

1KR/4

C14

C14
C103p16X/4

C103p16X/4

C26

C26
C473p16X/6

C473p16X/6

R32

R32

9.1KR1%/6

9.1KR1%/6

C3

C3
C472p50X/6

C472p50X/6

R21

R21
X_750R1%/6

X_750R1%/6

C19

C19
C103p16X/4

C103p16X/4

R30

R30
120KR1%/4

120KR1%/4

R29

R29

1.5KR1%/6

1.5KR1%/6

VCORE

VIDOUT4
VIDOUT3
VIDOUT2
VIDOUT1
VIDOUT0

VSEN

COREFB_L

OFS

C16

C16
C103p50X/6

C103p50X/6

R41

R41

2.2R/8

2.2R/8

R37

R37

2.8KR1%/6

2.8KR1%/6

R46

R46

2.2R/8

2.2R/8

R43

R43

2.8KR1%/6

2.8KR1%/6

R40

R40

2.2R/8

2.2R/8

R38

R38

2.8KR1%/6

2.8KR1%/6

C38

C38
C0.1u50X/6

C0.1u50X/6

C44

C44
C0.1u50X/6

C0.1u50X/6

C40

C40
C0.1u50X/6

C0.1u50X/6

+12VA

R34

R34

2.2R/8

2.2R/8

C34

C34
C1u25X/8

C1u25X/8

+12VA

+12VA

R49

R49

2.2R/8

2.2R/8

C43

C43
C1u25X/8

C1u25X/8

R36

R36

2.2R/8

2.2R/8

C35

C35
C1u25X/8

C1u25X/8

U_G1

R78 10KR1%/6R78 10KR1%/6

PHASE1

L_G1

R60 10KR1%/6R60 10KR1%/6

U_G2

PHASE2

L_G2

U_G3

R114 10KR1%/6R114 10KR1%/6

PHASE3

L_G3

R96 10KR1%/6R96 10KR1%/6

R79

R79
1R/8

1R/8

R87

R87
1R/8

1R/8

R88 10KR1%/6R88 10KR1%/6

R85 10KR1%/6R85 10KR1%/6

R115

R115
1R/8

1R/8

VIN

C71 X_C4.7u35X/1206C71 X_C4.7u35X/1206
C61 C1u25X/8C61 C1u25X/8

DS

Q7

G

DS

G

VIN

DS

G

DS

G

VIN

DS

G

DS

G

Q7
N-09N03_TO252

N-09N03_TO252

Q4

Q4
X_N-06N03_TO252

X_N-06N03_TO252

G

C119 X_C4.7u35X/1206C119 X_C4.7u35X/1206
C88 C1u25X/8C88 C1u25X/8

Q10

Q10
N-09N03_TO252

N-09N03_TO252

Q8

Q8
X_N-06N03_TO252

X_N-06N03_TO252

G

C170 X_C4.7u35X/1206C170 X_C4.7u35X/1206
C140 C1u25X/8C140 C1u25X/8

Q15

Q15
N-09N03_TO252

N-09N03_TO252

Q13

Q13
X_N-06N03_TO252

X_N-06N03_TO252

G

DS

Q3

Q3
N-06N03_TO252

N-06N03_TO252

DS

Q9

Q9
N-06N03_TO252

N-06N03_TO252

DS

Q14

Q14
N-06N03_TO252

N-06N03_TO252

R52

R52

2.2R/8

2.2R/8

C46

C46

C102p50X/6

C102p50X/6

R83

R83

2.2R/8

2.2R/8

C89

C89
C102p50X/6

C102p50X/6

R97

R97

2.2R/8

2.2R/8

C145

C145
C102p50X/6

C102p50X/6

COIL2

COIL2

0.25uH/40A

0.25uH/40A

0.8375~1.6V / 119A

COIL3

COIL3

0.25uH/40A

0.25uH/40A

COIL4

COIL4

0.25uH/40A

0.25uH/40A

VCORE

VCORE

VCORE

VCORE

EC12

EC12

+

+

EL1800u/6.3V20

EL1800u/6.3V20

EC14

EC14

+

+

EL1800u/6.3V20

EL1800u/6.3V20

EC18

EC18

+

+

EL1800u/6.3V20

EL1800u/6.3V20

EC1

EC1

+

+

X_EL1800u/6.3V20

X_EL1800u/6.3V20

EC5

EC5

+

+

EL1800u/6.3V20

EL1800u/6.3V20

EC3

EC3

+

+

EL1800u/6.3V20

EL1800u/6.3V20

UG1

UG2

UG3

CPU over voltage

VCORE controlled by F71882 R9, R10:ON R13:OFF

VCORE by-pass R9, R10:OFF R13:ON
VSO is regulated by PIN56 and PIN65

R13

A A

VSI

VSI27

VSO27

R10 X_0R1%/6R10 X_0R1%/6

VSO

R13
0R/4

0R/4

R9 X_0R1%/6R9 X_0R1%/6

VSENCOREFB_H

+

+

+

+

EC15

EC15

EL1000u/16V20

EL1000u/16V20

EC9

EC9

EL1000u/16V20

EL1000u/16V20

+

+

EC2

EC2

EL1000u/16V20

EL1000u/16V20

5

4

3

+12VAVIN

COIL1

COIL1

1.2u18A

1.2u18A

C37

EL1000u/16V20

EL1000u/16V20

C37
X_C4.7u35Y/1206

X_C4.7u35Y/1206

+

+

EC4

EC4

+12VA

C28

C28
X_C103p50X/6

X_C103p50X/6

JPW1

JPW1

3

4

PWR-2X2M

PWR-2X2M

1

GND

12V

2

GND

12V

Title

Title

Title

VRM-ISL6566CRZ

VRM-ISL6566CRZ

VRM-ISL6566CRZ

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

2

Date: Sheet of

1

of

12 35Wednesday, November 01, 2006

12 35Wednesday, November 01, 2006

12 35Wednesday, November 01, 2006

5

www.kythuatvitinh.com

NF-6100-400-N-A2 (MCP61V) : B01-MCP6125-N08
NF-6100-405-N-A2 (MCP61S) : B01-MCP6115-N08
NF-6100-430-N-A2 (MCP61P) : B01-MCP6135-N08

D D

C C

R126

R126
300R/4

300R/4

VCC_DDR

R127

R127
300R/4

300R/4

VCC_DDR

R135

R135
0R/4

B B

PROCHOT#6

CPU_THRIP#6

0R/4

VCC1_2HT

4

CADOP[0..15]6

CADON[0..15]6

R341 150R1%/4/BR341 150R1%/4/B
R342 150R1%/4/BR342 150R1%/4/B

VCC1.2

VCC3

CADOP[0..15]

CADON[0..15]

CLKOP06

CLKON06

CLKOP16

CLKON16

CTLOP06
CTLON06

CLKOP0
CLKON0
CLKOP1
CLKON1

CTLOP0
CTLON0

<600 mils

HT_MCP_COMP_VDD
HT_MCP_COMP_GND

PROCHOT_SB#
CPU_THRIP#

C488

C488
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

CADOP0
CADOP1
CADOP2
CADOP3
CADOP4
CADOP5
CADOP6
CADOP7
CADOP8
CADOP9
CADOP10
CADOP11
CADOP12
CADOP13
CADOP14
CADOP15

CADON0
CADON1
CADON2
CADON3
CADON4
CADON5
CADON6
CADON7
CADON8
CADON9
CADON10
CADON11
CADON12
CADON13
CADON14
CADON15

AG8
AG9

AK9

AJ10
AG12
AG13
AK13

AJ14
AB10
AD10
AF10
AC12
AB11
AB13
AF14
AE14

AH8
AH9

AJ9
AH10
AH12
AH13

AJ13
AH14
AC10
AE10
AG10
AD12
AC11
AB12
AG14
AD14

AJ11
AH11
AE12
AF12

AJ15
AH15
AB14
AC14

AB9
AB8

AD8
AE8

AC15
AB15

3

U14A

U14A

PBGA692

PBGA692

HT_MCP_RXD0_P
HT_MCP_RXD1_P
HT_MCP_RXD2_P
HT_MCP_RXD3_P
HT_MCP_RXD4_P
HT_MCP_RXD5_P
HT_MCP_RXD6_P
HT_MCP_RXD7_P
HT_MCP_RXD8_P
HT_MCP_RXD9_P
HT_MCP_RXD10_P
HT_MCP_RXD11_P
HT_MCP_RXD12_P
HT_MCP_RXD13_P
HT_MCP_RXD14_P
HT_MCP_RXD15_P

HT_MCP_RXD0_N
HT_MCP_RXD1_N
HT_MCP_RXD2_N
HT_MCP_RXD3_N
HT_MCP_RXD4_N
HT_MCP_RXD5_N
HT_MCP_RXD6_N
HT_MCP_RXD7_N
HT_MCP_RXD8_N
HT_MCP_RXD9_N
HT_MCP_RXD10_N
HT_MCP_RXD11_N
HT_MCP_RXD12_N
HT_MCP_RXD13_N
HT_MCP_RXD14_N
HT_MCP_RXD15_N

HT_MCP_RX_CLK0_P
HT_MCP_RX_CLK0_N
HT_MCP_RX_CLK1_P
HT_MCP_RX_CLK1_N

HT_MCP_RXCTL0_P
HT_MCP_RXCTL0_N
RESERVED
RESERVED

HT_MCP_COMP_VDD

HT_MCP_COMP_GND

PROCHOT*/GPIO20
THERMTRIP*/GPIO58

+1.2V_PLL_CPU_HT
+3.3V_PLL_CPU

<PATH>

<PATH>

<PART_NAME>

<PART_NAME>

SEC 1 OF 8

SEC 1 OF 8

2

HT_MCP_TXD0_P
HT_MCP_TXD1_P
HT_MCP_TXD2_P
HT_MCP_TXD3_P
HT_MCP_TXD4_P
HT_MCP_TXD5_P
HT_MCP_TXD6_P
HT_MCP_TXD7_P
HT_MCP_TXD8_P

HT_MCP_TXD9_P
HT_MCP_TXD10_P
HT_MCP_TXD11_P
HT_MCP_TXD12_P
HT_MCP_TXD13_P
HT_MCP_TXD14_P
HT_MCP_TXD15_P

HT_MCP_TXD0_N
HT_MCP_TXD1_N
HT_MCP_TXD2_N
HT_MCP_TXD3_N
HT_MCP_TXD4_N
HT_MCP_TXD5_N
HT_MCP_TXD6_N
HT_MCP_TXD7_N
HT_MCP_TXD8_N

HT_MCP_TXD9_N
HT_MCP_TXD10_N
HT_MCP_TXD11_N
HT_MCP_TXD12_N
HT_MCP_TXD13_N
HT_MCP_TXD14_N
HT_MCP_TXD15_N

HT_MCP_TX_CLK0_P
HT_MCP_TX_CLK0_N
HT_MCP_TX_CLK1_P
HT_MCP_TX_CLK1_N

HT_MCP_TXCTL0_P

HT_MCP_TXCTL0_N

RESERVED
RESERVED

HT_MCP_REQ*

HT_MCP_STOP*

HT_MCP_RST*

HT_MCP_PWRGD

CLKOUT_200MHZ_P

CLKOUT_200MHZ_N

CPU_SBVREF

CLKOUT_25MHZ

CLK200_TERM_GND

MCP61-S

MCP61-S

CADIP0

AH23

CADIP1

AH22

CADIP2

AJ21

CADIP3

AH21

CADIP4

AH19

CADIP5

AH18

CADIP6

AJ17

CADIP7

AH17

CADIP8

AF22

CADIP9

AB20

CADIP10

AC20

CADIP11

AE20

CADIP12

AD18

CADIP13

AF18

CADIP14

AB17

CADIP15

AC16

CADIN0

AJ23

CADIN1

AJ22

CADIN2

AK21

CADIN3

AG21

CADIN4

AJ19

CADIN5

AJ18

CADIN6

AK17

CADIN7

AG17

CADIN8

AG22

CADIN9

AB19

CADIN10

AD20

CADIN11

AF20

CADIN12

AE18

CADIN13

AG18

CADIN14

AB16

CADIN15

AD16

AH20
AG20
AC18
AB18

AH16
AG16
AE16
AF16

HT_MCP_REQ#

AH25

-LDTSTOP

AH24

-LDT_RST

AG23

CPU_GD

AG24

CPUCLKO_H

AK25

CPUCLKO_L

AJ25

AF24
AK26

CLK200_TERM_GND

AJ26

<1000 mils

CLKIP0
CLKIN0
CLKIP1
CLKIN1

CTLIP0
CTLIN0

CADIP[0..15]

CADIN[0..15]

VCC1.2

C498

C498
C0.1u16Y/6

C0.1u16Y/6

R171

R171

2.37KR1%/4

2.37KR1%/4

CADIP[0..15] 6

CADIN[0..15] 6

CLKIP0 6
CLKIN0 6
CLKIP1 6

CLKIN1 6

CTLIP0 6
CTLIN0 6

-LDTSTOP 6

-LDT_RST 6
CPU_GD 6

CPUCLKO_H 6
CPUCLKO_L 6

1

VCC3

R167

R167
10KR/4

10KR/4

A A

Title

Title

Title

MCP61-HT

MCP61-HT

MCP61-HT

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet of

Date: Sheet of

13 35Friday, September 22, 2006

13 35Friday, September 22, 2006

13 35Friday, September 22, 2006

1

of

5

www.kythuatvitinh.com

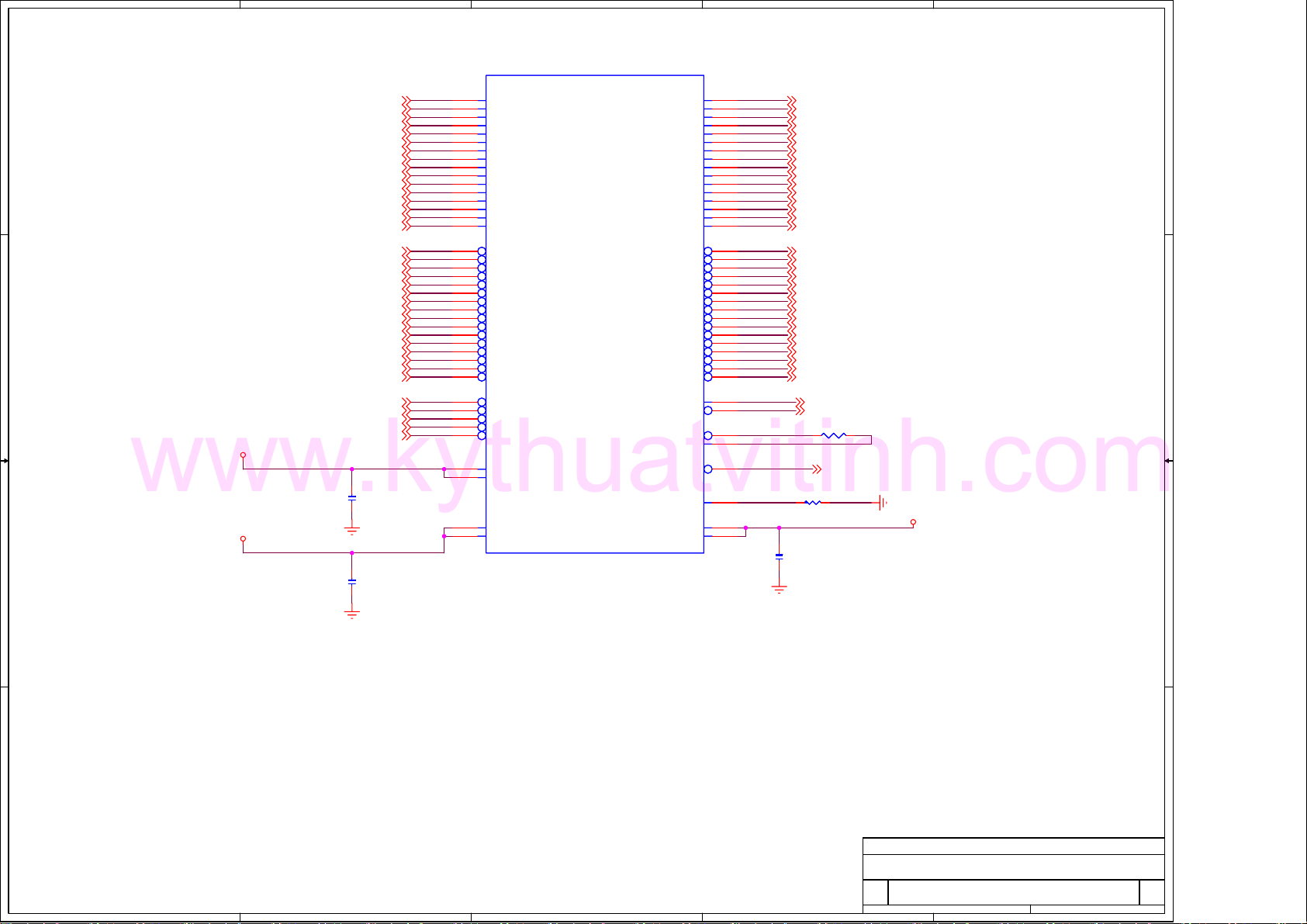

D D

C C

VCC1.2

VCC1.2

B B

4

PE0_RX020
PE0_RX120
PE0_RX220
PE0_RX320
PE0_RX420
PE0_RX520
PE0_RX620
PE0_RX720
PE0_RX820
PE0_RX920
PE0_RX1020
PE0_RX1120
PE0_RX1220
PE0_RX1320
PE0_RX1420
PE0_RX1520

PE0_RX0#20
PE0_RX1#20
PE0_RX2#20
PE0_RX3#20
PE0_RX4#20
PE0_RX5#20
PE0_RX6#20
PE0_RX7#20
PE0_RX8#20
PE0_RX9#20
PE0_RX10#20
PE0_RX11#20
PE0_RX12#20
PE0_RX13#20
PE0_RX14#20
PE0_RX15#20

PE_WAKE#20
PE0_PRSNTX1#20
PE0_PRSNTX4#20
PE0_PRSNTX8#20
PE0_PRSNTX16#20

C497

C497
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C496

C496
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

U14B

U14B

PBGA692

PBGA692

H23

PE0_RX0_P

H25

PE0_RX1_P

K22

PE0_RX2_P

K24

PE0_RX3_P

K26

PE0_RX4_P

M22

PE0_RX5_P

M23

PE0_RX6_P

M26

PE0_RX7_P

P22

PE0_RX8_P

P26

PE0_RX9_P

P25

PE0_RX10_P

T23

PE0_RX11_P

T26

PE0_RX12_P

U23

PE0_RX13_P

V24

PE0_RX14_P

V27

PE0_RX15_P

H24

PE0_RX0_N

H26

PE0_RX1_N

K23

PE0_RX2_N

K25

PE0_RX3_N

K27

PE0_RX4_N

L22

PE0_RX5_N

M24

PE0_RX6_N

M25

PE0_RX7_N

P23

PE0_RX8_N

P27

PE0_RX9_N

P24

PE0_RX10_N

T24

PE0_RX11_N

T25

PE0_RX12_N

V23

PE0_RX13_N

V25

PE0_RX14_N

V26

PE0_RX15_N

B22

PE_WAKE*/GPIO21

AF27

PE0_PRSNTX1*/SDVO_SCL

AF28

PE0_PRSNTX4*/SDVO_SDA

AE26

PE0_PRSNTX8*

AF29

PE0_PRSNTX16*

W22

+1.2V_PLL_PE_SS

Y22

+1.2V_PLL_PE_SS

U22

+1.2V_PLL_PE

V22

+1.2V_PLL_PE

<PATH>

<PATH>

3

<PART_NAME>

<PART_NAME>

SEC 2 OF 8

SEC 2 OF 8

PE0_TX0_P
PE0_TX1_P
PE0_TX2_P
PE0_TX3_P
PE0_TX4_P
PE0_TX5_P
PE0_TX6_P
PE0_TX7_P
PE0_TX8_P

PE0_TX9_P
PE0_TX10_P
PE0_TX11_P
PE0_TX12_P
PE0_TX13_P
PE0_TX14_P
PE0_TX15_P

PE0_TX0_N
PE0_TX1_N
PE0_TX2_N
PE0_TX3_N
PE0_TX4_N
PE0_TX5_N
PE0_TX6_N
PE0_TX7_N
PE0_TX8_N

PE0_TX9_N
PE0_TX10_N
PE0_TX11_N
PE0_TX12_N
PE0_TX13_N
PE0_TX14_N
PE0_TX15_N

PE0_REFCLK_P
PE0_REFCLK_N

PE_A_TSTCLK_N
PE_A_TSTCLK_P

PE_RESET*

PE_CLK_COMP

+3.3V_PLL_PE_SS
+3.3V_PLL_PE_SS

MCP61-S

MCP61-S

G29
H27
J27
J30
K29
L29
M27
N27
N30
P29
R29
T27
U27
U30
V29
W29

G28
H28
J28
J29
K28
L28
M28
N28
N29
P28
R28
T28
U28
U29
V28
W28

Y24
Y23

PECLK_A_TEST

AC24

PECLK_A_TEST#

AC25

AH29

<500 mils

PE_COMP

AJ30

R22
T22

2

PE0_TX0 20
PE0_TX1 20
PE0_TX2 20
PE0_TX3 20
PE0_TX4 20
PE0_TX5 20
PE0_TX6 20
PE0_TX7 20
PE0_TX8 20
PE0_TX9 20
PE0_TX10 20
PE0_TX11 20
PE0_TX12 20
PE0_TX13 20
PE0_TX14 20
PE0_TX15 20

PE0_TX0# 20
PE0_TX1# 20
PE0_TX2# 20
PE0_TX3# 20
PE0_TX4# 20
PE0_TX5# 20
PE0_TX6# 20
PE0_TX7# 20
PE0_TX8# 20
PE0_TX9# 20
PE0_TX10# 20
PE0_TX11# 20
PE0_TX12# 20
PE0_TX13# 20
PE0_TX14# 20
PE0_TX15# 20

PE0_CLK 20
PE0_CLK# 20

R196 X_100R/4R196 X_100R/4

PE_RST# 20

R191 2.37KR1%/6R191 2.37KR1%/6

C506

C506
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

1

VCC3

A A

Title

Title

Title

MCP61-PEX X16

MCP61-PEX X16

MCP61-PEX X16

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet of

Date: Sheet of

14 35Friday, September 22, 2006

14 35Friday, September 22, 2006

14 35Friday, September 22, 2006

1

of

5

www.kythuatvitinh.com

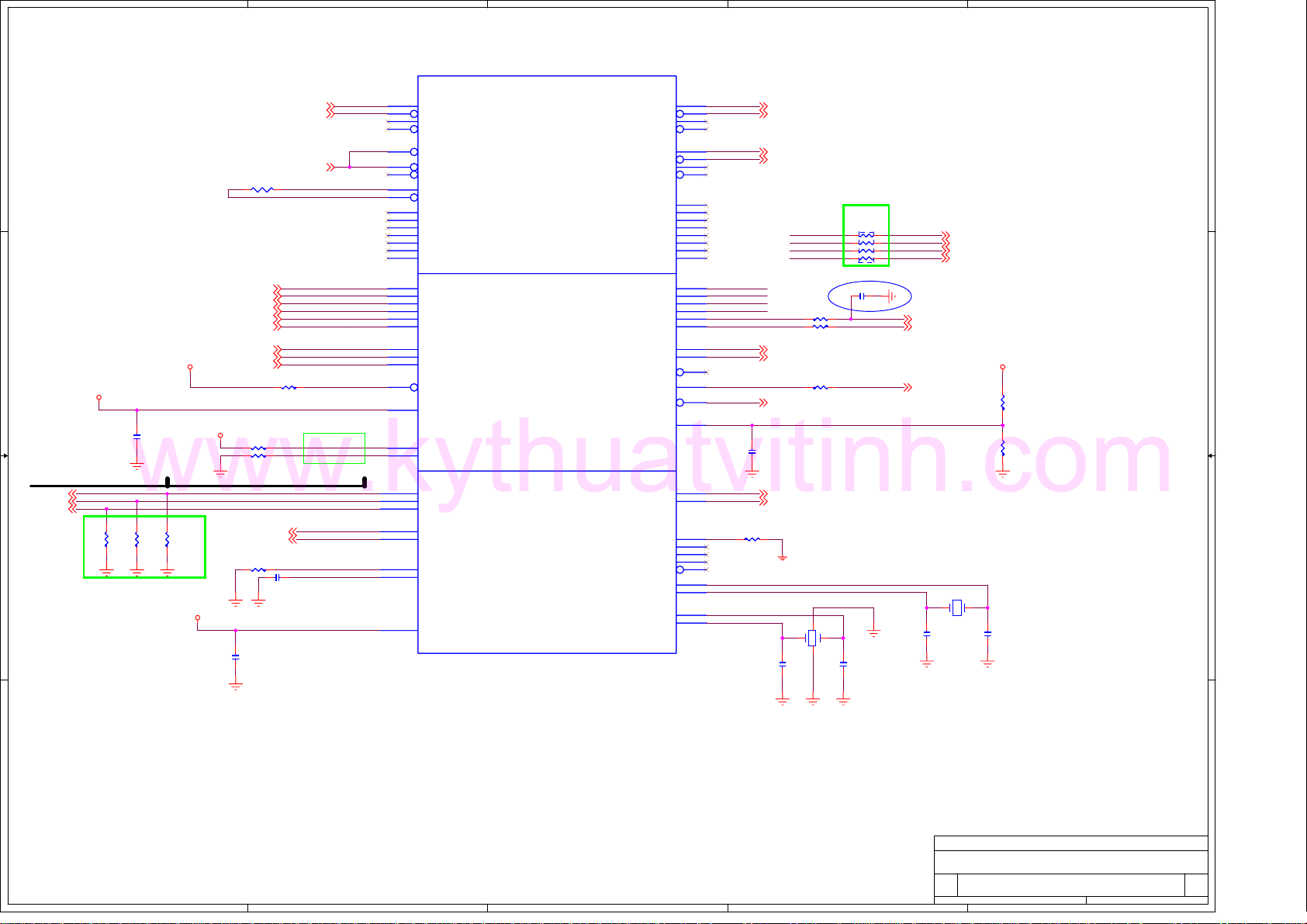

PE1_RX20

D D

R201 X_100R/6R201 X_100R/6

MII_RXD024
MII_RXD124
MII_RXD224
MII_RXD324
MII_RXCLK24
MII_RXDV24

C C

3VDUAL

3VDUAL 3VDUAL

C491

C491
C2.2u6.3X/6

C2.2u6.3X/6

MII_RX_ER24
MII_COL24
MII_CRS24

3VDUAL

R235 49.9R1%/4R235 49.9R1%/4 C304
R247 49.9R1%/4R247 49.9R1%/4

PE1_RX#20

PE1_PRSNT#20

PECLK_B_TEST
PECLK_B_TEST#

MII_RXD0
MII_RXD1
MII_RXD2
MII_RXD3
MII_RXCLK
MII_RXDV

MII_RX_ER
MII_COL
MII_CRS

R242 10KR/4R242 10KR/4

Width>10 mils

MII_COMP_3.3V
MII_COMP_GND

4

Y28

Y27
AB29
AB28

AK29
AG28

AG30
AC27

AC26
AD27

AD28
AE30
AE29

AJ29
AG29
AH30

D26
E26
B26
B27
A26
C26

D24
E24
F23

G24

B23
C23

3

U14C

U14C

PBGA692

PBGA692

PE1_RX_P
PE1_RX_N
PE2_RX_P
PE2_RX_N

PEA_CLKREQ*/GPIO51

PE1_PRSNT*
PE2_PRSNT*

PE_B_TSTCLK_P
PE_B_TSTCLK_N

RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED

RGMII_RXD0/MII_RXD0
RGMII_RXD1/MII_RXD1
RGMII_RXD2/MII_RXD2
RGMII_RXD3/MII_RXD3
RGMII_RXC/MII_RXCLK
RGMII_RXCTL/MII_RXDV

MII_RXER/GPIO36
MII_COL/GPIO13/MI2C_DATA
MII_CRS/GPIO14/MI2C_CLK

RGMII/MII_INTR*/GPIO35

M9

+3.3V_PLL_MAC_DUAL

MII_COMP_3P3V
MII_COMP_GND

<PART_NAME>

<PART_NAME>

SEC 3 OF 8

SEC 3 OF 8

PE1_TX_P
PE1_TX_N
PE2_TX_P
PE2_TX_N

PE1_REFCLK_P
PE1_REFCLK_N
PE2_REFCLK_P
PE2_REFCLK_N

RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED

RGMII_TXD0/MII_TXD0
RGMII_TXD1/MII_TXD1
RGMII_TXD2/MII_TXD2
RGMII_TXD3/MII_TXD3
RGMII_TXC/MII_TXCLK

RGMII_TXCTL/MII_TXEN

RGMII/MII_MDC

RGMII/MII_MDIO

RGMII/MII_PWRDWN*/GPIO37

BUF_25MHZ

MII_RESET*/GPIO12

MII_VREF

AA28
AA27
AA30
AA29

Y26
Y25
AB23
AA23

AC29
AC28
AE27
AE28
AB24
AB25
AB27
AB26

A28
B28
D28
E27
D27
E28

B25
A25

F24
C24
C25

C27

PE1_TX 20
PE1_TX# 20

PE1_CLK 20
PE1_CLK# 20

MIITXD0
MIITXD1
MIITXD2
MIITXD3
MIITXCLK MII_TXCLK
MIITXEN

MII25MHZ

MII_MDC 24

MII_MDIO 24

MII_RST# 24

C304
C0.1u16Y/4

C0.1u16Y/4

R246 0R/4R246 0R/4
R249 0R/4R249 0R/4

2

Close to MCP61

RN38

RN38

8P4R-0R/4

7 8
5 6
3 4
1 2

X_C18p50N/4C379 X_C18p50N/4C379

MII_TXEN

MII_25MHZ

MII_VREF

8P4R-0R/4

MII_TXD0
MII_TXD2
MII_TXD3MIITXD3

MII_TXCLK 24
MII_TXEN 24

MII_25MHZ 24

MIITXD1 MII_TXD1
MIITXD0
MIITXD2

R228X_0R/4 R228X_0R/4

RGMII_TXD1

RGMII_TXD3

RGMII_TXD2

MII_TXD1 24
MII_TXD0 24
MII_TXD2 24
MII_TXD3 24

R245

R245

1.47KR1%/4

1.47KR1%/4

R239

R239

1.47KR1%/4

1.47KR1%/4

1

Width = 12 milsWidth = 7 mils

R

R22

G

G22

B

B22

R229

R229
150R1%/4

150R1%/4

B B

PLACE NEAR MCP61

R230

R230
150R1%/4

150R1%/4

R231

R231
150R1%/4

150R1%/4

VCC3

HSYNC#22
VSYNC#22

R344

R344
124R1%/6/B

124R1%/6/B

C508

C508
C0.22u/6.3X/6/B

C0.22u/6.3X/6/B

HSYNC#
VSYNC#

C296

C296
C103p16X/4

C103p16X/4

<750 mils

DAC_RSET
DAC_VREF

<500 mils

D30
D29
C30

B30
C29

B29
A29

DAC_RED
DAC_GREEN
DAC_BLUE

DAC_HSYNC
DAC_VSYNC

DAC_RSET
DAC_VREF

F28

+3.3V_DAC

<PATH>

<PATH>

DDC_CLK/GPIO17

DDC_DATA/GPIO19

JTAG_TCK

JTAG_TDI
JTAG_TDO
JTAG_TMS

JTAG_TRST*

XTALIN

XTALOUT

XTALIN_RTC

XTALOUT_RTC

MCP61-S

MCP61-S

B6
A6

M7
M5
M6
M8
L9

K7
K8

K6
K5

R161

R161
10KR/4

10KR/4

XTAL_IN
XTAL_OUT

XTALIN_RTC

XTALOUT_RTC

DDC_CLK 22
DDC_DATA 22

Y3

Y3

32.768KHZ/12.9p

32.768KHZ/12.9p

3 4

C261

C261
C12p50N/4

C12p50N/4

21

C262

C262
C12p50N/4

C12p50N/4

C215

C215
C18p50N/4

C18p50N/4

Y1

Y1
25MHZ/18p

25MHZ/18p

C211

C211
C18p50N/4

C18p50N/4

A A

Title

Title

Title

MCP61-PEX X1 & MII & DAC

MCP61-PEX X1 & MII & DAC

MCP61-PEX X1 & MII & DAC

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet

Date: Sheet

15 35Friday, September 22, 2006

15 35Friday, September 22, 2006

15 35Friday, September 22, 2006

1

of

of

of

5

www.kythuatvitinh.com

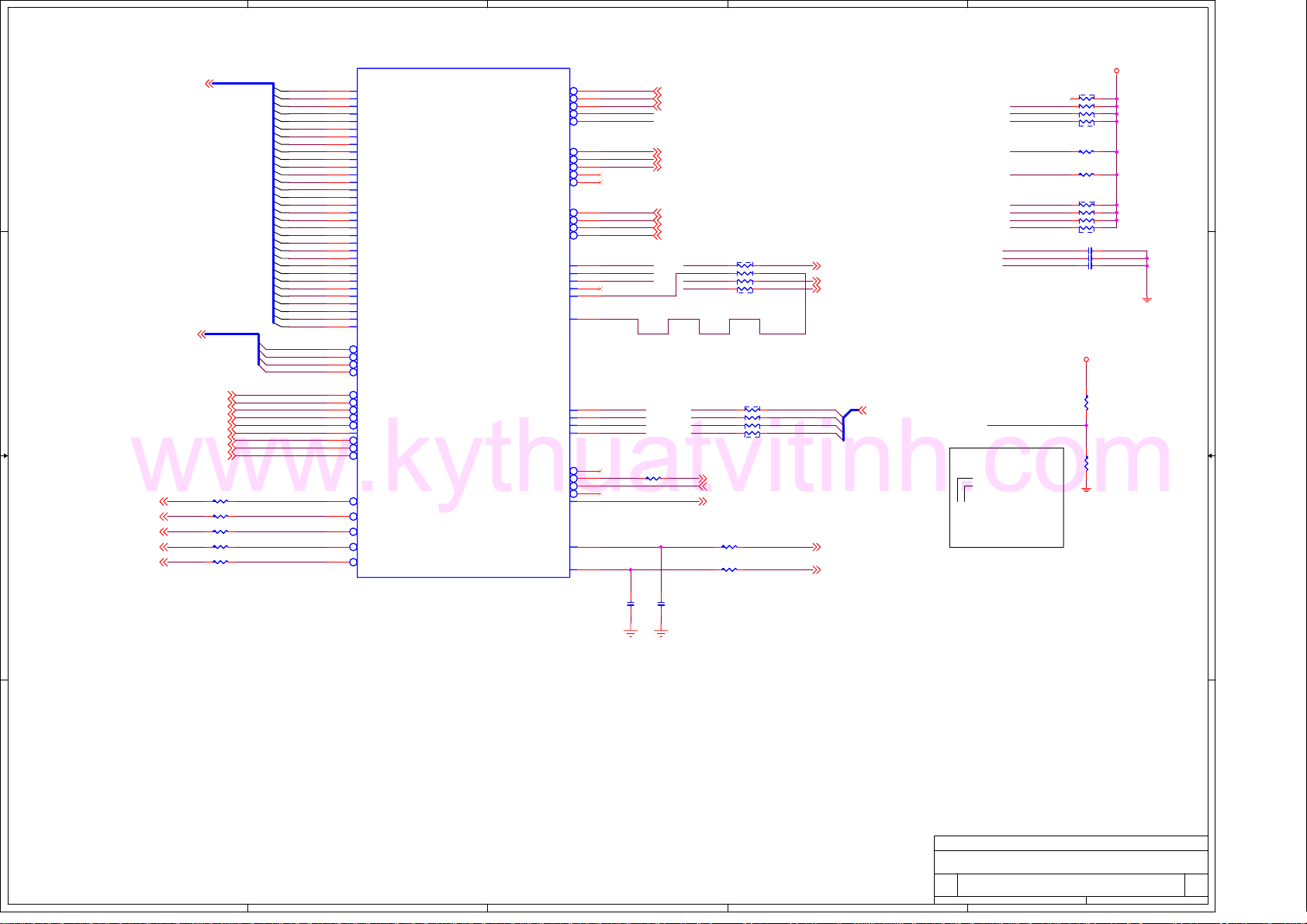

AD[31..0]21,26

D D

C_BE#[3..0]21,26

C C

PCIRST_SLOT1#21
PCIRST_SLOT2#21

MS6_RST#28
1394_RST#26

B B

SIO_RST#27

AD[31..0]

C_BE#[3..0]

FRAME#21,26

IRDY#21,26

TRDY#21,26

STOP#21,26

DEVSEL#21,26

PAR21,26
PERR#21,26
SERR#21

PME#21,26

R219 33R/4R219 33R/4
R222 33R/4R222 33R/4
R215 33R/4R215 33R/4
R200 33R/4R200 33R/4
R194 33R/4R194 33R/4

FRAME#
IRDY#
TRDY#
STOP#
DEVSEL#
PAR
PERR#
SERR#
PME#

PCI_RESET1#
PCI_RESET2#

MS6RST#
1394RST#
SIORST#

C_BE#0
C_BE#1
C_BE#2
C_BE#3

PCI_C/BE*0

PCI_C/BE*1

PCI_C/BE*3

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31

4

U14D

U14D

PBGA692

PBGA692

D14

PCI_AD0

E14

PCI_AD1

A13

PCI_AD2

C14

PCI_AD3

A14

PCI_AD4

B14

PCI_AD5

C15

PCI_AD6

J16

PCI_AD7

G16

PCI_AD8

F16

PCI_AD9

E16

PCI_AD10

B15

PCI_AD11

D16

PCI_AD12

C16

PCI_AD13

D17

PCI_AD14

C17

PCI_AD15

J19

PCI_AD16

J20

PCI_AD17

H20

PCI_AD18

G20

PCI_AD19

F20

PCI_AD20

E20

PCI_AD21

B18

PCI_AD22

C19

PCI_AD23

D20

PCI_AD24

C20

PCI_AD25

D21

PCI_AD26

C21

PCI_AD27

B21

PCI_AD28

H22

PCI_AD29

G22

PCI_AD30

F22

PCI_AD31

H16

PCI_CBE0*

B17

PCI_CBE1*

A18

PCI_CBE2*

B19

PCI_CBE3*

C18

PCI_FRAME*

A17

PCI_IRDY*

D18

PCI_TRDY*

F18

PCI_STOP*

E18

PCI_DEVSEL*

J18

PCI_PAR

G18

PCI_PERR*/GPIO43/RS232_DCD*

H18

PCI_SERR*

E22

PCI_PME*/GPIO30

C13

PCI_RESET0*

G14

PCI_RESET1*

B11

PCI_RESET2*

F12

PCI_RESET3*

D9

LPC_RESET*

<PATH>

<PATH>

MCP61-S

MCP61-S

<PART_NAME>

<PART_NAME>

SEC 4 OF 8

SEC 4 OF 8

PCI_REQ2*/GPIO40/RS232_DSR*
PCI_REQ3*/GPIO38/RS232_CTS*

PCI_REQ4*/GPIO52/RS232_SIN*

PCI_GNT2*/GPIO41/RS232_DTR*
PCI_GNT3*/GPIO39/RS232_RTS*

PCI_GNT4*/GPIO53/RS232_SOUT*

LPC_PWRDWN*/GPIO54/EXT_NMI*

LPC_DRQ1*/GPIO15/FANRPM1

PCI_REQ0*
PCI_REQ1*

PCI_GNT0*
PCI_GNT1*

PCI_INTW*

PCI_INTX*
PCI_INTY*
PCI_INTZ*

PCI_CLK0
PCI_CLK1
PCI_CLK2
PCI_CLK3
PCI_CLK4

PCI_CLKIN

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

LPC_FRAME*

LPC_DRQ0*/GPIO50

LPC_SERIRQ

LPC_CLK0

LPC_CLK1

G12
A10
C11
H14
D13

A9
C10
B10
J14
C12

C22
D22
A22
A21

B13
F14
D12
E12
H12

J12

G10
F10
D10
E10

C8
H10
C9
B9
J10

E8

D8

3

PCI_REQ0#
PCI_REQ1#
PCI_REQ2#
PCI_REQ3#
PCI_REQ4#

PCI_INTW#
PCI_INTX#
PCI_INTY#
PCI_INTZ#

PCICLK0
PCICLK1
PCICLK2

PCICLK4

PCI_CLKIN

PCI_REQ0# 26
PCI_REQ1# 21
PCI_REQ2# 21

PCI_GNT0# 26
PCI_GNT1# 21
PCI_GNT2# 21

PCI_INTW# 21
PCI_INTX# 21
PCI_INTY# 21
PCI_INTZ# 21,26

PCICLK1
PCICLK0

PCICLK2

1 2
3 4
5 6
7 8

Length=PCI slot clock + 3 inchs

C270

C270
X_C10p50N/4

X_C10p50N/4

LPCAD1
LPCAD0
LPCAD3
LPCAD2

LPC_FRAME# 27
LPC_DRQ#0 27

SERIRQ 27

R217 33R/4R217 33R/4

R218 33R/4R218 33R/4

LPCAD0
LPCAD1
LPCAD2
LPCAD3

SIOPCLK

LPCPCLK

R188 22R/4R188 22R/4

C272

C272
X_C10p50N/4

X_C10p50N/4

RN37

RN37
8P4R-22R/4

8P4R-22R/4

RN35

RN35
8P4R-22R/4

8P4R-22R/4

1 2
3 4
5 6
7 8

LPC_AD1
LPC_AD0
LPC_AD3
LPC_AD2

2

PCICLK_SLOT1 21
PCICLK_1394 26

PCICLK_SLOT2 21

LPC_AD[3..0] 27

SIO_PCLK 27

LPC_PCLK 27

STRAP

HDA_SDOUT
LPC_FRAME

DEFAULT*

00 = LPC BIOS*
01 = PCI BIOS
10 = SPI BIOS
11 = RESERVED

PCI_REQ2#
PCI_REQ1#
PCI_REQ0#

PCI_REQ4#

PCI_REQ3#

PCI_INTY#
PCI_INTW#
PCI_INTZ#
PCI_INTX#

PCICLK0
PCICLK2

PCICLK1

LPC_FRAME#

1

VCC3

RN46

RN46
8P4R-8.2KR/4

8P4R-8.2KR/4

12
34
56
78

R205

R205

8.2KR/4

8.2KR/4
R343

R343

8.2KR/4/B

8.2KR/4/B

RN42

RN42
8P4R-8.2KR/4

8P4R-8.2KR/4

12
34
56
78

C266 C10p50N/4C266 C10p50N/4
C269 C10p50N/4C269 C10p50N/4
C264 C10p50N/4C264 C10p50N/4

VCC3

R197

R197
X_10KR/4

X_10KR/4

R195

R195
10KR/4

10KR/4

A A

Title

Title

Title

MCP61-PCI & LPC

MCP61-PCI & LPC

MCP61-PCI & LPC

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet

Date: Sheet

16 35Friday, September 22, 2006

16 35Friday, September 22, 2006

16 35Friday, September 22, 2006

1

of

of

of

5

www.kythuatvitinh.com

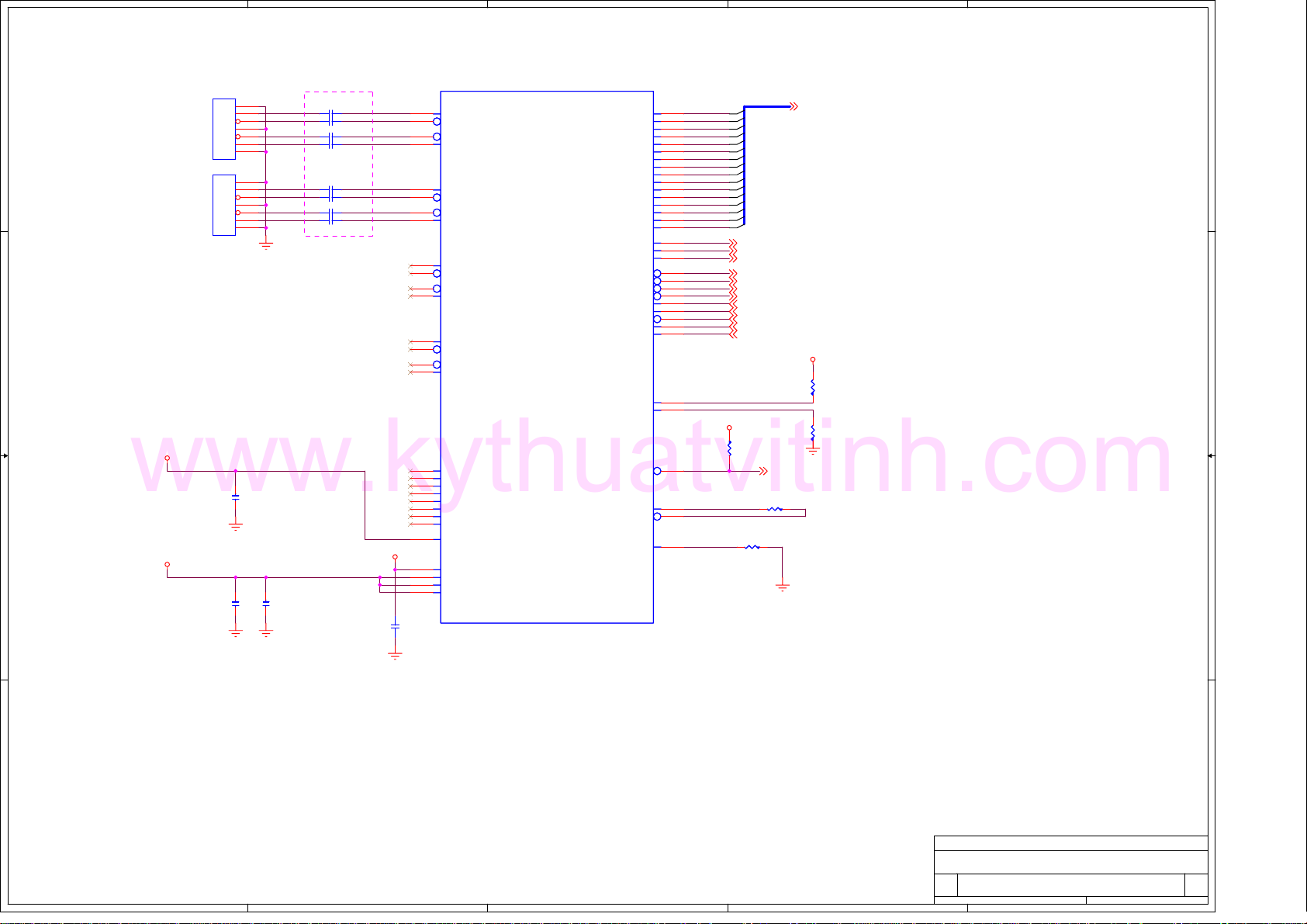

Near SATA CONNECTOR

SATA1

SATA1

1

GND

2

HT+

D D

C C

VCC1.2

VCC3

B B

HT-

GND

HR-

HR+

GND

SATA_H

SATA_H

SATA2

SATA2

GND

HT+

HT-

GND

HR-

HR+

GND

SATA_H

SATA_H

3
4
5
6
7

1
2
3
4
5
6
7

C487

C487
X_C4.7u6.3X/6

X_C4.7u6.3X/6

C489

C489
C0.22u/6.3X/6

C0.22u/6.3X/6

TXPA0
TXNA0

RXNA0
RXPA0

TXPA1
TXNA1

RXNA1
RXPA1

C492

C492
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C371

C371
C372

C372
C373

C373
C374

C374

C375

C375
C376

C376
C377

C377
C378

C378

C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4

C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4
C103p16X/4

C103p16X/4

4

TXP_A0
TXN_A0

RXN_A0
RXP_A0

TXP_A1
TXN_A1

RXN_A1
RXP_A1

VCC1.2

V2
V1

W3
W2

Y8
Y7

Y5
Y6

Y4
Y3

AA4
AA3

AA2
AA1

AB1
AB2

AC3
AC2
AD4
AD3

AE4
AE3
AE1
AE2

Y9

U13
U12

V12

M12

C201

C201
C103p16X/4

C103p16X/4

U14E

U14E

PBGA692

PBGA692

SATA_A0_TX_P
SATA_A0_TX_N

SATA_A0_RX_N
SATA_A0_RX_P

SATA_A1_TX_P
SATA_A1_TX_N

SATA_A1_RX_N
SATA_A1_RX_P

SATA_B0_TX_P
SATA_B0_TX_N

SATA_B0_RX_N
SATA_B0_RX_P

SATA_B1_TX_P
SATA_B1_TX_N

SATA_B1_RX_N
SATA_B1_RX_P

RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED

+1.2V_PLL_SP_VDD

+1.2V_PLL_SP_SS
+3.3V_PLL_SP_SS
+3.3V_PLL_LEG
+3.3V_PLL_DISP

<PATH>

<PATH>

<PART_NAME>

<PART_NAME>

SEC 5 OF 8

SEC 5 OF 8

3

IDE_DATA_P0
IDE_DATA_P1
IDE_DATA_P2
IDE_DATA_P3
IDE_DATA_P4
IDE_DATA_P5
IDE_DATA_P6
IDE_DATA_P7
IDE_DATA_P8

IDE_DATA_P9
IDE_DATA_P10
IDE_DATA_P11
IDE_DATA_P12
IDE_DATA_P13
IDE_DATA_P14
IDE_DATA_P15

IDE_ADDR_P0
IDE_ADDR_P1
IDE_ADDR_P2

IDE_CS1_P*
IDE_CS3_P*

IDE_DACK_P*

IDE_IOW_P*
IDE_INTR_P

IDE_DREQ_P

IDE_IOR_P*
IDE_RDY_P

CABLE_DET_P/GPIO63

IDE_COMP_3P3

IDE_COMP_GND

SATA_LED*/GPIO57

SATA_TSTCLK_P
SATA_TSTCLK_N

SATA_TERMP

MCP61-S

MCP61-S

AJ3
AJ2
AH3
AH1
AG2
AF2
AF4
AE6
AE5
AF5
AF3
AG1
AG3
AH2
AJ1
AK2

AG6
AJ5
AH6

AK6
AJ6
AG5
AH4
AH5
AK3
AJ4
AK4
AF6

AD5
AD6

A5

AA6
AB6

AB5

PDD0
PDD1
PDD2
PDD3
PDD4
PDD5
PDD6
PDD7
PDD8
PDD9
PDD10
PDD11
PDD12
PDD13
PDD14
PDD15

IDE_COMP_3P3V
IDE_COMP_GND

SATA_LED

SATA_TSTCLK_P
SATA_TSTCLK_N

SATA_TERMP

PD_A0 22
PD_A1 22
PD_A2 22

PD_CS#1 22
PD_CS#3 22
PD_DACK# 22
PD_IOW# 22
IRQ14 22
PD_DREQ 22
PD_IOR# 22
PD_IORDY 22
PD_DET 22

VCC5

R329

R329
X_4.7KR/4

X_4.7KR/4

R141

R141

2.49KR1%/4

2.49KR1%/4

PDD[15..0]

SATA_LED 31

R137

R137
X_100R/4/B

X_100R/4/B

PDD[15..0] 22

VCC3

R146

R146
121R1%/4

121R1%/4

R134

R134
121R1%/4

121R1%/4

2

1

A A

Title

Title

Title

MCP61-SATA & IDE

MCP61-SATA & IDE

MCP61-SATA & IDE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet

Date: Sheet

17 35Friday, September 22, 2006

17 35Friday, September 22, 2006

17 35Friday, September 22, 2006

1

of

of

of

5

www.kythuatvitinh.com

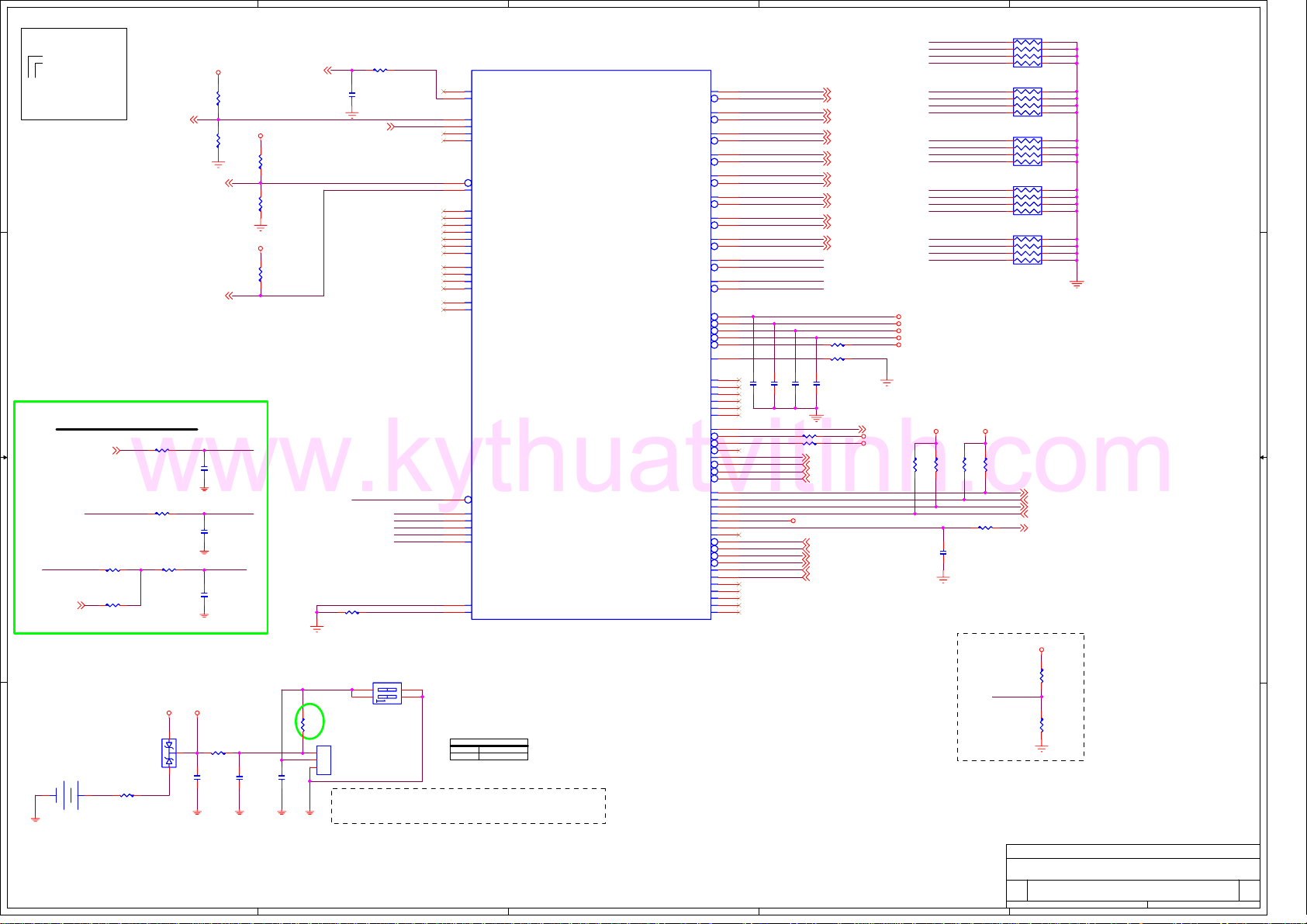

STRAP

HDA_SDOUT
LPC_FRAME

DEFAULT*

00 = LPC BIOS*
01 = PCI BIOS
10 = SPI BIOS
11 = RESERVED

D D

C C

HDA_RST*
1 = *RGMII
0 = MII

HDA_SYNC
(SIO CLK)
1 = *24MHZ
0 = 14.318MHZ

* = DEFAULT

HDA_SDOUT25

3VDUAL

R185

R185
X_10KR/6

X_10KR/6

R186

R186
10KR/4

10KR/4

HDA_RST#25

HDA_SYNC25

HDA_SDOUT

3VDUAL

R183

R183
G_10KR/6

G_10KR/6

R180

R180
A_10KR/4

A_10KR/4

VCC3

R187

R187
10KR/4

10KR/4

HDA_BITCLK_R25

HDA_RST#

HDA_SYNC

POWER SEQUENCE

12

VBAT3VDUAL

3

MEM_VLD

C247

C247
C0.1u16Y/4

C0.1u16Y/4

VCORE_VLD

C239

C239
C0.1u16Y/4

C0.1u16Y/4

HT_VLD

C246

C246
C0.1u16Y/4

C0.1u16Y/4

R306

R306

49.9KR1%/4

49.9KR1%/4

C390

C390
X_C0.1u16Y/4

X_C0.1u16Y/4

C392

C392
C1u16Y/6

C1u16Y/6

RTC_RST#

R307

R307
X_0R/4

X_0R/4

C395

C395
X_C0.1u16Y/4

X_C0.1u16Y/4

R189 1KR/4R189 1KR/4

1
2
3

D19

D19
BAT54C_SOT23

BAT54C_SOT23

R305 1KR/4R305 1KR/4

R166 0R/4R166 0R/4

R168 0R/4R168 0R/4

R173 0R/4R173 0R/4

SLP_S5#28

VCORE_EN

MCPVDD_EN

B B

HT_PWRGD28

A A

VBAT1

VBAT1
Battery Socket

Battery Socket

R172 1KR/4R172 1KR/4

R169 0R/4R169 0R/4

12

4

R311

R311
22R/4

22R/4

HDA_BITCLK

C400

C400
X_C10p50N/4

X_C10p50N/4

HDA_SDIN025

RTC_RST#

MEM_VLD
HT_VLD
MCPVDD_EN
VCORE_VLD
VCORE_EN

TEST_MODE_EN

SW1

SW1
X_1B-OFF-S-BK

X_1B-OFF-S-BK

34
1

2

JBAT1

JBAT1
H1X3_black_with Jumper

H1X3_black_with Jumper

if used JBAT1,pls remove R307 and SW1
if used SW1,pls add R307 and remove JBAT1

U14F

U14F

PBGA692

PBGA692

B7

GP_REFCLK

B4

HDA_BCLK

A3

HDA_SDATA_OUT0/GPIO45

A2

HDA_SDATA_IN0/GPIO22

B1

HDA_SDATA_IN1/GPIO23/MGPIO0

B2

RESERVED

C3

HDA_RESET*

B3

HDA_SYNC/GPIO44

F2

GPIO_1

F1

GPIO_2/NMI*

F6

GPIO_3/SMI*

J8

GPIO_4/SCI_INTR*

G3

GPIO_5/INIT*

G5

GPIO_6/FERR*/SYS_FERR*

G6

GPIO_7/NFERR*/SYS_PERR*

D3

GPIO_8/SPI_DI

D4

GPIO_9/SPI_DO

E4

GPIO_10/SPI_CS

E3

GPIO_11/SPI_CLK

D5

RESERVED

E5

RESERVED

K4

RTC_RST*

J3

MEM_VLD

H3

HT_VLD

J4

MCPVDD_EN

J1

CPU_VLD

J2

CPUVDD_EN

L8

PKG_TEST

F8

TEST_MODE_EN

<PATH>

<PATH>

CMOS CLEAR JUMPER

JBAT1 Clear CMOS

Normal

1 - 2
2 - 3 Clear CMOS

SEC 6 OF 8

SEC 6 OF 8

<PART_NAME>

<PART_NAME>

3

USB_OC0*/GPIO25
USB_OC1*/GPIO26
USB_OC2*/GPIO27

USB_OC3*/GPIO28/MGPIO1

USB_OC4*/GPIO29

USB_RBIAS_GND

RESERVED
RESERVED
RESERVED
RESERVED
RESERVED
RESERVED

A20GATE/GPIO55

INTRUDER*

EXT_SMI*/GPIO32

RI*/GPIO33

PWRBTN*

SIO_PME*/GPIO31

KBRDRSTIN*/GPIO56

SMB_CLK0

SMB_DATA0

SMB_CLK1/MSMB_CLK

SMB_DATA1/MSMB_DATA

+3.3V_VBAT

BUF_SIO_CLK

SUS_CLK/GPIO34

THERM*/GPIO59

RSTBTN*

PWRGD_SB

FANRPM0/GPIO60

FANCTL0/GPIO61

FANCTL1/GPIO62
THERM_SIC/GPIO48
THERM_SID/GPIO49

MCP61-S

MCP61-S

USB0_P

USB0_N

USB1_P

USB1_N

USB2_P

USB2_N

USB3_P

USB3_N

USB4_P

USB4_N

USB5_P

USB5_N

USB6_P

USB6_N

USB7_P

USB7_N

USB8_P

USB8_N

USB9_P

USB9_N

SPKR

SLP_S5*
SLP_S3*

PWRGD

M3
M4

N3
N4

N1
N2

P1
P2

R2
R3

P3
P4

T3
T4

U3
U4

T6
T5

T8
T7

P7
P8
P9
P5
P6

USB_RBIAS_GND

T9

H9
AE7
V5
V4
V7
V6

F5
K2
F3
H4
C7
G4
F4
A4

C2
C1
D2
E2
K3
B5
E1
C6
H5
H8
G8
H6
G2
E6
D6
C5
AH7
AF8

USBP0
USBN0

USBP1
USBN1

USBP2
USBN2

USBP3
USBN3

USBP4
USBN4

USBP5
USBN5

USBP6
USBN6

USBP7
USBN7

USBP8
USBN8

USBP9
USBN9

C290

C290
C103p16X/4

C103p16X/4

C273

C273
C103p16X/4

C103p16X/4

INTRUDER#
EXT_SMI#

SPKR
PWRBTN#
SIO_PME#
KBRST#

SMB_MEM_CLK
SMB_MEM_DATA
SMBCLK
SMBDATA

SIOCLK_24M
THRM#

FP_RST#
SLP_S5#
SLP_S3#
RSMRST#
ATX_PWR_OK

USBP0 23
USBN0 23

USBP1 23
USBN1 23

USBP2 23
USBN2 23

USBP3 23
USBN3 23

USBP4 23
USBN4 23

USBP5 23
USBN5 23

USBP6 23
USBN6 23

USBP7 23
USBN7 23

R304 10KR/4R304 10KR/4
R148 1.1KR1%/4/BR148 1.1KR1%/4/B
C484

C484
C103p16X/4/B

C103p16X/4/B

C238

C238
C103p16X/4

C103p16X/4

Close to MCP61

R165 49.9KR1%/4R165 49.9KR1%/4
R163 X_4.7KR/4R163 X_4.7KR/4

SPKR 31
PWRBTN# 27
SIO_PME# 27
KBRST# 27

VBAT

THRM# 27
FP_RST# 27,31
SLP_S5# 28
SLP_S3# 27,28
RSMRST# 24,28
ATX_PWR_OK 6,27,28,31

2

SVCC1
SVCC4
SVCC3
SVCC2
3VDUAL

A20GATE 27

VBAT
3VDUAL

USBP4
USBN4
USBP5
USBN5

USBP1
USBN1
USBP0
USBN0

USBP3
USBN3
USBP2
USBN2

USBP7
USBN7
USBP6
USBN6

USBN8
USBP8
USBP9
USBN9

3VDUAL VCC3

R162

R162

2.7KR/4

2.7KR/4

R174

R174

2.7KR/4

2.7KR/4

C263

C263
X_C10p50N/4

X_C10p50N/4

RN30

RN30
8P4R-15KR/4

8P4R-15KR/4

1 2
3 4
5 6
7 8

RN34

RN34

8P4R-15KR/4

8P4R-15KR/4

1 2
3 4
5 6
7 8

RN32

RN32

8P4R-15KR/4

8P4R-15KR/4

1 2
3 4
5 6
7 8

RN29

RN29

8P4R-15KR/4

8P4R-15KR/4

1 2
3 4
5 6
7 8

RN31

RN31

8P4R-15KR/4

8P4R-15KR/4

1 2
3 4
5 6
7 8

Close to MCP61

R176

R176

2.7KR/4

2.7KR/4

R179

R179

2.7KR/4

2.7KR/4

R207 22R/4R207 22R/4

SPKR
0 = USER*
1 = SAFE MODE

SPKR

SMB_MEM_CLK 10
SMB_MEM_DATA 10
SMBCLK 20,21,28
SMBDATA 20,21,28

SIO_24M 27

VCC3

R212

R212
X_1KR/4

X_1KR/4

R203

R203
1KR/4

1KR/4

1

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

5

4

3

2

Date: Sheet

Date: Sheet of

Date: Sheet of

MCP61-AUDIO & USB & MISC

MCP61-AUDIO & USB & MISC

MCP61-AUDIO & USB & MISC

MS-7309 0A

MS-7309 0A

MS-7309 0A

1

of

18 35Friday, September 22, 2006

18 35Friday, September 22, 2006

18 35Friday, September 22, 2006

5

www.kythuatvitinh.com

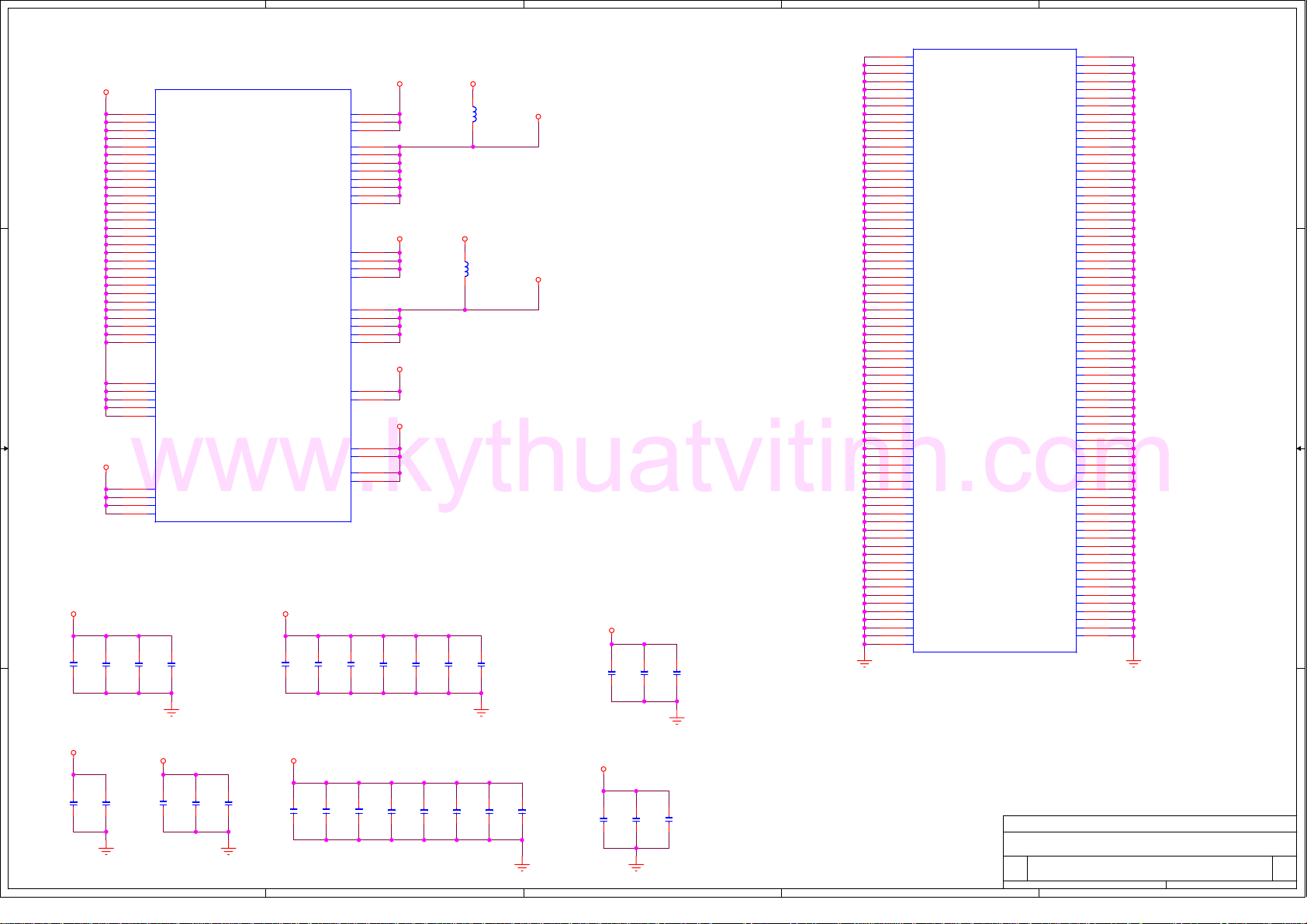

U14G

U14G

PBGA692

AK27
AH27

AJ27
AG26
AG25

U18
AE22
AE23

V19

V18

U19

W19
W18

V15

U16

T14

W14
AB21
AC21

U14
T18
U15
R15
V17
V16
R17
T16
U17
R19

AB22
AE24
AD22
AA22
AC22

H15

J15
AC6
AC5

C501

C501
C0.1u10X/6/B

C0.1u10X/6/B

PBGA692

+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V
+1.2V

+1.2V_PED
+1.2V_PED
+1.2V_PED
+1.2V_PED
+1.2V_PED

+3.3V
+3.3V
+3.3V
+3.3V

<PATH>

<PATH>

C493

C493
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

<PART_NAME>

<PART_NAME>

SEC 7 OF 8

SEC 7 OF 8

+1.2V_HT
+1.2V_HT
+1.2V_HT

+1.2V_PEA
+1.2V_PEA
+1.2V_PEA
+1.2V_PEA
+1.2V_PEA
+1.2V_PEA
+1.2V_PEA
+1.2V_PEA

+1.2V_SP_D
+1.2V_SP_D
+1.2V_SP_D
+1.2V_SP_D

+1.2V_SP_A
+1.2V_SP_A
+1.2V_SP_A
+1.2V_SP_A
+1.2V_SP_A

+1.2V_DUAL
+1.2V_DUAL

+3.3V_DUAL
+3.3V_DUAL

+3.3V_USB_DUAL
+3.3V_USB_DUAL

MCP61-S

MCP61-S

C249

C249
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C254

C254
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

VCC1.2

D D

C C

VCC3

B B

PLACE ON BACK SIDE

VCC1.2 VCC1.2

CENTER OF MCP61

C220

C220
C4.7u10Y/8/B

C4.7u10Y/8/B

C499

C499
C1u6.3X/6/B

C1u6.3X/6/B

VCC1_2HT

W15
W16
W17

AK28
AJ28
AH28
AG27
AF26
AE25
AD24
AC23

VCC1.2

V13
W13
V14
W12

W9
W8
V8
V9
U9

1.2VDUAL

F26
F27

3VDUAL

L4
J22

L3
L2

C235

C235
C1u6.3X/6/B

C1u6.3X/6/B

C243

C243
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

4

C202

C202
C0.1u10X/6/B

C0.1u10X/6/B

VCC1.2

FB5

FB5
0R/8

0R/8

VCC1.2

FB6

FB6
0R/8/B

0R/8/B

C203

C203
C0.1u10X/6/B

C0.1u10X/6/B

C236

C236
C0.1u10X/6/B

C0.1u10X/6/B

1P2V_PEA

1P2V_SP_A

VCC3

C502

C502
C0.1u10X/6/B

C0.1u10X/6/B

3

C216

C216
C0.1u10X/6/B

C0.1u10X/6/B

C481

C481
C0.1u10X/6/B

C0.1u10X/6/B

2

U14H

U14H

PBGA692

PBGA692

P19

GND

H19

GND

AE11

GND

D7

GND

G27

GND

AB7

GND

T15

GND

U2

GND

P13

GND

AC9

GND

N25

GND

G26

GND

F17

GND

F15

GND

F13

GND

F11

GND

F9

GND

D25

GND

H17

GND

D19

GND

J17

GND

H13

GND

AH26

GND

AA9

GND

AE21

GND

AE19

GND

AE17

GND

AE15

GND

AE13

GND

AA8

GND

AF30

GND

AK22

GND

AG19

GND

AK18

GND

AG15

GND

C4

GND

E30

GND

D15

GND

D11

GND

J6

GND

L6

GND

N6

GND

R6

GND

U6

GND

N22

GND

R13

GND

M19

GND

AK1

GND

J23

GND

R23

GND

M18

GND

N18

GND

P16

GND

N15

GND

R18

GND

T13

GND

T17

GND

M17

GND

L23

GND

P17

GND

J11

GND

R16

GND

A1

GND

J13

GND

M16

GND

N16

GND

N17

GND

AG11

GND

N23

GND

R14

GND

T12

GND

R12

GND

AC7

GND

<PATH> MCP61-S

<PATH> MCP61-S

<PART_NAME>

<PART_NAME>

SEC 8 OF 8

SEC 8 OF 8

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

M15
AK14
P15
W6
N19
AC8
N12
N14
P14
M14
M13
U1
R9
N9
P12
D23
AK30
H7
A30
AB3
K9
F30
N8
F7
J21
K1
AB30
V30
P30
K30
H21
AD26
AA25
W25
U25
R25
L25
J25
W27
N13
R27
L27
W23
U8
J9
AE9
AG7
F25
P18
F21
F19
F29
AK5
R4
V3
W4
AC4
C28
T19
AC13
AK10
AF1
AG4
R8
A27
H11
D1
AC19
AC17
E29
AJ7
AB4

1

1.2VDUAL

A A

C298

C298
C0.1u10X/6

C0.1u10X/6

1P2V_SP_A 1P2V_PEA

C480

C480
C0.1u10X/6/B

C0.1u10X/6/B

C483

5

C483
C4.7u10Y/8/B

C4.7u10Y/8/B

C297

C297
C0.1u10X/6

C0.1u10X/6

C482

C482
C0.1u10X/6/B

C0.1u10X/6/B

C253

C253
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C256

C256
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C245

C245
C1u6.3X/6/B

C1u6.3X/6/B

C255

C255
C4.7u10Y/8/B

C4.7u10Y/8/B

4

C503

C503
C0.1u10X/6/B

C0.1u10X/6/B

C250

C250
C0.1u10X/6/B

C0.1u10X/6/B

C494

C494
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

C252

C252
X_C4.7u10Y/8/B

X_C4.7u10Y/8/B

3VDUAL

C227

C227
C0.1u10X/6/B

C0.1u10X/6/B

C507

C507
C0.1u16Y/6/B

C0.1u16Y/6/B

C241

C241
C0.1u10X/6/B

C0.1u10X/6/B

3

Title

Title

Title

MCP61-Power & GND

MCP61-Power & GND

MCP61-Power & GND

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

2

Date: Sheet

19 35Monday, September 11, 2006

19 35Monday, September 11, 2006

19 35Monday, September 11, 2006

of

of

1

of

5

www.kythuatvitinh.com

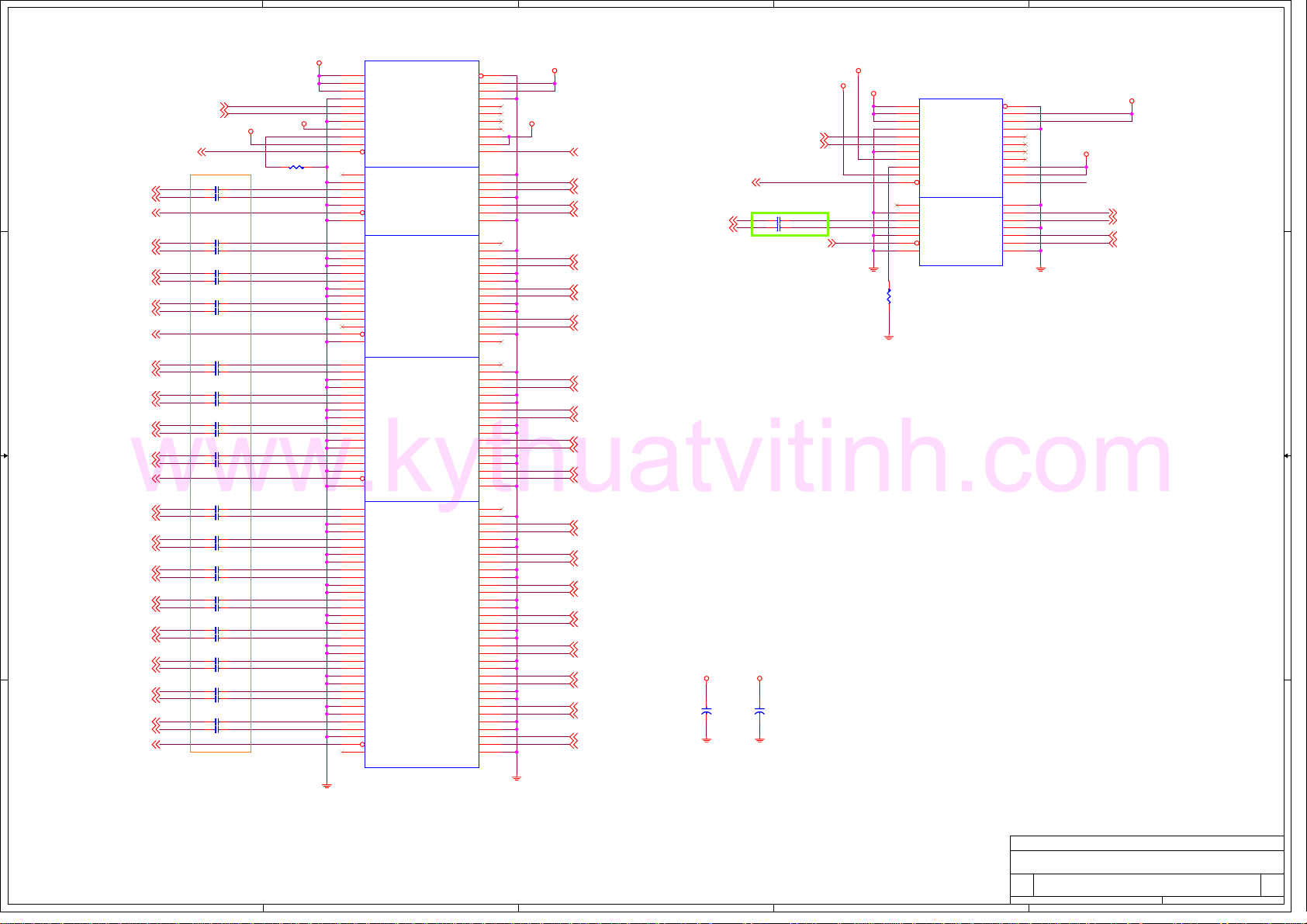

+12V

SMBCLK18,21,28

D D

PE0_TX1514

PE0_TX15#14

PE0_PRSNTX1#14

PE0_TX1414

PE0_TX14#14

PE0_TX1314

PE0_TX13#14

PE0_TX1214

PE0_TX12#14

C C

B B

A A

PE0_PRSNTX4#14

PE0_TX1114

PE0_TX11#14

PE0_TX1014

PE0_TX10#14

PE0_TX914

PE0_TX9#14

PE0_TX814

PE0_TX8#14

PE0_PRSNTX8#14

PE0_TX714

PE0_TX7#14

PE0_TX614

PE0_TX6#14

PE0_TX514

PE0_TX5#14

PE0_TX414

PE0_TX4#14

PE0_TX314

PE0_TX3#14

PE0_TX214

PE0_TX2#14

PE0_TX114

PE0_TX1#14

PE0_TX014

PE0_TX0#14

PE0_PRSNTX16#14

SMBDATA18,21,28

PE_WAKE#14

Near Connector

C332 C0.1u16Y/4C332 C0.1u16Y/4
C331 C0.1u16Y/4C331 C0.1u16Y/4

C334 C0.1u16Y/4C334 C0.1u16Y/4
C333 C0.1u16Y/4C333 C0.1u16Y/4

C336 C0.1u16Y/4C336 C0.1u16Y/4
C335 C0.1u16Y/4C335 C0.1u16Y/4

C318 C0.1u16Y/4C318 C0.1u16Y/4
C317 C0.1u16Y/4C317 C0.1u16Y/4

C320 C0.1u16Y/4C320 C0.1u16Y/4
C319 C0.1u16Y/4C319 C0.1u16Y/4

C313 C0.1u16Y/4C313 C0.1u16Y/4
C312 C0.1u16Y/4C312 C0.1u16Y/4

C311 C0.1u16Y/4C311 C0.1u16Y/4
C310 C0.1u16Y/4C310 C0.1u16Y/4

C325 C0.1u16Y/4C325 C0.1u16Y/4
C338 C0.1u16Y/4C338 C0.1u16Y/4

C329 C0.1u16Y/4C329 C0.1u16Y/4
C342 C0.1u16Y/4C342 C0.1u16Y/4

C330 C0.1u16Y/4C330 C0.1u16Y/4
C343 C0.1u16Y/4C343 C0.1u16Y/4

C328 C0.1u16Y/4C328 C0.1u16Y/4
C346 C0.1u16Y/4C346 C0.1u16Y/4

C326 C0.1u16Y/4C326 C0.1u16Y/4
C344 C0.1u16Y/4C344 C0.1u16Y/4

C327 C0.1u16Y/4C327 C0.1u16Y/4
C345 C0.1u16Y/4C345 C0.1u16Y/4

C322 C0.1u16Y/4C322 C0.1u16Y/4
C339 C0.1u16Y/4C339 C0.1u16Y/4

C321 C0.1u16Y/4C321 C0.1u16Y/4
C340 C0.1u16Y/4C340 C0.1u16Y/4

C324 C0.1u16Y/4C324 C0.1u16Y/4
C341 C0.1u16Y/4C341 C0.1u16Y/4

3VDUAL

VCC3

R284 10KR/4R284 10KR/4

PE0_TX15C
PE0_TX15C#

PE0_TX14C
PE0_TX14C#

PE0_TX13C
PE0_TX13C#

PE0_TX12C
PE0_TX12C#

PE0_TX11C
PE0_TX11C#

PE0_TX10C
PE0_TX10C#

PE0_TX9C
PE0_TX9C#

PE0_TX8C
PE0_TX8C#

PE0_TX7C
PE0_TX7C#

PE0_TX6C
PE0_TX6C#

PE0_TX5C
PE0_TX5C#

PE0_TX4C
PE0_TX4C#

PE0_TX3C
PE0_TX3C#

PE0_TX2C
PE0_TX2C#

PE0_TX1C
PE0_TX1C#

PE0_TX0C
PE0_TX0C#

4

PCI_E2

PCI_E2

B1

12V

B2

12V

B3

RSVD

B4

GND

B5

SMCLK

B6

SMDAT

B7

GND

B8

3.3V

B9

JTAG1

B10

3.3VAUX

B11

WAKE#

B12

RSVD

B13

GND

B14

HSOP0

B15

HSON0

B16

GND

B17

PRSNT2#

B18

GND

B19

HSOP1

B20

HSON1

B21

GND

B22

GND

B23

HSOP2

B24

HSON2

B25

GND

B26

GND

B27

HSOP3

B28

HSON3

B29

GND

B30

RSVD

B31

PRSNT2#

B32

GND

B33

HSOP4

B34

HSON4

B35

GND

B36

GND

B37

HSOP5

B38

HSON5

B39

GND

B40

GND

B41

HSOP6

B42

HSON6

B43

GND

B44

GND

B45

HSOP7

B46

HSON7

B47

GND

B48

PRSNT2#

B49

GND

B50

HSOP8

B51

HSON8

B52

GND

B53

GND

B54

HSOP9

B55

HSON9

B56

GND

B57

GND

B58

HSOP10

B59

HSON10

B60

GND

B61

GND

B62

HSOP11

B63

HSON11

B64

GND

B65

GND

B66

HSOP12

B67

HSON12

B68

GND

B69

GND

B70

HSOP13

B71

HSON13

B72

GND

B73

GND

B74

HSOP14

B75

HSON14

B76

GND

B77

GND

B78

HSOP15

B79

HSON15

B80

GND

B81

PRSNT2#

B82

RSVD

PCI EXPRESS X16 POART

PCI EXPRESS X16 POART

PRSNT1#

12V
12V

GND
JTAG2
JTAG3
JTAG4
JTAG5

3.3V

3.3V

PWRGD

GND

REFCLK+

REFCLK-

GND

HSIP0
HSIN0

GND

RSVD

GND

HSIP1
HSIN1

GND

GND

HSIP2
HSIN2

GND

GND

HSIP3
HSIN3

GND

RSVD

RSVD

GND

HSIP4
HSIN4

GND

GND

HSIP5
HSIN5

GND

GND

HSIP6
HSIN6

GND

GND

HSIP7
HSIN7

GND

RSVD

GND

HSIP8
HSIN8

GND

GND

HSIP9
HSIN9

GND

GND

HSIP10
HSIN10

GND

GND

HSIP11
HSIN11

GND

GND

HSIP12
HSIN12

GND

GND

HSIP13
HSIN13

GND

GND

HSIP14
HSIN14

GND

GND

HSIP15
HSIN15

GND

3

VCC3

+12V

PE_RST# 14

PE0_CLK 14
PE0_CLK# 14

PE0_RX15 14
PE0_RX15# 14

PE0_RX14 14
PE0_RX14# 14

PE0_RX13 14
PE0_RX13# 14

PE0_RX12 14
PE0_RX12# 14

PE0_RX11 14
PE0_RX11# 14

PE0_RX10 14
PE0_RX10# 14

PE0_RX9 14
PE0_RX9# 14

PE0_RX8 14
PE0_RX8# 14

PE0_RX7 14
PE0_RX7# 14

PE0_RX6 14
PE0_RX6# 14

PE0_RX5 14
PE0_RX5# 14

PE0_RX4 14
PE0_RX4# 14

PE0_RX3 14
PE0_RX3# 14

PE0_RX2 14
PE0_RX2# 14

PE0_RX1 14
PE0_RX1# 14

PE0_RX0 14
PE0_RX0# 14

PE1_TX#15

+

+

PE_WAKE#14

Near Connector

+12V3VDUAL

EC28

EC28

X_EL470u/16V11.5

X_EL470u/16V11.5

SMBCLK18,21,28

SMBDATA18,21,28

C285 C0.1u16Y/4C285 C0.1u16Y/4
C292 C0.1u16Y/4C292 C0.1u16Y/4

PE1_PRSNT#15

+

+

EC32

EC32

EL470u/16V11.5

EL470u/16V11.5

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

A12
A13
A14
A15
A16
A17
A18

A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32

A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82

3VDUAL

PE1_TXC
PE1_TXC#

VCC3

+12V

R243

R243
10KR/4

10KR/4

2

PCI_E1

PCI_E1

B1

12V

B2

12V

B3

12V

B4

GND

B5

SMCLK

B6

SMDAT

B7

GND

B8

3.3V

B9

JTAG1

B10

3.3VAUX

B11

WAKE#

B12

RSVD

B13

GND

B14

HSOP0

B15

HSON0

B16

GND

B17

PRSNT2#

B18

GND

PCIE X1

PCIE X1

PRSNT1#

12V
12V

GND
JTAG2
JTAG3
JTAG4
JTAG5

3.3V

3.3V

PWRGD

GND

REFCLK+

REFCLK-

GND

HSIP0
HSIN0

GND

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

A12
A13
A14
A15
A16
A17
A18

VCC3

PE_RST#

1

+12V

PE1_CLK 15
PE1_CLK# 15PE1_TX15

PE1_RX 15
PE1_RX# 15

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

5

4

3

2

Date: Sheet

Date: Sheet

Date: Sheet

PEX X16 & X1 CONN

PEX X16 & X1 CONN

PEX X16 & X1 CONN

MS-7309 0A

MS-7309 0A

MS-7309 0A

1

of

20 35Friday, September 22, 2006

of

20 35Friday, September 22, 2006

of

20 35Friday, September 22, 2006

5

www.kythuatvitinh.com

4

3

2

1

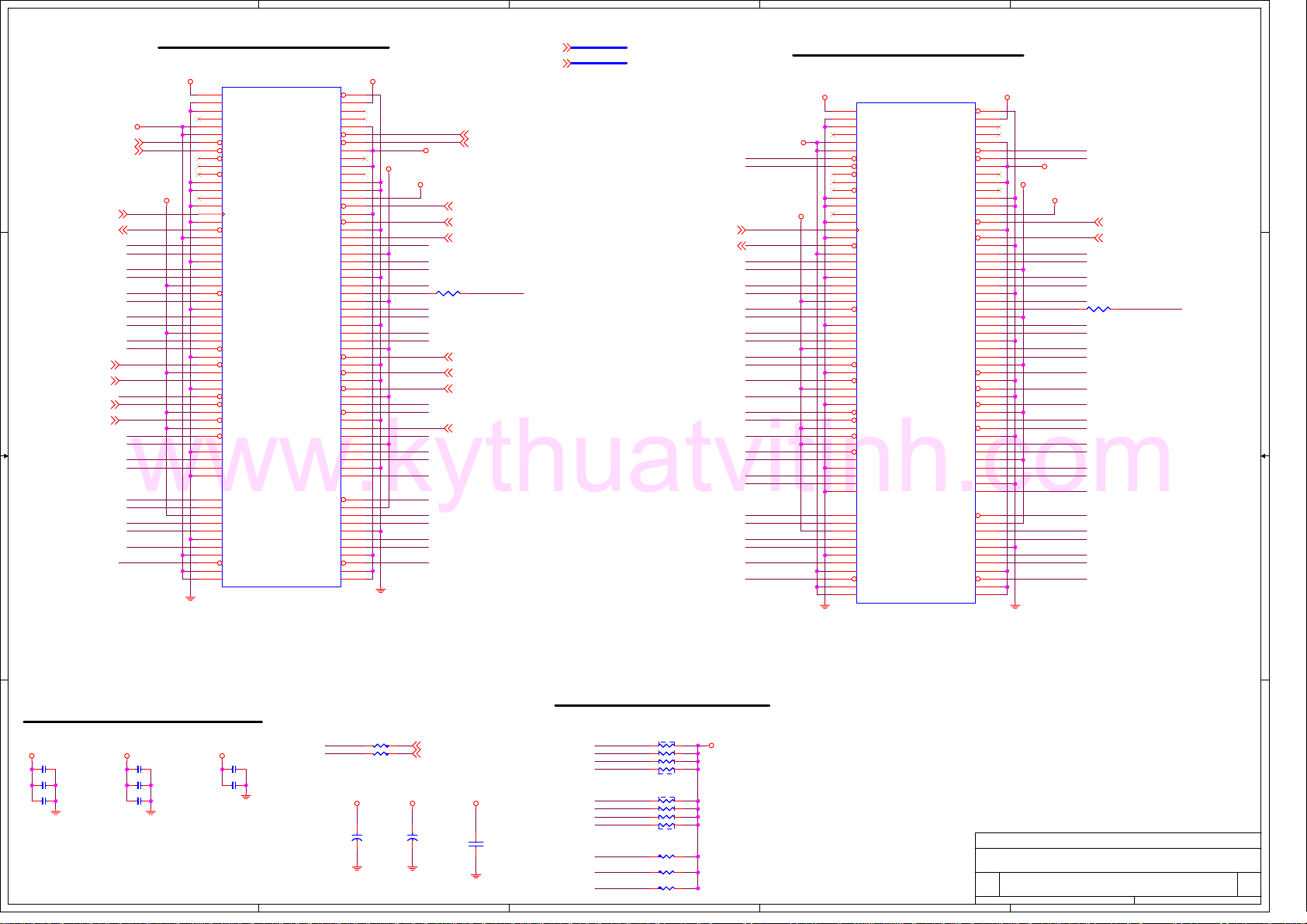

PCI SLOT 1 (PCI VER: 2.2 COMPLY)

-12V

PCI1

PCI1

B1

-12V

B2

TCK

B3

GND

B4

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

B5
B6
B7
B8
B9

TDO
+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V

PCI-WHITE

PCI-WHITE

D D

C C

B B

VCC5

PCI_INTZ#16,26
PCI_INTX#16

VCC3

PCICLK_SLOT116

PCI_REQ1#16

IRDY#16,26

DEVSEL#16,26

PERR#16,26
SERR#16

AD31
AD29

AD27
AD25

C_BE#3

AD23
AD21

AD19
AD17

C_BE#2
IRDY#

DEVSEL#

LOCK#
PERR#

SERR#
C_BE#1

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1
ACK64#

TRST#

INTA#
INTC#

RESERVED

+5V(I/O)

RESERVED

RESERVED

+5V(I/O)

GNT#

RESERVED

+3.3V

IDSEL

+3.3V

FRAME#

TRDY#
STOP#

+3.3V

SDONE

SBO#

+3.3V

C/BE#0

+3.3V

+5V(I/O)
REQ64#

+12V

TMS

TDI
+5V

+5V

GND
GND

RST#

GND
AD30
AD28

AD26

GND
AD24

+3.3
AD22
AD20

GND
AD18
AD16

GND

GND

GND

PAR

AD15
AD13

AD11

GND

AD9

AD6
AD4

GND

AD2
AD0

+5V
+5V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

+12V

VCC3

3VDUAL

PME#
AD30

AD28
AD26

AD24
ID1

AD22
AD20

AD18
AD16

FRAME#
TRDY#
STOP#
SDONE

SBO#
PAR

AD15
AD13

AD11
AD9

C_BE#0
AD6

AD4
AD2

AD0

REQ64#A

PCI_INTY# 16
PCI_INTW# 16

VCC5

PCIRST_SLOT1# 16
PCI_GNT1# 16
PME# 16,26

R302 100R/4R302 100R/4

FRAME# 16,26
TRDY# 16,26
STOP# 16,26

PAR 16,26

AD[31..0]16,26

C_BE#[3..0]16,26

AD26

IDSEL = AD26
PCI_REQ1#

PCI_GNT1#
INT Y# Z# W# X#
PCICLK_SLOT1

AD[31..0]
C_BE#[3..0]

PCI SLOT 2 (PCI VER: 2.2 COMPLY)

-12V

PCI2

PCI2

B1

-12V

B2

TCK

B3

GND

B4

TDO

B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49

B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62

B5
B6
B7
B8
B9

+5V
+5V
INTB#
INTD#
PRSNT#1
RESERVED
PRSNT#2
GND
GND
RESERVED
GND
CLK
GND
REQ#
+5V(I/O)
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE#3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE#2
GND
IRDY#
+3.3V
DEVSEL#
GND
LOCK#
PERR#
+3.3V
SERR#
+3.3V
C/BE#1
AD14
GND
AD12
AD10
GND

AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V(I/O)
ACK64#
+5V
+5V

PCI-WHITE

PCI-WHITE

VCC5

PCI_INTY#
PCI_INTW#

VCC3

PCICLK_SLOT216

PCI_REQ2#16

AD31
AD29

AD27
AD25

C_BE#3
AD23

AD21
AD19

AD17
C_BE#2

IRDY#
DEVSEL#
LOCK#

PERR#
SERR#
C_BE#1

AD14
AD12

AD10

AD8
AD7

AD5
AD3

AD1
ACK64#

TRST#

INTC#

RESERVED

+5V(I/O)

RESERVED

RESERVED

+5V(I/O)

RESERVED

IDSEL

FRAME#

TRDY#
STOP#

SDONE

C/BE#0

+5V(I/O)
REQ64#

+12V

TMS

TDI
+5V

INTA#

+5V

GND
GND

RST#

GNT#

GND

AD30

+3.3V

AD28
AD26

GND

AD24

+3.3
AD22
AD20

GND
AD18
AD16

+3.3V

GND

GND

+3.3V
SBO#

GND

PAR

AD15

+3.3V

AD13
AD11

GND

AD9

+3.3V

AD6
AD4

GND

AD2
AD0

+5V
+5V

A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49

A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62

+12V

VCC3

PCI_INTX#
PCI_INTZ#

VCC5

3VDUAL

PME#
AD30

AD28
AD26

AD24

ID2

AD22
AD20

AD18
AD16

FRAME#
TRDY#
STOP#
SDONE

SBO#
PAR

AD15
AD13

AD11
AD9

C_BE#0
AD6

AD4
AD2

AD0

REQ64#B

PCIRST_SLOT2# 16
PCI_GNT2# 16

R312 100R/4R312 100R/4

AD25

IDSEL = AD25
PCI_REQ2# PCI_GNT2#
INT X# Y# Z# W#
PCICLK_SLOT2

PCI PULL-UP / DOWN RESISTORS

PCI SLOT DECOUPLING CAPACITORS

R309 X_0R/4R309 X_0R/4

VCC5 3VDUALVCC3

C399

C386

5

C386
X_C0.1u16Y/4

X_C0.1u16Y/4
C401

C401
X_C0.1u16Y/4

X_C0.1u16Y/4
C403

C403
X_C0.1u16Y/4

X_C0.1u16Y/4

C370

C370
X_C0.1u16Y/4

X_C0.1u16Y/4
C402

C402
X_C0.1u16Y/4

A A

X_C0.1u16Y/4
C385

C385
X_C0.1u16Y/4

X_C0.1u16Y/4

C399
X_C0.1u16Y/4

X_C0.1u16Y/4
C369

C369
X_C0.1u16Y/4

X_C0.1u16Y/4

SDONE
SBO#

R310 X_0R/4R310 X_0R/4

VCC3 VCC5

+

+

EC36

EC36

EL1000u/6.3V15

EL1000u/6.3V15

+

+

4

SMBCLK 18,20,28
SMBDATA 18,20,28

+12V

EC37

EC37

X_EL1000u/16V20

X_EL1000u/16V20

C422

C422
X_C0.1u25Y/6

X_C0.1u25Y/6

DEVSEL#
TRDY#
IRDY#
FRAME#

STOP#
LOCK#
PERR#
SERR#

ACK64#
REQ64#A
REQ64#B

RN47

RN47
8P4R-8.2KR/4

8P4R-8.2KR/4

RN43

RN43
8P4R-8.2KR/4

8P4R-8.2KR/4

R326 8.2KR/4R326 8.2KR/4
R303 8.2KR/4R303 8.2KR/4
R325 8.2KR/4R325 8.2KR/4

3

12

VCC3

34
56
78

12
34
56
78

Title

Title

Title

PCI CONN 1&2

PCI CONN 1&2

PCI CONN 1&2

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

2

Date: Sheet

1

of

21 35Friday, September 22, 2006

of

21 35Friday, September 22, 2006

of

21 35Friday, September 22, 2006

5

www.kythuatvitinh.com

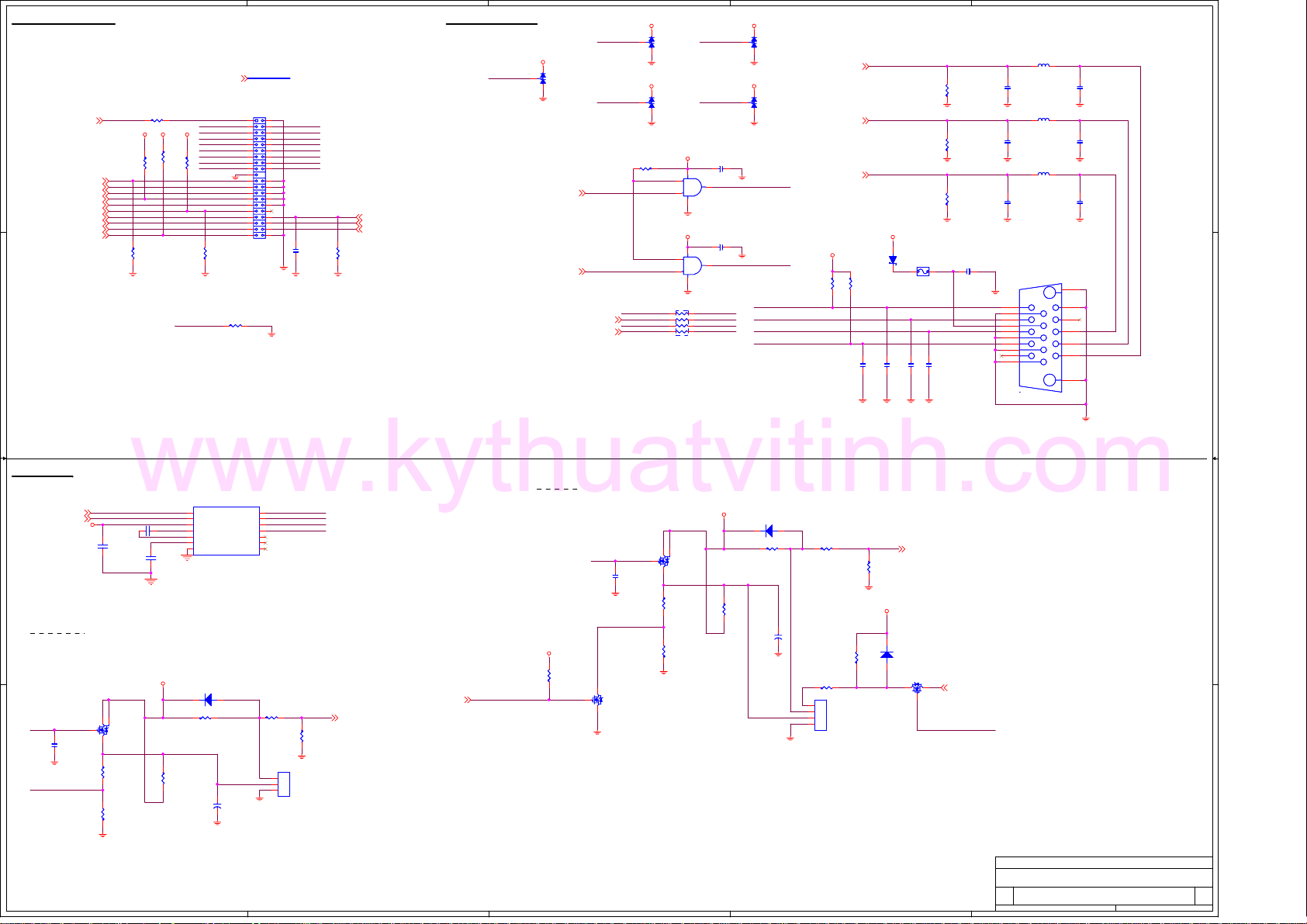

PRIMARY IDE BLOCK

PDD[15..0]

PDD[15..0]17

IDE1

IDE1
IDE

IDE

1

2

PDD7

3 4

PDD6

5 6

PDD5

7 8

PDD4

91110

PDD3
PDD2

13 14

PDD1 PDD14

17 18
19
21
23
25
27
29
31
33
35
37

R224 10KR/4R224 10KR/4

PDD8
PDD9
PDD10
PDD11
PDD12

12

PDD13

1615

PDD15PDD0

22
24
26
28
30
32
34
36
38
4039

C196

C196
X_C472p50N/6

X_C472p50N/6

PD_DET

VCC5VCC3 VCC3

R112

R112
X_4.7KR/4

X_4.7KR/4

HDRST#P

R124

R124
X_8.2KR/4

X_8.2KR/4

PDD7

R121

R121
10KR/4

10KR/4

HD_RST#

D D

C C

HD_RST#28

PD_DREQ17

PD_IOW#17

PD_IOR#17
PD_IORDY17
PD_DACK#17

IRQ1417
PD_A117 PD_DET 17
PD_A017

PD_CS#117 PD_CS#3 17

PD_LED31

R225 33R/4R225 33R/4

R129

R129

4.7KR/4

4.7KR/4

R125

R125

5.6KR/4

5.6KR/4

R118

R118
15KR/4

15KR/4

4

PD_A2 17

VGA CONN BLOCK

R

3

VCC5

2

1

D31

D31
C4.7u10Y/8/B

C4.7u10Y/8/B

HSYNC#15

VSYNC#15

DDC_DATA15
DDC_CLK15

HSYNC#

VSYNC#

3

DDC_SDA

DDC_SCL

4

U11

U11

4

U10

U10

VSYNC_A
DDC_SDA
HSYNC_A
DDC_SCL

C112

C112
C0.1u16Y/4

C0.1u16Y/4

C138

C138
C0.1u16Y/4

C0.1u16Y/4

3

3

VCC5

VCC5

2

D6

D6
C4.7u10Y/8/B

C4.7u10Y/8/B

1

2

D28

D28
C4.7u10Y/8/B

C4.7u10Y/8/B

1

5V_HSYNC

5V_VSYNC

DDC_SCL
VSYNC_A
HSYNC_A
DDC_SDA

VCC5

3

VCC5

3

5V_VSYNC
DDC_DATA
5V_HSYNC
DDC_CLK

U40_1

2

1

2

1

R86

R86
10KR/4

10KR/4

D29

D29
C4.7u10Y/8/B

C4.7u10Y/8/B

D30

D30
C4.7u10Y/8/B

C4.7u10Y/8/B

VCC5

1
2

VCC5

1
2

RN19

RN19

8P4R-33R/4

8P4R-33R/4

53

NC7WZ08

NC7WZ08

53

NC7WZ08

NC7WZ08

12
34
56
78

B

G

VCC5

R91

R91

2.2KR/4

2.2KR/4

2

R15

G15

B15

R89

R89

2.2KR/4

2.2KR/4

C122

C122
C22p50N/4

C22p50N/4

R

G

B

VCC5

C135

C135
C22p50N/4

C22p50N/4

D5
1N5817D51N5817

close VGA connector

R95

R95
150R1%/4

150R1%/4

R94

R94
150R1%/4

150R1%/4

R92

R92
150R1%/4

150R1%/4

FS1

FS1

1.1A

1.1A

C134

C134
C22p50N/4

C22p50N/4

C114

C114
C22p50N/4

C22p50N/4

C104

C104
X_C0.1u16Y/4

X_C0.1u16Y/4

VGAPWR_FB

L4 30S-500mA/6L4 30S-500mA/6

C149

C149
X_C10p50N/4

X_C10p50N/4

L3

L3

C144

C144
X_C10p50N/4

X_C10p50N/4

L2 30S-500mA/6L2 30S-500mA/6

C139

C139
X_C10p50N/4

X_C10p50N/4

JVGA1

JVGA1

15
10
14

9

13

8

12

7

11

6

VGA-D15-BL-B-SC

VGA-D15-BL-B-SC

30S-500mA/6

30S-500mA/6

17

5
4
3
2
1

16

1

C148

C148
C10p50N/4

C10p50N/4

C143

C143
C10p50N/4

C10p50N/4

C137

C137
C10p50N/4

C10p50N/4

VGA_B
VGA_G
VGA_R

FAN BOLCK

+12V

C24

C24

C0.1u16Y/4

C0.1u16Y/4

CPU-FAN_CTL
SYS-FAN_CTL

C25

C25

C0.1u25Y/6

C0.1u25Y/6

C27

C27
C0.1u50Y/6

C0.1u50Y/6

CPU-FAN_CTL27
SYS-FAN_CTL27

B B

System FAN

23

4

Q24

SYSFAN_DRV

C286

C286
X_C0.1u25Y/6

X_C0.1u25Y/6

SYSFAN_SEN

A A

Q24

1

X_N-APM2054N_SOT89

X_N-APM2054N_SOT89

R244

R244
X_10KR/4

X_10KR/4

R234

R234
X_3.48KR1%/6

X_3.48KR1%/6

FANC1
FANC2

+12V

1
2
3
4
5
6
7

D16 1N4148SD16 1N4148S

R257 4.7KR/4R257 4.7KR/4

R233

R233
0R/8

0R/8

U1

FAN1_IN
FAN2_IN
VCC12
C1
C2
CHRPMP
GND

FAN1_DRV
FAN1_SEN
FAN2_DRV
FAN2_SEN
FAN3_DRV
FAN3_SEN

FAN3_IN

SYSFAN_PWR

+

+

EC27

EC27
EL10u/25V7

EL10u/25V7

14
13
12
11
10
9
8

W83391TSU1W83391TS

CPUFAN_DRV
CPUFAN_SEN
SYSFAN_DRV
SYSFAN_SEN

R258

R258
27KR/4

27KR/4

3
2
1

FAN1X3_white

FAN1X3_white

R259

R259
10KR/4

10KR/4

SYSFAN1

SYSFAN1

SYS-FAN 27

If using 4 pin fan, The GPIO
must drive to high.

If using 3 pin fan, The GPIO
must drive to low.

CPU_FAN_GPO27

CPU_FAN_GPO

5

4

CPU FAN

VCC3

R20

R20

4.7KR/4

4.7KR/4

G

CPUFAN_DRV

C213

C213
X_C0.1u25Y/6

X_C0.1u25Y/6

CPUFAN_SEN

DS

Q2

Q2
N-2N7002S_SOT23

N-2N7002S_SOT23

3

23

4

1

N-APM2054N_SOT89

N-APM2054N_SOT89

R132

R132
10KR/4

10KR/4

R136

R136

3.48KR1%/6

3.48KR1%/6

+12V

D10 1N4148SD10 1N4148S

R138

R138
X_0R/8

X_0R/8

R150 4.7KR/4R150 4.7KR/4

CPUFAN_PWR

Q19

Q19

EC19

EC19
EL10u/25V7

EL10u/25V7

+

+

R147

R147
27KR/4

27KR/4

R160

R160

4.7KR/4

4.7KR/4

R159

R159
200R1%/4

200R1%/4

CPUFAN1

CPUFAN1

4
3
2
1

BH1X4B_white

BH1X4B_white

If using 3 pin fan, The Q52 will turn off to
avoid the VCC5(R522) bias to CPU-FAN_CTL.

2

R149

R149
10KR/4

10KR/4

VCC5

CPU-FAN 27

D12

D12
1N4148S

1N4148S

Q21

Q21
N-2N7002S_SOT23

N-2N7002S_SOT23

D S

CPU-FAN_CTL 27

G

CPU_FAN_GPO

Title

Title

Title

IDE,,FAN,VGA CONN

IDE,,FAN,VGA CONN

IDE,,FAN,VGA CONN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

1

of

22 35Friday, September 22, 2006

22 35Friday, September 22, 2006

22 35Friday, September 22, 2006

5

www.kythuatvitinh.com

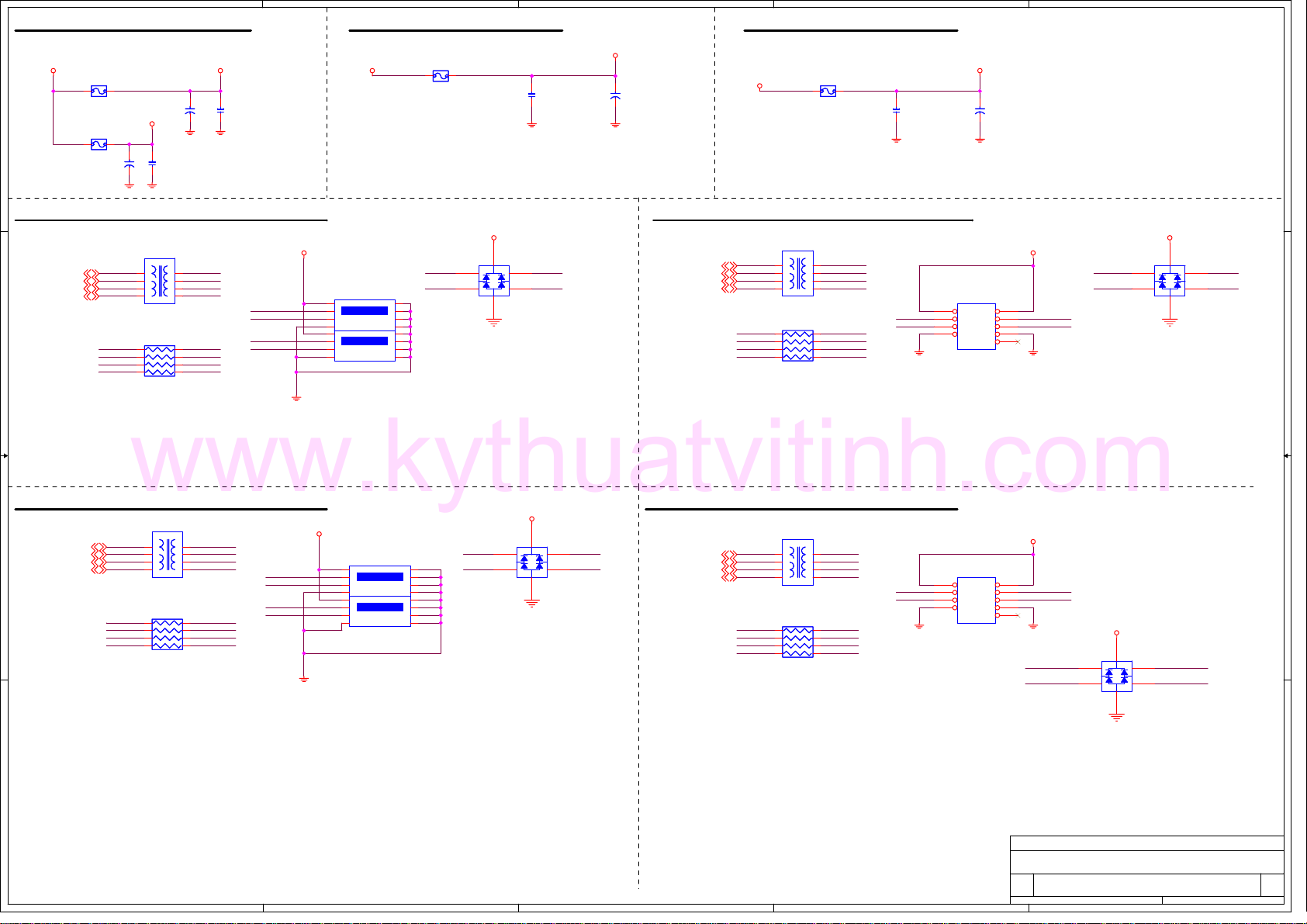

POWER CIRCUIT FOR USB PORT 0,1,2,3

40 mils

5VDUAL SVCC2

D D

FS3

FS3

1.5A

1.5A

FS2

FS2

1.5A

1.5A

SVCC4

EC20

EC20

+

+

EL470u/16V11.5

EL470u/16V11.5

C161

C161
X_C0.1u16Y/4

X_C0.1u16Y/4

SVCC1

EC48

EC48

+

+

EL470u/16V11.5

EL470u/16V11.5

C195

C195
X_C0.1u16Y/4

X_C0.1u16Y/4

4

POWER CIRCUIT FOR USB PORT 4,5

FS5

5VDUAL

40 mils

FS5

1.5A

1.5A
C408

C408
X_C0.1u16Y/4

X_C0.1u16Y/4

FRONT USB CONNECTOR

SVCC3

+

+

EC39

EC39
EL470u/16V11.5

EL470u/16V11.5

3

2

1

POWER CIRCUIT FOR USB PORT 6,7

FS4

5VDUAL

40 mils

FS4

1.5A

1.5A
C391

C391
X_C0.1u16Y/4

X_C0.1u16Y/4

FRONT USB CONNECTOR

+

+

EC41

EC41
EL470u/16V11.5

EL470u/16V11.5

REAR PANEL USB CONNECTOR FOR USB PORT 0,1

SVCC1 SVCC3

D11

D11

52

TSOP6 /SO6

6
1

TSOP6 /SO6

4
3

SBD0+
SBD0-

SBD1+
SBD1-

SBD0­SBD0+

SBD1­SBD1+

SVCC1

LAN_USB1A

LAN_USB1A

5
6
7
8

UP

UP

1
2
3
4

DOWN

DOWN

RJ45(10/100)+USB*2

RJ45(10/100)+USB*2

23
24
25
26
27
28
29
30

L8

L8

USBP1

USBP118

USBN118

USBP018

USBN018

C C

USBN1
USBP0
USBN0

USBP1
USBN1
USBP0
USBN0

5
6
7
8

1 2
3 4
5 6
7 8

1
2
3
4

X_Common Chock

X_Common Chock

RN33

RN33
8P4R-0R/6

8P4R-0R/6

SBD1+
SBD1­SBD0+
SBD0-

SBD1+
SBD1­SBD0+
SBD0-

FRONT PANEL USB CONNECTOR FOR USB PORT 4,5

L11

USBP418

USBN418
USBP518

USBN518

USBP4
USBN4
USBP5
USBN5

USBP4
USBN4
USBP5
USBN5

L11

5
6
7
8

X_Common Chock

X_Common Chock

RN44

RN44
8P4R-0R/6

8P4R-0R/6

1 2
3 4
5 6
7 8

SBD4+

1

SBD4-

2

SBD5+

3

SBD5-

4

SBD4-

SBD4+
SBD4­SBD5+
SBD5-

SBD4+

CON2X5-1_W

CON2X5-1_W

JUSB1

JUSB1

1 2
3 4
5 6
7 8

SVCC3

SBD5+
SBD5-

SBD5­SBD5+

10

6
1

D20

D20

52

TSOP6 /SO6

TSOP6 /SO6

4
3

SBD4+
SBD4-

N58-22F0061-S42

NEAR USB CONNECTOR

NEAR USB CONNECTOR

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

REAR PANEL USB CONNECTOR FOR USB PORT 2,3

SBD2­SBD2+

SBD3­SBD3+

SVCC4

I1394_USB1A

I1394_USB1A

5
6
7
8

UP

UP

1
2
3
4

DOWN

DOWN

I1394+USBx2-D20-BK

I1394+USBx2-D20-BK

15
16
17
18
19
20
21
22

L5

L5

USBP3

USBP318

USBN318

USBP218

B B

USBN218

5

USBN3

6

USBP2

7

USBN2

8

X_Common Chock

X_Common Chock

USBP3

1 2

USBN3

3 4

USBP2

5 6

USBN2

7 8

RN27

RN27
8P4R-0R/6

8P4R-0R/6

SBD3+

1

SBD3-

2

SBD2+

3

SBD2-

4

SBD3+
SBD3­SBD2+
SBD2-

SBD3+
SBD3-

6
1

SVCC4

D8

D8

52

TSOP6 /SO6

TSOP6 /SO6

4
3

SBD2+
SBD2-

N58-10F0011-A10

FRONT PANEL USB CONNECTOR FOR USB PORT 6,7

L12

L12

USBP6

USBP618
USBN618
USBP718
USBN718

USBN6
USBP7
USBN7

USBP6
USBN6
USBP7
USBN7

5
6
7
8

1 2
3 4
5 6
7 8

SBD6+

1
2

SBD7+

3
4

X_Common Chock

X_Common Chock

RN45

RN45
8P4R-0R/6

8P4R-0R/6

SBD6+
SBD7+

SBD6­SBD7-

SBD6-

SBD6­SBD7-

JUSB2

JUSB2

1 2
3 4
5 6
7 8

CON2X5-1_W

CON2X5-1_W

SVCC2

SBD7­SBD7+SBD6+

10

SBD7+
SBD7-

6
1

SVCC2

D21

D21

52

TSOP6 /SO6

TSOP6 /SO6

4
3

SBD6+

SBD6-

NEAR USB CONNECTOR

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

NEAR USB CONNECTOR

22 / 7.5 / 7.5 / 7.5 / 22 / 7.5 / 7.5 / 7.5 / 22

A A

Title

Title

Title

USB

USB

USB

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet

Date: Sheet

23 35Tuesday, January 16, 2007

23 35Tuesday, January 16, 2007

23 35Tuesday, January 16, 2007

1

of

of

of

5

www.kythuatvitinh.com

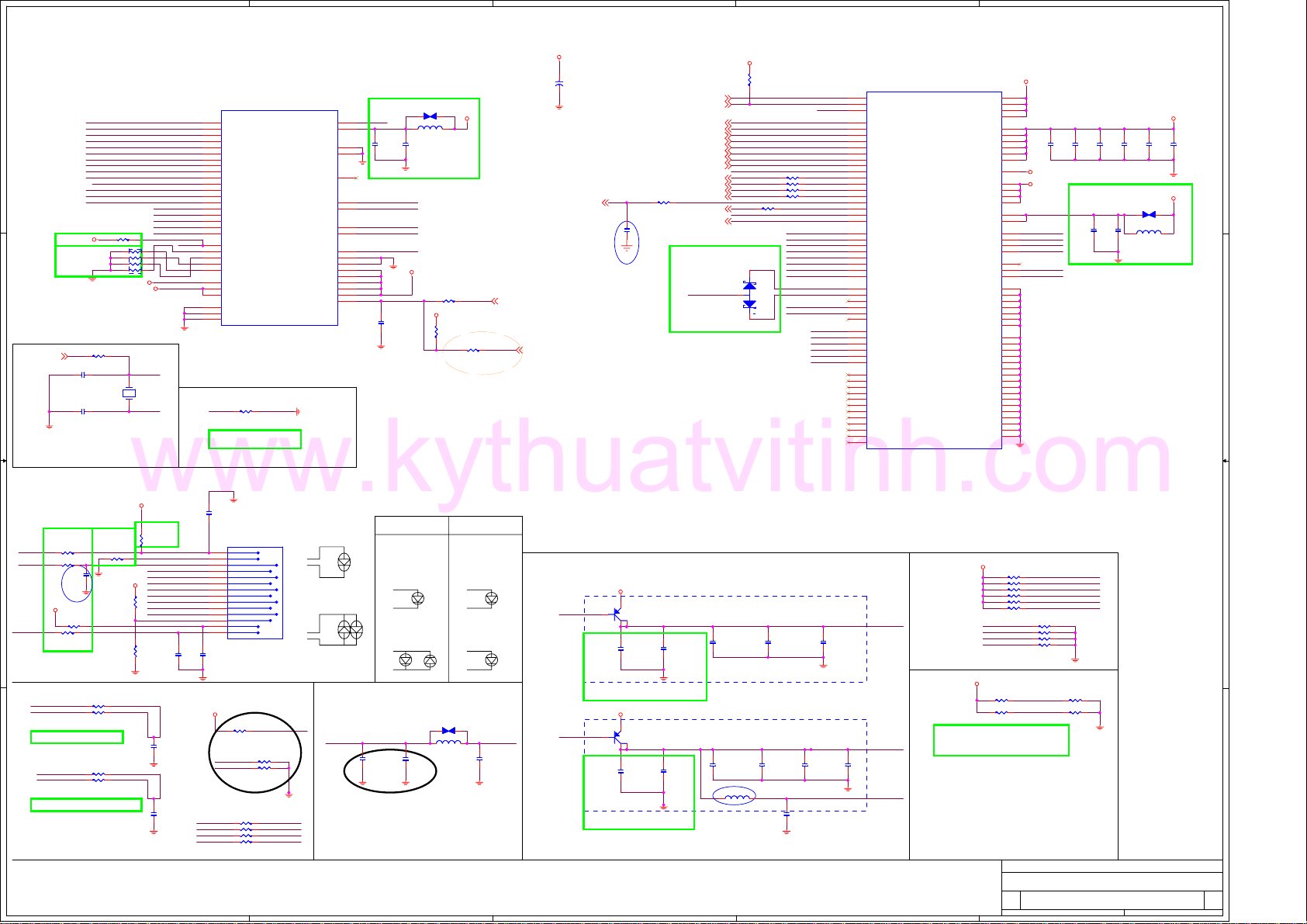

4

3

2

1

3VDUAL

EC25

EC25

+

+

EL470u/16V11.5

EL470u/16V11.5

R164 0R/4R164 0R/4

C214

C214
G_C0.1u16Y/4

G_C0.1u16Y/4

C275

C275
G_C0.1u16Y/4

G_C0.1u16Y/4

MII_MDC15
MII_MDIO15

MII_TXD015
MII_TXD115
MII_TXD215
MII_TXD315
MII_TXCLK15
MII_TXEN15

MII_RXD015
MII_RXD115
MII_RXD215
MII_RXD315

MII_RXDV15

FOR RTL8211 can
use LL4148:
D01-4148S10-F01

GIGA_LAN_LINK

CP2

U12

LED_CTL

100ACT

C212

C212
102p50X/4

102p50X/4

C208

C208
102p50X/4

102p50X/4

MDI_0+
MDI_0­MDI_1+
MDI_1-

25
26

22
21
20
19
18
16

23
24
46
47

10
12
13
15

14
48

11
17
45

3VDUAL

U12

MDC
MDIO

6

TXD0

5

TXD1

4

TXD2

3

TXD3

2

TXEN

7

TXC
RXDV
RXD0
RXD1
RXD2
RXD3
RXC

1

COL
CRS
RXER/FXEN
X1
X2

9

LED0/PHYAD0
LED1/PHYAD1
LED2/PHYAD2
LED3/PHYAD3
LED4/PHYAD4

8

DVDD25
DVDD33
DVDD33

DGND
DGND
AGND

A_RTL8201CL

A_RTL8201CL

RST

R155 2KR1%/4R155 2KR1%/4

RTL8201CL/CP: (2K)
RTL8211BL: (2.49K)

C197

C197
C102p50X/4

C102p50X/4

LAN_USB1B

LAN_USB1B

AMBER+

AMBER+

19

AMBER-

AMBER-

20

POWER

POWER

13

TD1+

TD1+

18

TD1-

TD1-

12

TD2+

TD2+

17

TD2-

TD2-

11

TD3+

TD3+

16

TD3-

TD3-

10

TD4+

TD4+

15

TD4-

TD4-

9

GND

GND

14

GREEN+

GREEN+

21

GREEN-

GREEN-

22

RJ45(10/100)+USB*2

RJ45(10/100)+USB*2

Reserve

R209 X_A_4.7KR/4R209 X_A_4.7KR/4

MII_RX_ER
MII_CRS

R154 A_0R/4R154 A_0R/4
R153 A_0R/4R153 A_0R/4
R152 A_0R/4R152 A_0R/4
R151 A_0R/4R151 A_0R/4

MII_COL

R206 X_A_4.7KR/4R206 X_A_4.7KR/4
R210 X_A_4.7KR/4R210 X_A_4.7KR/4

MDI_0+_U9
MDI_0-_U9
MDI_1+_U9
MDI_1-_U9

MII/SNIB/RTT3

D D

FOR 8201

3VDUAL

RN36

RN36
A_8P4R-4.7KR/4

A_8P4R-4.7KR/4

C C

MII_25MHZ15

C229 C27p50N/4C229 C27p50N/4

C232 C27p50N/4C232 C27p50N/4

100ACT

R120 A_0R/4R120 A_0R/4

PWFBOUT

3VDUAL

LED_CTL

FOR RTL8201

R156 A_0R/4R156 A_0R/4

C388

C388

X_102p50X/4

X_102p50X/4

R133 A_0R/4R133 A_0R/4

MDI_0+
MDI_0-

B B

close to LAN Chip

MDI_1+
MDI_1-

close to LAN connector

A A

MII_MDC
MII_MDIO
MII_TXD0
MII_TXD1
MII_TXD2
MII_TXD3
MII_TXEN
MII_TXCLK
MIIRXDV
MII_RXD0A
MII_RXD1A
MII_RXD2A
MII_RXD3A
MIIRXCLK

R177 A_4.7KR/4R177 A_4.7KR/4

PWFBIN

3VDUAL

R158 X_0R/4R158 X_0R/4

3VDUAL

FOR 8201FOR 8201

R123 A_330R/4R123 A_330R/4

PWFBIN

R157

R157
0R/4

0R/4

R128

R128
A_330R/4

A_330R/4

R145 A_49.9R1%/4R145 A_49.9R1%/4
R144 A_49.9R1%/4R144 A_49.9R1%/4

R140 A_49.9R1%/4R140 A_49.9R1%/4
R142 A_49.9R1%/4R142 A_49.9R1%/4

GX1
GX2

12
34
56
78

GX1

Y2
25MHZ/18pY225MHZ/18p

GX2

FOR 8211

R119

R119
G_330R/4

G_330R/4

MDI_0+
MDI_0­MDI_1+
MDI_1­MDI_2+
MDI_2­MDI_3+
MDI_3-

LINK_100

R122

R122
X_0R/4

X_0R/4

MII_COL
MII_CRS
MII_RX_ER

PWFBIN

GIGA_LAN_LINK

LINK_1000

C218

C218

A_C103p16X/4

A_C103p16X/4

C219

C219

A_C103p16X/4

A_C103p16X/4

32

AVDD25

36

AVDD33

29

AGND

35

AGND

27

NC

31

TPRX+

30

TPRX-

33

TPTX-

34

TPTX+

28

RTSET

43

ISOLATE

40

RPTR

39

SPEED

38

DUPLEX

37

ANE

41

LDPS

44
42

RESETB

FOR RTL8201

PWFBOUT

Close to PIN32

PWFBOUT

LAN_RESET

C226

C226
A_C0.1u16Y/4

A_C0.1u16Y/4

CP2
X_COPPER

X_COPPER

3VDUAL

C225

C225
A_C0.1u16Y/4

A_C0.1u16Y/4

C228

C228
A_C0.1u16Y/4

A_C0.1u16Y/4

L6

L6
X_A_150S-2.5A/8

X_A_150S-2.5A/8

FOR 8201

MDI_1+_U9
MDI_1-_U9

MDI_0-_U9
MDI_0+_U9

RST

3VDUAL

R131 0R/4R131 0R/4

3VDUAL

C217

C217
C0.1u16Y/4

C0.1u16Y/4

Giga-Lan 10/100-Lan

Link
Active

100
10

19

20

21

22

Green

Yellow
Blinking
Orange
Green
None

Yellow

Orange

C231

C231
A_C10u10Y/8

A_C10u10Y/8

R143

R143
X_2KR1%/4

X_2KR1%/4

R130 X_0R/4R130 X_0R/4

N58-22F0201-S42N58-22F0181-S42
N58-22F0341-S42
N58-22F0281-F02

Link
Active
100
10

19

20

21

22

CP3

CP3
X_COPPER

X_COPPER

L7

L7
X_A_150S-2.5A/8

X_A_150S-2.5A/8

RESERVED

Yellow
Blinking
Green1000
None

Yellow

Green

PWFBIN

C242

C242
A_C0.1u16Y/4

A_C0.1u16Y/4

RSMRST# 18,28

MII_RST# 15

FOR RTL8211 Power

MII_RXCLK15

CTRL18

CTRL15

C383

C383
X_C18p50N/4

X_C18p50N/4

3VDUAL

32

Q18

Q18

1

G_PNP-PBSS5350_SOT223

G_PNP-PBSS5350_SOT223

4

C209

C209
G_C10u16Y/1206

G_C10u16Y/1206

close to Q26

3VDUAL

32

Q23

Q23

1

G_PNP-PBSS5350_SOT223

G_PNP-PBSS5350_SOT223

4

C293

C293
G_C10u16Y/1206

G_C10u16Y/1206

close to Q27

MII_CRS15
MII_COL15

MII_RX_ER15

3

C224

C224
G_C0.1u16Y/4

G_C0.1u16Y/4

C258

C258
G_C0.1u16Y/4

G_C0.1u16Y/4

L13

L13
A_150S-2.5A/8

A_150S-2.5A/8

3VDUAL

MII_RXD0
MII_RXD1
MII_RXD2
MII_RXD3

R216 0R/4R216 0R/4

1

2

R182

R182

1.5KR/4

1.5KR/4

MII_MDC
MII_MDIO

MII_CRS
MII_COL
MII_TXD0
MII_TXD1
MII_TXD2
MII_TXD3
MII_TXCLK
MII_TXEN
TXDLY

R232 0R/4R232 0R/4
R238 0R/4R238 0R/4
R240 0R/4R240 0R/4
R276 0R/4R276 0R/4

MIIRXCLK
RXDLY

MII_RX_ER

D14

D14

G_BAT54A_SOT23

G_BAT54A_SOT23

C223

C223
G_C0.1u16Y/4

G_C0.1u16Y/4

C267

C267
G_C0.1u16Y/4

G_C0.1u16Y/4

C233

C233
G_C0.1u16Y/4

G_C0.1u16Y/4

MIIRXDV

MDI_0+
MDI_0­MDI_1+
MDI_1­MDI_2+
MDI_2­MDI_3+
MDI_3-

LINK_1000
LINK_100

C268

C268
G_C0.1u16Y/4

G_C0.1u16Y/4

config7

MII_RXD0A
MII_RXD1A
MII_RXD2A
MII_RXD3A

config0

config1

config2

config3

config4

config9

C221

C221
G_C0.1u16Y/4

G_C0.1u16Y/4

44

MDC

46

MDIO

56

INTB(config7)

68

CRS(config5)

66

COL(config6)

37

TXD0

38

TXD1

40

TXD2

41

TXD3

36

TXC

42

TX_CTL(TXEN)

78

TXDLY

27

RXD0

30

RXD1

31

RXD2

33

RXD3

34

RXC

26

RX_CTL(RXDV)

79

RXDLY

51

RX_ER(config8)

4

MDIP0

5

MDIN0

9

MDIP1

10

MDIN1

16

MDIP2

17

MDIN2

20

MDIP3

21

MDIN3

58

LED_TX

59

LED_RX

62

LED_DUPLEX

63

LED_LINK1000

70

LED_LINK100

76

LED_LINK10

85

config[0]

84

config[1]

83

config[2]

81

config[3]

80

config[4]

49

config[9]

100

NC

99

NC

98

NC

90

NC

89

NC

74

NC

73

NC

72

NC

24

NC

23

NC

7

NC

RTL8211B_100pin

RTL8211B_100pin

2

NC

AVDD18

DVDD15

C248

C248
G_C0.1u16Y/4

G_C0.1u16Y/4

AVDD15

DVDD15
DVDD15
DVDD15
DVDD15

DVDD33
DVDD33
DVDD33
DVDD33
DVDD33
DVDD33

AVDD15
AVDD18

AVDD18
AVDD18
AVDD18

AVDD33
AVDD33

RSET

PHYRSTB

CTRL18
CRTL15

CLK125

XTAL2
XTAL1

AGND
AGND

AGND
AGND
AGND
AGND
AGND

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

G_U18

G_U18

FOR RTL8211

FOR RTL8211

3VDUAL

R208 G_4.7KR/4R208 G_4.7KR/4
R175 G_4.7KR/4R175 G_4.7KR/4
R192 G_4.7KR/4R192 G_4.7KR/4
R214 G_4.7KR/4R214 G_4.7KR/4
R213 G_4.7KR/4R213 G_4.7KR/4
R211 G_4.7KR/4R211 G_4.7KR/4

config4
config3
config2
config1

3VDUAL

R204 X_G_4.7KR/4R204 X_G_4.7KR/4
R199 X_G_4.7KR/4R199 X_G_4.7KR/4

Normal use R198, R202.Delay
TX/RX use R199, R204.

48
54
65
87

29
35
50
61
71
82

95
3

8
15
19

12
91

1
57
13
96

60
93
92

97
94
22
18
14
11
6

88
86
77
75
69
67
64
55
53
52
47
45
43
39
32
28
25

DVDD15

RST
LAN_RESET
CTRL18
CTRL15

C486

C486
G_C0.1u25Y/4/B

G_C0.1u25Y/4/B

AVDD15
AVDD18

GX2
GX1

MII_COL
config0
config9
MII_RX_ER
MII_CRS
config7

R190 G_4.7KR/4R190 G_4.7KR/4
R184 G_4.7KR/4R184 G_4.7KR/4
R181 G_4.7KR/4R181 G_4.7KR/4
R178 G_4.7KR/4R178 G_4.7KR/4

TXDLY
RXDLY

FOR RTL8211 back

C500

C500
G_C1u10Y/6/B

G_C1u10Y/6/B

C485

C485
G_C0.1u25Y/4/B

G_C0.1u25Y/4/B

C505

C505
G_C0.1u25Y/4/B

G_C0.1u25Y/4/B

FOR RTL8211

C244

C244
G_C0.1u16Y/4

G_C0.1u16Y/4

C222

C222
G_C0.1u16Y/4

G_C0.1u16Y/4

R202

R202
G_4.7KR/4

G_4.7KR/4
R198

R198
G_4.7KR/4

G_4.7KR/4

3VDUAL

C495

C495
G_C0.1u25Y/4/B

G_C0.1u25Y/4/B

3VDUAL

CP4

CP4
X_COPPER

X_COPPER

L9

L9
X_150S-2.5A/8

X_150S-2.5A/8

C504

C504
G_C1u10Y/6/B

G_C1u10Y/6/B

Title

Title

Title

LAN-RT8201CL colay RT8211B

LAN-RT8201CL colay RT8211B

LAN-RT8201CL colay RT8211B

Size Document Number Rev

Size Document Number Rev

5

4

3

2

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

of

24 35Friday, September 22, 2006

24 35Friday, September 22, 2006

1

24 35Friday, September 22, 2006

5

www.kythuatvitinh.com

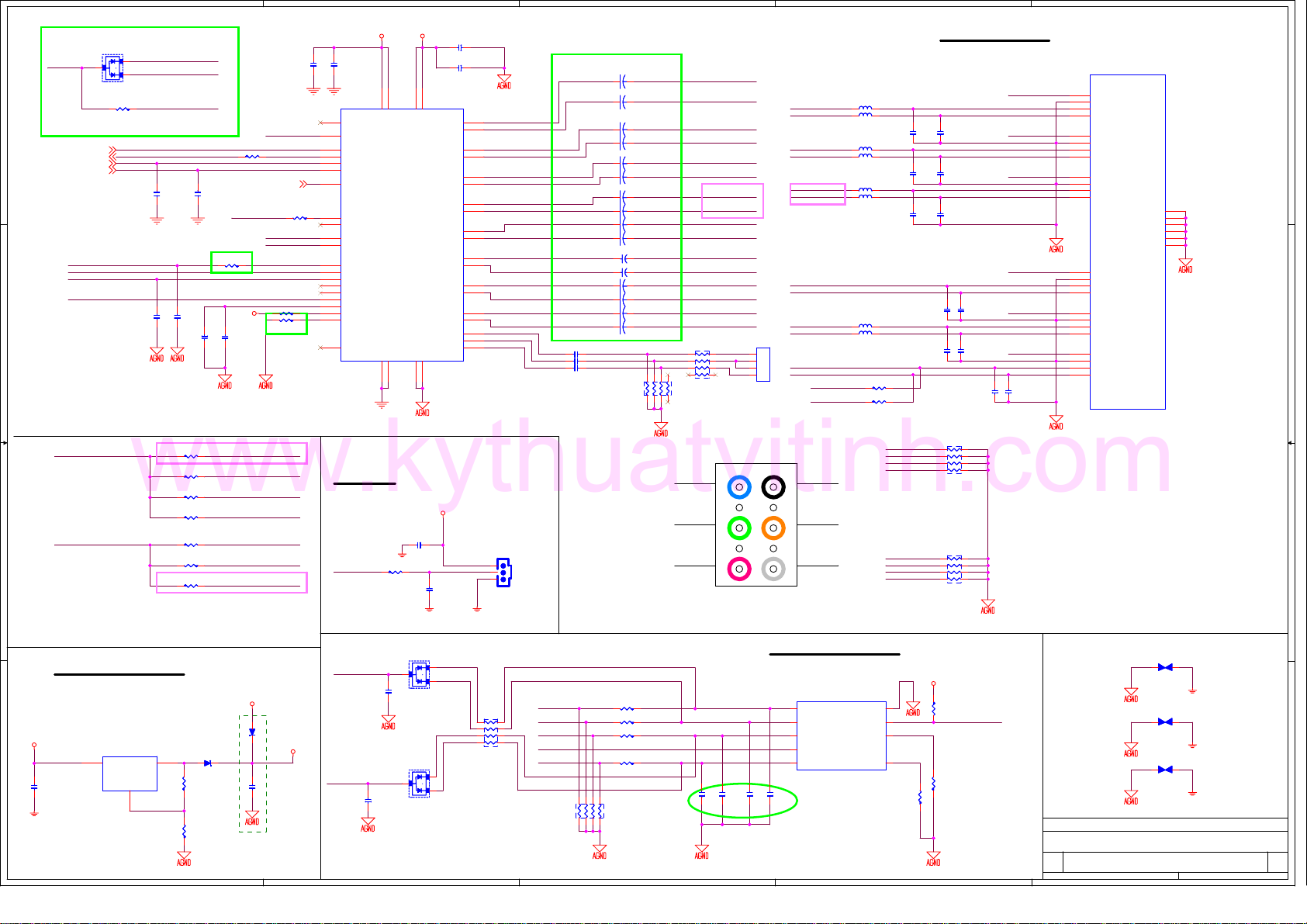

4

3

2

1

C396

C396
C0.1u16Y/4

C0.1u16Y/4

47

SPI/EAPD

48

SPO

5

SDATAO

8

SDATAIN

10

SYNC

11

RESET#

6

BCLK

2

GPIO0

3

GPIO1

13

SENSE A

34

SENSE B

32

MIC1-VREFO-R

30

MIC2-VREFO

28

MIC1-VREFO-L

37

LINE1-VREFO-R

29

LINE1-VREFO-L

31

LINE2-VREFO

27

VREF

33

DCVOL

40

JDREF/NC

12

PCBEEP

SPDIF OUT

SPDIFO

VCC3 +5VR

9

1

DVDD2

DVDDCORE

DVSS14DVSS2

7

R353 10R/4R353 10R/4

25

26

C423

C423
X_C100p50N/4

X_C100p50N/4

D22

D22
X_BAT54A_SOT23

X_BAT54A_SOT23

3

R314 0R/4R314 0R/4

1
2

MIC1_BIAS

D D

C C

B B

R314, 883/888/861: _ , 885: X
D22, 883/888/861: X , 885: _

HDA_SDOUT18

HDA_SDIN018

HDA_SYNC18
HDA_RST#18

MIC1_V_R
MIC2VREFO
MIC1_BIAS

LINE2_VREF

SENSE_A

SENSE_B

MIC1_V_L
MIC1_V_R

MIC1_V_L

R308 22R/4R308 22R/4

C394

C394
X_C10p50N/4

X_C10p50N/4

C393

C393
X_C10p50N/4

X_C10p50N/4

JAUD2_EN#

R316, 883/888/861: _ , 885: X

R316 0R/4R316 0R/4

Pin33 NC for ALC861

C410

C410
X_C0.1u16Y/4

X_C0.1u16Y/4

C405

C405
X_C0.1u16Y/4

X_C0.1u16Y/4

R299 5.1KR1%/4R299 5.1KR1%/4

R297 10KR1%/4R297 10KR1%/4

R298 20KR1%/4R298 20KR1%/4

R296 39.2KR1%/4R296 39.2KR1%/4

R315 10KR1%/4R315 10KR1%/4

R317 0R/4R317 0R/4

R318 5.1KR1%/4R318 5.1KR1%/4

+5VR

C404

C404
X_C0.1u16Y/4

X_C0.1u16Y/4

C398

C398
C10u10Y/8

C10u10Y/8

FRONT_JD

LINE1_JD

MIC1_JD

SURR_JD

CEN_JD

FR-IO-SEN

SIDESURR_JD

HDA_BITCLK_R18

R319 10KR/4R319 10KR/4
R322 20KR1%/4R322 20KR1%/4

C407

C407
C10u10Y/8

C10u10Y/8

SPDIFO

R313 X_0R/4R313 X_0R/4

SENSE_A
SENSE_B

R322, 861C: 5.1K , 861D: 20K

C397

C397
C10u10Y/8

C10u10Y/8
C418

C418
C0.1u16Y/4

C0.1u16Y/4

38

U19

U19

36

FRONT-R

35

FRONT-L

AVDD2

AVDD1

41

SURR-R

39

SURR-L

43

CCEN

44

LFE

46

SIDESURR-R

45

SIDESURR-L

24

LINE1-R

23

LINE1-L

15

LINE2-R

14

LINE2-L

22

MIC1-R

21

MIC1-L

17

MIC2-R

16

MIC2-L

20

CD_R

19

CD_GND

18

CD_L

AVSS2

AVSS1

ALC883

ALC883

42

861D:B09-LC86124-R09
883 :B09-LC88304-R09

VCC5

C424

C424
C100p50N/4

C100p50N/4

EC46 EL10u/16V5EC46 EL10u/16V5

EC38 EL10u/16V5EC38 EL10u/16V5

LINE_OUT_R
LINE_OUT_L

SURR_R
SURR_L

SIDESURR_R
SIDESURR_L SIDE_SROUT_L

SPDOUT1

SPDOUT1

1
2
3

BH1X3_black

BH1X3_black

EC42 EL100u/16V5

EC42 EL100u/16V5
EC43 EL100u/16V5

EC43 EL100u/16V5

C384 C1u16Y/6C384 C1u16Y/6
C380 C1u16Y/6C380 C1u16Y/6
C381 C1u16Y/6C381 C1u16Y/6

EC49 EL10u/16V5EC49 EL10u/16V5
EC50 EL10u/16V5EC50 EL10u/16V5

EC52 EL10u/16V5EC52 EL10u/16V5
EC51 EL10u/16V5EC51 EL10u/16V5

EC53 EL10u/16V5EC53 EL10u/16V5
EC54 EL10u/16V5EC54 EL10u/16V5
EC55 EL10u/16V5EC55 EL10u/16V5
EC56 EL10u/16V5EC56 EL10u/16V5

+

+

+

+

EC57 EL10u/16V5EC57 EL10u/16V5
EC58 EL10u/16V5EC58 EL10u/16V5
EC34 EL10u/16V5EC34 EL10u/16V5
EC35 EL10u/16V5EC35 EL10u/16V5

CD-R
CD-G
CD-L

123456

78

D

E

F

RN49

RN49
8P4R-47KR/4

8P4R-47KR/4

RN51

RN51
8P4R-47KR/4

8P4R-47KR/4

LIN_IN

LIN_OUT

MIC1

SIDE_SROUT_R

LOUT_R

LOUT_L

SROUT_R
SROUT_L

CEN_OUT

BASS

LINE_IN_R

LINE_IN_L

12
34
56
78

LINE2_R

LINE2_L
MIC1_R

MIC1_L
MIC2_R
MIC2_L

SROUT_L
SROUT_R

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

CEN_OUT
BASS

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

SIDE_SROUT_L
SIDE_SROUT_R

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

LINE_IN_L
LINE_IN_R

LOUT_L
LOUT_R

JCD1

JCD1

4
3

MIC1_L

2

MIC1_R

1

CD1*4/BLACK

CD1*4/BLACK

FB18

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

SURR

CEN/BAS

SIDESURR

FB18

FB19

FB19

FB16

FB16

FB17

FB17

FB14

FB14

FB15

FB15

FB12

FB12

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

FB13

FB13

FB_70ohmohm_250mA&R0402

FB_70ohmohm_250mA&R0402

MIC1_V_L

R221 4.7KR/4R221 4.7KR/4

MIC1_V_R

R220 4.7KR/4R220 4.7KR/4

A

B

C

C282

C282
C470p50X/4

C470p50X/4

C287

C287
C470p50X/4

C470p50X/4

C278

C278
C470p50X/4

C470p50X/4

SROUT_R
SROUT_L
LOUT_L
LOUT_R

SIDE_SROUT_R
SIDE_SROUT_L
CEN_OUT
BASS

Rear audio jack

CLOSE TO
CONNECTOR

C289

C289
C470p50X/4

C470p50X/4

C288

C288
C470p50X/4

C470p50X/4

C279

C279
C470p50X/4

C470p50X/4

C283

C283
C470p50X/4

C470p50X/4

C281

C281
C470p50X/4

C470p50X/4

RN39

RN39
8P4R-22KR/6

8P4R-22KR/6

1 2
3 4
5 6
7 8

RN40

RN40
8P4R-22KR/6

8P4R-22KR/6

1 2
3 4
5 6
7 8

C284

C284
C470p50X/4

C470p50X/4

C280

C280
C470p50X/4

C470p50X/4

C277

C277
C100p50N/4

C100p50N/4

SURR_JD

CEN_JD

SIDESURR_JD

LINE1_JD

FRONT_JD

MIC1_JD

C276

C276
C100p50N/4

C100p50N/4

(A3)
(A2)
(A1)
(A4)

(B3)
(B2)
(B1)
(B4)

(C3)
(C2)
(C1)
(C4)

(D3)
(D2)
(D1)
(D4)

(E3)
(E2)
(E1)
(E4)

(F3)
(F2)
(F1)
(F4)

AUDIO1

AUDIO1

62

SURR_JD

63

AGND

64

SROUT_L

61

SROUT_R

52

CEN_JD

53

AGND

54

CEN_OUT

51

BASS

42

SIDESURR_JD

43

AGND

44

SIDESROUT_L

41

SIDESROUT_R

32

LINE_JD

33

AGND

34

LINE_L

31

LINE_R

22

LOUT_JD

23

AGND

24

LOUT_L

21

LOUT_R

12

MIC_JD

13

AGND

14

MIC_L

11

MIC_R

For Vista Azalia Jack

For Vista Azalia Jack

GND1
GND2
GND3
GND4
GND5
GND6

JACK A
BLACK

JACK B

ORANGE

JACK C

GRAY

R5
L5
G3
G4
G5
G6

JACK D

BLUE

JACK E

Green

JACK F

PINK

(C0)
(C0)

D25

D25
BAT54A_SOT23

C406

C406
X_C0.1u16Y/4

X_C0.1u16Y/4

C409

C409
X_C0.1u16Y/4

X_C0.1u16Y/4

4

BAT54A_SOT23

3

D27

D27
BAT54A_SOT23

BAT54A_SOT23

3

1
2

RN53

RN53
8P4R-4.7KR/4

8P4R-4.7KR/4

1 2
3 4
5 6
7 8

1
2

MIC2_L

MIC2_R
LINE2_R
FR-IO-SEN
LINE2_L

5 6

7 8

R335 100R/4R335 100R/4
R336 100R/4R336 100R/4
R339 100R/4R339 100R/4

R340 100R/4R340 100R/4

RN52

RN52
8P4R-22KR/6

8P4R-22KR/6

1 2

3 4

C433

C433
X_C102p50X/4

X_C102p50X/4

C432

C432
X_C102p50X/4

X_C102p50X/4

3

D23

D23
1N5817

1N5817

R323

R323
100R1%/4

100R1%/4

R321

R321
324R1%/4

324R1%/4

For Standby
mode-De-pop

VCC5_SB

D18

D18
1N5817

1N5817

C420

C420
C10u10Y/0805

C10u10Y/0805

MIC2VREFO

+5VR

LINE2_VREF

AUDIO CODE REGULATORS

+12V

A A

C426

C426
C10u16Y/1206

C10u16Y/1206

U20

U20
1087_SOT89

1087_SOT89

VIN3VOUT

ADJ

1

5

2

Azalia Front Audio Connector

1

MIC
MICPWR3PRESENCE#

5

FLINE OUTR

7

HPON
FLINE OUTL9LINE NEXT L

JAUD1

C430

C430
X_C102p50X/4

X_C102p50X/4

JAUD1
JAUD

JAUD

C428

C428
X_C102p50X/4

X_C102p50X/4

For EMI

GND

LINE NEXT R

2
4
6

8

8

10

39.2KR1%/4

39.2KR1%/4

R333

R333

+5VR

R334

R334

4.7KR/4

4.7KR/4

JAUD2_EN#

R332

R332
20KR1%/4

20KR1%/4

2

For EMI

Title

Title

Title

Azalia Codec - ALC883

Azalia Codec - ALC883

Azalia Codec - ALC883

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

CP6

CP6

X_COPPER

X_COPPER

CP7

CP7

X_COPPER

X_COPPER

CP9

CP9

X_COPPER

X_COPPER

1

of

25 35Friday, September 22, 2006

25 35Friday, September 22, 2006

25 35Friday, September 22, 2006

5

www.kythuatvitinh.com

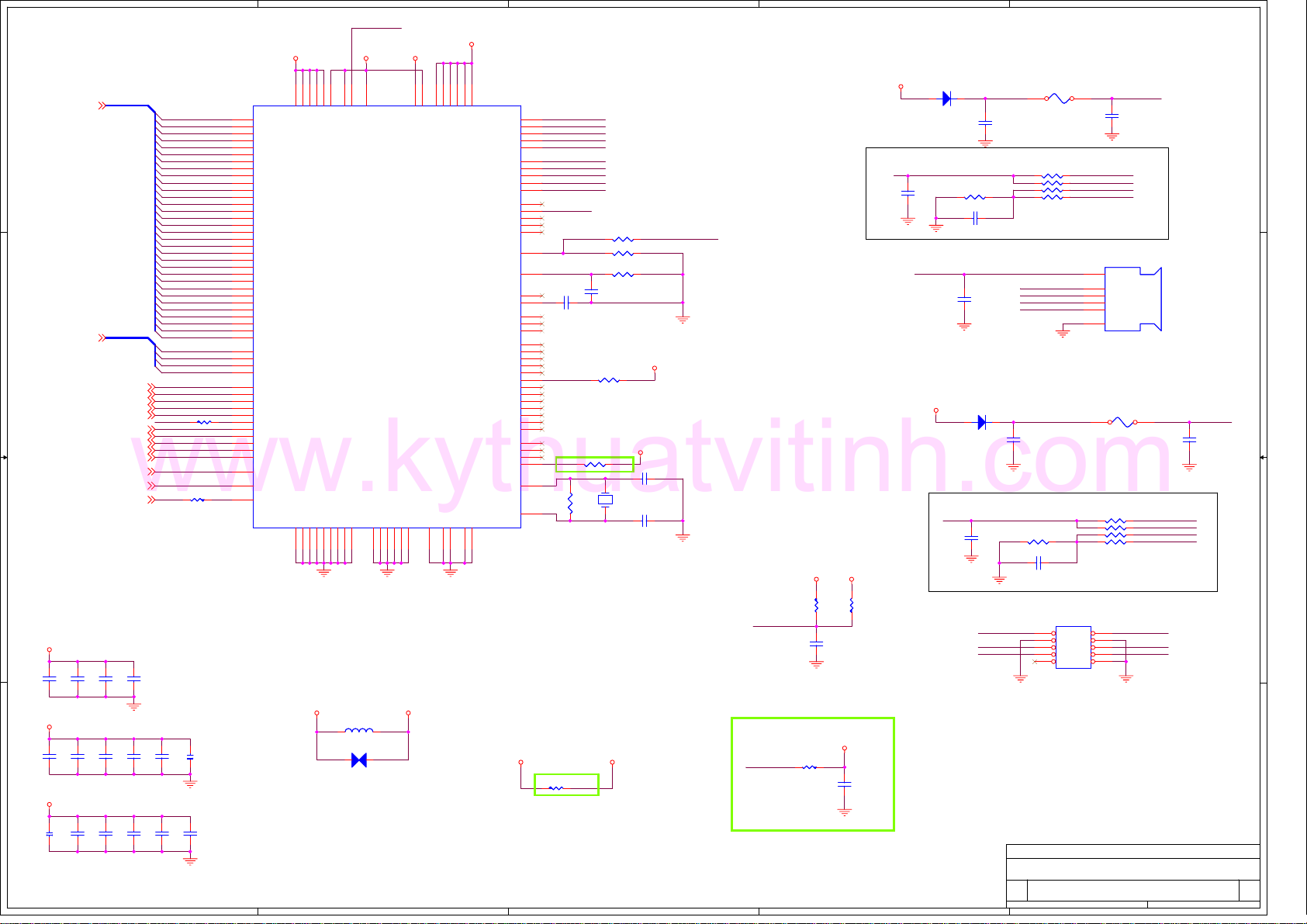

VCC3

4

PWRDET_VCC

VDD

VCC3

P3VA

3

2

1

+12V

89

75

65

62

90

35

114

24

33

102

113

125

8

94

VCC1

VSS1

103

VCC2

VSS2

111

VCC3

VSS3

121

20

VCC4

VSS4

1

VCC5

VDD/VCC6

VSS5

VSS6

VSS7

9

16

VDD/VCC

PWRDET/VCC

VSS8

VSS9

26

34

VDD/VCC

GNDATX0

GNDARX0

59

64

68

GNDATX169GNDARX1

82

AD[31..0]

AD[31..0]16,21

D D

C C

B B

C_BE#[3..0]16,21

C_BE#[3..0]

FRAME#16,21

DEVSEL#16,21
PCI_REQ0#16
PCI_GNT0#16

PCI_INTZ#16,21

PCICLK_139416

1394_RST#16

PAR16,21

IRDY#16,21

TRDY#16,21

STOP#16,21

PERR#16,21

PME#16,21

C_BE#3
C_BE#2
C_BE#1
C_BE#0

AD24

R293 100R/4R293 100R/4

R250 0R/4R250 0R/4

AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0

97

AD31

98

AD30

99

AD29

100

AD28

101

AD27

104

AD26

105

AD25

106

AD24

109

AD23

110

AD22

112

AD21

116

AD20

117

AD19

118

AD18

119

AD17

120

AD16

5

AD15

6

AD14

7

AD13

10

AD12

11

AD11

12

AD10

13

AD9

14

AD8

17

AD7

18

AD6

19

AD5

21

AD4

22

AD3

23

AD2

27

AD1

28

AD0

107

CBE3#

122

CBE2#

4

CBE1#

15

CBE0#

3

PAR

123

FRAME#

124

IRDY#

126

TRDY#

128

STOP#

108

IDSEL

127

DEVSEL#

96

REQ#

95

GNT#

2

PERR#

91

INTA#

93

PCICLK

92

PCIRST#

37

PME#

IDSEL = AD24
PCI_REQ0#

VDD

C302

C302
X_C0.1u16Y/4

X_C0.1u16Y/4

VCC3

C348

C348
C0.1u16Y/4

C0.1u16Y/4

A A

P3VA

C357

C357
C0.1u16Y/4

C0.1u16Y/4

C347

C347
C0.1u16Y/4

C0.1u16Y/4

C358

C358
C0.1u16Y/4

C0.1u16Y/4

C303

C303
C0.1u16Y/4

C0.1u16Y/4

C308

C308
C0.1u16Y/4

C0.1u16Y/4

C367

C367
C0.1u16Y/4

C0.1u16Y/4

C355

C355
C0.1u16Y/4

C0.1u16Y/4

C366

C366
C0.1u16Y/4

C0.1u16Y/4

C365

C365
C0.1u16Y/4

C0.1u16Y/4

C299

C299
C0.1u16Y/4

C0.1u16Y/4

5

C360

C360
X_C0.1u16Y/4

X_C0.1u16Y/4

C353

C353
C10u10Y/8

C10u10Y/8

C300

C300
X_C0.1u16Y/4

X_C0.1u16Y/4

C323

C323
C0.1u16Y/4

C0.1u16Y/4

PCI_INTZ#

VCC3

L10

L10
X_80S-3A/8

X_80S-3A/8

CP5

CP5
X_COPPER

X_COPPER

PCI_GNT0#

P3VA

4

49

39

VCC

GNDATX283GNDARX2

VDD/VCC

VDDATX0

RAMVSS

25

76

VDDATX1

VDDARX0

VSSC1

VSSC2

36

115

VDDATX2

VDDARX2

VDDARX1

D6/CMCJMP

PHYRESET

CTL0/PC0JMP
CTL1/PC1JMP

D7/PC2JMP

LINKON/TSIJMP

LREQ/TSOJMP

SCL/EECK

PGND1

PGND2

41

50

XTPBIAS0

XTPA0P
XTPA0M
XTPB0P
XTPB0M

XTPBIAS1

XTPA1P
XTPA1M
XTPB1P
XTPB1M

NC

REG_FB

NC
NC
NC

XCPS

XREXT

D5
D4
D3
D2
D1

D0
MODE0
MODE1

SCLK

LPS/CMC

NC

SDA/EEDI

EEDO

EECS

XI

XO

VT6308-CD-LF

VT6308-CD-LF

VCC3

U16

U16

74
73
72
71
70

81
80
79
78
77

88
87
86
85
84

63

66

52
58

54
55
53

57
56
51
48
47
46
45
44
43
42
40
38
67

32
31
30
29

60

61

TPBIAS0
TPA0+
TPA0­TPB0+
TPB0-

TPBIAS1
TPA1+
TPA1­TPB1+
TPB1-

REG_FB

C301

C301
C1u16Y/6

C1u16Y/6

R241 4.7KR/4R241 4.7KR/4

R265 4.7KR/4R265 4.7KR/4

R223

R223
1MR/6

1MR/6

For VT6307

R285

R285
X_0R/6

X_0R/6

R236 11KR1%/4R236 11KR1%/4
R237 1KR/4R237 1KR/4

R251 6.34KR1%/4R251 6.34KR1%/4
C305

C305
C47p50N/4

C47p50N/4

P3VA

P3VA

Use EEPROM R265 Don't Stuff

C294 C10p50N/4C294 C10p50N/4

Y4

Y4
24MHZ/16p

24MHZ/16p

C291 C10p50N/4C291 C10p50N/4

VDD

3

CPWR_F

For VT6308

PWRDET_VCC

For VT6308

REG_FB

R278 0R/4R278 0R/4

VCC3

R255

R255

4.7KR/4

4.7KR/4

C307

C307
C0.1u16Y/4

C0.1u16Y/4

VCC3

VDD

C356

C356
C0.1u16Y/4

C0.1u16Y/4

R252

R252
X_0R/4

X_0R/4

For VT6307

2

A C

C309

C309
C0.33u16Y/6

C0.33u16Y/6

CPWR_0

+12V

D9

D9
BRS340-S-CASE403-03

BRS340-S-CASE403-03

CPWR

C190

C190
X_C102p50X/4

X_C102p50X/4

TPBIAS0

R253

R253

4.99KR1%/4

4.99KR1%/4

C306

C306
C270p50N/6

C270p50N/6

C175

C175
X_C0.1u16Y/4

X_C0.1u16Y/4

D24

D24
BRS340-S-CASE403-03

BRS340-S-CASE403-03

A C

TPBIAS1

C349

C349
C0.33u16Y/6

C0.33u16Y/6

TPA1+ TPA1-

CPWR_1 CPWR_1

For Intel 1394 pinheader

F1

1.5AF11.5A

R261 54.9R1%/4R261 54.9R1%/4
R260 54.9R1%/4R260 54.9R1%/4
R256 54.9R1%/4R256 54.9R1%/4
R254 54.9R1%/4R254 54.9R1%/4

CPWR_0

C186

C186
X_C103p16X/4

X_C103p16X/4

TPA0+
TPA0­TPB0+
TPB0-

Near Chip

I1394_USB1B

I1394_USB1B

9

TPA0+
TPA0­TPB0+
TPB0-

CPWR_F

C425

C425
X_C102p50X/4

X_C102p50X/4

R267

R267

4.99KR1%/4

4.99KR1%/4

C337

C337
C270p50N/6

C270p50N/6

PWR

14

TPA+

13

TPA-

12

TPB+

11

TPB-

10

GND

I1394+USBx2-D20-BK

I1394+USBx2-D20-BK

F2

1.5AF21.5A

R274 54.9R1%/4R274 54.9R1%/4
R272 54.9R1%/4R272 54.9R1%/4
R268 54.9R1%/4R268 54.9R1%/4
R266 54.9R1%/4R266 54.9R1%/4

TPA1+
TPA1­TPB1+
TPB1-

CPWR_1

C427

C427
X_C103p16X/4

X_C103p16X/4

Near Chip

J1394_1

J1394_1

1 2
3 4
5 6
7 8
9 10

J1394

J1394

Title

Title

Title

IEEE1394-VT6307 colay VT6308

IEEE1394-VT6307 colay VT6308

IEEE1394-VT6307 colay VT6308

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

TPB1-TPB1+

of

26 35Friday, September 22, 2006

26 35Friday, September 22, 2006

1

26 35Friday, September 22, 2006

5

www.kythuatvitinh.com

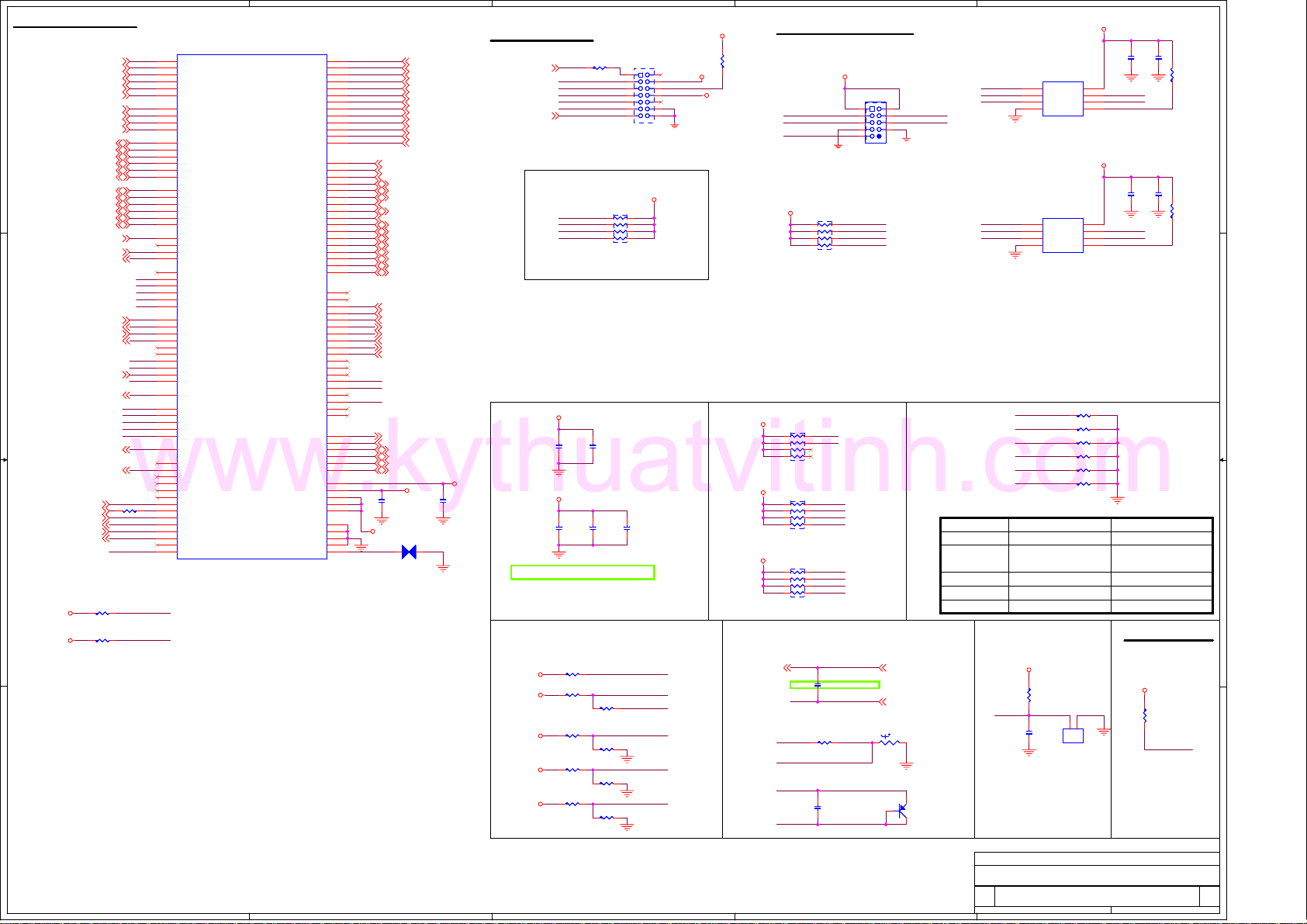

LPC SUPER I/O F71882

U3

VIN5
VIN4
VIN3
VIN2
VIN1

D3+
D2+

VREF

SPI_CLK
SPI_CS0#
MISO

MOSI

SPI_CS1#

PWRBTN#

29

LRESET#

30

LDRQ#

31

SERIRQ

32

LFRAME#

38

PCICLK

39

CLKIN

33

LAD0

34

LAD1

35

LAD2

36

LAD3

47

VIDIN5/OUT5/SID

46

VIDIN4/OUT4

45

VIDIN3/OUT3

44

VIDIN2/OUT2

43

VIDIN1/OUT1

42

VIDIN0/OUT0

54

VIDOUT5/GP5/SIC

53

VIDOUT4/GP4

52

VIDOUT3/GP3

51

VIDOUT2/GP2

50

VIDOUT1/GP1

49

VIDOUT0/GP0

55

SLOTOCC#/GP6

56

GP7/Turbo#/WDTRST#

57

VSI/SST

58

VSO/PECI

93

VIN6

94

VIN5

95

VIN4

96

VIN3

97

VIN2

98

Vcore(VIN1)

21

FANIN1

22

FAN_CTL1

23

FANIN2

24

FAN_CTL2

25

FANIN3/GP40

26

FAN_CTL3/GP41

89

D3+ (System)

90

D2+

91

D1+(CPU)

92

VREF

79

PME#

59

GP25/GP10/SPI_SLK

60

FANIN4/GP11/SPI_CS0#/FAN_CTL4

61

GP12/SPI_MISO

62

FANCTL1_1/GP13/SPI_MOSI/BEEP

63

GP14/FWH_DIS_WDTRST#/SPI_CSI#

67

OVT#

64

GP15/LED_VSB/ALERT#

65

GP16/LED_VCC/Turbo2#

74

PCIRST1#/GP20

75

PCIRST2#/GP21

76

PCIRST3#/GP22

77

GP23/RSTCON#

78

ATXPG_IN/GP24

84

PWROK/GP32

80

PWSIN#/GP26

81

PWSOUT#/GP27

82

S3#/GP30

83

PSON#/GP31

85

RSMRST#/GP33

87

COPEN#

F71882U3F71882

PS_ON#

DENSEL#

INDEX#

MOA#

DRVA#

DIR#

STEP#

WDATA#

WGATE#

TRK0#

WPT#
RDATA#
HDSEL#

DSKCHG#

SLCT

BUSY

ACK#

SLIN#

INIT#

ERR#

AFD#
STB#

GP42/IRTX
GP43/IRRX

DCD1#
CTS1#

DTR1#/FAN60_100

RTS1#/VIDOUT_TRAP

DSR1#

SOUT1/Config4E_2E

SIN1

DCD2

CTS2#

DTR2#/FWH_TRAP

RTS2#/HPWM_DC

DSR2#

SOUT2/SPI_TRAP

SIN2

GPIO17

KBRST#

AG20

KDATA

KCLK
MDAT
MCLK

VBAT

GND
GND
GND
GND

AGND(D_)

RI1#

RI2#

VSB
VCC

VCC
VCC

PE

PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7

SIO_RST#16

LPC_DRQ#016

SERIRQ16

LPC_FRAME#16

SIO_PCLK16
SIO_24M18

LPC_AD016

D D

C C

LPC_AD116
LPC_AD216
LPC_AD316

SIO_THERM_SID6

VID46
VID36
VID26
VID16
VID06

SIO_THERM_SIC6

VIDOUT412
VIDOUT312
VIDOUT212
VIDOUT112
VIDOUT012

SLOTOCC#_CPU8

VSI12

VSO12

CPU-FAN22

CPU-FAN_CTL22

SYS-FAN22

SYS-FAN_CTL22

D1+6

SIO_PME#18

THRM#18

CPU_FAN_GPO22

R345 for Dual BIOS

ATX_PWR_OK6,18,28,31

B B

3VDUAL

VCC5_SB

A A

R345 X_0R/4/BR345 X_0R/4/B

FP_RST#18,31
PSIN#31

PWRBTN#18

SLP_S3#18,28

PS_ON#28

R2 4.7KR/4R2 4.7KR/4

R1 4.7KR/4R1 4.7KR/4

PWRBTN#
PS_ON#
COPEN#

4

LPC DEBUG PORT

DRVDEN0

7

INDEX#

17

MOA#

8

DSA#

9

DIR#

11

STEP#

12

WRDATA#

10

WE#

14

TRACK0#

16

WP#

18

RDDATA#

15

HEAD#

13

DSKCHG#

19

100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116

27
28
118
119
120

DTRA#

121

RTSA#

122
123

SOUTA

124
125
126
127
128

DTRB#

1

RTSB#

2
3

SOUTB

5
6
66

40
41
69
70
71
72

68
86
4
37
99

20
48
73
117
88

RSLCT 29
RPE 29
RBUSY 29

RACK# 29
RSLIN# 29
RINIT# 29

RERR# 29

RAFD# 29

RSTB# 29

PRD0 29
PRD1 29
PRD2 29
PRD3 29
PRD4 29
PRD5 29
PRD6 29
PRD7 29

DCDA# 29
RIA# 29
CTSA# 29
DTRA# 29
RTSA# 29
DSRA# 29
SOUTA 29
SINA 29

KBRST# 18

A20GATE 18

KBDATA 29
KBCLK 29
MSDATA 29
MSCLK 29

C6

C6
C0.1u16Y/4

C0.1u16Y/4

VCC3

CP1

CP1
X_COPPER

X_COPPER

D-

DRVDEN0 29
INDEX# 29
MOA# 29
DSA# 29
DIR# 29
STEP# 29
WRDATA# 29
WE# 29
TRACK0# 29
WP# 29
RDDATA# 29
HEAD# 29
DSKCHG# 29

VBAT

LPC_PCLK16

LPC_FRAME#16

Reserved

MCP61 Internal Pull-High

VCC3

C435

C435
C0.1u25Y/6/B

C0.1u25Y/6/B

3VDUAL

C11

C11
C0.1u16Y/4

C0.1u16Y/4

VOLTAGE SENSING(H/W Monitor).

The best voltage input level is about 1V.

VCC3

C12

C12
C0.1u16Y/4

C0.1u16Y/4

(Place capacitor close to IC)

VCORE

VCC5_SB

-12V

VCC5

+12V

R3 10KR1%/4R3 10KR1%/4

R4 100KR1%/4R4 100KR1%/4

R5 200KR1%/4R5 200KR1%/4

R6 200KR1%/4R6 200KR1%/4

R7 200KR1%/4R7 200KR1%/4

R330 X_10R/4R330 X_10R/4

SIO_RST#
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#

LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3

C0.1u25Y/6/B

C0.1u25Y/6/B

C10

C10
C0.1u16Y/4

C0.1u16Y/4

3

RN48

RN48
X_8P4R-8.2KR/4

X_8P4R-8.2KR/4

C434

C434

R15

R15
10KR1%/4

10KR1%/4

R16

R16
47KR1%/4

47KR1%/4

R17

R17
47KR1%/4

47KR1%/4

R18

R18
20KR1%/4

20KR1%/4

JLPC1

JLPC1

1 2
3 4
5
7 8

9 10
11 12
13 14

X_JLPC

X_JLPC

VCC3

12
34
56
78

C49

C49
C0.1u16Y/4

C0.1u16Y/4

VIN1

VIN2
VREF

VIN3

VIN4

VIN5

2

VCC3

R331

R331
X_10KR/4

X_10KR/4

VCC3

6

VCC5

Temperature Sensing

DIODE SENSING CIRCUIT

SPI FLASH MEMORY

SPI DEBUG PORT

Place close to SPI ROM

3VDUAL

JSPI1

JSPI1

1 2

RN8

RN8
8P4R-4.7KR/4

8P4R-4.7KR/4

12
34
56
78

VID1
VID0

VIDOUT3
VIDOUT2
VIDOUT1
VIDOUT0

VIDOUT4
VID4
VID3
VID2

C2

C2
C222p16X/4

C222p16X/4

C8

C8
C332p50X/4

C332p50X/4

3 4
5
7 8
9

H2X5(10)_black-RH

H2X5(10)_black-RH

WP_SIO1#
WP_SIO0#
SPI_HOLD1#
SPI_HOLD0#

AP note

6

THERMDA_CPU 6

THERMDC_CPU 6

RT1

RT1
X_YT103S-1N

X_YT103S-1N

SPI_CS0#
SPI_HOLD0#

Part Number : N31-2051451-H06

3VDUAL

VCC_DDR

RN4

RN4
8P4R-4.7KR/4

8P4R-4.7KR/4

12
34
56
78

VCC_DDR

RN2

RN2
8P4R-4.7KR/4

8P4R-4.7KR/4

12
34
56
78

VCC_DDR

RN3

RN3
8P4R-4.7KR/4

8P4R-4.7KR/4

12
34
56
78

D1+D1+

D1+6

D-

VREF

R22 X_10KR1%/4R22 X_10KR1%/4

D3+

D2+

D-

MOSIMISO
SPI_CLK

POWER TRIP R

from CPU

from CPU

for
SYSTEM

Q1

Q1
PNP-3906_SOT23

PNP-3906_SOT23

U7

SPI_CS0#
MISO
WP_SIO0#

Reserved(for Dual BIOS)

SPI_CS1#
MISO

RTSB#
RTSA#

U7

1

CE#

2

SO

3

WP#

4

VSS

SST25LF040A-33-4C-S2A

SST25LF040A-33-4C-S2A

SST SPI ROM

U6

U6

1

CE#

2

SO

3

WP#

4

VSS

X_SST25LF040A-33-4C-S2A

X_SST25LF040A-33-4C-S2A

SST SPI ROM

SOUTB
SOUTA
RTSA#
RTSB#
DTRB#
DTRA#

Don't STUFF

PIN49-54=VID_OUT

PIN42-47=VIDIN

SOUTA
SOUTB/DTRB#
DTRA#

4E

SPI_DISABLE

FAN START DUTY 60%

CASE OPEN CIRCUIT

VBAT

R8
2MR/4R82MR/4

COPEN#

C1

C1
C102p50X/4

C102p50X/4

1

3VDUAL

8

VDD

7

HOLD#

6

SCK

5

SI

3VDUAL

8

VDD

7

HOLD#

6

SCK

5

SI

R55 1KR/4R55 1KR/4
R48 X_1KR/4R48 X_1KR/4
R47 X_1KR/4R47 X_1KR/4
R54 X_1KR/4R54 X_1KR/4
R53 1KR/4R53 1KR/4
R39 1KR/4R39 1KR/4

2

112

JCI1

JCI1
D1x2-BK

D1x2-BK

C50

C50
X_C10u10Y/8

X_C10u10Y/8

C56

C56
C0.1u16Y/4

C0.1u16Y/4

R64

R64

4.7KR/4

C52

C52
X_C0.1u16Y/4

X_C0.1u16Y/4

4.7KR/4

C51

C51
X_C10u10Y/8

X_C10u10Y/8

R61

R61
X_4.7KR/4

X_4.7KR/4

SPI_HOLD0#
SPI_CLK
MOSI

SPI_HOLD1#
SPI_CLKWP_SIO1#
MOSI

STUFF

LINEAR FANPWM FAN
PIN49-54=GPIO
PIN42-47=VIDIN/OUT
2E

SPI_ENABLE
FAN START DUTY 100%

CPU VID reset

SLOT_OCC#

VBAT

R19

R19
2MR/4

2MR/4

SLOTOCC#_CPU

Title

Title

Title

SIO-F71882FG

SIO-F71882FG

SIO-F71882FG

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

of

27 35Friday, September 22, 2006

27 35Friday, September 22, 2006

1

27 35Friday, September 22, 2006

5

www.kythuatvitinh.com

4

3

2

1

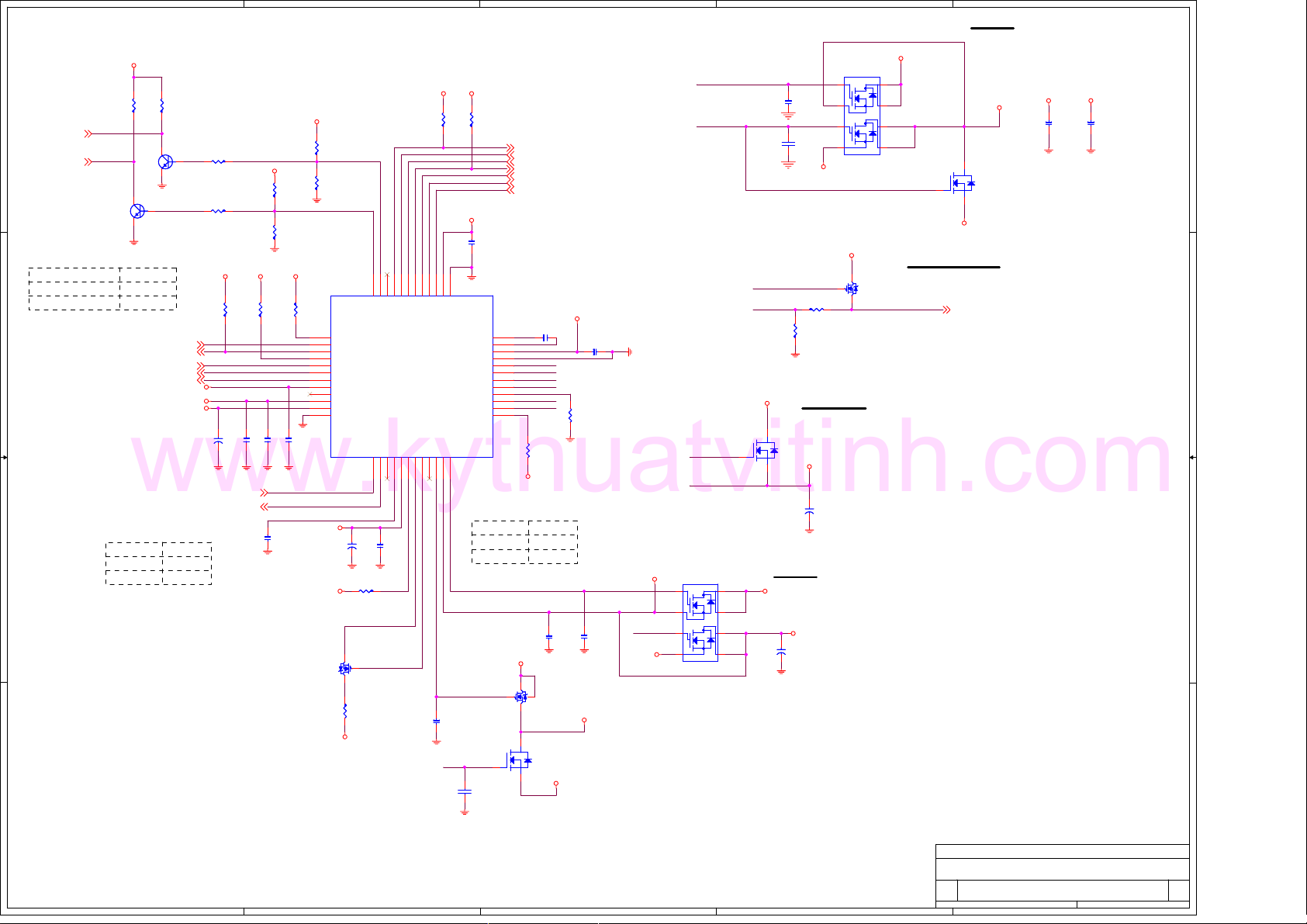

5VDUAL

VCC5_SB

5VSB_DRV

5V_DRV

Q22

Q22
N-20N03_TO252

N-20N03_TO252

1.2VDRV

1.2VSEN

Q32

Q32
N-07D03_SO8

N-07D03_SO8

4 5

3

2

1

C199

C199
X_C222p16X/4

X_C222p16X/4

C200

C200
X_C102p50X/4

X_C102p50X/4

1.5VDRV

1.5VSEN

VCC3

D

G

S

3VDUAL

VCC5_SB

6

7

8

+

+

EC40

EC40
X_EL1000u/16V20

X_EL1000u/16V20

45

46

43

44

41

I2C_CLK

RSMRST#42I2C_DATA

CPU_PWGD

CHIP_PWGD

PLED0/3VDLDEC#

3VDUAL 3VDUAL

R281

R281
X_330R/4

X_330R/4

R282

R282
330R/4

330R/4

VCC5_SB

C359

C359
C0.1u16Y/4

C0.1u16Y/4

38

37

39

S3#40S5#

GND

5VSB

PWR_OK

1.2VLDT_DRV

1.2VLDT_SEN
TMP_FAULT#

24

CHRPMP

AGND1

5VUSB_DRV

5V_DRV
VAGP_DRV
VAGP_SEN

WD_DET

C1
C2

MS-6

MS-6

36
35
34
33
32
31
30
29
28
27
26
25

WATCHING DOG TIMER SELECT

WD_DET
PULL LOW OFF
PULL HIGH

VCC5_SB

VDIMM_HDRV

C68

C68
X_C103p16X/4

X_C103p16X/4

5V_DRV

G

C83

C83

X_C102p50X/4

X_C102p50X/4

1234

HT_PWRGD 18
SMBCLK 18,20,21
SMBDATA 18,20,21
RSMRST# 18,24
SLP_S5# 18
SLP_S3# 18,27
ATX_PWR_OK 6,18,27,31

9VSB

C362

C362
C0.1u25Y/6

C0.1u25Y/6

MS6C1
MS6C2

5VSB_DRV
5V_DRV

1.5VDRV

1.5VSEN

1.2VDRV

1.2VSEN

R287

R287
10KR/4

10KR/4

VCC3

C361 C1u25X/8C361 C1u25X/8

R288

R288
10KR/4

10KR/4

TIMER

ON

C94

C94
C1u16Y/6

C1u16Y/6

Q5

Q5
N-2054_SOT89

N-2054_SOT89

D

S

5VDIMM

Q6

Q6
N-20N03_TO252

N-20N03_TO252

VCC5

3VSB_DRV

C363

C363
X_C102p50X/4

X_C102p50X/4

3VDUAL

5V_DRV

VCC3

R271

R271

R280

R280

330R/4

330R/4

330R/4

330R/4

VCC5_SB

R262

R262
330R/4

330R/4

C315

C315
C0.1u16Y/4

C0.1u16Y/4

C352

C352
C0.22u16X/6

C0.22u16X/6

R270

R270
1KR/4

1KR/4

R273

R273
X_1KR/4

X_1KR/4

VCC3VCC5

C316

C316
C0.1u16Y/4

C0.1u16Y/4

VCC5_SB

R264

R264

4.7KR/4

4.7KR/4

VCC5_SB

VCC5_SB

R279

R279
X_1KR/4

X_1KR/4

R277

R277
1KR/4

1KR/4

1
2
3
4
5
6
7
8

9
10
11
12

U17

U17

MS6_SS

3VDUAL

FP_RST#
PCIRST#
HDD_RST#
DEV_RST#
VDD_GD
VDD_EN

1.25VREF
VCC5
SLOT_RST#
VCC3

2.5VDDA
AGND0

+

+

EC29

EC29
EL100u/16V5

EL100u/16V5

R283 4.7KR/4R283 4.7KR/4

G

Q28

Q28
N-2N7002_SOT23

N-2N7002_SOT23

D S

R286

R286
1KR/4

1KR/4

VDIMM_LSEN

47

48

PLED1/EXTRAM

PSIN#13PSOUT#14MEMBT15SS165VSB17DDRTYPE18VDIMM_LSEN19VDIMM_LDRV20VDIMM_HSEN21VDIMM_HDRV223VSB_SEN233VSB_DRV

C354

C354
C1u16Y/6

C1u16Y/6

VDIMM_LDRV

D D

Pin48:VDIMM LINEAR OR PWM SELECT

C C

PLED131

SUSLED31

VDIMM MODE

LINEAR REGULATOR

PWM REGULATOR

Q25

Q25

CE

NPN-2N3904_SOT23

NPN-2N3904_SOT23

B

EXTRAM
PULL LOW
PULL HIGH

Q27

Q27
NPN-2N3904_SOT23

NPN-2N3904_SOT23

CE

R275 4.7KR/4R275 4.7KR/4

B

R269 4.7KR/4R269 4.7KR/4

MS6_RST#16

HD_RST#22
VRM_GD12

PWM_EN12

1.25VREF30

VCC5
VCC3

VDDA_25

R263

R263
330R/4

330R/4

VRM_GD

1.25VREF

EC30

EC30
EL100u/16V5

EL100u/16V5

+

+

PS_ON#27

PSOUT#31

VCC3

C314

C314
C1u25X/8

C1u25X/8

Pin18:DDR AND DDR II VOLT SELECT

DDRTYPE

B B

A A

PULL LOW
PULL HIGH

VDIMM

2.5V

1.8V

VCC5

R290

R290
200R1%/4

200R1%/4

R289

R289
750R1%/4

750R1%/4

VCC1_2HT

VCC1_2HT

+

+

EC23

EC23

EL470u/16V11.5

EL470u/16V11.5

3VDUAL

4 5

3

2

1

3VDUAL

G

Q17

Q17
N-07D03_SO8

N-07D03_SO8

DS

Q29

Q29
N-2N7002_SOT23

N-2N7002_SOT23

RAM_VREF

VCC5_SB

6

7

8

G

RAM_VREF(1.8V)

5VDUAL

D

Q33

Q33
N-20N03_TO252

N-20N03_TO252

S

VCC5

Default 1.9V

RAM_VREF 30

5VDUAL

C205

C205
X_C0.1u16Y/4

X_C0.1u16Y/4

5VDUAL

C429

C429
X_C0.1u16Y/4

X_C0.1u16Y/4

Title

Title

Title

ACPI Power Controler - MS6

ACPI Power Controler - MS6

ACPI Power Controler - MS6

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet of

Date: Sheet of

of

28 35Friday, September 22, 2006

28 35Friday, September 22, 2006

28 35Friday, September 22, 2006

1

5

www.kythuatvitinh.com

PS2 KEYBOARD & MOUSE CONNECTOR

20 mils

SVCC4

RN1

RN1
8P4R-4.7KR/4

1 2

3 4

5 6

8P4R-4.7KR/4

7 8

FB3 X_120S-600mA/6FB3 X_120S-600mA/6
FB4 X_120S-600mA/6FB4 X_120S-600mA/6

FB1 X_120S-600mA/6FB1 X_120S-600mA/6
FB2 X_120S-600mA/6FB2 X_120S-600mA/6

C15

C15
C180p50N/4

C180p50N/4

!!!Can't use Carry-Cap!!!

D D

MSDATA27

MSCLK27

KBDATA27

C C

MSDAT#
MSCLK#

KBDAT#
KBCLK#

KBCLK27

C5

C5
X_C0.1u16Y/4

X_C0.1u16Y/4

C20

C20
C180p50N/4

C180p50N/4

C13

C13
C180p50N/4

C180p50N/4

4

R14

R14
X_1KR/4

X_1KR/4

C18

C18
C180p50N/4

C180p50N/4

11
12

7
8

1
2
5
6

JKBMS1

JKBMS1

KB/MS

KB/MS

MS

MS

3

SERIAL PORT 1

VCC5

10

9
4

3

KB

KB

SOUTA27

NRIA# RIA#
NCTSA#
NDSRA# DSRA#
NSINA
NDCDA#

RTSA#

RTSA#27

DTRA#

DTRA#27

SOUTA

2

U5

U5

20

VCC

2

RIN1

3

RIN2

4

RIN3

7

RIN4

9

RIN5

16

DIN1

15

DIN2

13

DIN3

11

GND

75232S_SSOP20

75232S_SSOP20

NRTSA
NDSRA#
NCTSA#
NRIA#

NDCDA#
NSOUTA
NSINA
NDTRA

V+
ROUT1
ROUT2
ROUT3
ROUT4
ROUT5

DOUT1
DOUT2
DOUT3

V-

CN1

CN1
8P4C-C180p50N/6

8P4C-C180p50N/6

1

2

3

4

5

6

7

8

CN2

CN2
8P4C-C180p50N/6

8P4C-C180p50N/6

1

2

3

4

5

6

7

8

+12VCOM

1
19
18
17
14
12

5
6
8

-12VCOM

10

CTSA#
SINA

DCDA#
NRTSA

NDTRA
NSOUTA

1

C32

C32
C0.1u16Y/4

C0.1u16Y/4
D1

1N4148SD11N4148S

D2
1N4148SD21N4148S

C45

C45
C0.1u16Y/4

C0.1u16Y/4

+12V

RIA# 27
CTSA# 27
DSRA# 27
SINA 27
DCDA# 27

-12V

COM1

COM1
CONN-COM

CONN-COM

NDCDA# NDSRA#
NSINA
NSOUTA
NDTRA NRIA#

1
2
3
4
5

11 10

6
7
8
9

N51-09M0091-A10

N51-09M0091-A10

NRTSA
NCTSA#

PARALLAL PORT

D3

PRD4
PRD5
PRD6
PRD7

RSTB#
PRD0
RAFD#
PRD1

PRD2
PRD3
RINIT#
RSLIN#

PRD[0..7]

RN10

RN10
8P4R-33R/4

8P4R-33R/4

1 2
3 4
5 6
7 8

RN13

RN13
8P4R-33R/4

8P4R-33R/4

1 2
3 4
5 6
7 8

RN11

RN11
8P4R-33R/4

8P4R-33R/4

1 2
3 4
5 6
7 8

RSLCT27
RERR#27
RACK#27

RBUSY27

RPE27

PRND4
PRND5
PRND6
PRND7

STB#
PRND0
AFD#
PRND1

PRND2
PRND3
PINIT#
SLIN#

RSLCT
RERR#
RACK#
RBUSY
RPE

VCC5

PRD[0..7]27

B B

RSTB#27

RAFD#27

RINIT#27

RSLIN#27

A A

PRND7
PRND6
PRND5
PRND4
RSLCT
RPE
RBUSY
RACK#

SLIN#
PINIT#
PRND3
PRND2
PRND1
AFD#
PRND0
STB#

RERR#

1N4148SD31N4148S

1

5

1

5

2

2

3

3

RN9

RN9

4

4

10P8R-2.2K/6

10P8R-2.2K/6

6

6

7

7

8

8

9

10

9

10

1

5

1

5

2

2

3

3

RN12

RN12

4

4

10P8R-2.2K/6

10P8R-2.2K/6

6

6

7

7

8

8

9

10

9

10

R84 2.7KR/4R84 2.7KR/4

LPT1

LPT1

STB#

1

SLIN#

PRND0
PRND1
PRND2
PRND3
PRND4
PRND5
PRND6
PRND7
RACK#
RBUSY
RPE
RSLCT

2
3
4
5
6
7
8

9
10
11
12
13

LPT

LPT

R80 X_0R/6R80 X_0R/6

D4

AFD#

14

RERR#

15

PINIT#

16

PSLIN#

17
18
19
20
21
22
23
24
25

PSLIN#

For EMI

RACK#
RBUSY
RPE
RSLCT

PRND7
PRND6
PRND5
PRND4

PRND1
AFD#
PRND0
STB#

SLIN#
PINIT#
PRND3
PRND2

RERR#

C96 C330p50X/4C96 C330p50X/4

CN3

CN3
8P4C-C330p50N/6

8P4C-C330p50N/6

1

2

3

4

5

6

7

8

CN4

CN4
8P4C-C330p50N/6

8P4C-C330p50N/6

7

8

5

6

3

4

1

2

CN6

CN6
8P4C-C330p50N/6

8P4C-C330p50N/6

7

8

5

6

3

4

1

2

CN5

CN5
8P4C-C330p50N/6

8P4C-C330p50N/6

7

8

5

6

3

4

1

2

FLOPPY CONN BOLCK

FDD1

FDD1

1 2

4

5

6
7 8
9 10

11 12
13 14
15 16
17 18
19

20

21 22
23 24
25 26
27 28
29 30
31 32
33 34

CN-BH-D2x17-1:3-BK

CN-BH-D2x17-1:3-BK

RDDATA#
WP#
TRACK0#
INDEX#

DSKCHG#

R337 1KR/4R337 1KR/4

DRVDEN0

INDEX#
MOA#

DSA#
DIR#

STEP#
WRDATA#
WE#
TRACK0#
WP#
RDDATA#
HEAD#
DSKCHG#

RN50

RN50
8P4R-1KR/6

8P4R-1KR/6

1 2
3 4
5 6
7 8

VCC5

DRVDEN0 27

INDEX# 27
MOA# 27

DSA# 27
DIR# 27

STEP# 27
WRDATA# 27
WE# 27
TRACK0# 27
WP# 27
RDDATA# 27
HEAD# 27
DSKCHG# 27

For EMI

Title

Title

Title

KB/MS,LPT,COM,Floppy CONN

KB/MS,LPT,COM,Floppy CONN

KB/MS,LPT,COM,Floppy CONN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

29 35Friday, September 22, 2006

29 35Friday, September 22, 2006

29 35Friday, September 22, 2006

of

of

1

of

5

www.kythuatvitinh.com

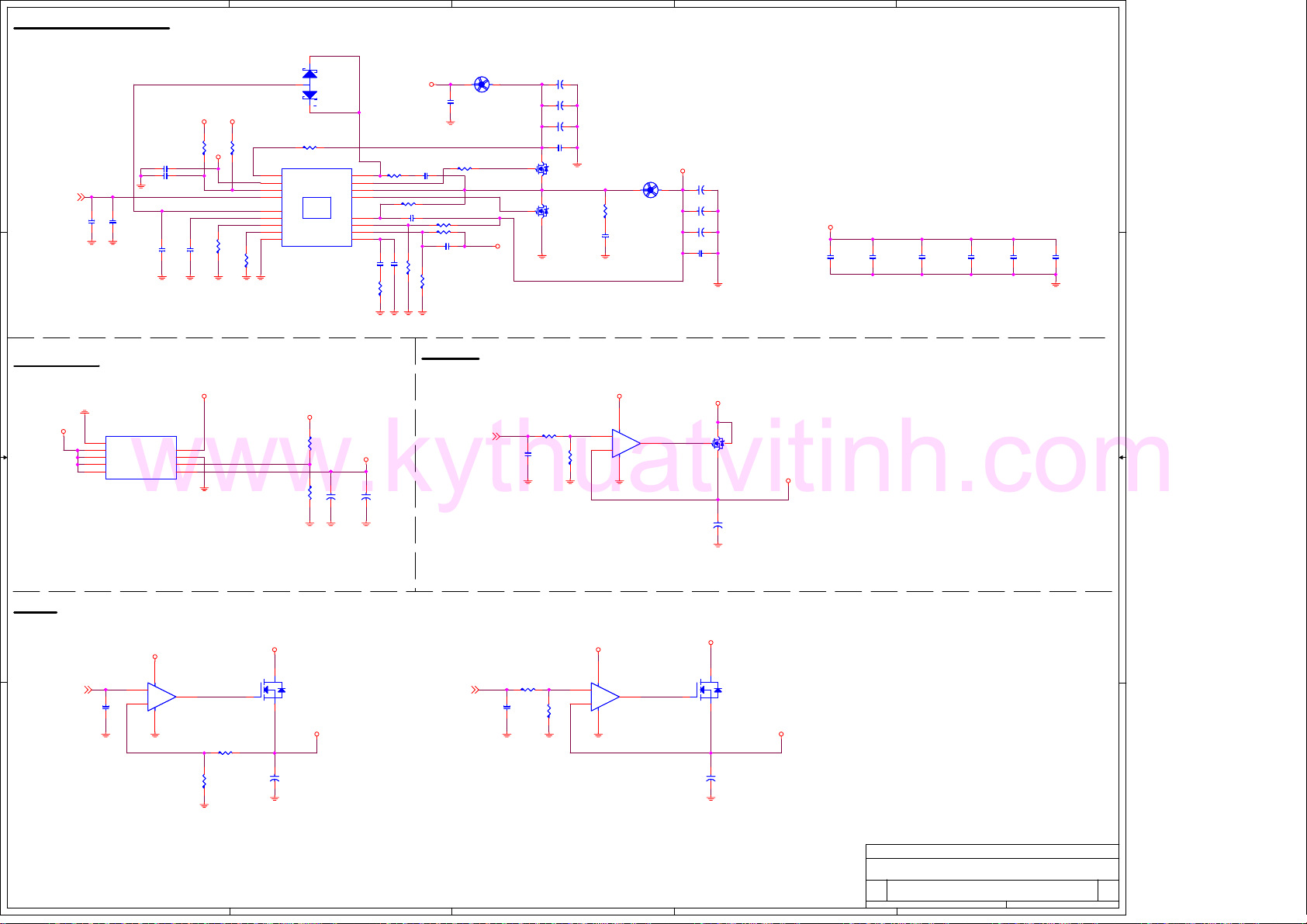

DDR II 1.8V POWER

R71

R71

2.2R/8

2.2R/8

+12V

C79

C79
C0.22u16X/6

C0.22u16X/6

VCC5_SB

R66

R66
X_2.2KR/8

X_2.2KR/8

MS11_PWR

MS11_SS

R70

R70
X_68KR/4

X_68KR/4

R69

R69
X_0R/4

X_0R/4

4

RR

16

VCC12

1

5VSB

9

PI

11

PVCC

10

SS

2

RT

3

I_IND

17

GND

MS-11

MS-11

D D

RAM_VREF28

C513

C513
C10u10Y/8

C10u10Y/8

C78

C78
C103p16X/4

C103p16X/4

5VDIMM

C72 C1u25X/8C72 C1u25X/8
C69 C1u25X/8C69 C1u25X/8

RAM_VREF

C80

C80
C1u25X/8

C1u25X/8

3

R68

R68
200KR/4

200KR/4

1

D4

D4

BAT54A_SOT23

BAT54A_SOT23

2

U8

U8

BOOT

PHASE

GND

GND

COMP

CSN

4

UG

LG

CSP

FB

15
14
13
12

6
5
8
7

C75

C75
C4700p50X/4

C4700p50X/4

R74

R74
22KR/4

22KR/4

5VDIMM

C76

C76

R73

R73

C1u25X/8

C1u25X/8

0R/4

0R/4

MS11_HDRV
MS11_PHASE
MS11_BDRV

R72 2KR1%/4R72 2KR1%/4

C70 C1u25X/8C70 C1u25X/8

R65 2KR1%/4R65 2KR1%/4
R76 1KR1%/4R76 1KR1%/4

C74 C33p50N/4C74 C33p50N/4

R67

R67
X_56KR1%/4

X_56KR1%/4

CHOKE1

CHOKE1

1.2u18A

1.2u18A

C84

C84
C103p16X/4

C103p16X/4

R90

R90
0R/8

0R/8

MS11_H_DRV

C77 X_C103p16X/4C77 X_C103p16X/4

R77

R77
X_1KR1%/4

X_1KR1%/4

3

Iripple=20*0.6*0.8/1=9.6A

2.22*3*1.7=11.322A>9.6A

EC8

EC8

+

G

G

+

1 2

+

+

1 2

+

+

1 2

DS

Q11

Q11
N-06N03_TO252

N-06N03_TO252

DS

Q12

Q12
N-06N03_TO252

N-06N03_TO252

EL1000u/16V20

EL1000u/16V20
EC7

EC7
EL1000u/16V20

EL1000u/16V20
EC10

EC10
EL1000u/16V20

EL1000u/16V20

C99

C99
C10u10Y/8

C10u10Y/8

5VDIMM_IN

VCC_DDR

CONNECT TO CHOKE OUTPUT

R93

R93

2.2R/8

2.2R/8

C141

C141
C103p16X/4

C103p16X/4

High-side MOS AVL(RoHS):
D03-75N022B-N03
D03-06N030B-I14
D03-80N021B-O05

Low-side MOS AVL(RoHS):
D03-75N022B-N03
D03-06N030B-I14
D03-80N021B-O05

Irms(MAX) of VCC_DDR=18A

VCC_DDR

CHOKE2

CHOKE2

1.1u25A

1.1u25A

+

+

1 2

+

+

1 2

+

+

1 2

EC11

EC11
EL1500u/6.3V20

EL1500u/6.3V20
EC16

EC16
EL1500u/6.3V20

EL1500u/6.3V20
EC13

EC13
EL1500u/6.3V20

EL1500u/6.3V20
C154

C154
C10u10Y/8

C10u10Y/8

2

de- VCC_DDR high frequency noise.

VCC_DDR

C207

C207

C151

C151

C0.1u16Y/4

C0.1u16Y/4

C0.1u16Y/4

C0.1u16Y/4

C167

C167
C0.1u16Y/4

C0.1u16Y/4

C169

C169
C0.1u16Y/4

C0.1u16Y/4

1

C87

C87
C0.1u16Y/4

C0.1u16Y/4

C128

C128
C0.1u16Y/4

C0.1u16Y/4

CLOSE TO DEVICE FB

C C

DDR VTT Power

VCC_DDR

R82

R82
1KR1%/4

1KR1%/4

VCC_DDR

R81

R81
1KR1%/4

1KR1%/4

VTT_DDR

+

+

+

+

EC6

EC6

EC21

EC21

EL470u/10V11

EL470u/10V11

3VDUAL

B B

U9

U9

9
8
7
6
5

W83310DS

W83310DS

NC
VREF2
ENABLE
VCNTL
BOOT_SEL

GND

VREF1

VOUT

1

VIN

2

DDRVTT_REF

3
4

1.2VDUAL

225mA

9VSB

U18B

R291

R291
100R1%/4

100R1%/4

C364

C364
C0.1u25Y/6

C0.1u25Y/6

1.2VREF1.25VREF

R292

R292

2.4KR1%/4

2.4KR1%/4

1.25VREF28

EL470u/16V11.5

EL470u/16V11.5

5

+

+

6

-

-

4 8

U18B
LM358MX_SOIC8

LM358MX_SOIC8

7

3VDUAL

1234

+

+

Q30

Q30
N-2054_SOT89

N-2054_SOT89

EC31

EC31
EL470u/10V11

EL470u/10V11

1.2VDUAL

VCC1.2

VCC1.5

D

Q34

Q34
N-20N03_TO252

N-20N03_TO252

G

S

VCC1.2

+

+

EC24

EC24

EL1000u/16V20

EL1000u/16V20

R295

R295
200R1%/4

200R1%/4

G

VCC_DDR

D

S

+

+

Q20

Q20
N-20N03_TO252

N-20N03_TO252

VCC1.5

EC26

EC26

EL1000u/16V20

EL1000u/16V20

R351

R351
100R1%/4

100R1%/4

1.25VREF28

1.25VREF

C512

C512
C0.1u25Y/6

C0.1u25Y/6

+12V

U21B

U21B
LM358MX_SOIC8

1.25VREF28

A A

1.25VREF

C368

C368
C0.1u25Y/6

C0.1u25Y/6

5

+

+

6

-

-

4 8

LM358MX_SOIC8

7

R294

R294
1KR1%/4

1KR1%/4

R352

R352

2.4KR1%/4

2.4KR1%/4

+12V

3

+

+

2

-

-

4 8

U21A

U21A
LM358MX_SOIC8

LM358MX_SOIC8

1

Title

Title

Title

System Regulators

System Regulators

System Regulators

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet of

Date: Sheet of

Date: Sheet

1

of

30 35Tuesday, January 16, 2007

30 35Tuesday, January 16, 2007

30 35Tuesday, January 16, 2007

5

www.kythuatvitinh.com

4

3

2

1

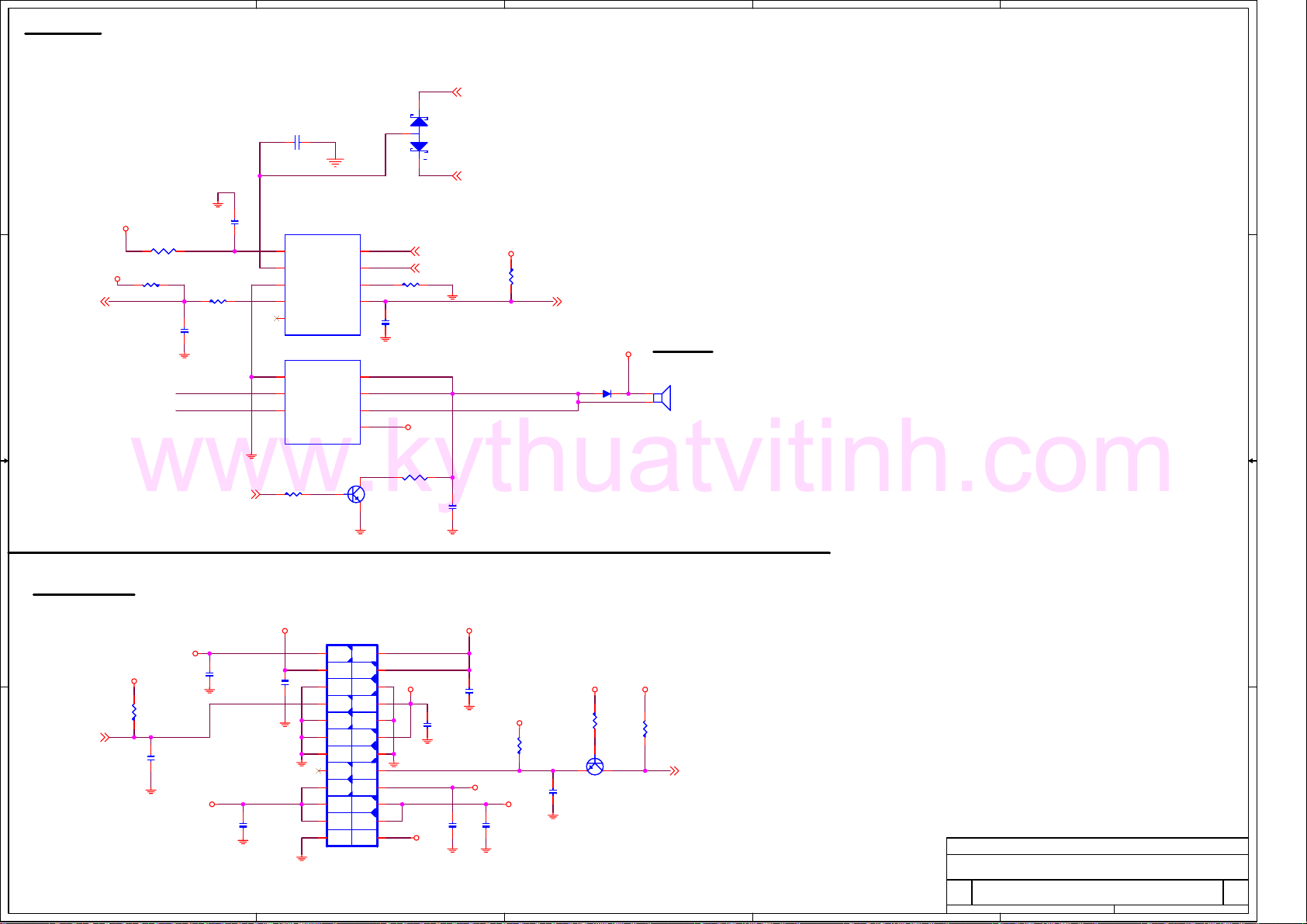

Front Panel

SATA_LED 17

3

PLED1HDD+
SUSLED

R328 100R/4R328 100R/4

C411

C411
C0.1u16Y/4

C0.1u16Y/4

VCC5

R301

R301
220R/8

220R/8

1

D26

D26

BAT54A_SOT23

BAT54A_SOT23

2

PD_LED 22

PLED1 28
SUSLED 28

C382

C382
C0.1u16Y/4

C0.1u16Y/4

3VDUAL

R320

R320
10KR/4

10KR/4

PSIN# 27

D17

D17
X_1N4148S

X_1N4148S

VCC5

BUZZER

1
2

BZ1

BZ1
BUZZER

BUZZER

ESD Protect

C421

D D

C431

C431
X_C0.1u25Y/6

VCC5

R338

R338
330R/4

330R/4

VCC3

R324 10KR/4R324 10KR/4

FP_RST#18,27

C C

C419

C419
C0.1u16Y/4

C0.1u16Y/4

X_C0.1u25Y/6

R327 33R/4R327 33R/4

SUSLED
PLED1

SPKR18

C421
X_C180p50N/6

X_C180p50N/6

For MSI / Intel Front Panel

JFP1

JFP1

1

HDD+

3

HDD­RESET-5PWSW+

7

RESET+

9

NC

JFP1

JFP1
JFP2

JFP2

GND1SPEAKER

3

SLED

5

PLED

JFP2

JFP2

R300 2.2KR/4R300 2.2KR/4

PLED
SLED

PWSW-

BUZ+

BUZ-

VCCSPK

2
4
6
8

2
4
6
8

Q31

Q31
NPN-3904_SOT23

NPN-3904_SOT23

B B

ATX Connector

-12V

ATX1

ATX1

C257

C257

C102p50X/4

C102p50X/4

13

3.3V

14

-12V

15

GND

16

P_ON

17

GND

18

GND

19

GND

20

-5V

21

5V

22

5V

23

5V

24

GND

<REF NAME>

<REF NAME>

PWR-2X12M

PWR-2X12M

VCC3

C274

C274
X_C0.1u16Y/4

VCC5_SB

R170

R170
10KR/4

10KR/4

PSOUT#28

A A

C251

C251

C102p50X/4

C102p50X/4

X_C0.1u16Y/4

C230

C230
C0.1u16Y/4

C0.1u16Y/4

3.3V

3.3V

GND

GND

GND

POK

5VSB

+12V
+12V

DET

1
2

VCC5

3
4

5V

5
6

5V

7
8
9
10
11
12

5

4

VCC3

VCC3

C237

C237
C0.1u16Y/4

C0.1u16Y/4

C204

C204
C0.1u16Y/4

C0.1u16Y/4

C260

C260
C0.1u16Y/4

C0.1u16Y/4

VCC5_SB

C198

C198
C0.1u16Y/4

C0.1u16Y/4

VCC5

+12VVCC5

R139

R139
10KR/4

10KR/4

VCC3

C210

C210
C0.1u16Y/4

C0.1u16Y/4

VCC3

R116

R116
10KR/4

10KR/4
Q16

Q16

B

NPN-2N3904_SOT23

NPN-2N3904_SOT23

CE

3

R111

R111
10KR/4

10KR/4

ATX_PWR_OK 6,18,27,28

Title

Title

Title

Front Pannel

Front Pannel

Front Pannel

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

2

Date: Sheet of

1

of

31 35Friday, September 22, 2006

31 35Friday, September 22, 2006

31 35Friday, September 22, 2006

5

www.kythuatvitinh.com

4

3

2

1

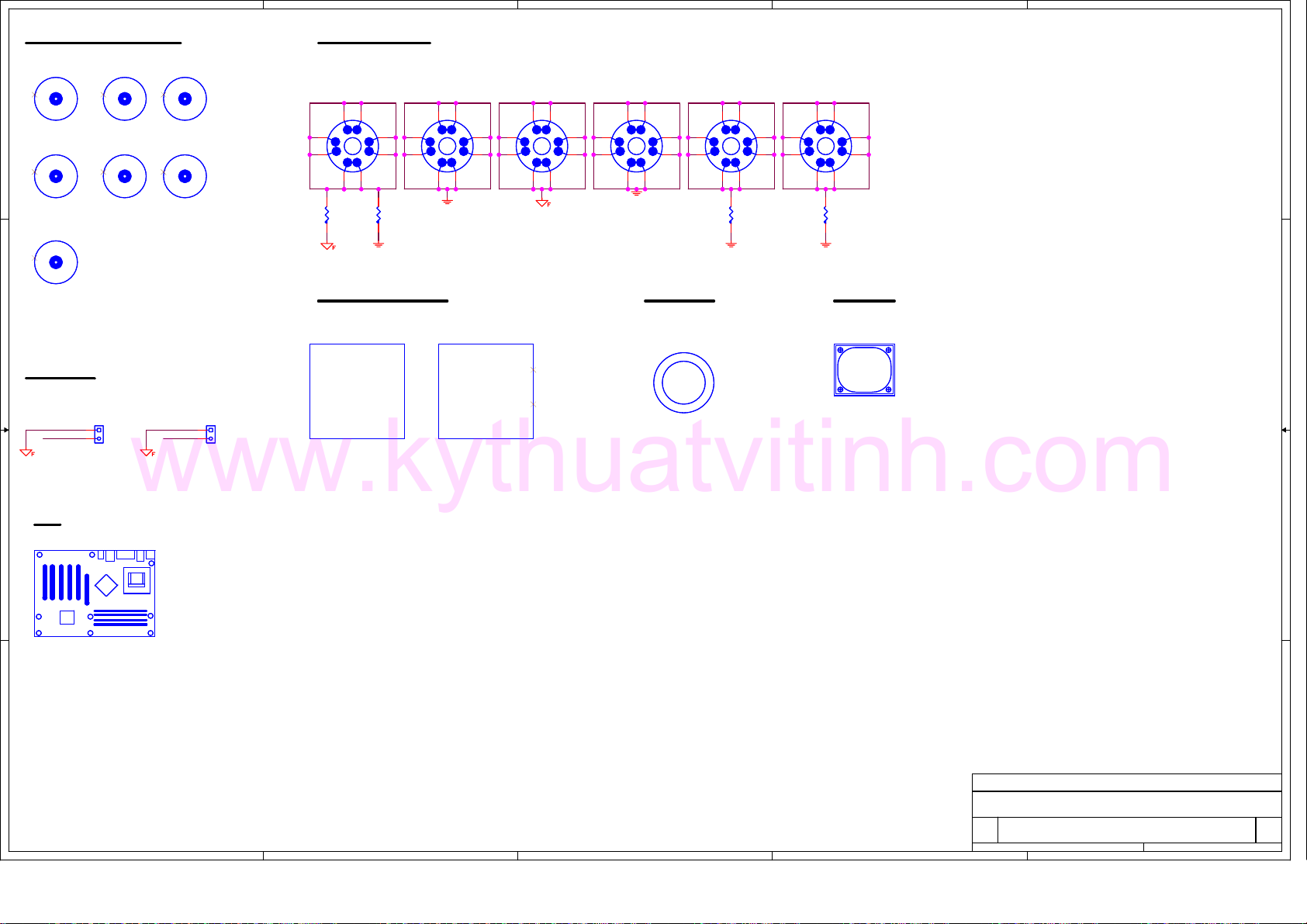

Optics Orientation Holes

FM4

FM3

FM1

FM1

X

D D

X_FM

X_FM

FM2

FM2

X

X_FM

X_FM

FM7

FM7

X

X_FM

X_FM

C C

FM3

FM5

FM5

X

X

X_FM

X_FM

X_FM

X_FM

FM4

FM6

FM6

X

X

X_FM

X_FM

X_FM

X_FM

Simulation

JS2

JS2

X_PIN1*2

X_PIN1*2

SIM1SIM2

JS1

JS1

X_PIN1*2

X_PIN1*2

Mounting Holes

MH3MH3

7

8

9
2

R226

R226
X_0R/4

X_0R/4

6

9

5

2

3

4

R248

R248
X_0R/4

X_0R/4

NB FAN/HEAT-SINK

U14_F1

U14_F1

MSI

MSI

DDR

DDR

X_NB-HEATSINK-W/Fan

X_NB-HEATSINK-W/Fan

E32-0400840-A58

E32-0400840-A58

MH6MH6

7

8

6
5

3

4

U14_H1

U14_H1

MSI

MSI

DDR

DDR

NB-HEATSINK-W/O Fan

NB-HEATSINK-W/O Fan

E31-0400893-K08

E31-0400893-K08

MH5MH5

7

8

9
2

6
5

3

4

MH1MH1

7

8

9
2

6
5

3

4

MH4MH4

7

8

9
2

6
5

3

4

R227

R227
X_0R/4

X_0R/4

MH2MH2

7

8

9
2

6
5

3

4

R26

R26
X_0R/4

X_0R/4

BATTERY CPU RM

CPU2

VBAT1-S1

VBAT1-S1

1

1

2

2

BAT_CR2032

BAT_CR2032

CPU2

CPU_RM

CPU_RM

E95-0000003-H06

E95-0000003-H06

AVL: E95-0000003-H06

PCB

B B

PCB1

PCB1

PCB P80-0730912-Y34

PCB P80-0730912-Y34

A A

Title

Title

Title

Option Parts

Option Parts

Option Parts

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet

5

4

3

2

Date: Sheet

1

of

32 35Friday, September 22, 2006

of

32 35Friday, September 22, 2006

of

32 35Friday, September 22, 2006

For IDE BUS

www.kythuatvitinh.com

5

4

3

2

1

VCC1.2

C234

C234
C0.1u16Y/4

D D

C0.1u16Y/4

C240

C240
C0.1u16Y/4

C0.1u16Y/4

VCC3

+12V

C350

C350
X_C0.1u16Y/4

X_C0.1u16Y/4

VCC5 VCC3

C21

C206

C206
X_C0.1u16Y/4

X_C0.1u16Y/4

C271

C271
X_C0.1u16Y/4

X_C0.1u16Y/4

C21
X_C0.1u16Y/4

X_C0.1u16Y/4

C514

C514
X_C0.1u16Y/4

X_C0.1u16Y/4

C515

C515
X_C0.1u16Y/4

X_C0.1u16Y/4

C518

C518
X_C0.1u16Y/4

X_C0.1u16Y/4

C517

C517
X_C0.1u16Y/4

X_C0.1u16Y/4

C351

C351
X_C0.1u16Y/4

X_C0.1u16Y/4

C265

C265
X_C0.1u16Y/4

X_C0.1u16Y/4

C295

C295
X_C0.1u16Y/4

X_C0.1u16Y/4

C389

C389
X_C0.1u16Y/4

X_C0.1u16Y/4

Decoupling Cap

VCC5_SB

C516

C516
X_C0.1u16Y/4

X_C0.1u16Y/4

C C

VTT_DDR

C519

C519
X_C0.1u16Y/4

X_C0.1u16Y/4

C521

C521
X_C0.1u16Y/4

X_C0.1u16Y/4

C520

C520
X_C0.1u16Y/4

X_C0.1u16Y/4

C523

C523
X_C0.1u16Y/4

X_C0.1u16Y/4

C522

C522
X_C0.1u16Y/4

X_C0.1u16Y/4

C525

C525
X_C0.1u16Y/4

X_C0.1u16Y/4

C524

C524
X_C0.1u16Y/4

X_C0.1u16Y/4

VCC1.2

VCC1_2HT

C387

C387
C0.1u16Y/4

C0.1u16Y/4

VCC1.2 VCC3VCC1.2

C412

C412
C0.1u16Y/4

C0.1u16Y/4

VCC1_2HT

C490

C490

C0.1u16Y/4

C0.1u16Y/4

B B

A A

Title

Title

Title

For EMI

For EMI

For EMI

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

MS-7309 0A

Date: Sheet

Date: Sheet of

5

4

3

2

Date: Sheet of

1

of

33 35Wednesday, September 20, 2006

33 35Wednesday, September 20, 2006

33 35Wednesday, September 20, 2006

5

www.kythuatvitinh.com

4

3

2

1

2006/7/4

Split VCC1_2HT to VCC1_2HT & VCC1.2
Change USB_RBIAS_GND resister from 931ohm to 1.1K for DG(05) change
Change LPC_CLK termination resister from 22ohm to 33ohm for DG(04) change
don't stuff cap on LPC_CLK for DG(05) change
Change BUF_25MHZ to MII_PHY termination resister from 22ohm to 0ohm for DG(05) change
Change CLK200_TERM_GND resister from 562ohm to 2.37K for DG(05) change

D D

2006/7/5

Change DAC_RSET resister from 124ohm to 105ohm for better signal

2006/7/6

Update 1394 circuit for VIA FAE recommend

2006/7/7

Update Audio circuit for Vista

2006/8/14

Change EC23 from 1000uF to 470uF for Power issue
Stuff EC36(1000uF) for Power issue

C C

B B

A A

Title

Title

Title

HISTORY

HISTORY

HISTORY

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

MS-7309 0A

MS-7309 0A

5

4

3

2

MS-7309 0A

Date: Sheet

Date: Sheet of

Date: Sheet of

34 35Monday, August 21, 2006

34 35Monday, August 21, 2006

34 35Monday, August 21, 2006

1

of

5

www.kythuatvitinh.com

ATX P/S WITH 1A STBY CURRENT

VBAT

D D

5VSB
+/-5%

5V
+/-5%

3.3V
+/-5%

12V
+/-5%

-12V
+/-5%

CPU
PW
12V
+/-5%

0.9V VTT_DDR
REGULATOR

4

1.8V VCC_DDR
REGULATOR

VRM SW
REGULATOR

VTT_DDR(S0,S1,S3)

VCC_DDR(S0,S1,S3)

CPU_VCORE (S0, S1)

VDD 1.5V
REGULATOR

3

VDD 1.2V
REGULATOR

DDR400 DIMMs

VTT_DDR 0.3A/DIMM (0.6A)

VCC_DDR 2.6A/DIMM (5.2A)

VTT_DDR(S0,S1,S3)
VCC_DDR(S0,S1,S3)
VCC1_2HT (S0, S1)

AM2 ATHLON 64

VCORE 0.8-1.55V
80A(90W)

VTT_DDR 1.75A
VCC_DDR 3.6.A
VCC1_2HT 1.2V 0.5A

VCC1_2HT(S0,S1)

+3.3V (S0, S1)

3VDUAL (S0, S1, S3, S4, S5)

1.2VDUAL (S0, S1, S3, S4, S5)

VBAT(G3,S0,S1,S3,S4,S5)

2

MCP61

VCC1_2HT 7.5A

VCC3 0.615A

3VDUAL 0.556A

1.2VDUAL 0.225A

VBAT 5mA(S0,S1)/
100uA(S3,S5)/
10uA(G3)

1

+3.3VDUAL REGULATOR
ACPI CONTROLLER

C C

+5VSB REGULATOR
ACPI CONTROLLER

3VDUAL (S0, S1, S3, S4, S5)

+5V_Dual (S0, S1, S3)

1.2V STB
REGULATOR

1.2VDUAL (S0, S1, S3, S4, S5)

VCC3 (S0, S1)

VT6308P 1394

VCC3

VBAT(G3,S0,S1,S3,S4,S5)

AC97 CODEC

5VAA LDO
REGULATOR

+5VR (S0, S1)

VCC3 (S0, S1)
+5VR (S0, S1)

3.3V
5V

LAN

3VDUAL (S0, S1, S3, S4, S5)

B B

3VDUAL (S0, S1, S3, S4, S5)

VCC3 (S0, S1)

VBAT

3VDUAL
AVDD18
AVDD15

SUPER I/O

3VDUAL
VCC3
VBAT

+5V_Dual (S0, S1, S3)

USB FR*4 USB RL*4

5VDual

5VDual3.0A

2A 2A

PS/2

5VDual
1A

3.0A

5.5A

X16 PCIE

3.3V
12V

5.5A

1394 FR*1

12V

1.5A

1394 RL*1

12V

1.5A

PCI Slot (per slot)

5V

3.3V
12V

3.3Vaux

-12V

A A

5.0A

7.6A

0.5A

0.375A

0.1A

X2

X1 PCIE

3.3V
12V

+3.3VDUAL (S0, S1, S3)

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

5

4

3

2

Date: Sheet of

Date: Sheet of

Date: Sheet

Power Delivery

Power Delivery

Power Delivery

MS-7309 0A

MS-7309 0A

MS-7309 0A

1

of

35 35Monday, July 17, 2006

35 35Monday, July 17, 2006

35 35Monday, July 17, 2006
