MSI MS-7199, Fuzzy CN700G G52-71991X2, Fuzzy CN700G User Manual

Fuzzy CN700G Series

MS-7199(V2.X) Mainboard

G52-71991X2

i

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no

guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade-

marks of NVIDIA Corporation in the United States and/or other countries.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered trade­marks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/XP are registered trademarks of Microsoft Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

Revision History

Revision Revision History Date

V2.0 First release June 2007

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.

Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates,

and other information: http://global.msi.com.tw/index.php?

func=faqIndex

Contact our technical staff at: http://support.msi.com.tw

ii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equip­ment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V be­fore connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10.Never pour any liquid into the opening that could damage or cause electrical
shock.

11. If any of the following situations arises, get the equipment checked by service
personnel:

† The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
† The equipment has been exposed to moisture.
† The equipment does not work well or you can not get it work according to

User’s Manual.

† The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STOR­AGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

iii

FCC-B Radio Frequency Interference Statement

This equipment has been
tested and found to comply
with the limits for a Class B
digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accor­dance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the measures listed
below.

† Reorient or relocate the receiving antenna.
† Increase the separation between the equipment and receiver.
† Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

† Consult the dealer or an experienced radio/television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’ INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7199

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

iv

WEEE (Waste Electrical and Electronic Equipment) Statement

v

vi

vii

CONTENTS

Copyright Notice................................................................................................ii

Trademarks........................................................................................................ii

Revision History................................................................................................ii

Technical Support..............................................................................................ii

Safety Instructions...........................................................................................iii

FCC-B Radio Frequency Interference Statement.........................................iv

WEEE (Waste Electrical and Electronic Equipment) Statement.....................v

Chapter 1. Getting Started.............................................................................1-1

Mainboard Specifications.............................................................................1-2

Mainboard Layout........................................................................................1-4

Packing Checklist.........................................................................................1-5

Chapter 2. Hardware Setup............................................................................2-1

Quick Components Guide.............................................................................2-2

Memory.......................................................................................................2-3

Power Supply..............................................................................................2-4

Back Panel...................................................................................................2-5

Connectors..................................................................................................2-7

Jumpers.....................................................................................................2-12

Slots..........................................................................................................2-13

viii

Getting Started

Chapter 1

Getting Started

Thank you for choosing the Fuzzy CN700G Series
(MS-7199) V2.X Mini-ITX mainboard. The Fuzzy
CN700G Series mainboard is based on VIA® CN700
and VT8237R+ chipsets for optimal system efficiency.
The Fuzzy CN700G Series mainboard delivers a high
performance and professional desktop platform
solution.

1-1

MS-7199 Mainboard

Mainboard Specifications

Processor Support

- VIA® C7 1/ 1.5/ 2.0 GHz/ 21x21mm nano BGA2 package

- TDP max 1GHz@9W/ 1.5GHz@12W/ 2.0GHz@20W

- Supports VRM mobile (down to 0.7V)

- Thermal design margin up to 100c Tcase

- 3D instructions SSE/ SSE2/ SSE3

- Security Features RGN/ AES/ SHA-1

Supported FSB

- 400/ 800 MHz for 1.0/ 1.5/ 2.0 GHz

Chipset

- North Bridge: VIA® CN700 chipset

- South Bridge: VIA® VT8237R+ chipset

Memory Support

- Supports DDR2 400/ 533 SDRAM (non-ECC 533) (2GB Max)

- 1 DDR2 DIMM (240-pin/ 1.8V)

LAN

- Supports PCI LAN 1Gb Fast Ethernet by VIA® RTL8110SC

Audio

- Chip integrated by VIA® VT1618G

- Flexible 8-channel audio with jack sensing

- Compliant with AC97 2.3 spec

IDE

- 1 IDE port by VT8237R+

- Supports Ultra DMA 66/ 100/ 133 mode

- Supports PIO, Bus Master operation mode

SATA

- Supports two SATA ports by VT8237R+

- Supports storage and data transfers up to 150MB/s

RAID

- SATA1~2 supports RAID 0/ 1/ 0+1 or JBOD mode by VT8237R+

- Updated option ROM to support RAID

1-2

Connectors

Back Panel

- 1 PS/2 mouse port

- 1 PS/2 keyboard port

- 2 serial ports (COMA and COMB)

- 2 USB 2.0 ports

- 1 LAN jack

- 3 flexible audio jacks

- 1 S-video port

- 1 DVI port

- 1 VGA port

On-Board Pinheaders

- 3 USB 2.0 pinheaders (6 ports)

- 1 audio pinheader

- 1 CD-In connector

- 1 Chassis Intrusion Switch pinheader

Getting Started

Slots

- 1 PCI slot

- Supports 3.3V/ 5V PCI bus Interface

Form Factor

- Mini-ITX (17 cm X 17 cm)

Mounting

- 4 mounting holes

1-3

MS-7199 Mainboard

VT1618

BIOS

VIA

VT8237R Plus

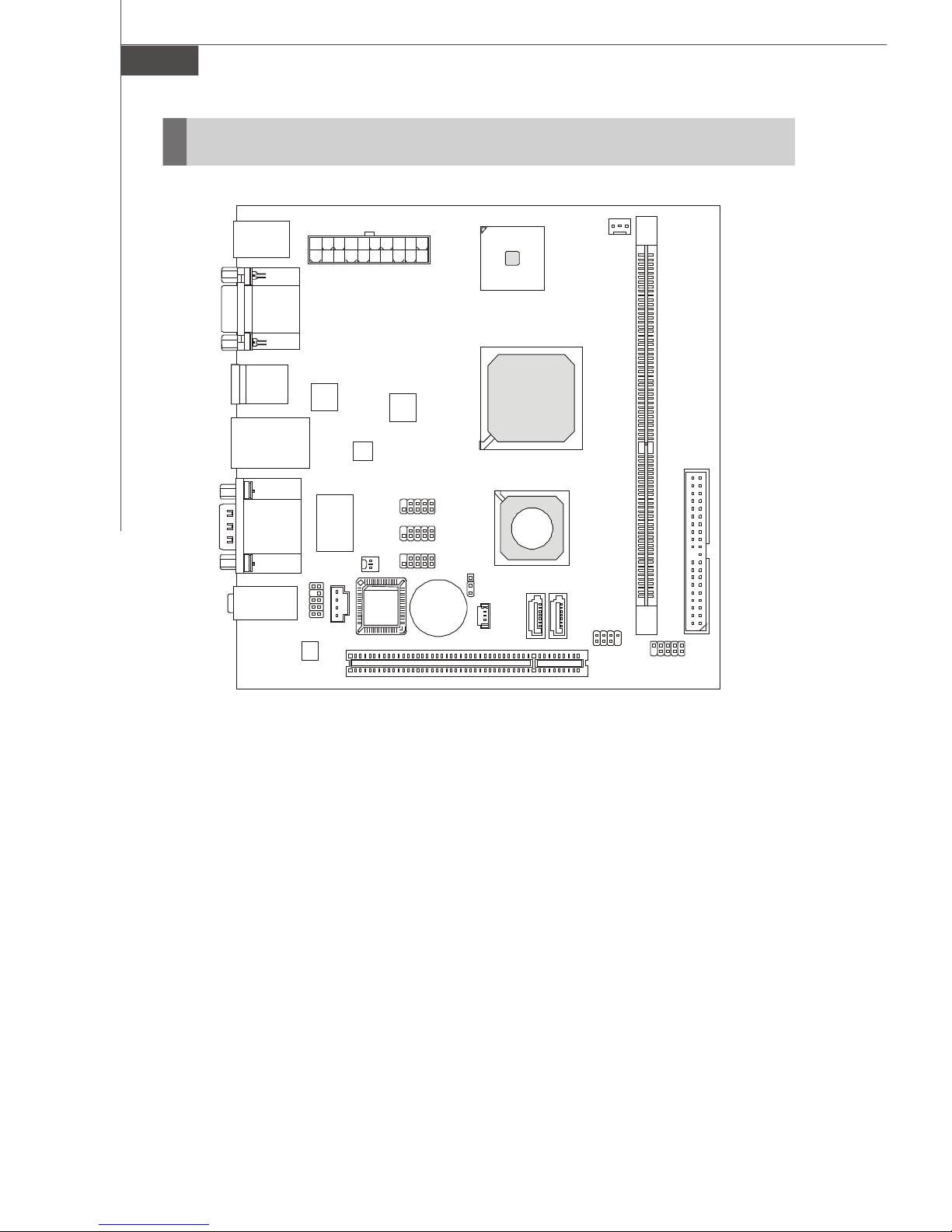

Mainboard Layout

Top : mouse
Bottom:KB

Top : VGA Port
Bottom: DVI Port

S-Video Out

VT1632A

Top: LAN Jack
Bottom: USB ports

Top : COMA
Bottom: COMB

F_AUDIO
T:Line-In
M:Line-Out
B:Mic

VIA

VIA

RTL8110SC

CD_IN

JCI1

PCI 1

ATXPWR

VIA

VT1622A

J5

J3

J4

BATT

+

JBAT1

J9

VIA

C7

VIA

CN700

SATA1SATA2

CPUFAN

JFP2

DIMM1

IDE1

JFP1

1-4

Fuzzy CN700G Series

(MS-7199) V2.X Mini-ITX Mainboard

Packing Checklist

Getting Started

MSI mainboard

Power Cable

* This picture is for reference only. Your packing contents may vary depending on the
model you purchased.

MSI Driver/Utility CD

Standard Cable for

IDE Devices

SATA Cable

User’s Guide

1-5

Hardware Setup

Chapter 2

Hardware Setup

This chapter provides you with the information about
hardware setup procedures. While doing the installation,
be careful in holding the components and follow the
installation procedures. For some components, if you
install in the wrong orientation, the components will not
work properly.

Use a grounded wrist strap before handling computer
components. Static electricity may damage the
components.

2-1

MS-7199 Mainboard

Quick Components Guide

ATXPWR, p.2-4

Back Panel,

p.2-5

F_AUDIO, p.2-9

PCI Slot, p.2-13

CPUFAN, p.2-9

DDR2 DIMM,

p.2-3

J3/J4/J5, p.2-11

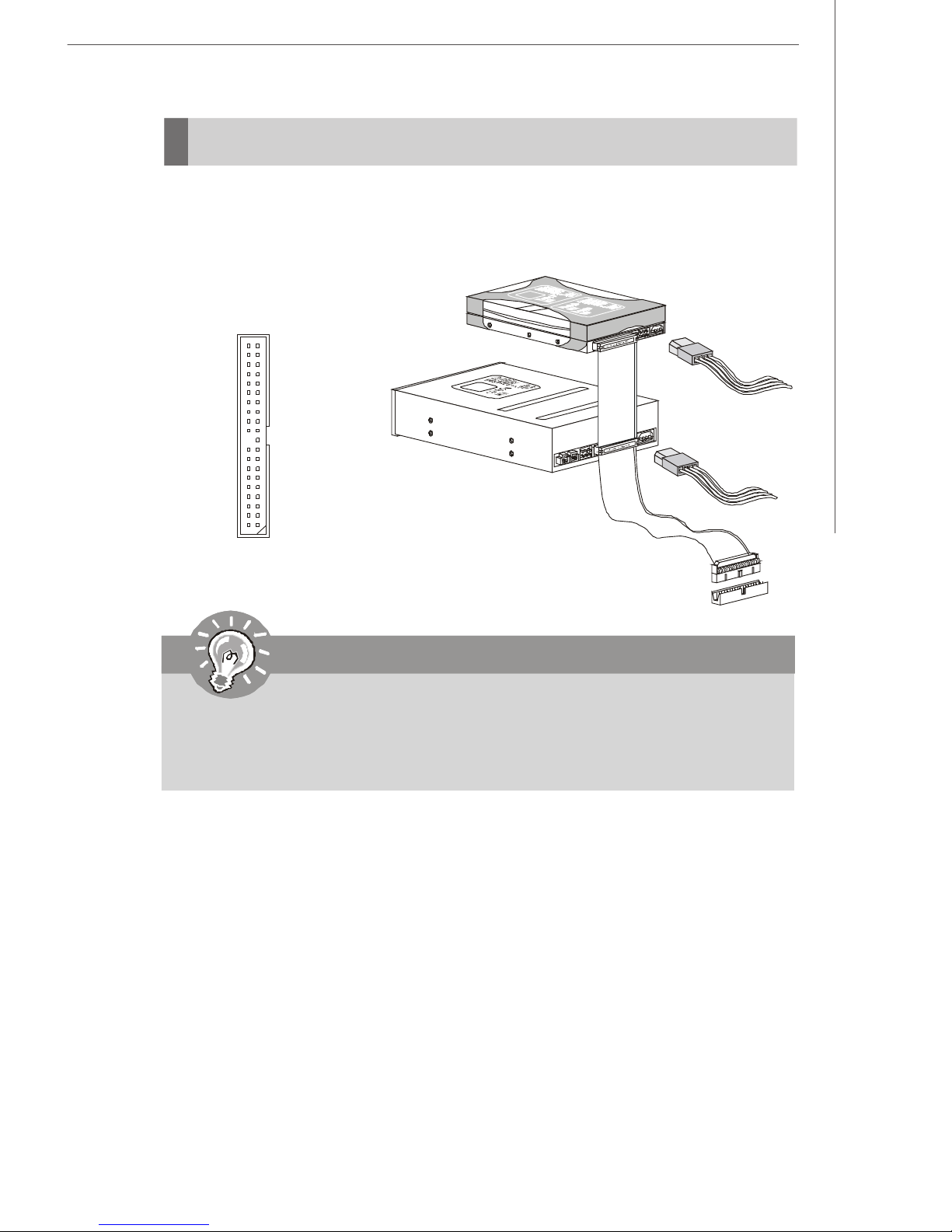

IDE1, p.2-7

SATA1~2, p.2-8

2-2

JCI1, p.2-10

CD_IN, p.2-9

J9, p.2-11

JBAT1, p.2-12

JFP2, p.2-10

JFP1, p.2-10

Hardware Setup

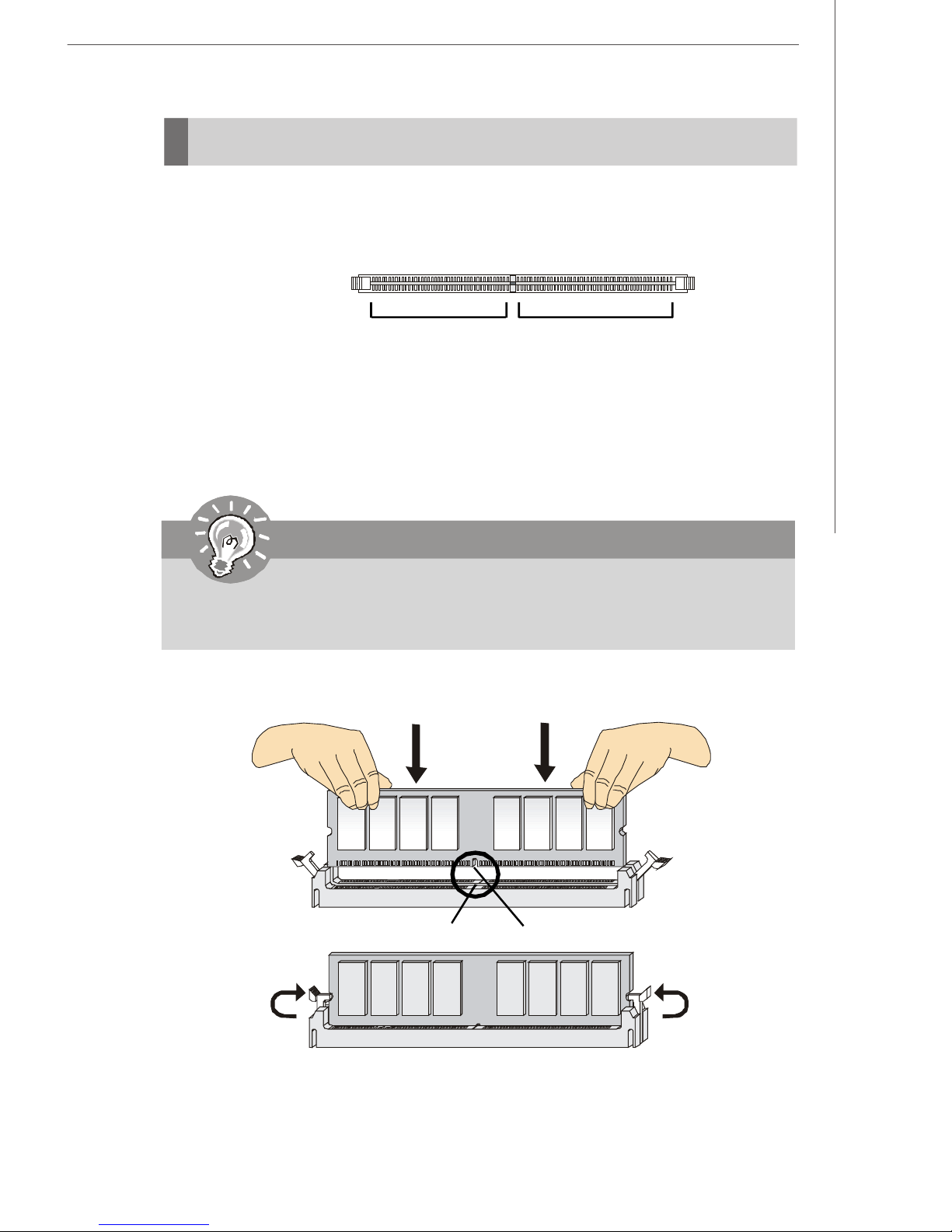

Memory

This DIMM slot is used for installing memory modules.

DDR2

240-pin, 1.8V

64x2=128 pin56x2=112 pin

Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right
orientation.

2. Insert the memory module vertically into the DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the DIMM slot.

Important

You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

3. The plastic clip at each side of the DIMM slot will automatically close.

Volt

Notch

2-3

MS-7199 Mainboard

Power Supply

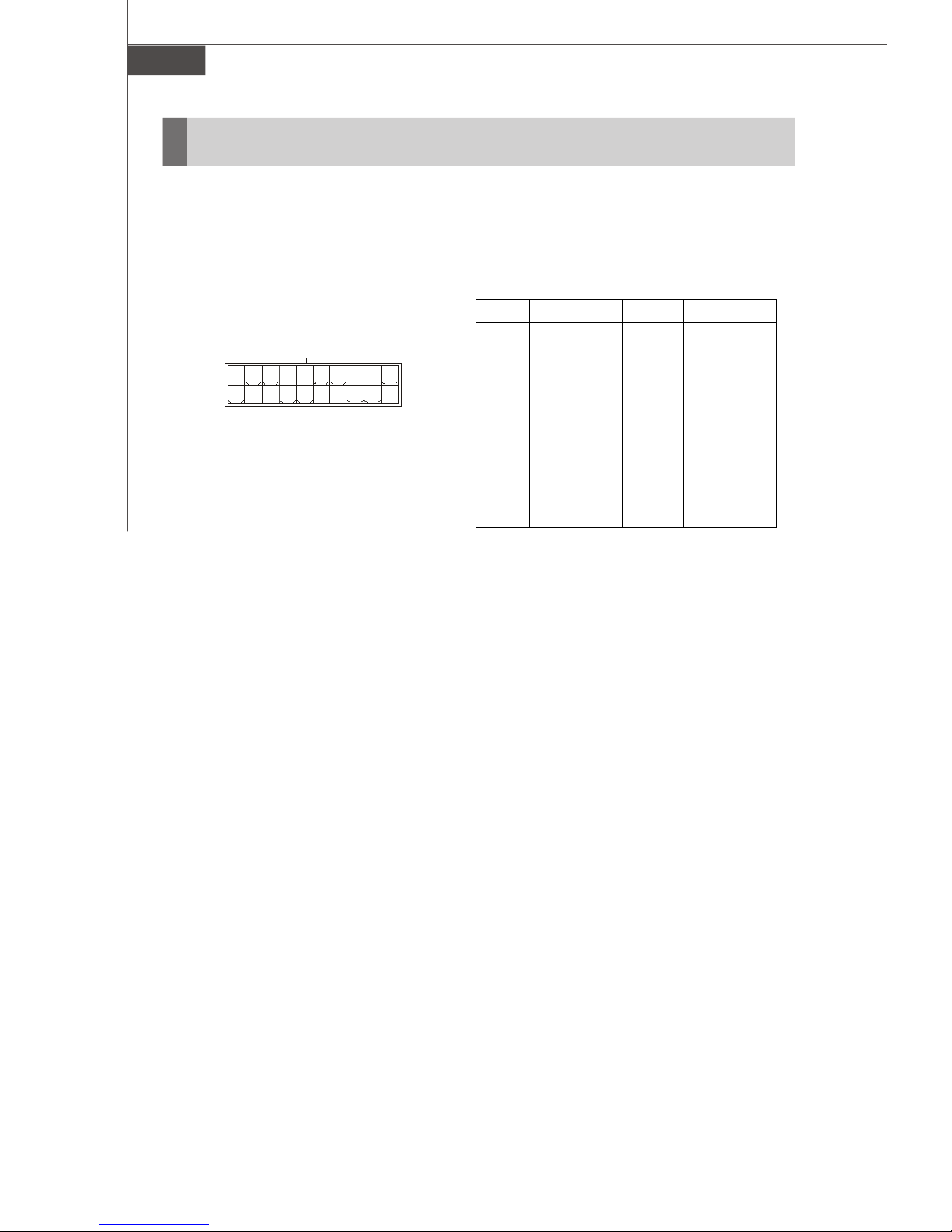

ATX 20-Pin Power Connector: ATXPWR

This connector allows you to connect to an ATX power supply.

ATXPWR Pin Definition

PIN SIGNAL

20

10

11

1

ATXPWR

1 3.3V
2 3.3V
3 GND
4 5V
5 GND
6 5V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

2-4

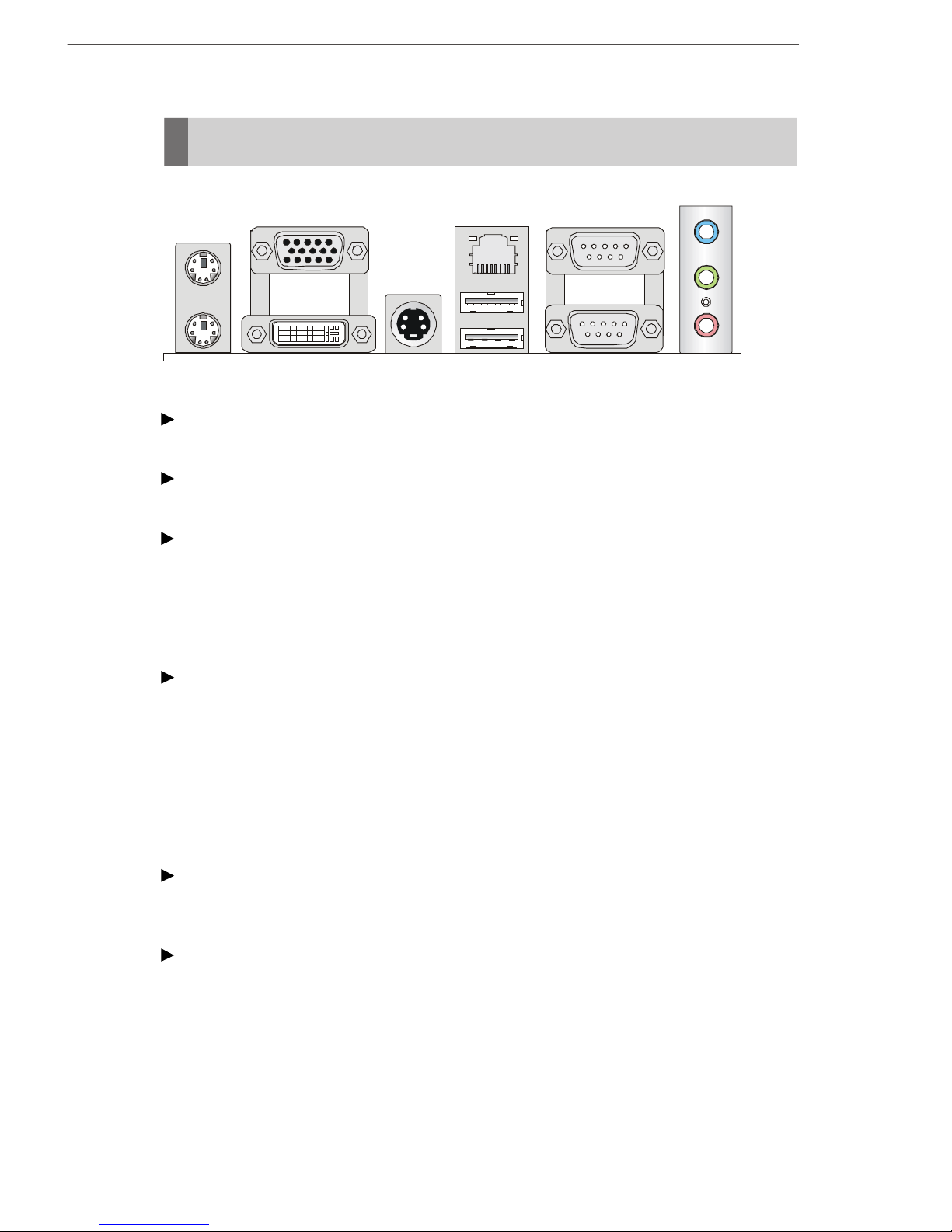

Back Panel

Mouse

Hardware Setup

VGA Port LAN

L-In

S-Video

Keyboard

Mouse/Keyboard

The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard.

VGA Port

The DB15-pin female connector is provided for monitor.

DVI Port
The DVI (Digital Visual Interface) connector allows you to connect a LCD monitor. It
provides a high-speed digital interconnection between the computer and its display
device. To connect an LCD monitor, simply plug your monitor cable into the DVI
connector, and make sure that the other end of the cable is properly connected to
your monitor (refer to your monitor manual for more information.)

S-Video Connector
The S-Video connector allows users to connect display devices for component
video output.
S-Video (Super-Video, sometimes referred to as Y/C Video, or component video) is
a video signal transmission in which the luminance signal and the chrominance signal
are transmitted separately to achieve superior picture clarity. The luminance signal
(Y) carries brightness information, which defines the black and white portion, and
the chrominance signal (C) carries color information, which defines hue and saturation.
An S-Video connection brings better video quality than a composite/RCA connection.

DVI Port

USB Ports

Serial Ports

L-Out

Mic

USB Port

The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard,
mouse, or other USB-compatible devices.

Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.

2-5

MS-7199 Mainboard

LAN
The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You
can connect a network cable to it.

Link IndicatorActivity Indicator

B Type

100M Cable
Plug-in

1000M Cable
Plug-in

No
Transmission
Transition

No
Transmission
Transition

Left LED

Green
Lighting

Green
Blinking

Green
Lighting

Green
Blinking

Right LED

Green
Lighting

Green
Lighting

Yellow
Lighting

Yellow
Lighting

Audio Ports

These audio connectors are used for audio devices. You can differentiate the color
of the audio jacks for different audio sound effects.

Line-In (Blue) - Line In, is used for external CD player, tapeplayer or other

audio devices.

Line-Out (Green) - Line Out, is a connector for speakers or headphones.
Mic (Pink) - Mic, is a connector for microphones.

2-6

Hardware Setup

Connectors

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IDE1

Important

If you install two IDE devices on the same cable, you must configure the
drives separately to master / slave mode by setting jumpers. Refer to IDE
device’s documentation supplied by the vendors for jumper setting
instructions.

2-7

MS-7199 Mainboard

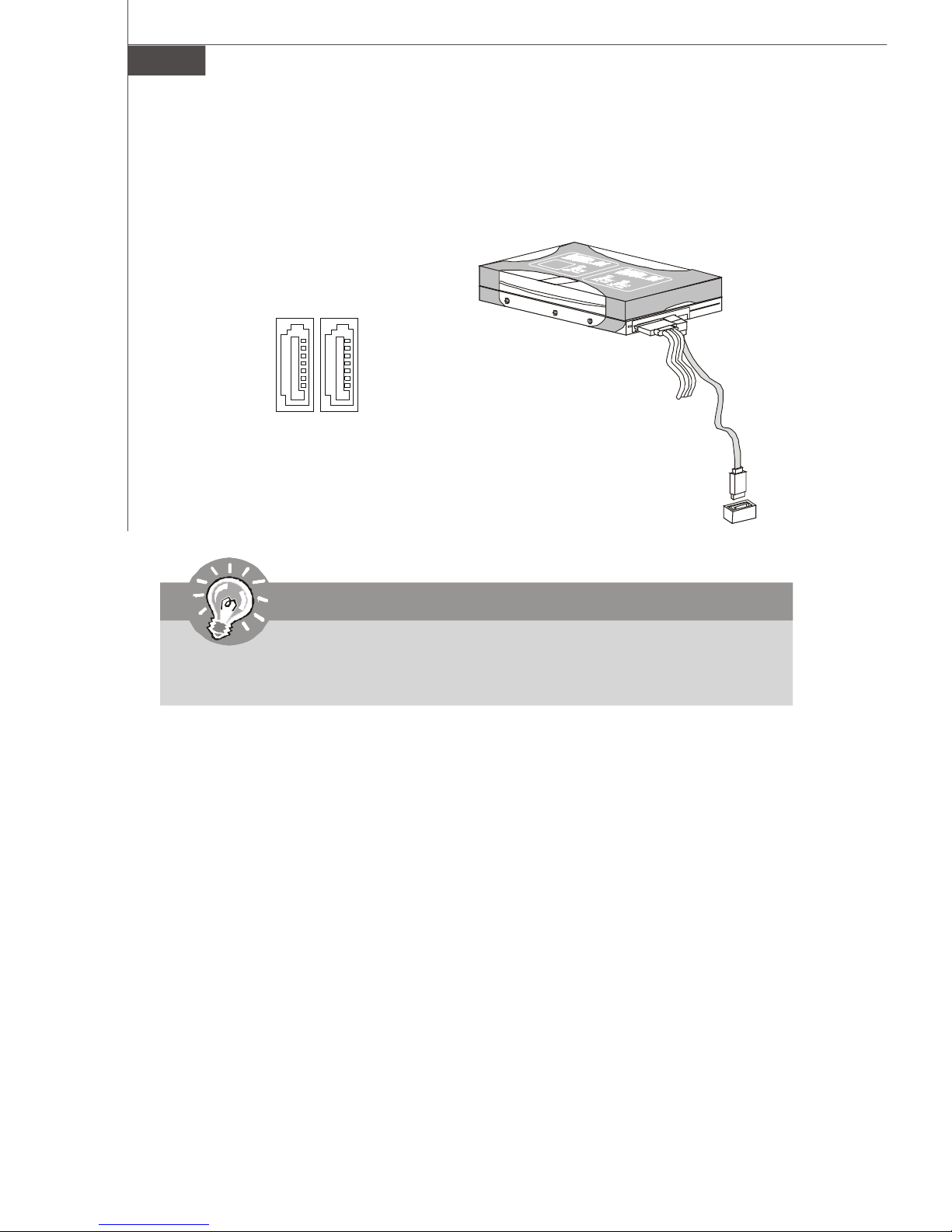

Serial ATA Connector: SATA1~SATA2

These connectors are high-speed Serial ATA interface ports. Each connector can
connect to one Serial ATA device.

7

1

7

1

SATA2SATA1

Important

Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.

2-8

Hardware Setup

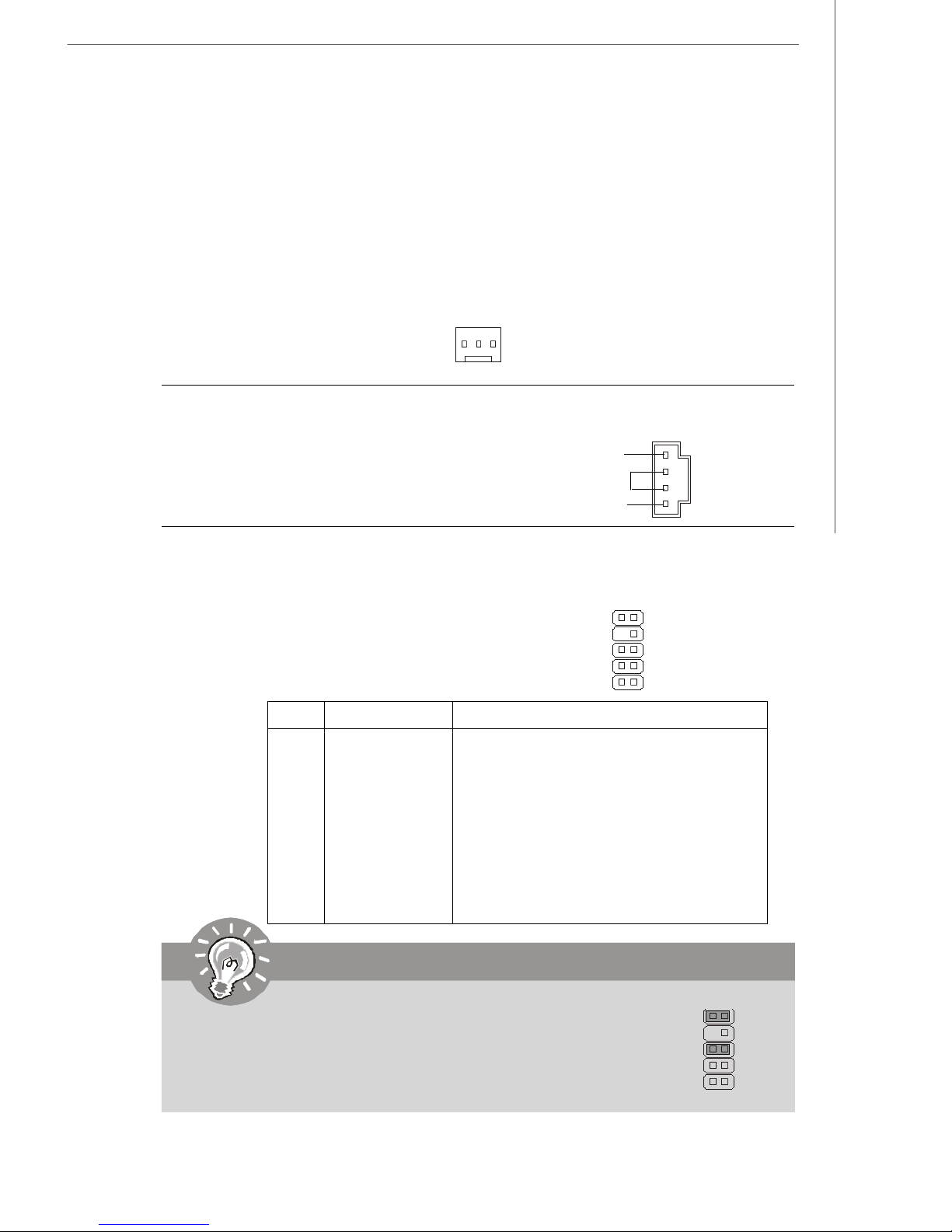

Fan Power Connector: CPUFAN

The fan power connector supports system cooling fan with +12V. When connecting
the wire to the connector, always note that the red wire is the positive and should be
connected to the +12V, the black wire is Ground and should be connected to GND.

GND

PO WER_O UT

+1 2V

CPUFAN

CD-In Connector: CD_IN

This connector is provided for CD-ROM audio.

R

GND

L

CD_IN

Front Panel Audio Connector: F_AUDIO

This connector allows you to connect the front panel audio and is compliant with
Intel® Front Panel I/O Connectivity Design Guide.

10

9

F_AUDIO

Pin Definition

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

2

1

Important

If you don’t want to connect to the front audio header, pins 5 &
6, 9 & 10 have to be jumpered in order to have signal output
directed to the rear audio ports. Otherwise, the Line-Out con­nector on the back panel will not function.

10

9

5

6

2-9

MS-7199 Mainboard

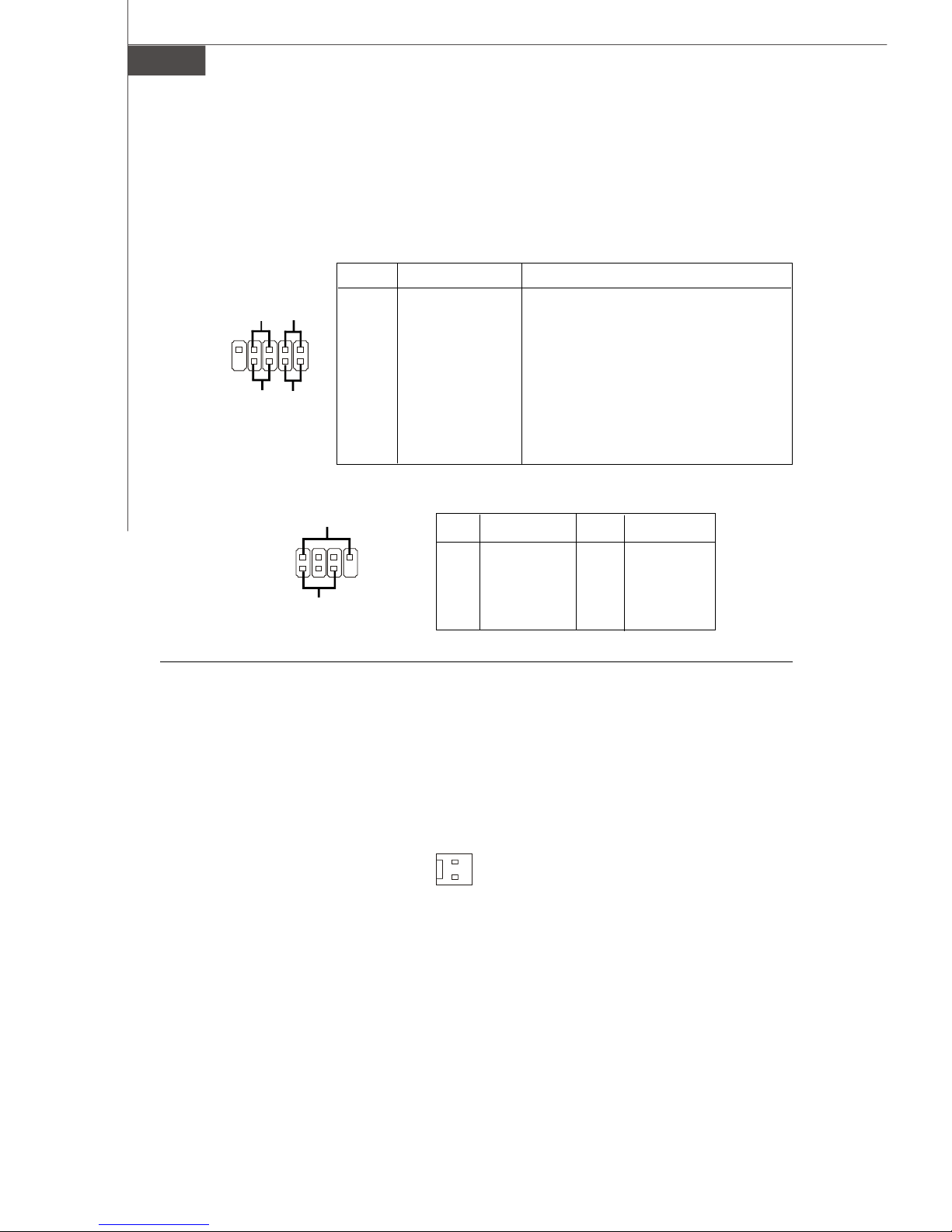

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs.
The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

JFP1 Pin Definition

PIN SIGNAL DESCRIPTION

HDD
LED

Power
LED

Speaker

-

2
1

Power
LED

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED

1

4 FP PWR/SLP MSG LED pull-up

2

5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

JFP2 Pin Definition

+

-

+

8
7

PIN SIGNAL PIN SIGNAL

1 GND 2 SPK­3 SLED 4 BUZ+
5 PLED 6 SPK
7 NC 8 BUZ+

JFP1

Reset
Switch

9

10

Power
Switch

JFP2

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is
opened, the chassis intrusion mechanism will be activated. The system will record
this status and show a warning message on the screen. To clear the warning, you
must enter the BIOS utility and clear the record.

JCI1

1
2

2-10

CINTRU
GND

Hardware Setup

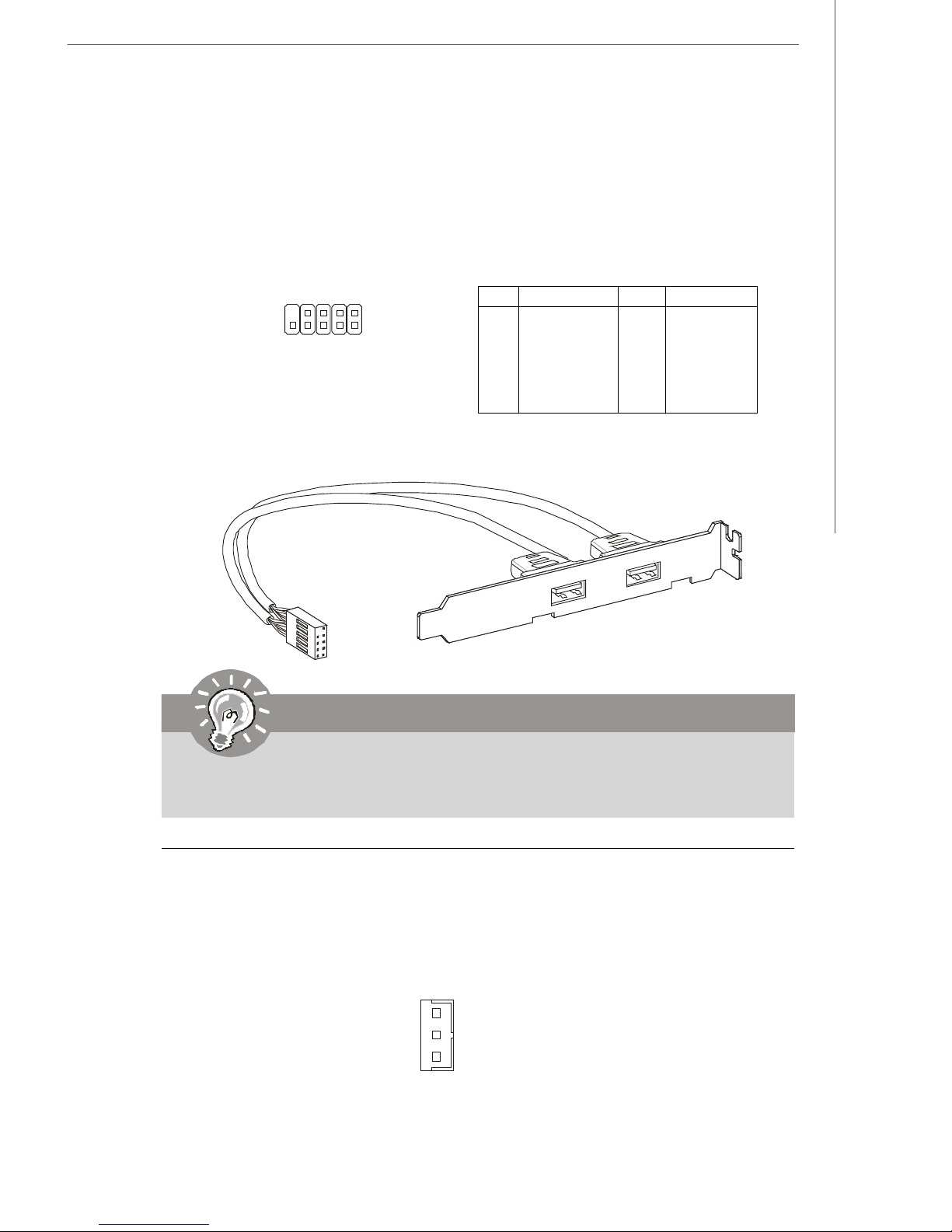

Front USB Connector: J3,J4,J5

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for con­necting high-speed USB interface peripherals such as USB HDD, digital cameras,
MP3 players, printers, modems and the like.

Pin Definition

PIN SIGNAL PIN SIGNAL

1 9

2 10

J3/J4/J5

(USB 2.0)

1 VCC 2 VCC
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC

USB 2.0 Bracket

(Optional)

Important

Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.

Wake On LAN Connector: J9

This connector allows you to connect to a LAN card with Wake On LAN function. You
can wake up the computer via remote control through a local area network.

J9

MP_WAKEUP
GND

1

5VSB

2-11

MS-7199 Mainboard

Jumpers

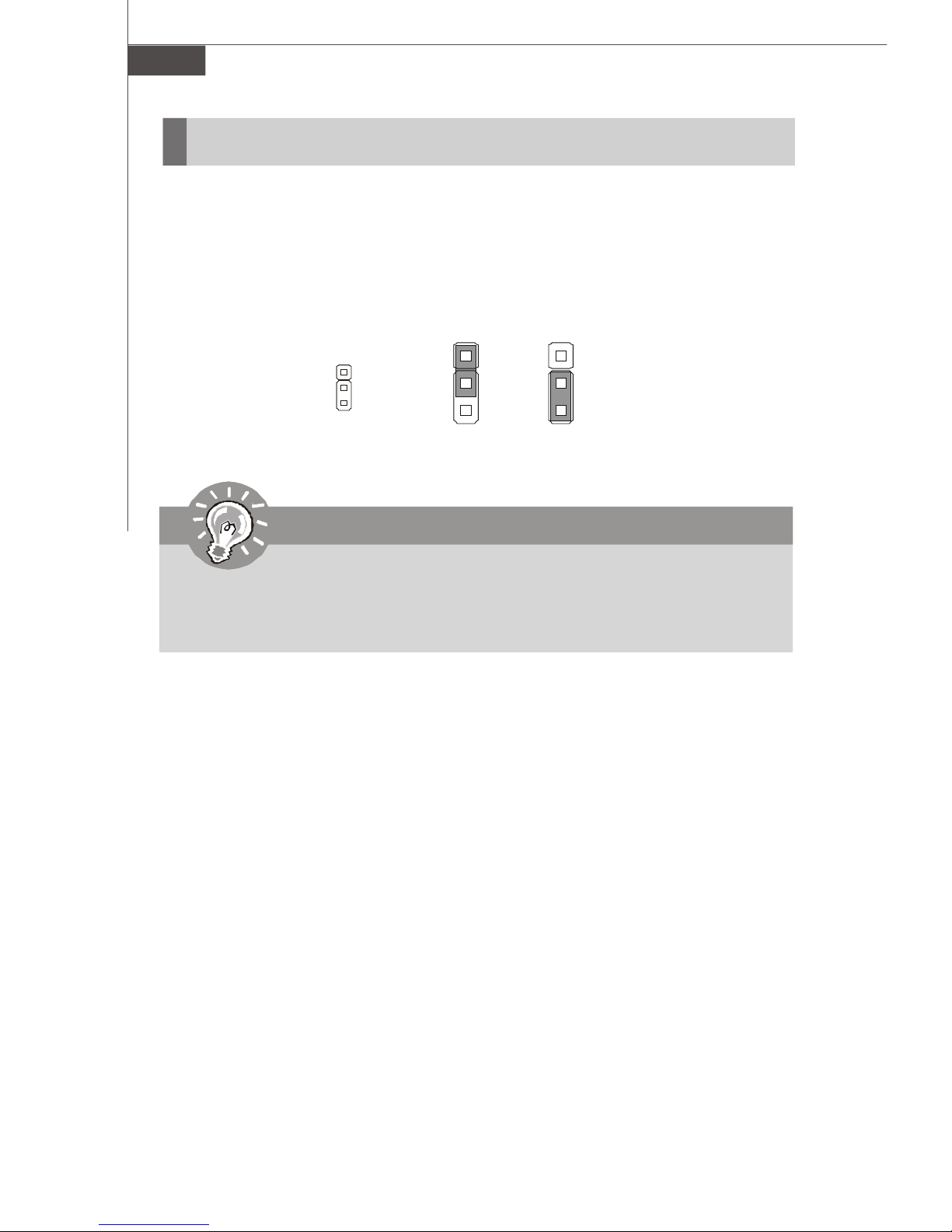

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery to
keep the data of system configuration. With the CMOS RAM, the system can auto­matically boot OS every time it is turned on. If you want to clear the system configuration,
set the jumper to clear data.

1

1

3

1

3

JBAT1

Keep Data

Clear Data

Important

You can clear CMOS by shorting 2-3 pin while the system is off. Then return
to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will
damage the mainboard.

2-12

Hardware Setup

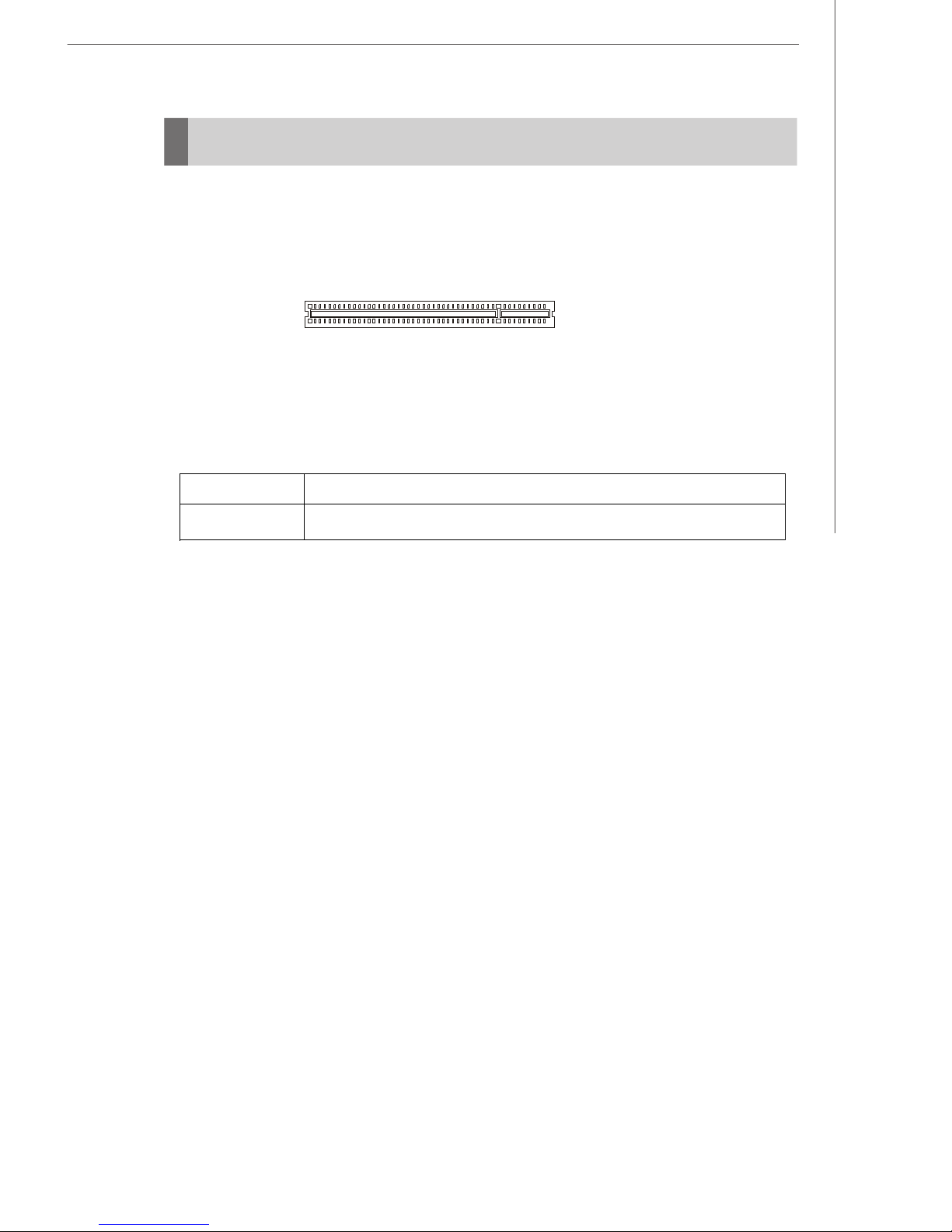

Slot

PCI (Peripheral Component Interconnect) Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that
comply with PCI specifications.

PCI Slot

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines
over which devices can send interrupt signals to the microprocessor. The PCI IRQ
pins are typically connected to the PCI bus pins as follows:

Order 1 Order 2 Order 3 Order 4

PCI Slot 1 INT B# INT C# INT D# INT A#

2-13
