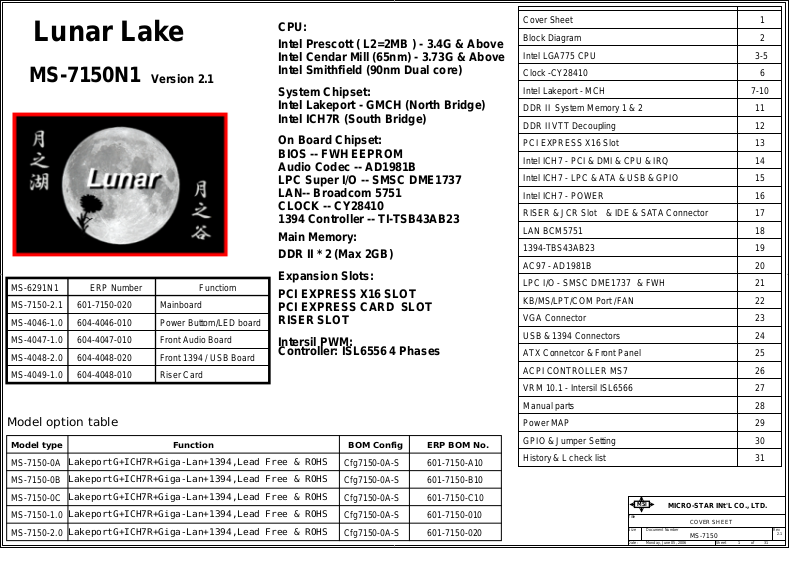

MSI MS-7150 Schematics

1

CPU:

Lunar Lake

Intel Prescott ( L2=2MB ) - 3.4G & Above
Intel Cendar Mill (65nm) - 3.73G & Above
Intel Smithfield (90nm Dual core)

MS-7150N1

Version 2.1

System Chipset:
Intel Lakeport - GMCH (North Bridge)
Intel ICH7R (South Bridge)

On Board Chipset:
BIOS -- FWH EEPROM
Audio Codec -- AD1981B
LPC Super I/O -- SMSC DME1737
LAN-- Broadcom 5751
CLOCK -- CY28410
1394 Controller -- TI-TSB43AB23

Main Memory:
DDR II * 2 (Max 2GB)

A A

MS-6291N1
MS-7150-2.1
MS-4046-1.0
MS-4047-1.0
MS-4048-2.0
MS-4049-1.0

ERP Number
601-7150-020
604-4046-010
604-4047-010
604-4048-020
604-4048-010

Mainboard
Power Buttom/LED board
Front Audio Board
Front 1394 / USB Board
Riser Card

Functiom

Expansion Slots:
PCI EXPRESS X16 SLOT

PCI EXPRESS CARD SLOT
RISER SLOT

Intersil PWM:
Controller: ISL6556 4 Phases

Block Diagram
Intel LGA775 CPU
Clock -CY28410
Intel Lakeport - MCH

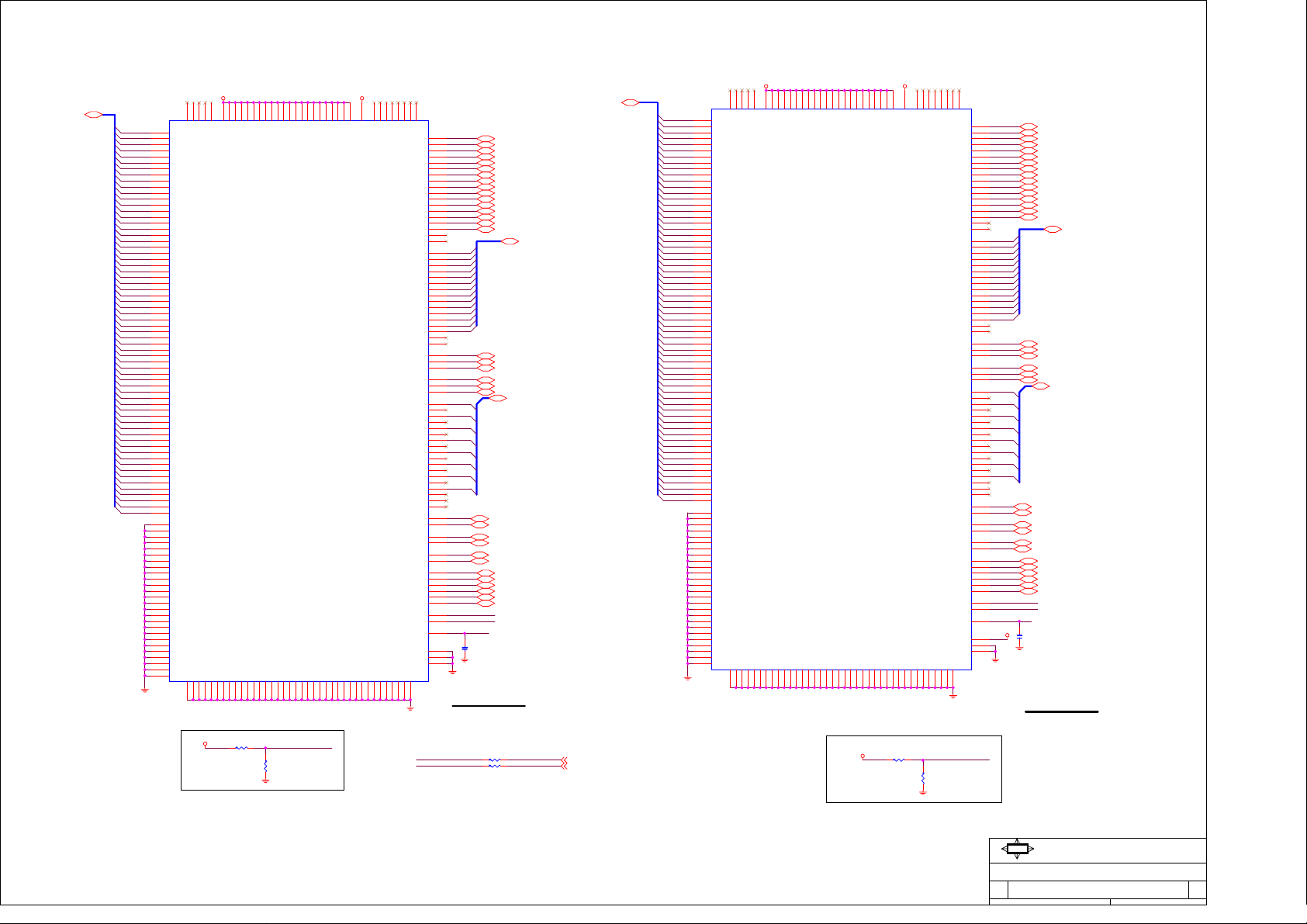

DDR II System Memory 1 & 2
DDR II VTT Decoupling

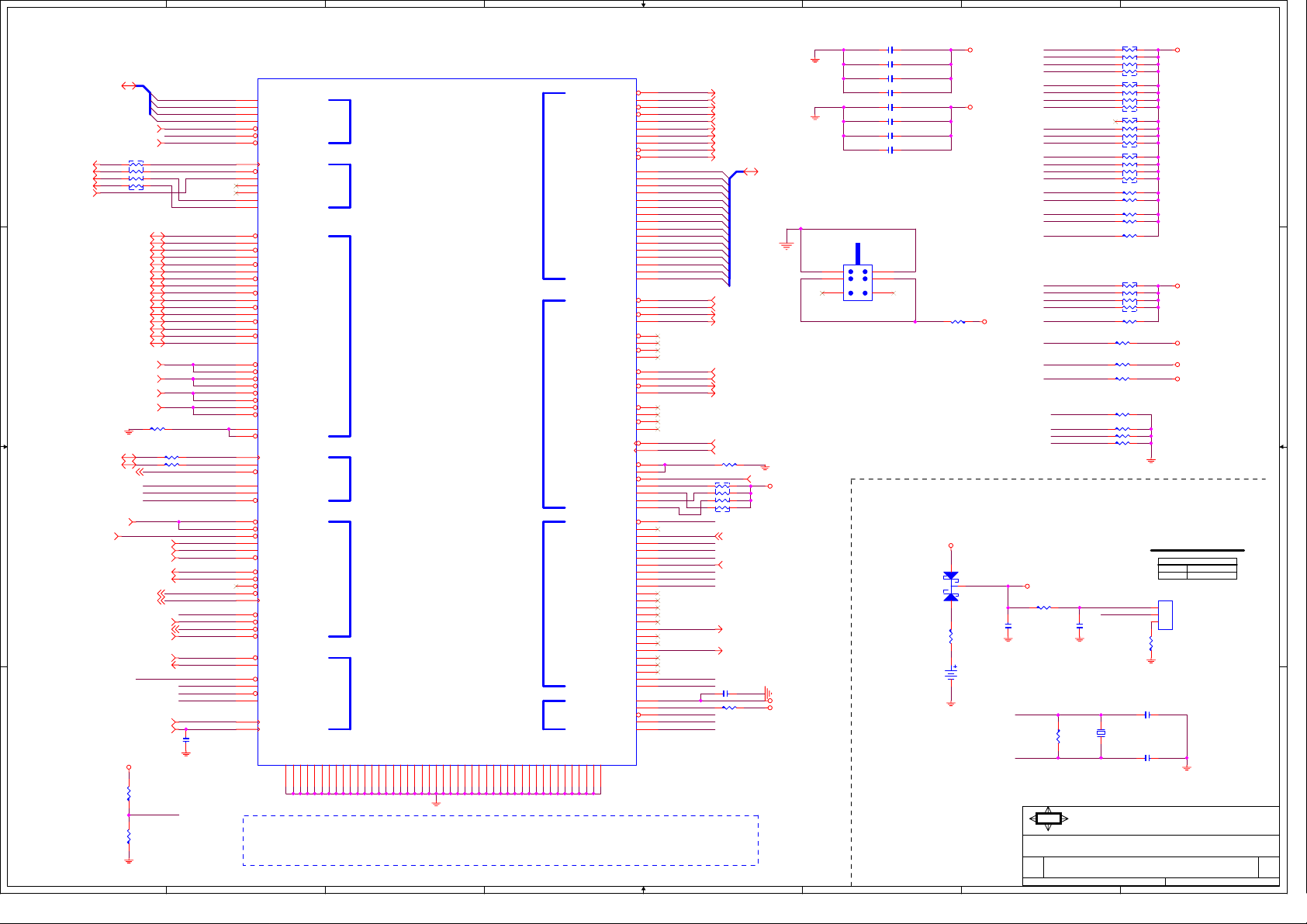

PCI EXPRESS X16 Slot
Intel ICH7 - PCI & DMI & CPU & IRQ
Intel ICH7 - LPC & ATA & USB & GPIO
Intel ICH7 - POWER
RISER & JCR Slot

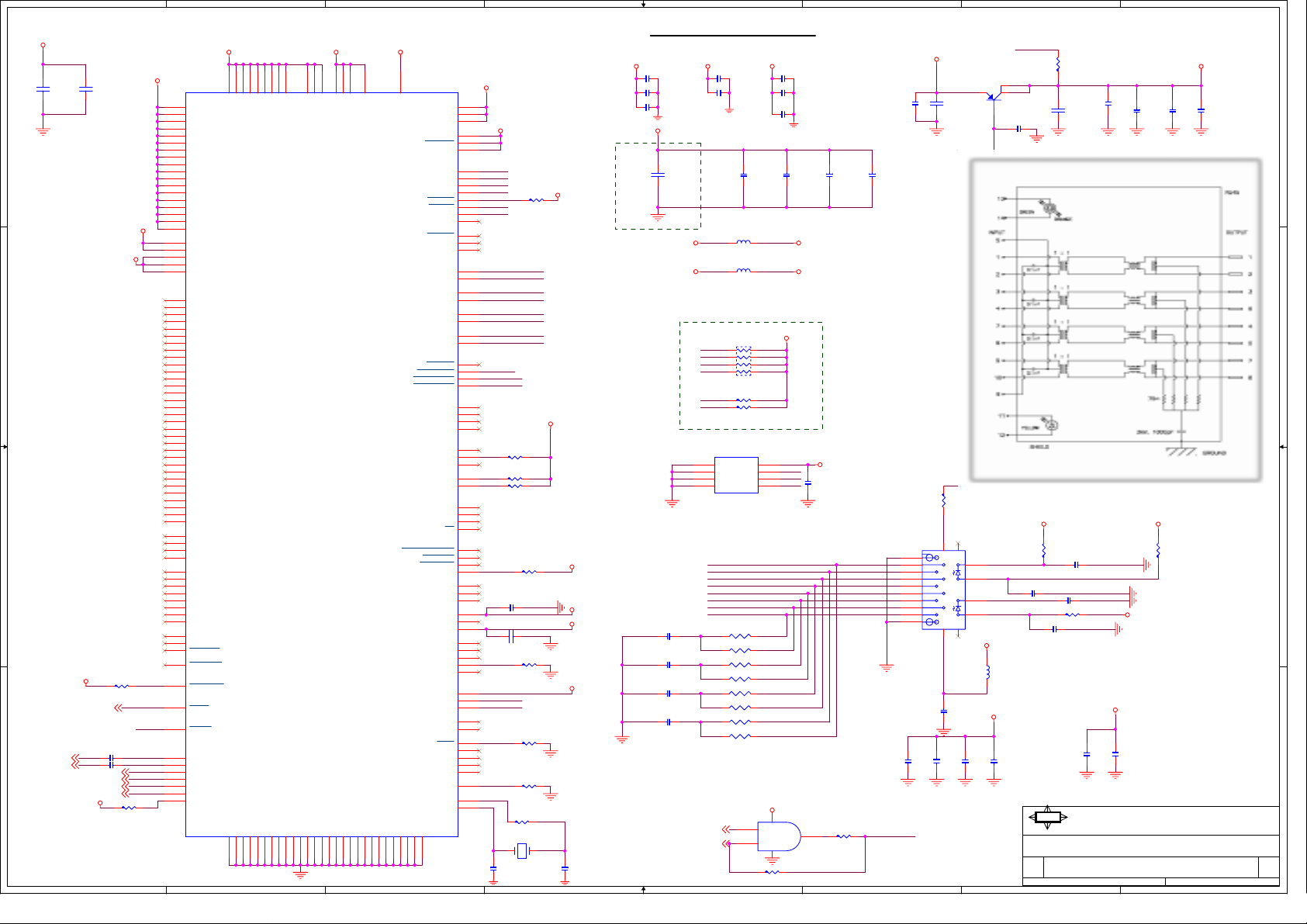

LAN BCM5751
1394-TBS43AB23
AC97 - AD1981B

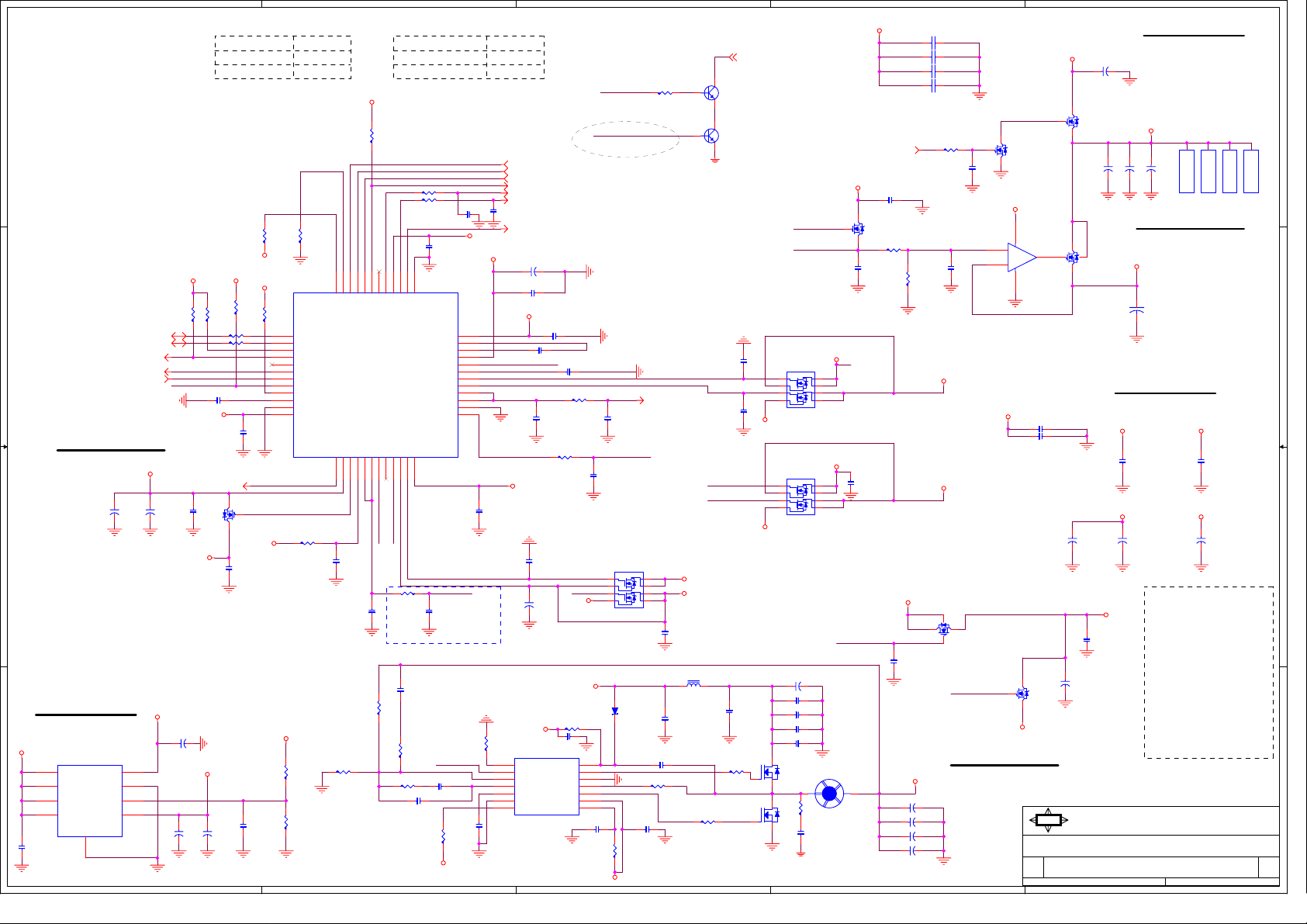

LPC I/O - SMSC DME1737

VGA Connector
USB & 1394 Connectors

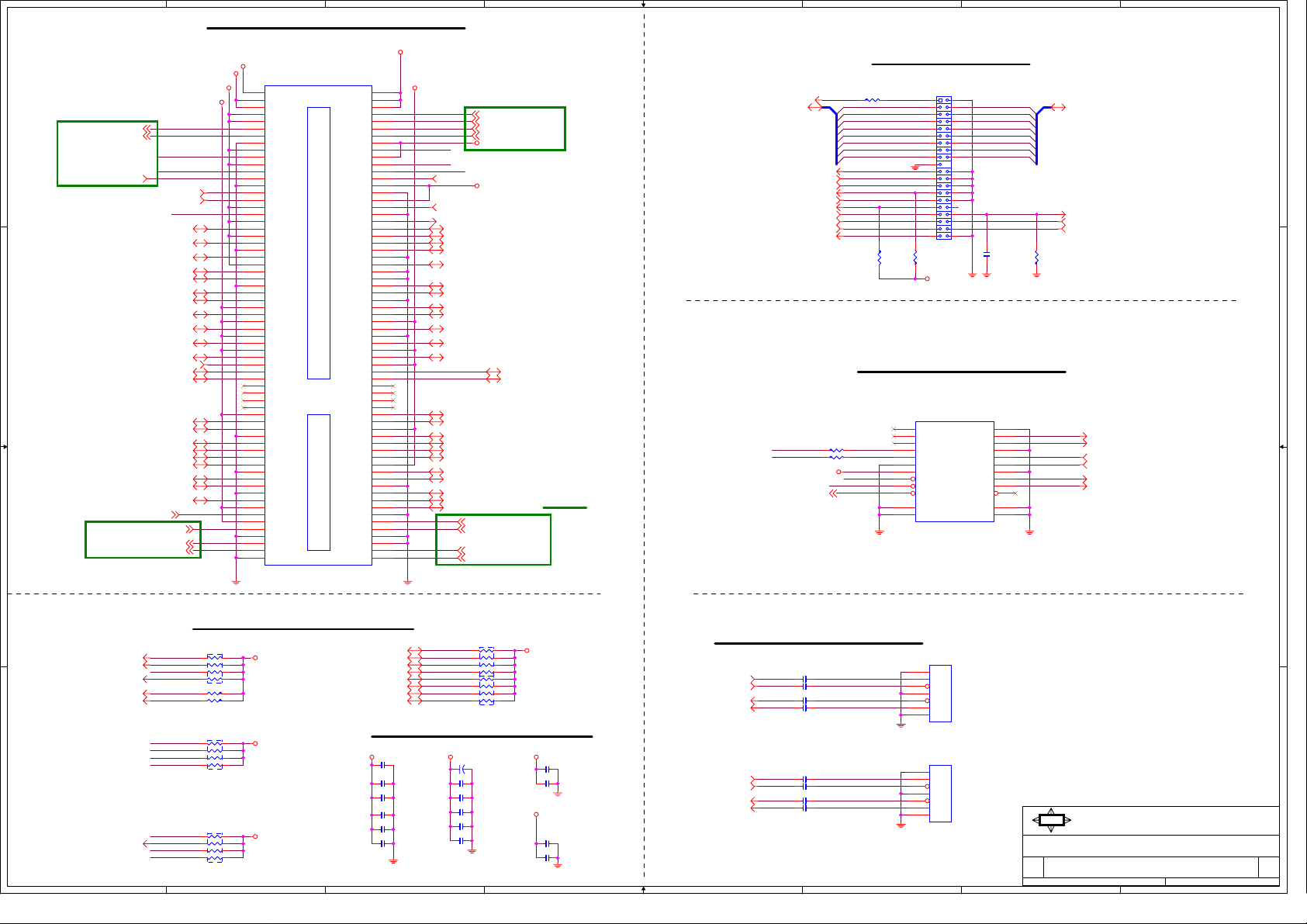

ATX Connetcor & Front Panel
ACPI CONTROLLER MS7

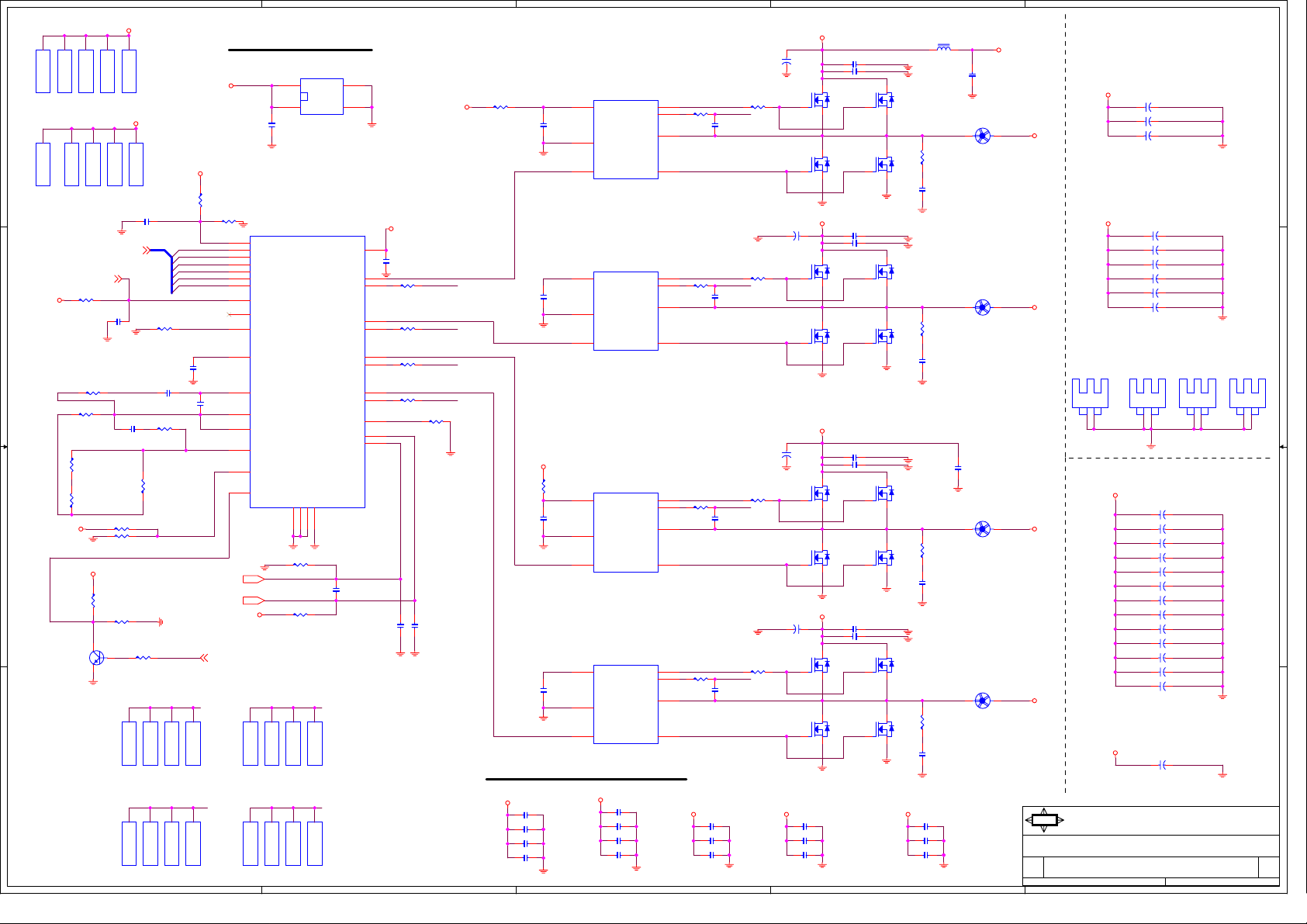

VRM 10.1 - Intersil ISL6566

& IDE & SATA Connector

& FWH

1Cover Sheet
2

3-5

6

7-10

11
12
13
14
15
16
17
18
19
20
21
22KB/MS/LPT/COM Port /FAN
23
24
25
26
27

Model option table

Model type ERP BOM No.

MS-7150-0A Cfg7150-0A-S 601-7150-A10
MS-7150-0B Cfg7150-0A-S 601-7150-B10
MS-7150-0C
MS-7150-1.0
MS-7150-2.0

LakeportG+ICH7R+Giga-Lan+1394,Lead Free & ROHS
LakeportG+ICH7R+Giga-Lan+1394,Lead Free & ROHS
LakeportG+ICH7R+Giga-Lan+1394,Lead Free & ROHS
LakeportG+ICH7R+Giga-Lan+1394,Lead Free & ROHS
LakeportG+ICH7R+Giga-Lan+1394,Lead Free & ROHS

BOM ConfigFunction

601-7150-C10Cfg7150-0A-S
Cfg7150-0A-S 601-7150-010
Cfg7150-0A-S 601-7150-020

1

Manual parts
Power MAP
GPIO & Jumper Setting
History & L check list

28
29
30
31

MSI

Title

Size Document Number Rev

Date: Sheet

MICRO-STAR INt'L CO., LTD.

COVER SHEET

MS-7150

131Monday, June 05, 2006

of

2.1

Block Diagram

1

VRM 10.1
Intersil 6556

Intel LGA775 Processor

4-Phase PWM
