MSI MS-6764 User Manual

i

KT2 Combo

Version 1.0

G52-M6764X1-K01

MS-6764 (v1.X) A TX Mainboard

ii

Manual Rev: 1.0
Release Date: January 2003

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLA TION AVANT DE RACCORDER AU
RESEAU.

Micro-Star International MS-6764

T ested to comply
with FCC Standard

For Home or Office Use

iii

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered

trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows® 98/
2000/NT/XP are registered trademarks of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or
trademarks of NVIDIA Corporation in the United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix T echnologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington T ech­nology Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer
Memory Card International Association.

Revision History

Revision Revision History Date

V1.0 First release with VIA® KT266A January 2003

& VIA® VT8235

iv

1. Always read the safety instructions carefully.
2 . Keep this User’ s Manual for future reference.
3 . Keep this equipment away from humidity.
4 . Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. Do not cover the openings.

6 . Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

1 0 . Never pour any liquid into the opening that could damage or cause electri-

cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged.
z Liquid has penetrated into the equipment.
z The equipment has been exposed to moisture.
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged.
z The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage
temperature above 600 C (1400F), it may damage the equipment.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

v

CONTENTS

FCC-B Radio Frequency Interference Statement ...........................................ii

Copyright Notice ..........................................................................................iii

Revision History ...........................................................................................iii

Safety Instructions .......................................................................................iv

Chapter 1. Getting Started ........................................................................ 1-1

Mainboard Specifications ....................................................................1-2

Mainboard Layout ............................................................................... 1-4

MSI Special Features ...........................................................................1-5

Fuzzy Logic™ 4 .............................................................................1-5

Live BIOS™/Live Driver™ ............................................................ 1-6

Live Monitor™ ..............................................................................1-7

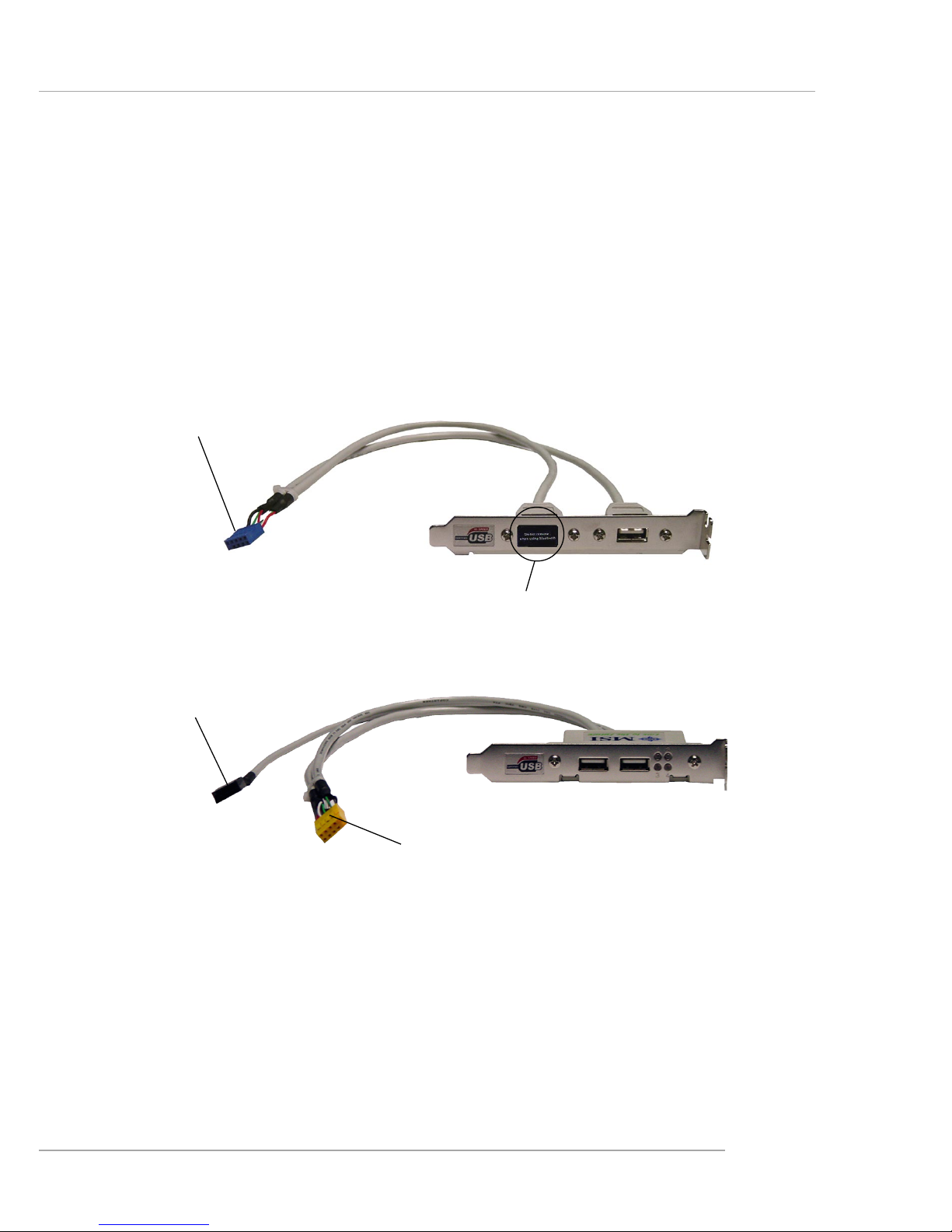

D-Bracket (Optional) .....................................................................1-8

PC Alert™ 4................................................................................. 1-10

CPU Thermal Protection .............................................................. 1-12

Chapter 2. Hardware Setup ....................................................................... 2-1

Quick Components Guide ....................................................................2-3

Central Processing Unit: CPU ..............................................................2-3

CPU Core Speed Derivation Procedure ......................................... 2-3

CPU Installation Procedures for Socket 462 .................................. 2-4

Installing AMD Athlon CPU (Socket 462) Cooler Set ................... 2-5

Memory................................................................................................ 2-6

Introduction to DDR SDRAM....................................................... 2-6

DDR DIMM Module Combination ................................................2-7

Installing DDR Modules ...............................................................2-7

SDR DIMM Module Combination ................................................2-8

Installing SDR Modules ................................................................ 2-8

Power Supply ....................................................................................... 2-9

ATX 20-Pin Power Connector: JWR1 ............................................ 2-9

ATX 12V Power Connector: JPR1..................................................2-9

vi

Back Panel .......................................................................................... 2-10

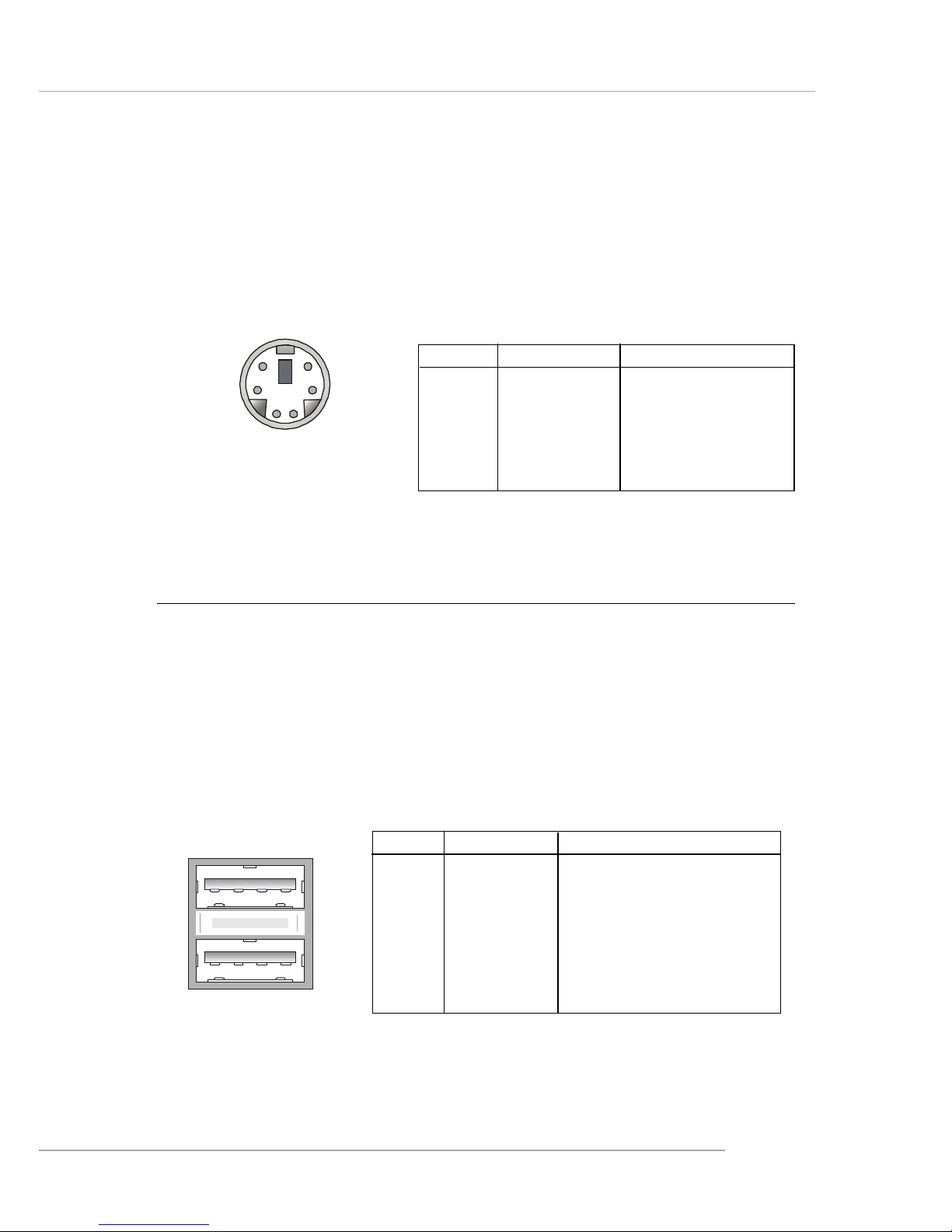

Mouse Connector ....................................................................... 2-10

Keyboard Connector ................................................................... 2-11

USB 2.0 Connectors ....................................................................2-11

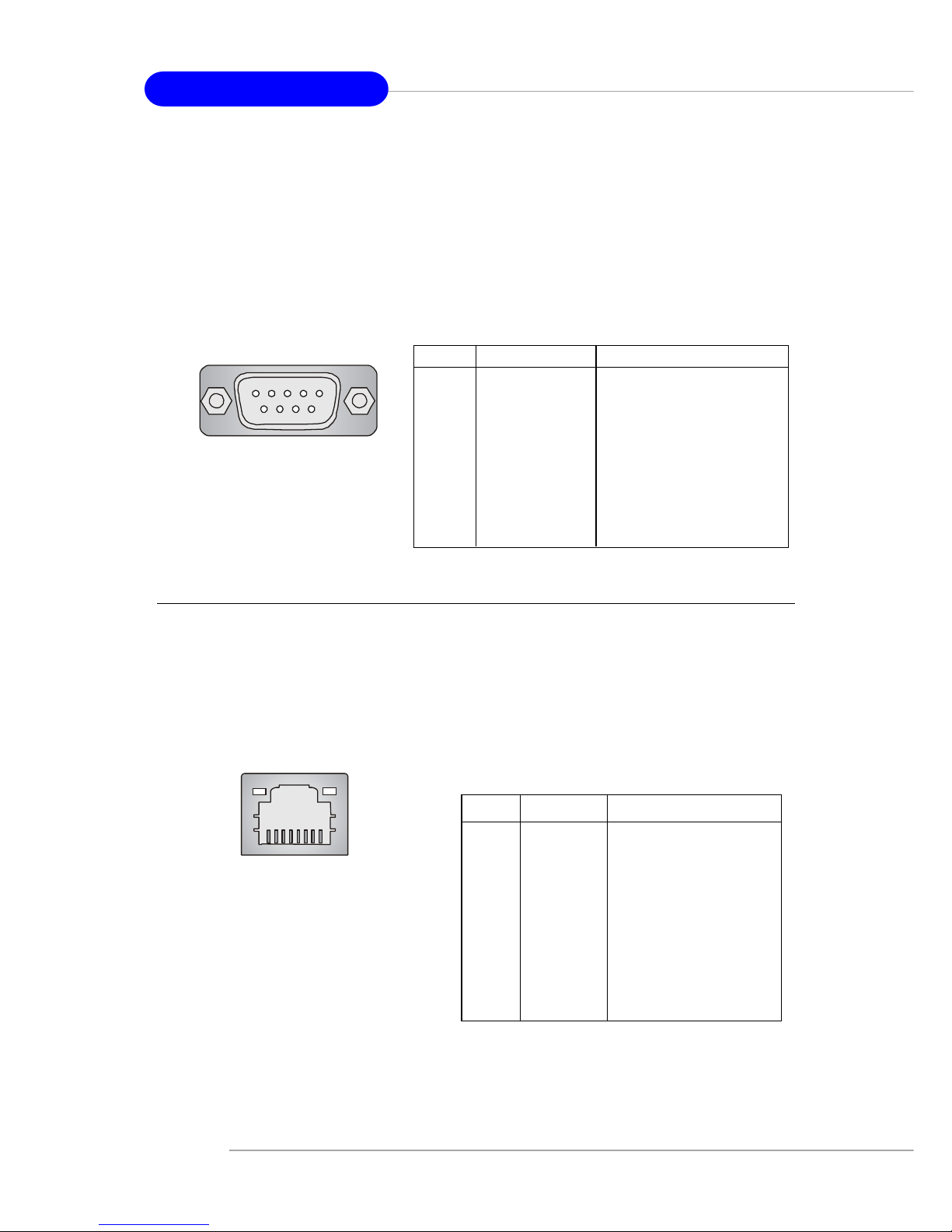

Serial Port Connectors: COM A & COM B..................................2-12

RJ-45 LAN Jack (Optional) .......................................................... 2-12

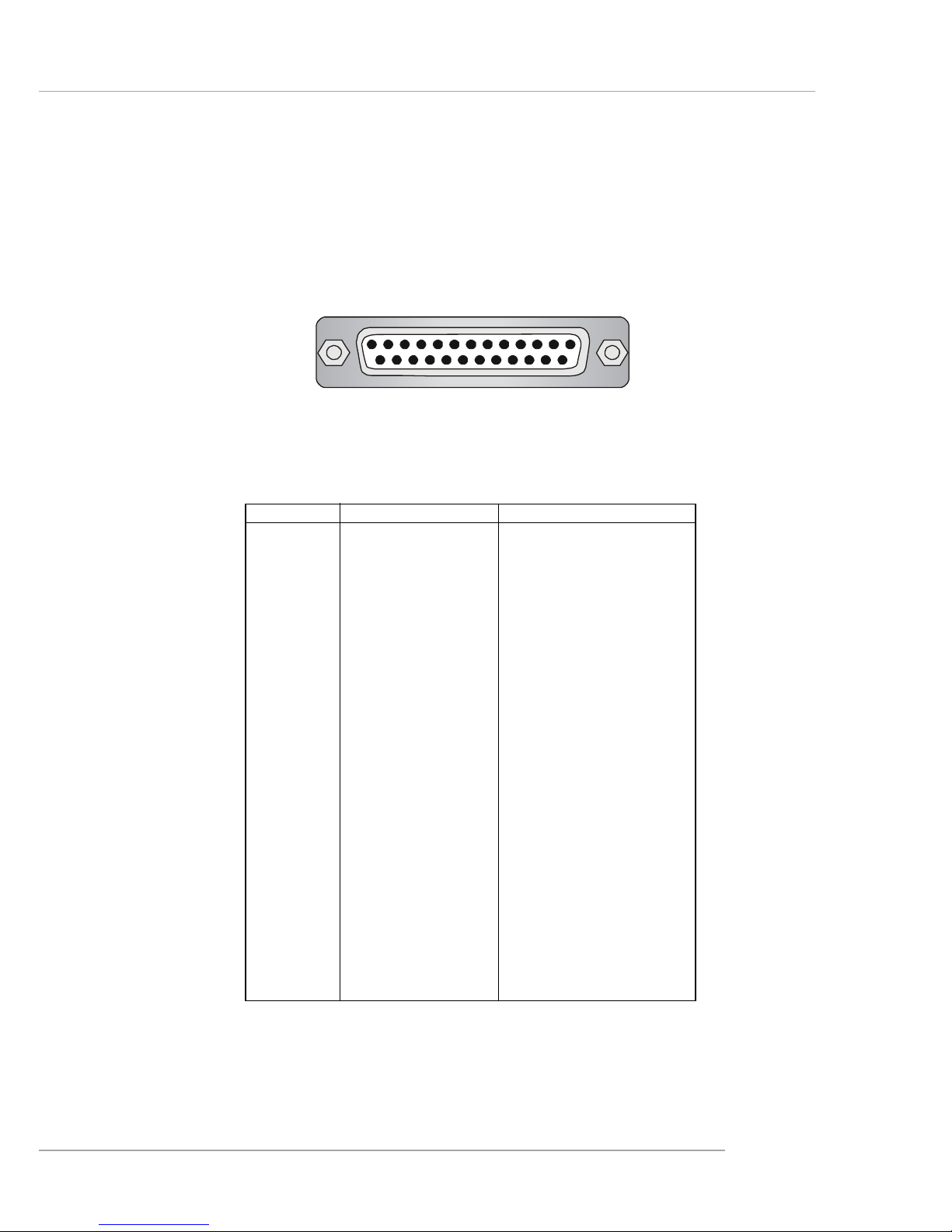

Parallel Port Connector: LPT1...................................................... 2-13

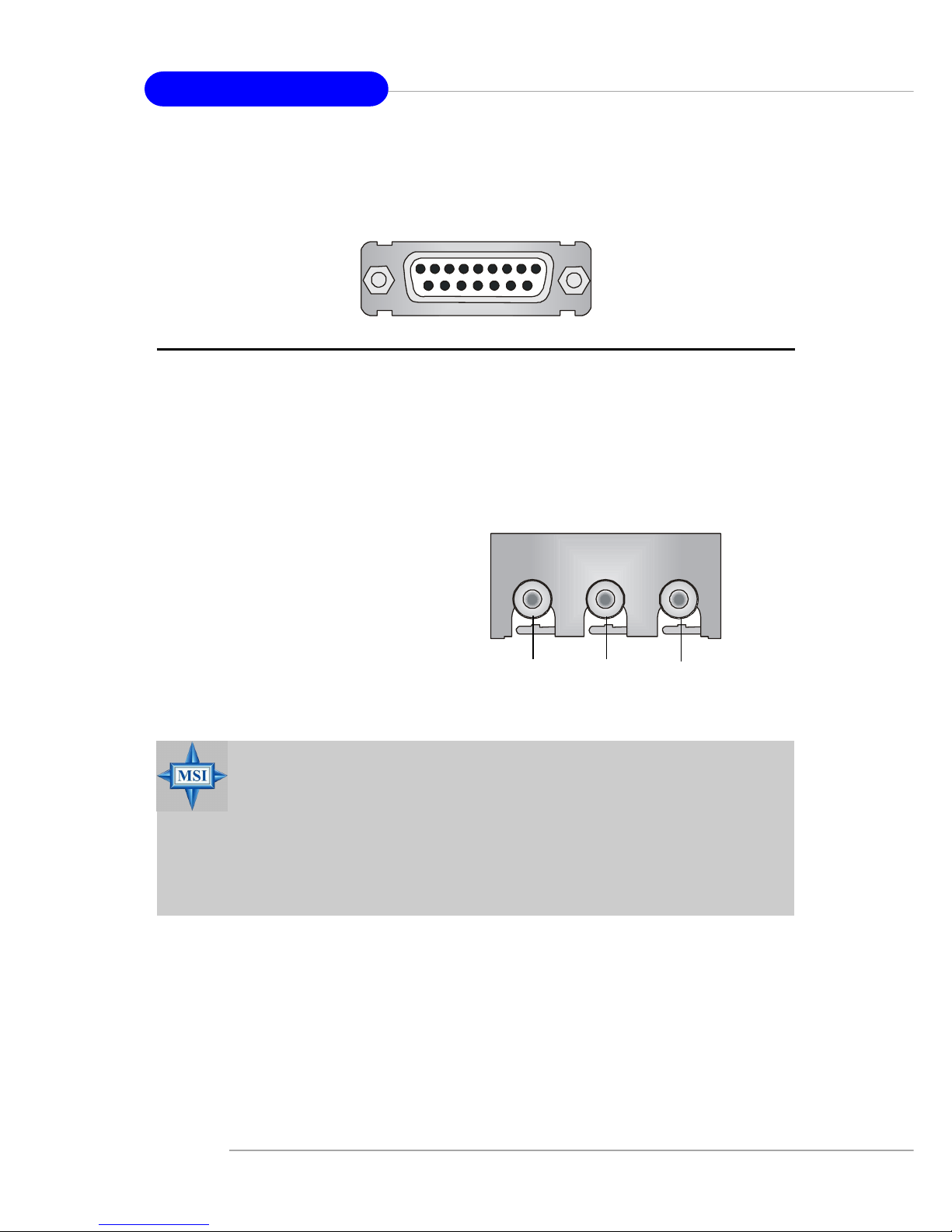

Joystick/Midi Connectors ........................................................... 2-14

Audio Port Connectors ............................................................... 2-14

Connectors......................................................................................... 2-15

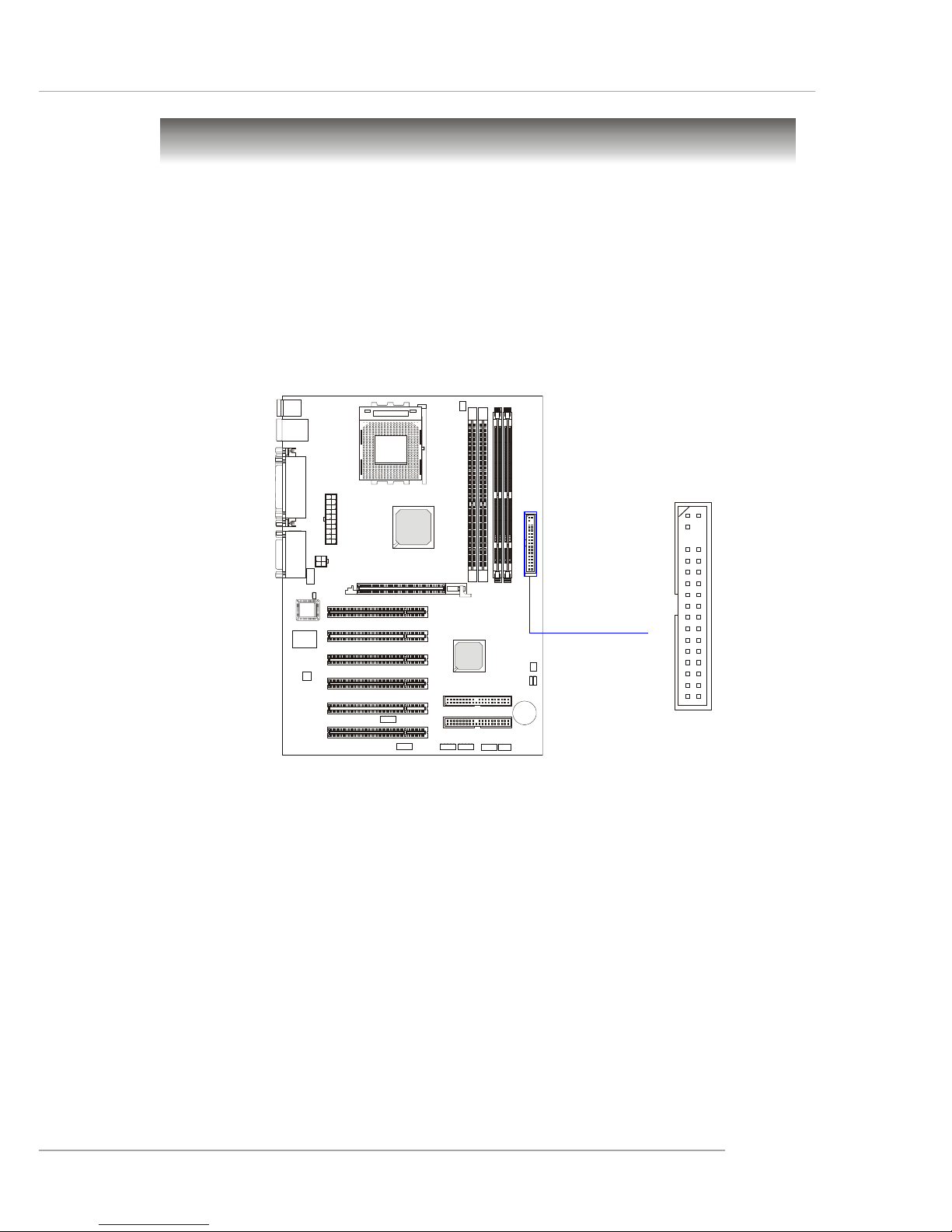

Floppy Disk Drive Connector: FDD1........................................... 2-15

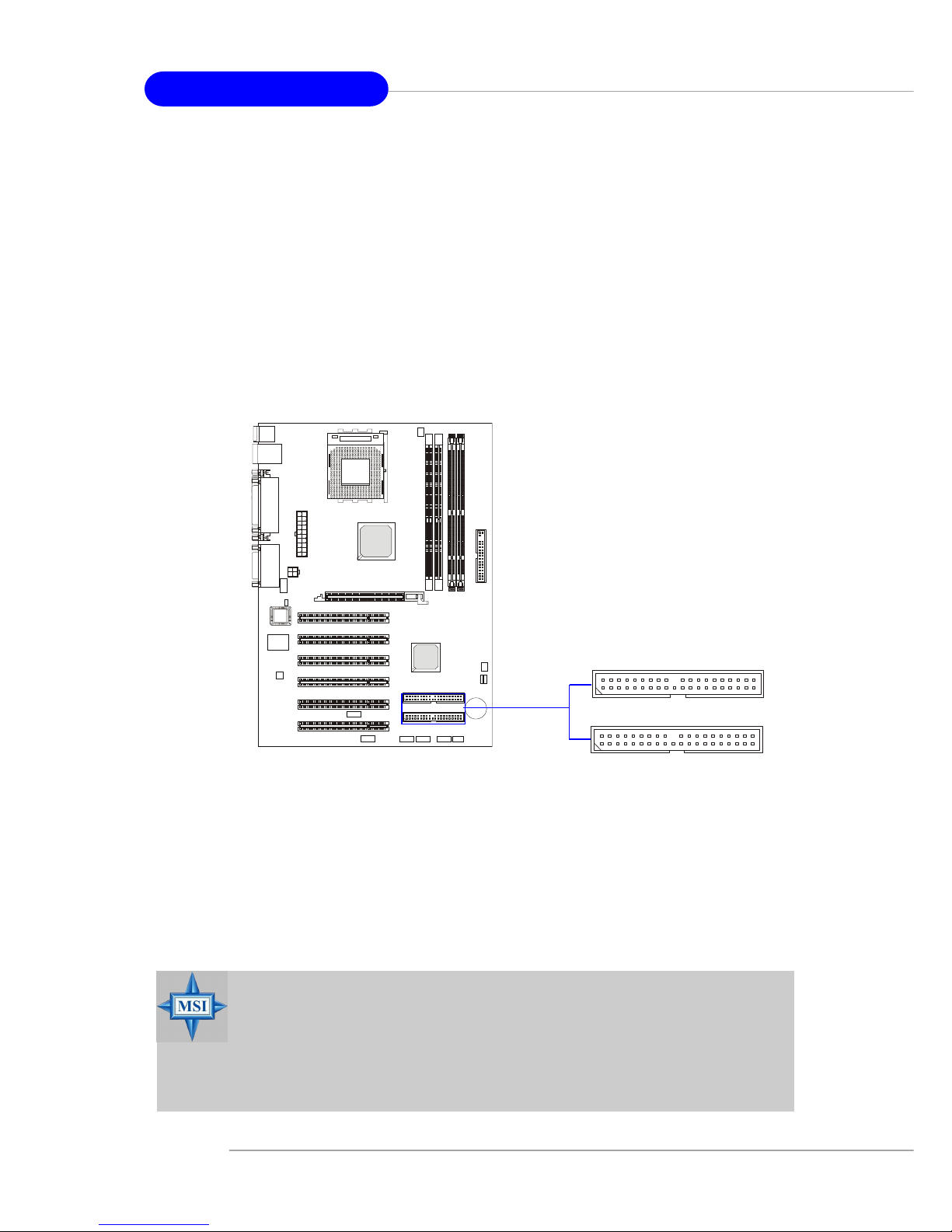

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-16

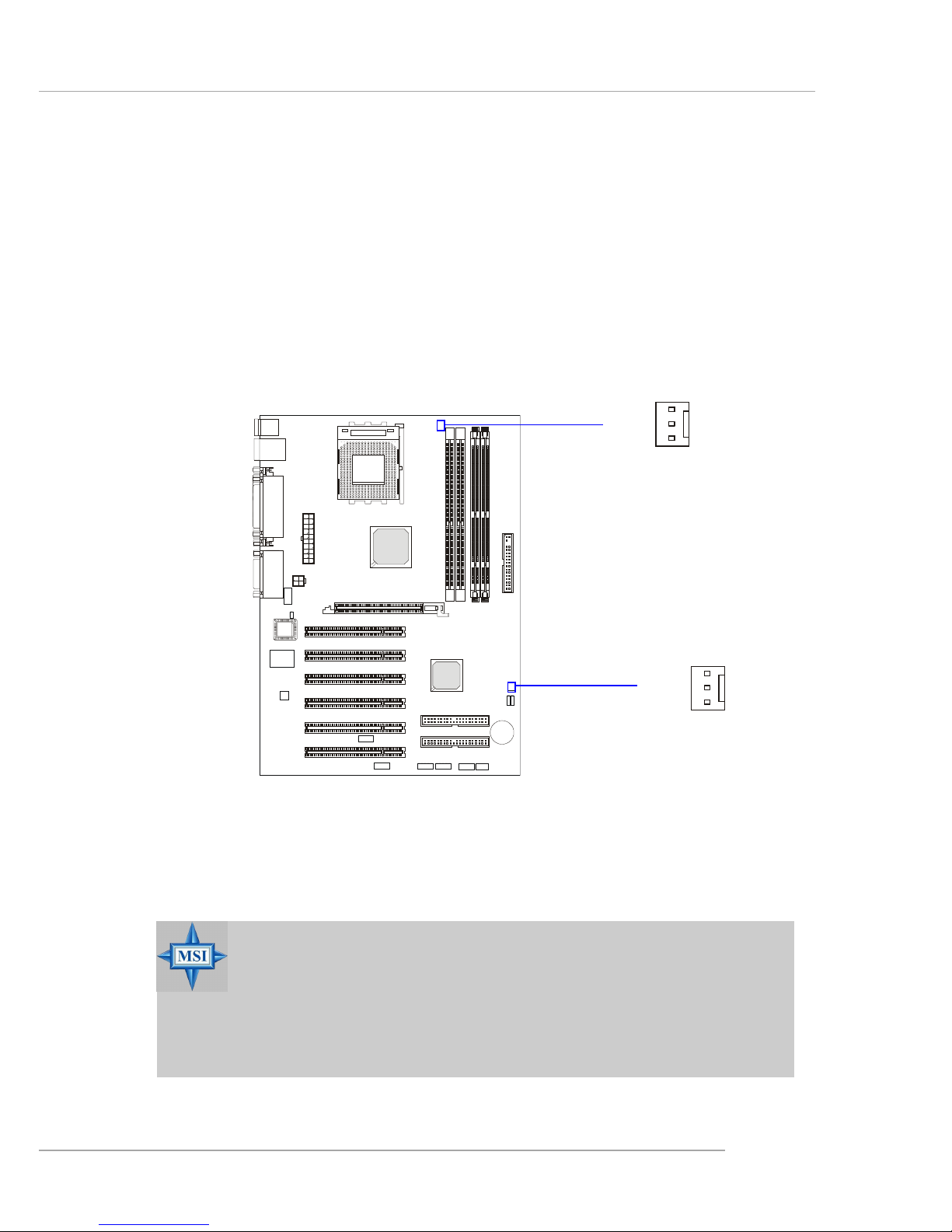

Fan Power Connectors: CPUF AN1/SYSF AN1............................. 2-17

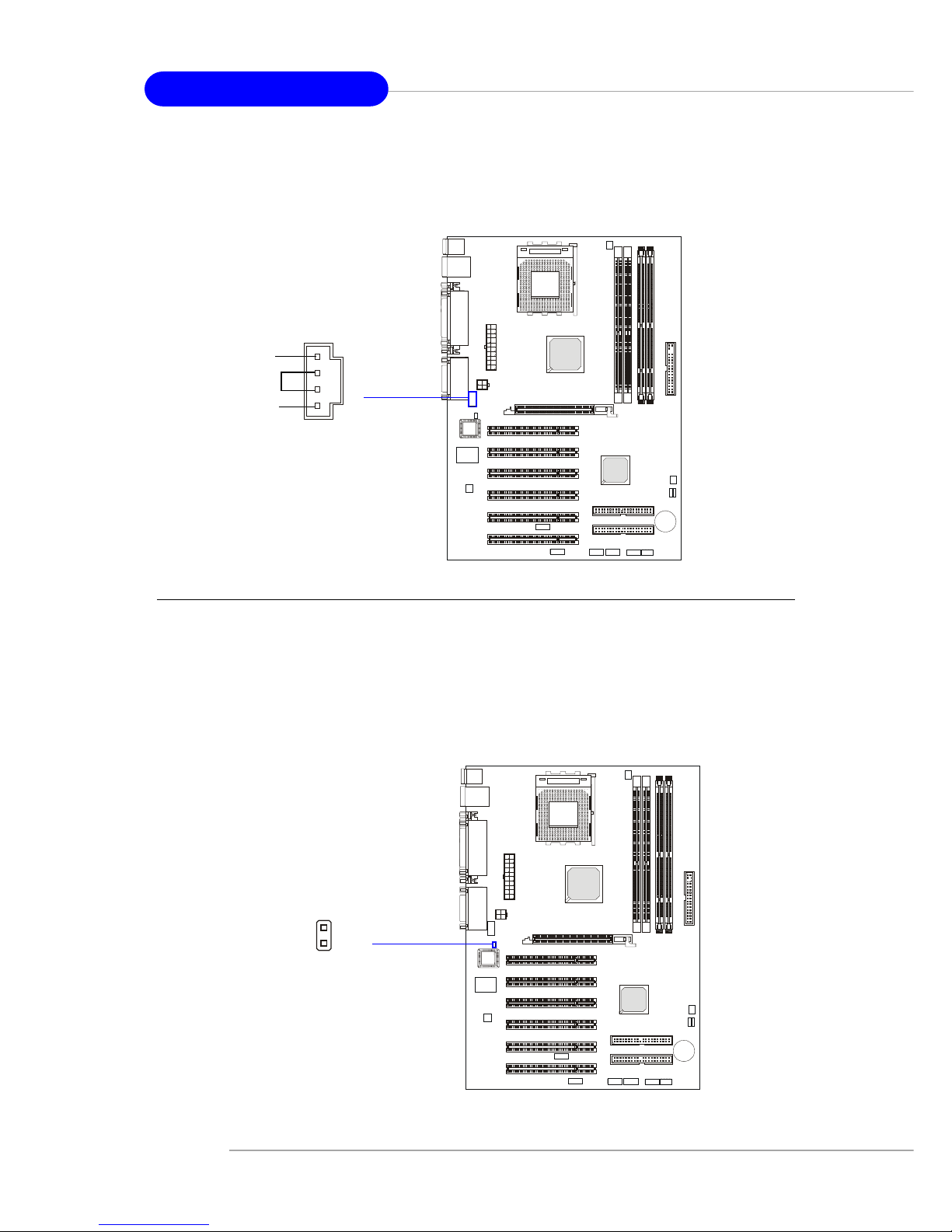

CD-In Connector: J10 .................................................................. 2-18

Chassis Intrusion Switch Connector: J3...................................... 2-18

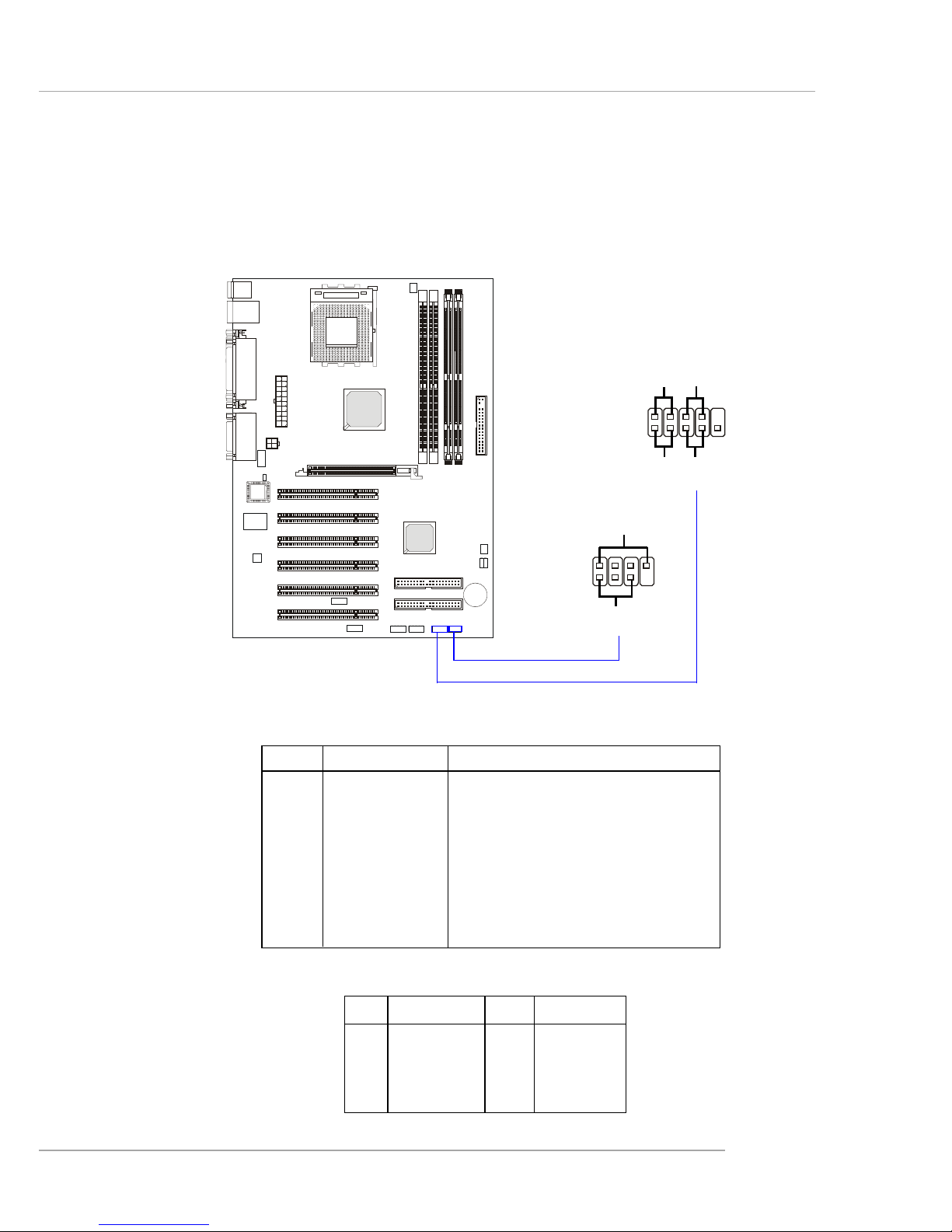

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-19

Front Panel Audio Connector: JAUD1 ........................................ 2-20

D-Bracket Connector: JLED......................................................... 2-21

Front USB Connectors: JUSB2/JUSB3 ........................................ 2-22

Jumpers .............................................................................................. 2-24

Clear CMOS Jumper: JBA T1........................................................ 2-24

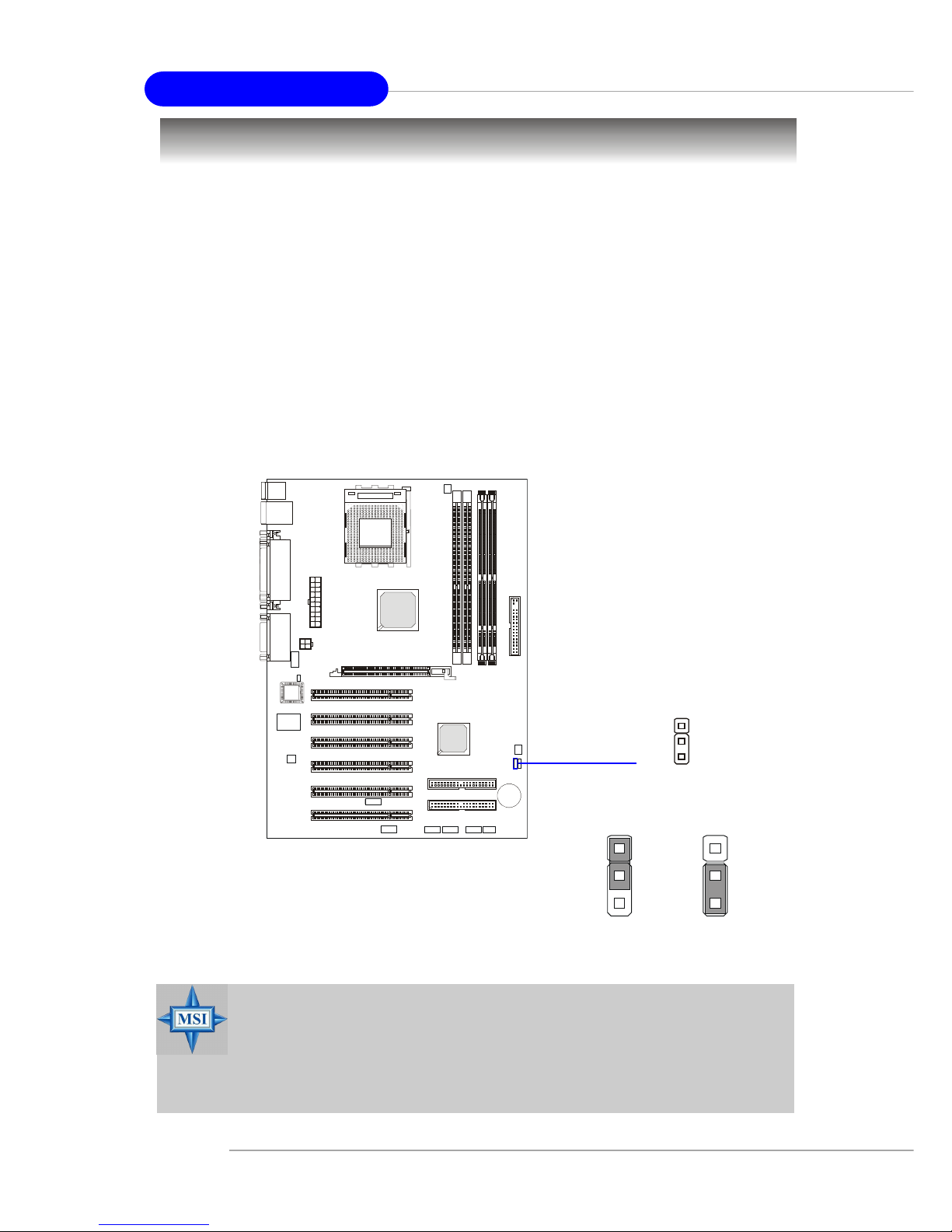

FSB Clock Override Jumper: SW3 ............................................... 2-25

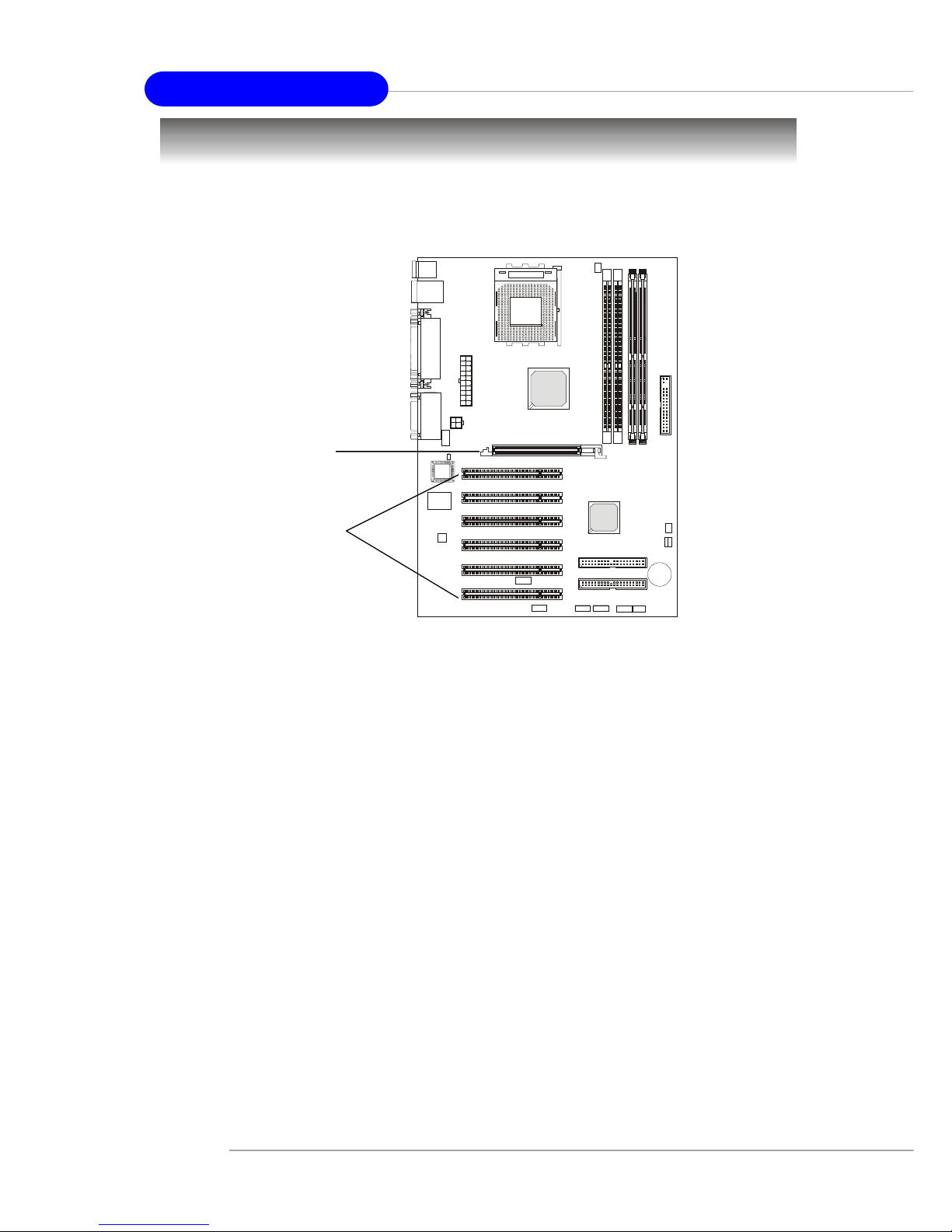

Slots ................................................................................................... 2-26

AGP (Accelerated Graphics Port) Slot......................................... 2-26

PCI (Peripheral Component Interconnect) Slots.......................... 2-26

PCI Interrupt Request Routing .................................................... 2-27

Chapter 3. BIOS Setup.............................................................................. 3-1

Entering Setup......................................................................................3-2

Selecting the First Boot Device ..................................................... 3-2

vii

Control Keys ................................................................................. 3 -3

Getting Help ..................................................................................3-3

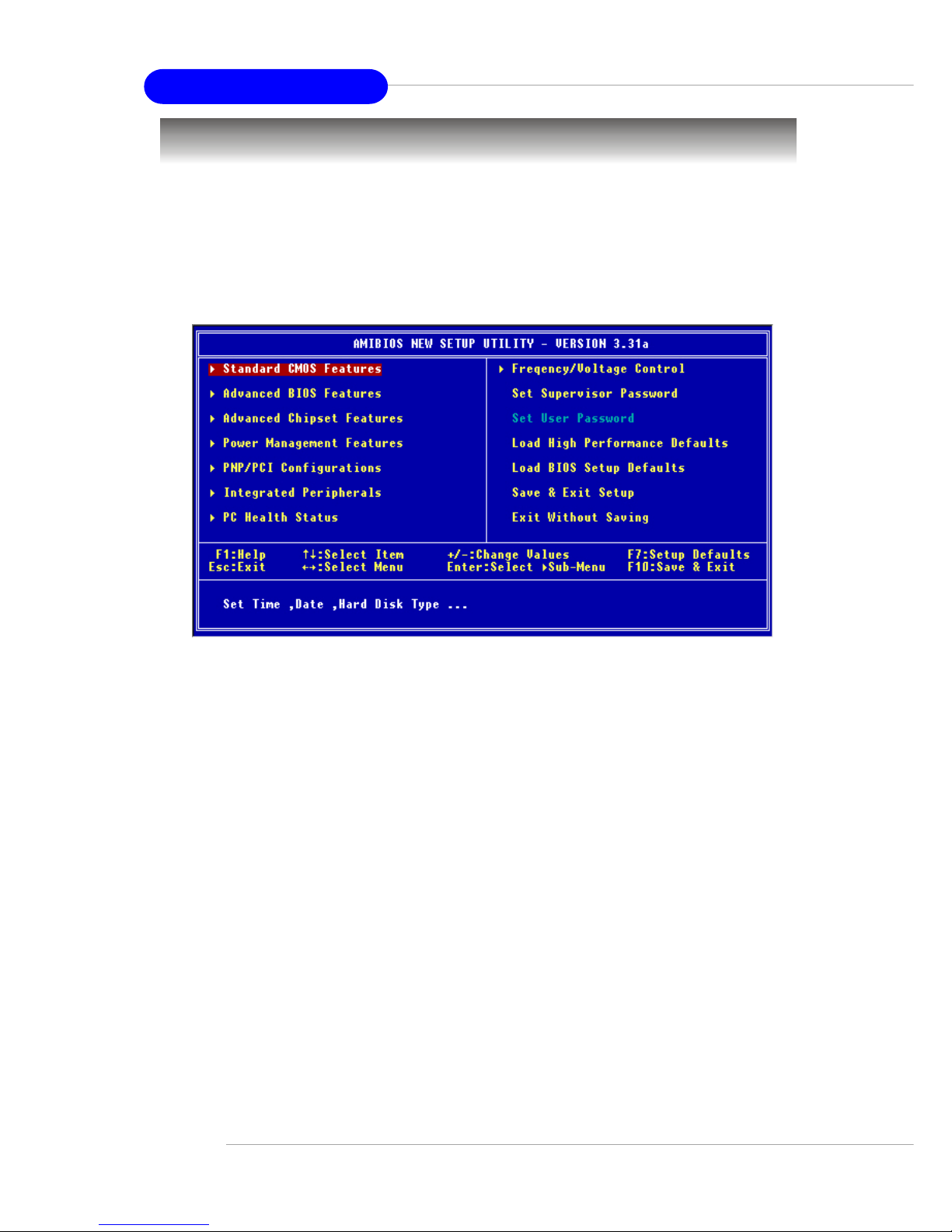

The Main Menu ...................................................................................3-4

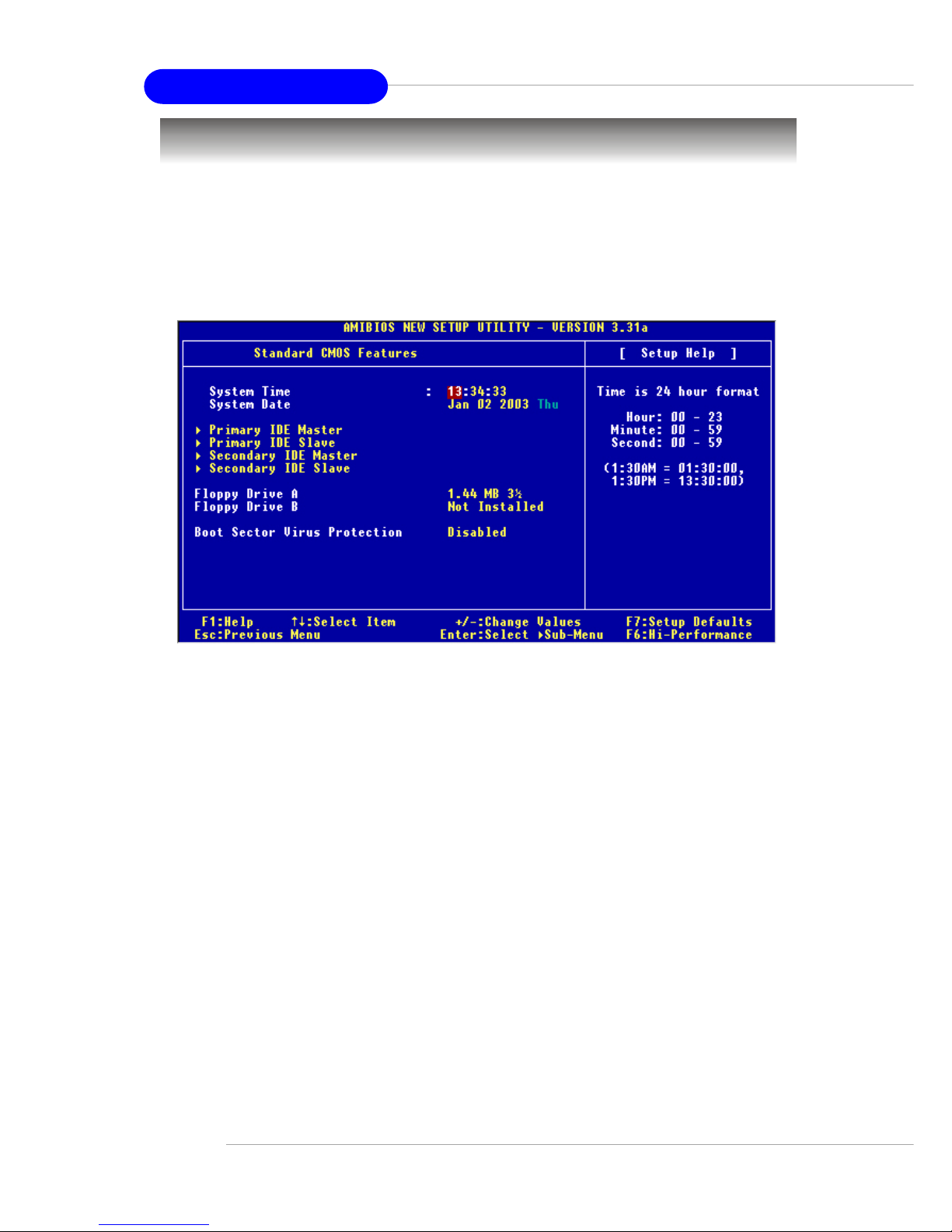

Standard CMOS Features ....................................................................3-6

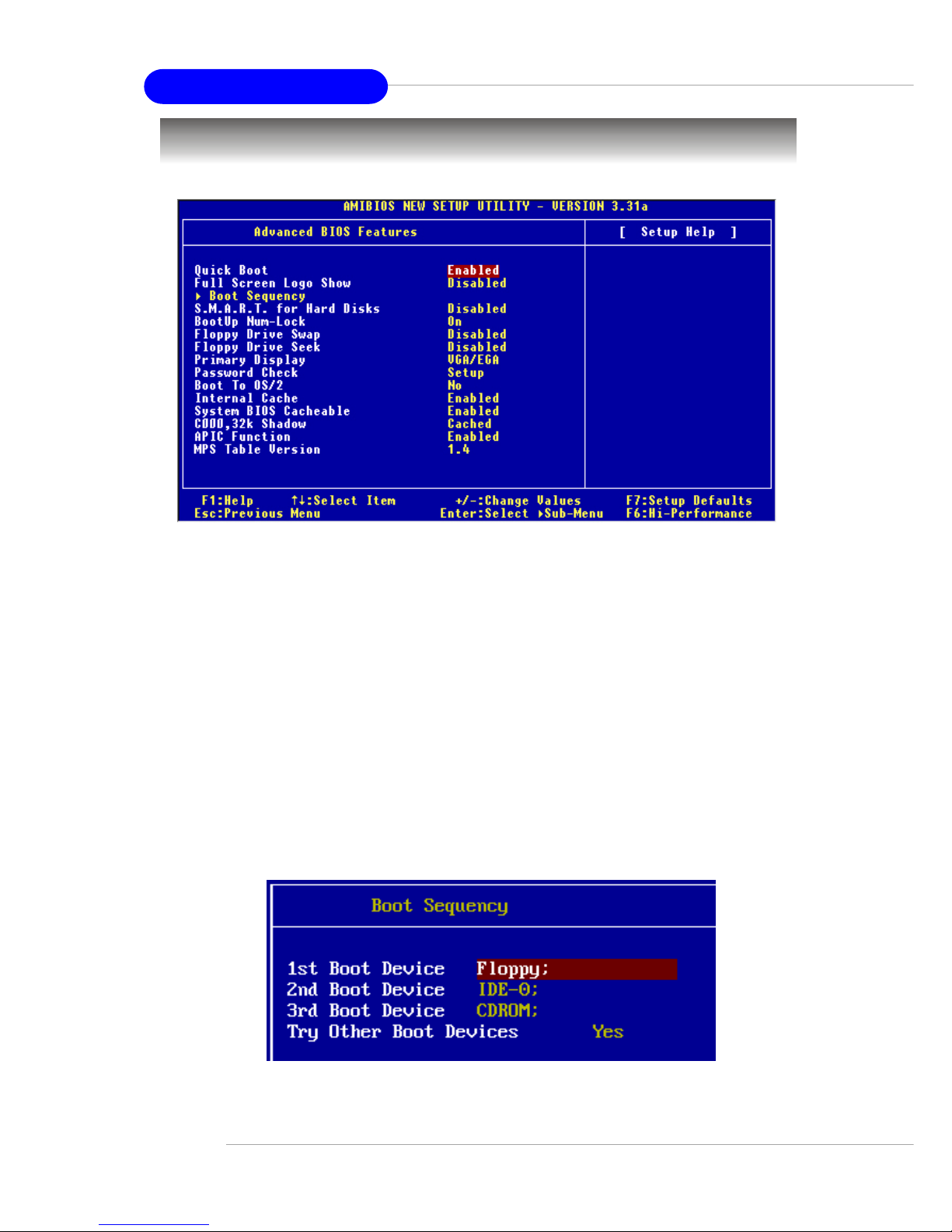

Advanced BIOS Features ....................................................................3-8

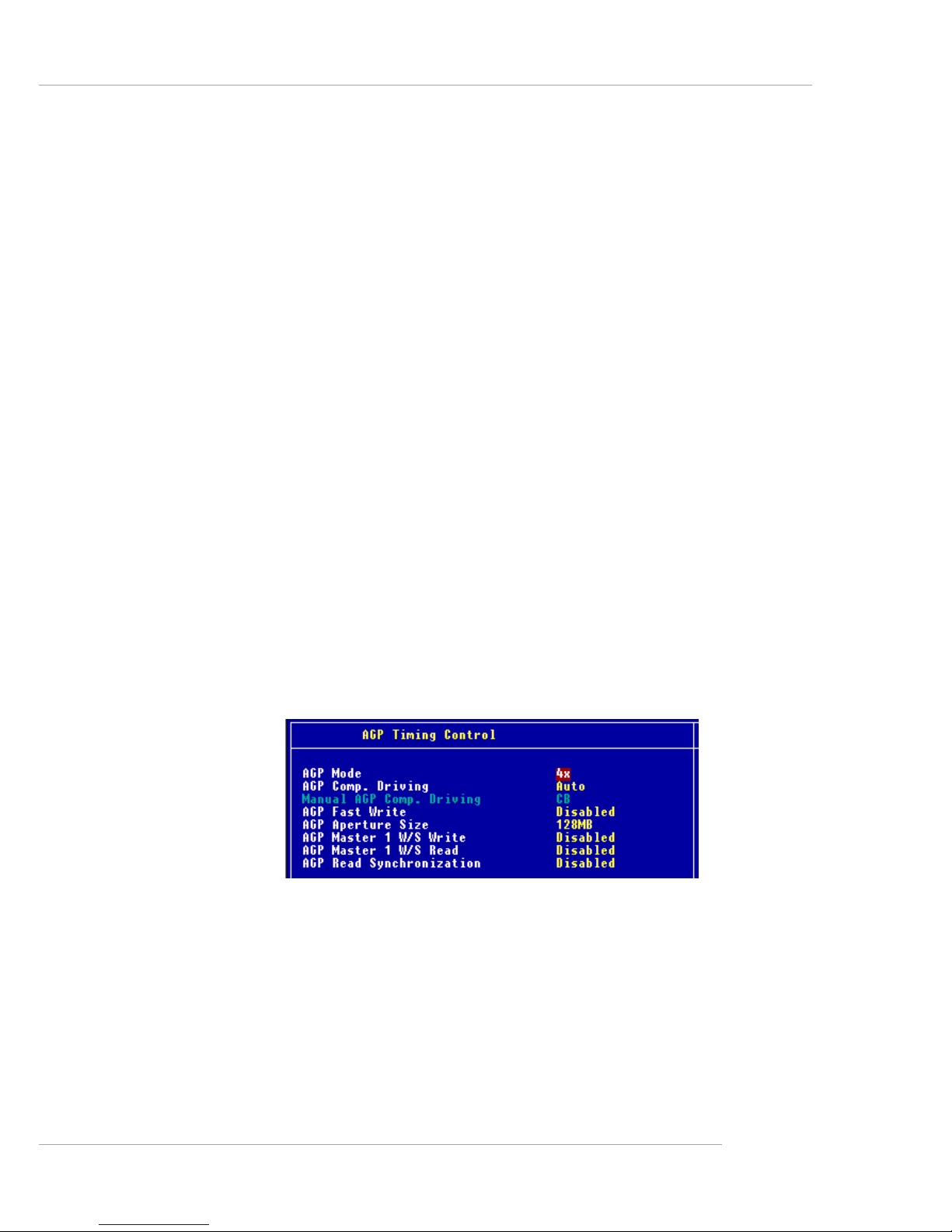

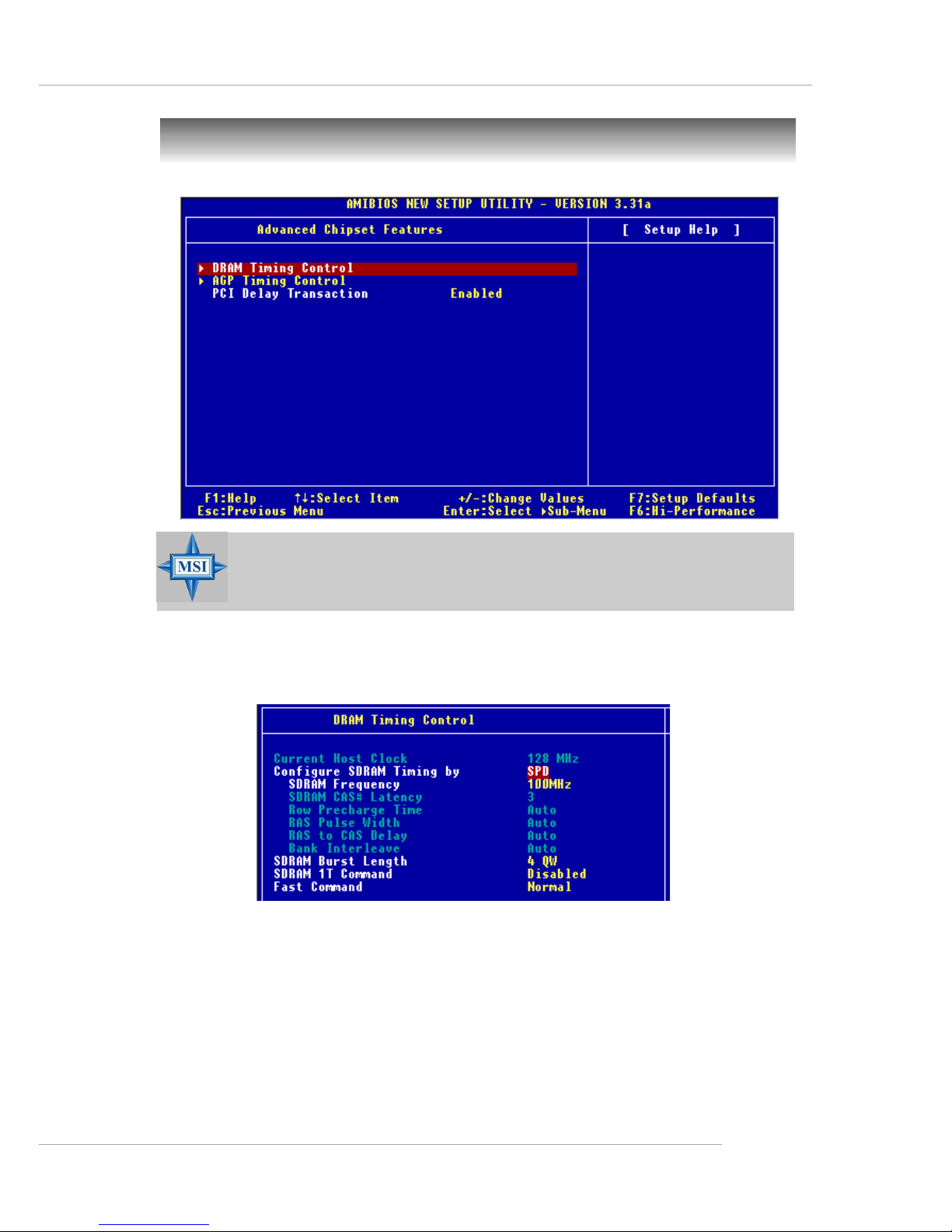

Advanced Chipset Features............................................................... 3-12

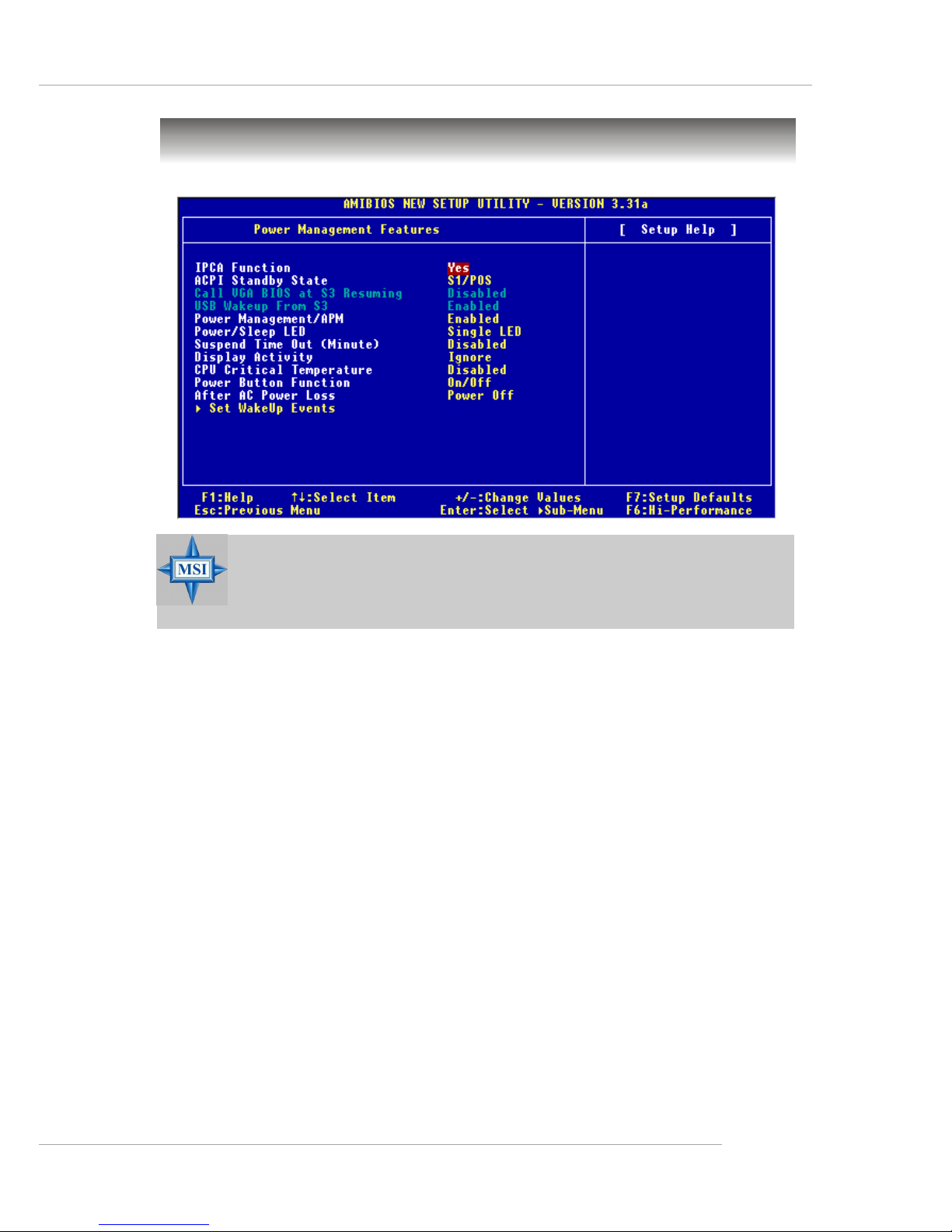

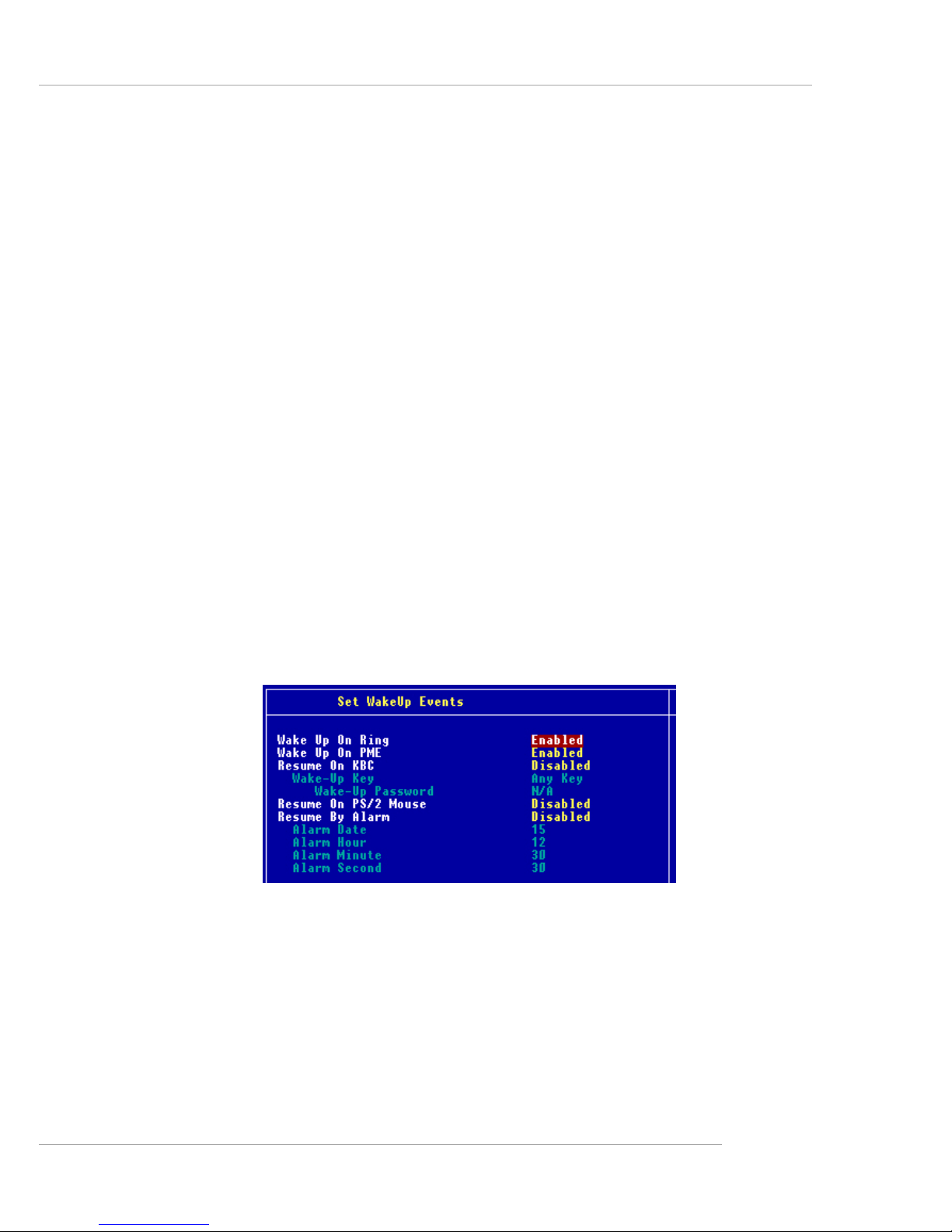

Power Management Features............................................................. 3-17

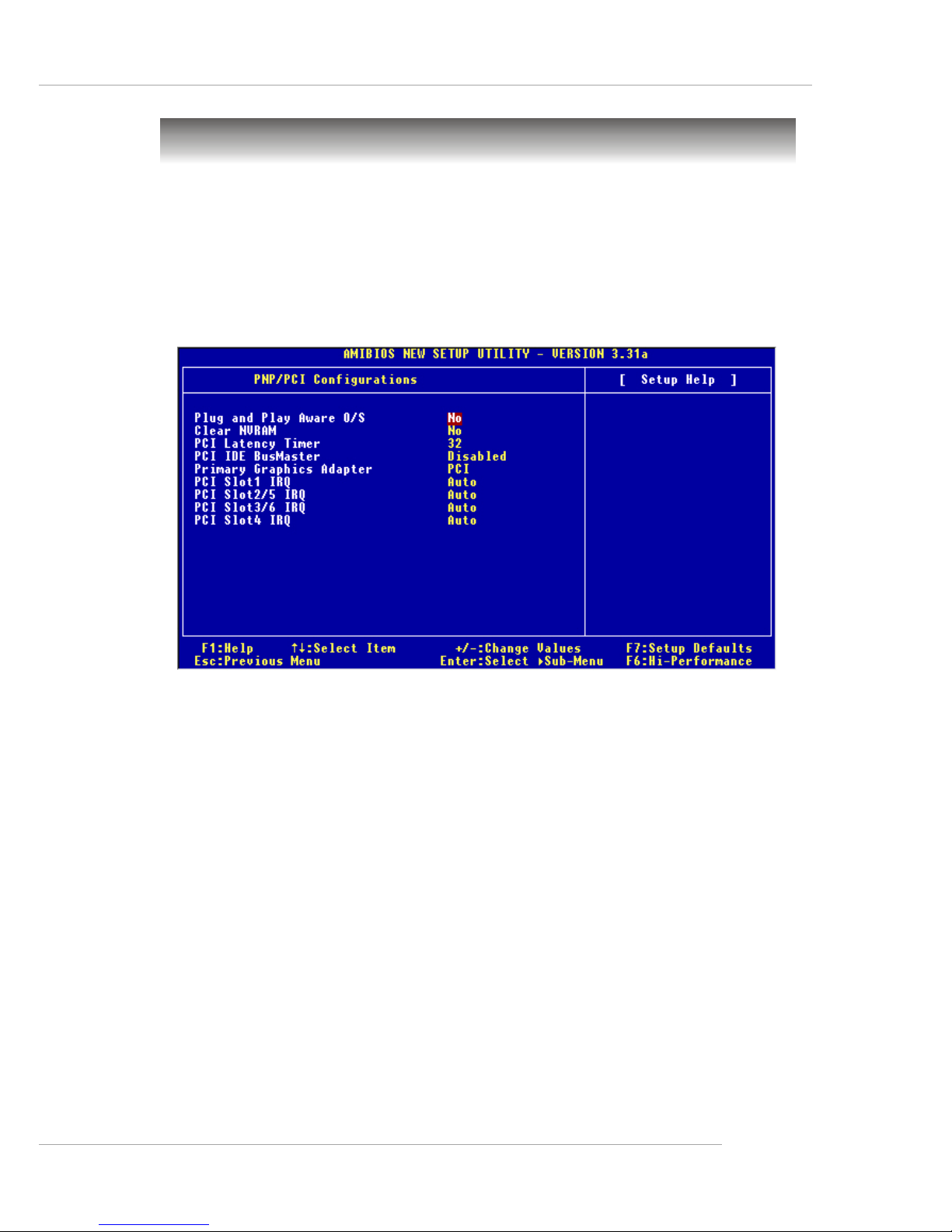

PNP/PCI Configurations..................................................................... 3-21

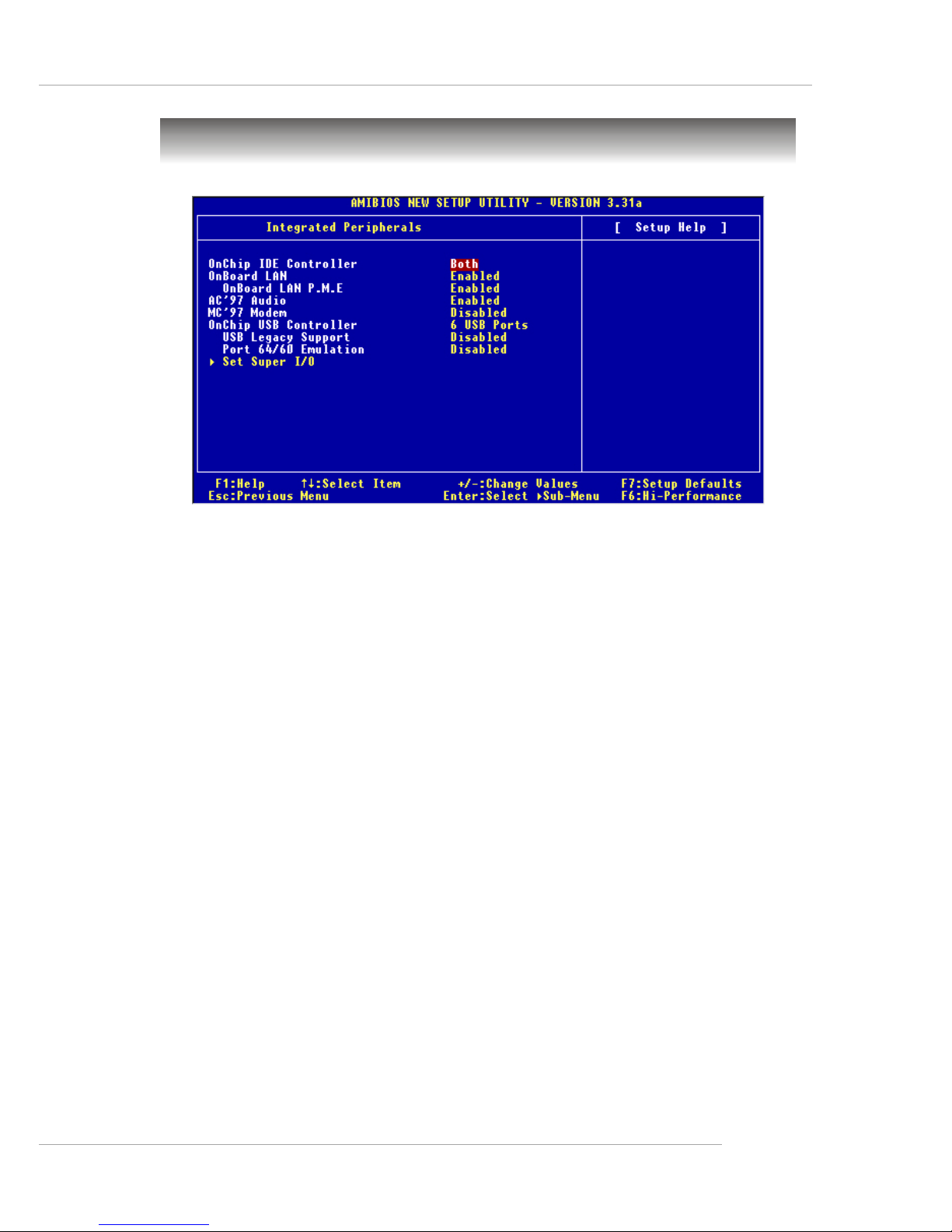

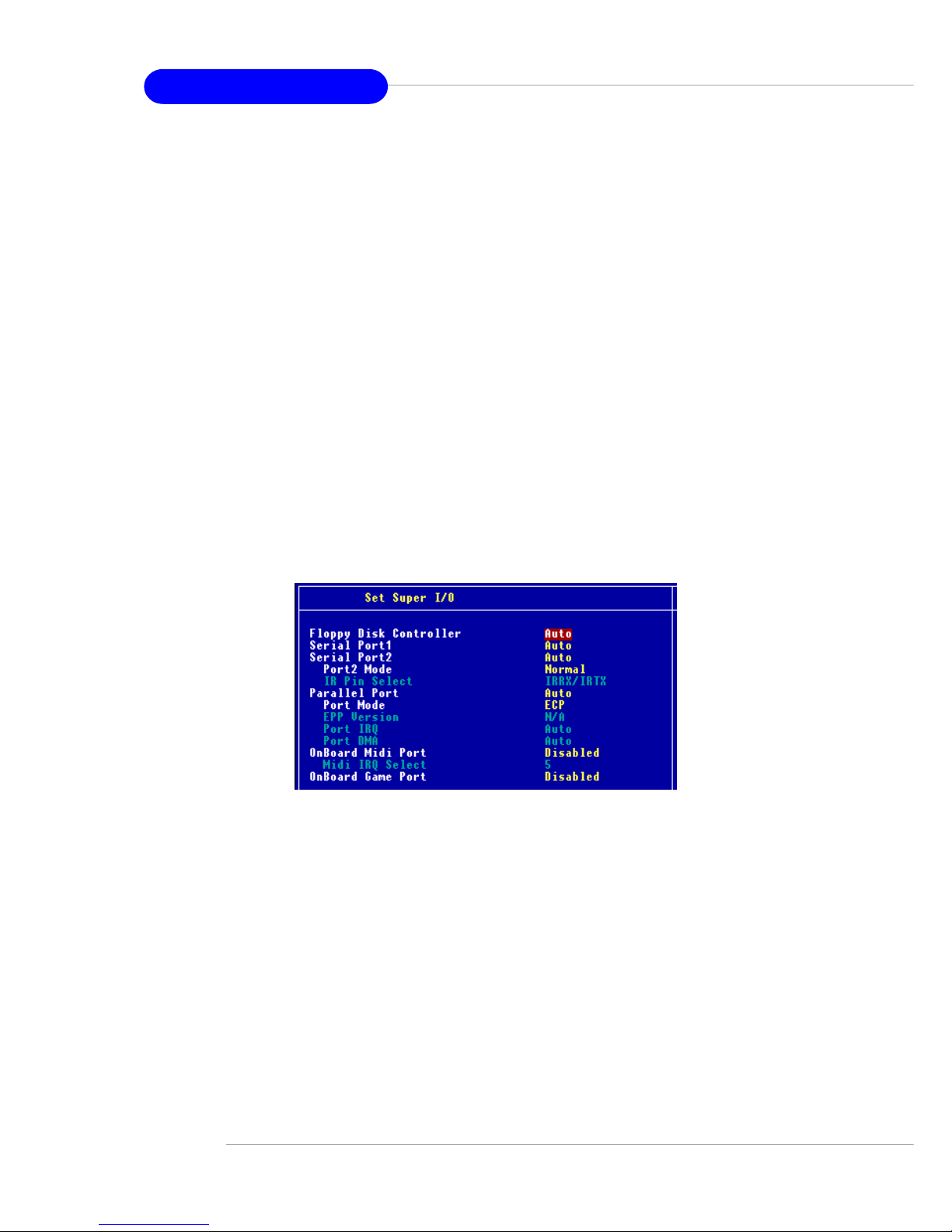

Integrated Peripherals ........................................................................ 3-23

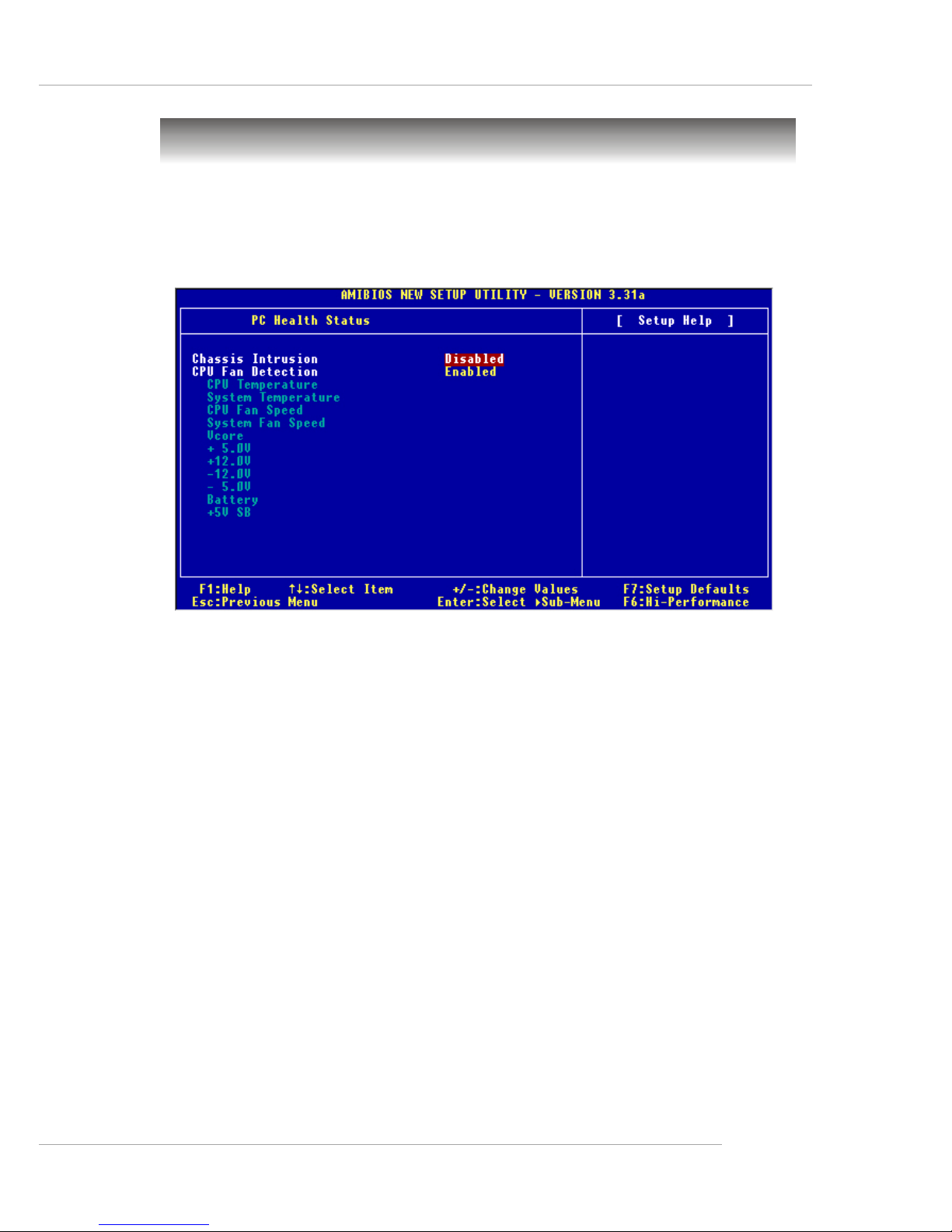

PC Health Status ................................................................................ 3-27

Frequency/Voltage Control ................................................................ 3-28

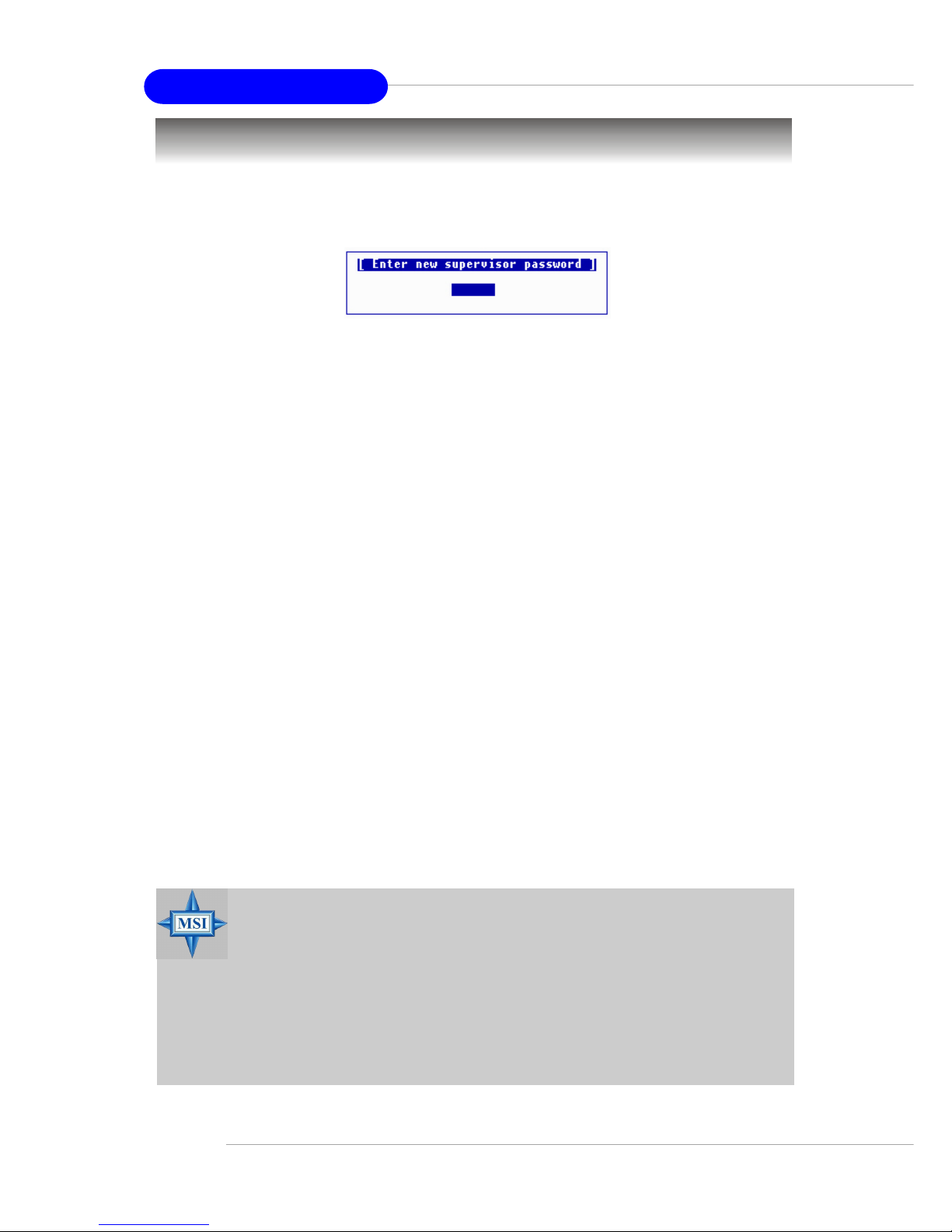

Set Supervisor/User Password........................................................... 3-30

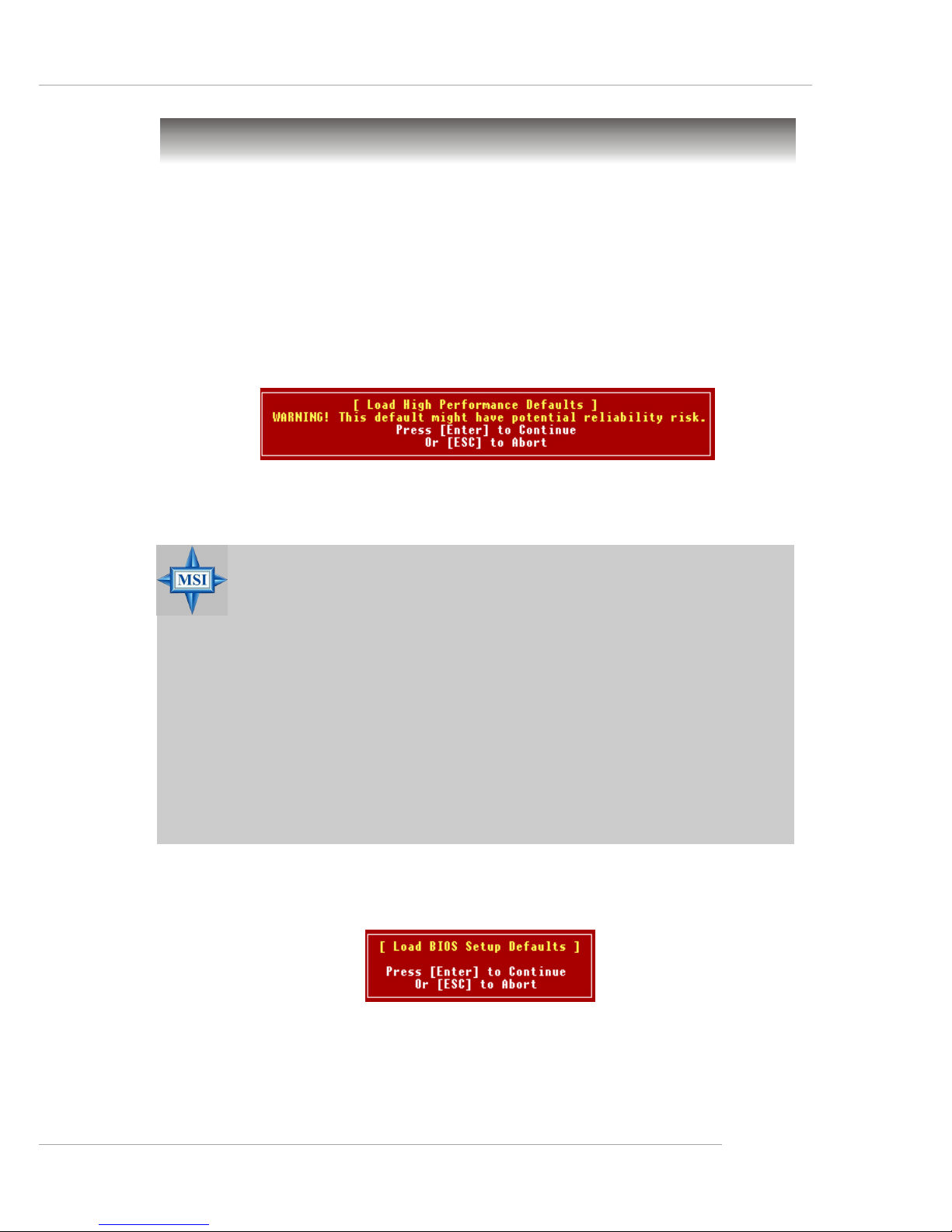

Load Optimal/High Performance Defaults .......................................... 3-31

Appendix: Using 4- or 6- Channel Audio Function ...................................A-1

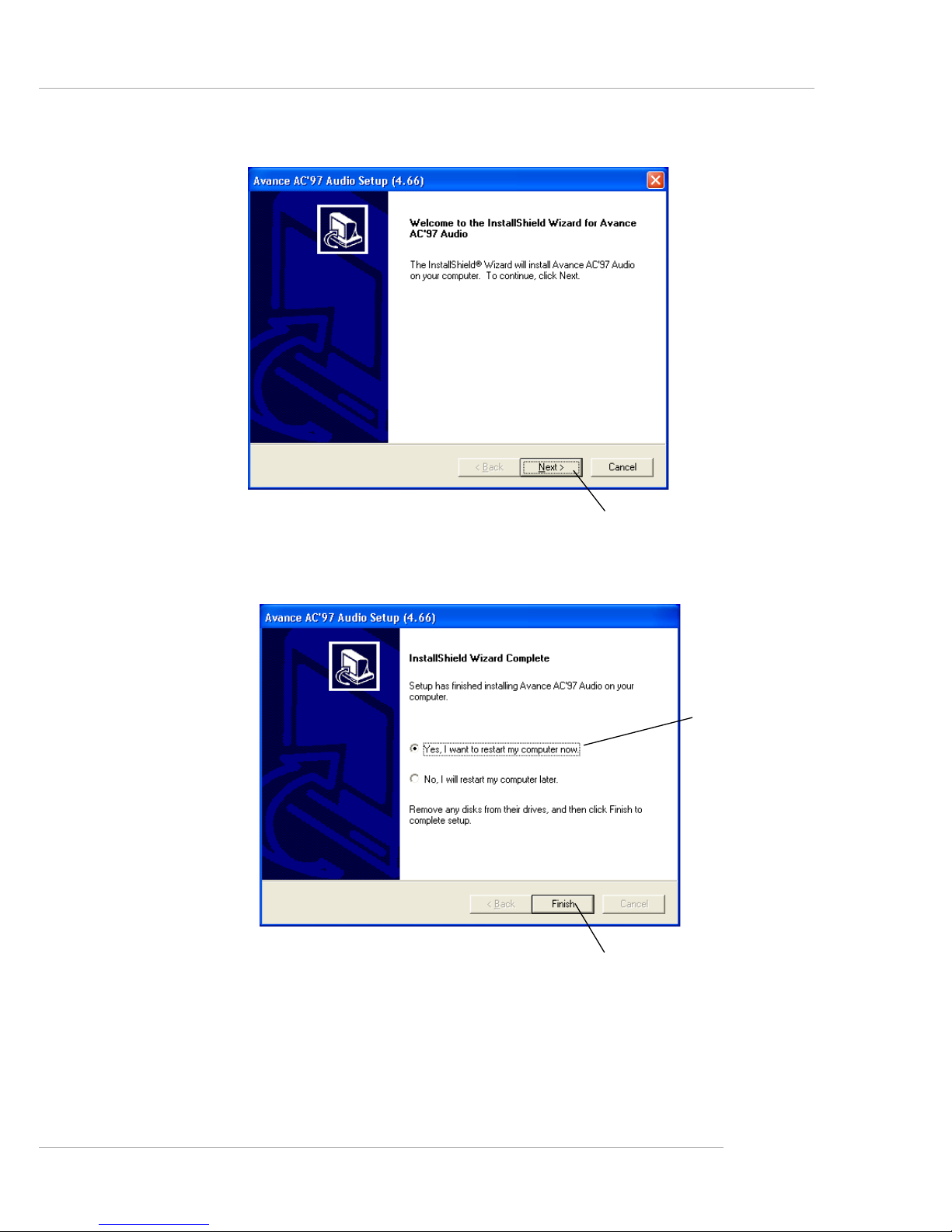

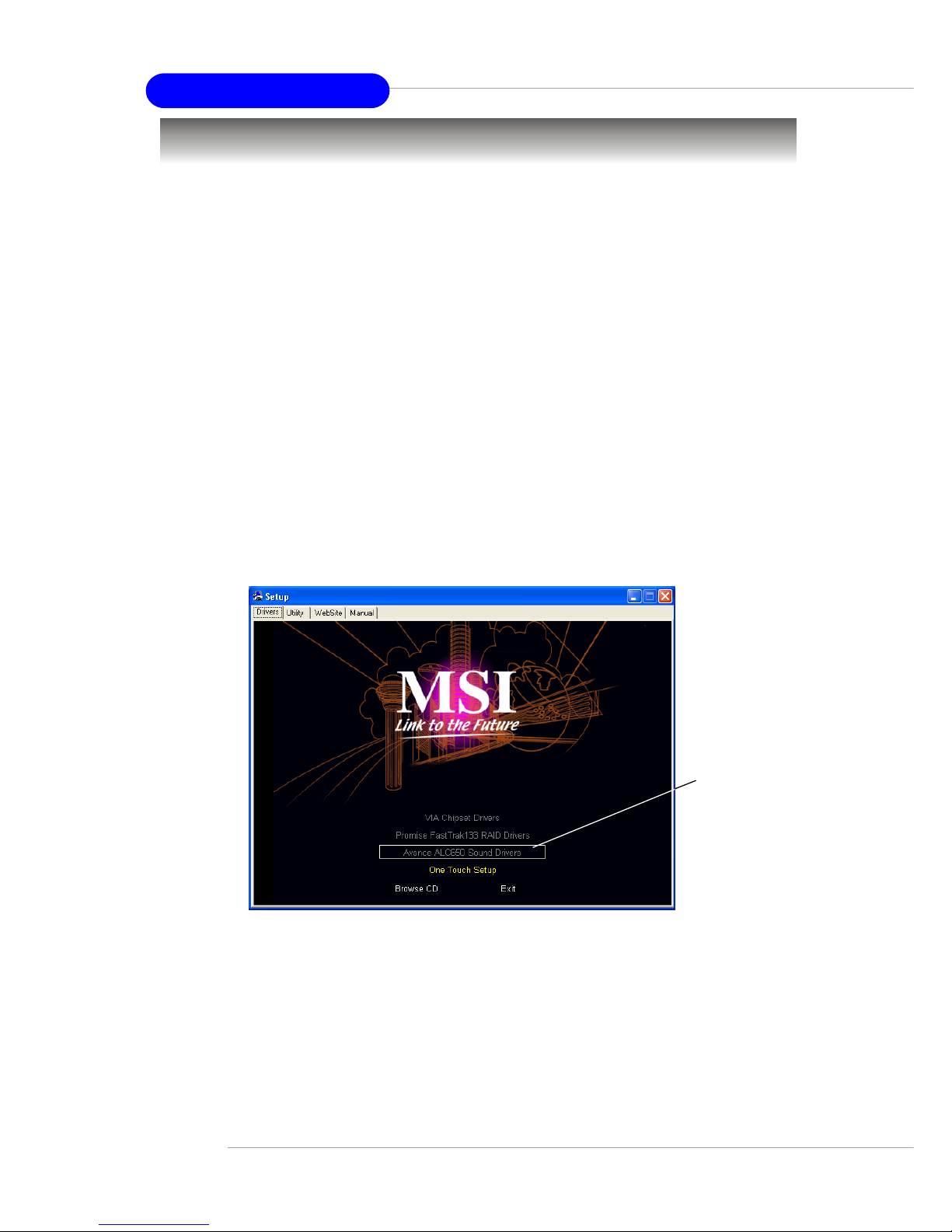

Installing the Audio driver ..................................................................A-2

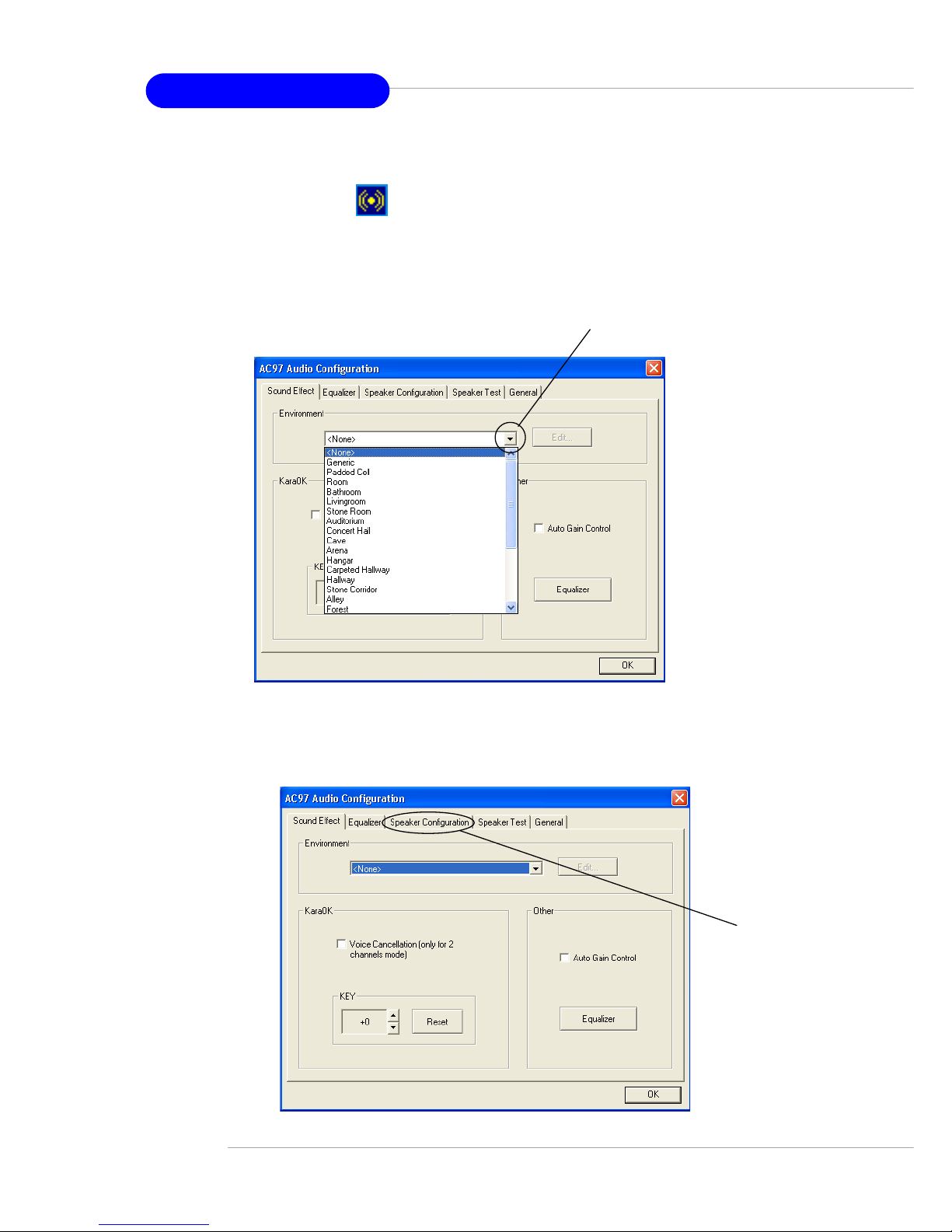

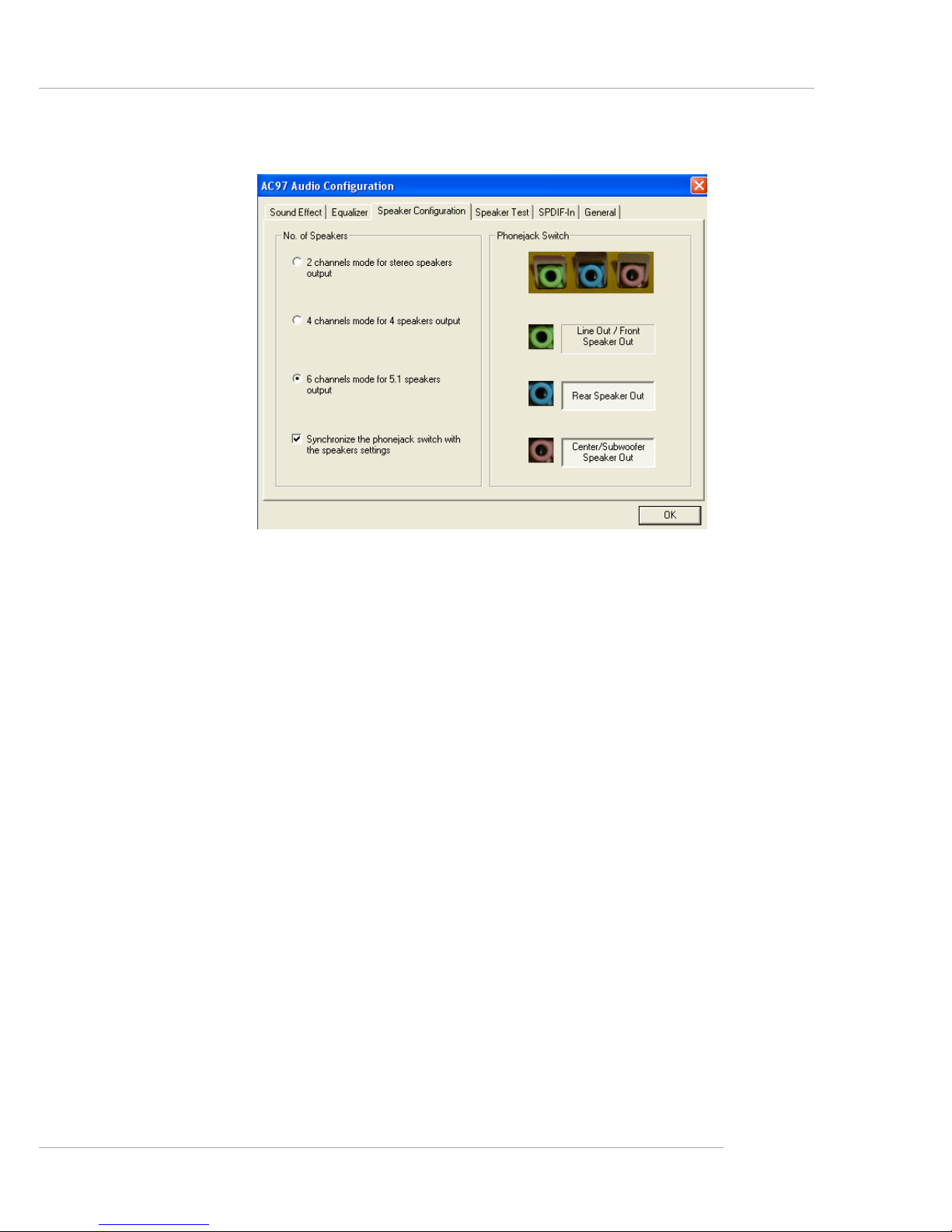

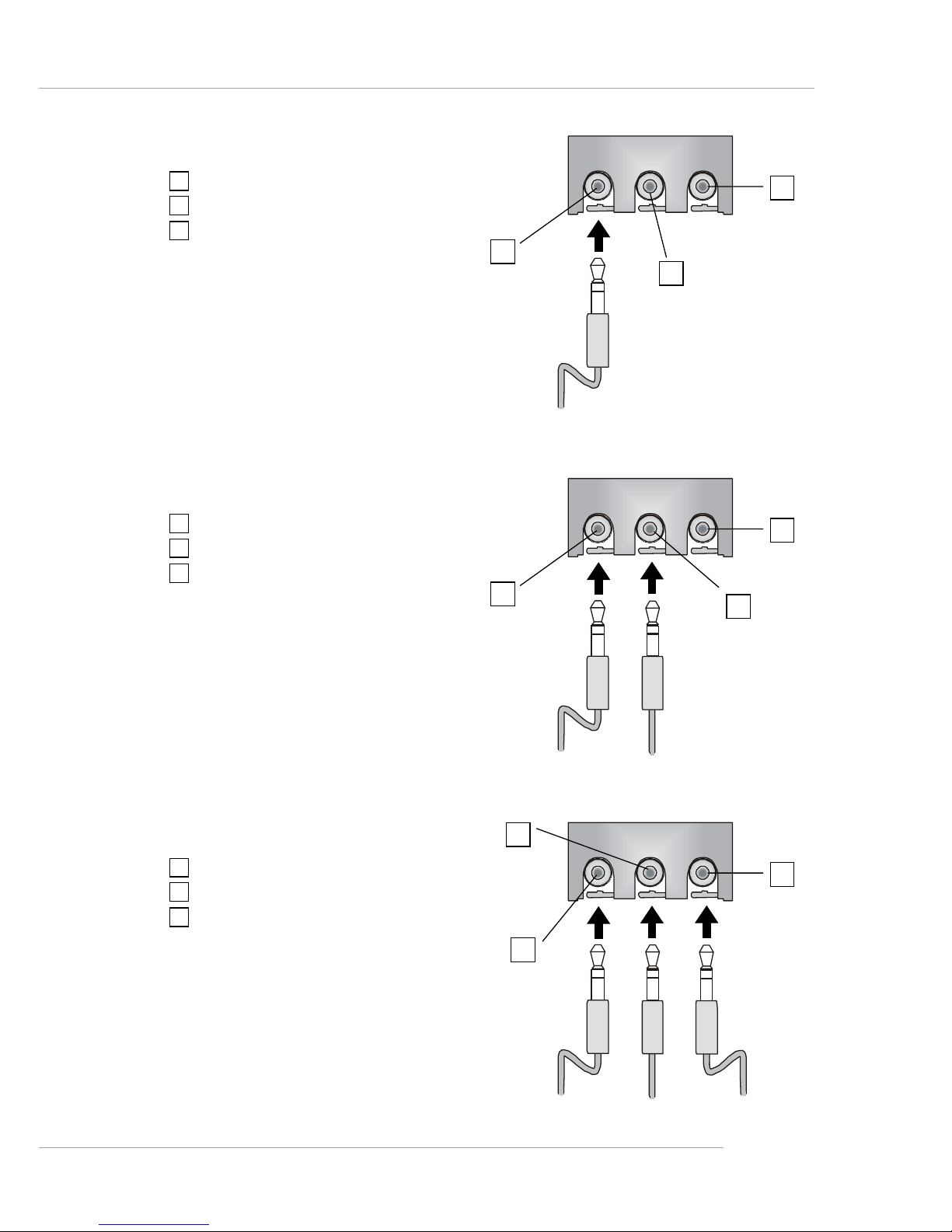

Using 4-/6- Channel Audio Function ..................................................A-4

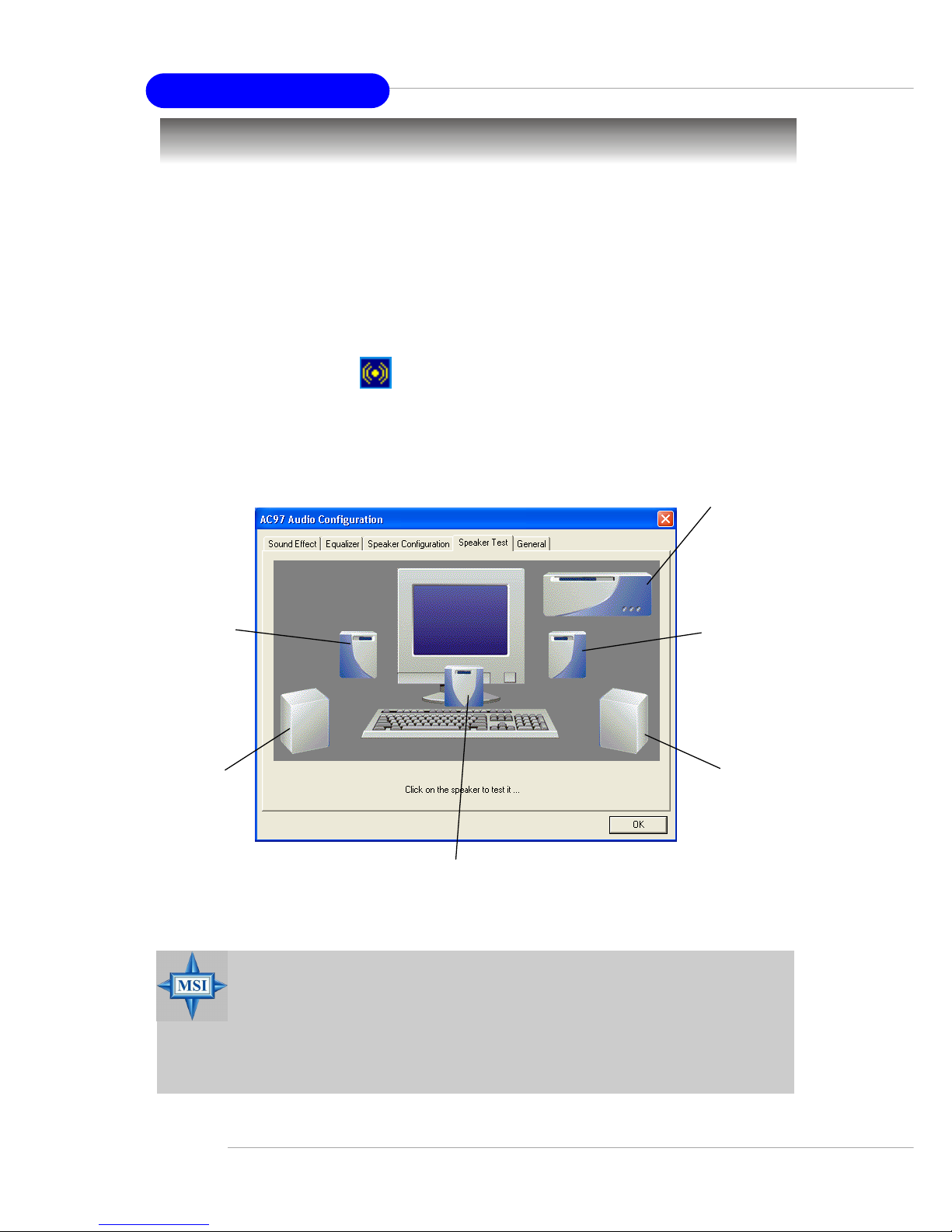

Testing the connected speakers........................................................A-14

Playing KaraOK ................................................................................A-16

Troubleshooting ........................................................................................ T-1

Glossary ....................................................................................................G-1

1-1

Getting Started

Chapter 1. Getting

Started

Thank you for purchasing KT2 Combo (MS-6764 v1.
X) ATX mainboard. The KT2 Combo is based on VIA® KT266A
& VT8235 chipsets and provides six USB 2.0 ports for high­speed data transmission. Designed to fit the advanced AMD

®

Athlon™, Athlon™ XP or Duron™ processors, the KT2 Combo

delivers a high performance and professional desktop platform
solution.

Getting Started

1-2

MS-6764 ATX Mainboard

Mainboard Specifications

CPU

h Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP /Duron™

processors.

h Supports 600MHz up to 2600+ MHz processor and higher.

Chipset

h VIA® KT266A chipset (522 BGA)

- FSB @200/266MHz.

- AGP 4X and PCI advanced high performance memory controller.

h VIA® VT8235 chipset (376 BGA)

- High Bandwidth V-link Client controller

- Integrated Faster Ethernet LPC

- Integrated Hardware Sound Blaster/Direct Sound AC97 audio

- Ultra DMA 66/100/133 master mode PCI EIDE controller

- Integrated USB2.0 Host Controller

- ACPI

Main Memory

h Support two 184-pin unbuffered PC2100/PC1600 DDR SDRAM or two 168-

pin unbuffered PC100/133 SDRAM

h Supports up to 2GB memory size

Slots

h One AGP (Accelerated Graphics Port) slot

- AGP specification compliant

- Supports AGP 2.0 4x

h Six 32-bit Master PCI Bus slots
h Supports 3.3V/5V PCI bus Interface

On-Board IDE

h An IDE controller on the VIA® VT8235 chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes

h Can connect up to 4 IDE devices

On-Board Peripherals

h On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

1-3

Getting Started

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 1 IrDA connector for SIR/ASKIR/HPSIR

- 1 audio/game port

- SPDIF output (1 x 3) with housing (Optional)

- 6 USB 2.0 ports (Rear * 2/ Front * 4)

Audio

h Chip integrated (6-channel S/W audio)

- Direct Sound AC97 Audio

- 6-channel analog output

BIOS

h The mainboard BIOS provides “Plug & Play” BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

h The mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications.

Dimension

h ATX Form Factor: 30.4 cm (L) x 22 cm (W).

Mounting

h 6 mounting holes.

Others

h Suspend to RAM/Disk (S3/S4).
h PC2001 compliant.
h Voltage independent adjustment in CPU, DDR, AGP.
h Supports DMI (Desktop Management Interface) through BIOS.
h Supports PCI 2.2.
h Suspends to RAM/Disk.

1-4

MS-6764 ATX Mainboard

Mainboard Layout

KT2 Combo (MS-6764 v1.X) ATX Mainboard

BATT

+

VT8235

VIA

KT266A

D

D

R

1

D

D

R

2

J3

A

T

X

P

o

w

e

r

S

u

p

p

l

y

JAUD1

SOCKET 462

BIOS

PCI S lo t 5

PCI S lo t 6

PCI S lo t 4

PCI S lo t 3

PCI S lo t 2

PCI S lo t 1

SW3

JBAT1

JFP1 JFP2

JUSB2 JUSB3

JLED

T:LAN jack (Optional)
B:USB ports

Top : Parallel Port

Bottom:
COM A
COM B

Top : mouse
Bottom: keyboard

J10

CFAN1

JPW1

IDE 2

IDE 1

SFAN1

Winbond

W83697HF

Codec

Top :
Game port

Bottom:
Line-Out
Line-In
Mic

F

D

D

1

AGP Slot

D

I

M

M

3

D

I

M

M

4

1-5

Getting Started

Features:

Ø MSI Logo links to the MSI Web site
Ø CPU Speed allows users to adjust the CPU speed through CPU

Multiplier and FSB

Ø Voltage allows user to adjust the voltage of CPU/Memory/AGP
Ø MSI Info provides information about the mainboard, BIOS and OS
Ø CPU Info provides detailed information about the CPU
Ø CPU Fan Speed shows the current running speed of CPU Fan
Ø CPU Temp. shows the current CPU temperature

Fuzzy Logic™ 4

The Fuzzy Logic™ 4 utility is a user friendly tool that allows users to
view and adjust the current system status. To overclock the CPU FSB (Front
Side Bus) frequency under the Windows operating system, click FSB and use
the right and left arrow keys to select the desired FSB, and then click Apply to
apply the new setup value. To enable the system running at the specified FSB
every time when you click Turbo, click Save to save the desired FSB first. If
you want to know the maximal CPU overclocking value, click Auto to start
testing. The CPU FSB will automatically increase the testing value until the PC
reboots. After rebooting, click Turbo to apply the test result. Click Default to
restore the default values.

MSI Reminds You...

To adjust the options under CPU Speed and Voltage, use the right
and left arrow keys to select the desired value and then click Apply

to run the setup value.

MSI Special Features

1-6

MS-6764 ATX Mainboard

Live BIOS™/Live Driver™

The Live BIOS™/Live Driver™ is a tool used to detect
and update your BIOS/drivers online so that you don’t need
to search for the correct BIOS/driver version throughout the
whole Web site. To use the function, you need to install the
“MSI Live Update Series 2” application. After the installation,
the “MSI Live Update Series 2” icon (as shown on the right)
will appear on the screen.

Double click the “MSI Live Update Series 2” icon, and the following
screen will appear:

Five buttons are placed on the leftmost pane of the screen. Click the desired
button to start the update process.

Ø Live BIOS – Updates the BIOS online.

Ø Live Driver – Updates the drivers online.

Ø Live VGA BIOS – Updates the VGA BIOS online.

Ø Live VGA Driver – Updates the VGA driver online.
Ø Live Utility – Updates the utilities online.

If the product you purchased does not support any of the functions listed
above, a “sorry” message is displayed. For more information on the update
instructions, insert the companion CD and refer to the “Live Update Series
Guide” under the “Manual” Tab.

1-7

Getting Started

You can right-click the MSI Live Monitor icon to perform the functions
listed below:

Ø Auto Search – Searches for the BIOS/drivers version you need immediately.

Ø View Last Result – Allows you to view the last search result if there is any.

Ø Preference – Configures the Search function, including the Search schedule.

Ø Exit – Exits the Live Monitor™ application.

Live Monitor™

The Live Monitor™ is a tool used to schedule the search
for the latest BIOS/drivers version on the MSI Web site. To use
the function, you need to install the “MSI Live Update Series 2”
application. After the installation, the “MSI Live Monitor” icon
(as shown on the right) will appear on the screen. Double click
this icon to run the application.

Double click the “MSI Live Monitor” icon at the lower-right corner
of the taskbar, and the following dialog box will appear. You can specify how
often the system will automatically search for the BIOS/drivers version, or
change the LAN settings right from the dialog box.

1-8

MS-6764 ATX Mainboard

D-BracketTM2 Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if

the memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

1 2

3 4

Red

Green

D-Bracket™ 2

1 2
3 4

D-Bracket™ 2 (Optional)

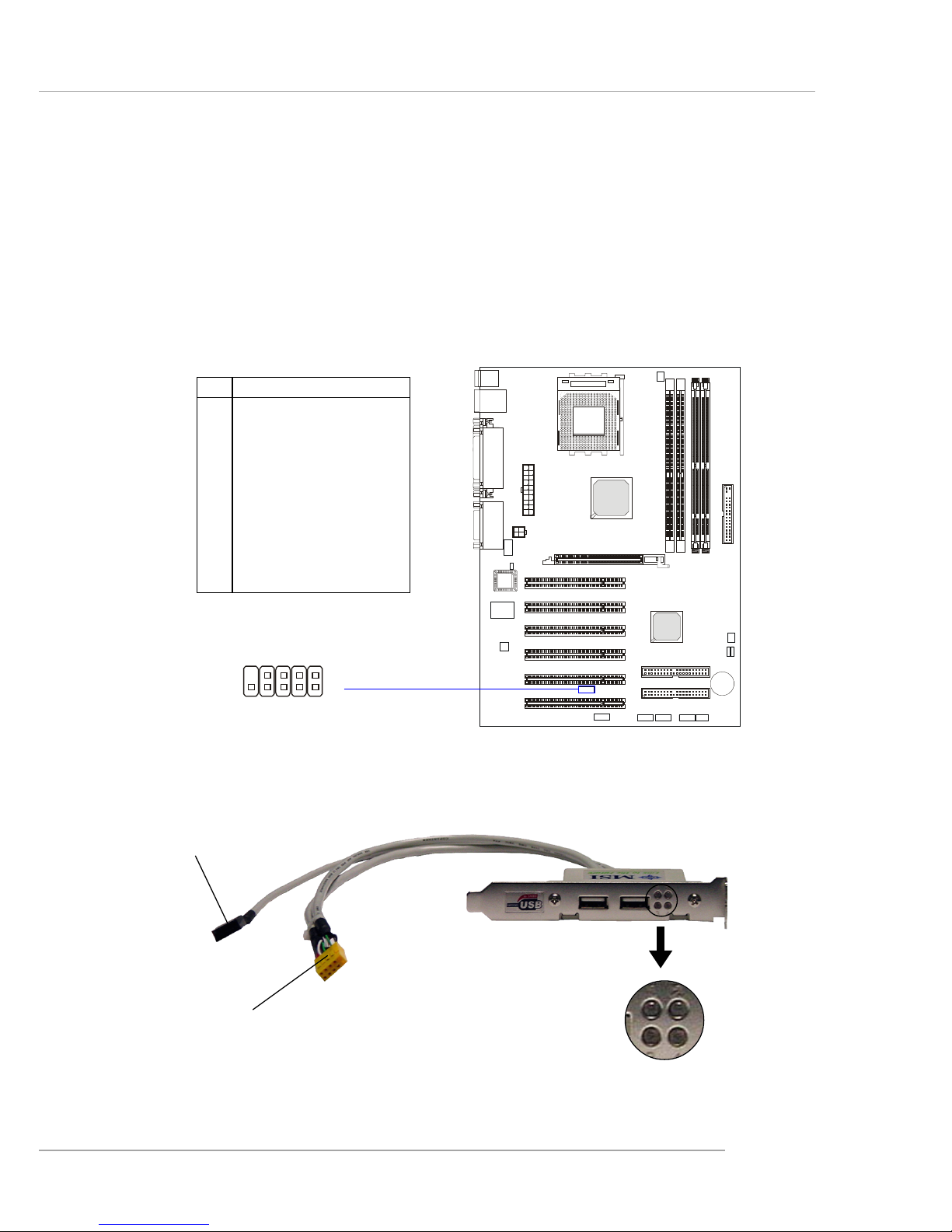

D-Bracket™ 2 is an external USB bracket integrating four Diagnostic
LEDs, which use graphic signal display to help users understand their system.
The LEDs provide up to 16 combinations of signals to debug the system. The
4 LEDs can debug all problems that fail the system, such as VGA, RAM or
other failures. This special feature is very useful for the overclocking users.
These users can use the feature to detect if there are any problems or failures.

D-Bracket™ 2 supports both USB 1.1 & 2.0 spec.

1-9

Getting Started

D-BracketTM2 Description

Processor Initialization

- This will show information regarding the processor (like

brand name, system bus, etc…)

Testing RTC (Real Time Clock)

Initializing Video Interface

- This will start detecting CPU clock, checking type of video

onboard. Then, detect and initialize the video adapter.

BIOS Sign On

- This will start showing information about logo, processor

brand name, etc….

Testing Base and Extended Memory

- Testing base memory from 240K to 640K and extended

memory above 1MB using various patterns.

Assign Resources to all ISA.

Initializing Hard Drive Controller

- This will initialize IDE drive and controller.

Initializing Floppy Drive Controller

- This will initializing Floppy Drive and controller.

Boot Attempt

- This will set low stack and boot via INT 19h.

Operating System Booting

1 2

3 4

1-10

MS-6764 ATX Mainboard

PC Alert™ 4

The PC AlertTM 4 is a utility you can find in the CD-ROM disk. The utility
is just like your PC doctor that can detect the following PC hardware status
during real time operation:

Ø monitor CPU & system temperatures
Ø monitor fan speeds
Ø monitor system voltages

If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown until the condition returns to the normal status.

Users can use the Adjusting Keys to change the minimum and maximum
threshold of each item for the system to send out a warning message. Click
Temperature to select the temperature modes of either Fahrenheit (oF) or Cel-
sius (oC). The PC Alert4 icon on the Status Area will show the current CPU
temperature.

temperature

modes

Adjusting Keys

COOLER XP

1-11

Getting Started

MSI Reminds You...

The new feature COOLER XP will work only if your mainboard
supports AMD Athlon XP CPU.
Items shown on PC Alert 4 vary depending on your system’s status.

To better protect the CPU from overheating, a new feature, COOLER
XP, has been added to decrease the temperature of AMD Athlon XP CPU. To

do so, simply click COOLER XP and the screen will show the Cute skin (as
shown below) with information about the CPU and chipset. Right-click the
mouse to select the skin you want to switch to.

Cute

1-12

MS-6764 ATX Mainboard

CPU Thermal Protection

Aimed to prevent the CPU from overheating, MSI has developed a CPU
Thermal Protection mechanism for AMD Athlon™ XP CPU platform. This CPU
Thermal Protection mechanism works on a thermal signal sensor. If the
mechanism senses an abnormal temperature rise, it will automatically shut down
the system and the CPU temperature will then drop down and resume normal.
With this unique feature, users can better protect their CPU. Please note that
this feature is for AMD Athlon™ XP CPU only.

2-1

Hardware Setup

Chapter 2. Hardware
Setup

This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the
jumpers on the mainboard. Also, it provides the instructions
on connecting the peripheral devices, such as the mouse,
keyboard, etc.

While doing the installation, be careful in holding the
components and follow the installation procedures.

Hardware Setup

2-2

MS-6764 ATX Mainboard

Quick Components Guide

JLED, p.2-21

DDR DIMMs, p.2-6

CPU, p.2-4

Back Panel
I/O, p.2-10

CFAN1, p.2-17

FDD1, p.2-15

SFAN1, p.2-17

JBAT1, p.2-24

IDE1, IDE2,

p.2-16

JFP2, p.2-19

JFP1, p.2-19
JUSB3, p.2-22
JUSB2, p.2-22

J10, p.2-18

JPW1, p.2-9

JWR1, p.2-9

J3, p.2-18

AGP Slot, p.2-26

PCI Slots, p.2-26

SDR DIMMs, p.2-6

SW3, p.2-25

JAUD1, p.2-20

2-3

Hardware Setup

Central Processing Unit: CPU

CPU Core Speed Derivation Procedure

CPU Clock multipled by Core/Bus ratio equals the CPU core speed.

For example:
If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4 GHz

The mainboard supports AMD® Athlon™, Athlon™ XP and Duron™

processors in the 462 pin package. The mainboard uses a CPU socket called
Socket-462 for easy CPU installation. When you are installing the CPU, make

sure the CPU has a heat sink and a cooling fan attached on the top to
prevent overheating. If you do not find the heat sink and cooling fan, contact

your dealer to purchase and install them before turning on the computer.

Thermal Issue for CPU

As processor technology pushes to faster speeds and higher
performance, thermal management becomes increasingly crucial
when building computer systems. Maintaining the proper

thermal environment is key to reliable operation. As such, the
processor must be maintained in the specified thermal requirements. AMD
recommends the use of high performance thermal interface material.

AMD Athlon™/Duron™ processor with a speed of 600MHz and above
requires LARGER heatsink and fan. You also need to add thermal grease
between the CPU and heatsink to improve heat dissipation. Then, make sure
that the CPU and heatsink are securely fastened and in good contact with each
other. These are needed to prevent damaging the processor and ensuring
reliable operation.

You can check AMD’s web site for more information.

!

WARNING!

2-4

MS-6764 ATX Mainboard

1. Please turn off the power and

unplug the power cord before
installing the CPU.

2. Pull the lever sideways away

from the socket. Make sure
to raise the lever up to a 90­degree angle.

3. Look for the gold arrow. The
gold arrow should point to­wards the lever pivot. The
CPU can only fit in the correct
orientation.

4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
procedures may cause
permanent damages to your
mainboard.

5. Press the CPU down firmly

into the socket and close the
lever. As the CPU is likely to
move while the lever is being
closed, always close the lever
with your fingers pressing
tightly on top of the CPU to
make sure the CPU is
properly and completely
embedded into the socket.

CPU Installation Procedures for Socket 462

Open Lever

Gold arrow

Gold arrow

90 degree

Correct CPU plac em ent

Incorrect CPU placement

Gold arrow

Sliding

Plate

Close
Lever

Press down

the CPU

X

O

2-5

Hardware Setup

The following instructions will guide
you through the heat sink installation
procedures. Please consult your agent
for the proper CPU cooler set.

1. Position your CPU cooler set onto
the CPU.

2. Use one end of the clip to hook
the latch of the CPU sliding plate.

3. Hook the other latch to fix the
cooling fan set. You may need a
screw drive to press down the
other side of the clip.

4. Connect the fan to the power sup­ply connector provided on your
mainboard.

Installing AMD Athlon CPU (Socket 462) Cooler Set

Apply some heat

sink paste

MSI Reminds You...

Please apply some heat sink paste on top of CPU to dissipate
the heat more effectively.

2-6

MS-6764 ATX Mainboard

Memory

The mainboard provides two 184-pin unbuffered PC2700/PC2100/
PC1600 DDR SDRAM or two 168-pin unbuffered PC100/133 SDRAM and
supports the memory size up to 2GB. To operate properly, at least one DIMM
module must be installed.

SDR DIMM Slots

(DIMM 3~4)

DDR DIMM Slots

(DDR1~2)

MSI Reminds You...

Make sure that you install only one type of memory modules
(either SDR or DDR) at one time. DO NOT install both types at

the same time. For security reason, the system will automati­cally power off if you simultaneously install SDR & DDR
memory modules onboard.

2-7

Hardware Setup

DIMM Module Combination

Install at least one DIMM module on the slots. Memory modules can be
installed on the slots in any order. You can install either single- or double­sided modules to meet your own needs.

Memory modules can be installed in any combination as follows:

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in until the golden finger on the memory module is deeply inserted
in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

S: Single Side D: Double Side

Slot Memory Module Total Memory

DIMM 1
(Bank 0 & 1)

S/D 64MB~1GB

DIMM 2
(Bank 2 & 3)

S/D 64MB~1GB

Maximum System Memory Supported

64MB~2GB

MSI Reminds You...

You can barely see the golden finger if the module is properly
inserted in the socket.

Volt

Notch

2-8

MS-6764 ATX Mainboard

Installing SDR Modules

1. The SDR DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the

DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in.

3. The plastic clip at each side of the DIMM slot will automatically close.

SDR Module Combination

At least one DIMM module should be installed on the motherboard.
Memory modules can be installed on the slots in any order. The single-/double­sided memory modules that each DIMM slot supports are listed as below:

S: Single Side D: Double Side

Slot Memory Module Total Memory

DIMM 2
(Bank 2 & 3) S/D 64MB~1GB

Maximum System Memory Supported 64MB~2GB

DIMM 1
(Bank 0 & 1) S/D 64MB~1GB

Volt

Notch

MSI Reminds You...

You can barely see the golden finger if the module is properly
inserted in the socket.

2-9

Hardware Setup

Power Supply

The mainboard supports ATX power supply for the power system. Before
inserting the power supply connector, always make sure that all components
are installed properly to ensure that no damage will be caused.

ATX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.

ATX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

PIN SIGNAL

1 GND
2 GND
3 12V
4 12V

JPW1 Pin Definition

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

JWR1 Pin Definition

JWR1

10

1

20

11

JPW1

1

3

42

2-10

MS-6764 ATX Mainboard

The back panel provides the following connectors:

Back Panel

Mouse Connector

The mainboard provides a standard PS/2® mouse mini DIN connector
for attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

PIN SIGNAL DESCRIPTION

1 Mouse DATA Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

Pin Definition

PS/2 Mouse (6-pin Female)

2

1

3

4

5

6

Mouse

Keyboard

USB

Parallel

COM A COM B L-out L-in MIC

Midi/Joystick

LAN

(Optional)
