Msi MS-6712 V2.X user Manual

MSI

MICRO-STAR INTERNATIONAL

MS-6712 V2.X ATX Mainboard

i

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip­ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor­dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon­sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-Star International MS-6712

Tested to comply

with FCC Standard

For Home or Office Use

ii

Edition

Oct. 2002

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.

Trademarks

All trademarks are the properties of their respective owners.

Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows® 95/98/2000/NT/ME/XP are registered trademarks of Microsoft
Corporation.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.

iii

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. DO NOT COVER THE OPENINGS.

6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electri­cal shock.

11. If any of the following situations arises, get the equipment checked by a
service personnel:

z The power cord or plug is damaged
z Liquid has penetrated into the equipment
z The equipment has been exposed to moisture
z The equipment has not work well or you can not get it work according

to User’s Manual.

z The equipment has dropped and damaged
z If the equipment has obvious sign of breakage

12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT
MAY DAMAGE THE EQUIPMENT.

CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.

iv

Getting Started

Chapter 1. Getting

Started

Getting Started

Thank you for purchasing the MS-6712 v2.X ATX
mainboard. The MS-6712 v2.X ATX mainboard is based on
VIA® Apollo KT400 North Bridge & VT8235 South Bridge chipset
for optimal system efficiency. Designed to fit the advanced
AMD® Athlon™, Athlon™ XP or Duron™ processors, the MS­6712 delivers a high performance and professional desktop plat­form solution.

1-1

MS-6712 ATX Mainboard

Mainboard Specifications

CPU

h Supports Socket A (Socket-462) for AMD® Athlon™/Athlon™ XP /Duron™

processors

h Supports up to 2800+ or higher speed

Chipset

h VIA® KT400 North Bridge

- Supports 200/266/333MHz front side bus

- Supports DDR200/266/333

- Supports AGP 4X and AGP 8X

h VIA® VT8235 South Bridge

- Integrated Direct Sound AC97 audio

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller

- ACPI & PC2001 compliant enhanced power management

- Integrated USB 2.0 controller

Main Memory

h Supports six memory banks using three 184-pin DDR DIMMs
h Supports up to 3GB PC1600/2100/2700/3200* DDR SDRAMs
h Supports 2.5v DDR SDRAM

Slots

h One AGP (Accelerated Graphics Port) 1.5V 8x/4x slot
h Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE

h An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA133/100/66/33 operation modes

h Can connect up to four IDE devices

On-Board Peripherals

h On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

1-2

Getting Started

- Vertical audio ports

- 1 SPDIF output (2 x 6 pin) pin header for S-Bracket

- 6 USB ports (Rear x 2/ Front x 4)

Bluetooth (Optional)

h 1 Bluetooth connector for wireless connection

Audio

h Realtek ALC650 6-channel audio

LAN

h VIA VT6103 LAN controller

BIOS

h The mainboard BIOS provides “Plug & Play” BIOS which detects the pe-

ripheral devices and expansion cards of the board automatically.

h The mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications.

Dimension

h ATX Form Factor: 12 in. (L) x 9.6 in. (W)

Mounting

h 6 mounting holes

Others

h Suspend to RAM/Disk (S3/S4)
h PC2001 compliant
h Support WOL/WOR

1-3

MS-6712 ATX Mainboard

A

Mainboard Layout

Top : mo use
Bottom: keyboard

Top : Parallel Port

Bottom:
COM A
COM B

T:L AN ja ck
B:USB ports

T:Line-In
M:Line-Out
B:Mic

Winbond

W83697HF

BIOS

JSP3

Codec

JCD1

BATT

SOCKET 462

CFAN1

y

l
p
p
u

X

S

T

r

A

e
w
o
P

1
D

IDE1 IDE2

D
F

VIA

KT400

VIA

VT6103

PCI Slot 1

GP Slot

1

3

2

R

R

R

D

D

D

D

D

D

PCI S lot 2

JCI1

JIR1

JBAT1

PCI S lot 3

PCI Slot 4

PCI S lot 5

VT8235

SW1

JFP2

JFP1

SFAN1

SW2

PCI Slot 6

+

JAUD1

JUSB2

JUSB1

JBT1

MS-6712 v2.X ATX Mainboard

1-4

Hardware Setup

Chapter 2. Hardware
Setup

Hardware Setup

This chapter tells you how to install the CPU, memory
modules, and expansion cards, as well as how to setup the jump­ers on the mainboard. Also, it provides the instructions on
connecting the peripheral devices, such the mouse, keyboard,
etc.

While doing the installation, be careful in holding the com­ponents and follow the installation procedures.

2-1

MS-6712 ATX Mainboard

Quick Components Guide

Back Panel
I/O, p.2-10

JCD1, p.2-25

JCI1, p.2-24

JSP3, p.2-23
JIR1, p.2-24

JBAT1, p.2-26

JWR1, p.2-9

CPU, p.2-3 CFAN1, p.2-17

DDR DIMMs, p.2-7

FDD1, p.2-15

IDE1/2, p.2-16

AGP Slot, p.2-28

PCI Slots, p.2-28

SFAN1, p.2-17

SW1/2, p.2-27
JFP1/2, p.2-18

JBT1, p.2-21

2-2

JAUD1, p.2-19

JUSB1/2, p.2-20

Hardware Setup

Central Processing Unit: CPU

The mainboard supports AMD® Athlon™, Athlon™ XP and Duron™

processors in the 462 pin package. The mainboard uses a CPU socket called
Socket A for easy CPU installation. When you are installing the CPU, make

sure the CPU has a heat sink and a cooling fan attached on the top to prevent
overheating. If you do not find the heat sink and cooling fan, contact your

dealer to purchase and install them before turning on the computer.

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 1 4

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHz x 14
= 1.4 GHz

WARNING! Thermal Issue for CPU

As processor technology pushes to faster speeds and higher performance,
thermal management becomes increasingly crucial when building computer
systems. Maintaining the proper thermal environment is key to reliable
operation. As such, the processor must be maintained in the specified thermal
requirements.

AMD Athlon™/Duron™/Athlon™ XP processor with a speed of 600MHz
and above requires a LARGER heatsink and fan. You also need to add thermal
grease between the CPU and heatsink to improve heat dissipation. Then, make
sure that the CPU and heatsink are securely fastened and in good contact with
each other. These are needed to prevent damaging the processor and ensuring
reliable operation. If you want to get more information on the proper cooling,
you can visit AMD’s website for reference.

2-3

MS-6712 ATX Mainboard

X

CPU Installation Procedures for Socket 462

1. Please turn off the power and

unplug the power cord before
installing the CPU.

Open Lever

2. Pull the lever sideways away

from the socket. Make sure
to raise the lever up to a 90­degree angle.

3. Look for the gold arrow. The
gold arrow should point to­wards the lever pivot. The
CPU can only fit in the correct
orientation.

4. If the CPU is correctly
installed, the pins should be
completely embedded into the
socket and can not be seen.
Please note that any violation
of the correct installation
procedures may cause
permanent damages to your
mainboard.

5. Press the CPU down firmly into

the socket and close the lever.
As the CPU is likely to move
while the lever is being closed,
always close the lever with
your fingers pressing tightly
on top of the CPU to make sure
the CPU is properly and
completely embedded into the
socket.

Sliding

Plate

Gold arrow

Gold arrow

Gold arrow

Press down

the CPU

90 degree

Correct CPU placement

Incorrect CPU placement

O

Close
Lever

2-4

Hardware Setup

Installing AMD Athlon CPU (Socket 462) Cooler Set

The following instructions will guide
you through the heat sink installation
procedures. Please consult your agent
for the proper CPU cooler set.

1. Position your CPU cooler set onto
the CPU.

2. Use one end of the clip to hook
the latch of the CPU sliding plate.

3. Hook the other latch to fix the cool­ing fan set. You may need a screw
drive to press down the other side
of the clip.

Apply some heat

sink paste

4. Connect the fan to the power sup­ply connector provided on your
mainboard.

MSI Reminds Y ou...

Please apply some heat sink paste on top of your CPU to
dissipate the heat more effectively.

2-5

MS-6712 ATX Mainboard

CPU Clock Frequency Selection through BIOS

The hardware configuration for CPU clock frequency of the motherboard
is set to 100MHz by default. Therefore, to make a 133MHz CPU run at 133MHz
when it is installed on the board, you have to adjust the CPU clock frequency
in the BIOS setup utility.

To set the clock frequency for the installed CPU, refer to Frequency/
Voltage Control in Chapter 3. BIOS Setup.

MSI Reminds Y ou...

Overheating

Overheating will seriously damage the CPU and system, al­ways make sure the cooling fan can work properly to protect
the CPU from overheating.

Replacing the CPU

While replacing the CPU, always turn off the ATX power sup­ply or unplug the power supply’s power cord from grounded
outlet first to ensure the safety of CPU.

Overclocking

This motherboard is designed to support overclocking.
However, please make sure your components are able to toler­ate such abnormal setting, while doing overclocking. Any at­tempt to operate beyond product specifications is not
recommended. We do not guarantee the damages or risks

caused by inadequate operation or beyond product
specifications.

2-6

Hardware Setup

Memory

The mainboard provides 3 slots for 184-pin DDR SDRAM DIMM (Double
In-Line Memory Module) modules and supports the memory size up to 3GB.
Y ou can install PC2700/DDR333, PC2100/DDR266 or PC1600/DDR200 modules
on the DDR DIMM slots.

DDR DIMM Slots

(DDR 1~3)

Introduction to DDR SDRAM

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,
but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as
opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod­ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory
bandwidth makes DDR an ideal solution for high performance PC, worksta­tions and servers.

2-7

MS-6712 ATX Mainboard

DIMM Module Combination

Install at least one DIMM module on the slots. You can install either
single- or double-sided modules in any order to meet your own needs.

Memory modules can be installed in any combination as follows:

Slot Memory Module Total Memory

DIMM 1 S/D 64MB~1GB
(Bank 0 & 1)
DIMM 2 S/D 64MB~1GB
(Bank 2 & 3)
DIMM 3 S/D 64MB~1GB
(Bank 4 & 5)

Maximum System Memory Suppported 64MB~3GB

S: Single Side D: Double Side

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module

will only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then

push it in until the golden finger on the memory module is deeply inserted
in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

2-8

Volt

Notch

MSI Reminds Y ou...

You can barely see the golden finger if the module is properly
inserted in the socket.

Hardware Setup

Power Supply

The mainboard supports ATX power supply for the power system. Be­fore inserting the power supply connector, always make sure that all compo­nents are installed properly to ensure that no damage will be caused.

A TX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To
connect to the ATX power supply, make sure the plug of the power supply is
inserted in the proper orientation and the pins are aligned. Then push down
the power supply firmly into the connector.

11

1

20

JWR1

10

JWR1 Pin Definition

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

2-9

MS-6712 ATX Mainboard

Back Panel

The back panel provides the following connectors:

LAN

Mouse

Parallel

(Optional)

L-in

L-out

MIC

Keyboard

USB

COM A COM B

USB

Mouse Connector

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin assignments are as follows:

Pin Definition

6

4

2

5

3

1

PS/2 Mouse (6-pin Female)

PIN SIGNAL DESCRIPTION

1 Mouse DAT A Mouse DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse Clock Mouse clock
6 NC No connection

2-10

Hardware Setup

Keyboard Connector

The mainboard provides a standard PS/2® keyboard mini DIN connector
for attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into
this connector.

Pin Definition

6

4

2

PS/2 Keyboard (6-pin Female)

5

3

1

PIN SIGNAL DESCRIPTION

1 Keyboard DAT A Keyboard DATA
2 NC No connection
3 GND Ground
4 VCC +5V
5 Keyboard Clock Keyboard clock
6 NC No connection

USB Connectors

The mainboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into
the connector.

1 2 3 4

5 6 7 8

USB Ports

USB Port Description

PIN SIGNAL DESCRIPTION

1 VCC +5V
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

2-11

MS-6712 ATX Mainboard

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector as LPT . A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.

13 1

25

14

Pin Definition

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DA TA0 Data0
3 DA TA1 Data1
4 DA TA2 Data2
5 DA TA3 Data3
6 DA TA4 Data4
7 DA TA5 Data5
8 DA TA6 Data6
9 DA TA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

2-12

Hardware Setup

Audio Port Connectors

Line Out is a connector for Speakers or Headphones. Line In is used for

external CD player, T ape player , or other audio devices. Mic is a connector for
microphones.

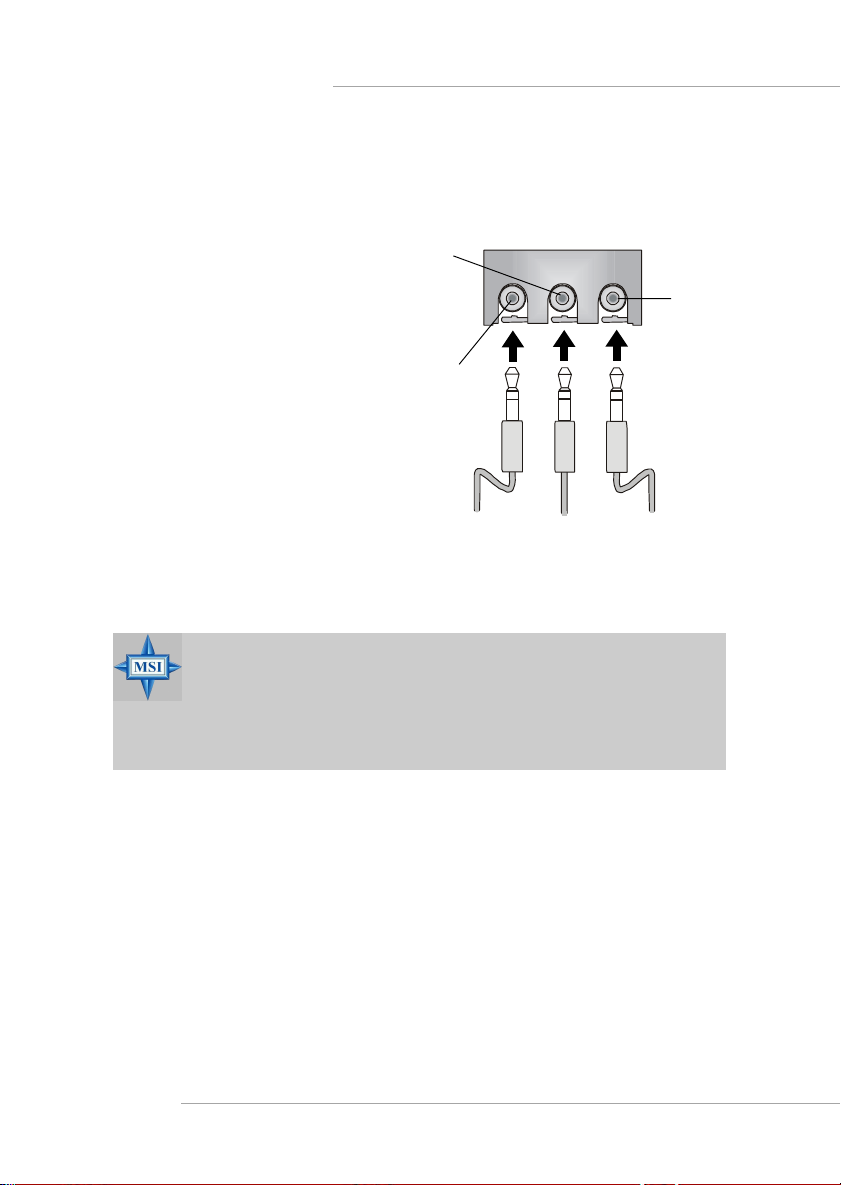

1/8” Ster eo Audio Connectors

Line In

Line Out

MIC

2-13

MS-6712 ATX Mainboard

Serial Port Connectors: COM A & COM B

The mainboard offers two 9-pin male DIN connectors as serial port COM
A & COM B. The ports are 16550A high speed communication ports that send/
receive 16 bytes FIFOs. You can attach a serial mouse or other serial devices
directly to the connectors.

Pin Definition

1 2 3 4 5

6 7 8 9

9-Pin Male DIN Connector

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data T erminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate

RJ-45 LAN Jack (Optional)

The mainboard provides a RJ-45 connector that allows your computer

to be connected to a network environment.

2-14

LAN Jack

(RJ-45)

Activity
Indicators

Pin Signal Description

1 TDP Transmit differential pair
2 TDN Transmit differential pair
3 RDP Receive differential pair
4 NC Not used
5 NC Not used
6 RDN Receive differential pair
7 NC Not used
8 NC Not used

Hardware Setup

Connectors

The mainboard provides connectors to connect to FDD, IDE HDD, case,

modem, LAN, USB Ports, IR module and CPU/System F AN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that

supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

FDD1

2-15

MS-6712 ATX Mainboard

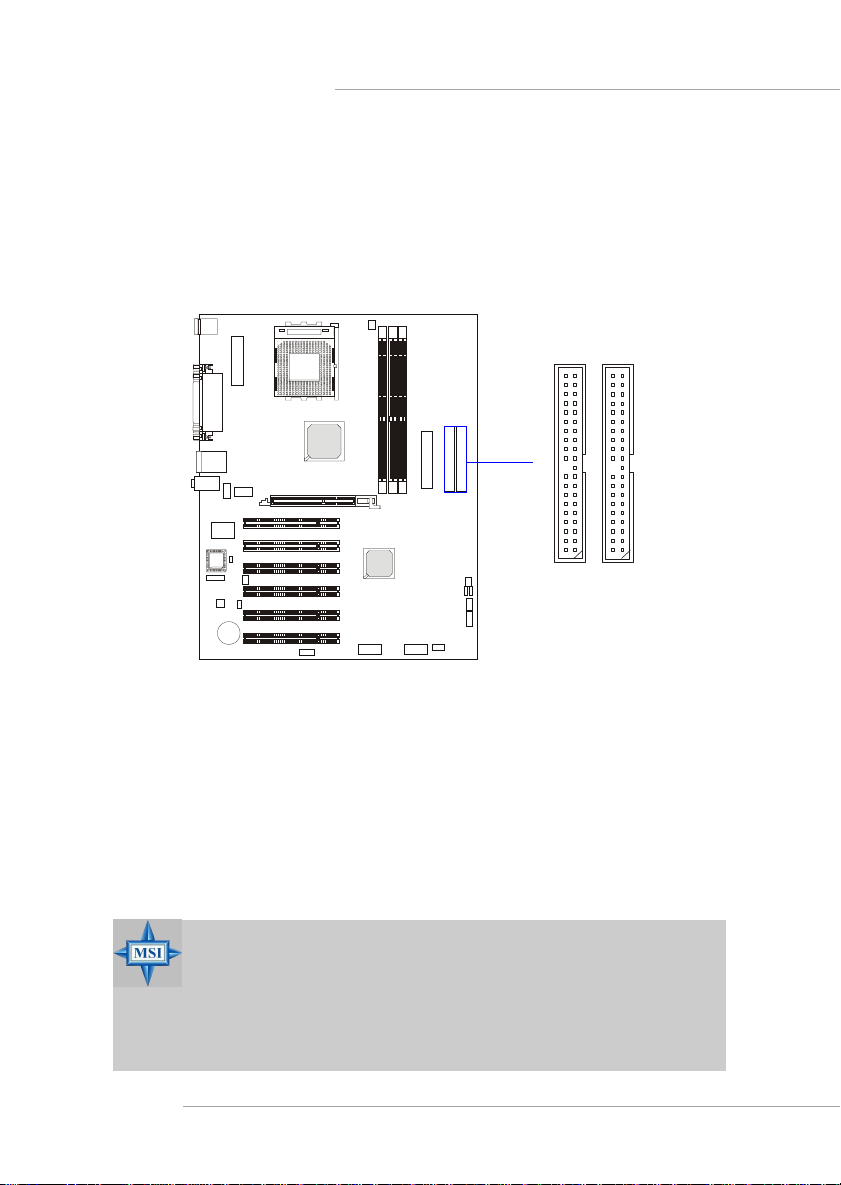

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/
133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/
100/133 function. Y ou can connect up to four hard disk drives, CD-ROM, 120MB
Floppy (reserved for future BIOS) and other devices.

IDE2IDE1

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can

connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

MSI Reminds Y ou...

If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
hard disk documentation supplied by hard disk vendors for
jumper setting instructions.

2-16

Hardware Setup

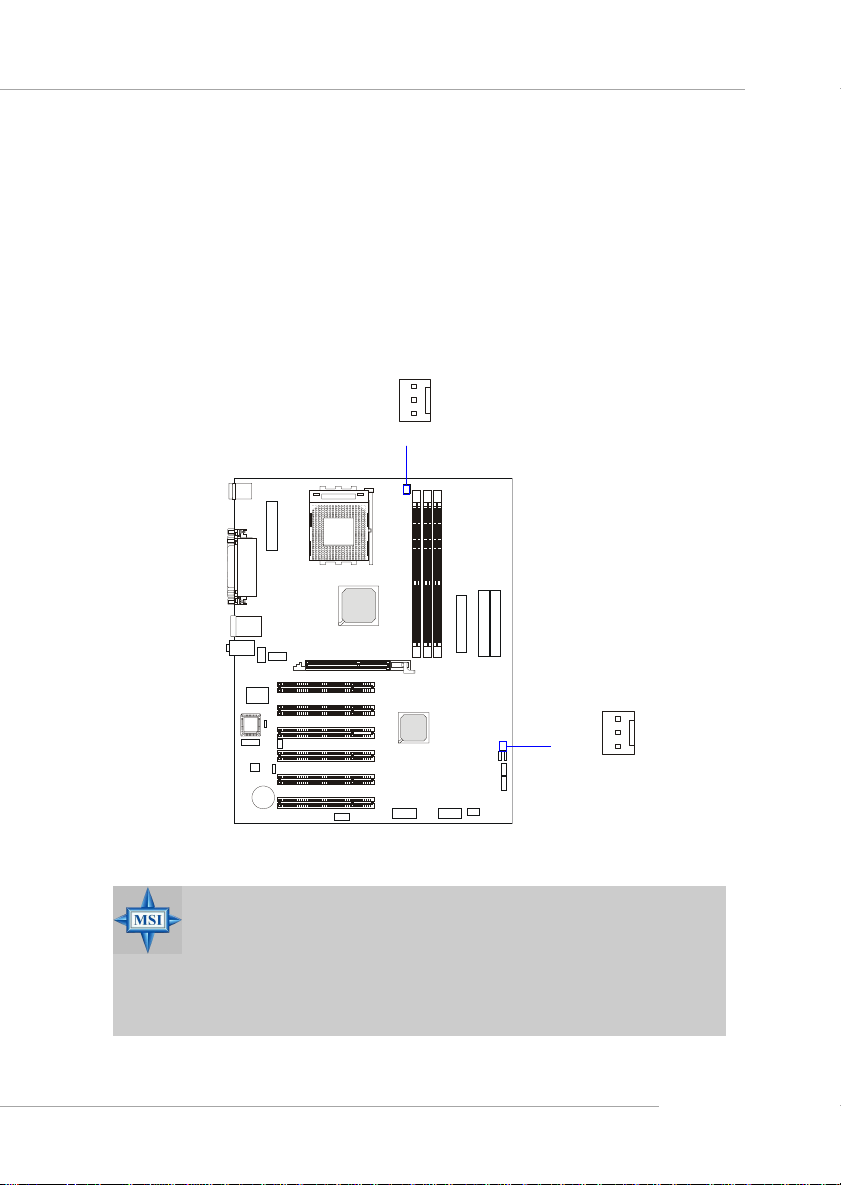

Fan Power Connectors: CF AN1/SF AN1

The CFAN1 (processor fan) and SFAN1 (system fan) support system
cooling fan with +12V. It supports three-pin head connector. When connecting
the wire to the connectors, always take note that the red wire is the positive
and should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.

SENSOR

+12V
GND

CFAN1

SENSOR

+12V
GND

SFAN1

MSI Reminds Y ou...

1. Always consult the vendors for proper CPU cooling fan.

2. CPUFAN supports the fan control. You can install the PC
Alert utility that will automatically control the CPU fan
speed according to the actual CPU temperature.

2-17

MS-6712 ATX Mainboard

Front Panel Connectors: JFP1 & JFP2

The mainboard provides two front panel connectors for electrical con­nection to the front panel switches and LEDs. JFP1 is compliant with Intel
Front Panel I/O Connectivity Design Guide.

7

8

®

BUZ

SPK

2

1

JFP2

10

-

PWSW

LED

­+

+

-

S
P

+

192

JFP1

JFP1 Pin Definition

PIN SIGNAL DESCRIPTION

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

PLED +
GND
GND

RST

HDD

2-18

JFP2 Pin Definition

PIN SIGNAL PIN SIGNAL

1 GND 2 SPK­3 GND 4 BUZ+

5 PLED+ 6 BUZ­7 NC 8 SPK+

Hardware Setup

Front Panel Audio Connector: JAUD1

The JAUD1 front panel audio connector allows you to connect to the
front panel audio and is compliant with Intel® Front Panel I/O Connectivity
Design Guide.

9

10

1

2

JAUD1

Pin Definition

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KE Y No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

MSI Reminds Y ou...

If you don’t want to connect to the front audio
header, pins 5 & 6, 9 & 10 have to be jumpered in

9

order to have signal output directed to the rear
audio ports. Otherwise, the Line-Out connector on
the back panel will not function.

5

6

10

2-19

MS-6712 ATX Mainboard

Front USB Connectors: JUSB1 & JUSB2

The mainboard provides two USB 2.0 pinheaders. They are compliant
with Intel® I/O Connectivity Design Guide.

2-20

JUSB1/2 Pin Definition

Pin Description Pin Description

1 VCC 2 VCC
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 USBOC

2 10

1

JUSB1/2

9

MSI Reminds Y ou...

The USB 2.0 technology is downward compatible with USB 1.1
spec. To use the USB 2.0 ports, you have to install the USB 2.0
driver, which is supplied by Microsoft for Windows® 2000 and
XP. If you have any problems regarding the USB 2.0 driver,
please visit the Microsoft Web site for more information.
For details on the bluetooth settings, please refer to PC2PC
Bluetooth Manual.

Hardware Setup

Bluetooth Connector: JBT1 (Optional)

This connector is used to connect a bluetooth module for wireless
connection.

7

1

8

2

JBT1

Pin Definition

PIN SIGNAL PIN SIGNAL

1 5VDUAL 2 3VDUAL
3 D+ (USB signal) 4 GND

5 D- (USB signal) 6 GND
7 GND 8 NC

MSI Reminds Y ou...

Because the bluetooth connector shares the USB interface with
the onboard USB pinheader, the bottommost USB port will not
function when you attach a bluetooth module to this connector.

2-21

MS-6712 ATX Mainboard

SPDIF Connector: JSP3

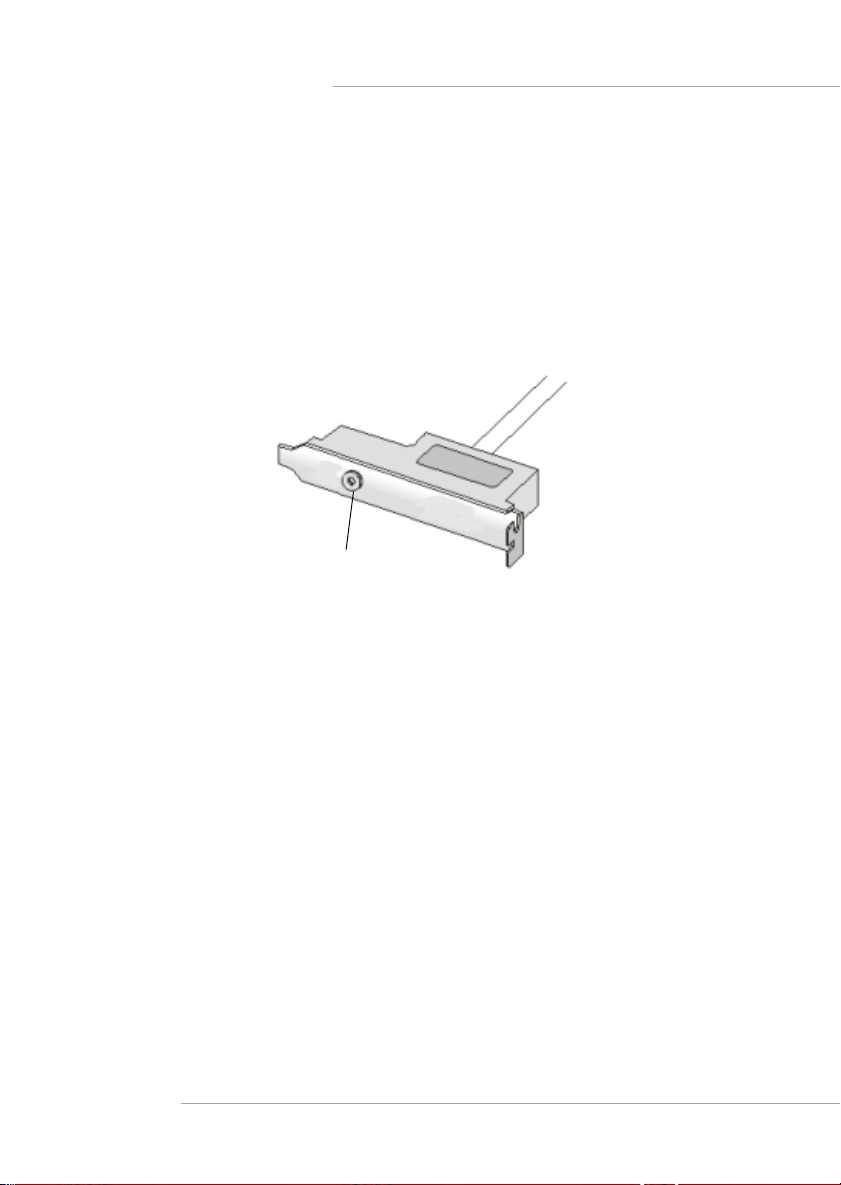

The connector allows you to connect a Sony & Philips Digital Interface
(SPDIF). The connector offers 1 SPDIF jack for digital audio transmission (for
coaxial).

The SPDIF jack supports SPDIF output only.

11

12

1

2

JSP3

JSP3 Pin Definition

PIN SIGNAL DESCRIPTION PIN SIGNAL DESCRIPTION

1 VCC5 VCC 5V 2 NC
3 SPDFO S/PDIF output 4 NC
5 GND Ground 6 NC
7NC 8NC
9NC 10NC
11 NC 12 NC

2-22

Hardware Setup

IrDA Infrared Module Header: JIR1

The connector allows you to connect to IrDA Infrared module. Y ou must
configure the setting through the BIOS setup to use the IR function. JIR1 is
compliant with Intel® Front Panel I/O Connectivity Design Guide.

JIR1 Pin Definition

Pin Signal

6 5

2 1

JIR1

1NC
2NC
3 VCC5
4 GND
5 IRTX
6 IRRX

Chassis Intrusion Switch Connector: JCI1

This connector is connected to a 2-pin chassis switch. If the chassis is
opened, the switch will be short. The system will record this status and show
a warning message on the screen. To clear the warning, you must enter the
BIOS utility and clear the record.

GND

CINTRU

2
1

JCI1

2-23

MS-6712 ATX Mainboard

CD-In Connector: JCD1

The connector is for CD-ROM audio connector.

R

GND

L

JCD1

2-24

Hardware Setup

Jumpers

The motherboard provides the following jumpers for you to set the
computer’s function. This section will explain how to change your motherboard’ s
function through the use of jumpers.

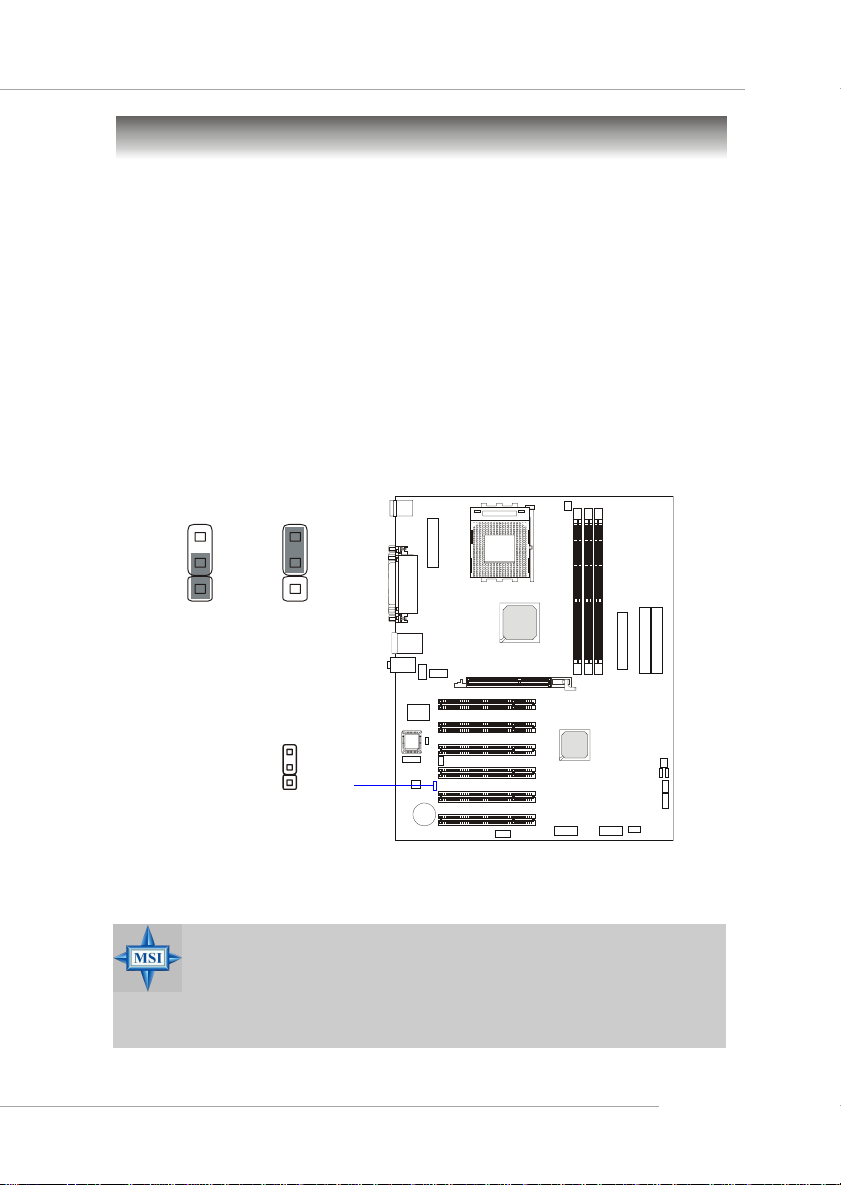

Clear CMOS Jumper: JBA T1

There is a CMOS RAM on board that has a power supply from external
battery to keep the data of system configuration. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. If you want to
clear the system configuration, use the JBA T1 (Clear CMOS Jumper ) to clear
data. Follow the instructions below to clear the data:

3

1

Keep Data

3

1

Clear Data

3

1

JBAT1

MSI Reminds Y ou...

Y ou can clear CMOS by shorting 2-3 pin while the system is off.
Then return to 1-2 pin position. A void clearing the CMOS while
the system is on; it will damage the mainboard.

2-25

MS-6712 ATX Mainboard

CPU Frequency Jumpers: SW1 & SW2

These jumpers allow you to set the CPU frequency.

CPU Frequency SW1 SW2

200MHz 2-3 1-2
266MHz 1-2 1-2
333MHz 1-2 2-3

3

1

SW1/2

2-26

Short PIN#1-2 Short PIN#2-3

Hardware Setup

Slots

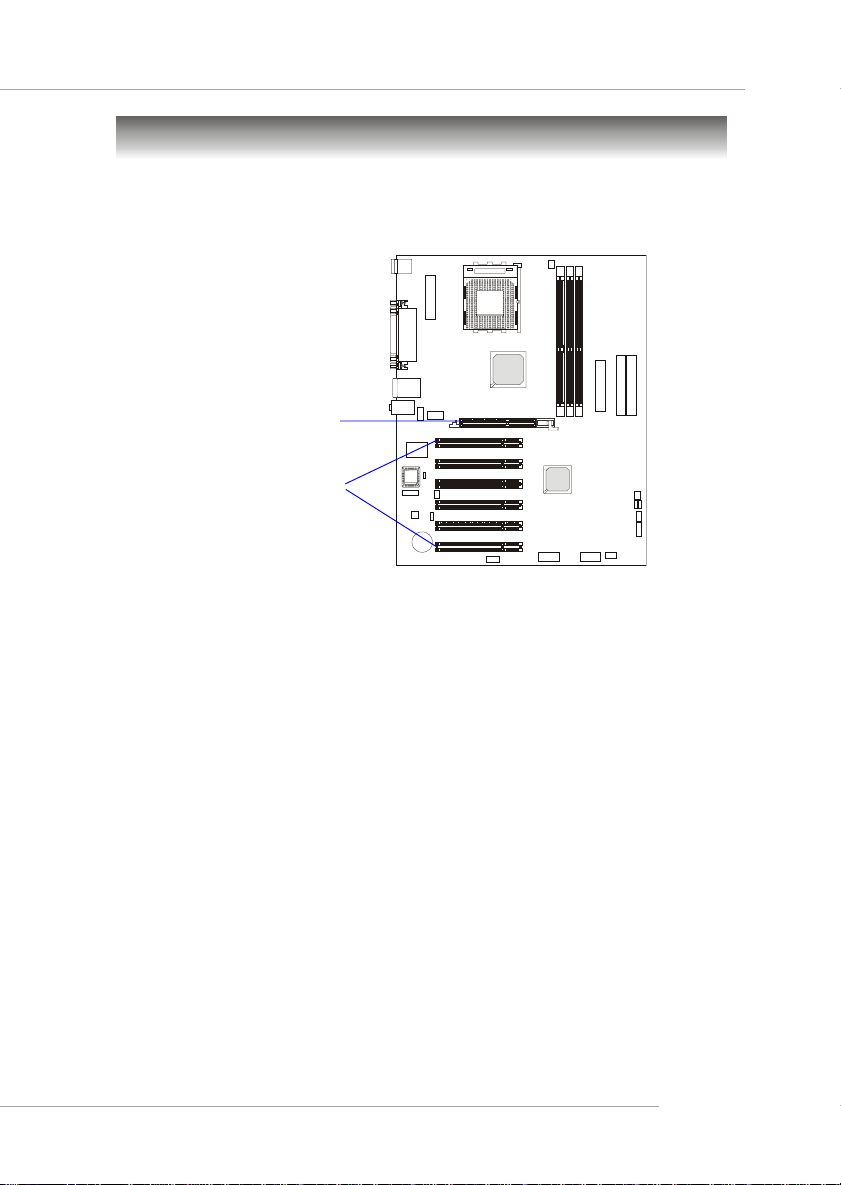

The motherboard provides one AGP slot and six 32-bit PCI bus slots.

AGP Slot

PCI Slots

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card. AGP is an
interface specification designed for the throughput demands of 3D graphics.
It introduces a 66MHz, 32-bit channel for the graphics controller to directly
access main memory. The mainboard supports 4x/8x 1.5V AGP card.

PCI (Peripheral Component Interconnect) Slots

The PCI slots allow you to insert the expansion cards to meet your needs.
When adding or removing expansion cards, make sure that you unplug the
power supply first. Meanwhile, read the documentation for the expansion card
to make any necessary hardware or software settings for the expansion card,
such as jumpers, switches or BIOS configuration.

2-27

MS-6712 ATX Mainboard

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are
hardware lines over which devices can send interrupt signals to the
microprocessor.

The PCI IRQ pins are typically connected to the PCI bus INT A# ~ INT
D# pins as follows:

Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#
PCI Slot 4 INT D# INT A# INT B# INT C#
PCI Slot 5 INT B# INT C# INT D# INT A#
PCI Slot 6 INT C# INT D# INT A# INT B#

2-28

BIOS Setup

Chapter 3. BIOS Setup

BIOS Setup

This chapter provides information on the BIOS Setup program
and allows you to configure the system for optimum use.
You may need to run the Setup program when:

 An error message appears on the screen during the system
booting up, and requests you to run SETUP.

 You want to change the default settings for customized
features.

3-1

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Entering Setup

Power on the computer and the system will start POST (Power On Self
T est) process. When the message below appears on the screen, press <DEL>
key to enter Setup.

Press <TAB> to switch to POST or <DEL> to run BIOS Setup

If the message disappears before you respond and you still wish to enter
Setup, restart the system by turning it OFF . You may also restart the system by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Selecting the First Boot Device

You are allowed to select the 1st boot device without entering the BIOS

setup utility by pressing <F11>. When the same message as listed above
appears on the screen, press <F11> to trigger the boot menu.

The POST messages might pass by too quickly for you to respond in

time. If so, restart the system and press <F11> after around 2 or 3 seconds to
activate the boot menu similar to the following.

Select First Boot Device

Floppy : 1st Floppy
IDE-0 : IBM-DTLA-307038
CDROM : ATAPI CD-ROM DRIVE 40X M

[Up/Dn] Select [RETURN] Boot [ESC] cancel

The boot menu will list all the bootable devices. Select the one you want

to boot from by using arrow keys and then pressing <Enter>. The system will
boot from the selected device. The selection will not make changes to the
settings in the BIOS setup utility, so next time when you power on the system,
it will still use the original first boot device to boot up.

3-2

Control Keys

BIOS Setup

< >
< >
< >

< >

<Enter>
<Esc>

<+/PU>
<-/PD>

<F1>

<F6>

<F7>
<F10>

Move to the previous item

Move to the next item

Move to the item on the left-hand side
Move to the item on the right-hand side

Select the item
Jumps to the Exit menu or returns to the main menu from a
submenu
Increase the numeric value or make changes

Decrease the numeric value or make changes

General help, only for Status Page Setup Menu and Option
Page Setup Menu

Load the default CMOS value from Fail-Safe default table, only

for Option Page Setup Menu

Load Optimized defaults
Save all the CMOS changes and exit

Getting Help

After entering the Setup utility, the first screen you see is the Main Menu.

Main Menu

The main menu displays the setup categories the BIOS supplies. You can use
the arrow keys ( ↑↓ ) to select the item. The on-line description for the selected
setup category is displayed at the bottom of the screen.

Default Settings

The BIOS setup program contains the BIOS Setup defaults. BIOS Setup de­faults provide stable performance settings for all devices and the system.

3-3

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

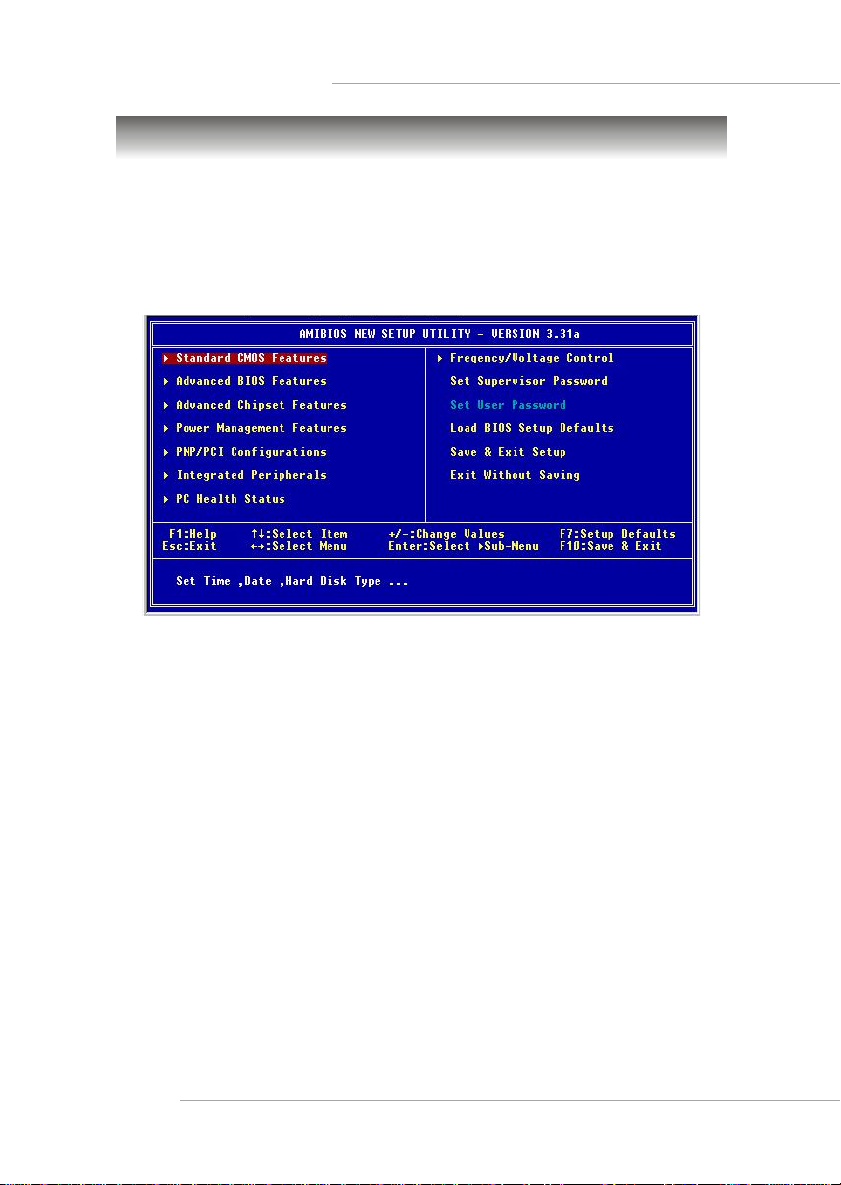

The Main Menu

Once you enter AMIBIOS NEW SETUP UTILITY, the Main Menu will appear
on the screen. The Main Menu displays twelve configurable functions and
two exit choices. Use arrow keys to move among the items and press <Enter>
to enter the sub-menu.

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of AMI® special enhanced features.

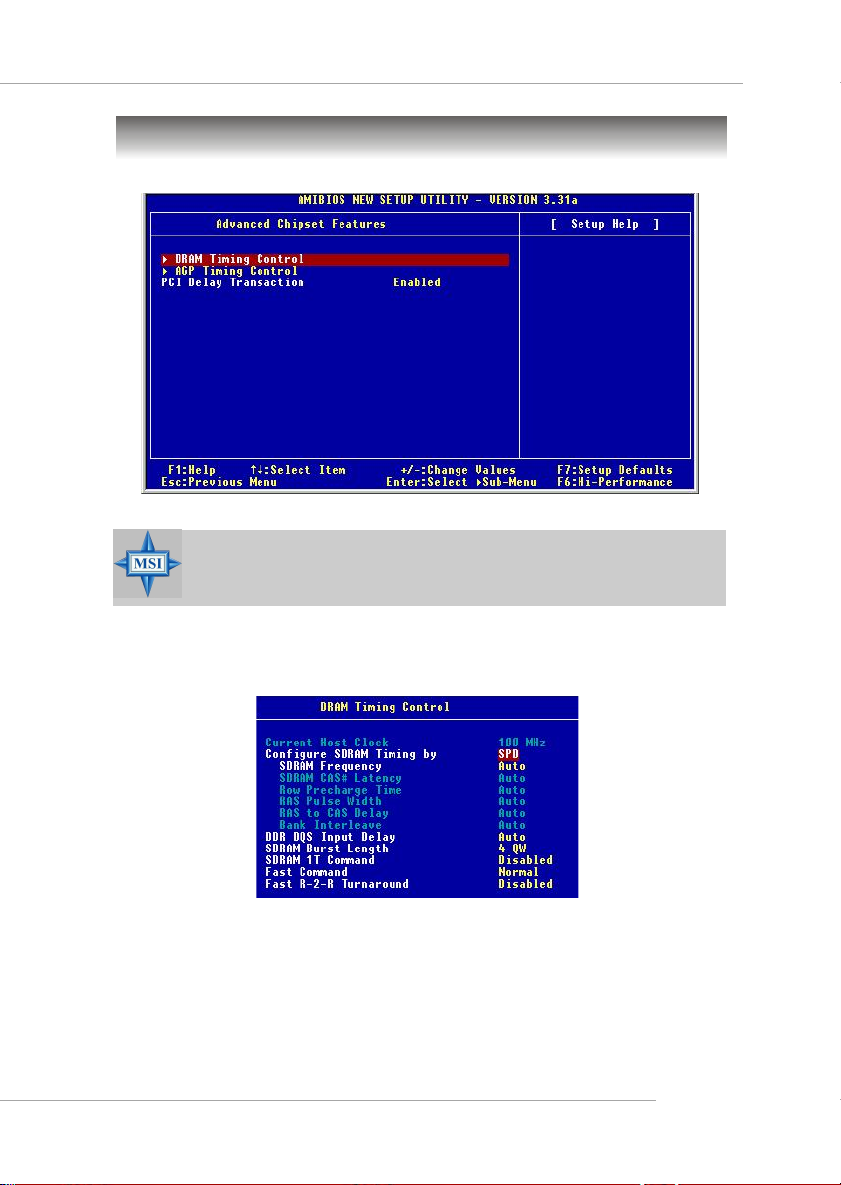

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your
system’s performance.

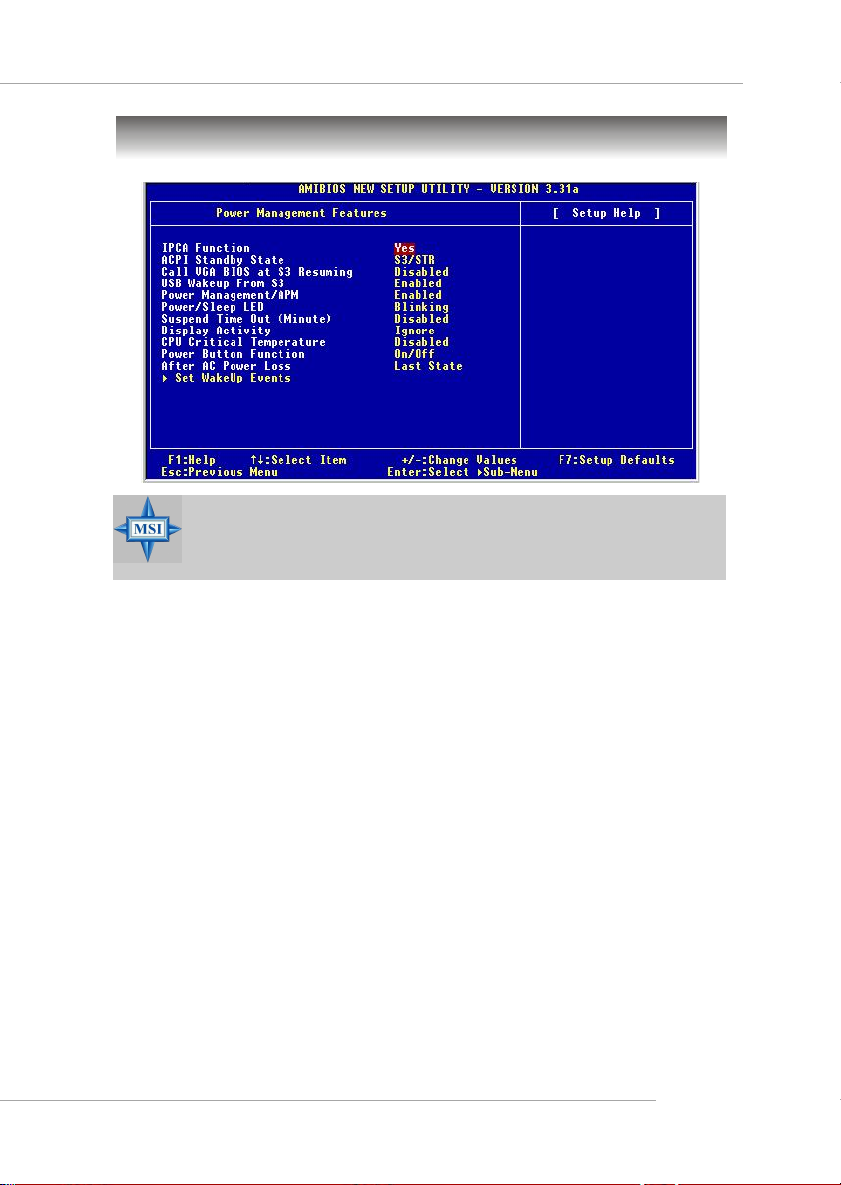

Power Management Features

Use this menu to specify your settings for power management.

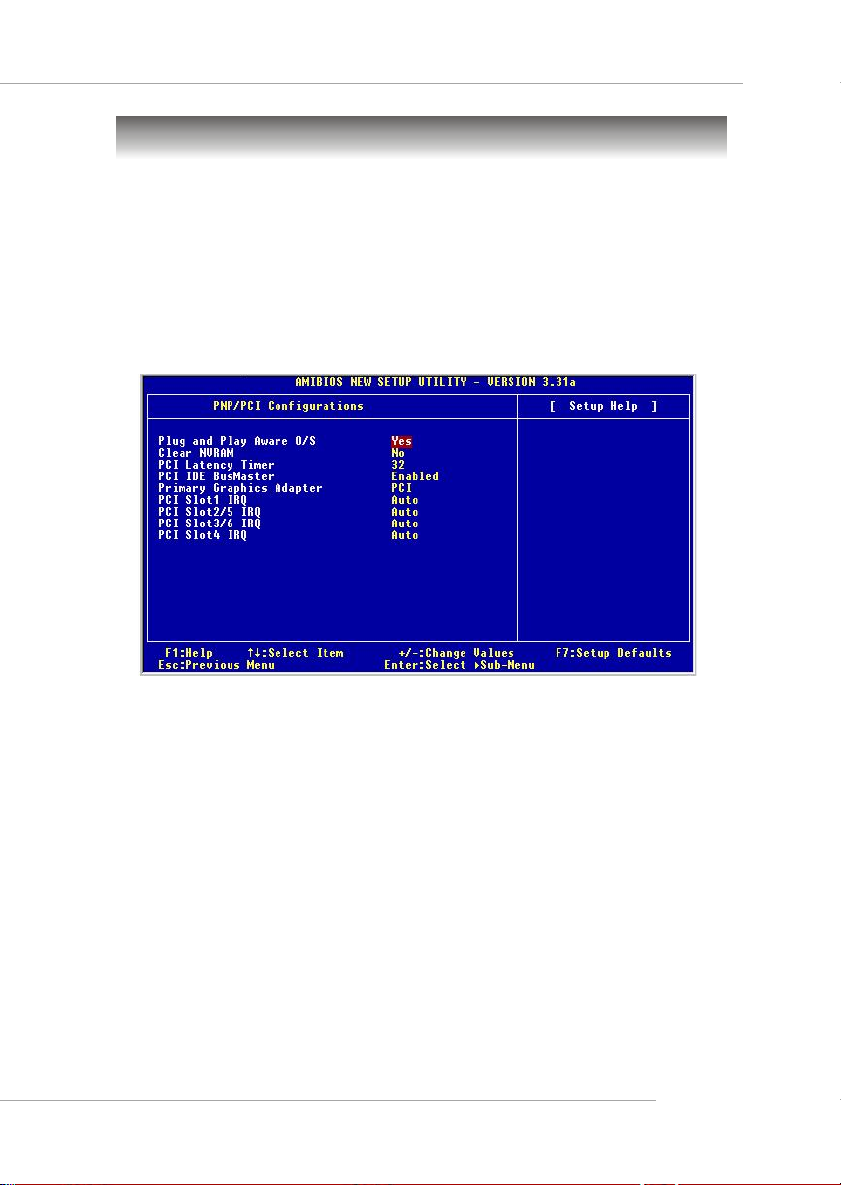

PNP/PCI Configurations

This entry appears if your system supports PnP/PCI.

3-4

BIOS Setup

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

PC Health Status

This entry shows your PC health status.

Frequency/V oltage Control

Use this menu to specify your settings for frequency/voltage control.

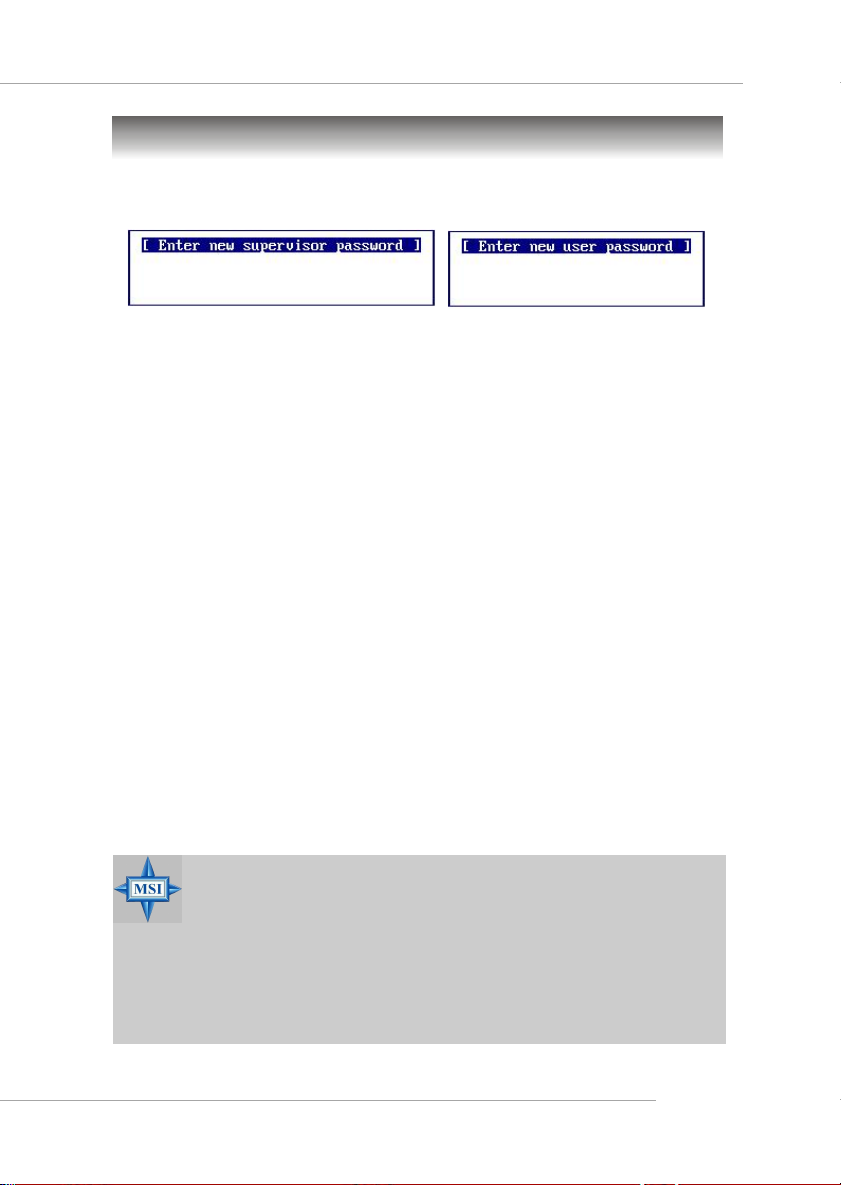

Set Supervisor Password

Use this menu to set Supervisor Password.

Set User Password

Use this menu to set User Password.

Load BIOS Setup Defaults

Use this menu to load factory default settings into the BIOS for stable system
performance operations.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

3-5

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Standard CMOS Features

The items inside STANDARD CMOS FEATURES menu are divided into 9
categories. Each category includes none, one or more setup items. Use the
arrow keys to highlight the item you want to modify and use the <PgUp> or
<PgDn> keys to switch to the value you prefer.

System Time

This allows you to set the system time that you want (usually the current time).
The time format is <hour> <minute> <second>.

System Date

This allows you to set the system to the date that you want (usually the current
date). The format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by

BIOS. Read-only.

month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric

function keys.

year The year can be adjusted by users.

Primary/Secondary IDE Master/Slave

Press PgUp/<+> or PgDn/<-> to select the hard disk drive type. The specifica-

3-6

BIOS Setup

tion of hard disk drive will show up on the right hand according to your selection.

Type Select how to define the HDD parameters
Cylinders Enter cylinder number
Heads Enter head number
Write Precompensation Enter write precomp cylinder
Sectors Enter sector number
Maximum Capacity Read the maximal HDD capacity
LBA Mode Select Auto for a hard disk > 512 MB un-

der W indows and DOS, or Disabled un-

der Netware and UNIX
Block Mode Select Auto to enhance the hard disk
performance
Fast Programmed I/OSelect Auto to enhance hard disk perfor­Modes mance by optimizing the hard disk

timing

32 Bit Transfer ModeEnable 32 bit to maximize the IDE hard

disk data transfer rate

Floppy Drive A:/B:

This item allows you to set the type of floppy drives installed. Available
options: Not Installed, 1.2 MB 5¼, 720 KB 3½, 1.44 MB 3½ and 2.88 MB 3½.

Boot Sector Virus Protection

The item is to set the Virus Warning feature for IDE Hard Disk boot sector
protection. When Enabled, BIOS will issue a virus warning message and beep
if a write to the boot sector or the partition table of the HDD is attempted.
Setting options: Disabled and Enabled.

MSI Reminds Y ou...

This feature only protects the boot sector, not the whole hard
disk.

3-7

Advanced BIOS Features

Quick Boot

Setting the item to Enabled allows the system to boot within 5 seconds since
it will skip some check items. Available options: Enabled, Disabled.

Full Screen Logo Show

This item enables you to show the company logo on the bootup screen. Set­tings are:

Enabled Shows a still image (logo) on the full screen at boot.
Disabled Shows the POST messages at boot.

Boot Sequency

Press <Enter> to enter the sub-menu screen.

1st/2nd/3rd Boot Device

The items allow you to set the sequence of boot devices where
AMIBIOS attempts to load the operating system. The settings are:

IDE-0 The system will boot from the first HDD.
IDE-1 The system will boot from the second HDD.

3-8

BIOS Setup

IDE-2 The system will boot from the third HDD.
IDE-3 The system will boot from the fourth HDD.
Floppy The system will boot from floppy drive.
ARMD-FDD The system will boot from any ARMD device, such as

LS-120 or ZIP drive, that functions as a floppy drive.

ARMD-HDD The system will boot from ARMD device, such as MO

or ZIP drive, that functions as hard disk drive.

CD/DVD The system will boot from the CD/DVD ROM.
Legacy SCSI The system will boot from the SCSI.
Legacy NET - The system will boot from the Network drive.
WORK
BBS-0 The system will boot from the first BBS (BIOS Boot

Specification) compliant device.

BBS-1 The system will boot from the second BBS (BIOS Boot

Specification) compliant device.

BBS-2 The system will boot from the third BBS (BIOS Boot

Specification) compliant device.

BBS-3 The system will boot from the 4th BBS (BIOS Boot

Specification) compliant device.

BBS-4 The system will boot from the 5th BBS (BIOS Boot

Specification) compliant device.

BBS-5 The system will boot from the 6th BBS (BIOS Boot

Specification) compliant device.

BBS-6 The system will boot from the 7th BBS (BIOS Boot

Specification) compliant device.

BBS-7 The system will boot from the 8th BBS (BIOS Boot

Specification) compliant device.

BBS-8 The system will boot from the 9th BBS (BIOS Boot

Specification) compliant device.

BBS-9 The system will boot from the 10th BBS (BIOS Boot

Specification) compliant device.

USB FDD The system will boot from USB-interfaced floppy drive.
USB CDROM The system will boot from the USB-interfaced CD-ROM.
USB HDD The system will boot from the USB-interfaced HDD.
USB RMD- The system will boot from any USB-interfaced ARMD
FDD device, such as LS-120 or ZIP drive, that functions as a

floppy drive.

3-9

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

USB RMD- The system will boot from USB-interfaced ARMD

HDD device, such as MO or ZIP drive, that functions as hard

disk drive.

Disabled Disable this sequence.

MSI Reminds Y ou...

1. Available settings for “1st/2nd/3rd Boot Device” vary de­pending on the bootable devices you have installed. For
example, if you did not install a floppy drive, the setting
“Floppy” does not show up.

2. If you want to boot from any of the USB-interfaced devices,
please set USB Legacy Support to All Device.

T ry Other Boot Devices

Setting the option to Yes allows the system to try to boot from other
devices if the system fails to boot from the 1st/2nd/3rd boot device.

S.M.A.R.T . for Hard Disks

This allows you to activate the S.M.A.R.T. (Self-Monitoring Analysis & Re­porting Technology) capability for the hard disks. S.M.A.R.T is a utility that
monitors your disk status to predict hard disk failure. This gives you an oppor­tunity to move data from a hard disk that is going to fail to a safe place before
the hard disk becomes offline. Settings: Enabled, Disabled.

BootUp Num-Lock

This item is to set the Num Lock status when the system is powered on. Setting
to On will turn on the Num Lock key when the system is powered on. Setting to
Off will allow end users to use the arrow keys on the numeric keypad. Setting
options: On, Off.

Floppy Drive Swap

Setting to Enabled will swap floppy drives A: and B:.

Floppy Drive Seek

This setting causes the BIOS to search for floppy disk drives at boot time.
When enabled, the BIOS will activate the floppy disk drives during the boot
process: the drive activity light will come on and the head will move back and
forth once. First A: will be done and then B: if it exists. Setting options: Disabled,
Enabled.

3-10

BIOS Setup

Primary Display

This configures the primary subsystem in the computer. Available options:
Mono (monochrome), CGA40x25, CGA80x25, VGA/EGA, Absent.

Password Check

This specifies the type of AMIBIOS password protection that is implemented.
Setting options are described below.

Option Description

Setup The password prompt appears only when end users try to

run Setup.

Always A password prompt appears every time when the com-

puter is powered on or when end users try to run Setup.

Boot T o OS/2

This allows you to run the OS/2® operating system with DRAM larger than
64MB. When you choose No, you cannot run the OS/2® operating system
with DRAM larger than 64MB. But it is possible if you choose Yes.

Internal Cache

Cache memory is additional memory that is much faster than conventional
DRAM (system memory). When the CPU requests data, the system transfers
the requested data from the main DRAM into cache memory, for even faster
access by the CPU. The setting controls the internal cache (also known as L1
or level 1 cache). Setting to Enabled will speed up the system performance.

System BIOS Cacheable

Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. Setting options: Enabled, Disabled.

C000, 32k Shadow

This item specifies how the contents of the adapter ROM named in the item are
handled. Settings are described below:

3-11

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Option Description

Disabled The specified ROM is not copied to RAM.
Enabled The contents of specified ROM are copied to RAM

for faster system performance.

Cached The contents of specified ROM are not only copied

to RAM, the contents of the ROM area can be writ­ten to and read from cache memory .

APIC Function

This field is used to enable or disable the APIC (Advanced Programmable
Interrupt Controller). Due to compliance to PC2001 design guide, the system is
able to run in APIC mode. Enabling APIC mode will expand available IRQs
resources for the system. Settings: Enabled, Disabled.

MPS T able V ersion

This field allows you to select which MPS (Multi-Processor Specification)
version to be used for the operating system. You need to select the MPS
version supported by your operating system. T o find out which version to use,
consult the vendor of your operating system. Settings: 1.4, 1.1.

3-12

BIOS Setup

Advanced Chipset Features

MSI Reminds Y ou...

Change these settings only if you are familiar with the chipset.

DRAM Timing Control

Press <Enter> and the following sub-menu appears.

Current Host Clock

This item shows the current CPU frequency.

Configure SDRAM Timing by

Selects whether DRAM timing is controlled by the SPD (Serial Presence
Detect) EEPROM on the DRAM module. Setting to SPD enables SDRAM

3-13

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Frequency, SDRAM CAS# Latency, Row Precharge Time, RAS Pulse
Width, RAS to CAS Delay and SDRAM Bank Interleave automatically to
be determined by BIOS based on the configurations on the SPD. Selecting
User allows users to configure these fields manually.

SDRAM Frequency

Use this item to configure the clock frequency of the installed SDRAM.
Settings options: 200MHz, 266MHz, 333MHz, 400MHz*, Auto.
*See Glossary: Recommended DDR400 Modules for details.

SDRAM CAS# Latency

This controls the timing delay (in clock cycles) before SDRAM starts
a read command after receiving it. Settings: Auto, 1.5, 2, 2.5, 3 (clocks).

1.5 (clocks) increases the system performance the most while 3 (clocks)
provides the most stable performance.

Row Precharge Time

This item controls the number of cycles for Row Address S trobe (RAS)
to be allowed to precharge. If insufficient time is allowed for the RAS
to accumulate its charge before DRAM refresh, refresh may be incom­plete and DRAM may fail to retain data. This item applies only when
synchronous DRAM is installed in the system. Available settings: 2T,
3T.

3-14

RAS Pulse Width

This setting allows you to select the number of clock cycles allotted
for the RAS pulse width, according to DRAM specifications. The less
the clock cycles, the faster the DRAM performance. Settings: 6T, 5T.

RAS to CAS Delay

When DRAM is refreshed, both rows and columns are addressed
separately. This setup item allows you to determine the timing of the
transition from RAS (row address strobe) to CAS (column address
strobe). The less the clock cycles, the faster the DRAM performance.
Setting options: 3T, 2T.

Bank Interleave

This field selects 2-bank or 4-bank interleave for the installed SDRAM.
Disable the function if 16MB SDRAM is installed. Settings: Disabled,
2-Way and 4-Way.

BIOS Setup

DDR DQS Input Delay

This setting allows you to set the delay time of DQS to improve the setup
time and hold time of the data, and improve the stability. Setting options:

Auto, 18, 08, 0E, 0F.

SDRAM Burst Length

This setting allows you to set the size of Burst-Length for DRAM. Burst­ing feature is a technique that DRAM itself predicts the address of the
next memory location to be accessed after the first address is accessed.
T o use the feature, you need to define the burst length, which is the actual
length of burst plus the starting address and allows internal address
counter to properly generate the next memory location. The bigger the
size, the faster the DRAM performance. Settings: 4 QW, 8 QW.

SDRAM 1T Command

This setting controls the SDRAM command rate. Selecting Enabled
allows SDRAM signal controller to run at 1T (T=clock cycles) rate. Se­lecting Disabled makes SDRAM signal controller run at 2T rate. 1T is
faster than 2T. Setting options: Disabled, Enabled.

Fast Command

This item controls the internal timing of CPU. Selecting Ultra allows CPU
to handle data/instructions at the fastest speed. Fast enables CPU to
handle at a faster speed, while Normal let CPU handle them at the slowest
rate.

Fast R-2-R T urnaround

Burst read operation can be interrupted by new read of any bank.
Random column access is allowed. READ to READ interval is minimum 1
CLK. Selecting Enabled to shorten the turnaround interval to improve
the performance. Setting options: Disabled, Enabled.

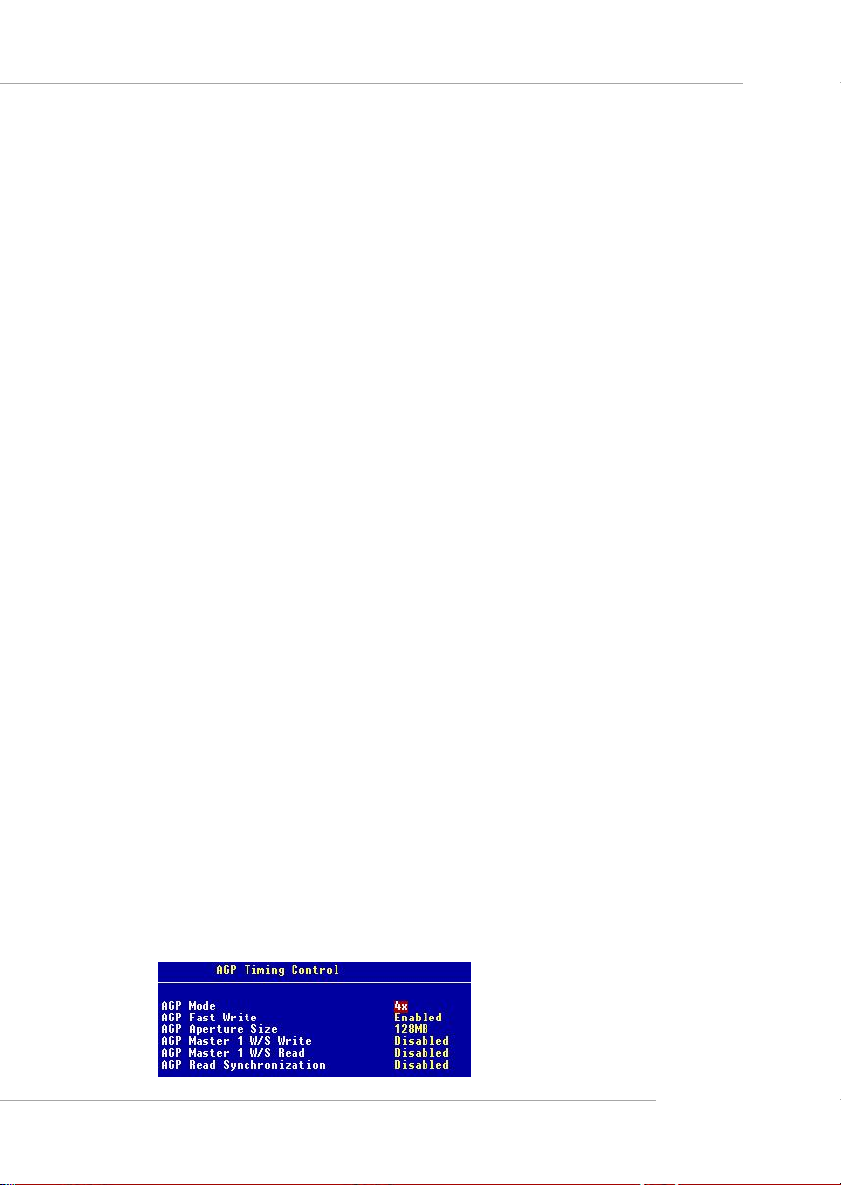

AGP Timing Control

Press <Enter> and the following sub-menu appears.

3-15

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

AGP Mode

The item sets an appropriate mode for the installed AGP card. Setting
options: 1x, 2x, 4x, Auto. Select 4x only if your AGP card supports it.

AGP Fast Write

This option enables or disables the AGP Fast Write feature. The Fast
Write technology allows the CPU to write directly to the graphics card
without passing anything through the system memory and improves
the AGP 4X speed. Select Enabled only when the installed AGP card
supports this function. Settings: Enabled, Disabled.

AGP Apertur e Size

This setting controls just how much system RAM can be allocated to
AGP for video purposes. The aperture is a portion of the PCI memory
address range dedicated to graphics memory address space. Host
cycles that hit the aperture range are forwarded to the AGP without
any translation. The option allows the selection of an aperture size of

4MB, 8MB, 16MB, 32MB, 64MB, 128MB, and 256 MB.

AGP Master 1 W/S Write

The field allows users to insert one wait state into the AGP write cycle.
Settings: Enabled, Disabled.

AGP Master 1 W/S Read

The field allows users to insert one wait state into the AGP read cycle.
Settings: Enabled, Disabled.

AGP Read Synchronization

The field allows you to enable or disable the AGP Read Synchroniza­tion feature. Settings: Enabled, Disabled.

PCI Delay T ransaction

The chipset has an embedded 32-bit posted write buffer to support delayed
transactions cycles so that transactions to and from the ISA bus are buffered
and PCI bus can perform other transactions while the ISA transaction is
underway. Select Enabled to support compliance with PCI specification ver ­sion 2.1. Setting options: Enabled, Disabled.

3-16

BIOS Setup

Power Management Features

MSI Reminds Y ou...

S3-related functions described in this section are available
only when your BIOS supports S3 sleep mode.

IPCA Function

This item is to activate the ACPI (Advanced Configuration and Power Man­agement Interface) function. If your operating system is ACPI-aware, such as
Windows 98SE/2000/ME, select Yes. Available options: Yes, No.

ACPI Standby S tate

This item secifies the power saving modes for ACPI function. If your operating
system supports ACPI, such as Windows 98SE, Windows ME and Windows
2000, you can choose to enter the Standby mode in S1(POS) or S3(STR) fashion
through the setting of this field. Options are:

S1/POS The S1 sleep mode is a low power state. In this state, no

system context is lost (CPU or chipset) and hardware main­tains all system context.

S3/STR The S3 sleep mode is a lower power state where the in

formation of system configuration and open applications/
files is saved to main memory that remains powered while
most other hardware components turn off to save energy.
The information stored in memory will be used to restore
the system when a “wake up” event occurs.

Auto BIOS determines the best ode automatically.

3-17

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Call VGA BIOS at S3 Resuming

Selecting Enabled allows BIOS to call VGA BIOS to initialize the VGA card
when system wakes up (resumes) from S3 sleep state. The system resume time
is shortened when you disable the function, but system will need an AGP
driver to initialize the VGA card. Therefore, if the AGP driver of the card does
not support the initialization feature, the display may work abnormally or not
function after resuming from S3.

USB Wakeup From S3

This item allows the activity of the USB device to wake up the system from S3
(Suspend to RAM) sleep state. Settings: Enabled, Disabled.

Power Management/APM

Setting to Enabled will activate an Advanced Power Management (APM) device
to enhance Max Saving mode and stop CPU internal clock. Settings: Disabled,
Enabled.

Power/Sleep LED

This item configures how the system uses power LED on the case to indicate
the sleep/suspend state. Available options are:

Single LED The power LED turns off to indicate the sleep/suspend

state.

Dual LED The power LED changes its color to indicate the sleep/

suspend state.

Suspend Time Out (Minute)

After the selected period of system inactivity, all devices except the CPU shut
off. Settings: Disabled, 1, 2, 4, 8, 10, 20, 30, 40, 50, 60.

Display Activity

These items specify if the BIOS will monitor the activity of the specified hardware
peripheral or component. If set to Monitor, any activity detected on the specified
hardware peripheral or component will wake up the system or prevent the
system from entering the power saving modes. Settings: Monitor, Ignore.

CPU Critical T emperature

If the CPU temperature reaches the upper limit preset in this setting, the warn­ing mechanism will be activated. This helps you to prevent the CPU overheat­ing problem.

3-18

BIOS Setup

Power Button Function

This feature sets the function of the power button. Settings are:

On/Off The power button functions as normal power off button.
Suspend When you press the power button, the computer enters

the suspend/sleep mode, but if the button is pressed for
more than four seconds, the computer is turned off.

After AC Power Loss

This setting specifies whether your system will reboot after a power failure or
interrupt occurs. Available settings are:

Power Off Leaves the computer in the power off state.
Power On Leaves the computer in the power on state.
Last State Restores the system to the previous status before power

failure or interrupt occurred.

Set WakeUp Events

Press <Enter> and the following sub-menu appears.

Wake Up On Ring

For this feature to take effect, you need to install a modem card support­ing power on function first. When set to Enabled, activity or input signal
of the modem will awake the system from S3 (Suspend to RAM) sleep
state. Settings: Disabled, Enabled.

Wake Up On PME

When set to Enabled, the feature allows your system to be awakened
from the power saving modes through any event on PME (Power Man­agement Event). Settings: Enabled, Disabled.

Resume On KBC

This item allows the activity of the keyboard to wake up the system from

3-19

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

S3 (Suspend to RAM) sleep state. Settings: Disabled, Any Key, Spe­cific Key.

Wake-Up Key

This setting allows users to set a wake-up key to recall the system
from power saving state. Options: Any Key, Specific Key.

Wake-Up Password

This setting allows users to set a password (max. 5 letters) to wake
up the system.

Resume On PS/2 Mouse

This item allows the activity of the mouse to wake up the system from S3
(Suspend to RAM) sleep state. Settings: Disabled, (double-click) Left-
button, (double-click) Right-button.

Resume By Alarm

This is used to enable or disable the feature of booting up the system on
a scheduled time/date from the soft off (S5) state. Settings: Enabled,
Disabled.
Alarm Date/Hour/Minute/Second
If Resume By Alarm is set to Enabled, the system will automatically
resume (boot up) on a specific date/hour/minute/second specified in
these fields. Available settings for each item are:

Alarm Date 01 ~ 31, Every Day
Alarm Hour 00 ~ 23
Alarm Minute00 ~ 59
Alarm Second00 ~ 59

3-20

MSI Reminds Y ou...

If you have changed this setting, you must let the system boot up
until it enters the operating system, before this function will work.

BIOS Setup

PNP/PCI Configurations

This section describes configuring the PCI bus system and PnP (Plug & Play)
feature. PCI, or Peripheral Component Interconnect, is a system which allows
I/O devices to operate at speeds nearing the speed the CPU itself uses when
communicating with its special components. This section covers some very
technical items and it is strongly recommended that only experienced users
should make any changes to the default settings.

Plug and Play A war e O/S

When set to Yes, BIOS will only initialize the PnP cards used for booting (VGA,
IDE, SCSI). The rest of the cards will be initialized by the PnP operating system
like Windows® 98, 2000 or ME. When set to No, BIOS will initialize all the PnP
cards. Select Yes if the operating system is Plug & Play.

Clear NVRAM

The ESCD (Extended System Configuration Data) NVRAM (Non-volatile
Random Access Memory) is where the BIOS stores resource information for
both PNP and non-PNP devices in a bit string format. When the item is set to
Yes, the system will reset ESCD NVRAM right after the system is booted up
and then set the setting of the item back to No automatically.

3-21

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

PCI Latency Timer

This item controls how long each PCI device can hold the bus before another
takes over. When set to higher values, every PCI device can conduct transac­tions for a longer time and thus improve the effective PCI bandwidth. For better
PCI performance, you should set the item to higher values. Settings range from
32 to 248 at a 32 increment.

PCI IDE BusMaster

Set this option to Enabled to specify that the IDE controller on the PCI local
bus has bus mastering capability. Settings options: Disabled, Enabled.

Primary Graphics Adaptor

This setting specifies which VGA card is your primary graphics adapter. Set­ting options: PCI, AGP.

PCI Slot1 IRQ, PCI Slot2/5 IRQ, PCI Slot3/6 IRQ, PCI Slot4 IRQ

These items specify the IRQ line for each PCI slot. Setting options: 3, 4, 5, 7, 9,
10, 11, Auto. Selecting Auto allows BIOS to automatically determine the IRQ

line for each PCI slot.

3-22

BIOS Setup

Integrated Peripherals

Floppy Disk Controller

This is used to enable or disable the onboard Floppy controller.

Option Description

Auto BIOS will automatically determine whether to enable the

onboard Floppy controller or not.

Enabled Enables the onboard Floppy controller.
Disabled Disables the onboard Floppy controller.

Serial Port 1/2

These items specify the base I/O port addresses of the onboard Serial Port 1
(COM A)/Serial Port 2 (COM B). Selecting Auto allows AMIBIOS to automati­cally determine the correct base I/O port address. Settings: Auto, 3F8/COM1,
2F8/COM2, 3E8/COM3, 2E8/COM4 and Disabled.

Serial Port2 Mode

This item sets the operation mode for Serial Port 2. Settings: Normal,

1.6 uS, 3/16 Baud and ASKIR (the last three operation modes are setting

options for IR function).

3-23

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

IR Pin Select

Set to IRRX/IRTX when using an internal IR module connected to the IR
header. Set to SINB/SOUTB. when connecting an IR adapter to COM B.

Parallel Port

This field specifies the base I/O port address of the onboard parallel port.
Selecting Auto allows AMIBIOS to automatically determine the correct base
I/O port address. Settings: Auto, 378, 278, Disabled.

Port Mode

This item selects the operation mode for the onboard parallel port: ECP,
Normal, Bi-Dir or EPP.

EPP Version

The item selects the EPP version used by the parallel port if the port is set
to EPP mode. Settings: 1.7, 1.9.

Port IRQ

When OnBoard Parallel Port is set to Auto, the item shows Auto indicat­ing that BIOS determines the IRQ for the parallel port automatically .

Port DMA

This feature needs to be configured only when Parallel Port Mode is set
to the ECP mode. When Parallel Port is set to Auto, the field will show
Auto indicating that BIOS automatically determines the DMA channel for
the parallel port.

OnChip IDE Controller

This setting controls the onboard IDE controller. Setting options: Disabled,
Primary, Secondary , Both.

OnBoard LAN

This setting controls the onboard LAN controller. Setting options: Disabled,
Enabled.

OnBoard LAN P .M.E.

This feature allows the onboard LAN to be awakened from the power
saving modes through any event on PME (Power Management Event).
Setting options: Disabled, Enabled.

3-24

BIOS Setup

AC’97 Audio

Auto allows the mainboard to detect whether an audio device is used. If an
audio device is detected, the onboard AC’97 (Audio Codec’97) controller will
be enabled; if not, it is disabled. Disable the controller if you want to use other
controller cards to connect an audio device. Settings: Auto, Disabled.

MC’97 Modem

Auto allows the mainboard to detect whether a modem is used. If a modem is
detected, the onboard AC’97 modem controller will be enabled; if not, it is
disabled. Disable the controller if you want to use other controller cards to
connect a modem. Settings: Auto, Disabled.

OnChip USB Controller

This setting is used to enable/disable the onboard USB ports. Setting options:

Disabled, 2 USB Ports, 4 USB Ports, 6 USB Ports.

USB Legacy Support

Set to All Device if you need to use any USB device in the operating
system that does not support or have any USB driver installed, such as
DOS and SCO Unix. Set to No Mice only if you want to use any USB
device other than the USB mouse.

Port 64/60 Emulation

This field controls the USB Port 64/60 Emulation function. When the
function is enabled, the USB keyboard is allowed to type some special
combination keys. Setting options: Disabled, Enabled.

3-25

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

PC Health Status

This section shows the status of your CPU, fan, overall system status, etc.
Monitor function is available only if there is hardware monitoring mechanism
onboard.

Chassis Intrusion

The field enables or disables the feature of recording the chassis intrusion
status and issuing a warning message if the chassis is once opened. To clear
the warning message, set the field to Reset. The setting of the field will auto­matically return to Enabled later. Settings: Enabled, Reset , Disabled.

CPU Fan Detection

When enabled, the system will automatically monitor the CPU fan during boot­up. If it detects that the CPU fan is not rotating, the system will show an error
message on the screen and halt the boot-up process. The function is built
with CPU fan power connector (CF AN1) only and enables you to protect the
CPU form possible overheating problem. If you don’t connect the CPU fan to
the CPU fan power connector, we recommend that you disable the feature.
Settings: Enabled, Disabled.

CPU/System T emperature, CPU/System Fan Speed, Vcore, +5.0V ,
+12.0V , -12.0V, -5.0V , Battery , +5V SB

These items display the current status of all of the monitored hardware de­vices/components such as CPU voltages, temperatures and all fans’ speeds.

3-26

BIOS Setup

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Spread Spectrum

When the motherboard’s clock generator pulses, the extreme values (spikes)
of the pulses creates EMI (Electromagnetic Interference). The Spread Spec­trum function reduces the EMI generated by modulating the pulses so that the
spikes of the pulses are reduced to flatter curves. If you do not have any EMI
problem, leave the setting at Disabled for optimal system stability and
performance. But if you are plagued by EMI, select one of the options for EMI
reduction. Remember to disable Spread Spectrum if you are overclocking
because even a slight jitter can introduce a temporary boost in clockspeed
which may just cause your overclocked processor to lock up. Available options:

Enabled, Disabled.

CPU FSB Clock

This item allows you to select the CPU Front Side Bus clock frequency (in
MHz) and overclock the processor by adjusting the FSB clock to a higher
frequency. First set SW1 and SW2 to the selected CPU frequency and then
select the overclocking frequency accordingly. Options are:

CPU FSB 100MHz Overclocking 100~167MHz
CPU FSB 133MHz Overclocking 133~200MHz
CPU FSB 166MHz Overclocking 166~233MHz

3-27

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

CPU Ratio/Vcore (V)

The settings are used to adjust the CPU clock multiplier (ratio) and CPU
corevoltage (Vcore). These settings offer users a tool to overclock the system.

MSI Reminds Y ou...

Changing CPU Ratio/Vcore could result in the instability of the
system; therefore, it is NOT recommended to change the default
setting for long-term usage.

DDR V oltage (V)

Adjusting the DDR voltage can increase the DDR speed. Any changes made
to this setting may cause a stability issue, so changing the DDR voltage for
long-term purpose is NOT recommended.

T ermination Vol (V)

The settings are used to adjust the termination voltage. Setting options: Auto,

1.27, 1.29.

AGP V oltage (V)

AGP voltage is adjustable in the field, allowing you to increase the perfor­mance of your AGP display card when overclocking, but the stability may be
affected. Setting options: Auto, 1.6, 1.7, 1.8.

3-28

BIOS Setup

Set Supervisor/User Password

When you select this function, a message as below will appear on the screen:

Type the password, up to six characters in length, and press <Enter>. The
password typed now will replace any previously set password from CMOS
memory. You will be prompted to confirm the password. Retype the password
and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.

T o clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled.
Once the password is disabled, the system will boot and you can enter Setup
without entering any password.

When a password has been set, you will be prompted to enter it every time you
try to enter Setup. This prevents an unauthorized person from changing any
part of your system configuration.

Additionally, when a password is enabled, you can also have AMIBIOS to
request a password each time the system is booted. This would prevent unau­thorized use of your computer. The setting to determine when the password
prompt is required is the P ASSWORD CHECK option of the ADVANCED BIOS
FEATURES menu. If the PASSWORD CHECK option is set to Always, the
password is required both at boot and at entry to Setup. If set to Setup, pass­word prompt only occurs when you try to enter Setup.

MSI Reminds Y ou...

About Supervisor Password & User Password:

Supervisor password: Can enter and change the settings of

the setup menu.

User password: Can only enter but do not have the

right to change the settings of the setup

menu.

3-29

KT3 Ultra2-C ATX Mainboard

MS-6712 ATX Mainboard

Load BIOS Setup Defaults

This option on the main menu allows users to restore all of the BIOS settings to
BIOS Setup defaults. The BIOS Setup Defaults are the default values preset by
the mainboard manufacturer for stable performance of the mainboard.

When you select Load BIOS Setup Defaults, a message as below appears:

Pressing ‘Enter’ loads the default values that are factory settings for stable
system performance.

3-30

Using 4- or 6-Channel Audio Function

Appendix: Using 4- or 6-Channel Audio Function

The motherboard is equipped with Realtek ALC650 chip, which provides
support for 6-channel audio output, including 2 Front, 2 Rear, 1 Center and 1
Subwoofer channel. ALC650 allows the board to attach 4 or 6 speakers for
better surround sound effect. The section will tell you how to install and use
4-/6-channel audio function on the board.

TOPICS

Digital Audio Output (SPDIF) A-2
Using the Back Panel A-3
Testing the Connected Speakers A-7
Playing KaraOK A-9

A-1

MS-6585 ATX Mainboard

 Digital Audio Output

When any Multi-Channel Audio Function mode is selected, you may
connect your speakers to the Coaxial SPDIF phonejack on the S-Bracket
to exprience digital surround sound effect.

SPDIF jack (coaxial)

S-Bracket

A-2

Using 4- or 6-Channel Audio Function

Using the Back Panel only

In addition to a default 2-channel analog audio output function, the
audio connectors on the Back Panel also provide 4- or 6-channel analog audio
output function if a proper setting is made in the software utility.

Read the following steps to have the Multi-Channel Audio Function
properly set in the software utility, and have your speakers correctly con­nected to the Back Panel.

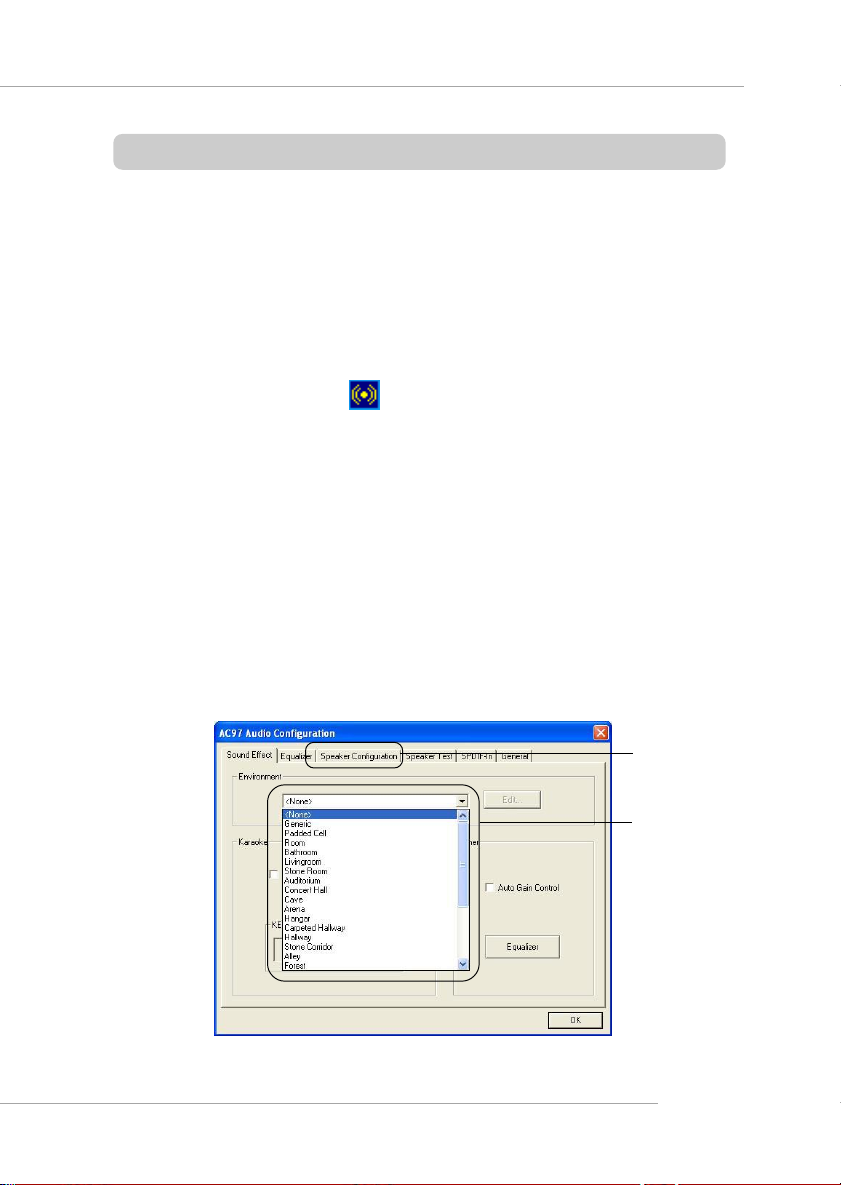

Configuration in the Software Utility

1 . Click the audio icon from the window tray at the lower-right

corner of the screen.

2 . Select a desired surround sound effect from the “Environment”

drop-down menu.

3 . Click the Speaker Configuration tab.

4 . Select Synchronize the phonejack switch with the settings.

5 . Select a desired multi-channel operation from No. of Speakers.

a. 2-Channel Mode for Stereo-Speaker Output
b. 4-Channel Mode for 4-Speaker Output
c. 6-Channels Mode for 5.1-Speaker Output

6. Click OK to close this window.

3

2

A-3

MS-6585 ATX Mainboard

5

4

Connecting the Speakers

When you have set the Multi-Channel Audio Function mode properly in

the software utility, connect your speakers to the correct phonejacks in

accordance with the setting in software utility.

6

 2-Channel Mode for Stereo-Speaker Output

Refer to the following diagram and caption for the function of each
phonejack on the back panel when 2-Channel Mode is selected.

1 Line Out (Front channels)
2 Line In
3 MIC

A-4

3

1

2

Using 4- or 6-Channel Audio Function

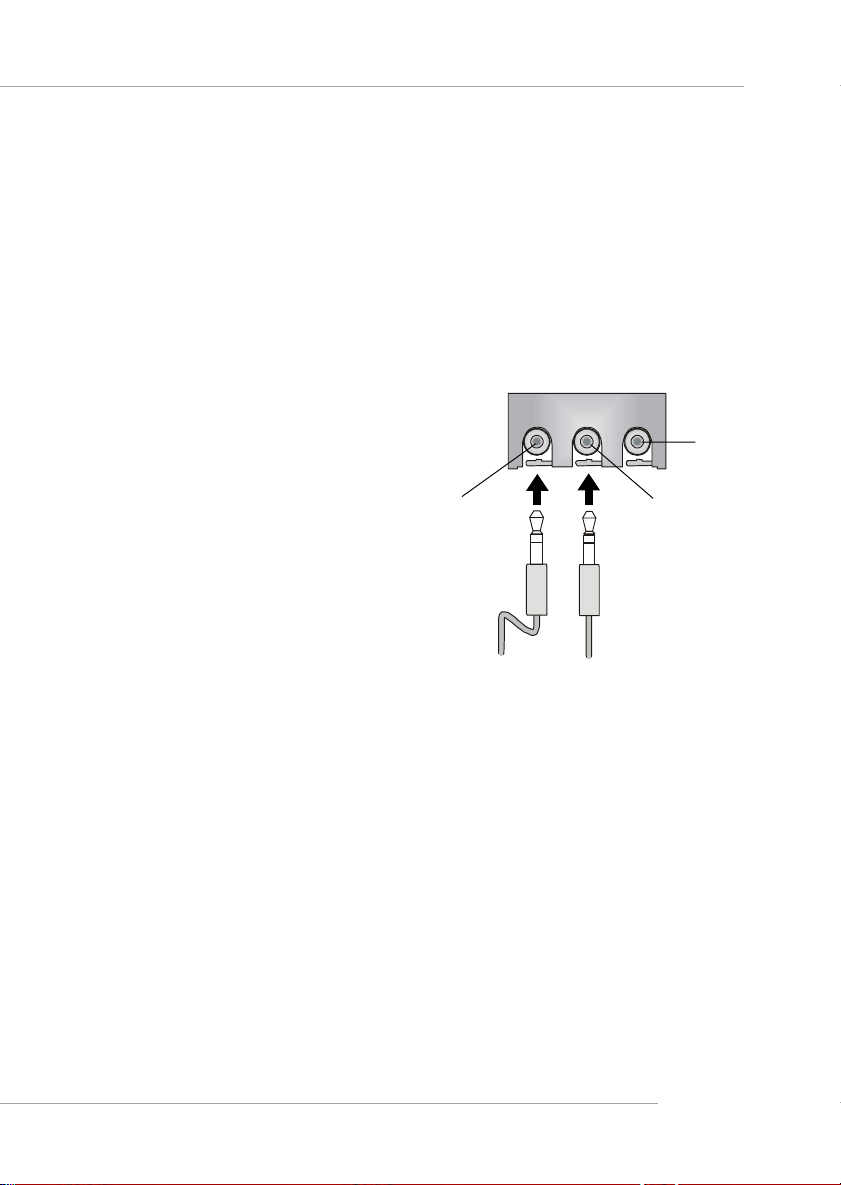

 4-Channel Mode for 4-Speaker Output

The audio jacks on the back panel always provide 2-channel analog
audio output function, however these audio jacks can be transformed
to 4- or 6- channel analog audio jacks by selecting the corresponding
multi-channel operation from No. of Speakers.

Refer to the following diagram and caption for the founction of each
jack on the back panel when 4-Channel Mode is selected.

1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 MIC

3

1

* Line In function is converted to Line Out function when 4-Channel

Mode for 4-Speaker Output is selected.

2

A-5

MS-6585 ATX Mainboard

 6-Channel Mode for 6-Speaker Output

Refer to the following diagram and caption for the founction of each
jack on the back panel when 6-Channel Mode is selected.

1 Line Out (Front channels)
2 * Line Out (Rear channels)
3 * Line Out (Center and

Subwoofer channel)

* Both Line In and MIC function are converted to Line Out function

when 4-Channel Mode for 6-Speaker Output is selected.

2

3

1

MSI Reminds Y ou...

If the Center and Subwoofer speaker exchange their audio
channels when you play video or music on the computer, a
converter may be required to exchange center and subwoofer
audio signals. You can purchase the converter from a speaker
store.

A-6

Using 4- or 6-Channel Audio Function

Testing the Connected Speakers

T o ensure that 4- or 6-channel audio operation works properly , you may
need to test each connected speaker to make sure every speaker work properly.
If any speaker fails to sound, then check whether the cable is inserted firmly to
the connector or replace the bad speakers with good ones.

T esting Each Speaker

1 . Click the audio icon from the window tray at the lower-right corner of

the screen.

2 . Click the Speaker Test tab.

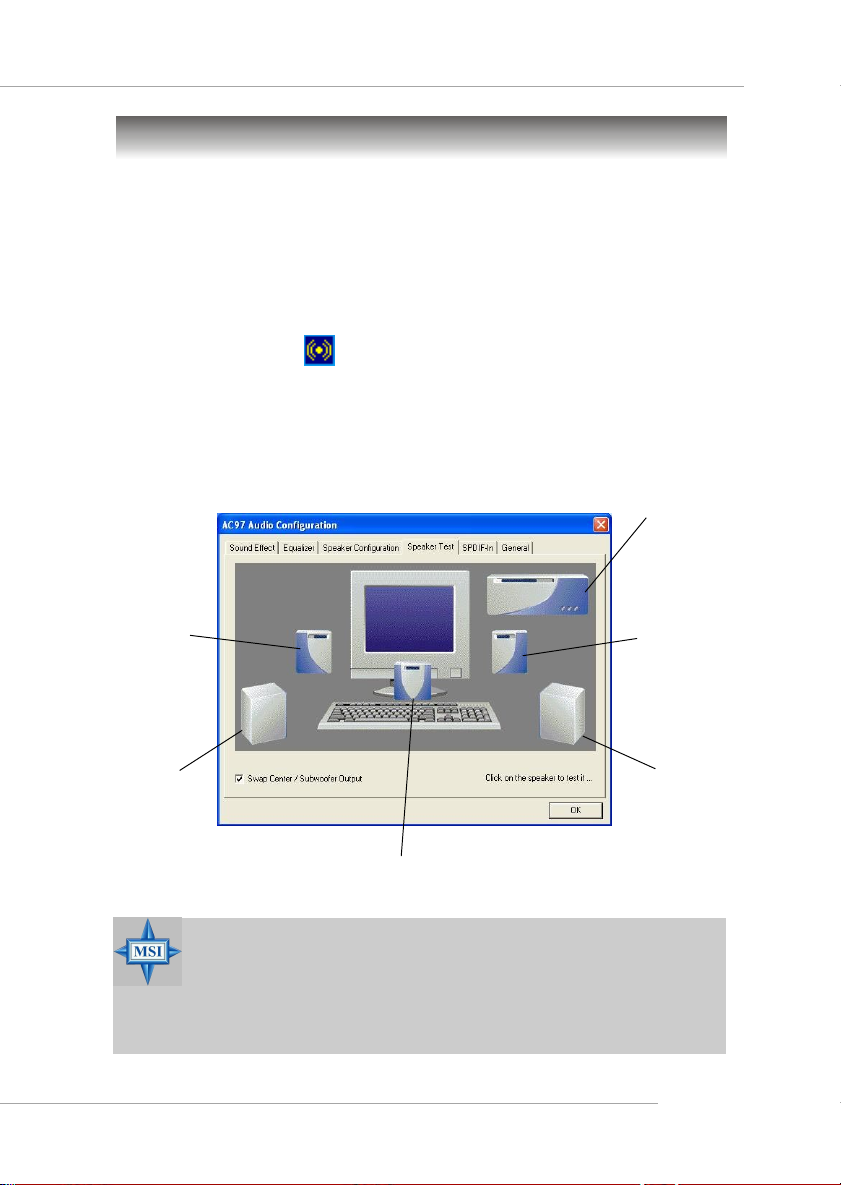

3 . The following window appears. Select the speaker which you want to test

by clicking it.

Subwoofer

Front Left

Rear Left

Front Right

Rear Right

Center

MSI Reminds Y ou...

6 speakers appear on the “Speaker Test” window only when
you select “6-Channel Mode” in the “No. of Speakers” column.
If you select “4-Channel Mode”, only 4 speakers appear on the
window.

A-7

MS-6585 ATX Mainboard

4. While you are testing the speakers in 6-Channel Mode, if the sound com-

ing from the center speaker and subwoofer is swapped, you should select
Swap Center/Subwoofer Output to readjust these two channels.

Select this function

A-8

Using 4- or 6-Channel Audio Function

Playing KaraOK

The KaraOK function will automatically remove human voice (lyrics) and
leave melody for you to sing the song. Note that this function applies only for
2-channel audio operation.

Playing KaraOK

1. Click the audio icon from the window tray at the lower-right corner of

the screen.

2. In the Sound Effect tab, select V oice Cancellation under “KaraOK.”

3. Click OK to close this window .

2

3

A-9
