MSI K8N Neo Platinum, K8N Neo-LSR, K8N Neo-V2, K8N Neo-FSR, K8N Neo-V User Manual

K8N Neo Series

MS-7030 (v1.X) ATX Mainboard

G52-M7030XC

i

Manual Rev: 1.3
Release Date: Mar. 2005

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International
MS-7030

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation

ii

Copyright Notice

The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but no

guarantee is given as to the correctness of its contents. Our products are under
continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered

trademarks of AMD Corporation.
Intel® and Pentium® are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Microsoft is a registered trademark of Microsoft Corporation. Windows® 98/2000/NT/
XP are registered trademarks of Microsoft Corporation.
NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trade­marks of NVIDIA Corporation in the United States and/or other countries.
Netware® is a registered trademark of Novell, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
AMI® is a registered trademark of American Megatrends Inc.
Kensington and MicroSaver are registered trademarks of the Kensington Technology
Group.
PCMCIA and CardBus are registered trademarks of the Personal Computer Memory
Card International Association.

Revision History

Revision Revision History Date

V1.0 First release for PCB 1.X March 2004

V1.1 Update description of BIOS May 2004
V1.2 First release for PCB 1.X May 2004

V1.3 Change NorthBridge to March 2004

with nVidia nForce3 250 Gb
(Platinum version)

& DigiCell (Platinum version)
with nVidia nForce3 250 Gb

(Standard version)
nVidia nForce3 250, use 10/100

LAN (Standard version)

iii

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively,
please try the following help resources for further guidance.
† Visit the MSI homepage & FAQ site for technical guide, BIOS updates, driver

updates, and other information: http://www.msi.com.tw & http://www.msi.

com.tw/program/service/faq/faq/esc_faq_list.php

† Contact our technical staff at: [e-mail]

Safety Instructions

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the equip­ment from overheating. Do not cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V be­fore connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not place
anything over the power cord.

8. Always Unplug the Power Cord before inserting any add-on card or module.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical
shock.

11. If any of the following situations arises, get the equipment checked by a service
personnel:

† The power cord or plug is damaged.
† Liquid has penetrated into the equipment.
† The equipment has been exposed to moisture.
† The equipment has not work well or you can not get it work according to

User’s Manual.

† The equipment has dropped and damaged.
† The equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage
temperature above 600 C (1400F), it may damage the equipment.

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the
manufacturer.

iv

CONTENTS

FCC-B Radio Frequency Interference Statement.........................................................ii

Copyright Notice..............................................................................................................iii

Revision History..............................................................................................................iii

Safety Instructions.........................................................................................................iv

Technical Support..........................................................................................................iv

Chapter 1. Getting Started....................................................................................1-1

Mainboard Specifications...................................................................................1-2

Mainboard Layout................................................................................................1-4

Packing Contents.................................................................................................1-5

Chapter 2. Hardware Setup..................................................................................2-1

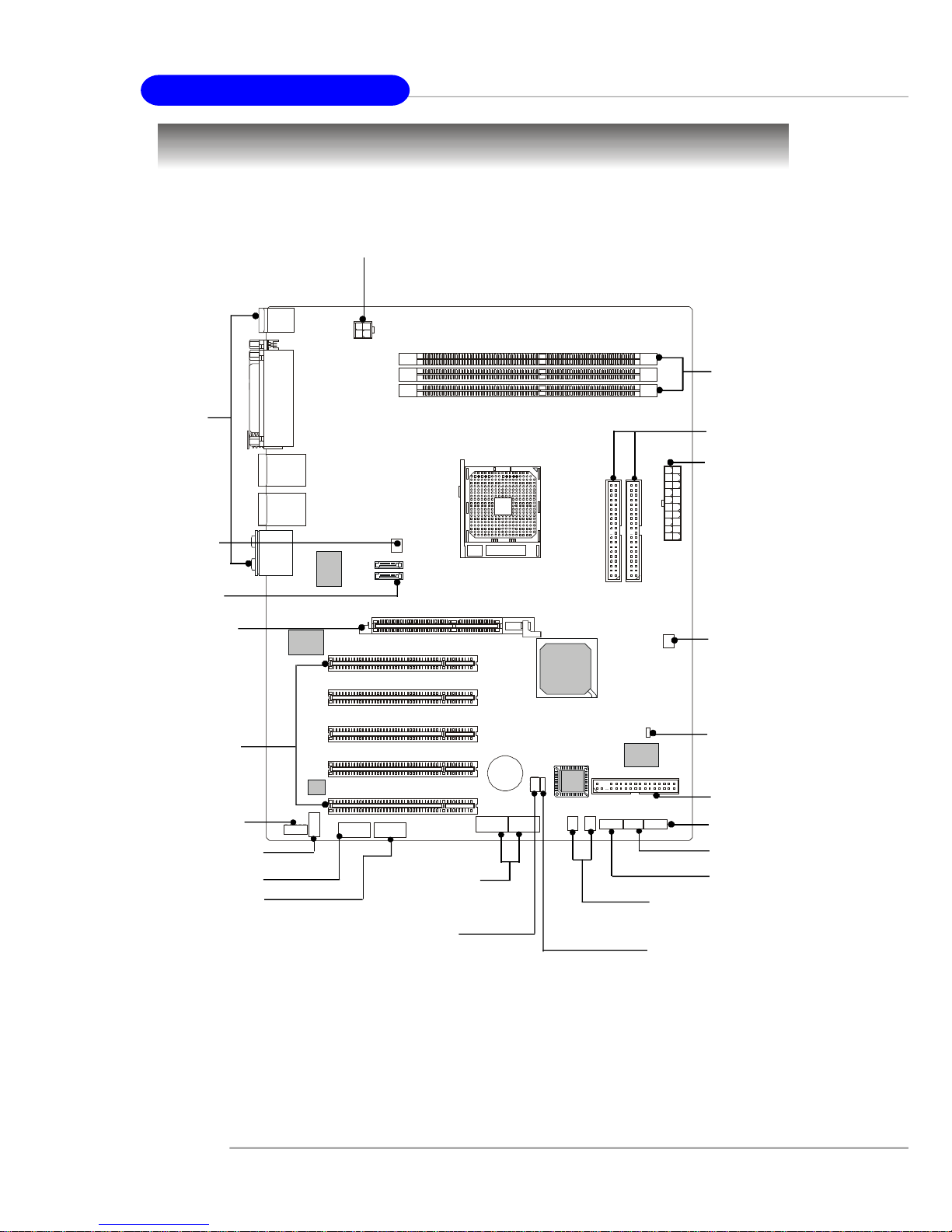

Quick Components Guide...................................................................................2-2

Central Processing Unit: CPU.............................................................................2-2

CPU Installation Procedures for Socket 754.............................................2-4

Installing AMD Athlon64 CPU Cooler Set....................................................2-5

Memory.................................................................................................................2-7

Introduction to DDR SDRAM.......................................................................2-7

DIMM Module Combination...........................................................................2-7

Installing DDR Modules................................................................................2-8

Power Supply......................................................................................................2-9

ATX 20-Pin Power Connector: JWR1........................................................2-9

ATX 12V Power Connector: JPW1............................................................2-9

Important Notification of Power Issue.....................................................2-10

Back Panel..........................................................................................................2-11

Mouse/Keyboard Connector.....................................................................2-11

IEEE1394 Port (Optional)............................................................................2-11

Serial Port Connector................................................................................2-12

USB Connectors........................................................................................2-12

LAN (RJ-45) Jack......................................................................................2-13

Audio Port Connectors..............................................................................2-13

Parallel Port Connector: LPT1...................................................................2-14

Connectors........................................................................................................2-15

Floppy Disk Drive Connector: FDD1.........................................................2-15

Fan Power Connectors: C_FAN1/S_FAN1/S_FAN2/NB_FAN1..............2-15

Hard Disk Connectors: IDE1 & IDE2.........................................................2-16

Serial ATA/Serial ATA RAID Connectors controlled

by nForce3 : SATA1 and SATA2 (Optional)...............................2-17

Front Panel Connectors: JFP1 & JFP2.....................................................2-18

v

D-Bracket™ 2 Connector: JLED1 (Optional)...........................................2-19

CD-In Connector: JCD1.............................................................................2-20

Front Panel Audio Connector: JAUD1......................................................2-20

IrDA Infrared Module Header: JIR1...........................................................2-21

Front USB Connectors: JUSB1 & JUSB2.................................................2-21

Chassis Intrusion Switch Connector: JCASE1.......................................2-22

IEEE 1394 Connectors: J1394_1, J1394_0 (Optional)............................2-22

Jumpers..............................................................................................................2-23

Clear CMOS Jumper: JBAT1.....................................................................2-23

Slots....................................................................................................................2-24

PCI Interrupt Request Routing...................................................................2-24

AGP (Accelerated Graphics Port) Slot....................................................2-24

PCI (Peripheral Component Interconnect) Slots......................................2-24

Chapter 3. BIOS Setup............................................................................................3-1

Entering Setup.....................................................................................................3-2

Selecting the First Boot Device..................................................................3-2

Control Keys................................................................................................3-3

Getting Help..................................................................................................3-3

The Main Menu.....................................................................................................3-4

Standard CMOS Features...................................................................................3-6

Advanced BIOS Features...................................................................................3-8

Advanced Chipset Features.............................................................................3-11

Integrated Peripherals.......................................................................................3-12

Power Management Setup...............................................................................3-17

PNP/PCI Configurations.....................................................................................3-20

H/W Monitor........................................................................................................3-22

Cell Menu............................................................................................................3-24

Load Fail-Safe/Optimized Defaults..................................................................3-28

Set Supervisor/User Password.......................................................................3-29

Chapter 4. Introduction to DigiCell.....................................................................4-1

Main......................................................................................................................4-2

H/W Diagnostic....................................................................................................4-4

Communication.....................................................................................................4-5

Software Access Point.......................................................................................4-6

Terminology..................................................................................................4-6

Access Point Mode.....................................................................................4-7

WLAN Card Mode........................................................................................4-8

Live Update..........................................................................................................4-9

vi

MEGA STICK.......................................................................................................4-10

Basic Function...........................................................................................4-10

Non-Unicode programs supported...........................................................4-12

Core Center (for AMD Processor)...................................................................4-14

Audio Speaker Setting......................................................................................4-16

Power on Agent.................................................................................................4-18

Power On...................................................................................................4-18

Power Off / Restart...................................................................................4-19

Start With....................................................................................................4-19

Auto Login..................................................................................................4-20

Chapter 5. nVIDIA RAID Introduction..................................................................5-1

Introduction..........................................................................................................5-2

System Requirement....................................................................................5-2

RAID Configuration..............................................................................................5-3

Basic Configuration Instructions.................................................................5-3

Setting Up the NVRAID BIOS.......................................................................5-3

NVIDIA RAID Utility Installation............................................................................5-7

Installing the NVIDIA RAID Software Under Windows

(for Non-bootable RAID Array)......................................................5-7

Installing the RAID Driver (for bootable RAID Array)................................5-8

Initializing and Using the Disk Array..........................................................5-10

RAID Drives Management.................................................................................5-12

Viewing RAID Array Configurations........................................................5-12

Setting Up a Spare RAID Disk...................................................................5-14

Rebuilding a RAID Mirrored Array.............................................................5-20

Chapter 6. Installation of Driver & Utility..........................................................6-1

Utility Installation..................................................................................................6-2

Driver Installation.................................................................................................6-3

NVIDIA nForce3 System Driver...................................................................6-3

Realtek AC97 Audio Driver...........................................................................6-6

vii

Getting Started

Chapter 1. Getting
Started

Getting Started

Thank you for choosing the K8N Neo (MS-7030) v1.X ATX
mainboard. The K8N Neo mainboard is based on nVIDIA® nForce™3
250 chipset for optimal system efficiency. Designed to fit the ad­vanced AMD® K8 Athlon 64 processor, the K8N Neo mainboard
delivers a high performance and professional desktop platform
solution.

1-1

MS-7030 ATX Mainboard

Mainboard Specifications

CPU

† Supports Socket-754 for AMD K8 Athlon™ processor up to 3400+.
(For the latest information about CPU, please visit http://www.msi.com.tw/program/
products/mainboard/mbd/pro_mbd_cpu_support.php)

Chipset

† nVIDIA nForce3 250

- Supports K8 Athlon64 processor S-754, 800MHz Hypertransport interface.

- Supports single memory channel, DDR 400/333/266 without ECC support.

- Supports external AGP 4X/8X

- Integrated Serial ATA interface: dual channel 2 S-ATA RAID controller and dual
channel ATA 133/100/66/33 master mode EIDE controller.

- Supports 8 high speed USB2.0 ports.

- AC’97 2.3 compliance.

Main Memory

† Supports 3 slots for 184-pin DDR DIMM modules
† Supports memory size up to 3GB (for DDR333/266) / 2GB (For DDR400) .
† Supports DDR 400/333/266.

(For the updated supporting memory modules, please visit http://www.msi.com.tw/
program/products/mainboard/mbd/pro_mbd_trp_list.php.)

Slots

† One AGP (Accelerated Graphics Port) 1.5v 4X/8X slot
† Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE

† An IDE controller on the nVIDIA nForce3 250 chipset provides IDE HDD/CD-ROM

with PIO, Bus Master and Ultra DMA133/100/66 operation modes

† Can connect up to four IDE devices

SATA Interface

† Integrated SATA PHY, supporting up to 2 ports (optional)
† One SATA controller, supporting 2 drives in master mode

On-Board Peripherals

† On-Board Peripherals include:

- 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 6 audio ports

- 8 USB ports (Rear * 4/ Front * 4)

- 1 RJ-45 LAN jack

- 3 optional IEEE 1394 connectors (Rear * 1/ Front * 2)

1-2

LAN

† Realtek® 8100C

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s or 100Mb/s auto-negotiation operation.

- Compliant with PCI v2.2.

- Supports ACPI Power Management.

Audio

† Realtek ALC850 7.1-channel audio codec

NV RAID (Software)

† Supports 2 serial ATA plus 1 ATA 133

- RAID 1, or 1, o+1, JBOD is supported

- Booting from RAID

- Cross controller RAID support

- Rebuilding on the Fly

- Spare Disk Allocation

† Supports Windows 2000 and later versions

Getting Started

BIOS

† The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral

devices and expansion cards of the board automatically.

† The mainboard provides a Desktop Management Interface (DMI) function which

records your mainboard specifications.

Mounting and Dimension

† ATX Form Factor: 24.4 cm (L) x 30.5 cm (W)
† 9 mounting holes

MSI Reminds You...

1.Please note that users cannot install OS, either WinME or Win98, in
their SATA hard drive. Under these two OSs, SATA can only be used
as a normal storage device.

2.To create a bootable RAID volume for a Windows 2000 environment,
Microsoft’s Windows 2000 Service Pack 4 (SP4) is required. As the
end user cannot boot without SP4, a combination installation CD
must be created before attempting to install the operating system
onto the bootable RAID volume.
To create the combination installation CD, please refer to the follow­ing website:

http://www.microsoft.com/windows2000/downloads/
servicepacks/sp4/HFdeploy.htm

1-3

MS-7030 ATX Mainboard

IDE 1IDE 2JWR

1

JUSB2

JUSB1

C_FAN1

S_FAN1

S_FAN2

NB_FAN1

JFP1

J1394_1

(Optional)

JFP2

JIR1

BATT

FDD 1

JBAT1

VT6306

JCD1

Winbond

W83627HF

JPW

1

(Optional)

JCASE1

Top : mouse
Bottom: keyboard

Top : Parallel Port
Bottom:

COM A
1394 Port
SPDIF

T: LAN jack
B: USB ports

B: USB ports

T:

Line-In

M:

Line-Out

B:

Mic

T:RS-Out
M:CS-Out
B:SPDIFOut

RTL 8100C

Mainboard Layout

DDR3

DDR2

DDR1

SATA3 (Optional)
SATA4 (Optional)

AGP1

JAUD1

VIA

ALC
850

PCI Slot 1

PCI Slot2

PCI Slot3

PCI Slot 4

PCI Slot 5

J1394_0

nForce3

250

+

BIOS

K8N Neo (MS-7030) v1.X ATX Mainboard

1-4

Packing Contents

Getting Started

MSI motherboard

Power Cable

MSI Driver/Utility CD

D-Bracket 2 (Optional)

SATA Cable

Round Cable of

IDE Devices

User’s Guide

Back IO Shield

Round Cable of

Floppy Disk

1-5

Hardware Setup

Chapter 2. Hardware Setup

Hardware Setup

This chapter tells you how to install the CPU, memory modules,
and expansion cards, as well as how to setup the jumpers on the
mainboard. Also, it provides the instructions on connecting the periph­eral devices, such as the mouse, keyboard, etc.

While doing the installation, be careful in holding the compo­nents and follow the installation procedures.

2-1

MS-7030 ATX Mainboard

BATT

Back Panel
I/O, p.2-11

C_FAN1,

p.2-15

Quick Components Guide

JPW1, p.2-9

DDR DIMMs, p.2-7

IDE1/2, p.2-16

JWR1, p.2-9

SATA3, SATA4,

p.2-17

AGP1, p.2-24

PCI Slots 1~5,

p.2-24

JAUD1, p.2-20

JCD1, p.2-20

J1394_1, p.2-22
J1394_0, p.2-22

JUSB1, JUSB2,

p.2-21

JIR1, p.2-21

NB_FAN1,

p.2-15

JCASE1,

p.2-22

+

FDD1, p.2-15
JFP2, p.2-18
JFP1, p.2-18

JLED1, p.2-19

S_FAN1, S_FAN2, p.2-15

JBAT1, p.2-23

2-2

Hardware Setup

Central Processing Unit: CPU

The mainboard supports AMD® Athlon64 processor. The mainboard uses a
CPU socket called Socket-754 for easy CPU installation. When you are installing the
CPU, make sure the CPU has a heat sink and a cooling fan attached on the
top to prevent overheating. If you do not have the heat sink and cooling fan,
contact your dealer to purchase and install them before turning on the computer.

For the latest information about CPU, please visit http://www.msi.com.tw/

program/products/mainboard/mbd/pro_mbd_cpu_support.php.

MSI Reminds You...

Overheating

Overheating will seriously damage the CPU and system, always make
sure the cooling fan can work properly to protect the CPU from
overheating.

Replacing the CPU

While replacing the CPU, always turn off the ATX power supply or
unplug the power supply’s power cord from grounded outlet first to
ensure the safety of CPU.

Overclocking

This motherboard is designed to support overclocking. However,
please make sure your components are able to tolerate such abnor­mal setting, while doing overclocking. Any attempt to operate beyond
product specifications is not recommended. We do not guarantee

the damages or risks caused by inadequate operation or be­yond product specifications.

2-3

MS-7030 ATX Mainboard

Gold arrow

Gold arrow

Gold arrow

Correct CPU placement

Incorrect CPU placement

Close

Press down

CPU Installation Procedures for Socket 754

1. Please turn off the power and

unplug the power cord before
installing the CPU.

Open Lever

2. Pull the lever sideways away

from the socket. Make sure to
raise the lever up to a 90-de­gree angle.

3.Look for the gold arrow. The gold
arrow should point as shown in
the picture. The CPU can only fit
in the correct orientation.

4.If the CPU is correctly installed,
the pins should be completely
embedded into the socket and
can not be seen. Please note
that any violation of the correct
installation procedures may
cause permanent damages to
your mainboard.

Sliding

Plate

90 degree

O

5. Press the CPU down firmly into

the socket and close the lever.
As the CPU is likely to move while
the lever is being closed, al­ways close the lever with your
fingers pressing tightly on top of
the CPU to make sure the CPU is
properly and completely embed­ded into the socket.

2-4

X

the CPU

Lever

Hardware Setup

Installing AMD Athlon64 CPU Cooler Set

When you are installing the CPU, make sure the CPU has a heat sink and

a cooling fan attached on the top to prevent overheating. If you do not have

the heat sink and cooling fan, contact your dealer to purchase and install them before
turning on the computer.

1.Detach the shield of the
backplate’s paster.

2.Turn over the mainboard, and
install the backplate to the
proper position.

3.Turn over the mainboard
again and place the
mainboard on the flat surface.
Locate the two screw holes
of the mainboard.

4.Align the retention mechanism
and the backplate. Fix the re­tention mechanism and the
backplate with two screws.

retention mechanism

2-5

MS-7030 ATX Mainboard

5.Position the cooling set onto the
retention mechanism. Hook one
end of the clip to hook first.

6.Press down the other end of the
clip to fasten the cooling set on
the top of the retention
mechanism.

8.Fasten down the lever.

9.Make sure the safety hook
completely clasps the fixed
bolt of the retention
mechanism.

7.Locate the Fix Lever, Safety Hook
and the Fixed Bolt. Lift up the in­tensive fixed lever.

Safety Hook

Fixed Lever

Fixed Bolt

2-6

MSI Reminds You...

While disconnecting the Safety
Hook from the fixed bolt, it is
necessary to keep an eye on
your fingers, because once the
Safety Hook is disconnected
from the fixed bolt, the fixed
lever will spring back instantly.

Hardware Setup

Memory

The mainboard provides 3 slots for 184-pin DDR SDRAM DIMM (Double In-

Line Memory Module) modules and supports the memory size up to 3GB (for DDR266/

333) / 2GB (for DDR400). You can install DDR266/333/400 modules on the DDR DIMM
slots (DDR 1~3).

For the updated supporting memory modules, please visit http://www.msi.

com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php.

DDR 3
DDR 2

DDR 1

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will
only fit in the right orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

MSI Reminds You...

You can barely see the golden finger if the module is properly in­serted in the socket.

Volt

Notch

2-7

MS-7030 ATX Mainboard

Recommended Memory Combination List

DIMM Slot

DDR1 DDR2 DDR3

S

-

- -

D

-

- -

S S ­S S­S
S
D
D
D
D D

-

- -

S

- -

D -

D

-

S

-

D

-

S

-

S

D

-

D

-

S

-

S

Max Speed

DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400
DDR 400

2-8

D SS

S S S

-

-

-

S D
S SD
S

D
D D
D DD

S: Single Side D: Double Side

S
D
D

S

D

D
S

D
S
D

D

S

DDR 400
DDR 400

DDR 333
DDR 333

DDR 333
DDR 333
DDR 333
DDR 333

DDR 333
DDR 333

DDR 333

Hardware Setup

Power Supply

The mainboard supports ATX power supply for the power system. Before
inserting the power supply connector, always make sure that all components are
installed properly to ensure that no damage will be caused.

ATX 20-Pin Power Connector: JWR1

This connector allows you to connect to an ATX power supply. To connect to
the ATX power supply, make sure the plug of the power supply is inserted in the
proper orientation and the pins are aligned. Then push down the power supply firmly
into the connector.

ATX 12V Power Connector: JPW1

This 12V power connector is used to provide power to the CPU.

11

20

JWR1

1 3

JPW1

1

10

PIN SIGNAL

1 3.3V
2 3.3V
3 GND
4 5V
5 GND
6 5V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5V
20 5V

JPW1 Pin Definition

PIN SIGNAL

JWR1 Pin Definition

42

1 GND
2 GND
3 12V
4 12V

MSI Reminds You...

1. These two connectors connect to the ATX power supply and have to
work together to ensure stable operation of the mainboard.

2. Power supply of 300 watts (and above) is highly recommended for
system stability.

2-9

MS-7030 ATX Mainboard

Important Notification about Power Issue

NForce chipset is very sensitive to ESD (Electrostatic Discharge), therefore
this issue mostly happens while the users intensively swap memory modules under
S5 (power-off) states, and the power code is plugged while installing modules. Due
to several pins are very sensitive to ESD, so this kind of memory-replacement actions
might cause chipset system unable to boot. Please follow the following solution to
avoid this situation.

Unplug the AC power cable (shown in figure 1) or unplug the JWR1 & JPW1
power connectors (shown in figure 2 & figure 3) before the 1st installation or during
system upgrade procedure.

Figure 1:

Unplug the AC power cable

Figure 2:

Unplug the JWR1 power connector

2-10

Figure 3:

Unplug the JPW1 power connector

Back Panel

The back panel provides the following connectors:

Hardware Setup

RS-Out

CS-Out

SPDIF Out

Mouse

Keyboard

COM A

Parallel

1394 Port
(optional)

S/PDIF

LAN

USB Ports

L-In

L-Out
Mic

Mouse/Keyboard Connector

The mainboard provides a standard PS/2® mouse/keyboard mini DIN connector
for attaching a PS/2® mouse/keyboard. You can plug a PS/2® mouse/keyboard directly
into this connector. The connector location and pin assignments are as follows:

Pin Definition

6

4

2

PS/2 Mouse / Keyboard

(6-pin Female)

5

3

1

PIN SIGNAL DESCRIPTION

1 Mouse/Keyboard Data Mouse/Keyboard data
2 NC No connection
3 GND Ground
4 VCC +5V
5 Mouse/Keyboard Clock Mouse/Keyboard clock
6 NC No connection

IEEE 1394 Port (Optional)

The back panel provides one standard IEEE 1394 port. The standard IEEE1394
port connects to IEEE1394 devices without external power. The IEEE1394 high­speed serial bus complements USB by providing enhanced PC connectivity for a
wide range of devices, including consumer electronics audio/video (A/V) appliances,
storage peripherals, other PCs, and portable devices.

IEEE1394 Port

2-11

MS-7030 ATX Mainboard

Serial Port Connector

The mainboard offers one 9-pin male DIN connector as the serial port. The port
is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You
can attach a serial mouse or other serial devices directly to the connector.

Pin Definition

1 2 3 4 5

6 7 8 9

9-Pin Male DIN Connector

PIN SIGNAL DESCRIPTION

1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate

USB Connectors

The mainboard provides an OHCI (Open Host Controller Interface) Universal
Serial Bus root for attaching USB devices such as keyboard, mouse or other USB­compatible devices. You can plug the USB device directly into the connector.

USB Port Description

PIN SIGNAL DESCRIPTION

1 VCC +5V

1 2 3 4

5 6 7 8

USB Ports

2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

2-12

LAN (RJ-45) Jack

The mainboard provides one standard RJ-45 jack for connection to Local Area

Network (LAN). You can connect a network cable to the LAN jack.

LAN Pin Definition

PIN SIGNAL DESCRIPTION

1 TDP Transmit Differential Pair
2 TDN Transmit Differential Pair
3 RDP Receive Differential Pair

RJ-45 LAN Jack

4 NC Not Used
5 NC Not Used
6 RDN Receive Differential Pair
7 NC Not Used
8 NC Not Used

Hardware Setup

Audio Port Connectors

The left 3 audio jacks are for 2-channel mode for stereo speaker output: Line

Out is a connector for Speakers or Headphones. Line In is used for external CD

player, Tape player, or other audio devices. Mic is a connector for microphones.

However, there is an advanced audio application provided by Realtek ALC850
to offer support for 7.1-channel audio operation and can turn rear audio connectors
from 2-channel to 4-/5.1-channel audio.

S/PDIF Out-Coaxial

Line In

Line Out

MIC

Rear Speaker Out

(in 7.1CH / 5.1CH)

Center/Subwoofer

Speaker Out

( in 7.1CH / 5.1CH)
S/PDIF Out-Optical

(in 7.1CH / 5.1CH)

2-13

MS-7030 ATX Mainboard

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female centronic connector as LPT. A parallel
port is a standard printer port that supports Enhanced Parallel Port (EPP) and Ex­tended Capabilities Parallel Port (ECP) mode.

13 1

25

14

Pin Definition

PIN SIGNAL DESCRIPTION

1 STROBE Strobe
2 DATA0 Data0
3 DATA1 Data1
4 DATA2 Data2
5 DATA3 Data3
6 DATA4 Data4
7 DATA5 Data5
8 DATA6 Data6
9 DATA7 Data7
10 ACK# Acknowledge
11 BUSY Busy
12 PE Paper End
13 SELECT Select
14 AUTO FEED# Automatic Feed
15 ERR# Error
16 INIT# Initialize Printer
17 SLIN# Select In
18 GND Ground
19 GND Ground
20 GND Ground
21 GND Ground
22 GND Ground
23 GND Ground
24 GND Ground
25 GND Ground

2-14

Connectors

The mainboard provides connectors to connect to FDD, IDE HDD, case, LAN,

USB Ports, IR module and CPU/System FAN.

Floppy Disk Drive Connector: FDD1

The mainboard provides a standard floppy disk drive connector that supports

360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.

Hardware Setup

FDD1

Fan Power Connectors: C_FAN1/S_FAN1/S_FAN2/NB_FAN1

The C_FAN1 (processor fan), S_FAN1 (system fan 1), S_FAN2 (system fan 2)
and NB_FAN1 (NorthBridge Chipset fan) support system cooling fan with +12V. It
supports three-pin head connector. When connecting the wire to the connectors,
always take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If the mainboard
has a System Hardware Monitor chipset on-board, you must use a specially de­signed fan with speed sensor to take advantage of the CPU fan control.

GND

+12V

SENSOR

C_FAN1

S_FAN1

MSI Reminds You...

1. Always consult the vendors for proper CPU cooling fan.

2. C_FAN1 supports the fan control. You can install Core Center
utility that will automatically control the CPU fan speed according
to the actual CPU temperature.

3. Please refer to the recommended CPU fans at AMD® official
website.

GND
+12V

NC

GND
+12V
NC

S_FAN2

GND
+12V

Sensor

NB_FAN1

2-15

MS-7030 ATX Mainboard

Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/133
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/100/133
function. You can connect up to four hard disk drives, CD-ROM, 120MB Floppy
(reserved for future BIOS) and other devices.

IDE1IDE2

IDE1 (Primary IDE Connector)

The first hard drive should always be connected to IDE1. IDE1 can connect a Master
and a Slave drive. You must configure second hard drive to Slave mode by setting the
jumper accordingly.

IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.

MSI Reminds You...

If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk
documentation supplied by hard disk vendors for jumper setting
instructions.

2-16

Hardware Setup

Serial ATA/Serial ATA RAID Connectors controlled by nForce3 250:
SATA1~SATA2 (Optional)

The chipset of this mainboard is nForce3 250 which supports two serial ATA

connectors SATA1 and SATA2.

SATA1 and SATA2 are dual high-speed Serial ATA interface ports. Each sup­ports 1st generation serial ATA data rates of 150 MB/s. Both connectors are fully
compliant with Serial ATA 1.0 specifications. Each Serial ATA connector can connect
to 1 hard disk device. Please refer to the Chapter 5: nVIDIA RAID Introduction for
detail software installation procedure.

SATA4
SATA3

Serial ATA cable

SATA1~ SATA2 Pin Definition

PIN SIGNAL PIN SIGNAL

71

1 GND 2 TXP
3 TXN 4 GND

5 RXN 6 RXP
7 GND

Take out the dust cover and
connect to the hard disk
devices

Connect to serial ATA ports

MSI Reminds You...

Please do not fold the serial ATA cable in a 90-degree angle, which will
cause the loss of data during the transmission.

2-17

MS-7030 ATX Mainboard

Front Panel Connectors: JFP1 & JFP2

The mainboard provides two front panel connectors for electrical connection
to the front panel switches and LEDs. JFP1 is compliant with Intel® Front Panel I/O
Connectivity Design Guide.

Power
LED

Power
Switch

Speaker

JFP1

2
1

HDD
LED

Reset
Switch

10

9

JFP2

2
1

Power
LED

8
7

JFP1 Pin Definition

PIN SIGNAL DESCRIPTION

1 HD_LED_P Hard disk LED pull-up
2 FP PWR/SLP MSG LED pull-up
3 HD_LED_N Hard disk active LED
4 FP PWR/SLP MSG LED pull-up
5 RST_SW_N Reset Switch low reference pull-down to GND
6 PWR_SW_P Power Switch high reference pull-up
7 RST_SW_P Reset Switch high reference pull-up
8 PWR_SW_N Power Switch low reference pull-down to GND
9 RSVD_DNU Reserved. Do not use.

2-18

JFP2 Pin Definition

PIN SIGNAL PIN SIGNAL

1 GND 2 SPK­3 SLED 4 BUZ+

5 PLED 6 BUZ­7 NC 8 SPK+

Hardware Setup

D-Bracket™ 2 Connector: JLED1 (Optional)

The mainboard comes with a JLED1 connector for you to connect to D-Bracket™

2. D-Bracket™ 2 is a USB Bracket that supports both USB1.1 & 2.0 spec. It integrates
four LEDs and allows users to identify system problem through 16 various combina­tions of LED signals.

Pin Definition

Pin Signal

1 DBG1 (high for green color)
2 DBR1 (high for red color)
3 DBG2 (high for green color)

JLED1

2 10

1

9

4 DBR2 (high for red color)
5 DBG3 (high for green color)
6 DBR3 (high for red color)
7 DBG4 (high for green color)
8 DBR4 (high for red color)
9 Key
10 NC

Connected to JLED1

Connected to JUSB1
or JUSB2

Optional D-Bracket™ 2

LEDs

2-19

MS-7030 ATX Mainboard

CD-In Connector: JCD1

The connector is for CD-ROM audio connector.

L

JCD1

GND

R

Front Panel Audio Connector: JAUD1

The JAUD1 front panel audio connector allows you to connect to the front
panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

JAUD1

2
1

Pin Definition

PIN SIGNAL DESCRIPTION

1 AUD_MIC Front panel microphone input signal
2 AUD_GND Ground used by analog audio circuits
3 AUD_MIC_BIAS Microphone power
4 AUD_VCC Filtered +5V used by analog audio circuits
5 AUD_FPOUT_R Right channel audio signal to front panel
6 AUD_RET_R Right channel audio signal return from front panel
7 HP_ON Reserved for future use to control headphone amplifier
8 KEY No pin
9 AUD_FPOUT_L Left channel audio signal to front panel
10 AUD_RET_L Left channel audio signal return from front panel

10

9

MSI Reminds You...

If you don’t want to connect to the front audio header,
pins 5 & 6, 9 & 10 have to be jumpered in order to have
signal output directed to the rear audio ports. Otherwise,
the Line-Out connector on the back panel will not
function.

6 10

5

9

2-20

Hardware Setup

IrDA Infrared Module Header: JIR1

The connector allows you to connect to IrDA Infrared module. You must config­ure the setting through the BIOS setup to use the IR function. JIR1 is compliant with
Intel® Front Panel I/O Connectivity Design Guide.

JIR1 Pin Definition

6 5

JIR1

2 1

Pin Signal Pin Signal

1 NC 2 NC
3 VCC5 4 GND
5 IRTX 6 IRRX

Front USB Connectors: JUSB1 & JUSB2

The mainboard provides two standard USB 2.0 pin headers JUSB1 & JUSB2 .
USB 2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting high­speed USB interface peripherals such as USB HDD, digital cameras, MP3 players,

printers, modems and the like.

JUSB1 & JUSB2 Pin Definition

2 10

1

JUSB1, JUSB2

(USB 2.0)

9

PIN SIGNAL PIN SIGNAL

1 VCC 2 VCC
3 USB0- 4 USB1­5 USB0+ 6 USB1+
7 GND 8 GND
9 Key (no pin) 10 USBOC

Connected to JUSB1
or JUSB2

MSI Reminds You...

Note that the pins of VCC and GND must be connected correctly, or it
may cause some damage.

USB 2.0 Bracket

2-21

MS-7030 ATX Mainboard

Chassis Intrusion Switch Connector: JCASE1

This connector is connected to a 2-pin chassis switch. If the chassis is opened,
the switch will be short. The system will record this status and show a warning
message on the screen. To clear the warning, you must enter the BIOS utility and
clear the record.

GND

CINTRU

2
1

JCASE1

IEEE 1394 Connectors: J1394_1, J1394_0 (Optional)

The mainboard provides two 1394 pin headers that allow you to connect IEEE
1394 ports via an external IEEE1394 bracket.

2

1

J1394_1, J1394_0

Pin Definition

PIN SIGNAL PIN SIGNAL

1 TPA+ 2 TPA­3 Ground 4 Ground
5 TPB+ 6 TPB­7 Cable power 8 Cable power
9 Key (no pin) 10 Ground

10
9

Foolproof Design

2-22

IEEE1394 Bracket

Hardware Setup

Jumpers

The motherboard provides the following jumpers for you to set the computer’s
function. This section will explain how to change your motherboard’s function through
the use of jumpers.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board that has a power supply from external battery
to keep the system configuration data. With the CMOS RAM, the system can automati­cally boot OS every time it is turned on. If you want to clear the system configuration,
use the JBAT1 (Clear CMOS Jumper ) to clear data. Follow the instructions below to
clear the data:

1

JBAT1

3

1

Keep Data

3

1

Clear Data

MSI Reminds You...

You can clear CMOS by shorting 2-3 pin while the system is off.
Then return to 1-2 pin position. Avoid clearing the CMOS while the
system is on; it will damage the mainboard.

2-23

MS-7030 ATX Mainboard

Slots

The mainboard provides one AGP slot and five 32-bit PCI bus slots.

AGP (Accelerated Graphics Port) Slot

The AGP slot allows you to insert the AGP graphics card. AGP is an interface
specification designed for the throughput demands of 3D graphics. It introduces a
66MHz, 32-bit channel for the graphics controller to directly access main memory.
The slot supports 8x/4x AGP card.

AGP Slot

PCI (Peripheral Component Interconnect) Slots

The PCI slots allow you to insert the expansion cards to meet your needs.
When adding or removing expansion cards, make sure that you unplug the power
supply first. Meanwhile, read the documentation for the expansion card to make any
necessary hardware or software settings for the expansion card, such as jumpers,
switches or BIOS configuration.

The orange PCI slot (PCI5) also works as a communication slot, which allows
you to insert the communication card, such as wireless LAN card.

PCI Slots

PCI Interrupt Request Routing

The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hard­ware lines over which devices can send interrupt signals to the microprocessor. The
PCI IRQ pins are typically connected to the PCI bus INT A# ~ INT D# pins as follows:

Order 1 Order 2 Order 3 Order 4
PCI Slot 1 INT A# INT B# INT C# INT D#
PCI Slot 2 INT B# INT C# INT D# INT A#
PCI Slot 3 INT C# INT D# INT A# INT B#
PCI Slot 4 INT D# INT A# INT B# INT C#
PCI Slot 5 INT B# INT C# INT D# INT A#

2-24

3-1

BIOS Setup

Chapter 3. BIOS Setup

BIOS Setup

This chapter provides information on the BIOS Setup program
and allows you to configure the system for optimum use.
You may need to run the Setup program when:

 An error message appears on the screen during system boot up, and
requests you to run SETUP.

 You want to change the default settings for customized features.

MSI Reminds You...

1. The items under each BIOS category described in this chapter are
under continuous update for better system performance.
Therefore, the description may be slightly different from the latest
BIOS and should be held for reference only.

2. While booting up, the BIOS version is shown in the 1st line ap­pearing after the memory count. It is usually in the format:
example: W7030MS V1.1 040104

where:

1st digit refers to BIOS maker as A=AMI(R); W=AWARD(R)
2nd - 5th digit refers to the model number.
6th - 7th digit refers to the customer, MS=all standard customers.
V2.0 refers to the BIOS version.
040104 refers to the date this BIOS is released.

3-2

MS-7030 ATX Mainboard

Entering Setup

Power on the computer and the system will start POST (Power On Self Test) process.
When the message below appears on the screen, press <DEL> key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning it OFF and On or pressing the RESET button. You may
also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Selecting the First Boot Device

You are allowed to select the 1st boot device without entering the BIOS setup utility
by pressing <F11>. When the same message as listed above appears on the screen,
press <F11> to trigger the boot menu.
The POST messages might pass by too quickly for you to respond in time. If so,
restart the system and press <F11> after around 2 or 3 seconds to activate the boot
menu similar to the following.

The boot menu will list all the bootable devices. Select the one you want to boot from
by using arrow keys, then press <Enter>. The system will boot from the selected
device. The selection will not make changes to the settings in the BIOS setup utility,
so next time when you power on the system, it will still use the original first boot
device to boot up.

Select First Boot Device

Floppy : 1st Floppy
IDE-0 : IBM-DTLA-307038
CDROM : ATAPI CD-ROM DRIVE 40X M

[Up/Dn] Select [RETURN] Boot [ESC] cancel

3-3

BIOS Setup

Control Keys

Getting Help

After entering the Setup menu, the first menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use the
arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted setup
function is displayed at the bottom of the screen.

Sub-Menu

If you find a right pointer symbol (as shown in the right view) appears to the left of
certain fields, that means a sub-menu can be launched from this field. A sub-menu
contains additional options for a field parameter. You can use arrow keys ( --> ) to
highlight the field and press <Enter> to call up the sub­menu. Then you can use the control keys to enter val­ues and move from field to field within a sub-menu. If
you want to return to the main menu, just press the
<Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this screen
from any menu by simply pressing <F1>. The Help screen lists the appropriate keys
to use and the possible selections for the highlighted item. Press <Esc> to exit the
Help screen.

<↑> Move to the previous item
<↓> Move to the next item
<←> Move to the item in the left hand
<→> Move to the item in the right hand
<Enter> Select the item
<Esc> Jumps to the Exit menu or returns to the main menu from a

submenu
<+/PU> Increase the numeric value or make changes
<-/PD> Decrease the numeric value or make changes
<F7> Load BIOS Setup Defaults
<F9> Load High Performance Defaults
<F10> Save all the CMOS changes and exit

3-4

MS-7030 ATX Mainboard

The Main Menu

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of AWARD® special enhanced features.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system’s
performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

PNP/PCI Configurations

This entry appears if your system supports PnP/PCI.

H/W Monitor

This entry shows the status of your CPU, fan, warning for overall system status.

Cell Menu

Use this menu to specify your settings for CPU/DRAM/AGP frequency/voltage con­trol and overclocking.

Load Fail-Safe Defaults

Use this menu to load factory default settings into the BIOS for stable system perfor­mance operations.

Once you enter Phoenix-Award® BIOS CMOS Setup Utility, the Main Menu will appear
on the screen. The Main Menu allows you to select from twelve setup functions and
two exit choices. Use arrow keys to select among the items and press <Enter> to
accept or enter the sub-menu.

3-5

BIOS Setup

Load Optimized Defaults

Use this menu to load the BIOS values for the best system performance, but the
system stability may be affected.

Set Supervisor Password

Use this menu to set Supervisor Password.

Set User Password

Use this menu to set User Password.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

3-6

MS-7030 ATX Mainboard

Standard CMOS Features

Date

This allows you to set the system to the date that you want (usually the current date).
The format is <day><month> <date> <year>.

day Day of the week, from Sun to Sat, determined by BIOS. Read-

only.

month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric

function keys.

year The year can be adjusted by users.

Time

This allows you to set the system time that you want (usually the current time). The
time format is <hour> <minute> <second>.

IDE Primary/Secondary Master/Slave

Press PgUp/<+> or PgDn/<-> to select [Manual], [None] or [Auto] type. Note that the
specifications of your drive must match with the drive table. The hard disk will not
work properly if you enter improper information for this category. If your hard disk
drive type is not matched or listed, you can use [Manual] to define your own drive
type manually.

If you select [Manual], related information is asked to be entered to the following
items. Enter the information directly from the keyboard. This information should be
provided in the documentation from your hard disk vendor or the system manufacturer.

Access Mode The settings are CHS, LBA, Large, Auto.
Capacity The formatted size of the storage device.
Cylinder Number of cylinders.
Head Number of heads.
Precomp Write precompensation.

The items in Standard CMOS Features Menu includes some basic setup items. Use
the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select
the value you want in each item.

3-7

BIOS Setup

Landing Zone Cylinder location of the landing zone.
Sector Number of sectors.

Drive A

This item allows you to set the type of floppy drive installed. Available options: [None],
[360K, 5.25 in.], [1.2M, 5.25 in.], [720K, 3.5 in.], [1.44M, 3.5 in.], [2.88M, 3.5 in.].

Video

The setting controls the type of video adapter used for the primary monitor of the
system. Available options are [EGA/VGA], [CGA 40], [CGA 80] and [Mono].

Halt On

The setting determines whether the system will stop if an error is detected at boot.
Available options are:

[All Errors] The system stops when any error is detected.
[No Errors] The system doesn’t stop for any detected error.
[All, But Keyboard] The system doesn’t stop for a keyboard error.
[All, But Diskette] The system doesn’t stop for a disk error.
[All, But Disk/Key] The system doesn’t stop for either a disk or a key-

board error.

CPU Type/BIOS Version/Video Memory/System Memory/Total Memory

The items show the CPU type, BIOS version and memory status of your system (read
only).

3-8

MS-7030 ATX Mainboard

Advanced BIOS Features

Full Screen LOGO Display

This item enables you to show the company logo on the bootup screen. Settings are:

[Enabled] Shows a still image (logo) on the full screen at boot.
[Disabled] Shows the POST messages at boot.

Small Logo(EPA) Display

This item enables you to show the EPA logo (brand specific graphics) on the bootup
screen. Settings are:

[Disabled] Shows the normal POST screen at boot.
[Enabled] Shows a still image (EPA logo) on the screen at boot.

Hard Disk Boot Priority

Press <Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to
select the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to
move it up/down in this hard disk boot priority list.

Virus Warning

The item is to set the Virus Warning feature for IDE Hard Disk boot sector protection.
If the function is enabled and any attempt to write data into this area is made, BIOS
will display a warning message on screen and beep. Settings: [Disabled] and [Enabled].

CPU Internal Cache

The item allows you to turn on or off CPU’s internal (L1) cache. Settings: [Enabled]
and [Disabled].

External Cache

The item allows you to turn on or off CPU’s external (L2) cache. Settings: [Enabled]
and [Disabled].

3-9

BIOS Setup

Quick Boot

Setting the item to [Enabled] allows the system to boot within 5 seconds since it will
skip some check items. Available options: [Enabled], [Disabled].

1st/2nd/3rd Boot Device

The items allow you to set the sequence of boot devices where BIOS attempts to load
the disk operating system.

Boot Other Device

Setting the option to [Enabled] allows the system to try to boot from other device if the
system fails to boot from the 1st/2nd/3rd boot device.

Seek Floppy

Setting to [Enabled] will make BIOS seek floppy drive A: before booting the system.
Settings: [Enabled], [Disabled].

Boot Up Num-Lock LED

This setting is to set the Num Lock status when the system is powered on. Setting to
[On] will turn on the Num Lock key when the system is powered on. Setting to [Off]
will allow users to use the arrow keys on the numeric keypad. Setting options: [On],
[Off].

Gate A20 Option

This item is to set the Gate A20 status. A20 refers to the first 64KB of extended
memory. When the default value [Fast] is selected, the Gate A20 is controlled by
Port92 or chipset specific method resulting in faster system performance. When
[Normal] is selected, A20 is controlled by a keyboard controller or chipset hardware.

Typematic Rate Setting

This item is used to enable or disable the typematic rate setting including Typematic
Rate & Typematic Delay.

Typematic Rate (Chars/Sec)

After Typematic Rate Setting is enabled, this item allows you to set the rate
(characters/second) at which the keys are accelerated. Settings: [6], [8], [10], [12],
[15], [20], [24], [30].

Typematic Delay (Msec)

This item allows you to select the delay between when the key was first pressed
and when the acceleration begins. Settings: [250], [500], [750], [1000].

MSI Reminds You...

Available settings for “1st/2nd/3rd Boot Device” vary depending on the
bootable devices you have installed. For example, if you did not install
a floppy drive, the setting “Floppy” does not show up.

3-10

MS-7030 ATX Mainboard

Security Option

This specifies the type of BIOS password protection that is implemented. Settings are
described below:

APIC Function

This field is used to enable or disable the APIC (Advanced Programmable Interrupt
Controller). Due to compliance with PC2001 design guide, the system is able to run in
APIC mode. Enabling APIC mode will expand available IRQ resources for the system.
Settings: [Enabled], [Disabled].

MPS Table Version

This field allows you to select which MPS (Multi-Processor Specification) version to
be used for the operating system. You need to select the MPS version supported by
your operating system. To find out which version to use, consult the vendor of your
operating system. Settings: [1.4], [1.1].

Boot OS/2 for DRAM > 64MB

This allows you to run the OS/2® operating system with DRAM larger than 64MB.
When you choose [Non-OS2], you cannot run the OS/2® operating system with
DRAM larger than 64MB. But it is possible if you choose [OS2].

Option Description

[Setup] The password prompt appears only when end users try to run

Setup.

[System] A password prompt appears every time when the computer is

powered on or when end users try to run Setup.

3-11

BIOS Setup

Advanced Chipset Features

AGP Aperture Size

This setting controls just how much system RAM can be allocated to AGP for video
purposes. The aperture is a portion of the PCI memory address range dedicated to
graphics memory address space. Host cycles that hit the aperture range are for­warded to the AGP without any translation. The option allows the selection of an
aperture size of [32MB], [64MB], [128MB], [256MB] and [512MB].

AGP 3.0 Speed / AGP 2.0 Speed

AGP 3.0 Speed or AGP 2.0 Speed appears depending on the AGP card installed on
the mainboard. This item sets an appropriate speed for the installed AGP card. Setting
options for AGP 2.0 Speed: [1x], [1x2x], [1x2x4x]. Setting options for AGP 3.0 Speed:
[4x], [4x8x].

AGP Fast Write

The item enables or disables the AGP Fast Write feature. The Fast Write technology
allows CPU to write directly into the graphics controller without passing anything
through system memory and improves 8x speed accordingly. Select [Auto] only
when your AGP card supports the feature. Options: [Disabled], [Auto].

AGP Sideband Address

This item enables or disables the AGP 3.0 spec support. Selecting [Auto] will let the
system switch the suitable AGP type depending on the installed AGP card. Options:
[Disabled], [Auto].

System BIOS Cacheable

Selecting [Enabled] allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. Setting options: [Enabled], [Disabled].

3-12

MS-7030 ATX Mainboard

Integrated Peripherals

IDE Function Setup

Press <Enter> to enter the sub-menu and the following screen appears:

OnChip IDE Channel 0/1

The integrated peripheral controller contains an IDE interface with support for two
IDE channels. Choose [Enabled] to activate each channel separately. Settings:
[Enabled], [Disabled].

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the four IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In [Auto] mode, the system
automatically determines the best mode for each device. The settings are: [Auto],
[Mode 0], [Mode 1], [Mode 2], [Mode 3], [Mode 4].

Primary/Secondary Master/Slave UltraDMA

Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and the
operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE
bus master driver). If your hard drive and your system software both support Ultra
DMA/33, Ultra DMA/66 and Ultra DMA/100, select Auto to enable BIOS support. The
settings are: [Auto], [Disabled].

3-13

BIOS Setup

IDE Prefetch Mode

The onboard IDE drive interfaces support IDE prefetching, for faster drive accesses.
When you install a primary and/or secondary add-in IDE interface, set this option to
[Disabled] if the interface does not support prefetching. The settings are: [Enabled],
[Disabled].

IDE DMA Transfer Access

This item is used to enable or disable the DMA transfer function of the IDE Hard Drive.
The settings are: [Enabled], [Disabled].

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/
write. If your IDE hard drive supports block mode (most new drives do), select
[Enabled] for automatic detection of the optimal number of block read/writes per
sector the drive can support. Settings: [Enabled], [Disabled].

Onboard Device

Press <Enter> to enter the sub-menu and the following screen appears:

RAID Config

Press <Enter> to enter the sub-menu and the following screen appears:

IDE RAID

This item is available for you to enable/disable the onboard IDE RAID function. Setting
options: [Enabled], [Disabled].

IDE Primary/Secndry Master/Slave RAID

This feature allows users to enable or disable the RAID function for each IDE hard
disk drive. Settings: [Enabled], [Disabled].

SATA1/SATA2/SATA3/SATA4 RAID

This feature allows users to enable or disable the RAID function for each SATA hard
disk drive. The settings are: [Enabled], [Disabled].

3-14

MS-7030 ATX Mainboard

OnChip USB

This setting allows you to enable/disable the onboard USB controller. Selecting [V1.
1+V2.0] enables the system to support both USB 1.1 and 2.0 spec. Setting options:
[Disabled], [V1.1], [V1.1+V2.0].

USB KB/Storage Support

Select [Enabled] if you need to use a USB-interfaced keyboard or storage device in
the operating system. Setting options: [Enabled], [Disabled].

USB Mouse Support

Select [Enabled] if you need to use a USB-interfaced mouse in the operating system.
The settings are: [Enabled], [Disabled].

SATA3/SATA4

This allows you to enable or disable onchip Serial-A TA controller. Settings: [Enabled],
[Disabled].

AC97 Audio

[Enabled] allows the mainboard to detect whether an audio device is used. If an audio
device is detected, the onboard AC’97 (Audio Codec’97) controller will be enabled; if
not, it is disabled. Disable the controller if you want to use other controller cards to
connect an audio device. The settings are: [Enabled], [Disabled].

MAC LAN (nVIDIA)

Setting to [Auto] allows the BIOS to auto-detect the nVIDIA LAN controller and enable
it. Setting options: [Auto] and [Disabled].

Primary Graphic’s Adapter

Initialize the AGP video display before initializing any other display device on the
system. Thus the AGP display becomes the primary display. Setting options: [AGP]
and [PCI].

Onboard I/O Chip Setup

Press <Enter> to enter the sub-menu and the following screen appears:

Onboard FDC Controller

Select [Enabled] if your system has a floppy disk controller (FDD) installed on the
system board and you wish to use it. If you install add-on FDC or the system has no
floppy drive, select [Disabled] in this field. The settings are: [Enabled], [Disabled].

3-15

BIOS Setup

Onboard Serial Port 1

Select an address and corresponding interrupt for the first serial port. The settings
are: [3F8/IRQ4], [2E8/IRQ3], [3E8/IRQ4], [2F8/IRQ3], [Disabled], [Auto].

IR Function Select

This setting allows you to specify the operation mode for serial port 2. Setting options:
[IrDA], [ASKIR], [Disabled].

[Disabled] RS-232C Serial Port
[IrDA] IrDA-compliant Serial Infrared Port
[ASKIR] Amplitude Shift Keyed Infrared Port

RxD, TxD Active

This setting controls the receiving and transmitting speed of the IR peripheral in use.
Setting options: [Hi,Hi], [Hi,Lo], [Lo,Hi], [Lo,Lo].

IR Transmission Delay

This setting determines whether the IR transmission rate will be delayed while con­verting to receiving mode. Setting options: [Disabled], [Enabled].

UR2 Duplex Mode

This setting controls the operating mode of IR transmission/reception. Setting options:
[Full], [Half]. Under [Full] Duplex mode, synchronous, bi-directional transmission/re­ception is allowed. Under [Half] Duplex mode, only asynchronous, bi-directional trans­mission/reception is allowed.

Use IR Pins

Please consult your IR peripheral documentation to select the correct setting of the
TxD and RxD signals. Setting options: [RxD2/TxD2], [IR-Rx2Tx2].

Onboard Parallel Port

There is a built-in parallel port on the on-board Super I/O chipset that provides Standard,
ECP, and EPP features. It has the following options:

[Disabled]
[3BC/IRQ7] Line Printer port 0
[278/IRQ5] Line Printer port 2
[378/IRQ7] Line Printer port 1

Parallel Port Mode

SPP : Standard Parallel Port
EPP : Enhanced Parallel Port
ECP : Extended Capability Port
ECP + EPP: Extended Capability Port + Enhanced Parallel Port
Normal

SPP/EPP/ECP/ECP+EPP

To operate the onboard parallel port as Standard Parallel Port only, choose [SPP]. To
operate the onboard parallel port in the EPP mode simultaneously, choose [EPP]. By
choosing [ECP], the onboard parallel port will operate in ECP mode only. Choosing
[ECP + EPP] will allow the onboard parallel port to support both the ECP and EPP

3-16

MS-7030 ATX Mainboard

modes simultaneously. Choose [Normal] to use Standard Parallel Port + Bi-Directional
Mode simultaneously.

EPP Mode Select

The onboard parallel port is EPP Spec. compliant, so after the user chooses the
onboard parallel port with the EPP function, the following message will be displayed
on the screen: “EPP Mode Select.” At this time either [EPP 1.7] spec or [EPP 1.9] spec
can be chosen.

ECP Mode Use DMA

The ECP mode has to use the DMA channel, so choose the onboard parallel port with
the ECP feature. After selecting it, the following message will appear: “ECP Mode Use
DMA.” At this time, the user can choose between DMA channel [3] or [1].

3-17

BIOS Setup

Power Management Setup

Sleep State

This item specifies the power saving modes for ACPI function. If your operating
system supports ACPI, such as Windows 98SE, Windows ME and Windows 2000,
you can choose to enter the Standby mode in S1(POS) or S3(STR) fashion through
the setting of this field. Options are:

[S1 (POS)] The S1 sleep mode is a low power state. In this state, no

system context is lost (CPU or chipset) and hardware main­tains all system context.

[S3 (STR)] The S3 sleep mode is a lower power state where the informa-

tion of system configuration and open applications/files is saved
to main memory that remains powered while most other hard­ware components turn off to save energy. The information
stored in memory will be used to restore the system when a
“wake up” event occurs.

Power Management

This item is used to select the degree (or type) of power saving and is related to the
HDD Power Down item. There are three options for power management:

[Min Saving] Minimum Power Management. Suspend Mode=1 Hour
[Max Saving] Maximum Power Management. Suspend Mode=1 Min
[User Define] A ll o ws end users to configure each mode separately.

Video Off Method

This determines the manner in which the monitor is blanked.

[V/H SYNC+Blank] This selection will cause the system to turn off the

vertical and horizontal synchronization ports and write
blanks to the video buffer.

[Blank Screen] This option only writes blanks to the video buffer.

MSI Reminds You...

S3-related functions described in this section are available only when
your BIOS supports S3 sleep mode.

3-18

MS-7030 ATX Mainboard

[DPMS Support] Initial display power management signalling.

HDD Power Down

If HDD activity is not detected for the length of time specified in this field, the hard disk
drive will be powered down while all other devices remain active. Settings are
[Disabled] and [1] through [15] Min.

HDD Down In Suspend

This item determines whether the hard disk drive will be turned off during suspend
mode. Settings: [Disabled] and [Enabled].

Power Button Function

This feature sets the function of the power button. Settings are:

[Power Off] The power button functions as normal power off button.
[Suspend] When you press the power button, the computer enters the

suspend/sleep mode, but if the button is pressed for more
than four seconds, the computer is turned off.

PWRON After PWR-fail

This item specifies whether your system will reboot after a power failure or interrupt
occurs. Available settings are:

[Off] Leaves the computer in the power off state.
[On] Leaves the computer in the power on state.
[Former-Sts] Restores the system to the status before power failure or

interrupt occurred.

Wake-Up Event Activity

Press <Enter> and the following sub-menu appears.

WOL (PME#) From Soft-Off

When set to [Enabled], the feature allows your system to be awakened from the
power saving modes through any event on PME (Power Management Event). Settings:
[Enabled], [Disabled].

Power-On by Alarm

The field is used to enable or disable the feature of booting up the system on a
scheduled time/date. Settings: [Enabled], [Disabled].

Day of Month Alarm

The field specifies the date for Power-On by Alarm. Settings: [0]~[31].

Time(hh:mm:ss) Alarm

The field specifies the time for Power-On by Alarm. Format is <hour><minute>
<second>.

3-19

BIOS Setup

S3 wake up by PS2/Keyboard, S3 wake up by PS2/Mouse

These fields allow the activity of the PS2 (keyboard and mouse) to wake up the
system from S3 sleep state. Settings: [Enabled], [Disabled].

3-20

MS-7030 ATX Mainboard

MSI Reminds You...

IRQ (Interrupt Request) lines are system resources allocated to I/O
devices. When an I/O device needs to gain attention of the operating
system, it signals this by causing an IRQ to occur. After receiving the
signal, when the operating system is ready, the system will interrupt
itself and perform the service required by the I/O device.

PNP/PCI Configurations

This section describes configuring the PCI bus system and PnP (Plug & Play) feature.
PCI, or Peripheral Component Interconnect, is a system which allows I/O devices to
operate at speeds nearing the speed the CPU itself uses when communicating with
its special components. This section covers some very technical items and it is
strongly recommended that only experienced users should make any changes to the
default settings.

Resource Controlled By

The Award Plug and Play BIOS has the capacity to automatically configure all of the
boot and Plug and Play compatible devices. However, this capability means abso­lutely nothing unless you are using a Plug and Play operating system such as Win­dows® 95/98. If you set this field to [Manual], choose specific resources by going into
each of the sub menu that follows this field (a sub menu is preceded by a “`”). The
settings are: [Auto (ESCD)], [Manual].

IRQ Resources

The items are adjustable only when Resources Controlled By is set to [Manual].
Press <Enter> and you will enter the sub-menu of the items. IRQ Resources list IRQ
3/4/5/7/9/10/11/12/14/15 for users to set each IRQ a type depending on the type of
device using the IRQ. Settings are:

[PCI Device] For Plug & Play compatible devices designed for PCI bus

architecture.

[Reserved] The IRQ will be reserved for further request.

3-21

BIOS Setup

PCI/VGA Palette Snoop

When set to [Enabled], multiple VGA devices operating on different buses can handle
data from the CPU on each set of palette registers on every video device. Bit 5 of the
command register in the PCI device configuration space is the VGA Palette Snoop bit
(0 is disabled). For example, if there are two VGA devices in the computer (one PCI
and one ISA) and the:

The setting must be set to [Enabled] if any ISA bus adapter in the system requires
VGA palette snooping.

VGA Palette Snoop
Bit Setting Action

[Disabled] Data read or written by the CPU is only directed to the PCI

VGA device’s palette registers.

[Enabled] Data read or written by the CPU is directed to both the PCI

VGA device’s palette registers and the ISA VGA device’s
palette registers, permitting the palette registers of both

VGA devices to be identical.

3-22

MS-7030 ATX Mainboard

Chassis Intrusion Detect

The field enables or disables the feature of recording the chassis intrusion status
and issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later. Setting options: [Enabled], [Reset], [Disabled].

Smart NB/CPU Fan Target

There are 2 pairs of Temperature/FAN Speed control: System Temperature with NB
Fan, and CPU Temperature with CPU Fan. W83627THF provides the Smart Fan sys­tem which can control the fan speed automatically depending on the current tem­perature to keep it with in a specific range. Settings: [Enabled], [Disabled].

NB/CPU Fan Tolerance (oC)

You can select a fan tolerance value here for the specific range for the Smart NB/
CPU Fan Target items. If the current temperatures of the 2 fans reach the maximum

threshold (the temperatures set in the Smart NB/CPU Fan Target plus the toler-
ance values you set here), the fans will speed up for cooling down. On the contrary
if the current temperatures reach the minimum threshold (the set temperatures minus
the tolerance values), the fans will slow down to keep the temperatures stable.

PC Health Status

Press <Enter> and the following sub-menu appears.

H/W Monitor

This section shows the status of your CPU, fan, overall system status, etc. Monitor
function is available only if there is hardware monitoring mechanism onboard.

3-23

BIOS Setup

Current System/CPU Temperature, NB/CPU Fan Speed, Vcore, +12V, +3.3V,
+5.0V, Battery, +5VSB

These items display the current status of all of the monitored hardware devices/
components such as CPU voltage, temperatures and all fans’ speeds.

3-24

MS-7030 ATX Mainboard

Cell Menu

The items in Cell Menu includes some important settings of CPU, AGP, DRAM and
overclocking functions.

Current CPU / DDR Clock

These two items show the current clocks of CPU & DDR. Read-only.

DRAM Configuration

Press <Enter> to enter the sub-menu and the following screen appears:

Max Memclock (Mhz)

User can place an artificial memory clock limit on the system. Please note that memory
is prevented from running faster than this frequency. Setting options: [Auto], [100],
[133], [166], [200].

1T/2T Memory Timing

This setting controls the SDRAM command rate. Selecting [1T] allows SDRAM
signal controller to run at 1T (T=clock cycles) rate. Selecting [2T] makes SDRAM
signal controller run at 2T rate. 1T is faster than 2T. Setting options: [1T], [2T], [Auto].

CAS# Latency (Tcl)

This controls the CAS latency, which determines the timing delay (in clock cycles)
before SDRAM starts a read command after receiving it. Settings: [Auto], [2.0], [2.5],
[3.0]. [2.0] increases the system performance the most while [3.0] provides the most
stable performance.

MSI Reminds You...

Change these settings only if you are familiar with the chipset.

3-25

BIOS Setup

RAS# to CAS# delay (tRCD)

When DRAM is refreshed, both rows and columns are addressed separately. This
setup item allows you to determine the timing of the transition from RAS (row address
strobe) to CAS (column address strobe). The less the clock cycles, the faster the
DRAM performance. Setting options: [Auto], [2], [3], [4], [5], [6], [7].

Min RAS# Active Time (tRAS)

This setting determines the time RAS takes to read from and write to a memory cell.
Setting options: [Auto], [5], [6], [7], [8], [9], [10], [11], [12], [13], [14], [15].

Row Precharge Time (tRP)

This item controls the number of cycles for Row Address Strobe (RAS) to be allowed
to precharge. If insufficient time is allowed for the RAS to accumulate its charge
before DRAM refresh, refreshing may be incomplete and DRAM may fail to retain
data. This item applies only when synchronous DRAM is installed in the system.
Available settings: [Auto], [2], [3], [4], [5], [6].

High Performance Mode

This item allows you to select the CPU/FSB parameters. Setting options: [Manual],
[Optimized]. When [Optimized] is selected, the system will use overclocked CPU/FSB
parameters. Select [Manual] for normal mode CPU/FSB parameters.
When selecting [Optimized], the settings of the following items will be configured to
the high-performing default automatically:

Aggressive timing [Enabled]
D.O.T Ranger [Sergeant]
RAS# to CAS# Delay (tRCD) [2]
Min RAS# active time (tRAS) [5]
Row precharge Time (tRP) [2]
Clock Spread Spectrum [Disabled]

Aggressive timing

This item allows you to enable or disable the memory clock. When [Enabled] is selected,
the timing delay of memory will be shorten to increase the performance. Setting
options: [Enabled], [Disabled].

Dynamic Overclocking

Dynamic Overclocking Technology is the automatic overclocking function, included in
the MSITM’s newly developed CoreCell

TM

Technology. It is designed to detect the load
balance of CPU while running programs, and to adjust the best CPU frequency
automatically. When the motherboard detects CPU is running programs, it will speed
up CPU automatically to make the program run smoothly and faster. When the CPU is
temporarily suspending or staying in the low load balance, it will restore the default
settings instead. Usually the Dynamic Overclocking Technology will be powered only
when users' PC need to run huge amount of data like 3D games or the video process,
and the CPU frequency need to be boosted up to enhance the overall performance.
Setting options:

[Disabled] Disable Dynamic Overclocking function.
[Private] 1st level of overclocking, increasing the CPU frequency by 1%.

3-26

MS-7030 ATX Mainboard

[Sergeant] 2nd level of overclocking, increasing the CPU frequency by 3%.
[Captain] 3rd level of overclocking, also the default value of "Load High

Performance Defaults", increasing the CPU frequency by 5%.
[Colonel] 4th level of overclocking, increasing the CPU frequency by 7%.
[General] 5th level of overclocking, increasing the CPU frequency by 9%.
[Commander] 6th level of overclocking, increasing the CPU frequency by 11%.

Spread Spectrum

This setting is used to enable or disable the FSB clock generator’s Spread Spectrum
feature. When overclocking the FSB, always set it to [Disabled]. Setting options:
[Enabled], [Disabled].

HT Frequency

This setting specifies the maximum operating frequency of the link’s transmitter clock.
Setting options: [1x], [2x], [3x], [4x], [5x].

Cool’n’Quiet control

This feature is especially designed for AMD Athlon processor, which provides a CPU
temperature detecting function to prevent your CPU’s from overheating due to the
heavy working loading. Setting options: [Disabled], [Auto].

Adjust CPU Ratio

This item lets you adjust the CPU ratio. Setting to [Startup] enables the CPU running at
the fastest speed which is detected by system. Setting options are: [Startup], [x4]~
[x20].

Adjust CPU FSB Frequency

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).
Select the number between [200]~[300] for needed frequency.

Adjust AGP Frequency

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).
Select the number between [200]~[300] for needed frequency.

MSI Reminds You...

For the purpose of ensuring the stability of Cool'n'Quiet function, it is
always recommended to have the memories plugged in DIMM1.

MSI Reminds You...

Even though the Dynamic Overclocking Technology is more stable
than manual overclocking, basically, it is still risky. We suggest user
to make sure that your CPU can afford to overclocking regularly first. If
you find the PC appears to be unstable or reboot incidentally, it's
better to disable the Dynamic Overclocking or to lower the level of
overclocking options. By the way, if you need to conduct overclocking
manually, you also need to disable the Dynamic OverClocking first.

3-27

BIOS Setup

CPU Voltage

This feature allows you to trim the voltage of CPU.

Memory Voltage

Adjusting the DDR voltage can increase the DDR speed. Any changes made to this
setting may cause a stability issue, so changing the DDR voltage for long-term
purpose is NOT recommended.

AGP Voltage

AGP voltage is adjustable in the field, allowing you to increase the performance of
your AGP display card when overclocking, but the stability may be affected.

MSI Reminds You...

The settings shown in different color in CPU Voltage, Memory Volt­age and AGP Voltage help to verify if your setting is proper for your

system.

Gray: Default setting.
Yellow: High performance setting.
Red: Not recommended setting and the system may be

unstable.

Changing CPU Voltage, Memory Voltage and AGP Voltage may
result in the instability of the system; therefore, it is NOT recom­mended to change the default setting for long-term usage.

3-28

MS-7030 ATX Mainboard

Load Fail-Safe/Optimized Defaults

The two options on the main menu allow users to restore all of the BIOS settings to
the default Fail-Safe or Optimized values. The Optimized Defaults are the default
values set by the mainboard manufacturer specifically for optimal performance of the
mainboard. The Fail-Safe Defaults are the default values set by the BIOS vendor for
stable system performance.

When you select Load Fail-Safe Defaults, a message as below appears:

Pressing Y loads the BIOS default values for the most stable, minimal system
performance.

When you select Load Optimized Defaults, a message as below appears:

Pressing Y loads the default factory settings for optimal system performance.

3-29

BIOS Setup

Set Supervisor/User Password

When you select this function, a message as below will appear on the screen:

Type the password, up to six characters in length, and press <Enter>. The password
typed now will replace any previously set password from CMOS memory. You will
be prompted to confirm the password. Retype the password and press <Enter>.
You may also press <Esc> to abort the selection and not enter a password.

To clear a set password, just press <Enter> when you are prompted to enter the
password. A message will show up confirming the password will be disabled. Once
the password is disabled, the system will boot and you can enter Setup without
entering any password.

When a password has been set, you will be prompted to enter it every time you try
to enter Setup. This prevents an unauthorized person from changing any part of your
system configuration.

Additionally, when a password is enabled, you can also have Award BIOS to re­quest a password each time the system is booted. This would prevent unauthorized
use of your computer. The setting to determine when the password prompt is re­quired is the Security Option of the ADVANCED BIOS FEATURES menu. If the
Security Option is set to System, the password is required both at boot and at entry
to Setup. If set to Setup, password prompt only occurs when you try to enter Setup.

MSI Reminds You...

About Supervisor Password & User Password:

Supervisor password: Can enter and change the settings of the

setup menu.

User password: Can only enter but do not have the right to

change the settings of the setup menu.

Introduction to DigiCell

4-1

Chapter 4. Introduction to DigiCell

Introduction to DigiCell

Chapter 2. Hardware Setup

short-cut icon in the system tray

short-cut path in the start-up menu
(path: Start-->Programs-->MSI-->DigiCell)

DigiCell, the most useful and powerful utility that MSI has spent much
research and efforts to develop, helps users to monitor and configure all the
integrated peripherals of the system, such as audio program, power
management, MP3 files management and communication / 802.11g WLAN
settings. Moreover, with this unique utility, you will be able to activate the
MSI well-known features, Live Update and Core Center, which makes it
easier to update the BIOS/drivers online, and to monitor the system hard­ware status (CPU/Fan temperature and speed) or to overclock the CPU/
memory.

Once you have your DigiCell installed (locate the setup source file in
the setup CD accompanying with your mainboard, path: Utility --> MSI Util-
ity --> MSI DigiCell), it will have an icon in the system tray, a short cut
icon on the desktop, and a short cut path in your “Start-up” menu. You may
double-click on each icon to enable DigiCell.

MSI Feature

MS-7030 ATX Mainboard

4-2

Before using this utility, it is required to have all the integrated peripherals/cards (LAN
card, Wireless LAN card, MegaStick... etc.) and all the necessary drivers (onboard
LAN driver, audio driver, CoreCenter, Live Update... etc.) installed correctly.

The icon representing each item will be lit up if it is inserted/installed correctly and
properly. Otherwise, the icon will remain gray and user is not able to view the
functionality/connection of that item.

Main

Introduction:

Click on each icon appearing above to enter the sub-menu to make further configuration.

MSI

Click on this button to link to MSI website:
http://www.msi.com.tw.

Quick Guide

Click on this button and the quick guide of DigiCell will be displayed for you
to review.

H/W Diagnostic

In this sub-menu, it provides the information of each DigiCell button for you to

check if the representing peripherals/cards/drivers are correctly installed.

Comm.

In this sub-menu, you can see the configuration details for communication
products, including the status, strength, speed and channel of the connec­tion of the Ethernet LAN & Wireless LAN.

Software Access Point

In this sub-menu, you can change your connection mode to different ones,
and configure the advanced settings for each mode, such as the authentica­tion encryption... etc.

Introduction to DigiCell

4-3

Live Update

You can take advantage of Live Update to detect and update BIOS and
drivers online.

Core Center

You can take advantage of Core Center to monitor the health status of your
system and to overclock under Windows OS if your system supports
overclocking function.

MEGA STICK

If you have your MEGA STICK connected to your system, this icon will be lit
up. Click this blue icon to turn DigiCell into a MP3 player, and then you can load
media files from your MEGA STICK or the system, and edit the preferred
playlist.

Audio Speaker Setting

In this sub-menu, you can configure and test the multi-channel audio function,
speakers, sound effect and environment.

Power on Agent

In this sub-menu, you can configure date, time and auto-executed programs
of the power-on, power-off and restarting features.

MSI Reminds You...

Click on back button in every sub-menu and it will bring you back to the
main menu.

MSI Feature

MS-7030 ATX Mainboard

4-4

H/W Diagnostic

In the H/W Diagnostic sub-menu, you can see the information, status and note of
each DigiCell. You may double check the connection and installation of the item
marked as gray.

You may also click on the Mail to MSI button to send your questions or suggestions
to MSI’s technical support staff.

Introduction to DigiCell

4-5

Communication

In the Communication sub-menu, you can see the status of all the LAN / WLAN /
Bluetooth on the screen if the hardware is installed. The first icon indicates the
onboard LAN on your system, the second icon indicates the wireless LAN status,
and the third one is the information about the bluetooth on your system. Click on each
item for details.

This icon indicates the information and connection status of onboard LAN,
which is read-only.

The second icon indicates the wireless connection. You may click this icon
to configure the advanced settings in the WLAN Card Mode dialogue box
(see the image on p.4-8). Please note that it is only available when the
Software Access Point is set to WLAN Card Mode.

The third icon indicates the connection using bluetooth devices. If your
system has connected to the bluetooth device, the icon will light up.

MSI Feature

MS-7030 ATX Mainboard

4-6

Software Access Point

In the Software Access Point sub-menu, you can see the status of communicating
on your system and choose the desired software access point mode by clicking on
the desired icon, in which the default settings are configured for your usage. The
default software access point mode is set to WLAN Card Mode. For more ad­vanced security settings and channels switching, click on “Setting” button to enter
its sub-menu.

Terminology

Here are the introduction of WLAN / AP communication terminology.

WEP Key

In the wireless network environment, the administrator can set up password
(Network Key) to protect the network from being attacked or unauthorized
access. When building the network, you can set up 4 sets of WEP keys,
which can be 5 characters (10 hex-adecimal digital) or 13 characters (26
hex-adecimal digital) and specify one of them to use.

Ad-hoc Mode

An Ad-hoc network is a local area network or other small network, especially
one with wireless or temporary plug-in connections, in which some of the
network devices are part of the network only for the duration of a communi­cations session. Users in the network can share files, print to a shared
printer, and access the Internet with a shared modem. In this kind of network,
new devices can be quickly added; however, users can only communicate
with other wireless LAN computers that are in this wireless LAN workgroup,
and are within range.

Infrastructure Mode

The difference between Infrastructure network and Ad-hoc network is that
the former one includes an Access Point. In an Infrastructure network, the
Access Point can manage the bandwidth to maximize bandwidth utilization.
Additionally, the Access Point enables users on a wireless LAN to access an
existing wired network, allowing wireless users to take advantage of the
wired networks resources, such as Internet, email, file transfer, and printer
sharing. The scale and range of the Infrastructure networking are larger and
wider than that of the Ad-hoc networking.

Introduction to DigiCell

4-7

Access Point Mode

Click on “Setting” button of the Access Point Mode and the following screen will
display.

IP Sharing

Click on this icon to enable/disable the IP sharing. The default of this setting is disabled.

Enabling/disabling IP sharing depends on the different situation. For example:

1. If your family and you are getting on Internet at home with multi computers, and
your ISP only provides one IP for you, you may need to enable IP Sharing
function in order to use this one IP to get on Internet with multi computers
simultaneously.

2. If you are getting on Internet in office, usually the LAN card will automatically get
the IP this computer uses. In this case you don’t have to enable this function.

SSID

Means Service Set Identifier, a unique name shared among all points in a wireless
network. It must be identical for all points in the network. Then the card will be able
to connect to an access point with the same SSID.

Channel

Specifies the operating radio frequency channel in Infrastructure mode, which
should be set to an available one (ex: with less traffic to ensure the stable and better
connection).

Associated Client List

This option is to display information of stations that are currently associated to your
wireless gateway.

Association Control

This option allows you to control which PC can connect to the wireless LAN. If you

Disabled. Enabled.

MSI Feature

MS-7030 ATX Mainboard

4-8

WLAN Card Mode

Click on “Setting” button of the WLAN Card Mode for the WEP status of your APs.
If the AP you are selecting (the highlighted one) is not encrypted (Disabled shown in

the Encryption column), the screen will display as below. You can click “Connect”
to make connection to that AP, click “Cancel” to close this dialogue box, or click
“Refresh” button to update the available WLAN connections.

If the network you are selecting is encrypted (WEP shown in the Encryption column),
the screen will display as below. You need to enter the correct WEP key defined by
AP in the specified WEP Key 1~4 fields to make the connection.

enable this feature, only PCs with MAC address located in Association Control List
can connect to the wireless LAN.

MAC Address

MAC stands for Media Access Control. A MAC address is the hardware address of
a device connected to a network.

Security

This option allows you to enable/disable the authentication function.

Authentication

Open: Communicates the key across the network.
Shared: Devices must have identical WEP settings to communicate.

Introduction to DigiCell

4-9

Live Update

Click on the Live Update icon in the main menu and the Live Update program will be
enabled.

The Live Update 3™ is a tool used to detect and update your BIOS/
drivers/VGA BIOS/VGA Driver/OSD/Utility online so that you don’t
need to search for the correct BIOS/driver version throughout the
whole Web site. To use the function, you need to install the “MSI Live
Update 3” application. After the installation, the “MSI Live Update 3”
icon (as shown on the right) will appear on the screen.
Double click the “MSI Live Update 3” icon, and the following screen
will appear:

Five buttons are placed on the left column of the screen. Click the desired button to
start the update process.

Live BIOS – Updates the BIOS online.
Live Driver – Updates the drivers online.
Live VGA BIOS – Updates the VGA BIOS online.
Live VGA Driver – Updates the VGA driver online.
Live OSD – Updates the firmware of the OSD products online.
Live Utility – Updates the utilities online.

If the product you purchased does not support any of the functions listed above, a
“sorry” message is displayed. For more information on the update instructions, insert
the companion CD and refer to the “Live Update Guide” under the “Manual” Tab.

MSI Feature

MS-7030 ATX Mainboard

4-10

MEGA STICK

In the MEGA STICK sub-menu, you can configure the settings of MSI MEGA STICK
and the media files (*.m3u, *.mp3, *.wav, *.cda, *.wma) on your system.

Basic Function

Here you can edit your own play list with the buttons “load”, “save”, “delete”,
“shuttle”, “repeat” & “print”.

Load To load media files or the playlist of mp3 files (*.m3u) on your system or

on your MEGA STICK.

Save To save a loaded playlist of mp3 files (*.m3u) on your system or on

your MEGA STICK.

Delete Click on the media files in the Play List: field and use “Delete” button

to remove the media file from the play list. You may remove multi media
files simultaneously by using “Ctrl” to select multi files.

Shuffle To play the media file in the Play List: in a random order.
Repeat To repeat the selected files in the Play List:.
Print This button has 2 functions:

1.To print out the details of current play list through your printer with
the following information:
Song title --- Song length --- Singer name

2.To save the details of current play list and save the file in the plain
text file format in the \\Program files\MSI\DigiCell\MyMusic.txt for
your reference. The MyMusic.txt file is with the following information:
Song title --- Song length --- Singer name

Introduction to DigiCell

4-11

There is also a toolbar for you to execute some basic function, like play, stop, pause,
previous/next song, song info and volume adjust. There is also a scroll bar on the top
for you to forward/rewind.

Right-click on the MP3 file and choose “Info”, a MP3 Info dialogue
will pop up to show the information of the file, including the title, artist,
album, release year and others. You may also add your own comment
in the comment field. Then click “Save” to save the change, click
“Cancel” to discard the change, or click “Remove” to all this
information.

play

forward/rewind
bar

song’s informationstop

pause

next

previous

MSI Feature

MS-7030 ATX Mainboard

4-12

Non-Unicode programs supported

If you are using an operating system in European languages, and you’d like to play the
media files in MEGA STICK with East-Asian languages (such as Chinese, Japanese...
etc.), it is possible that the file names display incorrectly.
However, you can install the Supplemental Language Support provided by
Microsoft to solve this problem. You need to have your Microsoft Setup CD prepared
in the CD-ROM. The system will start to install the necessary components after the
settings are configured here. Follow the steps described below.

1.Go to [Control Panel] and choose [Regional and Languages Options].

2.Go to the [Languages] tab and enable the check box of [Install files for East
Asian languages]. A dialogue box will pop up to remind you the above selection
is chosen.

Introduction to DigiCell

4-13

3. Then go to the [Advanced] tab and select the language you want to be
supported (the language of the filename in the MegaStick) from the drop-

down list in the [Language for non-Unicode programs], then click [Apply]. The
system will install the necessary components from your Microsoft Setup CD
immediately.

MSI Feature

MS-7030 ATX Mainboard

4-14

Core Center (for AMD Processor)

Click on the Core Center icon in the main menu and the Core Center program will
be enabled.

Cool’n’Quiet

This utility provides a CPU temperature detection function called Cool’n’Quiet.
Cool’n’Quiet is a special feature designed only for AMD® Athlon64 processor, and

with Cool’n’Quiet, the system will be capable of detecting the temperature of the
CPU according to the CPU’s working loading. When the CPU temperature climbs up to
a certain degree, the speed of the system cooling fan will be risen automatically, and
on the other hand, the speed of the system cooling fan will slow down instantly
when the CPU temperature descends to its normal degree.

Here the current system status (including Vcore, 3.3V, +5V and 12V) and the current
PC hardware status (such as the CPU & system temperatures and all fans speeds)
are shown on the left and right sides for you to monitor.

When you click the red triangles in the left and right sides, two sub-menus will open
for users to overclock, overspec or to adjust the thresholds of system to send out the
warning messages.

Introduction to DigiCell

4-15

Left-side: Current system status

In the left sub-menu, you can configure the settings of FSB, Vcore, Memory Voltage
and AGP Voltage by clicking the radio button in front of each item and make it available
(the radio button will be lighted as yellow when selected), use the “+” and “-” buttons
to adjust, then click “OK” to apply the changes. Then you can click “Save” to save
the desired FSB you just configured.

Also you may click “Auto” to start testing the maximum CPU overclocking value. The
CPU FSB will automatically increase the testing value until the PC reboots. Or you may
click “Default” to restore the default values.

Right-side: PC hardware status during real time operation

In the right sub-menu, here you can configure the PC hardware status such as CPU
& system temperatures and fan speeds. You may use the scroll bars to adjust each
item, then click “OK” to apply the changes. The values you set for the temperatures
are the maximum thresholds for the system for warnings, and the values for fan
speeds are the minimum thresholds.

Center-side: User mode/Auto mode

Here you may adjust the CPU fan speed. If you choose User mode, you may adjust
the CPU fan speed in 8 different modes, from High Speed to Low speed. If you
choose Cool’n’Quiet, the system will automatically configure an optimal setting for
you.

MSI Reminds You...

To ensure that Cool’n’Quiet function is activated and will be working
properly, it is required to double confirm that:

1. Check the serial number printed on the top of CPU. On the top of CPU,
there are three lines listed under AMD AthlonTM. Find the 13 charac­ters of the first line, and locate the last one from those 13 characters.
If the last character is “O” or after “O” (such as P, Q, R, and so on), that
means this CPU supports Cool’n’Quiet function. On the contrary, if
the last character is before
“O”, that means this CPU does
not support Cool’n’Quiet
function.

2. Run BIOS Setup, and select

Frequency/Voltage
Control. Under Frequency/
Voltage Control, find
Cool’n’Quiet Support, and

set this item to “Enable.”

3. Enter Windows, and select
[Start]->[Settings]->[Control
Pannel]->[Power Options].
Enter Power Options Prop-

erties tag, and select Mini­mal Power Management
under Power schemes.

MSI Feature

MS-7030 ATX Mainboard

4-16

Audio Speaker Setting

In the Audio Speaker Setting sub-menu, you can configure the multi-channel audio
operation, perform speaker test, and choose the environment you prefer while en­joying the music.

You can scroll the bar of each equalizer to regulate for current playing digital sound
source. Also you may click on the “on” button to enable/disable the equalizer function.
Once the equalizer function is enabled, you can choose several preset equalizers
for your preference. You may also right-click anywhere to execute this function.
After you have chosen one equalizer, it will be indicated next to the “on” button in
yellow.

The Environment setting lets you select the environment you like, such as

Cave or Convert Hall.

Introduction to DigiCell

4-17

Click on the “Speaker test” button and the following dialogue box will appear:

In this Speaker Configuration dialogue box, select the audio configuration which
is identical to the audio jack on your mainboard. Once the correct audio configuration
is selected, click “Apply” to save the changes. Then the following screen will
appear. In this Speaker Configuration dialogue box, first select the correct item
from the Speaker mode drop-down list, and then click on each connected speaker
to ensure if Headphone, 2-, 4-, 5.1-, or 7.1- channel audio operation is working
properly. If any speaker fails to make sound, then check whether the cable is in­serted firmly to the connector, or replace the bad speakers with good ones.

Subwoofer

Front Right

Rear Right

Center

Front Left

Rear Left

Side Left

Side Right

MSI Feature

MS-7030 ATX Mainboard

4-18

Power on Agent

In the Power on Agent sub-menu, you can configure setting of power-on, power­off and restarting status.

In the screen below, you can set the date, time, start-up programs respectively for
power-on, power-off and restarting.

Power On

Here are the available settings for Power On function:

Date Use the drop-down list to select the date for power-on.
Time Use the arrow keys to select the hour/minute/second for power-on,

power-off and restarting. Then click “Apply” to save the changes. As
you click “Apply”, the following dialogue will appear to show you the
next power-on schedule, and the system will start to count down to
restart. Click “OK” to restart the computer right away or click “Later”
to restart your computer later.

MSI Reminds You...

Please note that the new setting will not take effect until you restart your
computer.

Introduction to DigiCell

4-19

Power Off / Restart

You may configure the time (in the format hh:mm:ss) for the next power-off / restart.

Start With

Use the button “+Add” to add the start-up programs
as DigiCell is activated next time. For example, you
may like to have Outlook activated or a specified
website linked when you get to the office every
morning.
Step 1: Click on the Program: field and click “>>”

button to browse for the path of Outlook or

Internet Explorer.
Step 2: Click on “OK” to apply the setting.
Step 3: For specified file or specified website, you

may enter the file name with the complete

path or the website link in the Parameters: field.

Of course you may use the button “-Delete” to remove the added programs, or you
can right-click on the selected program and click Delete.

add the desired start­with program

To activate Outlook as DigiCell
is enabled next time

To activate a specified website
as DigiCell is enabled next time

delete the added program

MSI Reminds You...

You can also enable the Every turn on function, which will enable the
specified program(s) and file(s) every time the Digi Cell utility runs.

MSI Feature

MS-7030 ATX Mainboard

4-20

Auto Login

Since the Power On function allows the system to power on automatically, you may
have to enable this Auto Login function in the following situations:

1.If you are using a computer belonging to a domain in office, and you need to
enter your user name & password everytime when you boot up your computer.

2.If there are multi users using the same computer and you’d like to power on the
computer automatically with one specific user.

Enable Auto Login

Enable this setting if you want to use the Auto Login feature. It supports the
following operating systems: Win9X, Windows ME, Windows 2000 & Windows XP.

Default User Name

It is only available for Windows 2000 & Windows XP.

- - If you are using a computer belonging to a domain in office, please enter your
login user name in this field.

-- If you are using a computer with multi users (for Windows XP operating system),
please enter the user name you’d like to auto power-on in this field.

Default Password

It is only available for Windows 2000 & Windows XP.

- - If you are using a computer belonging to a domain in office, please enter your
login password in this field.

-- If you are using a computer with multi-users (for Windows XP operating system),
please enter the password for the user name you’d like to auto power-on in
this field.

nVIDIA RAID Introduction

Chapter 5. nVidia RAID In­troduction

nVidia RAID Introduction

NVIDIA brings Redundant Array of Independent Disks (RAID)
technology—which is used by the world’s leading businesses— to
the common PC desktop. This technology uses multiple drives to
either increase total disk space or to offer data protection. For all
levels, RAID techniques optimize storage solutions by using multiple
disks grouped together and treating them as a single storage
resource.

5-1

MS-7030 ATX Mainboard

Introduction

System Requirement

Operating System Support

NVRAID supports the following operating systems:

Windows XP Home Edition
Windows XP Professional Edition
Windows 2000 Professional

RAID Arrays

NVRAID supports the following types of RAID arrays described in this section:
RAID 0: RAID 0 defines a disk striping scheme that improves the disk read and write
times for many applications.
RAID 1: RAID 1 defines techniques for mirroring data.
RAID 0+1: RAID 0+1 combines the techniques used in RAID 0 and RAID 1 arrays.
Spanning (JBOD): JBOD provides a method for combining drives of differentsizes
into one large disk.

Summary of RAID Configurations

Array Uses Advantages Drawbacks # Hard

RAID 0 Non-critical data

requiring high
performance.

RAID 1 Small databases or any

other small capacity
environment requiring
fault tolerance.

RAID 0+1 Critical data requiring

high performance.

JBOD Combining odd size

drives into one big drive

High data throughput. No fault tolerance. multiple None

100% data
redundancy.

Optimized for both
100% data
redundancy and
performance.
Allows spare disks.

Combines and uses
the capacity of odd
size drives.

Requires 2 drives for
the storage space of 1
drive.

Requires 2 drives for
the storage space of 1
drive—the same as
RAID level 1.

Decreases
performance because
of the difficulty in
using drives
concurrently or to
optimize drives for
different uses.

Disks

2 Yes

4+ Yes

Multiple No

Fault
Tolerance

MSI Reminds You...

Please note that users cannot install OS, either WinME or Win98, in
their SATA hard drive. Under these two OSs, SATA can only be used
as a normal storage device.

5-2

nVIDIA RAID Introduction

RAID Configuration

Basic Configuration Instructions

The following are the basic steps for configuring NVRAID:

Non-Bootable RAID Array

1. Choose the hard disks that are to be RAID enabled in the system BIOS. (Check p.
3-13 for details.)

2. Specify the RAID level, either Mirroring (RAID 1), Striping (RAID 0), Striping and
Mirroring (RAID 0+1), or Spanning (JBOD) and create the desired RAID array.

3. Enter the Windows OS, run the Windows nForce Setup application and install the
RAID software. (Check p.5-7 for details.)

4. Initialize the NVRAID Array Disks.

Bootable RAID Array

1. Choose the hard disks that are to be RAID enabled in the system BIOS. (Check p.
3-13 for details.)

2. Specify the RAID level, either Mirroring (RAID 1), Striping (RAID 0), Striping and
Mirroring (RAID 0+1), or Spanning (JBOD) and create the desired RAID array.

3. Boot from the Windows CD, use the floppy disk that has the RAID driver to copy
and install the nForce RAID software. (Check p.5-7 for details.)

4. Initialize the NVRAID Array Disks.

Setting Up the NVRAID BIOS

Be sure to enable the SATA1/SATA2/SATA3/SATA4 RAID items in RAID Config of
Integrated Peripherals/Onboard Devices in BIOS (refer to p.3-13 for details)

before configuring the NVRAID BIOS. After that press F10 to save the configuration
and exit. The PC will reboot right away. Then enter the RAID BIOS Setup by pressing
F10 when prompted, and follow the procedures described below to set up the
NVRAID BIOS.
NVRAID BIOS setup lets you choose the RAID array type and which hard drives you
want to make part of the array.

Entering the RAID BIOS Setup

1. After rebooting your PC, wait until you
see the RAID software prompting you
to press F10. The RAID prompt ap­pears as part of the system POST and
boot process prior to loading the OS.

2. Press F10, and the NVIDIA RAID Utility

--- Define a New Array window will
appear.
The default RAID Mode is set to Mir-

roring and Striping Block is set to
Optimal.

5-3

MS-7030 ATX Mainboard

Understanding the “Define a New Array ” Window

Use the Define a New Array window to

• Select the RAID Mode

• Set up the Striping Block

• Specify which disks to use for the RAID Array

Depending on the platform used, the system can have one or more channels. In a
typical system there is usually one controller and multiple channels, and each chan­nel has a slave and a master.
The channel/controller/master/slave status of each hard disk is given in the Loc
(location) columns of the Free Disks and Array Disks lists.

In the example above, 1.0.M means the hard drive is attached to Channel 1, Controller
0, and the drive is set to Master. The following is a list of all possible combinations:

Parallel ATA

0.0.M Channel 0, controller 0, Master

0.0.S Channel 0, controller 0, Slave

0.1.M Channel 0, controller 1, Master

0.1.S Channel 0, controller 1, Slave

Serial ATA

1.0.M Channel 1, controller 0, Master

1.1.M Channel 1, controller 1, Slave

MSI Reminds You...

There is no such thing as Slave drive in Serial ATA. All drives are
considered to be Master since there is a one to one connection
between the drive and the controller.

5-4

nVIDIA RAID Introduction

Using the Define a New Array Window

If necessary, press the tab key to move from field to field until the appropriate field is
highlighted.

• Selecting the RAID Mode

By default, this is set to [Mirroring]. To change to a different RAID mode, press the
down arrow key until the mode that you want appears in the RAID Mode box—either
[Mirroring], [Striping], [Spanning], or [Stripe Mirroring].

• Selecting the Striping Block Size

Striping Block size is given in kilobytes, and affects how data is arranged on the

disk. It is recommended to leave this value at the default [Optimal], which is 32KB, but
the
values can be between [4 KB] and [128 KB].

• Assigning the Disks

The disks that you enabled from the RAID Config BIOS setup page appear in the Free
Disks block. These are the drives that are available for use as RAID array disks.

To designate a free disk to be used as a RAID array disk,

1. Tab to the Free Disks section. The first disk in the list is selected.

2. Move it from the Free Disks block to the Array Disks block by pressing the right

arrow key (-->). The first disk in the list is moved, and the next disk in the list is
selected and ready to be moved.

3. Continue pressing the right-arrow key (<-- ) until all the disks that you want to use

as RAID array disks appear in the Array Disks block.

It shows that two disks have been assigned as RAID1 array disks in the figure
above.

5-5

MS-7030 ATX Mainboard

Completing the RAID BIOS Setup

1.After assigning your RAID array disks, press F7. The Clear disk data prompt
appears.

2.Press Y if you want to wipe out all the data from the RAID array, otherwise press
N. You must choose Yes if the drives were previously used as RAID drives.
The Array List window appears, where you can review the RAID arrays that you
have set up.

3. Use the arrow keys to select the array that you want to set up, then press Enter.
The Array Detail window appears.

4. If you want to mark this disk as empty and wipe out all its contents then press C.

5. At the prompt, press Y to wipe out all the data, otherwise press N.

6.Press Enter again to go back to the previous window and then press F10 to exit
the RAID setup. Now that the RAID setup has been configured from the RAID BIOS,
the next step is to configure and load NVRAID drivers under Windows, as ex­plained in “Installing the NVIDIA RAID Software Under Windows” on p5-7.

5-6

nVIDIA RAID Introduction

NVIDIA RAID Utility Installation

Installing the NVIDIA RAID Software Under Windows
(for Non-bootable RAID Array)

The existing Windows IDE Parallel ATA driver (as well as the Serial ATA driver if SATA
is enabled) must be upgraded to use the NVIDIA IDE Parallel ATA driver (as well as the
NV Serial ATA driver if SATA is enabled).
This section describes how to run the setup application and install the RAID software
which will upgrade the Windows IDE driver and install the RAID software.

1.Start the nForce Setup program to open the NVIDIA Windows nForce Drivers page.

2.Select the modules that you want to install. Make sure that the “NVIDIA IDE Driver”

is selected.

3.Click Next and then follow the instructions.

4.After the installation is completed, be sure to reboot the PC.

5.After the reboot, initialize the newly created array. See “Initializing and Using the

Disk Array” on p5-10.

5-7

MS-7030 ATX Mainboard

Installing the RAID Driver (for bootable RAID Array)

1. After you complete the RAID BIOS setup, boot from the Windows CD, and the

Windows Setup program starts.

2. Press F6 and wait for the Windows Setup screen to appear.

3. Specify the NVIDIA drivers:

(1)Insert the floppy that has the RAID driver, press S, then press Enter. The

Windows Setup screen appears as below:

MSI Reminds You...

Please follow the instruction below to make an nVIDIA Serial ATA RAID
driver for yourself.

1.Insert the MSI CD into the CD-ROM drive.

2.Ignore the Setup screen and use “Explorer ” to browse the CD.

3.Copy all the contents (including the sub-folders) in the
\\nVidia\System\CK8S\Win2k-XP\IDE\WinXP to a formatted
floppy disk.

4.The driver disk for nVIDIA Serial ATA driver is done.

(2)Select “NVIDIA RAID CLASS DRIVER” and then press Enter.
(3)Press S again at the Specify Devices screen, then press Enter.
(4)Select “NVIDIA NForce Storage Controller” and then press Enter. The follow-

ing Windows Setup screen appears listing both drivers:

5-8

nVIDIA RAID Introduction

4.Press Enter to continue with Windows XP Installation. Be sure to leave the floppy
disk inserted in the floppy drive until the blue screen portion of Windows XP
installation is completed, then take out the floppy.

5.Follow the instructions on how to install Windows XP. During the GUI portion of the
install you might be prompted to click Yes to install the RAID driver. Click Yes as
many times as needed in order to finish the installation. This will not be an issue
with a signed driver.

MSI Reminds You...

Each time you add a new hard drive to a RAID array, the RAID driver
will have to be installed under Windows once for that hard drive. After
that, the driver will not have to be installed

5-9

MS-7030 ATX Mainboard

Initializing and Using the Disk Array

The RAID array is now ready to be initialized under Windows.

1.Launch Computer Management by clicking “Start” --> “Settings” --> “Control Panel”

then open the “ Administrative Tools” folder and double click on “Computer
Management”.

2.Click “Disk Management” (under the “Storage” section). The Initialize and Convert

Disk Wizards appears.

3.Click Next. The Select Disks to Initialize window appears. The disks listed depend

on how many arrays you have configured.

4.Click Next. The Select Disks to Convert window appears.

5-10

nVIDIA RAID Introduction

5.Check the disk in the list if you want to make the array a dynamic disk, then click

Next. The Completing the Initialize and Convert Disk Wizard window appears.

6.Click Finish. The “Computer Management” window appears.

The actual disks listed will depend on your system, and the unallocated partition is
the total combined storage of two hard disks. You must format the unallocated
disk space in order to use it.

7. Format the unallocated disk space. Right click “Unallocated space”, select “New

Partition…” and follow the wizard. After the drive has been formatted, it is ready
for use.

5-11

MS-7030 ATX Mainboard

RAID Drives Management

There is an application called NVRAIDMAN which helps you perform the following
tasks of nVDIA RAID.

• Viewing RAID Array Configurations

View an array configuration (mirrored, striped, mirror-striped, JBOD, or any sup­ported combination)

• Setting Up a Spare RAID Disk

• View free and/or dedicated free disks

• Designate a free disk to a particular array

• Rebuilding a RAID Mirrored Array

• Rebuild a broken mirrored array

• Watch the progress of rebuilding an array

Viewing RAID Array Configurations

To view your RAID configuration from Windows, launch the NVRAID Management
utility by double-clicking NvRaidMan.exe (the default location of NvRaidMan.exe is in
\\nVidia\System\CK8S\Win2k-XP\IDE\WinXP of the setup CD accompanied with your
mainboard).
The RAID configuration information appears in the right-side pane, as shown below.

MSI Reminds You...

The information in the figures in this part may very from what it is shown
in your system.

NVRAID Mirrored Array

The figure below shows an example of a two hard drive mirrored array using iden­tical 55.90 GB IDE hard drives (ST360015A), where one drive is configured as
Master and the other drive is configured as Slave. The total hard disk space used is

55.90 GB. (1.1 GB = 1,073,741,824 bytes)

5-12

nVIDIA RAID Introduction

NVRAID Striped Array

The figure below shows an example of a two hard drive striped array using identical

55.90 GB IDE hard drives (ST360015A), where one drive is configured as Master

and the other drive is configured as Slave. The total disk space used is 111.80 GB.

NVRAID Striped Mirror Array

The figure below shows an example of a four hard drive stripe-mirrored array. The
total disk space used is 111.80 GB.

NVRAID Spanning (JBOD) Array

The figure below shows an example of a two hard drive spanning array. The total
disk space used is 111.80 GB.

NVRAID Mirrored Array and a Striped Array

The figure below shows an example of a two hard drive mirrored array as well as a
two hard drive striped array.

5-13

MS-7030 ATX Mainboard

Setting Up a Spare RAID Disk

You can designate a hard drive to be used as a spare drive for a RAID 1 or RAID 0+1
array2. The spare drive can take over for a failed disk. NVRAID supports two types
of spare drives:

• Free Disk

A free disk is a disk that is not part of any RAID array, but can be used by any
available RAID 1 or RAID 0+1 array that requires a particular disk when one of its
disks crashes or becomes unusable. The process is automatic and doesn’t require
any user interaction.
For example, if you have a system with four hard disks where one disk is used to
boot the OS, two hard drives are set up in a mirrored array, and a fourth hard disk is
set up as a free disk, then if one of the mirrored array drives fails, the free disk will
be automatically assigned to the mirrored array to be used instead of the failed disk.

• Dedicated Disk

A dedicated free disk is a disk that is assigned to a RAID 1 or RAID 0+1 array and that
disk is used by that array only when needed, for example during a system crash
where a RAID mirrored drive is broken. The dedicated disk can be used only by the
array that it is assigned to and not by any other array, unlike a free disk which can be
used by any available RAID 1 or RAID 0+1 array.

Assigning a Free Disk

To mark a disk as free, or not a part of any array,

1. Enter the system BIOS setup and make sure that the drive that you want to mark as
free is RAID enabled.

2. Enter the RAID BIOS and make sure that the drive is not part of any array (if one
exists).

3. Boot into Windows and run the NVRAIDMAN program. The drive appears under the
Free Disk section. The figure below shows an example of the NVRAIDMAN display
if you have a mirror array and one free disk.

5-14

nVIDIA RAID Introduction

Assigning a Dedicated Disk

To mark a disk as dedicated, or reserve it for use by a specific array,

Step 1: Mark the Disk as a Free Disk

1. Enter the system BIOS setup and make sure that the drive that you want to mark as

free is RAID enabled.

2. Enter the RAID BIOS and make sure that the drive is not part of any array (if one

exists).

3. Boot into Windows and run the NVRAIDMAN program. The drive appears under the

Free Disk section.

Step 2: Dedicate the Free Disk to an Array

While running NVRAIDMAN, dedicate the free disk to an array using one of the
following two methods:

• Method 1: Select a free disk and then assign it to an array.

• Method 2: Select an array and then assign a free disk to it.

Both methods are equally simple ways of accomplishing the same task.

Method 1: Select a free disk and then assign it to an array.

1. Right click one of the available disks under the Free Disk section. The pop-up menu

appears.

2. Select Designate Spare from the menu to launch the Spare Disk Allocation Wizard.

5-15
