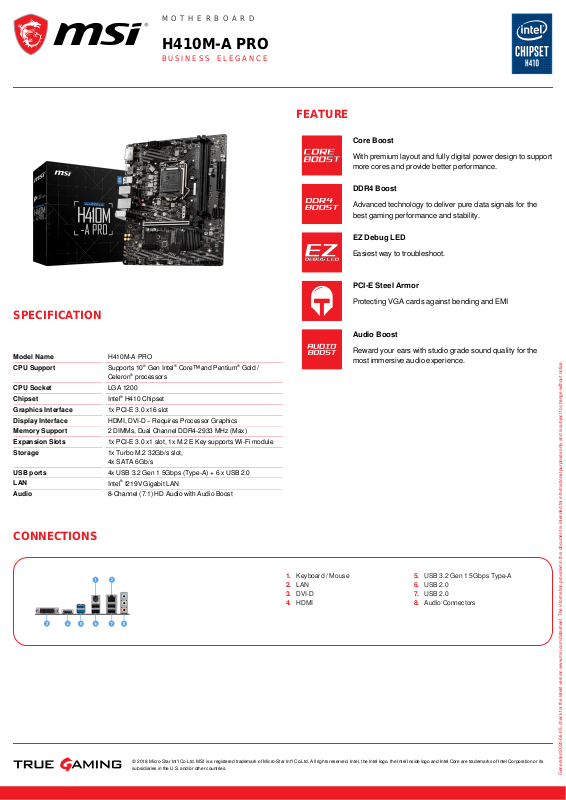

MSI H410M-A Pro Service Manual

MOTHERBOARD

MOTHERBOARD

H410M-A PRO

H410M-A PRO

BUSINESS ELEGANCE

BUSINESS ELEGANCE

FEATURE

Core Boost

With premium layout and fully digital power design to support
more cores and provide better performance.

DDR4 Boost

Advanced technology to deliver pure data signals for the
best gaming performance and stability.

EZ Debug LED

Easiest way to troubleshoot.

PCI-E Steel Armor

SPECIFICATION

Model Name H410M-A PRO

CPU Support

CPU Socket LGA 1200

Chipset

Graphics Interface 1x PCI-E 3.0 x16 slot

Display Interface HDMI, DVI-D – Requires Processor Graphics

Memory Support 2 DIMMs, Dual Channel DDR4-2933 MHz (Max)

Expansion Slots 1x PCI-E 3.0 x1 slot, 1x M.2 E Key supports Wi-Fi module

Storage 1x Turbo M.2 32Gb/s slot,

USB ports 4x USB 3.2 Gen 1 5Gbps (Type-A) + 6 x USB 2.0

LAN

Audio 8-Channel (7.1) HD Audio with Audio Boost

Supports 10th Gen Intel® Core™ and Pentium® Gold /
Celeron® processors

Intel® H410 Chipset

4x SATA 6Gb/s

Intel® I219V Gigabit LAN

CONNECTIONS

Protecting VGA cards against bending and EMI

Audio Boost

Reward your ears with studio grade sound quality for the
most immersive audio experience.

Keyboard / Mouse1.
LAN2.
DVI-D3.
HDMI4.

USB 3.2 Gen 1 5Gbps Type-A5.
USB 2.06.
USB 2.07.
Audio Connectors8.
