MSI ATX BX2 User Manual

CHAPTER 1 INTRODUCTION

1-1

The ATX BX2 mainboard is a high-performance personal computer
mainboard based on the Pentium® II processor. The Pentium® II processor
supports MMX

TM

(Multimedia Extension) technology .

The mainboard uses the highly integrated Intel® 82443BX AGP chipset to
support the PCI/ISA and Green standards, and to provide the Host/AGP
bridge. The Intel® 82371EB chipset integrates all system control functions
such as ACPI (Advanced Configuration and Power Interface). The ACPI
provides more Energy Saving Features for the OSPM(OS Direct Power
Management) function. The Intel® 82371EB chipset also improves the IDE
transfer rate by supporting Ultra DMA/33 IDE that transfers data at the rate
of 33MB/s.

The mainboard also supports the System Hardware Monitor Controller as an
optional function. This function includes: CPU /power supply/chassis fan
revolution detect, CPU/system voltage monitor, system temperature monitor ,
and chassis intrusion detect(optional).

Chapter 1

INTRODUCTION

CHAPTER 1 INTRODUCTION

1.1 Mainboard Features

CPU

l Slot 1 for Pentium

®

II processor .

l Supports 233MHz, 266MHz, 300MHz, 333MHz, 400MHz, and faster .
l Core/Bus ratios are x2, x2.5, x3, x3.5, x4, x4.5, x5, x5.5, x6 and higher .

Switching V oltage Regulator

l On-board switching mode DC-DC Step Down Regulator .
l Conforms to Intel

®

VRM ver 8.2 specifications.

l Over-Voltage and Over-Current protection.

Chipset

l Intel

®

82440BX AGP chipset.

Clock Generator

l 66.6MHz and 100MHz clocks are supported.
l 68/75/83MHz and 103/112MHz clocks (reserved)

Main Memory

l Supports six memory banks using three 168-pin unbuffered DIMM

sockets.

l Supports a maximum memory size of 384MB (8M x 8) or 768MB (16M x 4)

registered DIMM only .

l Supports ECC(1-bit Error Code Correct) function.
l Supports only 3.3v SDRAM DIMM.

Slots

l One AGP(Accelerated Graphics Port) slot.

- AGP specification compliant

- AGP 66/133MHz 3.3v device support

l Four 32-bit Master PCI Bus slots and three 16-bit ISA bus slots wherein

one shared slot that can be used as ISA or PCI.

l Supports 3.3v/5v PCI bus Interface.

1-2

CHAPTER 1 INTRODUCTION

1-3

On-Board IDE

l An IDE controller on the Intel

®

82371EB PCI chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.

l Can connect up to four IDE devices.

On-Board Peripherals

l On-Board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports

- 1 IrDA connector for Fast IrDA. (reserved)

BIOS

l The mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

l The mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

l The mainboard provides “CPU Plug & Play” function. (reserved)

CPU Plug & Play - the user don’t need jumper/DIP switch to set the CPU
speed setting. The BIOS is used to set the speed.

System Hardware Monitor ( optional)

l CPU/Power Supply/Chassis Fan Revolution Detect
l CPU Fan Control (the fan will automatically stop when the system enters

suspend mode)

l System Voltage Detect
l CPU Overheat W arning (reserved)
l Chassis Intrusion Detect (reserved)
l Display Actual Current Voltage

RTC

l PIIX4(82371EB) built-in R TC.

CHAPTER 1 INTRODUCTION

1-4

Keyboard Connector

l PS/2

®

keyboard interface and PS/2® mouse interface.

Dimension

l A TX Form Factor: 30cm(L) x 18.6cm(W) x 4 layers PCB.
l Double deck I/O connectors, compatible with Intel

®

V enus Mainboard.

Mounting

l 6 mounting holes.

Other Features

l Keyboard Password Wake-Up.(reserved)
l LAN W ake-Up.
l Internal/External Modem W ake-Up.
l AC Power Loss Restore.

CHAPTER 1 INTRODUCTION

1.2 Mainboard Layout

FDD

IDE1

IDE2

DIMM 1

DIMM 2

DIMM 3

Top: mouse

Top: Port 1

USB

Bottom:
Port 2

Top: LPT

Bottom:
COM A
COM B

ATX

Power Supply

JP1

CPUFAN1

PCI SLOT 3

PCI SLOT 2

PCI SlOT 1

SLOT 1

AGP Slot

PCI SLOT 4

JGS1

JGL1

ISA SLOT 2

ISA SLOT 3

BATT

+

BIOS

JMODE1

SFAN1

(optional)

IR1

JSOR1

(optional)

J1

J2

JFP1

FW82371EB

JBAT1

1-5

JVSB

FW82443BX

JRMS1

JWOL

JMDM1

Bottom:
keyboard

ISA SLOT 1

PSFAN1

(optional)

SW1

CHAPTER 2 HARDWARE INSTALLATION

2-1

Chapter 2

HARDWARE INSTALLATION

2.1 Central Processing Unit: CPU

The mainboard operates with Intel® Pentium® II processor . The mainboard
used a CPU Slot called Slot 1 for easy CPU installation. T o set the proper
speed for the CPU, you should first check your mainboard. There are two
kinds of mainboard: CPU Plug & Play mainboard & Standard mainboard.
CPU Plug & Play mainboard speed setting is set on the BIOS setting.
Standard mainboard speed setting is set by DIP switch. The CPU should
always have a Heat Sink and a cooling fan attached to prevent overheating.

CHAPTER 2 HARDWARE INSTALLATION

2-2

2.1-1 CPU Installation Procedures

A. OEM Pentium

®

II Processor Installation Procedures

Different kinds of Pentium® II processor that is currently used: the OEM
version, the Boxed version, and CeleronTM. OEM Pentium® II Processor has
no Heat Sink, Fan and Heat Sink Support, the Boxed Pentium® II Processor
is provided with Heat Sink w/ fan and Heat Sink Support, while the
CeleronTM processor is a plane processor card without cover or heatsink..

Required Things:

Pentium® II processor - Processor .
*Retention Mechanism(RM) - Plastic Guide that holds the S.E.C. Catridge

in the Slot 1 connector.

*Retention Mechanism Attach Mount(RMAM) - Bolt/Bridge assemblies

inserted up through the bottom of the
motherboard. RM secures to RMAM ( 2
RMAM required per RM ).

*Heat Sink Support Base (HSSBASE) - Plastic support bar mounted to

the mainboard under the ATX heatsink.
(One leg is always bigger than the other one)

Processor
Lock

Retention
Mechanism

Pentium® II
Processor

Heat Sink
W/Fan

Notch Hole

Heat Sink
Support Base

Heat Sink
Support Pin

Heat Sink
Support
Top Bar

CHAPTER 2 HARDWARE INSTALLATION

2-3

*Heat Sink Support Pin (HSSPIN) - Plastic pins inserted through the

HSSBASE to secure it to the mainboard (2
required per Assembly).

*Heat Sink Support T op Bar (HSSTOP) - Plastic bar that clips onto the

HSSBASE through the fins on the ATX
heatsink.

**Heat Sink w/ fan - Heat Sink that can be attached to the Pentium® II

processor with metal clip.

Note: * Provided by MSI mainboard.

** Provided by Special request.

RM

HSSPIN

HSSTOP

HSSBASE

RMAM

CHAPTER 2 HARDWARE INSTALLATION

2-4

SLOT1

Retention
Mechanism

ê

ê

Key

êê

Retention

Mechanism

Attach Mount

Notch
Key

Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2 HARDWARE INSTALLATION

2-5

Step 3: Install the Heat Sink Support Base.

Look for the T wo holes across Slot 1, and match it with the Two legs
of the Heat Sink Support Base for the proper direction. T ake note
that one hole/leg is bigger than the other. The Four top pins of the
Heat Sink Support Base should also be oriented towards Slot 1.

Push the Heat Sink Support Base onto the mainboard, until you hear
a click sound. Check for a perfect fit.

Step 4: Install the Heat Sink Support Pin.

Push the Heat Sink Support Pins onto the two holes of the Heat Sink
Support Base. Check for a perfect fit. These pins are used to secure
the Heat Sink Support Base.

Heat Sink
Support Base

Heat Sink
Support Pin

Leg

pins

CHAPTER 2 HARDWARE INSTALLATION

2-6

S.E.C. Cartridge - Thermal

P

Isometric View

Step 5: Install the Heat Sink with Fan to the Processor .

Push down the metal clips, so that they are in line with the back of
the Heat Sink. Be careful, so as not detach the metal clips from the
Heat Sink.

In case the metal clips are detached from the Heat Sink, re-attach
them. Look for the arrow on the metal clip. This arrow should be
pointing down and aligned with the Heat Sink Support Base Holder.

Attach the Heat Sink to the processor.

- Look at the back of the Heat Sink and take note of the 2 secure
posts. Insert these 2 Secure posts to the 2 secure holes on the
back of the processor.

- Align the ears of the metal clips with the clip holders on the back of
the processor. Use a screw driver to push the metal clips onto the
clip holders. Check for a perfect fit.

Pentium® II Processor (Back)

â

The arrow
should be
pointing
down.

Metal Clips

Heat Sink w/ Fan

Metal Clips Ear

Metal Clips Ear

Secure
Posts

Heat Sink w/ Fan(Back)

Heat Sink
Base Holder

Secure
holes

Clip Holder

Clip Holder

CHAPTER 2 HARDWARE INSTALLATION

2-7

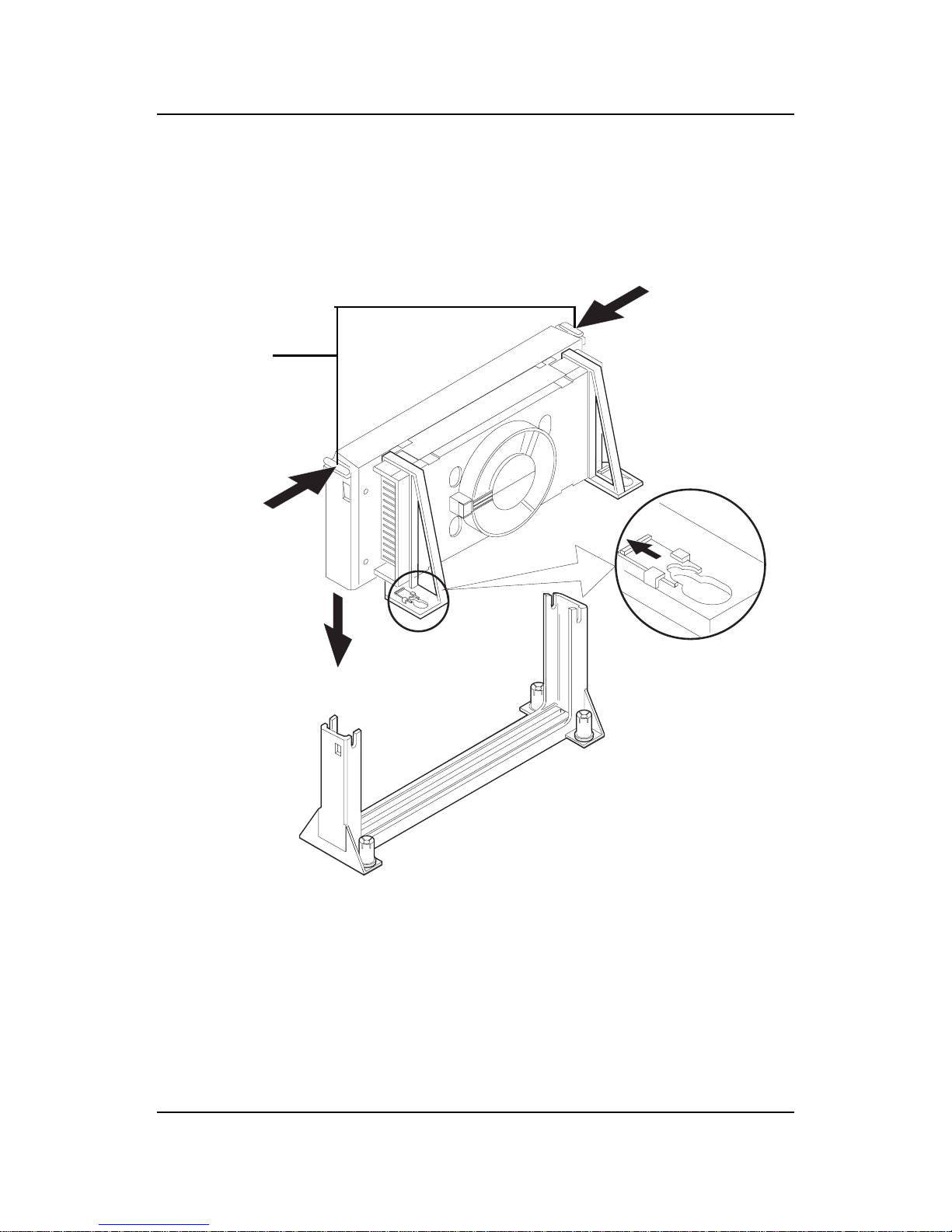

Step 6: Install the Processor .

Unlock the Processor by pushing in the Processor Locks.

Insert the Processor like inserting a PCI or an ISA card.

Step 7: Lock the Processor Locks.

Secure the CPU by pulling the Processor Locks out.

è

ç

ç

è

CHAPTER 2 HARDWARE INSTALLATION

2-8

Step 8: Install the Heat Sink Support T op Bar .

Push the Heat Sink Support T op Bar to the Heat Sink Support Base,
Until you hear a “click” sound. Check for a perfect fit.

The installation is now complete.

Heatsink
Support Top
Bar

CHAPTER 2 HARDWARE INSTALLATION

2-9

B. Boxed Pentium® II Processor Installation Procedures

The Boxed Pentium® II Processor has a built- in Fan and Heat Sink. It also
has a Heat Sink Support. So if you’re going to use a Boxed PentiumTM II
Processor, all you need is the Retention Mechanism.

SLOT1

Retention
Mechanism

ê

ê

Key

êê

Retention

Mechanism

Attach Mount

Notch
Key

Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.

CHAPTER 2 HARDWARE INSTALLATION

2-10

Step 3: Install the Heat Sink Support Base.

Look for the 2 holes across Slot 1, and match it with the 2 Heat Sink
Support Base. Take note that one hole/base is bigger than the other.

Push the Heat Sink Support Base onto the mainboard, until you hear
a click sound. Check for a perfect fit.

PC-3742

Retention
Mechanism

Notch
Hole

Heat Sink
Support Base

CHAPTER 2 HARDWARE INSTALLATION

2-11

PC-3743

Heat Sink
Support Lock

Intel® Boxed
Pentium® II

Processor

Step 4: Install the Heat Sink Support.

Attach the 2 Heat Sink Supports to the sides of the Processor. These
Heat Sink Supports will fit in any direction, so be sure that the Heat
Sink Support Locks are oriented outwards for the proper direction.

Heat Sink
Support

CHAPTER 2 HARDWARE INSTALLATION

2-12

PC-3744

Processor
Lock

Heatsink
Support
Lock

Step 5: Unlock the Processor Locks and Heat Sink Support Locks.

Push in the Processor Locks. Open the Heat Sink Support Locks.

Step 6: Insert the Processor like inserting a PCI or an ISA card.

CHAPTER 2 HARDWARE INSTALLATION

2-13

PC-3745

Step 7: Lock the Processor Locks and Heat Sink Support Locks

Secure the CPU by pushing out the Processor Locks. Close the Heat
Sink Support Locks.

The installation is now complete.

CHAPTER 2 HARDWARE INSTALLATION

2-14

SLOT1

Key

êê

Retention

Mechanism

Attach Mount

Step 1: Insert the Retention Mechanism Attach Mount at the bottom
of the mainboard.

Step 2: Install the Retention Mechanism.

Look for the key on Slot 1, and match it with the Notch Key on the
Retention Mechanism for proper direction. Then, attach the
Retention Mechanism to the Retention Mechanism Attach Mount.
Use a Screwdriver to secure the Retention Mechanism.

C. OEM CeleronTM Processor Installation Procedures

Retention
Mechanism

ê

ê

Notch
Key

CHAPTER 2 HARDWARE INSTALLATION

2-15

Step 3: Install the Heat Sink to the Processor.

Push down the plastic clips, so that they are in line with the hole on
the processor . Check for perfect fit.

Step 4: Install the Processor .

Insert the Processor like inserting a PCI or an ISA card.

Step 5: Lock the Procesoor

Lock the processor by putting the Retention Cap provided. Take
note of the two plastic lock at the side of the Retention Cap. This
two plastic lock should be aligned properly into the Retention
Mechanism notch hole.

ê

ê

Retention Cap

ê

Heat Sink

Celeron

TM

processor

ê

plastic Clip

Plastic

Lock

Notch

Hole

Notch

Hole

CHAPTER 2 HARDWARE INSTALLATION

2-16

1 2 3 4 Core/Bus Ratio

ON OFF ON ON 2.5
ON ON OFF ON 3
ON OFF OFF ON 3.5
ON ON ON OFF 4
ON OFF O N OFF 4.5
ON ON OFF OFF 5

ON OFF OFF OFF 5.5
OFF ON ON ON 6
OFF OFF ON ON 6.5
OFF ON OFF O N 7
OFF OFF OFF ON 7.5
OFF ON ON OFF 8

2.1-2 CPU Core Speed Derivation Procedure

1 . The DIP Switch SW1 (1, 2, 3, and 4) is used to set the Core/Bus (Fraction)

ratio of the CPU. The actual core speed of the CPU is the Host Clock
Frequency multiplied by the Core/Bus ratio. For example:

If CPU Clock = 66MHz

Core/Bus ratio = 3. 5

then CPU core speed = Host Clock x Core/Bus ratio

= 66MHz x 3.5
= 233MHz

2 . The PCI Bus Clock is fixed at 33MHz.

SW1

CPU

Note: a. The CPU Bus Frequency is set at 66MHz or 100MHz by CPU

default.
b. If the mainboard support CPU Plug & Play, disregard this table
and go directly to BIOS Special Features Setup to set the CPU
speed.

CHAPTER 2 HARDWARE INSTALLATION

2-17

2.1-3 CPU Speed Setting

To adjust the speed of the CPU, you must know the specification of your
CPU (always ask the vendor for CPU specification).

Table 2.1 200 ~ 333MHz Intel® Pentium® II processor

233MHz

266MHz

300MHz

333MHz

200MHz

CPU
Type

SW1

ON
OFF

1 2 3 4

ON

DIP

ON
OFF

1 2 3 4

ON

DIP

ON
OFF

1 2 3 4

ON DIP

ON
OFF

1 2 3 4

ON DIP

ON
OFF

1 2 3 4

ON DIP

a. 66MHz CPU Bus Frequency

Table 2.2 350 ~ 450MHz Intel® Pentium® II processor

400MHz

450MHz

350MHz

CPU
Type

SW1

ON
OFF

1 2 3 4

ON DIP

ON
OFF

1 2 3 4

ON DIP

ON
OFF

1 2 3 4

ON DIP

b. 100MHz CPU Bus Frequency

CHAPTER 2 HARDWARE INSTALLATION

2-18

2.1-4 Fan Power Connectors: CPUFAN1/PSFAN1/SYSFAN1

These connectors support system cooling fan with +12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard got Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of that.

SYSFAN1

CPUFAN1

PSFAN1

Note: 1. CPUFAN1/SYSFAN1/PSFAN1 are the CPU, Power and Chassis

Cooling Fan Speed Connector (reserved for System Hardware
Monitor Option.)

2. Always consult vendor for proper CPU cooling fan.

For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.

SENSOR

+12V

GND

PSFAN1 : Power Supply Fan
CPUF AN1 : CPU Fan
SYSFAN1 : System(Chassis) Fan

SENSOR

+12V

GND

SENSOR

+12V

GND

CHAPTER 2 HARDWARE INSTALLATION

2-19

+12V

(default)

2.2 Flash ROM Programming Voltage: JMODE1

This jumper is for setting the voltage of the Flash ROM BIOS.

Voltage Setting

JMODE1

3

JMODE1

13

1

+12V PWD VCC

Note: a. Short 1-2 pin, if you’re using Intel® or MXIC flash memory and

you want to flash the ROM data.
b. Open JMODE1, if you’re using Winbond flash memory .

13

+12V PWD VCC

+5V

CHAPTER 2 HARDWARE INSTALLATION

2-20

2.3 Clear CMOS Jumper: JBAT1

A battery must be used to retain the mainboard configuration in CMOS
RAM. If you use the on-board battery , you must short 1-2 pins of JBAT 1
to keep the CMOS data.

Keep Data

Clear Data

1

3

Note: To short the CMOS data, turn off the system and unplug the power

cord for about 10 seconds afterwhich, move jumper cap from pin 1-2
to 2-3 and back to 1-2 pin position. A void clearing the CMOS while
the system is on; it will damage the mainboard.

JBA T1

1

3

2

1

32

CHAPTER 2 HARDWARE INSTALLATION

2-21

2.4 Memory Installation

2.4-1 Memory Bank Configuration

The mainboard supports a maximum of 384MB (8M x 8) or 768MB (16M x 4)
registered DIMM only . It provides three 168-pin unbuffered DIMMs
(Double In-Line Memory Module) sockets. It supports 8 MB to 256 Mbytes
DIMM memory module.

DIMM3(Bank4 + Bank5)

DIMM2(Bank2 + Bank3)

DIMM1(Bank0 + Bank1)

There are two kinds of DIMM specification supported
by this mainboard: PC100 and PC66. If you use

66MHz CPU Bus Frequency, these two DIMM Specs. is
supported. If you use 100 MHz CPU Bus Frequency,

only PC100 DIMM Specs. is supported.

!

W ARNING!

CHAPTER 2 HARDWARE INSTALLATION

2-22

A. How to install a DIMM Module

1. The DIMM slot has a two Notch Key “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.

3. The plastic clip at the side of the DIMM slot will automatically
close.

Single Sided DIMM

Double Sided DIMM

Note: Y ou can only use a 3.3 volt DIMM module (SDRAM).

VOLTDRAM

2.4-2 Memory Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-23

1 . Supports SDRAM DIMM.

2. Supports unbuffered DIMM.
3 . T o operate properly , at least one 168-pin DIMM module must be

installed.

4. This mainboard supports T able Free memory , so memory can be installed
on DIMM1, DIMM2, or DIMM 3 in any order .

5. Supports 3.3 volt DIMM.

6. The DRAM addressing and the size supported by the mainboard is
shown next page.

2.4-3 Memory Population Rules

16M 1Mx16 ASYM 11 8 8MBx4 16MBx8

2Mx8 ASYM 11 9 16MBx8 32MBx16
4Mx4 ASYM 11 10 32MB 64MB

64M 2Mx32 ASYM 11 9 32MBx2 64MBx4

2Mx32 ASYM 12 8 16MBx2 32MBx4
4Mx16 ASYM 11 10 32MB 64MB
4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

16Mx4 ASYM 13 10 128MB 256MB

64M 2Mx32 ASYM 12 8 16MB 32MB

4Mx16 ASYM 13 8 32MB 64MB

8Mx8 ASYM 13 9 64MB 128MB

16Mx4 ASYM 13 10 128MB 256MB

DRAM

Tech.

DRAM

Density &

Width

DRAM

Addressing

Address Size

MB/DIMM

Row

Column

Single

Side(S)

Double

Side(D)

no.

pcs.

no.

pcs.

T able 2.4-1 SDRAM Memory Addressing

CHAPTER 2 HARDWARE INSTALLATION

2-24

2.5 Case Connector: JFP1

The Power Switch, Reset Switch, Key Lock, Power LED, Speaker and HDD
LED are all connected to the JFP1 connector block.

JFP1

Power
Switch

Power
LED

+

Reset
Switch

HDD
LED

9

110

14
15

18

+

Keylock

Speaker

CHAPTER 2 HARDWARE INSTALLATION

2-25

2.5-1 Power Switch

Connect to a 2-pin push button switch. This switch had the same feature
with JRMS1.

2.5-2 Reset Switch

Reset switch is used to reboot the system rather than turning the power ON/
OFF . Avoid rebooting while the HDD LED is lit. Y ou can connect the Reset
switch from the system case to this pin.

2.5-3 Keylock

Keylock allows you to disable the keyboard for security purposes. You can
connect the keylock to this pin.

2.5-4 Power LED

The Power LED is always lit while the system power is on. You can connect
the Power LED from the system case to this pin.

2.5-5 Speaker

Speaker from the system case is connected to this pin.
If on-board speaker is available:
Short pin 14-15: On-board speaker Enabled.
Open pin 14-15: On-board speaker Disabled.

2.5-6 HDD LED

HDD LED shows the activity of a hard disk drive. A void turning the power
off while the HDD led is lit. You can connect the HDD LED from the system
case to this pin.

CHAPTER 2 HARDWARE INSTALLATION

2-26

2.6 Floppy Disk Connector: FDC

The mainboard also provides a standard floppy disk connector FDC that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector support the provided floppy drive ribbon cables.

FDC

1

CHAPTER 2 HARDWARE INSTALLATION

2-27

2.7 Hard Disk Connectors: IDE1 & IDE2

The mainboard has a 32-bit Enhanced PCI IDE Controller that provides PIO
mode 0~4, Bus Master, and Ultra DMA/33 function. It has two HDD
connectors IDE1 (primary) and IDE2 (secondary). You can connect up to
four hard disk drives, CD-ROM, 120MB Floppy (reserved for future BIOS)
and other devices to IDE1 and IDE2. These connectors support the
provided IDE hard disk cable.

IDE1(Primary IDE Connector)

The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive. You must configure second hard
drive to Slave mode by setting the jumper accordingly .

IDE2(Secondary IDE Connector)

IDE2 can also connect a Master and a Slave drive.

Primary IDE Connector

Secondary IDE Connector

1

1

CHAPTER 2 HARDWARE INSTALLATION

2-28

2.8 Power Supply

2.8-1 ATX 20-pin Power Connector: JPWR1

This connector supports the power button on-board. Using the ATX power
supply , functions such as Modem Ring Wake-Up and Soft Power Off are
supported by this mainboard. This power connector supports instant power
on function which means that system will boot up instantly when the power
connector is inserted on the board.

ATX

Power Connector

11

20

10

1

PI N SIGNAL

11 3.3V
12 -12V
13 GND
14 PS_ON
15 GND
16 GND
17 GND
18 -5V
19 5 V
20 5 V

PI N SIGNAL

1 3.3V
2 3.3V
3 GND
45V
5 GND
65V
7 GND
8 PW_OK
9 5V_SB
10 12V

PIN DEFINITION

Warning: Since the mainboard has the instant power on function, make
sure that all components are installed properly before inserting the power
connector to ensure that no damage will be done.

CHAPTER 2 HARDWARE INSTALLATION

2-29

2.8-2 Remote Power On/Off Switch: JRMS1

Connect to a 2-pin push button switch. During OFF state, press once and
the system turns on. During ON stage, push once and the system goes to

sleep mode: pushing it more than 4 seconds will change its status from ON
to OFF. If you want to change the setup, you could go to the BIOS Power

Management Setup.

JRMS1

CHAPTER 2 HARDWARE INSTALLATION

2-30

2.9 IrDA Infrared Module Connector: IR1

The mainboard provides one 5-pin infrared (IR1) connector for IR modules.
This connector is for optional wireless transmitting and receiving infrared
module. You must configure the setting through the BIOS setup to use the
IR function. FIR and Consumer IR are reserved functions.

1

IR1

Pin Description

1 VCC
2NC
3 IRRX
4 GND
5 IRTX

CHAPTER 2 HARDWARE INSTALLATION

2-31

2.10 Serial Port Connectors: COM A & COM B

The mainboard has two 9-pin male DIN connectors for serial ports COM A
and COM B. These two ports are 16550A high speed communication ports
that send/receive 16 bytes FIFOs. You can attach a mouse or a modem cable
directly into these connectors.

PIN SIGNAL

1 DCD(Data Carry Detect)
2 SIN(Serial In or Receive Data)
3 SOUT(Serial Out or Transmit Data)
4 DTR(Data T erminal Ready)
5 GND
6 DSR(Data Set Ready)
7 RTS(Request T o Send)
8 CTS(Clear T o Send)
9 RI(Ring Indicate)

1 2 3 4 5

6 7 8 9

COM A

COM B

PIN DEFINITION

CHAPTER 2 HARDWARE INSTALLATION

2-32

2.11 Parallel Port Connector: LPT

The mainboard provides a 25 pin female centronic connector for LPT . A
parallel port is a standard printer port that also supports Enhanced Parallel
Port(EPP) and Extended capabilities Parallel Port(ECP). See connector and
pin definition below:

PIN SIGNAL PIN SIGNAL

1 STROBE 14 AUTO FEED#
2 DA TA0 15 ERR#
3 DATA1 16 INIT#
4 DA T A2 17 SLIN#
5 DAT A3 18 GND
6 DAT A4 19 GND
7 DAT A5 20 GND
8 DAT A6 21 GND
9 DAT A7 22 GND
10 ACK# 23 G ND
11 BUSY 2 4 GN D
12 PE 25 GND
13 SELECT

PIN DEFINITION

13 12 11 10 9 8 7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

LPT

CHAPTER 2 HARDWARE INSTALLATION

2-33

2.12 Mouse Connector: JKBMS1

The mainboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector. The connector location and pin definition are shown below:

PS/2 Mouse (6-pin Female)

2.13 Keyboard Connector: JKBMS1

The mainboard provides a standard PS/2® keyboard mini DIN connector for
attaching a keyboard. You can plug a keyboard cable directly to this
connector .

PS/2 Keyboard (6-pin Female)

Pin1

Mouse DATA

Pin6

NC

Pin2

NC

Pin4
VCC

Pin3
GND

Pin5

Mouse Clock

Pin1

KBD DATA

Pin6

NC

Pin2

NC

Pin3
GND

Pin5

KBD Clock

Pin4
VCC

CHAPTER 2 HARDWARE INSTALLATION

2-34

2.14 USB Connector: USB

The mainboard provides a UHCI(Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices like: keyboard, mouse

and other USB devices. You can plug the USB device directly to this
connector .

USB Port 1

USB Port 2

1 2 3 4

PIN SIGNAL

1 VCC
2 -Data0
3 GND
4 +Data0

CHAPTER 2 HARDWARE INSTALLATION

2-35

2.15 Power Saving Switch Connector: JGS1

Attach a power saving switch to JGS1. When the switch is pressed, the
system immediately goes into suspend mode. Press any key and the system
wakes up.

JGS1

CHAPTER 2 HARDWARE INSTALLATION

2-36

2.16 Power Saving LED Connector: JGL1

JGL1 can be connected with LED. This will lit while the system is in suspend
mode.

JGL1

+

CHAPTER 2 HARDWARE INSTALLATION

2-37

2.17 Keyboard Power: JVSB (reserved)

The JVSB jumper is for setting keyboard power. This function is

provided by keyboard and PS/2 mouse Wake-up function.

5V
(default)

5V_Standby

1

3

JVSB

13

2

1

32

CHAPTER 2 HARDWARE INSTALLATION

2-38

2.18 Power On Mode Jumper: JP1

The mainboard supports two kinds of system boot up: the Boot-Up by
switch and the Immediate Boot-Up. With the Boot-Up by Switch, the system
will boot up only when the power on switch is pressed. For Immediate Boot­Up, the system will boot up instantly when the power connector is
connected into the system.

JP1

JP1

Select Boot-Up by Swtich

Select Immediate Boot-Up

Feature

Table 2.18: Power On Mode Feature

Note: Short JP1, when using Boot-Up by Switch feature. Open JP1, to enable

Immediate Boot-Up.

CHAPTER 2 HARDWARE INSTALLATION

2-39

2.19 SB_LinkTM Card Sound Connector: J1

The mainboard provides a distributed DMA connector for PCI sound card
with this feature, such as Creative® PCI 3D sound card.

GND

DMA
Request
Signal

Serial
Interrupt
Signal

DMA Grand

Signal

GND

1

J1

CHAPTER 2 HARDWARE INSTALLATION

2-40

JMDM1

2.20 Modem Wake Up Connector: JMDM1

The JMDM1 connector is for used with Modem add-on card that supports
the Modem Wake Up function.

Note: Modem wake-up signal is active “low”.

1

5

PIN SIGNAL

1NC
2 GND
3 MDM_WAKEUP
4NC
5 5VSB

Note: To be able to use this function, you need a power supply that

provide enough power for this feature.
(750 ma power supply with 5V Stand-by)

CHAPTER 2 HARDWARE INSTALLATION

2-41

2.21 Wake-Up on LAN Connector: JWOL1

The JWOL1 connector is for use with LAN add-on cards that supports
Wake Up on LAN function.

JWOL1

1

3

PIN SIGNAL

1 5VSB
2 GND
3 MP_WAKEUP

Note: LAN wake-up signal is active “high”.

Note: To be able to use this function, you need a power supply that

provide enough power for this feature.
(750 ma power supply with 5V Stand-by)

CHAPTER 2 HARDWARE INSTALLATION

2-42

2.22 CPU Temperature Sensor: JSOR1

This is used to check the CPU temperature. The JSOR1 is a sensor that is
placed near the processor heatsink. This will monitor the CPU temperature.

JSOR1

CHAPTER 2 HARDWARE INSTALLATION

2-43

2.23 Chassis Intrusion Connector: J2

This connector is connected to 2-pin connector chassis switch. If the
Chassis is open, the switch will be short. The system will record this status.
To clear the warning, you must enter the BIOS settting and clear the status.

J2

CHAPTER 3 AWARD® BIOS SETUP

3-1

Chapter 3

AWARD® BIOS SETUP

Award® BIOS ROM has a built-in Setup program that allows users to modify
the basic system configuration. This type of information is stored in
battery-backed RAM (CMOS RAM), so that it retains the Setup information
when the power is turned off.

CHAPTER 3 AWARD® BIOS SETUP

3-2

3.1 Entering Setup

Power on the computer and press <Del> immediately to allow you to
enter Setup. The other way to enter Setup is to power on the computer.
When the below message appears briefly at the bottom of the screen during
the POST (Power On Self T est), press <Del> key or simultaneously press
<Ctrl>, <Alt>, and <Esc> keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-AL T-ESC>

OR <DEL> KEY

If the message disappears before you respond and you still wish to
enter Setup, restart the system to try again by turning it OFF then ON or
pressing the “RESET” button on the system case. You may also restart by
simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not
press the keys at the correct time and the system does not boot, an error
message will be displayed and you will again be asked to,

PRESS <F1> TO CONTINUE, <CTRL-AL T-ESC>

OR <DEL> TO ENTER SETUP

3.2 Getting Help

Main Menu

The on-line description of the highlighted setup function is displayed
at the bottom of the screen.

Status Page Setup Menu/Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropri­ate keys to use and the possible selections for the highlighted item. To exit
the Help Window press <F1> or <Esc>.

CHAPTER 3 AWARD® BIOS SETUP

3-3

3.3 The Main Menu

Once you enter A ward® BIOS CMOS Setup Utility , the Main Menu (Figure 1)
will appear on the screen. The Main Menu allows you to select from ten
setup functions and two exit choices. Use arrow keys to select among the
items and press <Enter> to accept or enter the sub-menu.

ROM PCI/ISA BIOS (2A59IM4C)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD SETUP DEFAULTS

SPECIAL FEATURES SETUP
INTEGRATED PERIPHERALS
SUPERVISOR PASSWORD
USER PASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING

Esc : Quit
F10 : Save & Exit Setup

Time, Date, Hard Disk Type...

↑ ↓ → ← : Select Item
(Shift)F2 : Change Color

Standard CMOS Setup

This setup page includes all the items in a standard compatible BIOS.

BIOS Features Setup

This setup page includes all the items of Award special enhanced
features.

CHAPTER 3 AWARD® BIOS SETUP

3-4

Chipset Features Setup

This setup page includes all the items of chipset special features.

Power Management Setup

This category determines the power consumption for system after
setting the specified items. Default value is Disable.

PCI Configuration Setup

This category specifies the IRQ level for PCI and ISA devices.

Supervisor Password/User Password

Change, set or disable password. This function allows the user
access to the system and setup or just setup.

Load Setup Defaults

Chipset defaults indicates the values required by the system for the
maximum performance.

Special Features Setup

This function is reserved for Special Hardware Monitor..

IDE HDD Auto Detection

Automatically configure hard disk parameters.

Save & Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

CHAPTER 3 AWARD® BIOS SETUP

3-5

3.4 Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items. Use the
arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys
to select the value you want in each item.

ROM PCI/ISA BIOS (2A59IM4A)

STANDARD CMOS SETUP

AWARD SOFTWARE, INC.

HARD DISKS TYPE SIZE CYLS HEADS PRECOMP LANDZONE SECTOR MODE
Primary Master: Auto 0 0 0 0 0 0 AUTO
Primary Slave : Auto 0 0 0 0 0 0 AUTO
Secondary Master : Auto 0 0 0 0 0 0 AUTO
Secondary Slave : Auto 0 0 0 0 0 0 AUTO

Drive A : 1.44M,3.5in. Base Memory: 640K
Drive B : None Extended Base Memory:15360K

Other Memory: 384K
Video : EGA/VGA
Halt On : All, but Keyboard Total Memory: 16384K

Date(mm:dd:yy): Fri, Feb 28,1997
Time(hh:mm:ss): 00:00:00

ESC : Quit ↑ ↓ → ← : Select Item PU/PD/+/- : Modify
F1 : Help (Shift)F2 : Change Color

CHAPTER 3 AWARD® BIOS SETUP

3-6

Date

The date format is <day><month> <date> <year>.

Day Day of the week, from Sun to Sat, determined by

BIOS. Read-only .

month The month from Jan. through Dec.
date The date from 1 to 31 can be keyed by numeric

function keys.

year The year , depends on the year of the BIOS

Time

The time format is <hour> <minute> <second>.

PrimaryMaster/PrimarySlave
SecondaryMaster/Secondary Slave

These categories identify the types of 2 channels that have been
installed in the computer . There are 45 pre-defined types and 4 user defin­able types for Enhanced IDE BIOS. T ype 1 to Type 45 are pre-defined. T ype
User is user-definable.

Press PgUp/<+> or PgDn/<-> to select a numbered hard disk type or
type the number and press <Enter>. Note that the specifications of your
drive must match with the drive table. The hard disk will not work properly if
you enter improper information for this category . If your hard disk drive
type is not matched or listed, you can use Type User to define your own
drive type manually .

If you select T ype User, related information is asked to be entered to
the following items. Enter the information directly from the keyboard and
press <Enter>. This information should be provided in the documentation
from your hard disk vendor or the system manufacturer.

CHAPTER 3 AWARD® BIOS SETUP

3-7

If the controller of HDD interface is ESDI, the selection shall be

“T ype 1”.

If the controller of HDD interface is SCSI, the selection shall be

“None”.

If the controller of HDD interface is CD-ROM, the selection shall be

“None”.

CYLS. number of cylinders
HEADS number of heads
PRECOMP write precom
LANDZONE landing zone
SECTORS number of sectors
MODEHDD access mode

CHAPTER 3 AWARD® BIOS SETUP

3-8

3.5 BIOS Features Setup

ROM PCI/ISA BIOS (2A59IM4A)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Protection By

During and after the system boots up, any attempt to write to the
boot sector or partition table of the hard disk drive will halt the system and
the following error message will appear. For the meantime, you can run an
anti-virus program to locate the problem. The settings are None, Both,
Trend, or Award.

!W ARNING!

Disk Boot Sector is to be modified

T ype “Y” to accept write or “N” to abort write

A ward Software, Inc.

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Virus Protection By : None
CPU Internal Cache : Enabled
External Cache : Enabled
CPU L2 Cache ECC Checking: Enabled
Quick Power on Self Test : Disabled
Boot From LAN First : Disabled
Boot Sequence : A,C,SCSI
Swap Floppy Drive : Disabled
Boot Up Floppy Seek : Enabled
Floppy FIFO Control : Disabled
Boot up NumLock status : On
Gate A20 Option : Fast
Security Option : Setup
PCI/VGA palette snoop : Disabled
OS select for DRAM>64MB : Non-OS2
Report No FDD For WIN 95 : Yes

Video BIOS Shadow :Enabled
C8000-CBFFF Shadow :Disabled
CC000-CFFFF Shadow :Disabled
D0000-D3FFF Shadow :Disabled
D4000-D7FFF Shadow :Disabled
D8000-DBFFF Shadow :Disabled
DC000-DFFFF Shadow :Disabled

CHAPTER 3 AWARD® BIOS SETUP

3-9

Award

None (default) No warning message to appear when anything

attempts to access the boot sector or hard disk
partition table.

Both/T rend/ Activates automatically when the system boots

up causing a warning message to appear when
anything attempts to access the boot sector of
hard disk partition table.

Note: This function is available only for DOS and other OS that do not

trap INT13.

CPU Internal Cache

The default value is Enabled.

Enabled (default) Enable cache

Disabled Disable cache
Note: The external cache is built in the processor .

External Cache

Choose Enabled or Disabled. This option enables the level 2 cache
memory .

CPU L2 Cache ECC Checking

Choose Enabled or Disabled. This option enables the level 2 cache
memory ECC(error check correction). Using 66MHz CPU BUS Deschute
processor, set to Enabled or Disabled. 100MHz CPU BUS Deschute proces­sor, always set to Enabled. Klamath processor always set to Disabled.

Quick Power On Self Test

This category speeds up Power On Self T est (POST) after you power
on the computer. If this is set to Enabled, BIOS will shorten or skip some
check items during POST .

Enabled Enable quick POST

Disabled (default) Normal POST

CHAPTER 3 AWARD® BIOS SETUP

3-10

Boot From LAN First

During Enabled, If there’s a LAN card onboard the priority from
booting will be from the LAN.

Boot Sequence

This category determines which drive the computer searches first for
the disk operating system (i.e., DOS). The settings are A,C,SCSI/C,A,SCSI/
C,CD-ROM,A/CD-ROM,C,A/D,A,SCSI/E,A,SCSI/F ,A,SCSI/SCSI,A,C/
SCSI,C,A/C only . Default value is A,C,SCSI.

Swap Floppy Drive

Switches the floppy disk drives between being designated as A and
B. Default is Disabled.

Boot Up Floppy Seek

During POST , BIOS will determine if the floppy disk drive installed is
40 or 80 tracks. 360K type is 40 tracks while 760K, 1.2M and 1.44M are all 80
tracks.

Floppy FIFO Control

During Enabled, the FDD disk will perform better.

Boot Up NumLock Status

The default value is On.

On (default) Keypad is numeric keys.

Off Keypad is arrow keys.

Gate A20 Option

Normal The A20 signal is controlled by keyboard

controller or chipset hardware.

Fast(default) The A20 signal is controlled by port 92 or

chipset specific method.

CHAPTER 3 AWARD® BIOS SETUP

3-11

Security Option

This category allows you to limit access to the system and Setup, or
just to Setup.

System The system will not boot and access to Setup

will be denied if the correct password is not
entered at the prompt.

Setup(default) The system will boot, but access to Setup will

be denied if the correct password is not entered
at the prompt.

PCI VGA Palette Snooping

Choose Disabled or Enabled. Some graphic controllers which are not
VGA compatible, take the output from a VGA controller and map it to their
display as a way to provide the boot information and the VGA compatibility .

However, the color information coming from the VGA controller is
drawn from the palette table inside the VGA controller to generate the proper
colors, and the graphic controller needs to know what is in the palette of the
VGA controller. To do this, the non-VGA graphic controller watches for the
Write access to the VGA palette and registers the snoop data. In PCI based
systems, where the VGA controller is on the PCI bus and a non-VGA graphic
controller is on an ISA bus, the Write Access to the palette will not show up
on the ISA bus if the PCI VGA controller responds to the Writes.

In this case, the PCI VGA controller should not respond to the Write. It
should only snoop the data and permit the access to be forwarded to the ISA
bus. The non-VGA ISA graphic controller can then snoop the data on the ISA
bus. Unless you have the above situation, you should disable this option.

Disabled (default) Disables the function

Enabled Enables the function

OS Selection for DRAM > 64MB

Allows OS2® to be used with > 64 MB of DRAM. Settings are Non­OS/2 (default) and OS2. Set to OS/2 if using more than 64MB and running
OS/2®.

CHAPTER 3 AWARD® BIOS SETUP

3-12

Report No FDD For WIN 95

This function is only use when you are testing SCT for Windows® 95
Logo.

Video BIOS Shadow

Determines whether video BIOS will be copied to RAM for faster
execution. Video shadow will increase the video performance.

Enabled (default) Video shadow is enabled

Disabled V ideo shadow is disabled

C8000 - CFFFF Shadow/E8000 - EFFFF Shadow

Determines whether the optional ROM will be copied to RAM for
faster execution.

Enabled Optional shadow is enabled

Disabled (default) Optional shadow is disabled

Note: For C8000-DFFFF optional-ROM on PCI BIOS , BIOS will automati-

cally enable the shadow RAM. User does not have to select the

item.

CHAPTER 3 AWARD® BIOS SETUP

3-13

SDRAM Configuration by :SPD
SDRAM RAS-to-CAS Delay :3
SDRAM RAS Precharge Time :3
SDRAM CAS Latency Time :3
DRAM Data Integrity Mode :Non-ECC
System BIOS Cacheable :Disabled
Video BIOS Cacheable :Disabled
Video RAM Cacheable :Disabled
8 Bit I/O Recovery Time :1
16 Bit I/O Recovery Time :1
Memory Hole at 15M-16M :Disabled
Passive Release :Enabled
Delayed Transaction :Enabled
AGP Aperture Size (MB) :64
Spread Spectrum Modulated :Enabled

3.6 Chipset Features Setup

The Chipset Features Setup option is used to change the values of
the chipset registers. These registers control most of the system options in
the computer .

Choose the “CHIPSET FEA TURES SETUP” from the Main Menu and
the following screen will appear .

ROM PCI/ISA BIOS(2A59IM4A)

CMOS SETUP UTILITY

CHIPSET FEATURES SETUP

Note: Change these settings only if you are familiar with the chipset.

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

CHAPTER 3 AWARD® BIOS SETUP

3-14

SDRAM Configuration by

Choose SPD, the SDRAM time will load from the DIMM EEPROM
value. Choose manual, the value will be set by SDRAM Ras-to-CAS Delay ,
SDRAM RAS Precharge Time, and SDRAM CAS Latency Time. The
settings are SPD and Manual.

If the DIMM is without EEPROM or over CPU clock, then set this
item to Manual. Set SDRAM Ras-to-CAS Delay , SDRAM RAS Precharge
Time, and SDRAM CAS Latency Time to 3.

SDRAM RAS-to-CAS Delay

This item sets the relative delay between the row and column address
strobes from DRAM (SDRAM). The settings are 2 or 3.

SDRAM RAS Precharge Time

Defines the length of time for Row Address Strobe from DRAM
(SDRAM) allowed to precharge. The settings are 2 or 3.

SDRAM CAS Latency Time

Y ou can select CAS latency time in HCLKs of 2 or 3. The system
board designer should set the values in this field, depending on the DRAM
installed.

DRAM Data Integrity Mode

This item will automatically detect your DIMM for ECC. The set­tings are Non-ECC or ECC.

System BIOS Cacheable

Select Enabled allows caching of the system BIOS ROM at F000h­FFFFFh, resulting in better system performance. However, if any program
writes to this memory area, a system error may result.

Enabled BIOS access cached

Disabled BIOS access not cached

CHAPTER 3 AWARD® BIOS SETUP

3-15

Video BIOS Cacheable

Select Enabled allows caching of the system BIOS ROM at C0000h­F7FFFh, resulting in better video performance. However, if any program
writes to this memory area, a system error may result.

Enabled Video BIOS access cached

Disabled V ideo BIOS access not cached

Video RAM Cacheable

Select Enabled allows caching of the video RAM, resulting in better
system performance. However, if any program writes to this memory area, a
system error may result.

8 Bit I/O Recovery Time

The recovery time is the length of time, measured in CPU clocks,
which the system will delay after the completion of an input/output request.
This delay takes place because the CPU is operating so much faster than the
input/output bus that the CPU must be delayed to allow for the completion
of the I/O.

This items allows you to determine the recovery time allowed for 8 bit
I/O. Choices are from NA, 1 to 8 CPU clocks.

16 Bit I/O Recovery Time

This items allows you to determine the recovery time allowed for 16
bit I/O. Choices are from NA, 1 to 4 CPU clocks.

Memory Hole At 15M-16M

In order to improve performance, certain space in memory can be
reserved for ISA cards. This memory must be mapped into the memory
space below 16 MB.

Enabled Memory hole supported.

Disabled Memory hole not supported.

Passive Release

When Enabled, CPU to PCI bus access are allowed during passive
release. Otherwise, the arbiter only accepts another PCI master access to
local DRAM. The settings are Enabled or Disabled.

CHAPTER 3 AWARD® BIOS SETUP

3-16

Delayed Transaction

The chipset has an embedded 32-bit posted write buffer to support
delay transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1. The settings are Enabled or Disabled.

AGP Aperture Size (MB)

Select the size the of the Accelerated Graphics Port (AGP) aperture.
The aperture is a portion of the PCI memory address range dedicated for
graphics memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

Spread Spectrum Modulated

This item allows you to select the clock generator Spread Spectrum
function. The default is enabled. This item should always be set to Disa­bled, if you over clock the processor .

CHAPTER 3 AWARD® BIOS SETUP

3-17

3.7 Power Management Setup

The Power Management Setup will appear on your screen like this:

ROM PCI/ISA BIOS (2A59IM4A)

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Power Management

This category determines the power consumption for system after
selecting below items. Default value is Disable. The following pages tell
you the options of each item & describe the meanings of each options.

ACPI Function :Enabled
Power Management :User Define
PM Control by APM :Yes
Video Off Method :DPMS
Video Off After :Standby
Modem Use IRQ :3

Doze Mode :Disable
Standby Mode :Disable
Suspend Mode :Disable
HDD Power Down :Disable
Throttle Duty Cycle :62.5%
VGA Active Monitor :Enabled
Soft-Off by PWR-BTTN :Instant-Off
CPUFAN off in Suspend :Enabled
Resume by Ring :Disabled
Resume by Alarm :Disabled
Date(of Month) Alarm :2
Time(hh:mm:ss) Alarm : 0:0:0

Wake Up On LAN : Enabled

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Restore AC/Power Loss :Power On
IRQ 8 Clock Event :Disabled

** Reload Global Timer Events **
IRQ [3-7,9-15],NMI : Disabled
Primary IDE 0 : Enabled
Primary IDE 1 : Enabled
Secondary IDE 0: Disabled
Secondary IDE 1: Disabled
Floppy Disk : Disabled
Serial Port : Enabled
Parallel Port : Disabled

CHAPTER 3 AWARD® BIOS SETUP

3-18

ACPI Function

During Enabled, this will support ACPI function.

Power Management

Disable Global Power Management will be

disabled.

User Define Users can configure their own power

management.

Min Saving Pre-defined timer values are used such

that all timers are in their MAX value.

Max Saving Pre-defined timer values are used such

that all timers are in their MIN value.

PM Control by APM

No System BIOS will ignore APM when

power managing the system.

Yes System BIOS will wait for APM’ s

prompt before it enter any PM mode

Note :Enable this for O.S. with APM like Windows® 95, Windows® NT , etc.

Video Off Method

Blank Screen The system BIOS will only blank off

the screen when disabling video.

V/H SYN C+Blank In addition to (1), BIOS will also turn

off the V-SYNC & H-SYNC signals
from VGA card to monitor.

DPMS This function is enabled only for VGA

card supporting DPMS.

Note: Green monitors detect the V/H SYNC signals to turn off its electron

gun.

CHAPTER 3 AWARD® BIOS SETUP

3-19

Doze Mode

Disable System will never enter DOZE mode.

1 Min/2 Min/

4 Min/6 Min/

8 Min/10 Min/

20 Min/30 Min/

40 Min/1 Hr

Video Off After

The settings are N/A, Standby, Doze, or Suspend. This option is for
choosing the setting in which the monitor will turn off.

N/A Always turn on.

Doze During Doze mode, the monitor will be turned off.

Standby During Standby mode, the monitor will be turned off.

Suspend During Suspend mode, the monitor will be turned off.

The default setting is Standby.

MODEM Use IRQ

Name the interrrupt request (IRQ) line assigned to the modem (if any)
on your system. Activity of the selected IRQ always awakens the system.
The settings are NA, 3, 4, 5, 7, 9, 10, or 11.

Defines the continuous idle time before the
system enters DOZE mode.
If any item defined in the options of “Power
Down and Resume events” is enabled & active,
DOZE timer will be reloaded. When the system
have entered Doze mode, any of the items
enabled in “W ake Up Events in Doze and
Standby” will trigger the system to wake up.

CHAPTER 3 AWARD® BIOS SETUP

3-20

HDD Power Down

Disable HDD’s motor will not shut of f.

1 Min/2 Min/

3 Min/4 Min/

5 Min/6 Min/

7 Min/8 Min/

9 Min/10 Min/

11 Min/12 Min/

13 Min/14 Min/

15 Min

Standby Mode

Disable System will never enter ST ANDBY mode.

1 Min/2 Min/

4 Min/6 Min/

8 Min/10 Min/

20 Min/30 Min/

40 Min/1 Hr

Suspend Mode

Disable System will never enter SUSPEND mode.

1 Min/2 Min/

4 Min/6 Min/

8 Min/10 Min/

20 Min/30 Min/

40 Min/1 Hr

Defines the continuous idle time before the
system enters SUSPEND mode.
If any item defined in the options of “Power
Down & Resume Events” is enabled & active,
SUSPEND timer will be reloaded. When the
system has entered SUSPEND mode, any of the
items enabled in the “Power Down & Resume
Events” will trigger the system to wake up.

Defines the continuous HDD idle time before
the HDD enters the power saving mode (motor
off). BIOS will turn off the HDD’ s motor when
time is out.

Defines the continuous idle time before the
system enters ST ANDBY mode.
If any item defined in the options of “Power
Down and Resume events” is enabled & active,
ST ANDBY timer will be reloaded. When the
system has entered Standby mode , any of the
items that are enabled in “Wake Up Events of
Doze and Standby” will trigger the system to
wake up.

CHAPTER 3 AWARD® BIOS SETUP

3-21

Throttle Duty Cycle

This option will determine how much power will be used by the CPU ,
if the system goes into suspend mode.

VGA Active Monitor

During Enabled, if there’s no activity in the monitor screen the
system will go into Power Saving Mode. During Disabled, the system will
go into Power Saving Mode, whether there is activity in the monitor screen
or not. The settings are Disabled and Enabled.

Soft-Off by PWR-BTTN

The settings are Delay 4 sec or Instant-off. During Delay 4 sec, if
you push the switch one time, the system goes into suspend mode and if
you push it more than 4 second, the system will be turned off. During
instant-off, the system will turn off once you push the switch.

CPUFAN Off in Suspend

During Enabled, if the system goes into suspend mode, the CPU fan
will stop. During Disabled, if the system goes into suspend mode the CPU
fan will resume.

Resume by Ring

During Disabled, the system will ignore any incoming call from the
modem. During Enabled, the system will boot up if there’s an incoming call
from the modem.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system, before this function will work.

CHAPTER 3 AWARD® BIOS SETUP

3-22

Resume by Alarm

This function is for setting date and time for your computer to boot
up. During Disabled, you cannot use this function. During Enabled, choose
the Date and Time Alarm:

Date(of month) Alarm You can choose which month the

system will boot up. Set to 0, to boot
every month.

Time(hh:mm:ss) Alarm You can choose what hour, minute and

second the system will boot up.

Note: If you have change the setting, you must let the system boot up until

it goes to the operating system, before this function will work.

Wake Up On LAN

To use this function, you need a LAN add-on card which support
power on functions. It should also support the wake-up on LAN jumper
(JWOL1).

Enabled Wake up on LAN supported.

Disabled Wake up on LAN not supported.

Restore on AC/Power Loss

The settings are power on or last status. During power on, after
every AC power loss, the system will be turned on. During last status, after
every AC power loss, whatever the system status, it will be the same when
the AC power returns.

Note: a. If you set this option to last status, jumper JP1 must be open or

this function will not work.

IRQ 8 Clock Event

You can Enable or Disable monitoring of IRQ 8 so it does not awaken
the system form suspend mode.

CHAPTER 3 AWARD® BIOS SETUP

3-23

IRQ 8 Clock Event

IRQ[3-7,9-15], NMI : Enabled

Primary IDE 0 : Enabled

Primary IDE 1 : Disabled

Secondary IDE 0 : Disabled

Secondary IDE 1 : Disabled

Floppy Disk : Enabled

Serial Port : Enabled

Parallel Port : Enabled

During Enabled, if any interrupt event occurs, the system will wake­up from suspend mode. During Disabled, the system will not monitor any
interrupt event.

CHAPTER 3 AWARD® BIOS SETUP

3-24

3.8 PNP/PCI Configuration Setup

Y ou can manually configure the PCI Device’ s IRQ. The following
pages tell you the options of each item & describe the meanings of each
options.

ROM PCI/ISA BIOS (2A69HM4D)
PNP/PCI CONFIGURATION SETUP

AWARD SOFTWARE, INC.

PnP OS Installed

When set to YES, BIOS will only initialize the PnP cards used for
booting (VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP
operating system like Windows® 95. When set to NO, BIOS will initialize all
the PnP cards. So, for non-PnP operating system (DOS, Netware®), this
option must set to NO.

PnP OS Installed :No
Resources Controlled By :Manual
Reset Configuration Data :Disabled

IRQ-3 assigned to :Legacy ISA
IRQ-4 assigned to :Legacy ISA
IRQ-5 assigned to :PCI/ISA PnP
IRQ-7 assigned to :PCI/ISA PnP
IRQ-9 assigned to :PCI/ISA PnP
IRQ-10assigned to :PCI/ISA PnP
IRQ-11assigned to :PCI/ISA PnP
IRQ-12assigned to :PCI/ISA PnP
IRQ-14assigned to :PCI/ISA PnP
IRQ-15assigned to :PCI/ISA PnP
DMA-0assigned to :PCI/ISA PnP
DMA-1assigned to :PCI/ISA PnP
DMA-3assigned to :PCI/ISA PnP
DMA-5assigned to :PCI/ISA PnP
DMA-6assigned to :PCI/ISA PnP
DMA-7assigned to :PCI/ISA PnP

Assign IRQ for VGA : Enabled
Assign IRQ for USB : Enabled
Used MEM base addr : N/A
Used MEM Length : 8K

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

CHAPTER 3 AWARD® BIOS SETUP

3-25

Resources Controlled By

By Choosing “Auto”, the system BIOS will detect the system
resource and automatically assign the relative IRQ and DMA Channel for
each peripheral.

By Choosing “Manual”(default), the user will need to assign IRQ &
DMA for add-on cards. Be sure that there is no conflict for IRQ/DMA and I/
O ports.

Note: When choosing “Auto” you must be sure that all of the system
add-on cards are PnP type.

Reset Configuration Data

The system BIOS supports the PnP feature so the system needs to
record which resource is assigned and protect resources from conflict.
Every peripheral device has a node which is called ESCD. This node records
which resources are assigned to it. The system needs to record and update
ESCD to the memory locations. These locations (4K) are reserved at the
system BIOS.

If Disabled (default) is chosen the system’s ESCD will update only
when the new configuration varies from the last one.

If Enabled is chosen the system will be forced to update the system’s
ESCD. Then, this option willbe auto-set to Disable.

IRQ-3 assigned to : Legacy ISA

IRQ-4 assigned to : Legacy ISA

IRQ-5 assigned to : PCI/ISA PnP

IRQ-7 assigned to : Legacy ISA

IRQ-9 assigned to : PCI/ISA PnP

IRQ-10 assigned to : PCI/ISA PnP

IRQ-11assigned to : PCI/ISA PnP

IRQ-12assigned to : PCI/ISA PnP

IRQ-14assigned to : PCI/ISA PnP

CHAPTER 3 AWARD® BIOS SETUP

3-26

IRQ-15 assigned to : PCI/ISA PnP

DMA-0 assigned to : PCI/ISA PnP

DMA-1 assigned to : PCI/ISA PnP

DMA-3 assigned to : PCI/ISA PnP

DMA-5 assigned to : PCI/ISA PnP

DMA-6 assigned to : PCI/ISA PnP

DMA-7 assigned to : PCI/ISA PnP

The above settings will be shown on the screen only if “Manual” is
chosen for the Resources Controlled By function.

Legacy is the term which signifies that a resource is assigned to the
ISA Bus and provides for non PnP ISA add-on card. PCI/ISA PnP signifies
that a resource is assigned to the PCI Bus or provides for ISA PnP add-on
cards and peripherals.

Assign IRQ for VGA

Lets the user choose which IRQ to assign for VGA card.

Assign IRQ for USB

Set to Enabled when USB port will be used. Set to Disable if the USB
port will not be used.

Used MEM base addr

Lets the user choose the Legacy ISA addr. The settings are NA#,
C800, CC00, D000, D400, D800 OR DC00.

Used MEM base addr

Lets the user choose the Legacy ISA addr. memory length. The
settings are 8K, 16K, 32K, or 64K.

CHAPTER 3 AWARD® BIOS SETUP

3-27

3.9 Load BIOS/Setup Defaults

This Main Menu item loads the default system values. If the CMOS
is corrupted the defaults are loaded automatically. Choose this item and the
following message appears:

“ Load Setup Defaults (Y / N) ? N “

To use the Setup defaults, change the prompt to “Y” and press < Enter >

Note: The Setup defaults can be customized to increase performance.

However the BIOS defaults can always be used as a back up if

there is some problem with the mainboard operation.

CHAPTER 3 AWARD® BIOS SETUP

3-28

3.10 Special Features Setup (optional)

This Special Features Setup are use by System Hardware Monitor chipset.
You can manually change the value of each option.

ROM PCI/ISA BIOS (2A69HM4C)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

Chassis Fan Detected/Power Fan Detected/CPU Fan
Detected/Voltage Detected/Vcore Voltage Detected/+2.5V
Voltage Detected/+3.3V Voltage Detected/+5.0 Voltage
Detected/+12V Voltage Detected/-12V Voltage Detected/-5.0
Voltage Detected

During Enabled, this will show the CPU/F AN voltage chart during
system boot up. And during Diabled, this will not show.

******** POST SHOWING ********
Chassis Fan Detected :Disabled
Power Fan Detected :Disabled
CPU Fan Detected :Enabled
Chassis Intrusion Detect :Disabled
Voltage Detected :Enabled
Vcore Voltage Detected :Enabled
+2.5V Voltage Detected :Enabled
+3.3V Voltage Detected :Enabled
+5.0V Voltage Detected :Enabled
+ 12V Voltage Detected :Enabled

- 12V Voltage Detected :Enabled

-5.0V Voltage Detected :Enabled

*******CPU PLUG & PLAY ********
CPU Speed :350MHz (100x3.5)
CPU Ratio : x3
CPU Frequency : 68MHz

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

********* SYSTEM MONITOR ********
Chassis FAN RPM :0
Power FAN RPM :0
CPU Fan RPM :6367
System Temperature :26

0

C/780F

CPU Temperature :28

0

C/820F
CPU Critical Temp :Disabled
Shutdown Temp :Disabled

CHAPTER 3 AWARD® BIOS SETUP

3-29

Chassis Intrusion Detect

Set this option to Enabled, Reset, or Disabled the chassis intrusion
detector. During Enabled, any intrusion on the system chassis will be
recorded. The next time you turn on the system, it will show a warning
message. To be able to clear those warning, choose Reset. After clearing
the message it will go back to Enabled.

CPU Speed

Check you processor and set this function accordingly. If you set
this to Manual, you can set the CPU Ratio and CPU Frequency accordingly .
CPU Frequenies are: 66, 68, 75, 83 and 100, 103, 112, 133. Though 68, 75, 83,

103, 112, and 133 fr equencies are available, it is adviced that you use these
only for testing since this might cause instability as the CPU is not de­signed for these frequencies. CPU ratio are: 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5,

or 8.

Note: if you set the CPU Ratio and CPU Frequency to be too high, and the
system will not turn on. Then restart the system, press “F10” until bootup.
This will set the default setting.

Chassis/Power/CPU Fan RPM

During Enabled, this will monitor the RPM of your CPU/Chassis/
Power fan.

System Temperature/CPU Temperature

This will show the System and CPU temperature.

CPU Critical Temp

This option is for setting the critical temperature level for the proces­sor. when the processor reach the temperature you set. This will reduce the
load on the processor.

Shutdown Temp

This option is for setting the Shutdown temperature level for the
processor. when the processor reach the temperature you set. This will
shutdown the system. This function only works with Windows® 95 operat­ing system.

CHAPTER 3 AWARD® BIOS SETUP

3-30

3.11 Integrated Peripherals

ROM PCI/ISA BIOS (2A69HM4D)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

IDE HDD Block Mode

Enabled/Disabled Enabled allows the Block mode access for the

IDE HDD.

IDE Primary Master PIO

Auto/Mode0/Mode1-4

IDE Primary Slave PIO

Auto/Mode0/Mode1-4

IDE Secondary Master PIO

Auto/Mode0/Mode1-4

IDE HDD Block Mode :Enabled
IDE Primary Master PIO :Auto
IDE Primary Slave PIO :Auto
IDE Secondary Master PIO :Auto
IDE Secondary Slave PIO :Auto
IDE Primary Master UDMA :Auto
IDE Primary Slave UDMA :Auto
IDE Secondary Master UDMA:Auto
IDE Secondary Slave UDMA :Auto
On-Chip Primary PCI IDE :Enabled
On-Chip Primary PCI IDE :Enabled
USB Keyboard Controller :Disabled

Onboard FDC controller :Enabled
Onboard Serial Port 1 :3F8/IRQ4
Onboard Serial Port 2 :2F8/IRQ3
UART Mode Select :Normal

Onboard Parallel Mode :378/IRQ7

Esc : Quit ↑ ↓ → ← : Select item
F1 : Help PU/PD/+/- : modify
F5 : Old Value(Shift) F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Parallel Port Mode :SPP

CHAPTER 3 AWARD® BIOS SETUP

3-31

IDE Secondary Slave PIO

Auto/Mode0/Mode1-4

For these 4 IDE options, choose “Auto” to have the system BIOS
auto detect the IDE HDD operation mode for PIO access.

Note: Some IDE HDD can not operate at the responding HDD’s mode.
When the user has selected “Auto” and the system BIOS has
accepted the HDD response mode, the user may degrade the
HDD’s operation mode. Ex: IF the HDD reported it can operate in
mode 4 but it is not operating properly , the user will have to
manually change the operation mode to mode 3.

Choosing Mode 1-4 will have the system ignore the HDD’s reported
operation mode and use the selected mode instead.

Note:According to ATA specs. Mode 4 transfer rate is > Mode 3 > Mode 2

> Mode 1 > Mode 0. If the user’s HDD can operate at Mode 3 the user
can also select a slower Mode (i.e. Mode 0-2) but not a faster Mode (ie
Mode 4).

On-Chip Primary PCI IDE

Enabled/Disabled

On-Chip Secondary PCI IDE

Enabled/Disabled The system provides for a On-Board

On-Chipset PCI IDE controller that
supports Dual Channel IDE (Primary
and Secondary). A maximum of 4 IDE
devices can be supported. If the user
install the Off-Board PCI IDE controller
(i.e. add-on cards), the user must
choose which channels will be disabled.
This will depend on which channel will
be used for the Off-Board PCI IDE add­on card.

CHAPTER 3 AWARD® BIOS SETUP

3-32

USB Keyboard Support

Enabled/Disabled Choosing Enabled will allow the system

to use USB keyboard without a device
driver .

Onboard FDC Controller

Enabled/Disabled The system has an on-board Super I/O

chip with a FDD controller that supports
2 FDDs for 360K/720K/1.2M/1.44M/

2.8M. Choose “Enabled” to use the on­board FDD controller for accessing the
FDD. Otherwise choose “Disabled” to
use the off-board FDD controller .

Onboard Serial Port 1

Disabled/(3F8/IRQ4)/(2F8/IRQ3)/ (3E8/IRQ4)/(2E8/IRQ3)

Onboard Serial Port 2

Disabled/(3F8/IRQ4)/(2F8/IRQ3)/(3E8/IRQ4)/(2E8/IRQ3)

The system has an On-board Super I/O chipset with 2 serial ports.
The On-board serial ports can be selected as:

Disabled

3F8/IRQ4 COM 1 uses IRQ4
2F8/IRQ3 COM 2 uses IRQ3
3E8/IRQ4 COM 3 uses IRQ4
2E8/IRQ3 COM 4 uses IRQ4

Note: Because the ISA Bus Interrupt accepts low to high edge trigger, the

interrupt request line cannot be shared by multiple sources. If an off­board ISA add-on card with a serial port is installed the user may have
to disable the on-board serial port because it will conflict with IRQ
request line for the off-board serial port.

CHAPTER 3 AWARD® BIOS SETUP

3-33

UART Mode Select

This item allow you to determine which Infra Red (IR) function of
onboard I/O chip.

Onboard Parallel Port

Disabled There is a built-in parallel port on the

on-board Super I/O chipset that pro­vides Standard, ECP, and EPP features.
It has the following options:

Disable

3BCH/IRQ7 Line Printer port 0
278H/IRQ5 Line Printer port 2
378H/IRQ5 Line Printer port 1

Onboard Parallel Mode

SPP : Standard Parallel Port

EPP : Enhanced Parallel Port

ECP : Extended Capability Port

To operate the onboard parallel port as
Standard Parallel Port only , choose
“SPP.” T o operate the onboard parallel
port in the ECP and SPP modes simulta­neously choose “ECP/SPP.” By choos­ing “ECP”, the onboard parallel port will
operate in ECP mode only . Choosing
“ECP/EPP” will allow the onboard
parallel port to support both the ECP
and EPP modes simultaneously . The
ECP mode has to use the DMA channel,
so choose the onboard parallel port with
the ECP feature. After selecting it, the
following message will appear: “ECP
Mode Use DMA” At this time the user
can choose between DMA channels 3

(3BCH/IRQ7)/

(278H/IRQ5)/

(378H/IRQ5)

SPP/(EPP/SPP)/
ECP(ECP/EPP)

CHAPTER 3 AWARD® BIOS SETUP

3-34

or 1. The onboard parallel port is EPP
Spec. compliant, so after the user
chooses the onboard parallel port with
the EPP function, the following message
will be displayed on the screen: “EPP
Mode Select.” At this time either EPP

1.7 spec. or EPP 1.9 spec. can be
chosen.

CHAPTER 3 AWARD® BIOS SETUP

3-35

3.12 Supervisor/User Password Setting

This Main Menu item lets you configure the system so that a pass­word is required each time the system boots or an attempt is made to enter
the Setup program. Supervisor Password allows you to change all CMOS
settings but the User Password setting doesn’t have this function. The way
to set up the passwords for both Supervisor and User are as follow:

1. Choose “Change Password” in the Main Menu and press <Enter>.

The following message appears:

“Enter Password:”

2. The first time you run this option, enter your password up to only 8

characters and press <Enter>. The screen does not display the entered
characters. For no password just press <Enter>.

3. After you enter the password, the following message appears prompting

you to confirm the password:

“Confirm Password:”

4. Enter exactly the same password you just typed in to confirm the pass-

word and press <Enter>.

5. Move the cursor to Save & Exit Setup to save the password.

6. If you need to delete the password you entered before, choose the

Supervisor Password and press <Enter>. It will delete the password that
you had before.

7. Move the cursor to Save & Exit Setup to save the option you did. Other-

wise, the old password will still be there when you turn on your machine
next time.

CHAPTER 3 AWARD® BIOS SETUP

3-36

HARD DISKS TYPE SIZE CYLS HEADS PRECOMP LANDZONE SECTOR MODE
Primary Master: Auto 0 0 0 0 0 0 AUTO
Primary Slave : Auto 0 0 0 0 0 0 AUTO
Secondary Master : Auto 0 0 0 0 0 0 AUTO
Secondary Slave : Auto 0 0 0 0 0 0 AUTO

Select Primary Master Option (N=Skip) : N

OPTIONS SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

2 21 12 1023 64 0 4094 63 LBA
1 21 13 4095 16 65535 4094 63 NORMAL
3 21 13 2047 32 65535 4094 63 LARGE

[ESC: Skip]

3.13 IDE HDD Auto Detection

You can use this utility to automatically detect the characteristics of
most hard drives.

When you enter this utility, the screen asks you to select a specific
hard disk for Primary Master. If you accept a hard disk detected by the BIOS,
you can enter “Y” to confirm and then press <Enter> to check next hard disk.
This function allows you to check four hard disks and you may press the
<Esc> after the <Enter> to skip this function and go back to the Main Menu.

ROM ISA BIOS

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-1

Chapter 4

AMI® BIOS USER’S GUIDE

The system configuration information and chipset register information is
stored in the CMOS RAM. This information is retained by a battery when
the power is off. Enter the BIOS setup (if needed) to modify this information.

The following pages will describe how to enter BIOS setup, and all about
options.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-2

2 . When the “Hit <DEL>” message appears, press <DEL> key to

enter the BIOS setup screen.

3 . After pressing <DEL> key , the BIOS setup screen will appear .

AMIBIOS (C) 1996 American Megatrends Inc.
AGIOMS VXXX XXXXXX

Hit <DEL> if you want to run setup

(C) American Megatrends Inc.
61-XXXX-001169-00111111-071592-i82440FX-H

4.1 Enter BIOS Setup

Enter the AMI® setup Program’s Main Menu as follows:

1. Turn on or reboot the system. The following screen appears with
a series of diagnostic check.

Note: If you don’t want to modify CMOS original setting, then don’t press any

key during the system boot.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-3

Standard CMOS Setup

Advanced CMOS Setup
Advanced Chipset Setup
Power Management Setup

PCI/Plug and Play Setup

Peripheral Setup

Hardware Monitor Setup (optional)

Auto-Detect Hard Disks

Change User Password

Change Supervisor Password

Change Language Setting

Auto Configuration with Optimal Settings

Auto Configuration with Fail Safe Settings

Save Settings and Exit

Exit without Saving

4 . Use the <Up> and <Down> key to move the highlight scroll up or

down.

5 . Use the <ENTER> key to select the option.

6 . T o exit, press <ESC>. T o save and exit, press <F10>.

7 . Section 3.2 to 3.7 will explain the option in more details.

AMIBIOS HIFLEX SETUP UTILITIES - VERSION 1.07
(C) 1996 American Megatrends, Inc. All Rights

Reserved

Standard CMOS setup for changing time, hard disk type, etc.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-4

2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.

3. After you have finished with the Standard CMOS Setup, press
<ESC> to go back to the main menu.

4.2 Standard CMOS Setup

1 . Press <ENTER> on “Standard CMOS Setup” of the main menu

screen .

AMIBIOS SETUP - STANDARD CMOS SETUP

(C)1998 American Megatrends,Inc.All Rights Reserved

Date (mm/dd/yyyy): Fri March 20, 1998
Time (hh/mm/ss): 17:09:25

Floppy Drive A: 1.44 MB 3 1/2
Floppy Drive B: Not Installed

LBA Blk PIO 32Bit

Type Size Cyln Head WPcom Sec Mode Mode Mode Mode
Pri Master :Auto ON ON AUTO ON
Pri Slave :Auto ON ON AUTO ON
Sec Master :Auto ON ON AUTO ON
Sec Slave :Auto ON ON AUTO ON

Boot Sector Virus Protection Disabled

ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color

Month : Jan-Dec
Day : 01-31
Year : 1901-2099

CHAPTER 4

AMI® BIOS USERS GUIDE

4-5

2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.

3. After you have finished with the Advanced CMOS Setup, press
<ESC> to go back to the main menu.

Quick Boot Enabled
Ist Boot Device Floppy
2nd Boot Device IDE 0
3rd Boot Device CD-ROM
Try Other Boot Devices Ye s
Floppy Access Control Read-Write
Hard Disk Access Control Read-Write
S.M.A.R.T. For Hard Disk Disabled
BootUp Num-Lock On
Floppy Drive Swap Disabled
Floppy Drive Seek Disabled
PS/2 Mouse Support Enabled
Primary Display VGA/EGA
Password Check Setup
Boot to OS/2 > 64M N o
Cache Bus ECC Disabled
System BIOS Cacheable Enabled
C000, 16k Shadow Cached
C400, 16k Shadow Cached
C800, 16k Shadow Disabled
CC00, 16k Shadow Disabled
D000, 16K Shadow Disabled
D400, 16K Shadow Disabled
D800, 16K Shadow Disabled
DC00, 16K Shadow Disabled

ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color

4.3 Advanced CMOS Setup

1 . Press <ENTER> on “Advanced CMOS Setup” of the main menu

AMIBIOS SETUP - ADVANCED CMOS SETUP

(C) 1996 American Megatrends, Inc. All Rights

Reserved

Available Options:
Disabled
Enabled

CHAPTER 4

AMI® BIOS USERS GUIDE

4-6

Description of the item on screen follows:

Quick Boot

Set this option to Enabled to permit AMI® BIOS to boot within 5
seconds. This option replaces the old ABOVE 1 MB Memory T est option.
The Optimal default setting is Enabled. The Fail-Safe default setting is
Disabled.

1st Boot Device/2nd Boot Device/3rd Boot Device

This option sets the sequence of boot drives.

The settings are:

IDE0 The system will boot from the first HDD.

IDE1 The system will boot from the Second HDD.

IDE2 The system will boot from the Third HDD.

IDE3 The system will boot from the Fourth HDD.

F(optical) The system will boot from LS-120(120M Floppy).

SCSI The system will boot from the SCSI.

Network The system will boot from the Network drive.

CD-ROM The system will boot from the CD-ROM.

Disable Disable this sequence.

Try other Boot Devices

This option sets the device boot, if all the Four Boot Devices failed.

Floppy Access Control

This option sets the Floppy to Read-only or Read-Write.

Hard Disk Access Control

This option sets the HDD to Read-only or Read-Write. During
Read-only , if you try to write on the HDD, the system will halt.

S.M.A.R.T. for Hard Disks

This option sets the SMART Function for the hard disk. The hard
disk need to have SMAR T function for this feature to work.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-7

Boot up Num Lock

When this option is set to Off, AMI® BIOS turns off the Num Lock
key when the system is powered on. The end user can then use the arrow
keys on both the numeric keypad and the keyboard. The settings are On or
Off. The optimal default and Fail-Safe default settings are On.

Floppy Drive Swap

Set this option to Enabled to specify that floppy drives A: and B:
are swapped. The setting are Enabled and Disabled. The Optimal and Fail­Safe default settings are Disabled.

Floppy Drive Seek

When this option is set to Enabled, AMI® BIOS performs a Seek
command on floppy drive A: before booting the system. The settings are
Enabled and Disabled. The Optimal and Fail-Safe default settings are
Disabled.

PS/2® Mouse Support

When this option is set to Enabled, AMI® BIOS supports a PS/2

®

mouse. The settings are Enabled and Disabled. The Optimal and Fail-Safe
default settings are Enabled.

Primary Display

This option configures the primary display subsytem in the
computer . The settings are Mono(monochrome), 40CGA, 80CGA or VGA/
EGA. The optimal and Fail-Safe default settings are VGA/EGA.

Password Check

This option specifies the type of AMI® BIOS password protection
that is implemented. The Optimal and Fail-Safe default settings are Setup.

Boot To OS/2® > 64MB

Set this option to Enabled to permit the BIOS to run properly , if
OS/2® is to be used with > 64MB of DRAM. The settings are Enabled or
Disabled. The Optimal and Fail-safe default settings are Disabled.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-8

Cache Bus ECC

This option is for future Pentium® II processor . During Enabled,
this will affect the system performance. Disabled this option if you don’t
want to affect the system performance.

System BIOS Cacheable

AMI® BIOS always copies the system BIOS from ROM to RAM for
faster execution. Set this option to Enabled to permit the contents of the
F0000h RAM memory segment to be written to and read from cache memory .
The settings are Enabled or Disabled. The Optimal default setting is Ena­bled. The Fail-Safe default setting is Disabled.

C000, 16K Shadow/C400, 16k Shadow

These options specify how the contents of the video ROM are
handled. The settings are:

Disabled - the V ideo ROM is not copied to RAM.

Cached -the contents of the video ROM from C0000h -

C7FFFh are not only copied from ROM to RAM; it
can also be written to or read from cache memory .

Shadow - the Contents of the video ROM from C0000h -

C7FFFh are copied(shadowed) from ROM to RAM for
faster execution.

The Optimal and Fail-Safe default setting is Cached.

C800, 16k Shadow/CC00, 16k Shadow/D000, 16K Shadow/
D400, 16k Shadow/D800, 16k Shadow/DC00, 16K Shadow

These options specify how the contents of the adaptor ROM
named in the option title are handled. The ROM area that is not used by ISA
adapter cards will be allocated to PCI adapter cards. The settings are;

Disabled - The specified ROM is not copied to RAM.

Cache - The contents of the ROM area are not only copied

from ROM to RAM for faster execution, it can also be
written to or read from cache memory .

Shadow - The contents of the ROM area are copied from ROM

to RAM for faster execution.

The Optimal and Fail-Safe default settings are Disabled.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-9

4.4 Advanced Chipset Setup

1 . Press <ENTER> on “Advanced Chipset Setup” of the main menu

screen.

AMIBIOS SETUP - ADVANCED CHIPSET SETUP

(C) 1996 American Megatrends, Inc. All Rights

Reserved

******** SDRAM Timing ********
Configure SDRAM Timing by SPD Disabled
SDRAM RAS# to CAS# Delay 3 Clks
SDRAM RAS# Precharge 3 ClkS
SDRAM CAS# Latency 3 Clks
SDRAM Leadoff Cmd Timing Auto
DRAM Integrity Mode Non-ECC
DRAM Refresh Rate 15.6 us
Memory Hole Disabled
VGA Frame Buffer USWC Disabled
PCI Frame Buffer USWC Disabled
USWC Write Post Disabled
Graphics Aperture Size 64MB
8bit I/O Recovery Time 1 Sysclk
16bit I/O Recovery Time 1 Sysclk
USB Passive Release Enabled
PIIX4 Passive Release Enabled
PIIX4 Delayed Transaction Disabled
USB Function Enabled
USB Keybd/Mouse Legacy Support Disabled

Available Options:
Disabled
Enabled

ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color

2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.

3. After you have finished with the Advanced Chipset Setup, press
<ESC> to go back to the main menu.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-10

Description of the item on screen follows:

Configure SDRAM Timing by SPD

Enabling this option will set the SDRAM timing value to the value
provided by the DIMM SPD, otherwise, value will be set to the values you
set.

Note: It is recommended that under 100MHz, you use DIMM with SPD.

SDRAM RAS# to CAS# Delay

This operation decide the delay in assertion of CAS#(SCAS#) from
assertion of RAS#(SRAS#) in 66MHz. Under 66MHz CPU bus, set this
option to either 2 or 3 but for 100MHz CPU, it is recommended that this be
set to 3.

SDRAM RAS Precharge

This option defines the RAS# precharge requirements for the
SDRAM memory type in 66MHz clocks. Under 66MHz CPU bus, set this
option to either 2 or 3 but for 100MHz CPU, it is recommended that this be
set to 3.

SDRAM CAS# Latency

This option determines the CAS latency time parameter of SDRAM.
The settings are 2 clks or 3 clks. Under 66MHz CPU bus, set this option to
either 2 or 3 but for 100MHz CPU, it is recommended that this be set to 3.

SDRAM Leadoff Cmd Timing

This control the SDRAM command for CPU cycles. When this is
set to Auto, timing value is set on the value provided by SPD; 4 to 100MHz;
and 3 to 66MHz.

DRAM Integrity Mode

During ECC, this will enable the DRAM ECC mechanism that allows
single bit error detection and recovery . During EC mode, it will detect multi­bit errors but cannot perform correction.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-11

DRAM Refresh Rate

This option is for setting the frequency of refreshing the DRAM.
A vailable settings are 15.6, 31.2, 62.4, 124.8, and 249.6 us.

Memory Hole

This option allows the end user to specify the location of a memory
hole. The cycle matching the selected memory hole will be passed to the
ISA bus. If Enabled, the selected hole is not remapped.

VGA Frame Buffer USWC

The Pentium® II processor supports the Uncacheable Speculatable
Write-Combining (USWC) memory type. The processor provides a write­combining with buffering strategy for write operation. This is useful for
frame buffering. Writing to USWC memory can be buf fered and combined in
the processors write-combining buffer (WCB). The WCBs are viewed as a
special purpose outgoing write buffers, rather than a cache. The WCBs are
written into memory to allocate a different address, or after executing a
serializing, locked, or I/O instructions.

During Enabled, this will enable the processor memory location
B000 and BFFF segment as USWC memory type.

PCI Frame Buffer USWC

The Pentium® II processor supports the Uncacheable Speculatable
Write-Combining (USWC) memory type. The processor provides a write­combining with buffering strategy for write operation. This is useful for
frame buffering. Writing to USWC memory can be buf fered and combined in
the processors write-combining buffer (WCB). The WCBs are viewed as a
special purpose outgoing write buffers, rather than a cache. The WCBs are
written into memory to allocate a different address, or after executing a
serializing, locked, or I/O instructions.

During Enabled, this will enable the processor memory location
from main memory to 4GB segment as USWC memory type.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-12

USWC Write Post

Set this option to Enabled to use USWC(Uncacheable,
Speculatable, Write-Combined) memory . The settings are Enabled or
Disabled. The Optimal and Fail-Safe default settings are Disabled.

Graphics Aperture Size

This option determines the effective size of the graphics aperture
used in the particular P AC configuration. The AGP aperture is memory­mapped, while graphics data structure can reside in a graphics aperture. The
aperture range should be programmed as not cacheable in the processor
cache. Accesses with the aperture range are forwarded to the main memory ,
then PAC will translate the original issued address via a translation table
that is maintained on the main memory . The option allows the selection of
an aperture size of 4MB, 8MB, 16MB, 32MB, 64MB, 128MB, and 256MB.

8 Bit I/O Recovery Time

The recovery time is the length of time, measured in CPU clocks,
which the system will delay after the completion of an input/output request.
This delay takes place because the CPU is operating so much faster than the
input/output bus that the CPU must be delayed to allow for the completion
of the I/O.

This items allows you to determine the recovery time allowed for 8
bit I/O. Choices are from NA, 1 to 8 CPU clocks.

16 Bit I/O Recovery Time

This items allows you to determine the recovery time allowed for 16
bit I/O. Choices are from NA, 1 to 4 CPU clocks.

USB Passive Release

During Enabled, this will allow the PIIX4® to use passive
release(look at PIIX4® Passive Release) while transferring control
information or data for USB transaction. During Disabled, PIIX4

®

will perform PCI accesses for USB without using passive release.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-13

PIIX4® Passive Release

The PIIX4® ISA bridge support GAT (Guaranteed Access Time)
mode, which will now violate the spirit of the PCI specification. The systems
provides a programmable passive release mechanism to meet the required
master latencies. During Enabled, ISA masters may see long delays in
accessing PCI memory , including the main DRAM array . The ISA GA T mode
is also not supported during enable. ISA masters must honor IOCHRDY.

PIIX4® Delayed Transaction

During Enabled, the PIIX4® delay transaction mechanism is enabled
when the PIIX4® is the target of a PCI transaction. A read cycle from Host to
PCI is immediately retrived due to any pending PCI to DRAM cycle. During
Disabled, a read cycle from Host to PCI is waited until time-out due to any
pending PCI to DRAM cycle.

USB Function

Set this option to Enabled or Disabled the on-chip USB controller.
The Optional and Fail-Safe default settings are Disabled.

USB Keybd/Mouse Legacy Support

Set this option to Enabled or Disabled USB keyboard/mouse.
The Optional and Fail-Safe default settings are Disabled.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-14

4.5 Power Management Setup

1 . Press <ENTER> on “Power Management Setup” of the main menu

screen.

2. Use <Up> and <Down> to choose the item and <PgUp> and
<PgDn> keys to modify the highlighted item.

3. After you have finished with the Power Management Setup, press
<ESC> to go back to the main menu.

Power Management / APM Enabled
Green PC Monitor Power State Stand By
Video Power Down Mode Suspend
Hard Disk Power Down Mode Stand By
Standby Time Out (Minute) Disabled
Suspend Time Out (Minute) Disabled
Throttle Slow Clock Ratio 50-62.5%
Modem Use IO Port N/A
Modem Use IRQ N/A
Display Activity Ignore
Device 6(Serial Port 1) Monitor
Device 7(Serial Port 2) Monitor
Device 8(Parallel Port) Ignore
Device 5(Floppy Disk) Monitor
Device 0(Primary master IDE) Monitor
Device 1(Primary slave IDE) Ignore
Device 2(Secondary master IDE) Monitor
Device 3(Secondary slave IDE) Ignore
System Thermal Ignore
Thermal Slow Clock Ratio 50-62.5%
CPU Critical Temperature 65oC/149oF
Power Button Function On/Off
Restore on AC/Power Loss Last State
Ring Resume From Soft Off Disabled
LAN Resume From Soft Off Disabled
RTC Alarm Resume From Soft-Off Disabled
RTC Alarm Date 15
RTC Alarm Hour 12
RTC Alarm Minute 50
RTC Alarm Second 30

ESC:Exit :Sel
PgUp/PgDn:Modify
F2/F3:Color

AMIBIOS SETUP - POWER MANAGEMENT SETUP

(C) 1996 American Megatrends, Inc. All Rights

Reserved

Available Options:
Disabled
Enabled

CHAPTER 4

AMI® BIOS USERS GUIDE

4-15

Description of the item on screen follows:

Power Management/APM

Set this option to Enabled to enable the chipset’s power
management features and APM(Advanced Power Management). The
settings are Enabled, Inst-On(instant-on) or Disabled. The Optimal and Fail­Safe default settings are Disabled.

Green PC Monitor Power State

This option specifies the power state that the green PC-compliant
video monitor enters when AMI® BIOS places it in a power savings state
after the specified period of display inactivity has expired. The settings are
Off, Standby , Suspend or Disabled. The Optimal and Fail-Safe default
settings are Standby.

Video Power Down Mode

This option specifies the power conserving state that the VESA
VGA video subsystem enters after the specified period of display inactivity
has expired. The settings are Disabled, Standby or Suspend. The Optimal
and Fail-Safe default settings are Standby.

Hard Disk Power Down Mode

This option specifies the power conserving state that the hard disk
drive enters after the specified period of hard drive inactivity has expired.
The settings are Disabled, Standby or Suspend. The Optimal and Fail-Safe
default settings are Disabled.

Standby Time Out (Minute)

This option specifies the length of a period of system inactivity
while in Full power on state. When this length of time expires, the computer
enters Standby power state. The settings are Disabled, 1 min, 2 min, 3 min, 4
min, 5 min, 6 min, 7 min, 8 min, 9 min, 10 min, 11 min, 12 min, 13 min, 14 min or
15 min. The Optimal and Fail-Safe default settings are Disabled.

CHAPTER 4

AMI® BIOS USERS GUIDE

4-16

Suspend Time Out (Minute)

This option specifies the length of a period of system inactivity
while in Standby state. When this length of time expires, the computer
enters Suspend power state. The settings are Disabled, 1 min, 2 min, 3 min, 4
min, 5 min, 6 min, 7 min, 8 min, 9 min, 10 min, 11 min, 12 min, 13 min, 14 min or
15 min. The Optimal and Fail-Safe default settings are Disabled.

Throttle Slow Clock Ratio

This option specifies the speed at which the system clock runs in
power saving states. The settings are expressed as a ratio between the
normal CPU clock speed and the CPU clock speed when the computer is in
the power-conserving state.

Modem Use IO Port

This indicates which I/O port will be used by the Modem(if there is
a Modem).

Modem Use IRQ

This indicates which IRQ no. will be used by the Modem(if there is
a Modem).

Display Activity/Device 6/Device 7/Device 8/Device 5/Device
0/Device 1/Device 2/Device 3/System Thermal

When set to Monitor, these options enable event monitoring on the
specified hardware interrupt request line. If set to Monitor and the computer
is in a power saving state, AMI® BIOS watches for activity on the specified
IRQ line. The computer enters the full on power state if any activity occurs.

AMI® BIOS reloads the Standby and Suspend timeout timers if
activity occurs on the specified IRQ line.

Thermal Slow Clock Ratio

When set to Monitor, then you can choose the throttle ratio. This
option is connected with the CPU Critical T emperature Option.
