MSI A88X-G45 User Manual

Download

Preface

A88X-G45 GAMING

Motherboard

G52-79001X1

Preface

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

Trademarks

All trademarks in this manual are properties of their respective owners.

MSI® is registered trademark of Micro-Star Int’l Co.,Ltd.

￭

NVIDIA® is registered trademark of NVIDIA Corporation.

￭

ATI® is registered trademark of AMD Corporation.

￭

AMD® is registered trademarks of AMD Corporation.

￭

Intel® is registered trademarks of Intel Corporation.

￭

Windows® is registered trademarks of Microsoft Corporation.

￭

AMI® is registered trademark of American Megatrends Inc.

￭

Award® is a registered trademark of Phoenix Technologies Ltd.

￭

Sound Blaster® is registered trademark of Creative Technology Ltd.

￭

Realtek® is registered trademark of Realtek Semiconductor Corporation.

￭

JMicron® is registered trademark of JMicron Technology Corporation.

￭

Netware® is registered trademark of Novell, Inc.

￭

Lucid® is trademark of LucidLogix Technologies, Ltd.

￭

VIA® is registered trademark of VIA Technologies, Inc.

￭

ASMedia® is registered trademark of ASMedia Technology Inc.

￭

iPad, iPhone, and iPod are trademarks of Apple Inc.

￭

Qualcomm Atheros and Killer are trademarks of Qualcomm Atheros Inc.

￭

Revision History

Revision Revision History Date V1.0 First release 2014/ 01

iiPreface

Smartphone Application

MSI+ is a smart web gadget that works as a shopping navigator and provides specs comparison for IT buyers. With a simple tap of the smartphone, you'll e󰘲ciently locate your ideal products from a wide variety of choices and, if product details are required, you may easily download user manuals within minutes. Better yet, the power calculator provides accurate estimates of power unit capacity for DIY users.

Technical Support

If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.

Preface

Visit the MSI website for technical guide, BIOS updates, driver updates, and other information:

http://www.msi.com/service/download/

Contact our technical sta󰘯 at:

http://support.msi.com

iii Preface

Preface

Safety Instructions

Always read the safety instructions carefully.

￭

Keep this User’s Manual for future reference.

￭

Keep this equipment away from humidity.

￭

Lay this equipment on a reliable 󰘱at surface before setting it up.

￭

The openings on the enclosure are for air convection hence protects the equipment

￭

from overheating. DO NOT COVER THE OPENINGS. Make sure the voltage of the power source is at 110/220V before connecting the

￭

equipment to the power inlet. Place the power cord such a way that people can not step on it. Do not place

￭

anything over the power cord. Always Unplug the Power Cord before inserting any add-on card or module.

￭

All cautions and warnings on the equipment should be noted.

￭

Never pour any liquid into the opening that can cause damage or cause electrical

￭

shock. If any of the following situations arises, get the equipment checked by service

￭

personnel:

The power cord or plug is damaged.

◯

Liquid has penetrated into the equipment.

◯

The equipment has been exposed to moisture.

◯

The equipment does not work well or you can not get it work according to

◯

User’s Manual. The equipment has been dropped and damaged.

◯

The equipment has obvious sign of breakage.

◯

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT ABOVE 60oC (140oF),

￭

IT MAY DAMAGE THE EQUIPMENT.

ivPreface

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o󰘯 and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.

◯

Increase the separation between the equipment and receiver.

◯

Connect the equipment into an outlet on a circuit di󰘯erent from that to which

◯

the receiver is connected. Consult the dealer or an experienced radio/television technician for help.

◯ Notice 1 The changes or modi󰘰cations not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment. Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order to comply

with the emission limits. VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International

MS-7900

Preface

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and

this device must accept any interference received, including interference that may

cause undesired operation.

CE Conformity

Hereby, Micro-Star International CO., LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

v Preface

Preface

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment and its antenna should be installed and operated with minimum distance 20 cm between the radiator and your body. This equipment and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

European Community Compliance Statement

The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic 󰘰elds (0–300GHz). This wireless device complies with the R&TTE Directive.

Taiwan Wireless Statements

無線設備警告聲明經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻

率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立

即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

警告使用者:這是甲類資訊產品，在居住的環境中使用時，可能會造成無線電干擾，在這種情況下，使用者會被要求採取某些適當的對策。

Japan VCCI Class B Statement

クラス B 情報技術装置この装置は、情報技術装置等電波障害自主規制協議会（VCCI）の基準に基づくクラ

スB情報技術装置です。この装置が家庭内でラジオやテレビジョン受信機に近接して使われると、受信障害を引き起こすことがあります。取扱説明書にしたがって正しい取り扱いをしてください。

Korea Warning Statements

당해 무선설비는 운용중 전파혼신 가능성이 있음

viPreface

Battery Information

European Union: Batteries, battery packs, and accumulators should not be disposed of

as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.

Taiwan: For better environmental protection, waste batteries should be collected

separately for recycling or special disposal.

廢電池請回收

California, USA: The button cell battery may contain perchlorate material and requires

special handling when recycled or disposed of in California. For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

CAUTION: There is a risk of explosion, if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Chemical Substances Information

In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:

http://www.msi.com/html/popup/csr/evmtprtt_pcm.html

Preface

vii Preface

WEEE (Waste Electrical and Electronic Equipment) Statement

Preface

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union (“EU”) Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes e󰘯ect on August 13, 2005, products of “electrical and electronic equipment” cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt Gemäß der Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte dürfen

Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammel- und Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.

FRANÇAIS

En tant qu’écologiste et a󰘰n de protéger l’environnement, MSI tient à rappeler ceci... Au sujet de la directive européenne (EU) relative aux déchets des équipement

électriques et électroniques, directive 2002/96/EC, prenant e󰘯et le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en 󰘰n de vie. MSI prendra en compte cette exigence relative au retour des produits en 󰘰n de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.

РУССКИЙ

Компания MSI предпринимает активные действия по защите окружающей среды,

поэтому напоминаем вам, что....

В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13 августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.

viiiPreface

ESPAÑOL

MSI como empresa comprometida con la protección del medio ambiente, recomienda: Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o

equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasi󰘰cados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en la Unión Europea al 󰘰nal de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.

NEDERLANDS

Om het milieu te beschermen, wil MSI u eraan herinneren dat…. De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische

en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.

SRPSKI

Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da…

Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.

Preface

POLSKI

Aby chronić nasze środowisko naturalne oraz jako 󰘰rma dbająca o ekologię, MSI przypomina, że...

Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.

ix Preface

Preface

TÜRKÇE

Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır: Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC

Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.

ČESKY

Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje... Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků

2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.

MAGYAR

Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti Önt, hogy ...

Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.

ITALIANO

Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che…. In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici

ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come ri󰘰uti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla 󰘰ne del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla 󰘰ne del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta

xPreface

CONTENTS

▍

Preface ............................................................................................................i

Copyright Notice ......................................................................................................ii

Trademarks ..............................................................................................................ii

Revision History ......................................................................................................ii

Smartphone Application ..........................................................................................iii

Technical Support ..................................................................................................iii

Safety Instructions ..................................................................................................iv

FCC-B Radio Frequency Interference Statement ................................................... v

CE Conformity ......................................................................................................... v

Radiation Exposure Statement ...............................................................................vi

European Community Compliance Statement ........................................................vi

Taiwan Wireless Statements ...................................................................................vi

Japan VCCI Class B Statement ..............................................................................vi

Korea Warning Statements .....................................................................................vi

Battery Information .................................................................................................vii

Chemical Substances Information .........................................................................vii

WEEE (Waste Electrical and Electronic Equipment) Statement ...........................viii

Chapter 1 Getting Started............................................................................1-1

Packing Contents .................................................................................................1-2

Optional Accessories ...........................................................................................1-2

Assembly Precautions ..........................................................................................1-3

Motherboard Speci󰘰cations ..................................................................................1-4

Connectors Quick Guide ......................................................................................1-7

Back Panel Quick Guide ......................................................................................1-9

APU (Accelerated Processing Units) .................................................................1-11

Introduction to FM2/ FM2+ APU ..................................................................1-11

APU & Cooler Installation ............................................................................1-12

Memory ..............................................................................................................1-14

Dual-Channel mode Population Rule ..........................................................1-14

Mounting Screw Holes .......................................................................................1-15

Power Supply .....................................................................................................1-16

JPWR1~2: ATX Power Connectors .............................................................1-16

Expansion Slots .................................................................................................1-17

PCI_E1~6: PCIe Expansion Slots ................................................................ 1-17

PCI1: PCI Slot ..............................................................................................1-17

Video/ Graphics Cards ......................................................................................1-18

Single Video Card Installation ......................................................................1-18

AMD CrossFire™ (Multi-GPU) Technology .................................................1-19

Internal Connectors ............................................................................................ 1-21

Preface

xi Preface

Preface

SATA1~8: SATA Connectors .....................................................................1-21

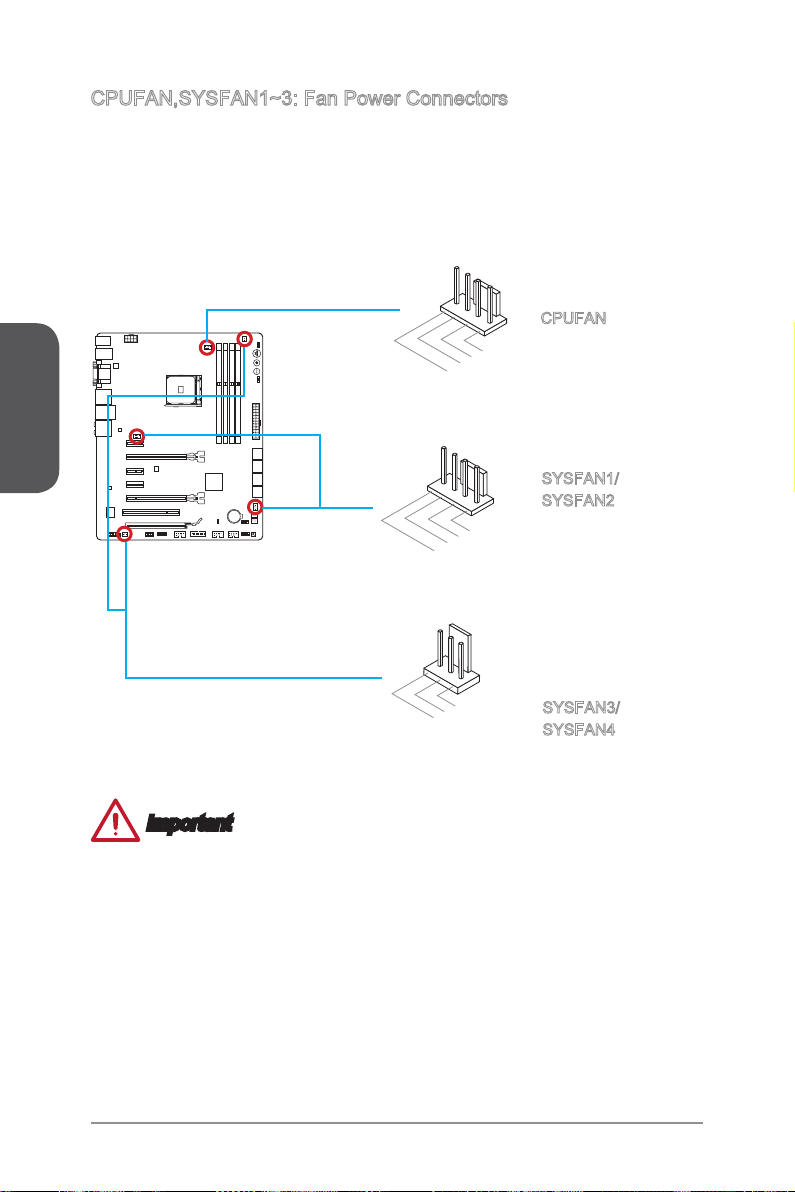

CPUFAN,SYSFAN1~3: Fan Power Connectors .......................................... 1-22

JFP1, JFP2: System Panel Connectors ......................................................1-23

JUSB1～3: USB 2.0 Expansion Connectors ...............................................1-24

JUSB4: USB 3.0 Expansion Connector ....................................................... 1-24

JCI1: Chassis Intrusion Connector ..............................................................1-25

JTPM1: TPM Module Connector ................................................................1-25

JCOM1: Serial Port Connector ....................................................................1-26

JAUD1: Front Panel Audio Connector .........................................................1-26

Jumper ...............................................................................................................1-27

JBAT1: Clear CMOS Jumper .......................................................................1-27

Voltage Checkpoints ..........................................................................................1-28

V-Check Spots ............................................................................................. 1-28

Buttons & Switches ............................................................................................1-29

OC1: OC Genie Button ...............................................................................1-29

POWER1: Power Button ..............................................................................1-30

RESET1: Reset Button ................................................................................1-30

OC_SWITCH1: OC Genie Mode Switch ...................................................... 1-31

SLOW_MODE: Slow Mode Booting Switch .................................................1-31

LED Status Indicators ........................................................................................1-32

OC Genie Mode LEDs .................................................................................1-32

Debug Code LED Table ...............................................................................1-33

Drivers and Utilities ............................................................................................1-34

Total Installer ...............................................................................................1-34

Chapter 2 Quick Installation ........................................................................2-1

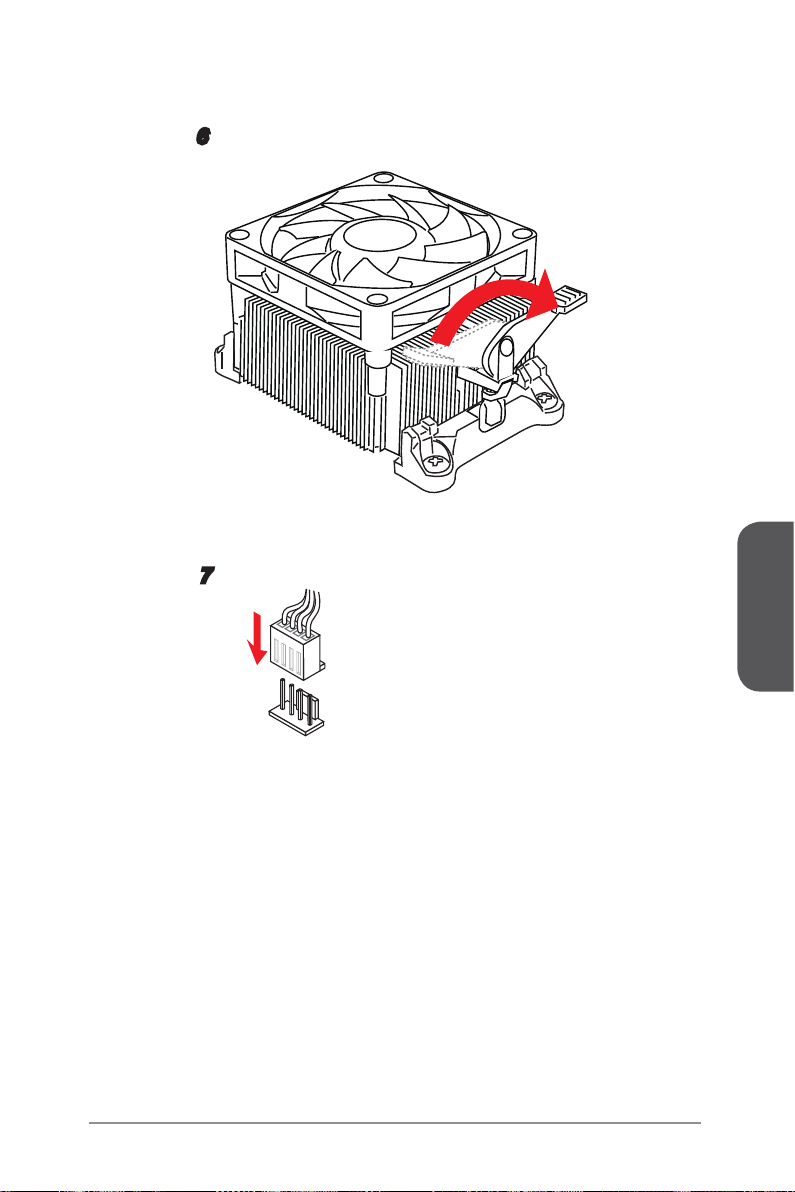

APU Installation ....................................................................................................2-2

Memory Installation ..............................................................................................2-4

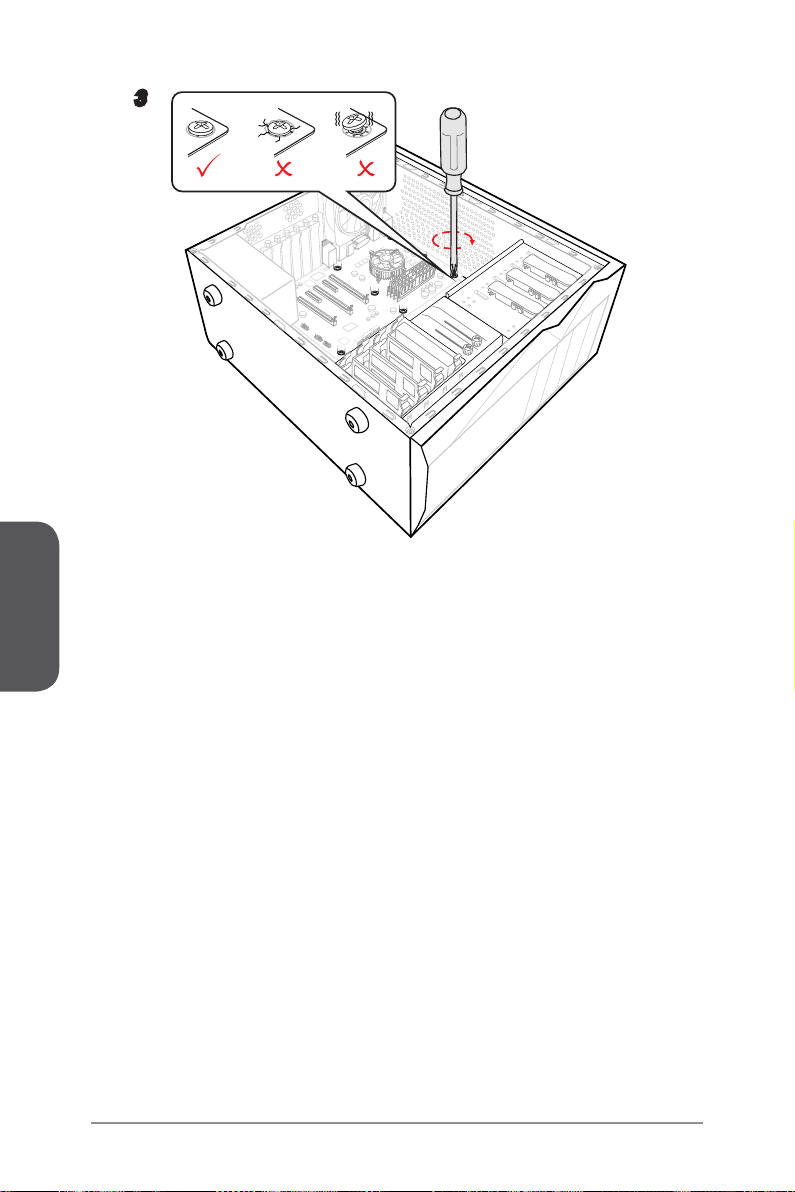

Motherboard Installation .......................................................................................2-5

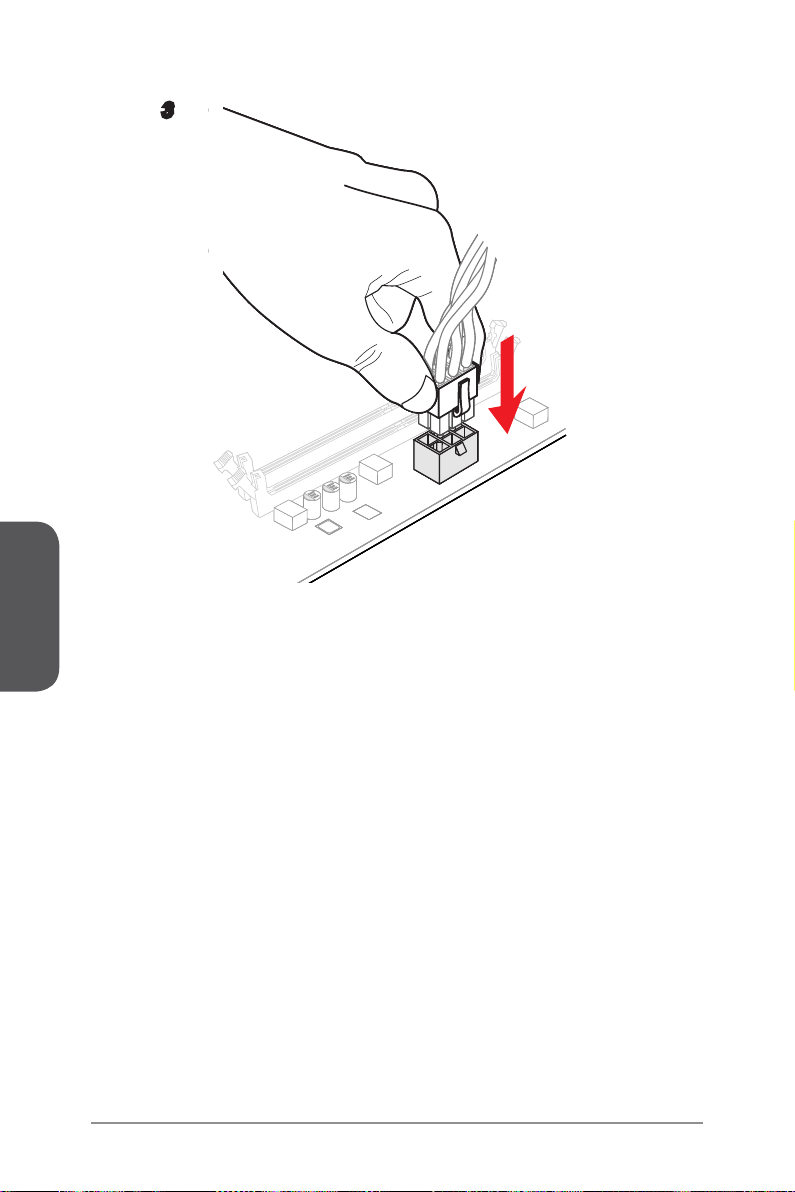

Power Connectors Installation .............................................................................2-7

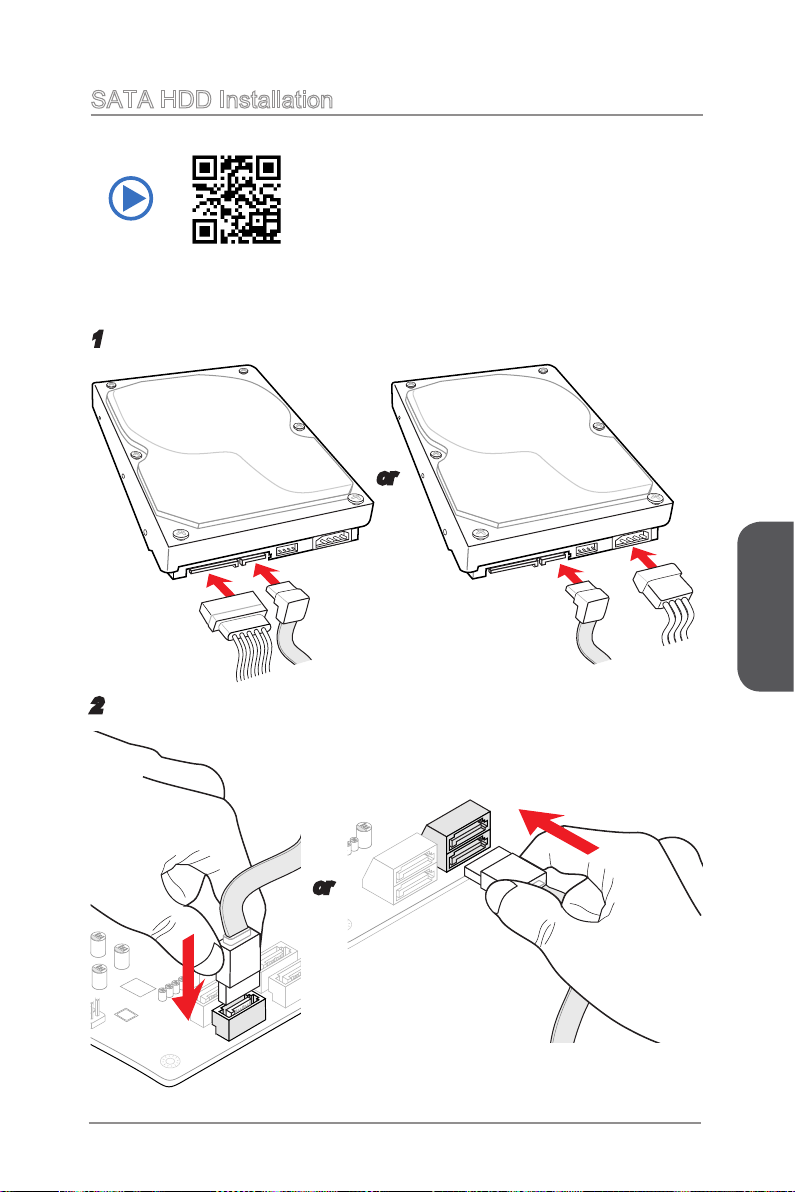

SATA HDD Installation ......................................................................................... 2-9

mSATA SSD Installation ....................................................................................2-10

Front Panel Connector Installation ..................................................................... 2-11

JFP1 Connector Installation .........................................................................2-11

Front Panel Audio Connector Installation ....................................................2-11

Peripheral Connector Installation .......................................................................2-12

USB2.0 Connector Installation .....................................................................2-12

USB3.0 Connector Installation .....................................................................2-12

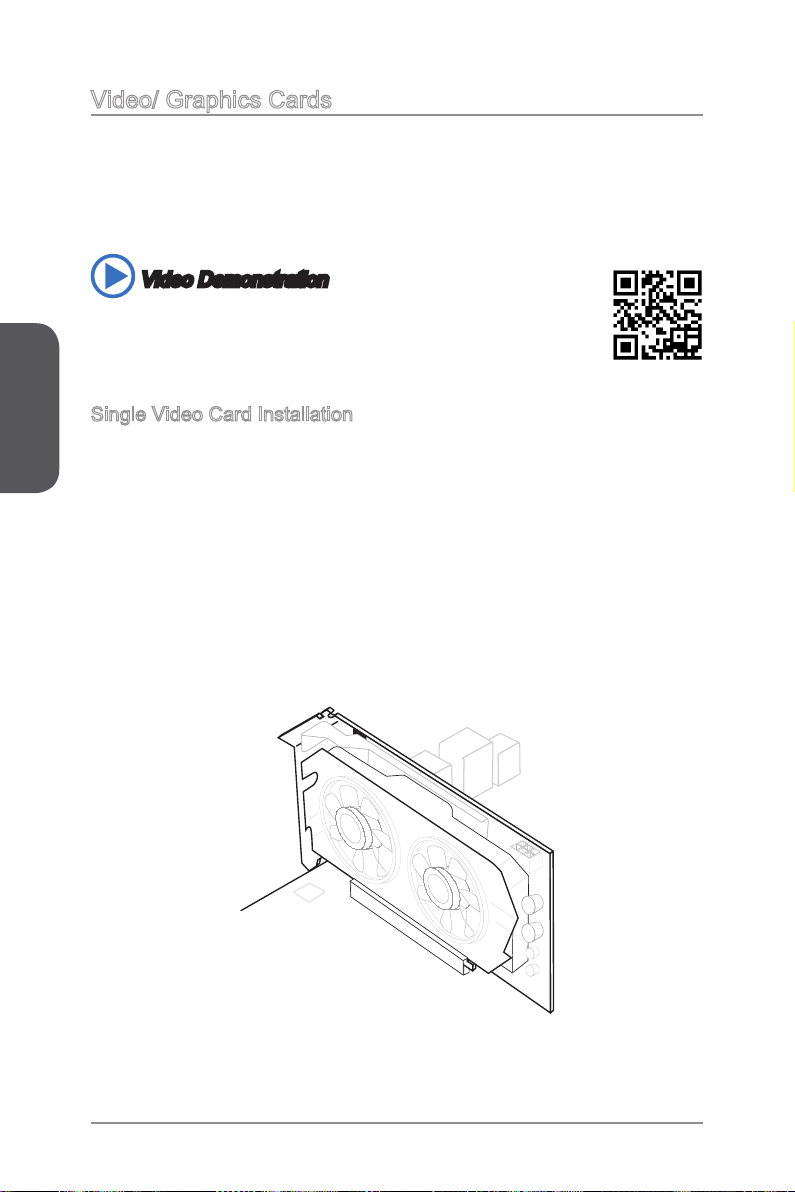

Graphics Card Installation .................................................................................. 2-13

Chapter 3 BIOS Setup .................................................................................3-1

Entering Setup .....................................................................................................3-2

xiiPreface

Entering BIOS Setup .....................................................................................3-2

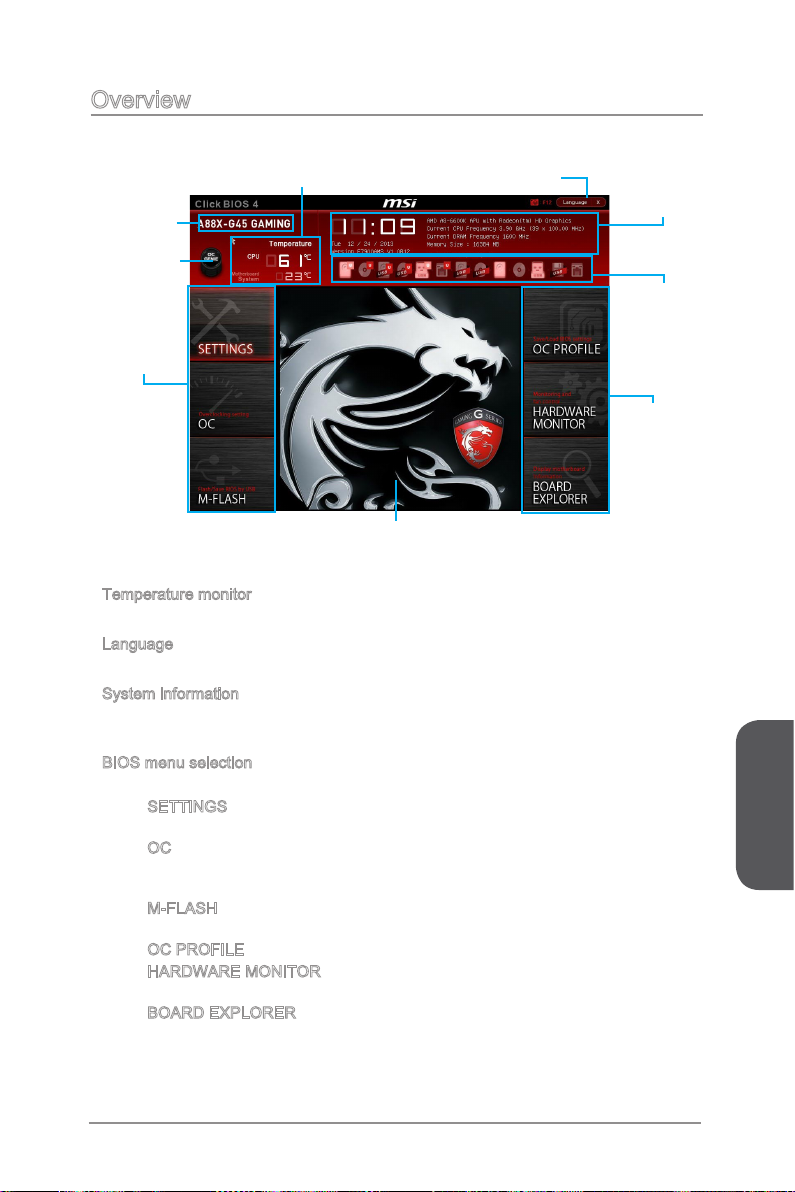

Overview ..............................................................................................................3-3

Operation .............................................................................................................3-5

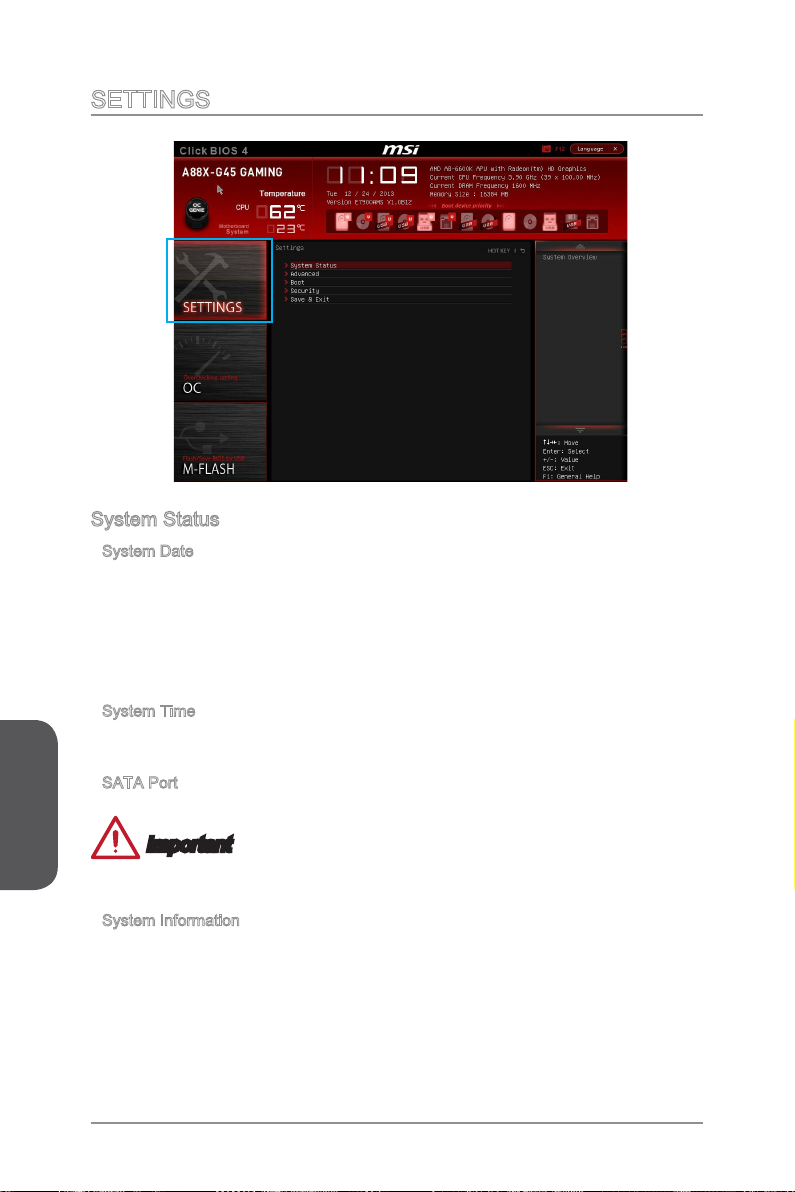

SETTINGS ...........................................................................................................3-6

System Status ................................................................................................3-6

Advanced ....................................................................................................... 3-7

Boot .............................................................................................................3-12

Security ........................................................................................................ 3-12

Save & Exit ..................................................................................................3-13

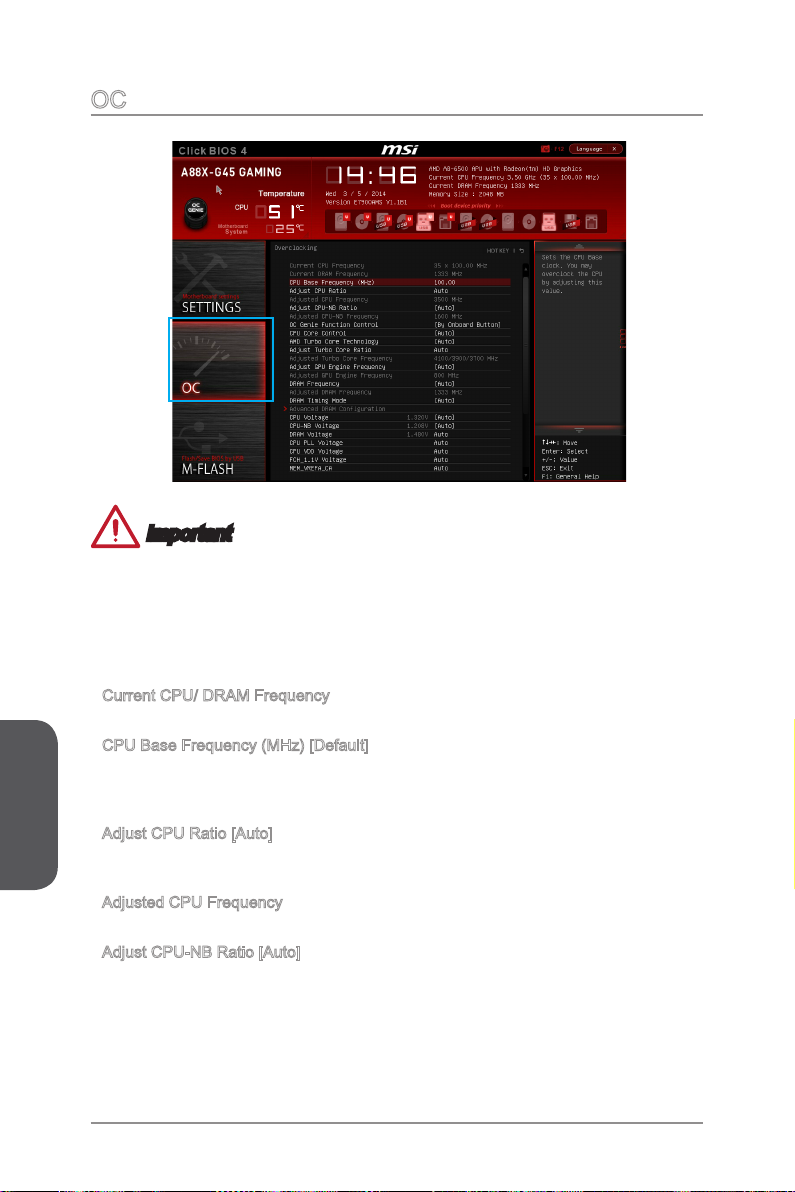

OC ...................................................................................................................... 3-14

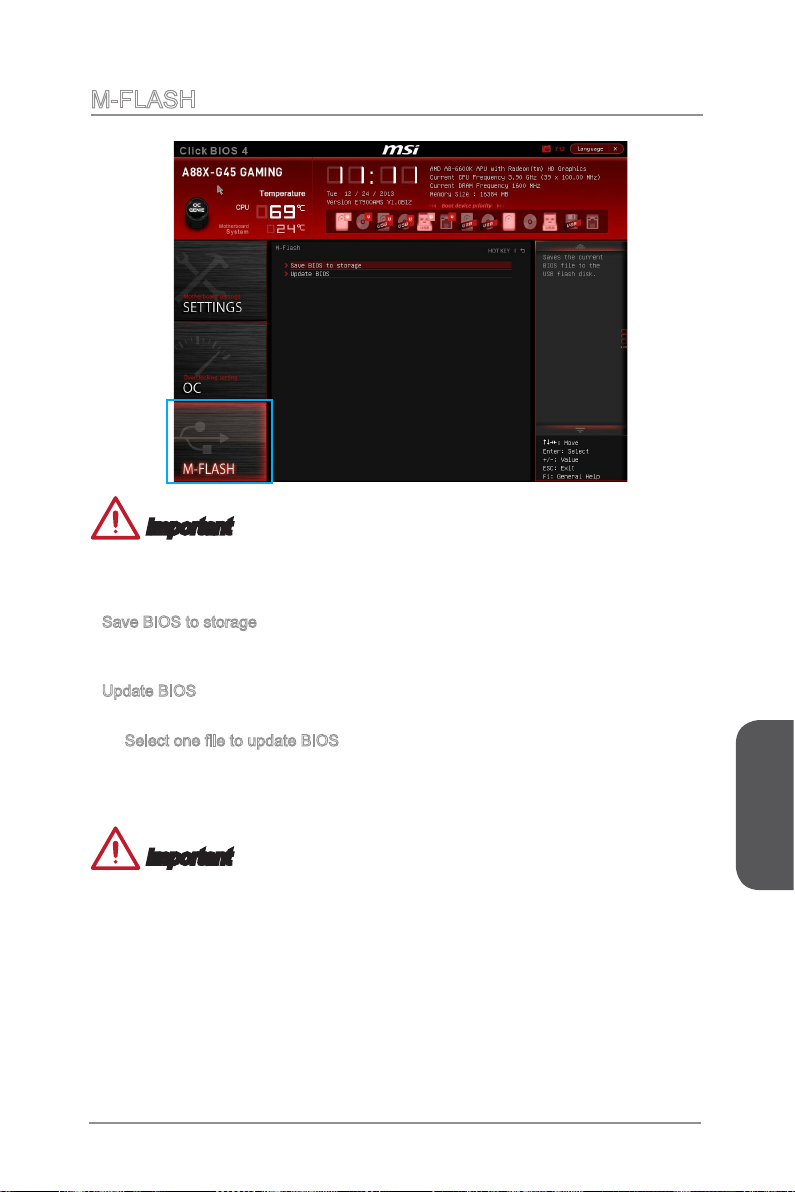

M-FLASH ...........................................................................................................3-19

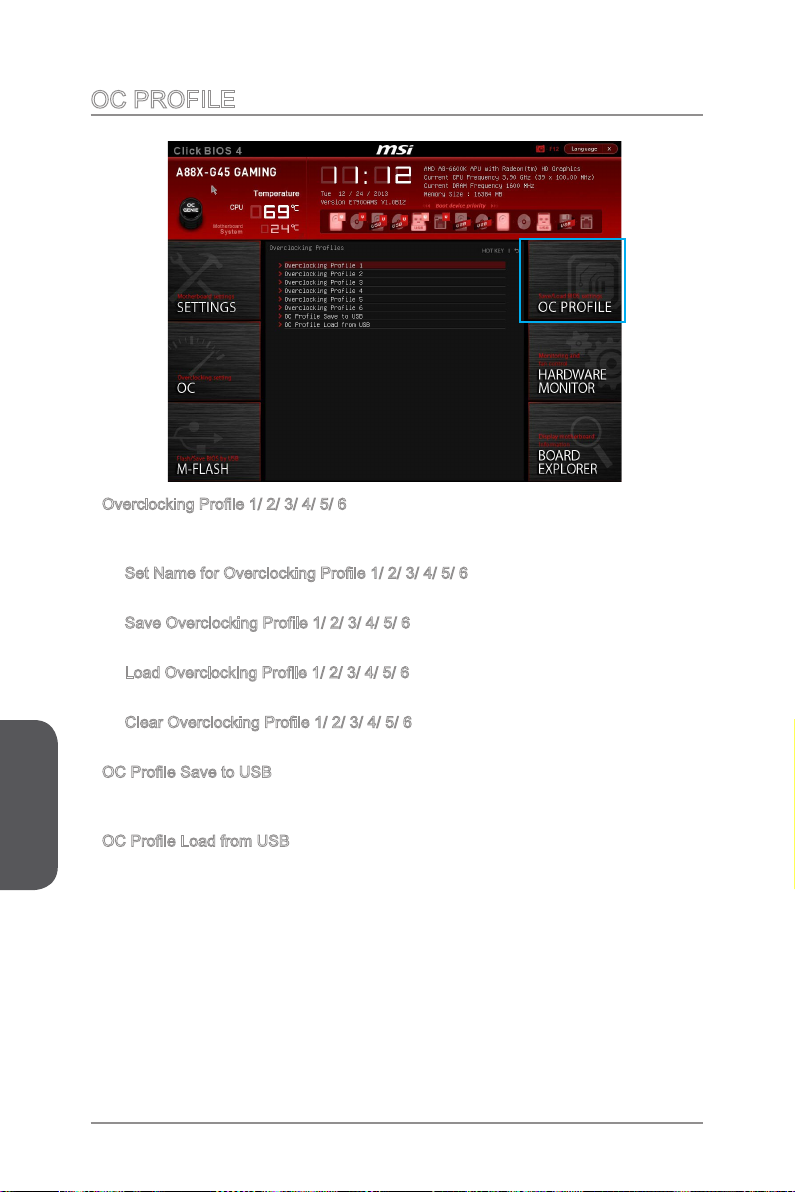

OC PROFILE .....................................................................................................3-20

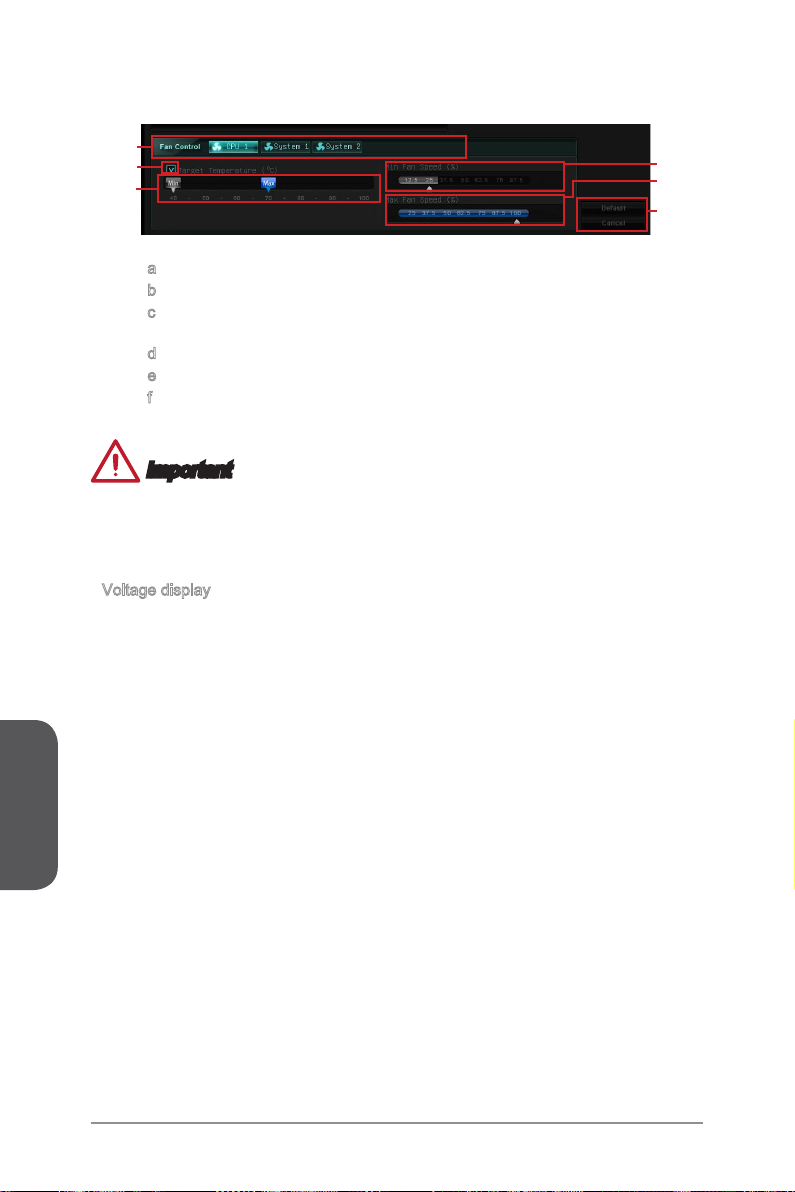

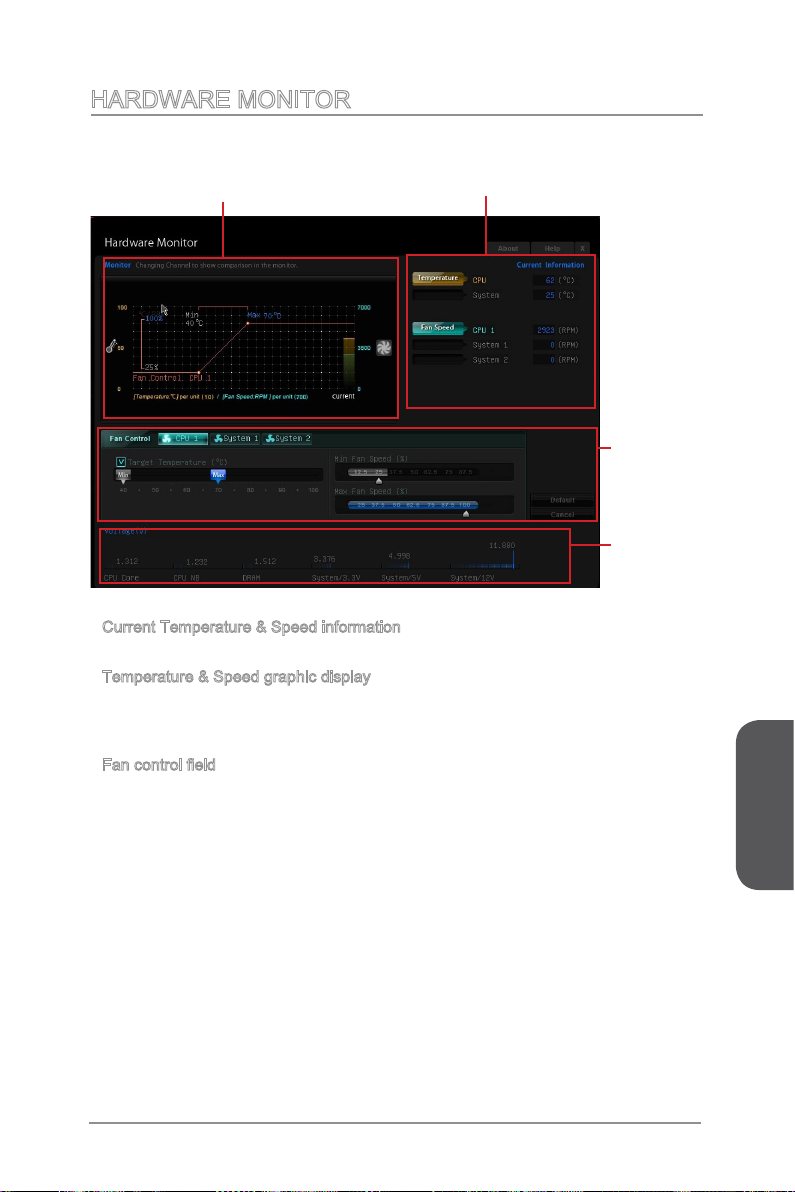

HARDWARE MONITOR ....................................................................................3-21

Appendix A Realtek Audio .......................................................................... A-1

Software Con󰘰guration .........................................................................................A-2

Software panel overview ................................................................................A-2

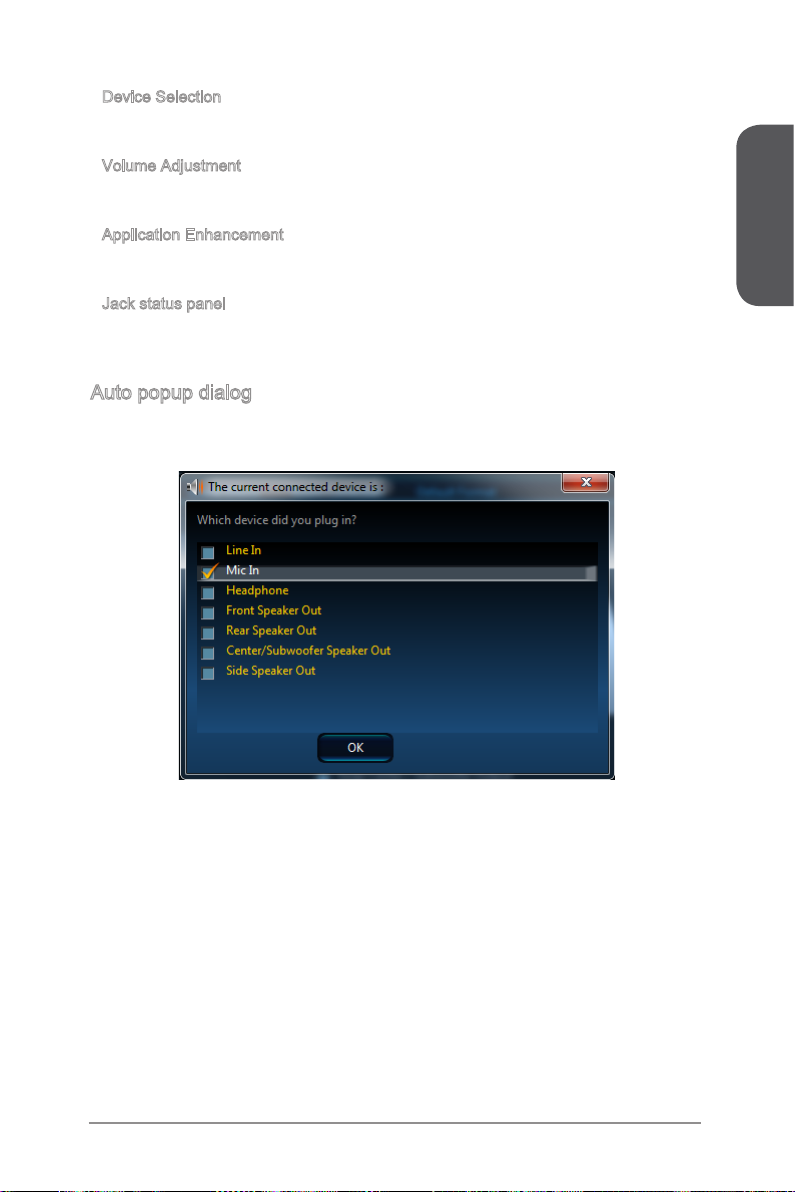

Auto popup dialog ..........................................................................................A-3

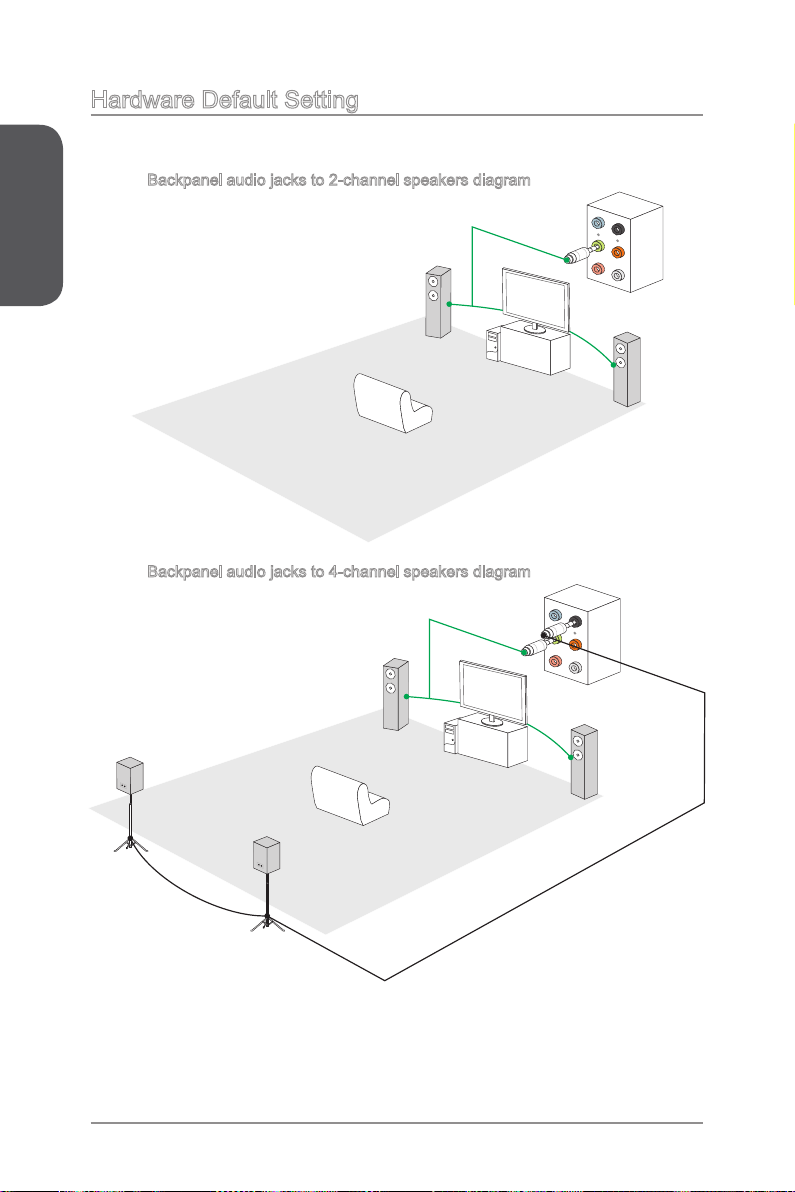

Hardware Default Setting .....................................................................................A-4

Appendix B AMD RAID............................................................................... B-1

Introduction ..........................................................................................................B-2

Using AMD RAID Controller BIOS Con󰘰guration Utility .......................................B-3

Understanding the Colour Code ....................................................................B-3

Initialize Disks ......................................................................................................B-4

Create Arrays .......................................................................................................B-5

Delete Arrays .......................................................................................................B-6

Swap Arrays .........................................................................................................B-7

Manage Spares ....................................................................................................B-8

Change the Controller Options .............................................................................B-9

Booting the system from an array ..................................................................B-9

Pausing the boot sequence for warning messages .......................................B-9

Change the Staggered Spinup Count ..........................................................B-10

Installing Driver ..................................................................................................B-11

Installing OS on 2.2TB RAID ..............................................................................B-12

Preface

xiii Preface

Chapter 1

Getting Started

Thank you for choosing the A88X-G45 GAMING Series (MS-7900 v1.X) ATX motherboard. The A88X-G45 GAMING Series motherboards are based on AMD® A88X chipset for optimal system e󰘲ciency. Designed to 󰘰t the advanced AMD® FM2+/ FM2 processor, the A88X-G45 GAMING Series motherboards deliver a high performance and professional desktop platform solution.

Packing Contents

Chapter 1

Optional Accessories

USB 3.0 Bracket

* These pictures are for reference only and may vary without notice. * The packing contents may vary according to the model you purchased. * If you need to purchase the optional accessories or request part numbers, please

visit the MSI website at http://www.msi.com/index.php or consult the dealer.

Motherboard

SATA Cable

Drivers & Utilities

Disc

M-Connector

Motherboard

User Guide

I/O Shield

1-2Getting Started

Assembly Precautions

The components included in this package are prone to damage from electrostatic

■ discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. Always turn o󰘯 the power supply and unplug the power cord from the power outlet

■ before installing or removing any computer component. Ensure that all components are securely connected. Loose connections may cause

■ the computer to not recognize a component or fail to start. Hold the motherboard by the edges to avoid touching sensitive components.

■ It is recommended to wear an electrostatic discharge (ESD) wrist strap when

■ handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is not available, discharge yourself of static electricity by touching another metal object before handling the motherboard. Store the motherboard in an electrostatic shielding container or on an antistatic pad

■ whenever the motherboard is not installed. Before turning on the computer, ensure that there are no loose screws or metal

■ components on the motherboard or anywhere within the computer case. Do not use the computer in a high-temperature environment.

■ Do not boot the computer before installation is completed. This could cause

■ permanent damage to the components as well as injury to the user. If you need help during any installation step, please consult a certi󰘰ed computer

■ technician.

Important

A screwdriver (not included) may be required for computer assembly.

Chapter 1

1-3 Getting Started

Motherboard Speci󰘰cations

CPU Support

Chipset AMD A88X■ Memory

Support

Chapter 1

Expansion Slots

Graphics 1x VGA port, supporting a maximum resolution of 1920x1200 @

Multi-GPU Support

Storage AMD® A88X Chipset

USB AMD® A88X Chipset

Audio Realtek® ALC1150 Codec

LAN Killer E2205 Gigabit LAN controller*

AMD Socket FM2+/ FM2 A-Series/Athlon™ Processors■

4x DDR3 memory slots supporting up to 32GB

■ Supports DDR3 2400 (OC)/ 2133/ 1866/ 1600/ 1333 MHz

■ Dual channel memory architecture

■ Supports non-ECC, un-bu󰘯ered memory

■ Supports AMD Memory Pro󰘰le (AMP)

■ Supports Extreme Memory Pro󰘰le (XMP)

■ 3x PCIe x16 slots

■

PCI_E2 supports up to PCIe 3.0 x16 speed*

PCI_E5 supports up to PCIe 3.0 x8 speed*

PCI_E6 supports PCIe 2.0 x4 speed

3x PCIe 2.0 x1 slots**

■ 1x PCI slot

■

* Only FM2+ processors can support PCIe 3.0 ** Only PCI_E3 is available, if PCI_E3 and PCI_E4 had been installed.

■ 60Hz, 24bpp 1x DVI-D port, supporting the maximum resolutions of

■ 2560x1600@60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp 1x HDMI port, supporting the maximum resolutions of

■ 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp 1x DisplayPort, supporting a maximum resolution of

■ 4096x2160@24HZ, 24bpp**

* Only support when using an FM2+ APU. ** The DisplayPort does not support "Hot-plug".

Supports 3-Way AMD® CrossFireTM Technology*

■

* Supports Windows 7 and Windows 8.

■

8x SATA 6Gb/s ports

Supports RAID 0, RAID1, RAID5 and RAID 10

■ 4x USB 3.0 ports (2 ports on the back panel, 2 ports available

through the internal USB connectors) 8x USB 2.0 ports (2 ports on the back panel, 6 ports available

through the internal USB connectors)

VIA VL805 Chipset

■ 4x USB 3.0 ports on the back panel*

* These USB 3.0 ports do not support M-Flash recovery function.

■

7.1-Channel High De󰘰nition Audio

Supports S/PDIF output

■ 1x LAN port on the backpanel

* The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would be available on the website if provided by vendor.

1-4Getting Started

Back Panel Connectors

Internal Connectors

I/O Controller

Hardware Monitor

BIOS Features

1x PS/2 keyboard/ mouse combo port

■

2x USB 2.0 ports

■

6x USB 3.0 ports

■

1x VGA port

■

1x DVI-D port

■

1x HDMI port

■

1x DisplayPort

■

1x Optical S/PDIF-Out connector

■

1x LAN (RJ45) port

■

6x audio jacks

■

1x 24-pin ATX main power connector

■

1x 8-pin ATX 12V power connector

■

8x SATA 6Gb/s connectors

■

3x USB 2.0 connectors (supports additional 6 USB 2.0 ports)

■

1x USB 3.0 connector

■

1x 4-pin CPU fan connector

■

2x 4-pin system fan connectors

■

2x 3-pin system fan connectors

■

1x Front panel audio connector

■

2x System panel connectors

■

1x Chassis Intrusion connector

■

1x TPM module connector

■

1x Serial port connector

■

1x Clear CMOS jumper

■

1x OC Genie button

■

1x Power button

■

1x Reset button

■

1x OC Genie mode switch

■

1x Slow mode booting switch

■

1x 2-Digit Debug Code LEDs

■

Fintek 71878 Controller Chip■

CPU/System temperature detection

■

CPU/System fan speed detection

■

CPU/System fan speed control

■

64 Mb 󰘱ash

■

UEFI AMI BIOS

■

ACPI 5.0, PnP 1.0a, SM BIOS 2.7, DMI 2.0

■

Multi-language

■

Chapter 1

1-5 Getting Started

Special Features

Chapter 1

Software Drivers

Form Factor

Military Class 4

■

Military Class Essentials

■

OC Genie 4

■

Click BIOS 4

■

AMD CrossFire

■

AMD Dual Graphics

■

4K UHD Support

■

4 Display Outputs

■

PCI Express Gen 3

■

USB 3.0

■

SATA 6Gb/s

■

Command Center

■

Fast Boot

■

Live Update 5

■

M-Flash

■

MSI

■ Command Center

Super Charger

Live Update 5

Fast Boot

7-ZIP

■ Sound Blaster Cinema

■ Killer Network Manager

■ Norton Internet Security Solution

■ Trend Micro SafeSync

■ ATX Form Factor

■ 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

■

For the latest information about CPU, please visit http://www.msi.com/service/cpu-support/

For more information on compatible components, please visit http://www.msi.com/service/test-report/

1-6Getting Started

Connectors Quick Guide

Back Panel

PCI_E1

PCI_E2

PCI_E3

PCI_E4

PCI_E5

PCI_E6

PCI1

JCI1

JPWR2

SYSFAN1

APU Socket

DIMM1

CPUFAN

DIMM3

DIMM2

DIMM4

SYSFAN3

OC_SWITCH1

OC1

POWER1 RESET1 SLOW_MODE

Chapter 1

JPWR1

SATA7_8

SATA5_6

SATA3_4

SATA1_2

JBAT1 SYSFAN2

POST1~2

JFP2 CLR_CMOS1

SYSFAN4

JAUD1

JCOM1

JFP1

JTPM1

JUSB3

JUSB4

JUSB1

JUSB2

1-7 Getting Started

Connectors Reference Guide

Port Name Port Type Page

APU FM2+/ FM2 Socket 1-1

Back Panel I/O Ports 1-9

CPUFAN,SYSFAN1~3 Fan Power Connectors 1-2

JAUD1 Front Panel Audio Connector 1-2

JBAT1 Clear CMOS Jumper 1-2

Chapter 1

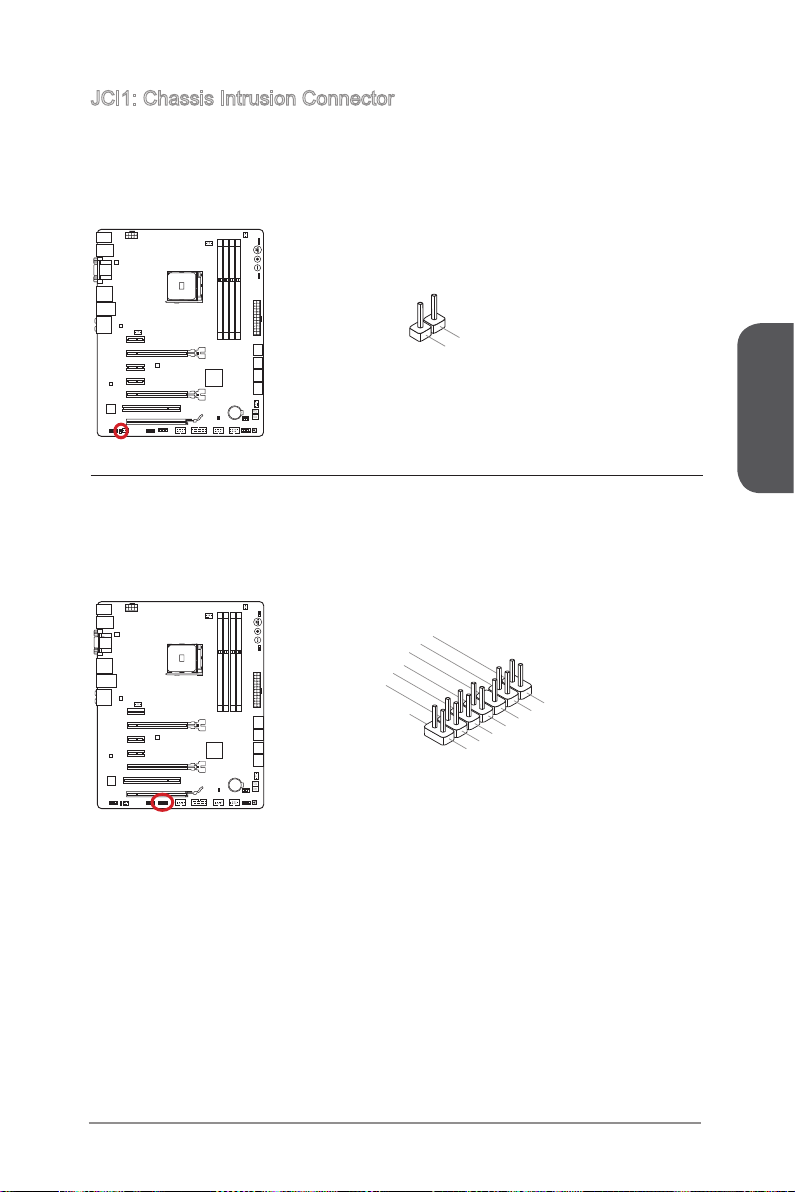

JCI1 Chassis Intrusion Connector 1-2

JCOM1 Serial Port Connector 1-2

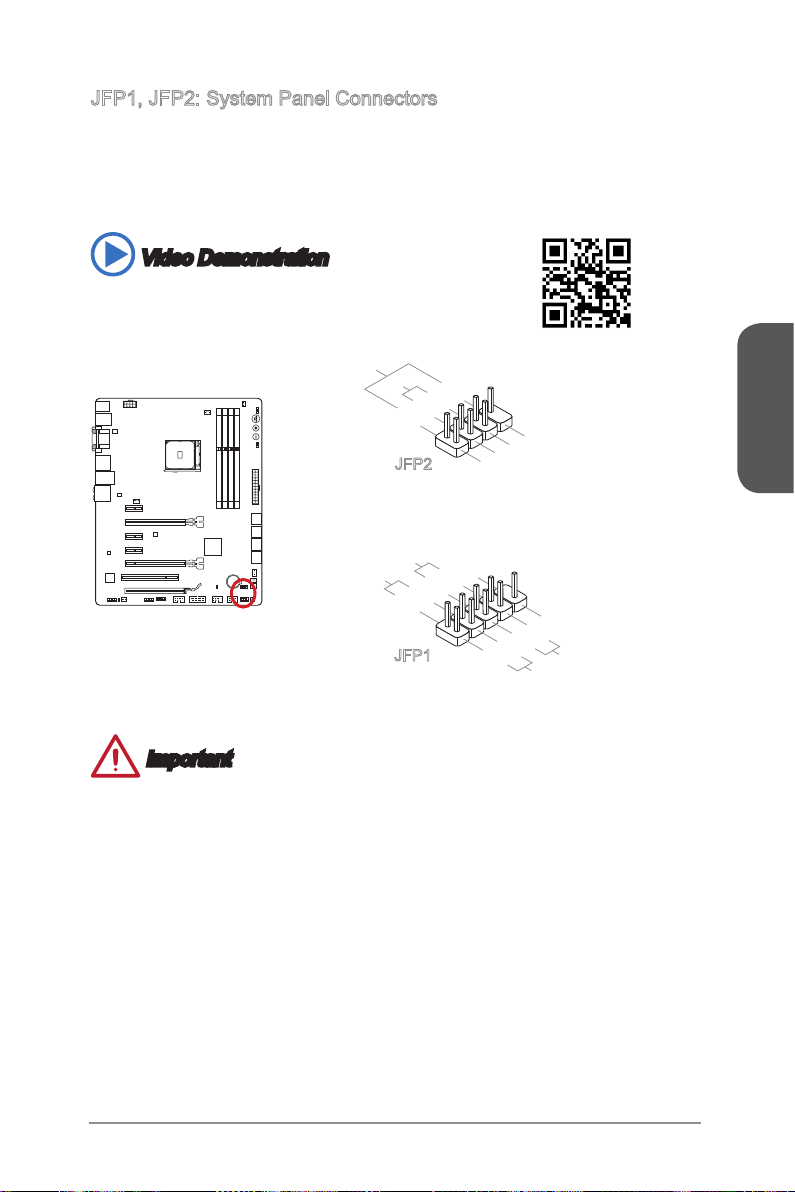

JFP1, JFP2 System Panel Connectors 1-2

JPWR1~2 ATX Power Connectors 1-1

JTPM1 TPM Module Connector 1-2

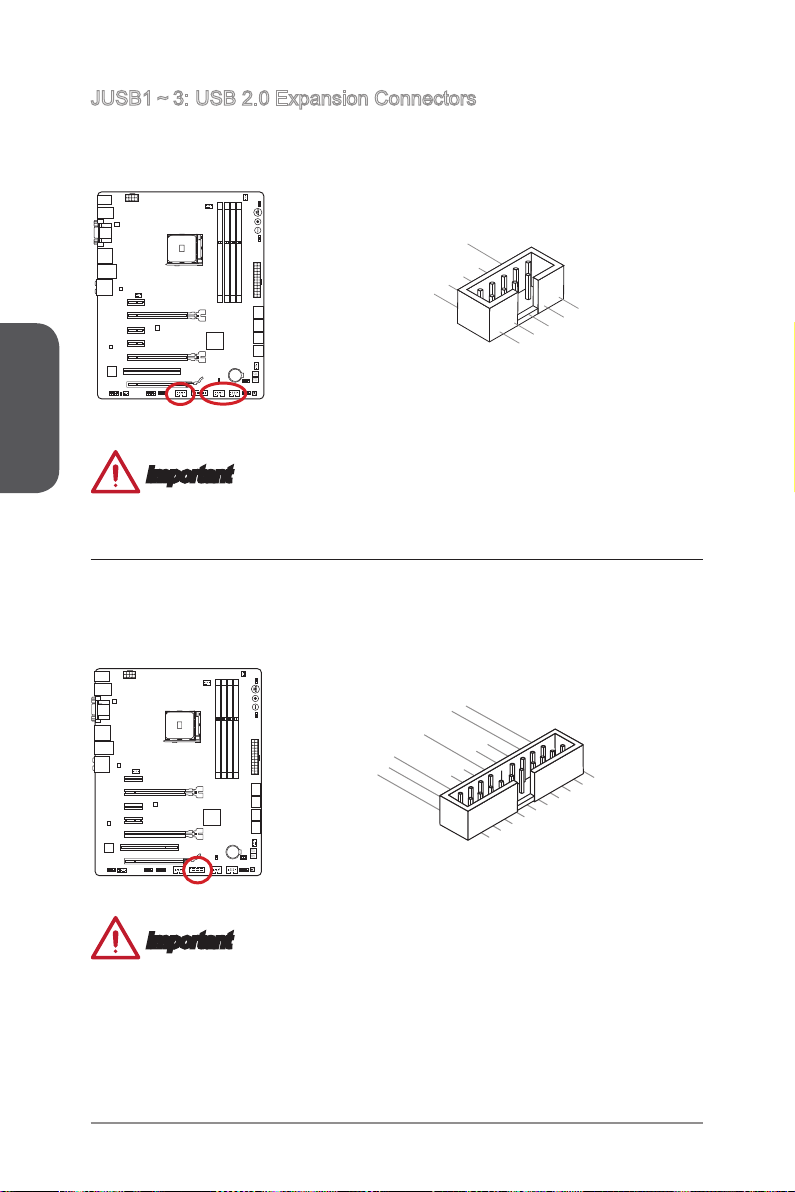

JUSB1～3 USB 2.0 Expansion Connectors 1-2

JUSB4 USB 3.0 Expansion Connector 1-2

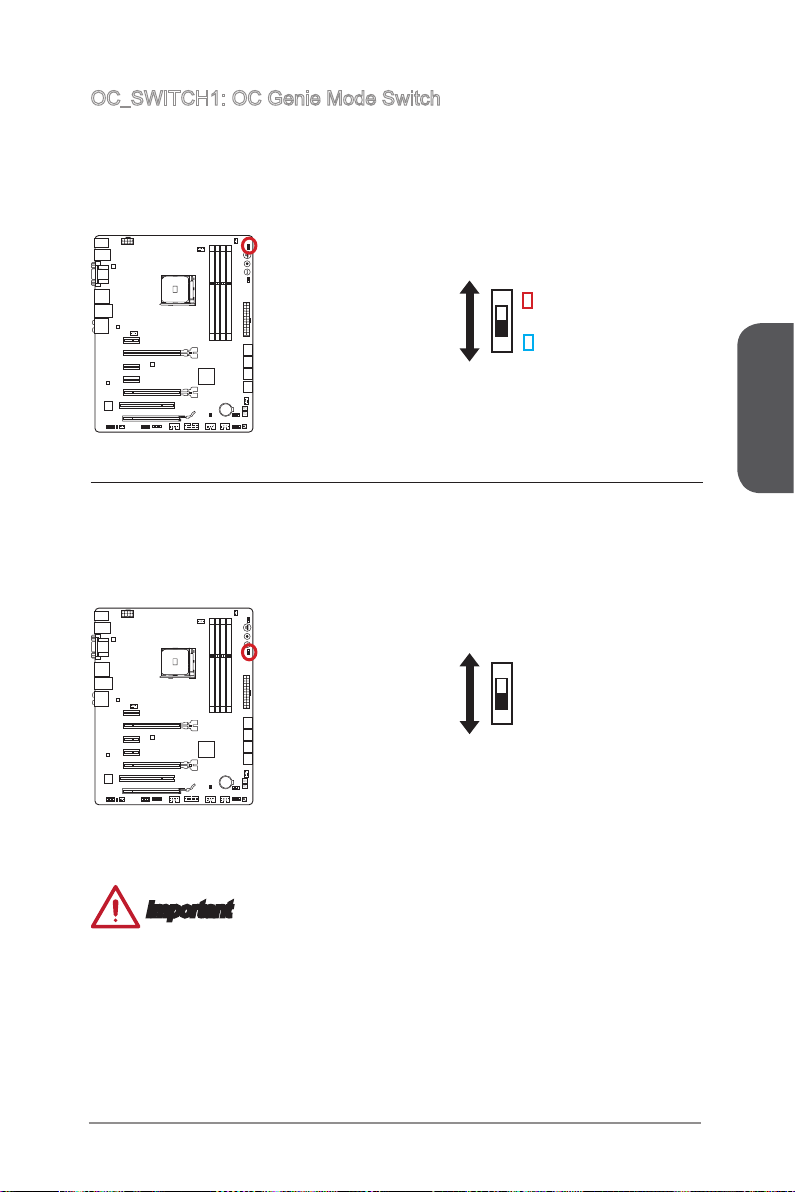

OC_SWITCH1 OC Genie Mode Switch 1-3

OC1 OC Genie Button 1-2

PCI_E1~6 PCIe Expansion Slots 1-1

PCI1 PCI Slot 1-1

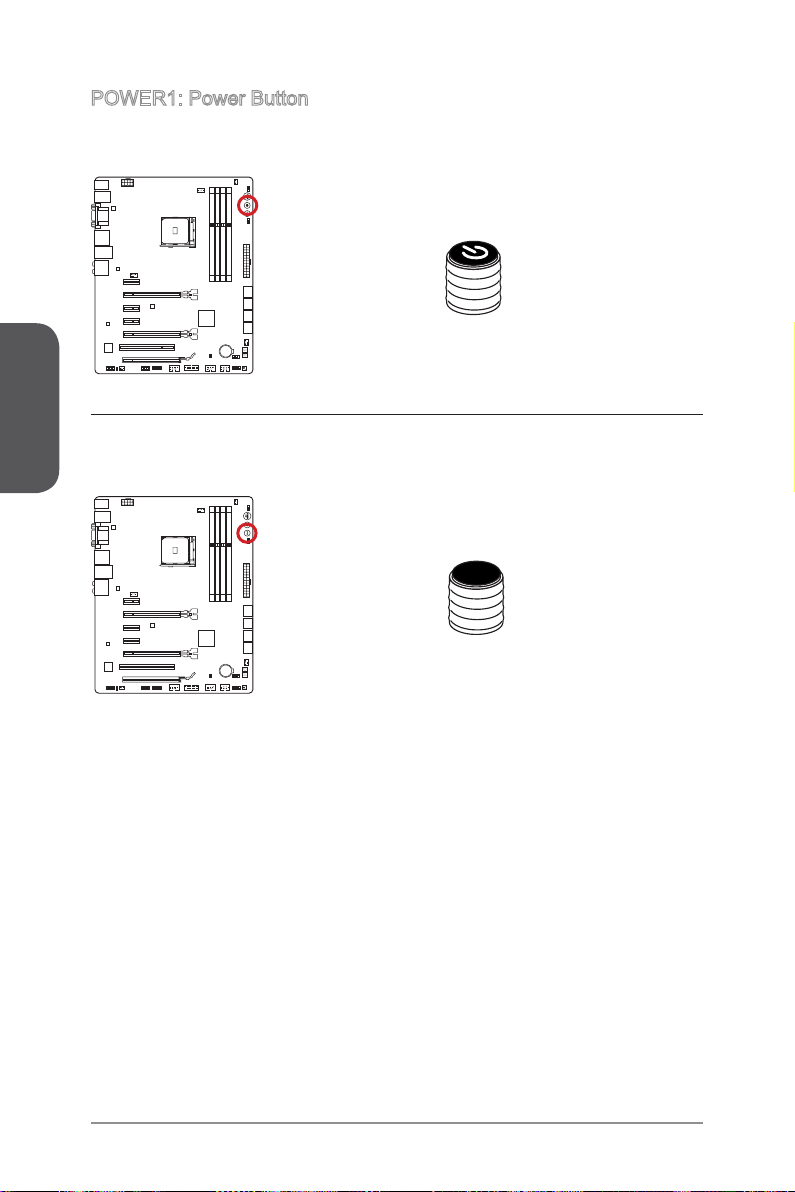

POWER1 Power Button 1-3

RESET1 Reset Button 1-3

SATA1~8 SATA Connectors 1-2

SLOW_MODE Slow Mode Booting Switch 1-3

1-8Getting Started

Back Panel Quick Guide

PS/2 Keyboard/ Mouse combo Port

USB 2.0 Port

PS/2 Keyboard/ Mouse combo Port

▶

USB 3.0 Port

VGA Port

DVI-D Port

Optical

S/PDIF-Out

HDMI Port

DisplayPort

LAN Port

Line-In

Line-Out

MicUSB 3.0 Port

RS-Out

CS-Out

SS-Out

The PS/2® keyboard/ mouse DIN connector for PS/2® keyboard/ mouse.

USB 3.0 Port

▶ USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer

rate up to 5 Gbit/s (SuperSpeed).

Important

In order to use USB 3.0 devices, you must connect to a USB 3.0 port. If a USB cable is used, it must be USB 3.0 compliant.

USB 2.0 Port

▶ The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other

USB 2.0-compatible devices.

VGA Port

▶ The DB15-pin female connector is provided for monitor.

DVI-D Port

▶ The DVI-D (Digital Visual Interface- Digital) connector can be connected to a LCD

monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the monitor’s manual for more information.

Chapter 1

HDMI Port

▶ The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio-video interface

that is capable of transmitting uncompressed streams. HDMI supports all types of TV formats, including standard, enhanced, or high-de󰘰nition video, plus multi-channel digital audio on a single cable.

DisplayPort

▶ DisplayPort is a digital display interface standard. This connector is used to connect a

monitor with DisplayPort inputs.

Important

The DisplayPort does not support "Hot-plug". Therefore, please make sure that the computer is o󰘯 before connecting to or disconnecting from the DisplayPort.

1-9 Getting Started

This platform supports dual-display and triple-display function.

(Extend the desktop to the second

Chapter 1

(Monitors have the same screen)

Optical S/PDIF-Out

▶ This S/PDIF (Sony & Philips Digital Interconnect Format) connector is provided for

digital audio transmission to external speakers through an optical 󰘰ber cable.

LAN Port

▶ The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).

LINK/ACT

Important

Extend mode

and third monitor)

Clone mode

LED

SPEED

LED

VGA + DVI-D / VGA + HDMI /

DVI-D + HDMI /

DVI-D + DisplayPort /

HDMI + DisplayPort

◯ ◯

LED LED Status Description

O󰘯 No link

Link/ Activity LED

Speed LED

Yellow Linked

Blinking Data activity

O󰘯 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

VGA + DVI-D + HDMI /

DVI-D + HDMI + DisplayPort

Audio Ports

▶ These connectors are used for audio devices. The color of the jack refers to the

function of the connector.

Blue-Line in: Used for connecting external audio outputting devices.

■ Green- Line out: Used as a connector for speakers or headphone.

■ Pink- Mic: Used as a connector for a microphone.

■ Black- RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.

■ Orange- CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.

■ Gray- SS-Out: Side surround sound line out in 7.1 channel mode.

■

1-10Getting Started

APU (Accelerated Processing Units)

Introduction to FM2/ FM2+ APU

The surface of the FM2/ FM2+ APU has a golden triangle to assist in correctly lining up the APU for motherboard placement. The golden triangle is the Pin 1 indicator.

Golden triangle is the Pin 1 indicator

Important

Overheating Overheating can seriously damage the APU and motherboard. Always make sure the

cooling fans work properly to protect the APU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the APU and the heatsink to enhance heat dissipation.

Replacing the APU When replacing the APU, always turn o󰘯 the system’s power supply and unplug the

power supply’s power cord to ensure the safety of the APU. Overclocking

This motherboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product speci󰘰cations is not recommend. MSI does not guarantee the damages or risks caused by inadequate operation beyond product speci󰘰cations.

Chapter 1

1-11 Getting Started

APU & Cooler Installation

When you are installing the APU, make sure the APU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on APU before installing the heat sink/cooler fan for better heat dispersion.

Follow the steps below to install the APU & cooler correctly. Wrong installation will cause the damage of your APU & motherboard.

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a

2. Look for the gold arrow of the APU. The gold arrow should point as shown in the

Chapter 1

3. If the APU is correctly installed, the pins should be completely embedded into

4. Press the APU down 󰘰rmly into the socket and close the lever. As the APU is

90-degree angle.

picture. The APU can only 󰘰t in the correct orientation.

the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your motherboard.

likely to move while the lever is being closed, always close the lever with your 󰘰ngers pressing tightly on top of the APU to make sure the APU is properly and completely embedded into the socket.

1-12Getting Started

5. Locate the APU fan connector on the motherboard.

6. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook 󰘰rst.

APU fan connector

7. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever and lift up it.

8. Fasten down the lever.

9. Attach the APU Fan cable to the APU fan connector on the motherboard.

Chapter 1

Important

While disconnecting the Safety Hook from the 󰘰xed bolt, it is necessary to keep an

•

eye on your 󰘰ngers, because once the Safety Hook is disconnected from the 󰘰xed bolt, the 󰘰xed lever will spring back instantly.

Con󰘰rm that the APU cooler has formed a tight seal with the APU before booting

•

your system. Please refer to the documentation in the APU cooler package for more details about

•

APU cooler installation.

1-13 Getting Started

Memory

These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://www.msi.com/service/test-report/

Chapter 1

Watch the video to learn how to install memories at the address below.

http://youtu.be/76yLtJaKlCQ

Dual-Channel mode Population Rule

In Dual-Channel mode, the memory modules can transmit and receive data with two data bus channels simultaneously. Enabling Dual-Channel mode can enhance system performance. The following illustrations explain the population rules for Dual-Channel mode.

Video Demonstration

DIMM1

DIMM2

DIMM3

DIMM4

DIMM2

DIMM4

DIMM1

DIMM2

DIMM3

DIMM4

Important

DDR3 memory modules are not interchangeable with DDR2, and the DDR3

•

standard is not backward compatible. Always install DDR3 memory modules in DDR3 DIMM slots.

To ensure system stability, memory modules must be of the same type and density

•

in Dual-Channel mode. Due to chipset resource usage, the system will only detect up to 31+ GB of memory

•

(not full 32 GB) when all DIMM slots have 8GB memory modules installed.

1-14Getting Started

Mounting Screw Holes

When installing the motherboard, 󰘰rst install the necessary mounting stands required for an motherboard on the mounting plate in your computer case. If there is an I/O back plate that came with the computer case, please replace it with the I/O backplate that came with the motherboard package. The I/O backplate should snap easily into the computer case without the need for any screws. Align the mounting plate’s mounting stands with the screw holes on the motherboard and secure the motherboard with the screws provided with your computer case. The locations of the screw holes on the motherboard are shown below. For more information, please refer to the manual that came with the computer case.

The I/O ports should be facing

toward the rear of the computer

case. They should line up with the

holes on the I/O backplate.

Chapter 1

Important

Install the motherboard on a 󰘱at surface free from unnecessary debris.

•

To prevent damage to the motherboard, any contact between the motherboard

•

circuitry and the computer case, except for the mounting stands, is prohibited. Please make sure there are no loose metal components on the motherboard or

•

within the computer case that may cause a short circuit of the motherboard.

1-15 Getting Started

Power Supply

13 .+3 .3

1. +3. 3

14 .-1 2V

2. +3. 3

15 .Gr ou nd

.G rou nd

16 .PS -O N

4. +5 V

17 .Gr ou nd

.G rou nd

18 .Gr ou nd

6. +5 V

19 .Gr ou nd

.G rou nd

22 .+5

10 .+1 2V

20 .Re s

8. PW R O

23 .+5

.+ 12V

21 .+5

9. 5VS B

24 .Gr ou nd

12 .+3 .3 V

7. +12 V

Gr oun d

5. +12 V

Gr oun d

8. +12 V

.G rou nd

6. +12 V

.G rou nd

Watch the video to learn how to install power supply connectors.

http://youtu.be/gkDYyR_83I4

JPWR1~2: ATX Power Connectors

These connectors allow you to connect an ATX power supply. To connect the ATX power supply, align the power supply cable with the connector and 󰘰rmly press the cable into the connector. If done correctly, the clip on the power cable should be hooked on the motherboard’s power connector.

Chapter 1

Video Demonstration

JPWR2

JPWR1

Important

Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

1-16Getting Started

Expansion Slots

This motherboard contains numerous slots for expansion cards, such as discrete graphics or audio cards.

PCI_E1~6: PCIe Expansion Slots

The PCIe slot supports the PCIe interface expansion card.

PCIe x16 Slot

PCIe 2.0 x1 Slot

PCI1: PCI Slot

The PCI slot supports additional LAN, SCSI, USB, and other add-on cards that comply with PCI speci󰘰cations.

Chapter 1

PCI Slot

Important

When adding or removing expansion cards, always turn o󰘯 the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes.

1-17 Getting Started

Video/ Graphics Cards

If available, this motherboard takes advantage of the CPU’s integrate graphics processor, but discrete video cards can be installed by way of the motherboard’s expansion slots. Adding on one or more discrete video cards will signi󰘰cantly boost the system’s graphics performance. For best compatibility, MSI graphics cards are recommended.

Watch the video to learn how to install a graphics card on PCIe x16 slot with butter󰘱y lock.

Chapter 1

http://youtu.be/mG0GZpr9w_A

Single Video Card Installation

Video Demonstration

Determine what type of expansion slot(s) the video card will use. Locate the expansion slot(s) on the motherboard. Remove any protective expansion slot covers from the computer case.

Line up the video card on top of the expansion slot(s) with the display ports facing out of the computer case. For a single video card installation, using the PCI_E2 slot is recommended.

Push the video card into its expansion slot(s). Depending on the expansion slot(s) used, there should be clip(s) on the expansion slot(s) that will lock in place.

If needed, screw the edge of the graphics card to the computer case. Some video cards might require a power cable directly from the power supply.

Please consult your video card’s manual for further instructions regarding driver installation or other special settings.

1-18Getting Started

AMD CrossFire™ (Multi-GPU) Technology

AMD CrossFire™ is a multi-GPU performance gaming platform. By linking together two or more discrete GPUs, CrossFire™ can signi󰘰cant improve system graphics performance. It allows the ability to scale a system’s graphics power as needed, making it the most scalable gaming platform. This motherboard will automatically detect CrossFire™ technology and make changes in the BIOS as needed. Follow the instructions below to ensure a successful two-way CrossFire™ installation.

Install two AMD Radeon™ HD graphics cards into the PCI_E2 & PCI_E5

1. expansion slots.

With the two cards installed, an optional CrossFire™ Video Link cable is required

2. to connect the graphics cards. Attach one side of the cable on each of the cards by way of the metal contacts (please refer to the picture below). Please note that although two graphics cards have been installed, only the display ports on the graphics card installed in the 󰘰rst PCIe x16 slot will work. All displays should be connected to this graphics card.

CrossFire Video Link Cable (optional)

Important

Please ensure that all graphics cards used in CrossFire™ mode are of the same

•

brand and speci󰘰cations. For best compatibility with the motherboard, MSI graphics cards are recommended.

Make sure to connect an adequate power supply to the power connectors on the

•

graphics cards to ensure stable operation.

Chapter 1

1-19 Getting Started

Chapter 1

Boot up the computer and install the drivers and software included in your video card package. For more information, please refer to the manual that came with your video card.

After all of the hardware and software has been properly installed, reboot the system. After entering the operating system (OS), right click on the desktop and choose the “Catalyst Control Center”.

The CrossFire™ setting must be enabled to allow CrossFire™ mode to operate. The follow screen appears in the Catalyst Control Center. Depending on your operating system, the screen may look di󰘯erent.

Important

A CrossFire

SuperTiling

•

Scissor Mode

•

Alternate Frame Rendering

•

Super Anti-aliasing.

•

For more details, please consult the graphics card manual.

system has four possible display modes:

1-20Getting Started

Internal Connectors

SATA1~8: SATA Connectors

This connector is a high-speed SATA interface port. Each connector can connect to one SATA device. SATA devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD/ DVD/ Blu-Ray).

Video Demonstration

Watch the video to learn how to Install SATA HDD.

http://youtu.be/RZsMpqxythc

SATA8

SATA6

SATA4

SATA2

SATA3

SATA1

SATA7

SATA5

Important

Many SATA devices also need a power cable from the power supply. Such devices

•

include disk drives (HDD), solid state drives (SSD), and optical drives (CD / DVD / Blu-Ray). Please refer to the device’s manual for further information.

Many computer cases also require that large SATA devices, such as HDDs, SSDs,

•

and optical drives, be screwed down into the case. Refer to the manual that came with your computer case or your SATA device for further installation instructions.

Please do not fold the SATA cable at a 90-degree angle. Data loss may result

•

during transmission otherwise. SATA cables have identical plugs on either sides of the cable. However, it is

•

recommended that the 󰘱at connector be connected to the motherboard for space saving purposes.

Chapter 1

1-21 Getting Started

CPUFAN,SYSFAN1~3: Fan Power Connectors

.Ground

2.Speed

ontro

3.Sens

4.NC

.Ground

2.+12V

3.Sens

4.Speed

ontro

The fan power connectors support system cooling fans with +12V. If the motherboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans. Some system fans may not connect to the motherboard and will instead connect to the power supply directly. A system fan can be plugged into any available system fan connector.

Chapter 1

CPUFAN

SYSFAN1/ SYSFAN2

SYSFAN3/ SYSFAN4

Important

Please refer to your processor’s o󰘲cial website or consult your vendor to 󰘰nd

•

recommended CPU heatsink. These connectors support Smart Fan Control with liner mode. The Command

•

Center utility can be installed to automatically control the fan speeds according to the CPU’s and system’s temperature.

If there are not enough ports on the motherboard to connect all system fans,

•

adapters are available to connect a fan directly to a power supply. Before 󰘰rst boot up, ensure that there are no cables impeding any fan blades.

•

1-22Getting Started

JFP1, JFP2: System Panel Connectors

1. +

10 .N o

Re se t

wi tc h

HD D

ow er

wi tc h

ow er

7. +

9. Re se rv e

6. +

2. +

.Ground

3.Suspend

5.Power

7.No Pi

8. +

4. +

Buzz er

peak er

These connectors connect to the front panel switches and LEDs. When installing the front panel connectors, please use the optional M-Connector to simplify installation. Plug all the wires from the computer case into the M-Connector and then plug the MConnector into the motherboard.

Video Demonstration

Watch the video to learn how to Install front panel connectors.

http://youtu.be/DPELIdVNZUI

JFP2

Chapter 1

JFP1

Important

On the connectors coming from the case, pins marked by small triangles are

•

positive wires. Please use the diagrams above and the writing on the optional MConnectors to determine correct connector orientation and placement.

The majority of the computer case’s front panel connectors will primarily be plugged

•

into JFP1.

1-23 Getting Started

JUSB1～3: USB 2.0 Expansion Connectors

SB3 _T X_C _D N

.Gr ou nd

3.U SB 3_R X_ DP

2.U SB 3_R X_ DN

1.P ow er

10. Gr oun d

USB 2. 0

SB2 .0

.Gr ou nd

6.U SB 3_T X_ C_D P

20. No

19. Po wer

18. US B3_ RX _DN

17. US B3_ RX _DP

16. Gr oun d

15. US B3_ TX _C_ DN

14. US B3_ TX _C_ DP

13. Gr oun d

12. US B2. 0

. +

SB2 .0

This connector is designed for connecting high-speed USB peripherals such as USB HDDs, digital cameras, MP3 players, printers, modems, and many others.

Chapter 1

Note that the VCC and GND pins must be connected correctly to avoid possible damage.

JUSB4: USB 3.0 Expansion Connector

The USB 3.0 port is backwards compatible with USB 2.0 devices. It supports data transfer rates up to 5Gbits/s (SuperSpeed).

Important

Note that the VCC and GND pins must be connected correctly to avoid possible

•

damage. To use a USB 3.0 device, you must connect the device to a USB 3.0 port through

•

an optional USB 3.0 compliant cable.

1-24Getting Started

JCI1: Chassis Intrusion Connector

10.No

14.Gr ou nd

8.5V P

ower

12.Gr ou nd

6.Ser ia l

4.3.3 V

ower

2.3V Stand by

ower

1.LP C C

lock

3.LP C

Rese

5.LP C a

ddres

s &

data

in0

7.LP C a

ddres

s &

data

in1

9.LP C a

ddres

s &

data

in2

.LPC

ddres

s &

data

in3

13.LP C

Fram

This connector connects to the chassis intrusion switch cable. If the computer case is opened, the chassis intrusion mechanism will be activated. The system will record this intrusion and a warning message will 󰘱ash on screen. To clear the warning, you must enter the BIOS utility and clear the record.

JTPM1: TPM Module Connector

This connector connects to a TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages.

Chapter 1

1-25 Getting Started

JCOM1: Serial Port Connector

1.MI C L

3.MI C R

10.Head

hone

Detection

5.Head P

hone

7.SENSE_SEN

9.Head

hone

8.No Pi

6.MI C D

etection

4.NC

.Ground

This connector is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial device.

Chapter 1

JAUD1: Front Panel Audio Connector

This connector allows you to connect the front audio panel located on your computer case.

1-26Getting Started

Jumper

JBAT1: Clear CMOS Jumper

There is CMOS RAM onboard that is external powered from a battery located on the motherboard to save system con󰘰guration data. With the CMOS RAM, the system can automatically boot into the operating system (OS) every time it is turned on. If you want to clear the system con󰘰guration, set the jumpers to clear the CMOS RAM.

1 1

Keep Data Clear Data

Important

You can clear the CMOS RAM by shorting this jumper while the system is o󰘯. Afterwards, open the jumper . Do not clear the CMOS RAM while the system is on because it will damage the motherboard.

Chapter 1

1-27 Getting Started

Voltage Checkpoints

These voltage checkpoints are used to measure the current system voltages. A multimeter (not included) will be required to check voltages.

V-Check Spots

These voltage check spots are for you to measure CPU and PCH voltages. To check the voltage, please attach the positive lead of the multimeter to these spots and the negative lead to any ground spot.

Chapter 1

Spot Description CPU_CORE CPU core voltage CPU_NB CPU NB voltage CPU_PHY CPU PHY voltage CPU_PLL CPU PLL voltage DRAM DDR memory voltage FCH1P1 FCH 1.1V voltage +1_1VDUAL FCH 1.1V Stand by voltage GND Ground

CPU_CORE

CPU_NB

CPU_PHY

CPU_PLL

DRAM

FCH1P1

+1_1VDUAL GND

1-28Getting Started

Buttons & Switches

GE NI

The motherboard has numerous on-board buttons to control various functions. This section will explain how to change your motherboard’s functions through the use of these on-board buttons.

OC1: OC Genie Button

This button is used to automatically overclock the system. Press this button once while the system is o󰘯 to enable OC Genie. The button will lock remain depressed until it is pushed again to disable OC Genie. On the next boot, the OC Genie utility will automatically overclock the CPU settings to optimal performance values. To disable OC Genie, power o󰘯 the system and press the OC Genie button again. The button will depress and the CPU con󰘰guration settings will return to normal values.

On O󰘯

Important

This motherboard provides two ways to enable OC Genie: press the physical OC

•

Genie button on the motherboard, or click the virtual OC Genie button in BIOS. You can specify how OC Genie to be enabled by using the "OC Genie Function Control" item in BIOS.

Please install DDR3 1333 or faster memory and equip a better heatsink/cooler to

•

use the OC Genie function. We do not guarantee the OC Genie overclocking range or the damages/risks

•

caused by overclocking behavior. It is possible to disable the OC Genie function in the BIOS setup. Please refer to the

•

BIOS section of the manual for instructions on how to turn o󰘯 OC Genie from the BIOS.

The usage of OC Genie is at the user’s own risk. Overclocking is never guaranteed

•

by MSI. To ensure successfully OC Genie usage, MSI components are recommended.

•

Chapter 1

1-29 Getting Started

POWER1: Power Button

ese t

This button is used to turn-on and turn-o󰘯 the system. Press the button once to turn-on or turn-o󰘯 the system.

Chapter 1

RESET1: Reset Button

This reset button is used to reset the system. Press the button to reset the system.

1-30Getting Started

OC_SWITCH1: OC Genie Mode Switch

This swtich provides two overclocking modes (Gear 1 and Gear 2) for OC Genie operation. When you press the OC Genie button, the overclocking procedure will be performed according to the setting of this switch. The Gear 1 mode is the default setting. The Gear 2 mode allows the OC Genie function to overclock the CPU/ system frequency higher then Gear 1.

Gear 2

Gear 1 (Default)

Red LED

Blue LED

SLOW_MODE: Slow Mode Booting Switch

This switch is used for LN2 cooling solution, that provides the extreme overclocking conditions, to boot at a stable processor frequency and to prevent the system from crashing.

Enabled

Normal (Default)

Chapter 1

Important

Users will try extreme low temperature overclocking at their own risks. The overclocking results will vary according to the CPU version.

1-31 Getting Started

LED Status Indicators

Chapter 1

OC Genie Mode LEDs

2-Digit Debug Code LED

OC Genie Mode LEDs

These LEDs are used to indicate OC Genie operation mode. When the bottom LED lights blue, the OC Genie operation mode is Gear 1. When the top LED lights red, the OC Genie operation mode is Gear 2.

1-32Getting Started

Debug Code LED Table

Please refer to the table below to get more information about the Debug Code LED message.

Post Status

02,07 Power on CPU Initialization

03,08 Power on North Bridge Initialization

04,09 Power on South Bridge Initialization

0B Power on Cache Initialization

11~14,32~36,56~5A Early CPU Initialization

15~18,37~3A Early North Bridge Initialization

19~1C,3B~3E Early South Bridge Initialization

1D~2F,31,3F~4E,50~55 Early Memory Initialization

63~67,D0 Late CPU Initialization

69~6F,D1 Late North Bridge Initialization

70~77,D2 Late South Bridge Initialization

92~96,B5,D4 PCI bus Initialization

97,98,99,B2,D5~D7

9A~A7,B4

A8,A9,AB Start of Setup. BIOS setup if needed/ requested.

AD/AE Ready To Boot event/Legacy Boot event

Console Output/Input devices/Console initialization and Load Option ROM (VGA, RAID, parallel ports, serial ports……)

Onboard devices Initialize and Detect (USB/ SATA/ SCSI……)

Chapter 1

1-33 Getting Started

Drivers and Utilities

After you install the operating system you will need to install drivers to maximize the performance of the new computer you just built. MSI mainbaord comes with a Driver Disc. Drivers allow the computer to utilize your motherboard more e󰘲ciently and take advantage of any special features we provide.

You can protect your computer from viruses by installing the bundled security program. The bundle also includes a variety of powerful and creative utilities.

Total Installer

Chapter 1

Total Installer is very easy to use and does a great job of 󰘰nding necessary drivers. Please follow the steps below to install drivers and utilities for your new computer.

Insert MSI Driver Disc into the optical drive. The setup screen will automatically appear if autorun is enabled in OS.

Click Total Installer. A popup dialog will appear listing all necessary drivers.

Click here

Select all checkbox on driver listing dialogue.

3. Click Install button.

4. The software installation will then be in progress, after it has 󰘰nished it will prompt

5. you to restart.

Click OK button to 󰘰nish.

6. Restart your computer.

You can also use the same method to install the utilities.

1-34Getting Started

Chapter 2

Quick Installation

This chapter provides demonstration diagrams about how to install your computer. Some of the installations also provide video demonstrations. Please link to the URL to watch it with the web browser on your phone or tablet. You may have even link to the URL by scanning the QR code.

Important

The diagrams in this chapter are for reference only and may vary from the product you purchased.

APU Installation

1 2

3 4

Chapter 2

2-2Quick Installation

Chapter 2

2-3 Quick Installation

Memory Installation

http://youtu.be/76yLtJaKlCQ

Chapter 2

2-4Quick Installation

Motherboard Installation

Chapter 2

2-5 Quick Installation

Chapter 2

2-6Quick Installation

Power Connectors Installation

688

I MC

688

E688

688

I MC

E688

688

I MC

E688

688 MS

I MC

http://youtu.be/gkDYyR_83I4

Chapter 2

2-7 Quick Installation

Chapter 2

E688

688

I MC

E688

688

I MC

E688

688

I MC

E688

688

I MC

E688

2-8Quick Installation

SATA HDD Installation

E688

E688 MS

I MC

688

I MC

688 MS

I MC

688 MS

I MC

E688

I MC

E688 MS

E688

688

E688

I MC

http://youtu.be/RZsMpqxythc

Chapter 2

2-9 Quick Installation

mSATA SSD Installation

Chapter 2

2-10Quick Installation

E688

I MC

688

I MC

688

E688 MS

I MC4

E688

I MC

E688

688

I MC

E688

I MC

688 MS

I MC

E688

I MC

E688 MS

I MC

688 MS

I MC

688

I MC

688

I MC

HD_ LED+

HD_ LED-

RST _SW-

RST _SW+

RSV D_DN U

HD_LED+

HD_LED-

RST_SW-

RST_SW+

RSVD_DNU

PWR_S

W-

PWR_SW+

FP P WR /S L

PWR/SL

H.D .D.

RES T

OWE

Front Panel Connector Installation

JFP1 Connector Installation

http://youtu.be/DPELIdVNZUI

Front Panel Audio Connector Installation

Chapter 2

2-11 Quick Installation

E688

I MC

688 MS

E688 MS

I MC

E688 MS

I MC4

E688

I MC

E688

I MC

E688

I MC4

688

I MC

E688

I MC

E688 MS

I MC

E688

I MC

E688

MC4

688

I MC

E688

I MC

E68

I MC

E688

I MC4

E688

I MC

E688

I MC

E688

I MC4

688

I MC4

E688 MS

688

MC4

E688

Peripheral Connector Installation

USB2.0 Connector Installation

Chapter 2

USB3.0 Connector Installation

2-12Quick Installation

Graphics Card Installation

http://youtu.be/mG0GZpr9w_A

Chapter 2

2-13 Quick Installation

Chapter 2

2-14Quick Installation

Chapter 3

BIOS Setup

CLICK BIOS is a revolutionary UEFI interface that allows you to setup and con󰘰gure your system for optimum use. Using your mouse and keyboard, users can change BIOS settings, monitor CPU temperature, select the boot device priority and view system information such as the CPU name, DRAM capacity, the OS version and the BIOS version. Users can import and export parameter data for backup or for sharing with friends.

Important

The items under each BIOS category described in this chapter are

•

under continuous update for better system performance. Therefore, the description may be slightly di󰘯erent from the latest BIOS and should be held for reference only.

The pictures in this chpater are for reference only and may vary from the

•

product you purchased. Please refer to the actual screens of your system for detailed information.

Please clear the CMOS data and restore the default settings if the system

•

becomes unbootable after changing BIOS settings. (Refer to the Clear CMOS jumper/ button section to clear the CMOS data, select the "Restore Defaults" and press <Enter> in BIOS to load the default settings.)

Entering Setup

The default settings o󰘯er the optimal performance for system stability in normal conditions. You may need to run the Setup program when:

Please load the default settings to restore the optimal system performance and

•

stability if the system becomes unstable after changing BIOS settings. Select the "Restore Defaults" and press <Enter> in BIOS to load the default settings.

Please clear the CMOS data and restore the default settings if the system becomes

•

unbootable after changing BIOS settings. (Refer to the Clear CMOS jumper/ button section to clear the CMOS data, select the "Restore Defaults" and press <Enter> in BIOS to load the default settings.)

If you are unfamiliar with the BIOS settings, we recommend that you keep the

•

default settings to avoid possible system damage or failure booting due to inappropriate BIOS con󰘰guration.

Entering BIOS Setup

Power on the computer and the system will start the Power On Self Test (POST) process. When the message below appears on the screen, please <DEL> key to enter BIOS:

If the message disappears before you respond and you still need to enter BIOS, restart the system by turning the computer OFF then back ON or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

Chapter 3

MSI additionally provides two methods to enter the BIOS setup. You can click the “GO2BIOS” tab on “MSI Fast Boot” utility screen or press the physical “GO2BIOS" button (optional) on the motherboard to enable the system going to BIOS setup directly at next boot.

An error message appears on the screen during the system booting up, and

■

requests you to run SETUP. You want to change the default settings for customized features.

■

Important

Press DEL key to enter Setup Menu, F11 to enter Boot Menu

Click "GO2BIOS" tab on "MSI Fast Boot" utility screen.

Important

Please be sure to install the “MSI Fast Boot” utility before using it to enter the BIOS setup.

3-2BIOS Setup

Overview

After entering BIOS, the following screen is displayed.

Temperature monitor

Model

name

Virtual OC

Genie Button

BIOS menu

selection

Menu display

Temperature monitor

▶ Shows the temperatures of the processor and the motherboard.

Language

▶ Allows you to select the language of the BIOS setup.

System information

▶ Shows the time, date, CPU name, CPU frequency, DRAM frequency, DRAM capacity

and the BIOS version.

BIOS menu selection

▶ The following options are available:

SETTINGS - Uses this menu to specify the parameters for chipset and boot

■

devices. OC - This menu contains the frequency and voltage adjustments. Increasing

■

the frequency can get better performance, however high frequency and heat can cause instability, we do not recommend general users to overclock.

M-FLASH - This menu provides the way to update BIOS with a USB 󰘱ash

■

disk. OC PROFILE -This menu is used to set various overclocking pro󰘰les.

■

HARDWARE MONITOR - This menu is used to set the speeds of fans and

■

monitor voltages of system. BOARD EXPLORER - It provides the information of the installed devices on

■

the motherboard.

Language

System

information

Boot device

priority bar

BIOS menu

selection

Chapter 3

3-3 BIOS Setup

Boot device priority bar

▶ You can move the device icons to change the boot priority.

High priority Low priority

Menu display

▶ This area provides BIOS settings and information to be con󰘰gured.

Virtual OC Genie Button

▶ Enables or disables the OC Genie function by clicking on this button. When enabled,

this button will be light. Enabling OC Genie function can automatically overclock with MSI optimized overclocking pro󰘰le.

Model Name

▶ Shows the model name of motherboard.

General Help

Chapter 3

Sub-menu

▶ If you 󰘰nd a point symbol to the left of certain items, that means a sub-menu can be

launched for additional options. You can use the arrow keys or mouse to highlight the item and press <Enter> or double-click the left mouse button to enter the sub-menu.

Scroll bar

▶ Slide the scroll bar or use the arrow keys to display the other items that are available

on the "menu display" area.

General Help

▶ The General Help displays a brief description to assist you in grasping the selected

item.

Sub-Menu Scroll bar

3-4BIOS Setup

Operation

You can control BIOS settings with the mouse and the keyboard. The following table lists and describes the hot keys and the mouse operations.

Hot key Mouse Description <↑↓→← >

Select Item

Move the cursor

<Enter>

Click/ Double-click the left button

<Esc>

Click the right button <+> Increase the numeric value or make changes <-> Decrease the numeric value or make changes <F1> General Help <F4> CPU Speci󰘰cations <F5> Enter Memory-Z <F6> Load optimized defaults <F8> OC Pro󰘰le Load From USB <F9> OC Pro󰘰le Save to USB <F10> Save Change and Reset <F12> Save a screenshot to a FAT/FAT32 USB drive

Select Icon/ Field

Jump to the Exit menu or return to the previous from a submenu

3-5 BIOS Setup

Chapter 3

SETTINGS

System Status

System Date

▶ Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date> The date from 1 to 31 can be keyed by numeric function keys. <year> The year can be adjusted by users.

System Time

▶

Chapter 3

Sets the system time. Use tab key to switch between time elements. The time format is <hour> <minute> <second>.

SATA Port

▶ Show the information of connected SATA device.

Important

If the connected SATA device is not displayed, turn o󰘯 computer and re-check SATA cable and power cable connections of the device and motherboard.

System Information

▶ Shows detailed system information, including CPU type, BIOS version, and Memory

(read only).

3-6BIOS Setup

Advanced

PCI Subsystem Settings

▶ Sets PCI Express interface protocol and latency timer. Press <Enter> to enter the

sub-menu.

PCI Latency Timer [32]

▶ Sets latency timer of PCI interface device. [Options: 32, 64, 96, 128, 160, 192, 224, 248 PCI Bus clocks]

ACPI Settings

▶ Sets ACPI parameters of onboard power LED behaviors. Press <Enter> to enter the

sub-menu.

Power LED [Blinking]

▶ Sets shining behaviors of the onboard Power LED. [Dual Color] The power LED turns to another color to indicate the S3 state. [Blinking] The power LED blinks to indicate the S3 state.

Integrated Peripherals

▶ Sets integrated peripherals' parameters, such as LAN, HDD, USB and audio. Press

<Enter> to enter the sub-menu.

Onboard LAN Controller [Enabled]

▶ Enables or disables the onboard LAN controller.

LAN Option ROM [Disabled]

▶ Enables or disables the legacy network Boot Option ROM for detailed settings.

This item will appear when "Onboard LAN Controller" is enabled. [Enabled] Enables the onboard LAN Boot ROM. [Disabled] Disables the onboard LAN Boot ROM.

Network Stack [Disabled]

▶ Sets UEFI network stack for optimizing IPv4 / IPv6 function. [Enabled] Enables UEFI network stack. [Disabled] Disables UEFI network stack.

Ipv4 PXE Support [Enabled]

▶ When “Enabled”, the system UEFI network stack will support Ipv4 protocol. This

item will appear when “Network Stack” is enabled. [Enabled] Enables the Ipv4 PXE boot support. [Disabled] Disables the Ipv4 PXE boot support.

Ipv6 PXE Support [Enabled]

▶ When “Enabled”, the system UEFI network stack will support Ipv6 protocol. This

item will appear when “Network Stack” is enabled. [Enabled] Enables the Ipv6 PXE boot support. [Disabled] Disables the Ipv6 PXE boot support.

Chapter 3

3-7 BIOS Setup

Integrated Graphics Con󰘰guration

▶ Adjusts integrated graphics settings for optimum system. Press <Enter> to enter the

sub-menu.

Chapter 3

SATA Mode [AHCI Mode]

▶ Sets the operation mode of the onboard SATA controller. The default mode is

AHCI. [Disabled] Disables the SATA function. [IDE Mode] Specify the IDE mode for SATA storage devices. [AHCI Mode] Specify the AHCI mode for SATA storage devices. AHCI (Advanced

[RAID Mode] Enables RAID function for SATA storage devices.

SATAX Hot Plug [Disabled]

▶ Allows user to enable or disable the SATA hot plug support. This item will appear

when the “SATA Mode” set to [AHCI]/ [RAID]. [Enabled] Enables hot plug support for the SATA ports. [Disabled] Disables hot plug support for the SATA ports.

HD Audio Controller [Enabled]

▶ Enables or disables the onboard High De󰘰nition Audio controller.

HPET [Enabled]

▶ Enables or disables the HPET (High Precision Event Timers) support.

Initiate Graphic Adapter [PEG]

▶ Selects a graphics adapter as the primary display device. [IGD] Integrated Graphics Display. [PEG] PCI-Express Graphics Device.

Initiate Graphics Devices [Auto]

▶ Enables or disables the integrated graphics controller. [Auto] This setting will be con󰘰gured automatically according to the

[Disabled] Disables integrated graphics controller. [Dual Graphics] Enables the integrated graphics controller multi-monitor support

Host Controller Interface) o󰘯ers some advanced features to enhance the speed and performance of SATA storage device, such as Native Command Queuing (NCQ) and hot-plugging.

installed APU.

for independent graphics card.

Important

The "Initiate Graphics Devices" must be set to "Dual Graphics" befor using AMD Dual Gaphics Technology.

Integrated Graphics Share Memory [Auto]

▶ Selects a 󰘰xed amount of system memory allocated to the graphics. This item

de󰘰nes the exact memory size shared to the graphics. This item will appear when “Initiate Graphics Devices” is set to "Dual Graphics".

3-8BIOS Setup

USB Con󰘰guration

▶ Sets the onboard USB controller and device function. Press <Enter> to enter the sub-

menu.

USB Controller [Enabled]

▶ Enables or disables the onboard USB controller.

XHCI Hand-off [Enabled]

▶ Enables or disables XHCI hand-o󰘯 support for the operating system without XHCI

hand-o󰘯 feature.

EHCI Hand-off [Enabled]

▶ Enables or disables EHCI hand-o󰘯 support for the operating system without EHCI

hand-o󰘯 feature.

Legacy USB Support [Enabled]

▶ Sets Legacy USB function support. [Auto] The system will automatically detect if any USB device is connected

[Enabled] Enable the USB support for legacy operating systems that do not

[Disabled] The USB devices are available only for UEFI applications.

Onboard USB3.0 Controller [Enabled]

▶ Enables or disables the external USB 3.0 controller.

Super IO Con󰘰guration

▶ Sets system Super I/O chip parameters for COM port. Press <Enter> to enter the sub-

menu.

Serial (COM) Port 0 Configuration

▶ Sets detailed con󰘰guration of serial(COM) port 0. Press <Enter> to enter the sub-

menu.

Serial (COM) Port 0 [Enabled]

▶ Enables or disables serial (COM) port 0.

Serial (COM) Port 0 Settings [Auto]

▶ Sets serial port 0 (COM). If set to "Auto", BIOS will optimize the IRQ

automatically or you can set it manually.

Power Management Setup

▶ Sets system Power Management of EuP2013 and AC Power Loss behaviors. Press

<Enter> to enter the sub-menu.

EuP 2013 [Disabled]

▶ Enables or disables the system power consumption according to EuP2013

regulation. [Enabled] Optimize the system power consumption according to EuP 2013

[Disabled] Disables this function. Note: When enabled, the system will not support RTC wake up event functions.

and enables or disables the legacy USB support.

support USB.

regulation.

Chapter 3

3-9 BIOS Setup

Restore after AC Power Loss [Power Off]

▶ Sets the system behaviors while encountering the AC power loss. [Power O󰘯] Leaves the system in power o󰘯 state after restoring AC power. [Power On] Boot up the system after restoring AC power. [Last State] Restores the system to the previous state (power on/ power o󰘯)

Windows 8/ 8.1 Con󰘰guration

▶ Sets Windows 8/ 8.1 detailed con󰘰guration and behaviors. Press <Enter> to enter the

sub-menu.

Windows 8/ 8.1 Feature [Disabled]

▶ Enables the supports for Windows 8 or disables for other operating systems.

Before enabling this item, make sure all installed devices & utilities (hardware & software) should meet the Windows 8 requirements.

[Enabled] The system will switch to UEFI mode to meet the Windows 8

[Disabled] Disables this function.

MSI Fast Boot [Disabled]

▶ MSI Fast Boot is the fastest way to boot the system. It will disable more devices to

speed up system boot time which is faster than the boot time of “Fast Boot” . [Enabled] Enables the MSI Fast Boot function to speed up booting time. And

[Disabled] Disables MSI Fast Boot.

Fast Boot [Disabled]

▶ Enables or disables the Windows 8 fast boot feature. This item will only be

available when "MSI Fast Boot" is disabled. [Enabled] Enables the Fast Boot con󰘰guration to accelerate system boot time. [Disabled] Disables the Fast Boot con󰘰guration.

before AC power loss.

requirement.

the following "Fast Boot" will be disabled and 󰘰xed.

Chapter 3

If you want to enter BIOS with enabled “MSI Fast Boot” mode or enabled "Fast Boot" mode, you have to click the "GO2BIOS" tab on MSI Fast Boot utility screen or press the "GO2BIOS" button (optional) on the motherboard. And then the system will enter to BIOS setup directly at next boot.

Important

Secure Boot

▶ Sets the Windows secure boot to prevent the unauthorized accessing. Press

<Enter> to enter the sub-menu. This sub-menu will appear when “Windows 8/ 8.1 Feature” is enabled.

Secure Boot Support [Disabled]

▶ Enables or disables secure boot support. [Enabled] Enables the secure boot function and allow you to set the secure

[Disabled] Disables this function.

boot settings.

3-10BIOS Setup

Secure Boot Mode [Standard]

▶ Selects the secure boot mode. This item is to select how the secure boot keys

be loaded. This item appears when "Secure Boot" is enabled. [Standard] The system will automatically load the secure keys from BIOS. [Custom] Allows user to con󰘰gure the secure boot settings and manually

Key Management

▶ Manages the secure boot keys. Press <Enter> to enter the sub-menu. This sub-

menu will appear when “Secure Boot Mode” sets to [Custom].

Wake Up Event Setup

▶ Sets system wake up behaviors for di󰘯erent sleep modes. Press <Enter> to enter the

sub-menu.

Wake Up Event By [BIOS]

▶ Selects the wake up event by BIOS or operating system. [BIOS] Activates the following items, and use these items to set the wake up

[OS] The wake up events will be de󰘰ned by OS.

Resume By RTC Alarm [Disabled]

▶ Disables or enables the system wake up by RTC Alarm. [Enabled] Enables the system to boot up on a scheduled time/ date. [Disabled] Disables this function.

Date (of month) Alarm/ Time (hh:mm:ss) Alarm

▶ Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the

system will automatically resume (boot up) on a speci󰘰ed date/hour/minute/second in these 󰘰elds (using the <+> and <-> to select the date & time settings).

Resume By PCI-E Device [Disabled]

▶ Disables or enables the system wake up by PCI express device. [Enabled] Enables the system to be awakened from the power saving modes

[Disabled] Disables this function.

Resume From S3 by USB Device [Disabled]

▶ Disables or enables the system wake up by USB devices. [Enabled] Enables the system to be awakened from S3 (Suspend to RAM)

[Disabled] Disables this function.

Resume From S3/S4/S5 by PS/2 Mouse [Disabled]

▶ Disables or enables the system wake up by PS/2 mouse. [Enabled] Enables the system to be awakened from S3/ S4/ S5 state when

[Disabled] Disables this function.

load the secure keys.

events.

when activity or input signal of PCIe device is detected.

sleep state when activity of USB device is detected.

activity of PS/2 mouse is detected.

Chapter 3

3-11 BIOS Setup

Boot

Sets the sequence of system boot devices.

Full Screen Logo Display [Enabled]

▶ Enables or disables to show the full screen logo while system POST. [Enabled] The OS boots straight to the GUI without showing the POST screen. [Disabled] Shows the POST messages at booting.

Boot Mode Select [LEGACY+UEFI]

▶ Sets the system boot mode from legacy or UEFI architecture depending on OS

installation requirement. This item will become unselectable and will be con󰘰gured automatically by BIOS when “Windows 8/ 8.1 Feature” is enabled.

[UEFI] Enables UEFI BIOS boot mode support only. [LEGACY+UEFI] Enables both Legacy BIOS boot mode and UEFI BIOS boot.

FIXED BOOT ORDER Priorities

▶ Sets device priority for system boot.

Boot Option #1~N

▶ These items are used to prioritize the installed boot devices.

Security

Administrator Password

▶ Sets administrator password for system security. Enters the administrator password if

Chapter 3

set; user has full rights to change the BIOS items.

User Password

▶ Sets User Password for system security. Enters the user password if set; but user

might have limited rights to change the BIOS items.

Resume From S3/S4/S5 by PS/2 Keyboard [Disabled]

▶ Disables or enables the system wake up by PS/2 keyboard. [Any Key] Enables the system to be awakened from S3/ S4/ S5 state when

[Hot Key] Enables the system to be awakened from S3/ S4/ S5 state when

[Disabled] Disables this function.

activity of any key on PS/2 keyboard is detected.

activity of hot key on PS/2 keyboard is detected.

Important

When selecting the Administrator / User Password items, a password box will appear on the screen. Type the password then press <Enter>. The password typed now will replace any previous set password from CMOS memory. You will be prompted to con󰘰rm the password. You may also press <Esc> to abort the selection.

To clear a set password, press <Enter> when you are prompted to enter a new password. A message will con󰘰rm the password is being disabled. Once the password is disabled, you can enter the setup and OS without authorization.

3-12BIOS Setup

U-Key [Disabled]

▶ Enables or disables U-Key as user's password to access the system.

Make U-Key at

▶ Makes a key at the USB 󰘱ash drive to prevent other people from accessing the

system. Only the user who has the key with the 󰘱ash drive can access the system.

Chassis Intrusion Con󰘰guration

▶ Press <Enter> to enter the sub-menu.

Chassis Intrusion [Disabled]

▶ This function will be available if the chassis equips a chassis intrusion switch. Once the chassis is opened, the system will record and issue a warning message.

To clear the warning message, set the item to [Reset], then it will return to [Enabled] later. [Options: Disabled, Enabled, Reset]

Save & Exit

Discard Changes and Exit

▶ Exit BIOS setup without saving any change. This it is used to abandon all changes

and exit BIOS setup.

Save Changes and Reboot

▶ This item is used to save all changes and reboot the system.

Save Changes

▶ This item is used to save current changes.

Discard Changes

▶ This item is used to discard current all changes and restore to the previous values.

Restore Defaults

▶ This item is used to restore/ load all default values by the BIOS vendor.

Boot Override

▶ The installed boot-able devices will appear on this menu, you can select one of them

be a boot device to start booting.

3-13 BIOS Setup

Chapter 3

Important

Overclocking your PC manually is only recommended for advanced users.

•

Overclocking is not guaranteed, and if done improperly, can void your warranty or

•

severely damage your hardware. If you are unfamiliar with overclocking, we advise you to use OC Genie for easy

•

overclocking.

Current CPU/ DRAM Frequency

▶ These items show the current frequencies of installed CPU and Memory. Read-only.

CPU Base Frequency (MHz) [Default]

Chapter 3

▶ Sets the CPU Base clock. You may overclock the CPU by adjusting this value. Please

note that overclocking behavior and stability is not guaranteed. This item appears when the installed processor supports this function.

Adjust CPU Ratio [Auto]

▶ Sets the CPU ratio that is used to determine CPU clock speed. This item can only be

changed if the processor supports this function.

Adjusted CPU Frequency

▶ Shows the adjusted CPU frequency. Read-only.

Adjust CPU-NB Ratio [Auto]

▶ Sets the CPU-NB ratio that is used to determine CPU-NB clock speed.

3-14BIOS Setup

Adjusted CPU-NB Frequency

▶ Shows the adjusted CPU frequency. Read-only.

OC Genie Function Control [By Onboard Button]

▶ Enables the OC Genie function by virtual button in BIOS or physical button on

motherboard. Enabling OC Genie function can automatically overclock the system with MSI optimized overclocking pro󰘰le.

[By BIOS Options] OC Genie function is enabled by clicking the virtual OC Genie

[By Onboard Button]OC Genie function is enabled by pressing the physical OC Genie button on the motherboard.

button at the top left corner of BIOS setup screen.

Important

We recommend that you do not to make any modi󰘰cation in OC menu and do not to

•

load defaults after enabling the OC Genie function. Updating BIOS or clearing CMOS is not allowed in OC Genie mode, and it may

•

cause OC Genie function fail or other e󰘯ect.

AMD Turbo Core Technology [Auto]

▶ Based on AMD Turbo Core Technology, part of CPU core ratio may pop down for

providing more performance headroom for active CPU core, even AMD Cool’n’Quiet Technology is Disabled.

[Auto] Turbo Core Technology will linked to AMD Cool’n’Quiet Technology. [Enabled] Enables this function. [Disabled] Disables this function.

Adjust Turbo Core Ratio [Auto]

▶ Speci󰘰es the Turbo Core frequency multiplier.

Adjusted Turbo Core Frequency

▶ Shows the adjusted Turbo Core frequency. Read-only.

Adjust GPU Engine Frequency [Auto]

▶ Adjust GPU Engine Frequency.

Adjusted GPU Engine Frequency

▶ Shows the adjusted GPU Engine frequency. Read-only.

DRAM Frequency [Auto]

▶ Sets the DRAM frequency. Please note the overclocking behavior is not guaranteed.

Adjusted DRAM Frequency

▶ Shows the adjusted DRAM frequency. Read-only.

Chapter 3

3-15 BIOS Setup

Intel Extreme Memory Pro󰘰le (XMP) [Disabled]

▶ X.M.P. (Extreme Memory Pro󰘰le) is the overclocking technology by memory module.

This item will be available when you install the memory modules that support X.M.P. technology. When the Intel Extreme Memory Pro󰘰le (XMP) is Enabled, the AMD Memory Pro󰘰le (AMP) will be forced to be disabled.

[Disabled] Disables this function. [Enabled] Choose to apply an Intel Extreme Memory Pro󰘰le (XMP) to increase

DRAM Timing Mode [Auto]

▶ Selects the memory timing mode. [Auto] DRAM timings will be determined based on SPD (Serial Presence

[Link] Allows user to con󰘰gure the DRAM timing manually for all memory

[UnLink] Allows user to con󰘰gure the DRAM timing manually for respective

Advanced DRAM Con󰘰guration

▶ Press <Enter> to enter the sub-menu. This sub-menu will be activated after setting

[Link] or [Unlink] in “DRAM Timing Mode”. User can set the memory timing for each memory channel. The system may become unstable or unbootable after changing memory timing. If it occurs, please clear the CMOS data and restore the default settings. (Refer to the Clear CMOS jumper/ button section to clear the CMOS data, and enter the BIOS to load the default settings.

XXX Voltage [Auto]

▶ Sets these voltages. If set to "Auto", BIOS will set these voltages automatically or you

can set it manually.

Spread Spectrum

▶ This function reduces the EMI (Electromagnetic Interference) generated by modulating

clock generator pulses. [Enabled] Enables the spread spectrum function to reduce the EMI

Chapter 3

[Disabled] Enhances the overclocking ability of CPU Base clock.

system performance.

Detect) of installed memory modules.

channel.

memory channel.

(Electromagnetic Interference) problem.

Important

If you do not have any EMI problem, leave the setting at [Disabled] for optimal

•

system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.

The greater the Spread Spectrum value is, the greater the EMI is reduced, and

•

the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.

Remember to disable Spread Spectrum if you are overclocking because even a

•

slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

3-16BIOS Setup

CPU Memory Changed Detect [Enabled]

▶ Enables or disables the system to issue a warning message during boot when the

CPU or memory has been replaced. [Enabled] The system will issue a warning message during boot and than needs

[Disabled] Disables this function and keeps the current BIOS settings.

OC Retry Count [1]

▶ Resets counts for overclocking retrying. When overclocking has failed, setting this

item as [1, 2, 3] will allow system to reboot 1, 2, 3 times with the same overclocked con󰘰guration. If overclocking has failed every time, the system will restore the defaults.

CPU Speci󰘰cations

▶ Press <Enter> to enter the sub-menu. This sub-menu displays the information of

installed CPU. You can also access this information menu at any time by pressing [F4]. Read only.

CPU Technology Support

▶ Press <Enter> to enter the sub-menu. The sub-menu shows what the key features

does the installed CPU support. Read only.

MEMORY-Z

▶ Press <Enter> to enter the sub-menu. This sub-menu displays all the settings and

timings of installed memory.

CPU Features

▶ Press <Enter> to enter the sub-menu.

AMD Cool’n’Quiet [Auto]

▶ Enabled or disabled AMD Cool’n’Quiet function. [Auto] Depends on AMD Design. [Enable] Enables AMD Cool’n’Quiet function. The Cool’n’Quiet technology

[Disabled] Disables this function.

to load the default settings for new devices.

can e󰘯ectively and dynamically lower CPU speed and power consumption.

Important

When adjusting CPU Ratio, the Cool’n’Quiet function will be disabled automatically. For CPU which supports the Turbo Core Tech., please set AMD Turbo Core Technology and AMD Cool’n’Quiet as Disabled to retain the default CPU core speed.

3-17 BIOS Setup

Chapter 3

SVM Mode [Enabled]

▶ Enables or disables CPU Virtualization. [Enabled] Enables CPU Virtualization and allows a platform to run multiple

[Disabled] Disables this function.

Core C6 State [Disabled]

▶ Enables or disables C6 state support. [Enabled] When the CPU enters C6 state, all cores will save architectural state

[Disabled] Disables this function.

operating systems in independent partitions. The system can function as multiple systems virtually.

and reduce core voltages to zero volts. Wake up the CPU from C6 state will take a lot longer.

Chapter 3

3-18BIOS Setup

M-FLASH

Important

M-Flash funcion allows you to update BIOS from USB 󰘱ash disk (FAT32/ NTFS format only), or allows the system to boot from the BIOS 󰘰le inside USB 󰘱ash disk (FAT/ FAT32 format only).

Save BIOS to storage

▶ Saves the current BIOS 󰘰le to the USB 󰘱ash disk. The USB 󰘱ash disk drive should be

in FAT32 format.

Update BIOS

▶ Selects a BIOS 󰘰le in the USB 󰘱ash disk (NTFS/ FAT 32 format) to update the BIOS.

Select one file to update BIOS

▶ Selects a BIOS 󰘰le in the USB 󰘱ash disk (NTFS/ FAT 32 format) to update the

BIOS. The system will reboot after updating.

Important

Please note that the USB 3.0 ports (by VIA chipset) do not support M-Flash Update BIOS function.

3-19 BIOS Setup

Chapter 3

OC PROFILE

Overclocking Pro󰘰le 1/ 2/ 3/ 4/ 5/ 6

▶ Overclocking Pro󰘰le 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub-

menu.

Chapter 3

OC Pro󰘰le Save to USB

▶ Saves OC pro󰘰le to the USB 󰘱ash disk drive. The USB 󰘱ash disk should be FAT32

format only.

OC Pro󰘰le Load from USB

▶ Loads OC pro󰘰le from the USB 󰘱ash disk drive. The USB 󰘱ash disk should be FAT32

format only.

Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Names the current overclocking pro󰘰le.

Save Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Saves the current overclocking pro󰘰le.

Load Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Loads the current overclocking pro󰘰le.

Clear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6

▶ Clears the current overclocking pro󰘰le.

3-20BIOS Setup

HARDWARE MONITOR

Temperature &

Speed

graphic display

Current Temperature & Speed information

▶ Shows the current CPU temperature, system temperature and fans' speeds.

Temperature & Speed graphic display

▶ The red graph shows the minimum and maximum temperatures that be set on the

“Fan control 󰘰eld”. The yellow graph shows current CPU/ system temperature. The green shows current CPU/ System fan speed.

Fan control 󰘰eld

▶ This motherboard provides a fan speed control feature call “Smart Fan Control”.

Smart Fan Control automatically controls fan speed depending on the current CPU temperature and to keep it with a speci󰘰c operating speed. When the current CPU temperature is over the maximum temperature, the CPU/ system fan will run at the maximum speed. When the current CPU temperature is under the minimum temperature, the CPU/ system fan will run at the minimum speed. In this 󰘰eld, you can set the CPU and system fans’ speeds and target temperatures.

Current

Temperature & Speed

information

Fan

control 󰘰eld

Voltage display

Chapter 3

3-21 BIOS Setup

Please follow the description below to set the temperatures and fan speeds.

a b

a - Selects a fan you want to specify the speed.

■ b - Checks this item to activate the following items for changing default values.

■ c - Slides the Min and Max tabs to set the minimum and maximum

■ temperatures.

d - Slides the arrow symbol to set the minimum fan speed in percentage.

■ e - Slides the arrow symbol to set the maximum fan speed in percentage.

■ f - Click the "Default" button to restore the default values. Or click the

■ "Cancel" button to abandon all changes and restore to the previous values.

Important

The minimum values of temperature and speed can not be set larger then the

•

maximum values. The changed settings will become e󰘯ective after you save the changes and reboot

•

the system.

Voltage display

▶ Shows the current voltages of CPU, system and memory.

d e

Chapter 3

3-22BIOS Setup

Appendix A

Realtek Audio

The Realtek audio provides 10-channel DAC that simultaneously supports 7.1 sound playback and 2 channels of independent stereo sound output (multiple streaming) through the Front-Out-Left and Front-Out-Right channels.

Software Con󰘰guration

Appendix A

After installing the audio driver (see Chapter 1 - Driver and Utilities), the “Realtek HD Audio Manager” icon will appear at the noti󰘰cation area (lower right of the screen). You may double click the icon and the GUI will pop up accordingly.

It is also available to enable the audio driver by clicking the Realtek HD Audio Manager from the Control Panel.

Software panel overview

The following 󰘰gure describes the function of the Realtek HD Audio Manager panel.

double click the icon

Device Selection

Volume Adjustment

Application Enhancement

Jack status panel

A-2Realtek Audio

Device Selection

▶ Here you can select a audio output source to change the related options. The “check”

sign (in orange) indicates the devices as default.

Volume Adjustment

▶ You can control the volume or balance the right/left side of the speakers that you

plugged in front or rear panel by adjust the bar.

Application Enhancement

▶ The array of options will provide you a complete guidance of anticipated sound e󰘯ect

for both output and input device.

Jack status panel

▶ This panel depicts all render and capture devices currently connected with your

computer.

Auto popup dialog

When you plug into the device at the jack, a dialogue window will pop up asking you which device is current connected.

Appendix A

As you know, each jack corresponds to its default setting, you can refer to the next section “Hardware Default Setting”.

A-3 Realtek Audio

Hardware Default Setting

Fro nt

Rea r

Fro nt

Appendix A

The following diagrams are audio back panel default setting.

■

Backpanel audio jacks to 2-channel speakers diagram

Backpanel audio jacks to 4-channel speakers diagram

A-4Realtek Audio

Backpanel audio jacks to 6-channel speakers diagram

Rea r

Fro nt

Cen te

r & S

ubw oof er

Rea r

Fro nt

Cen te

r & S

ubw oof er

ide

Sur rou nd

■

Backpanel audio jacks to 8-channel speakers diagram

■

Appendix A

A-5 Realtek Audio

Appendix B

AMD RAID

This appendix will assist users in con󰘰guring and enabling RAID functionality.

Introduction

The motherboard comes with the AMD RAID controller that allows you to con󰘰gure SATA hard drives as RAID sets.

AMD RAID controller o󰘯ers RAID level 0 (Striping), RAID level 1 (Mirroring and Duplexing), RAID level 5 (Block Interleaved Distributed Parity), RAID level 10 (A Stripe of Mirrors) , Volume (JBOD) and RAIDABLE.

RAID0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance.

RAID1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.

Appendix B

RAID5 Provides data striping at the byte level and also stripe error correction information. This results in excellent performance and good fault tolerance. Level 5 is one of the most popular implementations of RAID.

RAID10 Not one of the original RAID levels, multiple RAID1 mirrors are created, and a RAID0 stripe is created over these.

Volume (JBOD) provides the ability to link-together storage from one or several disks, regardless of the size of the space on those disks, and Volume is useful in scavenging

space on disks unused by other disks in the array. Volume does not provide performance bene󰘰ts or data redundancy, and disk failure will result in data loss.

RAIDABLE allows a RAIDABLE disk to be transformed later to RAID0 or RAID1.

Your motherboard may not support RAID5, please refer to Chapter 1 “Motherboard

•

Speci󰘰cations”. The least number of hard drives for RAID 0 or RAID 1 is 2. The least number of

•

hard drives for RAID 10 mode is 4. And the least number of hard drives for RAID 5 mode is 3.

All the information/ volumes/ pictures listed in your system might di󰘯er from the

•

illustrations in this appendix.

Use the utility to accomplish the procedures:

■

Important

Initialize Disk(s) - To initialize a new disk drive for data storage. Create Array - Create arrays at di󰘯erent RAID levels (depending on the

license level for the system) Delete Array(s) - Delete an array. Swap Two Arrays - Change the array order, especially for the AMD-RAID

bootable array. Manage Hot Sqare(s) - Allows selection of global and dedicated hot spares. View Disk Details - View information about each disk. View Array Details - View information about each array. Rescan All Channels - Rescan all channels to detect new or removed disks

and arrays. Controller Options - Change INT13 boot support, turn o󰘯 Critical arrays or

warning for O󰘳ine arrays while booting, or change the number of disks that can be spun-up when the system is powered-on.

Contiune to Boot - Exit the BIOS Con󰘰guration Utility and continue booting the system.

B-2AMD RAID

Using AMD RAID Controller BIOS Con󰘰guration Utility

When booting the system, press <Ctrl + R> when the BIOS banner displays. After entering AMD RAID Controller BIOS Con󰘰guration Utility, the following screen is displayed.

Creates an array from the connected disks

1----RAID5, 999GB, Ready(R/W)

Initialize Disk(s)

Create Array

Delete Array(s) Swap Two Arrays Manage Hot Sqare(s) View Disk Details View Array Details Rescan All Channels Controller Options Contiune to Boot

AMD-RAID Array Con󰘰guration

Arrays Disks

Main Menu

0-00,500GB,Online 0-01,500GB,Online 0-02,500GB,Online 0-03,500GB,Online

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

Understanding the Colour Code

Colour codes indicate the type or status of information at the BIOS Con󰘰guration Utility.

White text - Indicates an available option or informational text.

■ Black text, yellow highlighting - Indicates an option or device for which action

■ might be taken.

■

Yellow text - Indicates information about the yellow-highlighted option.

■

Green text - Indicates an item that has been selected. Light blue text - Indicates that the item cannot be selected.

■ Magenta text - Indicates items that are related to spares or boot options.

■

Red text - Indicates a failed virtual or physical disk or a warning. For example, informational text might be red if an option is not available.

Appendix B

B-3 AMD RAID

Initialize Disks

New disks and legacy disks must be initialized before they can be used to create an AMD-RAID array. Initialization writes AMD-RAID con󰘰guration information (metadata) to a disk.

If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization.

•

To initialize the disk anyway, delete the AMD-RAID array. Data on the disk is deleted during initialization so ensure the correct disks are chosen to initialize.

A legacy disk can contain valid data. When a legacy disk is initialized, all data on

•

the disk is lost.

Appendix B

To initialize disks:

At the “Main Menu”, use the arrow keys to highlight “Initialize Disk(s)”.

Important

Initializes one or more disks so that arrays can be created

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Ready 0-01,500GB,Ready 0-02,500GB,Ready 0-03,500GB,Ready

Initialize Disk(s)

Create Array Delete Array(s) Swap Two Arrays Manage Hot Sqare(s) View Disk Details View Array Details Rescan All Channels Controller Options Contiune to Boot

Press <Enter> to select Initialize Disk(s).

2. Select the disks to initialize by pressing <Insert> key.

3. Press <Enter> to initialize the selected disks.

4. Press the <C> key to con󰘰rm the initialization.

Main Menu

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

B-4AMD RAID

Create Arrays

Arrays can be created after the disks are initialized.

Important

For redundant arrays, the Create process is not 󰘰nished until after the operating

•

system and AMD-RAID OS drivers have been installed and the system has booted to the operating system. However, the arrays are immediately available to use for either a bootable array or a data array.

If the system is booted from an AMD-RAID bootable array, the 󰘰rst array in the

•

Arrays section must be the bootable array. The system boots only from the 󰘰rst array in the Arrays section. As necessary, use the Swap Two Arrays feature to swap arrays and place the bootable array in the 󰘰rst position.

To create an array:

At the “Main Menu”, use the arrow keys to highlight “Create Array” and press

1. <Enter>.

Creates an array from the connected disks

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Ready 0-01,500GB,Ready 0-02,500GB,Ready

0-03,500GB,Ready

Appendix B

Initialize Disk(s)

Create Array

Delete Array(s) Swap Two Arrays Manage Hot Sqare(s) View Disk Details View Array Details Rescan All Channels Controller Options Contiune to Boot

Select the disks with which to create the array by pressing <Insert> key.

2. Press <Enter> to include the selected disks in the array.

3. In the User Input section, use the <arrow keys> to select an array type. Only array

Main Menu

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

types that can be created with the selected disks are available. Press <Enter>.

5. Select an array size.

6. Press <Enter> when either the desired size or the maximum available size is

7. reached.

Select a caching level using the <arrow keys> and press <Enter>.

8. Press <C> to con󰘰rm the array settings.

B-5 AMD RAID

Delete Arrays

Deleting an array permanently destroys all data that is on the array. This action cannot be undone and it is very unlikely the data can be recovered.

To delete an array:

At the “Main Menu”, use the arrow keys to highlight “Delete Array” and press

1. <Enter>.

Appendix B

Important

Deletes one or more arrays that are con󰘰gured on this controller

1----RAID5, 999GB, Ready(R/W)

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Online 0-01,500GB,Online 0-02,500GB,Online 0-03,500GB,Ready

Initialize Disk(s) Create Array

Delete Array(s)

Swap Two Arrays Manage Hot Sqare(s) View Disk Details View Array Details Rescan All Channels Controller Options Contiune to Boot

Select the arrays to delete by pressing <Insert> key.

2. Press <Enter> to delete the selected arrays.

3. Press <C> to con󰘰rm the deletion.

Main Menu

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

B-6AMD RAID

Swap Arrays

Use the Swap Two Arrays option to arrange arrays in a di󰘯erent order.

Important

If more than one array is created, install the operating system to any of them. However, a small amount of boot information is always written to a disk(s) in the 󰘰rst array (Array 1) of the Array section, regardless on which array the operating system is installed.

If anything happens to a disk in Array 1, the system might not be able to boot. It is recommended that the user install the operating system on an AMD-RAID bootable array at a redundant RAID level such as RAID1 or RAID5 and swap the array into the 󰘰rst position, if it is not already Array 1.

To swap arrays:

At the “Main Menu”, use the arrow keys to highlight “Swap Two Array” and press

1. <Enter>.

Swaps arrays to allow them to load in any order (Boot array is 󰘰rst)

1----RAID0, 999GB, Ready(R/W) 2----RAID0, 999GB, Ready(R/W)

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Online 0-01,500GB,Online 0-02,500GB,Online 0-03,500GB,Online

Appendix B

Initialize Disk(s) Create Array Delete Array(s)

Swap Two Arrays

Manage Hot Sqare(s) View Disk Details View Array Details Rescan All Channels Controller Options Contiune to Boot

Select the arrays to swap by pressing <Insert> key.

2. Press <Enter> to swap the arrays.

Main Menu

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

B-7 AMD RAID

Available Keys

Manage Spares

This option allows the user to assign or unassign global or dedicated spares. At the Main Menu, use the <arrow keys> to highlight “Manage Host Spare(s)” and

press <Enter> to enter submenu.

Assign Global Hot Spare(s)

1----RAID0, 999GB, Normal(R/W)

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Online 0-01,500GB,Online 0-02,1000GB,Ready 0-03,1000GB,Ready

Appendix B

To assign global spares:

At the Manage Host Spare(s) submenu, use the <arrow keys> to highlight “Assign

1. Global Hot Spare(s)” and press <Enter>.

Select the disks to assign as global spares by pressing <Insert> key.

2. Press <Enter> to assign the selected disks as global spares.

To assign dedicated spares:

At the Manage Host Spare(s) submenu, use the <arrow keys> to highlight “Assign

1. Dedicated Hot Spare(s)” and press <Enter>.

Select the disks to assign as dedicated spares by pressing <Insert> key.

2. Press <Enter> to assign dedicated spares.

3. Press <C> to continue.

To unassign spares:

At the Manage Host Spare(s) submenu, use the <arrow keys> to highlight

1. “Unassign Hot Spare(s)” and press <Enter>.

Select the disks to unassign as spares by pressing <Insert> key.

2. Press <Enter> to unassign the selected disks.

3. Press <C> to continue.

Manage Hot Spare(s)

Assign Global Hot Spare(s)

Assign Dedicated Hot Spare(s) Unassign Hot Spare(s)

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

B-8AMD RAID

Change the Controller Options

Controller Options allows the user to con󰘰gure options for the boot sequence. At the Main Menu, use the <arrow keys> to highlight “Controller Options” and press

<Enter> to enter submenu.

Toggles whether BIOS installs INT13 support

1----RAID0, 999GB, Normal(R/W)

Controller Options

Toggle INT13 Boot Support [ON]

Toggle Pause if Critical [OFF] Toggle Pause if O󰘳ine [OFF] Set Staggered Spinup Count [2]

AMD-RAID Array Con󰘰guration

Arrays Disks

0-00,500GB,Online 0-01,500GB,Online 0-02,1000GB,Ready 0-03,1000GB,Ready

<↑><↓><→><←>=Choose, <Esc>=Back <Enter>=Select Menu Item

Available Keys

Important

By default, all options are On. It is recommended that options remain On.

Booting the system from an array

This option allows the user to enable boot support. It is recommended that this option be disabled only if the system is booted from

another device.

At the Controller Options submenu, use the <arrow keys> to highlight “Toggle

1. INT13 Boot Support ” and press <Enter>.

Use the <arrow keys> to highlight “Toggle INT13 Boot Support”.

2. Press <Enter> to toggle between On and O󰘯.

Pausing the boot sequence for warning messages

When the Pause feature is enabled and an array goes critical, o󰘳ine, or there is another problem with the system, the boot process stops and an error message is displayed on the screen. The user must press Enter to continue booting.

If the Pause feature is disabled, error messages are displayed brie󰘱y, but the system continues to boot.

At the Controller Options submenu, use the <arrow keys> to highlight “Toggle

1. Pause if Critical” and press <Enter>.

Set pauses to the boot sequence for critical/ o󰘳ine warnings. Use the <arrow

2. keys> to highlight Toggle Pause if Critical/ Toggle Pause if O󰘳ine.

Press <Enter> to toggle between On and O󰘯.

Appendix B

B-9 AMD RAID

Change the Staggered Spinup Count

Depending on a system’s power supply load-rating, you might want to limit the number of disks that are spun-up together when a system is powered on.

At the Controller Options submenu, use the <arrow keys> to highlight “Set

1. Staggered Spinup Count ” and press <Enter>. The number within the brackets changes colour to indicate it is selected.

Use the <arrow keys> to change the number within the brackets. The minimum is

2. 1 and the maximum is 8.

Press <Enter> to save the setting.

Appendix B

B-10AMD RAID

MSI A88X-G45 User Manual
