A75MA-P35/ A55M-P35 series
MS-7697 (v1.x) Mainboard
G52-76971X2
Preface
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR INTERNA
- TIONAL.
We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
Trademarks
All trademarks in this manual are properties of their respective owners.
MSI® is registered trademark of Micro-Star Int’l Co.,Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of AMD Corporation.
AMD® is registered trademarks of AMD Corporation.
Intel® is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI® is registered trademark of American Megatrends Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
JMicron® is registered trademark of JMicron Technology Corporation.
Netware® is registered trademark of Novell, Inc.
Lucid® is trademark of LucidLogix Technologies, Ltd.
VIA® is registered trademark of VIA Technologies, Inc.
ASMedia® is registered trademark of ASMedia Technology Inc.
iPad, iPhone, and iPod are trademarks of Apple Inc.
Revision |
History |
|
Revision |
Revision History |
Date |
V1.0 |
First release |
2011/08 |
ii
MS-7697
Technical
Support
If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance.
◙Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com/service/download
◙Contact our technical staff at: http://support.msi.com
Safety Instructions
Always read the safety instructions carefully.
Keep this User’s Manual for future reference.
Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.
Make sure the voltage of the power source is at 110/220V before connecting the equipment to the power inlet.
Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
Never pour any liquid into the opening that can cause damage or cause electrical shock.
If any of the following situations arises, get the equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to User’s Manual.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.
DONOTLEAVETHISEQUIPMENTINANENVIRONMENTABOVE60oC(140oF), IT MAY DAMAGE THE EQUIPMENT.
Preface
iii
Preface
FCC
-B Radio Frequency
Interference
Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU.
Micro-Star International
MS-7697
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1)this device may not cause harmful interference, and
2)this device must accept any interference received, including interference that may cause undesired operation.
iv
MS-7697
Battery Information
European Union:
Batteries, battery packs, and accumulators should not be disposed of as unsorted household waste. Please use the public collection system to return, recycle, or treat them in compliance with the local regulations.
Taiwan:
For better environmental protection, waste batteries should be collected separately for recycling or special disposal.
California, USA:
The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California.
For further information please visit: http://www.dtsc.ca.gov/hazardouswaste/perchlorate/
CAUTION: There is a risk of explosion, if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Preface
Chemical
Substances Information
Incompliancewithchemicalsubstancesregulations,suchastheEUREACHRegulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI provides the information of chemical substances in products at:
http://www.msi.com/html/popup/csr/evmtprtt_pcm.html
BSMI
EMI
:
使用者會被要求採取某些適當的對策。
Preface
WEEE
(Waste Electrical
and Electronic
Equipment)
Statement
ENGLISH
To protect the global environment and as an environmentalist, MSI must re-
mind you that...
Under the European Union (“EU”) Directive on Waste Electrical and Electron-
ic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005,
products of “electrical and electronic equipment” cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment
will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.
DEUTSCH
Hinweis von MSI zur Erhaltung und Schutz unserer Umwelt
Gemäß der Richtlinie 2002/96/EG über Elektround Elektronik-Altgeräte dürfen Elektro- und Elektronik-Altgeräte nicht mehr als kommunale Abfälle entsorgt werden. MSI hat europaweit verschiedene Sammelund Recyclingunternehmen beauftragt, die in die Europäische Union in Verkehr gebrachten Produkte, am Ende seines Lebenszyklus zurückzunehmen. Bitte entsorgen Sie dieses Produkt zum gegebenen Zeitpunkt ausschliesslich an einer lokalen Altgerätesammelstelle in Ihrer Nähe.
FRANÇAIS
En tant qu’écologiste et afin de protéger l’environnement, MSI tient à rappeler ceci...
Au sujet de la directive européenne (EU) relative aux déchets des équipement électriques et électroniques, directive 2002/96/EC, prenant effet le 13 août 2005, que les produits électriques et électroniques ne peuvent être déposés dans les décharges ou tout simplement mis à la poubelle. Les fabricants de ces équipements seront obligés de récupérer certains produits en fin de vie. MSI prendra en compte cette exigence relative au retour des produits en fin de vie au sein de la communauté européenne. Par conséquent vous pouvez retourner localement ces matériels dans les points de collecte.
РУССКИЙ
Компания MSI предпринимает активные действия по защите окружающей среды, поэтому напоминаем вам, что....
В соответствии с директивой Европейского Союза (ЕС) по предотвращению загрязнения окружающей среды использованным электрическим и электронным оборудованием (директива WEEE 2002/96/EC), вступающей в силу 13
августа 2005 года, изделия, относящиеся к электрическому и электронному оборудованию, не могут рассматриваться как бытовой мусор, поэтому производители вышеперечисленного электронного оборудования обязаны принимать его для переработки по окончании срока службы. MSI обязуется соблюдать требования по приему продукции, проданной под маркой MSI на территории EC, в переработку по окончании срока службы. Вы можете вернуть эти изделия в специализированные пункты приема.
vi
MS-7697
ESPAÑOL
MSI como empresa comprometida con la protección del medio ambiente, recomienda:
Bajo la directiva 2002/96/EC de la Unión Europea en materia de desechos y/o equipos electrónicos, con fecha de rigor desde el 13 de agosto de 2005, los productos clasificados como “eléctricos y equipos electrónicos” no pueden ser depositados en los contenedores habituales de su municipio, los fabricantes de equipos electrónicos, están obligados a hacerse cargo de dichos productos al termino de su período de vida. MSI estará comprometido con los términos de recogida de sus productos vendidos en la Unión Europea al final de su periodo de vida. Usted debe depositar estos productos en el punto limpio establecido por el ayuntamiento de su localidad o entregar a una empresa autorizada para la recogida de estos residuos.
NEDERLANDS
Om het milieu te beschermen, wil MSI u eraan herinneren dat….
De richtlijn van de Europese Unie (EU) met betrekking tot Vervuiling van Electrische en Electronische producten (2002/96/EC), die op 13 Augustus 2005 in zal gaan kunnen niet meer beschouwd worden als vervuiling. Fabrikanten van dit soort producten worden verplicht om producten retour te nemen aan het eind van hun levenscyclus. MSI zal overeenkomstig de richtlijn handelen voor de producten die de merknaam MSI dragen en verkocht zijn in de EU. Deze goederen kunnen geretourneerd worden op lokale inzamelingspunten.
SRPSKI
Da bi zaštitili prirodnu sredinu, i kao preduzeće koje vodi računa o okolini i prirodnoj sredini, MSI mora da vas podesti da…
Po Direktivi Evropske unije (“EU”) o odbačenoj ekektronskoj i električnoj opremi, Direktiva 2002/96/EC, koja stupa na snagu od 13. Avgusta 2005, proizvodi koji spadaju pod “elektronsku i električnu opremu” ne mogu više biti odbačeni kao običan otpad i proizvođači ove opreme biće prinuđeni da uzmu natrag ove proizvode na kraju njihovog uobičajenog veka trajanja. MSI će poštovati zahtev o preuzimanju ovakvih proizvoda kojima je istekao vek trajanja, koji imaju MSI oznaku i koji su prodati u EU. Ove proizvode možete vratiti na lokalnim mestima za prikupljanje.
POLSKI
Aby chronić nasze środowisko naturalne oraz jako firma dbająca o ekologię, MSI przypomina, że...
Zgodnie z Dyrektywą Unii Europejskiej (“UE”) dotyczącą odpadów produktów elektrycznych i elektronicznych (Dyrektywa 2002/96/EC), która wchodzi w życie 13 sierpnia 2005, tzw. “produkty oraz wyposażenie elektryczne i elektroniczne “ nie mogą być traktowane jako śmieci komunalne, tak więc producenci tych produktów będą zobowiązani do odbierania ich w momencie gdy produkt jest wycofywany z użycia. MSI wypełni wymagania UE, przyjmując produkty (sprzedawane na terenie Unii Europejskiej) wycofywane z użycia. Produkty MSI będzie można zwracać w wyznaczonych punktach zbiorczych.
Preface
vii
Preface
TÜRKÇE
Çevreci özelliğiyle bilinen MSI dünyada çevreyi korumak için hatırlatır:
Avrupa Birliği (AB) Kararnamesi Elektrik ve Elektronik Malzeme Atığı, 2002/96/EC Kararnamesi altında 13 Ağustos 2005 tarihinden itibaren geçerli olmak üzere, elektrikli ve elektronik malzemeler diğer atıklar gibi çöpe atılamayacak ve bu elektonik cihazların üreticileri, cihazların kullanım süreleri bittikten sonra ürünleri geri toplamakla yükümlü olacaktır. Avrupa Birliği’ne satılan MSI markalı ürünlerin kullanım süreleri bittiğinde MSI ürünlerin geri alınması isteği ile işbirliği içerisinde olacaktır. Ürünlerinizi yerel toplama noktalarına bırakabilirsiniz.
ČESKY
Záleží nám na ochraně životního prostředí - společnost MSI upozorňuje...
Podle směrnice Evropské unie (“EU”) o likvidaci elektrických a elektronických výrobků 2002/96/EC platné od 13. srpna 2005 je zakázáno likvidovat “elektrické a elektronické výrobky” v běžném komunálním odpadu a výrobci elektronických výrobků, na které se tato směrnice vztahuje, budou povinni odebírat takové výrobky zpět po skončení jejich životnosti. Společnost MSI splní požadavky na odebírání výrobků značky MSI, prodávaných v zemích EU, po skončení jejich životnosti. Tyto výrobky můžete odevzdat v místních sběrnách.
MAGYAR
Annak érdekében, hogy környezetünket megvédjük, illetve környezetvédőként fellépve az MSI emlékezteti Önt, hogy ...
Az Európai Unió („EU”) 2005. augusztus 13-án hatályba lépő, az elektromos és elektronikus berendezések hulladékairól szóló 2002/96/EK irányelve szerint az elektromos és elektronikus berendezések többé nem kezelhetőek lakossági hulladékként, és az ilyen elektronikus berendezések gyártói kötelessé válnak az ilyen termékek visszavételére azok hasznos élettartama végén. Az MSI betartja a termékvisszavétellel kapcsolatos követelményeket az MSI márkanév alatt az EU-n belül értékesített termékek esetében, azok élettartamának végén. Az ilyen termékeket a legközelebbi gyűjtőhelyre viheti.
ITALIANO
Per proteggere l’ambiente, MSI, da sempre amica della natura, ti ricorda che….
In base alla Direttiva dell’Unione Europea (EU) sullo Smaltimento dei Materiali Elettrici ed Elettronici, Direttiva 2002/96/EC in vigore dal 13 Agosto 2005, prodotti appartenenti alla categoria dei Materiali Elettrici ed Elettronici non possono più essere eliminati come rifiuti municipali: i produttori di detti materiali saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita. È possibile portare i prodotti nel più vicino punto di raccolta
viii
MS-7697
Contents
Copyright |
Notice |
ii |
Trademarks |
ii |
|
Revision |
History |
ii |
Technical |
Support |
iii |
Safety Instructions |
iii |
|
FCC-B Radio Frequency Interference Statement |
iv |
|
Battery Information |
v |
|
Chemical Substances Information |
v |
|
BSMI EMI |
v |
|
WEEE (Waste Electrical and Electronic Equipment) Statement |
vi |
|
English |
|
En-1 |
Mainboard Specifications En-2
Connectors Quick Guide En-4
Back Panel Quick Guide En-6
CPU (Central Processing Unit) En-8
Mounting Screw Holes En-11
Power Supply En-12
Memory En-13
Expansion Slots En-15
Video/ Graphics Cards En-16
Internal Connectors En-17
Jumper En-23
BIOS Setup En-24
Software Information En-32
Deutsch De-1
Spezifikationen De-2 Anschlussübersicht De-4 Rücktafel-Übersicht De-6 CPU (Prozessor) De-8 Schraubenlöcher für die Montage De-11 Stromversorgung De-12 Speicher De-13 Erweiterungssteckplätze De-15 Video/Grafikkarten De-16 Interne Anschlüsse De-17 Steckbrücken De-23
ix
Preface
Preface
BIOS Setup De-24 Software-Information De-32
Français
Fr
-1
Spécifications Fr-2 Guide Rapide Des Composants Fr-4 Guide rapide du panneau arrière Fr-6 Trous Taraudés de Montage Fr-11 Connecteurs d’alimentation Fr-12 Mémoire Fr-13 Emplacements d’extension Fr-15 Cartes Vidéo/ Graphics Fr-16 Connecteurs internes Fr-17 Cavalier Fr-23 Réglage BIOS Fr-24 Information Logiciel Fr-32
Русский Ru-1
Характеристики системной платы Ru-2 Краткое руководство по разъемам Ru-4 Разъемы на задней панели Ru-6 CPU (Центральный процессор) Ru-8 Отверстия под установочные винты Ru-11 Электропитание Ru-12 Память Ru-13 Слот расширения Ru-15 Видео/ Видеокарты Ru-16 Разъемы Ru-17 Перемычка Ru-23 Настройка BIOS Ru-24 Сведения о программном обеспечении Ru-32
English
A75MA-P35/
A55M-P35
Series
Europe version
MS-7697 Mainboard
Mainboard Specifications
Processor Support
■AMD® A8/A6/A4/E2-series processors for the FM1 package (For the latest information about CPU, please visit http://www.msi.com/service/cpu-support)
Chipset
■ AMD® A75/ A55 chipset
Memory Support
■2x DDR3 DIMMs support DDR3 1600/ 1333/ 1066 DRAM (16GB Max)
■Supports Dual-Channel mode
(For more information on compatible components, please visit http://www.msi.com/service/test-report)
LAN
■ Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111E
Audio
■Integrated HD audio codec by Realtek® ALC887
■8-channel audio with jack sensing
SATA
■6x SATA 6Gb/s ports (SATA1~6) by AMD® A75 (A75MA-P35)
■6x SATA 3Gb/s ports (SATA1~6) by AMD® A55 (A55M-P35)
RAID
■ SATA1~6 support RAID 0/ 1/ 10 by AMD® A75/ A55
USB 3.0 (A75MA-P35)
■2x USB 3.0 rear IO ports by AMD® A75
■1x USB 3.0 onboard connector by AMD® A75
En-2
Connectors & Buttons
■Back panel
-1x PS/2 keyboard port
-1x PS/2 mouse port
-4x USB 2.0 ports
-2x USB 3.0 ports (A75MA-P35)
-1x LAN port
-1x VGA port
-1x DVI-D port
-6x audio ports
■On-Board
-2x USB 2.0 connectors
-1x USB 3.0 connector (A75MA-P35)
-1x S/PDIF-Out connector
-1x Front Panel Audio connector
-1x TPM Module connector
-1x Parallel port connector
-1x Serial port connector
Slots
■1x PCIe 2.0 x16 slots
■2x PCIe 2.0 x1 slot
■1x PCI slot
Form
Factor
■ Micro-ATX (24.4 cm X 21.5 cm)
Mounting Screw Holes
■ 6x mounting holes
Dual
-Graphics
■Supports AMD® Dual Graphics Technology with "Lynx" platform
-Please note that you must connect one monitor to the onboard graphics port for enabling the AMD "dual graphics" technology.
-Please visit the AMD official website to find the supported Dual Graphics combinations of APU and discrete GPU for achieving this technology.
-E2-series APU doesn't support Dual-Graphics.
If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address http://www.msi.com/index. php
Engl shi
En-3
MS-7697 Mainboard

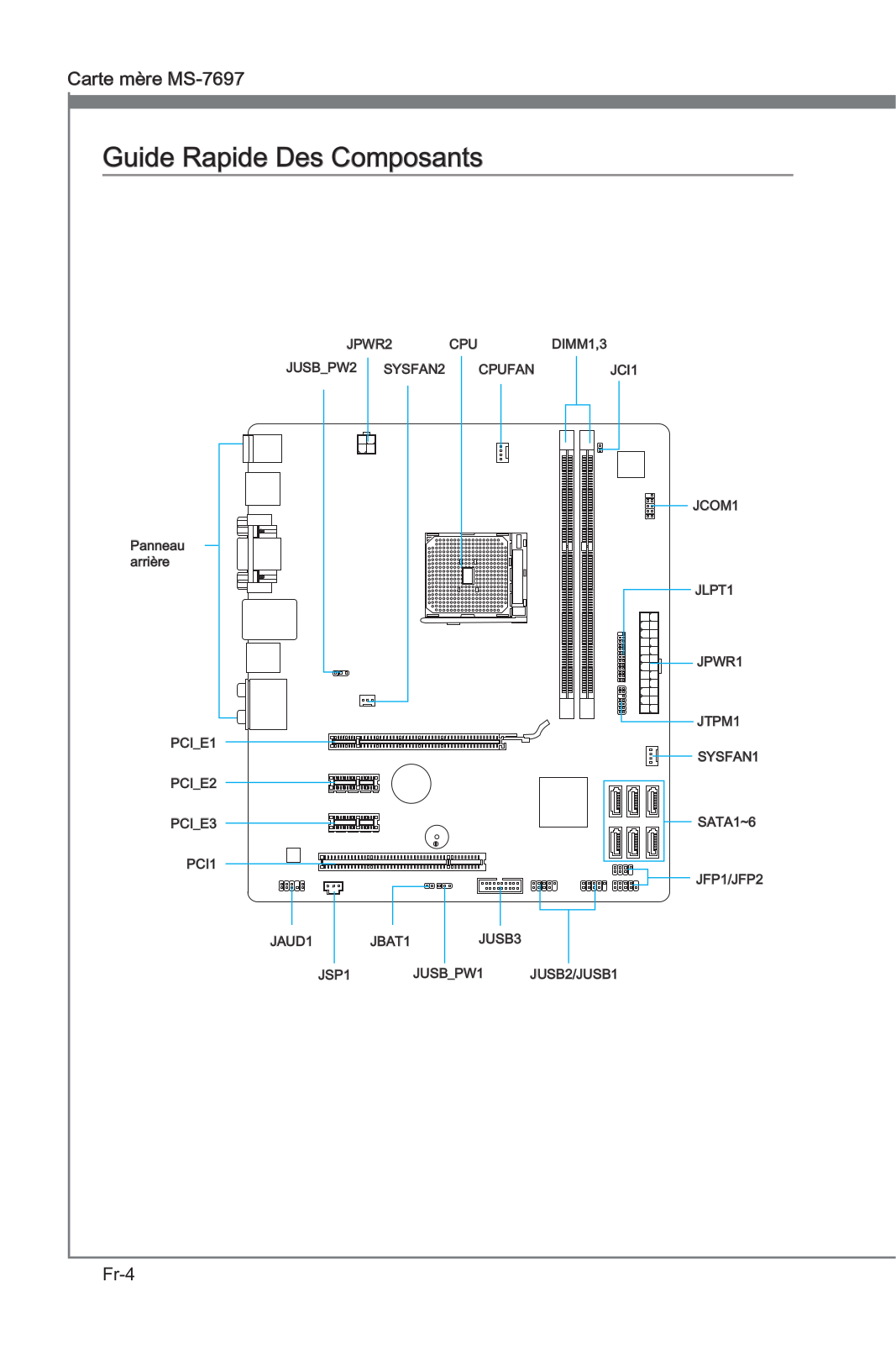

Connectors Quick Guide |
|
|
|
|
|
JPWR2 |
CPU |
|
|
DIMM1,3 |
|
JUSB_PW2 |
SYSFAN2 |
CPUFAN |
JCI1 |
||
|
|
|
|
|
JCOM1 |
Back Panel |
|
|
|
|
|
|
|
|
|
|
JLPT1 |
|
|
|
|
|
JPWR1 |
|
|
|
|
|
JTPM1 |
PCI_E1 |
|
|
|
|
SYSFAN1 |
|
|
|
|
|
|
PCI_E2 |
|
|
|
|
|
PCI_E3 |
|
|
|
|
SATA1~6 |
PCI1 |
|
|
|
|
JFP1/JFP2 |
|
|
|
|
|
|
JAUD1 |
JBAT1 |
|
JUSB3 |
|
|
JSP1 |
|
JUSB_PW1 |
JUSB2/JUSB1 |
||
En-4 |
|
|
|
|
|
Connectors Reference Guide
Port Type |
Port Name |
Page |
FM1 APU Socket |
CPU |
En-8 |
ATX 24-pin Power Connector |
JPWR1 |
En-12 |
ATX 4-pin Power Connector |
JPWR2 |
En-12 |
DDR3 Memory Slots |
DIMM1,3 |
En-13 |

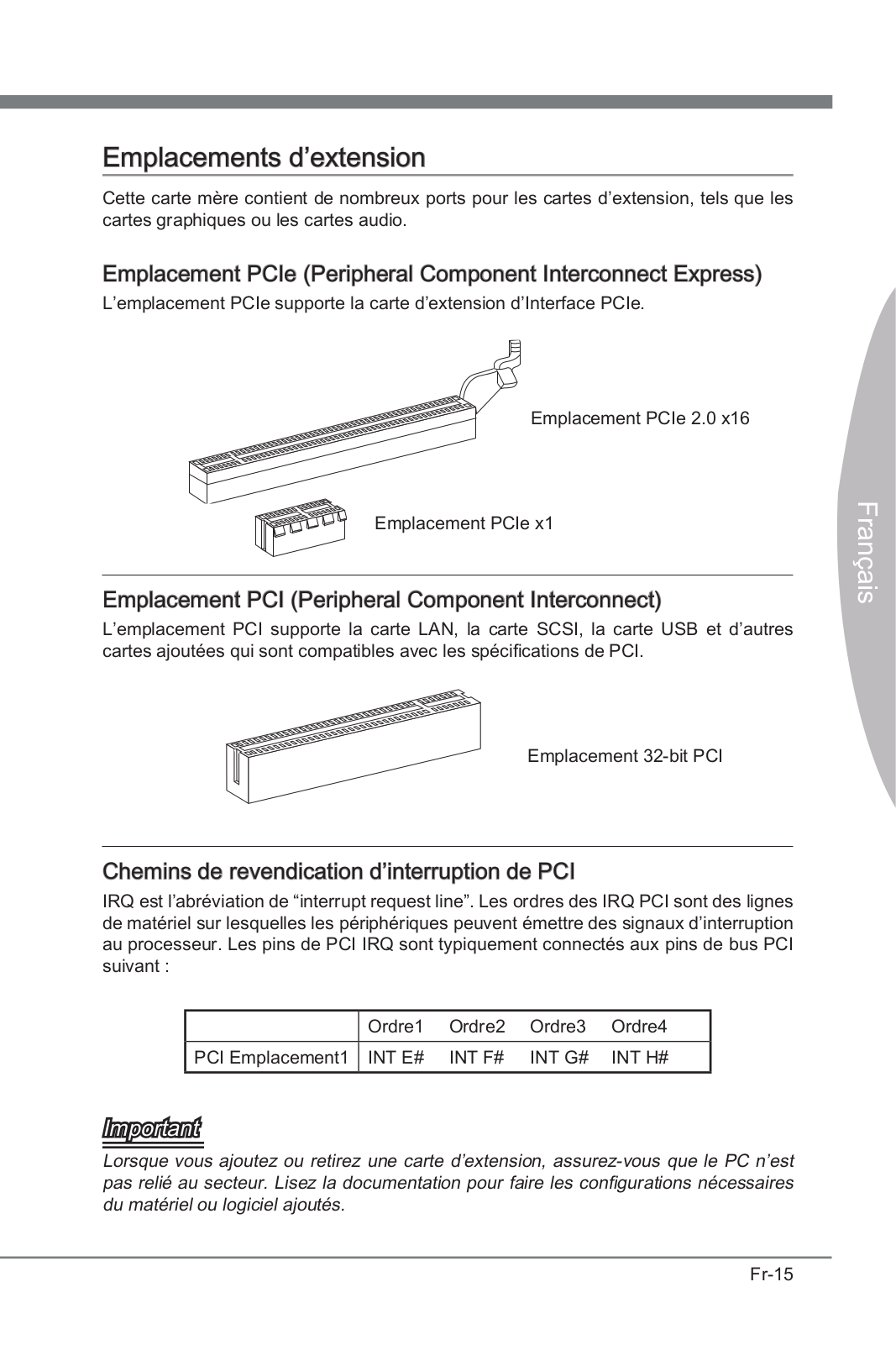

PCIe x16 Expansion Slot |
PCI_E1 |
En-15 |
PCIe x1 Expansion Slots |
PCI_E2.3 |
En-15 |
PCI Expansion Slot |
PCI1 |
En-15 |
SATA 6Gb/s Connectors |
SATA1~6 |
En-17 |
CPU Fan Connector |
CPUFAN |
En-18 |
System Fan Connector |
SYSFAN1~2 |
En-18 |

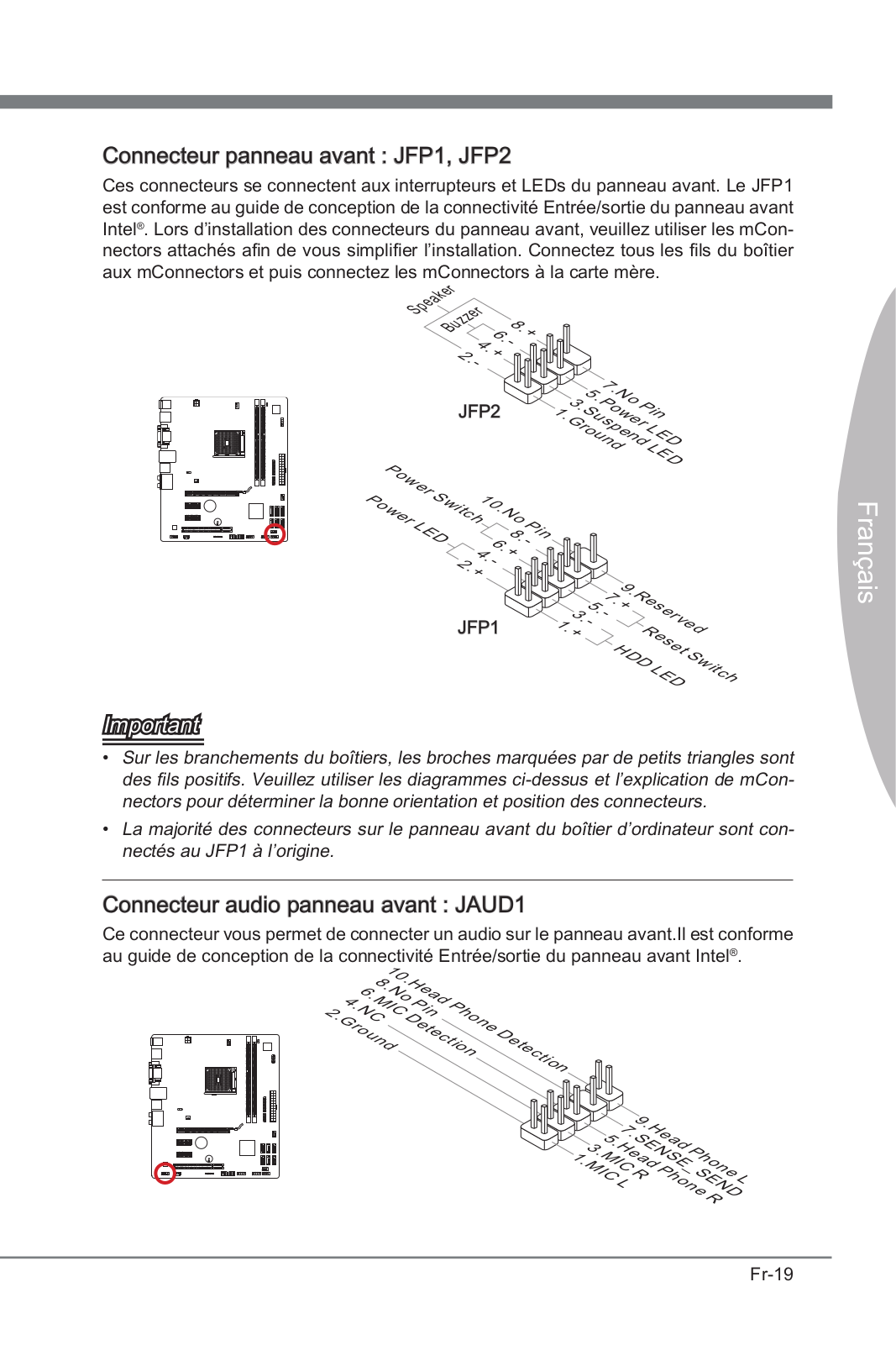

Front Panel Connectors |
JFP1, JFP2 |
En-19 |
Front Panel Audio Connector |
JAUD1 |
En-19 |
USB 2.0 Expansion Connectors |
JUSB1~2 |
En-20 |
S/PDIF-Out Expansion Connector |
JSP1 |
En-20 |
TPM Module Connector |
JTPM1 |
En-21 |
Parallel Port Header |
JLPT1 |
En-21 |

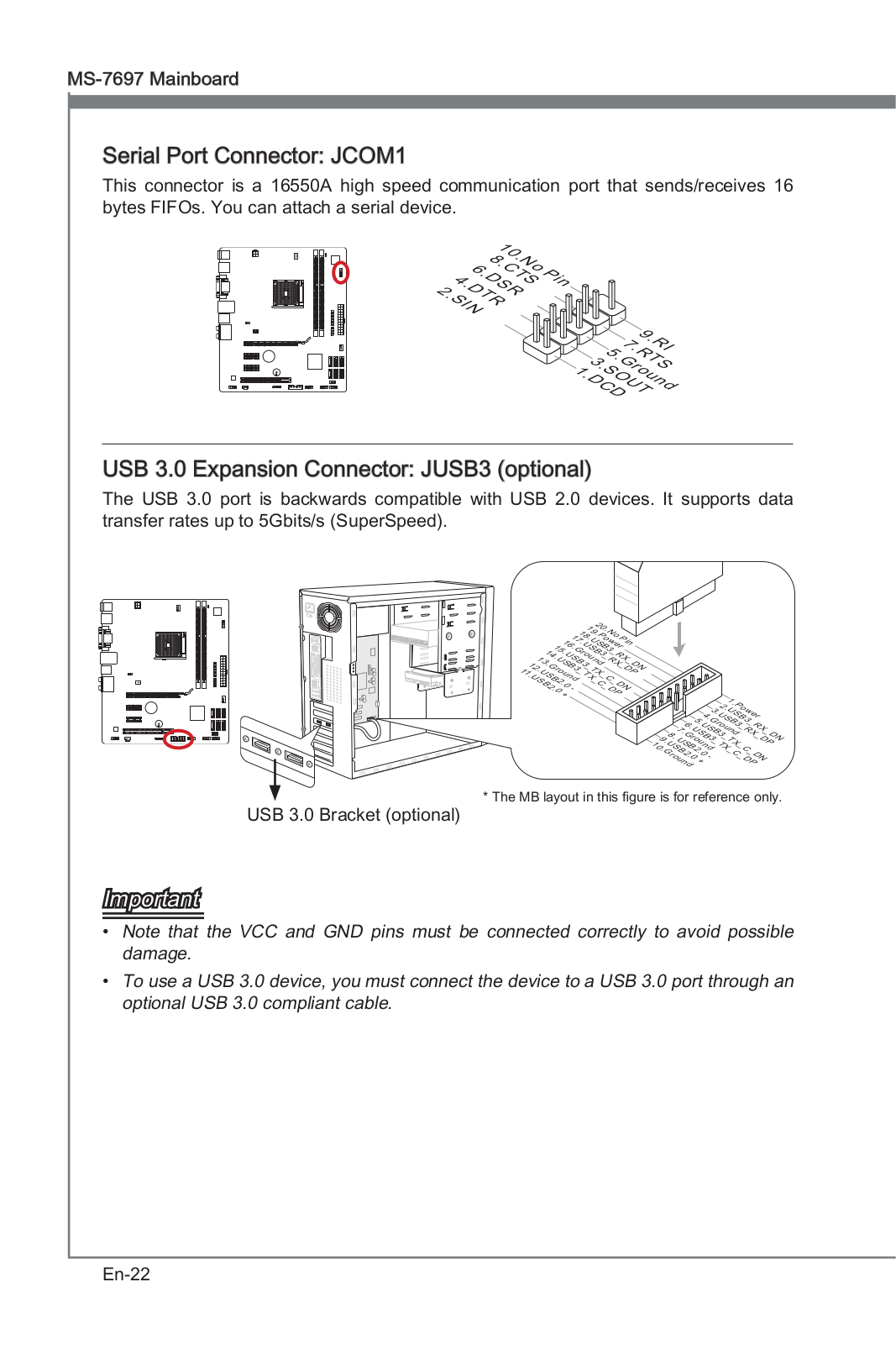

Serial Port Connector |
JCOM1 |
En-22 |
USB 3.0 Expansion Connector |
JUSB3 |
En-22 |
Clear CMOS Jumper |
JBAT1 |
En-23 |
USB Power Jumper |
JUSB_PW1~2 |
En-23 |
Engl shi
En-5
MS-7697 Mainboard
Back Panel
Quick Guide
VGA Port |
LAN |
|
Mouse |
|
|
|
Line-In RS-Out |
|
|
Line-Out CS-Out |
|
|
Mic |
SS-Out |
Keyboard USB 2.0 Port |
DVI-D Port |
USB 2.0 Port USB 3.0 Port |
|
|
(optional) |
Mouse/Keyboard
A PS/2® mouse/keyboard DIN connector for a PS/2® mouse/keyboard.
USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other USB 2.0-compatible devices.
USB 3.0 Port (optional)
USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer rate up to 5 Gbit/s (SuperSpeed).
Important
In order to use USB 3.0 devices, you must connect to a USB 3.0 port. If a USB cable is used, it must be USB 3.0 compliant.
LAN |
|
|
|
|
The standard RJ-45 LAN jack is for connecting to a Yellow |
Green/ Orange |
|||
Local Area Network (LAN). |
|
|
||
LED |
Color |
LED State |
Condition |
|
Left |
Yellow |
Off |
LAN link is not established. |
|
|
|
On(Steady) |
LAN link is established. |
|
|
|
On(flashing) |
The computer is communicating with another computer on the |
|
|
|
|
network. |
|
Right |
Green |
Off |
10 Mbits/sec data rate |
|
|
|
On |
100 Mbits/sec data rate |
|
|
Orange |
On |
1000 Mbits/sec data rate |
|
En-6
VGA Port
The DB15-pin female connector is provided for monitor.
DVI
-D Port
The DVI-D (Digital Visual InterfaceDigital) connector can be connected to a LCD monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the monitor’s manual for more information.
Audio Ports
These connectors are used for audio devices. The color of the jack refers to the function of the connector.
■Blue-Line in: Used for connecting external audio outputting devices.
■GreenLine out: Used as a connector for speakers or headphone.
■PinkMic: Used as a connector for a microphone.
■Black- RS-Out: Rear surround sound line out in 4/ 5.1/ 7.1 channel mode.
■Orange- CS-Out: Center/ subwoofer line out in 5.1/ 7.1 channel mode.
■Gray- SS-Out: Side surround sound line out in 7.1 channel mode.
Engl shi
En-7
MS-7697 Mainboard
CPU (Central
Processing Unit)
Introduction
to FM1
APU
The surface of CPU. Remember to apply some thermal paste on it for better heat dispersion.
Gold arrow
Important
Overheating
Overheating can seriously damage the CPU and mainboard. Always make sure the cooling fans work properly to protect the CPU from overheating. Be sure to apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation.
Replacing the CPU
When replacing the CPU, always turn off the system’s power supply and unplug the power supply’s power cord to ensure the safety of the CPU.
Overclocking
This mainboard is designed to support overclocking. Before attempting to overclock, please make sure that all other system components can tolerate overclocking. Any attempt to operate beyond product specifications is not recommend. MSI does not guarantee the damages or risks caused by inadequate operation beyond product specifications.
En-8
CPU & Cooler Installation
When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard.
1. Pull the lever sideways away from |
2. Look for the gold arrow of the CPU. |
the socket. Make sure to raise the |
Thegoldarrowshouldpointasshown |
lever up to a 90-degree angle. |
in the picture. The CPU can only fit in |
|
the correct orientation. |
Engl shi
3.If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.
4.Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the leverwithyourfingerspressingtightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
En-9
MS-7697 Mainboard
5.Position the cooling set onto the retention mechanism.
Hook one end of the clip to hook first.
7. Fasten down the lever.
6.Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism.
Locate the Fix Lever and lift up it .
8.AttachtheCPUFancabletotheCPU fan connector on the mainboard.
Important
•While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.
•Confirm that the CPU cooler has formed a tight seal with the CPU before booting your system.
•Please refer to the documentation in the CPU cooler package for more details about CPU cooler installation.
En-10
Mounting Screw Holes
When installing the mainboard, first install the necessary mounting stands required for an mainboard on the mounting plate in your computer case. If there is an I/O back plate that came with the computer case, please replace it with the I/O backplate that came with the mainboard package. The I/O backplate should snap easily into the computer case without thengi need for any screws. Align the mounting plate’s mounting stands with the screw holes on the mainboard and secure the mainboard with the screws provided
with your computer case. The locations of the screw holes on the mainboard are shown |
|||
|
i |
toward |
|
below. For more information, please refer to the manual that came with the computer |
|||
case. |
th |
|
|
holesnei the |
|
||
|
|
||
|
thewonup |
|
|
|
I/O |
the |
|
|
should |
I/OThe |
|
|
rear l |
||
|
backplate |
of |
|
|
|
ports |
|
|
the |
||
|
. |
|
should |
|
|
|
be |
|
|
computer |
|
|
|
|
fac |
|
|
They .case |
|
Engl shi
Important
•Install the mainboard on a flat surface free from unnecessary debris.
•To prevent damage to the mainboard, any contact between the mainboard circuitry and the computer case, except for the mounting stands, is prohibited.
•Please make sure there are no loose metal components on the mainboard or within the computer case that may cause a short circuit of the mainboard.
En-11
MS-7697 Mainboard
Power Supply
ATX 24-pin Power Connector:
JPWR1
This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, align the power supply cable with the connector and firmly press the cable into the connector. If done correctly, the clip on the power cable should be hooked on the mainboard’s power connector.
|
|
|
|
|
|
|
|
12 |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
11 |
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
10 |
|
. +3. |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
+12V |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
9 . |
|
|
3 |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
8 |
. |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
6 . |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 . |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
1 |
|
|
4 |
. +5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
3 . |
Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
2 |
|
. +5 |
|
|
|
|
|
|
|
|
|
|
24 |
|
|
|
||||
|
|
.GroundV |
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
. |
|
|
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. +3 |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
+3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
23. |
|
|
|||
|
|
|
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. +5 |
V |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+5 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+5 |
V |
V |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
.Ground |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13. |
- |
ON |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
+3 12V |
|
# |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
V |
|
|
|
|
|
|
|
ATX 4-pin Power Connector:
JPWR2
This connector provides 12V power to the CPU.
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
|
|
|
|
|
|
2 |
Ground |
|
|
|
|
|
|
. |
|
|
|
|
|
|
|
Ground |
|
|
|
|
|||||
|
|
||||||
|
|||||||
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
. |
4 |
+12V |
. |
|
+12V |
|
Important
Make sure that all the power cables are securely connected to a proper ATX power sup-
ply to ensure stable operation of the mainboard.
En-12
Memory
These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://www.msi.com/service/test-report
DDR3
240-pin, 1.5V
48x2=96 pin |
72x2=144 pin |
Dual
-Channel
mode Population Rule
In Dual-Channel mode, the memory modules can transmit and receive data with two data bus channels simultaneously. Enabling Dual-Channel mode can enhance system performance. The following illustrations explain the population rules for Dual-Channel mode.
1 |
DIMM1 |
|
|
|
DIMM3 |
Installed
Empty
Important
•DDR3 memory modules are not interchangeable with DDR2, and the DDR3 standard is not backward compatible. Always install DDR3 memory modules in DDR3 DIMM slots.
•To ensure system stability, memory modules must be of the same type and density in Dual-Channel mode.
•Always insert memory modules in the DIMM1 slot first.
•Due to chipset resource usage, the system will only detect up to 15+ GB of memory (not full 16 GB) when all DIMM slots have 8GB memory modules installed.
Engl shi
En-13
MS-7697 Mainboard
Installing
Memory Modules
1.Unlock the DIMM slot by pushing the mounting clips to the side. Vertically insert the memory module into the DIMM slot. The memory module has an off-center notch on the bottom that will only allow it to fit one way into the DIMM slot.
2.Push the memory module deep into the DIMM slot. The plastic clips at each side of the DIMM slot will automatically close when the memory module is properly seat and an audible click should be heard.
3.Manually check if the memory module has been locked in place by the DIMM slot’s side clips.
Notch
Volt
En-14
Expansion
Slots
Thismainboardcontainsnumerousportsforexpansioncards,suchasdiscretegraphics or audio cards.
PCIe (Peripheral
Component Interconnect
Express)
Slot
The PCIe slot supports the PCIe interface expansion card.
PCIe 2.0 x16 Slot
PCIe x1 Slot
PCI
(Peripheral
Component Interconnect)
Slot
The PCI slot supports additional LAN, SCSI, USB, and other add-on cards that comply with PCI specifications.
32-bit PCI Slot
PCI
Interrupt
Request Routing
IRQ, or interrupt request lines, are hardware lines over which devices can send interrupt requests to the processor. The PCI IRQ pins are typically connected to the PCI bus pins as followed:
|
Order1 |
Order2 |
Order3 |
Order4 |
PCI Slot1 |
INT E# |
INT F# |
INT G# |
INT H# |
Important
When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet. Read the expansion card’s documentation to check for any necessary additional hardware or software changes.
Engl shi
En-15
MS-7697 Mainboard
Video/ Graphics Cards
If available, this mainboard takes advantage of the CPU’s integrate graphics processor, but discrete video cards can be installed by way of the mainboard’s expansion slots. Addingononeormorediscretevideocardswillsignificantlyboostthesystem’sgraphics performance. For best compatibility, MSI graphics cards are recommended.
Single Video Card Installation
1.Determine what type of expansion slot the video card will use. Locate the expansion slot on the mainboard. Remove any protective expansion slot covers from the computer case.
2.Line up the video card on top of the expansion slot with the display ports facing out of the computer case.
3.Push the video card into its expansion slot. Depending on the expansion slot used, there should be clip on the expansion slot that will lock in place.
4.If needed, screw the edge of the graphics card to the computer case. Some video cards might require a power cable directly from the power supply.
5.Please consult your video card’s manual for further instructions regarding driver installation or other special settings.
En-16
Internal
Connectors
Serial
ATA Connector:
SATA1~6
This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device. Serial ATA devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD/ DVD/ Blu-Ray).
Engl shi
* The MB layout in this figure is for reference only.
SATA4
SATA1
SATA2
SATA3
SATA5
SATA6
SATA1~6 (6Gb/s, by AMD® A75 for A75MA-P35) SATA1~6 (3Gb/s, by AMD® A55 for A55M-P35)
Important
•Many Serial ATA devices also need a power cable from the power supply. Such devices include disk drives (HDD), solid state drives (SSD), and optical drives (CD / DVD / Blu-Ray). Please refer to the device’s manual for further information.
•Many computer cases also require that large Serial ATA devices, such as HDDs, SSDs, and optical drives, be screwed down into the case. Refer to the manual that came with your computer case or your Serial ATA device for further installation instructions.
•Please do not fold the Serial ATA cable at a 90-degree angle. Data loss may result during transmission otherwise.
•SATA cables have identical plugs on either sides of the cable. However, it is recommended that the flat connector be connected to the mainboard for space saving purposes.
En-17
MS-7697 Mainboard
Fan
Power Connectors:
CPUFAN,SYSFAN1~2
The fan power connectors support system cooling fans with +12V. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with a speed sensor to take advantage of the CPU fan control. Remember to connect all system fans. Some system fans may not connect to the mainboard and will instead connect to the power supply directly. A system fan can be plugged into any available system fan connector.
CPUFAN/ SYSFAN1
|
|
|
|
1 |
|
|
|
|
|
|
|
2 . |
|
|
|
||||
3 |
. G |
|
|
|
|||||
|
+ r |
|
|
||||||
4 |
. |
1 o |
|
|
|||||
|
S |
|
2 u |
|
|||||
. |
|
e |
|
|
|
n |
|||
C |
|
n V |
|
d |
|||||
|
|
o |
|
s |
|
|
|
||
|
|
|
n |
|
o |
|
|
||
|
|
|
|
t |
|
r |
|
|
|
|
|
|
|
r |
|
|
|
||
|
|
|
|
|
o |
|
|
|
|
|
|
|
|
|
|
l |
|
|
|
SYSFAN2
1 . 2 . Ground 3 +12V . Sensor/
NoUse
Important
•Please refer to your processor’s official website or consult your vendor to find recommended CPU cooling fans.
•The CPUFAN and SYSFAN1 connectors support Smart fan control. The Control Center utility can be installed to automatically control the CPU fan speeds according to the CPU’s and system’s temperature.
•If there are not enough ports on the mainboard to connect all system fans, adapters are available to connect a fan directly to a power supply.
•Before first boot up, ensure that there are no cables impeding any fan blades.
En-18
Front
Panel
Connectors:
JFP1, JFP2
These connectors connect to the front panel switches and LEDs. The JFP1 connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide. When installing the front panel connectors, please use the enclosed mConnectors to simplify installation. Plug all the wires from the computer case into the mConnectors and then plug the mConnectors into the mainboard.
|
Speaker |
|
|
|
6 |
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
Buzzer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
4 |
|
. |
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
2 |
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
5 . |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. No |
|
|
|
|
|
|
||||||||
|
|
|
|
JFP2 |
|
|
|
|
. |
|
|
Power |
n |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
|
|
|
|
|
|
|
Pi |
D |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
Suspend |
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ground |
|
|
|
|
LE |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LE |
|
|
|
|
|
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D |
|
|
|
P |
ower |
S |
|
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
witch |
|
No |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
ower |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
. |
|
Pi |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
LE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
D |
|
|
|
6 |
8 |
n |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
4 |
|
. |
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
2 |
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
. |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
Reserve |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
. |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+ |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
. |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
JFP1 |
|
|
|
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
d |
||||||
|
|
|
|
|
|
|
|
|
+ |
- |
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
|
|
|
|
|
|
|
Reset |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HDD |
LE |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D |
|
witch |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Important
•On the connectors coming from the case, pins marked by small triangles are positive wires. Please use the diagrams above and the writing on the mConnectors to determine correct connector orientation and placement.
•The majority of the computer case’s front panel connectors will primarily be plugged into JFP1.
Front
Panel
Audio Connector:
JAUD1
This connector allows you to connect the front audio panel located on your computer case. This connector is compliant with the Intel® Front Panel I/O Connectivity Design Guide.
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
4 |
8 . |
|
|
|
|
|
|
|
|
|
. NoHead |
|
|
||
|
|
|
|
|
|
|
6 . |
P |
|
|
|
|
|
|
|
|
. MI |
Pi |
|
||
2 |
NC |
D |
hone |
|
||||||
|
|
C n |
|
|
||||||
. |
|
|
|
|
||||||
|
|
|
|
|
Ground |
etection |
Detection |
|||
|
|
|
|
|||||||
|
|
|
|
|
||||||
|
|
|
|
|||||||
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
||
|
3 . |
. |
|
|
|
|
||||
|
|
Head |
|
|
|
|
||||
|
|
|
|
7 |
|
|
|
|
|
|
|
|
5 . |
|
|
|
|
|
|||
|
. |
HeadSENSE |
P |
|
|
|
||||
. MI |
|
|
P |
hone |
|
|||||
MI |
|
|
|
|
|
|||||
1 |
|
|
|
C |
|
|
_ |
|
|
|
|
|
C |
R |
|
SEN |
|
|
|||
|
|
hone |
|
D |
||||||
|
|
|
L |
|
|
|
|
|
L |
|
|
|
|
|
|
|
R |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Engl shi
En-19
MS-7697 Mainboard
USB 2.0 Expansion
Connectors:
JUSB1~2
This connector is designed for connecting high-speed USB peripherals such as USB HDDs, digital cameras, MP3 players, printers, modems, and many others.
|
|
|
|
10. |
|
|
|
|
|
|
|
|
|
|
||
|
|
6 |
8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
. |
|
. NC |
|
|
|
|
|
|
|
|
|
|
||||
|
|
USB1Ground |
|
|
|
|
|
|
|
|
|
|
||||
4 |
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
. |
|
|
|
+ |
|
|
|
|
|
|
|
|
|
|
|
VCUSB1 |
|
|
|
|
|
|
|
|
|
|
|
|||||
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
|
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
5 |
7 |
|
. |
|
|
|||
|
|
|
|
|
|
|
|
|
. No |
Pi |
||||||
|
|
|
|
|
|
|
3 . |
|
|
|
|
|||||
|
|
|
|
|
|
1 |
|
. |
USB0Ground |
n |
||||||
|
|
|
|
|
|
. |
|
|
||||||||
|
|
|
|
|
|
VCUSB0 |
- |
+ |
|
|||||||
|
|
|
|
|
|
|
|
C |
|
|
|
|
|
|||
* The MB layout in this figure is for reference only.
USB 2.0 Bracket (optional)
Important
Note that the VCC and GND pins must be connected correctly to avoid possible damage.
S/PDIF
-Out Expansion
Connector:
JSP1
This connector uses the S/PDIF (Sony & Phillips Digital Interconnect Format) interface for digital audio transmission.
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 . |
|
|
|
|
|
|
|
|
|
|
VC Ground |
||
|
|
|
|
|
|
|
|
|
|
|
. |
3 |
|
SPDIFC |
|||||||||
. |
|
||||||||||
* The MB layout in this figure is for reference only.
S/PDIF-Out Bracket (optional)
En-20
Loading...
