MSD Oxycycle Deluxe 2 User Manual
4

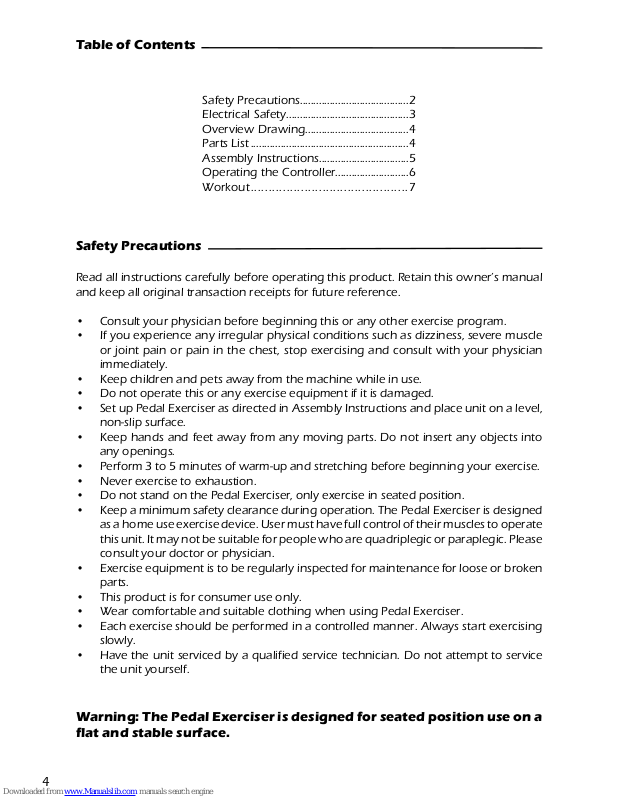

Read all instructions carefully before operating this product. Retain this owner’s manual
and keep all original transaction receipts for future reference.
Consult your physician before beginning this or any other exercise program.•
If you experience any irregular physical conditions such as dizziness, severe muscle •
or joint pain or pain in the chest, stop exercising and consult with your physician
immediately.
Keep children and pets away from the machine while in use.•
Do not operate this or any exercise equipment if it is damaged.•
Set up Pedal Exerciser as directed in Assembly Instructions and place unit on a level, •
non-slip surface.
Keep hands and feet away from any moving parts. Do not insert any objects into •
any openings.
Perform 3 to 5 minutes of warm-up and stretching before beginning your exercise.•
Never exercise to exhaustion.•
Do not stand on the Pedal Exerciser, only exercise in seated position.•
Keep a minimum safety clearance during operation. The Pedal Exerciser is designed •
as a home use exercise device. User must have full control of their muscles to operate
this unit. It may not be suitable for people who are quadriplegic or paraplegic. Please
consult your doctor or physician.
Exercise equipment is to be regularly inspected for maintenance for loose or broken •
parts.
This product is for consumer use only.•
Wear comfortable and suitable clothing when using Pedal Exerciser.•
Each exercise should be performed in a controlled manner. Always start exercising •
slowly.
Have the unit serviced by a qualified service technician. Do not attempt to service •
the unit yourself.
Warning: The Pedal Exerciser is designed for seated position use on a
flat and stable surface.
Safety Precautions........................................2
Electrical Safety.............................................3
Overview Drawing......................................4
Parts List ..........................................................4
Assembly Instructions.................................5
Operating the Controller...........................6
Workout .......... .......... .......... .......... ....7
Safety Precautions
Table of Contents
5
Storage Precautions:
Do not store the unit in any place where it will be subjected to high or low temperatures.
Do not expose to direct sunlight for extended periods of time. Do not store the unit in a
humid or dusty area.
When using an electrical appliance, basic precautions should always be followed,
including the following:
Read all instructions before using this unit.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
An appliance should never be left unattended when plugged in. Unplug from outlet •
when not in use and before putting on or taking off parts.
Do not operate under blanket or pillow. Excessive heating may occur and cause fire, •
electric shock, or injury to persons.
Close supervision is necessary when this unit is used by or near children, physically •
challenged or disabled persons.
Use this unit only for its intended use as described in this manual. Do not use •
attachments not recommended by the manufacturer.
Never operate this unit if it has a damaged cord or plug. If it is not working properly, •
if it has been dropped or damaged or dropped into water. Return the appliance to
a service center for examination and repair.
Do not carry this appliance by supply cord or use cord as a handle.•
Keep the cord away from heated surface.•
Never operate the unit with the air openings blocked; keep the air openings free •
of lint.
Never drop or insert any objects into any openings.•
Do not use outdoors.•
Do not operate where aerosol (spray) products are being used or where oxygen is •
being administered.
To disconnect, turn the speed and resistance knobs to the off position, then remove •
plug from outlet.
Always unplug this appliance from the electrical outlet immediately after using and •
before cleaning.
For Household Use Only.•
Power requirement: 220VAC•
Electrical Safety
6
1
2
3
4
8
9
10
11
12
13
14
16
17
18
19
20
21
22
23
24
26
28
29
30
31
12
10
20
24
31
32
27
21
19
34
33
35
5
15
25
6
7
26
12
36
12
30
23
Part # Description Q’ty Part # Description Q’ty
1 Controller 1 19 Bolt M5x40mm 2
2 Rear Stabilizer 380 1 20 Bolt M8x20mm 2
3 Front Stabilizer 220 1 21 Nut M5 2
4 Main Frame 1 22 Bolt M5x10mm 2
5 Magnet Bracket 1 23 Bolt M6x12mm 6
6 Right Cover 1 24 Bolt M8x12mm 6
7 Left Cover 1 25 Screw ST2.9x10 2
8 Right Crank 1 26 Screw ST4.2x15 11
9 Left Crank 1 27 Controller Bracket A 1
10 Plastic Cap 2 28 Washer 2
11 PCB Support 6 29 Spring Washer 2
12 Stabilizer End Cap 4 30 Spring Washer 6
13 Motor 1 31 Spring Washer 6
14 Square Sensor 1 32 Controller Bracket B 1
15 Square Magnet 1 33 Right Handgrip Pedal 1
16 Power Control Board 1 34 Left Handgrip Pedal 1
17 Right Foot Pedal 1 35 AC Power Cable 1
18 Left Foot Pedal 1 36 Non-slip Mat 1
(24) Bolt M8 x M12 (31) Spring Washer Wrench Allen Wrench
Overview Drawing & Parts List
