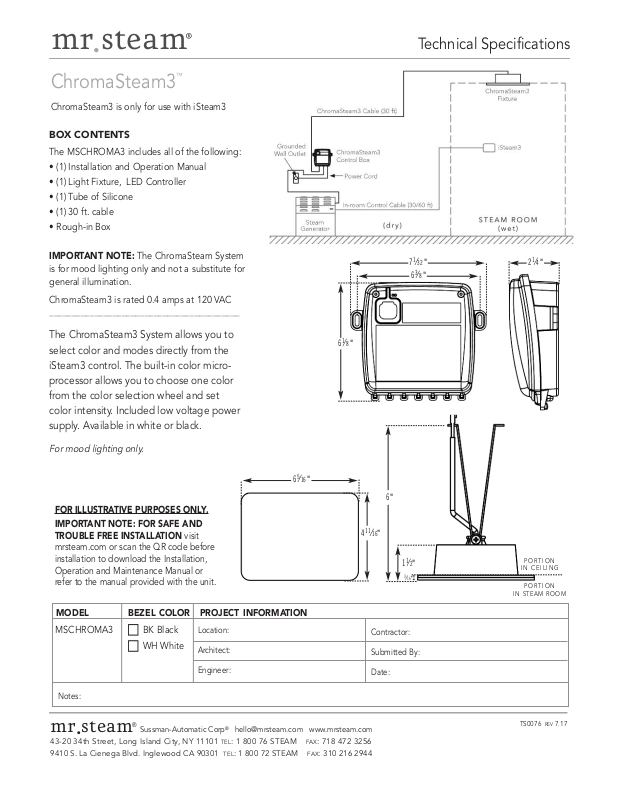

Mr. Steam MSCHROMA3BK, MSCHROMA3WH Specifications
mr.steam
®
Technical Specifications
ChromaSteam3
™
ChromaSteam3 is only for use with iSteam3
OX CONTENTS
B
The MSCHROMA3 includes all of the following:
• (1) Installation and Operation Manual
• (1) Light Fixture, LED Controller
• (1) Tube of Silicone
• (1) 30 ft. cable
• Rough-in Box
IMPORTANT NOTE: The ChromaSteam System
is for mood lighting only and not a substitute for
general illumination.
ChromaSteam3 is rated 0.4 amps at 120 VAC
__________________________________________
The ChromaSteam3 System allows you to
select color and modes directly from the
iSteam3 control. The built-in color microprocessor allows you to choose one color
from the color selection wheel and set
color intensity. Included low voltage power
supply. Available in white or black.
1
7
⁄
32" 2
3
6
⁄
8"
1
6
⁄
8"
1
⁄
4"
For mood lighting only.
5
6
⁄
16"
FOR ILLUSTRATIVE PURPOSES ONLY.
IMPORTANT NOTE: FOR SAFE AND
TROUBLE FREE INSTALLATION visit
4
mrsteam.com or scan the QR code before
installation to download the Installation,
Operation and Maintenance Manual or
refer to the manual provided with the unit.
MODEL BEZEL COLOR PROJECT INFORMATION
MSCHROMA3
Notes:
mr.steam
43-20 34th Street, Long Island City, NY 11101 TEL: 1 800 76 STEAM FAX: 718 472 3256
9410 S. La Cienega Blvd. Inglewood CA 90301 TEL: 1 800 72 STEAM FAX: 310 216 2944
BK Black
WH White
®
Sussman-Automatic Corp®hello@mrsteam.com www.mrsteam.com
Location:
Architect:
Engineer:
6"
11
⁄
16"
Contractor:
Submitted By:
Date:
1
⁄
2
1
"
3
⁄
16
"
P O R T IO N
I N C EI LI NG
P O R T IO N
IN STEA M ROOM
TS0076 REV 7.17
