Mr. Steam MS225EB1X, MS225EC3X, MS225EC1X, MS225EC1, MS225EB3X Specifications
...
141/2
"
(368)
21/2
"
(64)
51/8"(130)
13/4
"
(45)
63/4"(171)
1
3
/4"
(45)
5"
(127)
63/8
"
(162)
17/8"(48)
51/8"
(130)
81/4"
(210)
143/4"
(375)
1
1
7
/8"
(302)
®
mr.steam

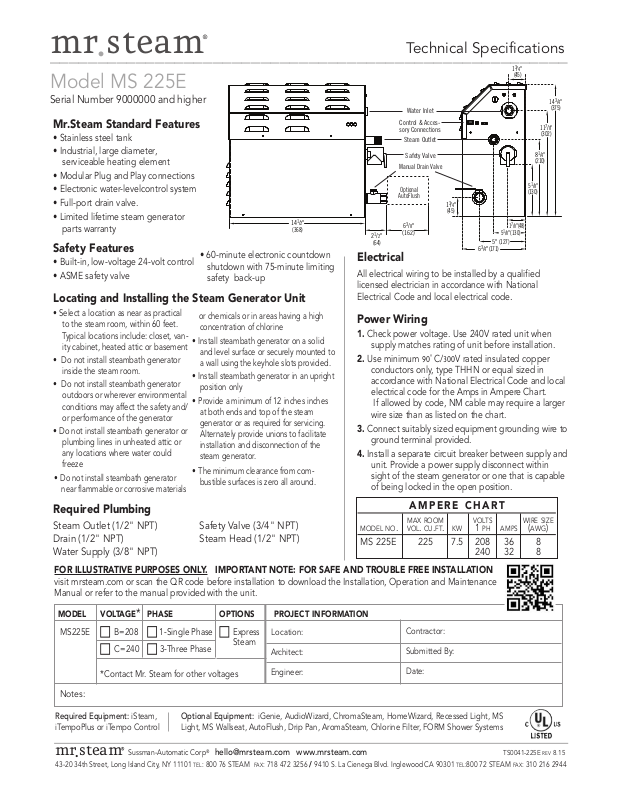

Technical Specifications
______________________________________________________
Model MS 225E
Serial Number 9000000 and higher
Mr.Steam Standard Features
Stainless steel tank
•
• Industrial, large diameter,
serviceable heating element
• Modular Plug and Play connections
• Electronic water-levelcontrol system
• Full-port drain valve.
• Limited lifetime steam generator
parts warranty
ater Inlet
W
ontrol & Acces-
C
ory Connections
s
Steam Outlet
afety Valve
S
anual Drain Valve
M
Optional
utoFlush
A
Safety Features
• Built-in, low-voltage 24-volt control
• ASME safety valve
• 60-minute electronic countdown
shutdown with 75-minute limiting
safety back-up
Locating and Installing the Steam Generator Unit
• Select a location as near as practical
to the steam room, within 60 feet.
Typical locations include: closet, vanity cabinet, heated attic or basement
• Do not install steambath generator
inside the steam room.
• Do not install steambath generator
outdoors or wherever environmental
conditions may affect the safety and/
or performance of the generator
• Do not install steambath generator or
plumbing lines in unheated attic or
any locations where water could
freeze
• Do not install steambath generator
near flammable or corrosive materials
or chemicals or in areas having a high
concentration of chlorine
• Install steambath generator on a solid
and level surface or securely mounted to
a wall using the keyhole slots provided.
• Install steambath generator in an upright
position only
• Provide a minimum of 12 inches inches
at both ends and top of the steam
generator or as required for servicing.
Alternately provide unions to facilitate
installation and disconnection of the
steam generator.
• The minimum clearance from combustible surfaces is zero all around.
Required Plumbing
Steam Outlet (1/2" NPT) Safety Valve (3/4" NPT)
Drain (1/2" NPT) Steam Head (1/2" NPT)
Water Supply (3/8" NPT)
Electrical
All electrical wiring to be installed by a qualified
licensed electrician in accordance with National
Electrical Code and local electrical code.
Power Wiring
1. Check power voltage. Use 240V rated unit when
supply matches rating of unit before installation.
2. Use minimum 90˚ C/300V rated insulated copper
conductors only, type THHN or equal sized in
accordance with National Electrical Code and local
electrical code for the Amps in Ampere Chart.
If allowed by code, NM cable may require a larger
wire size than as listed on the chart.
3. Connect suitably sized equipment grounding wire to
ground terminal provided.
4. Install a separate circuit breaker between supply and
unit. Provide a power supply disconnect within
sight of the steam generator or one that is capable
of being locked in the open position.
A M P E R E C H A R T
MAX ROOM VOLTS WIRE SIZE
MODEL NO. VOL. CU.FT. KW 1 PH AMPS (AWG)
MS 225E 225 7.5 208 36 8
240 32 8
FOR ILLUSTRATIVE PURPOSES ONLY. IMPORTANT NOTE: FOR SAFE AND TROUBLE FREE INSTALLATION
visit mrsteam.com or scan the QR code before installation to download the Installation, Operation and Maintenance
Manual or refer to the manual provided with the unit.
MODEL VOLTAGE* PHASE OPTIONS PROJECT INFORMATION
MS225E
Notes:
Required Equipment: iSteam,
iTempoPlus or iTempo Control
mr.steam
43-20 34th Street, Long Island City, NY 11101 TEL: 800 76 STEAM FAX: 718 472 3256 / 9410 S. La Cienega Blvd. Inglewood CA 90301 TEL:800 72 STEAM FAX: 310 216 2944
B=208
C=240
*
Contact Mr. Steam for other voltages
®
Sussman-Automatic Corp
1-Single Phase
3-Three Phase
Optional Equipment: iGenie, AudioWizard, ChromaSteam, HomeWizard, Recessed Light, MS
Light, MS Wallseat, AutoFlush, Drip Pan, AromaSteam, Chlorine Filter, FORM Shower Systems
®
hello@mrsteam.com www.mrsteam.com
Express
Steam
Location:
Architect:
Engineer:
Contractor:
Submitted By:
Date:
TS0041-225E REV 8.15
