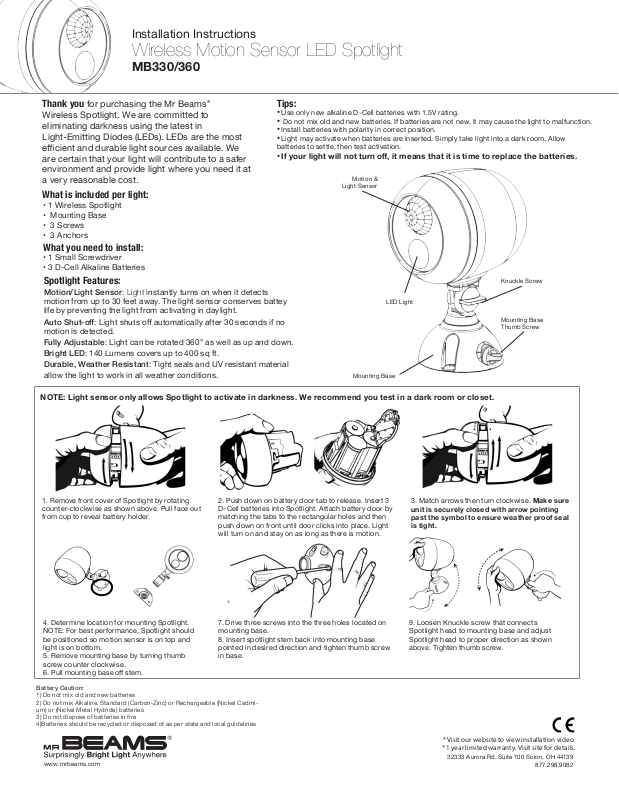

MB360
Installation Instructions
Wireless Motion Sensor LED Spotlight
MB330/360
Thank you for purchasing the Mr Beams
®
Wireless Spotlight. We are committed to
eliminating darkness using the latest in
Light-Emitting Diodes (LEDs). LEDs are the most
ecient and durable light sources available. We
are certain that your light will contribute to a safer
Tips:
•
Use only new alkaline D- Cell batteries with 1.5V rating.
•
•
Install batte ries with polarity in correct position.
•
Light may activate when bat teries are inserted. Simply take light into a dark room. Allow
batteries to settle, then test activation.
•
If your light will not turn o, it means that it is time to replace the batteries.
environment and provide light where you need it at
a very reasonable cost.
What is included per light:
• 1 Wireless Spotlight
• Mounting Base
• 3 Screws
• 3 Anchors
What you need to install:
• 1 Small Screwdriver
• 3 D-Cell Alkaline Batteries
Spotlight Features:
Motion/Light Sensor: Light instantly turns on when it detects
motion from up to 30 feet away. The light sensor conserves battey
life by preventing the light from activating in daylight.
Auto Shut-o: Light shuts o automatically after 30 seconds if no
motion is detected.
Fully Adjustable: Light can be rotated 360° as well as up and down.
Bright LED: 140 Lumens covers up to 400 sq ft.
Durable, Weather Resistant: Tight seals and UV resistant material
allow the light to work in all weather conditions.
Do not mix old and new batteries. If batteries are not new, it may cause the light to malfunction.
Motion &
Light Sensor
Knuckle Screw
LED Light
Mounti ng Base
Thumb Screw
Mounting Base
NOTE: Light sensor only allows Spotlight to activate in darkness. We recommend you test in a dark room or closet .
1. Remove front cover of Spotlight by rotating
counter-clock wise as shown above. Pull face out
from cup to reveal batter y holder.
4. Determine location for mounting Spotlight.
NOTE: For best per formance, Spotlight should
be positioned so motion sensor is on top and
light is on bottom.
5. Remove mounting base by turning thumb
screw counter clockwise.
6. Pull mounting base o stem.
Battery Caution:
1) Do not mix ol d and new b atter ies
2) Do not mix Alkaline, Standar d (Carb on-Zinc) or Rech arge able (N ickel Ca dmium) or (Ni ckel Met al Hydr ide) batteri es
3) Do not di spose of batte ries i n re
4)Batteries shoul d be recyc led or dispos ed of as per state a nd loc al guid eline s
www.mrbeams.com
2. Push down on battery door tab to release. Inser t 3
D-Cell batteries into Spotlight. Attach battery door by
matching the tabs to the rectangular holes and then
push down on front until door clicks into place. Light
will turn on and stay on as long as there is motion.
7. Drive three screws into the three holes located on
mounting base.
8. Insert spotlight stem back into mounting base
pointed in desired direction and tighten thumb screw
in base.
3. Match arrows then turn clockwise. Make sure
unit is secu rely closed wit h arrow poin ting
past the sym bol to ensure weat her proof seal
is tight.
9. Loosen Knuckle screw that connects
Spotlight head to mounting base and adjust
Spotlight head to proper direction as shown
above. Tighten thumb screw.
* Visit our website to view installation video.
* 1 year limited warranty. Visit site for details.
32333 Au rora Rd . Suite 100 S olon, O H 44139
877.298.9082
