Motrona 7388.5150, 7388.5155 User guide

Operating Manual

motrona GmbH, Zeppelinstraße 16, DE - 78244 Gottmadingen, Tel. [phone], Fax [phone], [e-mail], www.motrona.de

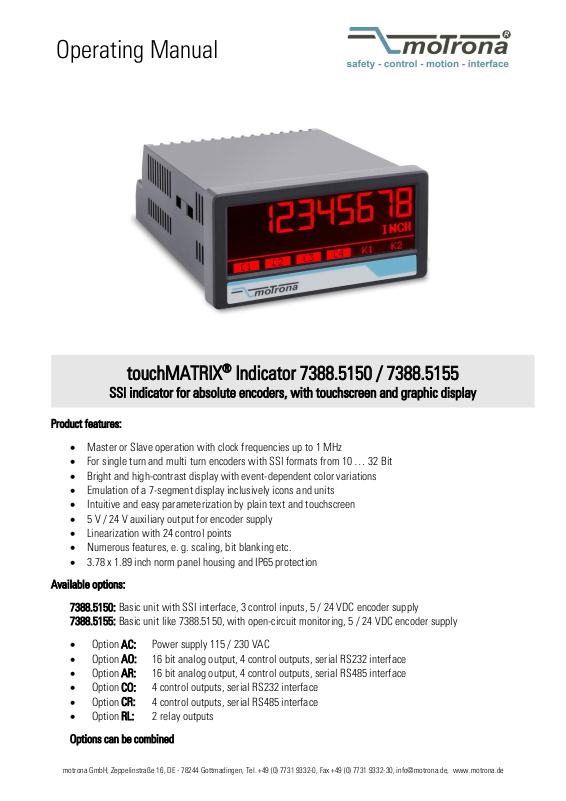

touchMATRIX® Indicator 7388.5150 / 7388.5155

SSI indicator for absolute encoders, with touchscreen and graphic display

Product features:

• Master or Slave operation with clock frequencies up to 1 MHz

• For single turn and multi turn encoders with SSI formats from 10 … 32 Bit

• Bright and high-contrast display with event-dependent color variations

• Emulation of a 7-segment display inclusively icons and units

• Intuitive and easy parameterization by plain text and touchscreen

• 5 V / 24 V auxiliary output for encoder supply

• Linearization with 24 control points

• Numerous features, e. g. scaling, bit blanking etc.

• 3.78 x 1.89 inch norm panel housing and IP65 protection

Available options:

7388.5150: Basic unit with SSI interface, 3 control inputs, 5 / 24 VDC encoder supply

7388.5155: Basic unit like 7388.5150, with open-circuit monitoring, 5 / 24 VDC encoder supply

• Option AC: Power supply 115 / 230 VAC

• Option AO: 16 bit analog output, 4 control outputs, serial RS232 interface

• Option AR: 16 bit analog output, 4 control outputs, serial RS485 interface

• Option CO: 4 control outputs, serial RS232 interface

• Option CR: 4 control outputs, serial RS485 interface

• Option RL: 2 relay outputs

Options can be combined

7388_5150_06a_oi_e.docx / Jan-21 Page 2 / 66

Version:

Description:

7388.5150_01a_oi/cn/Jun-17

First Version

7388.5150_01b_oi/cn/Jul-17

First Revision

7388.5150_01c_oi/cn/Jul-17

Revision

7388.5150_02a_oi/cn/Nov-17

Expansion of the scale units

7388.5150_02b_oi/cn/Apr-18

Revision

7388.5150_02b_oi/cn/April-18

Expansion of the serial interface

7388.5150_03a_oi/cn/Juni-18

Expansion with modbus

7388.5150_04a_oi/cn/July-18

Extension to parameters SKIP COMMANDS and Modbus description

7388.5150_05a_oi/tgo/March-19

Extension of parameter SSI ZERO

7388.5150_05b_oi/mbo/Aug-19

Extension of QR-code

7388.5150_06a_oi/tgo/Jul-20

Extension by additional speed display u. large display.
(Additional scaling parameters + "Source" parameters for display, analog
and switching outputs added + error messages implemented

Legal notices:

All contents included in this manual are protected by the terms of use and copyrights of motrona
GmbH. Any reproduction, modification, usage or publication in other electronic and printed media
as well as in the internet requires prior written authorization by motrona GmbH.

7388_5150_06a_oi_e.docx / Jan-21 Page 3 / 66

Table of content

Safety Instructions and Responsibility .......................................................................... 5

General Safety Instructions ............................................................................................................. 5

Use according to the intended purpose .......................................................................................... 5

Installation ....................................................................................................................................... 6

EMC Guidelines ............................................................................................................................... 7

Cleaning, Maintenance and Service Notes..................................................................................... 7

Introduction .................................................................................................................. 8

Operation mode ............................................................................................................................... 8

Function diagram ............................................................................................................................. 9

Electrical Connections ................................................................................................ 10

DC Power Supply ........................................................................................................................... 10

Auxiliary Voltage Output................................................................................................................ 10

SSI-Inputs ....................................................................................................................................... 11

Control Inputs ................................................................................................................................. 14

Analog Output (Option AO/AR) ...................................................................................................... 14

Serial interface (Option AO/AR/CO/CR) ........................................................................................ 15

Control-Output (Option AO/AR/CO/CR) ......................................................................................... 15

AC Power supply (Option AC) ........................................................................................................ 16

Relay-Output (Option RL) ............................................................................................................... 16

Display and touch screen ........................................................................................... 17

Screen structure for parametrization ............................................................................................ 17

Screen structure in operation ........................................................................................................ 18

Error Message ................................................................................................................................ 20

Parameter / Overview-Menu Structure ....................................................................... 23

General Menu ................................................................................................................................ 25

SSI Properties ................................................................................................................................ 26

Position Settings ............................................................................................................................ 28

Speed Settings ............................................................................................................................... 31

Preselection Values ....................................................................................................................... 33

Preselection 1 Menu ...................................................................................................................... 34

Preselection 2 Menu ...................................................................................................................... 37

Preselection 3 Menu ...................................................................................................................... 38

Preselection 4 Menu ...................................................................................................................... 39

Serial Menu ................................................................................................................................... 40

Analog Menu ................................................................................................................................. 42

Command Menu ............................................................................................................................. 43

Display Menu ................................................................................................................................. 45

Linearization Menu ........................................................................................................................ 48

Appendix .................................................................................................................... 49

Data readout via serial interface ................................................................................................... 49

Modbus RTU Interface ................................................................................................................... 50

Parameter setting ................................................................................................................................. 50

Modbus Communication ....................................................................................................................... 51

Diagnose ............................................................................................................................................... 52

Parameter / serial codes................................................................................................................ 53

7388_5150_06a_oi_e.docx / Jan-21 Page 4 / 66

Linearization ................................................................................................................................... 58

Reading SSI-Value ......................................................................................................................... 60

Internal processing and calculation of SSI data ........................................................................... 61

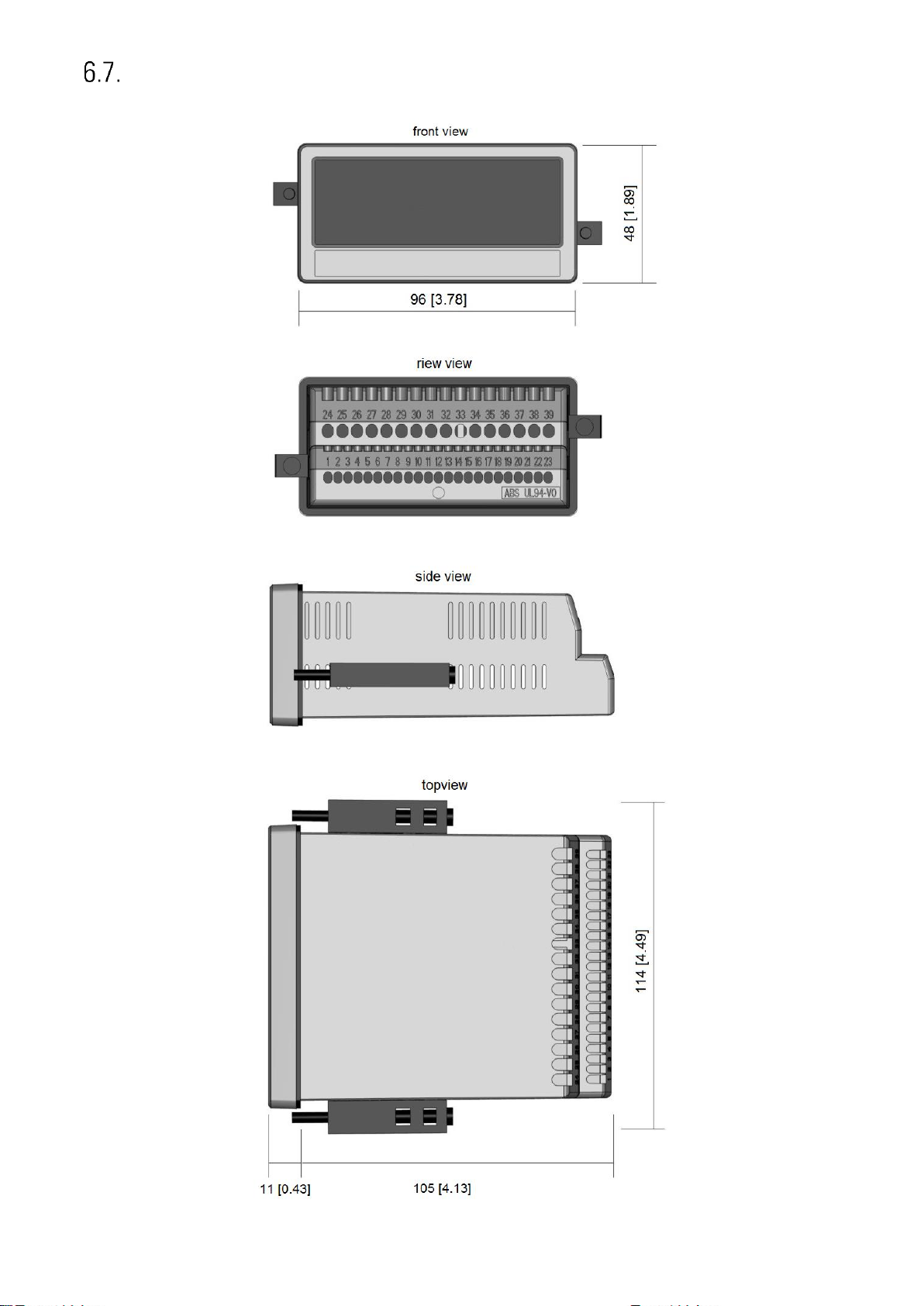

Dimensions .................................................................................................................................... 64

Technical Specifications: ............................................................................................................... 65

7388_5150_06a_oi_e.docx / Jan-21 Page 5 / 66

Safety Instructions and Responsibility

General Safety Instructions

This operation manual is a significant component of the unit and includes important rules and hints
about the installation, function and usage. Non-observance can result in damage and/or impairment
of the functions to the unit or the machine or even in injury to persons using the equipment!

Please read the following instructions carefully before operating the device and observe all safety
and warning instructions! Keep the manual for later use.

A pertinent qualification of the respective staff is a fundamental requirement in order to use these
manual. The unit must be installed, connected and put into operation by a qualified electrician.

Liability exclusion: The manufacturer is not liable for personal injury and/or damage to property and
for consequential damage, due to incorrect handling, installation and operation. Further claims, due to
errors in the operation manual as well as misinterpretations are excluded from liability.

In addition the manufacturer reserves the right to modify the hardware, software or operation manual
at any time and without prior notice. Therefore, there might be minor differences between the unit
and the descriptions in operation manual.

The raiser respectively positioner is exclusively responsible for the safety of the system and
equipment where the unit will be integrated.

During installation or maintenance all general and also all country- and application-specific safety
rules and standards must be observed.

If the device is used in processes, where a failure or faulty operation could damage the system or
injure persons, appropriate precautions to avoid such consequences must be taken.

Use according to the intended purpose

The unit is intended exclusively for use in industrial machines, constructions and systems. Non­conforming usage does not correspond to the provisions and lies within the sole responsibility of the
user. The manufacturer is not liable for damages which have arisen through unsuitable and improper
use.

Please note that device may only be installed in proper form and used in a technically perfect
condition (in accordance to the Technical Specifications). The device is not suitable for operation in
explosion-proof areas or areas which are excluded by the EN 61010-1 standard.
.

7388_5150_06a_oi_e.docx / Jan-21 Page 6 / 66

Installation

The device is only allowed to be installed and operated within the permissible temperature range.
Please ensure an adequate ventilation and avoid all direct contact between the device and hot or
aggressive gases and liquids.

Before installation or maintenance, the unit must be disconnected from all voltage-sources. Further it
must be ensured that no danger can arise by touching the disconnected voltage-sources.

Devices which are supplied by AC-voltages must be connected exclusively by switches, respectively
circuit-breakers with the low voltage network. The switch or circuit-breaker must be placed as near as
possible to the device and further indicated as separator.

Incoming as well as outgoing wires and wires for extra low voltages (ELV) must be separated from
dangerous electrical cables (SELV circuits) by using a double resp. increased isolation.

All selected wires and isolations must be conform to the provided voltage- and temperature-ranges.
Further all country- and application-specific standards, which are relevant for structure, form and
quality of the wires, must be ensured. Indications about the permissible wire cross-sections for wiring
are described in the Technical Specifications.

Before first start-up it must be ensured that all connections and wires are firmly seated and secured
in the screw terminals. All (inclusively unused) terminals must be fastened by turning the relevant
screws clockwise up to the stop.

Overvoltage at the connections must be limited to values in accordance to the overvoltage category II.

7388_5150_06a_oi_e.docx / Jan-21 Page 7 / 66

EMC Guidelines

All motrona devices are designed to provide high protection against electromagnetic interference.
Nevertheless you must minimize the influence of electromagnetic noise to the device and all connected
cables.

Therefore the following measures are mandatory for a successful installation and operation:

• Use shielded cables for all signal and control input and output lines.

• Cables for digital controls (digital I/O, relay outputs) must not exceed a length of 30 m and are

allowed for in building operation only

• Use shield connection clamps to connect the cable shields properly to earth

• The wiring of the common ground lines must be star-shaped and common ground must be connected

to earth at only one single point

• The device should be mounted in a metal enclosure with sufficient distance to sources of

electromagnetic noise.

• Run signal and control cables apart from power lines and other cables emitting electromagnetic

noise.

Please also refer to motrona manual “General Rules for Cabling, Grounding, Cabinet Assembly”. You can

download that manual by the link

https://www.motrona.com/en/support/general-certificates.html

Cleaning, Maintenance and Service Notes

To clean the front of the unit please use only a slightly damp (not wet!), soft cloth. For the rear no
cleaning is necessary. For an unscheduled, individual cleaning of the rear the maintenance staff or
assembler is self-responsible.

During normal operation no maintenance is necessary. In case of unexpected problems, failures or
malfunctions the device must be shipped for back to the manufacturer for checking, adjustment and
reparation (if necessary). Unauthorized opening and repairing can have negative effects or failures to
the protection-measures of the unit.

7388_5150_06a_oi_e.docx / Jan-21 Page 8 / 66

Introduction

The SSI display device is designed for panel mounting. It is universally applicable, with its intuitive
operation, the extensive features and options.

Operation mode

All functions are can be configured in the parameter menu.
The device can be set to one of the following operation modes:

• MASTER

- -The clock for the connected sensor is produced

- -The both clock terminals (CLK, / CLK) are configured as outputs in this case

• SLAVE

-The clock for the encoder is generated by an external device (the SSI master).

-The both clock terminals (CLK, / CLK) are configured as inputs in this case

7388_5150_06a_oi_e.docx / Jan-21 Page 9 / 66

Function diagram

7388_5150_06a_oi_e.docx / Jan-21 Page 10 / 66

Electrical Connections

The terminal screws should be tightened with a slotted screwdriver (blade width 2mm).

DC Power Supply

The unit accepts DC supply from 18 to 30 V at the terminals 1 and 2. The power consumption depends
on the level of the supply voltage with approx. 100 mA and the additional current required at the
Auxiliary Voltage Output.

All GND terminals are internally interconnected.

Auxiliary Voltage Output

Terminal 3 and 4 provide an auxiliary output for supply of sensors and encoders.
The 24 VDC output voltage depends on the power supply (see Technical data).
The auxiliary voltage output is switchable from 24 VDC to 5 VDC.

7388_5150_06a_oi_e.docx / Jan-21 Page 11 / 66

SSI-Inputs

At Terminal 5, 6, 7 and 8, the connection is available for SSI signals. The basic settings must be set in
the menu SSI PROPERTIES.

Wiring for MODE Master:

Wiring for MODE Slave:

7388_5150_06a_oi_e.docx / Jan-21 Page 12 / 66

Continuation ”SSI-Inputs“:

The 7388.5155 includes an open-circuit monitoring (only with termination, e.g. 120 ohm). In slave
MODE, CLK, /CLK and DATA, /DATA are monitored. In master MODE, only DATA, /DATA are
monitored.

Error detection

/DATA

DATA

/CLK

CLK

Status

+ + +

+

Stable data

+ + +

-

Stable data (not guaranteed), no error detection

+ + - + Stable data (not guaranteed), no error detection

+ + - - Display value freezes, no error detection

+ - +

+

Error

+ - +

-

Error

+ - - + Error

+ - - - Error

- + +

+

Error

- + +

-

Error

- + - + Error

- + - - Error

- - +

+

Error - - + -

Error - - - +

Error - - - -

Error

7388_5150_06a_oi_e.docx / Jan-21 Page 13 / 66

If the encoder supply (GND or UB+) is demolished, an error is detected (regardless of CLK,/CLK,

data,/DATA.

7388_5150_06a_oi_e.docx / Jan-21 Page 14 / 66

Control Inputs

The three control inputs at terminal 10, 11 and 12 have HTL PNP characteristics.
In the COMMAND MENU the programmable functions for the control inputs can be assigned.
Available functions are: reset the display value, display switching, locking the touch screen or release
the lock function of the control or relay outputs.

Wiring of the control inputs:

Unconnected PNP inputs are always “LOW”.
All inputs are designed to receive impulses from electrical impulse sources.

Notice for mechanical switching contacts:
When exceptionally mechanical contacts are used, please connect an external capacitor between
GND (-) and the corresponding input (+). A capacity of 10 µF will reduce the input frequency to
20 Hz and miscounting due to contact bouncing will be eliminated.

Analog Output (Option AO/AR)

A 16 bit analog output is available at terminal 13 and 14 / 15
This output can be configured and scaled in the ANALOG MENU.

The following configuration is possible:

• Voltage output: -10 … +10 V

• Current output: 0 … 20 mA

• Current output: 4 … 20 mA

The analog output is proportional to the display value and is referenced to potential AGND.
AGND and GND are internally interconnected.

Important:
A parallel operation with voltage and current output at the analog output is not allowed.

7388_5150_06a_oi_e.docx / Jan-21 Page 15 / 66

Serial interface (Option AO/AR/CO/CR)

A serial interface (RS232 or RS485) is available at terminal 16, 17 und 18.
This interface can be configured in the SERIAL MENU.

The serial interface RS232 or RS485 can be used:

• for easy setup and commissioning of the units

• to modify settings and parameters during operation

• to read out internal states and actual measuring values by PC or PLC

The following drawing shows the connection to a PC by using a standard Sub-D-9 connector:

Connection of the RS232 interface:

Connection of the RS485 interface:

Control-Output (Option AO/AR/CO/CR)

Four control outputs are available at terminal 20, 21, 22 and 23.
Switching conditions can be set in the PRESELECTION MENU. The output Ctrl. Out1 – 4 are fast PNP
outputs with a switching capability of 5 – 30 Volt / 200 mA per channel. The switching states is
displayed (display with unit and status bar) as C1 … C4.

The switching voltage of the outputs must be applied to input terminal 19 (COM+).
In case of switching inductive loads it is advisable to use external filtering of the coils.

7388_5150_06a_oi_e.docx / Jan-21 Page 16 / 66

Wiring of the control-outputs:

AC Power supply (Option AC)

The unit accepts AC supply from 115 to 230 V at the terminals 24 and 25. The power consumption
depends on the level of the supply voltage with approx. 3VA and the additional current required at the
auxiliary voltage output.
Devices with option AC can also be supplied with a DC voltage between 18 and 30 VDC via Terminals
1 and 2.

Relay-Output (Option RL)

Two relay outputs with potential-free changeover contacts are available at terminal 27, 28, 28, 30, 31
and 32. Switching conditions can be set in the PRESELECTION MENU. The switching states are
displayed (display with unit and status bar) as K1 and K4.

AC-switching capacity max 250 VAC/ max 3 A / 750 VA
DC-switching capacity max 150 VAC/ max 2 A / 50 W

Wiring of the relay outputs

7388_5150_06a_oi_e.docx / Jan-21 Page 17 / 66

Display and touch screen

Screen structure for parametrization

The parameter menus and the parameters are described in chapter 5.

Start setup procedure:

To edit the parameters,
press the touchscreen for 3 seconds.

Menu selection:

Select the parameter menu via arrow buttons
and confirm with “OK”.

The menu selection can be terminated
with „C“.

Parameter selection:

Select the parameter via arrow buttons and
confirm with „OK“.

The parameter selection can be terminated

with „C“.

Parameter editing:

Edit the parameter via arrow button up and
down, shift cursor via left and right and save
with „OK“.
The parameter editing can be terminated
with „C“.

Parameter changes becomes active only after closing the menu selection.

7388_5150_06a_oi_e.docx / Jan-21 Page 18 / 66

Screen structure in operation

The following displays are available during operation. Depending on the device version and the
selected operating mode, only certain representations are displayed.

Display with unit and status bar

To switch to the next display,
press the touch screen.

Control - or Relay status are only shown with
Option AO, AR CO, CR or RL.

Two-line display without units:

Diagnostic window:

Read-in value for diagnostic purposes
(raw data).

Can be deactivated via the “DIAGNOSTIC
DISPLAY” parameter in the display menu.

When the diagnostic window is deactivated,
process data are displayed.

Two-line display with units:

To switch to the next display, press the top
of the screen.

The desired "source" can be set in the
display menu.

Large Display (4 digits)

To switch to the next display, press the top
of the screen.

Only visible in the display menu with
activated "LARGE DISPLAY" parameter.

Display with command keys

Functions see "Command menu".
To switch to the next display, press the top
of the screen.

7388_5150_06a_oi_e.docx / Jan-21 Page 19 / 66

Continuation “Screen structure in operation”:

Display for quick start for enter preselection
values (PRESELECTION VALUES)

To switch to the next display, press the top
of the screen.

This is only possible with Option AO, AR, CO,
CR and RL

Display with minimum and maximum value

To switch to the next display, press the top
of the screen or the “skip” button.
The maximum and minimum evaluation is
referenced always to the source set in the
"SOURCE SINGLE" parameter.

7388_5150_06a_oi_e.docx / Jan-21 Page 20 / 66

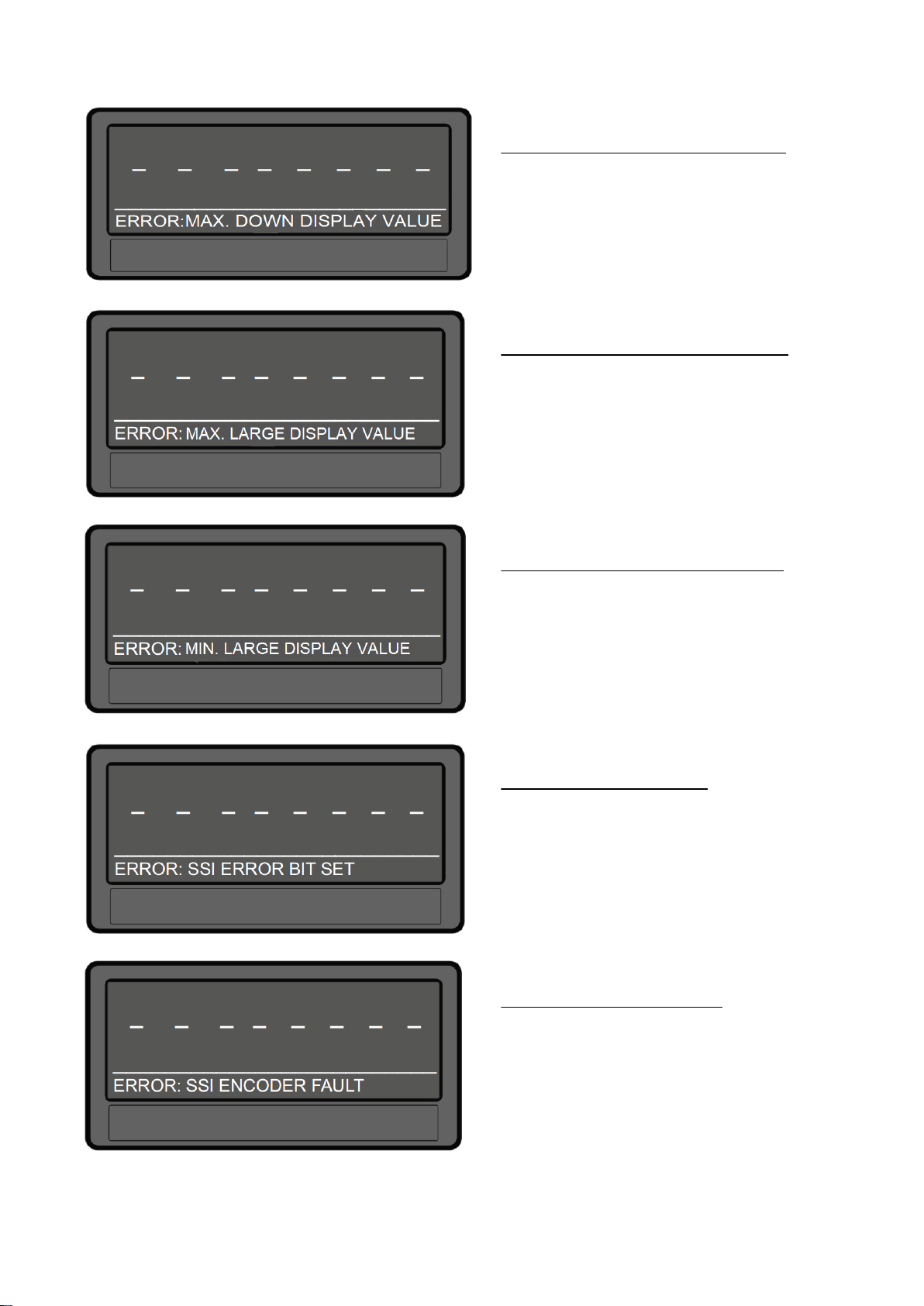

Error Message

ERROR: MAXIMUM DISPLAY VALUE

Display value of the single line display is
greater than + 99.999.999

ERROR: MINIMUM DISPLAY VALUE

Display value of the single line display is
less than -99.999.999

ERROR: MAX. TOP DISPLAY VALUE

Top display value of the two-line display
is greater than +99.999.999

ERROR: MIN. TOP DISPLAY VALUE

Top display value of the two-line display
is less than -99.999.999

ERROR: MAX. DOWN DISPLAY VALUE

Down display value of the two-line
display is greater than +99.999.999
