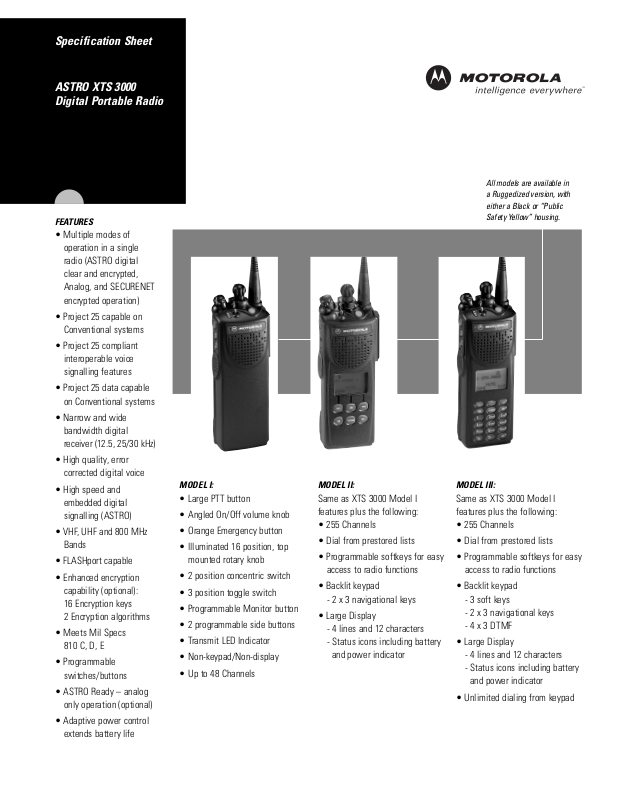

ASTRO XTS 3000
Digital Portable Radio
Specification Sheet
FEATURES
• Multiple modes of
operation in a single
radio (ASTRO digital
clear and encrypted,
Analog, and SECURENET
encrypted operation)
• Project 25 capable on
Conventional systems
• Project 25 compliant
interoperable voice
signalling features
• Project 25 data capable
on Conventional systems
• Narrow and wide
bandwidth digital
receiver (12.5, 25/30 kHz)
• High quality, error
corrected digital voice
• High speed and
embedded digital
signalling (ASTRO)
• VHF, UHF and 800 MHz
Bands
• FLASHport capable
• Enhanced encryption
capability (optional):
16 Encryption keys
2 Encryption algorithms
• Meets Mil Specs
810 C, D, E
• Programmable
switches/buttons
• ASTRO Ready – analog
only operation (optional)
• Adaptive power control
extends battery life
MODEL I:
• Large PTT button
• Angled On/Off volume knob
• Orange Emergency button
• Illuminated 16 position, top
mounted rotary knob
• 2 position concentric switch
• 3 position toggle switch
• Programmable Monitor button
• 2 programmable side buttons
• Transmit LED Indicator
• Non-keypad/Non-display
• Up to 48 Channels
MODEL II:
Same as XTS 3000 Model I
features plus the following:
• 255 Channels
• Dial from prestored lists
• Programmable softkeys for easy
access to radio functions
• Backlit keypad
- 2 x 3 navigational keys
• Large Display
- 4 lines and 12 characters
- Status icons including battery
and power indicator
MODEL III:
Same as XTS 3000 Model I
features plus the following:
• 255 Channels
• Dial from prestored lists
• Programmable softkeys for easy
access to radio functions
• Backlit keypad
- 3 soft keys
- 2 x 3 navigational keys
- 4 x 3 DTMF
• Large Display
- 4 lines and 12 characters
- Status icons including battery
and power indicator
• Unlimited dialing from keypad
All models are available in
a Ruggedized version, with
either a Black or “Public
Safety Yellow” housing.
Page 2
GENERAL PERFORMANCE SPECIFICATIONS
Modulation C4FM of QPSK-C family (Compatible Quadrature
Phase Shift Keying)
Protocol
ASTRO 4.8 kbps VSELP,2.1 kbps Error Correction Coding,
2.7 kbps Embedded Signaling
Project 25-CAI 4.4 kbps IMBE, 2.8 kbps Error Correction Coding,
2.4 kbps Embedded Signalling
SECURENET
12 kbps CVSD
Channel Bandwidth
ASTRO VSELP &
Project 25-CAI and Analog
12.5 kHz
SECURENET & Analog 20/25/30 kHz
VOICE CODER (ASTRO MODE)
Voice Coding Method
VSELP Vector Sum Excited Linear Predictive Coding
IMBE (CAI) Improved Multi Band Excitation
CVSD Continuously Variable Slope Delta Modulation
(for SECURENET mode)
Voice Truncation None (250 msec for SECURENET mode)
Frame Re-sync Interval 180 msec (clear digital mode)
Forward Error Correction Golay code
Error Mitigation (VSELP): Dual Level
Level 1: Extrapolates and replaces 30 msec voice
frames that exceed the error correction
algorithm tolerance
Level 2: Progressive muting of 30 msec voice frames
that are too severely damaged for Level 1
replacement
Error Mitigation Project 25-CAI (IMBE): Dual Level
Level 1: Extrapolates and replaces 20 msec voice
frames that exceed the error correction
algorithm tolerance
Level 2: Progressive muting of 20 msec voice frames
that are too severely damaged for Level 1
replacement
Code Book Structure ASTRO VSELP: Linear sum of basic vectors Project 25
(IMBE): No Code Book
SIGNALLING (ASTRO MODE)
Signalling Rate 9.6 kbps
Digital ID Capacity 16,700,000 IDs
Digital Network Access Codes 4,096 network site addresses
Digital User Group Addresses 4,096
Energy Management Automatic 3dB RF cutback based on infrastructure
RSSI signalling
Error Correction Techniques Golay, BCH, Reed-Solomon codes
Data Access Control Slotted CSMA: Utilizes infrastructure-sourced data
status bits embedded in both voice and
data transmissions.
SUBMERSION SPECIFICATIONS (RUGGEDIZED MODELS ONLY)
Leakage (immersion) MIL-STD-810C Method 512.1 Procedure I
Leakage (immersion) MIL-STD-810D Method 512.2 Procedure I
Leakage (immersion) MIL-STD-810E Method 512.3 Procedure I
TRANSMITTER
TYPICAL PERFORMANCE SPECIFICATIONS
VHF UHF 800 MHz
Frequency Range/Bandsplits 136-174 MHz 403-470 MHz 806-824 MHz
(Range 1)
450-520 MHz 851-870 MHz
(Range 2)
Channel Spacing 12.5/20/25/30 kHz 12.5/20/25 kHz 12.5/20/25 kHz
Maximum Frequency Separation Full Bandsplit Full Bandsplit Full Bandsplit
Rated RF Output Power, Adj.† 1 to 5W 1 to 4W 3W
Frequency Stability†***
(–30°C to +60°C +25°C Ref.) ±0.00020% ±0.00020% ±0.00015%
Modulation Limiting
25/30 kHz chnls ±5.0 kHz ±5.0 kHz ±5.0 kHz
20 kHz chnls ±4.0 kHz ±4.0 kHz N/A
12.5 kHz
(NPSPAC) chnls N/A N/A ±4.0 kHz
12.5 kHz chnls ±2.5 kHz ±2.5 kHz ±2.5 kHz
FM Hum & Noise†
25/30 kHz –48 dB –45 dB –45 dB
12.5 kHz –42 dB –42 dB –39 dB
Emissions†***
(Conducted & Radiated) –70 dBC –70 dBC –70 dBC
Audio Response†
(6dB/Octave Pre-emphasis from
300 to 3000 Hz) +1, –3 dB (EIA) +1, –3 dB (EIA) +1, –3 dB (EIA)
Audio Distortion per EIA† <2% <2% <2%
RECEIVER
TYPICAL PERFORMANCE SPECIFICATIONS
VHF UHF 800 MHz
Frequency Range/Bandsplits 136-174 MHz 403-470 MHz
(Range 1)
450-520 MHz 851-870 MHz
(Range 2)
Channel Spacing 12.5/20/25/30 kHz 12.5/20/25 kHz 12.5/20/25 kHz
Maximum Frequency Separation Full Bandsplit Full Bandsplit Full Bandsplit
Analog Sensitivity
20 dB Quieting (25/30 kHz chnl)† 0.35µV 0.35µV 0.40µV
12 dB SINAD per EIA
(25/30 kHz chnl)† 0.25µV 0.25µV 0.25µV
Digital Sensitivity***
1% BER (12.5 kHz chnl) 0.40µV 0.40µV 0.40µV
5% BER (12.5 kHz chnl)** 0.25µV 0.25µV 0.25µV
Selectivity†
(25/30 kHz chnl)† –78 dB –78 dB –75 dB
per EIA (12.5 kHz chnl) –67 dB –68 dB –63 dB
Intermodulation†***
(25/30 kHz chnl) –78 dB –77 dB –74 dB
Spurious Response†*** –75 dBC –75 dBC –75 dBC
Frequency Stability ±0.00020% ±0.00020% ±0.00015%
Audio Distortion <2% <2% <2%
Audio Output per
EIA (@≤3% Electrical Distortion)†*** 500 mW 500 mW 500 mW
† Measured in the analog mode per TIA/EIA 603
** Recovered digital audio quality @ 5% Bit Error Rate is approximately equal to audio quality @ 12 dB
SINAD for kHz channel
*** Measured in digital mode per TIA/EIA TSB 102.CAAB
Page 3
RADIO MODELS
VHF BAND UHF Band 800 MHz Band
Bandsplit 136-174 MHz 403 470 MHz (Range 1) 806-870 MHz
450-520 MHz Range 2)
Channel FLASHport Model Model Model
Model Display Keypad Capability Memory Numbers Numbers Numbers
Model l None None 16/48 1 MB H09KDC9PW5_N H09RDC9PW5_N (Range 1) H09UCC9PW5_N
H09SDC9PW5_N (Range 2)
Model lI 4 Lines/ 3 x 2 255 1 MB H09KDF9PW7_N H09RDF9PW7_N (Range 1) H09UCF9PW7_N
12-Characters H09SDF9PW7_N (Range 2)
per line Liquid
Crystal Display
Model III 4 Lines/ 3 x 6 255 1 MB H09KDH9PW7_N H09RDH9PW7_N (Range 1) H09UCH9PW7_N
12-Characters Button H09SDH9PW7_N (Range 2)
per line Liquid
Crystal Display
FCC Designations AZ489FT3790 AZ489FT4782 (Range 1) AZ489FT5774
AZ489FT4783 (Range 2)
Power Supply One rechargeable nickel-cadmium battery or one rechargeable nickel-metal hydride battery
Dimensions without battery (H x W x D) 6.58˝ x 2.44˝ x 1.65˝ (167.13 x 61.90 x 41.97 mm)
Weight 390 g
with Ultra High Capacity NiCd 704 g
FCC Emissions Designators 8K10F1E, 20K0F1E, 16K0F3E, 8K10F1D,11K0F3E, 11K0F2D, 11KOF1D, 15K0FID, 15K0F2D, 20K0F1D, 10K4F3E
ENCRYPTION
Encryption Algorithm Capacity 2 algorithms per radio
Encryption Keys per Radio 16 keys (ASTRO and SECURENET compatible)
Encryption Frame Re-sync Interval ASTRO: 360 msec
SECURENET: 500 msec
Project 25-CAI 360 msec
Encryption Keying Over-the-air Rekeying and Key Loader
Synchronization Counter Addressing, Cipher Feedback, and Output
Feedback
Code Key Generator External hand held microprocessor controlled key
variable loader
Encryption Key Tag
Capacity per System 65,000
Encryption Type Digital
Number of Unique Keys Dependent on encryption algorithm
Code Key Initialization Internally derived pseudo-random initializing vector
Key Storage Volatile electronic memory or non-volatile electronic
memory
Key Erasure Keyboard command, tamper detection, and over-the-
air command
BATTERIES FOR ASTRO DIGITAL XTS 3000
Battery Dimensions Battery Part Duty
Capacity/Type (HxWxD) Numbers Cycle
Ultra-High Capacity 5-5-90
Nickel-Cadmium 6.15˝ x 2.3˝ x .92˝ NTN8294 8 hr.
Ultra-High Capacity 5-5-90
NiMH 6.15˝ x 2.3˝ x .92˝ NTN8298 8 hr.
High Capacity 5-5-90
Lithium Ion 6.15˝ x 2.3˝ x .60˝ NTN8610 8 hr.
Ultra-High Capacity 5-5-90
NiCD Ruggedized 6.15˝ x 2.3˝ x .92˝ NTN8297 8 hr.
Extended Life 5-5-90
NiMH 6.15˝ x 2.3˝ x .92˝ NTN8923 9 hr.
MEETS OR EXCEEDS MILITARY STANDARDS 810E, 810D & 810C
MECHANICAL SPECIFICATIONS WHERE APPLICABLE
Standard U.S. Military U.S. Military U.S. Military
Spec 810E Spec 810D Spec 810C
Method/Procedure Method/Procedure Method/Procedure
Low Pressure 500.3/II 500.2/I 500.1/I
High Temperature 501.3/I 501.2/I Category A1 501.1/I
(Storage) (Induced)
High Temperature 501.3/II 501.2/II Category A1 501.1/II
(Operational) (Induced)
Low Temperature 502.3/I 502.2/I Category C1 502.1/I
(Induced)
Temperature Shock 503.3/I 503.2/I 503.1/I
Solar Radiation 505.3/I 505.2/I Figure 505.2 505.1/I
Rain & Blowing Rain 506.3/I&II 506.2/I&II 506.1/I&II
Humidity 507.3/II (Cycle-5) 507.2/II (Cycle-5) 507.1/II
Salt Fog 509.3/I 509.2/I 509.1/I
Dust 510.3/I 510.2/I 510.1/I
Vibration 514.4/I 514.3/I(Category 10) 514.2/VIII
(Category 10) (Curve W)
Shock 516.4/I, IV & VI 516.3/I, IV & VI 516.2/I, II & V
Page 4
MOTOROLA, XTS 3000, FLASHport and the Stylized M Logo are registered in the U.S. Patent and Trademark
Office. All other product or service names are the property of their respective owners.
©Motorola, Inc. 2003. (0305) VPS
Specifications subject to change without notice.
R3-4-165G
Motorola’s Commercial, Government
and Industrial Solutions Sector is a
recipient of the prestigious 2002 Malcolm
Baldrige National Quality Award.
This honor demonstrates our commitment
to performance excellence and
quality achievement.
