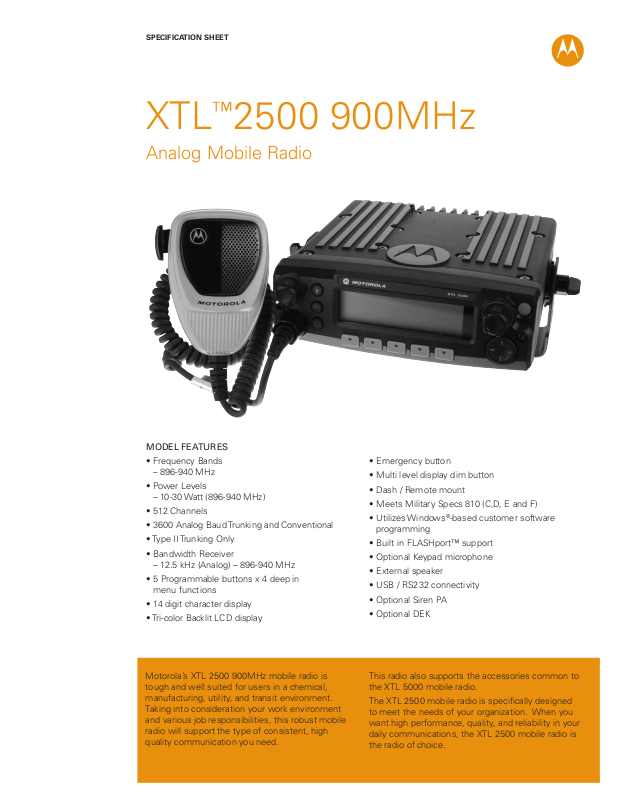

Specification Sheet
™
XTL
Analog Mobile Radio
2500 900MHz
MODEL FEATURES
• Frequency Bands
– 896-940 MHz
• Power Levels
– 10-30 Watt (896-940 MHz)
• 512 Channels
• 3600 Analog Baud Trunking and Conventional
• Type II Trunking Only
• Bandwidth Receiver
– 12.5 kHz (Analog) – 896-940 MHz
• 5 Programmable buttons x 4 deep in
menu functions
• 14 digit character display
• Tri-color Backlit LCD display
Motorola’s XTL 2500 900MHz mobile radio is
tough and well suited for users in a chemical,
manufacturing, utility, and transit environment.
Taking into consideration your work environment
and various job responsibilities, this robust mobile
radio will support the type of consistent, high
quality communication you need.
• Emergency button
• Multi level display dim button
• Dash / Remote mount
• Meets Military Specs 810 (C,D, E and F)
®
• Utilizes Windows
programming
• Built in FLASHport™ support
• Optional Keypad microphone
• External speaker
• USB / RS232 connectivity
• Optional Siren PA
• Optional DEK
This radio also supports the accessories common to
the XTL 5000 mobile radio.
The XTL 2500 mobile radio is specifically designed
to meet the needs of your organization. When you
want high performance, quality, and reliability in your
daily communications, the XTL 2500 mobile radio is
the radio of choice.
-based customer software
Specification Sheet
XTL™2500 900MHz
Analog Mobile Radio
GeneRaL peRfoRMance SpecificationS
Frequency range 896-940 MHz
Modulation Analog FM
Channel Bandwidth Analog 12.5 kHz
SpeaKeR
Dimensions 5.5” x 5.5” x 2.5”
(139.7 x 139.7 x 63.5 mm)
(Excluding mounting bracket)
Weight 1.5 lbs (0.7 kg)
tRanSMitteR – tYpicaL peRfoRMance SpecificationS
Frequency 896-940 MHz
RF Power 10-30W
Max Freq Separation Full Bandsplit
Freq Stability Operating Freq
Accuracy
(-30°C to +60°C;+25°C Ref) –
900MHz ±1.5 ppm
Modulation Limiting
12.5 kHz channel ±2.5 kHz
Channel Spacing Analog 12.5 kHz
FM Hum and Noise
12.5 kHz –38 dB (Hear Clear OFF)
Emissions
Audio Response
(6db/Octave Pre-emphasis
from 300 to 300 0 Hz) +1, -3 dB (TIA 603)
Audio Distortion per EIA 2%
Conducted and Radiated: –70 dBc
Specification Sheet
XTL™2500 900MHz
Analog Mobile Radio
poWeR anD BatteRY DRain
Model Type 896-940 MHz
Minimum RF Power Output 10-30 Watt (896-940 MHz)
Operation 12V DC Negative Ground
Standby at 13.8V 0.7 A
Receive at Rate Audio
at 13.8V 2.0 A
Transmit at Rated Power 8.5 A
ReceiVeR – tYpicaL peRfoRMance SpecificationS
Frequency 896-940 MHz
Channel Spacing 12.5 kHz
Maximum Frequency
Separation Full Bandsplit
Option Pre-Amp No
Analog Sensitivity
20 dB Quieting .30 µV
12 dB SINAD per EIA .25 µV
Intermodulation 70 dB
Spurious Response Rejection 80 dB
Audio Output Power at
3% distortion 7.5 W (External Speaker)
3 W (Internal Speaker)
Adjacent Channel
Rejection Selectivity
(12.5 kHz) 65 dB
fcc tYpe acceptance iD
Band Transmitter Power Output Number
896-940 MHz 10-30 W AZ492FT5847
enViRonMentaL SpecificationS
Operating Temperature –30ºC / +60ºC
Storage Temperature –55ºC / +85ºC
Ingress Protection IP54 certified
Specification Sheet
XTL™2500 900MHz
Analog Mobile Radio
MiLitaRY StanDaRDS 810 c, D, e, & f
MIL-STD 810C MIL-STD 810D MIL-STD 810E MIL-STD 810F
Method Proc./Cat. Method Proc./Cat. Method Proc./Cat. Method Proc./Cat.
Low Pressure 500.1 I 500.2 II 500.3 II 500.4 II
High Temperature Storage 501.1 I 501.2 I/A1 501.3 I/A1 501.4 I/Hot
High Temperature Operational 501.1 II 501.2 II/A1 501.3 II/A1 501.4 I/Hot
Low Temperature Storage 502.1 I 502.2 I/C3 502.3 I/C3 502.4 I/C3
Low Temperature Operational 502.1 I 502.2 II/C1 502.3 II/C1 502.4 II/C1
Temperature Shock 503.1 - 503.2 I/A1-C3 503.3 I/A1-C3 503.4 I/Hot-C3
Solar Radiation 505.1 II 505.2 I 505.3 I 505.4 I
Rain Blowing 506.1 I 506.2 I 506.3 I 506.4 I
Rain Steady 506.1 II 506.2 II 506.3 II 506.4 III
Humidity 507.1 II 507.2 II 507.3 II 507.4 -
Salt Fog 509.1 - 509.2 - 509.3 - 509.4 -
Blowing Dust 510.1 I 510.2 I 510.3 I 510.4 I
Blowing Sand 510.2 II 510.3 II 510.4 II
Vibration Minimum Integrity 514.2 VIII/F, Curve-W 514.3 I/10 514.4 I/10 514.5 I/24
Vibration Loose Cargo 514.3 II/3 514.4 II/3 514.5 II/5
Shock Functional 516.2 I 516.3 I 516.4 I 516.5 I
Shock Crash Hazard 516.2 III 516.3 V 516.4 V 516.5 V
Shock Bench Handling 516.2 V 516.3 VI 516.4 VI 516.5 VI
