Congratulations

MOTOROLA xt685

Your MOTOROLA XT685 phone delivers more for your work and play!

•Search: Touch Search to searc h across y our a pps,

contacts, web, and maps—or just enter the address for a place or a web page.

• Touchscreen: Browse the web and pinch-to-zoom on

the touch display in “Web” on page 28.

• Camera: Capture photos and videos with the 8MP

auto-focus camera in “Photos & videos” on page 26.

• Dual-SIM Slot: No need to change SIM cards—use

two at the same time.

Note: Some apps and features might not be available in all countries.

Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your product.

This product meets the applicable limit for exposure to radio waves (known as SAR) of 2.0

W/kg (ICNIRP). T he limits and gu ideli ne s in clud e a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory i nformation packaged with your product.

Note: When usin g the product while worn on your bod y, either use an approved accessory such as a holster or maintain a distance of 2.5 cm (1 inch) from the body to ensure compliance with SAR requirements. N ote that the product may be transmitting even if you are not making a phone call.

• Support: Phone updates, PC software, online help

and more at www.motorola.com/support.

• Accessories: Find accessories for your phone at

www.motorola.com/products.

1Congratulations

Notes:

Press = sleep. Hold = turn off.

3.5mm

Headset

Jack

Back Key

Touchscreen

Power/ Lock Key

Volume Keys

Camera Key

Search Key

Micro USB

Connector

Microphone

Front Camera

Notification Light

Flash=missed call,

new message, or other notification.

Home Key

Menu Key

Touch to open

menu options.

• All screens in this guide are simulated. A ctual

displays may vary.

• Instructions to perform tasks in this guide may

change depending on the software version on your phone.

• Unless specified, instructions to perform tasks in

this guide assume that you are starting from the home screen.

Your phone

the important keys & connectors

2 Your phone

Contents

SIM microSIM microSIM

+ Adapter

Let’s go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Apps & updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

People . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Text entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tips & tricks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Photos & videos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Personalize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Wireless. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Safety, Regulatory & Legal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Let’s go

let’s get you up and running

Assemble & charge

1 Cover off 2 SIM/s in

3 microSD in (may

already be inserted)

5 Cover on 6 Charge up

4 Battery in

3Let’s go

Caution: Please read “Battery Use & Safety” on page 47.

Set up & go

Note: This phone supports data-intensive apps and services. It is st rongly recommended that you purchase a data plan that meets your ne eds . Con tact y o ur se rvice provider for details.

When you turn on your new phone, you can create or enter a Google™ account so that you can download apps, use Gmail™, and much more:

1 Press and hold

Power/Lock Key to turn on your phone.

2 Touch the Android™

image to begin setup.

3 Touch a button to

Create a Google

account, Sign in with one you have, or Skip.

You can log into your account from a compute r at accounts.google.com.

4 Enter details to create or sign into your account.

When your phone confirms the account, it shows account sync options.

4 Let’s go

Power/ Lock Key

Press = sleep. Hold = turn off.

• T o c hange whether your phone shows the Google account’s contacts, Gmail™, and calendar, touch the Google account name.

• To add another account, touch Add account. For details, see “Email” on page 21.

• To exit setup touch Home .

Wi-Fi connect

To use a Wi-Fi network for even faster Internet access, touch the status bar at the top of the home screen and drag it down. Touch the

Wi-Fi networks available

notification to select a preferred network. You can also touch Menu > System settings >

Wireless & networks > Wi-Fi settings to search for and

connect to wireless networks. There’s more in “Wi-Fi networks” on page 34.

activate SIM cards

Your smartphone supports two SIM cards. When two SIM cards are installed, you can activate one or both.

1 From the home screen, touch Menu > System

settings

> More > Dual SIM Settings >

Enable/Disable SIM 1, Enable/Disable SIM 2, or both.

2 Set Data Service to SIM 1 or SIM 2.

Note: If only one SIM card is installed, it is activated by

default.

Note: Only SIM 1 supports 3G data network.

Volume Keys

Camera Key

Slide two fingers apart or together to zoom in or out.

Drag or flick to scroll.

Cool content & more

Browse and do wnload th ousands of the co olest ap ps on the planet from Google Play™.

Download new apps with “Browse & install apps” on page 12. You can install a microSD memory card (optional) in your phone, and load it up with photos, videos, and music from your computer (see “Memory

card & file management” on page 40).

Keys

Use your phone’s keys to navigate and open options at any time.

Press the volume keys to change the ringer volume (in the home screen), or the earpiece volume (during a call).

From any screen, press the camera key on the right side of the phone to open the camera.

Touch Home to return to the home screen. Touch and hold Home to see your recent apps.

Control

a few essentials

Touch

Gesture

•Touch: Choose an icon or option.

• Touch & Hold: Select an item and open an action bar.

•Drag: Move items in the home screen, or scroll

slowly through lists.

• Flick: Scroll quickly between views or through lists.

• Pinch or double-touch: Zoom in and out on

websites, photos, and maps.

lark St

born St

Wacker D r

E Randolph St

E Wacker Pl

State/Lake

W Lake St W Lake St

Lake

Randolph/

Wabash

N Micigan

5Control

Unlock & lock touchscreen

To unlock the screen, press the Power key, then touch and flick to anyway.

To lock the screen, press the Power key, or let the screen time out (don’t press anything).

Touch and flick to:

turn on/off Wi-Fi .

to make a call.

to send a text.

to open the camera.

Menu, home, back, & search

Touch Home to close a menu or app and return to the home screen. In the home screen, touch and hold Home to see a list of recent apps, then touch an app to open it.

Tip: To remove an item from the recent apps list, flick it left or right.

Touch Menu to open options for the current app or screen.

Touch Back to go back.

6 Control

Touch Search for text search. Touch and hold for voice search or to perform voice actions.

Touchscreen on/off

To save your battery, prevent accidental touches, or when you want to wipe smudges off your touchscreen, put the touchscreen to sleep by pressing the Power key . To wake up the touchscreen, just press the Power key again.

To change how long your smartphone waits before the screen goes to sleep automatically, touch Menu >

System settings > Display > Sleep.

Tip: To make the screen lock when it goes to sleep, see “Screen lock” on page 44.

Note: Your touchscreen might stay dark if the sensor just above it is covered. Don't use covers or screen protectors (even clear ones) that cover this sensor.

Rotate the screen

When you turn your phone, the touchscreen can rotate to stay right-side up:

Find it: Menu > System settings > Display >

Auto-rotate screen

Press

Volume Keys

Camera Key

Power key menu

Press and hold the Power key to open a phone options menu where you can turn off your phone (Power off), Restart your phone, turn Airplane mode on and off, or change the sound setting.

keys

Use your phone’s keys to navigate and open options at any time.

Press the volume keys to change the ringer volume (in the home screen), or the earpiece volume (during a call).

From any screen, press the camera key on the right side of the phone to open the camera.

Touch Home to return to the home screen. Touch and hold Home to see your recent apps.

Speak

Voice actions

Voice actions let you perform many tasks just by speaking to your phone: call or text your friends, get directions, set an alarm, and more.

1 Touch and hold Search .

Tip: You can also touch in the Google™ Search

widget.

2 Speak the voice action you want to perform.

If voice search doesn’t understand what you said, it presents a list of search terms and actions you can touch to choose.

Some actions, like “send email” and “note to self,” open a panel that prompts you to complete the action by speaking or typing more information.

Voice Action Commands

Say Followed by

words you want to search for

contact name

Example: “Bike shoes.”

Example: “Mike LeBeau” (opens

Mike’s contact card).

7Control

Say Followed by

“Call” Contact name & optionally, “home”,

“mobile”, or “work.” Example: “Call Mike LeBeau at

home.”

“Call” Digits of a phone number.

Example: “Call 650 555 1234.”

“Call” Business name.

Example: “Call Ruth’s Floral Shoppe.”

“Map of” Address, name, business name, type

of business, or other location. Example: “Map of Golden Gate Park,

San Francisco.”

“Directions to” or “Navigate to”

Address, name, business name, type of business, or other destination.

Example: “Directions to 1299 Colusa Avenue, Berkeley, California,” or “Navigate to Union Square, San Francisco.”

“Go to” Search string or URL.

Example: “Go to Google.com.”

8 Control

Say Followed by

“Send text” or “Send SMS”

“To” & contact names, “Message” & message text (speak punctuation).

Example: “Send text to Hugh Briss, subject, new shoes, message, I can’t wait to show you my new shoes, period.”

“Send email”

One or more of: “To” & contact names, “Cc” & contact names, “Bcc” & contact names, “Subject” & subject text, “Message” & message text (speak punctuation).

Example: “Send email to Hugh Briss, subject, new shoes, message, I can’t wait to show you my new shoes, period.”

“Note to self”

Message text. Example: “Note to self: remember

the milk.”

“Set alarm” “Time” or “for” & time (such as

“10:45 a.m.” or “20 minutes from now”), “Label” & name of alarm.

Example: “Set alarm for 7:45 p.m., label, switch the lau n dry.”

Say Followed by

“Listen to” Words to search YouTube™ for (such

For more information, touch and hold Search , then touch Help > Help Center > Tutorial.

as the name of a song, artist, or album).

Example: “Listen to: Black Hole Sun.”

Voice text entry

Touch a tex t entry field to open the touchscreen ke ypad. Touch , then say what you want to type.

Quick tips

If you’re not sure what to do next, try one of these:

To...

Open a text message, see contact details, or open items in a list.

See options for the current screen.

Select an item and open an action bar (if available).

Touch the message, contact, or item.

Touch Menu .

Touch & hold the item.

To...

Go back to the home screen.

Wake up your phone. Press the Power key. Reboot an

unresponsive phone.

Touch Home .

Press and hold the Power key and the down volume key for up to 10 seconds.

9Control

Home screen

Chhhhiststsstt

ststst

ststs

poo

sstsstop

opopop

3pm

Budget Meeting

THU

JUL

quick access to the things you need most

Quick start: Home screen

The home screen gives you all your latest informa tio n in one place. It’s what you see when you turn on your phone or touch Home from a menu. It’ s basically like this:

4:00

Status Bar

Notifications

Drag this bar down to see details.

Widget

Flick left or right to see more panels of shortcuts & widgets.

Shortcuts

Touch to open.

Favorites Tray

Touch Apps to see

CameraPeoplePhone

all your apps & widgets.

Amy Me1Doug Fo2Christop

See all your apps.

Touch the Launcher icon.

10 Home screen

ChristopChristop

James S3Christop

Natanya

1 of 7

BrowserGmail Maps Play Store

Messages

Note: Your home screen might look a little different.

Use & change your home screen

On your home screen, shortcuts are icons that open your favorite apps, web bookmarks, contacts, mail labels, playlists, and more. Widgets are live apps or tools that provide news, weather, messages, and other updates.

To see other panels of shor tcuts and widgets, flick the home screen left or right.

• To open something, touch it. Touch Home or

Back to return to the home screen. Tip: When you open a widget, touch Menu to see

any options or settings. You can cho os e ac counts for some widgets, like

Gmail.

• To resize widgets, touch

and hold a side until you feel a vibration, then drag.

• To add shortcuts to the

home screen, touch Apps , touch and hold an app, then drag it to a spot on the home screen panels.

T o create a shortcut folder, drag one shortcut onto another to put them bo th in a folder. To add other shortcuts, drag them onto the

Calendar,Email, Facebook, and

Kristine Kelley

Not even ready to

3pm

go back to school

Budget Meetin

folder icon. To name the folder, touch it and enter a

4:00

May 26, 2012

New voicemail

Dial *86

10:41 AM

Wi-Fi networks available

Select a Preferred Network

11:20 AM

Jim Somers: Meeting time?

paul.wang.6@gmail.com

11:23 AM

3 new messages

Yahoo!

10:49 AM

name at the bottom.

• To add widgets, touch Apps , touc h Widgets at t he

top, then touch and hold a widget (or flick left to see more widgets).

• To move widgets or shortcuts, touc h an d ho ld th em,

then drag to a new location.

• To remove shortcuts or widgets from the home

screen, touch and hold them, then drag to Remove at the top.

• To change wallpaper, touch and hold a blank spot on

the home screen.

Shortcuts in the favorites tray at the bottom of the home screen appear in all home screen vi ews. You can drag shortcuts or folders in or out of the favorites tray (except Apps ) for instant access from any home screen .

Touch Search , touch the Google text box that appears, then start typing your search text.

Touch here to enter text.

Touch to search by voice.

As you type, suggestions appear below the search field:

• To search for a suggestion, touch it.

• To add a suggestion to the search field, touch the

arrow beside it.

• To search for the text in the search field, touch on

the touchscreen keypad. The browser shows a list of search results. To set where Google™ Search looks on your phone,

touch Menu >

Settings > Searchable items. To

adjust Google Search privacy settings, touch Menu > Settings > Google Search.

Phone status & notifications

Icons at the top right of the screen show status information like signal strength, battery level, and time.

Icons at the top left show messages and app notifications. To see your notifications, touch the status bar and drag it down. Touch a notification to select it.

11Home screen

Tip: To remove a notification from the list, flick it left or

right. To clear all notifications, touch .

Status & notification icons

Tip: Blue connection ic ons (netw ork, data, Wi-Fi) appe ar when your phone is connected to your Google™ account. White connection icon s mean your phone is not communicating with the Google se rvers.

Note: Apps you download from Google Play™ may show other icons in the statu s bar to a lert y ou to specif ic events.

12 Apps & updates

Apps & updates

get the app you want

Quick start: Apps & updates

Touch Apps in any home screen panel, then flick left or right to see all your apps.

To close the apps screen, touch Home or Back .

Browse & install apps

One of the great things about a smartphone is the apps. Whatever you’re into, whatever you want to do, there’s probably an app that can help you. So, go to the place that has it all, Google Play™ Store.

Find it: Apps > Play Store Scroll to and touch the app you want to install. Then,

touch Install (if app is free) or Buy. New apps that you install are added to the apps screen. Tip: Choose your apps and updates ca re fu lly, from

trusted sites, like Play Store, as some may impact your phone’s performance—see “Choose carefully” on page 13.

Note: When installing an app, make sure you read the alerts that tell you what information the app will access. If you don ’t want the app to have acce ss to th is information, cancel the installation.

Create shortcut folders

You can use home screen folders to logically group and store your app shortcuts in a single locat ion.

To create a shortcut folder in the home screen, drag one shortcut onto another to put th em both in a folder. To add other shortcuts, drag the m onto the folder icon. To name the folder, touch it and enter a name at the bottom.

Recent apps

Your phone remembers the apps that you used most recently. From the home screen, touch and hold Home to see the most recent apps used.

Tip: To remove an item from the recent apps list, flick it left or right.

Manage & restore apps

From the home screen, touch Menu > Manage

apps

T ouc h an app to see its file size, access permissions, and other details, then touch Disable, Force stop, Uninstall (for apps you do wn lo ad ed), Clear cache, or other options.

To reinstall apps from Google Play, touch Apps > Play Store, then touch Menu > My Apps. Apps that you have previously purchased from Google Play are listed and available for download.

Choose carefully

Apps are great. There's someth in g for everyone. Play, communicate, work, or ha ve fu n. But remember, choo se your apps carefully. Here are a few tips:

• To help prevent spyware, phishing, or viruses from

affecting your phone or privacy , use apps from trusted

sites, like Play Store.

• In Play Store, check an app’s ratings and

comments before installing.

• If you doubt the safety of an app, don't install it.

• Like all apps, downloaded apps will use up memory,

data, battery, and processing power—some more

than others. For example, a simple battery level

widget will use less than a streami ng music player

app. After installing an app, if you're not happy with

how much memory, data, battery or processing

power it's using, uninstall it. You can always install it

again later.

• Just like web browsing, you may want to monitor

children’s access to apps to help prevent exposure to

inappropriate content.

• Certain apps may not provide completely accu rate

information. Take care, especial ly whe n it co mes to

personal health.

13Apps & updates

Update my phone

1 2

ABC

DEF

GHI

JKL

MNO

PQRS

TUV

WXYZ

Victor Harp

May 26, 2012

Mobile 555-555-4570

Recent Calls

Touch an entry to call.

Delete digits you entered.

Most Recent Call

Call

Enter a phone number & touch here to call it.

You can check, download, and install phone software updates using your phone, or using your computer:

• Using your phone:

You may get an automatic notification of an available update on your phone. Simply follow the instructions to download and install.

To manually check for updates, touch Menu >

System settings > About phone > System updates.

Your phone downloads any updates over your mobile network. Remember, these updates can be quite large (25MB or more) and may not be available in all countries - it’s recommended to use a Wi-Fi connection. If you don’t have an unlimited data plan, or mobile network updates are not available in your country, you can update using a computer.

• Using your computer:

On your computer, go to www.motorola.com/myrazr and check the “Software” links. If an update is available, fo llow the installation instructions.

Calls

it’s good to talk

Quick start: Calls

In the home screen, touch Phone. Tip: When the screen is locked, touch and flick to .

Dialer screen

DIALER PHONEBOOKRECENT

Most recent

14 Calls

Tip: Search for contacts right from the dialpad! For

example, to find Jeff in your contacts list, touch 5-3-3-3. Matching contacts appear above the number field.

In-call screen

Victor Harp

Mobile (555) 555-4570

Add call

MuteBluetooth Speaker

00:12

Call Timer

End Call

DialpadEnd call

Enter numbers during a call.

Speakerphone On/Off

Add another person for a conference call.

On Hold Mute/Unmute

T o use a Bluetooth™ d evice, to uc h . (The device must be turned on and previously paired—see “Connect new Bluetooth devices” on page 35.)

Tip: You can touch Home or Back to leave the active call display. To reopen it, touch Home > Phone.

Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely.

Make & answer calls

To make a call, to uch Phone, enter a number, then touch .

Tip: When the screen is locked, touc h and flick to to make a call.

Tip: When you hold your phone to your ear, the display goes dark to prevent accidental touches. When you move the phone away from your ear, the display lights up again.

To answer a call, touch and flick to . Note: If both SIMs are activated, choose which one to

use. To send an incoming call to your voicemail, touch

and flick to .

15Calls

To send a pre-set text

message to the caller,

touch and flick to . Select a message to immediately send it.

Tip: To silence an incoming call alert, press the Power

#ANĈTTALKNOW7HATĈSUP

)ĈLLCALLYOURIGHTBACK

)ĈLLCALLYOULATER

#ANĈTTALKNOW#ALLMELATER

#USTOMMESSAGE

key or the volume keys.

Recent calls

Find it: Phone > Recent

• To call a number, touch next to the entry.

• To see call detail s, touch the entry.

• To send a text message, create a contact, view a

contact, or other options, touch and hold the entry.

• To search the recent calls list, touch .

• To clear the list, touch Menu > Clear call log.

Favorites

Find it: Apps > People > Favorites

• To call, text, email, or view contact information, touch

the contact.

• To edit, share, delete, or set a ringtone for a contact,

touch the contact, then touch Menu .

16 Calls

Conference calls

To start a conference call , call th e fir st nu mber. Af te r the call connects, touch . Dial the next number, or select it from contacts or favorites. When the next number answers, touch .

Your phone number

Find it: Menu > System settings > About phone >

Status > My Phone number

Emergency calls

Note: Your service provider programs on e or more emergency phone numbers that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre-programmed emergency numb er(s) ma y not w ork in all locations, and sometimes an em ergency call cannot be placed due to network, environmental, or interference issues.

1 If your phone is locked, touch Emergency Call. 2 Enter the emergency number. 3 Touch to call the emergency number.

Note: Your phone can use location based services (GPS

and AGPS) to help emergency services find you. See “Location Services” on page 52.

Cool down

Create & view groups of contacts.

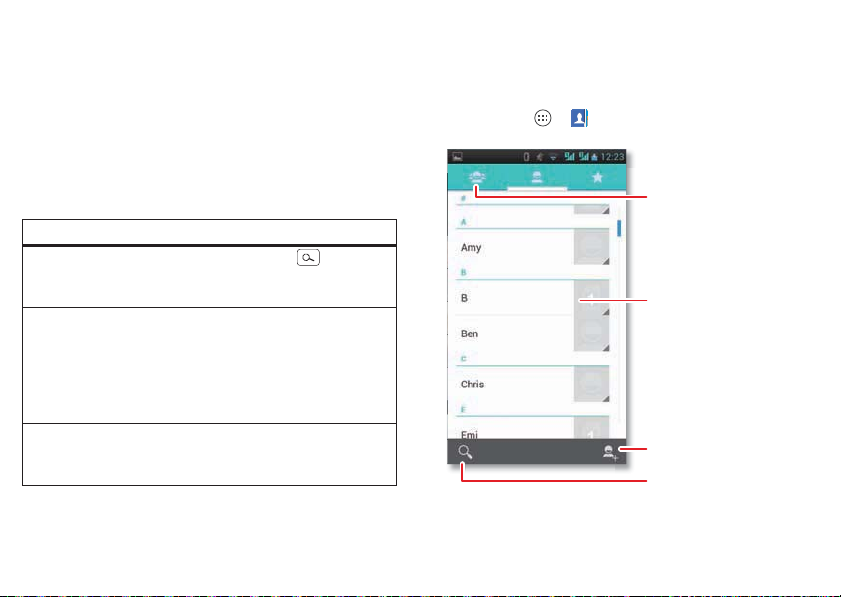

Contacts List

Touch to view contact information, call, send a text message, & more.

Search the list.

Add contacts.

In very limited circumstances, such as where your phone has been exposed to extreme heat, you may see “Cool Down” messages. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in “Cool Down” mode, only emergency calls can be made.

More calling features

Feature

voice dial Touch and hold Search , then say

international calls

voicemail To listen to your voicemail

the contact name, business name, or phone number you want to call.

If your phone service includes international dialing, press and hold 0 to insert your local international access code (indicated by +). Then enter the countr y code and phone number.

messages, touch & hold 1 in the dialer screen.

People

be a people person

Quick start: People

Find it: Apps > People

GROUPS FAVOURITESPEOPLE

Set up my prole

Abe Baudo

Allie Smyth

Anna Medina

Astrid Fanning

Avery Durning

Brian Foster

297 contacts

17People

Transfer contacts

Get all your contacts, all in one place. Here are a few helpful hints:

• Use Gmail™

When you first set up your phone and sign in to your Google™ account, all your Gmail contacts are synced automatically with your People app. After that, your contacts stay in sync whether you make changes on your phone, from another de v ice, or from a web browser. Most contact applications for mobile phones and email accounts allow you to export your contacts as a “.csv” file. You can then use Gmail to import the file. For more details, go to www.motorola.com/transfercontacts Gmail account on your computer and select “Help”.

• More

There are other methods and tools to help you at www.motorola.com/transfercontacts.

or log in to your

Link contacts

You might have two or more contacts for the same person, maybe a Gmail contact who is also stored on your phone, or one friend with two email addresses. To combine these contacts:

18 People

Find it: Apps >

Touch a contact to open it, touch Menu > Edit > Menu > Join, then touch the second contact.

People

Call or email contacts

Find it: Apps > People

• To call a contact, tou ch the contact’s name, then

touch the number you want to call. To send a text

message, touch next to the nu mbe r.

• To email a contact, touch the contact’s name, then

touch the contact’s email address.

Find it: Apps >

• To find a contact, tou ch and type the contact

name.

Touch a contact to open its details. While viewing

details, you can start a call or message by touching

the phone number, messaging button, or email

address.

• To change which group of contacts is shown (like All

contacts

or contacts from your Gmail account) touch

Menu > Contacts to display.

• To change how you view the list of contacts, touch

Menu > Settings > Display options.

People

Create contacts

Find it: Apps > People >

DONE

Google contact

your.account@gmail.com

Name

Add organization

PHONE

Phone

Add new

ADDRESS

Address

EVENTS

Date

Add new

MOBILE

HOME

BIRTHDAY

Touch any entry area to open the touchscreen keypad. When you’re finished, touch

Where are contacts saved? Your phone saves new

contacts in its memory and on the Google Server, if you have an account.

Set the contact type.

Set a contact picture.

Set the number type.

Remove this number.

Add another number.

SAVE.

Favorites

To add a contact to your favorites list, touch the contact to open it, then touch .

To see your favorites list: Find it: Apps > People > FAVORITES

Edit or delete contacts

Find it: Apps > People > contact > Menu >

Edit or Delete

Synchronize contacts

When you change one of your contacts, your smartphone automatically updates your other accounts. When you change a contact in one of your other accounts, your smartphone updates th e contact information in your People app.

19People

Personalize contacts

Find it: Apps > People

Add a photo: Touch contact > Menu > Edit >. Set a ringtone: Touch contact > Menu > Set

ringtone

Groups

Find it: Apps > People > GROUPS > group name You can put your contacts into groups (like “Friends” or

“Family”) to make it easier to find them. To create a new group, touch Apps >

GROUPS >.

20 Messages

People >

Messages

sometimes it’s best to text, or IM, or email . . .

Read & reply to messages

Find it: Apps > Messaging Tip: Fro m the phone unloc k scree n, touc h and flick to!

• To open a text message and all of its replies, touch it.

• To respond to a text message, open it and enter your

response in the text box at the bottom.

• To delete a message, touch and hold to select it, then

touch trash can in the upper right corner.

• To adjust messaging options, touch Apps

Messaging > Menu > Settings.

Create messages

Find it: Apps > Messaging > Enter the recipient and message. Touch Menu to

Insert smiley or Add subject.

To add an attachment, touch in the upper right corner.

Send & receive MESSAGE attachments

To send a file in a message, open a new message and touch in the upper right corner.

When you receive a message with an attachment, open the message and touch the file name to download it. Touch the name aga in to open it. Some fi le types can be converted to HTML for faster viewing, and your phone will show Get HTML version.

While viewing the attachment, touch it to save it, share it, and more.

Tip: To send and receive large attachments faster, use a Wi-Fi connection (see “Wi-Fi networks” on page 34).

Gmail

The first time you turned on your phone, you probably set up or logged in to your Google™ Gmail™ account.

If not, you can set up a Gmail account by touching Menu > System settings > Accounts & sync > ADD

ACCOUNT

To read and reply to messages on your Gmail account, touch Apps > Gmail.

> Google.

You can set up multiple email accounts on your phone. T ouch Menu > System settings > Accounts & sync >

ADD ACCOUNT, then:

• Select Corporate for Microsoft™ Exchange server

work email accounts. Enter de tails from your IT

administrator.

Tip: You might need to enter your domain name and

user name (like domain/username).

• Select

To read and reply to messages on your em ail accounts, touch Apps > Email.

Email for your personal email accounts. For

account details, contact the account provider.

Instant messages

To send and receive instant messages, you can use Google Talk™.

Find it: Apps > Talk Tip: You can also download an instant mess aging app

from Play Store™.

21Messages

Text entry

keys when you need them

Touchscreen keypad

You can open a keypad on your screen by touching a text box.

Text Box

Touch to open

Dinner at Bistro Fanta

!?,

21 09876543

ertyuiopqw

asdfghjk l

zxcvbnm

?123

Open a keypad for numbers & symbols.

Tip: To close the keypad without saving any text (for example, to select a different text box), touch Back .

22 Text entry

Done

touchscreen keypad.

Shift

Voice Input/ Dictation

Delete

Return/ New Line

Space

Motorola input

Enter text a letter at a time. As you type, your phone suggests words from your dictionary and chosen language. The phone also automaticall y enters apostrophes in some words, like “dont.”

Typing tips

To...

Enter one capital letter

Enter only capital letters

Move the text entry

cursor

Select text Touch and hold or

Touch Shift .

Touch and hold Shift . Touch again to re vert to lowercase.

Touch the text wher e you want the cursor to go.

double-touch text to select it. Tabs mark the boundaries of the selected text. Drag the tabs to select the text you want.

To...

Cut or Copy selected

text

Paste cut or copied

text at cursor location

Delete c haracter to lef t

of cursor

T ouc h icons at the top of the screen to selected text. In a landscape display, touch Edit > Cut or

Copy.

Touch the Paste icon at the top of the screen. In a landscape display, touch

Edit > Paste.

Touch Delete (hold to delete more).

Cut or Copy

Text input settings

Find it: Menu > System settings > Language &

input

• To change the language for your phone and

touchscreen keypad, touch Language.

• To change the default text input method, touch

Default under KEYBOARD & INPUT METHODS.

• To change text input settings, touch next to

Motorola Input or Swype.

Tips & tricks

a few handy hints

General tips

• Screen brightness changes as your phone senses the

current lighting conditions.

• To see recently dialed numbers, touch Phone >

Recent.

• To sleep/wake your phone, press the Power key.

• To set screen timeout, touch Menu >

settings

> Display > Sleep.

• To search, touch Search . To voice search, touch

and hold Search .

• To see the most recent apps you’ve used, touch and

hold Home .

• To change a shortcut in the favorites tray at the

bottom of the home screen, touch and hold a

shortcut, then drag it in or out of the favorites tray.

• To turn sound on/off, press and hold the Power key,

then touch a sound setting.

• To turn airplane mode on/off, press and hold the

Power key > Aeroplane mode.

System

23Tips & tricks

Battery tips

Open your last photo or video.

Touch the screen to open options.

Capture.

8MO2109

Zoom in/out.

Want to extend your battery life? Try these:

• T o turn of f back ground data transfers, touch Menu

> System settings > Data usage > Menu >

Restrict background data.

• To turn off Blu et oo th ™ power, to uch Menu >

System settings, then drag the Bluetooth

power switch to the left to turn it off.

• To turn off Wi-Fi power, touch Menu >

settings

the left to turn it off.

24 Photos & videos

System

then drag the Wi-Fi power switch to

Photos & videos

see it, capture it, share it!

Quick start: Photos & videos

From the home scre en , tou ch > Camera.

Tip: For the clearest photos and videos, clean the lens with a soft, dry cloth.

View & share photos & videos

From the home scre en , tou ch > My Gallery. When taking photo, from the viewfinder, you can touch

the thumbnail in the bottom left to open your last photo or video from the viewfinder.

• To zoom in, touch

Internet radio

the screen with two fingers and then drag them apart. To zoom out, drag your fingers together.

• To send or post the

photo or video, touc h

To use a Bluetooth or cable connection, see “Bluetooth™, Wi-Fi, & cable connections” on page 39.

• To delete the photo or video, touch

Menu > Delete.

• To set a photo as your wallpaper or a contact photo,

touch Menu > Set as.

• To crop or rotate a photo can touch Menu.

• To play a video, touch .

Tip: Turn the phone sideways for a widescreen view.

Music

when music is what you need...

Quick start: Music

Keep your music with you! You can put music on your phone, or stream music from your computer with MotoCast.

Find it: Apps > Music

Add music to your

device with MotoCast

Now playing

My library DLNA servers

Settings

Go to the current song.

25Music

To play music stored on your phone or computer, touch

My library.

Tip: To listen to music during a flight, turn off all your network and wireless connection s: Press and hold the Power!key then touch Airplane mode.

Set up music

What music transfer tools do I need?

Note: Copyright—do you have the right? Always follow the rules. See “Content Copyright” in your legal and safety information.

To put music on your computer and then load it on your phone, you need:

• Microsoft™ Windows™ computer or Apple

Macintosh computer.

• USB data cable.

Y our phone supports a removable microSD memory card up to 32GB capacity. To install a microSD car d, go to “Assemble & charge” on page 3.

Tip: To see the available memory on a microSD card (optional), from the home screen touch Menu >

System settings > Storage.

26 Music

What audio file formats can I play?

Your phone can play many types of files: AAC, AAC+, AAC+ Enhanced, AMR NB, AMR WB (not supported in all countries), MP3, WAV, WMA v9, and MIDI.

What headphones can I use?

Your phone has a 3.5mm headset jack for wired stereo listening. You can go wireless with Bluetooth™ stereo headphones or speakers (see “Bluetooth

devices” on page 35).

handsfree

Get music

Transfer

Transfer music from your computer to your phone using a USB cable connection. See “USB connection” on page 40 to learn how.

Note: Copyright—do you have the right? Always follow the rules. See “Content Copyright” in your legal and safety information.

Play music

Touch a song or playlist to start playing music.

Max Keppler and AnnaLee Scott

When You're Around

Running Roughshod

Song Lyrics—Current Line

Song Lyrics—Next Line

Artist & Song Title

Album Artwork

Music Controls

Music player controls

To...

Play/pause Touch / .

Select previous/next song

Fast forward/rewind Touch and hold / . View playlist Touch .

Add song to play! queue

Shuffle on/off Touch > . Repeat all/off Touch > . Adjust volume Press side volume keys.

Go to music home! screen

Manage speakers Touch Menu > Settings

Add song to playlist Touch Menu >!Add to

Use song as ringtone

Delete song Touch Menu > Delete.

Touch / .

Touch > .

Touch Menu > Music

home

> Audio effects.

playlist

Touch Menu > Use as

ringtone

27Music

Hide, wake, turn off

WWWGOOGLECOM

7EB

)MAGES 0LACES .EWS MORE

2ESTAURANTS

#HICAGO),UPDATE

"ARS -ORE

(ISTORY 3IGNOUT

#OFFEE

YOURACCOUNT GMAILCOM

3ETTINGSI'OOGLE (ELP

6IEW'OOGLEIN-OBILE #LASSIC

Touch Home to use another app. Your music continues to play.

When you see in the status bar, a song is playing. Flick down to see details. Touc h the song to return to the music controls.

To turn off your music, touch .

Playlists

To add a song from the music library to a playlist, touch and hold the song, then touch Add to playlist. Choose an existing playlist, or touch Create playlist to create one.

To edit or delete a playlist, touch and hold the playlist in the music library.

Web

surf the web with your phone

Quick start: Browser

Find it: Browser

UPDATE

View open browser tabs, or open a new tab.

Touch a link to select it. Touch & hold for more options.

Touch Menu for browser options.

28 Web

Tip: To zoom in, touch the display with two fingers, then

move them apart.

Connect

Your phone uses the mobil e phone netwo rk (ov er the air ) or a Wi-Fi connection to automatically access the web.

Note: Your service provider may charge to surf the Web or download data.

If you want to use a Wi-Fi network for faster Internet access, touch the status bar at the top of the home screen and drag it down. Touch the Wi-Fi networks

available

more info, see “Wi-Fi networks” on page 34. Note: If you can’ t connect, contact your service provider.

notification to select a preferred network. For

Downloads

To download files in your browser, touch a file link or touch and hold a picture to choose Save image.

To see the files you downloaded, touch Apps > Downloads. Touch and hold an item to open it, see details, or remove it from the list.

You can download “Apps & updates” on page 12.

Browser options

Touch Menu to see browser options:

Options

Bookmarks

Save to bookmarks

Request desktop site

Refresh

Settings

Exit

YouTube

Share videos with YouTube users ev erywhere. You don’t need a YouTube account to browse and vi ew vide os.

Find it: Apps > YouTube Note: If you want a YouTube account, go to

www.youtube.com. To create an account or sign in, touch ACCOUNT.

See your bookmarks. Bookmark the current web page.

Open the standard desktop website instead of the mobile device version.

Reload the current page. Adjust browser settings. Close the browser app.

29Web

Personalize

add your personal touch

Widgets

Add widgets

Fill your home screen with widgets—make it yours. T ouc h Apps > Widgets, touch and hold a widget, then

drag it to a spot on the home screen panels. Tip: Flick left to see more widgets.

Set up widgets

You can customize some widgets. Touch a widget to open it, then touch Menu .

Your home screen may already have these widgets:

• Favorite People: Quickly call, text, or email your

favorite contacts. To add people to your Favorites list, see “Favorites” on page 16.

• Calendar: Sync your calendars and review upcoming

events at a glance with the scrollable calendar widget. To add calendar events, see “Calendar” on page 36.

• My music: Set this widget to an artist, album, song,

playlist, genre, or just touch Menu > Shuffle all. There’s more about “Music” on page 25.

• Weather: See weather reports for your current

location, and for any other locations you specify.

30 Personalize

Shortcuts

To add app shortcuts to the home screen, touch Apps , touch and hold an ap p, then drag it to a sp ot on the home screen panels.

Tip: To change a shortcut in the favorites tray at the bottom of the home screen, touch and hold a shortcut, then drag it in or out of the favorites tray.

Ringtones

• To personalize your ringtones, touch Menu >

System settings > Sound > Phone ringtone or Default

notification

• T o mak e your phone ring and vibrate, tou c h Menu

> System settings > Sound > Vibrate and ring.

• To silence your phone and make it vibrate for

incoming calls, touch Menu > System settings >

Sound > Silent mode > Vibrate.

Wallpaper

To apply a new wallpaper, touch and hold an empty spot on your home screen, then choose a wallpaper image from Live wallpaper, Gallery, or Wallpaper.

Sounds

• T o set volume for ringtones, media, and alarms, touch

Menu > System settings > Sound > Volumes.

• To play dial pad tones, touch Menu > System

settings

> Sound > Dial-pad touch tones.

• T o play sounds for screen selections, touch Menu

> System settings > Sound > Touch sounds.

Display settings

• To set display brightness, touch Menu > System

settings

> Display > Brightness.

• T o set orientation, touch Menu > System settings

> Display > Auto-rotate screen.

• To set the font size for menus and settings, touch

Menu > System settings > Display > Font size.

Date & time

Set date, time, time zone, and formats: Find it: Menu > System settings > Date & time

Language & region

Set your menu language and region: Find it: Menu > System settings > Language &

input

> Language

31Personalize

Location

Elmhurst

East

oChicago

Orland Park

GGary

einein

and

daodd

ammoammo

Tinley

Tinley Park

inley Pa

Tinley Parkey Park

arkark

goaa

where you are, where you’re going

Park

CiceroCicero

Cicero

EvanstonEvanston

Evanston

Chicago, IL

290

Chicago

Oak LawnOak Lawn

Oak Lawn

Blue IslandBlue Island

Blue Island

HarveyHarvey

Harvey

Chicago

Heights

Hei

CalumetCalumet

Calumet

CityCity

City

Hammond

hts

Select a map or navigation view.

Center the map on my location.

Touch Menu for map options.

3EARCH maps.

Highland

Get $IRECTIONS.

East

Chicag

Find nearby 0LACES.

Add ,AYERS of information to map view.

Google Maps

Find it: Apps > Maps

-APS

lein

Highland ParkHighland Park

Highland Park

Grove

NorthbrookNorthbrook

Northbrook

hts

Des PlainesDes Plaines

Des Plaines

ElmwoodElmwood

Elmwood

AddisonAddison

Addison

Oak Park

Elmhurst

La GrangeLa Grange

La Grange

294

Orland Park

Tinley Park

Note: The map image you see may be a little different.

32 Location

Google Maps offers powerful, user-friendly mapping technology and local business information—including business locations, contact infor mation, and driving directions.

For help, touch Menu > Help. Tip: Want to know what’s in your immediate area? Try

Google Places™. Touch Apps > Maps, touch the

Maps view control in the upper-left, then touch Places to

see listings for restaurants, cafes, bars, and more based on your current location.

Google Maps Navigation Beta

Google Maps Navigation Beta is a complete GPS navigation system with voice guidance that shows you the way.

Find it: Apps > Maps > Maps > Navigation Follow the prompts to speak or type your destination. For more information, go to

www.google.com/mobile/navigation.

Google Latitude

See where your friends and family are on Google Maps. Plan to meet up, check that your parents got home safely, or just stay in touch.

Don’t worry , your location is not shared unless you agree to it. You need to join Google Latitude, and then invite

your friends to view your location or accept their invitations.

To get started, touc h Apps > Maps > Maps > Join

Latitude

. Then:

• To start Google Latitude, touch Apps > Maps

> Maps > Latitude.

• To add friends, touch FRIENDS LIST >.

• To remove friends, touch FRIENDS LIST, touch a friend

in your list, then touch

Remove this friend.

• To turn off Google Latitude, touch y our Latit ude name!

tag in map view, then touch Location settings >!

Sign out of Latitude.

Wireless

lose the wires

Quick start: Wireless

Connect your phone to fast Wi-Fi networks or Bluetooth™ devices.

To connect, touch Menu > System settings > Wi-Fi or Bluetooth.

Wi-Fi

Network 1 Name

Connected

Network 2 Name

Network security type

Network 3 Name

Network security type

SCAN ADD NETWORK

Turn Bluetooth

power on & off.

Turn Wi-Fi power on & off. Connect to this network.

Bluetooth

DROID RAZR

Not visible to other Bluetooth devices

AVAILABLE DEVICES

TOUCH TO PAIR

Motorola Headset

SEARCH FOR DEVICES

33Wireless

Wi-Fi networks

OFF

Turn Wi-Fi power on or off

Tu r n o n : Touch Menu > System settings, then drag

the Wi-Fi power switch to the right to turn it on.

Tu r n o f f : Touch Menu > System settings, then drag

the Wi-Fi power switch to the left to turn it off. Note: To extend battery life, turn off Wi-Fi pow e r when

not in use.

Wi-Fi search & connect

When Wi-Fi is on, the Wi-Fi in range indicator appears in the status bar when a network is available. Drag down the status bar and touch the Wi-Fi networks

available

network. To search for a network when Wi-Fi is off:

1 Touch Menu > System settings > Wi-Fi. 2 Drag the Wi-Fi power switch to the right to

3 Touch a network to connect. If necessary, enter

34 Wireless

notification to select and connect to a

turn on and scan. Your phone lists the networks it finds within range.

Tip: To see your phone’s MAC address or other Wi-Fi details, touch Menu > Advanced.

Network SSID,Security, and Password, and touch Connect.

When your phone is connected to the net work, the Wi-Fi connected indicator appears in the status bar.

Tip: When you are in range and Wi-Fi power is on, you will automatically reconnect to available networks you’ve connected to before.

Wi-Fi modes

For those who like to get a bit more technical, your phone supports the following Wi-Fi modes: 802.1 1 b, g, n.

Wi-Fi hotspot

You can make your phone a Wi-Fi hotspot to provide portable, convenient internet access to other Wi-Fi enabled devices.

Caution: This application significantly impacts battery life. You may want to run this application with the charger connected.

Note: You need to subscribe to Wi-Fi hotspot service to use this feature. Contact your service provider.

To set up your phone as a Wi-Fi hotspot:

1 Touch Menu > System settings > Tethering &

Mobile Hotspot

hotspot.

2 Touch Mobile Hotspot settings > Configure Mobile

Hotspot

settings:

> Mobile Hotspot to turn on the

to change hotspot security and configuration

• Network SSID—Enter a unique name for your

OFF

hotspot and touch Next.

• Security—Select the type of security you want:

WEP, WPA, or WPA2. Enter a unique password.

Other users can access your Wi-Fi hots pot only if they enter the correct password.

Note: Keep it secure. To protect your phone and hotspot from unauthorized access, it is strongly recommended that you set up hotspot Security (WPA2 is the most secure), including password.

• Broadcast Channel—Select a channel that minimizes potential interference. You may need to try different channels after your hotspot is active for a time.

3 Touch Save when the settings are complete.

When your Wi-Fi hotspot is activ e, ot he r Wi-Fi enable d devices can connect by entering your hotspot’s SSID, selecting a Security type, and entering the correct

Password.

BluetoothTM handsfree devices

Turn Bluetooth power on or off

Tu r n o n : Touch Menu > System settings, then drag

the Bluetooth power switch to the right to t u rn it on.

Tu r n o f f : Touch Menu > System settings, then drag

the Bluetooth power switch to the left to turn it off .

Note: To extend battery life, turn off Bluetooth power when not in use.

Connect new Bluetooth devices

Note: This feature requires an optional accessory. To connect with a new Bluetooth headset or other

device, you need to pair with it. You only need to do this once for each device—to connect again, just turn on the device.

1 Make sure the Bluetooth device you are pairing with

is in discoverable mode. Note: Refer to the gu id e tha t ca me with the

Bluetooth device for details.

2 Touch Menu > System settings > Bluetooth. 3 Drag the Bluetooth power switch to the right

to turn on and scan. If Bluetooth power is already on, touch SEARCH FOR DEVICES.

4 Touch a device to connect. 5 If necessary, touch OK, or enter the device passkey

(like 0000) to connect to the device. When the device is connected, the Bluetooth connected indicator appears in the status bar.

35Wireless

Note: Using a mobile device or accessory while driving

may cause distraction and may be illegal. Always obey the laws and drive safely.

Reconnect devices

To automatically reconnect your phone with a paired device, simply turn on the device.

To manually reconnect your phone wi th a paired device, touch the device name in the AVAILABLE DEVICES list.

Disconnect devices

To automatically disconnect your phone from a paired device, simply turn off the device.

T o manually disconnect your phone from a paired device, touch the de vice na me in the de vices list, th en touch OK.

Change device name

Touch Menu > System settings > Bluetooth, turn Bluetooth power on, then touch Menu > Rename

phone

. Enter a name and touch OK.

36 Tools

Tools

stay on top of things

Calendar

Managing your schedule has never been easier. The Calendar app automatically shows calendar events from your web-based Google™ account, and syncs events that you enter from your phone or web browser.

Find it: Apps

Calendar

> You can view your calendar in

different ways: Touch the date, then touch Day, Week,

Month, or Agenda. Touch an

event to see more details. Tip: To add a calendar widget to your home screen,

touch Apps > Widgets, touch and hold Calendar, then drag it to a spot on the home scree n.

Add calendar events

From any view, touch Menu > New event. Enter the event start time and other details. You can even set a reminder so you don’t forget about the event. (When

you set the reminder time to 0 minutes, it plays at the

%VERYDAY

!-

!-

!-

!DDALARM

-ON4UE7ED4HU&RI

4)-%2!,!2-3

event start time.) Tip: Reminders will play only if you’ve selected a

notification ringtone (see “Ringtones” on page 30). When you finish entering event details, touch Save.

Manage calendar events

To edit an event, touch and hold it, then touch Edit

event

. When you’re done, touch Save.

To delete an event, touch and hold it, then touch

event

To go to today, touch .

Delete

Alarm clock

Find it: Apps > Clock To turn on an alarm, touch

the check box. When an alarm sounds,

select Dismiss to turn it of f or touch the screen to snooze for five minutes.

To add an alarm, touch , then enter alarm details.

To enable or disable an alarm, touch the check box.

Calculator

Find it: Apps > Calculator

12345

To switch between basic and advanced functions, touch Menu > Advanced panel or Basic panel. To clear history, touch Menu > Clear history.

37Tools

Accessibility

OFF

See, hear , speak, f eel, and use . Accessibility f eat ures are there for everyone, helping to make things easier.

Note: For general information, accessories, and more, visit www.motorola.com/accessibility

Voice recognition

Use your voice—just touch and speak.

• Dialing and commands: Touch Apps > Voice

Dialler

. To dial, say “Call” and then a contact name or phone number. Or, say a command from the list shown, like “Send Message” or “Go To”.

•Search: Touch and hold Search , then say what

you want to search for, like “Motorola accessorie s”.

• Text entry: Touch a text entry field to open th e

touchscreen keypad. Touch , then say what you want to type.

Tip: Speak nat urally, but clearly. Use the microphone in a similar way to a speakerphone, so no need to shout or hold the phone close to your mouth.

To change your voice settings, see “Voice settings” on page 38.

38 Tools

TalkBack (voice readouts)

Your navigation and selections, read ou t loud. To turn on TalkBack voice readouts, touch Menu >

System settings > Accessibility > TalkBack, then drag

the TalkBack switch to the right to turn it on. To use TalkBack voice readouts:

• Menus and screens: In menus and screens, touch an

item to select or open it. The item is read out loud, or your action is described.

• Dialer & text entry: As you type, each number or

letter is read out loud.

Tip: Navigate through your apps and menus to hear how TalkBack voice readouts work on your phone.

To change TalkBack settings, touch Menu >

settings

> Accessibility > TalkBack > SETTINGS.

System

Voice settings

Personalize your voice settings:

• Voice search: Touch Menu > System settings >

Language & input > Voice Search. From here, you can

set options like language, personalized voice recognition, and censorship.

• Voice typing: Touch Menu > System settings >

Language & input, then touch next to Google voice typing

. From here, you can select input language and

block offensive words.

•Text-to-speech: Touch Menu > System settings

> Language & input > Text-to-speech output. From here, you can set speed opti on s an d l is ten to a spoken text example.

Volume & vibrate

Choose volume and vibrate settings that work for you. Touch Menu > System settings > Sound:

• Volume: Touch Volumes and use the sliders.

• Vibrate: Touch

ring.

Vibrate and ring to feel your phone

Zoom

Get a closer look. To zoom in, touch the screen with two fingers and then slide them apart . To zoom out, slide your fingers together.

Display brightness

Set a brightness level that works for you. Touch Menu > System settings > Display > Brightness >

Adjust brightness level. Make sure that Automatic brightness

is unchecked so you can set your own level.

Touchscreen & keys

All these touch features are great, and sometimes it’s nice to hear or feel your touches too. T ouch Menu >

System settings > Sound:

• Touchscreen: To hear screen touches (click), select

Touch sounds.

•Keys: To fee l key touches (vibrate ), se lec t Vibrate on

touch

•Screen lock: To h ear when y ou loc k/unl oc k the scr een

(click), select Screen lock sound.

Messages

From a simple text message to IM, email, and more. Create, send, and receive them all on your phone.

And to make text entry even easier, you can use features like auto-correct, auto-punctuate, and auto-capitalization—touch Menu > > Language & input, then touch next to Motorola

Input

. Of course if you don’t want to type at all, then use

your voice—touch on the touchscreen keypad.

System settings

Apps

Want more? No pr oblem. Google Pla y™ pro vides acc ess to thousands of apps, and many provide useful accessibility features.

Find it: Apps > Play Store Select a category or touch Search to find the app

you want. Tip: Choose your apps carefully, from trusted sites, like

Play Store, as some may impact your phone’s

performance.

39Tools

Management

stay in control

Memory card & file management

Your photos, videos, and other fil e s are automatically stored in your phone ’s internal memory. You can set individual applications (camera, camcorder , etc.) to store files on a microSD card. To install a microSD card, go to “Assemble & charge” on page 3.

Note: The total available internal memory is shared among system, applications and user content data.

Tip: To move media from internal memory to a microSD card, touch Menu >

Manage internal storage.

Remove or erase a microSD card

Note: Do not remove a microSD card while your phone is using it or writing files on it.

Before you remove or erase a microSD card you need to unmount it. Touch Menu > System settings >

Storage > Unmount SD card.

To erase a microSD card, touch Menu > System

settings

> Storage > Erase SD card.

Warning: All data on th e microSD card will be deleted.

40 Management

System settings > Storage >

USB connection

You can connect your phone to a computer with a US B cable.

Note: The first time you use a USB connection, your computer may indicate that drivers are being installed. Follow an y prompts y ou see to c omplete the installation . This may take a few minutes.

1 With the home screen showing, connect a Motorola

micro USB data cable from your phone’s micro USB port to a USB port on your computer. Your phone should show in the status bar.

Note: Make sure to connect the phone to a high power USB port. Typically, these are located directly on your computer.

2 Your phone and microSD memory card appear as two

separate removable disks on your computer. Drag and drop files between your computer an d the

phone or microSD card folders. When you’re done, use “Safely Remove Hardware” before disconnecting the USB cable.

Note: You can ’t use files on the microSD card while your phone is connected to the computer.

Account management

"ROWSER

%MAIL

-"

-"

LIMIT



WARNING



Activate mobile data limit.

Turn on/off mobile data usage.

Touch an app to see details & restrict background data.

Drag up/down to set data usage limit.

Drag up/down to set data usage warning.

Drag vertical white bars left/right to see data usage for the specified time period.

Select data usage cycle.

To add email or online media accounts on your smartphone, touch Menu > System settings >

Accounts & sync > ADD ACCOUNT.

Add an account by touching it. Enter your user name and password, then follow the prompts to set up the account.

To edit an account, touch account name > Account

settings

To delete an account, touch account name > Menu

Remove account.

> Note: You can’t delete the Google™ account you used

or created when you set up your smartphone.

Data usage

You can track the amount of data uploaded and downloaded by your phone, and set a limit on your monthly data usage to avoid overage charges from your service provider.

Note: Usage information is provided to help you manage your phone. This may not match the amounts charged by your service provider, as they’re not measured in the same way.

Find it: Menu > System settings > Data usage

$ATAUSAGE

-OBILEDATA

3ETMOBILEDATALIMIT

$ATAUSAGECYCLE

!PR -AY

-AY

-EASUREDBYYOURPHONE9OURCARRIERĈSDATA USAGEACCOUNTINGMAYDIFFER

!PR-AY



ABOUT-"USED

The data usage screen shows information and settings for data transferred over your service provider's mobile network.

Tip: You can also track Wi-Fi and ethernet data usage in separate tabs, by touching Menu > System settings > Data usage > Menu > Show Wi-Fi usage or Show

Ethernet usage

41Management

Set a data usage warning

Touch Menu > System settings > Data usage, then drag the right side of the orange bar up/down to set the data warning level. Y ou'll receive a notification when your data usage reaches the specified level.

Set a data usage limit

Touch Menu > System settings > Data usage > Set

mobile data limit

up/down to set the data usage limit . When you reach your data usage limit, mobile data is

turned off automatically and many of your phone’s features won't work correctly. You'll receive a notification when mobile data is turned off.

, then drag the right side of the red bar

Restrict background data usage by app

Some apps transf er data in the background, when yo u're not using them. You can restrict ba ckground data usage for individual apps to help reduce your overall data usage.

Touch Menu > System settings > Data usage, and scroll down to see which apps are transferring data over the mobile network. Touch an app, then touch Restrict

background data

42 Management

Restrict all background data

You can restrict background data for all apps across all available network s (mob ile , Wi-Fi, and Ether ne t) .

Find it: Menu > System settings > Data usage > Menu > Restrict background data.

Caution: Restricting all background data can cause some features to stop working altogether.

Wireless manager

Find it: Menu > System settings, then go to the

WIRELESS & NETWORKS section

Manage all your wireless connections: Wi-Fi, Bluetooth™, mobile data , airplane mode, and mobile hotspot.

Airplane mode

Use airplane mode to turn all your wireless connections off—useful when flying. Press and hold the Power key >

Airplane mode.

Note: When you select airplane mode, all wireless services are disabled. You can then turn Wi-Fi and/or Bluetooth back on, if permitted by your airline. Other wireless voice and data services (such as calls and text messages) remain off in airplane mode. Emergency calls to your region's emergency number can sti ll be made.

Network

Security

Screen lock

Slide

Allow Bluetooth bypass

Allow Voice Commands to be launched via Bluetooth Multi-function button while device is locked

Data encryption

Protect the data on your phone or memory card

SCREEN SECURITY

ENCRYPTION

SIM CARD LOCK

PASSWORDS

Owner info

Set up SIM card lock

Make passwords visible

Select & set up a screen lock method.

See the passwords you enter.

You should not need to change any network settings. Contact your service provider for help .

Touch Menu > System settings > More... > Mobile

networks

to see network settings options.

Security

help keep your phone safe

Quick start: Security

Find it: Menu > System settings > Security

43Security

Screen lock

To prevent accidental touches, you can make the touchscreen lock when it goes to sleep. Touch Menu > System settings > Security > Screen lock, then select the lock type:

• None—turn off the screen lock.

• Slide—flick to the right to unlock.

• Pattern—draw a pattern to unlock.

PIN—enter a numeric PIN to unlock.

•

• Password—enter a password to unlock.

Note: You can make emergency calls on a locked phone

(see “Emergency calls” on page 16). A locked phone still rings, but you need to unlock it to answer.

Lock pattern

To set the lock p a ttern, touc h Menu > System settings > Security > Screen lock >

Pattern.

Follow the instructions to draw your lock pattern.

When prompted, draw the pattern to unlock the phone.

44 Security

Draw an unlock pattern

PIN lock

To set a PIN, touch Menu > System settings >

Security > Screen lock > PIN.

Enter a numeric PIN, then confirm it. When prompted, enter the PIN to unlock the phone.

Password lock

T o set the password, touch Menu > System settings > Security > Screen lock > Password.

Enter a password (up to eight characters), then confirm it.

When prompted, enter the password to unlock the phone.

Personalize your lock screen

To change your timeout, touch Menu > System

settings

> Display > Sleep. If you don’t touc h the screen or press any keys for the amount of time you select, the screen locks auto mat ically.

Lock & unlock

To lock your phone screen, do any one of these:

• Press the Power key.

• Let the screen time out (don’t press anythi n g) .

• Switch off the power.

To unlock you r ph on e sc reen, press the Power key to wake the touchscreen display, then perform the unlock procedure required by the lock screen (slide, face unlock, pattern, PIN, or password).

Can’t unlock your phone?

Face unlock: If your phone doesn’t recognize your face,

you’ll be prompted to enter your backup pattern or PIN code to unlock it.

Pattern, PIN, or password: If you forget your pattern,

PIN, or password, contact your service provider.

Reset

To reset your phone to factory settings and erase all the data on your phone, touch Menu > System settings > Back up & reset > Factory data reset > Reset phone.

Warning: All data on your phone will be deleted. (Nothing on the microSD memory card is deleted.)

Remote wipe a lost or stolen phone

Don't you just hate it when your life is on your phone and it all goes wrong? Lost, or even worse—stolen! If necessary, you can use your email account on a Microsoft™ Exchange ActiveSync 2007 server to clear the personal data from your phone and an installed microSD memory card.

You need to be assigned permissions before you can remote wipe data from your phone and microSD card. Contact your IT system administrator for the information and permissions you need to perform the remote wipe procedure.

Warn ing: All downloaded apps and user data on your phone and microSD card will be deleted.

45Security

Troubleshooting

we’re here to help

Crash recovery

In the unlikely event that your phone stops responding to touchs and key presses, try a quick reset. Remove the back co ver and battery (“Assemble & charge” on page 3), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, we’re here to help.

Go to www.motorola.com/support, where you can select from a number of customer care options. You can also contact the Motorola Customer Support Center at 1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD United States for heari ng impaired), or 1-800-461-4575 (Canada).

46 Troubleshooting

Safety, Regulatory & Legal

032375o

Battery Use & Safety

The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded—the battery should only be replaced by a Motorola-approved service facility, and any attempt to remove or replace your battery may damage the product.

Important: Handle and store batteries properly to avoid injury or damage. Most battery safety issues arise from improper handling of

batteries, and particularly from the continued use of damaged batteries.

DON’Ts

• Don’t disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery.

• Don’t use tools, sharp objects, or excessive force to insert or remove the battery as this can damage the battery.

• Don’t let the mobile device or battery come in contact with liquids.* Liquids can get into the mobile device’s circuits, leading to

corrosion.

• Don’t allow the battery to touch metal objects. If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot.

• Don’t place your mobile device or battery near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction.

• Don’t dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven.

DOs

• Do avoid leaving your mobile device in your car in high temperatures.*

• Do avoid dropping the mobile device or battery.* Dropping these

items, especially on a hard surface, can potentially cause damage.*

• Do contact your service provider or Motorola if your mobile device or battery has been damaged in any of the ways listed here.

* Note: Always make sure that any battery, connector and compartment

covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your

mobile device can resist damage from these conditions. Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards. Motorola’s warranty does not cover damage to the

mobile device caused by non-Motorola batteries and/or chargers. To help you identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection), Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a “Motorola Original” hologram. If you see a message on your display such as Invalid Battery or Unable to Charge, take the following steps:

• Remove the battery and inspect it to confirm that it has a “Motorola Original” hologram;

• If there is no hologram, the battery is not a Motorola battery;

• If there is a hologram, replace the battery and try charging it again;

• If the message remains, contact a Motorola authorized service center.

Warning: Use of a non-Motorola battery or charger may present a risk of

fire, explosion, leakage, or other hazard. Proper and safe battery disposal and recycling: Proper battery disposal is not only important for safety, it benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at www.motorola.com/recycling Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries.

Warning: Never dispose of batteries in a fire because they may explode.

Battery Charging

Battery Chargin g

Notes for charging your product’s battery:

• During charging, keep your battery and charger near room temperature

for efficient battery charging.

47Safety, Regulatory & Legal

• New batteries are not fully charged.

• New batteries or batteries stored for a long time may take more time to

charge.

• Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging.

Third Party Accessories

Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device’s performance. In some circumstances, third party accessories can be dangerous and may void your mobile device’s warranty. For a list of Motorola accessories, visit www.motorola.com/products

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction, and may be prohibited or restricted in certain areas—always obey the laws and regulations on the use of these products.

While driving, NEVER:

• Type, read, enter or review texts, emails, or any other written data.

• Surf the web.

• Input navigation information.

• Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

• Keep your eyes on the road.

• Use a handsfree device if available or required by law in your area.

• Enter destination information into a navigation device before driving.

• Use voice activated features (such as voice dial) and speaking features

(such as audible directions), if available.

• Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.

• End your call or other task if you cannot concentrate on driving.

Remember to follow the “Smart Practices While Driving” at www.motorola.com/callsmart

48 Safety, Regulatory & Legal

(in English only).

Seizures, Blackouts & Eyestrain

To reduce eyestrain and avoid headaches, it is always a good idea to hold the screen a comfortable distance from your eyes, use in a well-lit area, and take frequent breaks. Some people may be susceptible to seizures or blackouts (even if they have never had one before) when exposed to flashing lights or light patterns, such as when playing video games, or watching videos with flashing-light effects. Discontinue use and consult a physician if any of the following symptoms occur: seizures, blackout, convulsion, eye or muscle twitching, loss of awareness, or disorientation. If you or someone in your family has experienced seizures or blackouts, please consult with your physician before using an application that produces flashing-light effects on your mobile device.

Caution About High Volume Usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

• Limit the amount of time you use headsets or headphones at high volume.

• Avoid turning up the volume to block out noisy surroundings.

• Turn the volume down if you can’t hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should stop listening to the device through your headset or headphones and have your hearing checked. For more information about hearing, see our website at direct.motorola.com/hellomoto/nss/AcousticSafety.asp

(in English only).

Repetitive Motion

When you repetitively perform actions such as pressing keys or entering finger-written characters, you may experience occasional discomfort in your hands, arms, shoulders, neck, or other parts of your body. If you

continue to have discomfort during or after such use, stop use and see a

032374o

032376o

032375o

physician.

Children

Keep your mobile device and its accessories away from small children. These products are not toys and may be hazardous to small

children. For example:

• A choking hazard may exist for small, detachable parts.

• Improper use could result in loud sounds, possibly causing hearing

injury.

• Improperly handled batteries could overheat and cause a burn. Supervise access for older children. Similar to a computer, if an older

child does use your mobile device, you may want to monitor their access to help prevent:

• Exposure to inappropriate apps or content.

• Improper use of apps or content.

• Loss of data.

Glass Parts

Some parts of your mobile device may be made of glass. This glass could break if the product receives a substantial impact. If glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by a qualified service center.

Operational Warnings

Obey all posted signs when using mobile devices in public areas.

Potentially Explosive Areas

Potentially explosive areas are often, but not always, posted and can include blasting areas, fueling stations, fueling areas (such as below decks on boats), fuel or chemical transfer or storage facilities, or areas where the air contains chemicals or particles, such as grain dust, or metal powders. When you are in such an area, turn off your mobile device, and do not remove, install, or charge batteries, unless it is a radio product type especially qualified for use in such areas and certified as “Intrinsically

Safe” (for example, Factory Mutual, CSA, or UL approved). In such areas, sparks can occur and cause an explosion or fire.

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol Definition

Important safety information follows.

Do not dispose of your battery or mobile device in a fire.

Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.

Do not dispose of your battery or mobile device with your household waste. See “Recycling” for more information.

Do not use tools.

For indoor use only.

Listening at full volume to music or voice through a headset may damage your hearing.

49Safety, Regulatory & Legal

Radio Frequency (RF) Energy

Exposure to RF Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits. Your mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

RF Energy Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions:

• When placing or receiving a phone call, hold your mobile device just like you would a landline phone.

• If you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved accessory (e.g. clip, holder, holster, case or arm band). If you do not use a body-worn accessory supplied or approved by Motorola, ensure that whatever product is used is free of any metal and that it positions the mobile device at least

2.5 cm (1 inch) away from the body.

• Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our website at: www.motorola.com

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances, your mobile device may cause interference with other devices.

Follow Instructions to Avoid Interference Problems

Turn off your mobile device in any location where posted notices instruct you to do so, such as hospitals or health care facilities.

50 Safety, Regulatory & Legal

In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight.

Medical Devices

If you have a medical device, including an implantable medical device such as a pacemaker or defibrillator, consult your healthcare provider and the device manufacturer’s directions before using this mobile device. Persons with implantable medical devices should observe the following precautions:

• ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the implantable medical device when the mobile device is turned ON.

• DO NOT carry the mobile device in the breast pocket.

• Use the ear opposite the implantable medical device to minimize the

potential for interference.

• Turn OFF the mobile device immediately if you have any reason to suspect that interference is taking place.

Specific Absorption Rate (ICNIRP)

SAR (ICNIRP)

YOUR MOBILE DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested

frequency bands*. The highest SAR values under the ICNIRP guidelines for

0168

your device model are listed below:

Head SAR <GSM 900> + <Wi-Fi> + <Bluetooth> 1/69:

Body-worn SAR

During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away from the head and body. Additional information can be found at www.motorola.com/rfhealth * The tests are carried out in accordance with [CENELEC EN50360] [IEC standard PT62209-1].

<UMTS 2100d> + <Wi-Fi> + <Bluetooth> 1/512

W/kg

European Union Directives Conformance Statement

EU Conformance

The following CE compliance information is applicable to Motorola mobile devices that carry one of the following CE marks:

Hereby, Motorola declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC

• All other relevant EU Directives

For products that support Wi-Fi 802.11a (as defined in your product information): This device is restricted to indoor use when operating in the

5.15 to 5.25 GHz (802.11a) Wi-Fi frequency band.

The following gives an example of a typical Product Approval Number:

0168

You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte only). To find your DoC, enter the Product Approval Number from your product’s label in the “Search” bar on the website.

FCC Notice to Users

FCC Notice

The following statement applies to all products that bear the FCC logo on the product label.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,

Product Approval Number

(in English

51Safety, Regulatory & Legal

including interference that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3). Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. See 47 CFR Sec. 15.21. For products that support Wi-Fi 802.11a (as defined in your product information): This device is restricted to indoor use when operating in the

5.15 to 5.25 GHz (802.11a) Wi-Fi frequency band.

Software Notices

Software Copyright Notice

Warning against unlocking the bootloader or altering a product's operating system software: Motorola strongly recommends against

altering a product's operating system, which includes unlocking the bootloader, rooting a device or running any operating software other than the approved versions issued by Motorola and its partners. Such alterations may permanently damage your product, cause your product to be unsafe and/or cause your product to malfunction. In such cases, neither the product nor any damage resulting therefrom will be covered by warranty. Important FCC information: You must not make or enable any changes to the product that will impact its FCC grant of equipment authorization. The FCC grant is based on the product's emission, modulation, and transmission characteristics, including: power levels, operating frequencies and bandwidths, SAR levels, duty-cycle, transmission modes (e.g., CDMA, GSM), and intended method of using the product (e.g., how the product is held or used in proximity to the body). A change to any of these factors will invalidate the FCC grant. It is illegal to operate a transmitting product without a valid grant.

Location Services

GPS & AGPS

The following information is applicable to Motorola mobile devices that provide location based functionality. Location sources can include GPS, AGPS and Wi-Fi. Your mobile device can use Global Positioning System (GPS) signals for location-based applications. GPS uses satellites controlled by the U.S. government that are subject to changes implemented in accordance with the Department of Defense policy and the Federal Radio Navigation Plan.

52 Safety, Regulatory & Legal

These changes may affect the performance of location technology on your mobile device. Your mobile device can also use Assisted Global Positioning System (AGPS), which obtains information from the cellular network to improve GPS performance. AGPS uses your wireless service provider's network and therefore airtime, data charges, and/or additional charges may apply in accordance with your service plan. Contact your wireless service provider for details. Your mobile device can also use Wi-Fi signals to determine your approximate location, using information from known and available Wi-Fi networks.

Your Location

Location-based information includes information that can be used to determine the approximate location of a mobile device. Mobile devices which are connected to a wireless network transmit location-based information. Devices enabled with location technology also transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS technology in your mobile device to tell the emergency responders your approximate location. AGPS has limitations and might not work in your area. Therefore:

• Always tell the emergency responder your location to the best of your ability; and

• Remain on the phone for as long as the emergency responder instructs you.

Navigation

The following information is applicable to Motorola mobile devices that provide navigation features.

When using navigation features, note that mapping information, directions and other navigational data may contain inaccurate or incomplete data. In some countries, complete information may not be available. Therefore, you should visually confirm that the navigational instructions are consistent with what you see. All drivers should pay attention to road conditions, closures, traffic, and all other factors that may impact driving. Always obey posted road signs.

Privacy & Data Security

Motorola understands that privacy and data security are important to everyone. Because some features of your mobile device may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

• Monitor access—Keep your mobile device with you and do not leave it where others may have unmonitored access. Use your device’s security and lock features, where available.

• Keep software up to date—If Motorola or a software/application vendor releases a patch or software fix for your mobile device that updates the device’s security, install it as soon as possible.

• Secure Personal Information—Your mobile device can store personal information in various locations including your SIM card, memory card, and phone memory. Be sure to remove or clear all personal information before you recycle, return, or give away your device. You can also backup your personal data to transfer to a new device. Note: For information on how to backup or wipe data from your mobile device, go to www.motorola.com/support

• Online accounts—Some mobile devices provide a Motorola online account (such as MOTOBLUR). Go to your account for information on how to manage the account, and how to use security features such as remote wipe and device location (where available).

• Applications and updates—Choose your apps and updates carefully, and install from trusted sources only. Some apps can impact your phone’s performance and/or have access to private information including account details, call data, location details and network resources.

• Wireless—For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi networks. Also, when using your device as a hotspot (where available) use network security. These precautions will help prevent unauthorized access to your device.

• Location-based information—Mobile devices enabled with location based technologies such as GPS, AGPS or Wi-Fi, can transmit location-based information. See “Location Services” for more details.

• Other information your device may transmit—Your device may also transmit testing and other diagnostic (including location-based) information, and other non-personal information to Motorola or other third-party servers. This information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at privacy@motorola.com

Use & Care

To care for your Motorola mobile device, please observe the following:

liquids

Don’t expose your mobile device to water, rain, extreme humidity, sweat, or other liquids.

drying

Don’t try to dry your mobile device using a microwave oven, conventional oven, or dryer, as this may damage the mobile device.

extreme heat or cold

Don’t store or use your mobile device in temperatures below

-10°C (14°F) or above 60°C (140°F). Don’t recharge your mobile device in temperatures below 0°C (32°F) or above 45°C (113°F).

dust and dirt

Don’t expose your mobile device to dust, dirt, sand, food, or other inappropriate materials.

, or contact your service provider.

53Safety, Regulatory & Legal

cleaning

To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or other cleaning solutions.

shock and vibration

Don’t drop your mobile device.

protection

To help protect your mobile device, always make sure that any battery, connector and compartment covers are closed and secure.

Recycling

Mobile Devices & Accessories

Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling

Packaging & Product Guides

Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

Software Copyright

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such

54 Safety, Regulatory & Legal

as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of the Copyright Laws of the United States and other countries. This device is intended solely for copying non-copyrighted materials, materials in which you own the copyright, or materials which you are authorized or legally permitted to copy. If you are uncertain about your right to copy any material, please contact your legal advisor.

Open Source Software Information

OSS Information

For instructions on how to obtain a copy of any source code being made publicly available by Motorola related to software used in this Motorola mobile device, you may send your request in writing to the address below. Please make sure that the request includes the model number and the software version number. MOTOROLA MOBILITY, INC. OSS Management 600 North US Hwy 45 Libertyville, IL 60048 USA The Motorola website opensource.motorola.com contains information regarding Motorola's use of open source. Motorola has created the opensource.motorola.com portal for interaction with the software community-at-large. To view additional information regarding licenses, acknowledgments and required copyright notices for open source packages used in this Motorola mobile device, please press Menu Key > Settings > About phone > Legal information > Open source licenses. In addition, this

(in English only) also

website to serve as a

Motorola device may include self-contained applications that present supplemental notices for open source packages used in those applications.

Service & Repairs

If you have questions or need assistance, we're here to help. Go to www.motorola.com/support customer care options. You can also contact the Motorola Customer Support Center at 1-800-331-6456 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).

How to Obtain Service or Other Information

1. Please access and review the online Customer Support section of Motorola's consumer website prior to requesting warranty service.

2. If the Product is still not functioning properly after making use of this resource, please contact the Warrantor listed at the Motorola website or the contact information for the corresponding location.

3. A representative of Motorola, or of a Motorola Authorized Repair Center, will help determine whether your Product requires service. You may be required to download, or otherwise obtain and accept software updates from Motorola or a Motorola Authorized Repair Center. You are responsible for any applicable carrier service fees incurred while obtaining the required downloads. Complying with the warranty process, repair instructions and accepting such software updates is required in order to receive additional warranty support.

4. If the software update does not fix the problem, you will receive instructions on how to ship the Product to a Motorola Authorized Repair Center or other entity.

5. To obtain warranty service, as permitted by applicable law, you are required to include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) your address and telephone number. In the event the Product is not covered by the Motorola Limited Warranty, Motorola will inform the consumer of the availability, price and other conditions applicable to the repair of the Product.

, where you can select from a number of

To obtain service or other information, please access and review the online Customer Support section of Motorola's consumer website at www.motorola.com.

Motorola Mobility Inc. Limited Global Warranty Mobile Phones

Warranty

FOR CONSUMERS WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS LIMITED WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

Who is Covered?

This Limited Warranty extends only to the first consumer purchaser of the Product, and is not transferable.

What Does this Limited Warranty Cover?

Motorola Mobility Inc. or its subsidiaries' warranty obligations are limited to the terms and conditions set forth herein. Subject to the exclusions contained below, Motorola Mobility Inc or its subsidiaries ("Motorola") warrant this Mobile Phone, and any in-box accessories which accompany such Mobile Phone ("Product") against defects in materials and workmanship, under normal consumer use, for a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser, or the period of time required by the laws of the country where the Product is purchased, whichever is longer ("Warranty Period"). Repairs made under this Limited Warranty are covered for the balance of the original Warranty Period, or 90 days from the date of service, whichever is longer. Any upgrade to the original product will be covered only for the duration of the original Warranty Period. This Limited Warranty is only available in the country where the Product was purchased. Motorola may provide service outside the country of purchase, to the extent that it is possible and under the terms and conditions of the country of purchase. This Limited Warranty applies only to new Products which are a) manufactured by or for Motorola as identified by the "Motorola"

55Safety, Regulatory & Legal

trademark, trade name, or logo legally affixed to them; b) purchased by consumers from an authorized reseller or distributor of Motorola Products; and c) accompanied by this written Limited Warranty.

What Will Motorola Do?

If a covered defect or damage arises and a valid warranty claim is received within the applicable Warranty Period, Motorola, at its sole option, unless otherwise required by applicable law, will either (1) repair, at no charge, the defect or damage using new, used or reconditioned/refurbished functionally equivalent replacement parts; or (2) exchange the Product with a replacement Product that is new or which has been reconditioned/refurbished or otherwise remanufactured from new or used parts and is functionally equivalent to the original Product; or (3) refund the purchase price of any Products covered by the terms and conditions of this Limited Warranty. Products, parts and supporting documentation provided to Motorola as part of the warranty process, shall become the property of Motorola, and may not be returned. When a replacement or refund is given, the Product for which the replacement or refund is provided must be returned to Motorola and shall become the property of Motorola.

Exclusions (Products and Accessories)

This warranty does not apply to:

(a) Consumable parts, such as batteries or protective coatings designed to diminish over time unless failure has occurred due to a defect in materials or workmanship. As with all batteries, the maximum capacity of the battery will decrease with time and use; this is not a defect. Only defective batteries and batteries that leak are covered by this warranty. (b) Cosmetic damage, including but not limited to scratches, dents, cracks or other cosmetic damage. (c) Damage caused by use with non-Motorola products. Defects or damage that result from the use of non-Motorola branded or certified Products, accessories or other peripheral equipment, including without limitation housings, parts, or software, are excluded from coverage. (d) Damage caused by accident, abuse, misuse, liquid contact, fire, earthquake or other external causes; including but not limited to: (i) improper usage or operation (e.g. operating the Product outside their permitted or intended uses as defined by Motorola, including but not

56 Safety, Regulatory & Legal

limited to as set forth by Motorola in the Products' User Manual, Quick Start Guide, Online Tutorials, and other documentation), improper storage (e.g. subjecting the Product to extreme temperatures), abuse or neglect (e.g. broken/bent/missing clips/fasteners/connectors); impact damage (e.g. dropping the Product) (ii) contact with liquids, water, rain, extreme humidity, heavy perspiration or other moisture; sand, food, dirt or similar substances (except for Products sold as resistant to such substances, but only to the extent the damage was not caused by incorrectly securing the phone's protective elements or subjecting the Product to conditions beyond its stated specifications or limits); (iii) use of the Products for commercial rental purposes; or (iv) external causes or acts which are not the fault of Motorola, including but not limited to flood, fire, earthquake, tornado or other acts of God, are excluded from coverage. (e) Unauthorized Service or Modification. Defects or damage resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way, including but not limited to tampering with or altering the software, by someone other than Motorola, or its authorized service centers, are excluded from coverage. Notwithstanding the foregoing, any Product which has had its bootloader unlocked, or whose operating system has been altered, including any failed attempts to unlock the bootloader or alter such operating system, is not covered by this warranty, regardless of whether such modifications are authorized, approved, or otherwise sanctioned by Motorola. (f) A product or part that has been modified in any manner without the written permission of Motorola. Products that have been altered in any manner so as to prevent Motorola from determining whether such Products are covered under the terms of this Limited Warranty are excluded from coverage. The forgoing shall include but not be limited to (i) serial numbers, date tags or other manufacturer coding that has been removed, altered or obliterated; (ii) mismatched or duplicated serial numbers; or (iii) broken seals or other evidence of tampering. Do not open the Product or attempt to repair the Product yourself; such conduct may cause damage that is not covered by this warranty. (g) Normal wear and tear or otherwise due to the normal aging of

the Product.

(h) Defects, damages, or the failure of the Product due to any communication service or network you subscribe to or use with the Products. (i) All software, including operating system software, third-party software, applications, and all other softwa re of any kind. Software

distributed by Motorola is provided "AS-IS" and "AS AVAILABLE," "WITH ALL FAULTS" and without a warranty of any kind. The Limited Warranty does not apply to any non-Motorola product or any software, even if packaged or sold with the Motorola hardware, unless otherwise required by applicable local law. (j) Products that have been refurbished, reconditioned, or remanufactured, except for Products repaired or replaced pursuant to the terms of this Limited Warranty. If damage is outside the scope of warranty coverage, repair services may be available, but all costs associated with such out of warranty repair will be your responsibility.

What Other Limitations are There?

• TO THE EXTENT PERMITTED BY APPLICABLE LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED. NO ORAL OR WRITTEN REPRESENTATIONS MADE BY MOTOROLA OR ANY SELLER, RESELLER OR DISTRIBUTOR OF THE PRODUCTS, INCLUDING EMPLOYEES AND AGENTS THEREOF, SHALL CREATE ANY ADDITIONAL WARRANTY OBLIGATIONS, INCREASE THE SCOPE, OR OTHERWISE MODIFY IN ANY MANNER THE TERMS OF THIS LIMITED WARRANTY.

• TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NONINFRINGEMENT AND ALL WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. WHERE SUCH STATUTORY OR IMPLIED WARRANTIES CANNOT LAWFULLY BE DISCLAIMED, THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THE EXPRESS LIMITED WARRANTY CONTAINED HEREIN AND THE REMEDIES OF REPAIR,

REPLACEMENT, OR REFUND AS DETERMINED BY MOTOROLA IN ITS SOLE DISCRETION SHALL BE THE EXCLUSIVE REMEDY OF THE CONSUMER.

• TO THE EXTENT PERMITTED BY APPLICABLE LAW, MOTOROLA DOES NOT WARRANT THAT THE OPERATION OF ANY PRODUCTS OR SOFTWARE COVERED UNDER THIS LIMITED WARRANTY WILL MEET YOUR REQUIREMENTS, WORK IN COMBINATION WITH ANY HARDWARE OR SOFTWARE APPLICATIONS OR THIRD PARTY SERVICES, BE UNINTERRUPTED, ERROR-FREE, OR WITHOUT RISK TO, OR LOSS OF, ANY INFORMATION, DATA, SOFTWARE OR APPLICATIONS CONTAINED THEREIN, OR THAT DEFECTS IN THE PRODUCTS OR SOFTWARE WILL BE CORRECTED.

• TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT, TORT OR UNDER OTHER LEGAL THEORY (INCLUDING NEGLIGENCE), FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCTS, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS; LOSS OF BUSINESS; BUSINESS INTERRUPTION; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF, DAMAGE TO, OR CORRUPTION OF INFORMATION, DATA, SOFTWARE OR APPLICATIONS (INCLUDING ANY COSTS ASSOCIATED WITH RECOVERING, PROGRAMMING, OR REPRODUCING ANY INFORMATION, DATA, SOFTWARE OR APPLICATIONS STORED ON OR USED WITH MOTOROLA PRODUCTS, OR ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF ANY INFORMATION OR DATA STORED ON THE PRODUCTS); OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS.

• SOME STATES OR JURISDICTIONS DO NOT ALLOW THE LIMITATION OR EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR THE EXCLUSION OR LIMITATION ON THE LENGTH OF AN IMPLIED WARRANTY, OR THE LIMITATION OR EXCLUSION OF DAMAGES FOR PERSONAL INJURIES CAUSED BY NEGLIGENCE, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY

57Safety, Regulatory & Legal

ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE OR JURISDICTION.

• DATA BACKUP: ALL INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS, INCLUDING BUT NOT LIMITED TO PERSONAL CONTACTS, ADDRESS BOOKS, PICTURES, MUSIC AND GAMES WILL BE ERASED DURING THE REPAIR PROCESS, AND CAN NOT BE REINSTALLED BY MOTOROLA. TO AVOID LOSING SUCH INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS PLEASE CREATE A BACK UP BEFORE YOU DELIVER YOUR PRODUCT FOR WARRANTY SERVICE, REMOVE ANY CONFIDENTIAL, PROPRIETARY OR PERSONAL INFORMATION AND DISABLE ANY SECURITY PASSWORDS. YOU WILL BE RESPONSIBLE FOR REINSTALLING ALL SUCH INFORMATION, DATA, SOFTWARE, OTHER APPLICATIONS AND PASSWORDS. MOTOROLA AND/OR ITS AUTHORIZED SERVICE CENTERS ARE NOT RESPONSIBLE FOR THE LOSS OR MISUSE OF ANY DATA, FILES, CONTENT, APPLICATIONS AND PROGRAMS WHEN THE PRODUCT IS DELIVERED FOR WARRANTY SERVICE. YOUR PRODUCT OR A REPLACEMENT PRODUCT WILL BE RETURNED TO YOU AS YOUR PRODUCT WAS CONFIGURED WHEN ORIGINALLY PURCHASED, SUBJECT TO APPLICABLE SOFTWARE UPDATES. MOTOROLA MAY INSTALL OPERATING SYSTEM SOFTWARE UPDATES AS PART OF WARRANTY SERVICE THAT MAY PREVENT THE PRODUCT FROM REVERTING TO AN EARLIER VERSION OF THE OPERATING SYSTEM SOFTWARE. THIRD PARTY APPLICATIONS INSTALLED ON THE PRODUCT MAY NOT BE COMPATIBLE OR WORK WITH THE PRODUCT AS A RESULT OF THE OPERATING SYSTEM SOFTWARE UPDATE. MOTOROLA AND ITS AUTHORIZED SERVICE CENTERS ARE NOT RESPONSIBLE FOR THE LOSS OF, OR INABILITY TO USE, SUCH INFORMATION, DATA, SOFTWARE OR OTHER APPLICATIONS.

• WARNING AGAINST UNLOCKING THE BOOTLOADER OR ALTERING A PRODUCT'S OPERATING SYSTEM SOFTWARE:

MOTOROLA STRONGLY RECOMMENDS AGAINST ALTERING A PRODUCT'S OPERATING SYSTEM, WHICH INCLUDES UNLOCKING THE BOOTLOADER, ROOTING A DEVICE OR RUNNING ANY OPERATING SOFTWARE OTHER THAN THE APPROVED VERSIONS ISSUED BY MOTOROLA AND ITS PARTNERS. SUCH ALTERATIONS MAY PERMANENTLY DAMAGE YOUR PRODUCT, CAUSE YOUR PRODUCT TO

58 Safety, Regulatory & Legal

BE UNSAFE AND/OR CAUSE YOUR PRODUCT TO MALFUNCTION. IN SUCH CASES, NEITHER THE PRODUCT NOR ANY DAMAGE RESULTING THEREFROM WILL BE COVERED BY THIS WARRANTY.

• IMPORTANT FCC INFORMATION: YOU MUST NOT MAKE OR ENABLE ANY CHANGES TO THE PRODUCT THAT WILL IMPACT ITS FCC GRANT OF EQUIPMENT AUTHORIZATION. THE FCC GRANT IS BASED ON THE PRODUCT'S EMISSION, MODULATION, AND TRANSMISSION CHARACTERISTICS, INCLUDING: POWER LEVELS, OPERATING FREQUENCIES AND BANDWIDTHS, SAR LEVELS, DUTY-CYCLE, TRANSMISSION MODES (E.G., CDMA, GSM), AND INTENDED METHOD OF USING THE PRODUCT (E.G., HOW THE PRODUCT IS HELD OR USED IN PROXIMITY TO THE BODY). A CHANGE TO ANY OF THESE FACTORS WILL INVALIDATE THE FCC GRANT. IT IS ILLEGAL TO OPERATE A TRANSMITTING PRODUCT WITHOUT A VALID GRANT.

Motorola Mobility, Inc. Consumer Advocacy Office 600 N US Hwy 45 Libertyville, IL 60048 www.motorola.com 1-800-734-5870 (United States) 1-888-390-6456 (TTY/TDD United States for hearing impaired) 1-800-461-4575 (Canada) Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply. Contact your service provider for details. All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation. Note: The images in this guide are examples only. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google Latitude, Gmail, YouTube, Picasa, Google Books, Google Docs, Google Goggles, Google Finance, Google Places, Google Maps Navigation Beta, Google Calendar, Android and Android Market are trademarks of Google, Inc. All other product or service names are the property of their respective owners. © 2012 Motorola Mobility, Inc. All rights reserved.

Caution: Motorola does not take responsibility for changes/modification to the transceiver. Product ID: Motorola XT685 Manual Number: 68016281014

59Safety, Regulatory & Legal

68016281014

Motorola XT685 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
