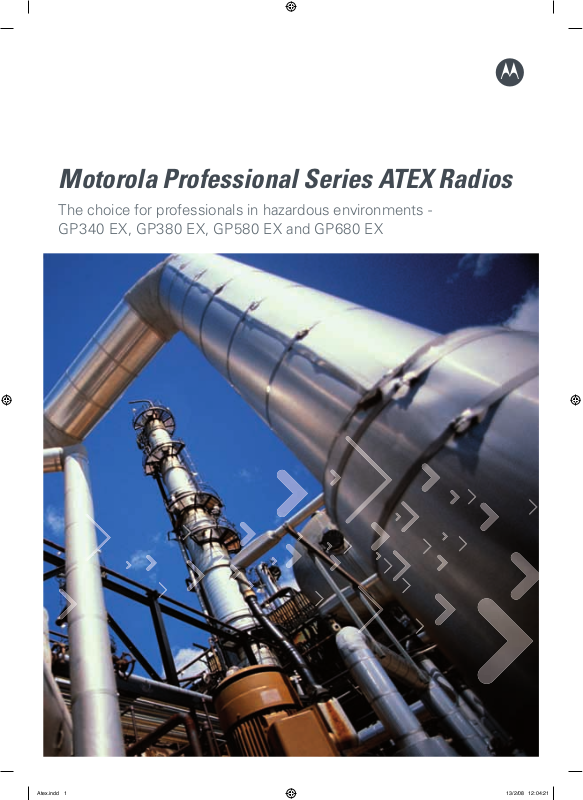

Motorola Professional Series ATEX Radios
The choice for professionals in hazardous environments GP340 EX, GP380 EX, GP580 EX and GP680 EX
2
THE CHOICE FOR PROFESSIONALS IN
HAZARDOUS ENVIRONMENTS
Whether on an oil rig, in a gas installation or
another potentially explosive environment, safe
and reliable communications are paramount.
That is why Motorola has brought together three
key elements: its 75 year expertise in
communications; its wide experience of
producing two-way radios for use in hazardous
environments; and its proven Professional Series
two-way radio platform.
Motorola’s ATEX-approved Professional Series
Portable Radios give team members instant
access to one or many colleagues at the touch
of a button, without compromising safety, and
allow constant contact should a critical situation
need resolving.
QUALITY & RELIABILITY
Renowned for their durability, Motorola Professional Series Portable Radios offer unrivalled crystal clear
audio quality by activating either Motorola’s X-Pand™ technology or ‘Low Level Expansion.’ This
reduces noise usually heard during conversational pauses. When discretion is key, the ‘whisper’
function means that even the quietest message can be transmitted and understood.
Robust and reliable, all radios have passed Motorola’s rigorous Accelerated Life Test which simulates
fi ve years of hard use in the fi eld, and are IP6 4 compliant for use in environments where dust ingress
can leave other radios standing. In addition, the Motorola Professional Series Portable Radios are
designed and built to exceed the 11 applicable tests of the exacting standard MIL Spec 810F; the quality
hallmark of the US military.
SAFETY
The visible blue colour of the ATEX radios is the offi cial ATEX colour recognised by professional users.
The blue colour increases safety for user with mixed fl eet of ATEX and non-ATEX radios. The dedicated
blue ATEX colour will help ensure that users bring only ATEX approved radios into potentially explosive
environments.
Press the highly visible orange Emergency Button to initiate the organisation’s defi ned
emergency communications procedure. Providing even greater safety for employees in hazardous
environments, Motorola provides a new ATEX-approved mandown option board for the GP340, GP380
and GP680 ATEX radios. This factory-fi tted option board automatically summons assistance when the
radio falls over or remains motionless for a predetermined time period.
Additional safety features include a specially- designed battery connection that prevents non-ATEX
approved batteries from being fi tted to the radios. The lockable accessory connector plug features a
tamper-proof screw to control the use of accessories.
PRODUCTIVITY
Avoid missed calls as the Channel Scan function allows activity on different communications channels
to be monitored and answered. When working offsite or close to other users, ‘Talkaround’ lets users
communicate without using the system or dispatcher.
CUSTOMISABLE
The GP340 EX, GP380 EX, GP580 EX and GP680 EX are supported by a range of ATEX-approved audio
accessories including, headsets and remote speaker microphones tailored to the requirements of
today’s radio users.
GP340 EX & GP380 EX
GP580 EX
GP680 EX
Users of PL/5 -Tone signalling radios can
upgrade or add to their fl eet with the Popular
GP 340 EX or the Versatile GP 380 EX .
With 16 communication channels, the GP3 40 EX
is the simple two-way radio solution for
professionals who need to stay in contact. Its
streamlined features allow users to
concentrate on the job with help only a button
press away. When the user is unavailable to
receive calls, the Call Forward function means
that the message gets through to a colleague
who can help. An audible low battery alert
helps users side step radio down ti me.
To protect users further, both radios feature a
built in ‘Lone Worker’ tool. Should a user not
respond to a regular warning signal then
Emergency Signalling is activated, as
defi ned by the organisation.
The 255-channel GP380 EX is designed for
more sophisticated users who require the
added functionality of a full keypad and need
to communicate with a larger number of users
and groups.
In addition to the features of the GP340 EX,
GP380 EX users benefi t from the ease-of-use
afforded by a 14 - character 7- language alpha -
numeric display containing a battery gauge.
The contact list function means that callers can
be quickly and easily identifi ed and prioritised.
In addition, predefi ned text messages can be
sent between G P38 0 E X users to
communicate meaningful messages when it is
inconvenient or inappropriate to send a voice
message.
For users of StartSite, SmartZone and
SmartNet systems, the Versatile GP580 EX
provides organisations with the combined
power of a trunked radio system and a
Motorola Professional Series radio suitable for
use in a potentially hazardous environment.
The RSSI roaming feature extends
communications beyond the reach of a single
trunked site for seamless communication.
When moving between trunked sites, the radio
will switch to the strongest availab le signal.
Communication security is key and Selective
Radio Inhibit allows a radio to be blocked
remotely should it be lost or stolen, and
unblocked upon retrieval. The Remote Monitor
Function lets authorised individuals listen to
voice traffi c should a security issue be
identifi ed.
Manage Emergencies with the integrated
emergency alarm that gives priority access to
defi ned talkgroups and identifi es the radio user
who requires assistance. Emergency calls can
be directed to specifi c talkgroups, sites or
announcement groups.
The alpha-numeric and iconic display allows
easy access to the intuitive menu, talkgroup
identities, phone book and contact list. Along
with a battery gauge icon, these are all features
that make using the GP58 0 E X easy.
Organisations with MPT1327/MPT1343
systems can harness the power of an ATEX-
approved Motorola Professional Series
Por ta ble Radio wit h the Ver satile GP 680 EX .
GP680 EX users benefi t from the ease-of-use
afforded by a 14 - chara cter 9 - language alp ha -
numeric display containing a battery gauge and
signal strength indicator.
The contact list function makes calls easy and
allows inbound callers to be quickly and easily
identifi ed and prioritised. In addition,
predefi ned text messages can be sent
between GP680 EX users to communicate
meaningful messages when it is inconvenient
or inap pro priate to use voice.
Avoid radio downtime thanks to Dynamic
Regrouping for over-the-air reconfi guration of
the radio plus download of group names.
ATEX GAS PROTECTION:
II 2 G Ex ib IIC T4
Class T4 automatically covers classes T3, T2 and T1. Gas Group IIC includes Gas Groups IIA and IIB
ATEX DUST PROTECTION:
ATEX
(Atmospheres
Explosibles)
Directive 94/9/EC
This is the European Union directive to which all
two-way radios must adhere if used in
potentially explosive environments. This
addition to Motorola Professional Series ATEX
Por table Radios are approved to ATE X
Protection Classes II 2 G Ex ib IIC T4, II 2D Ex tD
A21 IP6x ib D21 T110°C, I M2 EEX ib I and
IECEx as interpreted in the following tables.
T4 = Device surface temperature will not exceed 135°C
IIC = Protection in the most explosive gas environment (hydrogen)
ib = Type of intrinsic safety protection - one countable fault
Ex = Explosion-proof equipment, certifi ed to European ATEX Directive and IECEx
G = Gas
2 = High Protection, category 2 for Zone 1 and 2
II = Group II 'other' environments, (chemical industries, refi neries, etc.)
WHICH RADIO IS RIGHT FOR ME?
*Requires additional interface
Feature GP340 EX GP380 EX GP580 EX GP680 EX
Channels 16 255 System dependent System dependent
Signalling PL/5-Tone PL/5-Tone SmartZone MPT1327
Menu Languages – 7 1 9
Programmable buttons 3 3 3 3
Keypad –
Contact List –
Speed Dials –
Backlit 14 character display –
Option Board Capable –
Mandown Option Available –
Lone Worker Function – –
Make Telephone calls* –
Receive Telephone calls*
Status Messaging –
Dynamic Regrouping – –
MODEL NUMBERS
Name Model Number Signalling Channels Channel Spacing Frequency Power
GP340 EX MDH25RCC4AN3BEA PL/5-Tone 16 12.5kHz UHF 403-470 MHz 1W GP340 EX MDH25RCC6AN3BEA PL/5-Tone 16 20/25kHz UHF 403-470 MHz 1W GP340 EX MDH25KCC4AN3BEA PL/5-Tone 16 12.5kHz VHF 136-174 MHz 1W GP340 EX MDH25KCC6AN3BEA PL/5-Tone 16 20/25kHz VHF 136-174 MHz 1W GP340 EX MDH25RCC4AN3BEASP1 PL/5-Tone 16 12.5kHz UHF 403-470 MHz 1W Mandown
GP340 EX MDH25RCC6AN3BEASP1 PL/5-Tone 16 20/25kHz UHF 403-470 MHz 1W Mandown
GP340 EX MDH25KCC4AN3BEASP1 PL/5-Tone 16 12.5kHz VHF 136-174 MHz 1W Mandown
GP340 EX MDH25KCC6AN3BEASP1 PL/5-Tone 16 20/25k Hz VHF 136-174 MHz 1W Mandown
GP380 EX MDH25RCH4AN6BEA PL/5-Tone 255 12.5kHz UHF 403-470 MHz 1W GP380 EX MDH25RCH6AN6BEA PL/5-Tone 255 20/25kHz UHF 403-470 MHz 1W GP380 EX MDH25KCH4AN6BEA PL/5-Tone 255 12.5kHz VHF 136-174 MHz 1W GP380 EX MDH25KCH6AN6BEA PL/5-Tone 255 20/25kHz VHF 136-174 MHz 1W GP380 EX MDH25RCH4AN6BEASP1 PL/5-Tone 255 12.5kHz UHF 403-470 MHz 1W Mandown
GP380 EX MDH25RCH6AN6BEASP1 PL/5-Tone 255 20/25kHz UHF 403-470 MHz 1W Mandown
GP380 EX MDH25KCH4AN6BEASP1 PL/5-Tone 255 12.5kHz VHF 136-174 MHz 1W Mandown
GP380 EX MDH25KCH6AN6BEASP1 PL/5-Tone 255 20/25kHz VHF 136-174 MHz 1W Mandown
GP580 EX MDH25R CH4GC6BEA SmartZone System Dependent 12.5kHz UHF 403-470 MHz 1W GP580 EX MDH25RCH6GC6BEA SmartZone System Dependent 20/25kHz UHF 403-470 MHz 1W GP580 EX MDH25KCH4GC6BEA SmartZone System Dependent 12.5kHz VHF 136-174 MHz 1W GP580 EX MDH25KCH6GC6BEA SmartZone System Dependent 20/25kHz VHF 136-174 MHz 1W GP680 EX MDH25RCH4CK6BEA MPT1327 System Dependent 12.5kHz UHF 403-470 MHz 1W GP680 EX MDH25RCH6CK6BEA MPT1327 System Dependent 20/25kHz UHF 403-470 MHz 1W GP680 EX MDH25KCH4CK6BEA MPT1327 System Dependent 12.5kHz VHF 136-174 MHz 1W GP680 EX MDH25KCH6CK6BEA MPT1327 System Dependent 20/25kHz VHF 136-174 MHz 1W GP680 EX MDH25RCH4CK6BEASP1 MPT1327 System Dependent 12.5kHz UHF 403-470 MHz 1W Mandown
GP680 EX MDH25RCH6CK6BEASP1 MPT1327 System Dependent 20/25kHz UHF 403-470 MHz 1W Mandown
GP680 EX MDH25KCH4CK6BEASP1 MPT1327 System Dependent 12.5kHz VHF 136-174 MHz 1W Mandown
GP680 EX MDH25KCH6CK6BEASP1 MPT1327 System Dependent 20/25kHz VHF 136-174 MHz 1W Mandown
Factory Fitted
Option Boards
II 2D Ex tD A21 IP6x ib D21 T110°C
Maximum enclosure surface temperature
Dust Zone 21
Max peak RF power is < 2W
IP Protection level for dust: IP6x
Enclosure certifi ed for dust Zone 21 by IP rating
Dust Protection by enclosure
Explosion-proof equipment, certifi ed to European ATEX Directive and IECEx
2 = High protection, Category 2 equipment for Zone 21 and 22. D = Dust
II = Group II, other environments, (chemical industries, refi neries, etc.)
ATEX MINING PROTECTION:
I M2 EX ib I
Explosion Group, I = Methane
ib = Type of intrinsic safety protection - One countable fault
Ex = Explosion-proof equipment
M2 = Category, equipment is intended for use in underground parts of mines as
well as surface installation of such mines likely to be endangered by fi redamp and/or
combustible dust
I = Group I
ACCESSORIES All radios are supplied with a high capacity Li ion battery, accessory cover plate and antenna
DESCRIPTION PART NUMBER
Carry Cases
Soft Leather Case for GP340 EX GMLN1113
Soft Leather Case for GP380 EX, GP580 EX and GP680 EX GMLN1112
Heavy Duty Leather Case for GP340 EX GMLN1111
Heavy Duty Leather Case for GP380 EX, GP580 EX and GP680 EX GMLN1110
ATEX Chest Pack MDHLN6602
ATEX Radio Pack MDRLN4815
ATEX Audio Accessories (for direct connection into radio)
Remote Speaker Microphone GMMN1111
ATEX Over the Head Heavy Duty Headset PMLN5151
ATEX Behind the Head Heavy Duty Headset PMLN5152
ATEX Over the Head Lightweight Headset PMLN5153
ATEX Behind the Head Lightweight Headset PMLN5154
ATEX Throat Microphone with 80mm PTT PMMN4055
ATEX Skull Microphone with 80mm PTT PMMN4056
ATEX Battery
High Capacity Li Ion Battery NNTN5510CR
Chargers (ATEX Exempt)
120V Impres Display Multi Unit Charger (US Plug) (not CE compliant) WPLN4204
120V Impres Multi Unit Charger (US Plug) (not CE compliant) WPLN4205
120V Single Unit Rapid Charger MDHTN3000
230V Single Unit Rapid Charger Euro Plug MDHTN3001
230V Single Unit Rapid Charger UK Plug MDHTN3002
IMPRES™ SUC UK WPLN4183
IMPRES™ SUC Euro WPLN4184
IMPRES™ MUC (Non-display) UK WPLN4188
IMPRES™ MUC (Non-display) Euro WPLN4189
IMPRES™ MUC (Display) UK WPLN4193
IMPRES™ MUC (Display) Euro WPLN4194
DESCRIPTION PART NUMBER
Antennas
Whip, 430-520MHz
VHF, 14cm, 136-155 MHz
VHF, 14cm, 136-155 MHz
UHF, 403-520MHz NAE6483
UHF, 9cm Helical, 430-470MHz NAE6522
UHF, 9cm, 403-433MHz PMAE4002
UHF, 9cm Helical, 430-470MHz PMAE4003
VHF, 9cm, 136-155MHz PMAD4012
VHF, 9cm, 155-174MHz PMAD4013
VHF, 14cm, 136-155MHz PMAD4014
VHF, 14cm, 155-174MHz PMAD4015
VHF, 14cm, 150-161MHz PMAD4023
VHF, 9cm, 150-161MHz PMAD4025
1
certifi ed for ATEX category 2G, 2D and M2 / IECEx group II gas, dust and group I. Remaining antennas are not certifi ed to ATEX
dust specifi cations.1 certifi ed for ATEX category 2G, 2D and M2 / IECEx group II gas, dust and group I. Remaining antennas are not
certifi ed to ATEX dust specifi cations.
1
1
1
PMAE4016
PMAD4042
PMAD4049
1
1
1
7
www.motorola.com
MOTOROLA and the St ylized M Logo are registered in the U.S. Patent and
Trademark Office. All other product or service names are the property of their
registered owners. © Motorola, Inc. 20 06
GP.ATEX.FB-RE (02/08)
Environmental Specifications and Standards
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Per MIL-STD
IP64, MIL-STD
Water and Dust Intrusion
Radios meet all applicable regulator y requirements:
ATEX EC Directive: 94/9/EC:
– Applicable Standards: EN 60079-0:2006, EN 60079-11:2007, EN 61241-0:2006, EN 61241-1:2004, EN 60529:1992,
IECEx: IEC 60079-11:2006, IEC 60079-0:2004, IEC 61241-0:2004, IEC 60529:1991
R&TTE Directive: 99/5/EC:
–
Applicable Standards: EN300 086-2, EN300 11 3-2, EN301 489-01, EN301 489-05, EN 60950-1, EN300 219-2
General Specifications
Channel Capacity GP340 EX 16
GP380 EX 255
GP580 EX System dependent
GP680 EX System dependent
Power Supply 7.5V rechargeable battery
Dimensions H x W x D (mm)
with Li Ion battery148 x 60 x 39 (at base)
Weight (grams)
With Li Ion battery, soft leather GP340 EX 562
carry case, accessory cover plate GP380 EX 570
and antenna GP580 EX 570
GP680 EX 570
Average Battery Life @5:5:90 cycle
With Li-Ion battery11 hours
Sealing Withstands rain testing per:
MIL STD 810F and IP64 (IEC 529)
Shock and Vibration Protection provided via impact resistant
housing exceeding MIL STD 810F and
TIA/EIA 603
Dust and HumidityProtection provided via environment
resistant housing exceeding
MIL STD 810F and TIA/EIA 603
Technical Specifications
Receiver
Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 or 20/25 kHz
Sensitivity (@20dB SINAD) EN 0.50 µV typical
Intermodulation EN 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5 kHz, 70 dB @ 20/25 kHz
Spurious Response Rejection 70 dB
Rated Audio 0.5 W
Audio Distortion @ 0.5W 3% typical
Conducted Spurious Emissions -57 dBm < 1 GHz
-47 dBm > 1 GHz
EN300 086-2
Tr ansmitter
Frequencies - Full Bandsplit VHF: 136-174 MHz
UHF: 403-470 MHz
Channel Spacing 12.5 or 20/25 kHz
Frequency Stability
(-20°C to +50°C, +25°C Ref) +/-2.5 ppm
Power VHF: 136-174 MHz 1W
UHF: 403-470 MHz 1W
Modulation Limiting +/-2.5@12.5 kHz, +/-4.0@20 kHz,
+/-5.0@25 kHz
Conducted/Radiated Emission -36 dBm < 1 GHz
-30 dBm > 1 GHz
Adjacent Channel Power -60 dB @ 12.5 kHz
-70 dB @ 20/25 kHz
Audio Distortion 3% typical
Portable Military Standards 810E
Applicable MIL-STD 810F
Methods Procedures
Low Pressure 500.3 2
High Temperature 501.3 1,2
Low Temperature 502.3 1,2
Temperature Shock 503.3 1
Solar Radiation 505.3 1
Rain 506.3 1,2
Humidity 507.3 2,3
Salt Fog 509.3 1
Dust 510.3 1
Vibration 514.4 1
Shock516.4 1,4
Motorola Ltd
Jays Close, Viables Industrial Estate
BASINGSTOKE, Hampshire
RG22 4PD United Kingdom
All specifications are subject to change without notice and are
issued for guidance purposes only. Specifications at 25°C unless
stated otherwise.
Insert your logo/contact details here
Loading...
