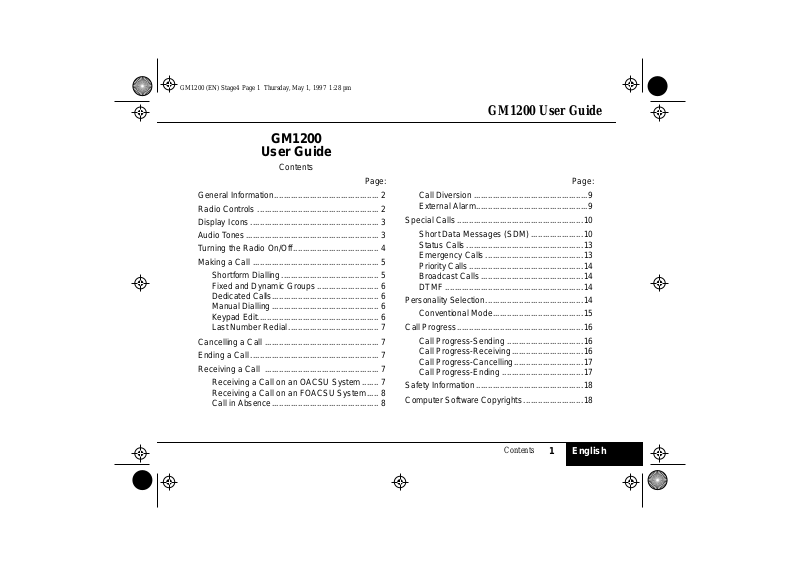

Contents

Page:
General Information............................................ 2
Radio Controls ................................................... 2
Display Icons...................................................... 3
Audio Tones........................................................ 3
Turning the Radio On/Off....................................4
Making a Call ..................................................... 5
Shortform Dialling......................................... 5
Fixed and Dynamic Groups.......................... 6
Dedicated Calls............................................. 6
Manual Dialling............................................. 6
Keypad Edit................................................... 6
Last Number Redial...................................... 7
Cancelling a Call ................................................ 7
Ending a Call...................................................... 7
Receiving a Call ................................................ 7
Receiving a Call on an OACSU System....... 7
Receiving a Call on an FOACSU System..... 8
Call in Absence............................................. 8
GM1200 User Guide
Page:
Call Diversion................................................9
External Alarm...............................................9
Special Calls .....................................................10
Short Data Messages (SDM) ......................10
Status Calls.................................................13
Emergency Calls.........................................13
Priority Calls................................................14
Broadcast Calls...........................................14
DTMF ..........................................................14
Personality Selection.........................................14
Conventional Mode......................................15
Call Progress.....................................................16
Call Progress-Sending ................................16
Call Progress-Receiving..............................16
Call Progress-Cancelling.............................17
Call Progress-Ending ..................................17
Safety Information.............................................18
Computer Software Copyrights.........................18
Contents
1
English

General Information

General Information
This user guide covers the operation of the 1200 Series mobile radios used on MPT1327 Trunked Radio Systems. Please note that the location of the system may affect the types of call which are available. The radio display prompts are available in various languages. Please consult your dealer for further information.
This user guide describes the operation of radios
with
(K8) and
without
described below can only be selected via the shortform dial position selector (16 & 17). Please consult your dealer for further information.
WARNING: When installing or removing the
without
(K4) a keypad. On radios
a keypad the different types of call
mobile radio from the vehicle it must be switched off.

Radio Controls

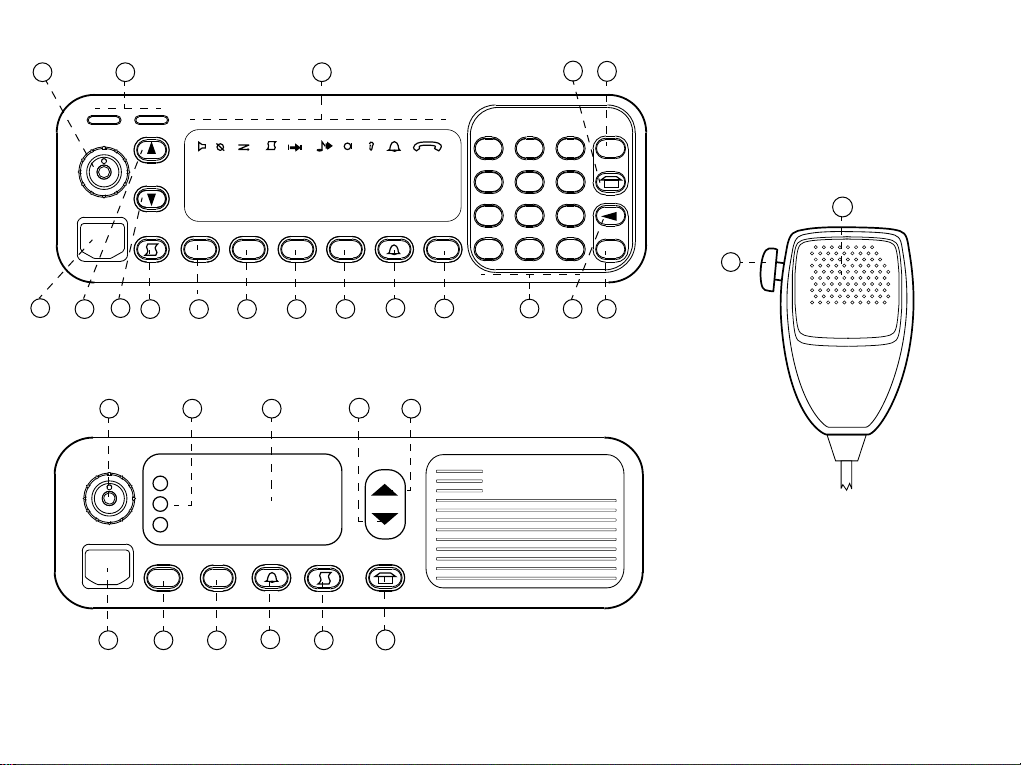

Numbers refer to the illustrations on inside covers.
1. On/Off
2. Light Emitting Diodes (LED)
3. Alpha-numeric Display
4. Dedicated Call Button
5. Emergency Button
6. Clear Button
7. Edit/Clear Button
8. Keypad
9. Status Button
10. External Alarm Button
and
Volume Control
Red
: On when radio is transmitting
Green
: Flashes to indicate NO SERVICE.
Two lines of 14 characters (K8) or one line of 9 characters (K4), backlit.
(On K4 either or )
M
for cancelling a call, or clearing down at the end of a call, or deleting an SDM in the SDM stack, or
Monitor Button
(conventional mode).
for correcting keypad entries
or for clearing down at the end of call.
0 to 9 for entering digits
#
for sending a call call modifier for priority, broadcast,
emergency and status calls.
for sending status messages.
English
General Information/Radio Controls
2

Display Icons

11. Personality Selection 12-13. Not Used
14. Data Key
stack or initiating a short data call request.
15. Call in Absence Selector 16-17. Shortform Dial Position Selector or
Channel Selector
18. Microphone Connector
When installing the microphone, turn the radio off and on again.
19. Transmit (PTT)
Push to talk, release to listen.
20. Clear Button (on rear)
clearing down at the end of a call. Activated when the microphone is replaced.
for interrogating the data message
(conventional mode).
for cancelling a call or
Display Icons
Scanning. Registered/Call Monitoring
(conventional mode). Loudspeaker Open. Call In Absence received. External Alarm selected. Data message(s) in the Data Message stack.

Audio Tones

High pitched tone Low pitched tone Self test: Sounded on power up. Tone A: Call clear indication. Tone B: Traffic channel allocated
and PTT/Mic/
Loudspeaker enabled. Tone C1: System busy. Tone C2: Unavailable. Tone C3: Called party busy. Tone C4: Invalid number. Tone D: Call set up in progress,
wait for further
indications. Tone E: Incoming call, press PTT,
then wait for further
indications.
Tone F: Transaction confirmed,
called unit will call back.
Tone G: Look at display for call set
up or system information.
Tone H: Invalid entry.
Display Icons/Audio Tones
3
English

Turning the Radio ON/OFF

Key click: Confidence tone when
any key pressed/speech limitation warning.
Fail tone: Hardware error/call
timed out (conventional mode).
Note:
In the following pages two types of radio display examples will be shown :
K8
TEXT 213
K4
TEXT
Turning the Radio ON/OFF
Turn the radio on by pressing the combined ON/ OFF/VOLUME control (1). The radio then enters a self test routine. During the test the display will be activated, the self test tone will sound, and the LED will light green. If the radio fails the self test a continuous low tone will sound and the display will show a fault code, e.g. “02”:
K8 K4
RADIO FAULT 02
until the radio is turned off by pressing the control (1) again.
ERR 02
Note:
If the radio fails the self test routine, consult your dealer.
When the self test is complete the radio will display:
K8
TEXT 213
K4
TEXT
followed by
213
where "213" is the identity of the radio. After this text has been display ed, the radio will scan
for system access with the LED flashing GREEN and the scanning icon lit.
When a control channel is acquired, the green LED will go off and the scanning icon will be replaced by the registered icon .
Use the combined ON/OFF/VOLUME control (1) to adjust the volume to a comfortable listening level.
English
Turning the Radio ON/OFF
4

Making a Call

Making a Call
The radio is capable of making a variety of calls, including calls to individual radios, groups of radios and calls to private and public telephone systems.
Before you can make a call the radio must be in the IDLE STATE, i.e. a personality has been selected and no call is in progress (see "
Selection
K8 K4
TEXT 213
"). In the IDLE STATE the radio displays:
The 1200 series radios can make calls by using

Shortform Dialling

, or
Dedicated Calls
can also make calls using
Shortform Dialling
When the radio is in the IDLE STATE shortform dialling may be used. This allows quick access to up to 40 preprogrammed numbers of up to 14 digits (on K4 radios, only the last 8 digits are displayed) using the shortform dial position selector (16 & 17).
Depending on the way your radio is programmed, the radio will display the alphanumeric alias, the number to be dialled or the position in the list.
Personality
ID 213
. K8 radios
Manual Dialling
.
For example:
K8 K4
JOHN SMITH
JOHN
or
213
213
or
POSITION 15
POS 15
or
GROUP 01
where 01 indicates position in Fixed Group list.
GRP 01
or
BA 123 SERVICE
where BA 123 SERVICE is an Dynamic Group alpha alias.
BA 123
or
DYNAMIC 01
where 01 indicates position in Dynamic Group list.
DYN 01
The call request is sent either by pressing the PTT key (19) or .
#
Making a Call
5
English

Fixed and Dynamic Groups

If the shortform dial position selector (16 & 17) is operated, but no call request is sent, the display will be held until tone H sounds. The display will then revert to the IDLE STATE.
Note:
When the shortform dial number is displayed, it may be edited as described in the section (K8 only).
Keypad Edit
Fixed and Dynamic Groups
A
fixed
group is a group of users, the address (number) of which is pre-programmed into your radio by your dealer.
A
dynamic
(number) of which is sent to your radio ‘over air’ at any time via the system controller. Therefore at any time you may become a member of a dynamic group, able to receive calls and (depending on how your radio is programmed) send calls to that group.
Incoming calls to fixed and dynamic group numbers are detailed in under
To make an outgoing call to a fixed or dynamic group address, use the shortform dial position selector (16 & 17) when the radio is in the IDLE STATE as detailed in
group is a group of users, the address
Receiving a Call
Call Progress - Receiving
and displayed
.
Shortform Dialling
.

Dedicated Calls

Hold the dedicated call button (4) down for a preset period to make a call to a preprogrammed number. The number will then be displayed and the conversation can go ahead.

Manual Dialling (K8 only)

To make a call enter the telephone number, the identity of the radio or group of radios via the ke ypad (8), e.g. "210" followed by or PTT:
210#
#

Keypad Edit (K8 only)

Before a call is initiated the last digit may be deleted by pressing the edit button (7). Press the button again to delete the next digit and enter the correct digit. If the edit button (7) is pressed during a call, the call will be ended.
English
Fixed and Dynamic Groups
6

Receiving a Call

Last Number Redial

The last number dialled by the radio is stored in the memory of the radio. For status calls only the called number will be stored, not the status message. Partially entered numbers are also stored.
The stored number can be displayed when the radio is in the IDLE STATE. This number may be recalled by pressing the PTT key (19). The number may also be edited, see
Keypad Edit
.

Cancelling a Call

At any time while setting up a call it may be cancelled by pressing the clear button (6) or by
#
dialling . See "
Call
Call Progress - Cancelling a
".
C

Ending a Call

A call should always be ended by pressing the clear button (6), by replacing the microphone, by dialling or by pressing the edit/clear button
C
(7). See "
#
Call Progress - Ending a Call"
.
Receiving a Call
There are two types of systems on which the radio may be used,
Full Off Air Call Set Up (FOACSU)
If you are in doubt about which system you are operating on, consult your dealer.
Receiving a call on an Off Air Call Set Up (OACSU) System
When the radio is called, tone D will sound and the display will change to:
ALERTED 213
This will be followed by tone B and the display will change to indicate the type of call being received. See "
Call Progress - Receiving
Off Air Call Set Up (OACSU)
.
ALERT
followed by
213
".
and
Cancelling a Call/Ending a Call/Receiving a Call
7
English
Receiving a Call
Receiving a call on a Full Off Air Call Set Up (FOACSU) System
When the radio is called, tone E will sound and the display will change to:
ALERTED 213
Press either the PTT or key (K8 only) or lift the
#
ALERT
followed by
213
microphone to accept the call. Tone D will sound until a traffic channel is allocated then tone B will sound and the display will change to indicate the type of call being received. See "
Receiving Note:
".
The system may have a limited call time and the call may be terminated automatically if this call time is exceeded.
Call Progress -

Call in Absence

If a call is not answered within a preprogrammed amount of time, the call will be stored by the radio. Up to 10 calls can be stored. If the same radio calls more than once the call is only stored once. When 10 calls have been stored by the radio, the eleventh call received overwrites the first.
When a call has been stored by the radio, tone G will sound every ten seconds and the display will show the identity of the calling party. The call in absence icon will be lit.
To view the calls in the stack, press the call in absence button (15). The call in absence display will look like this:
01 213
01
followed by
213
where "01" indicates the position in the stack and "213" is the number of the calling party.
The most recent call stored by the radio will be on position "01". Operate the selector (16 & 17) to display any other calls in the stack.
Press either the PTT or key (K8 only) to make a
#
call. The number stays in the stack until the clear button (6) is pressed, is dialled or the
C
#
personality of the radio is changed. To exit the Call in Absence stack, press the call in
absence button (15).
Note:
The calls in the stack are not deleted when the radio is turned off. It is not possible to call back status calls.
English
Receiving a Call/Call in Absence
8
Receiving a Call

Call Diversion

Incoming speech calls or status calls can be diverted either from your radio (initiated by pressing
4 1
pressing ). On K4 radios Call Diversion/
) or from another radio (initiated by
4 4
Cancellation may be programmed in the shortform dial list. Please contact your dealer for further information.
When the radio is in the IDLE STATE, call diversion can be initiated by pressing:
4 1 4
(or )
4 1 4 1
(or )
4 1 4 2
(or )
followed by the ID of the receiving radio and .
to divert all calls
to divert speech calls only
to divert status calls only
#
Examples: Pressing
4 1
2 3 4 #
will divert all calls from your radio to the radio with the ID "234".
Pressing
4 4
2 3 4
4 3 2 #
will redirect all calls to the radio with the ID "234" to the radio with the ID "432".
If a call is made to a radio whose calls are currently being diverted, tone D will sound and the display of the calling radio will change to:
DIVERTING
DIVERT
A call will then automatically be set up to the radio which is receiving the diverted calls.
Cancel call diversion by pressing
# 4 1 1 2 # 4 4 1 2
Press to cancel calls redirected to your
followed by or , if necessary or followed by or , if necessary, and
"ID".
# 4 5
radio.

External Alarm

The external alarm button (10) activates the vehicle horn and/or lights to inform you a call is being received.
Press the button to turn the external alarm on and the icon will be lit.
Press the button again to turn it off. Please contact your dealer for further information.
Receiving a Call/Call Diversion/External Alarm
9
English

Special Calls

Special Calls

Short Data Messages (SDM)

Short data messages may be set up, sent and received using the radio keypad and controls. Outgoing data messages from the keypad are limited to numeric data only in any combination of up to 20 characters.
Note:

Receiving Short Data Messages

On receiving an SDM, tone G sounds and the display shows:
The data message icon is lit whenever SDMs are in the data message stack, i.e. displayable, unless the message display has been turned off (refer to Displaying Incoming Data).
Non keypad radios cannot generate or display incoming SDMs and may only be used for data when connected to external data terminal equipment (DTE).
DATA RECEIVED

Displaying Incoming Data

The short data message display can be switched ON and OFF using the keypad controls as follows:
Enter 23001 to turn ON the incoming
Enter 23000 to turn OFF the incoming short data display.
short data display.
#
#
The SDM display defaults to ON, how ev er the option setting is retained when the radio is switched off.
Note:
This feature is important if the radio is being used with external data terminal equipment (DTE), to prevent loss of data messages.
With the SDM display set to ON, on reception of a valid SDM, either it can be displayed by the radio and/or passed to external DTE. In either case, the SDM is received and accepted (acknowledged) by the radio. Only if the SDM is of an un-displayable format AND the external DTE is disconnected, is the SDM rejected by the radio.
With the SDM display set to OFF, on reception of a valid SDM, it will not be added to the data message stack for display, but passed to the external DTE, which if accepted will be acknowledged by the radio.
Howev er, if the DTE is not present e.g. disconnected, the SDM is rejected by the radio. In this case the SDM will not be accepted (acknowledged) by the radio and will not be lost.
English
Special Calls/Short Data Messages
10

Summary

If using the radio only, the SDM display should be set to ON.
If using the radio with external DTE which is permanently connected in normal use, the SDM display should be set to ON.
If using the radio with external DTE which may be disconnected in normal use, then set the display to OFF prior to disconnecting the external DTE to avoid SDM loss.

Storing SDMs

Incoming SDMs are stored on receipt in the Short Data Message stack. Up to five SDMs can be stored by the radio. When five SDMs hav e been stored, the sixth SDM overwrites the first. The data message icon is lit whenever SDMs are in the stack.
SDMs are not stored when the radio is switched OFF.

Interrogating the SDM stack

To interrogate the SDM stack, with the radio in the idle state, press the data key (14) to enter the
D
SDM stack interrogate mode. The first entry in the stack will be displayed as
shown in the following example:
Special Calls
01 DATA 213
where 01 indicates the position in the stack (01 is the most recent message), and 213 is the number of the calling party.
To scroll through the other entries in the stack use the short form dial position selector (16 & 17).
To exit the data message stack interrogate mode press the data key (14).
Note:
You must exit the data message stack interrogate mode to put the radio in the idle state in order to make other calls or enter the call in absence stack.

Scrolling SDMs

From the stack, the entire currently selected SDM may be displayed by scrolling, which can be either on a character or word basis.
Press Edit (7) to display the SDM. To scroll on a character basis, press keypad button
6
to scroll to the left and keypad button to scroll to the right. Hold down either button to continue scrolling to the end/beginning of message.
D
4
Special Calls/Short Data Messages
11
English
Special Calls
To scroll on a word basis, press keypad button to scroll forward through the message and keypad button to scroll backwards. The display shows
2
as many complete words as the display allows , after which they are split and displayed section by section.
Press Edit (7) to return to the SDM stack interrogate mode to select and display other SDMs.

Deleting Messages from the SDM Stack

Pressing either Clear button (6) or keypad keys
#
will delete the currently selected SDM from
C
the stack. The radio returns to the SDM stack interrogate mode after each deletion until the last message is deleted when the display returns to the idle state and the SDM icon is extinguished.

Status replies to an SDM

Where an SDM contains a calling party number, the radio can respond with a status message.
From the SDM stack interrogate mode or SDM scrolling mode, press the status key (9). The
S
radio will exit the data mode and enter the dialling state for example:
213S
8
The status digits can then be specified as in normal status mode.

Making an SDM Call

SDM calls may be set up in one of three ways, via the data key , manually via the ke ypad or via the
D
shortform dialling feature. To make an SDM call via the data key, select the
desired address as detailed in Making a Call, press
D
the key (14) followed by the data message string which may only consist of digits (0-9). i.e. ADDRESS ( ) DATA
D
To make an SDM call via the keypad, enter
2
(digits 0-9), press followed by the desired
followed by the data message string
address as described in Making a Call.
2
i.e. DATA ADDRESS
Note:
The maximum data message size is limited to 20 characters which includes address information and data selection characters.
To make an SDM call via the shortform dialling feature, select the pre-programmed address and send the message as detailed in Shortform
Dialling. Note:
The maximum data message size is limited to 14 characters which includes address information and data selection characters.
English
Special Calls/Short Data Messages
12
Special Calls

Receiving a Status Call

A status is a code for transmitting prearranged messages. For example, status "05" may indicate "Return to base". When the radio receives a status call, tone G will sound and the display changes to:
S05 213 RETURN TO BASE
S05
followed by
213
and
RETURN
if status text is preprogrammed in the radio.

Making a Status Call

For radios with a keypad, status calls may be initiated in two different ways, via the status key
S
(9) or manually via the keypad (8).
On K4 radios status calls can only be made if they are preprogrammed into the radio on the selector (16 & 17).
In order to make a status call via the status button, choose the desired address as described in Making a Call. Then press the status button (9),
S
followed by two status digits. The display then changes to:
S05 213 RETURN TO BASE
The status number may be edited by using the edit key (7), please refer to Keypad Edit.
To initiate a status call via the keypad (8) enter
0
then enter the status e.g. "05" followed by
and the desired address. In both cases the call is handled as described in
Making a Call.

Making an Emergency Call

Hold the emergency button (5) down for a preset period of time to make a call to a preprogrammed emergency number. No further button press is required to establish the call.
If provided by the system, the user can also dial a preprogrammed emergency number via the keypad (8). Please contact your dealer for further information.
Special Calls/Status/Emergency
13
English

Personality Selection

A dialled number may also be given an emergency priority by prefixing the required number by
9
. The call is then initiated as previously described. The display changes are described in "Call Progress - Sending".

Making a Priority Call

A priority call allows you to gain priority over other users of the system when requesting a call. Priority calls are indicated by prefixing the required number
8
by . The call is then initiated as previously
described. The display changes are described in "Call Progress - Sending".

Making a Broadcast Call

A broadcast call allows you to make broadcast calls to groups of radios. Broadcast calls are indicated by
1 1
prefixing the required number by .
The call is then initiated as previously described. Note that on a broadcast call only the calling radio can talk and there is no indication that any units have received the call.

DTMF (K8 only)

DTMF means Dual Tone Multi Frequency and is used when the radio is required to operate in a radio system with an interface to telephone systems.
The access code for DTMF is system dependent, please contact your dealer for further information.
Enter the access code. To generate the DTMF tones press and hold the PTT (19) while entering the desired number.
Personality Selection
The radio may be programmed with a number of different personalities. To change personality press the personality selection button (11). Release the button when the desired personality is displayed:
PERSONALITY 1
or
CONVENTIONAL
P
PER 1
CONV
English
Special Calls/Priority/Broadcast/DTMF/Personality Selection
14
Personality Selection

Conventional Mode

In the conventional mode the radio operates as a standard two-way radio.
Select the personality "Conventional" as described above. The display shows:
CHANNEL 01
CH 01
Use the channel selector (16 & 17) to display the desired channel.
Prior to transmission always make sure that the channel is free (red LED not flashing). Press the PTT key (19) to transmit, release it to listen. The red LED lights while the radio transmits and flashes if the channel is busy.
Some channels may be monitored for activity by pressing the monitor button (6). The icon will
C
be lit until the channel is changed or the monitor button (6) is pressed again. The icon will also
C
light briefly when the microphone is taken out of its holder. Please consult your dealer for further information.
In the conventional mode the radio is equipped with a time out timer. A speech limitation warning will sound a few seconds before the transmitter is switched off. The call timed out tone will sound, until the PTT is released.
To generate the DTMF tones press and hold the PTT (19) while entering the desired number.
Personality Selection/Conventional Mode
15
English

Call Progress

Call Progress

Call Progress - Sending

Tone Display K8 Display K4 Comment
D Trying to connect call
CALLING CALL CALLING
D Priority call sent,
PRIORITY
D Data Call initiated,
CALLING DATA
D Emergency call sent,
CALLING EMERGENCY
B Call can proceed
READY XXX READY
G/D Call queued on system
QUEUED QUEUED
D Calls to called unit have
DIVERTING DIVERT
C2 Call unobtainable
UNOBTAINABLE UNOBT
C2 Unit unavailable
UNAVAILABLE UNAV'L
C4 Incorrect number
INVALID NUMBER INV NO
C1 System busy, try again
SYSTEM BUSY S BUSY
D Alerting called unit
ALERTING ALERT
C3 Called unit is busy
ENGAGED ENGAGE
F Called unit will call back
WILL CALL BACK C BACK
PRIOR
followed by
CALL
EMERG
followed by
CALL
modifier *8* used
display held for 2 secs.
modifier *9* used
been diverted
Tone Display K8 Display K4 Comment
C2 Call failed, try again
CALL FAIL C FAIL
C2 Call request timed out.
TIMEOUT T OUT
Check service is available
followed by
CALL FAIL C FAIL
H System access lost,
SCANNING SCAN
try again
followed by
CALL FAIL C FAIL

Call Progress - Receiving

Tone Display K8 Display K4 Comment
D A call is being received
ALERTED NNN ALERT
E A call is being received
ALERTED NNN ALERT
D/E Emergency call being
ALERTED NNN EMERGENCY
EMERG
followed by
ALERT
G Data call being received
ALERTED NNN DATA RECEIVED
B Call from radio in
NNN XXX NNN
on OACSU
on FOACSU. Press PTT or “#” or lift microphone to accept call
received
your fleet
English
Call Progress/Sending/Receiving
16
Tone Display K8 Display K4 Comment
B Call from radio in
INTERFLEET XXX INT FL
B Call from public
TELEPHONE XXX TEL
B Call from private
PABX XXX PABX
B Call identity unknown
CALL XXX CALL
B Dynamic Group call
DYNAMIC NN DYN NN
B Fixed Group call received
GROUP NN GRP NN
B Call to all radios in use
SYS WIDE XXX S WIDE
another fleet
telephone system
telephone system
to the system
received (maybe alpha alias)
on the system

Call Progress - Cancelling a call

Tone Display K8 Display K4 Comment
D/G Call successfully
CANCELLING CANCEL
cancelled by user

Call Progress - Ending a call

Tone Display K8 Display K4 Comment
G Another call can now
CALL ENDED C END
be made
Note: For K8 radios only, in the above displays “XXX” is an
elapsed time counter.
Call Progress
Call Progress/Cancelling/Ending
17
English

Safety Information

Safety Information
Every radio, when transmitting, radiates energy into the atmosphere which may, under certain conditions, cause the generation of a spark.
All users of vehicles fitted with radios should be aware of the following warnings:
Do not operate radio near
inflammable liquids or in the vicinity of
explosive devices
During normal use, the radio will subject you to radio energy substantially below the level where any kind of harm is reported.
To ensure personal safety, please observe the following simple rules:
■■DO NOT transmit when the antenna is very
close to, or touching, exposed parts of the body, especially the face and eyes.
■■DO NOT hold the transmit (PTT) ke y in when not
actually desiring to transmit.
■■DO NOT allow children to play with any radio
equipment containing a transmitter.
■■DO NOT operate radio whilst driving. It should
also be noticed that the use of a hand held microphone while driving could constitute an offence under the Road Traffic Regulation.

Computer Software Copyright

The products described in this manual may include copyrighted computer programmes stored in semiconductor memories or other media. Laws in the United States of America and other countries preserve for Motorola Europe and Motorola Inc. certain exclusive rights for copyrighted computer programmes, including the right to copy or reproduce in any form the copyrighted computer programme. Accordingly, any copyrighted computer programmes contained in the products described in this manual may not be copied or reproduced in any manner without the express written permission of the holders of the rights. Furthermore, the purchase of these products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any licence under the copyrights, patents, or patent applications of the holders of the rights, except for the normal non-exclusive royalty free licence to use that arises by operation of the law in the sale of the product.
English
Safety Information/Computer Software Copyright
18
4
1
2
3
5
1 2 3
4 5 6
7 8 9
D P
18
16
17
1
14 1315
2
12
11
3
16
S
9
10
17
0 #
*
8
A
K8
20
C
6
7
19
K4
P C
10
18
6
11
15
4
Loading...
