Moog RHW75C2N, RHW75, RHP75C2N, IRHW75C2N, IRHP75C2N Installation And Operation Instructions Manual

Installation and Operation Instructions

Before attempting to connect or operate this product, please
read these instructions completely.

RHW75

Vandal Resistant Rugged Indoor Outdoor Wall or Pendant Mounted Dome Camera Enclosure

RHW75C2N............... IP Network Ready 7” Vandal Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear

dome, with 24VAC input, heater / blower, for an IP Network PTZ camera, 120 to 24VAC transformer.

RHP75C2N................ IP Network Ready 7” Vandal Resistant Outdoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate clear

dome, with 24VAC input, heater/blower, for an IP Network PTZ camera, 120 to 24VAC transformer.

IRHW75C2N............... IP Network Ready 7” Vandal Resistant Indoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome.

IRHP75C2N............... IP Network Ready 7” Vandal Resistant Indoor dome housing with pendent mount, rugged cast aluminum top and polycarbonate

clear dome.

IRHW7C..................... Vandal Resistant Indoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear dome.

RHW75C2NE............. IP Network Ready 7” Vandal Resistant Outdoor dome housing with wall mount, rugged cast aluminum top and polycarbonate clear

dome, with 24VAC input, heater / blower, for an IP Network PTZ camera, 120 to 24VAC transformer. (European Model)

Substitute “C” (Clear dome) for “T” (Tinted dome) version or “P” (Pendant mount) for “W” (Wall mount) version

To be used with the 81-IN5481 Instruction Manual.

Pendant Mount

© 2013, Moog Inc. All Rights Reserved

Moog Inc.

Sensor and Surveillance Systems

3650 Woodhead Drive Northbrook, IL. USA 60062

+1.847.498.0700 Fax: [phone] www.moogS3.com

81-I N 5 3 0 9 111313

IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS

avvertire l’utente alla presenza delle istruzioni importanti nella

MADEIN

BUY AMERICA COMPLIANT • COUNTRY OF ORIGIN U.S.A.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with damp cloth.

7 Do not block any of the ventilation openings. Install in accordance with the

manufacturers instructions.

8 Cable Runs- All cable runs must be within permissible distance.

9 Mounting - This unit must be properly and securely mounted to a supporting

structure capable of sustaining the weight of the unit.

Accordingly:

a. The installation should be made by a qualied installer.

b. The installation should be in compliance with local codes.

c. Care should be exercised to select suitable hardware to install the unit, taking into

account both the composition of the mounting surface and the weight of the unit.

10 Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus ( including ampliers) that produce heat.

11 Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third

prong are provided for your safety. When the provided plug does not t into your

outlet, consult an electrician for replacement of the obsolete outlet.

12 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

13 Only use attachment/ accessories specied by the manufacturer.

14 Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

15 Unplug this apparatus during lighting storms or when unused for long periods of time.

16 Refer all servicing to qualied service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled of objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

Be sure to periodically examine the unit and the supporting structure to make sure that the integrity

of the installation is intact. Failure to comply with the foregoing could result in the unit separating

from the support structure and falling, with resultant damages or injury to anyone or anything struck

by the falling unit.

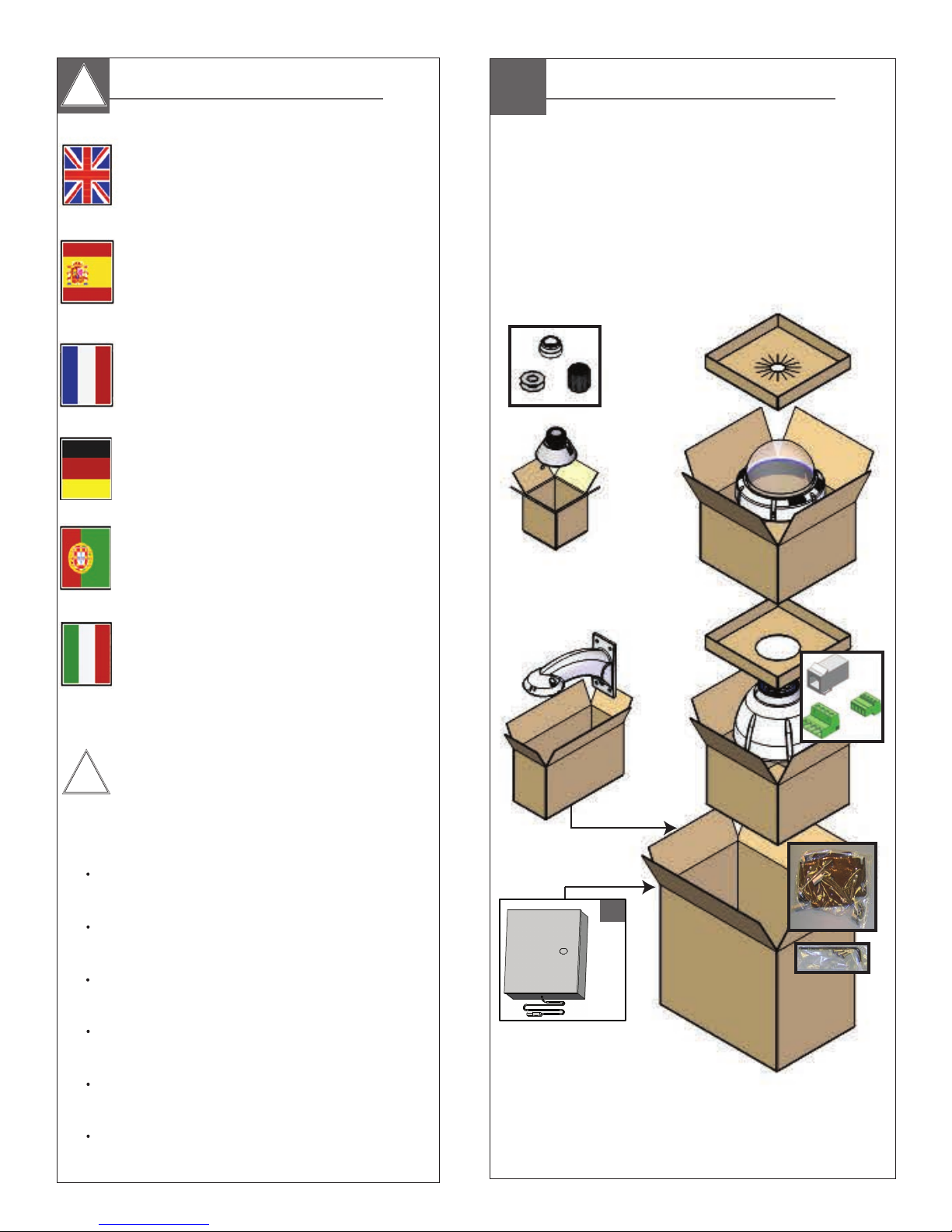

UNPACKING

Unpack carefully. Electronic components can be
damaged if improperly handled or dropped. If an item
appears to have been damaged in shipment, replace
it properly in its carton and notify the shipper.

Be sure to save:
1 The shipping carton and packaging material.

They are the safest material in which to make future
shipments of the equipment.

2 These Installation and Operating Instructions.

SERVICE

If technical support or service is needed, contact us at
the following number:

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER ( OR BACK). NO USER- SERVICE-

ABLE PARTS INSIDE. REFER SEVICING

TO QUALIFIED SERVICE PERSONNEL.

The lightning ash with an arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of non-insulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk to persons.

Este símbolo se piensa para alertar al usuario a la presencia
del “voltaje peligroso no-aisIado” dentro del recinto de los
productos que puede ser un riesgo de choque eléctrico.

Ce symbole est prévu pour alerter I’utilisateur à la presence
“de la tension dangereuse” non-isolée dans la clôture de
produits qui peut être un risque de choc électrique.

Dieses Symbol soll den Benutzer zum Vorhandensein der
nicht-lsolier “Gefährdungsspannung” innerhalb der
Produkteinschließung alarmieren die eine Gefahr des
elektrischen Schlages sein kann.

Este símbolo é pretendido alertar o usuário à presença “di
tensão perigosa non-isolada” dentro do cerco dos produtos
que pode ser um risco de choque elétrico.

Questo simbolo è inteso per avvertire I’utente alla presenza
“di tensione pericolosa” non-isolata all’interno della
recinzione dei prodotti che può essere un rischio di scossa
elettrica

.

The exclamation point within an equilateral
triangle is intended to alert the user to
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

Este símbolo del punto del exclamation se piensa para
alertar al usuario a la presencia de instrucciones importantes
en la literatura que acompaña la aplicación.

Ce symbole de point d’exclamation est prévu pour alerter
l’utilisateur à la presence des instructions importantes dans
la littérature accompagnant l’appareil.

Dieses Ausruf Punktsymbol soll den Benutzer zum
Vorhandensein de wichtigen Anweisungen in der Literatur
alarmieren, die das Gerät begleitet.

Este símbolo do ponto do exclamation é pretendido alertar o
usuário à presença de instruções importantes na literatura
que acompanha o dispositivo.

Questo simbolo del punto del exclamaton è inteso per

letteratura che accompagna l'apparecchio.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TECHNICAL SUPPORT

AVAILABLE 24 HOURS

1- 800-554 -1124

Product Warranty Registration

Register Your Products Online

www.moogS3.com/technical-support/product-registration

Moog values your patronage. We are solely committed to providing you with the highest quality products and
superior customer service. With 3-Year and 5-Year warranties (depending on the product purchased) we stand
behind every product we sell.

See full warranty details at www.moogS3.com/technical-support/warranty-plan/

:

• Simple and Trouble-Free RMA process

• Product / software updates

• Special promotions

• Eliminate the need to archive purchase documents such as receipts, purchase orders, etc.

Limited Warranty for Moog Products

MANUFACTURER HEREBY DISCLAIMS ANY REPRESENTATIONS OR WARRANTY THAT THE PRODUCT IS COMPATIBLE WITH ANY COMBINATION OF NON-MANUFACTURER

Moog - Decatur Operations, subsequently referred to as “Manufacturer,” warrants these products to be free from defects in material or workmanship as follows:

PRODUCT CATEGORY PARTS \ LABOR

All Enclosures and Electronics Five (5) Years

Accessory Brackets Five (5) Years

Controllers Three (3) Years

Power Supplies / IR Illuminators Three (3) Years

™

Poles / PolEvators

Warrior Series

SView Series

DeputyDome

EXO Series

EXO Series

During the labor warranty period, to repair the Product, Purchaser will either return the defective product, freight prepaid, or deliver it to Manufacturer at Moog Decatur
Operations, 2525 Park Central Boulevard, Decatur, Georgia, 30035. The Product to be repaired is to be returned in either its original carton or a similar package affording
an equal degree of protection with a RMA # (Return Materials Authorization number) displayed on the outer box or packing slip. To obtain a RMA# you must contact our
Technical Support Team at 800.554.1124, extension 101. Manufacturer will return the repaired product freight prepaid to Purchaser. Manufacturer is not obligated to
provide Purchaser with a substitute unit during the warranty period or at any time. After the applicable warranty period, Purchaser must pay all labor and/or parts charges.
The limited warranty stated in these product instructions is subject to all of the following terms and conditions.

TERMS AND CONDITIONS

1. NOTIFICATION OF CLAIMS: WARRANTY SERVICE: If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation

of the claim shall be given promptly by Purchaser to Manufacturer. All claims for warranty service must be made within the warranty period. If after investigation,
Manufacturer determines the reported problem was not covered by the warranty, Purchaser shall pay Manufacturer for the cost of investigating the problem at its then
prevailing per incident billable rate. No repair or replacement of any Product or part thereof shall extend the warranty period of the entire Product. The specic warranty on
the repaired part only shall be in effect for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product parts warranty,
whichever is greater.

/ CamEvator Three (3) Years

™

™

™

, NiteTrac™, Igloo Dome, PurgeDome

™

Dome and Fixed Camera Systems* Three (3) Years 6 months if used in auto scan / tour operation

™

GeminEye Visible and Thermal Camera Systems One (1) Year

/ Q-View

™

Three (3) Years

Three (3) Years 6 months if used in auto scan / tour operation

™

Three (3) Years 6 months if used in auto scan / tour operation

2. EXCLUSIVE REMEDY: ACCEPTANCE: Purchaser’s exclusive remedy and Manufacturer’s sole obligation is to supply (or pay for) all labor necessary to repair any Product

found to be defective within the warranty period and to supply, at no extra charge, new or rebuilt replacements for defective parts.

3. EXCEPTIONS TO LIMITED WARRANTY: Manufacturer shall have no liability or obligation to Purchaser with respect to any Product requiring service during the warranty

period which is subjected to any of the following: abuse, improper use, negligence, accident, or acts of God (i.e., hurricanes, earthquakes), modication, failure of the
end-user to follow the directions outlined in the product instructions, failure of the end-user to follow the maintenance procedures recommended by the International Security
Industry Organization, written in product instructions, or recommended in the service manual for the Product. Furthermore, Manufacturer shall have no liability where a
schedule is specied for regular replacement or maintenance or cleaning of certain parts (based on usage) and the end-user has failed to follow such schedule; attempted
repair by non-qualied personnel; operation of the Product outside of the published environmental and electrical parameters, or if such Product’s original identication
(trademark, serial number) markings have been defaced, altered, or removed. Manufacturer excludes from warranty coverage Products sold AS IS and/or WITH ALL FAULTS
and excludes used Products which have not been sold by Manufacturer to the Purchaser. All software and accompanying documentation furnished with, or as part of the
Product is furnished “AS IS” (i.e., without any warranty of any kind), except where expressly provided otherwise in any documentation or license agreement furnished with
the Product. ANY COST ASSOCIATED WITH REMOVAL OF DEFECTIVE PRODUCT AND INSTALLATION OF REPLACEMENT PRODUCT IS NOT INCLUDED IN THIS WARRANTY.

4. PROOF OF PURCHASE: The Purchaser’s dated bill of sale must be retained as evidence of the date of purchase and to establish warranty eligibility.

DISCLAIMER OF WARRANTY

EXCEPT FOR THE FOREGOING WARRANTIES, MANUFACTURER HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARD TO ANY
CLAIM OF INFRINGEMENT THAT MAY BE PROVIDED IN SECTION 2-312(3) OF THE UNIFORM COMMERCIAL CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE.

PRODUCTS OR NON-MANUFACTURER RECOMMENDED PRODUCTS PURCHASER MAY CHOOSE TO CONNECT TO THE PRODUCT.

LIMITATION OF LIABILITY

THE LIABILITY OF Manufacturer, IF ANY, AND PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR DAMAGES FOR ANY CLAIM OF ANY KIND WHATSOEVER, REGARDLESS
OF THE LEGAL THEORY AND WHETHER ARISING IN TORT OR CONTRACT, SHALL NOT BE GREATER THAN THE ACTUAL PURCHASE PRICE OF THE PRODUCT WITH RESPECT
TO WHICH SUCH CLAIM IS MADE. IN NO EVENT SHALL MANUFACTURER BE LIABLE TO PURCHASER FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION, REPLACEMENT LABOR COSTS, REIMBURSEMENT, OR DAMAGES ON ACCOUNT OF THE LOSS
OF PRESENT OR PROSPECTIVE PROFITS OR FOR ANY OTHER REASON WHATSOEVER.

RHW75

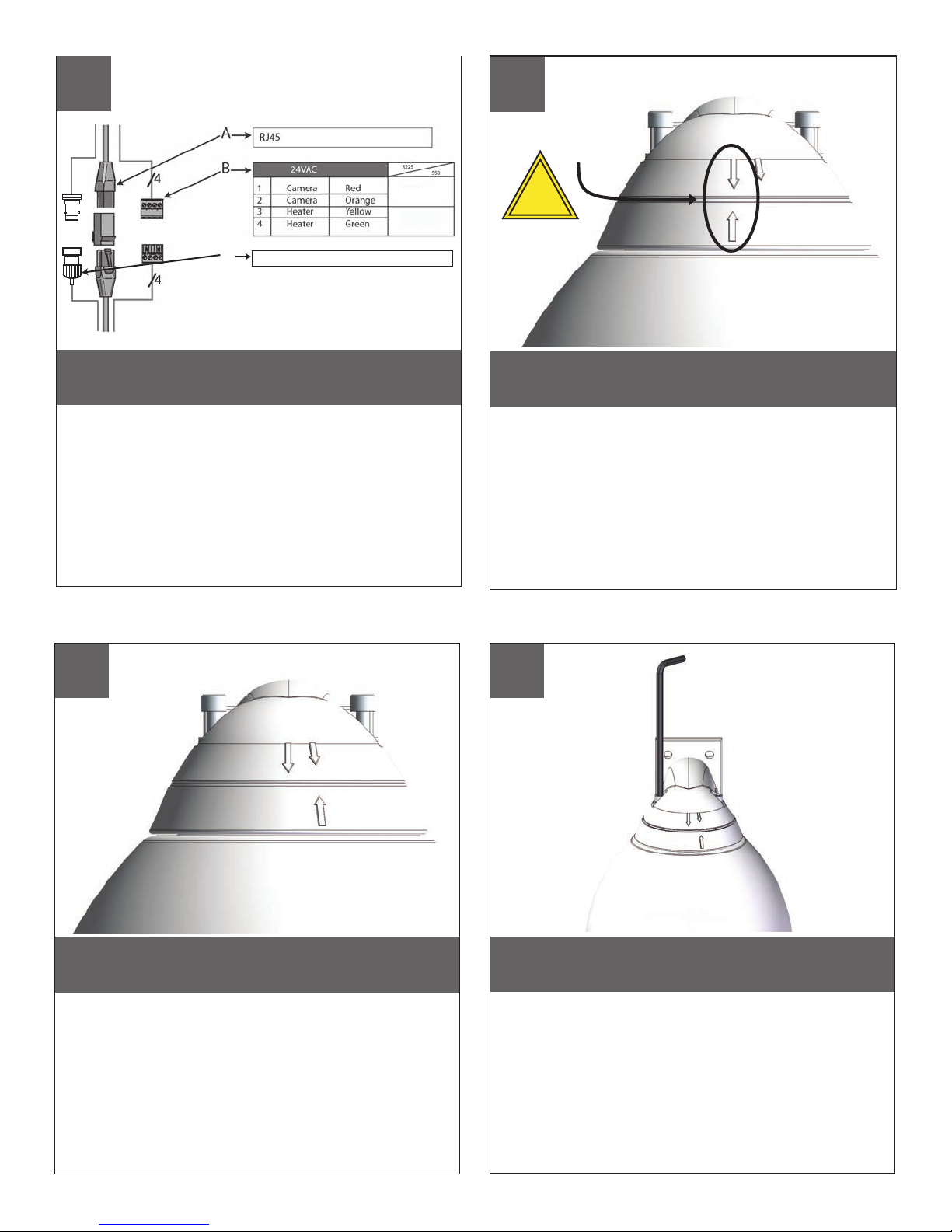

24 VAC

92 Watts
Accessories: Heater: 50 Watts, Blower: 2 Watt
Camera Power: (See Camera Specifications): 40 Watts Max
Tools Required: .100” Flat Head Screwdriver
Phillips Head Screwdriver

24 VAC
92 Vatios
De Accesorios: Calentador: 50 Watts, Blower: 2 Vatio
Energía De la Cámara fotográfica De : (Véase Las
Especificaciones De la Cámara fotográfica): 40 Vatios
De Herramientas Máximas
Requeridas: Destornillador Principal Phillips Del Destornillador
Principal Plano Del 100"

24 VCA
92 Watts
D'Accessoires : Réchauffeur : 50 Watts, Ventilateur : 2 watts.
Puissance D'Appareil-photo : (Voir Les Caractéristiques
D'Appareil-photo) : 40 Watts De Maximum
Les Outils Ont exigé : Tournevis Principal Phillips De Tournevis
Principal Plat De 100".

24 VAC
92 Watt
Zusatzgerät-: Heizung: 50 Watts, Blower: 2
Watt-Kamera-Energie: (Sehen Sie Kamera-Spezifikationen):
40 Watt Maximale Werkzeug-Erfordert: 100"Flacher
Hauptschraubenzieher-Kreuzkopfhauptschraubenzieher

24 VAC
92 Watts
De Acessórios: Calefator: 50 Watts, Blower: 2 Watt
Poder Da Câmera De : (Veja Especificações Da Câmera):
40 Watts De Ferramentas Máximas Requereram: Chave de
fenda Principal Phillips Da Chave de fenda Principal Lisa Do 100"

24 VCA
92 Watt
Di Accessori: Riscaldatore: 50 Watts, Blower: 2 Watt
Alimentazione Della Macchina fotografica Da :
(Veda Le Specifiche Della Macchina fotografica): 40 Watt
Di Attrezzi Massimi Hanno richiesto: Cacciavite Capo "phillips"
Del Cacciavite Capo Piano Del 100"

Electrical Specifications

IRHW75CN / IRHW7C (INDOOR ONLY)

Power 24VAC
Class 2 Only

24 VAC

No power options provided.

Power required for camera only.

24 VAC

Ningunas opciones de la energía proporcionaron.

Energía requerida para la cámara fotográfica solamente.

24 VCA

Option de puissance n'a pas fourni.

Puissance requise pour l'appareil-photo seulement.

24 VAC

Keine Energie Wahlen stellten zur Verfügung.

Energie erfordert für nur Kamera.

24 VAC

Nenhumas opções do poder fornecidas.

Poder requerido para a câmera somente.

24 VAC

Nessun'opzione di alimentazione ha fornito.

Alimentazione richiesta per la macchina fotografica soltanto.

!!

Indoor Models IFDW75CN/ IFDP75CN Include NO Power

Accessories
International Models FDW75C2NE/ FDP75C2NE Include NO

Power Transformer
NOTE: For short trim ring model IRHW7C remove 1½” spacer

height - from total

!!

Français

Deutsch

Italiano

Portuguese

Español

English

Contents of Box

Pendent Model

(ONLY)

*

* NOT included with E or 12V models

Trim incoming control & power wires to 4”- 5”,
for either wall or pendent bracket.

• & entrante del control del ajuste; accione los alambres a 4” - 5”, para
la pared o el soporte pendiente.

• & entrant de commande d'équilibre ; actionnez les fils à 4 » - 5 », pour
le mur ou la parenthèse en suspens.

• Ankommendes & Steuer der Ordnung; antreiben Sie Drähte bis 4“ - 5“,
entweder für Wand oder pendent Haltewinkel r.

• & entrante do controle da guarnição; pnha fios a 4” - 5”, para a
parede ou o suporte pendent.

• & ricevuto di controllo della disposizione; alimenti i legare a 4„ - 5„,
per la parete o la staffa pendent.

4”-5”

WALL MOUNTING

1

Bracket is designed for 45° conduit tting (If using the

conduit). Run wire into bracket, secure to wall.

• El soporte se diseña para la guarnición del conducto 45° (si usa el
conducto). Funcione con el alambre en el soporte seguro para
emparedar.

• La parenthèse est conçue pour l'ajustage de précision du conduit 45° (si
à l'aide du conduit). Courez le l dans la parenthèse bloquée pour murer.

• Haltewinkel ist für Befestigung des Rohres 45° bestimmt (wenn das Rohr
verwendet wird). Lassen Sie Draht in den Haltewinkel laufen, der, um zu
ummauern sicher ist.

• O suporte é projetado para o encaixe da canalização 45° (se usando a
canalização). Funcione o o no suporte seguro para murar.

• La staffa è progettata per il montaggio del condotto 45° (se per mezzo
del condotto). Faccia funzionare il legare nella staffa sicura per murare.

2

3 4

Secure lanyard to lanyard clip.

• Asegure el acollador al clip del acollador.

• Fixez la lanière à l'agrafe de lanière.

• Befestigen Sie Abzuglinie an Abzuglinieclip.

• Fixe o colhedor ao grampo do colhedor.

• Assicuri la cordicella alla clip della cordicella.

Complete ALL wiring connections.

• Termine TODAS LAS conexiones del cableado.

• Accomplissez TOUS LES raccordements de câblage.

• Schließen Sie ALLE Verdrahtungsanschlüsse ab.

• Termine TODAS AS conexões da fiação.

• Completi TUTTI I collegamenti dei collegamenti.

Align large arrows.

• Alinee las flechas grandes.

• Alignez les grandes flèches.

• Richten Sie große Pfeile aus.

• Alinhe grandes setas.

• Allini le grandi frecce.

!

Important

Gasket

Must be in

place

WALL MOUNTING

5

40 Watts

26 Watts

C

COAX

(coax wire not supplied)

Wiring the dome can be completed by

referring to the diagram.

• Atar con alambre la bóveda puede ser terminada

refiriendo al diagrama.

• Le câblage du dôme peut être accompli en se

rapportant au diagramme.

• Das Verdrahten der Haube kann durchgeführt

werden, indem man auf das Diagramm sich bezieht.

• Wiring a abóbada pode ser terminado consultando

ao diagrama.

• Legare la cupola può essere completato riferendosi

allo schema.

6

7

To lock, turn clockwise.

• Para trabarse, dar vuelta a la derecha.

• Pour fermer à clef, tourner dans le sens des aiguilles d'une montre.

• Zu sich verriegeln, nach rechts drehen.

• Para travar, para girar no sentido horário.

• Per per chiudere, girare in senso orario.

8

Secure with ¼” Allen wrench.

• Asegure con la llave Allen del ¼”.

• Fixez clé Allen avec de ¼ ».

• Sichern Sie mit ¼“ Inbusschlüssel.

• Fixe com chave Allen do ¼ de”.

• Fissi con chiave di Allen del ¼„.

Trim incoming control and power wires to 4-5” for
either wall or pendent bracket.

• Ajuste los alambres entrantes del control y de la energía a
4-5” para la pared o el soporte pendiente.

• Équilibrez les fils entrants de commande et de puissance à 4-5
» pour le mur ou la parenthèse en suspens.

• Trimmen Sie ankommende Steuer- und Energiendrähte bis
4-5“ entweder für Wand oder pendent Haltewinkel.

• Apare fios entrantes do controle e do poder a 4-5” para a
parede ou o suporte pendent.

• Assetti i legare ricevuti di potere e di controllo a 4-5„ per la
parete o la staffa pendent.

4”-5”

9

FOR PENDENT/

WALL MOUNTING

10

Secure lanyard to lanyard clip.

• Asegure el acollador al clip del acollador.

• Fixez la lanière à l'agrafe de lanière.

• Befestigen Sie Abzuglinie an Abzuglinieclip.

11

Complete all wiring connections
(coax wire not supplied).

• Fixe o colhedor ao grampo do colhedor.

• Assicuri la cordicella alla clip della cordicella.

12

C

COAX

(coax wire not supplied)

Wiring the dome can be completed by

referring to the diagram.

40 Watts

26 Watts

• Termine todas las conexiones del cableado
(alambre coaxil no suministrado).

• Accomplissez tous les raccordements de câblage
(fil coaxial non fourni).

• Schließen Sie alle Verdrahtungsanschlüsse ab
(koaxialer Draht nicht geliefert).

• Termine todas as conexões da fiação
(fio co-axial não fornecido).

• Completi tutti i collegamenti dei collegamenti
(legare coassiale non fornito).

• Atar con alambre la bóveda puede ser terminada

refiriendo al diagrama.

• Le câblage du dôme peut être accompli en se

rapportant au diagramme.

• Das Verdrahten der Haube kann durchgeführt

werden, indem man auf das Diagramm sich bezieht.

• Wiring a abóbada pode ser terminado consultando

ao diagrama.

• Legare la cupola può essere completato riferendosi

allo schema.

13

14

!

Important

Gasket

Must be in

place

Align large arrows.

• Alinee las flechas grandes.

• Alignez les grandes flèches.

• Richten Sie große Pfeile aus.

• Alinhe grandes setas.

• Allini le grandi frecce.

15

To lock turn clockwise.

• Alinee las flechas grandes.

• Alignez les grandes flèches.

• Richten Sie große Pfeile aus.

• Alinhe grandes setas.

• Allini le grandi frecce.

16

!

Secure with ¼” Allen wrench.

• Asegure con la llave Allen del ¼”.

• Fixez clé Allen avec de ¼”.

• Sichern Sie mit ¼“ Inbusschlüssel.

• Fixe com chave Allen do ¼ de”.

• Fissi con chiave di Allen del ¼”.

To loosen - unscrew bolts ½” turn counter

clockwise.

• Para aflojar - desatornille a la derecha contrario de la vuelta
del ½ de los pernos”.

• Pour se desserrer - dans le sens des aiguilles d'une montre de
tour dévissez de boulons ½ » contre-.

• Um sich zu lösen - schrauben Sie Schraubbolzen ½“
Umdrehungs-Gegenrechtses herum ab.

• Para afrouxar - desaparafuse sentido horário contrário volta
do ½ dos parafusos da”.

• Per allentare - sviti in senso orario di girata del ½ dei bulloni„
contro.

RJ45

BNC

24VAC

1
2
3

4

Camera

Camera

Heater/Blower

Heater/Blower

Red

Orange

Yellow

Green

POWER

Max 40 Watts

26 Watts

1/0

1

2

3

4

Alarm 1

Alarm 2

Alarm 3

Common

Blue

Violet

Gray

White

Make the appropriate male and female connections. Indoor model does not include pre-run cables.

• Haga las conexiones masculinas y femeninas apropiadas. El modelo de interior no incluye pre-funciona los cables.

• Établissez les rapports masculins et femelles appropriés. Le modèle d'intérieur n'inclut pas pré-courent des câbles.

• Stellen Sie die passenden männlichen und weiblichen Beziehungen her. Innenmodell schließt nicht vor-laufen lassen Kabel

ein.

• Faça as conexões masculinas e fêmeas apropriadas. O modelo indoor não inclui pre-funciona cabos.

• Faccia i collegamenti maschii e femminili adatti. Il modello dell'interno non include pre-fa funzionare i cavi.

17

Power Connection - Reference

18

For 12VDC unit, connect power plug and
ET-RJ45 cable to camera.

• Para la unidad 12VDC, conecte el enchufe de
energía y el cable ET-RJ45 con la cámara fotográfica.

• Pour l'unité 12VDC, reliez la prise de puissance et le
câble ET-RJ45 à l'appareil-photo.

• Für Maßeinheit 12VDC schließen Sie Netzstecker und
Kabel ET-RJ45 an Kamera an.

• Para a unidade 12VDC, conecte o plugue de poder
e o cabo ET-RJ45 à câmera.

• Per l'unità 12VDC, colleghi la spina di alimentazione
ed il cavo ET-RJ45 alla macchina fotografica.

Only

-12 VDC
+12 VDC

5.5

10

20

30

40

50

60

70

80

ft

120

86

65

44

35

29

25

31

,5

22

36.5

27.1

19.8

13.4

10.6

m

9.4

8.8

7.6

400

180

141

90

70

56

47

40

34

19

Total vA
consumed

These are recommended maximum distances
for 24VAC with a 10% voltage drop.

• Éstos se recomiendan las distancias máximas para
24VAC con una caída de voltaje del 10%.

• Ceux-ci sont recommandés des distances maximum
pour 24VAC avec une chute de tension de 10%.

• Diese werden maximale Abstände für 24VAC mit
einem 10% Spannungsabfall empfohlen.

• Estes são recomendados distâncias máximas para
24VAC com uma queda de tensão de 10%.

• Questi sono suggeriti distanze massime per 24VAC
con una differenza de potenziale di 10%.

Wire Gauge

,75201,0181,5162,514412610MM

600

960

121

54.9

43.0

27.4

21.3

17.1

14.3

12.2

10.3

300

225

130

112

90

75

64

55

182

91.4

68.6

39.6

34.1

27.4

22.9

19.5

16.8

- - -

292

480

800

146

243

358

571

109

174

225

350

68.6

106

179

285

54.6

86.9

143

228

43.6

69.5

119

190

36.2

57.9

102

163

31.1

49.7

85

140

25.9

42.7

1300

905

525

452

362

301

91.7

258

78.6

215

65.5

396

275

160

138

110

1440

830

720

576

480

411

340

-

438

252

219

175

146

125

103

2

AWG

Français

Deutsch

Italiano

Portuguese

Español

English

Important information for the

Axis 233D

model of camera.

Due to the high 35x zoom feature of the Axis 233D camera, a slight focus issue may occur when the

camera lens is fully extended within the Moog camera housing. For applications where the full 35x

high-powered zoom is needed, please contact Moog to request a complimentary enhanced optically clear acrylic dome.

Información importante para el modelo del

Eje 233D

de la cámara

fotográfica.

Debido a la alta característica de zumbido 35x de la cámara fotográfica del Eje 233D, una edición leve del foco puede ocurrir
cuando la lente de cámara fotográfica es completamente extendida dentro de la cubierta de la cámara fotográfica de
Moog. Para los usos donde el 35x lleno el zumbido de alta potencia es necesario, entra en contacto con por favor
Moog para solicitar un elogioso realzado bóveda de acrílico ópticamente clara.

L'information importante pour le modèle de l'

Axe 233D

de

l'appareil-photo.

En raison du dispositif de bourdonnement 35x élevé de l'appareil-photo de l'axe 233D, une légère issue de foyer peut seproduire
quand l'objectif d'appareil-photo est entièrement prolongé dans le logement d'appareil-photo de Moog. Pour des applica
tions où le plein 35x le bourdonnement haute puissance est nécessaire, entrent en contact avec svp Moog pour
demander un élogieux augmenté dôme acrylique optiquement clair.

Wichtige Informationen für das

Mittellinie 233D

Modell der Kamera.

Wegen der hohen Eigenschaft des Zoom 35x der Mittellinie 233D Kamera, kann eine geringfügige Fokusausgabe auftreten wenn
Kameraobjektiv ist innerhalb des Moog Kameragehäuses völlig ausgedehnt. Für Anwendungen wo das volle 35x der starke
Zoom ist erforderlich, in Verbindung treten bitte mit Moog, um ein höfliches zu verlangen erhöht optisch freie Acrylhaube.

Informação importante para o modelo da

Linha central 233D

da

câmera.

Devido à característica de zumbido 35x elevada da câmera da linha central 233D, uma edição ligeira do foco puder ocorrer
quando a lente de câmera é inteiramente prolongada dentro da carcaça da câmera de Moog. Para as aplicações onde
o 35x cheio o zumbido high-powered é needed, contata por favor Moog para pedir um complimentary realçado abóbada
acrílica ótica desobstruída.

Le informazioni importanti per il modello di

Asse 233D

della macchina

fotografica.

Dovuto l'alto dispositivo di ingrandimento 35x della macchina fotografica di asse 233D, un'edizione leggera del fuoco può
accadere quando l'obiettivo di macchina fotografica è completamente esteso all'interno dell'alloggiamento della macchina
fotografica di Moog. Per le applicazioni dove il 35x pieno lo zoom ad alta potenza è necessario, prego si mette in contatto
con Moog per chiedere una cupola acrilica libera otticamente aumentata gratuita.

PB24 Addendum

Additional wires are provided to run power to PB24. Use with connector supplied. Run RJ45 connector

through PB24, wall mount, and connect lead from housing.

• Los alambres adicionales se proporcionan a la energía funcionada con a PB24. El uso con el conectador proveyó.

Funcione con el conectador RJ45 con PB24, emparede el montaje, y conecte el plomo de la cubierta.

• Des fils additionnels sont fournis à la puissance courue à PB24. L'utilisation avec le connecteur a fourni. Courez le

connecteur RJ45 par PB24, murez le bâti, et reliez le fil du logement.

• Zusätzliche Drähte zur Verfügung gestellt zu laufen gelassener Energie zu PB24. Gebrauch mit Verbindungsstück lieferte.

Laufen lassen Sie Verbindungsstück RJ45 durch PB24, ummauern Sie Einfassung und anschließen Sie Blei vom Gehäuse n.

• Os fios adicionais são fornecidos ao poder funcionado a PB24. O uso com conector forneceu. Funcione o conector RJ45

com PB24, mure a montagem, e conecte a ligação da carcaça.

• I legare supplementari sono forniti a potere funzionato a PB24. L'uso con il connettore ha fornito. Faccia funzionare il

connettore RJ45 con PB24, muri il supporto e colleghi il cavo da alloggiamento.

Replacement Parts List

RHW75

IRHW75

PART NUMBER DESCRIPTION

1 RC7C CLEAR REPLACEMENT CAPSULE

1A RC7T TINTED REPLACEMENT CAPSULE

2 RPRH752 LOWER TRIM RING
3 RPRH7503 DOME CLAMPING RING
4 RPNET02 NETWORK HGS POWER SUPPLY
5 RPFD072 24V HEATER

5A RPFD072/12 12V HEATER (12VDC MODELS ONLY)

6 RPFD080 BLOWER
7 RP3510 CAMERA BRACKET
8 RP70FP7PB CONNECTION PCB(24VAC)

8A RP70FP7PB12 CONNECTION PCB (12VDC)

9 RPFD041 HOUSING TOP
10 RPFD2612 HOUSING TOP GASKET
11 RPFD3245 WALL/PENDE

NT ADAPTER

12 RP

GK3356 WALL/PENDENT GASKET
13 RP3458 LANYARD SET
14 RP3551 WM11 WALL MOUNT
15 RP3606 PENDENT MOUNT BRACKET
16 RP3719 1 1/2 FEMALE /FEMALE COUPLING

N/S RPPKH2098 BRACKET PACKET ASSEMBLY
N/S RPPKE1100 ELECTRICAL PACKET ASSEMBLY

N/S RPTRAN02 110 TO 24VAC WALL TRANSFORMER

14

15

16

11

12

13

8

5

7

6

4

3

1

2

9

10
