DS2100
Digital Controller
Section 3 - Wiring and Installation
C7750-001 Rev. A 04/04
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
SECTION 3: WIRING AND INSTALLATION
PAGE 3-1
Errata Sheet DS2100 User's Manual (Preliminary)
ERRATA E:
PAGE 1
PDF created with pdfFactory Pro trial version www.pdffactory.com

DS2100 User's Manual (Preliminary) Errata

E.1 Introduction
This Errata sheet details changes to the preliminary release of the DS2100 Manual. The corrected information for the manual is detailed below.
E.2 Changes
Page Description Change
1-5 Update to DS2100 Boxcar Reference to Form 757 added to Boxcar for valid
ordering numbers.
3-54, 3-74 Error in Encoder connector wiring
diagram
2-7 Line fuses specified in manual for Size
C drives incorrect.
3-64 Figure 3.46 Incorrect. Lines labelled
incorrectly
3-54, 3-74 Error in Encoder connector wiring
diagram
Clock + & Data + Lines swapped in wiring information Clock - & Data - Lines swapped in wiring information Changed line fuse requirements for Size C drives from 160 FEE 690V to 100 FE 690V Bussmann Fuses. Receive and Transmit lines re-labelled to show Receive on DS2100 side is connected to Transmit in PC side & Transmit on DS2100 side is connected to Receive on PC Side. For Heidenheim endat encoder, necessary to swap channel A and channel B signals. Required as Heidenheim define positive direction phasing between A & B channels in reverse to Stegmann.
PAGE 2
PDF created with pdfFactory Pro trial version www.pdffactory.com
DS2100 User's Manual (Preliminary) Errata
3.11.5 Motor Encoder Connection
The DS2100 encoder input supports a variety of encoders. These include Analogue, SSI, Hiperface and Endat. The connections to the drive for each of these encoder types are given in Table 3.25.
Encoder
Connector
Figure 3.38 Motor Encoder Connector Location
- Fixed connector: 15 pin, female Sub-D connector
- Mating connector, 15pin male Sub-D
- Wiring: cable. 28-18AWG (0.14-0.82mm2)
Encoder Type
Pos Analogue SSI Hiperface Endat
J4.1 Shield Shield Shield Shield J4.2 - Sine - - Sine - Channel B J4.3 - Cosine - - Cosine - Channel A J4.4 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.5 - - Clock - - Clock J4.6 - Channel Z (Zero) - Data RS485 - - Data J4.7 - - - ­J4.8 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
J4.9 + Sine - + Sine + Channel B J4.10 + Cosine - + Cosine + Channel A J4.11 +5 V .. +12V
Supply (150 mA
max.) J4.12 - Fault + Clock - + Clock J4.13 + Channel Z (Zero) J4.14 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.15 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
Table 3.25 Encoder Cable Input Connections
+5 V .. +12V
Supply (150 mA
max.)
+ Data RS485 + + Data
+5 V .. +12V
Supply (150 mA
max.)
Supply (150 mA
+5 V .. +12V
max.)
PAGE 4
PDF created with pdfFactory Pro trial version www.pdffactory.com
Errata Sheet DS2100 User's Manual (Preliminary)

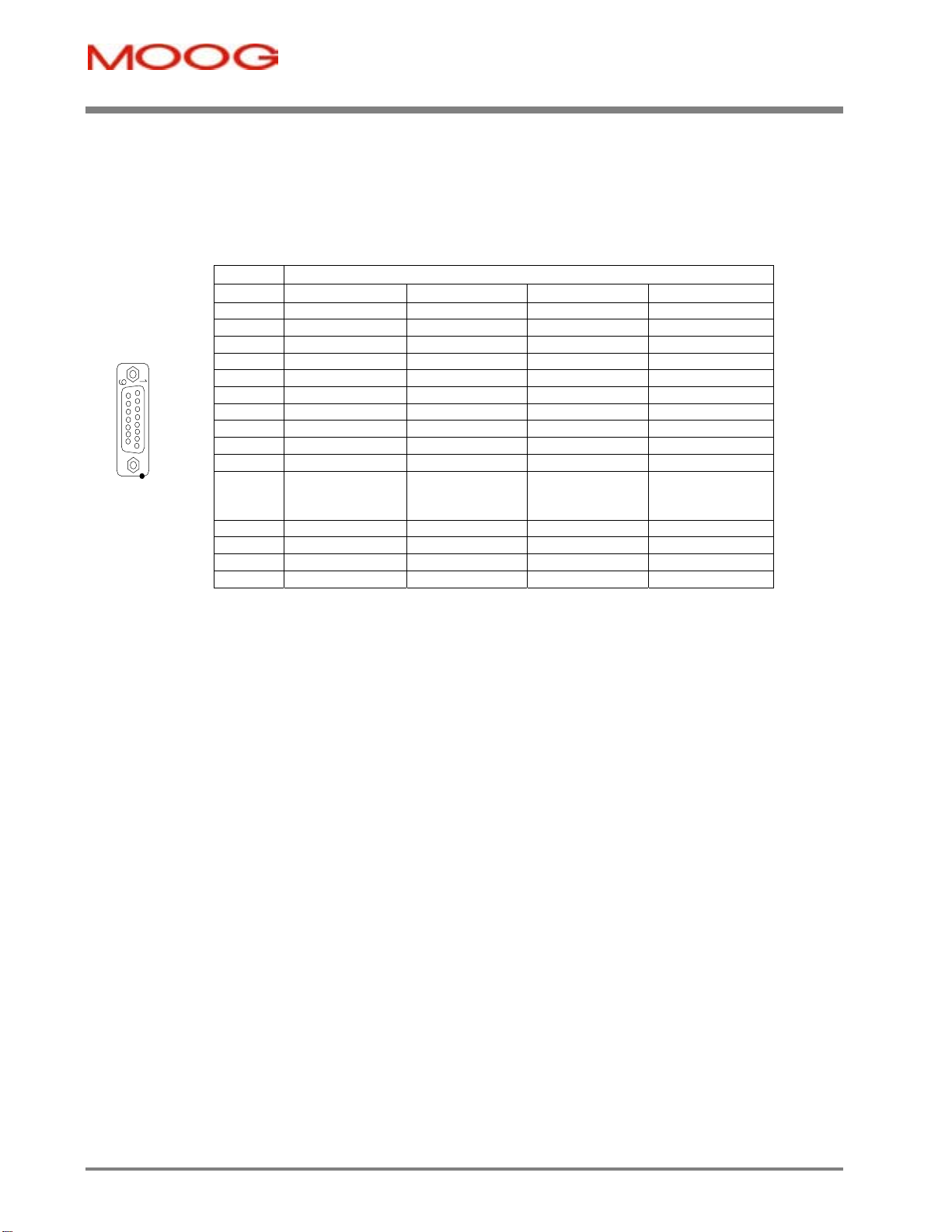

3.14.5.7 Encoder
- Fixed connector: 15 pin, female Sub-D connector
- Mating connector, 15pin male Sub-D
- Wiring: cable. 28-18AWG (0.14-0.82mm2)
Encoder Type
Pos Analogue SSI Hiperface Endat
15-Pin Sub-D Connector
Plug (male) on cable
DS2100 Cable End
J4
J4.1 Shield Shield Shield Shield J4.2 - Sine - - Sine - Channel B J4.3 - Cosine - - Cosine - Channel A J4.4 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.5 - - Clock - - Clock J4.6 - Channel Z (Zero) - Data RS485 - - Data J4.7 - - - ­J4.8 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
J4.9 + Sine - + Sine + Channel B J4.10 + Cosine - + Cosine + Channel A J4.11 +5 V .. +12V
Supply (150 mA
max.) J4.12 - Fault + Clock - + Clock J4.13 + Channel Z (Zero) J4.14 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.15 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
+5 V .. +12V
Supply (150 mA
max.)
+ Data RS485 + + Data
+5 V .. +12V
Supply (150 mA
max.)
Supply (150 mA
+5 V .. +12V
max.)
PAGE 5
PDF created with pdfFactory Pro trial version www.pdffactory.com
Errata Sheet DS2100 User's Manual (Preliminary)
3.13.1 RS232 Serial Communications Interface
The pin assignment enables use of a 9-pin Sub-D cable with all signals connected straight through.
Serial Communications
Connector (RS232)

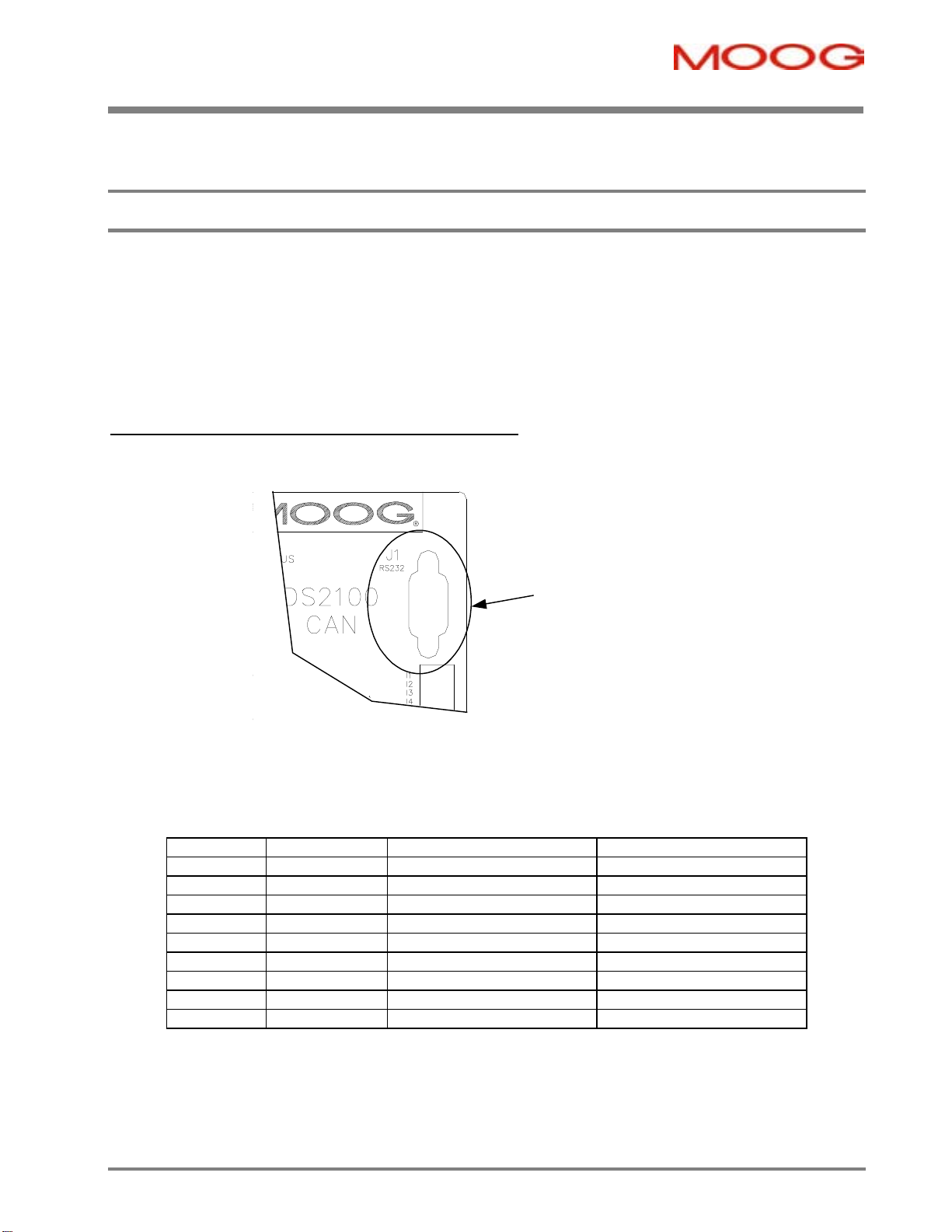

Figure 3.45 RS232 Connector Location
- Fixed connector: 9 pin, female Sub-D connector
- Mating connector, 9 pin male Sub-D
- Wiring: cable. 28-18AWG (0.14-0.82mm2)
Pos. DS2100 Signal Function PC Signal
J1.1 - connected to pin 4 DCD input J1.2 TxD Transmit Data RxD input J1.3 RxD Receive Data TxD output J1.4 - connected to pin 1 and 6 DTR output J1.5 Gnd Gnd Gnd J1.6 - connected to pin 4 DSR input J1.7 - connected to pin 8 RTS output J1.8 - connected to pin 7 CTS input J1.9 - unused RI input
Table 3.29 J1, DS2100 RS232 Serial Interface Connector
Tx
2
Rx
3
5
Gnd
Rx
Tx
PCDS2100
2
3
5

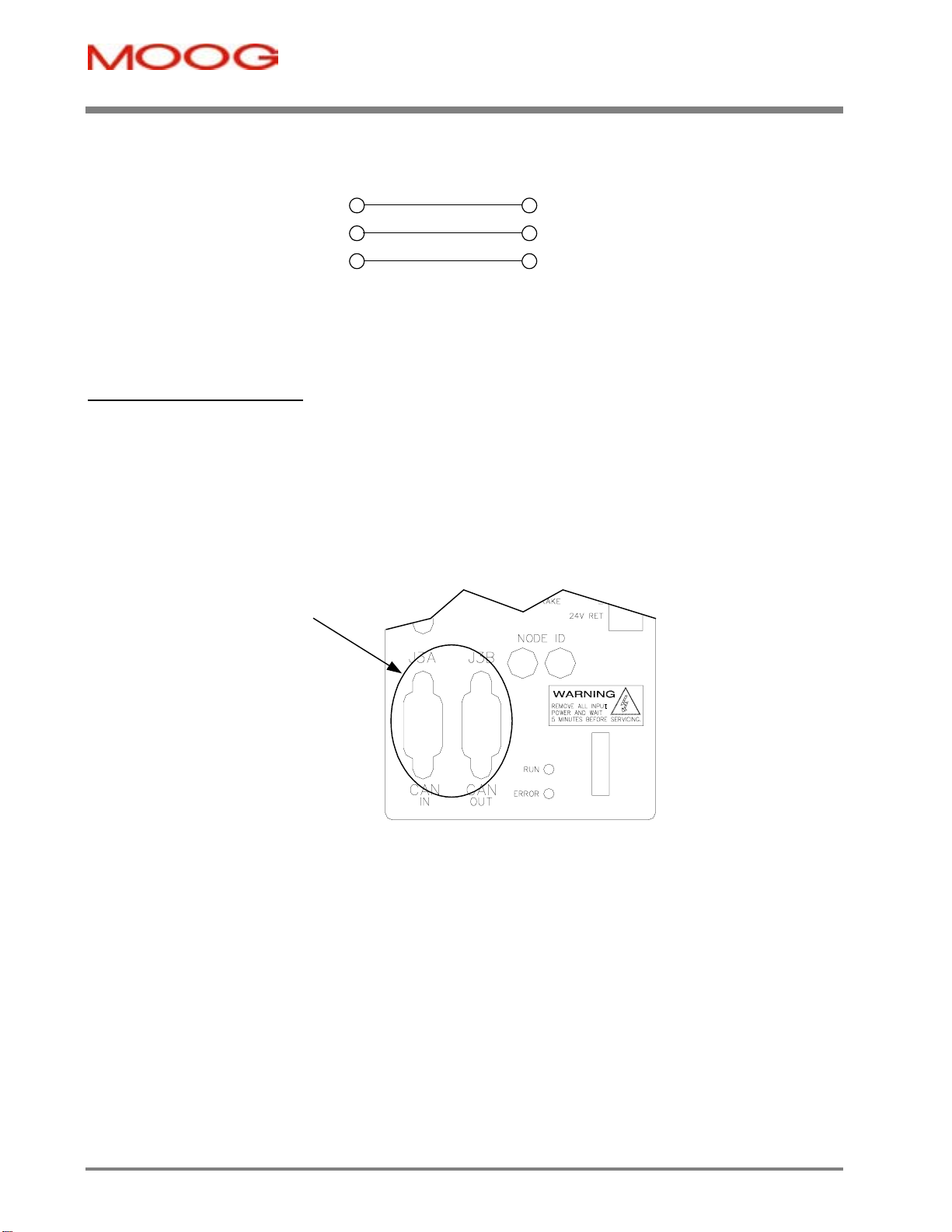

Figure 3.46 DS2100's J1 RS232 Wire Pin-out
The RS232 Cable shield should be connected to the metal body of the D-Type connector.
PAGE 7
PDF created with pdfFactory Pro trial version www.pdffactory.com
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
TABLE OF CONTENTS
SECTION 3: WIRING AND INSTALLATION ........................................................................................................ 3-1
3.1 System Components .........................................................................................................................................3-4
3.1.1 A.C. Mains Power Interface......................................................................................................................3-4
3.1.2 A.C. Input Line Protection........................................................................................................................ 3-5
3.1.3 Line Filter Requirements ..........................................................................................................................3-5
3.1.4 Serial Set-up Terminal (User-Supplied) ...................................................................................................3-7
3.1.5 Control-Backup Power Input (User Supplied).......................................................................................... 3-7
3.1.6 Brushless Servo motors ............................................................................................................................3-8
3.1.7 Heatsinks and Climatic Control................................................................................................................ 3-8
3.2 Equipment Mounting ........................................................................................................................................ 3-9
3.2.1 CE Items for Mechanical Installation ..................................................................................................... 3-16
3.3 Power Dissipation........................................................................................................................................... 3-17
3.4 DS2100 Connector Terminals.........................................................................................................................3-18
3.5 General System Wiring Guidelines ................................................................................................................3-22
3.5.1 Drive Contactor (User Supplied) ............................................................................................................3-23
3.5.2 Wiring notes for J6, J7, J9 connectors (Size C)...................................................................................... 3-24
3.6 Sequence of Component Wiring Recommendations ...................................................................................... 3-25
3.7 Three-Phase A.C. Mains Power Source Configuration...................................................................................3-26
3.7.1 AC Mains Power Source Connection .....................................................................................................3-28
3.7.2 Softstart & Power Cycling Frequency Limits......................................................................................... 3-31
3.8 24V Backup Connection................................................................................................................................. 3-32
3.8.1 Size mA 24V Input Connection............................................................................................................... 3-32
3.8.2 Size A,B,C & D 24V Input Connection.................................................................................................. 3-33

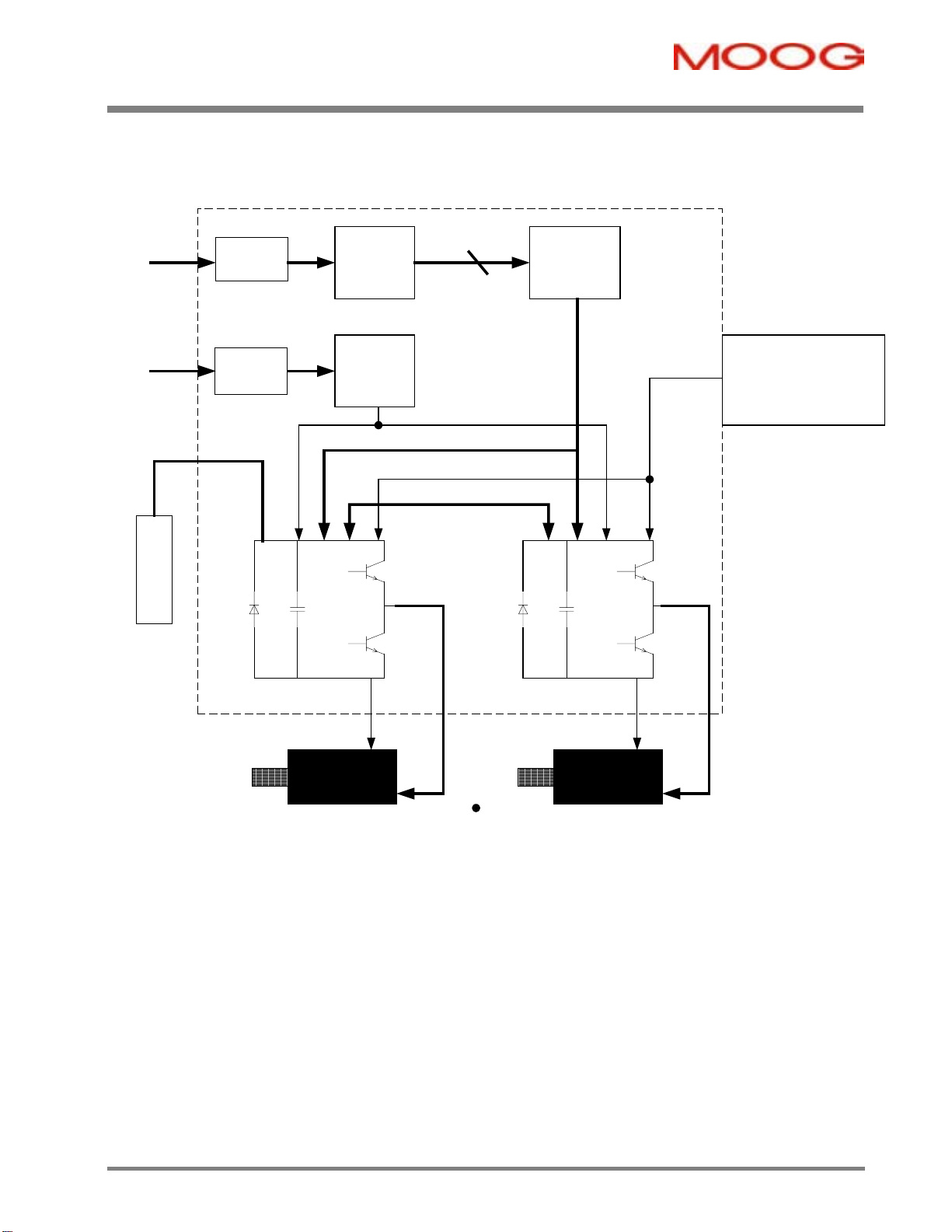

3.9 Paralleling DS2100 Units through the D.C. Bus............................................................................................. 3-34
3.9.1 mA Size DC Bus Inter-connection ..........................................................................................................3-34
3.9.2 A & B Size DC Bus Inter-connection..................................................................................................... 3-35
3.9.3 C Size DC Bus Inter-connection............................................................................................................. 3-36
3.9.4 D Size DC Bus Inter-connection.............................................................................................................3-37
3.10 Internal/External Regeneration (Regen) Resistors – Configurations .............................................................. 3-38
3.10.1 mA Size Regeneration Resistor Connection............................................................................................ 3-39
3.10.2 A, B Size Regeneration Resistor connection ..........................................................................................3-39
3.10.3 C Size Regeneration Resistor connection ...............................................................................................3-40
3.10.4 D Size Regeneration Resistor connection............................................................................................... 3-41
3.11 Motors - Installation........................................................................................................................................3-42
3.11.1 Assembling Motor Resolver and Power Cables......................................................................................3-42
3.11.2 Motor Power Cable................................................................................................................................. 3-43
3.11.3 Motor Brake Connection.........................................................................................................................3-48

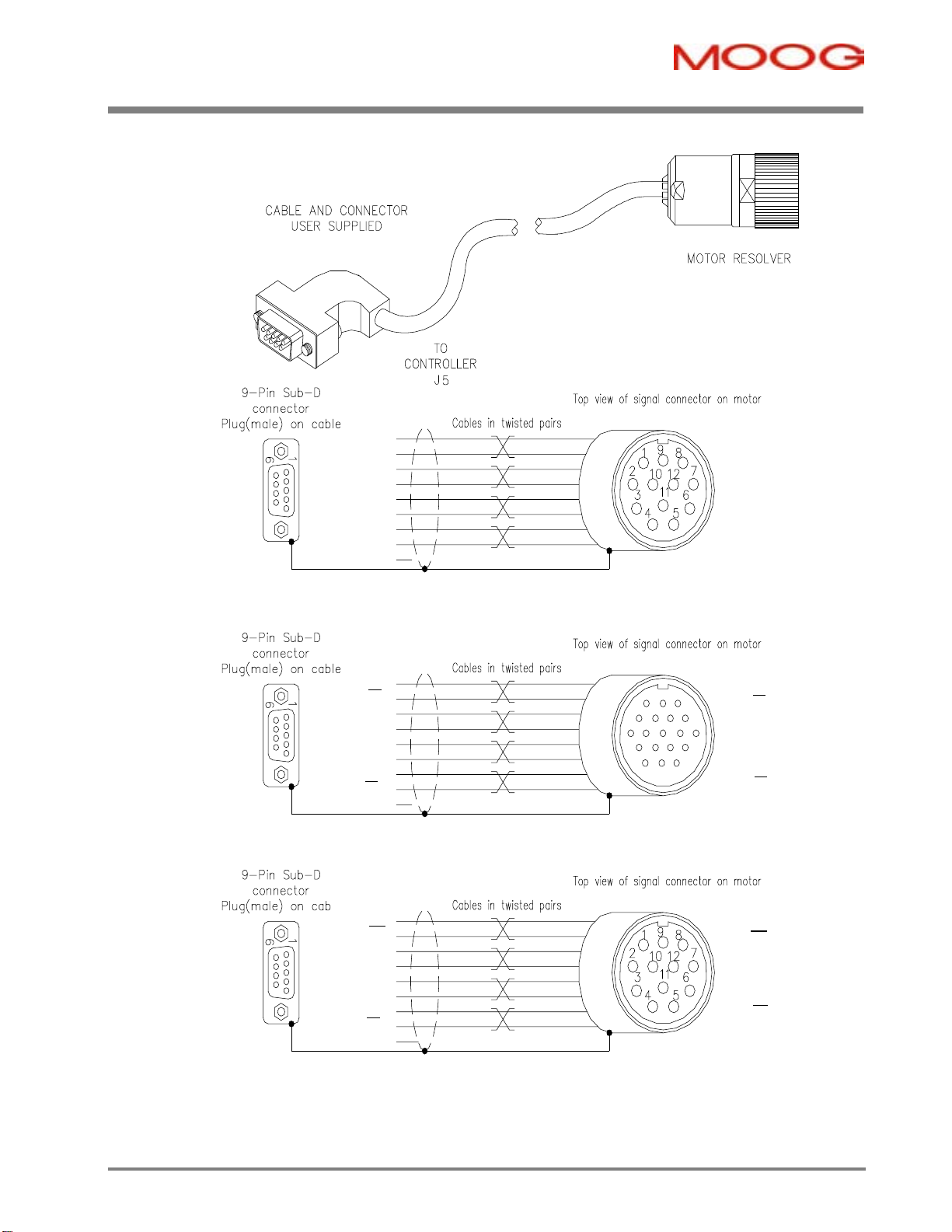

3.11.4 Motor Resolver Connection.................................................................................................................... 3-51
3.11.5 Motor Encoder Connection..................................................................................................................... 3-54
3.11.6 Motor Rotation Direction........................................................................................................................ 3-56
3.12 DS2100 Control Input and Outputs ................................................................................................................3-57

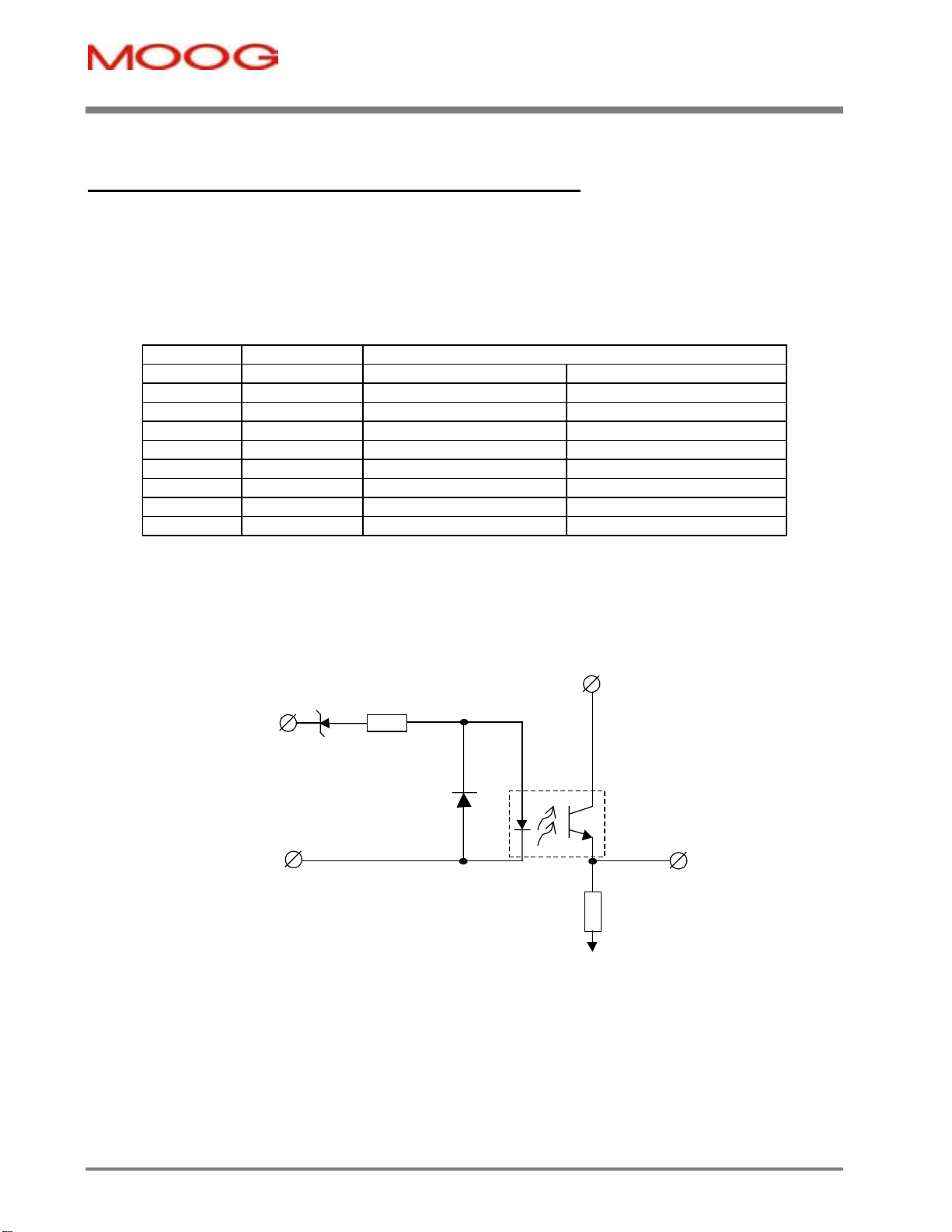

3.12.1 General Purpose Description of the Digital Inputs .................................................................................3-58

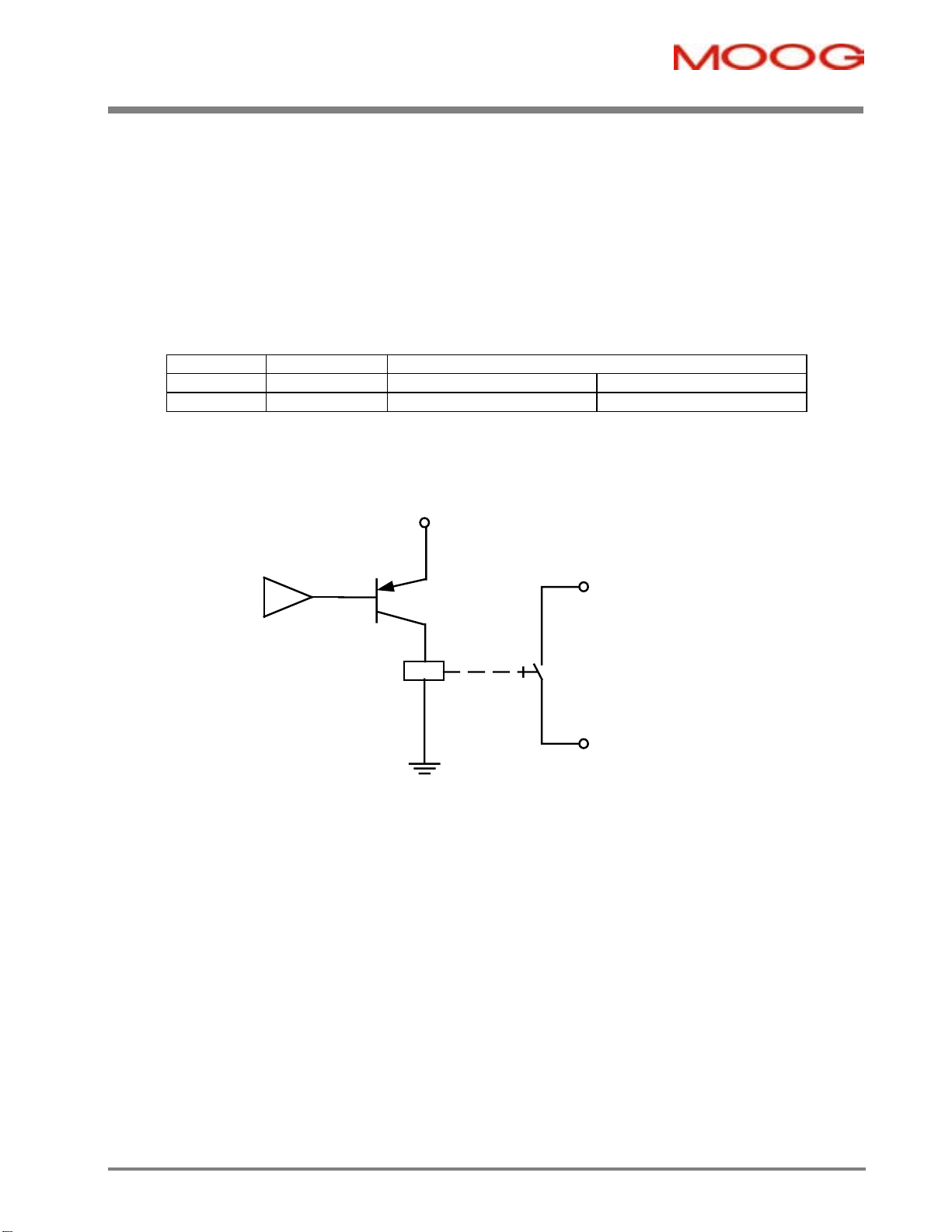

3.12.2 General Purpose Description of the Digital Outputs...............................................................................3-60

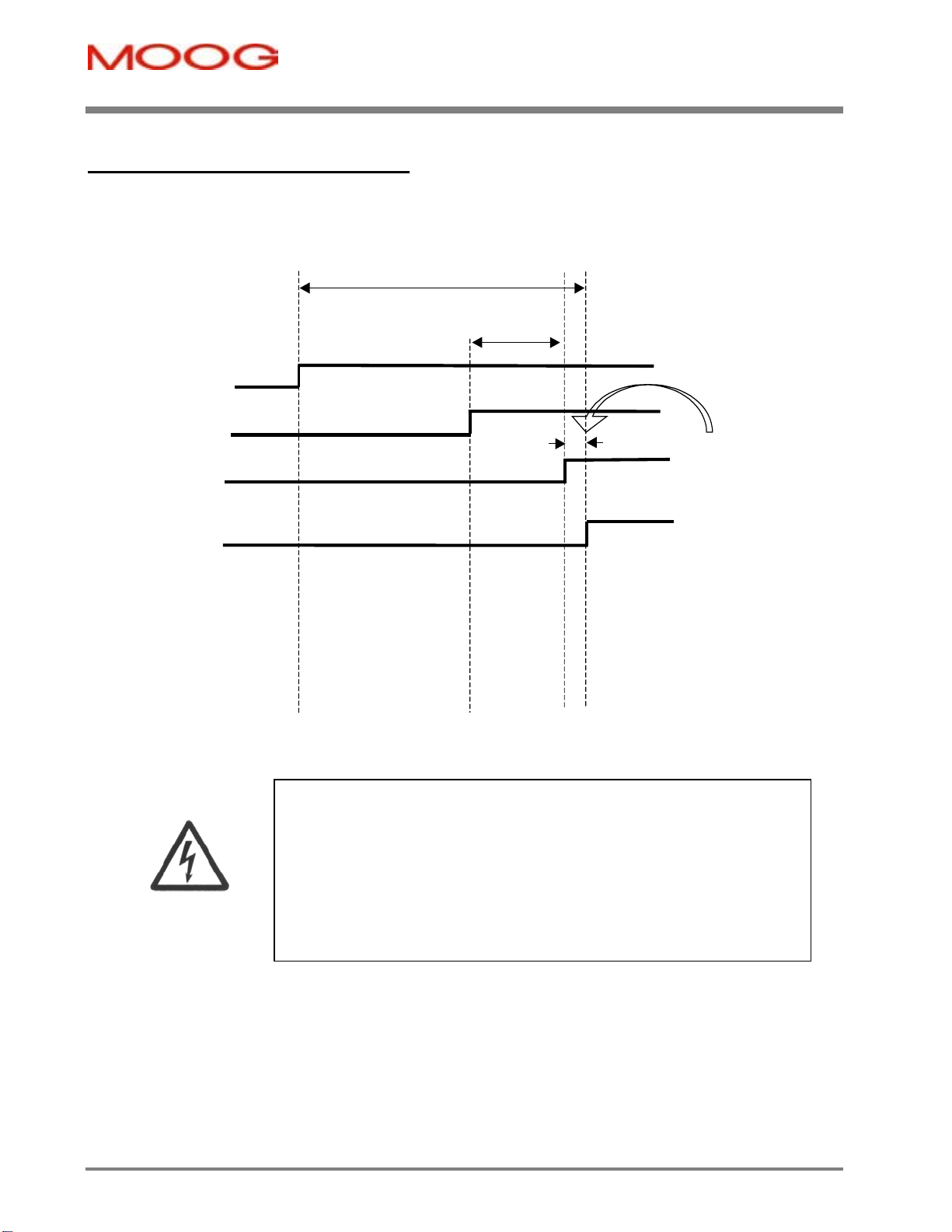

3.12.3 Power Sequencing on Startup .................................................................................................................3-62
3.13 Communications Interface Wiring and Configuration....................................................................................3-63
3.13.1 RS232 Serial Communications Interface................................................................................................3-63
3.13.2 CAN Cable Wiring .................................................................................................................................3-64
3.14 Wiring Summary ............................................................................................................................................3-67

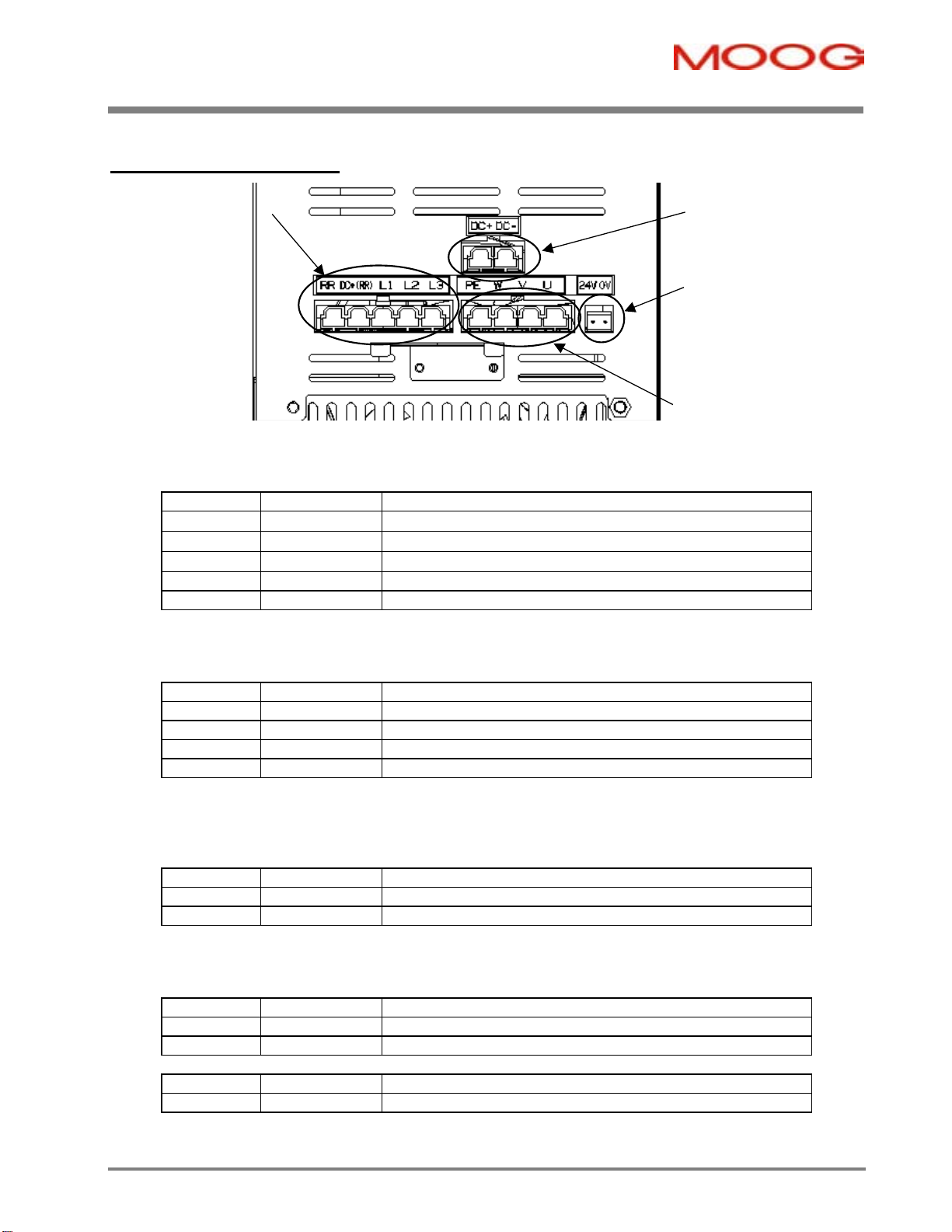

3.14.1 mA Size Power Stage ..............................................................................................................................3-67
3.14.2 A & B Size Power Stage......................................................................................................................... 3-68
PAGE 3-2
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14.3 C Size Power Stage ................................................................................................................................ 3-69
3.14.4 D Size Power Stage ................................................................................................................................ 3-70
3.14.5 Control Card........................................................................................................................................... 3-71
PAGE 3-3
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
This section covers the installation, wiring and cabling of the Moog DS2100 Servo-drive series. A pictorial diagram of a single-axis system, with typical components included, is shown in Figure 3.1. Users are directed to read Section 2, Safety Instructions, before proceeding with wiring and installation.
WARNING - This equipment must be permanently and reliably connected to Earth and all conductive parts in the IP54 rated enclosure in which the DS2100 Series Servo-drive is installed must be reliably connected to Protective Earth. A Protective Earth connection must come directly from an approved AC mains network. Stranded copper-wire is recommended to carry the earth.
FAILURE TO PROVIDE AN ADEQUATE EARTH MAY CAUSE SERIOUS PERSONAL INJURY AND EQUIPMENT MALFUNCTION.
3.1 System Components
The following components are required to build a Moog brushless motor digital control system (refer to Figure 3.1). The user supplies all components besides the DS2100, EMC-Brackets, motor and other accessory cabling.

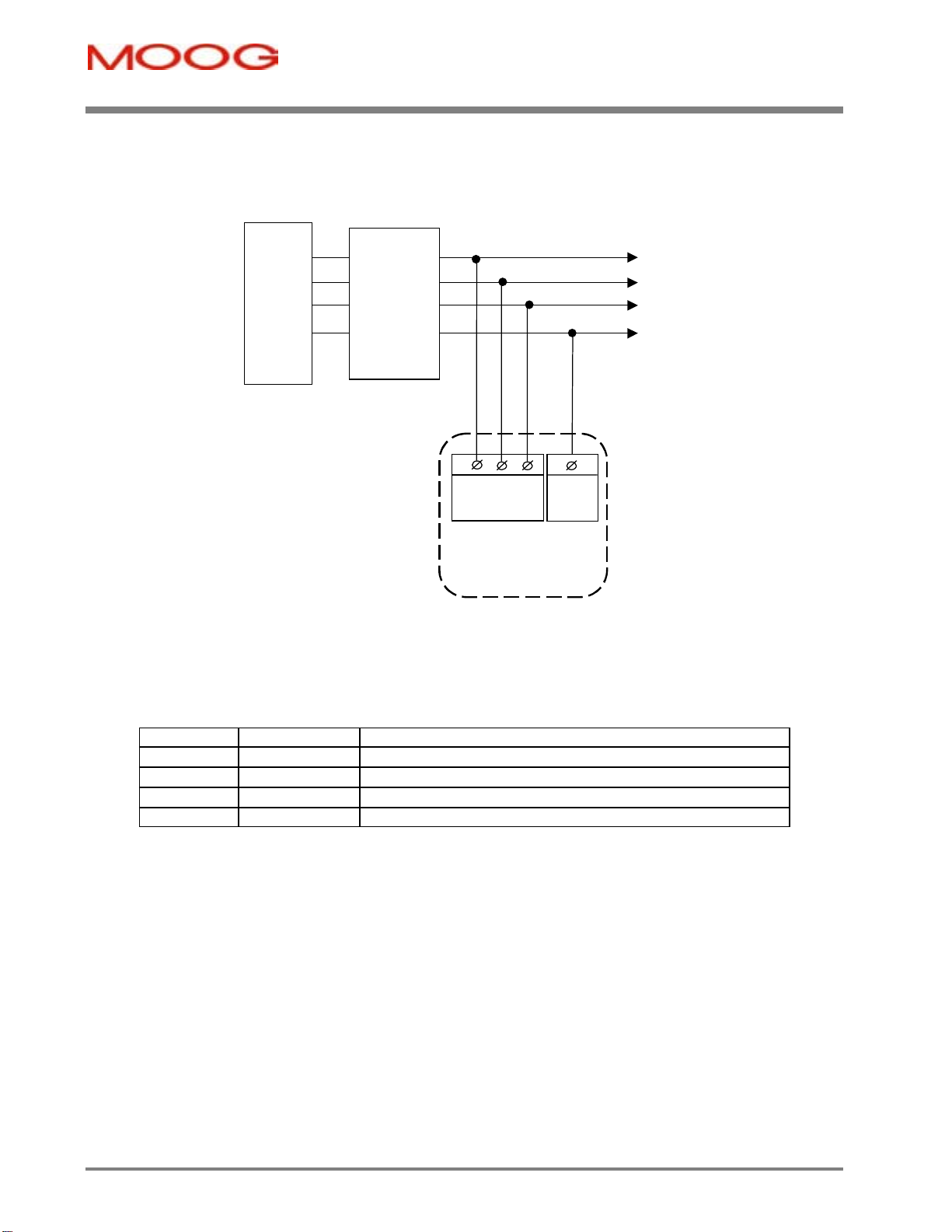

3.1.1 A.C. Mains Power Interface
The DS2100 should be connected to a three-phase AC supply. Operation with a single-phase supply is only allowed with the G361-x003 and G361-x006 variants of the drive. For single-phase operation, the phase supply voltage must be limited to 230V and the input power to the drive limited to 1.1kW.
PAGE 3-4
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.1.2 A.C. Input Line Protection
Details of the recommended Line fuses are given in Section 2 of this manual. Alternatively an AC mains Circuit Breaker (Instantaneous Trip Type) can be used as a protective device provide its ratings are equivalent to the recommended fuses.
After a power loss to the servo-drive, the motor will continue running until its stored energy is dissipated through friction alone, or will be stopped by a motor-equipped brake if a brake is available.
It is also recommended to install a contactor rated for the DS2100 input between the line fuses and the EMC filter at the input of the DS2100 (refer to Figure 3.1). This contactor should be controlled directly by user supplied Emergency Stop Buttons and other series connected safety switches to remove AC input power in any situation affecting personnel safety.
WARNING - The supply-disconnecting device (circuit breaker) must be switched to the OFF position before any service or maintenance activity is commenced.
3.1.3 Line Filter Requirements
Details of the recommended line filters for each of the DS2100 variants are given in Section 2 of this manual.
PAGE 3-5
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
PAGE 3-6
Figure 3.1 Typical DS2100 System Components (mA Size)
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.1.4 Serial Set-up Terminal (User-Supplied)
An RS-232 interface should be established for individual servo-drive communications, using a PC. The PC can run Moog's WinDrive Windows-based user-interface program.
The personal computer using Windrive is a service engineering tool only and must be installed so that use of the key sequences which allow control of the machine functions is accessible to authorised qualified
Requ i red for
CE-Compliance
service personnel only. All such service set-up computers must be CE ­marked as compliant with the EU EMC Directive.
3.1.5 Control-Backup Power Input (User Supplied)
The DS2100 requires a control power source to supply backup-power for the control electronics. This control-backup power is useful where the user requires that the DS2100 does not loose absolute position data or status information when AC mains power is removed from the DS2100.
The user is directed to the local Moog sales office or authorised distributor for a recommended list of these control power source devices.
The G361-x003 &-x006 MUST have a 24Vdc logic backup supply connected for the drive to operate. No internal high voltage backup is provided on these smaller models.
The 24V
control power option allows high voltage motor power to be removed from a DS2100 Series Servo-drive
dc
without losing control power.
The acceptable voltage range for this supply is 24V
±10% with a minimum current rating of 2Adc per DS2100 Series
dc
Servo-drive connected. A low cost unregulated DC supply is adequate.
NOTE - The 24Vdc power supply must be compliant with the requirements of the EU EMC Directive. The 24V
output from the
dc
power supply must be Safety Extra Low Voltage (SELV - as defined
Requ i red for
CE-Compliance
by European standard EN 60950).
PAGE 3-7
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.1.6 Brushless Servo motors
The DS2100 series Servo-drive is compatible with Moog brushless servomotors.

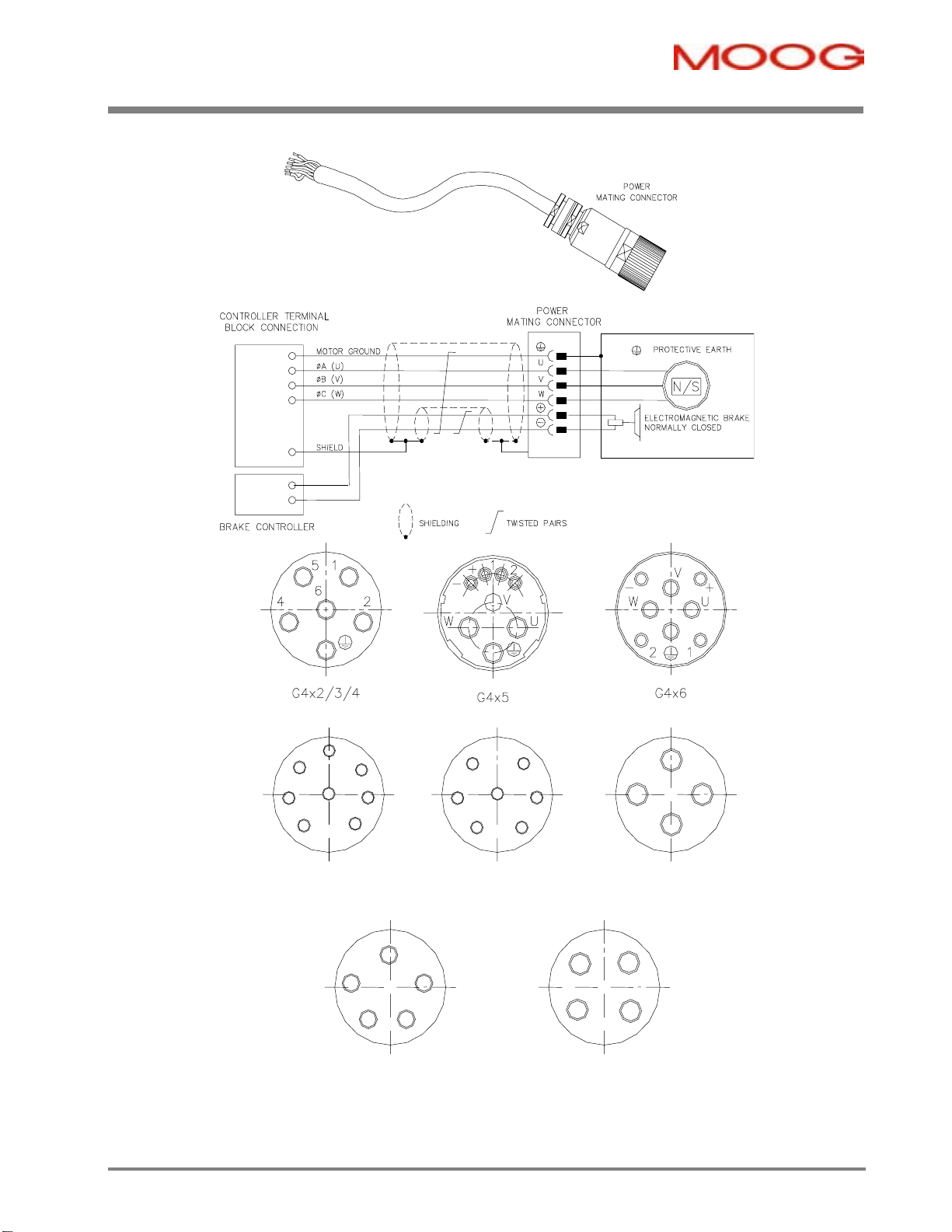

Normal connection to the motor requires two cables - a power and a signal cable. The power cable provides three-phase stator power, protective earth and brake connections. The signal cable carries position transducer feedback signals and motor temperature detection connections.

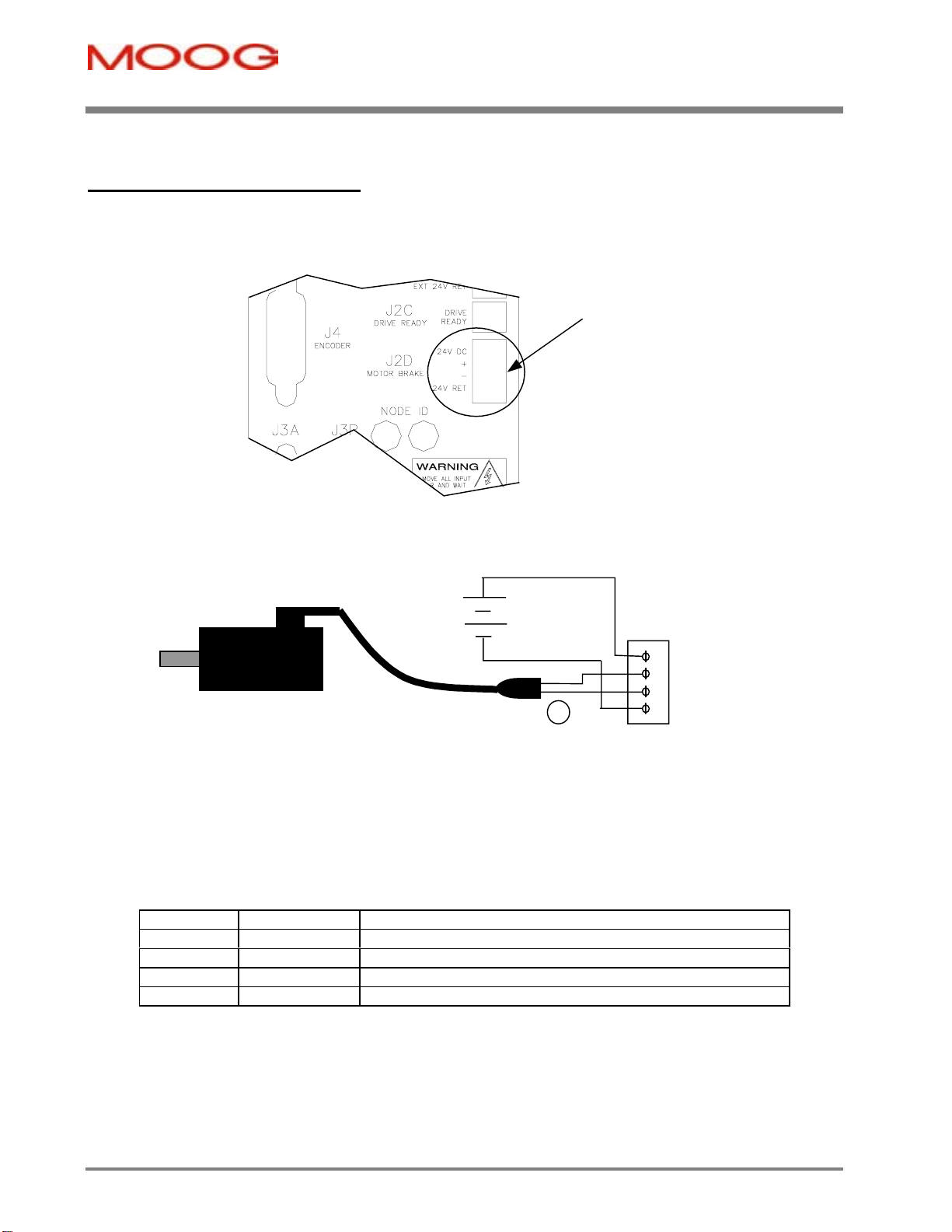

3.1.6.1 Brushless Motor Brake 24V Power Supply
The motor brake requires a 24V currents of all brakes connected.
supply for release. This should be rated to cover at least twice the sums of the rated
dc
3.1.7 Heatsinks and Climatic Control
The need for air conditioning will depend on the duty cycle of the system and the surrounding ambient temperature. The maximum allowable ambient temperature is 40°C (104°F). The humidity range is 5-95% non-condensing.
All DS2100 Servo-drives incorporate internal cooling fans and integral heat sinks. Other than controlling ambient conditions, additional heat sinking is not required.
PAGE 3-8
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.2 Equipment Mounting
This section details the mechanical dimensions of the DS2100 chassis, as well as required clearances for cabling etc. The DS2100 is designed to be panel or cabinet mounted. The DS2100 must be mounted in a vertical orientation. The DS2100 must be panel mounted within an enclosure or cabinet that provides a degree of ingress protection against liquids and objects of at least IP54. Such enclosures or cabinets must be accessible to technically qualified service or maintenance persons only. It is recommended that the cabinet be ventilated using filtered or conditioned air, free of corrosive or electrically conductive contaminants. The accumulation of dust, dirt, etc. on the equipment must be avoided. A minimum clearance above and below each of the DS2100 drive sizes is required. These distances are detailed in Table
3.1.
DS2100 Size Minimum Clearance Top
(mm)
mA & A
B 60 100
C 80 160
D 100 200
Table 3.1 Minimum Clearance around DS2100 Drives
If any of the DS2100 units are mounted in a closed cabinet, allow 80mm clearance at the front for cable bends.
60 100
Minimum Clearance Bottom
(mm)
PAGE 3-9
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
Figure 3.2 Typical DS2100 Cable Bend Radius Requirements
The DS2100 must be permanently and reliably connected to Earth and all conductive parts in the IP54 rated enclosure or cabinet must be permanently connected to Earth. The impedance between the earth terminal and any accessible part of the enclosure or cabinet should be less than or equal to 0.1 W.
NOTE - The DS2100 Series Servo-drives are system components that must
be installed in the correct manner to ensure that all electromagnetic
compatibility (EMC) requirements are met. (Refer to Section 2 of this User’s
Guide).
The DS2100 must be mounted on a panel with a flat solid surface in a manner
that ensures that EMC earthing requirements are met.
Requ i red for
CE-Compliance
There must be a clean flat conductive surface at all of the mounting points.
Remove paint or other insulating materials and provide conductive corrosion
protection at the mounting points. It is important that there is good high-
frequency bonding between the panel and the DS2100 Servo-drive.
Conductive hex socket head bolts with conductive locking washers should be
used.
PAGE 3-10
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Figure 3.3 DS2100 mA Mechanical & Mounting Dimensions
PAGE 3-11
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
PAGE 3-12
Figure 3.4 DS2100 A Mechanical & Mounting Dimensions
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Figure 3.5 DS2100 B Mechanical & Mounting Dimensions
PAGE 3-13
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
PAGE 3-14
Figure 3.6 DS2100 C Mechanical & Mounting Dimensions
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Figure 3.7 DS2100 D Mechanical & Mounting Dimensions
PAGE 3-15
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.2.1 CE Items for Mechanical Installation
Additional electromagnetic compatibility (EMC) measures must be installed on equipment associated with the DS2100 Servo-drive. The following measures must be implemented:
· All external Regen (Regenerative circuit) resistors used with the DS2100
must be installed in enclosures which provide a degree of ingress protection against liquids and objects of at least IP22 and which are accessible to technically qualified service or maintenance persons only. Protection against electric shock must be maintained when installing these resistors.
· Use shielded cable to connect the external regen resistor (if installed) to
the DS2100 power supply. The length of this cable should be as short as possible. The shields of these cables should be earthed to Chassis Earth using the optional EMC Bracket kit or the panel earth bar. Alternatively, if the cable is required to pass through an enclosure panel earthed to Chassis Earth, the shield may be earthed to the panel by use of a 360 degree metal cable gland.
Requ i red for
CE-Compliance
· Cables supplying external d.c. supply voltages to the DS2100 Series
Servo-drives (for example, the 24 Vd.c. supply) must be as short as possible. The supply wires should be twisted together or alternatively shielded cable should be used.
· Cables connecting the D.C. Bus from the DS2100 Power Supply to other
DS2100 Servo-drives must be as short as possible. The supply cables should be shielded.
· Motor power cables must be shielded with the cable shield securely
connected to Chassis Earth at both ends of the cable. At the DS2100 Servo-drive end of the cable, the shield should be earthed using the EMC Bracket.
· Motor feedback & signal cables must be shielded with the cable shield
securely connected to Chassis Earth at both ends of the cable.
· Signal cables must be shielded with the cable shield securely connected
to make a good HF earth bond to Chassis Earth at both ends of the cable.
Further details for the correct installation and shielding of cables and conductors are given in Section 2.
PAGE 3-16
CAUTION - Enclosure or cabinet temperature control is critical for performance, reliability and life of electrical components. Maintaining a uniform temperature (check for hot spots) within the specified values for the equipment will prevent premature failure due to temperature stress.
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.3 Power Dissipation
To calculate cabinet cooling requirements, Table 3.2 provides approximate equipment power dissipation values. If the application employs regeneration, be sure to add the regen resistor power dissipation to the numbers quoted in Table 3.2 below, (use the continuous wattage rating of the regen resistor if the actual application regen dissipation is unknown).
Power Dissipation (Watts)
DS2100
-003 -006 -008 -014 -025 -030 -050 -060
53 100 110 180 300 400 650 800
Table 3.2 Estimated Power Dissipation for the DS2100 Servo-drives
PAGE 3-17
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.4 DS2100 Connector Terminals
Figure 3.8 to Figure 3.12 below detail the connectors on the DS2100 (all sizes).
Serial Communications
Connector (RS232)
Motor Resolver
Connector
Digital Input
Connector
Motor Encoder
Connector
CAN Field Bus
Interface
Digital Output
Connector
Drive Ready Relay
Connector
Motor Brake
Connector
Figure 3.8 DS2100 Control Card Connector Terminals
PAGE 3-18
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)

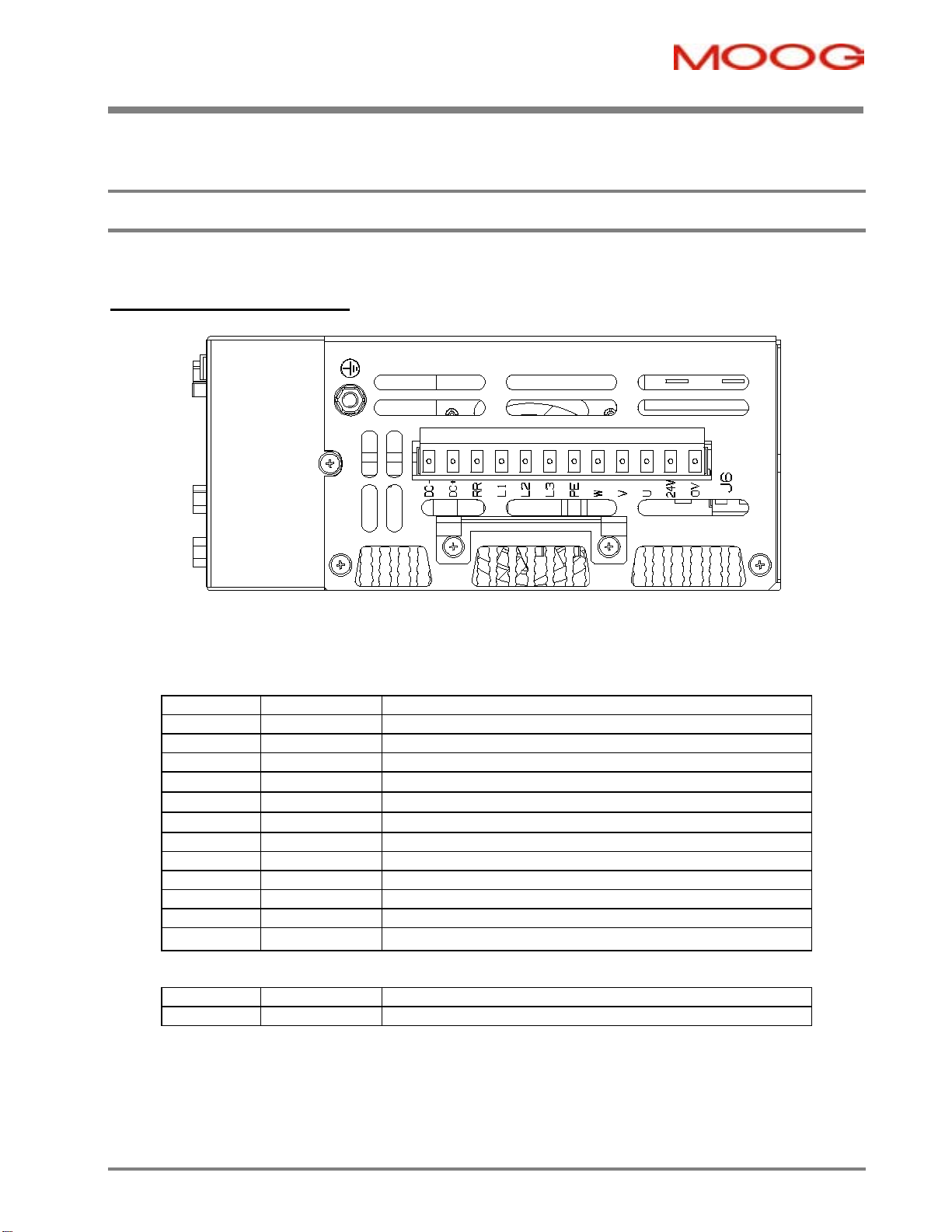

Figure 3.9 DS2100 Size mA Power Connector Terminals

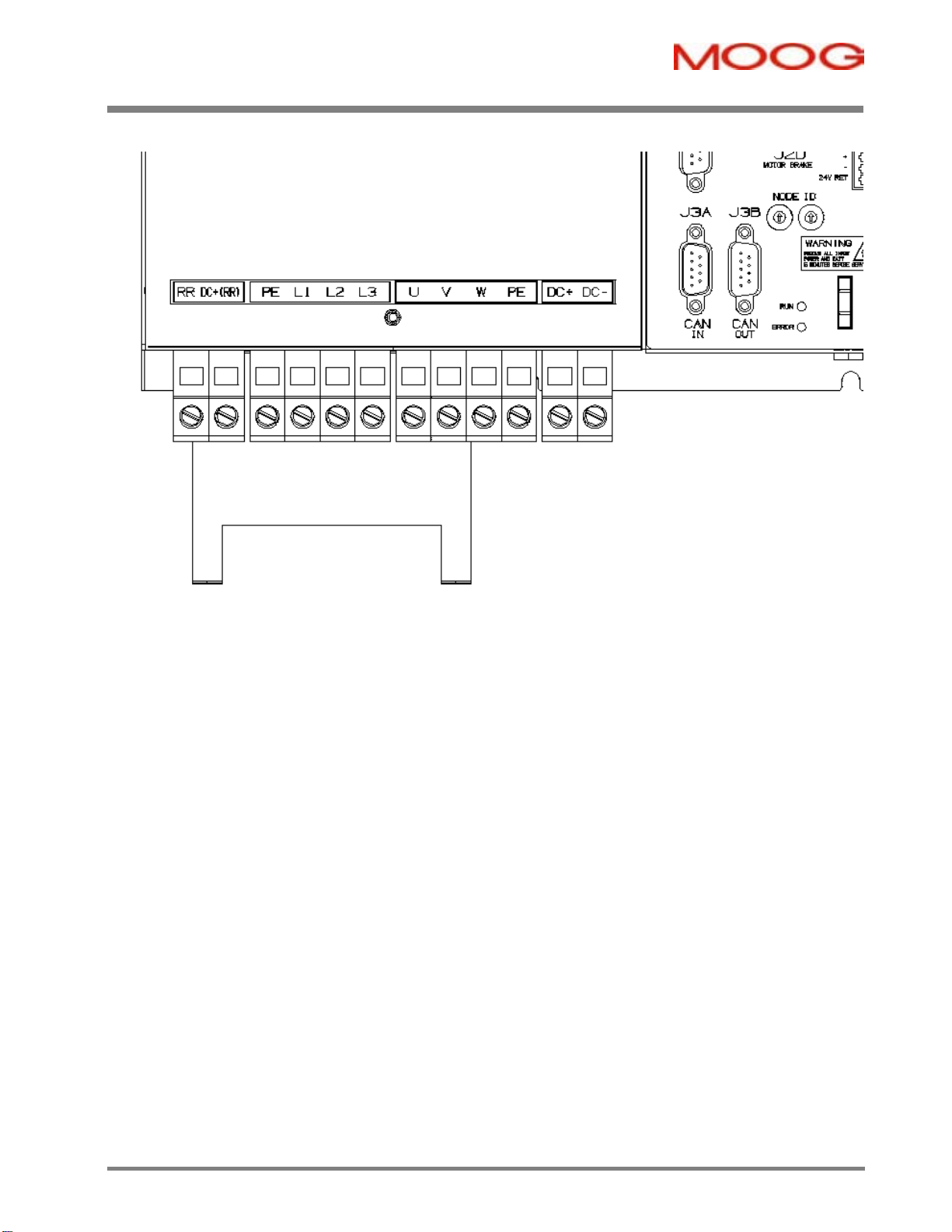

Figure 3.10 DS2100 Size A & B Power Connector Terminals
PAGE 3-19
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
J6
J9
J8
J7
Figure 3.11 DS2100 Size C Power Connector Terminals
PAGE 3-20
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Figure 3.12 DS2100 Size D Power Connector Terminals
PAGE 3-21
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.5 General System Wiring Guidelines
The following is a general reminder of the cable requirements for the DS2100 Series Servo-drives and related equipment.
NOTE - Cabling and component wiring is critical in obtaining successful operation of the system. Pay close attention to specified wiring practice, cabling information, earthing and shielding requirements. Improper wiring can result in electrical noise generation and unstable motor performance.
Size wire in accordance with standard wiring practice and local codes for amperage and wire length requirements. Recommended wire sizes are given in Section 2.
Avoid close parallel routing of signal wires and power wires, both inside and outside of the control cabinet. High voltage bus wires should be shielded and their length should be minimised.
Ensure proper chassis earths on all equipment. Terminate all individual chassis earths from power supply and servo­drives to a single tie point, (i.e. cabinet earth bus). Keep the distance from earth bus to earth ground as short as possible. Similarly, keep distance from servo-drive and power supply chassis earths to the tie point as short as possible. Chassis earth should be run close to D.C. Bus wires to minimise EMI. The impedance between the earth terminal and any accessible part of the equipment enclosure or cabinet should be less than or equal to 0.1W
Tighten all terminal screws securely to avoid faulty operation. Torque screws to the specified values
All power connections to the DS2100 mA, A, B & C Series Servo-drives are through removable plug-in mating connectors. Do not solder the ends of the cables to be inserted into screw clamp terminals. All power connections to the DS2100 D are via screw terminal connections.
WARNING – The removable plug-in mating connectors are for ease of wiring and are not suitable for connection or dis-connection when power is applied. All dis­connections must be made with power removed.
WARNING - All electrical supply wires and cables to this equipment must be installed in conduits (cable routings) which are smooth and free from sharp edges.
CAUTION - Shielded cable is required to be installed by the user for many external user cable connections to the DS2100 Servo-drive. Details of areas where shielded cable must be installed and details of earthing arrangements which must be implemented for the shields of such cables are given in the relevant sections.
PAGE 3-22
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
CAUTION - All external electrical wiring
connected to this equipment must be color coded in accordance with European Standard EN 60204-1 requirements..
CAUTION - Additional electromagnetic compatibility (EMC) measures which must be
Requ i red for
CE-Compliance
installed on equipment cables associated with the DS2100 Servo-drive are given in Section 2 of this User’s Guide.
CAUTION - All wires and cables entering and leaving the IP54 rated enclosures or cabinets containing the DS2100 Servo-drive and the Regen resistor(s) must be protected and anchored in accordance with the requirements of EN 60204-1.
3.5.1 Drive Contactor (User Supplied)
A contactor (suitably rated for the particular DS2100 should be installed just before the AC input line filter of the DS2100. The contactor acts as a remote switch that may cut off the AC mains supply in the event of an emergency shutdown. This contactor should be sized based on the continuous power of the system.
PAGE 3-23
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.5.2 Wiring notes for J6, J7, J9 connectors (Size C)
The connectors used on the DS2100 Size C are are formed using crimp terminals. The appropriate crimps (Molex type 42815-0031) are supplied together the floating connectors for J6, J7, and J9. These crimps are sized for a 8 AWG (8.4
2
mm
) cable with a 10 mm wire stripping. It is recommended to use the appropriate Molex crimping tool (63814-0000, or 63811-1500, or equivalent). After crimping, the contact must be inserted into the floating connector with the correct orientation and should be held in position by the TPA (Terminal Position Assurance) jumper, as shown in Figure 3.13.
PAGE 3-24
Figure 3.13 DS2100 Size C Crimp Assembly
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.6 Sequence of Component Wiring Recommendations
The following sequence for wiring is a recommendation. Individual wiring steps are denoted by a box character, which can be used as an installation check off list.
The terminal block layout on all power supplies and servo-drives has been designed to isolate low voltage from high voltage circuits. Cabinet conduits should be arranged to maintain this physical separation.
a) Power Circuit Wiring
q Wire a 24V Logic Supply to the drive (Required on mA size drives). Fit a suitable EMC filter on the 24V logic
Supply and fuse.
q Wire a.c. mains input to a user supplied fuses. Make a secure and reliable connection between the chassis of the
equipment and Earth.
q Fit a suitable EMC Mains Line Filter after the User supplied fuses and contactor.
q Wire a.c. mains from the user-supplied contactor to the power input poles of the DS2100.
b) Servo-drive Wiring
q Plug in Axis I/O cable to J2 and connect other end to user I/O equipment.
q Plug in resolver cable at J5 (or Encoder Cable to J4).
q Connect appropriate communications cabling (RS232 at J1, and/or Field Bus
c) Motor Wiring
q Repeat the steps listed in this Section for each motor in the system.
q Plug in and screw tight resolver/encoder cable to motor position connector.
q Plug in and screw tight motor power cable to motor power connector. Also connect the brake terminations at J2D
(if provided).
q Connect motor power cable to appropriate drive power terminals.
PAGE 3-25
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.7 Three-Phase A.C. Mains Power Source Configuration
The DS2100 may be supplied from a three-phase a.c. mains input. In this case the following user supplied options are required:-
1. Three-Phase Mains Fusing
2. Mains Line Filter
3. 24Vd.c. Power Source & Fuse
4. 24V d.c. EMC Filter
Note that for DS2100 sizes A,B,C & D, if the a.c. mains is still applied, and the control-backup power is removed, then the DS2100 control section will still operate correctly. Control power can still be generated from the high voltage D.C. Bus. Figure 3.14 below outlines typical interconnect in a multi-axis DS2100 system, which is powered by 3-phase a.c. mains supply.
PAGE 3-26
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Mounting
AC Mains
Supply
Line
Fuses
Contactor Line Filter
3-Phase Supply
& Protective Earth
Backplane
24V
Supply
Regeneration
Resistor
24V
Supply
Fuse
DS2100 DS2100
Motor Position
Feedback Cable
24V EMC
Filter
DC Bus Sharing
Motor Position
Feedback Cable
System Controller
Notes
1) Keep all cables as short as possible
2) Use Shielded\armourd cables
3) Ensure good HF bond to earth or chassis
Figure 3.14 DS2100 Multi-Axis system with 3-Phase A.C. Mains Inputs
PAGE 3-27
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
m
m

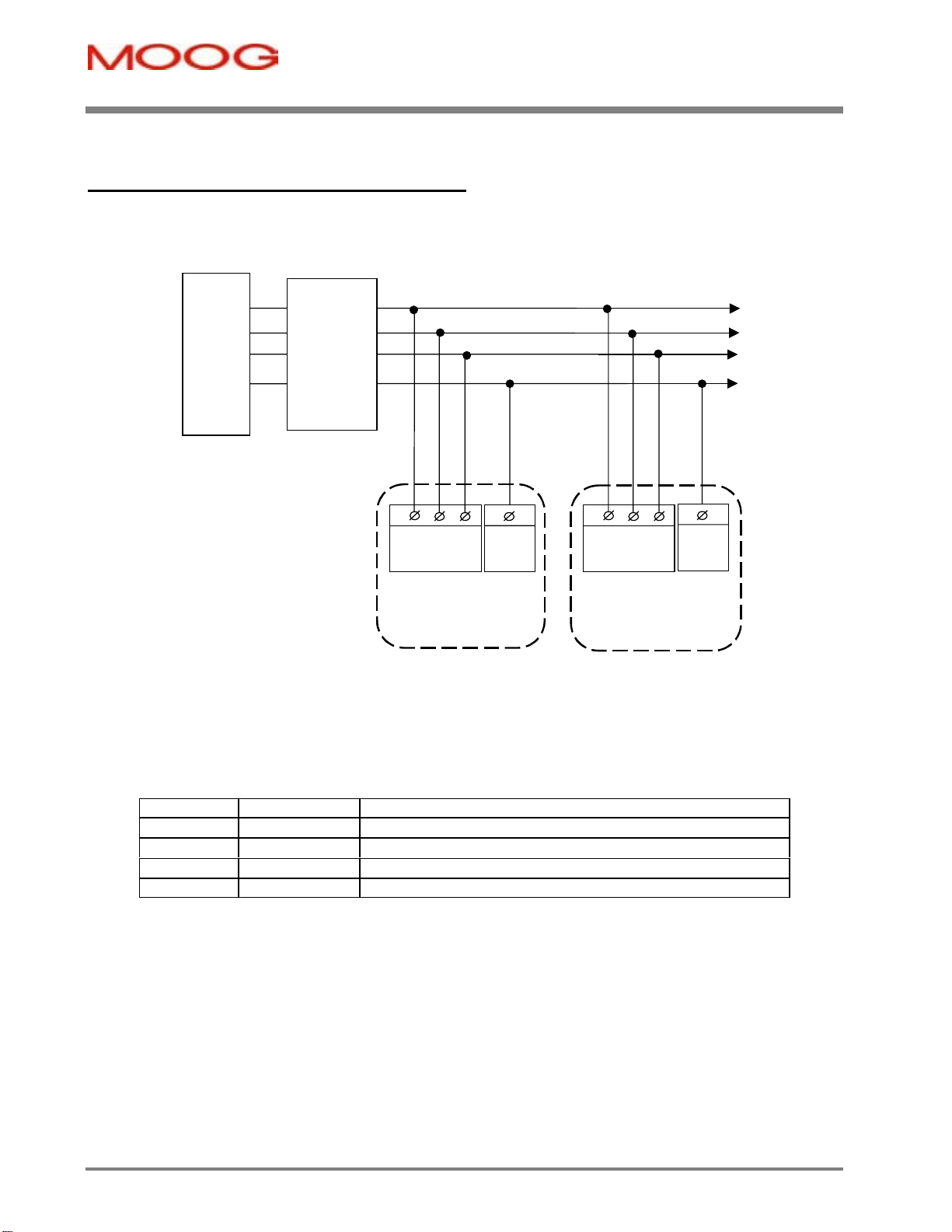

3.7.1 AC Mains Power Source Connection
3.7.1.1 Size mA
a.c. Mains
L1
L2
L3
Protective
Earth
EMC Filter,
Fuses etc.
See
Section 2
Installation
4 5 6
L1 L2 L3
Connector J6
A
PE
Stud
4 5 6
L1 L2 L3
Connector J6
A
PE
Stud
Figure 3.15 mA AC Mains Input Connection
- Fixed connector: 12 pins, male connector
- Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
- mA size wiring: cable 14 AWG (2.1 mm
- PE Stud wiring: cable 6 AWG (13mm
2
). Wire stripping: 7 mm.
2
)
- Tightening torque: 0.5Nm.
Pos.
J6.4 L1 J6.5 L2 J6.6 L3
Name
Function
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L3", ", three-phase voltage input 230/460Vac ±10%
PE PE Protective Earth Stud on Chassis
Table 3.3 J6 AC Mains Power connector, mA Size
PAGE 3-28
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)

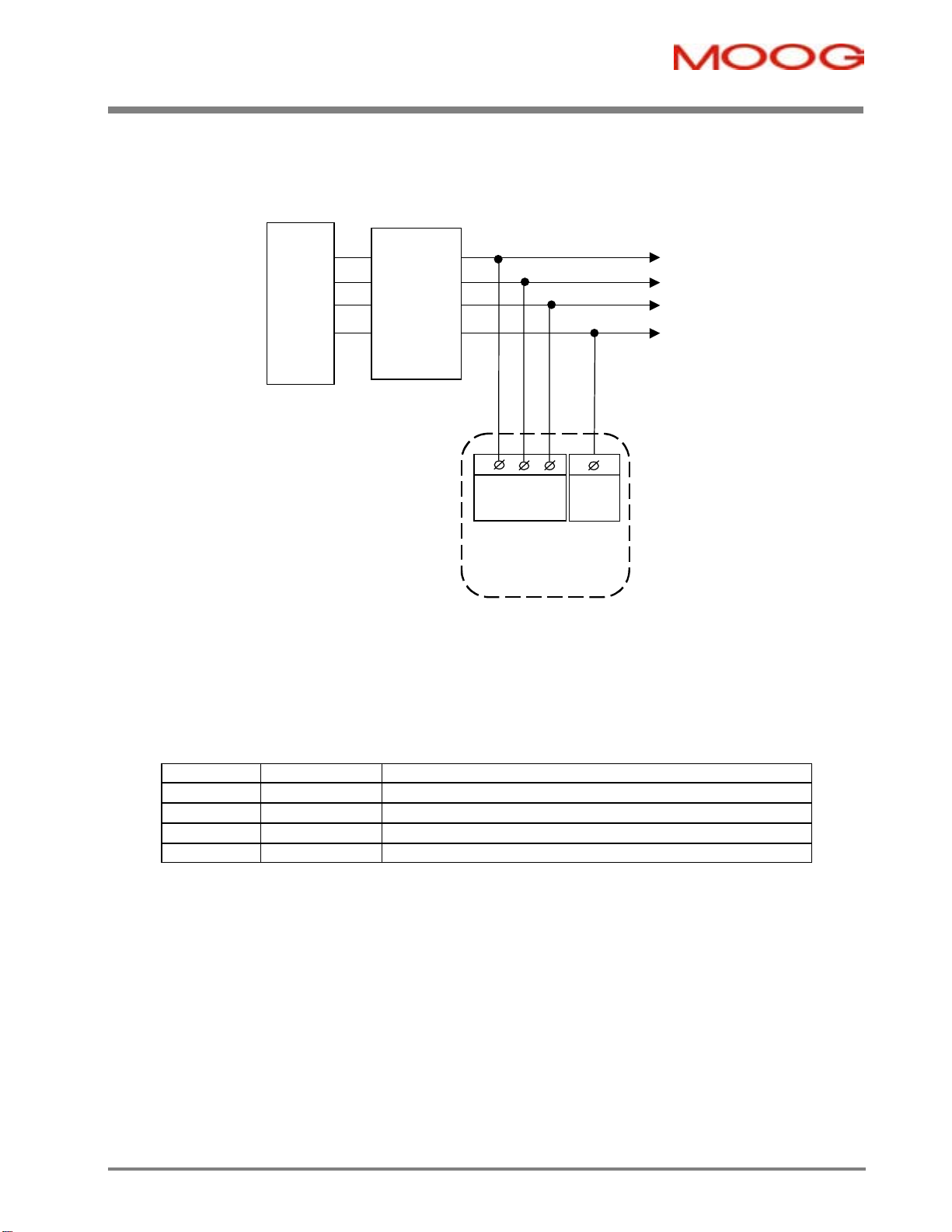

3.7.1.2 Size A & B
a.c. Mains
L1
L2
L3
Protective
Earth
EMC Filter,
Fuses etc.
See
Section 2
Installation
4 5 6
L1 L2 L3
Connector J6
PE
Stud
A & B
Figure 3.16 A & B AC Mains Input Connection
- Fixed connector: 10 pins, male connector
- Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
- A size wiring: cable 14AWG (2.1 mm
- B size wiring: cable 12AWG (3.3 mm
- PE Stud wiring: cable 6 AWG (13mm
2
). Wire stripping: 7 mm
2
). Wire stripping: 7 mm
2
)
- Tightening torque: 0.5Nm.
Pos.
J6.4 L1 J6.5 L2 J6.6 L3
Name
Function
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L3", ", three-phase voltage input 230/460Vac ±10%
PE PE Protective Earth Stud on Chassis
Table 3.4 J6 AC Mains Power connector, A & B Size
PAGE 3-29
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION

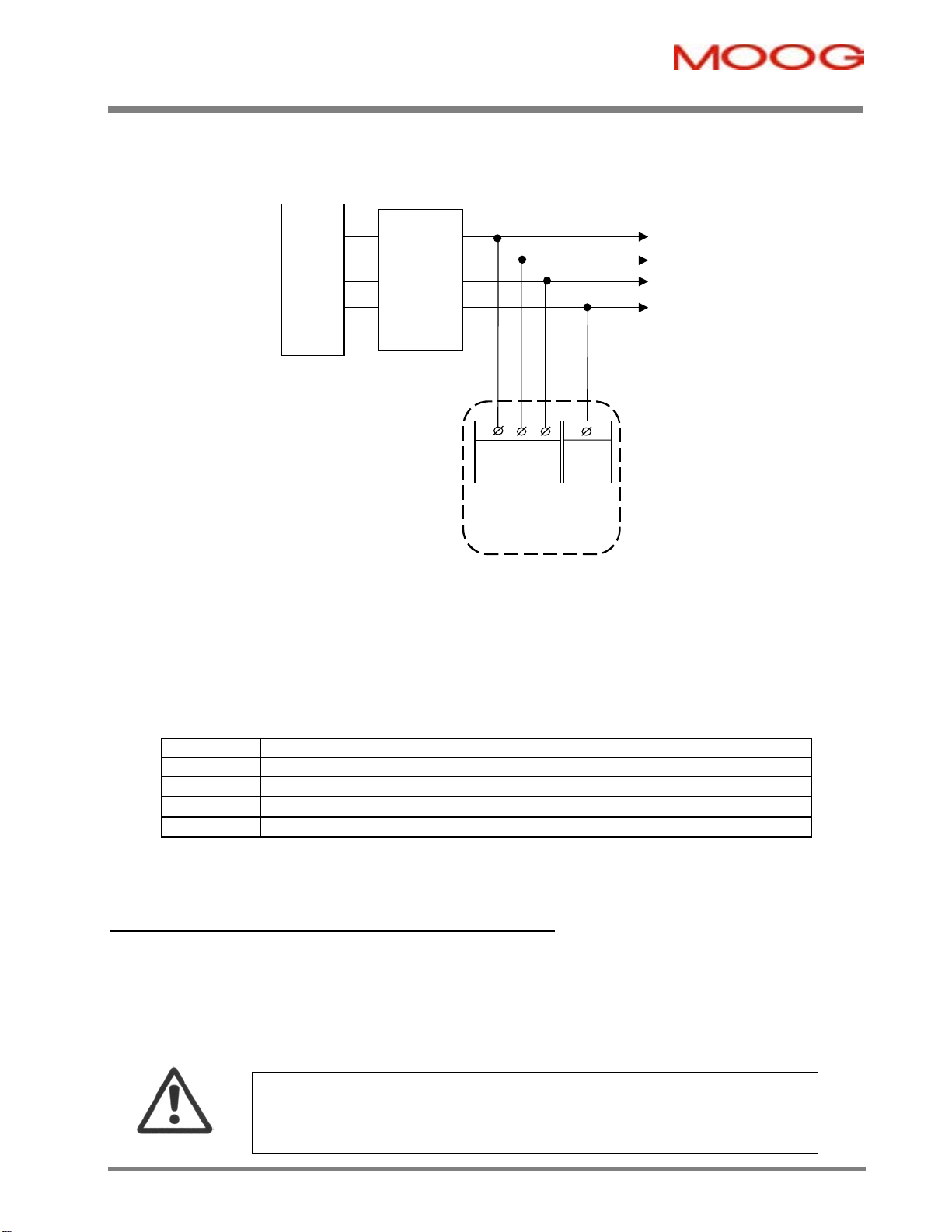

3.7.1.3 Size C
a.c. Mains
L1
L2
L3
Protective
Earth
EMC Filter,
Fuses etc.
See
Section 2
Installation
3 2 1
L1 L2 L3
Connector J6
PE
Stud
C
Figure 3.17 Size C AC Mains Input Connection
- Fixed connector: 5 pins, male connector
- Mating connector, 5 pins, female, crimped supplied with the drive. (Molex 42816-0512)
- C size wiring: cable 8 AWG (8.4 mm
- PE Stud wiring: cable 6 AWG (13mm
Pos.
Name
J6.3 L1 J6.2 L2 J6.1 L3
2
).
2
)
Function
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L3", ", three-phase voltage input 230/460Vac ±10%
PE PE Protective Earth Stud on Chassis
Table 3.5 J6 AC Mains Power connector, C Size
PAGE 3-30
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
f
3.7.1.4 Size D
a.c. Mains
L1
L2
L3
Protective
Earth
EMC Filter,
Fuses etc.
See
Section 2
Installation
Figure 3.18 Size D AC Mains Input Connection
- Fixed connector: 4 pole, screw terminal
- D size wiring: cable 6 AWG (13 mm
- D size wiring: cable 4 AWG ( 21mm
2
) for 50/140
2
) for 60/180
- PE Terminal wiring: cable 6 AWG (13 mm
- PE Terminal wiring: cable 4 AWG (21 mm
- Stripping Length 16mm
- Tightening Torque: 2-2.3Nm
Pos.
Name
Function
J9.3 PE Protective Earth Screw Terminal J9.4 L1 J9.5 L2 J9.6 L3
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L3", ", three-phase voltage input 230/460Vac ±10%
Table 3.6 J9 AC Mains Power connector, D Size
2
) for 50/140
2
) for 60/180
4 5 6
L1 L2 L3
Connector J9
D
3
PE
3.7.2 Softstart & Power Cycling Frequency Limits
The DS2100 contain an internal soft-start function. The soft-start function limits the inrush current into the DS2100's D.C. Bus smoothing capacitors after the a.c. mains has been switched on.
If the frequency of power cycling becomes too high, then the power dissipation in the soft-start resistor can be excessive. In this case the softstart circuitry may become damaged.
CAUTION:- The internal softstart resistors are designed to allow an AC application o once every 60 seconds. If this rate is exceeded, then the internal softstart resistors may be damaged.
PAGE 3-31
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
m
3.8 24V Backup Connection
The DS2100 is equipped with a 24V logic supply backup. This backup supply provides logic power to the drive when AC mains power is removed.
For the mA size, this backup is mandatory for drive operation.
3.8.1 Size mA 24V Input Connection
24V Auxiliary
Supply
+24V
GND (0V)
Fuse
Fairrite Clamp Core p/n # 00443164151 (4-Turns of Supply cable)
11 12
Connector J6
DS
11 12
Connector J6
m
DS
Figure 3.19 Size mA 24V DC Input Connection
- Fixed connector: 12 pins, male connector
- Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
- mA size wiring: cable 14 AWG (2.1 mm
2
).
- Stripping Length 7mm
- Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.11 24V +24V Logic Backup Supply J6.12 0V Logic Supply Return (Tied Internally to PE )
Table 3.7 J6 24V Logic Power connector, mA Size
PAGE 3-32
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.8.2 Size A,B,C & D 24V Input Connection
24V Auxiliary
Supply
+24V
GND (0V)
Fuse
Schaffner
FN2070-3-06
Filter
1 2
Connector J8
A,B,C & D
Figure 3.20 Size A,B, C & D 24V DC Input Connection
- Fixed connector: 2 pins, male connector
- Mating connector, 2 pins, female, supplied with the drive. Wago (Part # 231-102/026-000)
- A,B,C & D size wiring: cable 14 AWG (2.1 mm
2
).
- Stripping Length 8mm
Pos.
Name
Function
J8.1 24V +24V Logic Backup Supply J8.2 0V Logic Supply Return
Table 3.8 J8 24V Logic Power connector, A,B,C & D Size
PAGE 3-33
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.9 Paralleling DS2100 Units through the D.C. Bus
DS2100 units can be paralleled via the D.C. Bus, in order to share regeneration power.
To comply with the EMC Directive, the DC Bus cable must be
Requi red for
CE-Compliance
shielded and the shield must be connected to the housing with a 360 connection at both ends.
CAUTION – To connect drives through the DC bus, please contact Moog application engineering for advice.

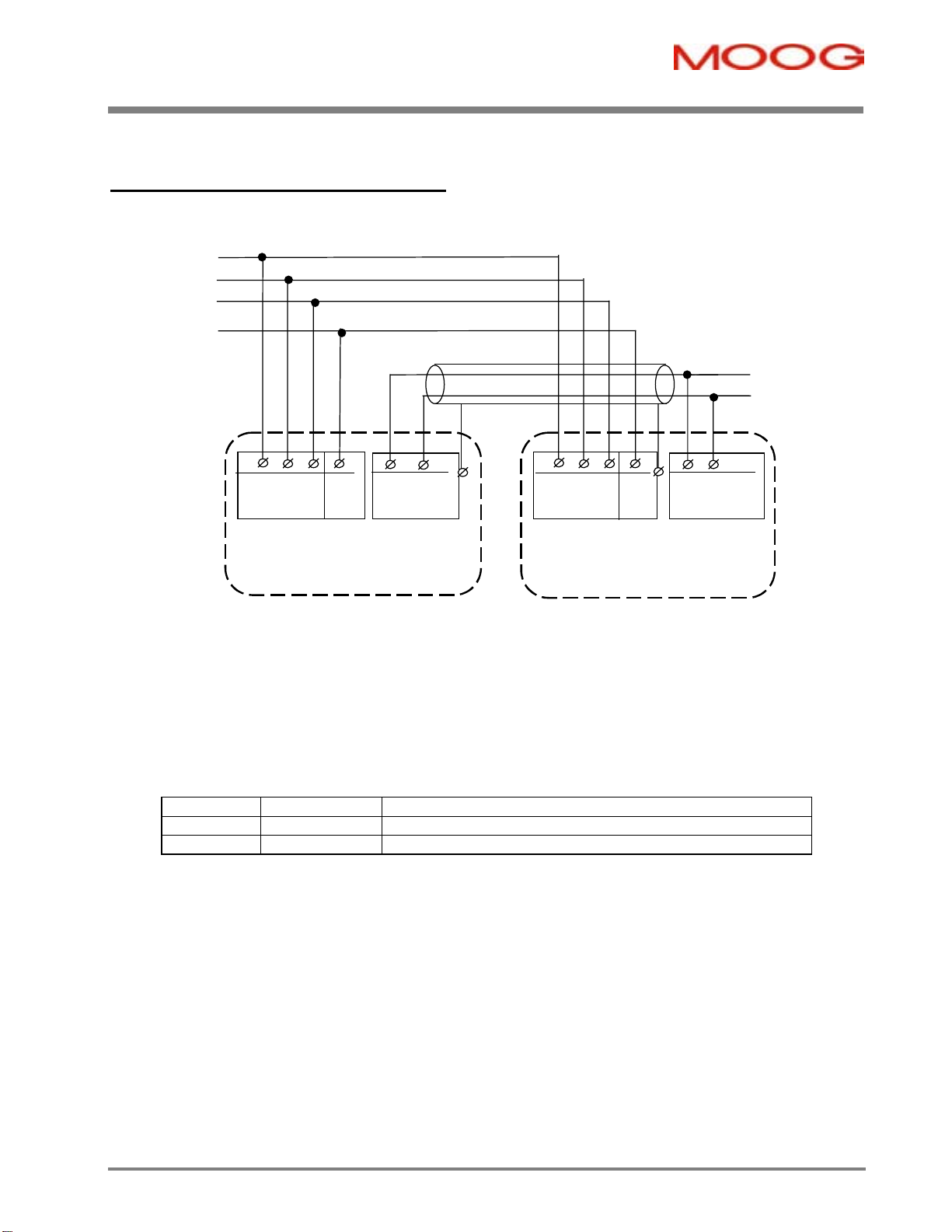

3.9.1 mA Size DC Bus Inter-connection
a.c. Mains
L1
L2
L3
Protective
Earth
Tie screen to chassis via EMC bracket. See Section 2
o
L1 L2 L3 PE (J6.4)(J6.5)(J6.6) Stud
Connector J6
DS2100 mA
DC- DC+ (J6.1)(J6.2)
L1 L2 L3 PE
(J6.4)(J6.5)(J6.6) Stud
Connector J6
DS2100 mA
DC- DC+
(J6.1) (J6.2)
Figure 3.21 Size mA DC Bus Inter-connection
- Fixed connector: 12 pins, male connector
- Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
- mA size wiring: cable 14 AWG (2.1 mm
- PE Stud wiring: cable 6 AWG (13mm
2
). Wire stripping: 7 mm.
2
)
- Tightening torque: 0.5Nm.
PAGE 3-34
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Pos.
Name
Function
J6.1 DC- DC Bus (-) J6.2 DC+ DC Bus (+)
Table 3.9 J6, DC Bus connector, mA Size

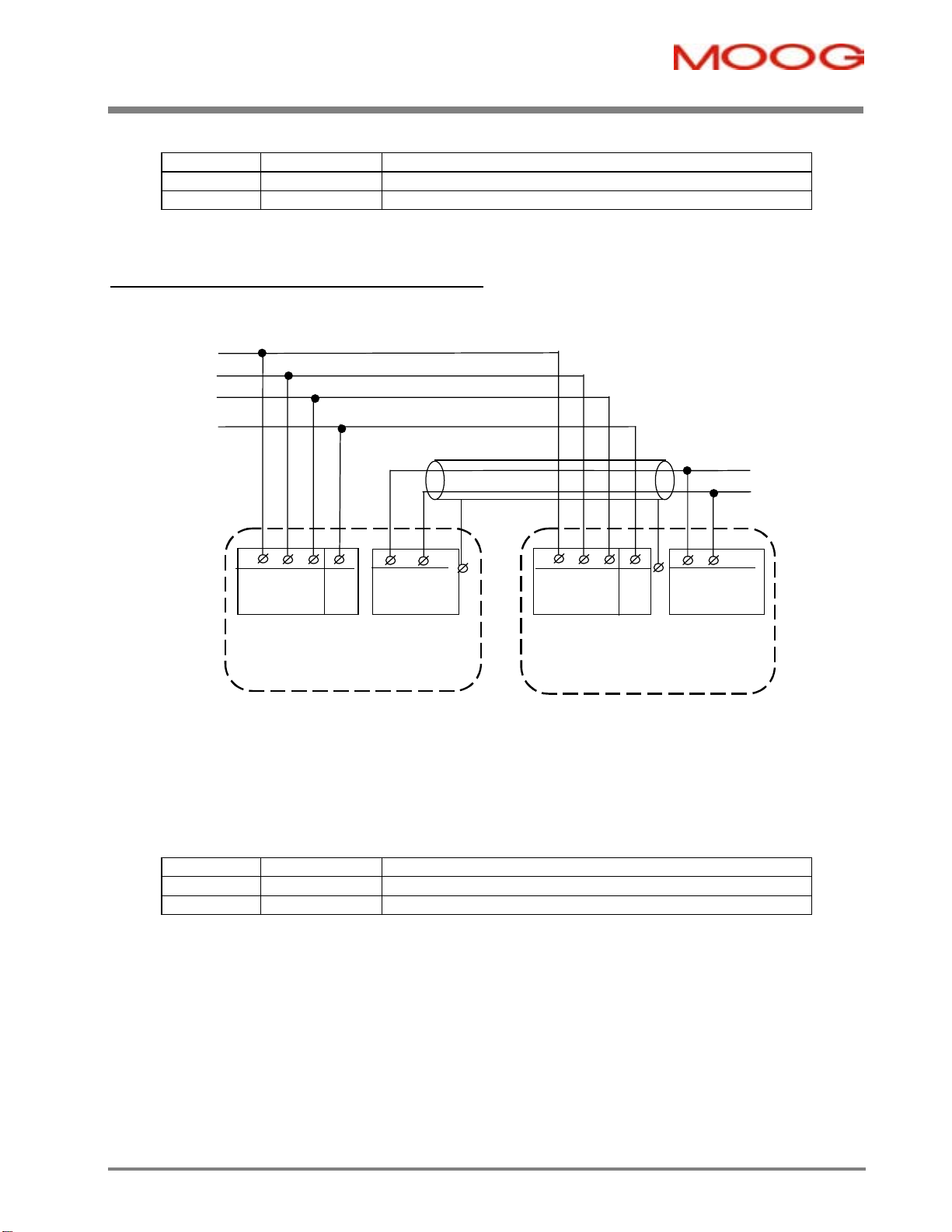

3.9.2 A & B Size DC Bus Inter-connection
a.c. Mains
L1
L2
L3
Protective
Earth
Tie screen to chassis via EMC bracket. See Section 2
L1 L2 L3 PE (J6.4)(J6.5)(J6.6) Stud
DC- DC+ (J6.1) (J6.2)
L1 L2 L3 PE
(J6.4)(J6.5)(J6.6) Stud
DC- DC+
(J6.1) (J6.2)
Connector J6
DS2100 A, B
Connector J6
DS2100 A, B
Figure 3.22 Size A, B DC Bus Inter-connection
- Fixed connector: 10 pins, male connector
- Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
- A size wiring: cable 14AWG (2.1 mm
- B size wiring: cable 14AWG (2.1 mm
- PE Stud wiring: cable 6 AWG (13mm
2
). Wire stripping: 7 mm
2
). Wire stripping: 7 mm
2
)
- Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.1 DC- DC Bus (-) J6.2 DC+ DC Bus (+)
Table 3.10 J6, DC Bus connector, A,B Size
PAGE 3-35
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.9.3 C Size DC Bus Inter-connection
a.c. Mains
L1
L2
L3
Protective
Earth
Tie screen to chassis via EMC bracket. See Section 2
L1 L2 L3 PE (J6.3)(J6.2)(J6.1) Stud
Connector J6, J9
DS2100 C
DC+ DC­(J9.2) (J9.1)
L1 L2 L3 PE
(J6.3)(J6.2)(J6.1) Stud
Connector J6, J9
DS2100 C
Figure 3.23 Size C DC Bus Inter-connection
J6
- Fixed connector: 5 pins, male connector
- Mating connector, 5 pins, female, crimped supplied with the drive. (Molex 42816-0512)
- C size wiring: cable 8 AWG (8.4 mm
- PE Stud wiring: cable 6 AWG (13mm
2
).
2
)
J9
- Fixed connector: 2 pins, male connector
- Mating connector, 2 pins, female, crimped supplied with the drive. (Molex 42816-0212)
- C size wiring: cable 8 AWG (8.4 mm
Pos.
Name
2
).
Function
J9.2 DC+ DC Bus (+) J9.1 DC- DC Bus (-)
Table 3.11 J9, DC Bus connector, C Size
DC+ DC­(J9.2) (J9.1)
PAGE 3-36
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.9.4 D Size DC Bus Inter-connection
a.c. Mains
L1
L2
L3
Protective
Earth
Tie screen to chassis via EMC bracket. See Section 2
L1 L2 L3 PE (J9.4)(J9.5)(J9.6) (J9.3)
Connector J9
DC+ DC­(J9.11) (J9.12)
DS2100 D
Figure 3.24 Size D DC Bus Inter-connection
J9
- Fixed connector: 2 pole, screw terminal
- D size wiring: cable 6 AWG (13 mm
- D size wiring: cable 4 AWG ( 21mm
2
) for 50/140
2
) for 60/180
- PE Terminal wiring: cable 6 AWG (13mm
- PE Terminal wiring: cable 4 AWG (21 mm
- Stripping Length 16mm
- Tightening Torque: 2-2.3Nm
Pos.
Name
Function
J9.11 DC+ DC Bus (+) J9.12 DC- DC Bus (-)
Table 3.12 J9, DC Bus connector, D Size
2
) for 50/140
2
) for 60/180
L1 L2 L3 PE
(J9.4)(J9.5)(J9.6) (J9.3)
Connector J9
DS2100 D
DC+ DC­(J9.11) (J9.12)
PAGE 3-37
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.10 Internal/External Regeneration (Regen) Resistors – Configurations
Regeneration resistors can be fitted to all DS2100 servo-drives. All external Regen resistors should be mounted to allow adequate heat dissipation and such that heat from the Regen resistor is not directed to air intakes of other equipment. The mA size DS2100 is the only size with internal regen. All other drive sizes use external regen only.
For EMC purposes, use shielded cable to connect the external Regen resistor to the DS2100. The length of this cable should be as short as possible. The shields of these cables should be connected to Chassis Earth using the optional EMC kit or the panel earth bar. Alternatively, if the cable is required to pass through an
Requi red f or
CE-Compliance
enclosure panel earthed to Chassis Earth, the shield may be earthed to the panel by use of a 360 degree metal cable gland.
Refer to Section 2 for further safety and EMC requirements for cable installation.
NOTE - The regeneration resistor (internal and external) are protected by software. Setting the regen power and resistance parameters, allows the drive to calculate the maximum allowable duty cycle for the regen transistor. The software will clamp the regen duty-cycle at this level. If the drive tries to regen at a greater level, an overvoltage error will occur.
WARNING - External regen resistors are connected to the DS2100 D.C. Bus voltage that can reach 800 V d.c. Exposed metallic mounting parts of external regen resistors must be connected to protective earth and the electrically conducting parts mechanically shielded for safety. High voltage warning stickers are also recommended.
DS2100 Regeneration Resistor Options
Model (Size) Internal Regen External Regen
G361-x003 (mA) G361-x006 (mA)
Resistance (W) 120 50 4.8 120 50 4.8 120 100 4.8 120 100 4.8
Continuous Power (W)
Peak Power (@ 400V
AC
) (kW)
Resistance (W)
Continuous Power (W)
Peak Power (@ 400VAC) (kW)
G361-x008 (A) 51 200 12.5 G361-x014 (B) 33 250 19.4 G361-x020 (C) 12 370 53.3 G361-x025 (C) 12 370 53.3
Internal Regen is available only on the DS2100 mA
Size.
G361-x030 (C) 12 370 53.3 G361-x050 (D) 10 750 64 G361-x060 (D)
10 750 64
PAGE 3-38
Table 3.13 Recommended Regeneration Resistors
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.10.1 mA Size Regeneration Resistor Connection
Recovery
Resistor
J6.2 J6.3 DC+ RR
Connector J6
Tie Screen to
chassis via EMC
bracket. See
Section 2
Installation
Tie screen to
panel on
which resistor
is mounted.
DS2100 mA
Figure 3.25 DS2100 Size mA External Regeneration Connections
- Fixed connector: 12 pins, male connector
- Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
- mA size wiring: cable 14 AWG (2.1 mm
2
). Wire stripping: 7 mm.
- Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.2 DC+ DC Bus (+) J6.3 RR Regeneration Resistor
Table 3.14 J6, Regeneration Resistor connector, mA Size
3.10.2 A, B Size Regeneration Resistor connection
Recovery
Resistor
J6.2 J6.3
DC+ RR
Connector J6
Tie Screen to
chassis via EMC
bracket. See
Section 2
Installation
Tie screen to
panel on
which resistor
is mounted.
DS2100 A, B
Figure 3.26 DS2100 Size A,B External Regeneration Connections
PAGE 3-39
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
- Fixed connector: 10 pins, male connector
- Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
- A size wiring: cable 14AWG (2.1 mm
- B size wiring: cable 14AWG (2.1 mm
- Tightening torque: 0.5Nm.
2
). Wire stripping: 7 mm
2
). Wire stripping: 7 mm
Pos.
Name
Function
J6.2 DC+ DC Bus (+) J6.3 RR Regeneration Resistor
Table 3.15 J6, Regeneration Resistor connector, A,B Size
3.10.3 C Size Regeneration Resistor connection
Tie Screen to
chassis via EMC
J6.4 J6.5
DC+(RR) RR
Connector J6
DS2100 C
Figure 3.27 DS2100 Size C External Regeneration Connections
bracket. See
Section 2
Installation
Recovery
Resistor
Tie screen to
panel on
which resistor
is mounted.
- Fixed connector: 5 pins, male connector
- Mating connector, 5 pins, female, crimped supplied with the drive. (Molex 42816-0512)
- C size wiring: cable 8 AWG (8.4 mm
Pos.
Name
2
).
Function
J6.4 DC+(RR) DC Bus (+) J6.5 RR Regeneration Resistor
Table 3.16 J6, Regeneration Resistor connector, C Size
PAGE 3-40
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.10.4 D Size Regeneration Resistor connection
Recovery
Resistor
J9.2 J9.1
DC+(RR) RR
Connector J9
DS2100 D
Figure 3.28 DS2100 Size D External Regeneration Connections
J9
- Fixed connector: 2 pole, screw terminal
- D size wiring: cable 6 AWG (13 mm
- D size wiring: cable 4 AWG ( 21mm
2
2
- Stripping Length 16mm
- Tightening Torque: 2-2.3Nm
Pos.
Name
J9.1 RR Regeneration Resistor J9.2 DC+(RR) DC Bus (+)
Table 3.17 J9, Regeneration Resistor connector, D Size
Tie Screen to
chassis via EMC
bracket. See
Section 2
Installation
) for 50/140 ) for 60/180
Function
Tie screen to
panel on
which resistor
is mounted.
WARNING - When performing any changes to the regen resistor configuration, a.c. input power must be removed from the DS2100. Wait 5 minutes upon removal of all power, to allow for D.C. Bus capacitors to discharge.
PAGE 3-41
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.11 Motors - Installation
Motors should be sized by qualified personnel. Improper sizing will directly affect performance and reliability.
Motor performance data for Moog motors is shown in separate data sheets. Contact Moog Applications Engineering for detailed motor technical information and application sizing, etc.
Standard motors should not be mounted directly onto a gearbox with the shaft inside the lubrication chamber. Motors may be ordered with an optional shaft seal for these applications. When the motor is mounted, the lubricant level within the gearbox must be below the shaft seal of the motor in order to avoid long term seepage and motor failure.
3.11.1 Assembling Motor Resolver and Power Cables
Use of the made-up cable sets is recommended for connecting the MOOG brushless servomotors. These cable sets are available in standardized lengths.
If MOOG cables are not used, the values specified below with regard to the cable make-up must be maintained in all cases.
Contact your local Moog sales office or authorised distributor for selection of pre-made motor cables.
The following are listed for convenience:-
Europe and Asia
MOOG GmbH Hanns-Klemm-Strasse 28 71034 Boeblingen GERMANY phone: +0049 - 7031 - 622 -0 fax: +0049 - 7031 - 622 - 100
North America
MOOG.INC Jamison Road East Aurora, NY 14052 USA phone: +001 - 716 - 652 - 2000 fax: +001 - 716 - 687 - 4870
Italy
MOOG Italiana S.r.l. Electric Division Via Avossa 94 16015 Casella (Gevova) Italy phone: +0039 - 010 - 96711 fax: +0039 - 010 - 9671280
PAGE 3-42
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.11.2 Motor Power Cable
Wire the motor power connector in accordance with Figure 3.29 to Figure 3.35.
Use wire sizes based on the motor’s continuous stall current (r m s) and wire length requirements.
Wiring must be in accordance with standard EN 60204-1 (See Section
Requ i red for
CE-Compliance
For proper drive commutation of motors, it is required that the motor phase conductors, Phase U, Phase V , and Phase W be wired exactly.
2 of this Users Manual.)
PAGE 3-43
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
r
)
3.11.2.1 Size mA
Moto
U
V
W
PE
grounding of shield via connector clamp (or RF connection to ground screw in case of terminal board)
grounding of shield via connector clamp
DS2100 mA
U (J6.10)
V (J6.9)
W (J6.8
PE (J6.7)
J6

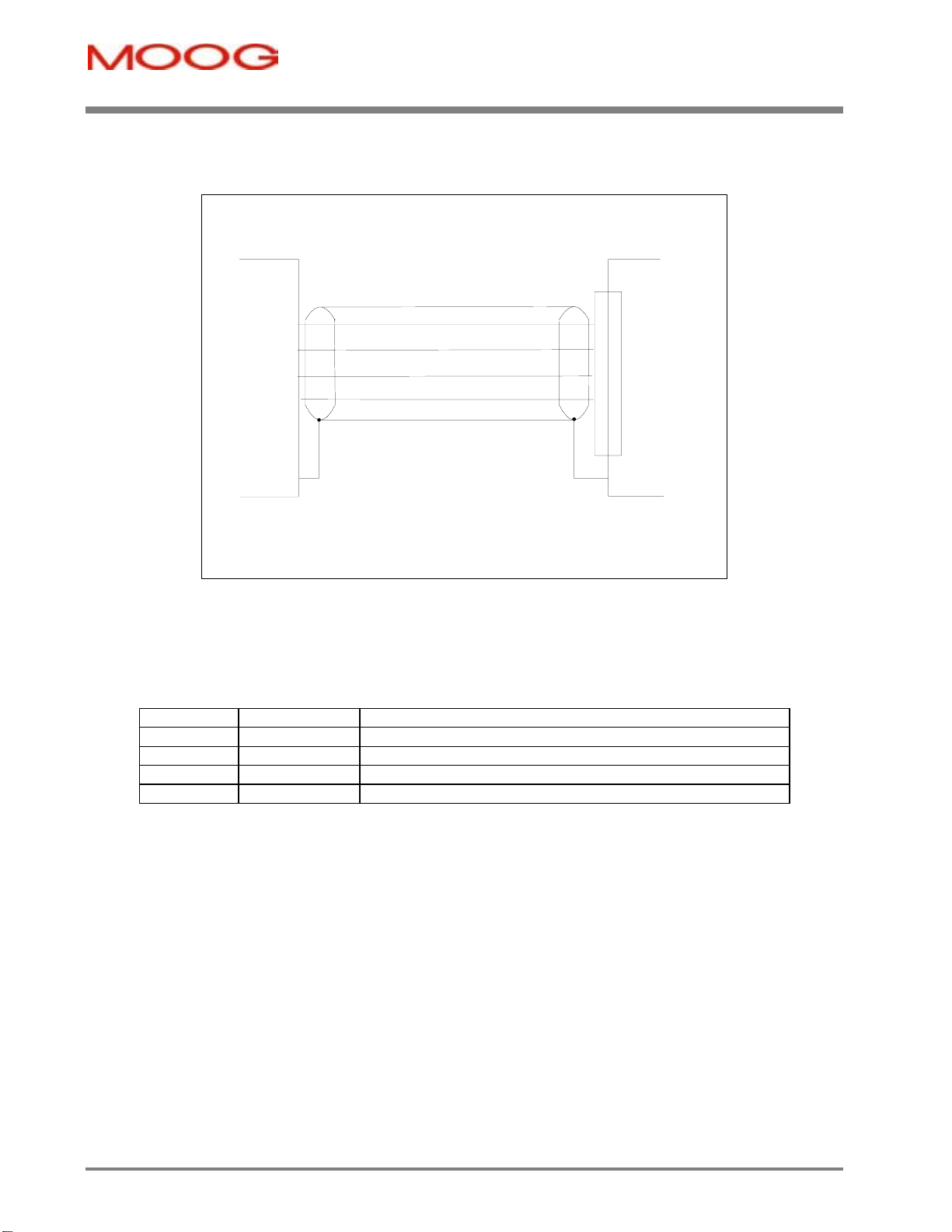

Figure 3.29 DS2100 mA Motor Power Connection
- Fixed connector: 12 pins, male connector
- Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
- mA size wiring: cable 14 AWG (2.1 mm
2
). Wire stripping: 7 mm.
- Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.7 PE Motor Protective Earth J6.8 W Motor Phase W J6.9 V Motor Phase V J6.10 U Motor Phase U
Table 3.18 J6, Motor connector, mA Size
PAGE 3-44
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
r
)
3.11.2.2 Size A, B
DS2100 A, B
Moto
U
V
W
PE
grounding of shield via connector clamp (or RF connection to ground screw in case of terminal board)
grounding of shield via connector clamp
U (J6.10)
V (J6.9)
W (J6.8
GND (J6.7)
J6

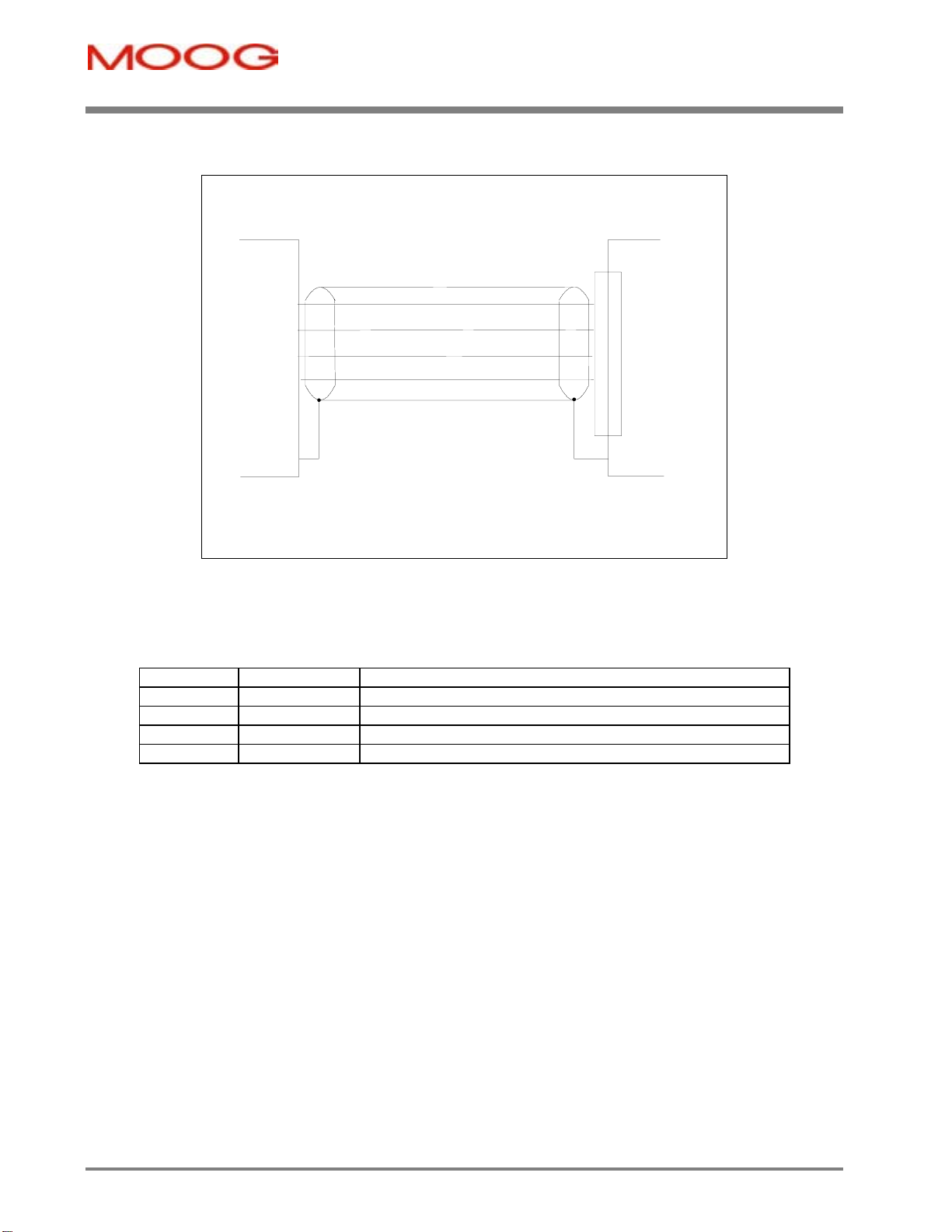

Figure 3.30 DS2100 A, B Motor Power Connection
- Fixed connector: 10 pins, male connector
- Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
- A size wiring: cable 14AWG (2.1 mm
- B size wiring: cable 12AWG (3.3 mm
2
). Wire stripping: 7 mm
2
). Wire stripping: 7 mm
- Tightening torque: 0.5Nm.
Pos.
Name
Function
J6.7 GND Motor Protective Earth J6.8 W Motor Phase W J6.9 V Motor Phase V J6.10 U Motor Phase U
Table 3.19 J6, Motor connector, A,B Size
PAGE 3-45
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
r
)
3.11.2.3 Size C
DS2100 C
Moto
U
V
W
PE
grounding of shield via connector clamp (or RF connection to ground screw in case of terminal board)
grounding of shield via connector clamp
U (J7.1)
V (J7.2)
W (J7.3
PE (J7.4)
J7
Figure 3.31 DS2100 C Motor Power Connection
- Fixed connector: 4 pins, male connector
- Mating connector, 4 pins, female, crimped supplied with the drive. (Molex 42816-0412)
- C size wiring: cable 8 AWG (8.4 mm
Pos.
Name
2
).
Function
J7.4 PE Motor Protective Earth J7.3 W Motor Phase W J7.2 V Motor Phase V J7.1 U Motor Phase U
Table 3.20 J7, Motor connector, C Size
PAGE 3-46
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
r
)
3.11.2.4 Size D
DS2100 D
Moto
U
V
W
PE
grounding of shield via connector clamp (or RF connection to ground screw in case of terminal board)
Figure 3.32 DS2100 D Motor Power Connection
J9
- Fixed connector: 4 pole, screw terminal
- D size wiring: cable 6 AWG (13 mm
- D size wiring: cable 4 AWG ( 21mm
2
2
- Stripping Length 16mm
- Tightening Torque: 2-2.3Nm
Pos.
Name
J9.10 PE Motor Protective Earth J9.9 W Motor Phase W J9.8 V Motor Phase V J9.7 U Motor Phase U
U (J9.1)
V (J9.2)
W (J9.3
PE (J9.4)
J9
grounding of shield via connector clamp
) for 50/140 ) for 60/180
Function
Table 3.21 J9, Motor connector, D Size
PAGE 3-47
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.11.3 Motor Brake Connection
The DS2100 provides a motor break relay at connector J2D (on Control Card Interface). The user supplies a 24Vd.c., Power Supply Unit for the brake connections. Details of the motor brake current requirements are available from the relevant motor datasheet.
Motor Brake
Connector
Figure 3.33 Motor Brake Connector Location
User Supplied 24V PSU
J2D 1 24V DC 2 +
Motor Power Cable
Figure 3.34 Motor Brake Cabling
- Fixed connector: 4 pins, male connector
- Mating connector, 4 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MCP 1.5/4-ST-
3.81)
- Wiring: cable. 28-16AWG (0.14-1.5mm
- Wire stripping: 9 mm
Pos.
J2D.1 24V DC Brake 24V Supply J2D.2 + Brake + J2D.3 - Brake ­J2D.4 24V RET Brake 24V Supply Return
Name
2
)
Function
Table 3.22 J2D, DS2100 Brake connector
*
3 ­4 24V RET
* The pins of the brake terminals at the motor cable connector end depend upon the cable size. Refer to Figure 3.35 for details.
PAGE 3-48
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
DS2100
J6
(m
A, A,B),
J7 (C), J9 ( D)
EMC
Bracket
J2D.2
J2D.3
A
G
F
E
B
H
D
PT00E16-8-PC2
E
D
PT0014-5PC
Figure 3.35 Motor Power and Brake Connectors
F
C
E
A
G
B
D
C
97B 3100 RS 24-10P
A
B
C
A
C
A
D
B
C
97B 3102R 36-5P
B
D
97B 3102R 24-22P
PAGE 3-49
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
DS2100 G4x2/3/4 G4x5 G4x6 PT00E 16-
8-PC2
DDDDD U2 UUAAAAA V4 VVBBBBB
W1WWCCCCC
Brake+ 5 + + E E - - -
Brake- 6 - - F F - - -
Table 3.23 Motor Power Connections
97B3100R
S 24-10P
97B3102R
36-SP
PT00E 14-
5 PC
97B3102R
S 24-22P
PAGE 3-50
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.11.4 Motor Resolver Connection
Wire the DS2100 resolver cable in accordance with Figure 3.37 and Table 3.24.
Requi red for
CE-Compliance
For CE compliance, shield should be attached on both sides of resolver cable.
NOTE:- Avoid running the resolver cable near other high power wiring, especially the motor power cable, if possible.
NOTE:- Cable Length should not exceed 30m (100 feet).
PAGE 3-51
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
Resolver
Connector
Figure 3.36 Motor Resolver Connector Location
- Fixed connector: 9 pin, female Sub-D connector
- Mating connector, 9 pin male Sub-D
- Wiring: cable. 28-18AWG (0.14-0.82mm
Pos Signal
J5.1 J5.2
J5.9 V-Ref (R1) D 10 7 J5.7 0V (R2) B 7 8 J5.8 PTC\NTC N 8 6 J5.6 PTC\NTC A 9 5 J5.4 J5.5
J5.3 Shield S 3 -
2
)
MOTOR RESOLVER CONNECTOR
Type
Cosj (S2)
Sinj (S1)
jSin
Table 3.24 Resolver connections to motor
jCos
(S4)
(S3)
FAS T/ FAS K
C1 3 E2 4
G11 1
H12 2
FAS N/
FAS Y
G4xx
(FASG)
PAGE 3-52
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
DS2100 Cable End
DS2100 Cable End
4 S1 5 S3
1 S2
2 S4
6 NTC
8 NTC
9 R1 7 R2
1 cos 2 cos
9 V-ref
7 0V
8 PTC 6 PTC
4 sin 5 sin
3 shield
PE
1 S1
2 S3
3 S2
4 S4 5 NTC
6 NTC
7 R1 8 R2
Motor Cable End
for MOOG motors
G4xx
Connector
PT 00E 14-19 PC-10, PT06F 8AG 14-19S
C cos
MNLBA
UV RDK
PC
STJ
FGH
E
E cos
D V-ref
B 0V
N PTC
A PTC
G sin H sin
S shield
Motor Cable End
for MOOG motors
FAST & FASK
DS2100 Cable End
1 cos 2 cos
9 V-ref
7 0V
8 PTC 6 PTC
4 sin 5 sin
3 shield
Figure 3.37 DS2100 Resolver Cables
Connector
IPS02A 12-12PYC/SH
Motor Cable End
for MOOG motors
FASN & FASY
1 cos 2 cos
10 V-ref
7 0V 8 PTC 9 PTC 11 sin
12 sin
3 shield
PAGE 3-53
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.11.5 Motor Encoder Connection
The DS2100 encoder input supports a variety of encoders. These include Analogue, SSI, Hiperface and Endat. The connections to the drive for each of these encoder types are given in Table 3.25.
Encoder
Connector
Figure 3.38 Motor Encoder Connector Location
Fixed connector: 15 pin, female Sub-D connector
-
-
Mating connector, 15pin male Sub-D
-
Wiring: cable. 28-18AWG (0.14-0.82mm
2
)
Pos Analogue SSI Hiperface Endat
J4.1 Shield Shield Shield Shield J4.2 - Sine - - Sine - Channel A J4.3 - Cosine - - Cosine - Channel B J4.4 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.5 - Channel Z (Zero) - Data RS485 - - Data J4.6 - - Clock - - Clock J4.7 - - - ­J4.8 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
J4.9 + Sine - + Sine + Channel A J4.10 + Cosine - + Cosine + Channel B J4.11 +5 V .. +12V
Supply (150 mA
max.) J4.12 + Channel Z (Zero) + Data RS485 + + Data J4.13 - Fault + Clock - + Clock J4.14 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.15 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
Table 3.25 Encoder Cable Input Connections
Encoder Type
+5 V .. +12V
Supply (150 mA
max.)
+5 V .. +12V
Supply (150 mA
max.)
+5 V .. +12V
Supply (150 mA
max.)
PAGE 3-54
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Requi red for
CE-Compliance
For CE compliance, shield should be attached on both sides of encoder cable.
NOTE:- Avoid running the encoder cable near other high power wiring, especially the motor power cable, if possible.
NOTE:- Cable Length should not exceed 30m (100 feet).
PAGE 3-55
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.11.6 Motor Rotation Direction
The positive direction of rotation is clockwise, when the motor is viewed from the shaft end, as shown in the diagram below.
Motor Front
Clockw is e is Pos it ive Direction of Rotation
Figure 3.39 Rotational Convention for Mechanical Process Variables
NOTE:-. For operation with the encoder, positive rotation as defined here corresponds to Channel A leading Channel B.
PAGE 3-56
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
y
3.12 DS2100 Control Input and Outputs
The following section contains a description of the control related Input/Output (I/O) available to the user. Functionality of this I/O is detailed later in this manual.
NOTE - An external 12Vd.c. to 32Vd.c. power source (user supplied) is required for the I/O functions. The amperage rating of this power source will depend on the number of I/O functions used. Supply currents can be calculated as a function of this number and the input and output impedances quoted below.
Figure 3.40 DS2100 I/O Connections
Digital Inputs
Digital
Outputs
Drive
Read
PAGE 3-57
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.12.1 General Purpose Description of the Digital Inputs
The DS2100 provides 8 digital inputs on connector J2A.
-
Fixed connector: 9 pins, male connector
-
Mating connector, 9 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/9-ST-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm
-
Wire stripping: 8 mm
Pos.
Name
J2A.1 I1 Digital Input # 1 Drive Enable J2A.2 I2 Digital Input # 2 User Configurable J2A.3 I3 Digital Input # 3 User Configurable J2A.4 I4 Digital Input # 4 User Configurable J2A.5 I5 Digital Input # 5 User Configurable J2A.6 I6 Digital Input # 6 User Configurable J2A.7 I7 Digital Input # 7 User Configurable J2A.8 I8 Digital Input # 8 User Configurable J2A.9 RET Digital Input Ground
2
)
Function
Table 3.26 J2A, DS2100 Digital Input connector
The following electrical description applies to all the digital inputs of the DS2100.
4K7Digital Input I1-I8
3V3
RET
Optocoupler
Figure 3.41 DS2100 Generic Digital Inputs
+5V
SIGNAL
PAGE 3-58
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
Note that:-
§ Input Impedance > 5k W.
§ Voltage Range is 12V to 32V from Digital-Input to the I_COMMON line. Inputs are protected for input voltages
from –40V to +40V
§ Input voltages whose magnitude is less than 12V with respect to the I_COMMON line will not be
guaranteed to be recognised as an active signal input.
§ Input voltages whose magnitude is more than 5V with respect to the I_COMMON line will not be
guaranteed to be recognised as an inactive signal input
§ All digital inputs are optically isolated for noise immunity purposes. All DS2100 digital inputs are isolated from
high voltage circuitry internally
§ Current flowing in the digital input implies the 'safer' of the corresponding active/inactive functions. For
example, when current flows in the clockwise limit switch input, then the limit is NOT active.
PAGE 3-59
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.12.2 General Purpose Description of the Digital Outputs
The DS2100 provides 4 digital outputs on connector J2B & J2C. Only the digital outputs on J2B are detailed here.
-
Fixed connector: 5 pins, male connector
-
Mating connector, 5 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/5-ST-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm
-
Wire stripping: 8 mm
2
)
Pos.
Name
Function
J2B.1 Ext 24V DC +24V Digital Output Supply J2B.2 O1 Digital Output #1 User Configurable J2B.3 O2 Digital Output #2 User Configurable J2B.4 O3 Digital Output #3 User Configurable J2B.5 Ext 24V Ret Digital Output Return
Table 3.27 J2B, DS2100 Digital Output connector
The following electrical description applies to all, except one, of the digital outputs of the DS2100. (One digital output, Drive Ready, uses a relay rather than an opto-coupler).
Ext 24V DC
47k
O1-O3
W
DGND
Optocoupler Isolation
47k
High Side
Switch
W
Ext 24VRet
Figure 3.42 DS2100 Generic Digital Outputs
Note that:-
§ Voltage Range is 6V to 32V from Digital-Output to the O_COMMON line. Digital outputs switch only DC
voltages.
§ Output current 250 mA, off state leakage current 100 µA at 0 V.
§ Short circuit protected, inductive load driving capability, reverse polarity protected. Protected for supply voltage
range of -40 V to +40 V.
§ All digital outputs are optically isolated for noise immunity purposes. All DS2100 digital outputs are isolated
from high voltage circuitry.
§ Current flowing in the digital output implies the function is active.
PAGE 3-60
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.12.2.1 Drive Ready Relay
The DS2100 provides 1 relay outputs on connector J2C. This relay closes when the drive is ready and no faults are present.
Fixed connector: 2 pins, male connector
-
-
Mating connector, 2 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/2-ST-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm Wire stripping: 8 mm
-
2
)
Pos.
J2C.1 Drive Ready 1 Drive ready relay contact pin 1 Drive Ready Relay Contact J2C.2 Drive Ready 2 Drive ready relay contact pin 1 Drive Ready Relay Contact
The following electrical description applies to the Drive ready relay of the DS2100.
Name
Function
Table 3.28 J2B, DS2100 Digital Output connector
5V
Drive Ready 1
Drive Ready
Relay
Drive Ready 2
J2C.1
J2C.2
Figure 3.43 Drive Ready Relay Output
Note that:-
§ Closed when drive ready and no faults.
§ Max. voltage 36 V
§ Max. contact current 100 mA
PAGE 3-61
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.12.3 Power Sequencing on Startup
The timing of the digital inputs ENABLE and PWR_RDY must be considered carefully for proper power-on sequencing.
Minimum Time from Logic power
to Drive Ready 6 seconds
A.C. Mains to Drive Ready < 4s
Logic Power applied 24Vd.c.
A.C. Mains applied to DS2100
Drive Ready Relay output of DS2100
ENABLE input
Drive Ready activated to ENABLE transition can be < 6ms
Figure 3.44 Power Sequencing control using Drive Ready Relay and ENABLE
WARNING - It is UNSAFE to use the Drive Ready output as a direct control for the ENABLE. The Drive Ready output will switch off when a fault occurs, and will switch on when the fault is cleared. This may result in an inadvertent enable of high power to the DS2100 high power amplifier, resulting in unexpected high voltage application or motion.
The System Motion Controller should examine the state of the Drive Ready relay output separately, and then enable the DS2100 high power amplifier if appropriate
PAGE 3-62
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.13 Communications Interface Wiring and Configuration
The DS2100 provides one serial interface (RS232) for communication between the drive and the Windrive graphical user interface (GUI).
The drive also provides a CAN High speed (ISO11898-2) hardware-interface for higher bandwidth communications between one System Motion Controller and many DS2100's (which can handle motion commands between the System Motion Controller and DS2100's)
3.13.1 RS232 Serial Communications Interface
The pin assignment enables use of a 9-pin Sub-D cable with all signals connected straight through.
Serial Communications
Connector (RS232)
Figure 3.45 RS232 Connector Location
Fixed connector: 9 pin, female Sub-D connector
-
-
Mating connector, 9 pin male Sub-D
-
Wiring: cable. 28-18AWG (0.14-0.82mm
Pos.
J1.1 - connected to pin 4 DCD input J1.2 TxD Transmit Data RxD input J1.3 RxD Receive Data TxD output J1.4 - connected to pin 1 and 6 DTR output J1.5 Gnd Gnd Gnd J1.6 - connected to pin 4 DSR input J1.7 - connected to pin 8 RTS output J1.8 - connected to pin 7 CTS input J1.9 - unused RI input
Name
Table 3.29 J1, DS2100 RS232 Serial Interface Connector
2
)
Function PC Signal
PAGE 3-63
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
PC
Rx
2
Tx
3
5
Gnd
Rx
Tx
DS2100
2
3
5
Figure 3.46 DS2100's J1 RS232 Wire Pin-out
The RS232 Cable shield should be connected to the metal body of the D-Type connector.
3.13.2 CAN Cable Wiring
The CAN-In and CAN-Out ports at J3A and J3B of the DS2100 provide the means to daisy-chain the CAN cabling between DS2100 units and system controller. The CAN interface is equipped with driver and receiver for 24V systems. These are optically isolated from the internal drive electronics for noise immunity. Internal supply of the isolated side of the CAN is provided. No user supplied voltage is required. Two daisy chained 9-way D-Sub connectors, one male, one female are also provided for ease of wiring.
Please refer to CAN Draft Standard 303, ‘Cabling and Connector Pin Assignment’ for further details of the CAN cabling requirements.
CAN
Connectors
PAGE 3-64
Figure 3.47 CAN Connector Location
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
- Fixed connector: 9 pin, male & female Sub-D connector
Mating connector, 9 pin male & female Sub-D
-
-
Wiring: cable. 28-18AWG (0.14-0.82mm
2
)
Pos (x=A,B) Signal Description
J3x.1 - not connected J3x.2 CAN_L CAN_L bus line (dominant low) J3x.3 CAN_GND CAN Ground J3x.4 - not connected J3x.5 CAN_SHLD Chassis Ground J3x.6 CAN_GND CAN Ground J3x.7 CAN_H CAN_H bus line (dominant high) J3x.8 - not connected
J3x.9 - Optional CAN external positive supply, not connected.
Table 3.30 CAN Connector Pin Description
Note:-
·
CAN lines must be terminated in a 120Ohm resistance, between the positive and negative terminals (CAN-High and
CAN-Low) at both ends of the CAN network for correct operation.
·
All pins of J3A and J3B are wired straight through the connectors of the DS2100.
User's PE
GND CAN_L CAN_H
Connect Cable Shields to Metallic D-Sub Shell
7 CAN_H 2 CAN_L 3 CAN_GND
Connector J3A
DS2100
CAN_H 7 CAN_L 2 CAN_GND 3
Connector J3B

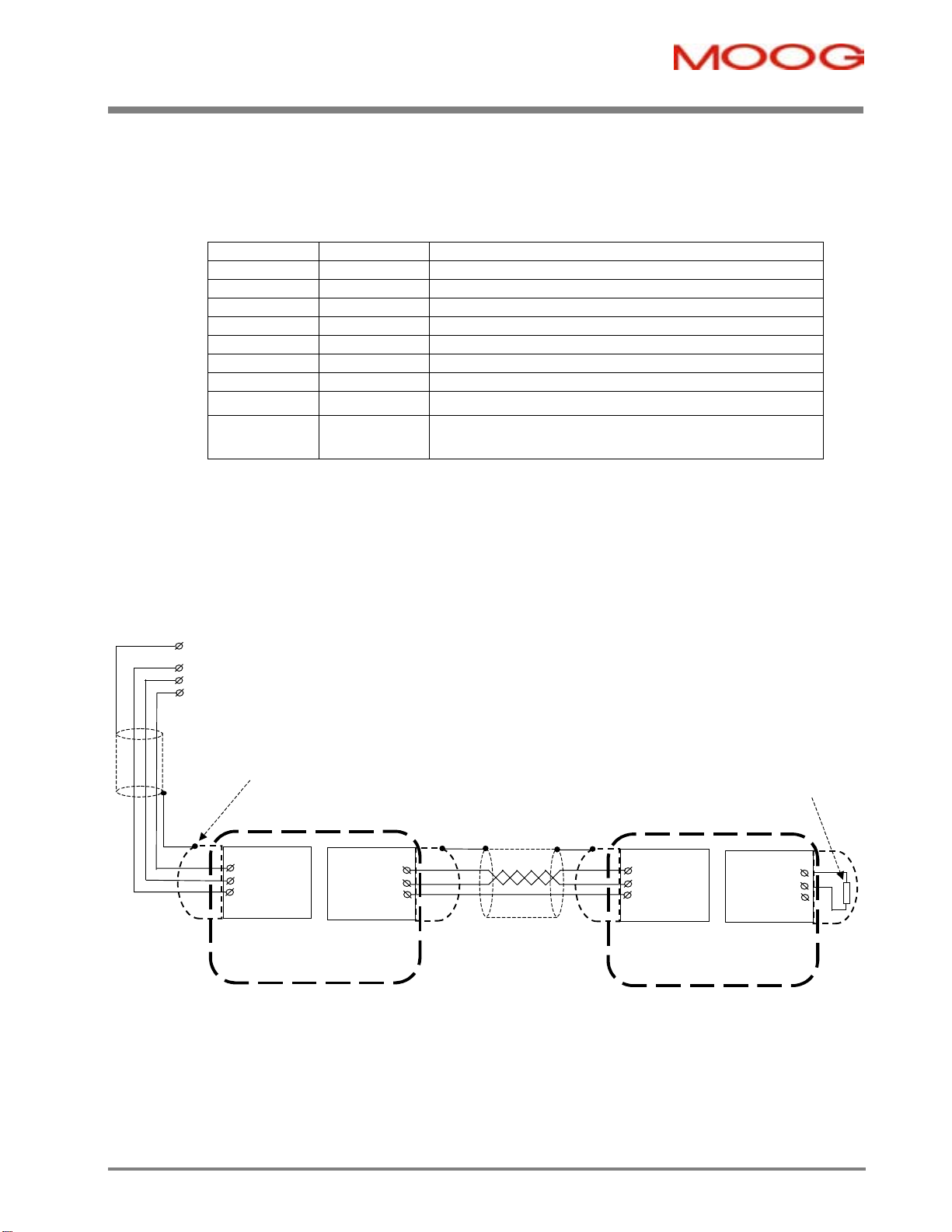

Figure 3.48 DS2100 CAN Wiring and Termination
7 CAN_H 2 CAN_L 3 CAN_GND
Connector J3A
DS2100
Terminate CAN lines in D-Shell with 120Ohms at both ends of network
CAN_H 7 CAN_L 2 CAN_GND 3
Connector J3B
PAGE 3-65
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
To Controller
m
Pro
Controller J3A
CAN IN CAN OUT
NC
CAN_L
CAN_H
NC
CAN_SHLD
CAN_GND
CAN_GND
NC
NC (V_EXT)

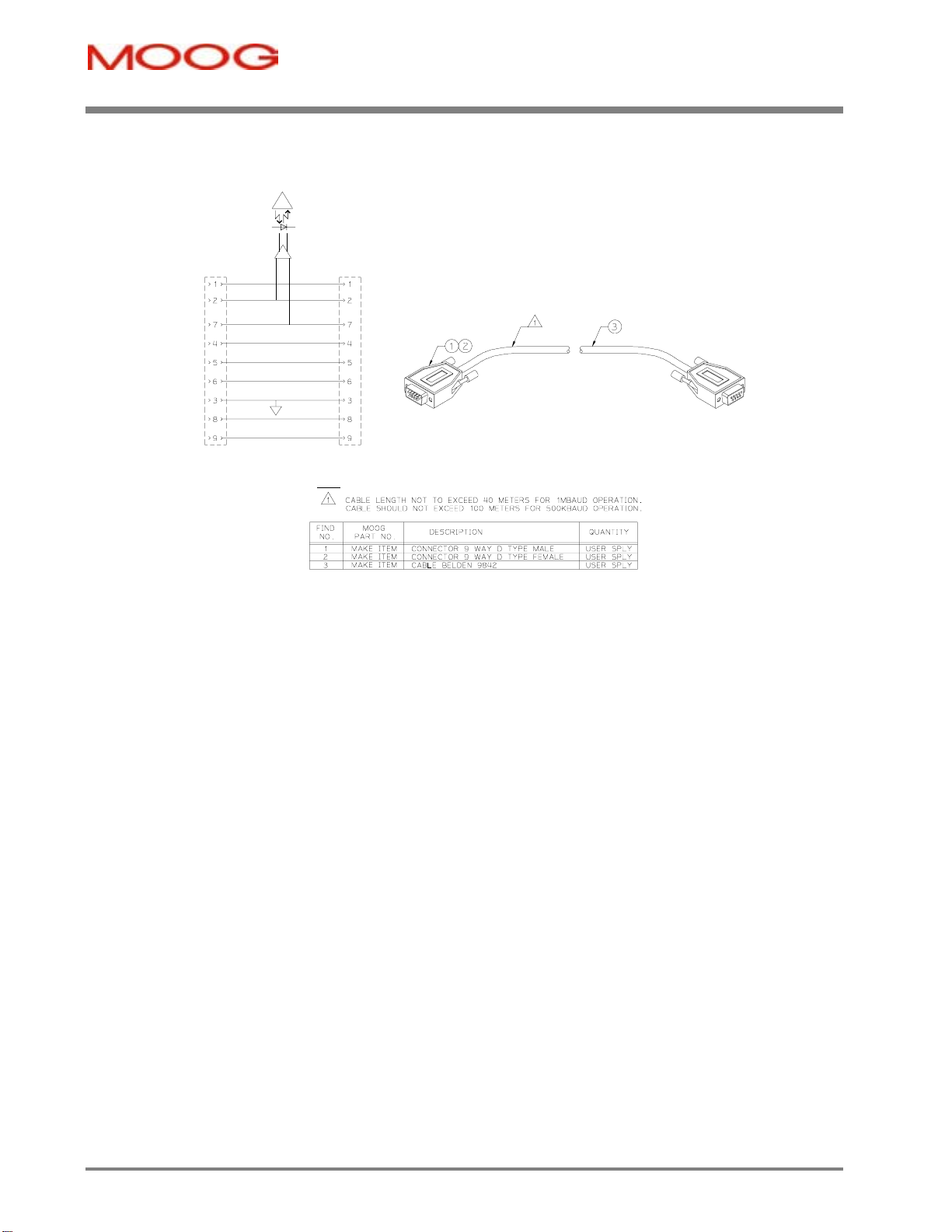

Figure 3.49 CAN_L/CAN_H Connector (J3A and J3B) Wiring
Controller J3B
Notes
PAGE 3-66
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14 Wiring Summary
3.14.1 mA Size Power Stage
- Fixed connector: 12 pins, male connector
Mating connector, 12 pins, female, supplied with the drive. Phoenix Combicon (Part # GMSTB 2.5/12-ST-7.62)
-
mA size wiring: cable 14 AWG (2.1 mm
-
Tightening torque: 0.5Nm.
-
Pos.
J6.1 DC- DC Bus (-) J6.2 DC+ DC Bus (+) J6.3 RR Regeneration Resistance J6.4 L1 J6.5 L2 J6.6 L3 J6.7 PE Motor Protective Earth J6.8 W Motor Phase W J6.9 V Motor Phase V J6.10 U Motor Phase U J6.11 24V +24V Logic Backup Supply J6.12 0V Logic Supply Return
- PE Stud wiring: cable 6 AWG (13mm2)
Pos.
PE PE Protective Earth Stud on Chassis
Name
Name
2
). Wire stripping: 7 mm.
Function
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L3", ", three-phase voltage input 230/460Vac ±10%
Function
PAGE 3-67
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.14.2 A & B Size Power Stage
- Fixed connector: 10 pins, male connector
-
Mating connector, 10 pins, female, supplied with the drive. Phoenix Contact (Part # PC4 HV/10-ST-7.62)
-
A size wiring: cable 14AWG (2.1 mm B size wiring: cable 12AWG (3.3 mm
-
-
Tightening torque: 0.5Nm.
2
). Wire stripping: 7 mm
2
). Wire stripping: 7 mm
Pos.
Name
Function
J6.1 DC- DC Bus (-) J6.2 DC+ DC Bus (+) J6.3 RR Regeneration Resistance J6.4 L1 J6.5 L2 J6.6 L3
Phase "L1", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10%
Phase "L3", ", three-phase voltage input 230/460Vac ±10% J6.7 PE Motor Protective Earth J6.8 W Motor Phase W J6.9 V Motor Phase V J6.10 U Motor Phase U
- Fixed connector: 2 pins, male connector
Mating connector, 2 pins, female, supplied with the drive. Wago (Part # 231-102/026-000)
-
-
C & D size wiring: cable 14 AWG (2.1 mm
-
Stripping Length 8mm
Pos.
Name
2
).
Function
J8.1 24V +24V Logic Backup Supply J8.2 0V Logic Supply Return
- PE Stud wiring: cable 6 AWG (13mm2)
Pos.
Name
Function
PE PE Protective Earth Stud on Chassis
PAGE 3-68
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14.3 C Size Power Stage
J6
- Fixed connector: 5 pins, male connector
-
Mating connector, 5 pins, female, crimped supplied with the drive. (Molex 42816-0512)
-
C size wiring: cable 8 AWG (8.4 mm
Pos.
Name
J6.1 L3 J6.2 L2 J6.3 L1 J6.4 DC+(RR) DC Bus (+) (Regeneration Resistor connection) J6.5 RR Regeneration Resistor
- Fixed connector: 4 pins, male connector
-
Mating connector, 4 pins, female, crimped supplied with the drive. (Molex 42816-0412)
-
C size wiring: cable 8 AWG (8.4 mm
Pos.
Name
J7.1 U Motor Phase U J7.2 V Motor Phase V J7.3 W Motor Phase W J7.4 PE Motor Protective Earth
2
).
Function
Phase "L3", ", three-phase voltage input 230/460Vac ±10% Phase "L2", ", three-phase voltage input 230/460Vac ±10% Phase "L1", three-phase voltage input 230/460Vac ±10%
2
).
Function
J9
J8
J7
- Fixed connector: 2 pins, male connector
-
Mating connector, 2 pins, female, supplied with the drive. Wago (Part # 231-102/026-000)
-
C & D size wiring: cable 14 AWG (2.1 mm
-
Stripping Length 8mm
Pos.
Name
2
).
Function
J8.1 24V +24V Logic Backup Supply J8.2 0V Logic Supply Return
- Fixed connector: 2 pins, male connector
-
Mating connector, 2 pins, female, crimped supplied with the drive. (Molex 42816-0212) C size wiring: cable 8 AWG (8.4 mm
-
Pos.
Name
2
).
Function
J9.2 DC+ DC Bus (+) J9.1 DC- DC Bus (-)
- PE Stud wiring: cable 6 AWG (13mm2)
Pos.
Name
Function
PE PE Protective Earth Stud on Chassis
PAGE 3-69
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.14.4 D Size Power Stage
- Fixed connector: 4 pole, screw terminal
-
D size wiring: cable 6 AWG (13 mm
-
D size wiring: cable 4 AWG ( 21mm
-
PE Terminal wiring: cable 6 AWG (13 mm
-
PE Terminal wiring: cable 4 AWG (21 mm Stripping Length 16mm
-
-
Tightening Torque: 2-2.3Nm
Pos.
Name
2
) for 50/140
2
) for 60/180
2
) for 50/140
2
) for 60/180
Function
J9.1 RR Regeneration Resistance J9.2 DC+(RR) DC Bus (+) J9.3 PE Protective Earth Screw Terminal J9.4 L1 J9.5 L2 J9.6 L3
Phase "L1", three-phase voltage input 230/460Vac ±10%
Phase "L2", ", three-phase voltage input 230/460Vac ±10%
Phase "L3", ", three-phase voltage input 230/460Vac ±10% J9.7 U Motor Phase U J9.8 V Motor Phase V J9.9 W Motor Phase W J9.10 PE Motor Protective Earth J9.11 DC+ DC Bus (+) J9.12 DC- DC Bus (-)
- Fixed connector: 2 pins, male connector
-
Mating connector, 2 pins, female, supplied with the drive. Wago (Part # 231-102/026-000)
-
D size wiring: cable 14 AWG (2.1 mm Stripping Length 8mm
-
2
).
Pos.
J8.1 24V +24V Logic Backup Supply J8.2 0V Logic Supply Return
PAGE 3-70
Name
Function
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14.5 Control Card
Serial Communications
Connector (RS232)
Motor Resolver
Connector
Digital Input
Connector
Digital Output
Connector
Motor Encoder
Connector
Drive Ready Relay
Connector
CAN Field Bus
Interface
Motor Brake
Connector
PAGE 3-71
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
3.14.5.1 RS232
PC
Rx
2
Tx
3
5
- Fixed connector: 9 pin, female Sub-D connector
-
Mating connector, 9 pin male Sub-D Wiring: cable. 28-18AWG (0.14-0.82mm
-
Pos.
Name
2
)
Function PC Signal
J1.1 - connected to pin 4 DCD input J1.2 TxD Transmit Data RxD input J1.3 RxD Receive Data TxD output J1.4 - connected to pin 1 and 6 DTR output J1.5 Gnd Gnd Gnd J1.6 - connected to pin 4 DSR input J1.7 - connected to pin 8 RTS output J1.8 - connected to pin 7 CTS input J1.9 - unused RI input
Gnd
Rx
Tx
DS2100
2
3
5
3.14.5.2 Digital Inputs
Fixed connector: 9 pins, male connector
-
-
Mating connector, 9 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/9-ST-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm Wire stripping: 8 mm
-
Pos.
Name
2
)
Function
J2A.1 I1 Digital Input # 1 Drive Enable J2A.2 I2 Digital Input # 2 User Configurable J2A.3 I3 Digital Input # 3 User Configurable J2A.4 I4 Digital Input # 4 User Configurable J2A.5 I5 Digital Input # 5 User Configurable J2A.6 I6 Digital Input # 6 User Configurable J2A.7 I7 Digital Input # 7 User Configurable J2A.8 I8 Digital Input # 8 User Configurable J2A.9 RET Digital Input Ground
3.14.5.3 Digital Outputs
Fixed connector: 5 pins, male connector
-
-
Mating connector, 5 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/5-ST-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm Wire stripping: 8 mm
-
Pos.
Name
2
)
Function
J2B.1 Ext 24V DC +24V Digital Output Supply J2B.2 O1 Digital Output #1 User Configurable J2B.3 O2 Digital Output #2 User Configurable J2B.4 O3 Digital Output #3 User Configurable J2B.5 Ext 24V Ret Digital Output Return
PAGE 3-72
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14.5.4 Drive Ready
Fixed connector: 2 pins, male connector
-
Mating connector, 2 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MC 0.5/2-ST-
-
2.5)
-
Wiring: cable. 28-20AWG (0.14-0.5mm
-
Wire stripping: 8 mm
2
)
Pos.
Name
Function
J2C.1 Drive Ready 1 Drive ready relay contact pin 1 Drive Ready Relay Contact J2C.2 Drive Ready 2 Drive ready relay contact pin 1 Drive Ready Relay Contact
3.14.5.5 Motor Brake
Fixed connector: 4 pins, male connector
-
-
Mating connector, 4 pins spring cage, female, supplied with the drive. Phoenix Contact (Part # FK-MCP 1.5/4-ST-
3.81)
-
Wiring: cable. 28-16AWG (0.14-1.5mm
-
Wire stripping: 9 mm
Pos.
Name
2
)
Function
J2D.1 24V DC Brake 24V Supply J2D.2 + Brake + J2D.3 - Brake ­J2D.4 24V RET Brake 24V Supply Return
3.14.5.6 CAN
Fixed connector: 9 pin male & female, Sub-D connector
-
-
Mating connector, 9 pin male & female Sub-D
-
Wiring: cable. 28-18AWG (0.14-0.82mm
2
)
Pos (x=A,B) Signal Description
J3x.1 - not connected J3x.2 CAN_L CAN_L bus line (dominant low) J3x.3 CAN_GND CAN Ground J3x.4 - not connected J3x.5 CAN_SHLD Chassis Ground J3x.6 CAN_GND CAN Ground J3x.7 CAN_H CAN_H bus line (dominant high) J3x.8 - not connected
J3x.9 - Optional CAN external positive supply, not connected.
PAGE 3-73
DS2100 User's Manual (Preliminary) SECTION 3: WIRING AND INSTALLATION
r
3.14.5.7 Encoder
Fixed connector: 15 pin, female Sub-D connector
-
Mating connector, 15pin male Sub-D
-
-
Wiring: cable. 28-18AWG (0.14-0.82mm
Pos Analogue SSI Hiperface Endat
J4.1 Shield Shield Shield Shield
15-Pin Sub-D Connecto
Plug (male) on cable
DS2100 Cable End
J4
J4.2 - Sine - - Sine - Channel A J4.3 - Cosine - - Cosine - Channel B J4.4 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.5 - Channel Z (Zero) - Data RS485 - - Data J4.6 - - Clock - - Clock J4.7 - - - ­J4.8 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
J4.9 + Sine - + Sine + Channel A J4.10 + Cosine - + Cosine + Channel B J4.11 +5 V .. +12V
Supply (150 mA
J4.12 + Channel Z (Zero) + Data RS485 + + Data J4.13 - Fault + Clock - + Clock J4.14 Gnd Supply Gnd Supply Gnd Supply Gnd Supply J4.15 NTC/PTC NTC/PTC NTC/PTC NTC/PTC
max.)
2
)
Encoder Type
+5 V .. +12V
Supply (150 mA
max.)
+5 V .. +12V
Supply (150 mA
max.)
+5 V .. +12V
Supply (150 mA
max.)
PAGE 3-74
SECTION 3: WIRING AND INSTALLATION DS2100 User's Manual (Preliminary)
3.14.5.8 Resolver
Fixed connector: 9 pin, female Sub-D connector
-
Mating connector, 9 pin male Sub-D
-
-
Wiring: cable. 28-18AWG (0.14-0.82mm
2
)
MOTOR RESOLVER CONNECTOR
Pos Signal
Type
J5.1 J5.2
Cos
j (S2)
(S4)
jCos
FAS T/
FAS K
FAS N/
FAS Y
G4xx
(FASG)
C1 3 E2 4
J5.9 V-Ref (R1) D 10 7 J5.7 0V (R2) B 7 8 J5.8 PTC\NTC N 8 6 J5.6 PTC\NTC A 9 5 J5.4 J5.5
Sin
j (S1)
(S3)
jSin
G11 1 H12 2
J5.3 Shield S 3 -
DS2100 Cable End
DS2100 Cable End
DS2100 Cable End
4 S1
5 S3
1 S2
2 S4
6 NTC
8 NTC
9 R1 7 R2
1 cos 2 cos
9 V-ref
7 0V
8 PTC 6 PTC
4 sin 5 sin
3 shield
1 cos 2 cos
9 V-ref
7 0V
8 PTC 6 PTC
4 sin 5 sin
3 shield
1 S1 2 S3
3 S2
4 S4 5 NTC
6 NTC 7 R1
8 R2
PE
Motor Cab le End
for MOOG motors
G4xx
PT 00E 14-19 PC-10, PT06F 8AG 14-1 9S
Connector
MNLBA
PC
UV RDK
E
STJ
FGH
Motor Cable End
for MOOG motors
FAST & FASK
Connector
IPS02A 12-12PYC/SH
Motor Cab le End
for MOOG motors
FASN & FASY
C cos
E cos
D V-ref
B 0V
N PTC A PTC
G sin H sin
S shield
1 cos 2 cos
10 V-ref
7 0V 8 PTC 9 PTC
11 sin
12 sin
3 shield
PAGE 3-75
Loading...
