CAMERA
SYSTEMS_

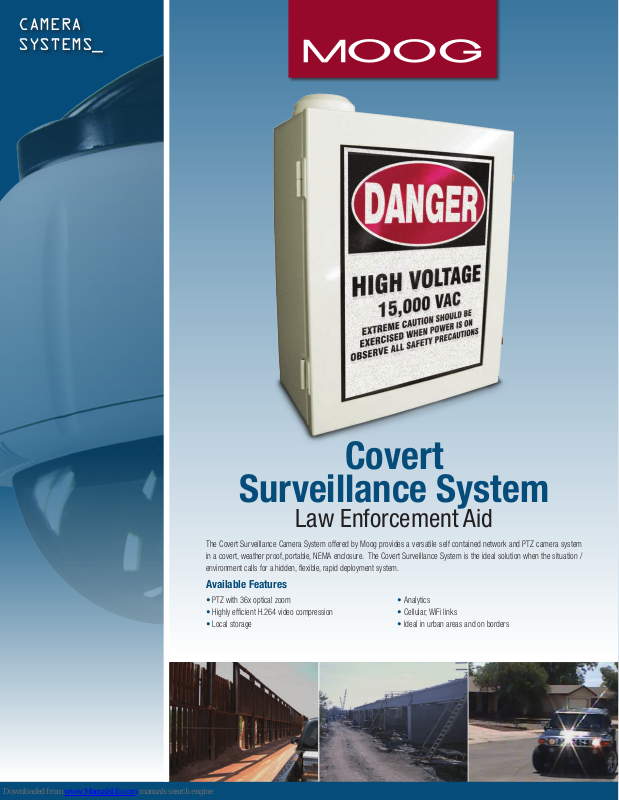

Covert
Surveillance System
Law Enforcement Aid
The Covert Surveillance Camera System offered by Moog provides a versatile self contained network and PTZ camera system
in a covert, weather proof, portable, NEMA enclosure. The Covert Surveillance System is the ideal solution when the situation /
environment calls for a hidden,
Available Features
•
PTZ with 36x optical zoom
•
Highly efcient H.264 video compression
•
Local storage
exible, rapid deployment system.
•
Analytics
•
Cellular, WiFi links
•
Ideal in urban areas and on borders
Covert Surveillance
Covert Surveillance
Intelligence / Surveillance / Reconnaissance
•
Offers wider eld coverage than competitor
•
Designed, built and delivered within 12 days
•
Covert turn key solutions for law enforcement
➌
IP SView PTZ 36x zoom, H.264
with local storage 32 GB SD card
➍
AC to DC power supply
➊
LTE antenna
➋
Thermal management
Imager:
Lenses:
Video:
Resolutions:
Minimum Illumination:
Network Interface:
Protocols:
Panning:
Preset Accuracy:
Panning & Tilting Speed:
Preset Accuracy:
Tilting Angle:
Drive:
Construction:
Camera Specications
¼” Exview HAD CCD
36x Zoom, 3.4-122.4mm, F1.6 to F4.5 Auto-Iris
Motion JPEG, MPEG-4 Part 2 (H.264)
4CIF, 2CIFExp, 2CIF, CIF, QCIF max 704x480 (NTSC) 768x576 (PAL)
Color 3 lux, B&W: 0.02 lux
Network Specications
10/100 Base-T Ethernet
HTTP, HTTPS, SSL/TLS*, TCP, SNMPv1/v2cv/v3
(MIB-II), RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, DHCP,
UPnP, ARP, DNS, DynDNS, SOCKS
Pan/Tilt Specications
360° continuous pan rotation
+/- .05 degree
0.5°-80°/sec manual operation, 120°/sec preset
Mode
+/- .05 degree
2° to -90°, Automatic Flip
Belt-driven ¼-inch wide
Bearings precision ball bearings \ permanently
lubricated bushings
➎
Customizable Window “Hide”
Video Compression:
Resolution:
Video Streaming:
Security:
➏
Cellular/WiFI Router
H.264 Specications
H.264 (MPEG-4 Part 10/AVC) Motion JPEG
17 x 120 to 720 x 576
Multi-stream H.264 and Motion JPEG: 3 simultaneous,
individually congured steams in max. resolution at
30/25 fps; more streams if identical or limited in frame
rate/resolution. Controllable frame rate and bandwidth
VBR/CBR H.264
Network Specications
Password protection, IP address ltering, HTTPS
encryption, IEEE 802.1X network access control, digest
authentication, user access log
©2013 Moog, Inc. All rights reserved.
Product and company names listed are trademarks
or trade names of their respective companies
2525 Park Central Boulevard, Decatur, GA 30035 USA +1.770.987.7550 www.MoogS3.com
Sensor and Surveillance Systems
Form 500-897 0313
