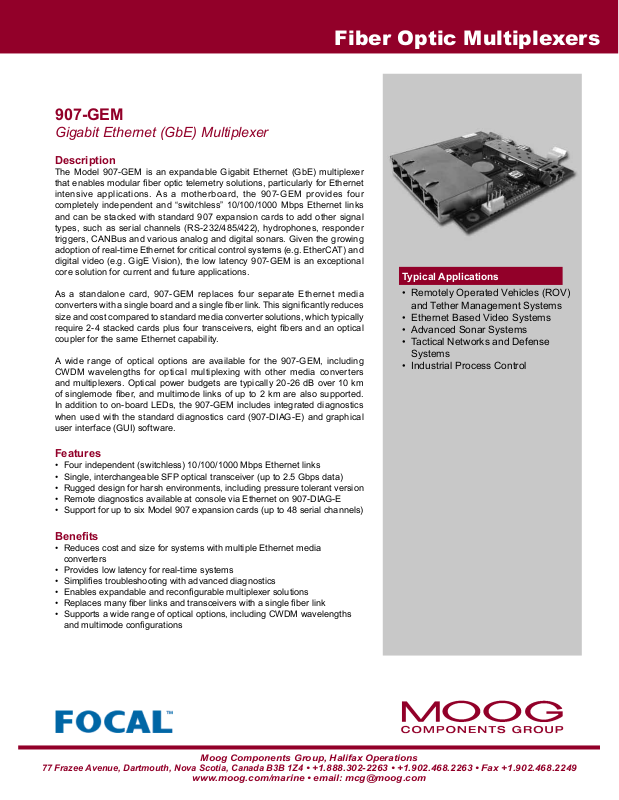

Moog 907-GEM DATASHEET

Fiber Optic Multiplexers

907-GEM

Gigabit Ethernet (GbE) Multiplexer

Description

The Model 907-GEM is an expandable Gigabit Ethernet (GbE) multiplexer

that enables modular ber optic telemetry solutions, particularly for Ethernet intensive applications. As a motherboard, the 907-GEM provides four completely independent and “switchless” 10/100/1000 Mbps Ethernet links and can be stacked with standard 907 expansion cards to add other signal types, such as serial channels (RS-232/485/422), hydrophones, responder triggers, CANBus and various analog and digital sonars. Given the growing adoption of real-time Ethernet for critical control systems (e.g. EtherCAT) and digital video (e.g. GigE Vision), the low latency 907-GEM is an exceptional core solution for current and future applications.

As a standalone card, 907-GEM replaces four separate Ethernet media converters with a single board and a single ber link. This signicantly reduces size and cost compared to standard media converter solutions, which typically require 2-4 stacked cards plus four transceivers, eight bers and an optical coupler for the same Ethernet capability.

A wide range of optical options are available for the 907-GEM, including CWDM wavelengths for optical multiplexing with other media converters and multiplexers. Optical power budgets are typically 20-26 dB over 10 km of singlemode ber, and multimode links of up to 2 km are also supported. In addition to on-board LEDs, the 907-GEM includes integrated diagnostics when used with the standard diagnostics card (907-DIAG-E) and graphical user interface (GUI) software.

Typical Applications

• Remotely Operated Vehicles (ROV) and Tether Management Systems

• Ethernet Based Video Systems

• Advanced Sonar Systems

• Tactical Networks and Defense Systems

• Industrial Process Control

Features

• Four independent (switchless) 10/100/1000 Mbps Ethernet links

• Single, interchangeable SFP optical transceiver (up to 2.5 Gbps data)

• Rugged design for harsh environments, including pressure tolerant version

• Remote diagnostics available at console via Ethernet on 907-DIAG-E

• Support for up to six Model 907 expansion cards (up to 48 serial channels)

Benets

• Reduces cost and size for systems with multiple Ethernet media converters

• Provides low latency for real-time systems

• Simplies troubleshooting with advanced diagnostics

• Enables expandable and recongurable multiplexer solutions

• Replaces many ber links and transceivers with a single ber link

• Supports a wide range of optical options, including CWDM wavelengths and multimode congurations

Moog Components Group, Halifax Operations

77 Frazee Avenue, Dartmouth, Nova Scotia, Canada B3B 1Z4

www.moog.com/marine • email: mcg@moog.com

• +1.888.302-2263 • +1.902.468.2263 • Fax +1.902.468.2249

Fiber Optic Multiplexers

Data

No. Copper Ports

Data Rates

Formats

Total Throughput

Latency (Remote + Console)

Options

Optical

Optical Fiber

Baud Rate

Format

Wavelengths

Flux Budget

Options

Electrical

Power Supply

Current Draw

Power Used

Voltage Protection

Current Protection

4 (non-switched, independent)

10/100/1000 Mbps

10/100/1000 BaseT

500 - 2500 Mbps, via switch setting (0.01% used for embedded diagnostics)

< 25 us (not including ber)

Standalone version; support for jumbo frames. Contact Moog for details.

1 or 2 singlemode (9/125 um)

625 - 3125 Mbaud

AME-EP (Moog proprietary)

1310/1550 nm standard (CWDM optional)

20 dB min. standard (others available)

CWDM wavelengths for combining multiple 907 cards on one singlemode ber; bidirectional transceivers; extended temperature; multimode ber

+5 VDC +/-10%,

regulated input required

1.5 A typical (2 A max.), all ports active

7.5 W typical (10 W max.), all ports active

Overvoltage and reverse polarity

Time delay fuse (3 A)

Diagnostics

LEDs

Ethernet to PC

Mechanical

Dimensions

Weight

Enclosures

Stacking Spacers

Stacking Pins

Connectors

Optical

Data (Ethernet)

Power

Stacking Header

Environmental

Temperature

Humidity

Shock

Vibration

Options

Power (electrical), Optical Link, Optical Fault, PHY Rx/Tx Activity, Port Rate, Port Error

Available through 907-DIAG-E card at console

PC/104 (form factor only)

125 g (0.27 lb), including SFP

Contact Moog for custom enclosures

0.72 inch standoffs required when stacking cards. Contact Moog for stacking options.

Short pins on PC/104 for standalone options Long pins on PC/104 for CWDM options

(standard)

Dual LC (SFP)

4 x RJ-45

2-pin Molex, 0.156 inch pin spacing

PC/104 (for stacking 907 cards only)

-10 to +60 °C (ambient, operational)

-40 to +85 °C (ambient, storage)

85% RH, non-condensing

30 g, 11 ms half-sine, six directions

+/- 2 mm (5-25 Hz), 5 g (25-1000 Hz)

6000 psi pressure tolerant version; extended temperature; stress screened or qualied units

907-GEM Dimensions

Dimensions in inches [mm]
