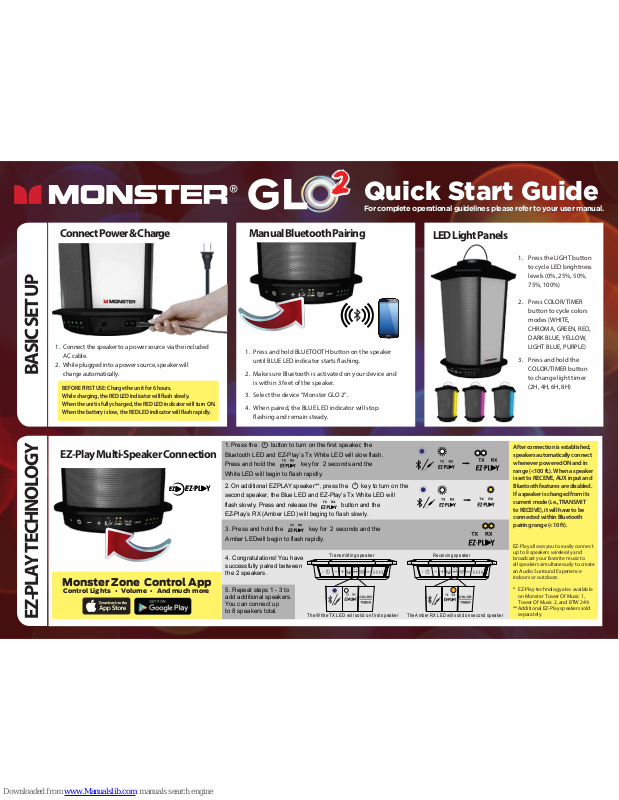

Quick Start GuideQuick Start Guide
For complete operational guidelines please refer to your user manual.For complete operational guidelines please refer to your user manual.
BASIC SET UPEZ-PLAY TECHNOLOGY
Connect Power & Charge
1. Connect the speaker to a power source via the included
AC cable.
2. While plugged into a power source, speaker will
charge automatically.
Manual Bluetooth Pairing
1. Press and hold BLUETOOTH button on the speaker
until BLUE LED indicator starts ashing.
2. Make sure Bluetooth is activated on your device and
is within 3 feet of the speaker.
3. Select the device “Monster GLO 2”.
4. When paired, the BLUE LED indicator will stop
ashing and remain steady.
LED Light Panels
EZ-Play Multi-Speaker Connection
EZ
EZ PL Y
EZ
EZ PL Y
After connection is established,
speakers automatically connect
whenever powered ON and in
range (<100 ft.). When a speaker
is set to RECEIVE, AUX input and
Bluetooth features are disabled.
If a speaker is changed from its
current mode (i.e., TRANSMIT
to RECEIVE), it will have to be
connected within Bluetooth
pairing range (<10 ft).
1. Press the LIGHT button
to cycle LED brightness
levels (0%, 25%, 50%,
75%, 100%)
2. Press COLOR/TIMER
button to cycle colors
modes (WHITE,
CHROMA, GREEN, RED,
DARK BLUE, YELLOW,
LIGHT BLUE, PURPLE)
3. Press and hold the
COLOR/TIMER button
to change light timer
(2H, 4H, 6H, 8H)
EZ-Play allows you to easily connect
up to 8 speakers wirelessly and
broadcast your favorite music to
all speakers simultaneously to create
an Audio Surround Experience
indoors or outdoors.
* EZ-Play technology also available
on Monster Tower Of Music 1,
Tower Of Music 2, and BTW 249.
** Additional EZ-Play speakers sold
separately.
BEFORE FIRST USE: Charge the unit for 6 hours.
While charging, the RED LED indicator will ash slowly.
When the unit is fully charged, the RED LED indicator will turn ON.
When the battery is low, the RED LED indicator will ash rapidly.
The Amber RX LED will solid on second speaker
The White TX LED will solid on first speaker
Receiving speaker
Transmitting speaker
1. Press the button to turn on the first speaker, the
Bluetooth LED and EZ-Play’s Tx White LED will slow flash.
Press and hold the key for 2 seconds and the
White LED will begin to flash rapidly.
2. On additional EZPLAY speaker**, press the key to turn on the
second speaker, the Blue LED and EZ-Play’s Tx White LED will
flash slowly. Press and release the button and the
EZ-Play’s RX (Amber LED) will beging to flash slowly.
3. Press and hold the key for 2 seconds and the
Amber LEDwill begin to flash rapidly.
4. Congratulations! You have
successfully paired between
the 2 speakers.
5. Repeat steps 1 - 3 to
add additional speakers.
You can connect up
to 8 speakers total.
Monster Zone Control App
Control Lights • Volume • And much more
