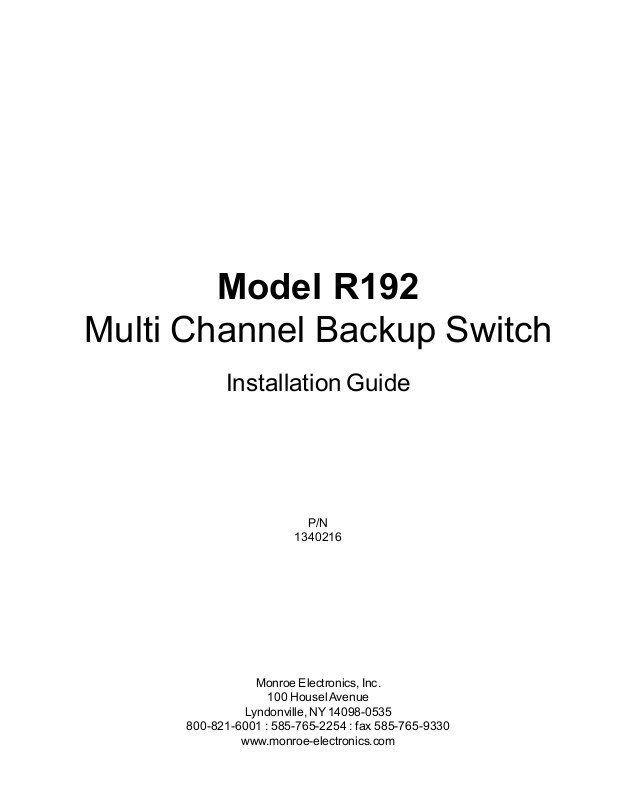

Model R192
Multi Channel Backup Switch
Installation Guide
P/N
1340216
Monroe Electronics, Inc.
100 Housel Avenue
Lyndonville, NY 14098-0535
800-821-6001 : 585-765-2254 : fax 585-765-9330
www.monroe-electronics.com
Specifications
Power Requirement
Input: 12V DC @ 1 Amp Maximum
Physical
3.75"H x 19"W x 17.7"D
Specifications below are for each of 10 individual detection circuits.
Video
BNC Connectors
Audio
Balanced Stereo; screw terminals
Gain Input to Output
1:1
Isolation @ 5 MHz
> 90 dBmV
Return Loss
> 35 dBmV
Alarm Contact Ratings
1 Amp @ 50 Volts
Accessories Included:
Manual
10 Mating plugs
Mounting Kit
Operation
Each of the R192 detection circuits monitor the loss of composite sync
pulses on the primary video input. It will automatically switch to the secondary
video input upon loss of sync pulses. It will remain in this state until the primary video returns, causing the R192 section to switch back to the primary
video input.
When a switch section loses primary video and switches to the secondary,
the red led panel indicator, for that sensor on the front of the R192, lights up.
The green led indicates power is being supplied to the unit.
Each of the ten (10) detector/switch sections in the R192 are independent
units.
The Ex AC connection provides a short to ground whenever the switch is in
the SECONDARY input position.
The SAP 1 and SAP 2 allow SAP switching for the user, if desired.
SAP 1 is the primary input, and SAP 2 is the secondary input.
Installation
1. To the primary input, connect the A/V source to be monitored for loss of
composite sync pulses. For audio signals, observe correct polarity on
the balanced lines.
{Audio signal phasing is indicated in the graphic below, by the + and –
symbols at the input and output points.}
2. Connect the A/V source for alternate feed to the secondary inputs.
3. Connect the R192’s A/V common outputs to your equipment’s inputs.
4. Connect the unbalanced SAP input from the primary source to SAP 1,
and the input from the alternate source to SAP2.
5. The external alarm contact closure is connected to EX AC and
ground. On alarm EX AC connects to ground.
6. Connect 12 Volts and Common to the terminals on the rear panel.
WARRANTY
Monroe Electronics, Inc. warrants to the owners, each instrument and sub-assembly manufactured
by them to be free from defects in material and workmanship for a period of one year after shipment
from factory. This warranty is applicable to the original purchaser only.
Liability under this warranty is limited to service, adjustment or replacement of defective parts (other
than fuses or batteries) on any instrument or sub-assembly returned to the factory for this purpose,
transportation charges prepaid.
This warranty does not apply to instruments or sub-assemblies subjected to abuse, abnormal
operating conditions, or unauthorized repair or modification.
Since Monroe Electronics, Inc. has no control over conditions of use, no warranty is made, or
implied as to the suitability of our product for the customer’s intended use.
THE WARRANTY SET FORTH IN THIS ARTICLE IS EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES AND REPRESENTATIONS, EXPRESS, IMPLIED OR STATUTORY INCLUDING,
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS.
Except for obligations expressly undertaken by Monroe Electronics, in this warranty, Owner hereby
waives and releases all rights, claims and remedies with respect to any and all warranties, express,
implied or statutory (including without limitation, the implied warranties of merchantability and fitness), and including but without being limited to any obligation of Monroe Electronics with respect to
incidental or consequential damages, or damages for loss of use. No agreement or understanding
varying or extending the warranty will be binding upon Monroe Electronics unless in writing signed by
a duly authorized representative of Monroe Electronics.
In the event of a breach of the foregoing warranty, the liability of Monroe Electronics shall be limited
to repairing or replacing the non-conforming goods and/or defective work, and in accordance with
the foregoing, Monroe Electronics shall not be liable for any other damages, either direct or consequential.
RETURN POLICY TO FACTORY:
Materials returned to Monroe must have a Return Material Authorization number. To obtain a RMA
number, contact our A/V Switching & Control Customer Service at 585-765-2254 or fax 585-765-
9330. Customers have 30 days to determine that the product ordered fills their need and performs
as described in Monroe’s literature. Units returned for approved repair or credit, must be in the
original packaging including all parts and paperwork plus be in very good physical condition. If not,
the customer is billed the cost to refurbish the unit and for missing accessories and merchandise.
No products may be returned for exchange or credit after 12 months of the shipment date. Monroe
reserves the right to repair or replace units under warranty.
