Monroe Electronics 628 User Manual

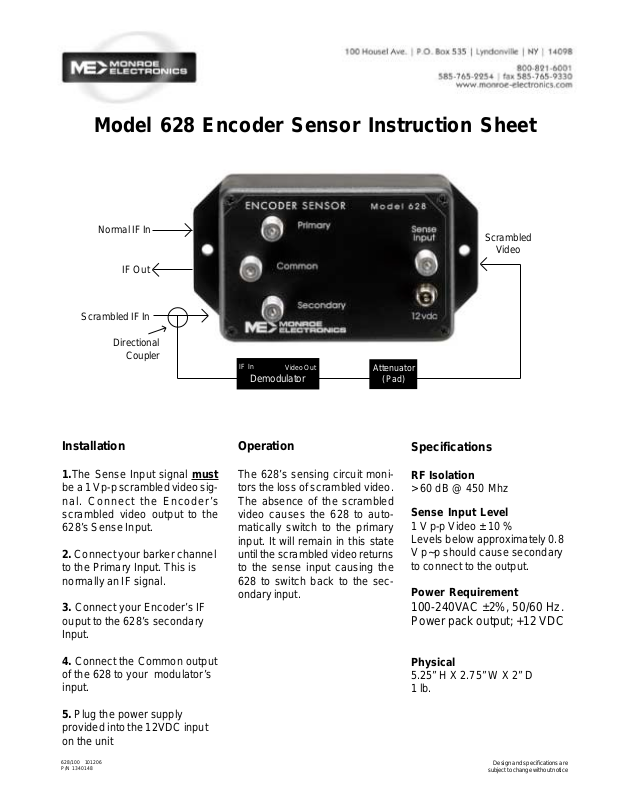

Model 628 Encoder Sensor Instruction Sheet

Normal IF In

IF Out

Scrambled IF In

Directional

Coupler

Installation

1.The Sense Input signal must

be a 1 Vp-p scrambled video sig­nal. Connect the Encoder’s
scrambled video output to the
628’s Sense Input.

2. Connect your barker channel
to the Primary Input. This is
normally an IF signal.

3. Connect your Encoder’s IF
ouput to the 628’s secondary
Input.

IF In

Demodulator

Video Out

Attenuator

(Pad)

Operation

The 628’s sensing circuit moni­tors the loss of scrambled video.
The absence of the scrambled
video causes the 628 to auto­matically switch to the primary
input. It will remain in this state
until the scrambled video returns
to the sense input causing the
628 to switch back to the sec­ondary input.

Scrambled

Video

Specifications

RF Isolation

> 60 dB @ 450 Mhz

Sense Input Level

1 V p-p Video ± 10 %
Levels below approximately 0.8
V p~p should cause secondary
to connect to the output.

Power Requirement

100-240VAC ±2%, 50/60 Hz.
Power pack output; +12 VDC

4. Connect the Common output
of the 628 to your modulator’s
input.

5. Plug the power supply
provided into the 12VDC input
on the unit

628/100 101206
P/N 1340148

Physical

5.25” H X 2.75” W X 2” D
1 lb.

Design and specifications are

subject to change without notice

WARRANTY

Monroe Electronics, Inc. warrants to the owners, each instrument and sub-assembly manufactured
by them to be free from defects in material and workmanship for a period of one year after shipment
from factory . This warranty is applicable to the original purchaser only .

Liability under this warranty is limited to service, adjustment or replacement of defective parts (other
than fuses or batteries) on any instrument or sub-assembly returned to the factory for this purpose,
transportation charges prepaid.

This warranty does not apply to instruments or sub-assemblies subjected to abuse, abnormal oper­ating conditions, or unauthorized repair or modification.

Since Monroe Electronics, Inc. has no control over conditions of use, no warranty is made, or im­plied as to the suitability of our product for the customer’s intended use.

THE WARRANTY SET FORTH IN THIS ARTICLE IS EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES AND REPRESENT A TIONS, EXPRESS, IMPLIED OR ST A TUTOR Y INCLUDING ,
BUT NOT LIMITED T O THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS.
Except for obligations expressly undertaken by Monroe Electronics, in this warranty , Owner hereby
waives and releases all rights, claims and remedies with respect to any and all warranties, express,
implied or statutory (including without limitation, the implied warranties of merchantability and fit­ness), and including but without being limited to any obligation of Monroe Electronics with respect to
incidental or consequential damages, or damages for loss of use. No agreement or understanding
varying or extending the warranty will be binding upon Monroe Electronics unless in writing signed
by a duly authorized representative of Monroe Electronics.

In the event of a breach of the foregoing warranty , the liability of Monroe Electronics shall be limited
to repairing or replacing the non-conforming goods and/or defective work, and in accordance with
the foregoing, Monroe Electronics shall not be liable for any other damages, either direct or conse­quential.

RETURN POLICY TO F A CTORY :

Materials returned to Monroe must have a Return Material Authorization number . To obtain a RMA
number, cont act our A/V Switching & Control Customer Service at 585-765-2254 or fax 585-765-

9330. Customers have 30 days to determine that the product ordered fills their need and performs
as described in Monroe’s literature. Units returned for approved repair or credit, must be in the
original packaging including all parts and paperwork plus be in very good physical condition. If not,
the customer is billed the cost to refurbish the unit and for missing accessories and merchandise.
No products may be returned for exchange or credit after 12 months of the shipment date. Monroe
reserves the right to repair or replace units under warranty .
