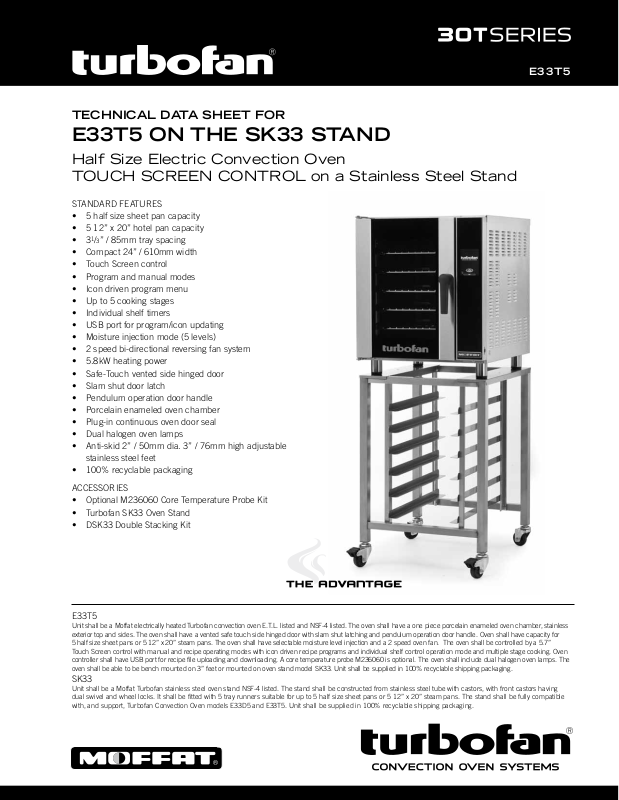

TECHNICAL DATA SHEET FOR
E33T5 ON THE SK33 STAND
Half Size Electric Convection Oven
TOUCH SCREEN CONTROL on a Stainless Steel Stand
STANDARD FEATURES
• 5 half size sheet pan capacity
• 5 12” x 20” hotel pan capacity
1
• 3
/3” / 85mm tray spacing
• Compact 24” / 610mm width
• Touch Screen control
• Program and manual modes
• Icon driven program menu
• Up to 5 cooking stages
• Individual shelf timers
• USB port for program/icon updating
• Moisture injection mode (5 levels)
• 2 speed bi-directional reversing fan system
• 5.8kW heating power
• Safe-Touch vented side hinged door
• Slam shut door latch
• Pendulum operation door handle
• Porcelain enameled oven chamber
• Plug-in continuous oven door seal
• Dual halogen oven lamps
• Anti-skid 2” / 50mm dia. 3” / 76mm high adjustable
stainless steel feet
• 100% recyclable packaging
E 3 3 T 5
ACCESSORIES
• Optional M236060 Core Temperature Probe Kit
• Turbofan SK33 Oven Stand
• DSK33 Double Stacking Kit
E33T5
Unit shall be a Moffat electrically heated Turbofan convection oven E.T.L. listed and NSF-4 listed. The oven shall have a one piece porcelain enameled oven chamber, stainless
exterior top and sides. The oven shall have a vented safe touch side hinged door with slam shut latching and pendulum operation door handle. Oven shall have capacity for
5 half size sheet pans or 5 12” x 20” steam pans. The oven shall have selectable moisture level injection and a 2 speed oven fan. The oven shall be controlled by a 5.7”
Touch Screen control with manual and recipe operating modes with icon driven recipe programs and individual shelf control operation mode and multiple stage cooking. Oven
controller shall have USB port for recipe file uploading and downloading. A core temperature probe M236060 is optional. The oven shall include dual halogen oven lamps. The
oven shall be able to be bench mounted on 3” feet or mounted on oven stand model SK33. Unit shall be supplied in 100% recyclable shipping packaging.
SK33
Unit shall be a Moffat Turbofan stainless steel oven stand NSF-4 listed. The stand shall be constructed from stainless steel tube with castors, with front castors having
dual swivel and wheel locks. It shall be fitted with 5 tray runners suitable for up to 5 half size sheet pans or 5 12” x 20” steam pans. The stand shall be fully compatible
with, and support, Turbofan Convection Oven models E33D5 and E33T5. Unit shall be supplied in 100% recyclable shipping packaging.
E 3 3 T 5
E33T5 Half Size Convection Oven
TOUCH SCREEN CONTROL
CONSTRUCTION
Porcelain enameled fully welded oven chamber
Stainless steel front, sides and top exterior
Stainless steel oven fan baffle and oven vent
Removable 5 position stainless steel side racks
Stainless steel frame side hinged door
0.2” / 5mm thick door outer glass
0.2” / 5mm thick low energy loss door inner glass
Stainless steel control panel
Aluminised coated steel base and rear panels
CONTROLS
5.7” LED backlit touch screen
Icon driven program menu
BMP image icon imports via USB port
Program updates via USB port
Temperature range 85-500°F
Adjustable sounder tones and volume
Other specification on request
Safety thermostat cut-out
Optional core temperature probe
CLEANING
Stainless steel top and side exterior panels
Porcelain enameled oven chamber
Fully removable stainless steel oven side racks
Removable stainless steel oven fan baffle
Easy clean door system with hinge out door inner glass
(no tools required)
Removable plug-in oven door seal (no tools required)
3” / 76mm high stainless steel feet for easy access underside
SPECIFICATIONS
Electrical Requirements
208V, 60Hz, 1P+N+E, 5.8kW, 27.8A
220-240V, 60Hz, 1P+N+E, 6.0kW, 25A
No cordset supplied
Water Requirements (optional)
Cold water connection ¾” GHT male
80psi maximum inlet pressure / 20psi minimum inlet pressure
External Dimensions
Width 24” / 610mm
Height 28¾” / 730mm including 3” / 76mm feet
Depth 26¾” / 680mm
Oven Internal Dimensions
Width 13” / 330mm
Height 20¼” / 515mm
Depth 22½” / 570mm
Volume 3.53ft³ / 0.10m3
Oven Rack Dimensions
Width 13” / 330mm
Depth 20
7
/8” / 530mm
Nett Weight (E33T5)
158lbs / 71.5kg
Packing Data (E33T5)
205lbs / 93kg
Width 25¾” / 655mm
Height 31¾” / 805mm
Depth 32¾” / 830mm
Volume 15.5ft³ / 0.44m3
SK33 Stainless Steel Stand
All stainless steel welded frame oven stand for Turbofan
E33D and E33T Series ovens
5 position tray runners standard
Welded 1½” / 38mm and 1¼” / 32mm square tube front and
rear frames
Welded rack supports/side frames
3” / 76mm diameter swivel castors standard with 2 front
castors wheel and swivel lock
Supplied CKD for assembly on site
External Dimensions (SK33 Oven Stand)
Width 24” / 610mm
Height 34
Depth 25
Nett Weight (SK33 Oven Stand)
40lbs / 18kg
Packing Data (SK33 Oven Stand)
45lbs / 20.5kg
3.53ft³ / 0.10m3
Width 29¾” / 755mm
Height 31¼” / 795mm
Depth 6¼” / 160mm
INSTALLATION CLEARANCES
Rear 2” / 50mm
LH Side 2” / 50mm
RH Side* 3” / 75mm
* For fixed installations a minimum of 20” / 500mm is required
for service
CLEARANCE FROM SOURCES OF HEAT
A minimum distance of 12” / 300mm from the appliance sides
is required
5
/8” / 880mm
5
/8” / 650mm
www.moffat.com
U.S.A.
Moffat Inc
3765 Champion Boulevard
Winston-Salem
North Carolina 27105
Ph Toll Free 1-800-551 8795
Ph 336-661 0257
Fax 336-661 9546
Email sales@moffat.com
www.moffat.com
Manufactured by:
Moffat Limited
16 Osborne Street PO Box 10-001
Christchurch 8081 New Zealand
610 mm / 24"
680 mm / 26
VENT
3
"
4
245 mm / 9
5
"
8
65 mm / 2
1
"
2
ISO9001
Quality
Management
Standard
VENT
"
8
ELECTRICAL
ENTRY
WATER INLET
"
1602 mm / 63"
"
8
5
880 mm / 34
8
5
"
8
7
1058 mm / 41
963 mm / 37
1
308 mm / 12
"
8
7
454 mm / 17
Designed and manufactured by
ISO9001
All Turbofan products are designed and
manufactured by Moffat using the
internationally recognised ISO9001
quality management system, covering
design, manufacture and final inspection,
ensuring consistent high quality at all times.
In line with policy to continually develop
and improve its products, Moffat Limited
reserves the right to change specifications
and design without notice.
