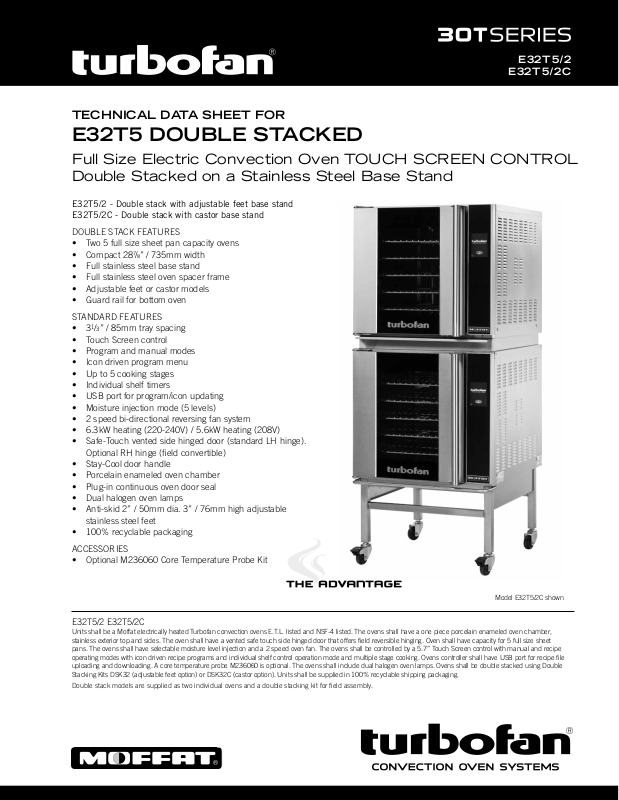

TECHNICAL DATA SHEET FOR
E32T5 DOUBLE STACKED
Full Size Electric Convection Oven TOUCH SCREEN CONTROL
Double Stacked on a Stainless Steel Base Stand
E32T5/2 - Double stack with adjustable feet base stand
E32T5/2C - Double stack with castor base stand
DOUBLE STACK FEATURES
• Two 5 full size sheet pan capacity ovens
• Compact 28
• Full stainless steel base stand
• Full stainless steel oven spacer frame
• Adjustable feet or castor models
• Guard rail for bottom oven
STANDARD FEATURES
1
• 3
/3” / 85mm tray spacing
• Touch Screen control
• Program and manual modes
• Icon driven program menu
• Up to 5 cooking stages
• Individual shelf timers
• USB port for program/icon updating
• Moisture injection mode (5 levels)
• 2 speed bi-directional reversing fan system
• 6.3kW heating (220-240V) / 5.6kW heating (208V)
• Safe-Touch vented side hinged door (standard LH hinge).
Optional RH hinge (field convertible)
• Stay-Cool door handle
• Porcelain enameled oven chamber
• Plug-in continuous oven door seal
• Dual halogen oven lamps
• Anti-skid 2” / 50mm dia. 3” / 76mm high adjustable
stainless steel feet
• 100% recyclable packaging
ACCESSORIES
• Optional M236060 Core Temperature Probe Kit
7
/8” / 735mm width
Model E32T5/2C shown
E32T5/2 E32T5/2C
Units shall be a Moffat electrically heated Turbofan convection ovens E.T.L. listed and NSF-4 listed. The ovens shall have a one piece porcelain enameled oven chamber,
stainless exterior top and sides. The oven shall have a vented safe touch side hinged door that offers field reversible hinging. Oven shall have capacity for 5 full size sheet
pans. The ovens shall have selectable moisture level injection and a 2 speed oven fan. The ovens shall be controlled by a 5.7” Touch Screen control with manual and recipe
operating modes with icon driven recipe programs and individual shelf control operation mode and multiple stage cooking. Ovens controller shall have USB port for recipe file
uploading and downloading. A core temperature probe M236060 is optional. The ovens shall include dual halogen oven lamps. Ovens shall be double stacked using Double
Stacking Kits DSK32 (adjustable feet option) or DSK32C (castor option). Units shall be supplied in 100% recyclable shipping packaging.
Double stack models are supplied as two individual ovens and a double stacking kit for field assembly.
E 32 T 5 / 2
E 32 T 5 / 2 C
E32T5/2 E32T5/2C Full Size
Convection Oven TOUCH SCREEN
CONTROL Double Stacked on a
Stainless Steel Base Stand
CONSTRUCTION
Porcelain enameled fully welded oven chamber
Stainless steel front, sides and top exterior
Stainless steel oven fan baffle and oven vent
Removable 5 position stainless steel side racks
Oven racks chrome plated wire (5 supplied)
Stainless steel frame side hinged door
0.2” / 5mm thick door outer glass
0.2” / 5mm thick low energy loss door inner glass
Full stainless steel welded door handle
Stainless steel control panel
Aluminized coated steel base and rear panels
CONSTRUCTION - DOUBLE STACKING KIT
All stainless steel construction
Welded 1½” and 1¼” square tube front and rear frame
base stand
4 adjustable feet on E32T5/2
4 dia. 3” / 76mm swivel castors with 2 front castors dual
wheel and swivel lock on E32T5/2C
Stainless steel oven spacer frame
Stainless steel bottom oven vent extension
CONTROLS (each oven)
5.7” LED backlit touch screen
Icon driven program menu
BMP image icon imports via USB port
Program updates via USB port
Temperature range 85-500°F
Adjustable sounder tones and volume
Other specification on request
Safety thermostat cut-out
Optional core temp probe
CLEANING
Stainless steel top and side exterior panels
Porcelain enameled oven chamber
Fully removable stainless steel oven side racks
Removable stainless steel oven fan baffle
Easy clean door system with hinge out door inner glass (no
tools required)
Removable plug-in oven door seal (no tools required)
SPECIFICATIONS
Electrical Requirements (each oven)
208V, 60Hz, 1-phase, 5.8kW, 28A
220-240V, 60Hz, 1-phase, 6.5W, 27A
No cordset supplied
7
735 mm / 28
"
8
"
2
1
/
m
m
13
"
4
3
7
6
/
m
m
0
2
7
1
"
4
1
2
/ 4
m
m
2
107
"
8
1
4
1
/
m
m
9
5
3
660 mm / 26" 665 mm / 26
858 mm / 33
VENT
WATER
CONNECTION
ELECTRICAL
ENTRY
"
8
1
9
"
8
/ 4
1
3
m
m
8
24
1
WATER
4
CONNECTION
m /
m
4
ELECTRICAL
9
0
ENTRY
1
"
8
1
1
/ 2
"
m
5
1
m
/
6
m
53
2 m
8
3
64 mm / 2
Water Requirements (optional - each oven)
Cold water connection ¾” GHT male
80psi maximum inlet pressure / 20psi minimum inlet pressure
External Dimensions
Width 28
Height 67
Depth 33
7
/8” / 735mm
3
/4” / 1720mm
3
/4” / 858mm
Oven Internal Dimensions (each oven)
Width 18¼” / 465mm
Height 20¼” / 515mm
Depth 27½” / 700mm
Volume 6ft³ / 0.17m3
Oven Rack Dimensions
Width 18” / 460mm
Depth 26” / 660mm
Nett Weight (double stack complete)
470lbs / 213kg
Packing Data (E32T5 ovens each)
231lbs / 105kg
20.1ft³ / 0.57m3
Width 29
Height 32” / 815mm
Depth 36
7
/8” / 760mm
3
/8” / 925mm
Packing Data (Stacking Kit)
35lbs / 16kg (DSKE32 - adjustable feet)
41lbs / 19kg (DSKE32C - castor)
4.1ft³ / 0.12m3
Width 30
Height 35” / 890mm
Depth 6
3
/8” / 770mm
3
/4” / 170mm
Supplied CKD for assembly on site
INSTALLATION CLEARANCES
Rear 2” / 50mm
LH Side 2” / 50mm
RH Side* 3” / 75mm
* For fixed installations a minimum of 20” / 500mm is required
for service
CLEARANCE FROM SOURCES OF HEAT
A minimum distance of 12” / 300mm from the appliance sides
is required
Double Stacking Kits
For after market double stacking two E32T5 convection ovens
DSKE32 - Double stacking kit - adjustable feet
DSKE32C - Double stacking kit - castor
3
"
4
Model E32T5/2 shown
Model E32T5/2C dimensions are the same
1
"
2
1
"
8
306 mm / 12"
"
8
"
1
8
7
1
4
/
m
/ 1
m
m
9
m
2
8
37
"
8
5
2
2
/
m
m
5
57
VENT
55 mm / 2
68 mm / 2
