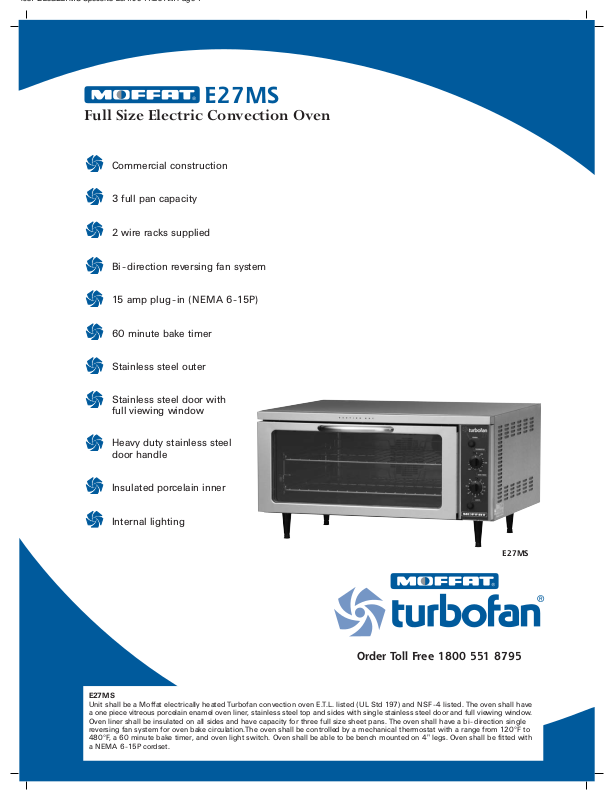

Moffat E27MS User Manual
4937 E25&E27MS Specs.v3 25/1/06 11:25 AM Page 1
Full Size Electric Convection Oven
Commercial construction
3 full pan capacity
2 wire racks supplied
Bi-direction reversing fan system
E27MS
15 amp plug - in (NEMA 6-15P)
60 minute bake timer
Stainless steel outer
Stainless steel door with
full viewing window
Heavy duty stainless steel
door handle
Insulated porcelain inner
Internal lighting
E27MS
Order Toll Free 1800 551 8795
E27MS
Unit shall be a Moffat electrically heated Turbofan convection oven E.T.L. listed (UL Std 197) and NSF -4 listed. The oven shall have
a one piece vitreous porcelain enamel oven liner, stainless steel top and sides with single stainless steel door and full viewing window.
Oven liner shall be insulated on all sides and have capacity for three full size sheet pans. The oven shall have a bi-direction single
reversing fan system for oven bake circulation.The oven shall be controlled by a mechanical thermostat with a range from 120°F to
480°F, a 60 minute bake timer, and oven light switch. Oven shall be able to be bench mounted on 4" legs. Oven shall be fitted with
a NEMA 6-15P cordset.
4937 E25&E27MS Specs.v3 25/1/06 11:25 AM Page 2
E27MS
Full Size Electric Convection Oven
CONSTRUCTION
Stainless steel top and sides
Porcelain oven interior
Toughened twin pane door glass
Strong and stylish door handle
3 full pan capacity (2 wire racks included)
Fully insulated
Stainless steel control panel with overlay
Fully enclosed motor at rear
CONTROLS
On/off switch
Mechanical thermostat, variable between
120°F to 480°F
Bi-direction reversing fan system
Oven light
60 minute bake timer
CLEANING AND SERVICING
Fully removable racks and fan baffle
Easy clean surfaces
Access to all controls from front panel
No tools to replace lamps
Removable gaskets - no tools required
SPECIFICATIONS
Electrical requirements
208V, 50/60Hz, 1P+N+E, 3.0kW, 14.4A
220-240V, 50/60Hz, 1P+N+E, 3.0kW, 12.5A
NEMA 6-15P cordset fitted
External Dimensions
Width 37
Height 167/8" (430mm)
Depth 281/2" (725mm)
Internal Dimensions
Width 27
Height 111/4" (285mm)
Depth 197/8" (505mm)
Oven Volume
3.5 ft
Oven Rack Dimensions
Depth 18" (460mm)
Width 26" (660mm)
Nett Weight
130lbs (59kg)
Packing Data
227lbs (103kg)
16.25ft3 (0.46m3)
Width 383/4"(985mm)
Height 22"(560mm)
Depth 33" (840mm)
3
(0.10m3)
1
/4" (945mm)
3
/8" (695mm)
www.moffat.com
U.S.A
Moffat Inc
3765 Champion Boulevard
Winston-Salem
North Carolina 27105
Call Free 1800 551 8795
Ph 336-661 0257
Fax 336-661 9546
Email sales@moffat.com
www.moffat.com
Canada
Serve Canada
22 Ashwarren Road
Downview
Ontario M3J1Z5
Ph 416-631 0601
Fax 416-631 7687
Email info@servecanada.com
Australia
Moffat Pty Limited
740 Springvale Rd
Mulgrave
Victoria 3170
Australia
Ph 03-9518 3888
Fax 03-9518 3833
Email vsales@moffat.com.au
www.moffat.com.au
New Zealand
Moffat Limited
16 Osborne St
PO Box 10-001
Christchurch
New Zealand
Ph 03-389 1007
Fax 03-389 1276
Email sales@moffat.co.nz
www.moffat.co.nz
3"
(76mm)
371/4"
(945mm)
311/8"
(790mm)
43/4"
(120mm)
13/4"
(45mm)
1
9
/4"
(235mm)
281/2"
(725mm)
(395mm)
151/2"
"
8
/
7
16
(430mm)
United Kingdom
Blue Seal Limited
Units 6-7 Mount St
Business Park
Birmingham B7 5QU
England
Ph 0121-327 5575
Fax 0121-327 9711
Email sales@blue-seal.co.uk
www.blue-seal.co.uk
DOOR SWING 13 3/8" (337mm)
Designed and manufactured by
QUALITY
ISO 9001
ISO 9001
All Turbofan products are designed and
manufactured by Moffat Ltd using the
internationally recognised ISO 9001
quality management system, covering
design, manufacture and final
inspection, ensuring consistent high
quality at all times.
MANAGEMENT STANDARD
In line with policy to continually develop and improve its products, Moffat Limited reserves the right to change specifications and design without notice.
Printed in New Zealand © Copyright Moffat Ltd Moffat/4937-E27MS/BH/2M/11.0 5
