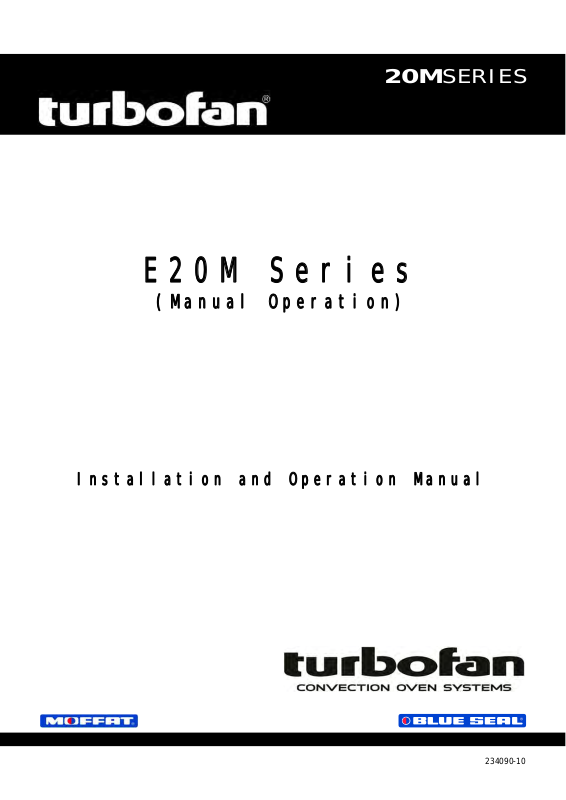

Moffat E22M3 Installation Manual

2

20M

SERIES

E20M Series

(Manual Operation)

Installation and Operation Manual

234090-10

MANUFACTURED BY

Moffat Limited

Christchurch
New Zealand

INTERNATIONAL CONTACTS

AUSTRALIA

Moffat Pty Limited www.moffat.com.au
E.Mail: [e-mail]
Main Office: (tel) [phone]

(fax) (03 9518 3833

Service: (tel): 1800 622 216
Spares: (tel): 1800 337 963
Customer Service: (tel): 1800 335 315
(fax): 1800 350 281

CANADA

Serve Canada
Web: www.servecanada.com
E.Mail: [e-mail]
Sales: (tel): 800 551 8795 (Toll Free)
Service: (tel): 800 263 1455 (Toll Free)

NEW ZEALAND

Moffat Limited
Web: www.moffat.co.nz
E.Mail: [e-mail]
Main Office: (tel): 0800 663328

UNITED KINGDOM

Blue Seal
Web: www.blue-seal.co.uk
E.Mail: [e-mail]
Sales: (tel): 0121 327 5575

(fax): 0121 327 9711
Spares: (tel): 0121 322 6640
(fax): 0121 327 9201
Service: (tel): 0121 322 6644
(fax): 0121 327 6257

UNITED STATES

Moffat
Web: www.moffat.com
Sales: (tel): 800 551 8795 (Toll Free)

(tel): 336 661 1556
(fax): 336 661 9546
Service: (tel): 800 858 4477 (Toll Free)
(tel): 336 661 1556
(fax): 336 661 1660

REST OF WORLD

Moffat Limited
Web: www.moffat.co.nz
E.Mail: [e-mail]

The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing
by the manufacturer.

In line with policy to continually d evelop and improve its products, Moffat Ltd. reserves the right to change the specifications and design
without prior notice.

© Copyright Moffat Ltd. May 2014.

Contents List

E20M Series Turbofan Convection Ovens.

Model Numbers Covered in this Manual

E22M3 - Turbofan Oven - 3 Tray Convection Oven.
E23M3 - Turbofan Oven - 3 Tray Convection Oven.
E27M2 - Turbofan Oven - 2 Tray Convection Oven.
E27M3 - Turbofan Oven - 3 Tray Convection Oven.
E28M4 - Turbofan Oven - 4 Tray Convection Oven.

Introduction............................................................................................................ 2

Safety Information

Specifications.......................................................................................................... 3

Installation ............................................................................................................. 4

Installation Requirements
Unpacking
Location
Clearances
Stand Mounted Ovens
Electrical Connection
Positioning and Levelling of Oven
Initial Start-Up

Operation ................................................................................................................ 6

Operation Guide
Oven Control Panel
Description of Controls
Using the Oven

Cleaning and Maintenance ..................................................................................... 7

Cleaning Guidelines
Oven Cleaning
Periodic Maintenance

Fault Finding ......................................................................................................... 10

Electrical Schematics ............................................................................................ 11

Replacement Parts List ......................................................................................... 13

Introduction

Before using your new oven, please read this instruction
manual carefully, pay particular attention to any information
labelled ‘WARNING’, ‘CAUTION’, ‘IMPORTANT’ or

‘NOTE’ in this manual.

Warning

Indicates a hazardous situation
which, if not avoided, will result in
death or serious injury.

Caution

Indicates a hazardous situation
which, if not avoided, will result in
minor or moderate injury.

If you are unsure of any aspect of the installation,
instructions or performance of your oven, contact your
TURBOFAN dealer promptly. In many cases a phone call
could answer your question.

Should you contact your TURBOFAN dealer on any matter
concerning this oven, please have the information provided
opposite, readily available.

This manual must be kept by the owner for future
reference.

A record of the
and

Serial Number of the oven

Date of Purchase, Date of Installation

should be recorded in

the area provided below.

The serial number of this oven can be found on the
Technical Data Plate located on the front right hand
side panel, see diagram in ‘Installation Section’.

Model Number:

Serial Number:

Dealer:

Service Provider:

Date Purchased:

Date Installed:

Safety Information

For your safety, please pay attention to the following symbols
marked on the appliance.

- Risk of electric shock.

No user serviceable parts inside.
Qualified service person access only.
Disconnect from power before servicing.

2

E22M3

E23M3

E27M2 / E27M3

E28M4

Specifications

E22M3

E23M3

E27M2

E27M3

E28M4

Oven Power Ratings

100V, 1P+N+E, 50-60HZ, 1.5 kW
110-120V, 1P+N+E, 60HZ, 1.5 kW
220-240V, 1P+N+E, 50/60HZ, 2.0 kW

200V, 1P+N+E, 50-60HZ, 2.5 kW
208V, 1P+N+E, 50-60 HZ, 2.7 kW
220V, 1P+N+E, 50-60 HZ, 3.0 kW
230-240V, 1P+N+E, 50-60 HZ, 3.0 kW

208V, 1P+N+E, 50-60HZ, 2.7kW
220V, 1P+N+E, 50-60HZ, 3.0kW
230-240V, 1P+N+E, 50-60HZ, 3.0kW

208V, 1P+N+E, 50-60HZ, 4.2kW
220V, 1P+N+E, 50-60HZ, 4.7kW
230-240V, 1P+N+E, 50-60HZ, 4.7kW

208V, 1P+N+E, 50-60HZ, 5.4kW
220V, 1P+N+E, 50-60HZ, 6.0kW
230-240V, 1P+N+E, 50-60HZ, 6.0kW

E22M3

E23M3

E27M2

E27M3

E28M4

3

Oven Tray Details

Tray Capacity Tray Spacing

3 x EN 2/3 Tray

3 x US ½ Pan

3 x EN 2/3 Tray

3 x US ½ Pan

2 x EN 600 x 400mm Tray

2 x US Full Pan

3 x EN 600 x 400mm Tray

3 x US Full Pan

4 x EN 600 x 400mm Tray

4 x US Full Pan

70mm / 2

85mm / 3 1/3”

110mm / 4

85mm / 3 1/3”

76mm / 3 ”

3

/4”

1

/3”

Installation Requirements

Installation

Important:

 Installation shall comply with local electrical, health and safety requirements.
 It is most important that this oven is installed correctly and that oven operation is correct before use.
 If you have any questions regarding the proper ins tallation and / or operation of this oven, please contact your local

Turbofan distributor.

Unpacking

1. Remove all packaging and transit protection including
all protective plastic coating from the exterior stainless
steel panels.

2. Check the oven and supplied parts for damage. Report
any damage immediately to the carrier and distributor.

3. Check that the following parts have been supplied with
your oven:-

4 x Leg Adjustable.

4. Report any deficiencies to the distributor who supplied
your oven.

5. Securely fit the 4 legs supplied with the oven.

6. Check that the available electrical supply is correct to
that shown on the Technical Data Plate located on the
front right hand side panel.

 Refer to ‘Specifications’ section, ‘Oven

Specifications Tables’.

Location

Clearances

To ensure correct ventilation for the motor and controls,
the following minimum installation clearances are to be
adhered to:-

Rear 25 mm / 1”.
LH Side 25 mm / 1”.
RH Side 25 mm / 1”.

CLEARANCE FROM SOURCE OF HEAT.

A minimum distance of 300mm (12”) from the
appliance is required.

Important:

The vent located at the top (E22 Ovens) or rear (Other 20
Series Ovens) of the oven must NOT be obstructed.

Oven Vent Location

E22 Ovens

Oven Vent Location

E23, E27, E28 Ovens

1. Position the oven in its approximate working position.

2. The unit should be positioned so that the control panel
and oven shelves are easily reachable for loading and
unloading.

Technical Data Plate - Location

Stand Mounted Oven

For ovens that are to be mounted to a stand, the oven feet
are used to level the oven on the stand. Refer to the
instructions supplied with separately ordered stands for
mounting details.

4
