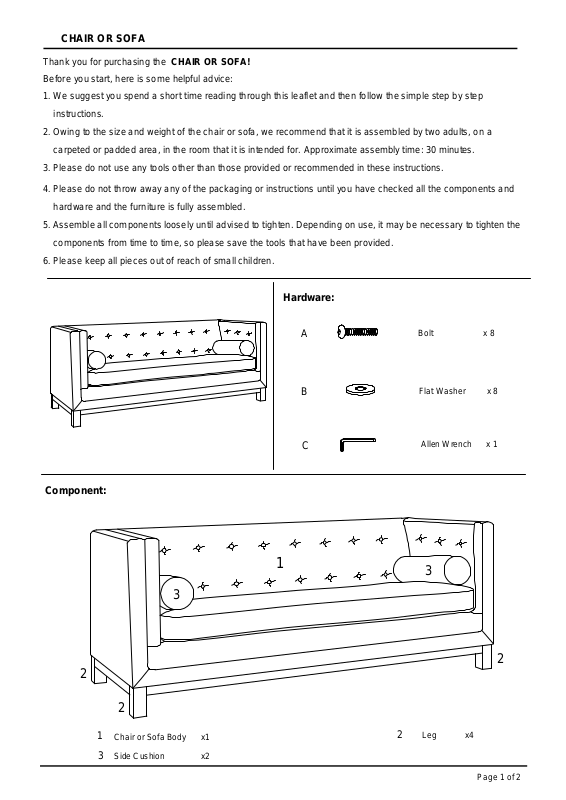

CHAIR OR SOFA
Thank you for purchasing the CHAIR OR SOFA!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the chair or sofa, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
Hardware:
A
B
C
1
Bolt x 8
Flat Washer x 8
Allen Wrench x 1
3
3
2
2
2
Leg x4
1
Chair or Sofa Body x1
3
Side Cushion x2
Page 1 of 2
2
CHAIR OR SOFA
STEP 1:
Please find the package of Legs (2) and hardware on the top of the seat.
Then put the Chair or Sofa Body (1) upside down on a carpeted or padded area by two adults to
make fully visible the corners.
Position one of Legs (2) at one of the four wooden corners.
Insert 2 pieces of Flat Washer (B) into 2 pieces of Bolts
Then insert assembled 2 pieces of Bolts (A) into the corner to connect the Leg (2).
Use Allen Wrench (C) to tighten the Bolts (A) clockwise until secure.
Repeat the same steps for the other three Legs (2).
(A)))) as shown.
(((
2
A
2
A
x8 Bx8 Cx1
A
1
1
B
A
2
A
A
2
C
Hardware & Tool required
STEP 2:
Carefully turn over the chair or Sofa.
Place the Side Cushions (3) to the Chair or Sofa Body (1) as shown.
1
3
3
Page 2 of 2
