Mitsubishi Electronics WS-55908 User Manual

Projection Television Models
WS-55908 and WS-65908
visit our website at
www.mitsubishi-tv.com
®
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USED SERVICEABLE PARTS INSIDE.
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the
user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be sufcient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Warning: To avoid permanently imprinting a xed image onto your TV screen, please do not display the same stationary images on the screen for more that 15% of your total TV viewing in one week. Examples of stationary images are letterbox top/bottom bars from DVD disk or other video sources, side bars when showing standard TV pictures on widescreen TV’s, stock market reports, video game patterns, station logos, web sites or stationary computer images. Such patterns can unevenly age the picture tubes causing permanent damage to the TV. Please see pages 23 and 68 for a detailed explanation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: To assure continued FCC compliance, the user must use a shielded video interface cable with bonded ferrite cores, when using the VGA input.
Changes or modications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
NOTE TO CATV SYSTEM INSTALLER:
THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S ATTENTION TO ARTICLE
820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND, IN PAR-
TICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING
SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.
Table of Contents
IMPORTANT SAFEGUARDS ............................................................................4-5
T
Thank You Letter...............................................................................................................................................8
H
Y
A
Unpacking Your New TV...................................................................................................................................9
O
N
Special Features ...............................................................................................................................................9
U
K
Front Control Panel Functions ......................................................................................................................12
I
Back Panel Functions.....................................................................................................................................13
N
How Connections Affect:
PIP and POP ..............................................................................................................................................14
S
System 4 Home Theater IR Control....................................................................................................14-15
T
Connecting to Your New Mitsubishi Bigscreen:
A
Antenna or Wall Outlet Cable ..................................................................................................................16
L
Cable Box...................................................................................................................................................16
L
VCR .........................................................................................................................................................17
A
Audio Receiver..........................................................................................................................................18
DVD Player or S-Video Device.................................................................................................................19
T
DTV Receiver....................................................................................................................................... 20-21
I
Computer ...................................................................................................................................................22
O
System 4 Home Theater IR Control.........................................................................................................22
N
IMPORTANT NOTES #1 ..................................................................................................................................23

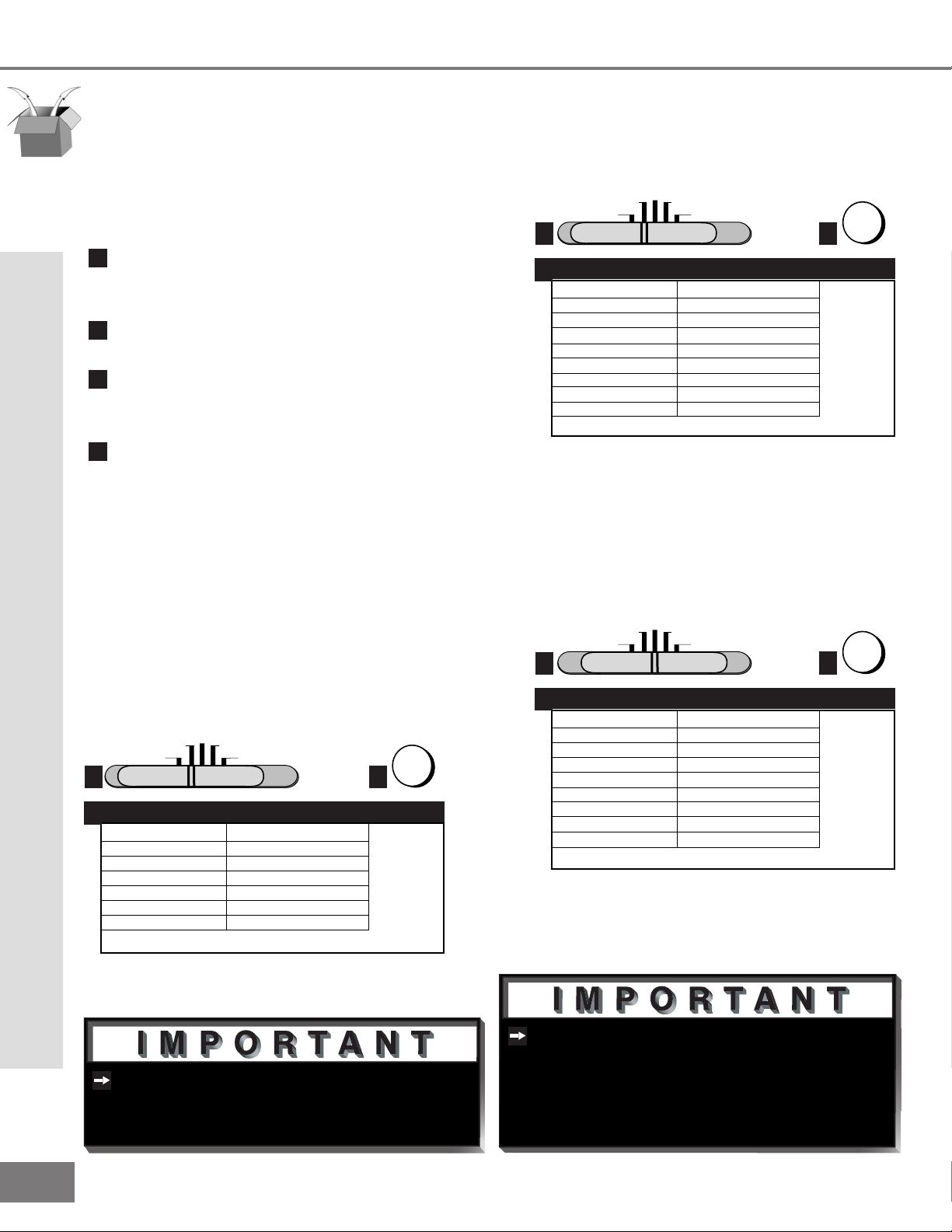

Programming the Remote Control: To Control Other A/V Products.................................................. 26-27
Programming the Remote Control: To Activate the System 4 Home Theater IR Control ................ 28-29
on-screen menu system ......................................................................................................................30
Using

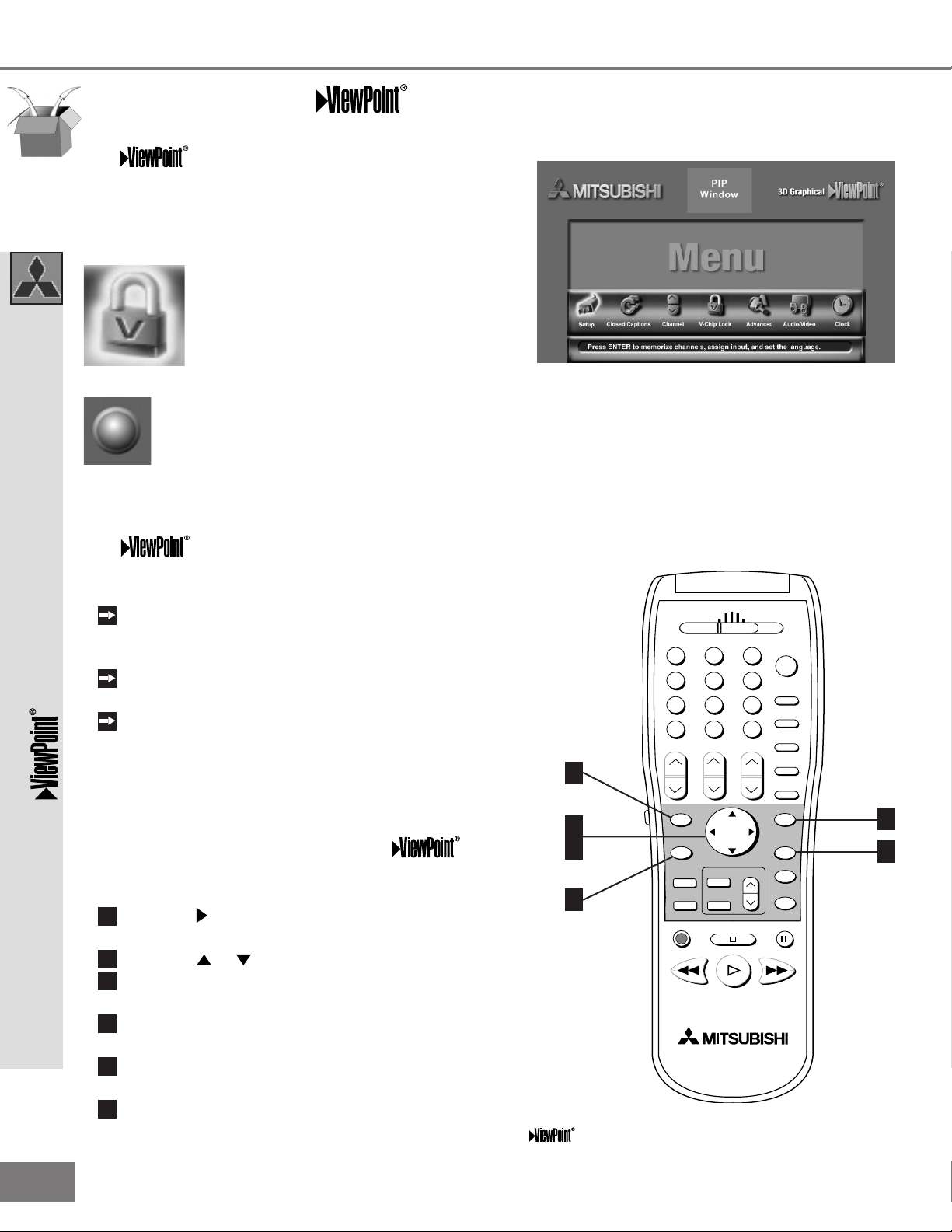

Menu Screens (Overview)...................................................................................................................31-32
Setup Menu................................................................................................................................................33
S
Memorize Channels ............................................................................................................................33
E
Assign Input.........................................................................................................................................33
Language .............................................................................................................................................33
T
Closed Captions Menu .............................................................................................................................34
U
Channel Menu ...........................................................................................................................................35
P

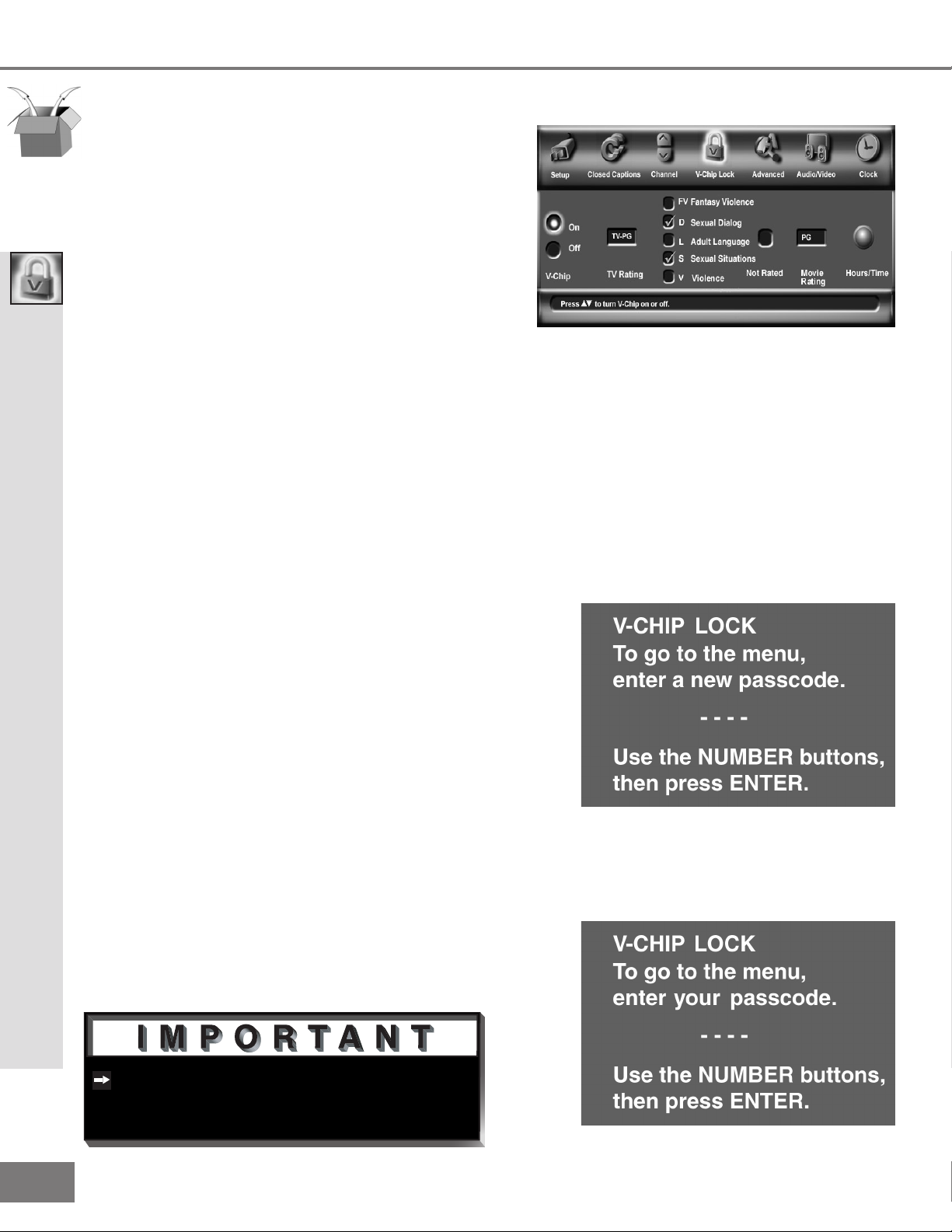

V-Chip Lock .........................................................................................................................................36-38
Advanced Menu.........................................................................................................................................39
Timer.....................................................................................................................................................39
Convergence.................................................................................................................................. 40-41

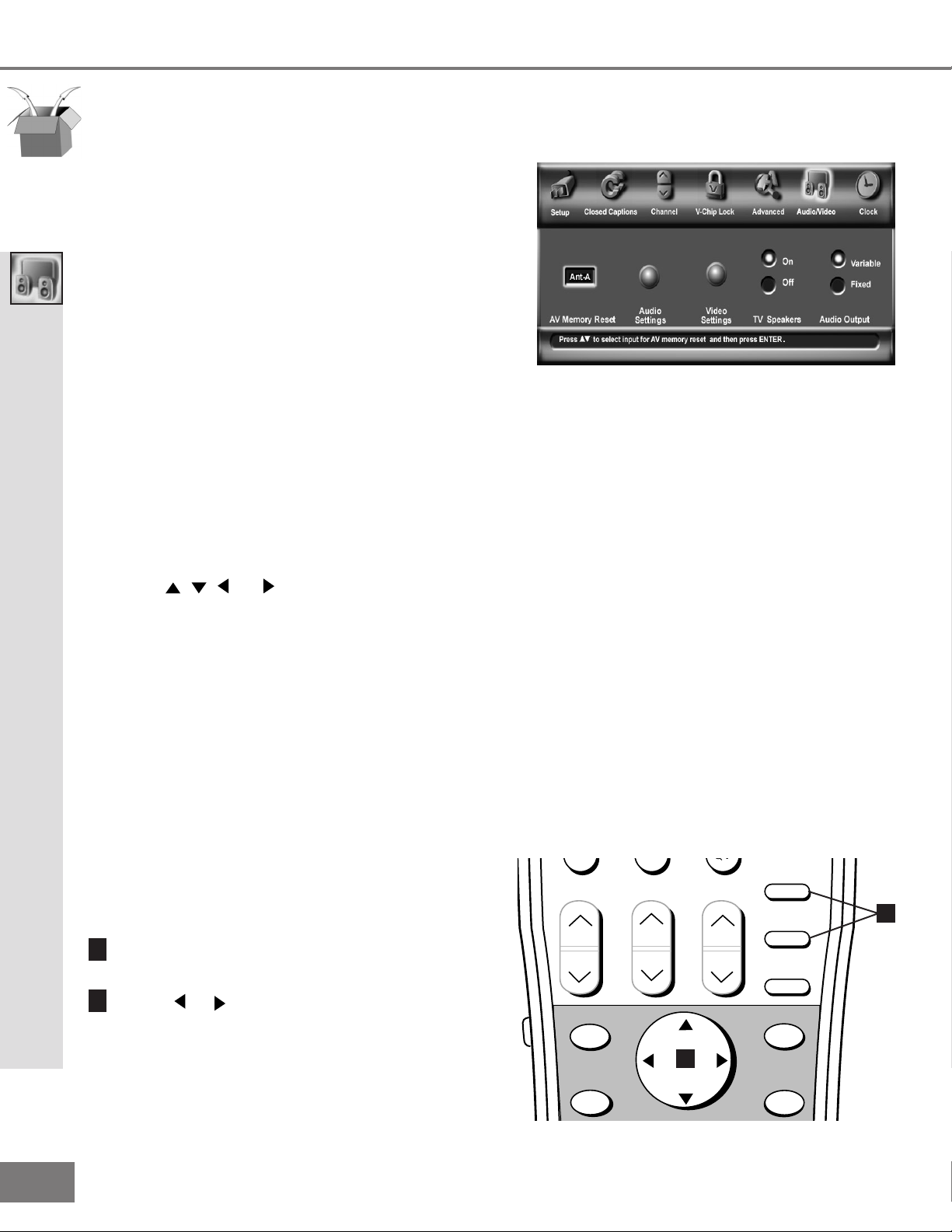

Audio/Video Menu .............................................................................................................................. 42-43

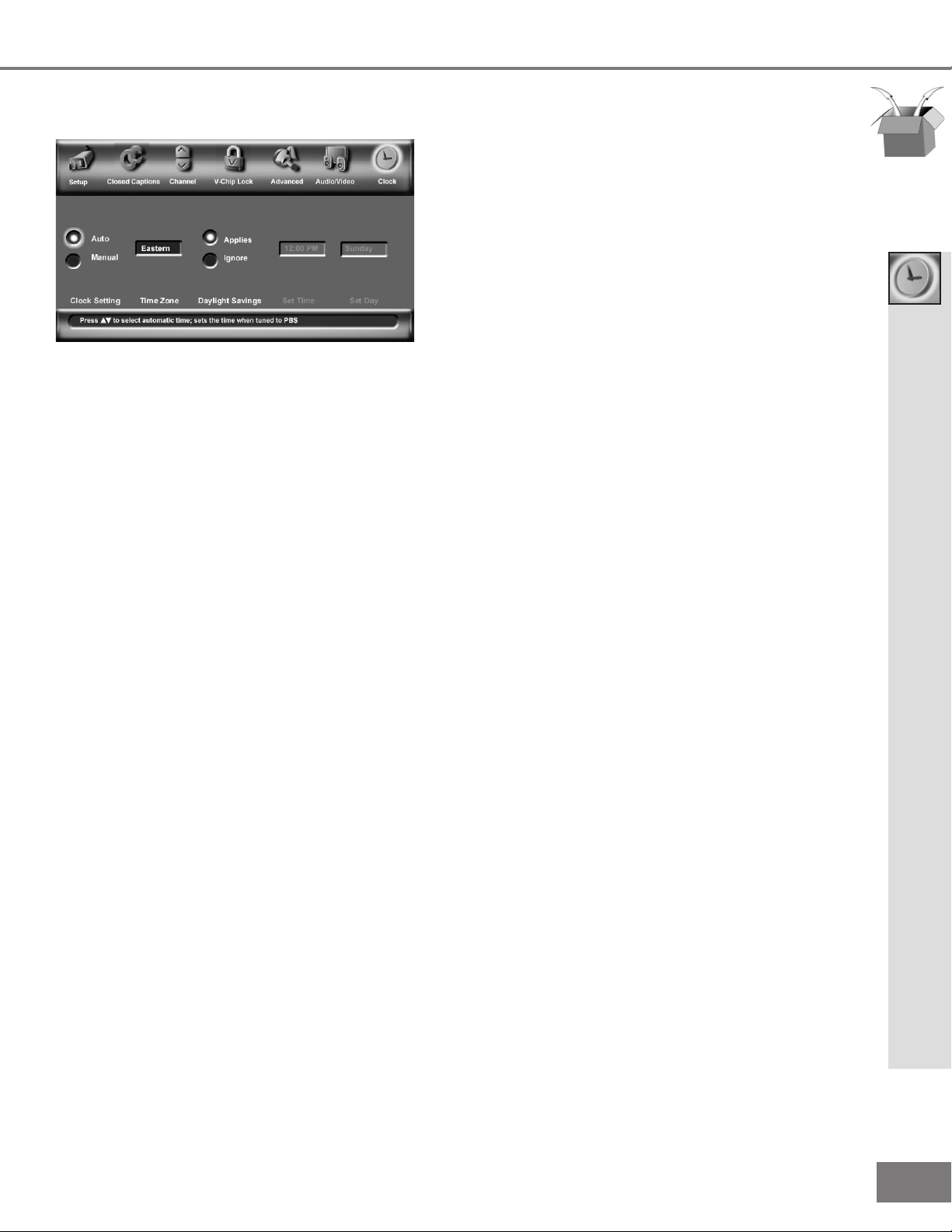

Clock Menu..........................................................................................................................................44-45
A/V Setting Descriptions ................................................................................................................... 46-47
...............................................................................................................................................30
Table of Contents
Remote Control Functions....................................................................................................................... 50-57
O
Overview ....................................................................................................................................................50
P
Care and Operation ..................................................................................................................................51
E
Channel Selection.....................................................................................................................................52
R
Sleep Timer................................................................................................................................................52
A
System 4 Home Theater IR Control.........................................................................................................53
Special Functions .....................................................................................................................................54
T
Operation of PIP and POP.................................................................................................................. 54-55
I
Display Formats ..................................................................................................................................56-57
O
IMPORTANT NOTES #2 ..................................................................................................................................58
N
Appendix A: Bypassing the V-Chip Lock ...........................................................................................................59
Appendix B: High De ni tion Input s Connect ion Comp at ibi lity .......................................................................61
Appendix C: Remote Control Programing Codes .............................................................................................62
Appendix D: Cleaning and Service.....................................................................................................................63
Appendix E: Troubleshooting..............................................................................................................................64
Index................................................................................................................................................................. 65-66
Mitsubishi Projection TV Limited Warranty .......................................................................................................67
3
3
IMPORTANT SAFEGUARDS
Please read the following safeguards for your TV and retain for future reference.
Always follow all warnings and instructions marked on the television.
1. Read, Retain and Follow All Instructions
Read all safety and operating instructions before operating the TV. Retain the safety and operating instructions for future reference. Follow all operating and use instructions.
2. Heed Warnings
Adhere to all warnings on the appliance and in the operating instructions.
3. Cleaning
Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a lightly dampened cloth for cleaning.
4. Attachments and Equipment
Never add any attachments and/or equipment without approval of the manufacturer as such additions may result in the risk of re, el ect ric shock or ot her per sonal inj ur y.
5. Water and Moisture
Do not use the TV where contact with or immersion in water is possible. Do not use near bath tubs, wash
bowls, kitchen sinks, laundry tubs, swimming pools, etc.
6. Accessories
Do not place the TV on an unstable cart, stand, tripod, or table. The TV may fall, causing serious injury to a child or adult and serious damage to the TV. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the TV should follow the manufacturer’s instructions, and should use mounting accessories recommended by the manufacturer.
Important Safeguards
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
7. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the TV and
to protect it from overheating. Do not block these openings or allow them to be obstructed by placing the TV on a bed, sofa, rug, or other similar surface. Nor should it be placed over a radiator or heat register. If the TV is to be placed in a rack or bookcase, ensure that there is adequate ventilation and that the manufacturer’s
instructions have been adhered to.
8. Power Source
This TV should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied to your home, consult your appliance dealer or local power company.
9. Grounding or Polarization
This TV is equipped with a polarized alternating current line plug having one blade wider than the other. This
plug will t int o t he power out let onl y one way. If you ar e unabl e t o i nsert the pl ug f ul ly i nt o t he out let , try reversing the plug. If the plug should still fail to t, cont act your el ect rici an t o r epl ace your obsol et e out let . Do
not defeat the safety purpose of the polarized plug.
10. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the TV.
11. Lightning
For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.
4
4
IMPORTANT SAFEGUARDS Continued
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
EXAMPLE OF ANTENNA GROUNDING
12. Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13. Overloading
Do not overload wall outlets and extension cords as this can result in a risk of re or el ect ric shock.
14. Object and Liquid Entry
Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or
short-out parts that could result in re or el ect ric shock. Never spi ll liqui d of any ki nd on or int o t he TV.
15. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No.
70-1984, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Important Safeguards
16. Servicing
Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to quali ed servi ce per sonnel .
17. Damage Requiring Service
Unplug the TV from the wall outlet and refer servicing to quali ed ser vi ce per sonnel under the f ol lowi ng conditions:
(a) When the power-supply cord or plug is damaged. (b) If liquid has been spilled, or objects have fallen into the TV. (c) If the TV has been exposed to rain or water. (d) If the TV does not operate normally by following the operating instructions, adjust only those controls that
are covered by the operating instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by a quali ed t echni ci an t o r est or e t he TV t o i ts norma l oper at ion. (e) If the TV has been dropped or the cabinet has been damaged. (f) When the TV exhibits a distinct change in performance - this indicates a need for service.
18. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts speci ed
by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in re, el ect ric shock or ot her hazards.
19. Safety Check
Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to
determine that the TV is in safe operating condition.
20. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including ampli er s) that pr oduce heat .
5
5
If you have questions regarding your television, call
Consumer Relations
at (800) 332-2119, or email us at
MDEAservice@bigscreen.mea.com
To order replacement or additional remote controls or owner’s
guides
call (800) 553-7278
or
visit our website at www.mitsubishi-tv.com
Thank You
Thank You Letter ............................8
Unpacking Your New TV .................9
Special Features..............................9
7
7
Part I: Thank You
We at Mitsubishi Would Like to Thank You
To the Mitsubishi Consumer:
Thank you for choosing Mitsubishi as your premier home
entertainment partner. Whether this is your rst Mi tsubi shi consumer electronics product or an addition to your growing
Mitsubishi family, you should be proud and delighted for
choosing one of the most technologically advanced bigscreens available today.
Unlike typical television manufacturers, we have based our
primary design and engineering capabilities in North America at our California headquarters. As a result, the engineers who design our television products live in the same communities as our customers. They know how our customers think and
what their goals and desires are. They know that today’s
consumer has never been more sophisticated and that the
Thank You Letter
way to reach that consumer is to deliver technically advanced
products at prices that our competition simply can’t match.
When you look at your new Mitsubishi bigscreen television,
please see all of us who built it, because when we build it, we
see you.
Thank You Again, The Mitsubishi Team
8
8
Part I: Thank You
1
2
3
4
POWER
INFO
PAUSE
REC
FF/FWDREW/REV PLAY
STOP
3
6
9
QV
VOLUME
GUIDE
EXCH
ENTER
CANCEL
MENU
V-CHIP
FORMAT
PIP CH
1
7
SQV
4
INPUT
SLEEP
VIDEO
AUDIO
MUTE
2
5
8
0
CHANNEL
ADJUST
PIP INPUT
PIP/POP
HOME
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
HOME
THEATER
PRODUCT REGISTRATION
Send this card in to register your purchase
1
3
2
4
Unpacking Your New TV
Please take a moment to review the follow­ing list of items to ensure that you have received everything included:
Remote Control (2) AAA Batteries (3) IR Emitter Cables Product Registration Card Owner’s Guide Quick Reference Card
Special Features
Your new HD-Upgradeable bigscreen televi-
sion has many special features that make it the perfect addition to your home entertain­ment system. Below we have highlighted a handful.
HD-Upgradeable
With the use of an optional HDTV receiver like the Mitsubishi SR-HD500 or similar model, your Mitsubishi bigscreen can dis­play high de ni tion pi ct ur es.
See pages 20 & 21.
Wide Screen Picture Format
You will be able to view pictures as the
directors intended you to see them. Both DTV and DVD’s supporting the widescreen format will enable you to enjoy a theater feel in the comfort of your home.
See pages 56-57.
Unpacking Your New TV / Special Features
Remote Control
(3) IR Emitter Cables
Product Registration Card
(2) AAA Batteries
PIP/POP Viewing Option
Using Picture-in-Picture and Picture-outside­Picture will give you exciting options for view­ing your favorite programs.
See pages 54-55.
V-Chip Technology
Mitsubishi understands that you may want to shield certain viewers from speci c pr ogr am content. Your Mitsubishi bigscreen will allow
you to restrict Programming by general con-
tents, speci c cont ent s, or even by t ime .
See pages 36-38.
Multibrand Remote Control
Your Mitsubishi remote control can be pro-
grammed to control many other audio/video components.
See page 26 & 27.
9
9
nlike typical television manufacturers, we have based our
U
capabilities in North America at our California headquarters. As a result, the engineers who design our television products live in the same communities as our
customers. They know how our customers think and what their goals and desires are. They know that today’s consumer has never been more sophisticated and that the
way to reach that consumer is to deliver
technically advanced products at prices that
our competition simply can’t match.
primary design and engineering
Installation
Front Control Panel Functions.....12
Back Panel Functions ...................13
How Connections Affect:
PIP and POP...............................14
System 4 Home Theater
IR Control..............................14-15
Connecting to Your New Mitsubishi Bigscreen: Antenna or Wall Outlet Cable ...16
Cable Box...................................16
VCR.............................................17
Audio Receiver...........................18
DVD Player..................................19
S-Video Device...........................19
DTV Receiver ....................... 20-21
Computer....................................22
System 4 Home Theater
IR Control ...................................22
IMPORTANT NOTES #1.................23
11
11
Part II: Installation
POWER
A/V RESET
S-VIDEO
VIDEO
(MONO)
AUDIO
R
INPUT-4
L
A/V RESET
ADJUST
S-VIDEO
VIDEO
(MONO)
AUDIO
R
MENU
INPUT-4
L
INPUT
C
HANNEL
VOLU
M
E
CANCEL
ENTER
POWER
Front Control Panel
Figure 1. Front Control Panel.
IRIS™
Intelligent Room Illumination (light) Sensor. Turn this feature on or off using the VIDEO
button on your remote control. When the IRIS is on, your TV will automatically adjust
picture contrast and brightness for the best picture based on your room lighting. When on,
do not block the sensor to ensure an optimum picture.
Power (used for Timer function)
During normal operation, the power light will glow steady green when the TV is on, and
not glow when the TV is off. When the TV is set to turn on at a speci c ti me , the gr een
power light will blink while the TV is off. Please see Timer, page 39, for timer setup
instructions.
A/V Reset
Press this button to reset the A/V memory on all eleven inputs to the factory default settings. Please see A/V Memory Reset, page 42, for instructions.
Input 4
This input can be used for convenient connection of a camcorder or other video device to
Front Control Panel Functions
the TV. Please note that if you connect to the S-VIDEO terminal, the VIDEO terminal is
deactivated. The VIDEO terminal is active when there is no S-Video connection.
12
12
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X 480, 60HZ
COMPONENT 480i /480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i /480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
1 2 3
4
5
6
7
8
Back Panel
1
2
3
4
5
6
7
8
Part II: Installation
STB (Set-Top-Box)
This input can be used for the connection of any device with an S-Video output.
Inputs 1-3
These inputs can be used for the connection of a VCR, Super VHS (S-VHS) VCR, laser
disc player, or other A/V device to the TV. Please note that if you connect to the S-VIDEO terminal, the VIDEO terminal is deactivated. The VIDEO terminal is active when there is no S-Video connection.
Output (Monitor and PIP)
The Monitor Output sends the TV audio and video signals, excluding component video, VGA, or DTV video, to an A/V receiver or other equipment. The PIP output sends the
PIP’s or POP’s audio signal to an ampli er or wirel ess headphones. If no PI P or POP is displayed, the PIP output will send the main picture audio signal.
Antenna (ANT-A, LOOP OUT, and ANT-B)
ANT-A and ANT-B receive signals from VHF/UHF antennas or a cable system. LOOP OUT
sends the ANT-A signal out to another component, such as a cable box or VCR.
IR Emitter Home Theater (System 4 Home Theater IR Control)
Connecting IR emitters here allow the TV to automatically change a digital A/V receiver’s input in a home theater setup, and pass IR commands to other A/V devices.
VGA
This input can be used for the connection of a computer. Please see Appendix B, page
61, for signal compatibility.
Back Panel Functions
Component Inputs 1-2
These inputs can be used for the connection of A/V equipment with component video
outputs, such as a DVD player. Please see Appendix B, page 61, for signal compatibility.
DTV Input
This input is used to connect a DTV receiver, and can be con gur ed f or HDTV comp onent ,
RGB sync on green, and RGB plus H&V. Please see Appendix B, page 61, for signal compatibility.
13
13
DTV 31.
∗∗
1080i
4:09 AM Tuesday
Signal Strength
DTV 31.
∗∗
480p
4:09 AM Tuesday
Signal Strength
Part II: Installation
POP/PIP
NIAM
A-TNA B-TNA 4-1STUPNI
TNENOPMOC
2-1STUPNI
VTD
A-TNA
*KO POP/PIPON KO KO KO
B-TNA
KO *KO KO KO KO
4-1STUPNI
KO KO **KO KO KO
TNENOPMOC
2-1STUPNI
KO KO KO **KO
POPKO
PIPON
VTD
KO KO KO KO **KO
STB
VGA
NO PIP
STB
OK OK OK OK OK
OK
OK
OK
OK
OK
OK**
How Connections Affect the PIP and POP
To see a picture in the PIP or POP inset, you
may need to select an input source. If the
only input connected is ANT-A, then both the main picture and the PIP/POP insert will be from that input source. If other video equipment is connected, you may be
able to view these input sources as the PIP/POP insert. When connecting your new
Mitsubishi bigscreen, it is important to under-
stand which main picture and PIP/POP input
sources can and cannot be used together.
Table 1 shows which inputs can and cannot
be used together and the limitations they
may require. To see if 480i, DTV 480p,
1080i, Conponent-1 or Component-2 480p is
being displayed as the main picture, press INFO on the TV remote control. The on-
screen display, gure 1, wi ll list 480i , 480p or
1080i when those signals are being received.
See Operation of PIP and POP, pages
54-55, for operating instructions. An aster-
isk (*) displayed after the signal type indi-
cates that the signal being received is
a non-standard format. A non-standard format signal may or may not display prop-
erly in a PIP/POP inset.
Table 1. *No Side-by-Side with the same channel.
**No Side-by-Side with the same input. PIP cannot display VGA.
Figure 1. On-screen display will show 480i, 480p, or
1080i when those signals are being received.
14
14
How Connections Affect the System 4 Home Theater IR Control
The Mitsubishi System 4 Home Theater IR
Control is a special feature that makes it
easier to use your TV with a digital surround
sound A/V receiver. Once your equipment
How Connections Affect the PIP and POP
is properly connected and set up, your TV
and digital A/V receiver will change inputs together, to match high resolution pictures with the proper surround sound.
When you change inputs on your TV to watch different video products, your TV will
send signals via your remote control and the
infrared emitters to your digital A/V receiver
to change inputs. You will automatically hear the high quality digital surround sound from digital products like your DTV receiver and DVD player, and high quality analog stereo or surround sound from non-digital products like your VCR.
Additionally, all IR remote signals from your Mitsubishi remote or other manufacturers remote will be passed through your TV to your A/V devices. Your A/V devices can be hidden or behind cabinet doors and con­trolled by pointing the remote at the TV.
Part II: Installation
Brand Model
The products listed at the top of this column connect to the below listed inputs on the back of the appropriate A/V receiver.
VCR
SAT/DBS/DTV
TV / Cable
DVD
Mitsubishi Mitsubsihi Denon JVC Kenwood Onkyo Pioneer Sony Yamaha
M-VR1000 / M-VR800 M-VR900 / M-VR700 AVR2800 RX-888V VR-2080 TX-DS575 VSX-21 STR-DE825 RX-V2095
TV TV TV/DBS TV AV AUX VIDEO 3 TV/SAT TV/DBS TV/DBS
VCR2 CABLE/DBS VCR2 VIDEO 2 LD VIDEO 2 VIDEO 2 VIDEO 2 VCR 2
VCR1 VCR VCR1 VCR 1 VIDEO 1 VIDEO 1 VCR 1 VIDEO 1 VCR1
DVD DVD DVD/LD DVD DVD DVD DVD/LD DVD/LD DVD/LD
Special Setups: A/V Equipment
(For System 4 Home Theater IR Control)
VCR: Connect the cables to the TV as
directed on page 17, with one exception. Connect the audio output connection to the appropriate input on the back of the A/V receiver (as shown in table 1).
DVD: Connect the cables as directed on page 19 (using the COMPONENT-1 input), with one exception. Connect the digital audio output connection on the DVD player to the appropriate digital input on the back of the digital A/V receiver (as shown in table
1). DTV: Connect the cables as directed on
pages 20-21, with one exception. Connect the digital audio output connection on the DTV receiver to the appropriate digital input on the back of the digital A/V receiver (as shown in table 1).
A/V Receiver: Connect as directed on
page 18, with two additions. Use a S-Video cable in step 1 if you have a S-Video VCR.
The TV outputs should be connected to the
A/V receivers input marked TV.
•Auto Standby: ON (See your A/V receiver’s Owner’s Guide for this procedure). For all TV use, the sound will come from the A/V receiver. Not available with all A/V receivers.
•Digital Input Assignment for DVD: Assign the digital input you used for your DVD player to the A/V receiver’s DVD input selector. This proce­dure is explained in your A/V receiver’s Owner’s Guide.
•Digital Assignment for DTV: Assign the digital input you used for DTV to the A/V receiver’s DTV input selector.
Infrared Emitter: Connect as shown on page 22.
Special Setups: TV
Menu selection for A/V connections, page 32.
•TV Speakers: OFF
•Audio Output: Fixed
TV Inputs Appropriately Named: See Assign
Input Menu, page 33.
Remote Control, pages 26-27.
•Set the slide switch to the TV position and follow the programming instructions using the A/V receiver code appropriate for your A/V receiver, page 27 ( gur e 5) .
How Connections Affect the System 4 Home Theater IR Control
Table 1. A/V receiver back panel input table
15
15
Part II: Installation
1
2
1
2
3
1
2
3
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
External Antenna or Cable
Back
Side
Flat Twin Lead
UHF Antenna
(Channels 14-69)
VHF Antenna
(Channels 2-13)
300 Ohm to
75 Ohm
Combiner
Flat Twin Lead
TV back panel
UHF
VHF
2
1
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT
480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO­LEFT/ (MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
300 Ohm Flat Twin Lead
Optional 300 Ohm to 75 Ohm
Matching Transformer
75 Ohm
Coaxial Cable
TV back panel
1
2
3
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV
(YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
OUT
Cable Box
back panel section
TV back panel
IN
Incoming
Cable
1
2
3
Connecting an Antenna, Wall Outlet Cable, or Cable Box
Separate UHF and VHF Antennas
(Figure 1)
Connect the UHF and VHF antenna
leads to the UHF/VHF combiner.
Push the combiner onto ANT-A on the
TV back panel.
UHF/VHF combiners are not provided
with the TV. They should be available at most electronic stores.
Twin Lead Antenna, Coaxial Lead
Antenna, or Wall Outlet Cable
Figure 1. Connecting separate UHF and VHF antennas.
16
16
For antenna with twin at leads (Fi gur e 2)
Connect the 300ohm twin leads to the
transformer.
Push the 75ohm side of the transformer
onto ANT-A on the TV back panel.
300ohm to 75ohm matching transform-
ers are not provided with the TV. They should be available at most electronic stores.
For cable or antenna with coaxial lead (Figure 2)
Connect the incoming cable to ANT-A on
the TV back panel.
Cable Box
(Figure 3)
Connect the incoming cable to ANT-A on
Connecting an Antenna, Wall Outlet Cable, or Cable Box
the TV back panel.
Connect two coaxial cables as follows:
One from LOOP-OUT on the TV back panel to
IN on the cable box back panel.
One from OUT on the cable box back panel to
ANT-B on the TV back panel.
Figure 2. Connecting twin lead antenna, coaxial lead antenna, or wall outlet cable.
Additional connection cables are not provided with the TV. They should be available at most electronic stores.
Figure 3. Connecting the cable box.
Connecting a VCR
1
2
3
4
1
2
3
4
5
1
2
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO­LEFT/ (MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
IN
OUT
Antenna
AUDIO OUT
AUDIO IN
VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1
2
VCR back panel
If your VCR has a video channel or RF ON/OFF switch, set to OFF.
Attach
only one
cable
type
1
1
Attach
only one
cable
type
1
1
2
2
TV back panel
White
Red
White
Red
AUDIO OUT
AUDIO IN
VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1
2
IN
OUT
Antenna
VCR back panel
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
AUDIO­LEFT/ (MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
TV back panel
Incoming Cable
Cable Box
Rear Terminals
INOUT
1
2 4
2
3
3
4
AUDIO OUT
AUDIO IN
VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1
2
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO­LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
TV back panel
Incoming Cable
IN
OUT
Antenna
VCR back panel
1
2 3
3
2
Part II: Installation
Antennas or Wall Outlet Cable
(Figure 1)
Connect the incoming cable to ANT-A on
the TV back panel.
Connect two coaxial cables as follows:
One from LOOP-OUT on the TV back panel to
ANTENNA IN on the VCR back panel.
One from VCR back panel ANTENNA OUT to
ANT-B on the TV back panel.
Now complete gur e 3, steps 1-2.
Figure 1. Connecting VCR with antennas or wall outlet cable.
Figure 2. Connecting VCR with cable box.
Figure 3. Connecting the VCR Audio/Video.
Additional connection cables are not provided with the TV. They should be available at most electronic stores.
Cable Box
(Figure 2)
Connect the incoming cable to ANT-A on
the TV back panel.
Connect three coaxial cables as follows:
One from LOOP-OUT on the TV back panel to
IN on the back of the cable box.
One from OUT on the back of the cable box to
ANTENNA IN on the VCR back panel.
One from ANTENNA OUT on the VCR back
panel to ANT-B on the TV back panel.
Now complete gur e 3, steps 1-2.
Composite Video with Audio or S-Video with Audio
(Figure 3)
Connect a video cable from VIDEO
OUT on the VCR back panel to VIDEO INPUT-1, INPUT-2 or INPUT-3 on the TV back panel.
If you have a S-VHS VCR, follow the same
steps using the S-Video terminals on the VCR and TV (in place of the composite terminals).
Connect a set of audio cables from
AUDIO OUT on the VCR back panel to AUDIO INPUT-1, INPUT-2, or INPUT-3
on the TV back panel. The red cable connects to the R (right) channel and the white cable connects to the L (left) channel. If your VCR is mono (non-ste­reo), connect only the white (left) cable.
Connecting a VCR
17
17
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
AV Receiver (M-VR900) Back panel section
Attach
only one
cable
type
1
1
23
White
Red
W
h i t e
White
R e d
Red
TV back panel
Y G
Pb
B
Pr
R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV
(YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO­LEFT/ (MONO)
AUDIO­RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
Red
Red
Audio system back panel section
OUTOUT
OUT
ININININ
SUBWOOFER
(MONO)
CD
AUX TAPE
1
TAPE
2
L
R
TV back panel
White
White
1
Part II: Installation
1
2
3
1
2
3
Connecting an Audio Receiver
Stereo Audio System
(Figure 1)
Connect the audio cables from AUDIO
MONITOR OUTPUT on the TV back panel to TV IN or AUX IN terminals on the back of the audio system. The red cable connects to the R (right) channel, and the white cable connects to the L
(left) channel. Turn off the TV’s speakers through the Audio/Video Menu, page 43. Set the audio system’s input to the TV
or AUX position to hear the TV’s audio through your stereo system.
Figure 1. Connecting the Stereo Audio System
18
18
Additional connection cables are not
provided with the TV. They should be
available at most electronic stores.
A/V Receiver
(Figure 2)
Connect a video cable or S-Video
cable from VIDEO MONITOR OUT on
Connecting an Audio Receiver
the back of the A/V receiver to VIDEO INPUT-1 on the TV back panel.
Connect a video cable from VIDEO
MONITOR OUTPUT on the TV back panel to VIDEO TV IN on the back of the A/V receiver.
Connect a set of audio cables from
AUDIO MONITOR OUTPUT on the TV
back panel to AUDIO TV IN on the back of the A/V receiver. The red cable con­nects to the R (right) channel, and the white cable connects to the L (left) chan­nel.
Figure 2. Connecting the A/V Receiver.
Please see your A/V receiver Owner’s
Guide for more detailed connections.
Part II: Installation
1
2
3
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO­LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
AUDIO OUT
AUDIO IN
VIDEO OUT
(Y/C)
L
R
L
R
1
2
2
1
1
2
TV back panel
Any S-Video Device
White
Red
White
Red
1
2
Y G
Pb
B
Pr
R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO­LEFT/ (MONO)
AUDIRIGHT
AUDIO­LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
VIDEO
S
Y
CB
CR
VIDEO OUT
BITSTREAM/PCM5.1 CH SURROUND 2CH
L
R
CENTER
SUBWOOFERSURROUND FRONT COAXIAL OPTICAL
AUDIO OUT
AC IN
MITSUBISHI
DVD PLAYER
MODEL
DD-5000
POWER SUPPLY 120V~ 60Hz POWER CONSUMPTION 20W
MITSUBISHI DIGITAL ELECTRONICS
DISTRIBUTED BY
9351 JERONIMO ROAD IRVINE, CA 92618
MADE IN JAPAN
AMERICA, INC.
SERIAL NO.
MANUFACTURED
White
Red
White
Red
DVD back panel
2
1
1
3
5
5
4
4
2 3
TV back panel
WARNING:
Do not display the same stationary images on the screen for more that 15% of your total TV viewing in one week. Examples of stationary images are
letterbox top/bottom bars from DVD or other video sources, side bars when showing standard
TV pictures on widescreen TV’s, stock market reports, video game patterns, station logos, web
sites, or stationary computer images. Such patterns can unevenly age the picture tubes causing permanent damage to the TV. Please see pages 23 and 58 for a detailed explanation.
Connecting a DVD Player
DVD Player with Component Video
(Figure 1)
Connect the Component Video cables
from Y/Cr/Cb or Y/Pr/Pb VIDEO OUT on the back of the DVD player to COM-
PONENT-1 or COMPONENT-2 on the
TV back panel, matching the correct
components:
Y to Y
Figure 1. Connecting the DVD player.
See Appendix B, page 61, for component video signal compatibility information.
For digital audio connections, see your DVD and A/V receiver Owner’s Guides.
Cr or Pr to Pr Cb or Pb to Pb
Connect a set of audio cables from
AUDIO OUT on the back of the DVD player to COMPONENT AUDIO Input 1
or 2 on the TV back panel. The red cable 4 connects to the R (right) chan-
nel, and the white cable 5 connects to
the L (left) channel.
Connecting a DVD Player or S-Video Device
Connecting an S-Video Device
S-Video Device
(Figure 2)
Connect an S-Video cable from VIDEO
OUT on the device back panel to VIDEO INPUT-1, INPUT-2, INPUT-3, or STB on
the TV back panel.
Connect a set of audio cables from
Figure 2. Connecting an S-Video Device.
AUDIO OUT on the device back panel
to AUDIO INPUT-1, INPUT-2, INPUT-3, or STB on the TV back panel. The red cable connects to the R (right) chan-
nel and the white cable connects to
the L (left) channel. If your device is mono (non-stereo), connect only the white (left) cable.
19
19
Part II: Installation
1
2
3
4
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
AUDIO­LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
AUDIO AUDIO
VIDEO VIDEO
L
R
L
R
Y
Pr
Pb
S-VIDEO
VCR
CONTROL
DIGITAL
AUDIO OUT
PHONE JACK
RF
REMOTE
SATELLITE IN
IN FROM ANT
OUT TO TV
CH 3 CH 4
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
White
Red
3
3
3
4 4
4
4
3
3
3
TV back panel
Incoming Antenna, or Cable.
2
2
BNC to RCA BNC Adaptor Connector
Adaptor Fitted to Connection
RCA Connector
or
Connecting a DTV Receiver
DTV Connectors and Adaptors
(Figure 1)
The TV back panel has 5 RCA-type connec-
tors, for the DTV connection. The back
panel of your DTV receiver may use RCA­type connectors or BNC-type connectors. If your DTV receiver comes with BNC type
connections, you will need to purchase BNC to RCA adaptors to connect the TV to the DTV receiver. These adaptors should be
available at most electronic supply stores.
DTV Receiver with Component
Figure 1. DTV connectors and adaptors.
Video Connections
(Figure 2)
Connecting a DTV Receiver
20
20
Connect the outside antenna, cable, or
satellite to ANT, or SATELLITE IN on the DTV receiver (see your DTV receiver’s owner’s guide for instructions, and cable compatibility).
Connect the incoming terrestrial antenna,
or cable (not satellite) to ANT-A on the
TV back panel (a coaxial splitter, avail-
able at most electronic supply stores, may be required to complete this instal-
lation). Connect the RCA-type cables from the Y/Pr/Pb outputs on the DTV receiver to
HIGH RESOLUTION INPUT Y/Pr/Pb on
the TV back panel. You may need to set
the DTV input assignment to YPrPb in
the Assign Input menu, page 33. Connect the L (left) and R (right) audio
cables from the DTV receiver to DTV
AUDIO on the TV back panel.
To utilize the bene ts of a digi tal A/V
receiver, connect your DTV receiver’s
digital audio out to a digital input on your
digital A/V receiver.
See Appendix B, page 61, for compo­nent video signal compatibility informa­tion.
For digital audio connections, see your DTV receiver and A/V receiver Owner’s Guides.
Figure 2. Connecting the DTV receiver with component video connections.
Connecting a DTV Receiver
1
2
3
4
5
6
7
8
Y
G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO­LEFT/ (MONO)
AUDIO­RIGHT
AUDIO­LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
AUDIO
L
R
H
V
G
R
B
S-VIDEO
VCR
CONTROL
DIGITAL
AUDIO OUT
PHONE JACK
RF
REMOTE
SATELLITE IN
IN FROM ANT
OUT TO TV
CH 3 CH 4
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
White
Red
4
3
5
6
7
6
7
8 8
8
8
3
4
5
TV back panel
2
Incoming Antenna, or Cable.
2
See Appendix B, page 61, for RGB video signal compatibility information.
For digital audio connections, see your DTV receiver and A/V receiver Owner’s Guides.
Part II: Installation
DTV Receiver with RGB Video Connections
(Figure 1)
Connect the outside antenna, cable, or
satellite to ANT, or SATELLITE IN on the DTV receiver (see your DTV receiver’s
owner’s guide for instructions, and cable compatibility).
Connect the incoming terrestrial antenna,
or cable (not satellite) to ANT-A on the
TV back panel (a coaxial splitter, avail-
able at most electronic supply stores, may be required to complete this instal-
lation).
Connect the RGB cables from the
DTV receiver to the HIGH RESOLU-
TION INPUT GRBHV on the TV back
panel. You may need to set the DTV input assignment to RGB in the Assign Input menu, page 33.
Connecting a DTV Receiver
Figure 1. Connecting the DTV receiver with RGB video connections.
DTV Receiver TV Back Panel
G (green) = Y/G R (red) = Pr/R B (blue) = Pb/B
If the DTV receiver has outputs for H
and V sync, connect as listed below (DO NOT connect if DTV receiver uses
“Sync on Green”):
H (horizontal sync) = H V (vertical sync) = V
Connect the L (left) and R (right) audio
cables from the DTV receiver and to
DTV AUDIO on the TV back panel.
To utilize the bene ts of a digi tal A/V
receiver, connect your DTV receiver’s digital audio out to a digital input on your digital A/V receiver.
21
21
Y G
Pb B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT 480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO­RIGHT
ANT-BLOOP OUTANT-A
TV back panel
A/V Receiver
1
DI GI TA L
SURRO UND
S
CH
Other A/V Device
DI GI TA L
SURRO UND
S
CH
Part II: Installation
1
2
Y G
Pb
B
Pr R
V
H
HIGH RESOLUTION INPUT
INPUT
3 PIP
S-VIDEO
VGA
640X480, 60HZ
COMPONENT
480i/480p
1 (YPrPb)
2 (YPrPb)
DTV (YPrPb/GRBHV)
480i/480p /1080i
VIDEO
MONITOR
IR EMITTER HOME THEATER
21
STB
OUTPUT
AUDIO-
LEFT/
(MONO)
AUDIO- RIGHT
AUDIO-
LEFT/
(MONO)
AUDIO-
RIGHT
ANT-BLOOP OUTANT-A
AUDIO
VGA OUTPUT
L
R
VGA MONITOR
CABLE
VGA MONITOR
CABLE
White
Red
1
2 2
2
2
1
TV back panel
Computer with VGA Monitor Output.
1
2
3
4
Connecting a Computer with a VGA Monitor Output
Connecting a Computer
(Figure 1)
Connect VGA Monitor Out from the com-
puter to VGA on the TV back panel
using a VGA compatible monitor cable.
See Appendix B, page 61, for VGA
signal compatability. Connect the L (left) and R (right)
audio cables from the computer to VGA
AUDIO on the TV back panel. In cases
where your computer’s audio output is a
single mini-RCA jack, a spliter is needed
to complete this connection.
To utilize the bene ts of a digi tal A/V
receiver, connect your computer’s digital
audio out, if available, to a digital input
on your digital A/V receiver.
Figure 1. Connecting a computer with a VGA monitor output.
Connecting the System 4 Home Theater IR Control
(Figure 1)
Connect the IR emitter to IR EMITTER
HOME THEATER on the TV back panel.
Place the IR emitter cable under or
along the side of the A/V device. Place
the IR lens directly in front of the A/V
device’s infrared signal receiver. Infra-
red signal receivers are usually behind
the front translucent panel of the device.
Place unused transmitters in an out-of-
the-way location.
Figure 2. Connecting the System 4 Home Theater IR Control.
Connecting a Computer and the System 4 Home Theater IR Control
For permanent installation of the IR
emitter cable, use the included adhesive
tape to secure the bottom of the emitter
to the anchoring object of your choice.
See page 53 for details on using the
TV’s IR emitter to control a Mitsubishi
A/V receiver.
22
22
Part II: Installation
Warning: Do not leave stationary, toolbar, or partial images on-screen
for extended periods of time. Mix the types of pictures shown. Uneven picture tube aging is NOT covered by your warranty.
The VGA capability of this television is
designed for occasional use ONLY.
It is not meant to be used as a work station or to view static or odd-shaped images for an extended period of time. Any device connected to your television via the VGA port, including, but not limited to, personal computer, game system, or digital set-top box, must have its screen saver function activated to prevent damage to the televi­sion. We DO NOT recommend the use of any external device that does not have a screen saver function with this television.
We recommend that screen saver acti­vation time be set to less than ve
minutes and that when using a device through the VGA port, you use lower brightness and contrast settings. If
your computer programs allow, tool-
bars should be set to hidden mode.
Please remember that most computer pro­grams and video game systems display static images, such as boxes, buttons, tool bars, and games scores that can damage the television if used for extended periods of time, repeatedly, or frequently. The VGA Input will automatically select the “Stan­dard” screen format and ll the screen. No other formats are available with the
VGA Input. Standard television overscan
is used, so VGA images will be cropped on all sides. Resizing of some displays may be required. Consult your owner’s manual for computers, computer programs and game systems for assistance with resizing display images. Please see page 58 for an explaination of uneven picture aging.
IMPORTANT NOTES #1
23
23
e’re proud of the many advances in digital television, in which we
W
broadcasting brings awless pictures and
sound. At its highest performence level,
high denition television (HDTV) delivers
images up to six times more detailed than standard analog television.
have played a major role. Digital
Setup
Programming the Remote Control:
To Control Other A/V Products ....... 26-27
To Activate the System 4 IR Home Therater IR Control
on-screen menu system.....30
Using ...............................30
Menu Screens (Overview)....31-32
Setup Menu..............................33
Memorize Channels..............33
Assign Input..........................33
Language...............................33
Closed Captions Menu ...........34
Channel Menu .........................35
V-Chip Lock.......................36-38
Advanced Menu.......................39
Timer......................................39
Convergence................... 40-41
.............. 28-29
Audio/Video Menu ............ 42-43
Clock Menu........................44-45
A/V Setting Descriptions.. 46-47
25
25
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
1
Code to enter:
To reset to default code, enter 000
Cable box brand
General Instruments Jerrold Oak Pioneer Scientific Atlanta Zenith
111, 119, 120, 121, 122, 123, 124, 125, 126, 127 102, 137, 139 101, 116 111, 112, 113 100, 117
If your cable box code is not listed here, please see page 62 for a complete listing.
Cable Box Codes
3
2
POWER
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
1
2
POWER
Code to enter:
To reset to default code, enter 000
VCR brand
Mitsubishi Hitachi JVC Phillips / Magnivox Panasonic RCA Sony Toshiba
001, 002 020, 043, 065 030, 054, 059 043, 044, 051 041, 042, 043 020, 053, 065 048, 049, 050 021, 066
If your VCR code is not listed here, please see page 62 for a complete listing.
VCR Codes
3
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
1
2
POWER
Code to enter:
To reset to default code, enter 000
Satellite brand
Mitsubishi DTV - DBS Dishnetwork Hughes - DSS RCA - DSS Sony - DSS Toshiba - DSS Panasonic - DSS Primestar
173 175 173 176 177 170 174 178
If your satellite receiver code is not listed here, please see page 62 for a complete listing.
Satellite Receiver Codes
3
Part III: Setup
1
2
3
4
Programming the Remote Control: To Control Other A/V Products
To Program the Remote to Control
Other Brands of Audio and Video Products:
(Figures 1-5)
Move the slide switch at the top of
the remote to the product you want to
control.
Press and hold the POWER button on
the remote control.
Enter the rst thr ee di gi t code li st ed for
your equipment, and then release the
POWER button on the remote control.
Point the remote control at the equip-
ment and press the POWER button.
If the equipment responds, the remote
control is properly programmed to oper-
ate the equipment. If the equipment
does not respond, repeat steps 2-4 with
the next three digit code listed in step 3
for your equipment.
Figure 2. Programming the remote to control your satel­lite receiver.
Figure 1. Programming the remote to control your cable box.
Programming the Remote Control: To Control Other A/V Products
26
26
If you cannot turn the cable box ON by pressing POWER, try pressing CHAN­NEL or the number buttons.
Figure 3. Programming the remote to control your VCR.
When set to TV, the PLAY, STOP, REW/ REV, and FF/FWD buttons will operate the VCR after a VCR code has been properly programmed into the remote control.
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
1
2
POWER
Code to enter:
To reset to default code, enter 000
DVD/LDP brand
Mitsubishi (DVD) Mitsubishi (LDP) Panasonic Pioneer DVD (LDP) Sony Toshiba
003 016, 017 250 252 (016, 017) 254 253
If your DVD code is not listed here, please see page 62 for a complete listing.
DVD/LDP Player Codes
3
1
2
POWER
Code to enter:
To reset to default code, enter 000
Audio brand
Mitsubishi A/V receiver and/or CD player Denon Kenwood JVC Onkyo Pioneer Sony Yamaha
Set M-VR1000 or M-VR800 to 015
Set M-VR900 or M-VR700 to 010
234, 235, 236 200, 208 232, 233 209, 214 205, 207 222 201, 202
If your audio code is not listed here, please see page 62 for a complete listing.
A/V Receiver Codes
3
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
Part III: Setup
Programming the Remote Control: To Control Other A/V Products
After entering the correct codes in each posi-
tion of the remote control, use the slide switch to select which product will respond when an operational button is pressed. If
you enter a code from the AUDIO chart
while the slide switch is set to TV, the
volume and mute functions change to match
the A/V receiver. This is useful when using an A/V receiver with the TV all the time. In all other cases, only one of the below devices is allowed for each slide switch posi­tion.
Figure 4. Programming the remote to control your DVD/ LDP.
TV position:
TV A/V receiver (volume and mute only)
Programming the Remote Control: To Control Other A/V Products
Figure 5. Programming the remote to control your A/V receiver.
Cable/DBS/DTV position:
Cable box Satellite receiver DTV receiver
VCR position:
VCR
DVD position:
DVD LD Player
Audio position:
A/V receiver Mitsubishi CD player [If you have a Mitsubishi A/V
receiver, the audio position may be used in conjunction with
select Mitsubishi CD players. Your audio position must be
programmed to either 010 or 011. Plug the CD player power
cord into a switched outlet on the back of your A/V receiver.
Pressing the POWER button will then turn on your A/V receiver, in turn, turning on your CD player. On select CD players, the transport controls (FF, Play, Rew, etc.) in the audio position will
operate the CD player.]
If the slide switch is set to TV when
you enter an A/V receiver code, VOLUME
and MUTE will control the A/V receiver rather than the TV. To return volume and mute control to the TV, set the slide switch to TV, press and hold POWER and enter 000.
Some manufacturers may change their
products, or they may use more than one remote control system. If this is the case, your remote control may not be able to operate your VCR, DVD, cable box, satellite receiver, or A/V receiver.
27
27
Name Input
Cannot be named CABLE DBS Cannot be named VCR DVD
Device You Are Using
Cable Box connected to ANT-A or ANT-B Cable Box connected to STB Satellite Receiver connected to any input Digital TV/Satellite Receiver connected to DTV VCR connected to input 1, 2, 3, or 4 DVD connected to any input but DTV
Name TV Input as Shown Below
(see pg 33 for naming help)
3
2
AUDIO
1
HOME
THEATER
Part III: Setup
AUDIO
VIDEO
1
2
3
1
2
Programming the Remote Control:
To Activate the System 4 Home Theater IR Control
Activation of the System 4 Home
Theater IR Control
For select brands of digital A/V receiver’s, you can set up the remote control to auto-
matically select the correct audio input when you press the HOME THEATER button. At the same time, the TV will select the correct video input. This allows you to watch your
best type of video (Component, S-Video) with your best type of audio (Dolby Digital, Pro Logic, etc.) conveniently. See System
4 Home Theater IR Control, page 22, for
connection instructions. Once properly activated, when the HOME
THEATER button is pressed, System 4 Oper-
ates In 2 Parts:
Changes a compatible digital A/V
receiver to the correct input for the device you wish to operate.
Changes the TV to the correct input
for the device you wish to operate.
Both functions can operate simultaneously with one touch of the HOME THEATER
button. However, you may activate only one
if you desire (video to control the TV or
audio to control the A/V Receiver). The remote control must be programmed to the
appropriate A/V Receiver code prior to the
activation of the audio portion (see To Pro-
gram the Remote to Control Other Brands of
Activate the System 4 Home Theater IR Control
Audio and Video Products, page 26).
To Activate the Audio Portion:
(Figure 1)
Press and hold the HOME THEATER
button.
Press and release the AUDIO button.
Name the TV input as instructed.
Figure 1. Activating the audio portion of System 4 for the CABLE/DBS/DTV layer.
To Activate the Video Portion:
Press and hold the HOME THEATER
button.
Press and release the VIDEO button.
28
28
Programming the Remote Control:
1
2
3
AUDIO
1
2
3
AUDIO
1
VIDEO
1
1
2
To Activate the System 4 Home Theater IR Control
Part III: Setup
Testing System 4 for Proper Setup
Move the slide switch to the position you
wish to test.
Point the remote at the TV.
Press and release the HOME THEATER
button. If the audio portion has been properly setup, your A/V receiver will have changed to the appropriate input as indicated in table 1, page 15. If the
video connection of your System 4 has
been properly setup, your TV will have changed to the appropriate input.
If the A/V Receiver did not change
inputs...
Repeat Special Setups, page 15, and retest. Reposition IR emitter(s) and retest Repeat To Activate the Audio Portion, page 28,
and retest.
If your A/V receiver is still not responding
to the commands from your remote control, you may have an incompatible A/V receiver. Proceed to Deactivating the System 4 Home
Theater IR Control, on this page.
If the TV did not change inputs...
Repeat To Activate the Video Portion, page 28,
and retest.
Deactivating the System 4 Home
Theater IR Control
Simultaneously press the CANCEL
button and the HOME THEATER button.
Repeat To Activate the Video Portion,
page 28.
Activating the System 4 Home Theater IR Control
System 4 is designed for use with A/V receiv-
ers that have at least 4 inputs. A/V receivers
with fewer may be only partially compatible.
If the A/V Receiver changed to an input other than the one indicated in table 1, page 15...
Connect the audio output from your A/V
device to the A/V receiver input that your A/V receiver DID change to, and retest.
29
29
POWER
INFO
PAUSE
REC
FF/FWDREW/REV PLAY
STOP
3
6
9
QV
VOLUME
GUIDE
EXCH
ENTER
CANCEL
MENU
V-CHIP
FORMAT
PIP CH
1
7
SQV
4
INPUT
SLEEP
VIDEO
AUDIO
MUTE
2
5
8
0
CHANNEL
ADJUST
PIP INPUT
PIP/POP
HOME
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
HOME
THEATER
2
346
1
5
Part III: Setup
1
2
3
4
5
6
The 3D Graphical Menu System
Your TV has Mitsubishi’s exclusive 3D Graph-
ical on-screen operating system,
which provides on-screen information for
menu choices and changes
(Figure 1).
A picture (icon) will be highlighted
when selected with the ADJUST arrows. When selected, the appro­priate menu will appear. You may then make changes within the menu or access sub-menus, if available.
A button indicates that you will access a sub-menu or start an automatic function by
making this selection.
Figure 1. Main Menu: The Main Menu screen will always be the rst screen t hat appear s when you pr ess t he MENU button.
The system includes the following
special features:
Menu System
The following buttons on your remote control
The
will help you to navigate within the system (Figure 2):
The currently selected icon or button is high-
lighted with a yellow outline and the text color will be yellow.
On-screen instructions provide complete menu
choice information.
Some on-screen menu options must be set
before other options are available. For exam­ple, “Set the Timer” will only be possible if
“Clock Time” and “Set Day” have been set.
ADJUST to select the menu item you want
to change. ADJUST or to change the settings. ENTER to enter into a menu, start an auto-
matic function, or select a checkbox. CANCEL to clear a setting, or stop an auto-
matic function. MENU to move back one menu screen at a
time. HOME to exit all menus and return to TV
viewing.
Figure 2. These buttons are used for navigation within the on-screen operating system.
30
30
Menu Screens (Overview)
Figure 1. Setup menu
Part III: Setup
Setup Menu
(Figure 1)
You can put channels in memory, turn on or
off input connections of the TV, and select the menu system to display in English or Español (Spanish).
Figure 2. Captions menu
Menu Screens (Overview)
Captions Menu
(Figure 2)
Display captions or text, and choose black or gray as the background color for the closed caption area.
Channel Menu
(Figure 3)
Figure 3. Channel menu
Use to customize the channel information for
Ant-A and Ant-B. Manually add or delete
channels from memory, name channels for
Ant-A and Ant-B, or add your favorite chan-
nels to a SQV (Super Quick View™) list.
31
31
Part III: Setup
Menu Screens (Overview)
V-Chip Lock Menu
(Figure 1)
Block or allow programing based upon
rating signals sent by the broadcast station,
or by time.
Advanced Menu
(Figure 2)
Set your TV to turn on automatically, con­verge (align) the three main colors, display
a blue screen when viewing an input with no signal, enhance the darker parts of bright pictures, and change the line doubling method.
Audio/Video Menu
(Figure 3)
A/V Reset on the menu allows you to return the A/V settings for the current input to the factory presets. A/V Reset on the front
panel resets all inputs at one time. You can also adjust some or all of the A/V set-
tings, (each input can be set to your prefer-
ences), turn the TV speakers on or off, and
Menu Screens (Overview)
choose how you want to control the TVs audio output.
Figure 1. V-Chip Lock menu
Figure 2. Advanced menu
Figure 3. Audio/Video menu
32
32
Clock Menu
(Figure 4)
Manually set the time for the TV, or select Auto and the TV will automaticaly set the time based upon Extended Data Service (XDS) time data. This time data is usually
broadcast by your local PBS station.
Figure 4. Clock menu
Part III: Setup
Setup Menu: Memorize Channels, Assign Input, and Language
Memorize Channels
(Figure 1)
This selection memorizes the channels your TV can receive and skips the unused or
weak channels. You can stop memorization at any time by pressing CANCEL. Channels memorized prior to pressing CANCEL will stay in memory. After channels are memo-
Figure 1. Memorize Channels
rized, you may select memorized channels in ascending or descending order by press­ing the CHANNEL button on the remote con­trol.
DTV Note: If you have a DTV receiver connected, you will need to use that receiver’s channel memorization system to memorize digital channels.
Memorize Channels, Assign Input, and Language
Figure 2. Assign Input menu
Figure 3. Language
Assign Input Menu
(Figure 2)
Assign Input turns off unused inputs, turns
them on again, or changes the name of the input. If you turn an input Off, it will be skipped when you press the INPUT button on the remote control. Your choices are:
Ant-A, and Ant-B: On or Off. DTV: YPrPb, RGB, or Off. Input: Cycle through the available inputs
(Inputs 1-4, Component inputs 1-2, STB, and VGA).
Status: Turn the selected input On or Off. Name: Name the selected input
(VGA input cannot be named).
Language
(Figure 3)
Display the on-screen menus in either
English or Spanish (Español). The rst
time your TV was powered on, you were requested to select an on-screen menu lan­guage. You may change your selection by pressing the ADJUST or button on the remote control.
33
33
Part III: Setup
Captions Menu: Closed Captions
Captions Menu
(Figure 1)
Broadcasters can send either Standard or
Text closed captioning. Standard closed
captioning follows the dialogue of the char-
acters on-screen and displays in a small sec­tion of the screen. Text closed captioning
often contains information such as weather
or news and covers a large portion of the
on-screen program. Your TV can decode four different standard and four different text
closed captioning signals from each TV sta­tion. However, each TV station may broad-
cast only one or two closed captioning
signals, or none at all.
Figure 1. Captions menu
Within the Captions menu, you can turn on
or off the closed caption decoder, select the type of captions or text, and choose black or translucent gray as the background color for the closed caption area.
Closed Captions
(Figure 1)
The TV can display one of the following:
CC1, CC2, CC3, or CC4: Standard
Closed Captions
closed captioning signals.
Text1, Text2, Text3, or Text4: Text closed
captioning signals.
On if mute: Closed captions when mute.
When selected, the standard closed cap­tioning signal (CC1) will turn on/off by press­ing the MUTE button on the TV remote control.
Off: No closed captions.
When Text closed captioning is selected,
a large black or gray box will appear on
your TV screen if no signal is broadcast.
The content of captions is determined by the broadcaster. If your captions show strange characters, misspellings, or odd grammar, it is not a malfunction of the
TV.
34
34
CC Background
(Figure 1)
To make the closed captions easier to read,
you can choose to display the background
color as either black or translucent gray.
Part III: Setup
1
2
3
1
2
1
2
3
Channel Menu: Antenna, Channel, Memory, Name, and SQV™
SQV (Super Quick View™)
Using The Menu Screen
(Figure 1)
SQV (Super Quick View™) allows you to put together a list of your favorite channels from Ant-A and Ant-B. You can store up to 6 channels in each of the 9 different memory banks. Once you have added a channel to the SQV memory, “SQV”
Figure 1. Channel menu
Antenna
(Figure 1)
Select Ant-A, or Ant-B. For each antenna,
you can add or delete channels in memory,
name channels, and add channels to the SQV (Super Quick View™) list.
Channel
(Figure 1)
will appear under the channel number on the TV screen.
SQV (Super Quick View™)
Using The Remote Control
Viewing and changing SQV banks using the
remote control:
Press the SQV button. To change memory banks, press a
number button within 5 seconds of pressing the SQV button.
Press the SQV button repeatedly to
cycle through the channels available in that bank.
Antenna, Channel, Memory, Name, and SQV™
Select the channel you want to add or delete from memory, name, or add to the SQV Super Quick View™ list.
Memory
(Figure 1)
After all available channels have been mem-
orized with Memorize Channels, page 33, weaker channels viewed with Ant-A or Ant-B can be added and unwanted channels can be deleted. Use the CHANNEL button on the remote control to view memorized channels.
Name
(Figure 1)
Channels shown on Ant-A or Ant-B can be given names (up to four characters). After
you enter a name, it will appear on the TV
screen, next to the channel number.
Adding SQV channels using the remote con-
trol:
Use the CHANNEL or number buttons
to select the channel you want to add to the current SQV memory bank.
Press and hold the SQV button for
about 3 seconds. When “SQV” and the memory bank number appear under the
channel number, the channel has suc­cessfully been added.
Removing SQV channels using the remote control:
Press the SQV button repeatedly until
you see the desired channel.
While the channel number and SQV indi-
cator are still displayed on the screen, press the CANCEL button. If the CANCEL button is not pressed before
the SQV indicator disappears, the chan­nel will not be removed.
When the SQV indicator disappears, the
channel has successfully been removed.
35
35
Part III: Setup
V-Chip Menu: V-Chip Lock
V-Chip Lock
(Figure 1)
The V-Chip Lock allows you to Block or
Allow programs based upon rating signals
sent by the broadcasting station. The TV comes from the factory with the V-Chip lock in the Off setting. You can turn the lock
On within the V-Chip Menu. The factory
preset is TV-PG, allowing only programs rated TV-PG or lower. You can change the blocking level to various TV or movie rat-
ings, lettered categories, and by time. After
changing channels or inputs, there may be
up to a 5 second delay before the V-Chip
lock takes effect. The V-CHIP button on the remote control enables you to conveniently turn the lock on or off.
Figure 1. V-Chip Lock menu
Entry to the V-Chip Lock
(Figures 2 & 3)
The rst time you sel ect V- Chi p Lock f rom
the MAIN menu, or after you have canceled your passcode you will see the screen
shown in gur e 2. Us e t he numb er but tons
V-Chip Lock
on the remote control to input a four-digit
passcode, then press ENTER. You can
delete a character and move back one
space by pressing CANCEL. You can exit without inputting a passcode by pressing
MENU or HOME. The next time you select
V-Chip Lock from the MAIN menu, you will
see a menu screen similar to the one in gur e 3.
Figure 2. V-Chip Lock passcode screen ( rst -time ent ry)
36
36
If you forget your four-digit passcode,
see Appendix A, page 59.
Figure 3. V-Chip Lock passcode screen (re-entry)
V-Chip Menu: V-ChipLock
Ant-A 002 KCBS 480i Standard Stereo SAP TV-PG DLSV SQV1
seirogetaCVT
VF D L S
V
snoitpircseDdna
margorP
detaRtoN
ysatnaF
ecneloiV
lauxeS
golaiD
tludA
egaugnaL
lauxeS
snoitautiS
ecneloiV
sgnitaRVT
Y-VT 7Y-VT G-VT GP-VT
41-VT
AM-VT
snoitpircseDdna
htuoY
htuoY
sraeY+7
lareneG
ecneiduA
latneraP ecnediuG
sraeY+41
erutaM
ecneiduA
sgnitaReivoM
FFO G GP 31-GP R
71-CN
X
snoitpircseDdna
sipihC-V
ffo
lareneG
ecneiduA
latneraP ecnadiuG
sraeY+31 detcirtseR sraeY+81 tludA
Figure 1. V-Chip signal information.
If no V-Chip rating and/or category
signal is sent from the broadcaster, no
rating information will be displayed, and the V-Chip Lock will not be able to block the program or movie.
Part III: Setup
V-Chip Signal Information
(Figure 1)
When provided by the broadcaster, V-Chip signal information can be displayed by press­ing the INFO button on the remote control. Rating guidelines are provided by broadcast stations. TV programs and made-for-TV movies can be blocked by the TV Rating and/or Categories signal. Made-for-theater and direct-to-video movies can be blocked by the Movie Rating signal.
Table 1. V-Chip rating information that may be included with TV programs and made-for-TV movies. If you set the
lock to TV-G; TV-Y, TV-Y7, and TV-G will be available, and TV-PG, TV-14, and TV-MA will be blocked.
Table 2. V-Chip category information that may be included with TV programs and made-for-TV movies. If you set the
category L to be blocked; all programing caring the L signal will be blocked (regardless of it’s TV rating).
Table 3. V-Chip rating information that may be included with made-for-theater and direct-to-video movies. If you set
the lock for PG-13; G, PG, and PG-13 will be available, and R, NC-17, and X will be blocked.
Video tapes, laser discs, and DVD’s may
not contain the special V-Chip rating sig-
nals. If this occurs, the V-Chip Lock will not be able to block the program or
movie.
“Programs Not Rated” is a V-Chip catagory that applies to broadcasted pro­gramming such as news, weather, or emergency programs. Please use care when blocking this category.
V-ChipLock
37
37
Part III: Setup
Channel 002 is locked.
V-Chip locked the program because the rating is TV-PG DLSV To watch the program, enter your passcode
- - - -
Use the NUMBER buttons,
then press ENTER
V-Chip Menu: V-Chip Lock Hours/Time
V-Chip Lock Hours/Time
(Figure 1)
V-CHIP HOURS/LOCK BY TIME will allow
you to activate the V-Chip or lock the entire
TV during speci c hour s.
V-Chip Start Time and V-Chip Stop
Time
(Figure 1)
Select the times you would like the V-Chip to
be Active. By setting the V-Chip Start Time and V-Chip Stop Time to the same time, the
V-Chip will be active 24 hours a day.
Press or to slowly adjust the time. Press and hold or to quickly adjust the
time.
Figure 1. V-Chip Hours/Lock by Time menu
V-Chip Lock Hours/Time
38
38
Lock by Time, Lock Time, and Unlock Time
(Figure 1)
Lock by Time locks the entire TV based upon the Lock Time and Unlock Time. You
must input your 4-digit passcode to use the TV when it is locked. By setting the Lock Time and Unlock Time to the same time, the
Lock by Time will be active 24 hours a day.
Passcode Screen
(Figure 2)
To view a V-Chip blocked program or to
watch the TV during a scheduled lock time, you must enter your 4-digit passcode. The
V-Chip block and Lock by Time will remain
disabled until the TV is powered off and then
on again.
Figure 2. Passcode Screen
Advanced Menu: Timer
Figure 1. Timer selection in the Advanced menu
Part III: Setup
Timer
(Figure 1)
The timer will automatically turn the TV on
(if it is off) at the time you schedule and
select.
The TV’s clock must be set before you can set the timer. If you have not set the clock and/or day, you will see the CLOCK menu instead of the Timer menu.
Figure 2. Timer menu
Timer Menu
(Figure 2)
The timer can be turned On or Off. When
On, you need to select the time to turn on, the day to turn on, and the channel to dis­play. At your preselected time, the timer will turn the TV on, and a message will be displayed, “Press a key for the TV to stay on”. Any button on the remote control must be pressed within 5 minutes, or the TV will turn itself off.
Set Time
Select the hour and minute, including AM or
PM, when the TV is to turn on. Press or to slowly adjust the time.
Press and hold or to quickly adjust the time.
Timer
Set Day
Select the days that the TV will turn on auto­matically. You can select Everyday, Mon-Fri
(Monday through Friday), or the individual
days of the week.
Input
Select the input to use when the timer turns on the TV. If the TV is already on, the timer will turn the TV to this selected input.
Channel
When Ant-A or Ant-B is the selected input, you may select any memorized channel.
The TV will tune to this channel when the
timer turns it on.
39
39
Part III: Setup
Red
Press ADJUST to converge the lines Press VIDEO to switch to Blue Press MENU to go back Press CANCEL to delete changes Press AUDIO Advanced Convergence
Advanced Menu: Convergence
Convergence
(Figure 1)
Your Mitsubishi TV has three picture tubes
which are aligned to properly converge the
projected light beams on the screen. Each
picture tube projects a single color of red,
blue or green. During production, your TV was carefully adjusted to properly align
these colors. As a special feature, you have the ability to adjust the red and blue light
beams in reference to the xed gr een l ight
beam. This process is called convergence.
Convergence Menu
(Figure 2)
Figure 1. Convergence selection in the Advanced menu
Convergence
40
40
Convergence aligns the entire screen at
once. Select either Red Convergence or
Blue Convergence to begin alignment. To
align 64 individual points, see Advanced
Convergence, page 41.
Reset Factory Defaults
(Figure 2)
This allows you to reset the convergence to
the factory settings. The message “Conver-
gence completed” will be displayed when
the factory defaults have been restored.
Convergence Screen
(Figure 3)
When the Red and Blue crosshairs are prop-
erly converged, the center-screen crosshairs
will appear white. You can use , , ,
or to move the Red and Blue crosshairs.
Press VIDEO to switch between Red and Blue. Press AUDIO for the Advanced Con­vergence screen, and see Advanced Conver- gence, page 41, for instructions.
Figure 2. Convergence menu
Figure 3. Convergence screen
Part III: Setup
Press INFO for help
Advanced Menu: Advanced Convergence, Video Display, and
Video Mute
Advanced Convergence
(Figure 1)
After adjusting the Red Convergence and
Blue Convergence, you can ne- tune your
TV by adjusting the Red and Blue conver-
gence at 64 individual points. Move the ashi ng br acket to a posi tion needi ng adj ust ­ment by pressing , , , or . Press
Figure 1. Advanced Convergence screen
There are more than 64 line intersections,
but the ashi ng bracket wi ll onl y stop at the 64 adjustment points.
ENTER to select the position ( ashi ng wi ll
stop). Move the Red or Blue line by press­ing , , , or . Press VIDEO to switch between the Red and Blue lines. A position is properly converged when all three lines combine to appear white. Press
ENTER to deselect the position ( ashi ng wi ll
resume), and move the brackets to the next position needing adjustment. When com­pleted, press MENU to save your changes, and exit the Advanced Convergence screen.
Advanced Convergence, Video Display, and Video Mute
Figure 2. Advanced menu
Video Mute
(Figure 2)
Video Mute lets you display a blue or
gray background when no signal is being received on inputs 1-4, and STB.
Black Enhancement
(Figure 2)
The contrast in dark scenes is enhanced for
better picture quality. Brighter scenes will not be affected.
Video Display
(Figure 2)
Your Mitsubishi TV will double the lines of
a standard 480i (interlaced) picture to pro­duce a smoother, more lm l ike i ma ge. You have two choices for your selection; 480p or 960i. The 480p display may be more stable
(although may still show some line structure).
The 960i display may hide the line structure
(although picture movement may be visible
in still images).
41
41
Part III: Setup
1
2
POWER
3
6
9
QV
VOLUME
EXCH
ENTER
CANCEL
MENU
1
7
SQV
4
INPUT
SLEEP
VIDEO
AUDIO
MUTE
2
5
8
0
CHANNEL
ADJUST
HOME
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
HOME
THEATER
1
2
Audio/Video Menu: AV Memory Reset, and Audio/Video Settings
AUDIO/VIDEO SETTINGS menu
(Figure 1)
Each of the 11 inputs has its own A/V
memory. You can adjust each input’s A/V
memory in two ways. You can use the
menu, or the remote control.
A/V Memory Reset
A/V Memory Reset will return the currently
selected input’s A/V memory to the factory
settings. To reset an input’s A/V memory,
move to A/V Memory Reset, select the input
you want to reset, and press ENTER.
Figure 1. Audio/Video menu
AUDIO SETTINGS and VIDEO SETTINGS
After selecting AUDIO SETTINGS or VIDEO SETTINGS, you can adjust the settings by
pressing , , , or . For descriptions of
the individual A/V settings see A/V Setting
Descriptions, pages 46-47.
Using the AUDIO and VIDEO Buttons
on the Remote Control
(Figure 2)
Press AUDIO or VIDEO to cycle through
AV Memory Reset, and Audio/Video Settings
Press or to adjust the setting. After 5
the available settings.
seconds of inactivity, the setting display will disappear.
42
42
Figure 2. The AUDIO, VIDEO, and ADJUST buttons.
Audio/Video Menu: TV Speakers, and Audio Output
TV Speakers
(Figure 1)
This selection will turn on or off the TV’s internal speakers. You may select
Off when sending the sound through a sepa­rate stereo system or surround sound A/V receiver.
Figure 1. Audio/Video menu
To prevent damage from a sudden
increase in volume, make sure the TV
volume is low before choosing ON.
Part III: Setup
TV Speakers, and Audio Output
Audio Output
(Figure 1)
Select Fixed if your audio receiver or stereo system can be controlled with a remote.
This allows you to adjust the volume with the
system’s remote control or the TV remote control, if compatible. This setting is better for surround sound receivers. Select Vari­able if your audio receiver or stereo system cannot be controlled with a remote. This allows the TV’s internal circuitry to adjust the
volume.
43
43
Part III: Setup
Clock Menu: Clock Setting (Manual)
Clock Setting (Manual)
(Figure 1)
For the manual clock setting, select the cur-
rent time, including AM or PM.
Press or to slowly adjust the time. Press and hold or to quickly adjust the
time.
Set Day
(Figure 1)
Figure 1. Clock menu (Manual)
When Manual has been selected for the
Clock Setting, you need to select the current
day of the week.
Clock Setting (Manual)
44
44
Clock Menu: Clock Setting (Auto)
Clock Setting (Auto)
(Figure 1)
Setting the Clock Setting to Auto will automatically set the day and time using Extended Data Service (XDS) time data.
This data is automatically retrieved from a
PBS channel or other channel carrying this service.
Figure 1. Clock menu (Auto)
Time Zone
(Figure 1)
Part III: Setup
When Auto has been selected for the Clock
Setting, you need to select the correct time
zone (Atlantic, Eastern, Central, Mountain,
Paci c, Al aska, or Hawai i) for your ar ea.
Daylight Savings Time
(Figure 1)
When Auto has been selected for the Clock
Setting, you need to select the Daylight Sav­ings Time (DST) option that your state uses
(Applies = uses DST, or Ignore = does not
use DST).
Clock Setting (Auto)
The clock time and day will be set auto-
matically after tuning to a channel carrying the Extended Data Service (XDS) time data
(usually your local PBS channel).
45
45
Part III: Setup
A/V Setting Descriptions: Audio
Audio Settings
Bass enhances or reduces low fre-
quency sound.
Treble enhances or reduces high fre-
quency sound.
Balance adjusts the level of sound
between the left and right speakers.
Surround creates simulated stereo and
surround effects. Your choices are:
Off: No surround effects. Use this setting when using an A/V receiver with Dolby™ Pro Logic Surround, or Dolby™ Digital Surround.
Simulated Stereo: Your TV will create a simulated stereo effect when watching a non­stereo program.
Surround Sound: Your TV will create a simulated surround effect when watching a stereo program.
Listen to (for Ant-A and Ant-B) deter-
mines how your TV will receive a broad­cast audio signal and play back the sound you hear. Your choices are:
Mono: Reduces background noise, and should be used when receiving a weak stereo audio signal. All audio will be played mono with this setting.
Listen to (for INPUTs) is not available. Level Sound automatically equalizes
the volume level of programs containing signi cant level differ ences from on e segment to another (for example, regu­lar Programming to commercials). To receive the best del ity wi th musi c pro­grams, you can turn this setting to Off.
A/V Setting Descriptions: Audio
46
46
Stereo: Default setting. The TV will play stereo broadcasts in stereo and mono broad­casts in mono. The word “Stereo” will be displayed when you tune to a channel broad­casting stereo.
SAP (Second Audio Program): Additional monaural soundtrack that you cannot hear during normal TV viewing. The SAP signal might be related to the program you are watching, such as a soundtrack in a foreign language, or unrelated to the program you are watching, such as a weather report. If a SAP signal is broadcast, the letters “SAP” will be displayed when you tune to the chan­nel.
A/V Setting Descriptions: Video
Video Settings
Part III: Setup
IRIS™ is the Intelligent Room Illumi-
nation (light) Sensor. When IRIS™ is on, your TV will automatically adjust pic­ture contrast and brightness for best quality (Contrast and Brightness cannot be adjusted manually).
Contrast provides a slider to adjust
the white-to-black level. Low contrast
shows a variety of shades in darker
images, while high contrast shows darker images more uniformly black and makes colors appear more vibrant.
Brightness provides a slider to adjust
the overall brightness of the picture.
Sharpness provides a slider to adjust
the detail and clarity.
Color provides a slider to adjust the
color intensity.
Tint provides a slider to adjust the pro-
portion of red to green.
Color Temp (Color Temperature) allows
you to adjust how white images are dis-
played. Your choices are:
Video Noise reduces minor noise (grain-
iness) in the broadcast or input signal.
Image Type maximizes the original
camera media: Video or Film. Video media uses a video camera and is cre­ated at 30 frames per second. Film media uses a lm c ame r a and i s creat ed at 24 frames per second. Examples of Video media are live TV broadcast such as news, special events, or video taped programs. Examples of lm me di a ar e motion pictures, made-for-TV movies, and many prime time programs. Filmed media is converted by the broadcaster
or home video company to 30 frames per second to match TV or video stan-
dards. This conversion can leave subtle
“picture artifacts” or conversion errors.
Setting the Image Type to Film can
reduce the picture artifacts and improve
the picture quality, when viewing a 480i image.
A/V Setting Descriptions: Video
Low 6500K or Low (for DTV): White images will have a warm cast to them. This adjust­ment is an average and can vary due to ambient room lighting, video scene bright­ness and the TV’s age. The Low 6500K represents the 6500K industry standard for NTSC (non-DTV) pictures.
Medium: White images will be balanced
between the Low (warm) and High (cool)
settings.
High: White images will have a cool cast to them. This setting may provide the most realistic picture under bright lighting.
47
47
ver wish you were actually part of
the movie or sitting in a eld-level
E
game? The Mitsubishi total home theater system is the next best thing to being there.
A home theater immerses you in both video
and audio to a point of surrealism. The
core of the home theater system is your bigscreen television, the biggest one your room can accommodate.
box at the 50-yard line, watching the
Operation
Remote Control Functions...... 50-57
Overview.....................................50
Care and Operation ...................51
Channel Selection.......................52
Sleep Timer ................................52
System 4 Home Theater
IR Control ...................................53
Special Functions......................54
Operation of PIP and POP...54-55
Display Formats................... 56-57
IMPORTANT NOTES #2.................58
49
49
Part IV: Operation
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Remote Control Functions: Overview
Overview
(Following page, gur e 1)
Overview
Slide Switch: Select A/V product to be
controlled by the remote control.
Numbers: Individually select channels or
input information into TV.
POWER: Turns power on and off for TV
and other A/V products.
SQV (Super Quick View™): Scan
through a memorized list of favorite channels.
QV (Quick View™): Switch to last chan-
nel viewed.
HOME THEATER: Enables the Home
Theater IR System. Once enabled, a
press of this key, when in the VCR, DVD, or Cable/DTV/DBS layer, will properly switch the inputs of the AV receiver and the TV so the audio and video automati­caly coincide.
SLEEP: Set the TV to turn off within 2
hours. See Sleep Timer, page 52, for
setup instructions. VIDEO: Select the video settings. AUDIO: Select the audio settings.
MUTE: Turn sound on or off.
INPUT: Select the signal to view
(Ant-A, Ant-B, DTV, Input-1, Input-2,
Input-3, Input-4, Component-1, Compo-
nent-2, VGA, or STB). CHANNEL: Scroll up or down through
memorized channels. VOLUME: Change sound level.
ENTER/EXCH: Select a channel number
or menu item. Exchange PIP or POP
and main TV picture.
HOME: Exit on-screen menus and return
to TV viewing. ADJUST: Navigate menus, change set-
tings, and move the PIP on-screen loca-
tion.
CANCEL: Clear SQV and some menu
entries.
MENU: Display 3D Graphical
on-screen menu system.
INFO: Display on-screen summary of
the current input used and any broad­cast information available (including cur­rent V-Chip information).
GUIDE: When the slide switch is
set to CABLE/DBS/DTV, display the on-screen program guide (some cable boxes and DBS/DTV receivers).
V-CHIP: Enable/Disable the V-Chip
Lock.
FORMAT: Change the shape and size of
the main TV picture.
PIP INPUT: Select the PIP or POP input
source.
PIP/POP: Cycle through PIP and POP
display choices.
PIP CH: Scroll up or down through
memorized channels in PIP or POP.
REC: Manually record with your VCR.
STOP: Stop your VCR, DVD, or CD. PAUSE: Pause your VCR, DVD, CD, or
freeze the PIP or POP image.
REW/REV: Rewind or reverse search
with your VCR, reverse scan with your
DVD, or skip reverse with your CD. PLAY: Play your VCR, DVD, or CD. FF/FWD: Fast forward or forward search
with your VCR, fast play with your DVD,
or skip forward with your CD.
50
50
1
2
size AAA
batteries
1
2
Remote Control Functions: Care and Operation
POWER
INFO
PAUSE
REC
FF/FWDREW/REV PLAY
STOP
3
6
9
QV
VOLUME
GUIDE
EXCH
ENTER
CANCEL
MENU
V-CHIP
FORMAT
PIP CH
1
7
SQV
4
INPUT
SLEEP
VIDEO
AUDIO
MUTE
2
5
8
0
CHANNEL
ADJUST
PIP INPUT
PIP/POP
HOME
TV
AUDIO
CABLE/DBS/DTV DVD
VCR
HOME
THEATER
123
4
5
7
8
9
282930311011121314151617181920212223242526
27
6
Operation
Installing the Batteries:
(Figure 2)
Remove the remote control’s back cover
by gently pressing the ridged tab in the
direction of the arrow and sliding off the cover.
Load the batteries, making sure the
polarities (+) and (-) are correct.
For Best Results from the Remote Con­trol:
Be within 20 feet of the equipment.
Do not press two or more buttons at the
same time unless instructed to.
Do not allow to get wet or become
heated. Avoid dropping on hard surfaces. Do not use harsh chemicals to clean.
Use only a soft, lightly moistened cloth.
Part IV: Operation
Care and Operation
Figure 1. The remote control functions.
Figure 2. Installing the batteries.
The remote control may return to its
initial setting when the batteries are changed. You may need to reprogram.
Do not mix new and old batteries. Do not heat, take apart, or throw batter-
ies into re. Use only AAA batteries.
Operating the Remote Control:
You can use the remote to control the TV,
CABLE/DBS/DTV, VCR, DVD, and AUDIO products. Select the product you want to control by moving the slide switch (1 of gur e 1) to the appr opr iat e posi tion. The remote control has been preset to operate the TV and other Mitsubishi products. To program the remote control to operate other products, see Use of the Remote Control
with Other A/V Products, pages 26-27.
51
51
Part IV: Operation
Remote Control Functions: Channel Selection and Sleep Timer
Channel Selection
For Non-DTV Channels:
Enter three numbers (for channel 2,
press 002).
or
Press the channel number and ENTER
(for channel 2, press 2, then ENTER).
or
Enter the channel number and wait four
seconds. The TV will change automati­cally.
Sleep Timer
Setting the Sleep Timer:
Press SLEEP on the remote control. A message indicating the length of time
the sleep timer is to be set for is dis­played on the TV screen.
Each press of SLEEP will increase
the time displayed by 30 minutes, until the maximum value of 120 minutes is reached.
After 5 seconds of inactivity, the mes-
sage will disappear.
Press SLEEP to view the remaining time
before the timer turns the TV off.
Canceling the Sleep Timer:
Press SLEEP to display the on-screen
message.
Press SLEEP repeatedly until OFF is
displayed.
After 5 seconds of inactivity, the mes-
sage box will disappear.
Channel Selection and Sleep Timer
52
52
Remote Control Functions: System 4 Home Theater IR Control
The Mitsubishi System 4 Home Theater IR
Control is a special feature that makes it easier to use your TV with a digital surround sound A/V receiver. Once your equipment is properly connected and set up, your TV
and digital A/V receiver will change inputs together, to match high resolution pictures with the proper surround sound.
When you change inputs on your TV to watch different video products, your TV will
send signals via your remote control and the
infrared emitters to your digital A/V receiver
to change inputs. You will automatically hear the high quality digital surround sound from digital products like your DTV receiver and DVD player, and high quality analog stereo or surround sound from non-digital products like your VCR.
Additionally, all IR remote signals from your Mitsubishi remote or other manufacturers remote will be passed through your TV to your A/V devices. Your A/V devices can be hidden or behind cabinet doors and con­trolled by pointing the remote at the TV.
Part IV: Operation
1
2
3
4
5
Remote Control Functions: System 4 Home Theater IR Control
Requirements for Operation
A/V devices connected as described on page 15.
Cable Box connected as on page 16 or Cable Box with an S-Video output conneced as
on page 19, Connecting an S-Video Device.
TV connected to A/V receiver (TV Monitor Audio Out To A/V Receiver TV Input).
TV Inputs renamed (see page 33 for naming help): Cable Box connected to Ant A or B = Cannot be Renamed Cable Box connected to STB = Rename To Cable
VCR conneceted to Inputs 1-4 = Rename To VCR
DVD conncected to any Input = Rename To DVD Satellite Receiver connected to any Input = Rename To DBS Digital Television Receiver on HD Input = Cannot Be Renamed
Remote Control programmed to operate your other A/V Devices by System 4 properly
activated (see pages 28-29).
IR emiters properly connected and placed (see page 22).
System 4 allows for only one of the following:
• Cable Box
• Satellite Receiver
• Digital TV Receiver
Operation (VCR as example)
To watch your VCR:
Turn on the TV and A/V Receiver.
Move slide switch to VCR.
Point remote at the TV and press the HOME THEATER button.
The TV and A/V Receiver should change to the appropriate inputs.
Operate the VCR.
System 4 Home Theater IR Control
Other commands from your Mitsubishi
remote control, or other manufacturer’s remote, will be passed through the TV.
53
53
VCR
Cable Boxes and Satellite Receivers
A/V Receivers
Mitsubishi CD Players (not all functions for all models)
Mitsubishi A/V Receivers
DVD and Laser Disc Players (not all functions for all models)
POWER
POWER
CHANNEL
up/down
ENTER
(on some models)
STOPPAUSE
MENU
REW/REVPLAY FF/FWD
ADJUST
up/down/left/right
(on some models)
VOLUME MUTE
GUIDE
(on some models)
CANCEL (on some models)
POWER PLAY
REC STOP
PAUSE FF/FWD
REW/REVCHANNEL up/down
Mitsubishi VCRs will be compatible with additional buttons
0-9 Number Buttons (on some models)
POWER
STOP
PAUSE REW/REV
ENTER
PLAY ARROW up/down/left/right
(on some models)
CANCEL (on some models)
0-9 Number Buttons (on some models)
Direct Input Selection Buttons -
use number buttons, SQV, and QV (on some models)
Part IV: Operation
1
2
3
4
5
Remote Control Functions: Special Functions
When your remote control has been Pro-
grammed to operate another manufacturer’s product, the function performed on each layer can vary. The most common functions are:
Remote Control Functions: Operation of PIP and POP
Picture-In-Picture (PIP) and Picture-Outside­Picture (POP) features allow you to view Pro-
gramming in different ways. While watching
54
54
the main screen, you can display programs from other channels and other inputs. To
see which inputs can and cannot be used together, see How Connections Affect the PIP and POP - Table 1, page 14. You can
display large and small PIPs, side-by-side
pictures, three POPs, or nine POPs.
Special Functions and Operation of PIP and POP
Activating the PIP and POP
(Figures 1-5 on the following page)
Press PIP/POP to choose a display format. With each press of the PIP/POP button on the TV remote control (within 3 seconds of each other), the PIP/POP will cycle through the following display options.
POP: side-by-side pictures POP: three POPs POP: nine POPs PIP: large PIP PIP: small PIP
To turn PIP/POP off, wait at least 10 sec-
onds, and press PIP/POP. The next time you activate PIP/POP, the last used PIP/ POP format will be displayed rst .
Remote Control Functions: Operation of PIP and POP
3
PIP A 017
Ant-A 002 KCBS 480i Standard Stereo SAP TV-PG DLSV SQV1
MAIN PICTURE
Side-by-Side
MAIN PICTURE
POP 1
POP 2
POP 3
MAIN PICTURE
POP 1 POP 2 POP 3
POP 4 POP 5 POP 6
POP 7 POP 8 POP 9
PIP A 017
Ant-A 002 KCBS 480i Standard Stereo SAP TV-PG DLSV SQV1
123
4
5
Changing PIP/POP Inputs
Press PIP INPUT to cycle through available inputs. To see which inputs can and cannot be used together, see How Connections
Affect the PIP and POP - Table 1, page 14.
Changing PIP/POP Channels
Press PIP CH to scroll up and down through memorized channels on Ant-A, and Ant-B.
Exchanging Program Images
Press ENTER/EXCH to exchange the main picture and the PIP/POP picture.
Part IV: Operation
Moving PIP Image
Press ADJUST , , , or to move the PIP display anywhere on the main screen.
Automatic POP Switching
When automatic POP switching is active, the
TV will cycle through memorized channels
or strobe pictures from other A/V compo­nents in the POP display. Press PAUSE to activate/pause automatic POP switching.
Selecting POP “Live” Image
Press ADJUST , , , or to select a different POP “live” image (automatic POP switching must be paused).
Freeze the PIP and Side-By-Side Picture
Press PAUSE to freeze the PIP and side-by­side images. Press Pause again to return to a “live” image.
Operation of PIP and POP
PIP/POP Audio Signal
For PIP/POP audio connection illustration, see Back Panel Functions -
Volume for the PIP AUDIO OUTPUT is con-
trolled by the ampli er or wirel ess head­phones.
, page 13.
55
55
Part IV: Operation
1
2
3
4
5
Remote Control Functions: Display Formats
This is a wide screen TV (also known as
a 16:9 TV). This shape re ect s t he new types of images available from HDTV and
many DVDs. There are still many older style
narrow screen images (called 4:3 aspect ratio) you will encounter. While there will
never be a perfect solution for displaying
a narrow image on a wide screen, Mitsubi-
shi offers several display formats to choose from.
Press FORMAT on the TV remote control
to cycle through the ve avai labl e di spl ay
formats.
When displaying VGA or HDTV (1080i) signals, the FORMAT control will not operate. All HD signals will automaticaly be shown using the Standard format , and will ll the screen.
Standard: This is the full screen format.
HDTV signals will automatically use this format. This format is also useful to dis­play Anamorphic DVDs that have 1.78:1 or 1.85:1 aspect ratios. Anamorphic DVDs that have the 2.35:1 aspect ratio will still display black bars at the top and bottom. Narrow (4:3) images will be stretched evenly from side to side.
Expand: This will enlarge the picture,
cropping off some of the image at the top and bottom. This is useful to reduce the letterbox top and bottom bars of non­anamorphic DVDs or to correct narrow (4:3) images that have been stretched in the Standard format.
Zoom: This will enlarge the picture, crop-
ping off some of the image at each side, and top and bottom. This is useful to remove or reduce the black top and bottom bars on anamorphic DVDs with a 2.35:1 aspect ratio.
Display Formats
56
56
Stretched and Zoom formats are not
available during PIP/POP functions.
Caution should be observed when using the Narrow format due to the stationary gray side bars. Please see pages 23 or 58 for guidelines concerning stationary images.
Stretched: (Not available when viewing
480p signals) This format will stretch a
narrow (4:3) image across the screen, however, there is less stretch in the center than the sides. This will allow the entire narrow image to be displayed across the screen with less distortion than seen in the Standard format.
Narrow: This format will display narrow
(4:3) images in their original shape, and add stationary gray side bars to ll the screen.
Part IV: Operation
123
5
4
123
4
5
Non-Anamorphic Picture (4:3) Anamorphic Widescreen Picture (16:9)
Display Formats
57
57
Part IV: Operation
Warning: Do not leave stationary or letterbox images on-screen for
extended periods of time. Mix the types of pictures shown.
Uneven picture tube aging is NOT covered by your warranty.
IMPORTANT NOTES #2
The normal use of a TV should include
a mixture of TV picture types. The most frequently used picture types should ll the screen with constantly moving images rather than stationary images or patterns. Displaying the same stationary patterns
over extended periods of time, or display-
ing the same stationary pattern frequently
can leave a subtle but permanent ghost
image. To avoid this, mix your viewing
pattern. Do not show the same stationary
image for more than 15% of your total TV viewing in any one week. Display con-
stantly moving and changing images that ll the screen whenever possi bl e.
This projection TV uses picture tubes to
project the image to the screen. All
picture tubes age with use. As they
age, their light output is gradually reduced. Normal TV pictures ll the screen wi th
constantly changing images. Under these
conditions, picture tubes age at an even rate across the entire screen. This main­tains a TV picture that is evenly bright over the whole screen. Stationary images or
images that only partially ll the screen (leaving black or colored bars to ll the
screen), when used over extended periods
of time or when viewed repeatedly, can
cause uneven aging of the phosphors
and leave subtle ghosts of the stationary
images in the picture.
Still or stationary images may be received from broadcasters, cable channels, sat­ellite channels, DVD discs, video tapes, laser discs, on-line services, web/internet searching devices, video games, and digi­tal TV tuner/converter boxes. Examples of these types of images can be, but are not limited to the following:
Letterbox top/bottom black bars:
shown at the top and bottom of the TV screen when you watch a widescreen (16:9) movie on a standard (4:3) TV.
Side bar images: solid bars shown
on each side of an image when watch­ing a standard (4:3) program on a wi­descreen (16:9) TV.
Stock-market report bars: ticker run-
ning at the bottom of the TV screen.
Shopping channel logos & pricing dis-
plays: bright graphics that are shown con-
stantly or repeatedly in the same location. Video game patterns and scoreboards Bright station logos: moving or low-
contrast graphics are less likely to cause
uneven aging of the picture tubes. On-line (internet) web sites: or any
other stationary or repetitive computer style
images.
58
58
Appendix A: Bypassing the V-Chip Lock
Lock Bypass Instructions Have Been
Filed for Future Reference
Appendix A: Bypassing the V-Chip Lock
Appendix A: Bypassing the V-Chip Lock
Bypassing the V-Chip Lock
After you set the lock, you need your passcode to view a V-Chip locked pro­gram, view the locked TV, cancel the lock, or enter the V-Chip lock menus.
If you forget your passcode, you can view the locked TV without entering your passcode. This is done by pressing the number 9 and QV buttons on the remote TV control at the same time, when your passcode is requested. This process temporarily unlocks the TV.
When entering the V-Chip Lock menu, this process deletes your old passcode and prompts you to enter a new pass­code.
Appendix A: Bypassing the V-Chip Lock
Cut along the dotted line and le bypass instructions in a safe place for future reference.
When changing or deleting your
passcode, you must use the remote control included with this TV. You cannot use a Mitsubishi remote control
from another component or a “universal”
remote.
59
59 59
59
59
Appendix B: High Resolution Input Connection Compatiblity
Component-1 and Component-2 Inputs
These inputs are compatible with component
video signals from standard DVD players
and other equipment sending a standard NTSC component video signal (480i).
These inputs may also be compatible with
newer DVD players sending a progressive NTSC component video signal (480p).
Input Levels and Timing with Com­ponent Video
Y =1.0Vp-p (includes sync) 75ohms Pr =700mVp-p, 75ohms (can also receive
signals from outputs labeled R-Y and Cr)
Pb =700mVp-p, 75ohms (can also receive
signals from outputs labeled B-Y and Cb)
VGA Input
This input will accommodate most comput­ers capable of supporting a VGA monitor. The only compatible display resolution is 640x480. The sync rate is 60hz. SVGA and XVGA resolutions are not supported.
DTV Input
This input is compatible with most standard DTV receivers with component video out­puts. Compatible DTV signals are SDTV 480i, 480p, and HDTV 1080i. All other DTV signals, such as 720p, need to be converted by the DTV receiver to one of the compat­ible signal types. Please check the DTV receiver speci cat ions bef or e connect ing.
This input is also compatible with some DTV receivers using RGB with “sync on green” or RGB with “separate H and V sync”. Com­patible DTV signals are SDTV 480i, 480p, and HDTV 1080i. All other DTV signals, such as 720p, need to be converted by the DTV receiver to one of the compatible signal types. Industry standards for DTV RGB sig­nals systems, synchronization, timing, and signal strengths are not currently estab­lished. These inputs will not be compatible with all DTV receivers that offer RGB. If your DTV receiver offers both DTV compo­nent video signals and DTV RGB signals, Mitsubishi suggests you use the DTV com­ponent video signals. Please check the DTV receiver speci cat ions bef or e connect ­ing.
Input Levels and Timing When Used With Component Video Signals
EIA - 770.3 Standard Levels and Timing
Y =1.0Vp-p (includes sync) 75ohms
Pr =700mVp-p, 75ohms Pb =700mVp-p, 75ohms H =Not Used V =Not Used
Input Levels and Timing When Used With RGB Video Signals
G(Y) =1.0Vp-p 75ohms
R(Pr) =700mVp-p, 75ohms B(Pb) =700mVp-p, 75ohms H =4Vp-p+/-1.0v, 75ohms
(when using separate H and V sync)
V =4Vp-p+/-1.0v, 75ohms
(when using separate H and V sync)
Appendix B: High De ni tion I nput Connect ion Comp at ibi lity
(compatible with sync on green)
61
61
Appendix C: Remote Control Programming Codes
A/V Receivers Cable Box
Mitsubishi . .. .. .. . 010, 011, 012, 013, 014,
. .. .. .. .. .. .. . 015
Admiral . .. .. .. .. . 220
Aiwa. .. .. .. .. .. . 225, 226
Denon . .. .. .. .. . 234, 235, 236
Fisher . .. .. .. .. . 204
Gerrard. .. .. .. .. . 213
Harman Kardon . .. . 215
Jensen . .. .. .. .. . 223
JVC . .. .. .. .. .. . 232, 233
Kenwood . .. .. .. . 200, 208
Magnavox . .. .. .. . 227, 228
Marantz . .. .. .. . 224
Mclintosh . .. .. .. . 216
Nakamichi . .. .. .. . 206, 217
Onkyo . .. .. .. .. . 209, 214
Optimus . .. .. .. . 203, 227, 231, 230
Panasonic . .. .. .. . 219, 218, 221
Philips . .. .. .. .. . 223
Pioneer. .. .. .. .. . 205, 207
Quasar . .. .. .. .. . 219, 218, 221
RCA. .. .. .. .. .. . 203, 205, 227, 231,230
Sansui . .. .. .. .. . 203, 211, 239
Sharp . .. .. .. .. . 234, 237
Sony . .. .. .. .. . 222
Sound-sigh . .. .. . 238
TEAC . .. .. .. .. . 212, 213, 210, 211
Technics . .. .. .. . 221, 218, 219
Victor . .. .. .. .. . 232, 233
Yamaha. .. .. .. .. . 201, 202
DVD Players
Mitsubishi . .. .. .. . 003
Denon . .. .. .. .. . 250
Ferguson . .. .. .. . 251
GE . .. .. .. .. .. . 251
JVC . .. .. .. .. .. . 257
Normande . .. .. .. . 251
Panasonic . .. .. .. . 250
Philips/Magnavox . . 258
Pioneer. .. .. .. .. . 252
RCA/Proscan. .. .. . 251, 256
Saba . .. .. .. .. . 251
Sony . .. .. .. .. . 254
Thompson . .. .. .. . 251
Toshiba. .. .. .. .. . 253
Yamaha. .. .. .. .. . 250
Zenith . .. .. .. .. . 259
ABC . .. .. .. .. .. . 124
Archer . .. .. .. .. . 132, 125
Cableview . .. .. .. .105, 132
Citizen . .. .. .. .. . 122, 105
Color Voice . .. .. .128, 129, 130, 106, 107
Comtronics . .. .. . 128, 129, 130 ,106, 107
Curtis . .. .. .. .. . 112, 113
Diamond . .. .. .. . 124, 132, 125
Eagle . .. .. .. .. .129
Eastern. .. .. .. .. . 134
GC Brand . .. .. .. . 132, 105
GE . .. .. .. .. .. . 111, 112, 113
Gemini . .. .. .. .. . 122, 143
General Instrument
/Jerrold . .. .. .. . 111, 119, 120, 121, 122,
. .. .. .. .. .. .. . 123 124, 125, 126, 127
Hamlin . .. .. .. .. . 140, 141, 142, 145, 118,
. .. .. .. .. .. .. . 112
Hitachi . .. .. .. .. . 103, 124
Macom . .. .. .. .. . 103, 104, 105, 108
Magnavox . .. .. .. . 128, 129, 130, 106, 107,
. .. .. .. .. .. .. . 133, 138
Memorex . .. .. .. . 130
Movietime . .. .. .. . 132
Oak . .. .. .. .. .. .139, 137, 102
Panasonic . .. .. .. . 109, 110, 114
Paragon . .. .. .. .117
Philips . .. .. .. .. .128, 129, 130, 106, 107,
. .. .. .. .. .. .. . 133, 138
Pioneer. .. .. .. .. . 101, 116
Pulsar . .. .. .. .. . 105, 132
Puser . .. .. .. .. . 132
RCA. .. .. .. .. .. . 115
Realistic . .. .. .. . 132
Regal . .. .. .. .. . 112, 118, 140, 141, 142,
. .. .. .. .. .. .. . 145
Regency . .. .. .. .134
Rembrant . .. .. .. . 137, 132, 105, 138
Samsung . .. .. .. . 105
Satellite. .. .. .. .. . 100
Scienti c At lant a . .. . 111, 112, 113
Signature . .. .. .. .119, 124, 125, 126, 127,
. .. .. .. .. .. .. . 120, 121, 122, 111
SL Mark . .. .. .. . 105, 101
Sprucer. .. .. .. .. . 105, 110
Starcom . .. .. .. .119, 124, 125, 126, 127,
. .. .. .. .. .. .. . 120, 121, 122, 111
Stargate . .. .. .. .132, 105
Teleview . .. .. .. . 101, 105
Texscan . .. .. .. . 144
Tocom . .. .. .. .. . 135, 136
Toshiba. .. .. .. .. . 104
Unika . .. .. .. .. .132, 125
United Artists . .. .. . 139, 137, 102
United Cable . .. .. . 119, 124, 125, 126, 127,
. .. .. .. .. .. .. . 120, 121, 122, 111
Universal . .. .. .. .122, 132
Videoway . .. .. .. . 106
Viewstar . .. .. .. .129, 130
Zenith . .. .. .. .. . 117, 100
Satellite Receivers
Appendix C: Remote Control Programming Codes
Mitsubishi HD/Satellite Receiver 006 Echostar/Dishnetwork 175
GE . .. .. .. .. .. . 176
Hitachi . .. .. .. .. . 173, 181
Hughes. .. .. .. .. . 173
Panasonic . .. .. .. . 174
Philips . .. .. .. .. . 171, 172
Primestar . .. .. .. . 178
RCA. .. .. .. .. .. . 176, 179, 180
Sony . .. .. .. .. .177
Toshiba. .. .. .. .. . 170
Uniden . .. .. .. .. .171, 172
VCRs
Mitsubishi . .. .. .. . 001, 002, 060, 067, 068, 061,
. .. .. .. .. .. .. . 062
Admiral . .. .. .. .. . 055
Aiwa. .. .. .. .. .. . 047, 052
Akai . .. .. .. .. .. . 049, 034, 035, 036
Audio Dynamic . .. . 059, 031
Bell & Howell . .. .. . 025, 033
Broksonic . .. .. .. . 040, 046
Canon . .. .. .. .. . 043, 045
Citizen . .. .. .. .. . 026
Craig . .. .. .. .. . 025, 049, 026
Curtis Mathes. .. .. . 065, 044, 047
Daewoo . .. .. .. . 063, 021, 044, 079
DBX. .. .. .. .. .. . 059, 030, 031
Dimensia . .. .. .. . 065
Emerson . .. .. .. . 023, 038, 039, 040, 045, 046,
. .. .. .. .. .. .. . 062, 063
Fisher . .. .. .. .. . 025, 028, 029, 027
Funai . .. .. .. .. . 047, 046, 040
GE . .. .. .. .. .. . 057, 065, 044
Go Video . .. .. .. . 057, 069, 070, 071
Goldstar . .. .. .. . 026
Hitachi . .. .. .. .. . 043, 065, 020
Instant Replay . .. . 044, 043
Jensen . .. .. .. .. . 059
JVC . .. .. .. .. .. . 059, 030, 031, 054, 076, 077
Kenwood . .. .. .. . 059, 030, 026, 031
LXI . .. .. .. .. .. . 047, 026, 020, 027, 028, 025,
. .. .. .. .. .. .. . 029
Magnavox . .. .. .. . 051, 043, 044
Marantz . .. .. .. . 059, 030, 031
Marta . .. .. .. .. . 026
Memorex . .. .. .. . 044, 029
MGA . .. .. .. .. . 058, 060, 067, 068, 061, 062
Minolta . .. .. .. .. . 020, 065
Multitech . .. .. .. . 067, 047, 024
NEC. .. .. .. .. .. . 059, 030, 031, 054
Olympic . .. .. .. . 044, 043
Optimus . .. .. .. . 048, 041, 055, 026
Orion . .. .. .. .. . 046, 040
Panasonic . .. .. .. . 043, 044, 041, 042
Penney . .. .. .. .. . 044, 020, 065, 025, 059, 030,
. .. .. .. .. .. .. . 031
Pentax . .. .. .. .. . 020, 031, 065
Philco . .. .. .. .. . 051, 044, 047, 043, 046, 040
Philips . .. .. .. .. . 051, 043, 044
Pioneer. .. .. .. .. . 043
Proscan . .. .. .. . 065, 020, 043, 044, 051, 066,
. .. .. .. .. .. .. . 021, 022
Quasar . .. .. .. .. . 041, 042, 043, 044
Radio Shack . .. .. . 053, 044, 025, 056, 029, 060,
. .. .. .. .. .. .. . 047
RCA. .. .. .. .. .. . 053, 065, 020, 043, 044, 049,
. .. .. .. .. .. .. . 051, 066, 021, 022
Realistic . .. .. .. . 044, 025, 056, 029, 060, 047
Samsung . .. .. .. . 057, 022, 024, 053
Sansui . .. .. .. .. . 059, 046, 040, 072
Sanyo . .. .. .. .. . 025, 029
Scott . .. .. .. .. . 021, 022, 024, 029, 058, 060,
. .. .. .. .. .. .. . 067, 068, 046, 040
Sears . .. .. .. .. . 025, 026, 027, 028, 020
Shaintom . .. .. .. . 037
Sharp . .. .. .. .. . 055, 056
Signature 2000 . .. . 047, 055
Singer . .. .. .. .. . 037
Sony . .. .. .. .. . 048, 049, 050, 073, 074, 075
SV2000. .. .. .. .. . 047
Sylvania . .. .. .. . 051, 043, 044, 047
Symphonic . .. .. . 047
Tashiro . .. .. .. .. . 026
Tatung . .. .. .. .. . 059, 030, 031
TEAC . .. .. .. .. . 059, 030, 047, 031
Technics . .. .. .. . 032, 041, 042, 043, 044
Teknika . .. .. .. .. . 044, 047
Toshiba. .. .. .. .. . 021, 066
Totevision . .. .. .. . 026
Vector Research . .. . 031
Wards . .. .. .. .. . 055, 056, 029, 064, 026
Yamaha. .. .. .. .. . 025, 059, 030, 031
Zenith . .. .. .. .. . 064
62
62
Appendix D: Cleaning and Service
Cleaning
Normally, light dusting with a dry, non­scratching duster will keep your TV clean.
Use care when cleaning your TV with any
other product. If you want to gently wipe down your TV with a lightly moistened soft cloth, rst tur n of f and unpl ug your TV. You can add a few drops of mild liquid detergent to the water for oily dirt.
DO NOT allow liquid to enter the TV
through the ventilation slots.
DO NOT use strong or abrasive clean-
ers.
DO NOT use spray liquids or cleaners
directly on the TV’s surface. DO NOT scrub or rub the TV harshly. When cleaning the screen behind the
Diamond Shield™, wipe GENTLY up
and down with the grooves. Do not
allow any liquid to drip down the screen
into the TV.
Service
If you are unable to correct a problem with
your TV, consult your Mitsubishi dealer or
a Mitsubishi Authorized Warranty Service Center.
DO NOT adjust any controls other than
those described in this Owner’s Guide.
DO NOT remove the protective back
cover of your TV.
Menus not described and shown in this owner’s guide are designed for Factory use and for Authorized Service Personnel. If
you see a menu or display not described
in this owner’s guide, make no changes to the settings, turn off the TV to clear the dis­plays and return to normal operation. Non­authorized changes and changes made by non-authorized persons may void all or part of the warranty.
Appendix D: Cleaning and Service
DO NOT use any kind of abrasive, liquid,
or spray cleaner on the surface of the
TV screen.
For further assistance, please call
(800) 332-2119
63
63
Appendix E: Troubleshooting
Problem Possible Solution
• The TV remote control does not work. • Check that the batteries are installed correctly.
• Check that the selected switch is set to “TV”.
• Be no further than 20 feet from the TV when using the remote control.
• The TV takes several seconds to respond to • Press ENTER after a channel number to avoid delays.
channel commands. • Use the three digit number, i.e 002 for channel 2.
• You cannot access a channel. • Use number keys instead of CHANNEL up/down.
• Be sure the channel you want to view is in memory.
• Check that the TV is turned to the correct input source for that channel, by pressing the INPUT button.
• Make sure the V-Chip lock is off (page 36).
• On-screen displays appear each time you change a function. • This is part of normal TV operation.
• You cannot program the TV to turn on automatically. • The TV may be locked.
• The clock may not be set.
• There is no sound even when the volume is turned up. • Check to see if the MUTE button is on.
• The TV’s “Listen to:” setting may be set to SAP.
• Check that “TV Speakers” setting is ON.
• You have forgotten your lock passcode. • See Appendix A, Bypassing the V-Chip Lock, page 59.
• PIP does not display a picture. • Make sure the V-Chip lock is off (page 36).
• Not all inputs can be displayed as a PIP (page 14).
• The sound does not match the screen picture. • The TV’s “Listen to:” setting may be set to SAP.
• If using stereo or A/V reveiver speakers, check input selec­ tion on the stereo or A/V receiver.
Appendix E: Troubleshooting
• If using stereo or A/V receiver, check that AUDIO is from MONITOR OUTPUT on TV’s back panel.
• There is a large black or gray rectangle on the screen. • The TV closed captioning has been set to “text” mode, but there is no text information being broadcast. Turn Off in the CLOSED CAPTIONS menu (page 34).
64
64
• You cannot see a picture when you play a VCR tape. • If you connected your VCR with A/V cables, use the INPUT button to select the Input source (INPUT-1, INPUT-2, INPUT-3, or INPUT-4) that the VCR is connected to.
• Check your VCRs owner’s guide for further troubleshooting.
• V-Chip Lock is not working. • Make sure that V-Chip is On (page 36).
• If V-Chip Hours/Lock by Time is currently set to dissable the V-Chip lock, the V-Chip will not block programing.
• Menu does not appear when the MENU button is pressed. • Turn TV power off. Turn TV power on. Press menu button.
Index
A
adding and deleting channels 35 Advanced Features menu 39 adaptors (BNC to RCA), 20 adjusting (convergence), 40-41 alignment (convergence), 40-41 antennas (connecting), 16 assistance, 63 audio settings 46
B
back panel, 13 balance, 46 bass, 46 Black Enhancement, 41 blocking (enabling V-Chip), 36-38 brightness, 12, 47 bypassing (parental lock), 59
C
cleaning, 4, 63 Clock (setting), 44-45 compatibility (signal), 61 contrast, 12, 47 convergence, 40-41
D
date (setting), 39, 44-45 daylight savings time (DST), 45 dusting, 63
E
español, 33 EXCH button on remote, 55
F
formats (display), 56-57 front control panel, 12
G
games, 23, 58 ghost, 23, 58
H
Home Theater IR (System 4) activation, 28-29 connection, 14-15, 22 special setups, 15 remote control functions, 50
I
IMPORTANT NOTES, 23, 58 Important Safeguards, 4-5 interlaced, 41 IRIS™, 12, 47
L
language, 31, 33, 46 letterbox, 2, 19, 23, 56, 58 lighting, 12, 47 locked, 36-38, 59, 64
M
maintenance, 2, 67 memorize channels, 33 memory (channel), 35
N
naming channels, 35 naming inputs, 33
P
passcode, 36, 59 Picture-in-Picture (PIP) Setup, 14 Operation, 54-55 Picture-outside-Picture (POP) Setup, 14 Operation, 54-55
Q
Quick View™ (QV), 50
R
remote control Settings Audio, 46 Video, 47 care and operation, 51 channel selection, 52 functions, 50-57 installing batteries, 51 programming codes, 26-27, 62 replacement, 6 Sleep Timer, 52 reset (A/V), 12, 42
Index A-R
65
65
Index
S
safeguards, 4-5 servicing, 2, 5, 63 signal types 1080i, 56, 61 480i, 41, 61 480p (progressive DVD), 41, 61 720p, 61 960i, 41 Sleep Timer, 52 sound (adjusting), 46 Spanish, 33 Special Functions, 54 SQV (Super Quick View™), 35 stand, 4 STATIONARY PICTURE WARNING, 19, 23, 58 surface, 4, 63 surges, 5
V
V-Chip Lock, 36-38 bypassing, 59 entry to, 36 Hours/Lock by Time, 38 passcode setting, 36 ratings and categories, 37 signal information, 37 ventilation, 4, 63 Video Display, 41 Video Mute, 41 Video Settings, 47
W
Mitsubishi Limited Warranty, 67
T
time (setting), 44-45 Timer (turn TV on), 39
Index S-W
Timer (Sleep), 52 treble, 46 Troubleshooting, 64 TV speakers, 43
U
unpacking, 9 upgradeable, 9
66
66
Mitsubishi Projection TV Limited Warranty
MITSUBISHI PROJECTION TELEVISION LIMITED WARRANTY
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants to the original purchaser of this television that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or material:
a. Parts. The lenticular (i.e. front picture) screen and/or the DiamondShield™ is warranted against defects in materials and workmanship for a period of 30 days. All other parts are warranted for a period of one year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement are warranted for the remainder of the original warranty period.
b. Labor. For 30 days after the original purchase at retail, we will repair or replace, at our option, the lenticular screen if it proves defective. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date or purchase at retail.
c. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable warranty time period.
1. TO OBTAIN WARRANTY SERVICE:
a. Contact your nearest authorized MITSUBISHI service center whose name and address can be obtained from your MITSUBISHI dealer or by writing or calling MDEA at the address and telephone number provided below.
b. Warranty service will be provided in your home or, if required, at an authorized service shop, provided that your television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be provided without charge.
c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.
Mitsubishi Projection TV Limited Warranty
2. THIS WARRANTY DOES NOT COVER damage caused by: modi cat ion, al ter at ion, repai r or ser vi ce of the pr oduct by anyone ot her than an aut hor ized MITSUBISHI service center; physical abuse to, or misuse of, the product; operation in a manner contrary to the instructions which accompany the product, including uneven picture tube aging and imprinted images on the viewing screen; freight damage; or any damage caused by acts of God such as lightning or uct uat ion i n el ect rical powe r . Thi s wa r rant y al so excl udes al l cost s arisi ng f rom i nst al lat ion, adj ust me nt of user cont rol s, ext er nal ant enna syst ems , service of products purchased or service outside the U.S.A., initial technical adjustments (set-up) and user-required maintenance. Consult the operating instructions furnished with the product for information regarding user controls.
3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.
4. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE.
5. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special or consequential damages, so the above limitations or exclusions may not apply to you.
6. This warranty gives you speci c l egal right s, and you ma y al so have ot her right s whi ch var y from s t at e t o st at e.
7. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct customer control adjustment. If the problem persists, contact your nearest MITSUBISHI Dealer for the name(s) of authorized MITSUBISHI Service Center(s). If you are unable to obtain this information, please call 800-332-2119, or write us at the address below.
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road Irvine, CA 92618-1904
RETAIN THIS PORTION FOR YOUR RECORDS
SERIAL NO. MODEL NO.
DEALER NAME STREET ADDRESS CITY STATE ZIP PHONE ( ) PURCHASE DATE
67
67
If you have questions regarding your television, call Consumer Relations at
(800) 332-2119, or email us at MDEAservice@bigscreen.mea.com
To order replacement or additional remote controls or owner’s guides
call (800) 553-7278
or
visit our website at www.mitsubishi-tv.com
© 2001 Mitsubishi Digital Electronics America, Inc. Designed and Printed in the U.S.A. 871D297A30
