1 OVERVIEW

MELSEC-Q

1

This User's Manual describes the specifications, handling and programming method for the QD62, QD62E and QD62D high-speed counter modules (QD62 (E/D)) used together with the MELSEC-Q series CPUs. The QD62(E/D) modules are available with the following I/O types, maximum counting speeds and number of channels.

Item QD62 QD62E QD62D

I/O type

Maximum counting speed 200 kPPS 500 kPPS

Number of channels 2 channels

DC input sinking

output

DC input sourcing

output

Differential input

sinking output

The QD62(E/D) modules have the following input methods for 1 phase/2 phase pulse input:

• Phase 1 pulse input multiple of 1 • Phase 1 pulse input multiple of 2 • CW/CCW

• Phase 2 pulse input multiple of 1 • Phase 2 pulse input multiple of 2

• Phase 2 pulse input multiple of 4 See Section 5.1 for details on the input methods.

An overview of QD62 (E/D) operation is shown in the figure below.

4) I/O signal

Buffer memory

read/write

QD62(E/D)

Programmable controller CPU

QCPU (Q mode)

Pulse generator

Encoder

Controller

Pulse

External

control signal

Preset counter

function selection

1)

CH1

2)

3) Coincidence signal output (2 points)

Pulse generator

Encoder

Controller

Pulse

External

control signal

Preset counter

function selection

3)

CH2

4)

3) Coincidence signal output (2 points)

1) Counts the pulses to be input to the QD62 (E/D).

2) Preset or counter function can be selected with an external control signal.

3) The present count value and the coincidence output point setting value can be compared to output a coincidence signal.

4) Using the sequence program, the I/O signal and buffer memory status of the QD62 (E/D) can be verified. Also, count start/stop, preset, and counter function can be selected.

1 - 1 1 - 1

1 OVERVIEW

MELSEC-Q

1.1 Features

The features of the QD62(ED) are as follows:

(1) Counting can be performed in a wide range (The count value can be

expressed within the range between –2147483648 and 2147483647)

The count values are stored as 2-channel 32-bit signed binary codes.

(2) The maximum counting speed can be changed

The maximum speed of the QD62D can be changed by selecting from among 500 k, 200 k, 100 k and 10 k, while that of the QD62 and QD62E can be selected from among 200k, 100k and 10k. This allows an error-free count even with gradual rise/fall pulses.

(3) Pulse input can be selected

The pulse input can be selected from 1 phase multiple of 1, 1 phase multiple of 2, 2 phase multiple of 1, 2 phase multiple of 2, 2 phase multiple of 4, CW and CCW.

(4) Counter format can be selected

Either one of the following counter formats can be selected.

(a) Linear counter format

A count from –2147483648 to 2147483647 is possible and if the count exceeds the range, an overflow will be detected.

(b) Ring counter format

Counting is performed repeatedly between the ring counter maximum value and minimum value.

(5) Coincidence output is possible

Any channel coincidence output point can be preset to compare with the present counter value to output the ON/OFF signal output, or to start an interrupt program.

(6) Selection can be made from four counter functions

One of the following four functions can be selected.

(a) Latch counter function

This function latches the present value of the counter when the signal was input.

(b) Sampling counter function

This function counts the pulses that were input within the preset time period from the signal input.

(c) Periodic pulse counter function

This function stores the present and previous values of the counter at each preset time interval while the signal is being input.

(d) Disable count function

This function inputs a signal while executing the count enable command to stop pulse counting.

1

1 - 2 1 - 2

1 OVERVIEW

MELSEC-Q

(7) The preset function/counter selection function can be executed

using an external control signal

By applying voltage to the preset input terminal/function start input terminal of an external terminal, preset function/counter function selection can be executed.

(8) Easy settings using the GX Configurator-CT

The use of GX Configurator-CT sold separately allows you to execute the high-speed counter module setting on screen, resulting in reducing the number of sequence programs. Also, the use of GX Configurator-CT makes it easy to check the setting status and operating status for modules.

(9) A blown fuse in the external output section can be detected

A blown fuse in the external output section can be detected; it is notified by the input signal X and the LED display on the module.

1 - 3 1 - 3

2 SYSTEM CONFIGURATIONS

MELSEC-Q

2 SYSTEM CONFIGURATION

2.1 Applicable Systems

Applicable CPU module Base unit2

CPU type CPU model

Programmable controller CPU

Basic model QCPU

High Performance model QCPU

Process CPU

Redundant CPU

Universal model QCPU

Safety CPU QS001CPU N/A

This chapter explains the system configuration of the QD62 (E/D).

This section describes the applicable systems.

(1) Applicable modules and base units, and No. of modules

(a) When mounted with a CPU module

The table below shows the CPU modules and base units applicable to the QD62 (E/D) and quantities for each CPU model. Depending on the combination with other modules or the number of mounted modules, power supply capacity may be insufficient. Pay attention to the power supply capacity before mounting modules, and if the power supply capacity is insufficient, change the combination of the modules.

Q00JCPU Up to 16

3

Q00CPU Q01CPU Q02CPU Q02HCPU Q06HCPU Q12HCPU Q25HCPU Q02PHCPU Q06PHCPU Q12PHCPU Q25PHCPU Q12PRHCPU Q25PRHCPU Q00UJCPU Up to 16 Q00UCPU Q01UCPU Q02UCPU Up to 36 Q03UDCPU Q04UDHCPU Q06UDHCPU Q10UDHCPU Q13UDHCPU Q20UDHCPU Q26UDHCPU Q03UDECPU Q04UDEHCPU Q06UDEHCPU Q10UDEHCPU Q13UDEHCPU Q20UDEHCPU Q26UDEHCPU

No. of modules

Up to 24

Up to 64

Up to 53

Up to 24

Up to 64

1

Main base unit Extension base unit

4 5

2

6

2 - 1 2 - 1

2 SYSTEM CONFIGURATIONS

C Controller module

Applicable CPU module Base unit2

CPU type CPU model

2

REMARK

MELSEC-Q

1

Main base unit Extension base unit

Q06CCPU-V

Q06CCPU-V-B

No. of modules

Up to 64

: Applicable, : N/A 1 Limited within the range of I/O points for the CPU module. 2 Can be installed to any I/O slot of a base unit. 3 For the coincidence detection interrupt function, use the Basic model

QCPU of function version B or later. 4 Use the QD62 (E/D) whose serial No. (first five digits) is 09012 or later. 5 The coincidence detection interrupt function is not supported. 6 Connection of extension base units is not available with any safety

CPU.

For use of a C Controller module, refer to the C Controller Module User’s Manual.

(b) Mounting to a MELSECNET/H remote I/O station

Applicable network

QJ72LP25-25 QJ72LP25G QJ72LP25GE QJ72BR15

The table below shows the network modules and base units applicable to the QD62 (E/D) and quantities for each network module model. Depending on the combination with other modules or the number of mounted modules, power supply capacity may be insufficient. Pay attention to the power supply capacity before mounting modules, and if the power supply capacity is insufficient, change the combination of the modules.

Base unit 2

Extension base unit of

remote I/O station

module

3

No. of mountable

modules 1

Up to 64

Main base unit of

remote I/O station

: Applicable, : N/A 1 Limited within the range of I/O points for the network module. 2 Can be installed to any I/O slot of a base unit. 3 The coincidence detection interrupt function is not supported.

REMARK

The Basic model QCPU or C Controller module cannot create the MELSECNET/H

2 - 2 2 - 2

remote I/O network.

2 SYSTEM CONFIGURATIONS

MELSEC-Q

(2) Support of the multiple CPU system

When using the QD62 (E/D) in a multiple CPU system, refer to the following manual first.

• QCPU User's Manual (Multiple CPU System) If the QD62 (E/D) is used in a multiple CPU system, there are no restrictions depending on the module version. Write intelligent function module parameters to the control CPU of the QD62 (E/D).

(3) Supported software packages

Relation between the system containing the QD62 (E/D) and software package is shown in the following table. GX Developer is necessary when using the QD62 (E/D).

Single CPU system

Q00J/Q00/Q01CPU

Multiple CPU system

Single CPU system

Q25HCPU

Q02PH/Q06PHCPU

Q12PH/Q25PHCPU

Q12PRH/Q25PRHCPU Redundant CPU system

Q00UJCPU/Q00UCPU/ Q01UCPU

Q02U/Q03UD/ Q04UDH/Q06UDHCPU

Q10UDHCPU/ Q20UDHCPU

Q13UDH/Q26UDHCPU

Q03UDE/Q04UDEH/ Q06UDEH/Q13UDEH/ Q26UDEHCPU

Q10UDEHCPU/ Q20UDEHCPU

If installed in a MELSECNET/H remote I/O station

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

Single CPU system

Multiple CPU system

GX Developer GX Configurator-CT

Version 7 or

Version 8 or

Version 4 or

Version 6 or

Version 8.68W

Version 7.10L

Version 8.45X

Version 8.76E

Version 8.48A

Version 8.76E

Version 8.62Q

Version 8.68W

Version 8.76E

Version 6 or

later

or later

later

Software Version

Version 1.10L or later

(cannot be used with the

SW0D5C-QCTU-E 50F

or earlier versions)

SW0D5C-QCTU-E 00A

or later Q02/Q02H/Q06H/Q12H/

SW0D5C-QCTU-E 50F

or later

Version 1.13P or later

(cannot be used with the

SW0D5C-QCTU-E 50F

or earlier versions)

Version 1.16S or later

Version 1.25AB or later

SW0D5C-QCTU-E 50F

or later

(4) Connector

For the QD62(E/D), the connector is sold separately. See Section 4.3 and make separate arrangements for the connector.

2 - 3 2 - 3

2 SYSTEM CONFIGURATIONS

2.2 About Use of the QD62 (E/D) with the Q00J/Q00/Q01CPU

Here, use of the QD62 (E/D) with the Q00J/Q00/Q01CPU is explained.

(1) Number of QD62 (E/D) that can be installed when the

Q00J/Q00/Q01CPU is used

See Section 2.1 concerning the number of QD62 (E/D) that can be installed when the Q00J/Q00/Q01CPU is used.

(2) Limitations when using the Q00J/Q00/Q01CPU

To use the coincidence detection interrupt function, use the Q00J/Q00/Q01CPU of function version B or later.

2.3 About Use of the QD62 (E/D) with the Q12PRH/Q25PRHCPU

Here, use of the QD62 (E/D) with the Q12PRH/Q25PRHCPU is explained.

(1) GX Configurator-CT

When using GX Developer to access the Q12PRH/Q25PRHCPU through the intelligent function module on the extension base unit, GX Configurator-CT cannot be used. Connect a personal computer to the Q12PRH/Q25PRHCPU with a communication path indicated below.

MELSEC-Q

1 2

Main base unit

Extension base unit

(GX Configurator-CT cannot be used.)

1

Direct connection to the CPU

2

Connection through an intelligent function module on the main base unit (Through Ethernet module, MELSECNET/H module, or CC-Link module)

2 - 4 2 - 4

2 SYSTEM CONFIGURATIONS

2.4 About Use of the QD62 (E/D) on the MELSECNET/H Remote I/O Station

Here, use of the QD62 (E/D) on the MELSECNET/H remote I/O station is explained.

(1) Number of QD62 (E/D) that can be installed when the remote I/O

station is used

See Section 2.1 concerning the number of QD62 (E/D) that can be installed when the remote I/O station is used.

(2) Limitations when using the remote I/O station

(a) The coincidence detection interrupt function cannot be used.

(b) When the QD62 (E/D) is used on the MELSECNET/H remote I/O station, a

delay will occur due to the link scan time. Therefore, fully verify that there will be no problem with controllability in the target system.

Example) When processing is executed using the counter value input by a

sequence program, variations will occur due to a delay in the link scan time.

2.5 How to Check the Function Version/Serial No./Software Version

MELSEC-Q

Check the function version and serial No. of the QD62(E/D) and the GX ConfiguratorCT software version by the following methods.

(1) Checking the function version and serial No. of the QD62(E/D)

The serial No. and function version of the QD62(E/D) can be confirmed on the rating plate and GX Developer's system monitor.

(a) Confirming the serial number on the rating plate

The rating plate is situated on the side face of the QD62(E/D).

Serial No. (Upper 6 digits)

function version

Relevant regulation standards

2 - 5 2 - 5

2 SYSTEM CONFIGURATIONS

(b) Checking on the front of the module

The serial No. on the rating plate is also indicated on the front of the module (lower part).

MELSEC-Q

100119000000000-B

Serial No.

REMARK

The serial number is displayed on the front of the module from January 2008 production. Products manufactured during switching period may not have the serial number on the front of the module.

(c) Confirming the serial number on the system monitor (Product

Information List)

To display the system monitor, select [Diagnostics] [System monitor]

Product Inf. List

of GX Developer.

Function version

Serial No.

Production number

2 - 6 2 - 6

(

)

2 SYSTEM CONFIGURATIONS

POINT

The serial No. on the rating plate may be different from the serial No. displayed on the product information screen of GX Developer.

• The serial No. on the rating plate indicates the management information of the product.

• The serial No. displayed on the product information screen of GX Developer indicates the function information of the product. The function information of the product is updated when a new function is added.

(2) Checking the software version of GX Configurator-CT

The software version of GX Configurator-CT can be checked in GX Developer’s "Product information" screen.

[Operating procedure]

GX Developer [Help] [Product information]

MELSEC-Q

Software version

In the case of GX Developer Version 8

REMARK

The version indication for the GX Configurator-CT has been changed as shown below from the SW0D5C-QCTU-E 50F upgrade product.

Previous product Upgrade and subsequent versions

SW0D5C-QCTU-E 50F

GX Configurator-CT Version 1.10L

2 - 7 2 - 7

3 SPECIFICATIONS

The following describes the performance specifications, I/O signals for the programmable controller CPU and buffer memory specifications of the QD62(E/D). For the general specifications of the QD62(E/D), see the User's Manual for the CPU module used.

3.1 Performance Specifications

MELSEC-Q

The following describes the performance specifications of the QD62(E/D):

(1) QD62 (DC input sinking output type) performance specifications

3

Model name

Item

Counting speed switch settings 1 200 k (100 k to 200 kPPS) 100 k (10 k to 100 kPPS) 10 k (10 kPPS or less)

I/O occupied points 16 points (I/O assignment: Intelligent 16 points)

Number of channels 2 channels

Phase 1-phase input, 2-phase input Count input

signal

Signal level (

Counting speed (max) 2 200 kPPS 100 kPPS 10 kPPS

Counting range 32-bit signed binary values (–2147483648 to 2147483647)

Model UP/DOWN Preset counter + Ring counter function

Counter

Minimum count pulse

width (Duty ratio 50 %)

Coincidence

output

input

External

output

5V DC internal current consumption 0.30 A

Weight 0.11 kg

1: The counting speed switch settings can be set using the intelligent function module switch.

Comparison range 32-bit signed binary values

Comparison result

Preset External

Function start

Coincidence output

φ

A, φ B) 5/12/24 V DC 2 to 5 mA

5

2.5 2.5

(Unit: s)

(Min. phase differential for

2-phase input: 1.25 μ s)

Transistor (sinking type) output: 2 points/channel

(Min. phase differential for

Set value < Count value

Set value = Count value

Set value > Count value

12/24 V DC 0.5 A/point 2 A/common

2: Counting speed is affected by pulse rise and fall time. Possible counting speeds are shown in the following

table. Note that if a pulse that has a large rise and/or fall time is counted, a miscount may occur.

Counting speed switch settings 200 k 100 k 10 k

Rise/fall time Both 1 and 2 phase input

t = 1.25 μ s or less 200 kPPS 100 kPPS 10 kPPS

t = 2.5 μ s or less 100 kPPS 100 kPPS 10 kPPS

t = 25 μ s or less

t = 500 μ s

—

— —

10 kPPS 10 kPPS

QD62

10

5 5

(Unit: s)

2-phase input: 2.5 μ s)

5/12/24 V DC

2 to 5 mA

500 PPS

(Min. phase differential for

2-phase input: 25 μ s)

100

50 50

tt

(Unit: s)

3 - 1 3 - 1

3 SPECIFICATIONS

MELSEC-Q

Item

Counting speed switch settings 1 200 k (100 k to 200 kPPS) 100 k (10 k to 100 kPPS) 10 k (10 kPPS or less)

I/O occupied points 16 points (I/O assignment: Intelligent 16 points)

Number of channels 2 channels

Phase 1-phase input, 2-phase input Count input

signal

Counter

Coincidence

output

input

External

output

5V DC internal current consumption 0.33 A

Weight 0.11 kg

Signal level (

Counting speed (max) 2 200 kPPS 100 kPPS 10 kPPS

Counting range 32-bit signed binary values (–2147483648 to 2147483647)

Model UP/DOWN Preset counter + Ring counter function

Minimum count pulse

width (Duty ratio 50 %)

Comparison range 32-bit signed binary values

Comparison result

Preset External

Function start

Coincidence output

(2) QD62E (DC input sourcing output type) performance specifications

Model name

φ

A, φ B) 5/12/24 V DC 2 to 5 mA

5

2.5 2.5

(Unit: s)

(Min. phase differential for

2-phase input: 1.25 μ s)

Transistor (sourcing type) output: 2 points/channel

(Min. phase differential for

12/24 V DC 0.1 A/point 0.4 A/common

QD62E

10

5 5

(Unit: s)

2-phase input: 2.5 μ s)

Set value < Count value

Set value = Count value

Set value > Count value

5/12/24 V DC

2 to 5 mA

100

50 50

(Unit: s)

(Min. phase differential for

2-phase input: 25 μ s)

1: The counting speed switch settings can be set using the intelligent function module switch. 2: Counting speed is affected by pulse rise and fall time. Possible counting speeds are shown in the following

table. Note that if a pulse that has a large rise and/or fall time is counted, a miscount may occur.

Counting speed switch settings 200 k 100 k 10 k

Rise/fall time Both 1 and 2 phase input

t = 1.25 μ s or less 200 kPPS 100 kPPS 10 kPPS

t = 2.5 μ s or less 100 kPPS 100 kPPS 10 kPPS

t = 25 μ s or less

t = 500 μ s

—

— —

10 kPPS 10 kPPS

500 PPS

tt

3

3 - 2 3 - 2

3 SPECIFICATIONS

(3) QD62D (differential input sinking output type) performance

Item

Counting speed switch settings 1

I/O occupied points 16 points (I/O assignment: Intelligent 16 points)

Number of channels 2 channels

Count input

signal

Counter

Phase 1-phase input, 2-phase input

Signal level (

Counting speed (max)

2

Counting range 32-bit signed binary values (–2147483648 to 2147483647)

Model UP/DOWN Preset counter + Ring counter function

φ

specifications

Model name

A, φ B)

QD62D

500 k

(200 k to 500 kPPS)

Differential line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent)

500 kPPS 200 kPPS 100 kPPS 10 kPPS

2

200 k

(100 k to 200 kPPS)

EIA Standard RS-422-A

5

100 k

(10 k to 100 kPPS)

10

MELSEC-Q

10 k

(10 kPPS or less)

100

Minimum count pulse

width (Duty ratio 50 %)

Comparison range 32-bit signed binary values

Coincidence

output

input

External

output

5 V DC internal current consumption 0.38 A

Weight 0.12 kg

Comparison result

Preset External

Function start

Coincidence output

1 1

(Unit: s)

(Min. phase

differential for 2-phase

input: 0.5 μ s)

(EIA Standard RS-422-A Differential Line Driver may be connected)

2.5 2.5

differential for 2-phase

Transistor (sinking type) output: 2 points/channel

(Unit: s)

(Min. phase

input: 1.25 μ s)

Set value < Count value

Set value = Count value

Set value > Count value

5/12/24 V DC 2 to 5 mA

12/24 V DC 0.5 A/point 2 A/common

5 5

differential for 2-phase

(Unit: s)

(Min. phase

input: 2.5 μ s)

50 50

differential for 2-phase

(Unit: s)

(Min. phase

input: 25 μ s)

1: The counting speed switch settings can be set using the intelligent function module switch. 2: Counting speed is affected by pulse rise and fall time. Possible counting speeds are shown in the following

table. Note that if a pulse that has a large rise and/or fall time is counted, a miscount may occur.

Counting speed switch settings 500 k 200 k 100 k 10 k

Rise/fall time Both 1 and 2 phase input

t = 0.5 μ s or less 500 kPPS 200 kPPS 100 kPPS 10 kPPS

t = 1.25 μ s or less 200 kPPS 200 kPPS 100 kPPS 10 kPPS

t = 2.5 μ s or less

t = 25 μ s or less

t = 500 μ s

—

— —

— — —

100 kPPS 100 kPPS 10 kPPS

10 kPPS 10 kPPS

500 PPS

tt

3 - 3 3 - 3

3 SPECIFICATIONS

3.2 Function List

MELSEC-Q

Name Function Reference section

Linear counter function

Ring counter function

Coincidence output function

Coincidence detection

interrupt function

Preset function

Disable count

function

Latch counter

Counter

function

selection

function

Sampling counter

function

Periodic pulse

counter function

The QD62(E/D) functions are listed below.

Values from –2147483648 to 2147483647 can be counted. If the count

exceeds the range, this function detects an overflow.

Repeatedly executes counting between the ring counter maximum and

minimum values.

Compares the coincidence output point of any preset channel with the

present counter value, and outputs the ON/OFF signal.

Generates an interrupt signal to the programmable controller CPU

when coincidence is detected, and starts the interrupt program.

Rewrites the present counter value to any numeric value.

Performs preset using the sequence program or external preset input.

Stops the pulse count while the count enable command is being

executed.

Stores the present counter value at the time the counter function

selection start command signal is input in the buffer memory.

Counts the pulses that are input during the preset sampling time

period from the time the counter function selection start command is

input, and stores the count in the buffer memory.

While the counter function selection start command signal is being

input, stores the present value in the buffer memory at preset interval.

Section 5.2.1

Section 5.2.2

Section 5.3

Section 5.4

Section 6.2

Section 6.3

Section 6.4

Section 6.5

The functions can be used in combination. However, only either one of the linear counter function or ring

counter function can be used, and only one of the four counter functions can be selected.

3 - 4 3 - 4

3 SPECIFICATIONS

MELSEC-Q

3.3 I/O Signals for the Programmable Controller CPU

3.3.1 List of I/O signals

The I/O signals for the QD62(E/D) programmable controller CPU are listed in the table below. For the I/O numbers (X/Y) and I/O addresses indicated in this and succeeding sections, it is assumed that the QD62(E/D) is mounted into I/O slot 0 of the standard base

Input signal (Signal direction QD62(E/D)

programmable controller CPU)

Device No. Signal name Device No. Signal name

X00 Module ready Y00 Coincidence signal No. 1 reset command

X01 Counter value large (point No. 1) Y01 Preset command

X02 Counter value coincidence (point No. 1) Y02 Coincidence signal enable command

X03 Counter value small (point No. 1) Y03 Down count command

X04 External preset request detection Y04 Count enable command

X05 Counter value large (point No. 2) Y05 External preset detection reset command

X06 Counter value coincidence (point No. 2) Y06 Counter function selection start command

X07

X08 Counter value large (point No. 1) Y08 Coincidence signal No. 1 reset command

X09 Counter value coincidence (point No. 1) Y09 Preset command

X0A Counter value small (point No. 1) Y0A Coincidence signal enable command

X0B External preset request detection Y0B Down count command

X0C Counter value large (point No. 2) Y0C Count enable command

X0D Counter value coincidence (point No. 2) Y0D External preset detection reset command

X0E

X0F Fuse broken detection flag Y0F

CH1

CH2

module.

Output signal (Signal direction programmable

controller CPU QD62(E/D))

CH1

Counter value small (point No. 2) Y07

Counter value small (point No. 2) Y0E Counter function selection start command

Coincidence signal No. 2 reset command

CH2

Coincidence signal No. 2 reset command

3 - 5 3 - 5

3 SPECIFICATIONS

3.3.2 Functions of I/O signals

The details of the I/O signals for the QD62(E/D) are listed in the table below.

(1) Input signals

Device No.

CH1 CH2

X00 Module ready

X01 X08

X02 X09

X03 X0A

X04 X0B

X05 X0C

X06 X0D

X07 X0E

X0F Fuse broken detection flag

programmable controller CPU

Counter value large (point No.1)

Counter value coincidence (point No.1)

Counter value small (point No.1)

External preset request detection

Counter value large (point No.2)

Counter value coincidence (point No.2)

Counter value small (point No.2)

Signal name

QD62(E/D)

MELSEC-Q

Description

Turns ON when the count preparation for QD62(E/D) is completed at the time of programmable controller CPU power on or reset operation, and count processing is performed. When Module ready (X00) is OFF, count processing is not performed.

Turns ON when the present value (CH1: 2H to 3H, CH2: 22H to 23H) > coincidence output point No. 1 setting (CH1: 4H to 5H, CH2: 24H to 25H). Turns OFF when the present value setting.

Turns ON when the present value = coincidence output point No.1 setting and the present value is latched. Turns OFF with the coincidence signal No.1 reset command (Y00/Y08). The counter value coincidence (point No.1) turns ON immediately after power-ON or reset of the programmable controller CPU, since the present value and coincidence output point No.1 are all '0'.

Turns ON when the present value < coincidence output point No.1 setting. Turns OFF when the present value setting.

Turns ON with a preset command signal from the external input terminal, and the request is latched. Turns OFF with the external preset detection reset signal (Y05/Y0D).

Turns ON when the present value > coincidence output point No.2 setting (CH1: 6H to 7H, CH2: 26H to 27H). Turns OFF when the present value setting.

Turns ON when the present value = coincidence output point No.2 setting and the present value is latched. Turns OFF with the coincidence signal No.2 reset command (Y07/Y0F). The counter value coincidence (point No.2) turns ON immediately after power-ON or reset of the programmable controller CPU, since the present value and coincidence output point No.2 are all '0'.

Turns ON when the present value < coincidence output point No.2 setting. Turns OFF when the present value coincidence output point No.2 setting.

Fuse broken detection flag (X0F) turns ON when a fuse in the coincidence signal output section is blown.

coincidence output point No.1

coincidence output point No.2

3 - 6 3 - 6

3 SPECIFICATIONS

(2) Output signals

Device No.

CH1 CH2

Y00 Y08

programmable controller CPU

Coincidence signal No.1 reset command

Signal name

QD62 (E/D)

Operation

timing

MELSEC-Q

Description

Turns ON when the counter value coincidence (point No.1) signal (X02/X09) is reset.

Y01 Y09 Preset command

Y02 Y0A

Y03 Y0B Down count command

Y04 Y0C Count enable command

Y05 Y0D

Y06 Y0E

Y07 Y0F

Coincidence signal enable command

External preset detection reset command

Counter function selection start command

Coincidence signal No.2 reset command

Turns ON when the preset function is executed.

Turns ON when the counter value coincidence signal (X02/X09, X06/X0D) is output to the external terminal.

Turns ON when a subtraction count is executed in the 1 phase pulse input mode. If either phase B pulse is input or the down count command (Y03/Y0B) turns ON, the subtraction count is performed. Check that the phase B pulse is input and the down count command (Y03/Y0B) is OFF for addition.

Turns ON when the count operation is performed.

Turns ON when the external preset request detection signal (X04/X0B) is reset.

Turns ON when counter function selection is executed.

• Latch counter function

• Sampling counter function

• Count disable function

• Periodic pulse counter function

Turns ON when the counter value coincidence (point No.2) signal (X06/X0D) is reset.

REMARK

The symbols used in the operation timing column signify the following:

•

3 - 7 3 - 7

………

Enabled while the signal is in ON status.

Enabled at signal rise (from OFF to ON).

3 SPECIFICATIONS

MELSEC-Q

3.4 Buffer Memory Assignments

(1) Buffer memory assignment list

Buffer memory assignments (without battery backup) for the QD62 (E/D) are listed in the table below. The initial values are set for the buffer memory when the power is turned on or the programmable controller CPU is reset. The contents of the buffer memory can be read/written using the FROM/TO commands in the sequence program or the automatic refresh function of the

Address

CH1 CH2

Hexadecimal Decimal Hexadecimal Decimal

0H 0 20H 32 (L)

1H 1 21H 33

2H 2 22H 34 (L)

3H 3 23H 35

4H 4 24H 36 (L)

5H 5 25H 37

6H 6 26H 38 (L)

7H 7 27H 39

8H 8 28H 40 Overflow detection flag 0 Read only

9H 9 29H 41 Counter function selection setting

AH 10 2AH 42 Sampling/periodic setting

BH 11 2BH 43 Sampling/periodic counter flag

CH 12 2CH 44 (L)

DH 13 2DH 45

EH 14 2EH 46 (L)

FH 15 2FH 47

10H 16 30H 48 (L)

11H 17 31H 49

12H 18 32H 50 (L)

13H 19 33H 51

14H 20 34H 52 (L)

15H 21 35H 53

16H 22 36H 54 (L)

17H 23 37H 55 18H

to

1F

H

24

to

31

1: The initial values are set when the power is turned on or the programmable controller CPU is reset.

programmable controller CPU.

Preset value setting

Present value

Coincidence output point set No. 1

Coincidence output point set No. 2

Latch count value

Sampling count value

Periodic pulse count previous value

Periodic pulse count present value

Ring counter minimum value

Ring counter maximum value

38

3F

H

to

H

56

to

System area — —

63

Set data

(H)

Initial value

1

0

0 Read only

0

0 Read only

0

Read/write

enabled

Read/write

enabled

Read/write

enabled

Read/write

enabled

3 - 8 3 - 8

3 SPECIFICATIONS

(2) Preset value setting (Buffer memory addresses CH1: 0H to 1H,

(3) Present value (Buffer memory addresses CH1: 2H to 3H, CH2: 22H

(4) Coincidence output point set No.1 and No.2

(5) Overflow detection flag (Buffer memory addresses CH1: 8H, CH2:

(6) Counter function selection setting (Buffer memory addresses CH1:

MELSEC-Q

CH2: 20H to 21H)

• This area is used to set the values that are preset in the counter.

• The setting range is from –2147483648 to 2147483647 (32-bit signed binary values).

to 23H)

• The present values for the counter are stored.

• The range of the values that are read is from –2147483648 to 2147483647 (32-bit signed binary values).

(Buffer memory addresses CH1: 4H to 7H, CH2: 24H to 27H)

• This area is used to write the setting values of the coincidence output points to be compared with the present counter value.

• No.1 and No.2 coincidence output points can be set for each channel.

• The setting range is from –2147483648 to 2147483647 (32-bit signed binary value).

28H)

• A counter overflow occurrence status is stored when the counter format is linear counter.

• The following values corresponding to the overflow occurrence status are stored in this area.

Condition Buffer memory content

No overflow detection 0

Overflow occurred 1

9

H, CH2: 29H)

• This area is used to set the data for which a counter function is selected.

• The relationships between the selected counter function and set value are shown below.

Counter function selection Set value

Count disable function 0

Latch counter function 1

Sampling counter function 2

Periodic pulse counter function 3

3 - 9 3 - 9

3 SPECIFICATIONS

(7) Sampling/periodic setting (Buffer memory addresses CH1: AH,

(8) Sampling/periodic counter flag (Buffer memory addresses CH1: BH,

(9) Latch count value (Buffer memory addresses CH1: CH to DH,

(10) Sampling count value (Buffer memory addresses CH1: EH to FH,

(11) Periodic pulse count previous and present value

(12) Ring counter minimum and maximum value

MELSEC-Q

CH2: 2AH)

• This area is used to write the time setting values of the sampling counter function and periodic pulse counter function during counter function selection.

• The setting range is from 1 to 65535 (16-bit binary values) and the time unit is 10[ms].

Example) When 420 is set for the sampling/periodic setting in the buffer

memory 420

10= 4200 [ms]

CH2: 2BH)

• This area is used to store the function operating status while the sampling counter function and periodic pulse counter function are being executed during counter function selection.

• One of the values corresponding to the function operation status shown in the table below is stored in this area.

Operating status Buffer memory content

Idling function 0

Executing function 1

CH2: 2CH to 2DH)

• This area is used to store the latch count values when the latch counter function is executed.

• The range of the values to be read is from –2147483648 to 2147483647 (32-bit signed binary values).

CH2: 2EH to 2FH)

• This area is used to store the sampling count values when the sampling counter function is executed.

• The range of the values to be read is from –2147483648 to 2147483647 (32-bit signed binary values).

(Buffer memory addresses CH1: 10H to 13H, CH2: 30H to 33H)

• This area is used to store the present and previous values for the periodic pulse count when the periodic pulse counter function is executed.

• The range of the values to be read is from –2147483648 to 2147483647 (32-bit signed binary values).

(Buffer memory addresses CH1: 14

• This area is used to set the count range when the counter format is ring counter.

• The setting range is from –2147483648 to 2147483647 (32-bit signed binary values).

H to 17H, CH2: 34H to 37H)

3 - 10 3 - 10

3 SPECIFICATIONS

3.5 Interface with External Devices

MELSEC-Q

I/O

classification

Input

Output

Internal circuit

To the fuse

broken detection

circuit

The table below lists the external device interface for the QD62(E/D).

(1) QD62 (DC input sinking output type)

1k

1/10W

1k

1/10W

4.7k 1/3W

3.3k

1/10W

470

1/16W

4.7k 1/3W

3.3k

1/10W

470

1/16W

10k 1/3W

5.6k

1/10W

2k

1/10W

10k 1/3W

5.6k

1/10W

2k

1/10W

FUSE

Terminal

number

CH1 CH2

A20 A13 Phase A pulse input 24 V

B20 B13 Phase A pulse input 12 V

A19 A12 Phase A pulse input 5 V

B19 B12 ABCOM —

A18 A11 Phase B pulse input 24 V

B18 B11 Phase B pulse input 12 V

A17 A10 Phase B pulse input 5 V

— — — —

B17 B10 Preset input 24 V

A16 A09 Preset input 12 V

B16 B09 Preset input 5 V

A15 B08 CTRLCOM

B15 B08 Function start input 24 V

A14 A07 Function start input 12 V

B14 B07 Function start input 5 V

— — —

A06 A05

B06 B05

1

EQU1 (Coincidence output point No. 1)

EQU2 (Coincidence output point No. 2)

B02, B01 12/24 V

A02, A01 0 V

Signal name Operation

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

Response

time

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

Response

time

Operating voltage 10.2 to 30 V Maximum load current 0.5 A/point, 2 A/common Maximum voltage drop when ON 1.5 V Response time OFF

Input voltage 10.2 to 30 V Current consumption 8 mA (TYP 24 V DC)

Input voltage

(guaranteed value)

ON

OFF

0.5 ms or less

ON

OFF

0.5 ms or less

ON 0.1 ms or less

ON

OFF 0.1 ms or less (rated load,

Operating current

(guaranteed value)

resistive load)

ON OFF 1 ms or less

1: Terminal numbers A03, A04, B03 and B04 are not used.

3 - 11 3 - 11

3 SPECIFICATIONS

I/O

classification

Input

Output

Internal circuit

To the fuse

broken detection

circuit

(2) QD62E (DC input sourcing output type)

1k

1/10W

1k

1/10W

4.7k 1/3W

3.3k

1/10W

470

1/16W

4.7k 1/3W

3.3k

1/10W

470

1/16W

10k 1/3W

5.6k

1/10W

2k

1/10W

10k 1/3W

5.6k

1/10W

2k

1/10W

FUSE

Terminal

number

CH1 CH2

A20 A13 Phase A pulse input 24 V

B20 B13 Phase A pulse input 12 V

A19 A12 Phase A pulse input 5 V

B19 B12 ABCOM —

A18 A11 Phase B pulse input 24 V

B18 B11 Phase B pulse input 12 V

A17 A10 Phase B pulse input 5 V

— — — —

B17 B10 Preset input 24 V

A16 A09 Preset input 12 V

B16 B09 Preset input 5 V

A15 B08 CTRLCOM

B15 B08 Function start input 24 V

A14 A07 Function start input 12 V

B14 B07 Function start input 5 V

— — —

A06 A05

B06 B05

1

EQU1 (Coincidence output point No. 1)

EQU2 (Coincidence output point No. 2)

B02, B01 12/24 V

A02, A01 0 V

Signal name Operation

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

Response

time

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 4.5 to 5.5 V 2 to 5 mA

When OFF 2 V or less 0.1 mA or less

Response

time

Operating voltage 10.2 to 30 V Maximum load current 0.1 A/point, 0.4 A/common Maximum voltage drop when ON 1.5 V Response time OFF ON 0.3 ms or less

Input voltage 10.2 to 30 V Current consumption 8 mA (TYP 24 V DC)

Input voltage

(guaranteed value)

ON

OFF

0.5 ms or less

ON

OFF

0.5 ms or less

ON

OFF 0.3 ms or less (rated load,

resistive load)

MELSEC-Q

Operating current

(guaranteed value)

ON OFF

1 ms or less

ON OFF

1 ms or less

1: Terminal numbers A03, A04, B03 and B04 are not used.

3 - 12 3 - 12

3 SPECIFICATIONS

I/O

classification

Input

Internal circuit

(3) QD62D (Differential input sinking output type)

+ 5V

MELSEC-Q

Terminal

number

1

Signal name Operation

CH1 CH2

Input voltage

(guaranteed value)

Operating current

(guaranteed value)

Line receiver

1/10W

+ 5V

1k

27k

1/16W

27k

1/16W

27k

1/16W

27k

1/16W

4.7k 1/16W

100

1/2W

4.7k 1/16W

4.7k

1/16W

100

1/2W

4.7k 1/16W

10k

1/3W

5.6k 1/10W

680

1/10W

A20 A14 Phase A pulse input

B20 B14 Phase A pulse input

A19 A13 Phase B pulse input

A19 B13 Phase B pulse input

A18 A12 Preset input 24 V

B18 B12 Preset input 12 V

A17 A11 Preset input 5 V

B17 B11 PRSTCOM

Line driver level (AM26LS31 [manufactured by Texas Instruments] or equivalent) that conforms to RS-422-A in EIA Standard EIA standard RS-422-A line driver level Equivalent to AM26LS31 (made by Japan Texas Instruments, Inc.) V

hys Hysteresis (VT+ - VT-) 60 mV

V

IH(E) "H" level enable input voltage: 2 V or higher

V

IL(E) "L" level enable input voltage: 0.8 V or lower

A current type line driver cannot be used.

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 2.5 to 5.5 V 2 to 5 mA

When OFF 1 V or less 0.1 mA or less

Response

time

OFF

ON

0.5 ms or less

ON OFF

1 ms or less

When ON 21.6 to 26.4 V 2 to 5 mA

When OFF 5 V or less 0.1 mA or less

When ON 10.8 to 13.2 V 2 to 5 mA

When OFF 4 V or less 0.1 mA or less

When ON 2.5 to 5.5 V 2 to 5 mA

When OFF 1 V or less 0.1 mA or less

Response

time

Operating voltage 10.2 to 30 V Maximum load current 0.5 A/point, 2 A/common Maximum voltage drop when ON 1.5 V Response time OFF

Input voltage 10.2 to 30 V Current consumption 8 mA (TYP 24 V DC)

Output

1k

1/10W

To the fuse

broken detection

circuit

10k

1/3W

5.6k 1/10W

680

1/10W

FUSE

A16 A10 Function start input 24 V

B16 B10 Function start input 12 V

A15 A09 Function start input 5 V

B15 B09 FUNCCOM

A06 A05

B06 B05

EQU1 (Coincidence output point No. 1)

EQU2 (Coincidence output point No. 2)

B02, B01 12/24 V

A02, A01 0 V

1: Terminal numbers A08, A07, A03, A04, B08, B07, B04 and B03 are not used.

OFF

ON

0.5 ms or less

ON 0.1 ms or less

OFF 0.1 ms or less (rated load,

ON

resistive load)

ON OFF

1 ms or less

3 - 13 3 - 13

3 SPECIFICATIONS

3.6 Encoders that can be Connected

The encoders that can be connected to the QD62(E/D) are described below.

(1) Encoders that can be connected to the QD62 and QD62E

• Open collector output type encoders

• CMOS level voltage output type encoders (Verify that the encoder output voltage meets the specifications for the QD62 and QD62E.)

(2) Encoders that can be connected to the QD62D

• Line driver output type encoders (Verify that the encoder output voltage meets the specifications for the QD62D.)

POINT

The following encoders cannot be used with the QD62(E/D).

• TTL level voltage output type encoders

MELSEC-Q

3 - 14 3 - 14

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

MELSEC-Q

4.1 Handling Precautions

4

The following describes the procedure prior to the QD62(E/D) operation, the name and setting of each part of the QD62(E/D), and wiring method.

The following are the precautions for handling the QD62(E/D).

(1) Do not drop the module casing or connector, or do not subject it to strong impact.

(2) Do not remove the PCB of each module from its case. Doing so may cause

breakdowns.

(3) Be careful not to let foreign particles such or wire chips get inside the module.

These may cause fire, breakdowns and malfunctions.

(4) The top surface of the module is covered with a protective film to prevent foreign

objects such as wire chips from entering the module when wiring. Do not remove this film until the wiring is complete. Before operating the system, be sure to remove the film to provide adequate heat ventilation.

(5) Tighten the screws such as module fixing screws within the following ranges.

If the screws are loose, it may cause the module to fallout, short circuits, or malfunction. If the screws are tightened too much, it may cause damage to the screw and/or the module, resulting in fallout, short circuits or malfunction.

Screw location Tightening torque range

Module fixing screw (M3 screw)*1 0.36 to 0.48 N · m

Connector screw (M2.6 screw) 0.20 to 0.29 N · m

* 1 The module can be easily fixed onto the base unit using the hook at the top

of the module. However, it is recommended to secure the module with the module fixing screw if the module is subject to significant vibration.

(6) To mount the module on the base unit, fully insert the module fixing latch into the

fixing hole in the base unit and press the module using the hole as a fulcrum. Improper installation may result in a malfunction or breakdown of the module, or may cause the module to fall off.

4 - 1 4 - 1

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

MELSEC-Q

4.2 Procedure Before Starting the Operation

The figure below shows the steps that should be followed before starting the QD62(E/D) operation.

Start

Module mounting

Mount the QD62(E/D) in the specified slot.

Wiring

Wire external devices to the QD62(E/D).

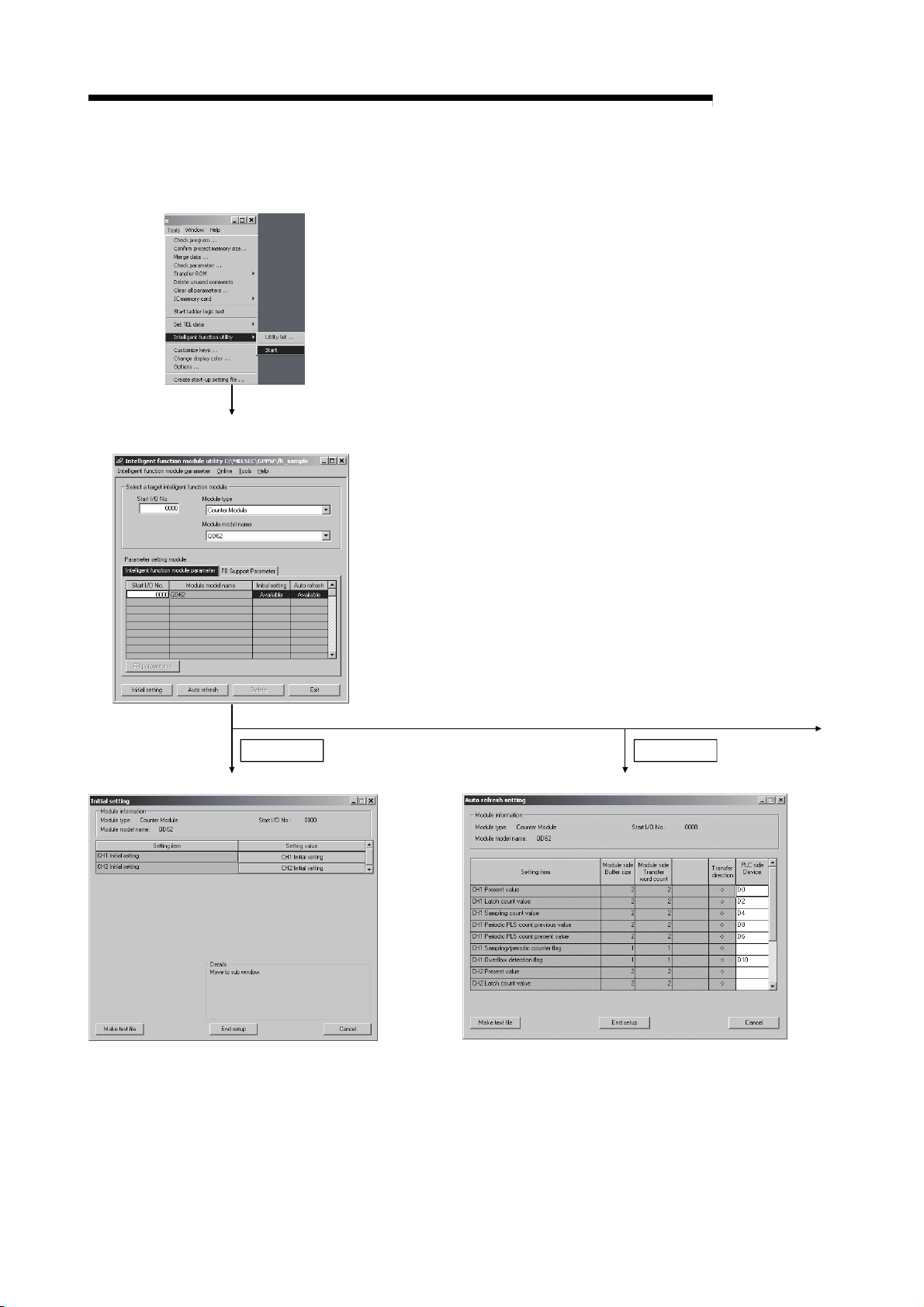

Intelligent function module switch setting

Perform settings using the GX Developer (see Section 4.5)

Use the GX Configurator-CT?

No

Initial setting

Using the FROM/TO commands, create a sequence program for writing initial values.

Yes

Initial setting

Perform the initial setting using the GX Configurator-CT (see Section 7.4).

4

No

Automatic refresh setting

Perform the automatic refresh setting using the GX Configurator-CT (see Section 7.5).

Perform automatic

refresh setting?

Yes

Programming

Create and check a counter processing program using the FROM/TO commands.

Programming

Create and check a counter processing program without using the FROM/TO commands.

Operation

4 - 2 4 - 2

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.3 Part Identification Nomenclature

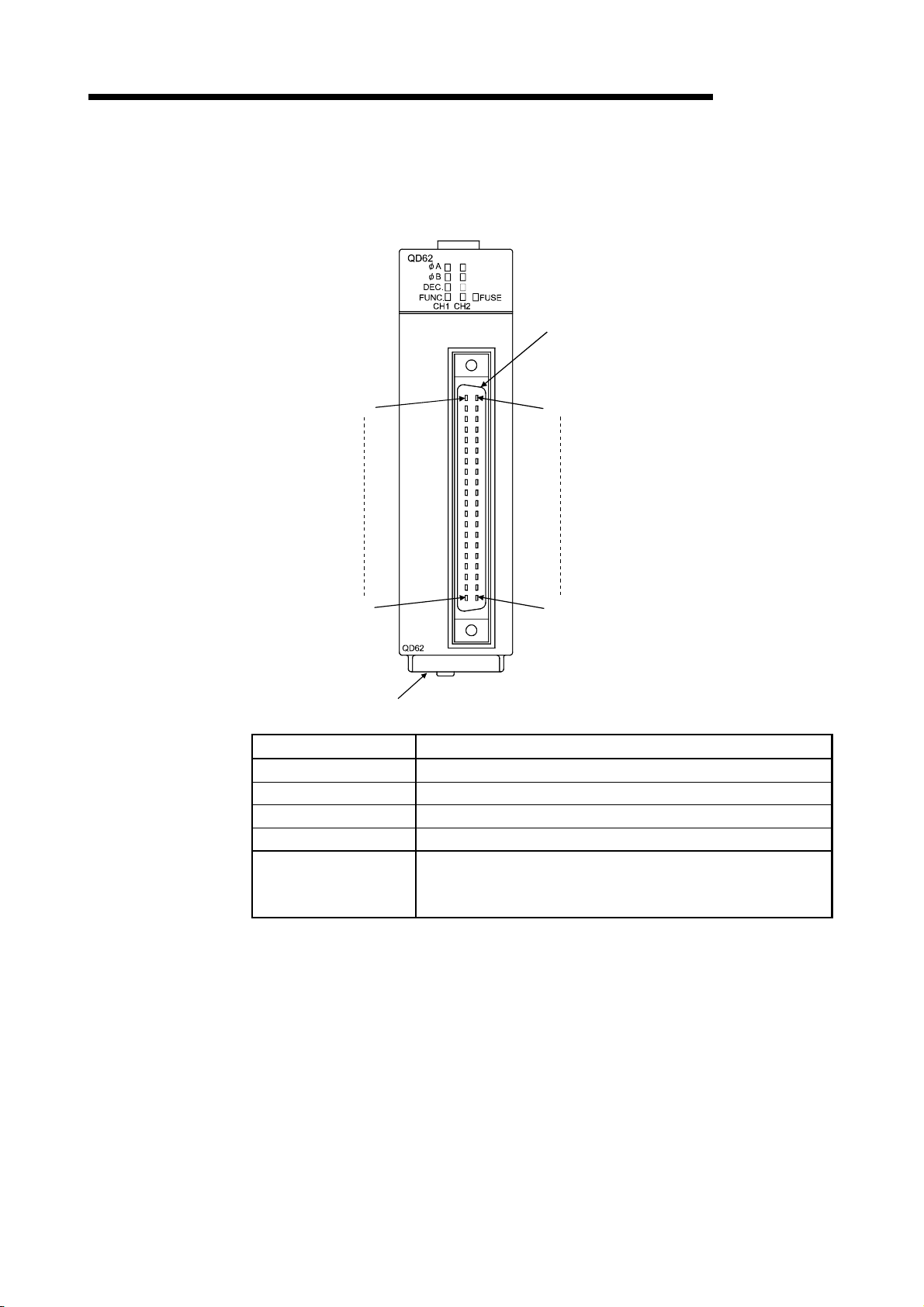

The names of the parts used in the QD62(E/D) are shown below:

External wiring connector (40-pin connector)

MELSEC-Q

(Connector terminal number)

B20

B01

Serial number plate

(Connector terminal number)

A20

A01

LED name Description

φA Lit : Voltage is being applied to the Phase A pulse input terminal.

φB Lit : Voltage is being applied to the Phase B pulse input terminal.

DEC. Lit : Counter is in the process of subtraction.

FUNC. Lit : Voltage is being applied to the function start input terminal.

Lit : Voltage is being applied to the external power supply input

FUSE

terminal while the fuse in the coincidence signal output section

is broken.

4 - 3 4 - 3

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

(1) External wiring Connector

The connectors for use with the QD62(E/D) should be purchased separately by the user. The connector types are listed below.

(a) Connector types

Type Model name

Soldering type, straight out A6CON1

Solderless type, straight out A6CON2

Pressure-welding type, straight out A6CON3

Soldering type, usable for straight out and

diagonal out

A6CON4

MELSEC-Q

4 - 4 4 - 4

y

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.4 Wiring

The following explains how to wire the encoder and the controller to the QD62(E/D).

4.4.1 Wiring precautions

In order to fully utilise the functions of the QD62(E/D) and ensure system reliability, external wiring having a minimum of noise effect must be provided. The precautions regarding external wiring are described below.

(1) Different terminals have been prepared for connection depending on the voltage

of the input signal. Connecting a terminal of incorrect voltage may result in malfunction or mechanical failure.

(2) For 1-phase input, always perform pulse input wiring on the Phase A side.

(3) When pulse status noise is input, the QD62(E/D) may miscount.

(4) Provide the following measures against noise for high-speed pulse input:

(a) Always use a shielded twisted pair cable and provide grounding.

(b) Avoid placing the shielded twisted pair cables or input/output cables. Place the

cable at least 150 mm (5.9 inch) from such wires and perform wiring using the least distance as possible.

(5) An example of wiring incorporating measures against noise is shown below:

Programmable controller

QD62 (E/D)

MELSEC-Q

Inverter

Terminal block

Provide a clearance of 150 mm (5.9 inch) or more from I/O wires to high voltage equipment such as inverters. (Also exercise caution for wiring inside the panel.)

AC

motor

• Grounding the shielded twisted pair cable is performed on the encoder side (relay box). (This example

shows connection with 24 V sink load.

Do not enclose solenoids and inductive loads together within the same metal conduit. If a sufficient distance cannot be secured to isolate ducts and other wires from a highvoltage line, use CVVS or other shielded wire for the high-voltage line.

The distance between the encoder and relay box must be short. Allowing a long distance between

Relay box

Carrier

Encoder

the QD62 (E/D) and the encoder may cause a voltage-drop problem. Using a tester or other measuring device, confirm that the voltage at the terminal block of the rela rated voltage when the encoder is in operation or at standstill. If a substantial voltage drop occurs, increase the wire size or use a 24 V DC encoder with minimal current consumption.

box doesn't exceed the

Current for the encoder

To A To B

To QD62 (E/D)

+ 24 V

0 V

24V E

A

B

To the encoder

E

The shielded wire for the encoder and shielded twisted pair cable are connected inside the rela If the shielded wire for the encoder is not grounded inside the encoder, ground it in the relay box, as indicated by the dotted line.

box .

4 - 5 4 - 5

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.4.2 Wiring example of a module and an encoder

(1) Wiring example with an open collector output type encoder (24 V DC)

Shielded twisted pair cable

Shield

Phase A

24 V

A20 (A13 )

12 V

B20(B13)

5 V

A19(A12)

ABCOM

B19(B12)

OUT

+24 V

E

MELSEC-Q

EncoderQD62,QD62E

Shielded twisted pair cable

OUT

+24 V

Shield

E

+24 V

0 V

Phase B

External power supply

24 V

12 V

24 V DC

0 V

A18(A11)

B18(B11)

5 V

A17(A10)

The number inside the ( ) indicates the terminal number for channel 2.

POINT

When wiring the QD62, QD62E, and the encoder, separate the power supply cable and signal cable. The following diagram shows an example.

[Wiring example]

QD62(E)

A

24 V

ABCOMPhase

OUT

+24 V

0 V

Encoder

E

External

24 V DC

power

supply

0 V

[Incorrect wiring example]

QD62(E)

A

External

power

supply

24 V

ABCOMPhase

24 V DC

0 V

OUT

+24 V

0 V

E

Encoder

The current flows through the shielded twisted pair cables in the same direction, so there is no cancelling effect. This makes it more prone to electromagnetic induction.

4 - 6 4 - 6

r

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

(2) Wiring example with a voltage output type encoder (5 V DC)

Phase A

QD62,QD62E

24 V

A20(A13)

12 V

B20(B13)

5 V

A19(A12)

Shielded twisted pair cable

OUT

GND

Encoder

MELSEC-Q

ABCOM

B19(B12)

24 V

A18(A11)

Phase B

External

12 V

5 V DC

B18(B11)

5 V

A17(A10)

Shielded twisted pair cable

power supply

0 V

Shield

E

OUT

GND

E

+5 V

0 V

The number inside the ( ) indicates the terminal number for channel 2.

(3) Wiring example with a driver (equivalent to AM26LS31) encoder

Phase A

QD62D

A

A20(A14)

A B20(B14)

Shielded twisted pair cable

Shield

Encode

A

E

Phase B

External

B

A19(A13)

B B19(B13)

VCC

Shielded twisted pair cable

Shield

power supply

0 V

B

E

VCC

0 V

The number inside the ( ) indicates the terminal number for channel 2.

4 - 7 4 - 7

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.4.3 Wiring example of a controller and an external input terminal

(1) When the controller (sink loading type) is 12 V DC

Preset

Function start

CTRLCOM

24 V

B17(B10)

12 V

A16(A09)

5 V

B16(B09)

A15(A08)

24 V

B15(B08)

12 V

A14(A07)

5 V

B14(B07)

Shielded twisted pair cable

Shield

Shielded twisted pair cable

Shield

OUT

+12 V

E

OUT

+12 V

E

ControllerQD62,QD62E

MELSEC-Q

12 V DC

QD62D

24 V

A18(A12)

Shielded twisted pair cable

Shield

Shielded twisted pair cable

Shield

OUT

+12V

E

OUT

+12 V

E

Preset

Function start

12 V

B18(B12)

5 V

A17(A11)

PRSTCOM

B17(B11)

24 V

A16(A10)

12 V

B16( B10)

5 V

A15(A09)

FUNCCOM

B15(B09)

Controller

12 V DC

The number inside the ( ) indicates the terminal number for channel 2.

4 - 8 4 - 8

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

(2) When the controller (source loading type) is 5 V DC

Preset

24 V

B17(B10)

12 V

A16(A09)

5 V

B16(B09)

Shielded twisted pair cable

OUT

GND

ControllerQD62,QD62E

MELSEC-Q

Shield

E

OUT

GND

E

5 V DC

Function start

CTRLCOM

A15(A08)

24 V

B15(B08)

12 V

A14(A07)

5 V

B14(B07)

Shielded twisted pair cable

ContrllerQD62D

Preset

24 V

A18(A12)

12 V

B18(B12)

5 V

A17(A11)

PRSTCOM

B17(B11)

Shielded twisted pair cable

Shield

OUT

GND

E

24 V

A16(A10)

Function start

12 V

B16(B10)

5 V

A15(A09)

FUNCCOM

B15(B09)

Shielded twisted pair cable

Shield

OUT

GND

E

5 V DC

The number inside the ( ) indicates the terminal number for channel 2.

4 - 9 4 - 9

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

(3) When the controller is a line driver

Preset

Function start

QD62D

24 V

A18(A12)

12 V

B18(B12)

5 V

A17(A11)

PRSTCOM

B17(B11)

24 V

A16(A10)

12 V

B16(B10)

5 V

A15(A09)

FUNCCOM

B15(B09)

Shielded twisted pair cable

Shield

Shielded twisted pair cable

Shield

Controller

OUT

E

OUT

E

MELSEC-Q

The number inside the ( ) indicates the terminal number for channel 2.

4 - 10 4 - 10

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.4.4 Wiring example with an external output

When the coincidence output (EQU terminal) is used, an external power supply of 10.2 to 30 V DC will be required for operation of the internal photocopier. A wiring example is shown below.

(1) For QD62, QD62D (Sink output type)

QD62,QD62D

EQU1

L

To fuse

broken

detection

circuitry

A06(A05)

EQU2

B06(B05)

12/24 V

B02,B01

0 V

A02,A01

(2) For QD62E (Source output type)

QD62E

MELSEC-Q

10.2 to 30 V DCFUSE

EQU1

A06(A05)

EQU2

B06(B05)

FUSE

To fuse

broken

detection

circuitry

12/24 V

B02,B01

0 V

A02,A01

L

10.2 to 30 V DC

The number inside the ( ) indicates the terminal number for channel 2.

4 - 11 4 - 11

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.4.5 Using the connector/terminal block converter module

(1) The figure below shows the wiring when a connector/terminal block converter

module and a cable are used in the QD62 (E/D).

QD62

φ

A

φ

B

DEC.

FUNC.

CH1CH 2

FUSE

MELSEC-Q

QD62

Cable AC05TB AC10TB AC20TB AC30TB AC50TB AC80TB

AC100TB

Connector/ terminal block converter module

A6TBXY36

02468ACE

13579BDF

11 13 15 17 19 1B 1D 1F

10 12 14 16 18 1A

1C

24V

0V

1E

24V

4 - 12 4 - 12

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

(2) The following table lists the signal names and the corresponding connector side

terminal numbers and terminal block side terminal symbols, when a connector/terminal block converter module is used in the QD62(E/D) .

For the QD62 and QD62E

Signal name

Phase A pulse input 24 V A20 10

Phase A pulse input 12 V B20 0

Phase A pulse input 5 V A19 11

ABCOM B19 1

Phase B pulse input 24 V A18 12

Phase B pulse input 12 V B18 2

Phase B pulse input 5 V A17 13

Preset input 24 V B17 3

CH1

Preset input 12 V A16 14

Preset input 5 V B16 4

CTRLCOM A15 15

Function start input 24 V B15 5

Function start input 12 V A14 16

Function start input 5 V B14 6

EQU1 (Coincidence output point No. 1) EQU2 (Coincidence output point No. 2)

Phase A pulse input 24 V A13 17

Phase A pulse input 12 V B13 7

Phase A pulse input 5 V A12 18

ABCOM B12 8

Phase B pulse input 24 V A11 19

Phase B pulse input 12 V B11 9

Phase B pulse input 5 V A10 1A

Preset input 24 V B10 A

Preset input 12 V A09 1B

CH2

Preset input 5 V B09 B

CTRLCOM A08 1C

Function start input 24 V B08 C

Function start input 12 V A07 1D

Function start input 5 V B07 D

EQU1 (Coincidence output point No. 1) EQU2 (Coincidence output point No. 2)

12/24 V

0 V

Connector side

terminal number

A06 1E

B06 E

A05 1F

B05 F

B02 B01 A02 A01

Terminal block

side terminal

symbol

24 V

0 V

For the QD62D

Signal name

Phase A pulse input (+) A20 10

Phase A pulse input (–) B20 0

Phase B pulse input (+) A19 11

Phase B pulse input (–) B19 1

Preset input 24 V A18 12

Preset input 12 V B18 2

Preset input 5 V A17 13

CH1

PRSTCOM B17 3

Function start input 24 V A16 14

Function start input 12 V B16 4

Function start input 5 V A15 15

FUNCCOM B15 5

EQU1 (Coincidence output point No. 1) EQU2 (Coincidence output point No. 2)

Phase A pulse input (+) A14 16

Phase A pulse input (–) B14 6

Phase B pulse input (+) A13 17

Phase B pulse input (–) B13 7

Preset input 24 V A12 18

Preset input 12 V B12 8

Preset input 5 V A11 19

PRSTCOM B11 9

CH2

Function start input 24 V A10 1A

Function start input 12 V B10 A

Function start input 5 V A09 1B

FUNCCOM B09 B

EQU1 (Coincidence output point No. 1) EQU2 (Coincidence output point No. 2)

12/24 V

0 V

MELSEC-Q

Connector side

terminal number

A06 1E

B06 E

A05 1F

B05 F

B02 B01 A02 A01

Terminal block

side terminal

symbol

24 V

0 V

REMARK

If a connector/terminal block converter module is used in the QD62D, the terminals on the terminal block side with symbols, C, D, 1C and 1D are not used.

4 - 13 4 - 13

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.5 Setting from GX Developer

This section explains the GX Developer settings required to operate the QD62(E/D).

4.5.1 Intelligent function module detailed setting

Sets an external output method for the CPU stop error and a programmable controller CPU operation method for the QD62 (E/D) error detection.

1) Double-click "PLC parameter" in the project window in GX Developer.

2) Click the "I/O assignment" tab.

3) Set the following items for the slot where the QD62(E/D) is mounted, and then click Detailed setting.

MELSEC-Q

Item Description

Type Select "Intelli.".

Model Enter the model name of the module.

Points Select "16points".

Start XY Enter the start I/O number of the QD62(E/D).

4 - 14 4 - 14

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4) Clicking Detailed setting displays the "Intelligent function

module detailed setting" dialog box. Refer to the following and complete the setting.

MELSEC-Q

Setting for the QD62 (E/D) error detectionSetting for a CPU stop error

Item Description

Error time output mode Sets to either clear or hold the module output status when a

programmable controller CPU stop error occurs.

Clear: Turns off all of the coincidence signal external

outputs when a programmable controller CPU stop error occurs. (Default)

Hold: Holds the same on or off status before the CPU is

stopped for the coincidence signal external outputs when a programmable controller CPU stop error occurs.

H/W error time PLC operating mode

Sets to either stop or continue the programmable controller CPU operation when an intelligent function module error (SP.UNIT DOWN) is detected.

Stop: Stops the programmable controller CPU operation

when the QD62 (E/D) error is detected. (Default)

Continue: Continues the programs for modules other than

those in which an error was detected when the QD62 (E/D) error is detected.

The QD62 (E/D) error (SP.UNIT DOWN) is detected when the Unit READY flag is not in the READY status due to a module hardware failure.

4 - 15 4 - 15

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.5.2 Switch setting for intelligent function module

Five switches (switch numbers 1 to 5) are available for the intelligent function module and they are set with 16 bit data. If the switches for the intelligent function module are not set, the default value of 0 is used for switches 1 to 5.

1) Click the I/O assignment tab of the PC parameter dialog

box in GX Developer. (Refer to Section 4.5.1)

MELSEC-Q

4 - 16 4 - 16

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

MELSEC-Q

2) Click the Switch setting button. Consequently, the Switch

setting for the "I/O and intelligent function module" dialog

Item Data item Description Reference

0

Switch 1

(for channel 1)

Switch 2

(for channel 2)

Switch 3

Switch 4

Switch 5

When any item is set, delete the settings and leave the field blank.

POINT

The counting speed setting of 500kPPS can only be used with the QD62D. Setting the counting speed to 500k PPS for the QD62 and QD62E may cause miscounts. Thus, do not use this setting for the QD62 and QD62E. The reserved switches in the intelligent function module switch setting items are for system use, not for users. Therefore, always fix them to 0. If used (changed from 0 to 1) by a user, the operations of the QD62(E/D) are not ensured.

box will be displayed.

Select "HEX".

Pulse input mode

H

Same data item as the switch 1 (for CH1). -

0: 1-phase multiple of 1

1: 1-phase multiple of 2

2: CW /CCW

3: 2-phase multiple of 1

4: 2-phase multiple of 2

5: 2-phase multiple of 4

Counting speed setting

0: 10 k PPS

1: 100 k PPS

2: 200 k PPS

3: 500 k PPS

(Only for the QD62D)

Counter format

0: Linear counter

1: Ring counter

No settings (blank)

Sets the pulse input mode.

Sets the counting speed.

Sets the counter format.

Section 5.1.1

Section 3.1

Section 5.1.1

Section 5.1.2

-

3) After the setting, click the End button.

4 - 17 4 - 17

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

MEMO

MELSEC-Q

4 - 18 4 - 18

φ

5 BASIC USAGE

MELSEC-Q

This section explains the basic usage of the QD62(E/D).

5.1 Pulse Input and Counting Method

5.1.1 Types of pulse input methods

Six types of the pulse input methods are available. These include 1 phase multiple of 1, 1 phase multiple of 2, CW/CCW pulse input, 2 phase multiple of 1, 2 phase multiple of 2, and 2 phase multiple of 4. The following table shows the pulse input methods and

Pulse input method Count timing

count timings.

For addition count

1-phase multiple of 1

For subtraction count

5

For addition count

1-phase multiple of 2

For subtraction count

For addition count

CW/CCW

For subtraction count

For addition count

2-phase multiple of 1

For subtraction count

For addition count

2-phase multiple of 2

For subtraction count

For addition count

2-phase multiple of 4

For subtraction count

{and Y03

(Y0B)}

{or Y03

(Y0B)}

{and Y03

(Y0B)}

{or Y03

(Y0B)}

A

φ

B

Count at

φ

A rise ( )

B and Y03 (Y0B) are OFF

φ

A

B

φ

Count at

φ

A fall ( )

B or Y03 (Y0B) is ON

A

φ

B

Count at

φ

A rise ( ) and fall ( )

B and Y03(Y0B) are OFF

A

φ

B

φ

Count at

φ

A rise ( ) and fall ( )

B or Y03(Y0B) is ON

φ

A

φ

B

A

φ

B

φ

A

Count at

φ

Count at

B

A

Count at

B

A

φ

B

φ

A

φ

B

φ

A

φ

B

φ

A

φ

B

Count at Count at

Count at Count at Count at Count at Count at Count at Count at Count at

B is OFF

A is OFF

φ

A rise ( )

φ

B rise (

φ

A rise ( ) when φ B is OFF

φ

A fall ( ) when φ B is OFF

φ

A rise ( ) when φ B is OFF

φ

A fall ( ) when φ B is ON

φ

A rise ( ) when φ B is ON

φ

A fall ( ) when φ B is OFF

φ

A rise ( ) when φ B is OFF

φ

A fall ( ) when φ B is ON

φ

B rise ( ) when φ A is ON

φ

B fall ( ) when φ A is OFF

φ

A rise ( ) when φ B is ON

φ

A fall ( ) when φ B is OFF

φ

B rise ( ) when φ A is OFF

φ

B fall ( ) when φ A is ON

)

5 - 1 5 - 1

5 BASIC USAGE

MELSEC-Q

POINT

In the case of addition in 1-phase pulse input, make sure that phase B pulse input and the subtraction count command {Y03(Y0B)} are OFF before performing pulse input of phase A. If either of phase B pulse input or the subtraction count command {Y03(Y0B)} is ON, subtraction count is performed in pulse input of phase A.

(1) Phase 1 pulse input

For phase 1 pulse input, either a multiple of 1 or multiple of 2 count method can be selected. The relationship between the phase A pulse input and the down count command is shown below.

QD62(E/D)

Encoder

Pulse input

A

Down count command

(Or, when Y03 (Y0B) turns ON)

B

5

(2) CW/CCW pulse input

For CW/CCW pulse input, the up count is performed when there is a phase A pulse input, and the down count is performed when there is a phase B pulse input. The relationship between the phase A pulse input and phase B pulse input is shown below.

QD62(E/D)

Encoder

Addition pulse input

A

Encoder

Subtraction pulse input

B

(3) Phase 2 pulse input

For phase 2 pulse input, either a multiple of 1, multiple of 2, or multiple of 4 count method can be selected. The phase difference between the phase A pulse and phase B pulse determines whether the up count or down count is performed. The relationship between the phase A pulse input and phase B pulse input is shown below.

QD62(E/D)

Phase A pulse input

Encoder

Phase B pulse input

A

B

5 - 2 5 - 2

5 BASIC USAGE

5.1.2 Setting the count method

The count method is set using the GX Developer intelligent function module switch setting. See Section 4.5 for details on the setting method.

5.1.3 Reading the present values

This section explains the methods of reading the present values stored in the buffer memory or the count values when counter function selection is executed.

(1) When any function is used, the present value is stored into the buffer memory for

storing the present value. When the latch counter, sampling counter or periodic pulse counter function is executed, the count value is stored into the buffer memory for storing the counter function selection count value at the addresses shown in the table below, aside from the buffer memory for storing the present value.

Description

Buffer

memory

address

CH1 2H to 3H CH to DH EH to FH 10H to 11H 12H to 13H

CH2 22

MELSEC-Q

Present

value

H to 23H 2CH to 2DH 2EH to 2FH 30H to 31H 32H to 33H

Latch count

value

Counter function selection count value

Sampling

count value

Periodic pulse count

previous value

Periodic pulse count

present value

(2) Both the present values and counter function selection count values are stored in

the buffer memory as 32-bit signed binary values. In addition, since the contents of the buffer memory are automatically updated by the count operation, the latest count values can be read from the buffer memory.

POINT

When reading the present values or the counter function selection count values, use the DFRO command and always read values in two-word units. When reading the values in one-word units, if the count values are updated in the middle of read processing, a mismatch may occur between the data contents of the lower and higher words, possibly causing the system to read incorrect count values. [Program example]

X20

DFRO

H00 H02 D0 K1

[Example of an undesirable program]

X20

FROM

H00 H03 D1 K1

FROM

H00 H02 D0 K1

5 - 3 5 - 3

5 BASIC USAGE

5.2 Selecting the Counter Format

Select either linear counter or ring counter with the GX Developer intelligent function module switch setting. See Section 4.5 for details on the setting method.

5.2.1 Selecting the linear counter

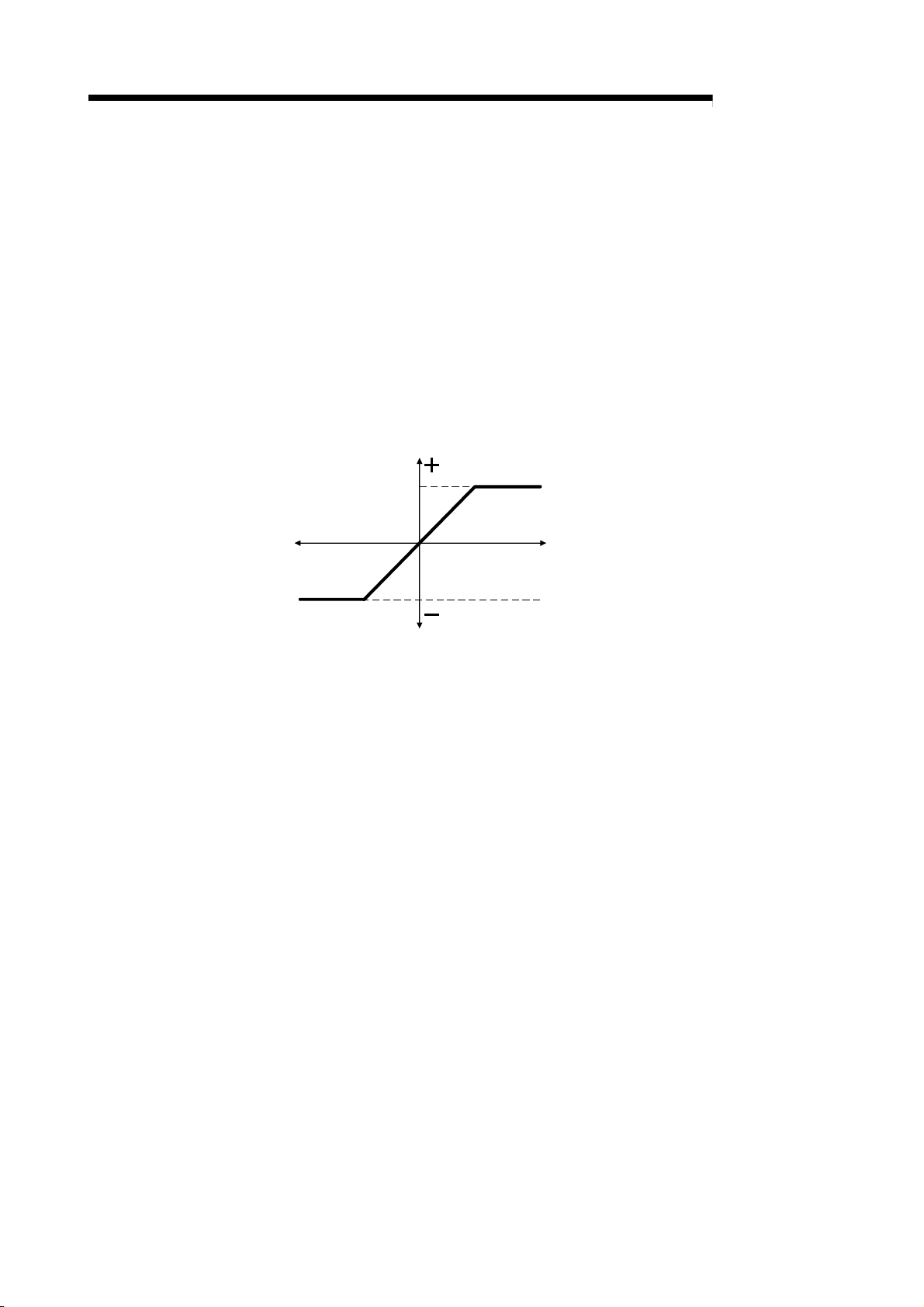

(1) Linear counter operation

When the linear counter is selected, the count operation is performed between –2147483648 (minimum value) and 2147483647 (maximum value). The linear counter can be used in combination with the preset function and the coincidence output function.

Counter present value

Overflow

+ 2147483647

MELSEC-Q

0

Subtraction

Overflow

Addition

– 2147483648

(2) Overflow error

(a) When the counter format is linear counter, an overflow error occurs if the

present counter value exceeds –2147483648 (minimum value) during subtraction or exceeds 2147483647 (maximum value) during addition.

(b) When an overflow error occurs, 1 is stored in the buffer memory overflow

detection flag (addresses CH1: 8

H, CH2: 28H) and the count stops. Even if a

pulse is input, the present value will not change from –2147483648 or

2147483647.

(c) Performing a preset will cancel the overflow error.

When a preset is performed, 0 is stored in the buffer memory overflow detection flag and the count resumes.

(d) When an overflow error occurs, a generated module error can be viewed on

the system monitor by clicking "Diagnosis" - "System monitor" menu in the GX Developer.

5 - 4 5 - 4

5 BASIC USAGE

5.2.2 Selecting the ring counter

(1) Ring counter operation

When the ring counter is selected, the count operation is performed repeatedly between the ring counter minimum value (addresses CH1: 14 to 35

H) and maximum value (addresses CH1: 16H to 17H, CH2: 36H to 37H) that

were set arbitrarily in the buffer memory. When the ring counter is being selected, an overflow error does not occur. The ring counter can be used in combination with the preset function and the coincidence output function.

Present counter value

Subtraction

(2) Ring counter count range

The count range for the ring counter is determined by the relationship between the present values in the buffer memory (addresses CH1: 2 23

H) at the time the count enable command {Y04 (Y0C)} turns ON or a preset is

executed and the ring counter minimum value/maximum value. Normally the range used is "ring counter minimum value ≤ counter maximum value".

• For up count When the present value reaches the ring counter maximum value, the ring counter minimum value is automatically stored as the present value.

• For down count Even if the present value reaches the ring counter minimum value, the ring counter minimum value will be retained as is. With the next subtraction pulse, (ring counter maximum value –1) will be stored as the present value.

Whether during up count or down count, the ring counter maximum value will not be stored in the buffer memory for storing the present values. For example, if the count is enabled with the ring counter minimum value of 0, the ring counter maximum value of 2000 and the present value of 500, the count range and present value will change as shown in the figure below.

– 2147483648

Addition

Ring counter minimum value

0

Present value

Count range

Ring counter maximum value

Ring counter minimum value

Ring counter maximum value

2000

500

MELSEC-Q

H to 15H, CH2: 34H

H to 3H, CH2: 22H to

present value ≤ ring

2147483647

Present value

500 501 1998

Ring counter minimum value

1999to0

(2000)

Ring counter maximum value

2to

1

The ring counter maximum value, 2000, will not be stored in the buffer memory for storing the present values.

498

499

5 - 5 5 - 5

–

5 BASIC USAGE

MELSEC-Q

(a) The ring counter will operate as follows when the "present value < ring

counter minimum value" or "ring counter maximum value < present value".

• For up count Even if the present value reaches the ring counter minimum value, the ring counter minimum value will be retained as is. With the next addition pulse, (ring counter maximum value +1) will be stored as the present value.

• For down count When the present value reaches the ring counter maximum value, the ring counter minimum value is automatically stored as the present value.

Whether during up count or down count, the ring counter maximum value will not be stored in the buffer memory for storing the present values. For example, if the count is enabled with the ring counter minimum value of 0, the ring counter maximum value of 2000 and the present value of 3000, the count range and present value will change as shown in the figure below.

Ring counter minimum value

0

2147483648

Count range

Ring counter maximum value

2000

Present value

3000

2147483647

Count range

Present value

3001

3000

to

2147483647 –2147483648

Ring counter minimum value

(2000)

– 1 0 to

– 2

to 2999

The ring counter maximum value, 2000, will not be stored in the buffer memory for storing the present values.

Ring counter maximum value

2001

2002

2998

(b) When the "ring counter's minimum value is equal to the ring counter's

maximum value", the count range will cover any value that can be expressed in 32-bit signed binary values (-2147483648 to 2147483647), regardless of the present value.

POINT

(1) When the count enable command {Y04(Y0C)} is ON, the set values for the

buffer memory will not change even if values are written as the minimum value and maximum value of the ring counter. To change the ring counter maximum and minimum value settings, first turn the count enable command OFF.

(2) When the count range is to be changed using preset, always change it after

first turning the count enable command {Y04(Y0C)} OFF.

5 - 6 5 - 6

5 BASIC USAGE

5.3 Using the Coincidence Output Function

The coincidence output function presets any count value, compares it with the present counter value, and outputs a signal when they match. For the coincidence output, 2 points can be set for each channel. To use the coincidence signal external output, turn ON the coincidence signal enable command {Y02(Y0A)}.

(1) Coincidence Output Operation

Count enable command {Y04 (Y0C)}

ON

OFF

MELSEC-Q

Coincidence signal enable command {Y02 (Y0A)}

Counter input pulse

Coincidence output point setting No. 1 Buffer memory (Addresses 4

Counter value small (point No. 1) {X03 (X0A)}

Counter value coincidence (point No. 1) {X02 (X09)}

Coincidence signal No. 1 reset command {Y00 (Y08)}

Counter value large (point No. 1) {X01 (X08)}

Buffer memory for storing present values (Addresses 2

Number Description

The coincidence output point set values are written in advance as 32-bit signed binary values in the coincidence output point

1) No. 1 buffer memory {addresses 4

When the count value becomes the coincidence output point set value, the counter value small signal turns OFF and the counter

2) value coincidence signal turns ON.

When the coincidence signal reset command is turned ON, the counter value coincidence signal is reset. If the counter value

3) coincidence signal stays ON, the next coincidence signal cannot be output.

4) When the counter value becomes greater than the coincidence output point set value, the counter value large signal turns ON.

to 5H (24H to 25H))

H

to 3H (22H to 23H))

H

H to 5H (24H to 25H)}.

ON

OFF

ON

OFF

ON

OFF

ON

OFF

ON

OFF

1) 100

2)

3)

4)

102

0

1

2

98

to

101

10099

103

POINT

Before turning ON the coincidence signal enable command, perform the following operations. (1) Using any of the following methods, make the coincidence output point setting

value and present value different.

• Changing the coincidence output point setting

• Changing the present value by preset

• Inputting a pulse and changing the present value

(2) Turn OFF, ON, and then OFF again the coincidence signal reset command.

If turning ON the coincidence signal enable command before count start or while the coincidence output point setting value and present value are the same, coincidence output is performed.

5 - 7 5 - 7

5 BASIC USAGE

MELSEC-Q

(2) Output status setting during a CPU stop error

The output status (clear/hold) can be set for the external output signal when a CPU stop error occurs. The output status is set using the GX Developer I/O assignment. See Section 4.5 for details on the I/O assignment setting method.

(3) Coincidence detection interrupt function

The coincidence detection interrupt function allows making an interrupt request to a programmable controller CPU at the time of coincidence detection to start the interrupt program. (When the programmable controller CPU is a Q00J/Q00/Q01CPU, use function version B or later.)

(a) With the MELSEC-Q series intelligent function module, each module can

have up to 16 points of interruption factors (SI). The QD62 (E/D) has 4 points of interrupt factors corresponding to the coincidence outputs shown below.

SI No. Interruption factor

0 Channel 1: Coincidence detection for coincidence output point No. 1

1 Channel 1: Coincidence detection for coincidence output point No. 2

2 Channel 2: Coincidence detection for coincidence output point No. 1

3 Channel 2: Coincidence detection for coincidence output point No. 2

4 to 15 Vacant

Timing of interrupt signal generation

Counter value

coincidence

I/O signal

{X02/X06(X09/X0D)}

Coincidence signal

reset command

{Y00/Y07(Y08/Y0F)}

Interrupt request

Internal processing

Clear interrupt request

Program controller CPU program processing

Interrupt program processing

(b) Select "PLC parameter" - "PLC system" - "Intelligent function module setting"

- "Interrupt pointer settings" to set the interrupt factors (SI) of the QD62(E/D) and interrupt pointers of the PLC CPU.

1) CPU side [Interrupt pointer start No.] Set the start interrupt pointer number of the programmable controller CPU. Setting range: 50 to 255

2) PLC side "Interrupt pointer No. of module" Set the number of interrupt factors (SI). Setting range: 1 to 4

5 - 8 5 - 8

5 BASIC USAGE

MELSEC-Q

3) Intelli. module side "Start I/O No." Set the start I/O number of the QD62(E/D). Setting range: 0000 to 0FF0 (H)

4) Intelli. module side "Start SI No." Set the start interrupt factor (SI) No. of the QD62(E/D). Setting range: 0 to 3

The following example shows SI 0 to 3 of the QD62(E/D) installed in the slot where the start I/O is 20 being assigned to interrupt pointers I50 to I53.

(c) The following two methods are available for using only specific SI numbers:

1) Method using the parameter interrupt pointer setting The interruption factors are used only for the start SI number and the additional number of pointers, only which are specified in the dialog box for the "Intelligent function module's interrupt point setting." For example, if the start SI number is set as 1 and the number of pointers is set as 2, only SI 1 and 2 are used. Also, the interrupt function cannot be used when the parameter interrupt pointer setting has not been set.

2) Method using the IMASK command from the sequence program When the IMASK command is used, interrupt program execution enable/disable (interrupt mask) can be set for each interrupt pointer number. Refer to the QCPU (Q Mode)/QnACPU Programming Manual for details on the IMASK command.

POINT

A coincidence detection interrupt occurs when the counter value coincidence signal rises (OFF coincidence signal is reset and the counter value coincidence signal is turned OFF.

ON). Thus, the next interrupt request does not occur unless the

5 - 9 5 - 9

{

(

)}

5 BASIC USAGE

5.4 Using the Preset Function

The preset function rewrites the present counter value to any numeric value called the preset value. The preset function can be used when starting the pulse count from the preset value. The preset function has two preset methods: preset using a sequence program and preset using an external control signal.

(1) Preset using a sequence program

Preset is performed by turning the preset command {Y01(Y09)} ON using the sequence program.

Count enable command

{Y04 (Y0C)}

Input pulse for counting

ON

OFF

MELSEC-Q

Buffer memory used for

setting the preset value

{Addresses 0

Preset command

{Y01 (Y09)}

Buffer memory used for storing

the present value

Addresses 2H to 3

to 1H (20H to 21H)}

H

22Hto 23

H

ON

OFF

H

0

210 103

1)

100

2)

to

1016665

104 10510067 102

Number Description

1)

Any numeric value is written in 32-bit binary format into the preset value setting

buffer memory (Addresses 0

H to 1H (20H to 21H)) for the QD62 (E/D).

At the start (OFF to ON) of the preset command, the preset value in the preset

2)

value setting buffer memory is preset in the present value storage buffer

memory. Preset can be executed regardless of whether the count enable

command {Y04(Y0C)} is ON or OFF.

5 - 10 5 - 10

5 BASIC USAGE

(2) Preset using an external control signal

Preset is performed by applying ON voltage to the preset input terminal for external input.

Count enable command {Y04 (Y0C)}

Counter input pulse

ON

OFF

MELSEC-Q

Preset value setting buffer memory {Addresses 0

Preset command (Preset input terminal)

External preset request detection flag {X04 (X0B)}

External preset request detection reset command {Y05 (Y0D)}

Present value storage buffer memory {Addresses 2

to 1H (20H to 21H)}

H

to 3H (22H to 23H)}

H

ON

OFF

ON

OFF

ON

OFF

0

21

1)

100

2)

to

3)

1016665

2)

4)

to

123

100 10110067

124

Number Description

1)

Any numeric value is written in 32-bit binary format into the preset value setting

buffer memory (Addresses 0

H to 1H (20H to 21H)) for the QD62(E/D).

At the start (OFF to ON) of the preset command (voltage applied to the preset

2)

input terminal), the preset value in the preset value setting buffer memory is

preset in the present value storage buffer memory. Preset can be executed

regardless of whether the count enable command {Y04(Y0C)} is ON or OFF.

POINT

While the external preset request detection flag {X04(X0B)} is ON (3), preset cannot be executed even if voltage is applied to the preset input terminal or the preset command {Y01(Y09)} is turned ON. Preset can be performed by turning ON (4) the external preset request detection reset command {Y05(Y0D)} and turning OFF the external preset request detection flag.

5 - 11 5 - 11

6 CONVENIENT USAGE

MELSEC-Q

6 CONVENIENT USAGE

6.1 Selecting the Counter Function

By selecting the counter function with the counter function selection setting, the disable count function, latch counter function, sampling counter function and periodic pulse counter function can be used. The counter function selection can be executed by writing the data shown in the table below into the counter function selection setting buffer memory (address 9 by using the counter function selection start command (voltage applied to the function start input terminal or turning Y06 (Y0E) ON using the sequence program). Also, for the counter function selection, only one of the following four functions can be used.

Counter function selection Set value Remarks

Disable count function 0 Initial value (default) Latch counter function 1

Sampling counter function 2

Periodic pulse counter function 3

(1) Disable count function

This function stops the count while the counter function selection start command is being entered when the count enable command (Y04 (Y0C)) is ON.

(2) Latch counter function

This function latches the present value at the time the counter function selection start command was entered to the latch count value (addresses C to 2D

H).

(3) Sampling counter function

This function counts the input pulses during the preset sampling period since the time the counter function selection start command was entered.

(4) Periodic pulse counter function

This function stores the present value and previous value for each preset periodic time while the counter function selection start command is being entered.

POINT

(1) Change the counter function while the counter function selection start

command is OFF.

(2) The counter function selection can be executed either by turning Y06 (Y0E) ON

or applying voltage to the function start input terminal. Also, the signal that was entered first takes precedence.

(3) Time settings for the sampling counter function and the periodic pulse counter

function are performed by writing data in a range from 1 to 65535 into the sampling/periodic setting buffer memory {address A (Example) When 420 is specified in the sampling/periodic time setting buffer memory

Setting time = 420

10 = 4200 [ms]

H (29H)} and

H to DH (2CH

H (2AH)}. The time unit is 10 ms.

6

6 - 1 6 - 1

6 CONVENIENT USAGE

6.1.1 Reading the counter function selection count value

MELSEC-Q

6

The counter function selection count values are stored when the counter function selection is executed. The count values when the latch counter, sampling counter and periodic pulse counter functions are executed are stored in the counter function selection count value storage buffer memory at the addresses shown in the table below.

Contents

Buffer

memory

address

Counter function selection count value

Present

value

CH1 2H to 3H CH to DH EH to FH 10H to 11H 12H to 13H

CH2 22H to 23H 2CH to 2DH 2EH to 2FH 30H to 31H 32H to 33H

Latch count

value

Sampling

count value

Periodic pulse

count previous

value

Periodic pulse

count present

value

The present values and counter function selection count values are stored as 32-bit signed binary values in the buffer memory. Also, since the contents of the buffer memory are automatically updated by the count operation, the latest count values can be read from the buffer memory.

POINT

(1) When reading the present and counter function selection count values, use the

DFRO command and always read values in two-word units. When reading values in one-word units, if the count values are updated in the middle of read processing, a mismatch may occur between the data contents of the lower and higher words, possibly causing the system to read incorrect count values.

[Program example]

X20

DFRO

H00 H0E D0 K1

[Example of an undesirable program]

X20

FROM

H00 H0F D1 K1

H00 H0E D0

K1

(2) Although the latch count value and present periodic pulse count value are

stored in different addresses, the same values are always stored (updated at the same time). Thus, when the latch counter function or periodic pulse counter function is executed, the present periodic pulse count value and latch count value do not retain their previous values.

6 - 2 6 - 2

6 CONVENIENT USAGE

6.1.2 Count error

With the counter function selection, an error occurs in the count when it is executed using an external input (voltage applied to the function start input terminal) or by a sequence program (counter function selection start command ON). The following explains how to calculate the count error.

(1) Count error (maximum) due to input response delay when using an

external input

(2) Count error (maximum) when the counter function selection is

executed by a sequence program

(3) Count error (maximum) due to the internal clock when executing

the sampling counter function and periodic pulse counter function

Sampling/cycle time setting value x 10 [ms]

1 [ms]

1000

1 scan time [ms]

[s]

pulse input speed [PPS] multiple [count]

1000

[s]

pulse input speed [PPS] multiple [count]

Error in parts dimensions, 100 [ppm]

[s]

1000000

MELSEC-Q

Pulse input speed [pps] Multiplier factor [count]

(Sampling/cycle time setting value (unit: 10ms)) Pulse input speed [pps] Multiplier factor [count]

1000000

6 - 3 6 - 3

{

6 CONVENIENT USAGE

6.2 Using the Disable Count Function

The disable count function stops the count operation while the count enable command is ON. The relationships between the count enable command, counter function selection start command and the present counter value are illustrated below.

Count enable command

Y04(Y0C)}

ON

OFF

1) 8)6)

MELSEC-Q

Y06(Y0E)

Count function selection start command

Function start input

Present value storage buffer memory {Addresses 2

to 3H (22H to 23

H

2) 7)3) ON

OFF

4) 5) ON

OFF

Pulse actually entered

)}

H

The count value to be stored in the present value storage

0

Stops count

operation

Stops

count

operation

Stops

count

operation

buffer memory

Stops count operation

9)

Number Description

1) Count operation starts when the count enable command {Y04 (Y0C)} turns ON.

2)

3)

4)

5)

6) Count operation stops when the count enable command turns OFF.

7)

8)

9)

Count operation stops when the counter function selection start command {Y06

(Y0E)} turns ON.

Count operation resumes when the counter function selection start command

{Y06 (Y0E)} turns OFF.

Count operation stops when the count function selection start command

(function start input) turns on.

Count operation resumes when the count function selection start command

(function start input) turns off.

Count operation stops regardless of the status of the counter function selection

start command since the count enable command is OFF.

Count operation stays stopped even if the count enable command turns ON,

since the counter function selection start command is ON.

Count operation resumes when the counter function selection start command

turns OFF.

6 - 4 6 - 4

6 CONVENIENT USAGE

6.3 Using the Latch Counter Function

The latch counter function latches the present counter value at the time a signal was entered. The relationships between the present counter value for the latch counter function, the counter function selection start command and the latch count value storage buffer memory are illustrated below:

Count enable command {Y04 (Y0C)}

ON

OFF

MELSEC-Q

Present value storage buffer memory {Addresses 2

Counter function selection start command {Y06 (Y0E), Function start input}

Latch count value storage buffer memory {Addresses C

to 3H (22H to 23H)}

H

to DH (2CH to 2DH)}

H

150

100

50

ON

OFF

150

100

50

130

100

50

0

1) 2) 3) 4)

130

100

50

0

When the counter function selection start command {Y06 (Y0E), function start input} rises at points indicated by 1) to 4) in the figure above, the present counter value is stored in the latch count value storage buffer memory {addresses C 2D

H)}. The latch counter function is executed regardless of whether the count enable

H to DH (2CH to

command {Y04 (Y0C)} turns ON/OFF.

6 - 5 6 - 5

6 CONVENIENT USAGE

6.4 Using the Sampling Counter Function

The sampling counter function counts the pulses that are entered during the specified sampling time period. The relationships between the signals, buffer memory, etc. in the sampling counter

Count enable command

{Y04 (Y0C)}

Present value storage buffer memory

{Addresses 2

function are illustrated below.

to 3H (22H to 23H)}

H

ON

OFF

200

100

0

MELSEC-Q

5)

Counter function selection start command

{Y06 (Y0E), Function start input}

Sampling count value storage buffer memory

{Addresses E

Sampling/periodic counter flag storage

buffer memory

{Address B

to FH (2EH to 2FH)}

H

(2BH)}

H

ON

OFF

200

100

0

– 100

1

0

1)

TT

2)3)4)

T

Number Description

1)

2) When the specified sampling time period elapses, the count stops.

3)

4)

5)

The pulses entered are counted from 0 at the rise of the counter function

selection start command {Y06 (Y0E), function start input}.

While the sampling counter function is being executed, 1 is stored in the

sampling/periodic counter flag storage buffer memory {address B

H (2BH)}.

Even if the execution of the sampling counter function ends, the value in the

sampling count value storage buffer memory is saved.

The sampling counter function is executed regardless of whether the count

enable command {Y04 (Y0C)} turns ON/OFF.

6 - 6 6 - 6

{

6 CONVENIENT USAGE

6.5 Using the Periodic Pulse Counter Function

The periodic pulse counter function stores the present and previous counter values for each specified periodic time (T) as the present and previous values. The relationships between the signals, buffer memory, etc. in the periodic pulse counter function are illustrated below.

Count enable command

Y04 (Y0C)}

Present value storage buffer memory {Addresses 2

to 3H (22H to 23H)}

H

ON

OFF

200

100

1)

0

2)

200

MELSEC-Q

6)

4)

100

3)

20

5) 80

Counter function selection start command

Y06 (Y0E), Function start input}

Present periodic pulse count value storage buffer memory {Addresses 12

Previous periodic pulse count value storage buffer memory {Addresses 10

Sampling/periodic counter flag storage buffer memory {Address B

to 13H (32H to 33H)}

H

to 11H (30H to 31H)}

H

(2BH)}

H

ON

OFF

200

100

200

100

TTTTT

2)

200

4)

100

1)

0

1

0

2) 0

7)

3) 20

3)

200

4)

20

5)

80

5)

100

6 - 7 6 - 7

6 CONVENIENT USAGE

Number Description

1)

2)

3)

4)

5)

6)

7)

POINT

When reading a previous value {buffer memory address 10H to 11H (30H to 31H)} and a present value {buffer memory address 12 periodic pulse count, read 4 contiguous words using the DFRO or BMOV instruction.

[Program example]

MELSEC-Q

The present counter value of 0 is stored in the present periodic pulse count

value storage buffer memory {addresses 12H to 13H (32H to 33H)} (hereinafter

called the present value buffer memory).

The present counter value of 200 is stored in the present value buffer memory.

The value 0 that has been stored in the present value buffer memory will be

stored in the previous periodic pulse count value storage buffer memory

{addresses 10

memory).

The present counter value of 20 is stored in the present value buffer memory.

The value 200 that has been stored in the present value buffer memory will be

stored in the previous value buffer memory.

The present counter value of 100 is stored in the present value buffer memory.

The value 20 that has been stored in the present value buffer memory will be

stored in the previous value buffer memory.

The present counter value of 80 is stored in the present value buffer memory.

The value 100 that has been stored in the present value buffer memory will be

stored in the previous value buffer memory.

The periodic pulse counter function is executed regardless of whether the count

enable command {Y04 (Y0C)} is ON or OFF.

Value 1 is stored in the sampling/periodic counter flag storage buffer memory

{address B

H to 11H (30H to 31H)} (hereinafter called the previous value buffer

H (2BH)} while the periodic pulse counter function is being executed.

H to 13H (32H to 33H)} of the

Read command

H00 H10 D6 K2DFRO

Read command

U0\G16 D6 K4BMOV

Depending on the relation between the update timings of the previous and present periodic pulse count values inside the module and the read timing in the sequence program, the previous value may be the same as the present value. If this has occurred, execute the reading again. (See Section 8.1.2, Section 8.2.2.)

6 - 8 6 - 8

7 UTILITY PACKAGE (GX Configurator-CT)

MELSEC-Q

7 UTILITY PACKAGE (GX Configurator-CT)

7.1 Functions of the Utility Package

Table 7.1 lists the functions of the utility package.

Table 7.1 Utility package (GX Configurator-CT) function list

Function Description Reference section

(1) Performs initial settings for each channel to operate the QD62 (E/D).

Sets values for the following items that require initial setting.

• CH Preset value setting

Coincidence output point set No.1

• CH

• CH Coincidence output point set No.2

• CH Counter function selection setting

Initial setting

Auto refresh

Monitoring/test

Sampling/periodic setting [unit: 10 ms]

• CH

• CH Ring counter maximum value

• CH Ring counter minimum value

(2) The data for which initial setting has been completed is registered in the

programmable controller CPU parameters, and automatically written to

the QD62 (E/D) when the programmable controller CPU is placed in the

RUN status.

(1) The QD62 (E/D)’s buffer memory is configured for automatic refresh.

Preset value

• CH

• CH Latch count value

Sampling count value

• CH

• CH Periodic pulse counter present value

• CH Periodic pulse counter previous value

Sampling/periodic counter flag

• CH

Overflow detection flag

• CH

(2) Values set for auto refresh and stored in the QD62 (E/D)’s buffer

memory are automatically read out when the END instruction is executed

in the programmable controller CPU.

The buffer memory and I/O signals of the QD62 (E/D) are monitored or

tested.

• X/Y device

Present value

• CH

• CH Preset function

Coincidence output function

• CH

• CH Counter selection function

• CH Ring counter function

Section 7.4

Section 7.5

Section 7.6

7

7 - 1 7 - 1

7 UTILITY PACKAGE (GX Configurator-CT)

7.2 Installing and Uninstalling the Utility Package

MELSEC-Q

7.2.1 Handling precautions

7

For how to install or uninstall the utility package, refer to "Method of installing the MELSOFT Series" included in the utility package.

The following explains the precautions on using the utility package.

(1) For safety

Since the utility is add-in software for GX Developer, read "Safety Precautions" and the basic operating procedures in the GX Developer Operating Manual.

(2) About installation

GX Configurator-CT is add-in software for GX Developer Version 4 or later. Therefore, GX Configurator-CT must be installed on the personal computer that has already GX Developer Version 4 or later installed.

(3) Screen error of Intelligent function module utility

Insufficient system resource may cause the screen to be displayed inappropriately while using the Intelligent function module utility. If this occurs, close the Intelligent function module utility, GX Developer (program, comments, etc.), and other applications, and then start GX Developer and Intelligent function module utility again.

(4) To start the Intelligent function module utility

(a) In GX Developer, select "QCPU (Q mode)" for PLC series and specify a

project. If any PLC series other than "QCPU (Q mode)" is selected, or if no project is specified, the Intelligent function module utility will not start.

(b) Multiple Intelligent function module utilities can be started.

However, [Open file] and [Save file] operations under [Intelligent function module parameter] are allowed for one Intelligent function module utility only. Only the [Monitor/test] operation is allowed for the other utilities.

(5) Switching between two or more Intelligent function module utilities

When two or more Intelligent function module utility screens cannot be displayed side by side, select a screen to be displayed on the top of others using the task bar.

7 - 2 7 - 2

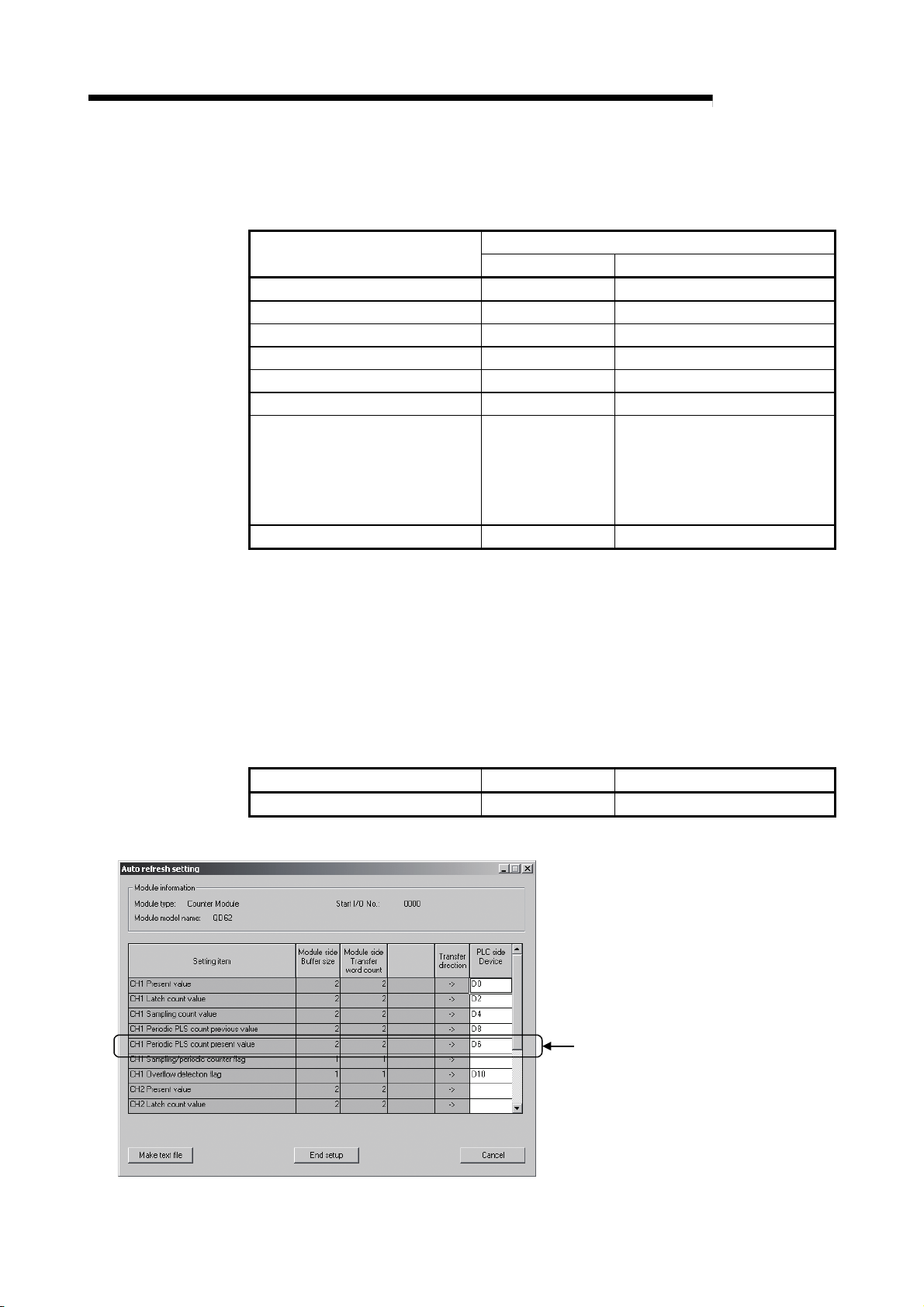

7 UTILITY PACKAGE (GX Configurator-CT)

(6) Number of parameters that can be set in GX Configurator-CT

When multiple intelligent function modules are mounted, the number of parameter settings must not exceed the following limit.

are installed to:

Q00J/Q00/Q01CPU 512 256

Q02/Q02H/Q06H/Q12H/Q25HCPU 512 256

Q02PH/Q06PH/Q12PH/Q25PHCPU 512 256

Q12PRH/Q25PRHCPU 512 256

Q00UJ/Q00U/Q01UCPU 512 2048

Q02UCPU 2048 1024

Q03UD/Q04UDH/Q06UDH/

Q10UDH/Q13UDH/Q20UDH/

Q26UDH/Q03UDE/Q04UDEH/

Q06UDEH/Q10UDEH/Q13UDEH/

Q20UDEH/Q26UDEHCPU

MELSECNET/H remote I/O station 512 256

For example, if multiple intelligent function modules are installed to the MELSECNET/H remote I/O station, configure the settings in GX Configurator so that the number of parameter settings for all the intelligent function modules does not exceed the limit of the MELSECNET/H remote I/O station. Calculate the total number of parameter settings separately for the initial setting and for the auto refresh setting.

The number of parameters that can be set for one module in GX Configurator-CT is as shown below.

Target module Initial setting Auto refresh setting

QD62/QD62E/QD62D 8 (Fixed) 14 (Max.)

Example) Counting the number of parameter settings in Auto refresh setting

MELSEC-Q

Maximum number of parameter settings When intelligent function modules

Initial setting Auto refresh setting

4096 2048

The number of settings in this one line is counted as one setting. The number of settings is not counted by columns. Add up all the setting items in this setting screen, then add them to the total for the other intelligent function modules to get a grand total.

7 - 3 7 - 3

7 UTILITY PACKAGE (GX Configurator-CT)

7.2.2 Operating environment

This section explains the operating environment of the personal computer that runs GX

Item Description

Installation (Add-in) target1 Add-in to GX Developer Version 4 (English version) or later2

Computer WindowsR-based personal computer

CPU

Required memory

For installation 65 MB or more Hard disk

space

For operation 10 MB or more

3

Display

Operating system

1: Install GX Configurator-CT in GX Developer Version 4 or higher in the same language. 2: GX Configurator-CT is not applicable to GX Developer Version 3 or earlier. 3: At least 15GB is required for Windows VistaR. 4: Resolution of 1024 X 768 dots or more is recommended for Windows VistaR.

Configurator-CT.

Refer to the following table "Operating system and performance required for personal

computer".

800 600 dots or more resolution4

Microsoft MicrosoftR WindowsR 98 Operating System (English version) MicrosoftR WindowsR Millennium Edition Operating System (English version) Microsoft MicrosoftR WindowsR 2000 Professional Operating System (English version) MicrosoftR WindowsR XP Professional Operating System (English version) Microsoft MicrosoftR Windows VistaR Home Basic Operating System (English version) MicrosoftR Windows VistaR Home Premium Operating System (English version) Microsoft MicrosoftR Windows VistaR Ultimate Operating System (English version) MicrosoftR Windows VistaR Enterprise Operating System (English version)

R

WindowsR 95 Operating System (English version)

R

Windows NTR Workstation Operating System Version 4.0 (English version)

R

WindowsR XP Home Edition Operating System (English version)

R

Windows VistaR Business Operating System (English version)

MELSEC-Q

7 - 4 7 - 4

7 UTILITY PACKAGE (GX Configurator-CT)

MELSEC-Q

WindowsR 95 PentiumR 133MHz or more 32MB or more

WindowsR 98 PentiumR 133MHz or more 32MB or more

WindowsR Me PentiumR 150MHz or more 32MB or more

Windows NTR Workstation 4.0 PentiumR 133MHz or more 32MB or more

WindowsR 2000 Professional PentiumR 133MHz or more 64MB or more

WindowsR XP Professional (Service Pack 1 or more)

WindowsR XP Home Edition (Service Pack 1 or more) PentiumR 300MHz or more 128MB or more

Windows VistaR Home Basic PentiumR 1GHz or more 1GB or more

Windows VistaR Home Premium PentiumR 1GHz or more 1GB or more

Windows VistaR Business PentiumR 1GHz or more 1GB or more

Windows VistaR Ultimate PentiumR 1GHz or more 1GB or more

Windows VistaR Enterprise PentiumR 1GHz or more 1GB or more

Operating system and performance required for personal computer

Operating system

PentiumR 300MHz or more 128MB or more

Performance required for personal computer

CPU Memory

POINT

• The functions shown below are not available for WindowsR XP and Windows

R

Vista

. If any of the following functions is attempted, this product may not operate normally.

Start of application in Windows

R

compatible mode Fast user switching Remote desktop Large fonts (Details setting of Display Properties)

Also, 64-bit version Windows

• Use a USER authorization or higher in Windows Vista

R

XP and Windows VistaR are not supported.

R

.

7 - 5 7 - 5

7 UTILITY PACKAGE (GX Configurator-CT)

7.3 Explanation of Utility Package Operations

7.3.1 How to perform common utility package operations

(1) Control keys

Special keys that can be used for operation of the utility package and their applications are shown in the table below.

Key Application

Esc

Cancels the current entry in a cell. Closes the window.

MELSEC-Q

Tab

Ctrl

Delete

Back

space

Page

Up

Page

Down

Enter

Moves between controls in the window.

Used in combination with the mouse operation to select multiple cells for test execution.

Deletes the character where the cursor is positioned. When a cell is selected, clears all of the setting contents in the cell.

Deletes the character where the cursor is positioned.

Moves the cursor.

Moves the cursor one page up.

Moves the cursor one page down.

Completes the entry in the cell.

(2) Data created with the utility package

The following data or files that are created with the utility package can be also handled in GX Developer. Figure 6.1 shows respective data or files are handled in which operation.

(a) This represents the data created in Auto refresh setting, and they are stored

in an intelligent function module parameter file in a project created by GX Developer.

Project

Program Parameters

(b) Steps 1) to 3) shown in Figure 7.1 are performed as follows:

1) From GX Developer, select: [Project]

2) On the intelligent function module selection screen of the utility, select: [Intelligent function module parameter] parameters]

PLC Parameters Network Parameters Intelligent Module Parameters

[Open project] / [Save]/ [Save as]

[Open parameters] / [Save

7 - 6 7 - 6

r

7 UTILITY PACKAGE (GX Configurator-CT)

3) From GX Developer, select: [Online]

[Read from PLC] / [Write to PLC] "Intelligent function module parameters" Alternatively, from the intelligent function module selection screen of the utility, select: [Online]

[Read from PLC] / [Write to PLC]

(a) A text file can be created by clicking the Make text file

setting, Auto refresh setting, or Monitor/Test screen. The text files can be utilized to create user documents.

(b) Text files can be saved in any directory.

However, a path (folder where the file is to be saved) cannot be created

during Make text file

GX Developer/

GX Configurator-CT

the file using Windows

Project

MELSEC-Q

button on the initial

operation, so create a folder in advance for saving

R

Explorer.

Disk

Project

QCPU

Q25HCPU

USB

MODE.

RUN.

ERR.

USER.

BAT.

BOOT.

A

1)

AA

3)

2)

Personal compute

B

A: Indicates intelligent function module parameter B: Indicates data saved by text file

RS-232

Figure 7.1 Correlation chart for data created with the utility package

7 - 7 7 - 7

7 UTILITY PACKAGE (GX Configurator-CT)

7.3.2 Operation overview

GX Developer screen

[Tools] – [Intelligent function utility] – [Start]

Screen for intelligent function module

parameter setting module select

MELSEC-Q

See Section 7.3.3

Initial setting

Initial setting screen

See Section 7.4

Enter "Start I/O No.", then select "Module type" and "Module model name".

Auto refresh setting screen

See Section 7.5

1)

Auto refresh

7 - 8 7 - 8

7 UTILITY PACKAGE (GX Configurator-CT)

1)

[Online] – [Monitor/test]

Select monitor/test module screen

MELSEC-Q

Monitor/test

Monitor/test screen

See Section 7.6

Select a module to be monitored/tested.

7 - 9 7 - 9

7 UTILITY PACKAGE (GX Configurator-CT)

7.3.3 Starting the Intelligent function module utility

[Operating procedure]

Intelligent function module utility is started from GX Developer. [Tools]

[Setting screen]

[Intelligent function utility] [Start]

MELSEC-Q

[Explanation of items] (1) Activation of other screens

Following screens can be displayed from the intelligent function module utility screen.

(a) Initial setting screen

"Start I/O No.

Initial setting

(b) Auto refresh setting screen

"Start I/O No.

Auto refresh

(c) Select monitor/test module screen

[Online]

1 Enter the start I/O No. in hexadecimal

(2) Command buttons

Deletes the initial setting and auto refresh setting of the selected

Delete

Exit

module.

Closes this screen.

1

" "Module type" "Module model name"

1

" "Module type" "Module model name"

[Monitor/Test]

7 - 10 7 - 10

7 UTILITY PACKAGE (GX Configurator-CT)

(3) Menu bar

(a) File menu

Intelligent function module parameters of the project opened by GX Developer are handled.

[Open parameters] : Reads a parameter file.

[Close parameters] : Closes the parameter file. If any data are modified, a

[Save parameters] : Saves the parameter file.

[Delete parameters] : Deletes the parameter file.

[Open FB support parameters] : Opens a FB support parameter file.

[Save as FB support parameters] : Saves a FB support parameter.

[Exit] : Closes this screen.

(b) Online menu

[Monitor/Test] : Activates the Select monitor/test module screen.

MELSEC-Q

dialog asking for file saving will appear.

[Read from PLC] : Reads intelligent function module parameters from the

CPU module.

[Write to PLC] : Writes intelligent function module parameters to the

CPU module.

POINT

(1) Saving intelligent function module parameters in a file

Since intelligent function module parameters cannot be saved in a file by the project saving operation of GX Developer, save them on the shown module selection screen.

(2) Reading/writing intelligent function module parameters from/to a

programmable controller CPU using GX Developer

(a) Intelligent function module parameters can be read from and written into a

programmable controller after having been saved in a file.

(b) Set a target programmable controller CPU in GX Developer: [Online]

[Transfer setup].

(c) When the QD62 (E/D) is mounted to the remote I/O station, use "Read

from PLC" and "Write to PLC" of GX Developer.

(3) Checking the required utility

While the start I/O is displayed on the Intelligent function module utility setting screen, "

This means that the required utility has not been installed or the utility cannot be started from GX Developer.

Check the required utility, selecting [Tools] - [Intelligent function utility] - [Utility list...] in GX Developer.

" may be displayed for the model name.

7 - 11 7 - 11

7 UTILITY PACKAGE (GX Configurator-CT)

7.4 Initial Settings

[Purpose of operation]

Perform the initial settings for each channel to operate the QD62 (E/D). Set the following initial setting parameters:

• Preset value • Sampling/periodic setting

• Coincidence output point set No.1 • Ring counter maximum value

• Coincidence output point set No.2 • Ring counter minimum value

• Counter function selection setting

These initial settings eliminate the need to set sequence programs.

[Startup procedure]

"Start I/O No. " "Module type" "Module model name" Initial setting

Enter the start I/O No. in hexadecimal

[Setting screen]

MELSEC-Q

CH1 Initial setting CH2 Initial setting

7 - 12 7 - 12

7 UTILITY PACKAGE (GX Configurator-CT)

[Explanation of items] (1) Command buttons

Make text file

Creates a file containing the screen data in text file format.

MELSEC-Q

End setup

Cancel

POINT

Initial settings are stored in the intelligent module parameters. After being written to the CPU module, the initial setting is made effective by either (1) or (2). (1) Cycle the RUN/STOP switch of the CPU module: STOP

RUN.

(2) With the RUN/STOP switch set to RUN, turn off and then on the power or reset

the CPU module. If the initialization settings have been written by a sequence program, the initialization settings will be executed during the STOP Arrange so that the initial settings written by the sequence program are re-executed during the STOP

Saves the set data and ends the operation.

Cancels the setting and ends the operation.

RUN of the CPU module.

RUN STOP

RUN of the CPU module.

7 - 13 7 - 13

7 UTILITY PACKAGE (GX Configurator-CT)

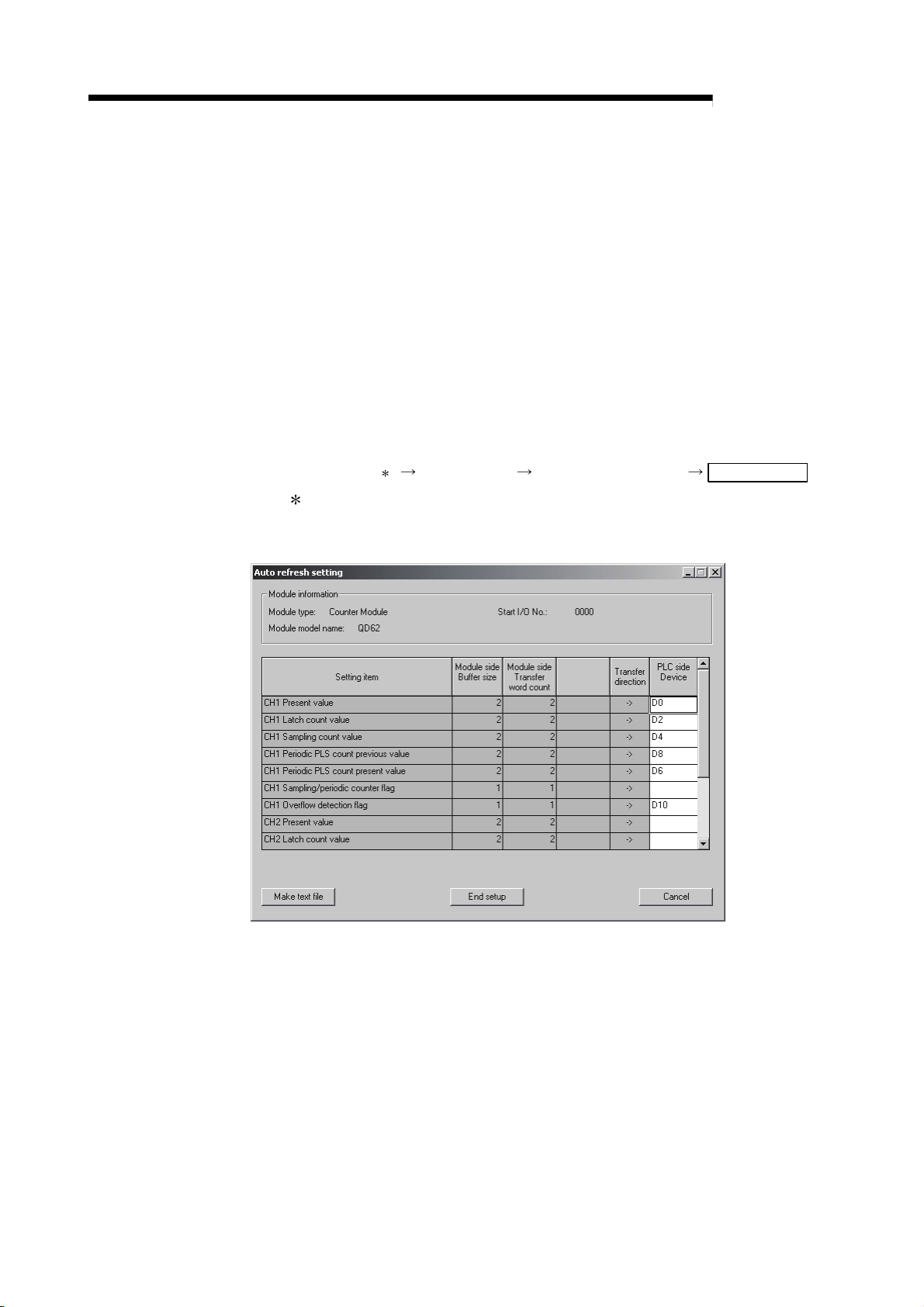

7.5 Auto Refresh

[Purpose]

Set the QD62 (E/D) buffer memory to be automatically refreshed, for each channel. Set the following auto refresh setting parameters:

• Present value • Periodic pulse counter previous value

• Latch count value • Sampling/periodic counter flag

• Sampling count value • Overflow detection flag

• Periodic pulse counter present value This auto refresh setting eliminates the need for reading and writing by sequence programs.

[Operating procedure]

"Start I/O No. " "Module type" "Module model name" Auto refresh

Enter the start I/O No. in hexadecimal.

[Setting screen]

MELSEC-Q

7 - 14 7 - 14

7 UTILITY PACKAGE (GX Configurator-CT)

[Explanation of items] (1) Items

MELSEC-Q

Module side Buffer size

Module side Transfer word count

Transfer direction : "

PLC side Device : Enter a CPU module side device that is to be

: Displays the buffer memory size of the setting item.

: Displays the number of words to be transferred.

" indicates that data are written from the programmable controller CPU to the buffer memory. "

" indicates that data are loaded from the buffer memory to the programmable controller CPU.

automatically refreshed. Applicable devices are X, Y, M, L, B, T, C, ST, D, W, R, and ZR.

When using bit devices X, Y, M, L or B, set a number that

can be divided by 16 points (examples: X10, Y120, M16, etc.) Also, buffer memory data are stored in a 16-point area, starting from the specified device number. For example, if X10 is entered, data are stored in X10 to X1F.

(2) Command buttons

Make text file

Creates a file containing the screen data in text file format.

End setup

Cancel

POINT

• The auto refresh settings are stored in an intelligent function module parameter file. The auto refresh settings become effective by turning the power OFF and then ON or resetting the CPU module after writing the intelligent function module parameters to the CPU module.

• The auto refresh settings cannot be changed from sequence programs. However, processing equivalent to auto refresh can be added using the FROM/TO instruction in the sequence program.

Saves the set data and ends the operation.

Cancels the setting and ends the operation.

7 - 15 7 - 15

7 UTILITY PACKAGE (GX Configurator-CT)

7.6 Monitoring/Test

7.6.1 Monitoring/Test

[Purpose]

Start buffer memory monitoring/testing and I/O signal monitoring/testing from this screen.

[Operating procedure]

"Select monitor/test module" screen "Start I/O No. " "Module type "

"Module model name"

1 Enter the start I/O No. in hexadecimal

The screen can also be started from System monitor of GX Developer Version 6 or later. Refer to the GX Developer Operating Manual for details.

[Setting screen]

Monitor/test

MELSEC-Q

X/Y monitor/test

Selecting these buttons displays the following screens.

1)

Preset

7 - 16 7 - 16

7 UTILITY PACKAGE (GX Configurator-CT)

1)

Counter

selection

MELSEC-Q

Coincidence

output

Ring counter

7 - 17 7 - 17

7 UTILITY PACKAGE (GX Configurator-CT)

[Explanation of items] (1) Items

Setting item : Displays I/O signals and buffer memory names.

Current value : Monitors the I/O signal states and present buffer memory values.

Setting value : Enter or select values to be written into the buffer memory for test

operation.

(2) Command buttons

MELSEC-Q

Current value display

Make text file

Start monitor

Execute test

Close

/ Stop monitor

Displays the current value of the item selected. (This is used to check the text that cannot be displayed in the current value field. However, in this utility package, all items can be displayed in the display fields).

Creates a file containing the screen data in text file format.

Selects whether or not to monitor current values.

Performs a test on the selected items. To select more than one item, select them while holding down the Ctrl

Closes the screen that is currently open and returns to the previous screen.

key.

REMARK

The following explains an example to change settings for the selected test operation to the following:

• Counter function selection setting : Sampling counter function

• Counter function selection start command (Y06) : ON

• Sampling/periodic setting [unit: 10 ms] : 1000 ms

(1) Set "Sampling counter function" in the setting value field for CH

function selection setting.

(2) Set "ON" in the setting value field for CH

command (Y06).

(3) Click the setting value field for CH

(4) After entering the sampling time, press the Enter

At this point, nothing has been written to the QD62 (E/D).

(5) Select the setting value fields that were specified in steps 1 to 4 while holding

down the Ctrl

Multiple items can also be selected by dragging with the mouse.

(6) Click Execute test

Once write operation is completed, the values that were written will be displayed in the current value field.

key.

to execute write operation.

Sampling/periodic setting [unit: 10 ms].

Counter function selection start

key.

Counter

7 - 18 7 - 18

8 PROGRAMMING

MELSEC-Q

8 PROGRAMMING

This chapter describes programs of the QD72(E/D). When applying any of the program examples introduced in this chapter to the actual system, verify the applicability and confirm that no problem occurs in the system control.

8.1 Using Programs in Normal System Configuration

This section describes program examples based on the following system configuration and conditions.

(1) System configuration

QX10 (X10 to X1F)

QY10 (Y20 to Y2F)

(X/Y0 to X/YF)

QD62

(2) Setting conditions of the intelligent function module switch

Set the pulse input mode, counting speed setting, and counter format with the intelligent function module switch on GX Developer. (See Section 4.5.)

Channel Pulse input mode Counting speed setting Counter format

CH1 2-phase multiple of 1 200 kPPS User setting

(3) Program conditions

8 - 1 8 - 1

This program uses QD62 to perform counting with the conditions listed below.

Item Setting value

Preset value 2500

Coincidence output point No. 1 1000

Ring counter minimum value 1 –5000

Ring counter maximum value 1 5000

Sampling time setting 2 10000 ms

Periodic pulse time setting 3 5000 ms

1 Set only when a ring counter function is used 2 Set only when the sampling counter function is used 3 Set only when the periodic pulse counter function is used

POINT

Programs that were used in earlier products such as A1SD62(E/D/D-S1) cannot be used because the I/O signals and the buffer memory configuration of these products differ from those of QD62(E/D). The conventional dedicated instructions cannot be used.

8

8 PROGRAMMING

8.1.1 Program example when GX Configurator-CT is used

MELSEC-Q

(1) List of devices

D0 to D1 Device that current value is written by auto refresh

D2 to D3 Device that latch count value is written by auto refresh

D4 to D5 Device that sampling count value is written by auto refresh

D6 to D7 Device that periodic pulse count previous value is written by auto refresh

D8 to D9 Device that periodic pulse count present value is written by auto refresh

D10 Overflow status storage

D20 to D35 Interrupt enabled flag storage for the IMASK instruction

X10 Count operation start signal

X11 Current value read signal

X12 Coincidence output data setting signal

X13 Preset command signal

X14 Count operation stop signal

X15 Coincidence LED clear signal

X16 Counter function execution start signal

X17 Counter function execution stop signal

X18 Latch count data read signal

X19 Latch execution signal

X1A Sampling count data read signal

X1B Sampling count start signal

X1C Periodic pulse count data read signal

X1D Periodic pulse count start signal

Y20 Coincidence confirmation LED signal

Y21 Overflow occurrence confirmation LED signal

X0 Module ready

X2 Counter value coincidence (point No. 1)

Y0 Coincidence signal No. 1 reset command

Y1 Preset command

Y2 Coincidence signal enable command

8

Y4 Count enable command

Y6 Counter function selection start command

Device Function

QX10 (X10 to X1F)

QY10 (Y20 to Y2F)

QD62(E/D) (X/Y0 to X/YF)

8 - 2 8 - 2

8 PROGRAMMING

(2) Operating GX Configurator-CT

(a) Initial settings (see Section 7.4)

Set the values on the screen as shown below.

MELSEC-Q

Setting item Description Setting

Preset value setting Set the preset value. 2500

Coincidence output point set No. 1 Set the value for coincidence output point No. 1. 1000

Coincidence output point set No. 2 This is not used. —

Counter function selection setting

[Unit: 10 ms]

Ring counter minimum value Set only when the ring counter function is used. –5000

Ring counter maximum value Set only when the ring counter function is used. 5000

Set the counter function to be used. When a counter function is not used, sets any function.

Set "1000" when the sampling counter function is used. 1000 Sampling/periodic setting

Set "500" when the periodic pulse counter function is used. 500

Set according to the

function used.

8 - 3 8 - 3

8 PROGRAMMING

MELSEC-Q

(b) Auto refresh settings (see Section 7.5)

Setting item Description Setting

CH1 Present value Set the device for storing the present value. D0

CH1 Latch count value Set the device for storing the latch count value. D2

CH1 Sampling count value

CH1 Periodic PLS counter previous value

CH1 Periodic PLS counter present value

CH1 Sampling/periodic counter flag This is not used. —

CH1 Overflow detection flag

Set the values as shown in the screen below. (Use channel 1.)

Set the device for storing the sampling count value when the

sampling counter function is used.

Set the device for storing the previous periodic pulse count

value when the periodic pulse counter function is used.

Set the device for storing the present periodic pulse count

value when the periodic pulse counter function is used.

Set the device for storing the overflow detection result when

the linear counter function is used.

D4

D6

D8

D10

(c) Writing the intelligent module parameters (see Section 7.3.3)

Write the intelligent module parameters to the programmable controller CPU. This operation is performed using the intelligent module parameter setting module selection screen.

8 - 4 8 - 4

8 PROGRAMMING

(3) Program example

MELSEC-Q

(a)

Set only when the linear counter is used

8 - 5 8 - 5

8 PROGRAMMING

MELSEC-Q

(a) When using the functions listed below, use the following programs.

1) When the disable count function is used

2) When the latch counter function is used

3) When the sampling counter function is used

4) When the periodic pulse counter function is used

8 - 6 8 - 6

8 PROGRAMMING

8.1.2 Program example when GX Configurator-CT is not used

MELSEC-Q

(1) List of devices

Device Function

D0 to D1 Present value

D2 to D3 Latch count value

D4 to D5 Sampling count value

D6 to D7 Periodic pulse count previous value

D8 to D9 Periodic pulse count present value

D10 Overflow status storage

D20 to D35 Interrupt enabled flag storage for the IMASK instruction

X10 Count operation start signal

X11 Current value read signal

X12 Coincidence output data setting signal

X13 Preset command signal

X14 Count operation stop signal

X15 Coincidence LED clear signal

X16 Counter function execution start signal

X17 Counter function execution stop signal

X18 Latch count data read signal

X19 Latch execution signal

X1A Sampling count data read signal

X1B Sampling count start signal

X1C Periodic pulse count data read signal

X1D Periodic pulse count start signal

Y20 Coincidence confirmation LED signal

Y21 Overflow occurrence confirmation LED signal

X0 Module ready

X2 Counter value coincidence (point No. 1)

Y0 Coincidence signal No. 1 reset command

Y1 Preset command

Y2 Coincidence signal enable command

Y4 Count enable command

Y6 Counter function selection start command

M10 Initial setting complete signal

QX10 (X10 to X1F)

QY10 (Y20 to Y2F)

QD62(E/D) (X/Y0 to X/YF)

8 - 7 8 - 7

8 PROGRAMMING

(2) Program example

(a)

MELSEC-Q

Set only when the ring counter is used

8 - 8 8 - 8

Mitsubishi Electric QD62, QD62E, QD62D User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

• SAFETY PRECAUTIONS •

REVISIONS

INTRODUCTION

CONTENTS

Compliance with the EMC and Low Voltage Directives

About the Generic Terms and Abbreviations

Product Structure

1 OVERVIEW

1.1 Features

2 SYSTEM CONFIGURATION

2.1 Applicable Systems

2.2 About Use of the QD62 (E/D) with the Q00J/Q00/Q01CPU

2.3 About Use of the QD62 (E/D) with the Q12PRH/Q25PRHCPU

2.4 About Use of the QD62 (E/D) on the MELSECNET/H Remote I/O Station

2.5 How to Check the Function Version/Serial No./Software Version

3 SPECIFICATIONS

3.1 Performance Specifications

3.2 Function List

3.3 I/O Signals for the Programmable Controller CPU

3.3.1 List of I/O signals

3.3.2 Functions of I/O signals

3.4 Buffer Memory Assignments

3.5 Interface with External Devices

3.6 Encoders that can be Connected

4 SETUP AND PROCEDURE BEFORE STARTING THE OPERATION

4.1 Handling Precautions

4.2 Procedure Before Starting the Operation

4.3 Part Identification Nomenclature

4.4 Wiring

4.4.1 Wiring precautions

4.4.2 Wiring example of a module and an encoder

4.4.3 Wiring example of a controller and an external input terminal

4.4.4 Wiring example with an external output

4.4.5 Using the connector/terminal block converter module

4.5 Setting from GX Developer

4.5.1 Intelligent function module detailed setting

4.5.2 Switch setting for intelligent function module

5 BASIC USAGE

5.1 Pulse Input and Counting Method

5.1.1 Types of pulse input methods

5.1.2 Setting the count method

5.1.3 Reading the present values

5.2 Selecting the Counter Format

5.2.1 Selecting the linear counter

5.2.2 Selecting the ring counter

5.3 Using the Coincidence Output Function

5.4 Using the Preset Function

6 CONVENIENT USAGE

6.1 Selecting the Counter Function

6.1.1 Reading the counter function selection count value

6.1.2 Count error

6.2 Using the Disable Count Function

6.3 Using the Latch Counter Function

6.4 Using the Sampling Counter Function

6.5 Using the Periodic Pulse Counter Function

7 UTILITY PACKAGE (GX Configurator-CT)

7.1 Functions of the Utility Package

7.2 Installing and Uninstalling the Utility Package

7.2.1 Handling precautions

7.2.2 Operating environment

7.3 Explanation of Utility Package Operations

7.3.1 How to perform common utility package operations

7.3.2 Operation overview

7.3.3 Starting the Intelligent function module utility

7.4 Initial Settings

7.5 Auto Refresh

7.6 Monitoring/Test

7.6.1 Monitoring/Test

8 PROGRAMMING

8.1 Using Programs in Normal System Configuration

8.1.1 Program example when GX Configurator-CT is used

8.1.2 Program example when GX Configurator-CT is not used
