Mitsubishi electric PEA-RP500GAQ User Manual [ru]

Air-Conditioners INDOOR UNIT

PEA-RP200, 250, 400, 500 GAQ

FOR USER FÜR BENUTZER POUR L’UTILISATEUR PARA EL USUARIO PER L’UTENTE VOOR DE GEBRUIKER

FÖR ANVÄNDAREN TIL BRUGER PARA O UTILIZADOR

°IA TON XPH™TH

KULLANICI ‹Ç‹N

ДЛЯ ПОЛЬЗОВАТЕЛЯ

OPERATION MANUAL

For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.

BEDIENUNGSHANDBUCH

Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme gründlich durchlesen.

MANUEL D’UTILISATION

Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du climatiseur.

MANUAL DE INSTRUCCIONES

Lea este manual de instrucciones hasta el final antes de poner en marcha la unidad de aire acondicionado para garantizar un uso seguro y correcto.

ISTRUZIONI DI FUNZIONAMENTO

Leggere attentamente questi istruzioni di funzionamento prima di avviare l’unità, per un uso corretto e sicuro della stessa.

BEDIENINGSHANDLEIDING

Voor een veilig en juist gebruik moet u deze bedieningshandleiding grondig doorlezen voordat u de airconditioner gebruikt.

DRIFTSMANUAL

Läs denna driftsmanual noga för säkert och korrekt bruk innan luftkonditioneringen används.

DRIFTSMANUAL

Læs venligst denne driftsmanual grundigt før airconditionanlægget betjenes af hensyn til sikker og korrekt brug.

MANUAL DE OPERAÇÃO

Para segurança e utilização correctas, leia atentamente o manual de operação antes de pôr a funcionar a unidade de ar condicionado.

E°XEIPI¢IO O¢H°IøN XPH™Eø™

°И· ·ЫК¿ПВИ· О·И ЫˆЫЩ‹ ¯Ъ‹ЫЛ, ·Ъ·О·ПВ›ЫЩВ ‰И·‚¿ЫВЩВ ЪФЫВ¯ЩИО¿ ·˘Щﬁ ЩФ ВБ¯ВИЪ›‰ИФ ¯Ъ‹ЫВˆ˜ ЪИУ ı¤ЫВЩВ ЫВ ПВИЩФ˘ЪБ›· ЩЛ МФУ¿‰· ОПИМ·ЩИЫМФ‡.

‹ﬁLETME ELK‹TABI

Emniyetli ve do¤ru biçimde nas›l kullan›laca¤›n› ö¤renmek için lütfen klima cihaz›n› iﬂletmeden önce bu elkitab›n› dikkatle okuyunuz.

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

Для обеспечения правильного и безопасного использования следует ознакомиться с инструкциями, указанными в данном руководстве по эксплуатации, тщательным образом до того, как приступать к использованию кондиционера.

[Fig. 2.0.1]

[Fig. 2.0.2]

A Air outlet B Air inlet C Air filter

[Fig. 5.0.1]

ON/OFF TEMP.

A LCD remote controller (option)

SWI

A Air outlet C Air filter B Air inlet D Air filter handle

Contents

1. Safety precautions ...................................................................................... 3

1.1. Installation ................................................................................. 3

1.2. During operation ........................................................................ 4

1.3. Disposing of the unit .................................................................. 4

2. Names and functions of various parts ........................................................ 4

3. Operation .................................................................................................... 5

3.1. Switching the unit ON/OFF ........................................................ 6

3.2. Mode select ............................................................................... 6

3.3. Selecting a temperature

3.4. Selecting a fan speed

3.5. Setting the day of the week and time ........................................ 6

3.6. Using the timer .......................................................................... 7

3.7. Locking the remote controller buttons (Operation function limit

controller) ................................................................................ 10

3.8. Other indications ..................................................................... 10

TEMP.

................................................ 6

........................................................ 6

1. Safety precautions

s Before operating the unit, make sure you read all the “Safety

precautions”.

s “Safety precautions” lists important points about safety.

Please be sure to follow them.

Symbols used in the text

Warning:

Describes precautions that should be observed to avoid the risk of injury or death to the user.

Caution:

Describes precautions that should be observed to prevent damage to the unit.

Symbols put on the unit

: Indicates an action that must be avoided.

: Indicates that important instructions must be followed.

: Indicates a part which must be grounded.

:Beware of electric shock. (This symbol is displayed on the main unit label.)

<Color: yellow>

Warning:

Carefully read the labels affixed to the main unit.

1.1. Installation

s After you have read this manual, keep it and the Installation Manual in a

safe place for easy reference whenever a question arises. If the unit is going to be operated by another person, make sure that this manual is given to him or her.

Warning:

• The unit should not be installed by the user. Ask the dealer or an authorized company to install the unit. If the unit is installed improperly, water leakage, electric shock or fire may result.

• Use only accessories authorized by Mitsubishi Electric and ask your dealer or an authorized company to install them. If accessories are installed improperly, water leakage, electric shock or fire may result.

• The Installation Manual details the suggested installation method. Any structural alteration necessary for installation must comply with local building code requirements.

•Never repair the unit or transfer it to another site by yourself. If repair is performed improperly, water leakage, electric shock or fire may result. If you need to have the unit repaired or moved, consult your dealer.

• The appliance is not intended for use by young children or infirm persons without supervision.

•Young children should be supervised to ensure that they do not play with the appliance.

4. The smart way to use ............................................................................... 11

5. Caring for the machine ............................................................................. 11

6. Troubleshooting ......................................................................................... 12

7. Installation and transferring works, and checking ..................................... 13

8. Specifications ............................................................................................ 13

Note:

The phrase “Wired remote controller” in this operation manual refers only to the PAR-21MAA. If you need any information for the PAR-30MAA, please refer to the instruction book included in PAR-30MAA box.

1) Outdoor unit

Warning:

• The outdoor unit must be installed on a stable, level surface, in a place where there is no accumulation of snow, leaves or rubbish.

• Do not stand on, or place any items on the unit. You may fall down or the item may fall, causing injury.

Caution:

The outdoor unit should be installed in a location where air and noise emitted by the unit will not disturb the neighbours.

2) Indoor unit

Warning:

The indoor unit should be securely installed. If the unit is loosely mounted, it may fall, causing injury.

3) Remote controller

Warning:

The remote controller should be installed in such a way that children cannot play with it.

4) Drain hose

Caution:

Make sure that the drain hose is installed so that drainage can go ahead smoothly. Incorrect installation may result in water leakage, causing damage to furniture.

5) Power line, fuse or circuit breaker

Warning:

• Make sure that the unit is powered by a dedicated line. Other appliances connected to the same line could cause an overload.

• Make sure that there is a main power switch.

• Be sure to adhere to the unit’s voltage and fuse or circuit breaker ratings. Never use a piece of wire or a fuse with a higher rating than the one specified.

6) Grounding

Caution:

• The unit must be properly grounded. Never connect the grounding wire to a gas pipe, water pipe, lightning conductor or telephone grounding wire. If the unit is not grounded properly, electric shock may result.

• Check frequently that the ground wire from the outdoor unit is properly connected to both the unit’s ground terminal and the grounding electrode.

GBDF

INL

SWP

1.2. During operation

In case of failure

Caution:

• Do not use any sharp object to push the buttons, as this may damage the remote controller.

• Do not twist or tug on the remote controller cord as this may damage the remote controller and cause malfunction.

•Never remove the upper case of the remote controller. It is dangerous to remove the upper case of the remote controller and touch the printed circuit boards inside. Doing so can result in fire and failure.

•Never wipe the remote controller with benzene, thinner, chemical rags, etc. Doing so can result in discoloration and failure. To remove heavy stains, soak a cloth in neutral detergent mixed with water, wring it out thoroughly, wipe the stains off, and wipe again with a dry cloth.

•Never block or cover the indoor or outdoor unit’s intakes or outlets. Tall items of furniture underneath the indoor unit, or bulky items such as large boxes placed close to the outdoor unit will reduce the unit’s efficiency.

Warning:

• Do not splash water over the unit and do not touch the unit with wet hands. An electric shock may result.

• Do not spray combustible gas close to the unit. Fire may result.

• Do not place a gas heater or any other open-flame appliance where it will be exposed to the air discharged from the unit. Incomplete combustion may result.

Warning:

• Do not remove the front panel or the fan guard from the outdoor unit when it is running. You could be injured if you touch rotating, hot or highvoltage parts.

•Never insert fingers, sticks etc. into the intakes or outlets, otherwise injury may result, since the fan inside the unit rotates at high speed. Exer-

cise particular care when children are present.

• If you detect odd smells, stop using the unit, turn off the power switch and consult your dealer. Otherwise, a breakdown, electric shock or fire may result.

• When you notice exceptionally abnormal noise or vibration, stop operation, turn off the power switch, and contact your dealer.

• Do not over-cool. The most suitable inside temperature is one that is

within 5 °C of the outside temperature.

• Do not leave handicapped people or infants sitting or standing in the path of the airflow from the air-conditioner. This could cause health problems.

Caution:

• Do not direct the airflow at plants or caged pets.

•Ventilate the room frequently. If the unit is operated continuously in a closed room for a long period of time, the air will become stale.

Warning:

•Never remodel the air conditioner. Consult your dealer for any repair service. Improper repair work can result in water leakage, electric shock, fire, etc.

• If the remote controller displays an error indication, the air conditioner does not run, or there is any abnormality, stop operation and contact your dealer. Leaving the unit as it is under such conditions can result in fire or failure.

• If the power breaker is frequently activated, get in touch with your dealer. Leaving it as it is can result in fire or failure.

• If the refrigeration gas blows out or leaks, stop the operation of the air conditioner, thoroughly ventilate the room, and contact your dealer. Leaving the unit as it is can result in accidents due to oxygen deficiency.

When the air conditioner is not to be used for a long time

• If the air conditioner is not to be used for a long time due to a seasonal change, etc., run it for 4 - 5 hours with the air blowing until the inside is completely dry. Failing to do so can result in the growth of unhygienic, unhealthy mold in scattered areas throughout the room.

• When it is not to be used for an extended time, keep the [power supply] turned OFF. If the power supply is kept on, several watts or several tens of watts will be wasted. Also, the accumulation of dust, etc., can result in fire.

•Keep the power switched ON for more than 12 hours before starting operation. Do not turn the power supply OFF during seasons of heavy use. Doing so can result in failure.

1.3. Disposing of the unit

Warning:

When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant (fluorocarbon gas) may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environment.

2. Names and functions of various parts

INL

Indoor unit

• Air inlet: Return the indoor air.

• Filter: Air filter is not provided within the unit. However, simple filter is available as optional part to remove visible dust and dirt. If air purification is one of the conditions required for use, consult with your dealer. (For details on how to clean, refer to page 11.)

• Air outlet: Blow the cooled/warmed air into the room.

Model PEA-200, 250, 400, 500 [Ceiling concealed type]

[Fig. 2.0.1] (P.2)

A Air outlet B Air inlet C Air filter

LCD remote Controller (option)

• Check out your remote controller. Different controllers are used for different systems.

[Fig. 2.0.2] (P.2)

A LCD remote controller (option)

3. Operation

Remote controller (option)-Button

Opening the door.

1 Set Temperature buttons

Down Up

2 Timer Menu button (Monitor/Set button) 3 Mode button (Return button) 4 Set Time buttons

Back Ahead

5 Timer On/Off button (Set Day button) 6 Louver button ( Operation button)

To preceding operation number.

7 Ventilation button ( Operation button)

To next operation number.

8 ON/OFF button 9 Fan Speed button

PAR-21MAA

TEMP.

ON/OFF

MONITOR/SET

BACK DAY

CLOCK

OPERATION

ON/OFF

FILTER

CHECK

CLEAR

TEST

45 67

0 Filter button (<Enter> button) A Test Run button B Check button (Clear button) C Airflow Up/Down button

GBDF

Notes:

• If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available” message.

• If you are using the remote controller to drive multiple indoor units, this message will appear only if the feature is not present at the parent unit.

•Never expose the remote controller to direct sunlight. Doing so can result in the erroneous measurement of room temperature.

•Never place any obstacle around the lower right-hand section of the remote controller. Doing so can result in the erroneous measurement of room temperature.

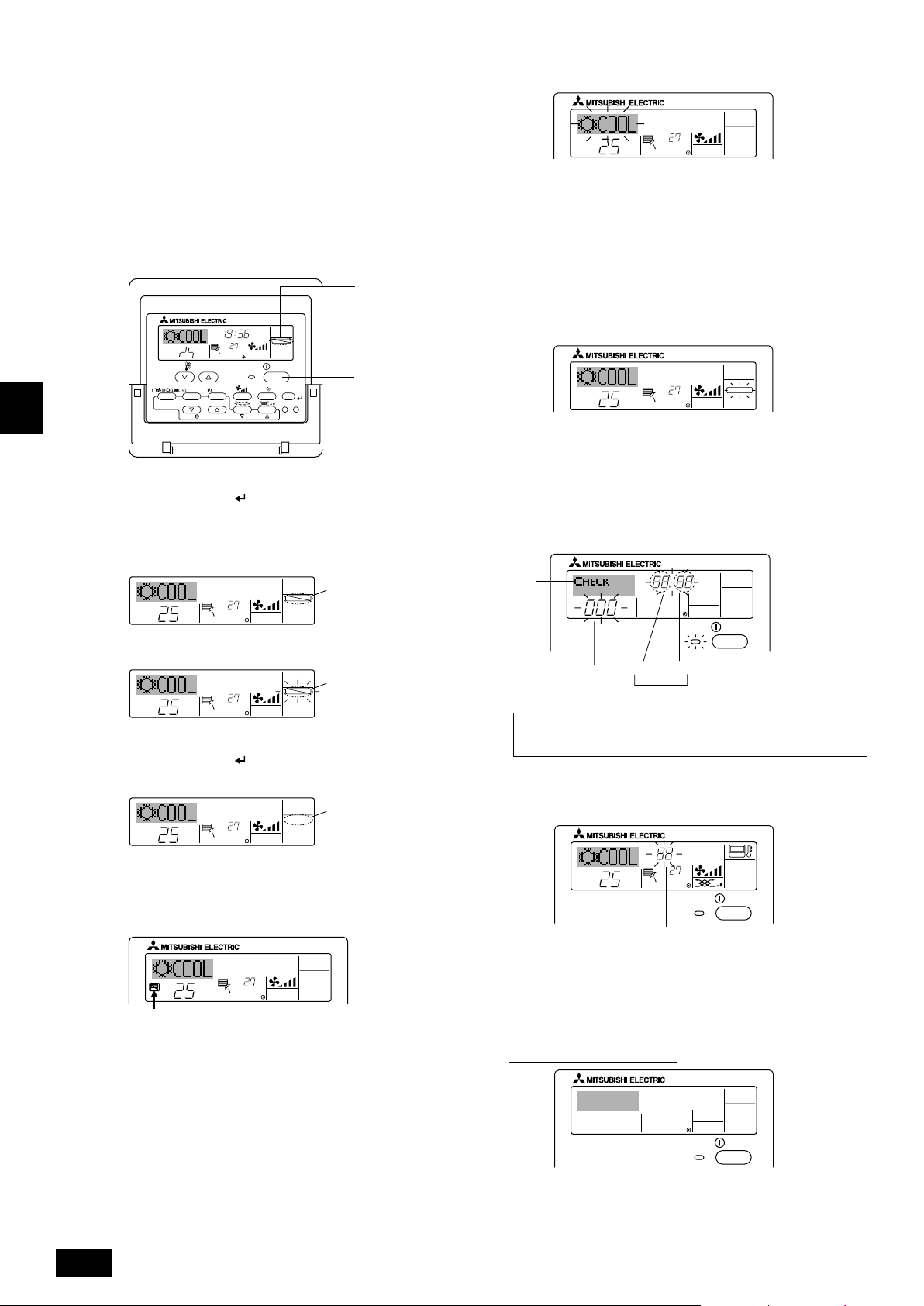

Remote controller (option)-Display

D E

FGHJKMIL

A Day-of-Week

Shows the current day of the week.

Time/Timer Display

Shows the current time, unless the simple or Auto Off timer is set. If the simple or Auto Off timer is set, shows the time remaining.

B “Sensor” indication

Displayed when the remote controller sensor is used.

C Identifies the current operation

Shows the operating mode, etc. * Multilanguage display is supported.

D “Centrally Controlled” indicator

Indicates that operation of the remote controller has been prohibited by a main controller.

E “Timer Is Off” indicator

Indicates that the timer is off.

F Temperature Setting

Shows the target temperature.

G Up/Down Air Direction indicator

The indicator shows the direction of the outcoming airflow.

H “One Hour Only” indicator

Displayed if the airflow is set to weak and downward during COOL or DRY mode. (Operation varies according to model.) The indicator goes off after one hour, at which time the airflow direction also changes.

TIME SUN MON TUE WED THU FRI SAT TIMER AFTER

ERROR CODE

˚F˚C

ONLY1Hr.

ON OFFHrAFTER

˚F˚C

I Louver display

J Room Temperature display

K (Power On indicator)

L Ventilation indicator

M Fan Speed indicator

N “Locked” indicator

O “Clean The Filter” indicator

P Timer indicators

FUNCTION

FILTER

WEEKLY

SIMPLE

AUTO OFF

Indicates the action of the swing louver. Does not appear if the louver is stationary.

Shows the room temperature.

Indicates that the power is on.

Appears when the unit is running in Ventilation mode.

Shows the selected fan speed.

Indicates that remote controller buttons have been locked.

Comes on when it is time to clean the filter.

The indicator comes on if the corresponding timer is set.

O P

Note:

• For purposes of this explanation, all parts of the display are shown as lit. During actual operation, only the relevant items will be lit.

INL

SWP

E D

TEMP.

BACK DAY

MONITOR/SET

PAR-21MAA

˚C

CLOCK

ON/OFF

˚C

OPERATION

SIMPLE

ON/OFF

FILTER

CHECK

CLEAR

TEST

Before starting operation

• Start running after the “PLEASE WAIT” display has disappeared. The “PLEASE WAIT” display briefly appears on the B display (max. 3 minutes) when the power is turned on and after a power failure. This does not indicate any failure of the air conditioner.

• During heating operation, even if the indoor unit is set to operation while the

outdoor unit is in defrosting operation, operation starts after the defrosting operation of the outdoor unit has ended.

3.1. Switching the unit ON/OFF

s To start an operation:

1. Press the ON/OFF button 1.

INL

The ON indicator A should light up.

s To stop an operation:

1. Press the ON/OFF button 1 again.

The ON indicator A goes off.

• The power supply should not be turned off while the air conditioner is in use. This can cause the unit to break down.

•Even if you press the ON/OFF button immediately after shutting down the operation in progress, the air conditioner will not start for about three minutes. This is to prevent the internal components from being damaged.

• If the operation stops due to a power failure, the unit will not automatically restart until the power has been restored. Press the ON/OFF button to restart.

3.2. Mode select

1. If the unit is off, press the ON/OFF button 1 to turn it on.

The ON indicator A should light up.

2. Press the operation mode ( ) button 2 and select the operation

mode.

B (COOL) Cooling mode

(DRY) Drying mode (FAN) Fan mode (HEAT) Heating mode (AUTO) Automatic (cooling/heating) mode

For cooling

Press the

For dry

Press the

•Dry operation cannot be carried out at a room temperature of less than 18 °C.

For fan

Press the

• The fan operation functions to circulate the air in the room.

• The temperature of the room cannot be set by fan operation.

Never expose your body directly to cool air for a long time. Excessive exposure to cool air is bad for your health, and should therefore be avoided.

Dry operation

The dry is a microcomputer-controlled dehumidifying operation which controls excessive air-cooling according to the room temperature of your choice. (Not usable for heating.)

1. Until reaching room temperature of your choice

2. When reaching room temperature of your choice

2 [operation mode] button and bring up the “ COOL” display.

2 [operation mode] button and bring up the “ DRY” display.

2 [operation mode] button and bring up the “ FAN” display.

Caution:

The compressor and indoor fan function is linked motion according to the change of the room temperature and automatically repeat ON/OFF.

Both the compressor and indoor fan stop.

When stop continues for 10 minutes, the compressor and indoor fan are operated for 3 minutes to keep the humidity low.

For heating

Press the Regarding displays during heating operation “DEFROST”

Displayed only during the defrosting operation.

“STAND BY”

Displayed from the start of heating operation until the moment warm air blows out.

2 [operation mode] button to bring up the “ HEAT” display.

For automatic (cooling/heating)

Press the

2 [operation mode] button to bring up the “ AUTO” display.

Caution:

• When the air conditioner is used together with burners, thoroughly ventilate the area. Insufficient ventilation can result in accidents due to oxygen deficiency.

•Never place a burner at a place where it is exposed to the airflow from the air conditioner. Doing so can result in imperfect combustion of the burner.

• The microcomputer functions in the following cases:

• Air does not blow out when heating starts.

-To prevent any cool air from escaping.

Wait a moment until the airflow comes out naturally.

3.3. Selecting a temperature

TEMP.

s To decrease the room temperature:

1. Press

The selected temperature C is displayed.

button 3 to set the desired temperature.

• Each time you press the button, the temperature value decreases by 1 °C.

s To increase the room temperature:

1. Press

The selected temperature C is displayed.

button 3 to set the desired temperature.

• Each time you press the button, the temperature value increases by 1 °C.

•Available temperature ranges are as follows: Cooling & Drying: 19 - 30 °C Heating: 17 - 28 °C Automatic: 19 - 28 °C

• The display flashes either 8 °C - 39 °C to inform you if the room temperature E is lower or higher than the displayed temperature. If the temperature is below 8 °C or above 39 °C, the corresponding value (8 °C or 39 °C) will blink on the display.

3.4. Selecting a fan speed

1. Press button 4 to select a desired fan speed.

• Each time you press the button, available options change with the display D on the remote controller, as shown below.

Model

PEA-200,

250

PEA-400,

500

Fan speed

2-stage

1-stage

Remote controller display

Low High

▼

No display

The display and the fan speed of the unit will differ in the following situations:

• When STAND BY and DEFROST are displayed.

•Just after the heating mode (while waiting to change to another mode).

• When the temperature of the room is higher than the temperature setting of the unit operating in the heating mode.

• In the dry operation, the indoor fan automatically turns to low-speed operation. Switching of fan speed is impossible.

• When the temperature of the heat exchanger is low in the heating mode (e.g., immediately after heating operation starts).

3.5. Setting the day of the week and time

■ Use this screen to change the current day of the week and time setting.

Day of the Week &

TIME SUN

˚C

TEMP.

BACK DAY

PAR-21MAA

ON/OFF

MONITOR/SET

CLOCK

OPERATION

ON/OFF

FILTER

CHECK

CLEAR

TEST

Time display

Notes:

• It can be set regardless of the operation of the indoor unit.

• The day and time will not appear if clock use has been disabled at Function Selection of remote controller, refer to Installation Manual.

s How to Set the Day of the Week and Time...

Day of the Week Setting

1. Press the

TIME SUN

Time Setting

or Set Time button A to show display 2.

2. Press the Timer On/Off (Set Day) button 9 to set the day. * Each press advances the day shown at 3 : Sun → Mon → ... → Fri → Sat.

3. Press the appropriate Set Time button A as necessary to set the time. * As you hold the button down, the time (at 4) will increment first in minute

intervals, then in ten-minute intervals, and then in one-hour intervals.

4. After making the appropriate settings at Steps 2 and 3, press the Filter button 4 to lock in the values.

Note:

•Your new entries at Steps 2 and 3 will be cancelled if you press the Mode (Return) button

2 before pressing the Filter

button

5. Press the Mode (Return) button 2 to complete the setting procedure. This will return the display to the standard control screen, where 1 will now show the newly set day and time.

Note:

• Remote controller is equipped with a simplified clock with a precision of about + or - one minute per month.

3.6. Using the timer

This section explains how to set and use the timer. You can use Function Selection of remote controller to select which of three types of timer to use: 1 Weekly timer, 2 Simple timer, or 3 Auto Off timer. For information about how to set the Function Selection of remote controller, refer to Installation Manual.

3.6.1. Using the Weekly Timer

■ The weekly timer can be used to set up to eight operations for each day of the week.

• Each operation may consist of any of the following: ON/OFF time together

with a temperature setting, or ON/OFF time only, or temperature setting only.

• When the current time reaches a time set at this timer, the air conditioner

carries out the action set by the timer.

■ Time setting resolution for this timer is 1 minute.

Notes: *1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the same

time.

*2. The weekly timer will not operate when any of the following conditions is

in effect. The timer feature is off; the system is in an malfunction state; a test run is in progress; the remote controller is undergoing self-check or remote controller check; the user is in the process of setting a function ; the user is in the process of setting the timer; the user is in the process of setting the current day of the week or time; the system is under central control. (Specifically, the system will not carry out operations (unit on, unit off, or temperature setting) that are prohibited during these conditions.)

Operation No.

42 3

BACK DAY

MONITOR/SET

PAR-21MAA

TEMP.

CLOCK

Day Setting

SUN

ON/OFF

˚C

OPERATION

WEEKLY

ON/OFF

FILTER

CHECK

CLEAR

3 1 B

TEST

4 0

s How to Set the Weekly Timer

1. Be sure that you are at a standard control screen, and that the weekly timer indicator 1 is shown in the display.

2. Press the Timer Menu button B, so that the “Set Up” appears on the screen (at 2). (Note that each press of the button toggles the display between “Set Up” and “Monitor”.)

3. Press the Timer On/Off (Set Day) button 9 to set the day. Each press ad- vances the display at 3 to the next setting, in the following sequence: “Sun Mon Tues Wed Thurs Fri Sat” → “Sun” → ... → “Fri” → “Sat” → “Sun Mon Tues Wed Thurs Fri Sat”...

4. Press the

or Operation button (7 or 8) as necessary to select

the appropriate operation number (1 to 8) 4.

*Your inputs at Steps 3 and 4 will select one of the cells from the matrix

illustrated below. (The remote-controller display at left shows how the display would appear when setting Operation 1 for Sunday to the values indicated below.)

Setup Matrix

Op No. Sunday Monday ··· Saturday

• 8:30

• ON

No. 1

No. 2

• 23 °C

• 10:00

• OFF

• 10:00

• OFF

• 10:00

• OFF

• 10:00

• OFF

···

No. 8

▲

Start the air conditioner at 8:30, with the temperature set to 23 °C.

▲

<Operation 2 settings for every day> Tu rn off the air conditioner at 10:00.

Note: By setting the day to “Sun Mon Tues Wed Thurs Fri Sat”, you can set the same operation to be carried out at the same time every day. (Example: Operation 2 above, which is the same for all days of the week.)

s Setting the Weekly Timer

Shows the time setting

SUN

Shows the selected operation (ON or OFF)

* Does not appear if operation is not set.

˚C

WEEKLY

Shows the temperature setting * Does not appear if tempera-

ture is not set.

5. Press the appropriate Set Time button A as necessary to set the desired time (at 5).

* As you hold the button down, the time first increments in minute inter-

vals, then in ten-minute intervals, and then in one-hour intervals.

6. Press the ON/OFF button 1 to select the desired operation (ON or OFF), at 6.

* Each press changes the next setting, in the following sequence: No dis-

play (no setting) → “ON” → “OFF”

7. Press the appropriate Set Temperature button 3 to set the desired tem- perature (at 7).

* Each press changes the setting, in the following sequence: No display

(no setting) ⇔ 24 ⇔ 25 ⇔ ... ⇔ 29 ⇔ 30 ⇔ 12 ⇔ ... ⇔ 23 ⇔ No display. (Available range: The range for the setting is 12 °C to 30 °C. The actual range over which the temperature can be controlled, however, will vary according to the type of the connected unit.)

8. After making the appropriate settings at Steps 5, 6 and 7, press the Filter

button 4 to lock in the values. To clear the currently set values for the selected operation, press and quickly release the Check (Clear) button 0 once.

* The displayed time setting will change to “—:—”, and the On/Off and

temperature settings will all disappear. (To clear all weekly timer settings at once, hold down the Check (Clear) button 0 for two seconds or more. The display will begin flashing, indicating that all settings have been cleared.)

GBDF

INL

SWP

A9 78

Note:

˚C

SIMPLE

˚C

ONHr

AFTER

SIMPLE

Your new entries will be cancelled if you press the Mode (Return) button before pressing the Filter

button

If you have set two or more different operations for exactly the same time, only the operation with the highest Operation No. will be carried out.

9. Repeat Steps 3 to 8 as necessary to fill as many of the available cells as you wish.

10.Press the mode (Return) button 2 to return to the standard control screen and complete the setting procedure.

11.To activate the timer, press the Timer On/Off button 9, so that the “Timer Off” indication disappears from the screen.

Be sure that the “Timer Off”

indication is no longer displayed.

* If there are no timer settings, the “Timer Off” indication will flash on the

screen.

s How to View the Weekly Timer Settings

TIMER

SUN

Timer Settings

˚C

ON OFF

WEEKLY

1. Be sure that the weekly timer indicator is visible on the screen (at 1).

2. Press the Timer Menu button B so that “Monitor” is indicated on the screen

(at 8).

3. Press the Timer On/Off (Set Day) button 9 as necessary to select the day you wish to view.

4. Press the

or Operation button (7 or 8) as necessary to change

the timer operation shown on the display (at 9).

* Each press will advance to the next timer operation, in order of time set-

ting.

5. To close the monitor and return to the standard control screen, press the

Mode (Return) button 2.

s To Turn Off the Weekly Timer

Press the Timer On/Off button 9 so that “Timer Off” appears at 0.

TIME SUN

˚C

WEEKLY

s To Turn On the Weekly Timer

Press the Timer On/Off button 9 so that the “Timer Off” indication (at 0) goes

TIME SUN

˚C

WEEKLY

dark.

3.6.2. Using the Simple Timer

■ You can set the simple timer in any of three ways.

• Start time only: The air conditioner starts when the set time has elapsed.

INL

• Stop time only: The air conditioner stops when the set time has elapsed.

• Start & stop times: The air conditioner starts and stops at the respective

■ The simple timer (start and stop) can be set only once within a 72-hour period. The time setting is made in hour increments.

Notes: *1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the same

time.

*2. The simple timer will not operate when any of the following conditions is

in effect. The timer is off; the system is in malfunction state; a test run is in progress; the remote controller is undergoing self-check or remote controller check; the user is in the process of selecting a function; the user is in the proc-

ess of setting the timer; the system is under central control. (Under these conditions, On/Off operation is prohibited.)

elapsed times.

Timer Setting

ONHr

AFTER

SIMPLE

Action (On or Off)

* “— —” is displayed if there is

no setting.

1. Be sure that you are at a standard control screen, and that the simple timer indicator is visible in the display (at 1). When something other than the Simple Timer is displayed, set it to SIMPLE TIMER using the function selection of remote controller (see Installation Manual).

2. Press the Timer Menu button B, so that the “Set Up” appears on the screen (at 2). (Note that each press of the button toggles the display between “Set Up” and “Monitor”.)

3. Press the ON/OFF button 1 to display the current ON or OFF simple timer setting. Press the button once to display the time remaining to ON, and then again to display the time remaining to OFF. (The ON/OFF indication appears at 3).

• “ON” timer: The air conditioner will start operation when the specified number of hours has elapsed.

• “OFF” timer: The air conditioner will stop operation when the specified number of hours has elapsed.

4. With “ON” or “OFF” showing at 3: Press the appropriate Set Time button A as necessary to set the hours to ON (if “ON” is displayed) or the hours to OFF (if “OFF” is displayed) at 4.

•Available Range: 1 to 72 hours

5. To set both the ON and OFF times, repeat Steps 3 and 4.

* Note that ON and OFF times cannot be set to the same value.

6. To clear the current ON or OFF setting: Display the ON or OFF setting (see step 3) and then press the Check (Clear) button 0 so that the time setting clears to “—” at 4. (If you want to use only an ON setting or only an OFF setting, be sure that the setting you do not wish to use is shown as “—”.)

s How to Set the Simple Timer

7. After completing steps 3 to 6 above, press the Filter

button 4 to lock in

the value.

Note: Your new settings will be cancelled if you press the Mode (Return) button before pressing the Filter

button

8. Press the Mode (Return) button 2 to return to the standard control screen.

9. Press the Timer On/Off button 9 to start the timer countdown. When the timer is running, the timer value is visible on the display.

Be sure that the

timer value is visible and appropriate.

s Viewing the Current Simple Timer Settings

Timer Setting

TIMER ON

OFFHrAFTER

SIMPLE

1. Be sure that the simple timer indicator is visible on the screen (at 1).

2. Press the Timer Menu button B, so that the “Monitor” appears on the screen (at 5).

• If the ON or OFF simple timer is running, the current timer value will appear at 6.

• If ON and OFF values have both been set, the two values appear alternately.

3. Press the Mode (Return) button 2 to close the monitor display and return to the standard control screen.

s To Turn Off the Simple Timer...

Press the Timer On/Off button 9 so that the timer setting no longer appears on the screen (at 7).

s To Turn On the Simple Timer...

Press the Timer On/Off button 9 so that the timer setting becomes visible at 7.

ONHr

AFTER

OPERATION

SIMPLE

ON/OFF

FILTER

CHECK

CLEAR

TEST

TEMP.

BACK DAY

PAR-21MAA

2A9

ON/OFF

MONITOR/SET

CLOCK

B 4

+ 18 hidden pages
