Mitsubishi Electronics PD-5030, PD-6130 User Manual

Owner’s Guide
Mitsubishi Plasma Display PD-5030 & PD-6130
Technically Anything is Possible
®
IMPORTANT SAFETY INSTRUCTIONS (PD-5030/PD-6130)
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
5. Do not use this plasma display near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong.The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold with the plasma display.When a cart is used, use caution when moving the cart/plasma
display combination to avoid injury from tip-over.
13. Unplug this plasma display during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the plasma display has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.
16. Damage Requiring Service - The plasma display should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged;
or
B. Objects have fallen, or liquid has been spilled into
the plasma display; or
C. The plasma display has been exposed to rain; or D. The plasma display does not appear to operate
normally or exhibits a marked change in performance; or
E. The plasma display has been dropped, or the
enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.
• Do not compromise these design standards by
applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing
electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
18. Wall Mounting - The plasma display should be mounted to a wall only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna­discharge unit, connection to grounding electrodes and requirements for the grounding electrode.
21. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
Plasma display shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
WARNING
To reduce the risk of fire or electric shock, do not expose this plasma display to rain or moisture.
Important Information
Precautions
Please read this manual carefully before using your Mitsubishi plasma monitor and keep the manual handy for future reference.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be interference at his own expense.
required to correct the
Warnings and Safety Precautions
The Mitsubishi plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface. The plasma display panel consists of fine picture elements (cells). Although Mitsubishi produces the plasma display panels with more than 99.99 percent active cells, there may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, please read and observe the following instructions. To avoid shock and fire hazards:
1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. The unit is equipped with cooling fans. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for the monitor to cool for 60 minutes. If the problem persists, contact your Mitsubishi dealer for service.
2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.
3. Do not expose the unit to water or moisture.
4. Avoid damage to the power cord, and do not attempt to modify the power cord.
5. Unplug the unit during electrical storms or if the unit will not be used over a long period.
6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.
7. Do not attempt to service or repair the unit. Mitsubishi is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Mitsubishi Service Centers.
Caution
PD-5030 and PD-6130 are for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.
Manufacturer’s name: MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC Stand: MB-5010/MB-5030 for PD-5030
MB-6130 for PD-6130
Please contact MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC for approved optional accessories.
NOTE:
(
)
)
r
When you connect a computer to this monitor, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards. Attaching the ferrite cores: Set the ferrite cores on both ends of the MONITORLINK™ cable (not supplied), and both ends of the power cable (supplied). Close the lid tightly until the clamps click. Use the band to fasten the ferrite core (supplied) to the MONITORLINK™ cable.
MONITORLINK cable (not supplied)
band
core
small
Power cable (supplied)
band
Connecto
core (small
core (large)
Recommendations to avoid or minimize uneven phosphor aging:
Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to uneven phosphor aging under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in uneven phosphor aging if proper precautions are not taken. To protect your investment in this Mitsubishi plasma monitor, please adhere to the following guidelines and recommendations for minimizing this type of damage:
* Do not turn off ORBITER.* * Always enable and use your computer’s video game or
DVD player screen saver during use with these sources. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished
using it.
core (large)
To avoid damage and prolong operating life:
1. Use only with 120V 50/60Hz AC power supply. Continued operation at line voltages greater than 120 Volts AC will shorten the life of the unit, and might even cause a fire hazard.
2. Handle the unit carefully when installing it and do not drop.
3. Set the unit away from heat, excessive dust, and direct sunlight.
4. Protect the inside of the unit from liquids and small metal objects. In case of an accident, unplug the unit and have it serviced by an authorized Mitsubishi Service Center.
5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.
6. For correct installation and mounting it is strongly recommended to use a trained, authorized Mitsubishi dealer.
7. Only use tabletop stands or wall-mount brackets that are designed specifically for this product.
8. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.
If the plasma monitor is in long term use or continuous operation, take the following measures to reduce the likelihood of uneven phosphor aging:
* Do not turn off ORBITER.* * Lower the Brightness and Contrast levels as much as
possible without impairing image readability.
* Display an image with many colors and color gradations
(i.e. photographic or photo-realistic images).
* Create image content with minimal contrast between light
and dark areas. Use complementary or pastel colors whenever possible.
* Avoid displaying images with few colors and distinct,
sharply defined borders between colors.
NOTE:
Uneven phosphor aging/burn-in is not covered by the warranty.
Contact Mitsubishi at 1-800-332-2119 for other recommended procedures that will best suit your particular application needs.
*ORBITER - Uneven phosphor aging/burn-in reduction feature. To minimize the risk of uneven phosphor aging/burn-in when displaying still images, the Mitsubishi PD-5030 and PD-6130 offers a built-in feature known as ORBITER. The ORBITER feature intermittently shifts the screen image horizontally and vertically in small increments. This intermittent screen movement is usually not evident in full motion video. In some instances the ORBITER shift might be evident while displaying static guides or menus. The default setting for ORBITER is On (AUTO1). Mitsubishi chose this setting to help reduce uneven phosphor aging. Please do not shut the ORBITER off. For more information regarding ORBITER, see page 26.
WARNING: Do not leave stationary or letterbox images on-screen for extended periods of time. Mix types of pictures shown. Uneven phosphor aging is NOT covered by your warranty.
The normal use of a TV should include a mixture of TV picture types. The most frequently used picture types should fill the screen with constantly moving images rather than stationary images or patterns. Displaying the same stationary patterns over extended periods of time, or displaying the same stationary pattern frequently can leave a subtle but permanent ghost image. To avoid this, mix your viewing pattern. Do not show the same stationary image for more than 15% of your total TV viewing in any one week. Display constantly moving and changing images that fill the screen whenever possible.
This plasma monitor is a phosphor-based display. As is the case with any phosphor-based display (like a CRT TV/ monitor, for example) light output will gradually decrease over the life of a plasma display panel. Normal TV pictures fill the screen with constantly changing images. Under these conditions, phosphor-based displays age at an even rate across the entire screen. This maintains a TV picture that is evenly bright over the whole screen. Stationary images or images that only partially fill the screen (leaving black or colored bars to fill the screen), when used over extended periods of time or when viewed repeatedly, can cause uneven aging of the phosphors used in plasma displays and can leave subtle ghosts of the stationary images in the picture.
When using a computer or similar device through a VGA input, be sure to turn on the Screen Saver feature and set the activation time to 5 minutes or less. If your computer program allows, you should also set your toolbars to the hidden mode.
Still or stationary images may be received from broadcasters, cable channels, satellite channels, DVD discs, video tapes, laser discs, on-line services, web/internet searching devices, video games, and digital TV tuner/converter boxes. Examples of these types of images include, but are not limited to the following:
Letterbox top/bottom black bars: shown at the top and
bottom of the TV screen when you watch a widescreen (16:9) movie on a standard (4:3) TV.
Side bar images: solid bars shown on each side of an image
when watching a standard (4:3) program on a widescreen (16:9) TV.
Stock-market report bars: ticker running at the bottom
of the TV screen.
Shopping channel logos & pricing displays: bright
graphics that are shown constantly or repeatedly in the same location.
Video game patterns and scoreboards
Bright station logos: moving or low-contrast graphics are
less likely to cause uneven aging of the picture tubes.
On-line (Internet) web sites: or any other stationary or
repetitive computer style images.
Closed Caption Backgrounds: When set to black or bright
color, if Close Caption will be used frequently Mitsubishi suggests the us of the gray background.
Cleaning Safeguards
Plasma Display Screen & Cabinet
Please follow the cleaning safeguards listed below to prevent damage to your Plasma Display and retain this document for future reference.
IMPORTANT: No Abrasives!
DO NOT use any kind of abrasive cloth or cleaner or ammonia on the Plasma Display’s screen or cabinet.
Cleaning Your Plasma Display
Normally, light dusting with a dry, non-abrasive cloth will clean your Plasma Display. If cleaning beyond this is needed, please follow these guidelines:
First, turn off the Plasma Display and unplug the power cord from the wall outlet before cleaning.
Cleaning the cabinet of your Plasma Display
• Gently wipe down the Plasma Display with a soft, non-
abrasive cloth such as cotton flannel or a clean cloth diaper, lightly moistened with water.
• Dry with a second dry, soft, non-abrasive cloth.
General Cleaning Warnings:
DO NOT apply pressure to the Plasma Display’s screen.
DO NOT allow liquid to enter the Plasma Display through
the ventilation slots or any crevice.
DO NOT use any strong or abrasive cleaners because they
can scratch the screen and the cabinet.
DO NOT use any cleaners that contain ammonia, bleach,
alcohol, benzene, or thinners because they can damage and dull the surfaces.
DO NOT scrub or rub the screen or cabinet. Wipe it gently.
IMPORTANT
For further information, assistance in operating your Plasma Display or if you are in need of service, please contact us at www.mitsubishi-tv.com or call Consumer Relations at
800-332-2119
Introduction
Introduction to the PD-5030/ PD-6130 Plasma Monitors
Mitsubishi’s PD-5030/PD-6130 plasma displays are a seamless blend of cutting-edge visual technology and sophisticated design. The monitor’s sleek techno-art lines blend in well with your environment. The displays crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players into art. Mitsubishi has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended.
The features youll enjoy include:
• 16:9 aspect ratio
• Capsulated Color Filter (CCF) and black matrix
• The enhanced display uses a two-stage filtering system for
deeper, more accurate colors.
• High-resolution screen: 1365 x 768 pixels
• 160-degrees of off-axis viewing, horizontally and vertically.
• Flicker - and warp - free display provides excellent image
geometry even in screen corners
• Not affected by magnetic fields, no color drift or edge
distortion.
• VGA, SVGA, XGA, SXGA, UXGA computer signal
compatibility
• NTSC, PAL, SECAM, composite and S-Video signal
compatibility
• 480P, 1080I, 720P and HDTV signal compatibility
• PCs, VCRs, Laser Disc and DVD player source
compatibility
• Sophisticated formatting circuitry automatically converts
VGA, SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution
• Precision algorithms are used to convert interlaced signals
to progressive scan.
• User selectable on-screen color temperature settings
• Component video input terminal for DVD, 15.75kHz (Y,
CB, CR )
• Digital broadcasting source compatibility
• Menu-driven on-screen control system that makes image
adjustments a snap
• Seven languages (English, German, French, Italian,
Spanish, Swedish, and Chinese)
Contents of the Package
Plasma monitor Power cord RGB cable (Mini D-Sub 15-pin to Mini D-Sub 15-pin
connector)
Remote control with two AAA Batteries Owner’s guide Remote cable Safety metal fittings* Screws for safety metal fittings* Ferrite cores (small x 2, large x 2), bands Cable clamps Registration card
* These fittings are for fastening the unit to a wall to prevent tipping
when used with an optional tabletop stand. Fasten the safety fittings to the holes in the back of the monitor using the mount screws.
Options
• Tabletop stand
Contents
How to Attach Options to the Plasma Monitor .... 1
Ventilation requirements for enclosure mounting........... 1
How to use the safety metal fittings and the screws for
safety metal fittings ................................................. 1
Part Names and Function .................................. 2
Front View .............................................................. 2
Rear View / Terminal Board ...................................... 3
Remote Control ........................................................ 4
Battery installation and replacement ............................ 5
Using the wired remote control mode .......................... 6
Operating range ........................................................... 6
Handling the remote control ......................................... 6
Installation ...................................................... 7
Connecting your PC or Macintosh computer ................ 8
Connecting your VCR or Laser Disc Player ................. 8
Connecting your DVD Player ..................................... 8
MonitorLink Connections ........................................... 9
Pin assignments and signal levels
for 15 pin RGB (analog) ......................................... 9
MonitorLink Pin Configuration (DVI Connector) ............ 9
Loop Out .............................................................. 10
Cable Management................................................ 10
Basic Operations ............................................. 11
Power ................................................................... 11
To turn the unit ON and OFF: ................................... 11
Volume ................................................................. 11
To adjust the sound volume: ..................................... 11
Mute..................................................................... 11
To cancel the sound: ................................................. 11
Info ...................................................................... 11
To check the settings: ................................................ 11
Digital Zoom ......................................................... 11
Auto Position ......................................................... 11
To adjust the size or quality of the picture automatically
Sleep/Off Timer .................................................... 12
To set the off timer: .................................................. 12
To check the remaining time: .................................... 12
To cancel the off timer: ............................................. 12
Available On-Screen Format Sizes .................... 13
Format Operation (manual) .................................... 13
When viewing videos or digital video discs ............. 13
Format Operation with Computer Signals ................. 14
11
Monitor Settings Menu ............................................ 20
Adjusting the Position, Size, Fine Picture, Picture Adj
Option1 Settings Menu ........................................... 21
Setting the on-screen menu ....................................... 21
Setting the BNC connectors ...................................... 22
Setting a computer image to the correct RGB
select screen ............................................................ 22
Setting high definition images to the suitable
screen size ............................................................... 23
Setting the Input Skip ................................................ 23
Resetting to the default values ................................... 24
Option2 Settings Menu ........................................... 24
Setting the power management for computer images .........
POWER/STANDBY indicator .................................. 25
Setting the picture to suit the movie .......................... 25
Reducing burn-in of the screen................................. 25
PEAK BRIGHT ........................................................ 25
ORBITER ................................................................. 26
INVERSE ................................................................. 26
Setting the time for INVERSE .................................. 27
SOFT FOCUS .......................................................... 28
Setting the gray level for the sides of the screen ........ 28
Setting the screen size for S1/S2 video input ............. 28
Setting the signal and black level for DVI signal ....... 29
Option3 Settings Menu ........................................... 30
Using the timer ......................................................... 30
Setting the power on mode ....................................... 31
Enabling/disabling the front panel controls ............... 32
Enabling/disabling remote control wireless
transmission ............................................................ 32
Loop Out setting ....................................................... 33
Language Settings Menu ......................................... 34
Setting the language for the menus ............................ 34
Color System Settings Menu .................................... 34
Setting the video signal format .................................. 34
Source Information Menu ........................................ 34
Checking the frequencies, polarities of input signals,
and resolution ......................................................... 34
...... 20
24
RS-232C Control ............................................. 35
Troubleshooting ............................................. 36
Technical Specifications PD-5030 ..................... 38
Technical Specifications PD-6130 ..................... 39
On-Screen Menu (OSM) Controls ....................... 15
Menu Operations ................................................... 15
Video Settings Menu............................................... 16
Adjusting the picture ................................................. 16
Setting the picture mode according to the brightness
of the room ............................................................. 16
Reducing noise in the picture .................................... 17
Setting the color temperature .................................... 17
Adjusting the color to the desired level ..................... 17
Changing the Gamma Curve ..................................... 18
Making the Low Tone adjustments ............................ 18
ColorView™ ............................................................. 19
Audio Settings Menu .............................................. 19
Adjusting the treble, bass and left/right balance
and audio input select .............................................. 19
Selecting the input of the audio connectors ............... 20
Table of Signals Supported ............................. 40
Warranty ...................................................... 41
How to Attach Options to the Plasma Monitor
You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the
monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.
* Do not touch or hold the screen face when carrying the unit.
• This device cannot be installed on its own. Be sure to use a stand or other mounting hardware that is designed specifically for this product.
• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.
Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.
Product warranty does not cover damage caused by improper installation.
* Use only a matching stand or wall mount kit designed for this product.
Drawing A
Drawing B
Ventilation requirements for enclosure mounting
To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.
Wall
50mm (2")
50mm (2")
(2")
mm
Wall
When installing or carrying, use the handles attached to the upper back of the display.
How to use the safety metal fittings and the screws for safety metal fittings
These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws. * Safety metal fittings will differ according to the model.
Screw hole
Screw or Hook etc. (Not supplied)
Safety metal fittings
50mm (2")
(2") 50
mm
50
Screw for Safty metal
fittings
Metal chain
(Not supplied)
Ta bl e To p
Wall
1
Part Names and Function
Front View
VOLUME
MENU/ENTER DOWN UP LEFT/-RIGHT/+INPUT/EXIT
MENU/ENTER LEFT/-RIGHT/+INPUT/EXIT
7
VOLUME
6
5
q POWER
Turns the monitor’s power on and off.
w REMOTE SENSOR WINDOW
Receives the signals from the remote control.
e POWER/STANDBY indicator
When the power is on ............................. Lights green.
When the power is in the standby mode ... Lights red.
r INPUT SELECT / EXIT
Switches the input, in the following order. The available inputs depend on the setting of “BNC INPUT”. RGB:
COMP.:
VIDEO1 VIDEO2 VIDEO3 HD/DVD/DTV MONLINK RGB/PC2 RGB/PC1
VIDEO1 VIDEO2 VIDEO3 HD1/DVD1/DTV1 RGB/PC2 RGB/PC1 HD2/DVD2/DTV2
POWER/STANDBY
POWER/STANDBY
4
1
2
3
t LEFT/– and RIGHT/+
Enlarges or reduces the image. Functions as the ADJUST ( / ) buttons in the On-Screen Menu (OSM) mode.
y VOLUME and
Adjusts the volume. Functions as the ADJUST (▲/▼) buttons in the On-Screen Menu (OSM) mode.
u MENU/ENTER
Displays the main On-Screen Menu (OSM). Selects a menu item in the On-Screen Menu (OSM) mode.
Functions as the EXIT button in the On-Screen Menu (OSM) mode.
2
Rear View/ Terminal Board
VIDEO
VIDEO
( IN/OUT
1
)
VIDEO
VIDEO
C
E
F
G
H
I
J
2
3
AUDIO
( MONO
)
R
L
1
Y Cb /Pb Cr/ Pr
DVD
1
/ HD
1
AUDIO
( MONO
)
R
L
2
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
( IN/ OUT
RGB
1
)
AUDIO
( MONO
)
R
L
3
DVI
MONITORLINK
( Digital RGB
)
MONITORLINK
CONTROL
IN OUT
REMOTE
D
K
AB
H MONITORLINK™ / DVI (Digital RGB)
MonitorLink when used with MonitorLink Control is a Mitsubishi exclusive proprietary digital interface for the display of high quality digital video signals from a Mitsubishi HD Receiver/Controller, such as the HD-5000.
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct polarity. Connect the (positive) speaker wire to the
EXT SPEAKER terminal and the (negative) speaker wire to the EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speaker’s owner’s manual.
C VIDEO1, 2, 3 (BNC, RCA, S-Video)
Connect VCR’s, DVD’s or Video Cameras, etc. here. VIDEO1 can be used for Input or Output (see page 10).
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals. The input is selectable. Select the individual video setting from the audio menu screen.
E DVD1 / HD1
Connect DVD’s, High Definition or Laser Discs, etc. here.
F RGB2/ DVD2/ HD2
RGB2: You can connect an analog RGB signal
and the syncronization signal.
DVD2/ HD2: You can connect DVDs, High Definition
sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page 22)
G RGB1 (mini D-Sub 15pin)
Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output. (see page 10)
The MonitorLink input can also be used as a DVI input from other sources. The left and right audio allow the external Mitsubishi HDTV Receiver/Controller or DVI set-top box to provide audio to the TV to be able to use the TV speakers. When MonitorLink is used as DVI, it is HDCP compatible.
Note:
When MonitorLink is used as a DVI-HD input, the terminal is compliant with EIA-861 standards for extended and high definition video, however, this input is not intended for use with personal computers or devices outputting video signals with computer resolution.
I MONITORLINK™ CONTROL / RS-232C
A digital control interface that works in conjunction with MonitorLink. While MonitorLink provides the digital video signal, MonitorLink Control provides enhanced functioning such as automatic power ON/OFF and input selection. If you are not connecting a Mitsubishi HDTV Receiver/Controller with MonitorLink features, MonitorLink Control can be used as an RS-232C control signal input port with an external control system. Please visit www.mitsubishi-tv.com for RS-232 command protocol.
J REMOTE IN
Connect the remote cable to the remote control’s remote jack to obtain wired remote control.
K REMOTE OUT
Connect the remote cable to the REMOTE IN jack of the other display monitor to obtain wired remote control.
3
Remote Control
w RGB/PC
Press this button to select RGB/PC as the source. The available sources depend on the setting of “BNC INPUT”. RGB:
RGB/PC1 RGB/PC2 MONLINK
STANDBY
RGB/PC DVD/HD
VIDEO
ADJUST
POINTER
ZOOM
MUTE
FORMAT INFO
SLEEP
POWER ON
MENU/ ENTER
EXIT
VOLUME
COMP. :
RGB/PC1MONLINK
RGB/PC can also be selected using the INPUT SELECT button on the monitor.
e DVD / HD
Press this button to select DVD/HD as the source. The available sources depend on the setting of “BNC INPUT”. RGB:
COMP.:
HD/DVD/DTV
HD1/DVD1/DTV1HD2/DVD2/DTV2
DVD/HD can also be selected using the INPUT SELECT button on the monitor.
r VIDEO
Press this button to select VIDEO as the source.
VIDEO1 VIDEO2 VIDEO3
VIDEO can also be selected using the INPUT SELECT button on the monitor.
t MENU/ENTER
Press this button to access the On-Screen Menu (OSM) controls. Press this button during the display of the main menu to go to the sub menu.
AUTO POSITION
RM-PDP2
q POWER ON/STANDBY
Switches the power on/standby. (This does not operate when POWER/STANDBY indicator of the main unit is off.)
y ADJUST ( / / / )
Use these buttons to select items or adjust settings or switch the display patterns.
u EXIT
Press this button to exit the main menu. Press this button during the display of the sub menu to return to the previous menu.
i POINTER
Press this button to display the pointer.
o ZOOM ( / )
Enlarges or reduces the image.
!0 VOLUME ( / )
Adjusts the audio volume.
!1 MUTE
Mutes the sound.
!2 FORMAT
Automatically detects the signal and sets the aspect ratio. Format button is not active for all signals.
!3 INFO
Displays the source settings on the screen.
!4 SLEEP
Activates the off timer.
4
!5 AUTO POSITION
Available for PC Inputs Only. Press this button to
automatically adjust the size and position of the current screen resolution.
!6 Remote control signal transmitter
Transmits the remote control signals.
!7 Remote Jack
Insert the plug of the remote cable here when using the supplied remote control in the wired condition.
Battery Installation and Replacement
Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.
1.Remove the remote control’s back cover by gently pressing the rigid tab in the direction of the arrow.
2. Install the batteries according to the (+) and (–) indication inside the case. For ease of installation, install the negative (–) side first.
3.Replace the cover.
5
Using the wired remote control mode
MONITORLINK CONTROL
IN OUT
REMOTE
Connect one end of the remote cable to the remote control’s REMOTE JACK and the other end to the “REMOTE IN” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are installed.
AUDIO
( MONO
)
R
L
2
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
( IN/ OUT
RGB
1
)
AUDIO
( MONO
)
R
L
3
DVI
MONITORLINK
( Digital RGB
)
Monitorlink Control
IN OUT
REMOTE
Operating Range
* Use the remote control within a distance of about 7 m/
23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.
* The remote control operation may not function if the
monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.
POWER/STANDBY
Remote Control Cable
To Remote Jack
Approx.
7m/23ft
Handling the remote control
• Do not drop or mishandle the remote control.
• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.
• Avoid heat and humidity.
• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.
• Do not mix new and old batteries.
• Do not heat, take apart, or throw batteries into a fire.
• When the remote control is not being used for a long period of time, remove the batteries.
6
Installation
VIDEO
VIDEO
( IN/OUT
VIDEO 1-3
1
)
VIDEO
VIDEO
2
3
AUDIO
(
MONO
)
R
L
1
Y Cb/ Pb Cr/Pr
DVD
1
/ HD
1
AUDIO
(
MONO
)
R
L
2
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
To video inputs on the plasma monitor
VCR or Laser Disc Player
Document Camera
DVD Player
IBM VGA or
Compatibles
(
MONO
)
L
MONITORLINK CONTORL
(
IN /OUT
)
DVI
( Digital RGB
)
IN OUT
REMOTE
RGB
1
AUDIO
R
3
MONITORLINK
Macintosh or Compatibles
(Desk top type)
Monitor adapter for Macintosh (not included)
To Mini D-Sub 15 pin connector on the plasma monitor
Mitsubishi HD Receiver/Controller (i.e. HD-5000)
7
Connecting Your PC or Macintosh Computer
Connecting your PC or Macintosh computer to your plasma monitor will enable you to display your computer’s screen image for an impressive presentation. The plasma monitor supports the signals described on page 40. To connect a PC, Macintosh or compatible graphics adapter, simply:
1. Turn off the power to your plasma monitor and computer.
2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.
3. This plasma monitor provides signal compatibility up to VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability.
4. Use the signal cable to connect your PC or Macintosh computer to the plasma monitor. For Macintosh, use a monitor adapter (not included) to connect to your computer’s video port, if necessary.
Connecting Your VCR or Laser Disc Player
Use common RCA cables (not provided) to connect your VCR or laser disc player to your plasma monitor. To make these connections, simply:
1. Turn off the power to your plasma monitor and VCR or laser disc player.
2. Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your plasma monitor. Use standard RCA audio patch cables to connect the audio from your VCR or laser disc player to your plasma monitor (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.
3. Turn on the plasma monitor and the VCR or laser disc player.
Note:
manual for more information about your equipment’s video output requirements.
Refer to your VCR or laser disc player owner’s
5. Turn on the plasma monitor and the computer.
6. If the plasma monitor goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma monitor.
When using a Macintosh with the plasma monitor, the following four display standards are supported using the Macintosh adapter :
13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode
The 19" fixed mode is recommended for your monitor.
Connecting Your DVD Player
You can connect your plasma monitor to a DVD player. To do so, simply:
1. Turn off the power to your plasma monitor and DVD player.
2. Use a component video cable (not provided) to connect your DVD player to the Y, Cb, and Cr inputs on your plasma monitor. Or use the DVD-player’s S-Video output. Use a standard S-Video (not provided) cable to connect to the S-Video input on the plasma monitor.
3. Use standard RCA audio patch cables to connect the audio from your DVD Player to your plasma monitor.
4. Turn on the plasma monitor and the DVD player.
8
MonitorLink™ Connections
MonitorLink and MonitorLink Control
1. Connect a MonitorLink cable from the Mitsubishi Receiver/Controller back panel to the plasma monitor back panel.
2. Connect the L (left) and R (right) audio cables from the Mitsubishi Receiver/Controller to AUDIO LEFT and AUDIO RIGHT on the MonitorLink section of the plasma monitor back panel.
3. Connect the MonitorLink Control cable from the Mitsubishi Receiver/Controller back panel to the plasma monitor back panel.
Note:
1. Input TMDS signals conforming to DVI standards. The TMDS input corresponds to 1 link.
2. To maintain display quality, use a cable with a quality
prescribed by DVI standards that is within 5 meters in length.
External DVI Device with DVI-HDCP
1. Connect a DVI cable from the DVI output of the external DVI type device to the MonitorLink/DVI-HD input on the back of the plasma monitor.
2. Connect the L (left) and R (right) audio cables from the external DVI device to AUDIO LEFT and AUDIO RIGHT on the MonitorLink section of the plasma monitor back panel.
Note:
compliant with HDCP and the EIA-861 standards for standard, extended and high definition video. This input is not intended for use with personal computers or devices outputting video signals with computer resolution.
When used as a DVI Input, MonitorLink input is
MonitorLink™ Pin Configuration (DVI Connector)
The unit is equipped with a type of connector commonly used for digital signals. (This cannot be used for an analog input.) (TMDS can be used for one link only.)
MonitorLink™ / DVI
12345678 910111213141516
20191817 21 22 23 24
Pin No.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
T.M.D.S Data 2 ­T.M.D.S Data 2 + T.M.D.S Data 2 Shield No connection No connection DDC Clock DDC Data No connection T.M.D.S Data 1 ­T.M.D.S Data 1 + T.M.D.S Data 1 Shield No connection No connection +5V Power Ground Hot Plug Detect T.M.D.S Data 0 ­T.M.D.S Data 0 + T.M.D.S Data 0 Shield No connection No connection T.M.D.S Clock Shield T.M.D.S Clock + T.M.D.S Clock -
Signal (Digital)
Pin Assignments and Signal Levels for 15 pin RGB (Analog) Connector
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
Pin No.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock
Signal (Analog)
9

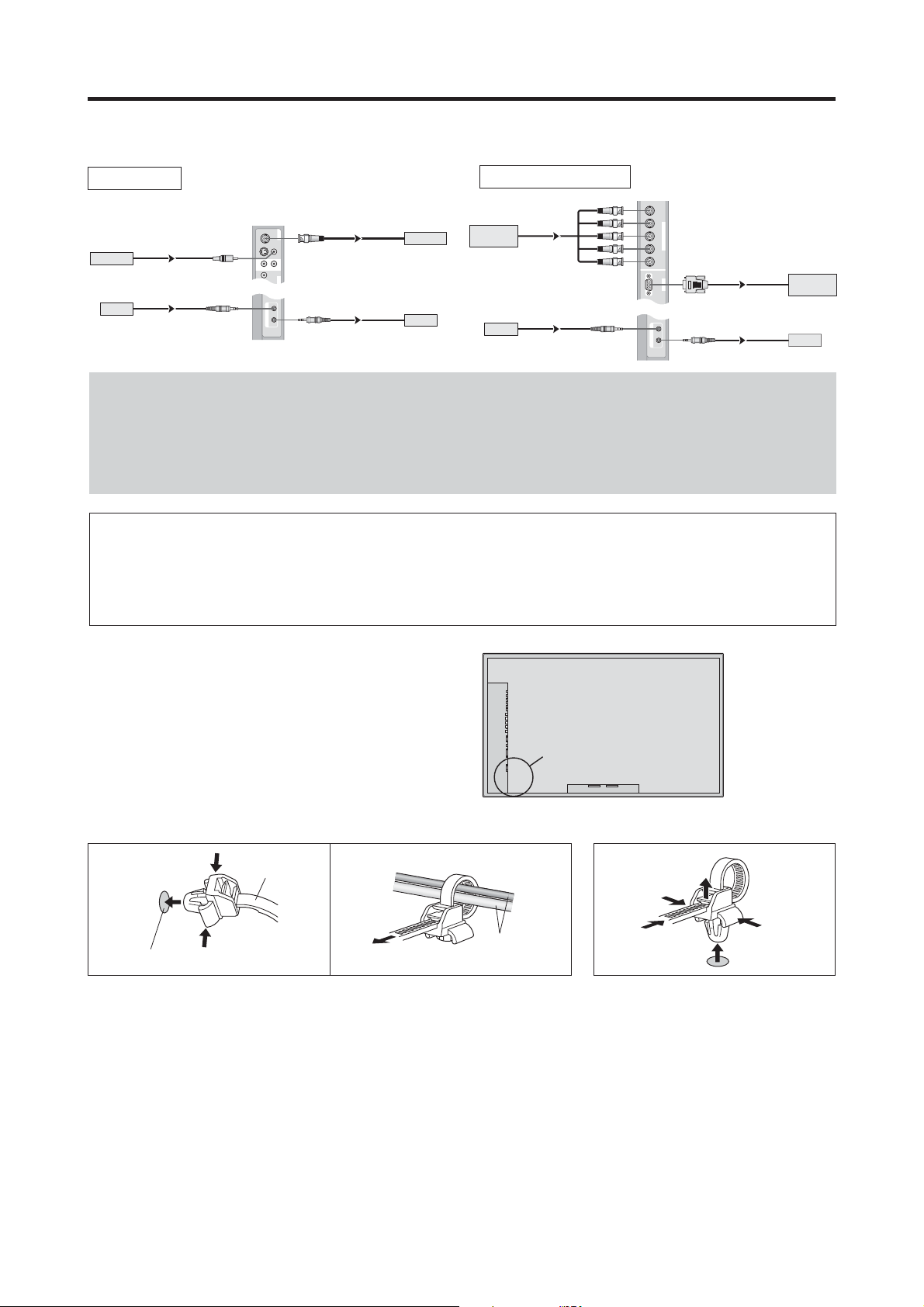

Loop Out
• Connect signal cables and remote cables as shown below.
Video signal RGB/DVD/HD signal
BNC connector
VIDEO
BNC connector
VIDEO
(
VIDEO Signal
Remote control
IN/OUT
1
)
VIDEO
VIDEO
2
RCA phono plug
IN
IN
3
AUDIO
( MONO
)
R
L
1
Y
DVD
1
IN OUT
REMOTE
OUT
OUT
VIDEO Signal
Remote control
RGB signal/ DVD/HD signal
Remote control
IN
IN
Note:
1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal from another unit, that will place an extraordinary load on the other unit and may damage it.
2. LOOP OUT can not be turned ON while signals are input to RGB1 terminal.
3. LOOP OUT can be turned ON while signals are input to RGB1 terminal if the POWER is switched ON.
Information
• To loop signals out to another plasma display, set the LOOP OUT to ON.
• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).
• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.
Cr/Pr Y Cb/Pb
R/
G/ B/
RGB
2
/ DVD
2
/ HD
2
HD
VD
( IN/OUT
RGB
1
)
IN OUT
REMOTE
OUT
OUT
RGB signal/ DVD/HD signal
Remote control
Cable Management
Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.
To attach To detach
1. 2.
mounting hole
clamp
cables
Back of the unit
mounting hooks/mounting holes
10
Basic Operations
POWER
ON:
1. Plug the power cord into an active AC power outlet.
2. Press the Power button located underneath the right side of the front panel. The monitor’s POWER/STANDBY indicator turns green and the plasma display is on.
OFF:
Press the Power button (underneath the front panel) to turn off the display. The monitor’s POWER/STANDBY indicator goes off.
STANDBY ON:
Press the POWER ON button (on the remote control) to turn on the display. The monitor’s POWER/STANDBY indicator will light up (green) when the plasma display is on.
STANDBY OFF:
Press the STANDBY button on the remote. The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).
INFO
To check the settings:
1. The screen changes each time the INFO button is pressed.
2. If the button is not pressed for approximately three seconds, the menu turns off.
DIGITAL ZOOM
Digital zoom specifies the picture position and enlarges the picture.
1. Press the POINTER button to display the pointer. ( )
To change the size of the picture:
Press the ZOOM button to enlarge the picture. The pointer will change to resemble a magnifying glass. ( ) A press of the ZOOM button will reduce the picture and return it to its original size.
To change the picture position:
Select the position with the ▲▼  buttons.
2. Press the POINTER button to delete the pointer.
AUTO POSITION
To adjust the size or quality of the picture automatically:
VOLUME
To adjust the sound volume:
1. Press and hold the VOLUME button (on the remote control or the front panel) to increase to the desired level.
2. Press and hold the VOLUME button (on the remote control or the front panel) to decrease to the desired level.
MUTE
To cancel the sound:
Press the MUTE button on the remote control to cancel the sound; press again to restore.
Press the AUTO POSITION button.
Information
AUTO POSITION ON setting
When RGB (still picture) input
is selected ...... Fine Picture, Picture ADJ, Position,
and Contrast will be adjusted automatically.
When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input
is selected ...... The screen size switches to ZOOM
mode automatically with the superimposed caption displayed fully only when the picture contains dark areas above and below the picture.
11
SLEEP/OFF TIMER
To set the off timer:
The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.
1. Press the SLEEP button to start the timer at 30 minutes.
2. Press the SLEEP button to the desired time.
3. The timer starts when the menu turns off.
30 60 90 120 0
To cancel the off timer:
1. Press the SLEEP button twice in a row.
2. The off timer is canceled.
OFF TIMER 0
OFF TIMER 30
To check the remaining time:
1. Once the off timer has been set, press the SLEEP button once.
2. The remaining time is displayed, then turns off after a few seconds.
3. When five minutes remain the remaining time appears until it reaches zero.
OFF TIMER 28
Note:
After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the room or do not plan to use the system for a long period of time, turn off the monitor’s power using the Power Button located underneath the front panel.
12
Format Sizes
Format Operation
With this function, you can select one of six screen sizes.
(manual)
When viewing videos or digital video discs
1. Press the FORMAT button on the remote control.
2. Within 3 seconds ...
Press the FORMAT button again.
The screen size switches as follows:
NARROWSTANDARDSTRETCHEXPANDZOOM14:9
When a 720P or 1080I signal is input:
STANDARD ZOOM
NARROW screen size (4:3)
The NARROW screen size is displayed. * The picture has the same size as video pictures with a
4 : 3 aspect ratio.
STANDARD screen size
EXPAND screen size
The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.
ZOOM screen size
Original image
Information is lost on both sides.
The squeezed film image is expanded to fill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.
• This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).
* If black bands appear on the top and bottom in the full
screen size, select the 2.35:1 size screen to avoid phosphor burn-in.
The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed
images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)
STRETCH screen size
The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a
wide screen.

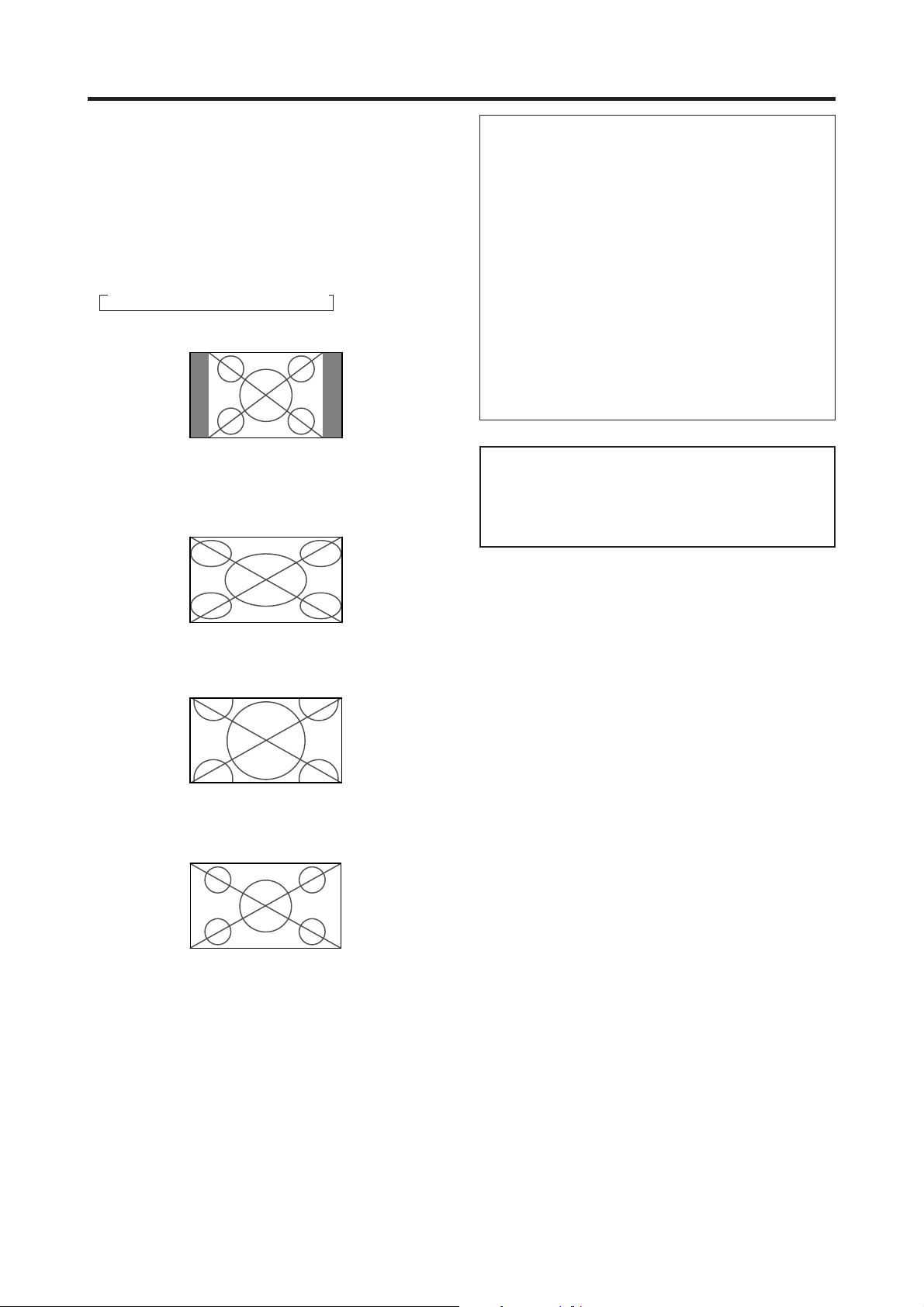

14:9 screen size
The image is displayed at a 14:9 aspect ratio. * This feature is available when the input signal is video,
component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).
WARNING
DO NOT OPERATE THE PLASMA DISPLAY IN NARROW (4:3) SCREEN SIZE MODE OR 14:9 SCREEN SIZE MODE FOR AN EXTENDED PERIOD. THE SIDE BARS CAN CAUSE PHOSPHOR BURN-IN.
13
Format Operation with Computer Signals
Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.
1. Press the FORMAT button on the remote control.
2. Within 3 seconds ...
Press the FORMAT button again. The screen size switches as follows:
NARROW STANDARD EXPAND
NARROW screen size (4:3 or SXGA 5:4)
Information
Supported resolution
See page 40 for details on the display output of the various VESA signal standards supported by the monitor.
When 852 (848) dot 480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are in­put
Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page 40.
* “VGA”, “SVGA” and “SXGA” are registered
trademarks of IBM, Inc. of the United States.
The picture has the same size as the normal computer image.
STANDARD screen size
The image is expanded in the horizontal direction.
EXPAND screen size
When wide signals are input.
STANDARD screen size
WARNING
DO NOT OPERATE THE PLASMA DISPLAY IN NARROW (4:3) SCREEN SIZE MODE FOR AN EXTENDED PERIOD. THIS CAN CAUSE PHOSPHOR BURN-IN.
14
On-Screen Menu (OSM) Controls
Menu Operations
The following describes how to use the menus and the selected items. In the explanation, the menu section is shown close up.
1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.
VIDEO SETTINGS AUDIO SETTINGS MONITOR SETTINGS OPTION1 OPTION2 OPTION3
NEXT PAGE
SEL.
PREVIOUS PAGE LANGUAGE COLOR SYSTEM SOURCE INFORMATION
SEL.
MAIN MENU
MENU/ENTER
OK
MAIN MENU
MENU/ENTER
OK
EXIT
EXIT
1 / 2
EXIT
2 / 2
EXIT
5. The adjustments or the settings are stored in memory. The change is stored until you make more modifications.
6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.
Note:
The main menu disappears by pressing the EXIT
button.
2. Press the ADJUST buttons ▲ ▼ on the remote control
to highlight the menu you wish to enter.
3. Press the MENU/ENTER button on the remote control to select a sub menu or item.
CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE
SEL.
VIDEO SETTINGS
: NORMAL : OFF
ADJ.
EXIT
1 / 2
RETURN
4. Adjust the level or change the setting of the selected item by using the ADJUST buttons   on the remote control.
15
VIDEO Settings Menu
Adjusting the picture
The contrast, brightness, sharpness, color and tint can be adjusted as desired.
Example: Adjusting the contrast
Setting the picture mode according to the brightness of the room
There are four picture modes that can be used effectively according to the environment in which you are viewing the display.
Example: Setting the “THEAT. 1” mode
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “CONTRAST”.
CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE
SEL.
VIDEO SETTINGS
: NORMAL : OFF
ADJ.
EXIT
1 / 2
RETURN
3. Use the  and  buttons to adjust the contrast.
CONTRAST
* If neither the  or  button is pressed within 5 seconds,
the current setting is stored into memory and the previous screen reappears.
Note:
If “CAN NOT ADJUST” appears ... When trying to enter the VIDEO SETTINGS submenu, make sure PICTURE MODE is not set to DEFAULT.
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “PICTURE MODE”.
CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE
SEL.
VIDEO SETTINGS
: NORMAL : OFF
ADJ.
EXIT
1 / 2
RETURN
3. To set to “THEAT. 1” ... Use the  and  buttons to select “THEAT. 1”. The mode switches as follows each time the  or
button is pressed:
BRIGHT NORMAL THEAT. 1 ↔ THEAT. 2 ↔ DEFAULT ←
PICTURE MODE
: THEAT. 1
* If neither the  or  button is pressed within 5 seconds,
the current selection is stored into memory and the previous screen reappears.
Information
Information
Video settings screen
CONTRAST .... Changes the picture’s white level.
BRIGHTNESS
.. Changes the picture’s black level.
SHARPNESS ..Changes the picture’s sharpness.
Adjusts picture detail of VIDEO display.
COLOR ........... Changes the color density.
TINT ................ Changes the picture’s tint. Adjust for
natural colored skin, background, etc.
Adjusting the computer image
Only the contrast and brightness can be adjusted when a computer signal is connected.
Restoring the factory default settings
Select “DEFAULT” under the “PICTURE MODE” settings.
Types of picture modes
THEAT. 1, 2 ......Select this mode when watching video
in a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. For a darker image, select THEAT. 2.
NORMAL ......... Select this mode when watching video
in a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections.
BRIGHT ........... This mode provides brighter pictures
than NORMAL.
DEFAULT ......... Use this to reset the picture to the
factory default settings.
16
Reducing noise in the picture
Use these settings if the picture has noise due to poor reception or when playing video tapes with poor picture quality.
Example: Setting “NR-3”
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “NR”.
CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR NEXT PAGE
SEL.
VIDEO SETTINGS
: NORMAL : OFF
ADJ.
EXIT
1 / 2
RETURN
3. Use the  and  buttons to select “NR-3”. The mode switches as follows each time the  or
button is pressed:
OFF NR-1 NR-2 NR-3
Setting the color temperature
Use this procedure to set color tone produced by the plasma display.
Example: Setting “HIGH”
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “NEXT PAGE”.
3. Select “COLOR TEMP”.
4. Use the  and  buttons to select “HIGH”. The mode switches as follows each time the  or
button is pressed:
LOW MID LOW MEDIUM HIGH
* See below to set “WHITE BALANCE”.
PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLORVIEW
SEL.
VIDEO SETTINGS
ADJ.
: HIGH : 2 : AUTO
EXIT
2 / 2
RETURN
NR
: NR-3
* If neither the  or  button is pressed within 5 seconds,
the current selection is stored into memory and the previous screen reappears.
Information
NR
* “NR” stands for Noise Reduction. * This function reduces noise in the picture.
Types of noise reduction
There are three settings for noise reduction. Each has a different level of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 NR-2 NR-3).
OFF ............... Turns the noise reduction function off.
* If neither the  or  button is pressed within 5 seconds,
the current selection is stored into memory and the previous screen reappears.
Information
Setting the color temperature
LOW ................Redder
MID LOW ......... Slightly redder
MEDIUM........... Standard (slightly bluer)
HIGH ............... Bluer
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

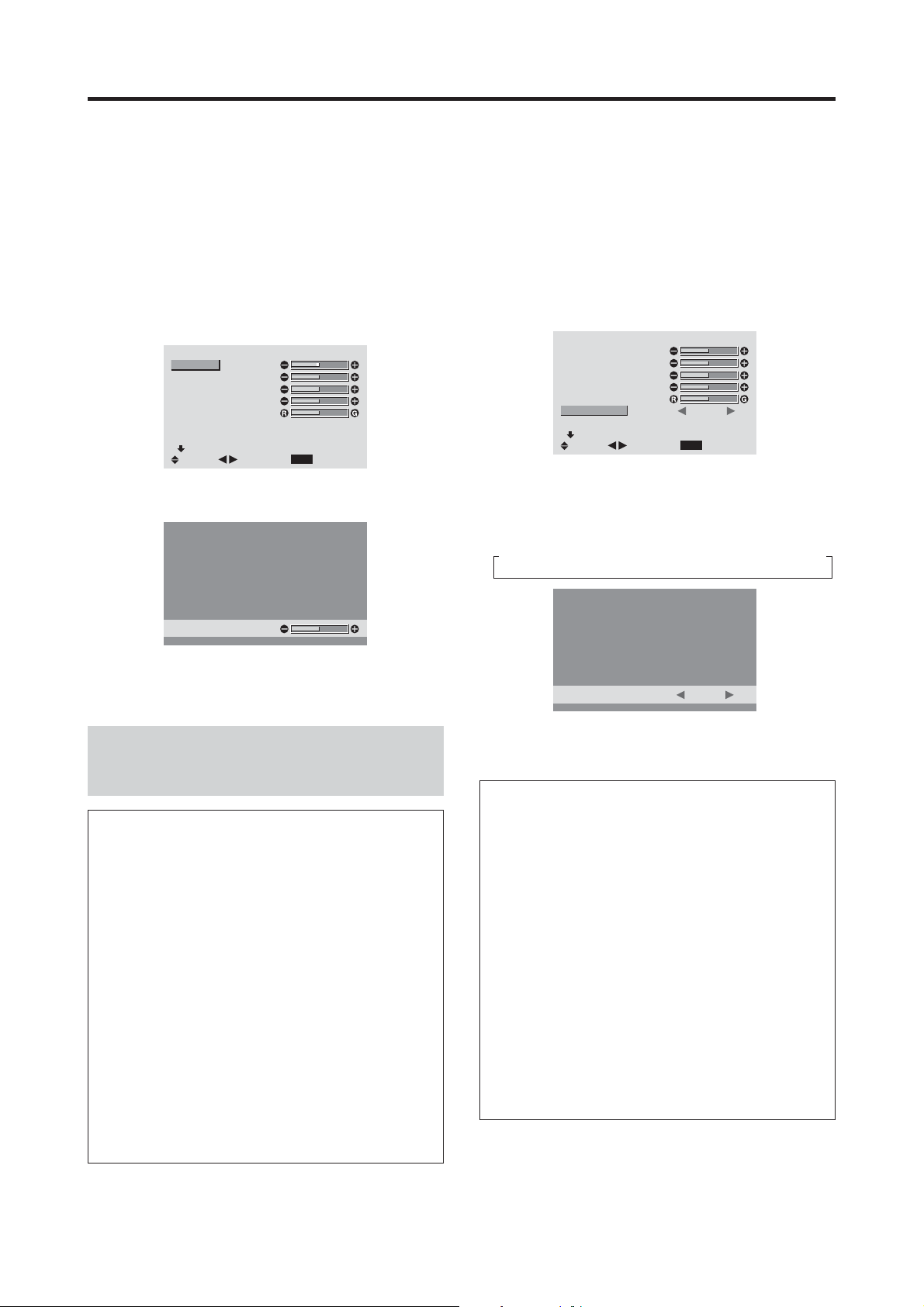

Adjusting the color to the desired level
Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.
Example: Adjusting the “GAIN RED” of “HIGH” color temperature
Perform Steps 1-4 of SETTING THE COLOR TEMPERATURE, then...
5. Press the MENU/ENTER button. The “WHITE BALANCE” screen appears.
6. Use the and buttons to select “GAIN RED”.
WHITE BALANCE
SEL.
COLOR TEMP. HIGH
ADJ.
EXIT
RETURN
GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET : OFF
17
7. Adjust the white balance using the  and  buttons.
GAIN RED
* If neither the  or  button is pressed within 5 seconds,
the current setting is stored into memory and the previous screen reappears.
Information
Adjusting the white balance
GAIN R/G/B ..... White balance adjustment for signal
level
BIAS R/G/B ..... White balance adjustment for black
level
RESET ............Resets settings to the factory default
values. Use  and  buttons to select “ON”, then press the MENU/ENTER button.
Restoring the factory default settings Select “RESET” under the WHITE BALANCE menu.
Making the Low Tone adjustments
This feature allows more detailed tone to be reproduced especially in dark areas.
Example: Setting “2”
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “NEXT PAGE”.
3. Use the and buttons to select “LOW TONE”.
3. Use the  and  buttons to select “2”. The mode switches as follows each time the  or
button is pressed:
AUTO 1 2 3
PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLORVIEW
SEL.
VIDEO SETTINGS
ADJ.
: MEDIUM : 2 : 2
EXIT
2 / 2
RETURN
Changing the Gamma Curve
This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.
Example: Setting “3”
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “NEXT PAGE”.
3. Use the and buttons to select “GAMMA”.
4. Use the  and  buttons to select “3”. The mode switches as follows each time the  or
button is pressed:
1 2 3 4
PREVIOUS PAGE COLOR TEMP. GAMMA LOW TONE COLORVIEW
SEL.
VIDEO SETTINGS
ADJ.
: MEDIUM : 3 : AUTO
EXIT
2 / 2
RETURN
Information
LOW TONE settings
AUTO .......Will automatically appraise the picture and
make adjustments.
1 ...............Will apply the dither method suitable for
still pictures.
2 ...............Will apply the dither method suitable for
motion pictures.
3 ...............Will apply the error diffusion method.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
Information
GAMMA settings
The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
18

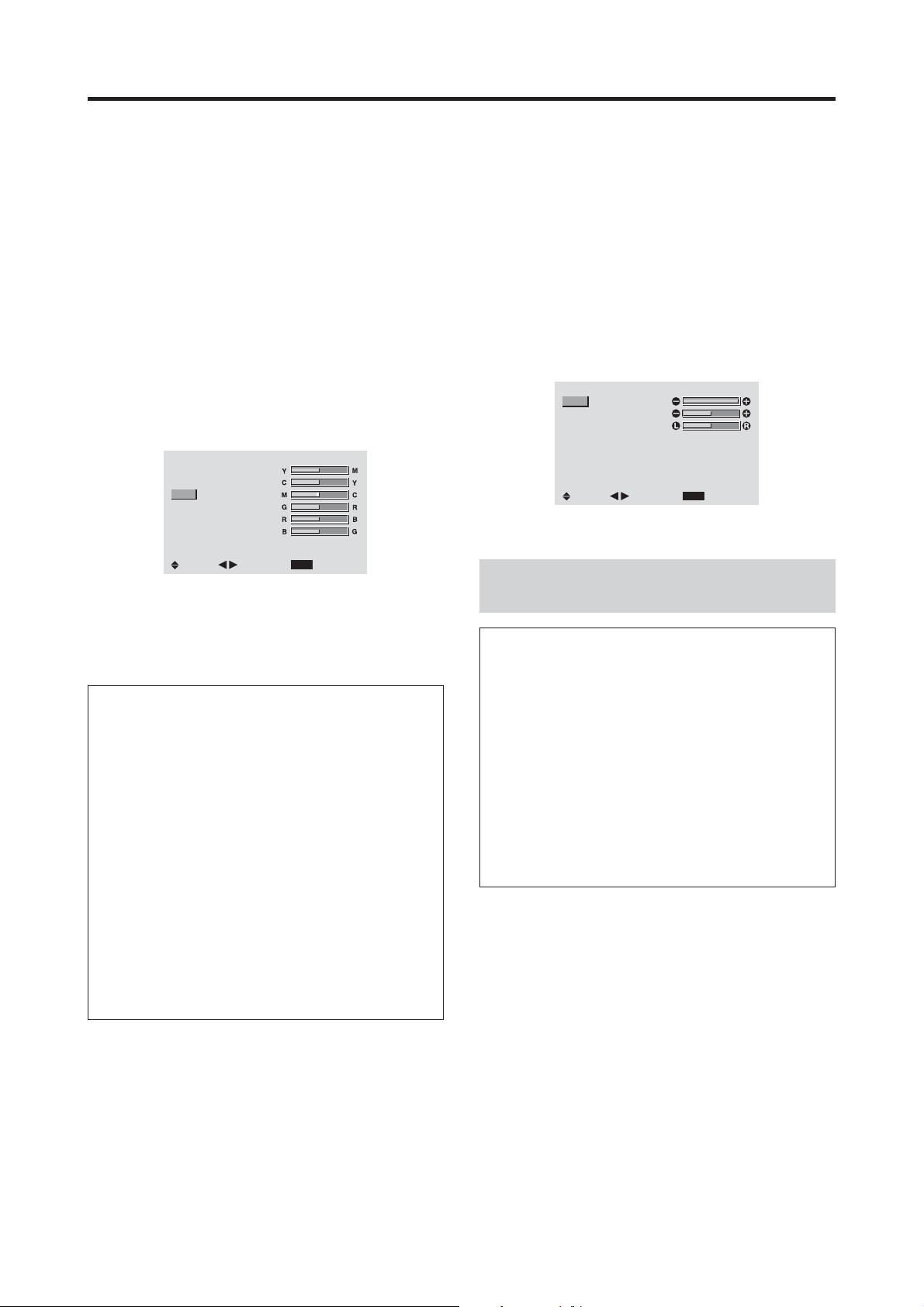

ColorView™
Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan. You can accentuate the green color of trees, the blue of the sky, etc.
Example: Adjusting the blue
Audio Settings Menu
Adjusting the treble, bass and left/right balance and audio input select
The treble, bass and left/right balance can be adjusted to suit your tastes.
Example: Adjusting the bass
1. On the MAIN MENU, select “VIDEO SETTINGS”, then press the MENU/ENTER button. The “VIDEO SETTINGS” screen appears.
2. Use the and buttons to select “NEXT PAGE”.
3. Use the and buttons to select “COLORVIEW”, then press the MENU/ENTER button. The “COLORVIEW” screen appears.
4. Use the and buttons to select “BLUE”.
5. Adjust using the  and  buttons.
RED GREEN BLUE YELLOW MAGENTA CYAN RESET : OFF
SEL.
COLORVIEW
ADJ.
EXIT
RETURN
* If neither the  or  button is pressed within 5 seconds,
the current selection is stored into memory and the previous screen reappears.
To continue making other adjustments...
Repeat from step 4.
Information
COLORVIEW settings
RED ................ Makes red’s adjustment
GREEN ........... Makes green’s adjustment
BLUE ............... Makes blue’s adjustment
YELLOW .........Makes yellow’s adjustment
MAGENTA ...... Makes magenta’s adjustment
CYAN .............. Makes cyan’s adjustment
RESET ............ Resets settings to the factory default
value. Use  and  buttons to select “ON”, then press the MENU/ENTER button.
1. On the MAIN MENU, select “AUDIO SETTINGS”, then press the MENU/ENTER button. The “AUDIO SETTINGS” screen appears.
2. To adjust the bass ... Use the and buttons to select “BASS”.
3. Adjust the bass using the  and  buttons.
BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3
SEL.
AUDIO SETTINGS
: VIDEO1 : HD/DVD1 : RGB1
ADJ.
EXIT
RETURN
To continue adjusting the audio ...
Repeat from step 2.
Note :
If “CAN NOT ADJUST” appears...
Set “AUDIO INPUT” on the AUDIO menu correctly.
Information
Audio settings menu
BASS .............. Controls the level of low frequency
sound.
TREBLE ..........Controls the level of high frequency
sound.
BALANCE ....... Controls the balance of the left and
right channels.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
19
Setting the allocation of the audio connectors
Setting the AUDIO 1, 2, and 3 connectors to the desired input.
Example: Setting “AUDIO INPUT1” to “VIDEO 2”
1. On the MAIN MENU, select “AUDIO SETTINGS”, then press the MENU/ENTER button. The “AUDIO SETTINGS” screen appears.
2. Use the and buttons to select “AUDIO INPUT1”.
Monitor Settings Menu
Adjusting the Position, Size, Fine Picture, Picture Adj
The position of the image can be adjusted and flickering of the image can be corrected.
Example: Adjusting the vertical position in the NARROW mode
1. On the MAIN MENU, select “MONITOR SETTINGS”, then press the MENU/ENTER button.
3. To set the AUDIO INPUT1 to “VIDEO2”... Use the  and  buttons to select “VIDEO2”. The mode switches as follows each time the  or button is pressed: The available sources depend on the setting of “BNC INPUT”.
RGB:
COMP.:
VIDEO1 VIDEO2VIDEO3 ↔ HD/DVD1←
MONLINK ↔RGB2 RGB1
VIDEO1 VIDEO2 VIDEO3↔ HD/DVD1←
MONLINK ↔RGB1 HD/DVD2
BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3
SEL.
AUDIO SETTINGS
: VIDEO2 : HD/DVD1 : RGB1
ADJ.
EXIT
RETURN
Information
AUDIO INPUT
A single audio input cannot be selected as the audio channel for more than one input terminal.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
The “MONITOR SETTINGS” menu appears.
(only for RGB/PC setting)
SEL.
MONITOR SETTINGS
ADJ.
: NARROW
: OFF
EXIT
RETURN
ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.
* The settings on the MONITOR SETTINGS menu are
not preset at the factory.
To select a mode ...
Use the  and  buttons to select a mode. The mode switches as follows each time the  or
button is pressed:
NARROW STANDARD
* The mode can also be switched by pressing the
FORMAT button on the remote control.
2. To adjust the vertical position ...
Use the and buttons to select “V-POSITION”.
SEL.
MONITOR SETTINGS
ADJ.
: NARROW
: OFF
EXIT
RETURN
ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.
3. Adjust using the  and  buttons.
V-POSITION
* If neither the  or  button is pressed within 5 seconds,
the current setting is stored into memory and the previous screen reappears.
To continue making other computer image adjustments ...
Repeat from step 2.
20
MENU
EXIT
: OFF : 1 : OFF
SEL.
RETURN
ADJ.
DISPLAY MENU MENU ADJUST MENU ORBITER
Information
When “AUTO PICTURE” is “OFF”
2. Use the and buttons to select “MENU”, then press
the MENU/ENTER button. The “MENU” menu appears.
SEL.
MONITOR SETTINGS
ADJ.
: STANDARD
: OFF
EXIT
RETURN
ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.
When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.
Adjusting the Auto Picture
ON ................... The Picture ADJ., Fine Picture and
Position adjustments are made automatically. Not available for digital ZOOM.
OFF ................. The Picture ADJ., Fine Picture and
Position adjustments are made manually.
* If FINE PICTURE can’t be adjusted, set AUTO
PICTURE to OFF and adjust manually.
Adjusting the position of the image
V-POSITION ... Adjusts the vertical position of the
image.
H-POSITION ... Adjusts the horizontal position of the
image.
V-HEIGHT ....... Adjusts the vertical size of the image.
(Except for STRETCH mode)
H-WIDTH ......... Adjusts the horizontal size of the
image. (Except for STRETCH mode)
FINE PICTURE PICTURE ADJ.* ...
* .. Adjusts for flickering.
Adjusts for striped patterns on the image.
* The PICTURE ADJ. and FINE PICTURE features are
available only when the AUTO PICTURE is off.
* The AUTO PICTURE, FINE PICTURE and PICTURE
ADJ. are available only for RGB signals. These features are not available for moving pictures on VIDEO, HD/DVD or RGB.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for Auto Picture.
3. Use the and buttons to select “DISPLAY MENU”.
4. To set the DISPLAY MENU to “OFF”... Use the  and  buttons to select “OFF”. The mode switches as follows each time the  or
button is pressed:
ON OFF
Information
DISPLAY MENU settings
ON ............The on-screen menu appears.
OFF ..........The on-screen menu does not appear.
If you press the INFO button on the remote control for more than 3 seconds the main menu will appear and can be set (although it is not ON).
MENU ADJUST settings
Adjusts the screen position of the menu. The position can be set between 1 to 6.
MENU ORBITER settings
ON ........ The position of the menu will be shifted by
eight dots each time it is displayed.
OFF ...... The on-screen menu (OSM) will be
displayed at the same position.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults except for AUTO PICTURE.
Option1 Settings Menu
Setting the on-screen menu
This sets the position of the menu, the display format (horizontal or vertical) etc.
Example: Turning the DISPLAY MENU off
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” menu appears.
21
Setting the BNC connectors
Select whether to set the input of the 5 BNC connectors to RGB or component.
Example: Set the BNC INPUT mode to “COMP.”
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.
2. Use the and buttons to select “BNC INPUT”.
3. To set the BNC INPUT mode to “COMP.”... Use the  and  buttons to select “COMP.”. The mode switches as follows each time the  or
button is pressed:
RGB COMP.
MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
OPTION1
ADJ.
: COMP. : AUTO : 1080B : OFF : OFF
EXIT
1 / 3
RETURN
Information
BNC INPUT Settings
RGB ......... Use the 5BNC terminals for RGB input.
COMP. ......Use the 3BNC terminals for component
input.
Setting a computer image to the correct RGB select screen
Example: Setting the “RGB SELECT” mode to “MOTION ”
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.
2. Use the and buttons to select “RGB SELECT”.
3. To set the RGB select mode to “MOTION” ... Use the  and  buttons to select “MOTION”. The mode switches as follows each time the  or
button is pressed:
AUTO STILL MOTION WIDE1 ↔ WIDE2 ↔ DTV ←
MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
OPTION1
ADJ.
: RGB : MOTION : 1080B : OFF : OFF
EXIT
1 / 3
RETURN
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
22
Information
Information
RGB SELECT modes
One of these 6 modes must be selected in order to display the following signals correctly.
AUTO .............. Select the suitable mode for the
specifications of input signals as listed in the table “Table of Signals Supported” on page 40.
STILL .............. To display VESA standard signals.
(Use this mode for a still image from a computer.)
MOTION .......... The video signal (from a scan
converter) will be converted to RGB signals to make the picture more easily viewable. (Use this mode for a motion image from a computer.)
WIDE1 ............. When an 852 dot 480 line signal
with a horizontal frequency of
31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1.
WIDE2 ............. When an 848 dot 480 line signal
with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2.
DTV ................. Set this mode when watching digital
broadcasting (480P).
See page 40 for the details of the above settings.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
HD SELECT modes
1080B ............... Standard digital broadcasts
1035I ...............Japanese “High Vision” signal format
1080A ............... Special Digital broadcasts (for
example : DTC100)
Setting the Input Skip
When this is ON, inputs with signals which are not present will be skipped over and inputs whose signals are being transmitted will be displayed. This setting is valid only for the INPUT SELECT button on the unit.
Example: Set to “ON”
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.
2. Use the and buttons to select “INPUT SKIP”.
3. To set the INPUT SKIP mode to “ON”... Use the  and  buttons to select “ON”. The mode switches as follows each time the  or
button is pressed:
OFF ON
MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
OPTION1
ADJ.
: RGB : AUTO : 1080B : ON : OFF
EXIT
1 / 3
RETURN
Information
Setting high definition images to the suitable screen size
Use this procedure to set whether the number of vertical lines of the input high definition image is 1035 or 1080.
Example: Setting the “1080B” mode to “1035I”
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.
2. Use the and buttons to select “HD SELECT”.
3. To set the HD SELECT mode to “1035I” ... Use the  and  buttons to select “1035I”. The mode switches as follows each time the  or
button is pressed:
1080B 1035I 1080A
I
RETURN
1 / 3 MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
OPTION1
ADJ.
: RGB : AUTO : 1035 : OFF : OFF
EXIT
INPUT SKIP settings
OFF ........... Regardless of the presence of the signal,
scan and display all inputs.
ON ............. If no input signal is present, skip that input.
* “SETTING NOW” will appear during the input search.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
23
Resetting to the default values
Use this operation to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, OPTION1~3, etc) to the factory default values.
1. On the MAIN MENU, select “OPTION1”, then press the MENU/ENTER button. The “OPTION1” screen appears.
2. Use the and buttons to select “ALL RESET”.
MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
OPTION1
ADJ.
: RGB : AUTO : 1080B : OFF : OFF
EXIT
1 / 3
RETURN
3. Use the 䊴 and 䊳 buttons to select “ON”, then press the MENU/ENTER button.
MENU BNC INPUT RGB SELECT HD SELECT INPUT SKIP ALL RESET
NEXT PAGE
SEL.
MENU/ENTER
OPTION1
OK
: RGB : AUTO : 1080B : OFF : ON
EXIT
1 / 3
RETURN
Option2 Settings Menu
Setting the power management for computer images
This energy-saving (power management) function automatically reduces the monitor’s power consumption if no operation is performed for a certain amount of time.
Example:
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “PWR. MGT.”.
3. To turn the power management function on ... Use the 䊴 and 䊳 buttons to select “ON”. The mode switches as follows each time the 䊴 or button is pressed:
ON OFF
Information
Turning the power management function on
PREVIOUS PAGE PWR. MGT. FILM MODE LONG LIFE GRAY LEVEL S1/S2
NEXT PAGE
SEL.
OPTION2
ADJ.
: ON : ON
: 2 : OFF
EXIT
2 / 3
RETURN
ALL RESET
SETTING NOW
When the “SETTING NOW” screen disappears, all the settings have been restored to their default values.
Power management function
* The power management function automatically reduces
the monitor’s power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the monitor with a computer.
* If the computer’s power is not turned on the system is
set to the off state.
* For instructions on using the computer’s power
management function, refer to the computer’s operating instructions.
Power management settings
ON ........ In this mode the power management function
is turned on.
OFF ...... In this mode the power management function
is turned off.
Power management function and POWER/ STANDBY indicator
The POWER/STANDBY indicator indicates the status of the power management function. See page 25 for indicator status and description.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
24
POWER/STANDBY indicator
Power management mode
On
Off
POWER/ STANDBY indicator
Green
Red
Power management operating status
Not activated.
Activated.
Description
Horizontal and vertical synchronizing signals are present from the computer.
Horizontal and/or vertical synchronizing signals are not sent from the computer.
Turning the picture back on
Picture already on.
Operate the keyboard or mouse. The picture reappears.
Setting the picture to suit the movie
The film image is automatically discriminated and projected in an image mode suited to the picture. [NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I (50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]
Example: Setting the “FILM MODE” to “OFF”
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “FILM MODE”.
3. To set the FILM MODE to “OFF” ... Use the 䊴 and 䊳 buttons to select “OFF”. The mode switches as follows each time the 䊴 or
button is pressed:
ON OFF
PREVIOUS PAGE PWR. MGT. FILM MODE LONG LIFE GRAY LEVEL S1/S2
NEXT PAGE
SEL.
OPTION2
ADJ.
: OFF : OFF
: 2 : OFF
EXIT
2 / 3
RETURN
Reducing burn-in of the screen
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “LONG LIFE”, then press the MENU/ENTER button. The “LONG LIFE” screen appears.
LONG LIFE
ADJ.
: AUTO : OFF : OFF : OFF
EXIT
RETURN
PEAK BRIGHT ORBITER INVERSE SOFT FOCUS
SEL.
3. Set the LONG LIFE mode using ▲▼䊴 and 䊳 buttons. See below to set PEAK BRIGHT. See page 26 to set ORBITER. See page 26 to set INVERSE. See page 28 to set SOFT FOCUS.
Information
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
PEAK BRIGHT
Use this to activate the brightness limiter.
Example: Setting “PEAK BRIGHT” to “LOCK1”
Perform Steps 1-2 of Reducing burn-in of the screen, then...
Information
FILM MODE
ON ................... Automatic discrimination of the
image and projection in FILM MODE.
OFF ................... FILM MODE does not function.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
3. Use the and buttons to select “PEAK BRIGHT”.
4. Use the 䊴 and 䊳 buttons to select “LOCK1”. The mode switches as follows each time the 䊴 or
button is pressed:
AUTO LOCK1 LOCK2 LOCK3
LONG LIFE
ADJ.
: LOCK1 : OFF : OFF : OFF
EXIT
RETURN
PEAK BRIGHT ORBITER INVERSE SOFT FOCUS
SEL.
Information
PEAK BRIGHT settings
AUTO .............. The brightness of the screen is
adjusted automatically to suit the picture quality.
LOCK1, 2, 3 .... Sets maximum brightness.
The brightness level decreases in the order of LOCK 1, 2, 3. LOCK 3 provides minimum brightness.
25
ORBITER
ORBITER - Uneven phosphor aging/burn-in reduction feature. To minimize the risk of uneven phosphor aging/ burn-in when displaying still images, the Mitsubishi PD­5030 and PD-6130 offers a built-in feature known as ORBITER. The ORBITER feature intermittently shifts the screen image horizontally and vertically in small increments. This intermittent screen movement is usually not evident in full motion video. In some instances the ORBITER shift might be evident while displaying static guides or menus. The default setting for ORBITER is On (AUTO1). Mitsubishi chose this setting to help reduce uneven phosphor aging. Please do not shut the ORBITER off.
Example: Setting “ORBITER” to “OFF”
Perform Steps 1-2 of Reducing burn-in of the screen, then...
3. Use the and buttons to select “ORBITER”.
4. Use the 䊴 and 䊳 buttons to select “OFF”. The mode switches as follows each time the 䊴 or
button is pressed:
OFF AUTO1 ↔ AUTO2 ↔ MANUAL←
PEAK BRIGHT ORBITER INVERSE SOFT FOCUS
LONG LIFE
: AUTO : OFF : OFF : OFF
Adjust the ORBITER function manually
Set the amount of shift and the time between movement.
Example: Setting so that the picture moves 2 dots horizontally and 3 lines vertically every 3 minutes.
Perform Steps 1-3 of ORBITER, then...
4. Use the 䊴 and 䊳 buttons to select “MANUAL”, Then press the MENU/ENTER button. The “ORBITER” screen appears.
5. Adjust the items using the ▲▼䊴 and 䊳 buttons. The mode switches as follows each time the 䊴 or
button is pressed:
• H-DOT
1 DOT 2 DOT ↔ ..... ↔ 19 DOT 20 DOT←
• V-LINE
1 LINE 2 LINE ↔ ..... ↔ 19 LINE 20 LINE
• TIME
1 M 2 M 3 M 4 M 5 M
H-DOT V-LINE TIME
SEL.
ORBITER
ADJ.
: 2 DOT : 4 LINE : 3 M
EXIT
RETURN
SEL.
ADJ.
EXIT
RETURN
Information
ORBITER settings
OFF .............. ORBITER mode does not function.
AUTO1 .......... When a RGB signal is input, the picture
moves around the screen intermittently, making the picture smaller. When a Video or DVD/HD/DTV signal is input, the picture moves around the screen intermittently. But in this case, it will affect only the moving picture and will not make the screen smaller.
AUTO2 ......... When a RGB signal is input, the picture
moves around the screen intermittently, making the picture bigger. When a Video or DVD/HD/DTV signal is input, the picture moves around the screen intermittently. But in this case, it will affect only the moving picture and will not make the screen bigger.
MANUAL ......User can adjust the ORBITER functions
(Horizontal Dot, Vertical Line and Time) manually. See the following explanation.
Information
ORBITER Function settings
H-DOT .......... Moves from 1 to 20 dots in the
horizontal direction.
V-LINE .......... Moves from 1 to 20 lines in the vertical
direction.
TIME ............ Interval of 1~5 minutes (1 horizontal
dot or 1 vertical line per interval).
INVERSE
Use this to set the inverse mode or to display a white screen.
Example: Setting “INVERSE” to “WHITE”
Perform Steps 1-2 of Reducing burn-in of the screen, then...
3. Use the and buttons to select “INVERSE”.
4. Use the 䊴 and 䊳 buttons to select “WHITE”. The mode switches as follows each time the 䊴 or
button is pressed:
OFF ON WHITE
PEAK BRIGHT ORBITER INVERSE SOFT FOCUS
SEL.
LONG LIFE
ADJ.
: AUTO : OFF : WHITE : OFF
EXIT
RETURN
26
Information
INVERSE Settings
ON ......... The picture is displayed alternately between
positive image and negative image. You can set the time by pressing the MENU/ ENTER button while “ON” is set.
OFF ....... Inverse mode does not function.
WHITE ...The entire screen turns white.
You can set the time by pressing the MENU/ ENTER button while “ON” is set.
Setting the time for INVERSE/WHITE
Set a time duration.
Example: Set the INVERSE mode to start in 2 hours and proceed for one and a half hours.
1. On the Main Menu, select “OPTION 2”, then press the MENU/ENTER button. The “OPTION 2” screen appears.
2. Use the and ▼ buttons to select “LONG LIFE”, then press the MENU/ENTER button. The “LONG LIFE” screen appears.
Information
Setting the time
WORKING TIME .....
Set the time duration for “INVERSE/WHITE”. When the WORKING TIME is set to “ON” the mode will stay on.
WAITING TIME
...... Set the standby time until the
“INVERSE/WHITE” mode starts.
* The “WAITING TIME” can not be set when the
“WORKING TIME” is ON.
* The “WORKING TIME” and “WAITING TIME” can
be set for up to 12 hours and 45 minutes in units of 3 minutes.
* At the completion of a WORKING TIME function, the
monitor will enter STANDBY mode.
[Example]
WORKING TIME: 01H30M WAITING TIME: 02H00M
←−−−− 2 H −−−−→←−− 1.5 H −−→←−−−−
Start INVERSE/WHITE Start STAND BY
To select “ON” for the “WORKING TIME”...
Set the hours of the working time to 0H and the minutes to 0M. “ON” will be displayed.
3. Use the and ▼ buttons to select “INVERSE”.
4. Use the 䊴 and 䊳 buttons to select “ON”, then press the MENU/ENTER button. The “INVERSE/WHITE” screen appears.
5. Adjust the time using the ▲▼䊴 and 䊳 buttons. The mode switches as follows each time the 䊴 or button is pressed:
• WORKING TIME
ON 00H03M 00H06M ↔ ..... ↔ 12H42M 12H45M
• WAITING TIME
00H03M 00H06M 00H09M ... ↔ 12H42M 12H45M
WORKING TIME WAITING TIME
SEL.
INVERSE/WHITE
ADJ.
: 01H30M : 02H00M
EXIT
RETURN
27
SOFT FOCUS
Reduces edges and softens the image.
Example: Setting “SOFT FOCUS” to “2”
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “LONG LIFE”, then press the MENU/ENTER button. The “LONG LIFE” screen appears.
3. Use the and buttons to select “SOFT FOCUS”.
4. Use the 䊴 and 䊳 buttons to select “2”. The mode switches as follows each time the 䊴 or
button is pressed:
OFF 1 2 3 4
PEAK BRIGHT ORBITER INVERSE SOFT FOCUS
SEL.
LONG LIFE
ADJ.
: AUTO : OFF : OFF : 2
EXIT
RETURN
Information
SOFT FOCUS settings
OFF ............ Turns the SOFT FOCUS function off.
1, 2, 3, 4 .....Activates the SOFT FOCUS setting. The
higher numbers create a softer image.
Setting the gray level for the sides of the screen
Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.
Example: Adjusting the “GRAY LEVEL”
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “GRAY LEVEL”.
3. To adjust the “GRAY LEVEL”... Use the 䊴 and 䊳 buttons to adjust the GRAY LEVEL.
PREVIOUS PAGE PWR. MGT. FILM MODE LONG LIFE GRAY LEVEL S1/S2
NEXT PAGE
SEL.
OPTION2
ADJ.
: OFF : ON
: 2 : OFF
EXIT
2 / 3
RETURN
Information
GRAY LEVEL settings
This adjusts the brightness of the black (the gray level) for the sides of the screen. The level can be adjusted from 0 to 15. The factory setting is 2 (gray). This setting helps minimize uneven phosphor aging.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
Setting the screen size for S1/S2 video input
If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO. This feature is available only when an S-video signal is input via the VIDEO3 terminal.
Example: Setting the “S1/S2” to “AUTO”
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “S1/S2”.
3. Use the 䊴 and 䊳 buttons to select “AUTO”. The mode switches as follows each time the 䊴 or
button is pressed:
OFF AUTO
PREVIOUS PAGE PWR. MGT. FILM MODE LONG LIFE GRAY LEVEL S1/S2
NEXT PAGE
SEL.
OPTION2
ADJ.
: OFF : ON
: 2 : AUTO
EXIT
2 / 3
RETURN
28
Information
S1/S2 settings
AUTO ..... Adjusts the screen size automatically
according to the S1/S2 video signal.
OFF ....... Turns the S1/S2 function off.
Setting the signal and black level for DVI signal
Choose the signal for the DVI connector (PC or STB/ DVD) and set the black level.
Example: Setting the “PLUG/PLAY” mode to “STB/ DVD”
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
1. On the MAIN MENU, select “OPTION2”, then press the MENU/ENTER button. The “OPTION2” screen appears.
2. Use the and buttons to select “DVI SET UP”, then press the MENU/ENTER button. The “DVI SET UP” screen appears.
3. To set PLUG/PLAY mode to “STB/DVD”... Use the 䊴 and 䊳 buttons to select “STB/DVD”. The mode switches as follows each time the 䊴 or
button is pressed: PLUG/PLAY: PC STB/DVD BLACK LEVEL: LOW HIGH
PLUG/PLAY BLACK LEVEL
SEL.
DVI SET UP
ADJ.
: STB/DVD : HIGH
EXIT
RETURN
Information
PLUG/PLAY settings
PC ..............When connected to the PC signal.
STB/DVD .... When connected to the SET TOP BOX,
DVD etc.
BLACK LEVEL settings
LOW ...........When connected to the PC signal.
HIGH ..........When connected to the SET TOP BOX,
DVD etc. Change “HIGH” into “LOW” if the black level appears gray.
29
Option3 Settings Menu
Using the timer
This function sets the monitor to turn ON/OFF automatically at a set time.
• DAYLIGHT SAVING TIME
ON OFF
• Day
→SUNDAY ↔ MONDAY ↔ ..... ↔ FRIDAY ↔ SATURDAY←
1. On the MAIN MENU, select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.
2. Use the and buttons to select “TIMER”, then press the MENU/ENTER button. The “TIMER” screen appears.
PRESENT TIME PROGRAM : OFF
SEL.
TIMER
MENU/ENTER
OK
EXIT
RETURN
3. Set the TIMER using ▲▼ and  buttons. See below to set PRESENT TIME. See page 31 to set PROGRAM.
Information
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
PRESENT TIME
This sets the day of the week and present time.
Example: Setting “WEDNESDAY”, “22:05”
Perform Steps 1-2 of Using the timer, then...
• Hour/Minutes
00:00 00:01 00:02 ↔ ..... ↔ 23:58 23:59
5. Once the setting is completed...
Use the and buttons to select “SET”, then press the MENU/ENTER button.
6. The adjustments are stored. Press the “EXIT” button to return to the TIMER menu.
RETURN DAYLIGHT SAVING TIME
SET
SEL.
PRESENT TIME
WEDNESDAY
22 : 05 : 00
MENU/ENTER
OK
: OFF
EXIT
RETURN
Information
PRESENT TIME settings
DAYLIGHT SAVING TIME
........................ Use to set DAYLIGHT SAVING
TIME. ON: The present time + 1 hour. OFF: Cancelled
Day ................Set the day of the week (e.g. Sunday).
Hour .............. Set the hour in the 24-hour format
(range 00 to 23).
Minutes ......... Set the minutes (range 00 to 59).
* If you press the EXIT button instead of the MENU/
ENTER button in step 5, the settings will not be saved.
3. Use the and buttons to select “PRESENT TIME”,
then press the MENU/ENTER button. The “PRESENT TIME” screen appears.
RETURN DAYLIGHT SAVING TIME
SEL.
PRESENT TIME
WEDNESDAY
13 : 00 : 00
ADJ.
: OFF
EXIT
RETURN
4. Use the and buttons to select the item, then adjust
using the  and  buttons.
RETURN DAYLIGHT SAVING TIME
SEL.
The mode switches as follows each time the  or
PRESENT TIME
WEDNESDAY
22 : 05 : 00
ADJ.
: OFF
EXIT
RETURN
button is pressed:
30
PROGRAM TIMER
EXIT
DATE MON
TUE SAT *FRI
SAT
*
SEL.
RETURN
ADJ.ZOOM
ON
08 : 30
- - : - ­08 : 30 08 : 30
- - : - ­08 : 30 15 : 30
OFF 10 : 30 18 : 15 12 : 15 10 : 00
- - : - ­12 : 15 16 : 00
INPUT RGB2
VIDEO1
HD/DVD1
VIDEO1
RGB1
FUNCTION
INVERSE
WHITE
— —
WHITE
PROGRAM TIMER
This sets the day and time at which the power will be switched ON/OFF as well as the input mode.
Example: Setting so that the power will be switched on at 8:30 A.M., Monday, displaying RGB2 source, and switched off at 10:30 A.M.
Perform Steps 1-2 of Using the TIMER, then...
3. Use the and buttons to select “PROGRAM”.
PRESENT TIME PROGRAM : OFF
TIMER
INPUT ..................... Set the input mode that will be
displayed when the timer is on.
FUNCTION ............. Set the LONG LIFE function.
To reset the program
1. Align the cursor with the DATE field that you wish to reset.
2. Using / buttons, select “–”.
3. Press the “MENU/ENTER” button.
Special characters in the PROGRAM TIMER
screen
SEL.
ADJ.
EXIT
RETURN
4. Use the  and  buttons to select “ON”, then press the MENU/ENTER button. The “PROGRAM TIMER” screen appears.
5. Adjust using the  and  buttons and ZOOM / buttons.
DATE MON
— — — — — —
SEL.
08 : 30
- - : - -
- - : - -
- - : - -
- - : - -
- - : - -
- - : - -
PROGRAM TIMER
ON
OFF
10 : 30
- - : - -
- - : - -
- - : - -
- - : - -
- - : - -
- - : - ­ADJ.ZOOM
INPUT RGB2
— — — — — —
EXIT
FUNCTION
INVERSE
— — — — — —
RETURN
The mode switches as follows each time the ZOOM
/ buttons are pressed:
• Date
SUN MON ... SAT * *SUN *MON ... *SAT
• ON/OFF Hour
00 01 02 ↔ ..... ↔ 21 22 23
• Minute
00 01 02 ↔ ..... ↔ 57 58 59
• INPUT
LAST VIDEO1 VIDEO2 VIDEO3 HD/DVD1 ← → MONLINK RGB2 RGB1 HD/DVD2
• FUNCTION
ORBITER INVERSE WHITE DELETE
Information
PROGRAM TIMER settings
DATE ....................... Set the day of the week (e.g.
Sunday).
ON (hour, minutes)
.... Set the time at which the power
will be turned on in the 24-hour
OFF (hour, minutes)
format.
... Set the time at which the power
will be turned off in the 24-hour format.
• An asterisk “*” in the DATE field An asterisk “*” means “every”. For example, “*FRI” means every Friday and “*” means everyday.
• A hyphen “-” in the ON field or OFF field If any hyphen remains in the ON field or OFF field, the FUNCTION can not be set.
• A hyphen “-” in the FUNCTION field A hyphen “-” means last mode (the mode that was last selected at the time the power was switched off).
Setting the power on mode
This function sets the input mode at the time the power is switched on.
Example: Setting “VIDEO2”
1. On the MAIN MENU, select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.
2. Use the and buttons to select “PWR. ON MODE”.
3. To set the PWR. ON MODE to “VIDEO2”... Use the  and  buttons to select “VIDEO2”. The mode switches as follows each time the  or button is pressed: The available inputs depend on the setting of “BNC INPUT”. RGB:
LAST VIDEO1 VIDEO2 VIDEO3
COMP:
MONLINK RGB2 RGB1 HD/DVD1
LAST VIDEO1 VIDEO2 VIDEO3 ← → MONLINK RGB1 HD/DVD2 HD/DVD1 ←
PREVIOUS PAGE TIMER PWR. ON MODE BUTTON LOCK IR REMOTE LOOP OUT
SEL.
OPTION3
ADJ.
: VIDEO2 : OFF : ON : OFF
EXIT
3 / 3
RETURN
31
Information
PWR. ON MODE settings
LAST.......................... Last mode (the mode that was
last selected at the time the power was switched off).
VIDEO1, 2, 3 ............. VIDEO input mode.
RGB1, 2, MONLINK .. RGB input mode.
HD/DVD1, 2 ............... HD/DVD input mode.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
Enabling/disabling the front panel controls
This function enables/disables the front panel controls.
Example: Setting “ON”
1. On the MAIN MENU, select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.
Enabling/disabling remote control wireless transmission
This function enables/disables remote control wireless transmission.
Example: Setting “OFF”
1. On the MAIN MENU, select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.
2. Use the and buttons to select “IR REMOTE”.
3. To set the IR REMOTE to “OFF”... Use the  and  buttons to select “OFF”, then press the MENU/ENTER button. The mode switches as follows each time the  or
button is pressed:
OFF ON
PREVIOUS PAGE TIMER PWR. ON MODE BUTTON LOCK IR REMOTE LOOP OUT
OPTION3
: LAST : OFF : OFF : OFF
3 / 3
2. Use the and buttons to select “BUTTON LOCK”.
3. To set the BUTTON LOCK to “ON”... Use the  and  buttons to select “ON”, then press the MENU/ENTER button. The mode switches as follows each time the  or
button is pressed:
OFF ON
PREVIOUS PAGE TIMER PWR. ON MODE BUTTON LOCK IR REMOTE LOOP OUT
SEL.
OPTION3
ADJ.
: LAST : ON : ON : OFF
EXIT
3 / 3
RETURN
Information
BUTTON LOCK settings
ON ...... Disables the buttons on the front panel.
OFF .... Enables the buttons on the front panel.
* Even when the BUTTON LOCK is set, the POWER
switch will not be locked.
* This becomes effective when the on-screen menu goes
out.
SEL.
ADJ.
EXIT
RETURN
Information
IR REMOTE settings
ON ...... Enables remote control wireless transmission.
OFF .... Disables remote control wireless transmission.
Set “OFF” to avoid unwanted control from other remote controls.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
32
Loop Out setting
When this feature is set to ON, the received signal will be looped out.
Example: Setting “ON”
1. On the MAIN MENU, select “OPTION3”, then press the MENU/ENTER button. The “OPTION3” screen appears.
2. Use the and buttons to select “LOOP OUT”.
3. To set the LOOP OUT to “ON”... Use the  and  buttons to select “ON”. The mode switches as follows each time the  or
button is pressed:
OFF ON
PREVIOUS PAGE TIMER PWR. ON MODE BUTTON LOCK IR REMOTE LOOP OUT
OPTION3
: LAST : OFF : ON : ON
3 / 3
SEL.
ADJ.
EXIT
RETURN
Information
LOOP OUT settings
ON ...... The received signal will be looped out via PC1
terminal or VIDEO1 terminal.
OFF .... The received signal will not loop out.
* Even if LOOP OUT is ON, signals won’t be sent out if
POWER is being turned off.
To connect another display...
See page 10.
If the RGB/PC1 signal is present at the time the power switched on...
The RGB/PC1 input will be displayed regardless of the setting of LOOP OUT.
Restoring the factory default settings
Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.
33
Language Settings Menu
Setting the language for the menus
The menu display can be set to one of seven languages: English, German, French, Swedish, Italian, Spanish or Chinese.
Example: Setting the menu display to “DEUTSCH”
1. On the MAIN MENU (NEXT PAGE), select “LANGUAGE”, then press the MENU/ENTER button.
The “LANGUAGE” screen appears.
2. To select “DEUTSCH” ... Use the  and  buttons to select “ DEUTSCH”. The mode switches as follows each time the  or buttons is pressed:
ENGLISH DEUTSCH FRANÇAIS ← → SVENSKA ITALIANO ESPAÑOL ←
LANGUAGE
LANGUAGE
ADJ.
MENU/ENTER
OK
: DEUTSCH
EXIT
RETURN
Information
Language settings
ENGLISH ........ English
DEUTSCH....... German
FRANÇAIS ...... French
ESPAÑOL ....... Spanish
ITALIANO ........ Italian
SVENSKA .......Swedish
................... Chinese
Information
Video signal formats
Different countries use different formats for video signals. 3.58 NTSC is the standard format used in the United States.
AUTO .............. The color systems are automatically
identified and the format is set accordingly.
PAL.................. This is the standard format used
mainly in the United Kingdom and Germany.
SECAM............. This is the standard format used
mainly in France and Russia.
4.43 NTSC,
PAL60 ............. This format is used for videos in
countries using PAL and SECAM video signals.
3.58 NTSC ...... This is the standard format used
mainly in the United States and Japan.
PAL-M ............. This is the standard format used
mainly in Brazil.
PAL-N ..............This is the standard format used
mainly in Argentina.
Source Information Menu
Checking the frequencies, polarities of input signals, and resolution
Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.
Press the MENU/ENTER button on the remote control to display the MAIN MENU on the screen, then...
1. On the MAIN MENU (NEXT PAGE), select “SOURCE INFORMATION”, then press the MENU/ENTER button.
Color System Settings Menu
Setting the video signal format
Use these operations to set the color systems of composite video signals or Y/C input signals.
Example: Setting the color system to “3.58 NTSC”
1. On the MAIN MENU (NEXT PAGE), select “COLOR SYSTEM”, then press the MENU/ENTER button. The “COLOR SYSTEM” screen appears.
2. To select “ 3.58NTSC ” ... Use the  and  buttons to select “ 3.58NTSC ”. The mode switches as follows each time the  or button is pressed:
AUTO 3.58NTSC 4.43NTSC ← → SECAM PAL-M PAL-N ↔ PAL60 ↔ PAL ←
COLOR SYSTEM
COLOR SYSTEM
ADJ.
: 3.58NTSC
EXIT
RETURN
2. The “SOURCE INFORMATION” is displayed.
SOURCE INFORMATION H. FREQ V. FREQ
H. POLARITY V. POLARITY
MEMORY RESOLUTION
: 48.4KHZ : 60.0KHZ
: NEG. : NEG.
: 24 : 1024×768
EXIT
RETURN
PC: MEMORY will be displayed. Others: MODE will be displayed.
34
RS-232C Control
Application
These specifications cover the communications control of the plasma monitor by external equipment.
Connections
Connections are made as described below.
External equipment e.g., Personal computer
Display
Connector on the plasma monitor side: MONITORLINK CONTROL/RS-232C connector. Use a crossed (reverse) cable.
Type of connector: D-Sub 9-pin male
Pin No.
1 2 3 4 5 6 7 8 9
No Connection RXD (Receive data) TXD (Transmit data) DTR (DTE side ready) GND DSR (DCE side ready) RTS (Ready to send) CTS (Clear to send) No connection
Pin Name
RS-232C Control Codes (Reference)
FUNCTION CODE DATA Power ON 9FH 80H 60H 4EH 00H CDH
OFF 9FH 80H 60H 4FH 00H CEH
Input Switch Video1 (BNC) DFH 80H 60H 47H 01H 01H 08H
Audio Mute ON 9FH 80H 60H 3EH 00H BDH
Picture Mode NORMAL DFH 80H 60H OAH 01H 01H CBH
Screen Mode STRETCH DFH 80H 60H 51H 01H 02H 13H
Auto Picture ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH
Film Mode ON DFH 80H 60H C1H 01H 01H 82H
Video2 (RCA) DFH 80H 60H 47H 01H 02H 09H Video3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH DVD1/HD1 (RCA) DFH 80H 60H 47H 01H 05H 0CH DVD2/HD2 (BNC) DFH 80H 60H 47H 01H 06H 0DH RGB1 (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH RGB2 (5BNC) DFH 80H 60H 47H 01H 08H 0FH MONLINK (DVI) DFH 80H 60H 47H 01H 0CH 13H
OFF 9FH 80H 60H 3FH 00H BEH
THEAT. 1 DFH 80H 60H OAH 01H 02H CCH THEAT. 2 DFH 80H 60H OAH 01H 03H CDH DEFAULT DFH 80H 60H OAH 01H 04H CEH
EXPAND DFH 80H 60H 51H 01H 03H 14H NARROW DFH 80H 60H 51H 01H 04H 15H STANDARD DFH 80H 60H 51H 01H 05H 16H 14 : 9 DFH 80H 60H 51H 01H 09H 1AH ZOOM DFH 80H 60H 51H 01H 0AH 1BH
OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH
OFF DFH 80H 60H C1H 01H 02H 83H
Note:
Contact MITSUBISHI for a full list of the
RS-232C Control Codes if needed.
34
7
5
8
9
2
1
6
Communication Parameters
(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex
35
Troubleshooting
If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.
Symptom
Picture moves intermittently around the screen.
Mechanical sound is heard. The unit emits a crackling sound.
Picture is disturbed. Sound is noisy. Remote control operates erroneously.
The remote control does not work.
Monitor’s power does not turn on when the remote control’s power button is pressed.
Monitor does not operate when the remote control’s buttons are pressed.
The front panel buttons of the main unit do not function.
No sound or picture is produced.
Picture appears but no sound is produced.
Poor picture with VIDEO signal input.
Poor picture with RGB signal input.
Tint is poor or colors are weak. Nothing appears on screen.
Part of picture is cut off or picture is not centered.
Image is too large or too small.
Picture is unstable.
POWER/STANDBY indicator is lighted in red.
POWER/STANDBY indicator is blinking in red.
POWER/STANDBY indicator is blinking in green and red, or green.
Checks
Is ORBITER ON (AUTO1)?
• Maybe the sound from the cooling fans used to prevent over heating.
• Are the image and sound normal?
• Is a connected component set directly in front or at the side of the display?
• Are the remote control’s batteries worn out?
• Is IR REMOTE set to ON?
• Is the monitor’s power cord plugged into a power outlet?
• Are all the monitor’s indicators off?
• Are the remote control’s batteries worn out?
• Is IR REMOTE set to OFF?
• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?
• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?
Are the remote control’s batteries worn out?
• The remote cable is plugged into the REMOTE IN terminal (Wired).
• The front panel buttons do not function during Control Lock.
• Is the monitor’s power cord plugged into a power outlet?
• Is the volume set at the minimum?
• Is the mute mode set?
• Are the speakers properly connected?
• Is AUDIO INPUT set correctly?
• Improper control setting. Local interference. Cable interconnections. Input impedance is not correct level.
• Improper control setting. Incorrect 15 PIN connector pin connections.
• Are the tint and colors properly adjusted?
• Is the computer’s power turned on?
• Is a source connected?
• Is the power management function in the standby or off mode?
• Is LOOP OUT set to ON?
• Is the position adjustment appropriate?
• Is the screen size adjustment appropriate?
• Is the computer’s resolution setting appropriate?
• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.
• The temperature inside the main unit has become too high and has activated the protector.
——————
• Default seting for ORBITER is ON (AUTO1). In this mode, picture moves intermittently around the screen. See page 26 to turn off ORBITER.
• If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in humidity. This will not affect performance.
• Leave some space between the display and the connected components.
• Replace both batteries with new ones.
• Set IR REMOTE OFF on OPTION3 menu.
• Plug the monitor’s power cord into a power outlet.
• Press the power button on the monitor to turn on the power.
• Replace both batteries with new ones.
• Set IR REMOTE ON.
• Point the remote control at the monitor’s remote control sensor when pressing buttons, or remove the obstacle.
• Eliminate the light by closing curtains, pointing the light in a different direction, etc.
• Replace both batteries with new ones.
• Unplug the remote cable from the monitor.
• Set the Control Lock to OFF.
• Plug the monitor’s power cord into a power outlet.
• Increase the volume.
Press the remote control’s MUTE button.
• Connect the speakers properly.
• Set AUDIO INPUT on the AUDIO menu correctly.
• Adjust picture control as needed. Try another location for the monitor. Be sure all connections are secure.
• Adjust picture controls as needed. Check pin assignments and connections.
• Adjust the tint and color (under PICTURE).
• Turn on the computer’s power.
• Connect source to the monitor.
• Operate the computer (move the mouse, etc.).
• Set LOOP OUT OFF.
• Adjust the IMAGE ADJUST properly.
• Press the WIDE button on the remote control and adjust properly.
• Set to the proper resolution.
• Check the input signal.
• Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1. PAGE 37
• Prompty switch off the power of the main unit. See *2. PAGE 37
36
Remedy
*1 Overheat protector
If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.
*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.
The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.
37
Specifications: PD-5030
Screen Size 43.5"(H)24.5"(V) inches
1106(H)622(V) mm diagonal 50"
Aspect Ratio 16 : 9 Resolution 1365(H)768(V) pixels Pixel Pitch 0.032"(H)0.032"(V) inches
0.81(H)0.81(V) mm
Color Reproduction 256 levels, 16,770,000 colors Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-D 24-pin⳯1
Video
Visual 1 BNC1 Visual 2 RCA-pin1 Visual 3 S-Video: DIN 4-pin1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*
1, *2
Audio Stereo RCA3 (Selectable)
RS-232C Control D-sub 9-pin1 (RS-232C) Sound output 9W+9W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 6.4A (maximum) Power Consumption 480W (typical) Dimensions 48.1 (W)30 (H)3.9 (D) inches
1222 (W)736 (H)99(D) mm
Weight 100 lbs / 45.4 kg (without stand) Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation) Altitude 0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation) Altitude 0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ Menu control
Remote Control Functions
Power on/off, Input source select, Menu control,Volume up/down, Adjust (Up, Down, Left, Right), Pointer, Zoom up/ down, Sleep, Wireless/ Wired remote control
OSM Functions
Picture (Contrast/Brightness/Sharpness/ Color/Tint/ Picture mode/Noise reduction/Color temperature/ White balance/Gamma/Low tone/Color View), Audio (Bass/Treble/Balance/Audio input), Image Adjust (Aspect mode/V-Position /H-Position/V-Height /H­Width/Auto Picture/Fine picture/Picture adjustment), Option1 (Menu/BNC Input/RGB Select/HD Select/ Input Skip/All Reset), Option2 (Power management/ Film mode/Long life [Peak Bright, Orbiter, Inverse, White, Soft focus]/Gray level/S1/S2/Picture size/DVI Set up), Option3 (Timer Power on mode/Button lock/ IR Remote/Loop out,
Color system, Source information
The features and specifications may be subject to change without notice.
*1HD/DVD/DTV input signals supported on this system
480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)
*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
1
Select one of them under “BNC INPUT”.
Supported Signals
• 640480P @ 59.94/60Hz
• 1280720P @ 59.94/60Hz
• 19201080I @ 59.94/60Hz
• 720480P @ 59.94/60Hz
• 720480I @ 59.94/60Hz Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact Mitsubishi Digital Electronics and also the manufacturer of the source equipment.
Other Features Motion compensated 3D Scan Converter (NTSC,
Accessories Remote control with two AAA batteries, Power
Regulations UL Approved (UL 60950 and UL65000/CSA
48.1" (1222)
43.5" (1106)
24.5" (622)
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Anti Image Burn (Peak Bright Lock 1-3, Inverse, White, Orbiter (Auto1,2/Manual), Color Temperature select (high/medium/mid low/low, user has 4 memories), Button Lock (Except power SW), Auto Picture, Input Skip, ColorView, Low Tone (3 mode), Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only)
cord, Owner’s guide, Safety metal fitting parts, Ferrite cores, Bands, Cable clamps, RGB cable, Remote cable, Registration card
C22.2 No.60950-00/ CAN/CSA-E60065-00) DOC Canada requirements Meets FCC Class B requirements
1.6" (41)
30" (736)
3.9"
(99)
Units are in inch
2.3" (58)
(mm)
*English, German, French, Italian, Spanish, Swedish, Chinese
38
Specifications: PD-6130
Screen Size 53.2"(H)29.9"(V) inches
1351(H)760(V) mm diagonal 61"
Aspect Ratio 16 : 9 Resolution 1365(H)768(V) pixels Pixel Pitch 0.039"(H)0.039"(V) inches
0.99(H)0.99(V) mm
Color Reproduction 256 levels, 16,770,000 colors Signals
Synchronization Range Horizontal : 15.5 to 110 kHz
(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)
Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),
PAL60, SECAM, HD*1 , DVD*1 , DTV*1
Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)
RGB
Visual 1 (Analog) mini D-sub 15-pin1 Visual 2 (Analog) BNC (R, G, B, H/CS, V)1*
2
Visual 3 (Digital) DVI-D 24-pin⳯1
Video
Visual 1 BNC1 Visual 2 RCA-pin1 Visual 3 S-Video: DIN 4-pin1
DVD/HD/DTV
Visual 1 RCA-pin (Y, PB[CB], PR[CR])1* Visual 2 BNC (Y, PB[CB], PR[CR])1*
1, *2
Audio Stereo RCA3 (Selectable)
RS-232C Control D-sub 9-pin1 (RS-232C) Sound output 9W+9W at 6 ohm Power Supply AC120V 50/60Hz Current Rating 6.7A (maximum) Power Consumption 540W (typical) Dimensions 57.9 (W)34.7 (H)4.8 (D) inches
1470 (W)880 (H)122(D) mm
Weight 136.9 lbs / 62.2 kg (without stand) Environmental Considerations
Operating Temperature 0°C to 40°C / 32°F to 104°F
Humidity 20 to 80% (no condensation) Altitude 0 to 9180 feet / 0 to 2800 m
Storage Temperature -10°C to 50°C / 14°F to 122°F
Humidity 10 to 90% (no condensation) Altitude 0 to 9840 feet / 0 to 3000 m
Front Panel User Controls Power on/off, Input source select,
Volume up/down/ Menu control
Remote Control Functions
Power on/off, Input source select, Menu control,Volume up/down, Adjust (Up, Down, Left, Right), Pointer, Zoom up/ down, Sleep, Wireless/ Wired remote control
OSM Functions
Picture (Contrast/Brightness/Sharpness/ Color/Tint/ Picture mode/Noise reduction/Color temperature/ White balance/Gamma/Low tone/Color View), Audio (Bass/Treble/Balance/Audio input), Image Adjust (Aspect mode/V-Position /H-Position/V-Height /H­Width/Auto Picture/Fine picture/Picture adjustment), Option1 (Menu/BNC Input/RGB Select/HD Select/ Input Skip/All Reset), Option2 (Power management/ Film mode/Long life [Peak Bright, Orbiter, Inverse, White, Soft focus]/Gray level/S1/S2/Picture size/DVI Set up), Option3 (Timer Power on mode/Button lock/ IR Remote/Loop out,
Language*, Color system, Source information *English, German, French, Italian, Spanish, Swedish, Chinese
The features and specifications may be subject to change without notice.
*1HD/DVD/DTV input signals supported on this system
480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)
*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.
1
Select one of them under “BNC INPUT”.
Supported Signals
• 640480P @ 59.94/60Hz
• 1280720P @ 59.94/60Hz
• 19201080I @ 59.94/60Hz
• 720480P @ 59.94/60Hz
• 720480I @ 59.94/60Hz Note: In some cases a signal on the plasma monitor may not be displayed properly. The proglem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact Mitsubishi Digital Electronics, Inc. and also the manufacturer of the source equipment.
Other Features Motion compensated 3D Scan Converter (NTSC,
Accessories Remote control with two AAA batteries, Power
Regulations UL Approved (UL 60950 and UL65000/CSA
57.9" (1470)
53.2" (1351)
29.9" (760)
PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Self Diagnosis, Anti Image Burn (Peak Bright Lock 1-3, Inverse, White, Orbiter (Auto1,2/Manual), Color Temperature select (high/medium/mid low/low, user has 4 memories), Button lock (Except power SW), Auto Picture, Input Skip, ColorView, Low Tone (3 mode), Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only)
cord, Owner’s guide, Safety metal fitting parts, Ferrite cores, Bands, Cable clamps, RGB cable, Remote cable, Registration card
C22.2 No.60950-00/ CAN/CSA-E60065-00) DOC Canada requirements Meets FCC Class B requirements
1.9" (48)
34.7" (880)
4.8"
(122)
Units are in inch
2.9" (74)
(mm)
39
Table of Signals Supported
Supported resolution
select*
WIDE2 WIDE1
WIDE1 WIDE3
3
WIDE1
3
WIDE1 WIDE2
WIDE1 WIDE1
7
MOTION
RGB
– –
STILL
– –
STILL
– – – – – –
STILL STILL
– – – – – – – – – –
STILL
– –
STILL
– – – –
STILL
STILL
– – – – – – – – – – – – – – – – – – – –
– – – – – – – – – – – – – – – –
– –
2, 3, 4
5
• When the screen mode is NARROW, each signal is converted to a 1024 dots768 lines signal. (Except for *
• When the screen mode is TRUE, the picture is displayed in the original resolution.
• When the screen mode is STANDARD, each signal is converted to a 1365 dots⳯768 lines signal. (Except for *3)
Computer input signals supported by this system
Model
Signal Type
IBM PC/AT*
8
compatible computers
Apple Macintosh*6 *
Work Station (EWS4800)
Work Station(HP)
8
8
*
8
*
Work Station
8
(SUN)
*
Work Station (SGI) IDC-3000G
PAL625P
NTSC525P
Dots lines
640400 640480
848480
852480*
800600
1024768
1152864 1280768
1360765 1360768 1376768
12801024
16001200
640480
832624 1024768 1152870
12801024
12801024
1152900
12801024
1024768
12801024
768576
640480
Vertical frequency (Hz)
1
70.1
59.9
72.8
75.0
85.0
100.4
120.4
60.0
60.0
56.3
60.3
72.2
75.0
85.1
99.8
120.0
60.0
70.1
75.0
85.0
100.6
75.0
56.2
59.8
60.0
60.0
59.9
60.0
75.0
85.0
100.1
60.0
65.0
70.0
75.0
85.0
66.7
74.6
74.9
75.1
60.0
71.2
72.0
66.0
76.0
76.1
60.0
60.0
50.0
59.9
Horizontal frequency (kHz)
31.5
31.5
37.9
37.5
43.3
51.1
61.3
31.0
31.7
35.2
37.9
48.1
46.9
53.7
63.0
75.7
48.4
56.5
60.0
68.7
80.5
67.5
45.1
48.0
47.7
47.7
48.3
64.0
80.0
91.1
108.5
75.0
81.3
87.5
93.8
106.3
35.0
49.7
60.2
68.7
64.6
75.1
78.1
61.8
71.7
81.1
49.7
63.9
31.4
31.5
Sync Polarity Presence
Horizontal
NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS POS POS NEG POS POS POS POS POS POS POS POS POS
Sync on G Sync on G Sync on G Sync on G
NEG NEG
– –
C Sync C Sync C Sync
– – – –
NEG NEG
Vertical
NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS NEG POS POS POS POS POS POS POS POS POS POS POS POS
Sync on G Sync on G Sync on G Sync on G
NEG NEG
– –
C Sync C Sync C Sync
– – – –
NEG NEG
Horizontal
YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES
– – – – – –
– – YES YES
– –
– –
– –
– –
– –
– –
YES YES
Vertical
YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES
– – – – – –
– – YES YES
– –
– –
– –
– –
– –
– –
YES YES
Screen mode
NARROW
(4:3)
YES*
YES YES YES YES YES YES
– –
– – YES YES YES YES YES YES YES
YES* YES* YES* YES* YES*
YES
– –
– –
– –
– –
– –
YES* YES* YES* YES*
YES YES YES YES YES YES YES
YES*
YES
YES* YES* YES*
YES YES
YES* YES* YES*
YES* YES*
2
3
3
3
3
3
4
4
4
4
3
4
4
4
4
3
4
7
7
TRUE
YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES
– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
– – YES YES
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
– –
STANDARD
(16:9)
YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES
YES YES* YES*
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES*
)
DVI
NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES
NO YES
NO YES
NO YES YES YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO YES
NO
NO
NO
NO
NO YES YES
NO
NO
Memory
4 5 7 8
9 41 42 19 17 11 12 13 14 15 43 44 24 25 26 27 45 51 52 80 22 22 53 29 30 40 47 54 55 56 57 58
6 16 28 39 29 48 59 60 61 30 62 29
31 32
40
*1 Only when using a graphic accelerator board that is capable of displaying 852480. *2 This signal is converted to a 1024 dots 640 lines signal. *3 The picture is displayed in the original resolution. *4 The aspect ratio is 5:4. This signal is converted to a 960 dots768 lines signal. *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the
RGB mode prepared for the input signals listed in the table above. *6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port. *7 Other screen modes (EXPAND and STRETCH) are available as well. *8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy).
If this occurs, please set the refresh rate of the external equipment to 60Hz.
To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when
sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”.
NOTE:
While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the
picture or the fine picture because of errors in synchronization of your computer.
When a 1280 dots ⳯ 1024 lines signal or 1600 dots ⳯ 1200 lines signal is input to the monitor, the picture will be compressed.
This monitor has a resolution of 1365 dots ⳯ 768 lines. It is recommended that the input signal should be XGA, wide XGA, or
equivalent.
With digital input some signals are not accepted.
The sync may be disturbed when a nonstandard signal other than the aforementioned is input.
If you are connecting a composite sync signal, use the HD terminal.
What is HDCP/HDCP technology? HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI). If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).
• “IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.
• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.
41
Mitsubishi Plasma Display Panel Limited Warranty
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants to the original purchaser of this Plasma Display Panel that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or material:
a. Parts. All parts are warranted for a period of one year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replacement are warranted for the remainder of the original warranty period.
b. Labor. We will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date of purchase at retail.
c. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable warranty time period.
1. TO OBTAIN WARRANTY SERVICE:
a. Contact your nearest authorized MITSUBISHI service center, whose name and address can be obtained from your MITSUBISHI dealer or by writing or calling MDEA at the address and telephone number provided below.
b. Warranty service will be provided in your home or, if required, at an authorized MITSUBISHI service center, provided that your television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be provided without charge.
c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.
3. This Plasma Display Panel uses a revolutionary technology, gas plasma, to create the screen image. This technology creates the image using small dots, or picture elements (pixels). Your Plasma Display Panel is manufactured to a high level of perfection, in fact, 99.99% perfect in the number of properly functioning. As in tube television, sometimes a pixel is continuously active or inactive. Our standard is clear, your pixels must be 99.99% perfect in the number of properly functioning pixels.
4. THIS WARRANTY DOES NOT COVER:
a. .......... Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).
b. .......... Cosmetic damage or damage to this Plasma Display Panel or to any other products where such damage is caused by
unauthorized modification, alteration, repairs to or service of the product by anyone other than an authorized MITSUBISHI service center; physical abuse to or misuse of the product (including any failure to carry out any maintenance as described in the Owner’s Guide or any product damaged by excessive physical or electrical stress); any products that have had a serial number or any part thereof altered, defaced or removed; product use in any manner contrary to the Owner’s Guide (including, but not limited to, uneven phosphor aging and imprinted images on the viewing screen); freight damage or damage due to improper shipping methods; damage caused by use of third party mounting brackets or stands or any damage caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage caused by electrical system or lightning. This warranty also excludes service calls where no defect in the product covered under this warranty is found, service calls related to unsatisfactory audio or visual reception or signal unless caused by a defect in the product that is covered under this warranty, all costs, expenses or any other damages arising from product installation, or set-ups, any adjustments of user controls (including, contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection with any external TV tuner, audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner’s Guide furnished with the product for information regarding user controls.
5. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.
6. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE.
7. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special or consequential damages, so the above limitations or exclusions may not apply to you.
8. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
9. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct customer control adjustment. If the problem persists, contact your nearest MITSUBISHI Dealer for the name(s) of authorized MITSUBISHI Service Center(s). If you are unable to obtain this information, please call 800-332-2119, or write us at the address below.
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351 Jeronimo Road
Irvine, CA 92618-1904
42
DECLARATION OF CONFORMITY
y
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device ma not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
U.S. Responsible Party: Address:
Tel. No.:
Type of Product:
Equipment Classification:
Models:
Mitsubishi Digital Electronics America 9351 Jeronimo Road Irvine, CA 92618 (949) 465-6000
Plasma Display
Class B Peripheral
PD-5030/PD-6130
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
Mitsubishi Digital Electronics America
9351 Jeronimo Road
Irvine, CA 92618
Printed in USA
7S900055
Loading...
