Owner’s Guide

Mitsubishi Plasma Display PD-4265 & PD-5065

IMPORTANT SAFETY INSTRUCTIONS (PD-4265/PD-5065)

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket,

or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

16. Damage Requiring Service - The product should be serviced by qualified service personnel when: A. The power supply cord or the plug has been damaged;

B. Objects have fallen, or liquid has been spilled into

the product; or

C. The product has been exposed to rain; or D. The product does not appear to operate normally or

exhibits a marked change in performance; or

E. The product has been dropped, or the enclosure

damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by

applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing

electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Power Lines - An outdoor antenna should be located away from power lines.

19. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70- 1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode.

20. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

The product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

WARNING

To reduce the risk of fire or electric shock, do not expose this plasma display to rain or moisture.

Caution

This device needs to be attached to the supplied speakers and stand.

Use with other accessories is capable of resulting in instability causing possible injury.

Do Not use the bottom carton as a temporary or permanent stand.

The speakers and stand are not consumer removable and should only be removed by a qualified dealer or installer.

Manufacturer’s name: MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC

Please contact MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC for approved optional accessories.

Important Information

Precautions

Please read this manual carefully before using your Mitsubishi plasma display and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Warnings and Safety Precautions

The Mitsubishi plasma display is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Use a soft dry cloth to clean the panel. Never use solvents such as alcohol or thinner to clean the panel surface. The plasma display panel consists of fine picture elements (cells). Although Mitsubishi plasma display’s utilize panels with more than 99.99 percent active cells, there may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, please read and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. The unit is equipped with cooling fans. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the display becomes too hot, the overheat protector will be activated and the display will be turned off. If this happens, turn off the power to the display and unplug the power cord. If the room where the monitor is installed is particularly hot, move the display to a cooler location, and wait for the display to cool for 60 minutes. If the problem persists, contact your Mitsubishi dealer for service.

2. Do not use the power cord polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the unit during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

Do not attempt to service or repair the unit. Mitsubishi is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Mitsubishi Service Centers.

This equipment shall be connected to a MAIN outlet with a protective earth-ground connection.

9. The outlet shall be installed near the equipment and shall be easily accessible.

NOTE:

When you connect a computer to this monitor, use an RGB cable including the ferrite cores on both ends of the cable. If you do not do this, this display will not conform to mandatory FCC standards. Attaching the ferrite cores: Attach the ferrite cores on both ends of the power cable (supplied). Close the lid tightly until the clamps click. *HDMI cable doesn’t need ferrite cores.

Power cable (supplied)

core (large)

To avoid damage and prolong operating life:

1. Use only with 100V-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of an accident, unplug the unit and have it serviced by an authorized Mitsubishi Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized Mitsubishi dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

Recommendations to avoid or minimize uneven phosphor aging:

Like all phosphor-based display devices and all other gas plasma displays, plasma displays can be susceptible to uneven phosphor aging under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in uneven phosphor aging if proper precautions are not taken. To protect your investment in this Mitsubishi plasma display, please adhere to the following guidelines and recommendations for minimizing this type of damage:

1. Do not turn off ORBITER.*

2. Always enable and use your computer’s video game or DVD player screen saver during use with these sources.

3. Display a moving image whenever possible.

4. Change the position of the menu display from time to time.

5. Always power down the display when you are finished using it.

If the plasma display is in long term use or continuous operation, take the following measures to reduce the likelihood of uneven phosphor aging:

1. Do not turn off ORBITER.*

2. Lower the Brightness and Contrast levels as much as possible without impairing image readability.

3. Display an image with many colors and color gradations (i.e. photographic or photo-realistic images).

4. Create image content with minimal contrast between light and dark areas. Use complementary or pastel colors whenever possible.

5. Avoid displaying images with few colors and distinct, sharply defined borders between colors.

NOTE:

Uneven phosphor aging/burn-in is not covered by the warranty.

Contact Mitsubishi at 1-800-332-2119 for other recommended procedures that will best suit your particular application needs.

*ORBITER - Uneven phosphor aging/burn-in reduction feature. To minimize the risk of uneven phosphor aging/burn-in when displaying still images, the Mitsubishi PD-4265 and PD-5065 offers a built-in feature known as ORBITER. The ORBITER feature intermittently shifts the screen image horizontally and vertically in small increments. This intermittent screen movement is usually not evident in full motion video. In some instances the ORBITER shift might be evident while displaying static guides or menus. The default setting for ORBITER is On (AUTO1). Mitsubishi chose this setting to help reduce uneven phosphor aging. Please do not shut the ORBITER off. For more information regarding ORBITER, see page 27.

WARNING: Do not leave stationary or letterbox images on-screen for extended periods of time. Mix types of pictures shown. Uneven phosphor aging is NOT covered by your warranty.

The normal use of a TV should include a mixture of TV picture types. The most frequently used picture types should fill the screen with constantly moving images rather than stationary images or patterns. Displaying the same stationary patterns over extended periods of time, or displaying the same stationary pattern frequently can leave a subtle but permanent ghost image. To avoid this, mix your viewing pattern. Do not show the same stationary image for more than 15% of your total TV viewing in any one week. Display constantly moving and changing images that fill the screen whenever possible.

This plasma display is a phosphor-based display. As is the case with any phosphor-based display (like a CRT TV/ monitor, for example) light output will gradually decrease over the life of a plasma display panel. Normal TV pictures fill the screen with constantly changing images. Under these conditions, phosphor-based displays age at an even rate across the entire screen. This maintains a TV picture that is evenly bright over the whole screen. Stationary images or images that only partially fill the screen (leaving black or colored bars to fill the screen), when used over extended periods of time or when viewed repeatedly, can cause uneven aging of the phosphors used in plasma displays and can leave subtle ghosts of the stationary images in the picture.

When using a computer or similar device through a VGA input, be sure to turn on the Screen Saver feature and set the activation time to 5 minutes or less. If your computer program allows, you should also set your toolbars to the hidden mode.

Still or stationary images may be received from broadcasters, cable channels, satellite channels, DVD discs, video tapes, laser discs, on-line services, web/internet searching devices, video games, and digital TV tuner/converter boxes. Examples of these types of images include, but are not limited to the following:

• Letterbox top/bottom black bars: shown at the top and

bottom of the TV screen when you watch a widescreen (16:9) movie on a standard (4:3) TV.

• Side bar images: solid bars shown on each side of an image

when watching a standard (4:3) program on a widescreen (16:9) TV.

• Stock-market report bars: ticker running at the bottom

of the TV screen.

• Shopping channel logos & pricing displays: bright

graphics that are shown constantly or repeatedly in the same location.

• Video game patterns and scoreboards

• Bright station logos: moving or low-contrast graphics are

less likely to cause uneven aging of the picture tubes.

• On-line (Internet) web sites: or any other stationary or

repetitive computer style images.

• Closed Caption Backgrounds: If Close Caption will be

used frequently Mitsubishi suggests the use of the gray background.

Cleaning Safeguards

Plasma Display Screen & Cabinet

Please follow the cleaning safeguards listed below to prevent damage to your Plasma Display and retain this document for future reference.

IMPORTANT: No Abrasives!

DO NOT use any kind of abrasive cloth or cleaner or ammonia on the Plasma Display’s screen or cabinet.

Cleaning Your Plasma Display

Normally, light dusting with a dry, non-abrasive cloth will clean your Plasma Display. If cleaning beyond this is needed, please follow these guidelines:

First, turn off the Plasma Display and unplug the power cord from the wall outlet before cleaning.

Cleaning the cabinet of your Plasma Display

• Gently wipe down the Plasma Display with a soft, nonabrasive cloth such as cotton flannel or a clean cloth diaper, lightly moistened with water.

• Dry with a second dry, soft, non-abrasive cloth.

General Cleaning Warnings:

• DO NOT apply pressure to the Plasma Display’s screen.

• DO NOT allow liquid to enter the Plasma Display through the ventilation slots or any crevice.

• DO NOT use any strong or abrasive cleaners because they can scratch the screen and the cabinet.

• DO NOT use any cleaners that contain ammonia, bleach, alcohol, benzene, or thinners because they can damage and dull the surfaces.

• DO NOT scrub or rub the screen or cabinet. Wipe it gently.

IMPORTANT

For further assistance in operating your Plasma Display or if you are in need of service, please contact us at www.mitsubishi-tv.com or call Consumer Relations at

800-332-2119

Introduction

Introduction to the PD-4265/ PD-5065 Plasma Displays

Mitsubishi’s PD-4265/PD-5065 plasma displays are a seamless blend of cutting-edge visual technology and sophisticated design. The displays sleek techno-art lines blend in well with most environments. The displays crisp, vivid image quality will transform data from any graphic medium from PCs to DVD players into art. Mitsubishi has made sure that a host of multimedia resources can be easily connected and displayed as brilliantly as intended.

The features you’ll enjoy include:

• 16:9 aspect ratio

• Capsulated Color Filter (CCF) and black matrix

• The enhanced display uses a two-stage filtering system for deeper, more accurate colors.

• High-resolution screen: 1365 x 768 pixels – PD-5065

1024 x 768 pixels – PD-4265

• 160-degrees of off-axis viewing, horizontally and vertically.

• Flicker - and warp - free display provides excellent image geometry even in screen corners

• Not affected by magnetic fields, no color drift or edge distortion.

• VGA, SVGA, XGA, SXGA, UXGA computer signal compatibility

• NTSC, PAL, SECAM, composite and S-Video signal compatibility

• 480P, 1080I, 720P and HDTV signal compatibility

• PCs, VCRs, Laser Disc and DVD player source compatibility

• Sophisticated formatting circuitry automatically converts VGA, SVGA, XGA, SXGA and UXGA signals to the panel’s native resolution

• Precision algorithms are used to convert interlaced signals to progressive scan.

• User selectable on-screen color temperature settings

• Component video input terminal for DVD, 15.75kHz (Y, CB, CR )

• Digital broadcasting source compatibility

• Menu-driven on-screen control system that makes image adjustments a snap

• Eight languages (English, German, French, Italian, Spanish, Swedish, Chinese and Russian.)

Contents of the Package

 Plasma display with tabletop stand and bottom speakers  Power cord  Remote control with two AAA Batteries  Owner’s guide  Registration Card  Safety metal fittings*  Screws for safety metal fittings*  Ferrite cores (large x 2)  Cable clamps  BNC-RCA Adapters(3)  Cable Management Cover

* These fittings are for fastening the unit to a wall to prevent tipping.

Fasten the safety fittings to the holes in the back of the display using the mount screws.

Contents

Installation ...................................................... 1

General Instructions .................................................. 1

Ventilation requirements for enclosure mounting ........... 1

How to use the safety metal fittings and the screws for

safety metal fittings ................................................. 1

Part Names and Function .................................. 2

Front View .............................................................. 2

Side View / Rear View ............................................. 3

Remote Control ........................................................ 4

Battery installation and replacement ............................ 5

Operating range ........................................................... 5

Handling the remote control .........................................5

Connections ...................................................... 6

Connecting your PC or Macintosh computer ................ 7

Connecting your VCR .............................................. 7

Connecting your DVD Player ..................................... 7

MonitorLink Connections ........................................... 8

External HDMI Device ............................................... 8

Pin assignments and signal levels

for 15 pin RGB (analog) ......................................... 8

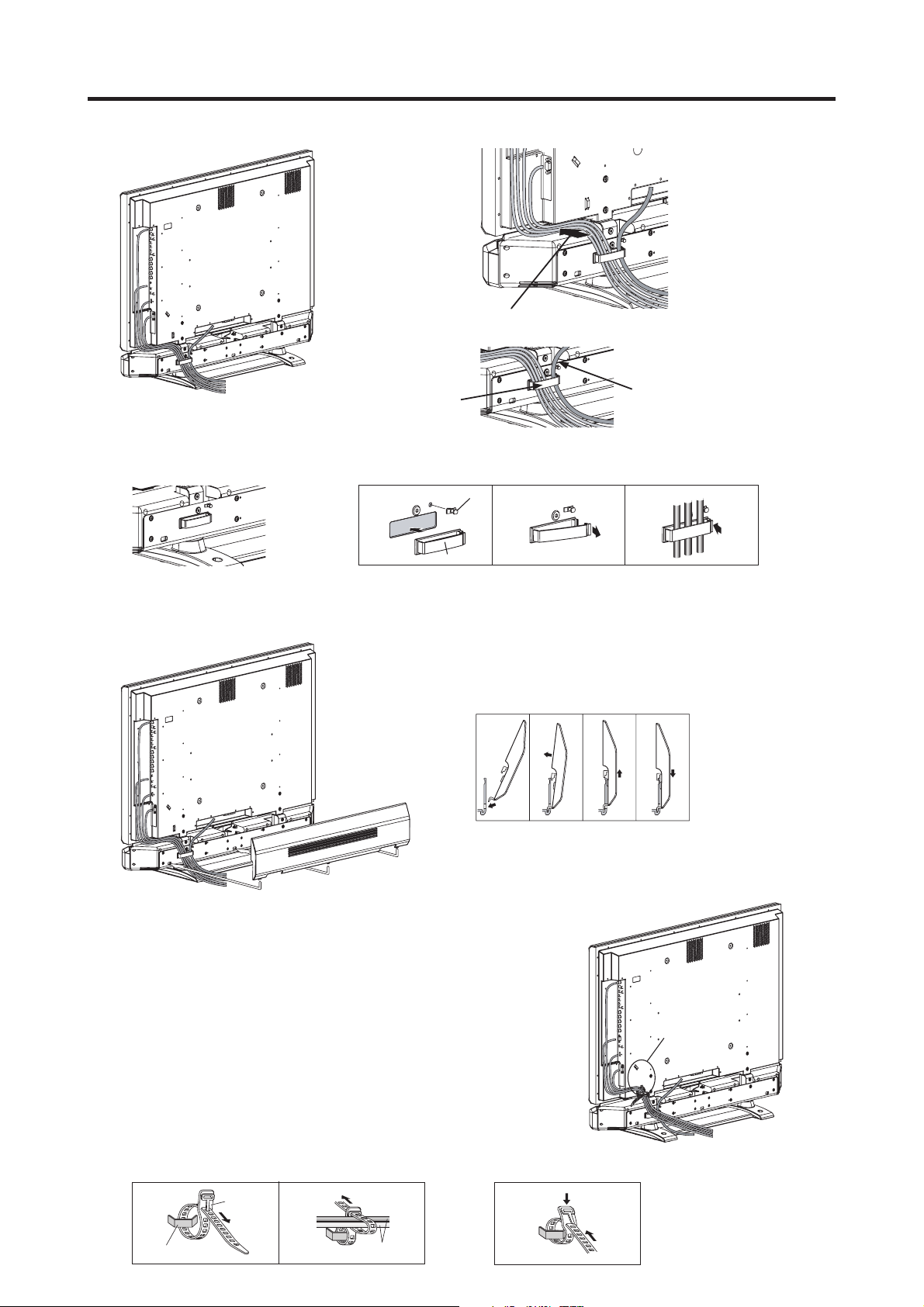

Cable Management PD-4265 .................................... 9

Cable Management PD-5065 .................................. 10

Basic Operations ............................................. 11

Power ................................................................... 11

To turn the unit ON and OFF: ................................... 11

Volume ................................................................. 11

To adjust the sound volume: ..................................... 11

Mute..................................................................... 11

To cancel the sound: ................................................. 11

Info ...................................................................... 11

To check the settings: ................................................ 11

Digital Zoom ......................................................... 11

Sleep/Off Timer .................................................... 12

To set the off timer: .................................................. 12

To check the remaining time: .................................... 12

To cancel the off timer: ............................................. 12

Format Sizes .................................................. 13

Format Operation (manual) .................................... 13

When viewing videos or digital video discs ............. 13

Format Operation with Computer Signals ................. 14

MONITORLINK ...................................................... 22

Image Adjust Settings Menu .................................... 22

Adjusting the Position, Size, Fine Picture, Picture Adj

Set Up Settings Menu.............................................. 23

Setting the language for the menus ............................ 23

Setting the BNC connectors ...................................... 23

Setting high definition images to the suitable

screen size ............................................................... 23

Setting a computer image to the correct RGB

select screen ............................................................ 23

Setting the black level for HDMI signal .................... 24

Setting the video signal format .................................. 24

Setting the background color when no signal is

being input .............................................................. 24

Setting the gray level for the sides of the screen ........ 25

Setting the screen size for S1/S2 video input ............. 25

Turning the display menu on/off ............................... 25

Setting the position of the menu ................................ 25

Resetting to the default values ................................... 26

Functions Settings Menu .......................................... 27

Setting the power management for computer images .........

POWER/STANDBY indicator .................................. 27

Setting the Input Skip ................................................ 27

Reducing the burn-in of the screen ............................ 27

Signal Information Menu ......................................... 29

Checking the frequencies, polarities of input

signals, and resolution ............................................. 29

...... 22

MonitorLink Control ........................................ 30

Troubleshooting............................................. 31

Technical Specifications PD-4265 ..................... 33

Technical Specifications PD-5065 ..................... 34

Table of Signals Supported PD-4265 ................ 35

Table of Signals Supported PD-5065 ................ 37

Warranty ...................................................... 39

Menu Controls ................................................ 15

Menu Tree Operations ............................................ 16

Picture Settings Menu .............................................. 18

Storing picture settings .............................................. 18

Adjusting the picture ................................................. 18

Reducing noise in the picture .................................... 19

Setting the color temperature .................................... 20

Adjusting the color to the desired level ..................... 20

Changing the Gamma Curve ..................................... 20

Making the Low Tone adjustments............................ 20

Adjusting the pedestal level ...................................... 21

Color Adjust ............................................................. 21

Film Mode ................................................................ 21

Setting the picture mode according to the

brightness of the room ............................................. 21

Audio Settings Menu .............................................. 22

Adjusting the treble, bass and left/right balance

and audio input select .............................................. 22

Selecting the input of the audio connectors ............... 22

Installation

General Instructions

CAUTION

This device needs to be attached to the supplied stand and speakers.

When carrying, use the handles attached to the upper back of the display. (PD-5065)

The speakers and stand are not consumer removable and should only be removed by a qualified dealer or installer.

Minimum ventilation requirements

To allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Wall

50mm (2")

The distance between the surrounding objects and the back of the display should be greater than 4.1" for PD-4265 and greater than 5" for PD-5065. The base can not touch surrounding object.

(2")

Wall

PD-4265 105mm (4.1") PD-5065 126mm (5.0")

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws. * Safety metal fittings will differ according to the model.

Screw hole

Screw or Hook etc. (Not supplied)

Safety metal fittings

Screw for Safty metal

fittings

Metal chain

(Not supplied)

Ta bl e To p

Wall

Part Names and Function

Front View

VOLUME

MENU/ENTER LEFT/-RIGHT/+INPUT/EXIT

VOLUME

q REMOTE SENSOR WINDOW

Receives the signals from the remote control.

w POWER/STANDBY Indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

e INPUT / EXIT BUTTON

Switches the input. The available inputs depend on the setting of “BNC INPUT”, “RGB SELECT” and “HDMI SET UP”. Functions as the EXIT buttons in the On-Screen Menu mode.

r LEFT/– and RIGHT/+

Functions as the ADJUST ( / ) buttons in the OnScreen Menu mode.

t VOLUME and

Adjusts the volume. Functions as the ADJUST (▼/▲) buttons in the On-Screen Menu mode.

y MENU/ENTER BUTTON

Display the main menu or select a menu item. The MENU/ENTER button can also be used to turn the display on or off. To turn the display on, press MENU/ENTER button. To turn the display off, press and hold the MENU/ ENTER button for five seconds.

Side View Rear View

INPUT 1

INPUT 2

INPUT 3

R/Cr/Pr G/Y

B/Cb/Pb H V

COMPONENT 1

RGB2/COMPONENT2

MONITORLINK

CONTROL

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Maintain the correct polarity. The (positive) speaker wire is connected to the EXT SPEAKER terminal and the (negative) speaker wire is connected to the

EXT SPEAKER terminal on both LEFT and

RIGHT channels.

C INPUT1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Select which video input to assign them to from the audio menu screen.

E COMPONENT1

Connect DVD’s, Cable Boxes or High Definition sources, etc. here.

F RGB2 / COMPONENT2

COMP2: You can connect DVDs, High

Definition sources, Cable Boxes, etc. here. This input can be set for use with an RGB or component source. (see page 23, Setting the BNC connectors.)

RGB2: You can connect an analog RGB signal

and the syncronization signal.

G RGB1 (D-Sub)

Connect an analog RGB signal from a computer, etc. here.

H MONITORLINK/HDMI

Connect a digital signal from a source with a HDMI output.

I MONITORLINK CONTROL (RS-232C)

This terminal is used when operating and controlling the display externally (by external control).

Remote Control

SLEEP

ADJUST

INPUT 1

INPUT 2

INPUT 3

q POWER ON/STANDBY

Switches the power to ON or STANDBY mode.

w SLEEP

Press this button to activate the off timer.

e INFO

Displays the source settings on the screen.

r FORMAT

Automatically detects the signal and sets the aspect ratio. FORMAT button is not active for all signals.

t MENU/ENTER

Press this button to access the Menu. Press this button during the display of the main menu to go to the sub menu.

FORMAT

DEVICE

INFO

COMP 1

COMP 2

MONLINK

y ADJUST (▲ / ▼ /



/ )

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the MAIN MENU. Press this button during the display of the sub menu to return to the previous menu.

i MUTE

Press this button to mute the audio.

o VOLUME (

)

Press this button to adjust audio volume.

!0 ZOOM ( )

Press this button to enlarge or reduce the image.

!1 CONTRAST

Press this button to adjust contrast directly.

!2 BRIGHTNESS

Press this button to adjust brightness directly.

!3 PICTURE MODE

Press this button to adjust picture mode directly.

!4 COLOR TEMP

Press this button to adjust color tone directly.

!5 INPUT1, 2, 3

Press one of these buttons to select INPUT1 or INPUT2 or INPUT3 as the source. INPUT 1-3 can also be selected using the INPUT/EXIT button on the front panel of the display.

!6 COMP1, 2

Press one of these buttons to select COMP1 or COMP2 as the source. COMP 1-2 can also be selected using the INPUT/EXIT button on the front panel of the display.

!7 MONLINK

Press this button to select MONLINK/HDMI as the source.

!8 PC/RGB

Press this button to select PC/RGB as the source. PC/ RGB can also be selected using the INPUT SELECT button on the display.

!9 PICTURE MEMORY

Switches sequentially between picture memory settings 1 to 6

@0 Remote control signal transmitter

Transmits the remote control signal

How to use the remote control

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure insert them with the proper polarity.

1.Remove the remote control’s back cover by gently pressing the rigid tab in the direction of the arrow.

2. Install the batteries according to the (+) and (–) indication inside the case. For ease of installation, install the negative (–) side first.

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the display’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

display’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

Approx.

7m/23ft

POWER ON

INFO

3.Replace the cover.

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period, remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

Connections

INPUT 1

INPUT 1-3

INPUT 3

INPUT 2

To video inputs on the plasma display

VCR or Laser Disc Player

CONTROL

R/Cr/Pr G/Y B/Cb/Pb H V

MONITORLINK

COMPONENT 1

RGB2/COMPONENT2

MONITORLINK

Document Camera

DVD Player

IBM VGA or

Compatibles

Macintosh or Compatibles

(Desk top type)

Monitor adapter for Macintosh (not included)

To Mini D-Sub 15 pin connector on the plasma display

Mitsubishi HD Receiver/Controller (i.e. HD-6000)

Set Top Box

Connecting Your PC or Macintosh Computer

Connecting your PC or Macintosh computer to your plasma display will enable you to display your computer’s screen image for an impressive presentation. The plasma display supports the signals described on pages 35-38. To connect a PC or Macintosh simply:

1. Turn off the power to your plasma display and computer.

2. If your PC does not support SXGA/XGA/SVGA/VGA you will need to install an SXGA/XGA/SVGA/VGA graphics board. Consult your computer’s owner’s manual for your SXGA/XGA/SVGA/VGA configuration. If you need to install a new board, see the manual that comes with your new graphics board for installation instructions.

Connecting Your VCR

Use common RCA cables* (not provided) to connect your VCR to your plasma display. To make these connections, simply:

1. Turn off the power to your plasma display and VCR.

2. Connect one end of your RCA cable to the video output connector on the back of your VCR, connect the other end to the Video input on your plasma display. Use standard RCA audio patch cables to connect the audio from your VCR to your plasma display (if your VCR has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. This plasma display provides signal compatibility up to

VESA 16001200 (UXGA). However, it is not recommended to use this resolution due to image readability.

4. Connect a D-sub HD15 pin cable* from the side of the display to a PC or Macintosh®. For Macintosh, use a monitor adapter (not included) to connect to your computer’s video port, if necessary.

5. Turn on the plasma display and the computer.

6. If the plasma display goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the plasma display.

When using a Macintosh with the plasma display, the following four display standards are supported using the Macintosh adapter :

13" fixed mode 16" fixed mode 19" fixed mode 21" fixed mode

The 19" fixed mode is recommended for your monitor.

*Note: D-sub HD15 pin cables, RCA cables, and component cables, can be found at your local electronics store.

3. Turn on the plasma display and the VCR.

Note:

information about your equipment’s video output requirements.

Refer to your owner’s manual for more

Connecting Your DVD Player

You can connect your plasma display to a DVD player. To do so, simply:

1. Turn off the power to your plasma display and DVD player.

2. Use a component video cable* (not provided) to connect your DVD player to the Y, Cb, and Cr inputs on your plasma display. Or use the DVD-player’s S-Video output. Use a standard S-Video (not provided) cable to connect to the S-Video input on the plasma display.

3. Use standard RCA audio patch cables to connect the audio from your DVD Player to your plasma display.

4. Turn on the plasma display and the DVD player.

MonitorLink™ Connections

MonitorLink and MonitorLink Control

1. Connect a HDMI to HDMI cable from the MONLINK OUTPUT of a Mitsubishi HD-6000 Receiver/Controller to the MONLINK input on the plasma display. A HDMI to HDMI cable and a RS-232C cable are included in the HD-6000 accessory box.

2. Connect the L (left) and R (right) audio terminals from the Mitsubishi Receiver/Controller to AUDIO LEFT and AUDIO RIGHT on a stereo receiver.

3. Connect the MonitorLink Control cable (RS-232C) from the Mitsubishi Receiver/Controller back panel to the plasma display side panel.

External HDMI Device with HDCP Connection

HDMI (High Definition Multimedia Interface) is the first all digital consumer electronics A/V interface that supports uncompressed video and multi-channel audio in a single digital interface. You can connect an EIA/CEA-861/861B compliant consumer electronic device, such as a set top box or DVD player with a HDMI or DVI output terminal to the plasma display’s HDMI input terminal. If the external device has a DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal.

Pin Assignments for D-sub HD15 pin RGB (Analog) Connector

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

Pin No.

1 2

4 5 6 7 8

9 10 11 12 13 14 15

Red Green or sync-on-green Blue No connection Ground Red ground Green ground Blue ground No connection Sync signal ground No connection Bi-directional DATA (SDA) Horizontal sync or Composite sync Vertical sync Data clock

Signal (Analog)

1. Connect a HDMI cable from the HDMI output of the external HDMI device to the MonitorLink/HDMI input on the side of the plasma display.

2. Connect the L (left) and R (right) audio terminals from the external device to AUDIO LEFT and AUDIO RIGHT on a stereo receiver.

Note:

When used as a HDMI/DVI Input, MonitorLink input is compliant with HDCP and the EIA-861 standards for standard, extended and high definition video. This input is not intended for use with personal computers or devices outputting video signals with computer resolution.

Cable Management for PD-4265

Push in the cables.

Align the cables, and close the clamp.

To attach

1. 2. 3.

Support is attached.

Clamp is attached.

Cable Management Cover assembly

Align the POWER CORD with the support.

To attach

1. 2. 3. 4.

Cable Management

Depending on cable thickness and number of cables, the Cable Management Cover might not close. In this case, please remove the Cable Management Cover.

When Cable Management Cover is removed, please fasten cables to back panel using attached Clamp.

To a t t ach

1. 2.

mounting hook

clamp

cables

mounting hooks

To detach

Cable Management for PD-5065

To a t ta c h

1. 2.

Support is attached.

Push in the cables.

Align the cables to inside of support.

Clamp is attached.

Align the cables, and close the clamp.

Cable Management Cover assembly

Cable Management

Depending on cable thickness and number of cables, the Cable Management Cover might not close. In this case, please remove the Cable Management Cover.

To attach

1. 2. 3. 4.

mounting holes

When Cable Management Cover is removed, please fasten cables to back panel using attached Clamp.

To attach

2.1.

clamp

cables

mounting hole

To detach

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the POWER ON button (on the remote control) to turn on the unit.

The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

3. Press the POWER STANDBY button (on the remote control) to turn off the unit.

The monitor’s POWER/STANDBY indicator turns red and the standby mode is set.

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the front panel) to increase the volume to the desired level.

2. Press and hold the VOLUME button (on the remote control or the front panel) to decrease the volume to the desired level.

MUTE

To cancel the sound:

Press the MUTE button on the remote control to cancel the sound; press again to restore.

INFO

To check the settings:

1. The screen changes each time the INFO button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. Press the ZOOM ( or ) button to display the

magnifying glass. ( )

To change the size of the picture:

Press the ZOOM button to enlarge the picture. A press of the ZOOM button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼  buttons.

2. Press the EXIT button to exit the ZOOM mode.

SLEEP/OFF TIMER

OFF TIMER 0

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the SLEEP button to start the timer at 30 minutes.

2. Press the SLEEP button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

To cancel the off timer:

1. Press the SLEEP button twice in a row.

2. The off timer is canceled.

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the SLEEP button once.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the display.

Format Sizes

Format Operation

With this function, you can select one of six screen sizes.

(manual)

When viewing videos or digital video discs

1. Press the FORMAT button on the remote control.

2. Within 3 seconds ...

Press the FORMAT button again.

The screen size switches as follows:

→ NARROW → STANDARD → STRETCH → EXPAND → ZOOM → 14:9

When a 720P or 1080I signal is input:

STANDARD ↔ ZOOM

NARROW screen size (4:3)

The NARROW screen size is displayed. * The picture has the same size as video pictures with a

4 : 3 aspect ratio.

STANDARD screen size

EXPAND screen size

The picture is expanded in the horizontal and vertical direction, maintaining the original proportions. * Use this for theater size (wide) movies, etc.

ZOOM screen size



Original image

Information is lost on both sides.

The squeezed film image is expanded to fill the entire screen at a ratio of 2.35:1. Black bands do not appear at the top and bottom but information is lost on the left and right margins.

• This feature is available when the input signal is video, component (480I, 480P, 576I, 576P, 720P, 1080I) or RGB (525P or 625P signal from a scan converter).

* If black bands appear on the top and bottom in the full

screen size, select the 2.35:1 size screen to avoid phosphor burn-in.

The image is expanded in the horizontal direction. * Images compressed in the horizontal direction (“squeezed

images”) are expanded in the horizontal direction and displayed on the entire screen with correct linearity. (Normal images are expanded in the horizontal direction.)

STRETCH screen size

The picture is expanded in the horizontal and vertical directions at different ratios. * Use this for watching normal video programs (4:3) with a

wide screen.

14:9 screen size

The image is displayed at a 14:9 aspect ratio. * This feature is available when the input signal is video,

component (480I, 480P, 576I, 576P) or RGB (525P or 625P signal from a scan converter).

WARNING

DO NOT OPERATE THE PLASMA DISPLAY IN NARROW (4:3) SCREEN SIZE MODE OR 14:9 SCREEN SIZE MODE FOR AN EXTENDED PERIOD. THE SIDE BARS CAN CAUSE PHOSPHOR BURN-IN.

Format Operation with Computer Signals

Switch to the wide screen mode to expand the 4 : 3 image to fill the entire screen.

1. Press the FORMAT button on the remote control.

2. Within 3 seconds ...

Press the FORMAT button again. The screen size switches as follows:

→ NARROW → STANDARD → EXPAND

NARROW screen size (4:3 or SXGA 5:4)

The picture has the same size as the normal computer image.

STANDARD screen size

Information

 Supported resolution

See page 34 for details on the display output of the various VESA signal standards supported by the display.

 When 852 (848) dot  480 line wide VGA* signals with a vertical frequency of 60 Hz and horizontal frequency of 31.7 (31.0) kHz are input

Select an appropriate setting for RGB SELECT mode referring to the“Table of Signals Supported” on page 34.

* “VGA”, “SVGA” and “SXGA” are registered

trademarks of IBM, Inc. of the United States.

WARNING

DO NOT OPERATE THE PLASMA DISPLAY IN NARROW (4:3) SCREEN SIZE MODE FOR AN EXTENDED PERIOD. THIS CAN CAUSE PHOSPHOR BURN-IN.

The image is expanded in the horizontal direction.

EXPAND screen size

When wide signals are input.

STANDARD screen size

Menu Controls

Menu Operations

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

MAIN MENU

FUNCTION

SIGNAL INFO.

: OFF

: OFF : MEDIUM : 2 : AUTO : 0%

: ON : NORMAL

SET UP

EXIT

RETURN


AUDIO

IMAGE ADJ.

SEL.

MENU/ENTER

2. Press the ADJUST buttons ▲ ▼  and  on the remote control to highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control to select a sub menu or item.

ADJ.


MENU/ENTER

PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.

4. Adjust the level or change the setting of the selected item by using the ADJUST buttons   on the remote control.

CONTRAST

5. The adjustments or the settings are stored in memory. If neither the  or  button is pressed within 5 seconds, the current setting is stored into memory and the previous screen appears.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the MAIN MENU.

Note:

The main menu disappears by pressing the EXIT

button.

Menu Tree

:Shaded areas indicate the default value.

←→: Press the  or  button to adjust. The default value is at the center.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

PICTURE PICTURE MEMORY OFF/MEMORY1-6 YES 17

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

AUDIO BASS ←→ 0←13→26 YES 21

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

IMAGE ADJUST ASPECT MODE EXPAND/NARROW/STANDARD/STRETCH/14:9/ZOOM NO 21

CONTRAST ←→ 0←52→72 YES 17 BRIGHTNESS ←→ 0←32→64 YES 17 SHARPNESS ←→ 0←16→32 YES 17 COLOR ←→ 0←32→64 YES 17 TINT R←→G 0←32→64 YES 17 NR OFF/NR-1/NR-2/NR-3 YES 18 COLOR TEMP. LOW/MID LOW/MEDIUM/HIGH YES 19 WHITE BALANCE GAIN RED ←→ 0←40→70 YES 19

GAMMA 1←2←3→4 YES 19 LOW TONE AUTO←→1←…→3 YES 19 SET UP LEVEL 0%←→3.75%←→7.5% YES 20 COLOR ADJUST RED Y←→M0←32→64 YES 20

FILM MODE ON←→OFF YES 20 PICTURE MODE NORMAL/THEATER1/THEATER2/DEFAULT/BRIGHT YES 20

TREBLE ←→ 0←13→26 YES 21 BALANCE L←→R -22←0→+22 YES 21 AUDIO INPUT1 INPUT 1-3 / COMP 1-2 / PC / RGB / MONLINK YES 21 AUDIO INPUT2 INPUT 1-3 / COMP 1-2 / PC / RGB / MONLINK YES 21 AUDIO INPUT3 INPUT 1-3 / COMP 1-2 / PC / RGB / MONLINK YES 21 MONITORLINK ON←→OFF

V-POSITION ←→ -64←0→+64 YES 21 H-POSITION ←→ -128←0→+127 YES 21 V-HEIGHT ←→ 0←→64 YES 21 H-WIDTH ←→ 0←→64 YES 21 AUTO PICTURE ON←→OFF* FINE PICTURE* PICTURE ADJ.*

GAIN GREEN ←→ 0←40→70 YES 19 GAIN BLUE ←→ 0←40→70 YES 19 BIAS RED ←→ 0←40→70 YES 19 BIAS GREEN ←→ 0←40→70 YES 19 BIAS BLUE ←→ 0←40→70 YES 19 RESET OFF←→ON YES 19

GREEN C←→Y0←32→64 YES 20 BLUE M←→C0←32→64 YES 20 YELLOW G←→R0←32→64 YES 20 MAGENTA R←→B0←32→64 YES 20 CYAN B←→G0←32→64 YES 20 RESET OFF←→ON YES 20

←→*2 0←→64 YES 21

←→*2 0←64→128 YES 21

PAGE # REFERENCE

REFERENCE

NO 21

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SET UP LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/ /У NO 22

BNC INPUT RGB←→COMPONENT YES 22 HD SELECT 1080I/1035I/540P NO 22 RGB SELECT AUTO/STILL/MOTION/WIDE1/WIDE2/DTV YES 22 HDMI SET UP BLACK LEVEL LOW←→HIGH NO 23 COLOR SYSTEM AUTO/PAL/PAL-M/PAL-N/PAL 60/SECAM/4.43 NTSC/3.58NTSC NO 23 BACK GROUND GRAY/BLACK YES 23 GRAY LEVEL 0←…→2←…→15 YES 24 S1/S2 AUTO←→OFF YES 24 DISPLAY MENU ON←→OFF YES 24 MENU ADJUST TOP LEFT←→TOP CENTER←→TOP RIGHT←→BTM LEFT←→BTM CENTER←→BTM RIGHT YES 24 ALL RESET ON←→OFF —25

REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

FUNCTION POWER MGT. ON←→OFF YES 26

INPUT SKIP ON←→OFF YES 26 LONGLIFE MANUAL/AUTO YES 26

PEAK BRIGHT 100%/75%/50%/25% YES 27 ORBITER AUTO1/AUTO2/OFF YES 27 INVERSE/WHITE OFF/INVERSE/WHITE YES 27 SOFT FOCUS OFF/1-4 YES 27 ORBITER MENU ON/OFF YES 28 MENU CONTRAST NORMAL/LOW YES 28

PAGE # REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

SIGNAL INFO. —28

REFERENCE

*1 Only when AUTO PICTURE is OFF. *2 RGB/PC only

Information

 Restoring the factory default settings

Select “ALL RESET” under the SET UP menu. Note that this also restores other settings to the factory defaults.

Picture Settings Menu

Storing picture settings

This function allows you to store in memory the current input signal and PICTURE menu settings and to recall these settings when necessary. There are six picture memory locations available, and notes of up to 15 characters can be added to each.

Example: Storing picture settings at MEMORY1

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and then press the MENU/ENTER button.

Use the ▲ ▼ buttons to select the PICTURE MEMORY setting.

Use the  to PICTURE MEMORY: MEMORY1 and then press the MENU/ENTER button.

The “PICTURE MEMORY” screen appears.

MEMORY1 SET RESET

MEMORY2

MEMORY3

Information

 PICTURE MEMORY Settings

OFF: Picture memory not used.

MEMORY1 to 6: There are six available picture

memory locations.

 Setting the memory

• Use the ▲ and ▼ button to select the desired memory

• Use the  and  buttons to select “SET”, then press

• If necessary, input a note.



buttons to change PICTURE MEMORY: OFF

PICTURE MEMORY

INPUT : DVD/HD1 SIGNAL : 480P NOTE : DVD/STAR WARS

INPUT : — SIGNAL : — NOTE : —

SEL.

ADJ.

MENU/ENTER

1/2

EXIT

RETURN

PICTURE MEMORY

MEMORY4 SET RESET

INPUT : — SIGNAL : — NOTE : —

MEMORY5

INPUT : — SIGNAL : — NOTE : —

MEMORY6

INPUT : — SIGNAL : — NOTE : —

SEL.

ADJ.

location, MEMORY1 to MEMORY6.

the MENU/ENTER button.

MENU/ENTER

EXIT

2/2

RETURN

Adjusting the picture

The contrast, brightness, sharpness, color and tint can be adjusted as desired.

Example: Adjusting the contrast

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the CONTRAST setting. Use the 

PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.

Note:



buttons to decrease or increase CONTRAST.


: OFF

: OFF : MEDIUM : 2 : AUTO : 0%

: ON

ADJ.

: NORMAL

EXIT

RETURN

CONTRAST

If “CAN NOT ADJUST” appears ...

When trying to enter the PICTURE submenu, make sure PICTURE MODE is not set to DEFAULT.

Information

 Picture adjustment screen

CONTRAST: Changes the picture’s white level. BRIGHTNESS: Changes the picture’s black level. SHARPNESS: Changes the picture’s sharpness. COLOR: Changes the color intensity.

TINT: Changes the picture’s tint. Adjust for natural

colored skin, background, etc.

 Adjusting the computer image

Only the contrast and brightness can be adjusted when a computer signal is connected.

 Restoring the factory default settings

Select “DEFAULT” under the “PICTURE MODE” settings.

 Resetting the memory

Use the ▲ and ▼ button to select the desired memory location, MEMORY1 to MEMORY6, then use the



and  buttons to select “RESET”, and finally press the MENU/ENTER button. The memory is cleared, and “—” is displayed in the “INPUT”, “SIGNAL” and “NOTE” columns.

 Inputting notes

• Use the  and  buttons to select “NOTE”, then press the MENU/ENTER button.

• Input the note. Use the ▲ and ▼ button to select the character. Use the  and  buttons to move the cursor. Use the EXIT button to delete the character at the cursor position.

• When you have finished inputting the note, press the MENU/ENTER button.

Reducing noise in the picture

Use these settings if the picture has noise due to poor reception or when playing video tapes which have poor picture quality.

Example: Setting “NR-3”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the NR setting. Use the 

PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.



buttons to change NR.


: OFF

: OFF : MIDDLE : 2 : AUTO : 0%

: ON

ADJ.

: NORMAL

EXIT

RETURN

: NR-3

Information

 NR

* “NR” stands for Noise Reduction. * This function reduces noise in the picture.

 Types of noise reduction

There are three levels of noise reduction. The effect becomes stronger as the number increases (in the order NR-1 → NR-2 → NR-3).

OFF: Turns the noise reduction function off.

Setting the color temperature

SEL.

ADJ.

EXIT

RETURN


PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

: OFF

: OFF : MEDIUM : 2 : AUTO : 0%

: ON : NORMAL

Use this procedure to set color tone produced by the plasma display.

Example: Setting “HIGH”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the COLOR TEMP setting. Use the 



buttons to change COLOR TEMP to HIGH.


PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.

ADJ.

: OFF

: OFF : HIGH : 2 : AUTO : 0%

: ON : NORMAL

EXIT

RETURN

Changing the Gamma Curve

This feature adjusts the brightness of the midtone areas while keeping shadows and highlights unchanged.

Example: Setting “2”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the GAMMA setting. Use the 



buttons to decrease or increase GAMMA.

Information

 Setting the color temperature

LOW: Redder MID LOW: Slightly red MEDIUM: Standard (slightly bluer) HIGH: Bluer

Adjusting the color to the desired level

Use this procedure to adjust the white balance for each color temperature to achieve the desired color quality.

Example: Adjusting the “GAIN RED” of “HIGH” color temperature

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the COLOR TEMP setting. Use the 



buttons to change COLOR TEMP to HIGH.

Then press MENU/ENTER. The “WHITE BALANCE” screen will appear.

Use the ▲ ▼ buttons to select the GAIN RED. Use the 

GAIN RED GAIN GREEN GAIN BLUE BIAS RED BIAS GREEN BIAS BLUE RESET

SEL.



buttons to decrease or increase GAIN RED.

WHITE BALANCE

COLOR TEMP. HIGH

ADJ.

: OFF

EXIT

RETURN

GAIN RED

Information

 Adjusting the white balance

GAIN R/G/B: White balance adjustment for white level BIAS R/G/B: White balance adjustment for black level

RESET: Resets settings to the factory default values.

Use  and  buttons to select “ON”, then press the MENU/ENTER button.

 Restoring the factory default settings Select “RESET” under the WHITE BALANCE menu.

Information

 GAMMA settings

The picture becomes darker as the number increases (in the sequence of 1, 2, 3, 4).

Making the Low Tone adjustments

This feature allows more detailed tone to be reproduced especially in dark areas.

Example: Setting “2”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the LOW TONE setting. Use the 



buttons to change LOW TONE.


PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.

ADJ.

: OFF

: OFF : MEDIUM : 2 : 2 : 0%

: ON : NORMAL

EXIT

RETURN

Information

 LOW TONE settings

AUTO: Will automatically evaluate the picture and make adjustments.

1: Will apply the dither method suitable for still pictures. 2: Will apply the dither method suitable for motion

pictures.

3: Will apply the error diffusion method.

SEL.

ADJ.

EXIT

RETURN


PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

: OFF

: OFF : MEDIUM : 2 : AUTO : 0%

: OFF : NORMAL

Adjusting the pedestal level (black level)

This feature adjusts the video black level in a video image.

Example: Setting “3.75%”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the SET UP LEVEL setting. Use the 



buttons to change the SET UP LEVEL.


PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.

ADJ.

: OFF

: OFF : MEDIUM : 2 : AUTO : 3.75%

: ON : NORMAL

EXIT

RETURN

Information

 SET UP LEVEL settings

0%: Normal status

3.75%: 3.75% lower than normal

7.5%: 7.5% lower than normal

Color Adjust

Use this procedure to adjust hue and color density for red, green, blue, yellow, magenta and cyan. You can accentuate the green color of trees, the blue of the sky, etc.

Example: Using COLOR ADJUST

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select COLOR ADJUST and then

press the MENU/ENTER button. Use the ▲ ▼ buttons to select the color you want to adjust.

Use the   buttons to adjust the color.

RED GREEN BLUE YELLOW MAGENTA CYAN RESET

SEL.

COLOR ADJUST

ADJ.

: OFF

EXIT

RETURN

Information

 COLOR ADJUST settings

RED: Adjust red GREEN: Adjust green BLUE: Adjust blue YELLOW: Adjust yellow MAGENTA: Adjust magenta CYAN: Adjust cyan RESET: Resets settings to the factory default value.

Use  and  buttons to select “ON”, then press the MENU/ENTER button.

FILM Mode

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the FILM MODE setting. Use the 



buttons to turn FILM MODE on or off.

Information

 FILM MODE

ON: Automatic discrimination of the image and projection in FILM mode. OFF: FILM mode does not function.

Setting the picture mode according to the brightness of the room

There are four picture modes that can be used effectively according to the environment in which you are viewing the display.

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the PICTURE menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the PICTURE MODE setting. Use the 

PICTURE MEMORY CONTRAST BRIGHTNESS SHARPNESS COLOR TINT NR COLOR TEMP. GAMMA LOW TONE SET UP LEVEL COLOR ADJUST FILM MODE PICTURE MODE

SEL.



buttons to change the PICTURE MODE.


: OFF

: OFF : MEDIUM : 2 : AUTO : 0%

: ON

ADJ.

: NORMAL

EXIT

RETURN

PICTURE MODE

: THEATER1

Information

 Types of picture modes

THEATER1, 2: Set this mode when watching video in a dark room. This mode provides darker, finer pictures, like the screen in movie theaters. For a darker image, select THEATER2. NORMAL: Set this mode when watching video in a bright room. This mode provides dynamic pictures with distinct differences between light and dark sections. BRIGHT: This mode provides brighter pictures than NORMAL. DEFAULT: Use this to reset the picture to the factory default settings.

Audio Settings Menu

Adjusting the treble, bass and left/right balance and audio input select

The treble, bass and left/right balance can be adjusted to suit your tastes.

Example: Adjusting the bass

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the AUDIO menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the BASS setting. Use the 

Note :

Set “AUDIO INPUT” on the AUDIO menu correctly.



buttons to decrease or increase BASS level.

ADJ.

AUDIO

: INPUT1 : COMP1 : PC/RGB : ON

EXIT

RETURN

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3 MONITORLINK

SEL.

If “CAN NOT ADJUST” appears...

Image Adjust Settings Menu

Adjusting the Position, Size, Fine Picture, Picture Adj

The position of the image can be adjusted and flickering of the image can be corrected.

Example: Adjusting the vertical position in the normal mode

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the IMAGE ADJ. menu

and then press the MENU/ENTER button.

NARROW ↔ STANDARD

* The mode can also be switched by pressing the FORMAT

button on the remote control.

* The settings on the IMAGE ADJUST menu are not preset

at the factory.

IMAGE ADJUST

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

ADJ.

Information

: NORMAL

: OFF

EXIT

RETURN

V-POSITION

-30

Information

 Audio settings menu

BASS: ............. Controls the level of low frequency

sound.

TREBLE: Controls the level of high frequency sound. BALANCE: Controls the balance of the left and right

channels.

Selecting the Input of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the AUDIO menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the appropriate AUDIO INPUT

(1-3). Use the 



buttons to select the appropriate input source.

The available sources depend on input settings.

ADJ.

AUDIO

: INPUT2 : COMP1 : PC/RGB : ON

EXIT

RETURN

BASS TREBLE BALANCE AUDIO INPUT1 AUDIO INPUT2 AUDIO INPUT3 MONITORLINK

SEL.

Information

 AUDIO INPUT

A single audio input cannot be selected as the audio channel for more than one input terminal.

 MONITORLINK

ON: Enables the digital audio input signal transmitted via the MONITORLINK CONTROL. OFF: Disables the digital audio input signal.

 When “AUTO PICTURE” is “OFF”

ASPECT MODE V-POSITION H-POSITION V-HEIGHT H-WIDTH AUTO PICTURE FINE PICTURE PICTURE ADJ.

SEL.

IMAGE ADJUST

ADJ.

: STANDARD

: OFF

EXIT

RETURN

When Auto Picture is off, the Fine Picture and the Picture ADJ. items are displayed so that you can adjust them.

 Adjusting the Auto Picture

ON: The PICTURE ADJ., FINE PICTURE and Position adjustments are made automatically. Not available for digital ZOOM. OFF: The PICTURE ADJ., FINE PICTURE and Position adjustments are made manually.

* If FINE PICTURE can’t be adjusted, set AUTO

PICTURE to OFF and adjust manually.

 Adjusting the position of the image

V-POSITION: Adjusts the vertical position of the image. H-POSITION: Adjusts the horizontal position of the image. V-HEIGHT: Adjusts the vertical size of the image. (Except for STRETCH mode) H-WIDTH: Adjusts the horizontal size of the image. (Except for STRETCH mode)

FINE PICTURE*: Adjusts for flickering. PICTURE ADJ.*: Adjusts for striped patterns on the

image.

* The PICTURE ADJ. and FINE PICTURE features are

available only when the “AUTO PICTURE” is off.

* The AUTO PICTURE, FINE PICTURE and PICTURE

ADJ. are available only for RGB signals. These features are not available for moving pictures on INPUT, COMP or RGB.

SET UP Settings Menu

Setting the language for the menus

The menu display can be set to one of eight languages.

Example: Setting the menu display to “DEUTSCH”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the LANGUAGE setting. Use the 

Information

 Language settings

ENGLISH ........ English

DEUTSCH....... German

FRANÇAIS ...... French

ESPAÑOL ....... Spanish

Setting the BNC connectors

Select whether to set the input of the 5 BNC connectors to RGB or component.

Example: Set the BNC INPUT mode to “RGB”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select BNC INPUT setting. Use the 



buttons to change the LANGUAGE.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: DEUTSCH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 3 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

ITALIANO ........ Italian

SVENSKA .......Swedish

................... Chinese

У ........... Russian



buttons to change the BNC INPUT.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : RGB : 1080I : AUTO

: AUTO : GRAY : 3 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

Setting high definition images to the suitable screen size

DO NOT CHANGE THIS SETTING. 1080I is the US digital broadcast standard. The other two formats (1035I, 540p) will not display properly.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1035I : AUTO

: AUTO : GRAY : 3 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

Information

 HD SELECT modes

1080I: Standard digital broadcasts 1035I: Japanese “High Vision” signal format

540P: Special Digital broadcasts (for example :

DTC100)

Setting a computer image to the correct RGB select screen

With a computer image, select the RGB SELECT mode for a moving image such as (video) mode, wide mode or digital broadcast.

Press MENU/ENTER button to access MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the RGB SELECT setting. Use the 



buttons to change the RGB SELECT setting.

SET UP

LANGUAGE BNC INPUT HD SELECT

RGB SELECT

HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : MOTION

1024ⴒ768

: AUTO : GRAY : 3 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

Information

 BNC INPUT Settings

RGB: Use the 5BNC terminals for RGB input.

COMPONENT: Use the 3BNC terminals for

component input.

Information

SEL.

ADJ.

EXIT

RETURN

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

: ENGLISH : COMPONENT : 1080I : AUTO

: 3.58NTSC : GRAY : 3 : OFF : ON : TOP LEFT : OFF

 RGB SELECT modes

One of these 7 modes must be selected in order to display the following signals correctly. AUTO: Select the suitable mode for the specifications of input signals as listed in the table “Computer input signals supported by this system” on page 7 of Model Information. STILL: To display VESA standard signals. (Use this mode for a still image from a computer.) MOTION: The video signal (from a scan converter) will be converted to a RGB signal. This makes the picture more easily viewable. (Use this mode for a motion image from a computer.) WIDE1: When a 852 dot 480 line signal with a horizontal frequency of 31.7kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE1. WIDE2: When a 848 dot 480 line signal with a horizontal frequency of 31.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE2. WIDE3: When a 1920 dot 1200 line signal with a horizontal frequency of 74.0 kHz is input, the image may be compressed horizontally. To prevent this, set RGB SELECT to WIDE3. DTV: Set this mode when watching digital broadcasting (480P).

Setting the black level for HDMI signal

Choose the black level. Press MENU/ENTER buttons to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the 



buttons to change the HDMI SET UP setting.

HDMI SET UP

BLACK LEVEL

SEL.

ADJ.

: HIGH

EXIT

RETURN

Information

 BLACK LEVEL settings

LOW: When connected to the PC signal. HIGH: When connected to the SET TOP BOX, DVD

etc. Change “HIGH” into “LOW” if the black level appears gray.

Setting the video signal format

Use these operations to set the color systems of composite video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

Information

 Video signal formats

Different countries use different formats for video signals. Set to the color system used in your current country. AUTO: The color systems are automatically identified and the format is set accordingly. PAL: This is the standard format used mainly in the United Kingdom and Germany. SECAM: This is the standard format used mainly in France and Russia.

4.43 NTSC, PAL60: This format is used for videos in countries using PAL and SECAM video signals.

3.58 NTSC: This is the standard format used mainly in the United States and Japan. PAL-M: This is the standard format used mainly in Brazil. PAL-N: This is the standard format used mainly in Argentina.

Setting the background color when no signal is being input

Set the background color to black.

Example: Setting “BACK GROUND” to “BLACK”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the BACKGROUND setting. Use the 



buttons to change the BACKGROUND color.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : BLACK : 3 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

Information

 BACK GROUND Settings

BLACK: Sets the background color to black. GRAY: Sets the background color to gray.

Setting this makes it easier to see that there is no signal.

Setting the gray level for the sides of the screen

Use this procedure to set the gray level for the parts on the screen on which nothing is displayed when the screen is set to the 4:3 size.

Example: Setting “GRAY LEVEL” to “5”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the GRAY LEVEL setting. Use the 



buttons to change the GRAY LEVEL settings.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 5 : OFF : ON : TOP LEFT : OFF

EXIT

RETURN

Turning the display menu on/off

When this is set to OFF, the menu will not be displayed even if you press the MENU/ENTER button.

Example: Turning the MENU off

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the DISPLAY MENU setting. Use the 



buttons to turn the DISPLAY MENU on or off.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 3 : OFF : OFF : TOP LEFT : OFF

EXIT

RETURN

Information

 GRAY LEVEL settings

This adjusts the brightness of the black (the gray level) for the sides of the screen. The standard is 0 (black). The level can be adjusted from 0 to 15. The factory setting is 2 (dark gray).

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the image will be automatically adjusted to fit the screen when this S1/S2 is set to AUTO. This feature is available only when an S-video signal is input via the INPUT3 terminal.

Example: Setting “S1/S2” to “AUTO”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the S1/S2 setting. Use the 



buttons to change the S1/S2 setting.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 3 : AUTO : ON : TOP LEFT : OFF

EXIT

RETURN

Information

 DISPLAY MENU settings

ON: The information on screen size, volume control,

etc. will be shown.

OFF: The information on screen size, volume control,

etc. will not be shown. The DISPLAY button on the remote control will not function either.

Setting the position of the menu

Adjusts the position of the menu when it appears on the screen.

Example: Set the position to “TOP CENTER”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the MENU ADJUST setting. Use the 



buttons to change the MENU ADJUST setting.

SET UP

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

SEL.

ADJ.

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 3 : OFF : ON : TOP CENTER : OFF

EXIT

RETURN

Information

 MENU ADJUST settings

 S1/S2 settings

AUTO: Adjusts the screen size automatically according to the S1/S2 video signal.

OFF: Turns the S1/S2 function off.

TOP

LEFT

BTM

LEFT

TOP

CENTER

BTM

CENTER

TOP

RIGHT

BTM

RIGHT

Resetting to the default values

Use these operations to restore all the settings (PICTURE, AUDIO, IMAGE ADJUST, SET UP, etc) to the factory default values.

Refer to pages 15 & 16 for items to be reset.

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the SET UP menu and

then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the ALL RESET setting.

SEL.



buttons to turn on or off the ALL RESET button.

SET UP

: ENGLISH : COMPONENT : 1080I : AUTO

: AUTO : GRAY : 3 : OFF : ON : TOP LEFT : ON

ADJ.

EXIT

RETURN

ALL RESET

SETTING NOW

Use the 

LANGUAGE BNC INPUT HD SELECT RGB SELECT HDMI SET UP COLOR SYSTEM BACK GROUND GRAY LEVEL S1/S2 DISPLAY MENU MENU ADJUST ALL RESET

When the “SETTING NOW” screen disappears, then all the settings are restored to the default values.

Function Settings Menu

Setting the power management for computer images

This energy-saving (power management) function automatically reduces the displays power consumption if no operation is performed for a certain amount of time.

Example:

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the FUNCTION menu

and then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the POWER MGT. setting. Use the 

or off.

Information

 Power management function

* The power management function automatically reduces

the displays power consumption if the computer’s keyboard or mouse is not operated for a certain amount of time. This function can be used when using the display with a computer.

* If the computer’s power is not turned on or if the computer

and selector tuner are not properly connected, the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating instructions.

 Power management settings

ON: In this mode the power management function is turned on. OFF: In this mode the power management function is turned off.

 Power management function and POWER/ STANDBY indicator

The POWER/STANDBY indicator indicates the status of the power management function. See below for indicator status and description.

Turning the power management function on



buttons to turn the POWER MGT. feature on

FUNCTION

POWER MGT. INPUT SKIP LONGLIFE

SEL.

ADJ.

: ON : OFF : MANUAL

EXIT

RETURN

Setting the Input Skip

When this is ON, signals which are not present will be skipped over and only pictures whose signals are being transmitted will be displayed.

Example: Set to “ON”

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the FUNCTION menu

and then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the INPUT SKIP setting. Use the 



buttons to turn the INPUT SKIP feature on or

off.

FUNCTION

POWER MGT. INPUT SKIP LONGLIFE

SEL.

ADJ.

: OFF : ON : MANUAL

EXIT

RETURN

Information

 INPUT SKIP settings

OFF: Regardless of the presence of the signal, scan and display all signals. ON: If no input signal is present, skip that signal.

* “SETTING NOW” will appear during the input search.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture, positive/negative mode are adjusted to reduce burn-in of the screen.

Press MENU/ENTER button to access the MAIN MENU. Use the   ▲ ▼ buttons to select the FUNCTION menu

and then press the MENU/ENTER button. Use the ▲ ▼ buttons to select the LONGLIFE setting. Use the 



buttons to change the LONGLIFE setting from AUTO to MANUAL and then press the MENU/ENTER button. The “LONGLIFE” screen will appear.

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 100% : OFF : OFF : OFF : ON : LOW

EXIT

RETURN

POWER/STANDBY indicator

Power management mode

Off

POWER/ STANDBY indicator

Green

Red

Power management operating status

Not activated.

Activated.

Description

Horizontal and vertical synchronizing signals are present from the computer.

Horizontal and/or vertical synchronizing signals are not sent from the computer.

Turning the picture back on

Picture already on.

Operate the keyboard or mouse. The picture reappears.

Information

 When set to AUTO

Set automatically, as described below.

PEAK BRIGHT: 100% ORBITER: ON INVERSE/WHITE: OFF SOFT FOCUS: OFF ORBITER MENU: ON MENU CONTRAST: LOW

PEAK BRIGHT

SEL.

ADJ.

EXIT

RETURN

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

: 100% : OFF : WHITE : OFF : ON : LOW

Use this to activate the brightness limiter.

Example: Setting “PEAK BRIGHT” to “75%”

Follow the instructions given in the “Reducing burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select PEAK BRIGHT setting. Use the 



buttons to change PEAK BRIGHT setting.

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 75% : OFF : OFF : OFF : ON : LOW

EXIT

RETURN

INVERSE/WHITE

Use this to set the inverse mode or to display a white screen.

Example: Setting “INVERSE/WHITE” to “WHITE”

Follow the instructions given in the “Reducing burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select INVERSE/WHITE setting. Use the 



buttons to change the INVERSE/WHITE

setting.

Information

 PEAK BRIGHT settings

100%: The brightness of the screen is adjusted automatically to suit the picture quality. 75%, 50%, 25%: Sets maximum brightness. The brightness level decreases in the order of 75%, 50%, 25%. 25% provides minimum brightness.

* These values are approximate.

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

Follow the instructions given in the “Reducing burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select ORBITER setting. Use the 



buttons to turn the ORBITER on or off.

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 100% : AUTO1 : OFF : OFF : ON : LOW

EXIT

RETURN

Information

 INVERSE/WHITE Settings

OFF: INVERSE/WHITE mode is turned off. INVERSE: The picture is displayed alternately

between positive image and negative image.

WHITE: The entire screen turns white.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “LEVEL2”

Follow the instructions given in the “Reducing burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select SOFT FOCUS setting. Use the 



buttons to change the SOFT FOCUS setting.

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 100% : OFF : OFF : LEVEL2 : ON : LOW

EXIT

RETURN

Information

 ORBITER settings

OFF: Orbiter mode is turned off. This is the default setting when RGB is input.

AUTO1: The picture moves around the screen intermittently, making the picture smaller. This is the default setting when a Video or a DVD/HD/DTV signal is input. Set to “OFF” when these signals are not used. AUTO2: The picture moves around the screen intermittently, making the picture bigger.

* When a Video or a DVD/HD/DTV signal is input, the

AUTO1 and 2 functions will affect only the moving picture and will not make the screen smaller or bigger.

 SOFT FOCUS settings

OFF: Turns the SOFT FOCUS function off. LEVEL1, 2, 3, 4: Activates the SOFT FOCUS setting.

The higher numbers create a softer image. “SHARPNESS” can not be adjusted on the “PICTURE” menu.

ORBITER MENU

Use this to set menu shift.

Example: Setting “ORBITER MENU” to “OFF”

Follow the instructions given in the “Reducing Burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select ORBITER MENU setting. Use the   buttons to turn the ORBITER MENU on or off.

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 100% : OFF : OFF : OFF : OFF : LOW

EXIT

RETURN

Information

 ORBITER MENU settings

ON: The position of the menu will be shifted by eight dots each time the menu is displayed.

OFF: The menu will be displayed at the same position.

MENU CONTRAST

Use this to reduce the brightness of the menu.

Example: Setting “MENU CONTRAST” to “NORMAL”

Follow the instructions given in the “Reducing Burn-in of the screen” section.

Bring up the LONGLIFE menu. Use the ▲ ▼ buttons to select MENU CONTRAST setting. Use the   buttons to change the MENU CONTRAST setting.

Signal Information Menu

Checking the frequencies, polarities of input signals, and resolution

Use this function to check the frequencies and polarities of the signals currently being input from a computer, etc.

On “MAIN MENU”, select “SIGNAL INFO.”, then press the MENU/ENTER button.

The “SIGNAL INFORMATION” is displayed.

SIGNAL INFORMATION

H. FREQUENCY V. FREQUENCY

H. POLARITY V. POLARITY

MEMORY RESOLUTION

SEL.

ADJ.

PC: MEMORY will be displayed. Others: MODE will be displayed.

: 48.4KHz : 60.0Hz

: NEGATIVE : NEGATIVE

: 24 : 1024ⴒ768

EXIT

RETURN

LONGLIFE

PEAK BRIGHT ORBITER INVERSE/WHITE SOFT FOCUS ORBITER MENU MENU CONTRAST

SEL.

ADJ.

: 100% : OFF : OFF : OFF : ON : NORMAL

EXIT

RETURN

Information

 MENU CONTRAST settings

NORMAL: Menu brightness is set to normal. LOW: Menu brightness is set to lower.

MonitorLink Control

Application

These specifications cover the communications control of the plasma monitor by external equipment.

Use a crossed (reverse) cable.

Type of connector: D-Sub 9-pin male

Pin No.

1 2 3 4 5

Pin Name

No Connection RXD (Receive data) TXD (Transmit data) DTR (DTE side ready) GND

Pin No.

DSR (DCE side ready)

RTS (Ready to send)

CTS (Clear to send)

No connection

Pin Name

Communication Parameters

(1) Communication system Asynchronous (2) Interface RS-232C (3) Baud rate 9600 bps (4) Data length 8 bits (5) Parity Odd (6) Stop bit 1 bit (7) Communication code Hex (8) Flow control None

MonitorLink Control Codes (Reference)

FUNCTION CODE DATA Power ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

Input Switch INPUT1 (BNC) DFH 80H 60H 47H 01H 01H 08H

Audio Mute ON 9FH 80H 60H 3EH 00H BDH

Picture Mode NORMAL DFH 80H 60H OAH 01H 01H CBH

Screen Mode STRETCH DFH 80H 60H 51H 01H 02H 13H

Auto Picture ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

FILM Mode ON DFH 80H 60H C1H 01H 01H 82H

Note:

Control Codes if needed.

INPUT2 (RCA) DFH 80H 60H 47H 01H 02H 09H INPUT3 (S-Video) DFH 80H 60H 47H 01H 03H 0AH COMP1 (RCA) DFH 80H 60H 47H 01H 05H 0CH COMP2 (BNC) DFH 80H 60H 47H 01H 06H 0DH MONLINK (HDMI) DFH 80H 60H 47H 01H 0EH 15H RGB1 (mini D-sub 15-pin) DFH 80H 60H 47H 01H 07H 0EH RGB2 (5BNC) DFH 80H 60H 47H 01H 08H 0FH

OFF 9FH 80H 60H 3FH 00H BEH

THEATER 1 DFH 80H 60H OAH 01H 02H CCH THEATER 2 DFH 80H 60H OAH 01H 03H CDH DEFAULT DFH 80H 60H OAH 01H 04H CEH BRIGHT DFH 80H 60H OAH 01H 05H CFH

EXPAND DFH 80H 60H 51H 01H 03H 14H NARROW DFH 80H 60H 51H 01H 04H 15H STANDARD DFH 80H 60H 51H 01H 05H 16H 14 : 9 DFH 80H 60H 51H 01H 09H 1AH ZOOM DFH 80H 60H 51H 01H 0AH 1BH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

OFF DFH 80H 60H C1H 01H 02H 83H

Contact Mitsubishi for a full list of the External

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

Picture moves intermittently around the screen.

Mechanical sound is heard. The unit emits a crackling sound.

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Display’s power does not turn on when the remote control’s power button is pressed.

Checks

Is ORBITER ON (AUTO1)?

• Maybe the sound from the cooling fans used to prevent over heating.

• Are the image and sound normal?

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is the display’s power cord plugged into a power outlet?

• Are the remote control’s batteries worn out?

• Default seting for ORBITER is ON (AUTO1). In this mode, picture moves intermittently around the screen. See page 28 to turn off ORBITER.

• If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in humidity. This will not affect performance.

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Plug the display’s power cord into a power outlet.

• Replace both batteries with new ones.

Remedy

Display does not operate when the remote control’s buttons are pressed.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable.

POWER/STANDBY indicator is red.

POWER/STANDBY indication is blinking red.

POWER/STANDBY indicator is blinking green and red, or green.

• Is the remote control pointed at the display, or is there an obstacle between the remote control and the display?

• Is direct sunlight or strong artificial light shining on the display’s remote control sensor?

•

Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• Is the display’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting. Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the standby or off mode?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

——————

• Point the remote control at the display’s remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the display.

• Plug the display’s power cord into a power outlet.

• Increase the volume.

•

Press the remote control’s MUTE button.

• Connect the speakers properly.

• Set AUDIO INPUT on the AUDIO menu correctly.

• Adjust picture control as needed. Try another location for the display. Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the display.

• Operate the computer (move the mouse, etc.).

• Adjust the IMAGE ADJUST properly.

• Press the FORMAT button on the remote control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1. PAGE 32

• Prompty switch off the power of the main unit. See *2. PAGE 32

*1 Overheat protector

If the display becomes too hot, the overheat protector will be activated and the display will be turned off. If this happens, turn off the power to the display and unplug the power cord. If the room where the display is installed is particularly hot, move the display to a cooler location and wait for the display to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the display immediately and contact your dealer or authorized Service Center.

The display turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

PD-4265 Specifications

Screen Size 36.1"(H)⳯20.4"(V) inches

918(H)⳯518(V) mm diagonal 42"

Aspect Ratio 16 : 9 Resolution 1024(H)⳯768(V) pixels Pixel Pitch 0.036"(H)⳯0.027"(V) inches

0.897(H)⳯0.675(V) mm

Color Processing 4,096 steps, 68.7 billion colors Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

(automatic : step scan) Vertical : 50.0 to 120.0 Hz (automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*

Input Terminals

RGB

RGB 1 (Analog) mini D-sub 15-pin⳯1 RGB 2 (Analog) BNC (R, G, B, H/CS, V)⳯1* MONLINK (Digital) HDMI

Video

INPUT 1 BNC⳯1 INPUT 2 RCA-pin⳯1 INPUT 3 S-Video: DIN 4-pin⳯1

DVD/HD/DTV

COMP 1 RCA-pin (Y, PB[CB], PR[CR])⳯1* COMP 2 BNC (Y, PB[CB], PR[CR])⳯1* MONLINK HDMI

Audio Stereo RCA⳯3(Selectable)

External Control D-sub 9-pin⳯1(RS-232C) Sound output 8W+8W at 6 ohm Power Supply AC100-240V 50/60Hz Current Rating 5.2A (maximum) Power Consumption 305W (typical) Dimensions 40 (W)⳯30 (H)⳯11.8 (D) inches

1018 (W)⳯763 (H)⳯300(D) mm

Weight 95 lbs / 43 kg Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation) Altitude 0 to 9180 feet / 0 to 2800 m

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation) Altitude 0 to 9840 feet / 0 to 3000 m

Front Panel User Controls Input source select,

Volume up/down, OSM Control

Remote Control Functions

OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/

Power on/off, Input source select, Menu/ Exit,Volume up/down, Adjust (UP, DOWN,LEFT, RIGHT), Zoom up/down, Picture control buttons

BRIGHTNESS/SHARPNESS/COLOR/TINT/ NR/COLOR TEMP./WHITE BALANCE/ GAMMA/LOW TONE/SET UP LEVEL/ COLOR ADJUST/FILM MODE/PICTURE MODE), AUDIO (BASS/TREBLE/BALANCE/ AUDIO INPUT1/AUDIO INPUT2/AUDIO INPUT3/MONITORLINK), IMAGE ADJUST (ASPECT MODE/V-POSITION/H-POSITION/ V-HEIGHT/H-WIDTH/AUTO PICTURE/FINE PICTURE/PICTURE ADJ.), SET UP (LANGUAGE*/BNC INPUT/HD SELECT/RGB SELECT/HDMI SET UP/ COLOR SYSTEM/BACK GROUND/GRAY LEVEL/S1/S2/DISPLAY MENU/MENU ADJUST/ALL RESET), FUNCTION (POWER MGT./INPUT SKIP/LONG LIFE [PEAK BRIGHT / ORBITER / INVERSE WHITE / SOFT FOCUS / ORBITER MENU/MENU CONTRAST]), SIGNAL INFO.

, DVD*1 , DTV*

1, *2

Bezel color is black.

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input.

Select one of them under “BNC INPUT”.

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Self Diagnosis, Image Burn reduction tools (PEAK BRIGHT, INVERSE WHITE, ORBITER), Color Temperature select (high/middle/middle low/low, user has 4 memories), Auto Picture, Input Skip, Color Adjust, Low Tone (3 mode), Gamma Correction (4 mode), Plug and play (DDC1, DDC2b, RGB3: DDC2b only)

Accessories Remote control with two AAA batteries, Power

cord, Owner’s Guide, Safety metal fittings, Ferrite cores, Cable clamps, Registration Card, BNCRCA Adapters

Regulations UL Approved (UL60065,

CAN/CSA– C22.2 No.60065-03 Meets ICES-003 Class B requirements Meets FCC Class B requirements

*English, German, French, Italian, Spanish, Swedish, Chinese, Russian

PD-5065 Specifications

Screen Size 43.5"(H)⳯24.5"(V) inches

1106(H)⳯622(V) mm diagonal 50"

Aspect Ratio 16 : 9 Resolution 1365(H)⳯768(V) pixels Pixel Pitch 0.032"(H)⳯0.032"(V) inches

0.81(H)⳯0.81(V) mm

Color Processing 4,096 steps, 68.7 billion colors Signals

Synchronization Range Horizontal : 15.5 to 110 kHz

(automatic : step scan) Vertical : 50.0 to 120 Hz (automatic : step scan)

Input Signals RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*

Input Terminals

RGB

RGB 1 (Analog) mini D-sub 15-pin⳯1 RGB 2 (Analog) BNC (R, G, B, H/CS, V)⳯1* MONLINK (Digital) HDMI

Video

INPUT 1 BNC⳯1 INPUT 2 RCA-pin⳯1 INPUT 3 S-Video: DIN 4-pin⳯1

DVD/HD/DTV

COMP 1 RCA-pin (Y, PB[CB], PR[CR])⳯1* COMP 2 BNC (Y, PB[CB], PR[CR])⳯1* MONLINK HDMI

Audio Stereo RCA⳯3 (Selectable)

External Control D-sub 9-pin⳯1 (RS-232C) Sound output 9W+9W at 6 ohm Power Supply AC100-240V 50/60Hz Current Rating 7.6A (maximum) Power Consumption 435W (typical) Dimensions 48.1 (W)⳯35 (H)⳯13.8 (D) inches

1222 (W)⳯889 (H)⳯350(D) mm

Weight 127 lbs / 57.6 kg Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation) Altitude 0 to 9180 feet / 0 to 2800 m

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation) Altitude 0 to 9840 feet / 0 to 3000 m

Front Panel User Controls Input Source Select

Volume up/down/OSM Control

Remote Control Functions

OSM Functions PICTURE (PICTURE MEMORY/CONTRAST/

Power on/off, Input source select, Menu/ Exit,Volume up/down, Adjust (UP, DOWN,LEFT, RIGHT), Zoom up/down, Picture control buttons

BRIGHTNESS/SHARPNESS/COLOR/TINT/NR/ COLOR TEMP./WHITE BALANCE/GAMMA/ LOW TONE/SET UP LEVEL/COLOR ADJUST/ FILM MODE/PICTURE MODE), AUDIO (BASS/ TREBLE/BALANCE/AUDIO INPUT1/AUDIO INPUT2/AUDIO INPUT3/MONITORLINK), IMAGE ADJUST (ASPECT MODE/V-POSITION/ H-POSITION/V-HEIGHT/H-WIDTH/AUTO PICTURE/FINE PICTURE/PICTURE ADJ.), SET UP (LANGUAGE*/BNC INPUT/HD SELECT/RGB SELECT/HDMI SET UP/COLOR SYSTEM/BACK GROUND/GRAY LEVEL/S1/ S2/DISPLAY MENU/MENU ADJUST/ALL RESET), FUNCTION (POWER MGT./INPUT SKIP/LONG LIFE [PEAK BRIGHT / ORBITER / INVERSE WHITE / SOFT FOCUS / ORBITER MENU / MENU CONTRAST]), SIGNAL INFO.

, DVD*1 , DTV*

1, *2

Bezel color is black.

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz)

*2The 5-BNC connectors are used as RGB/PC2 and COMP2 input.

Select one of them under “BNC INPUT”.

Chinese, Russian

Other Features Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (PAL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Self Diagnosis, Image Burn reduction tools (PEAK BRIGHT, INVERSE WHITE, ORBITER), Color Temperature select (high/medium/mid low/low, user has 4 memories), Auto Picture, Input Skip, Color Adjust, Low Tone (3 mode), Gamma Correction (4 mode), Plug and play (DDC1, DDC2b, RGB3: DDC2b only),

Accessories Remote control with two AAA batteries, Power

cord, Owner’s Guide, Safety metal fittings, Ferrite cores, Cable clamps, Registration Card, BNCRCA Adapters

Regulations UL Approved (UL 60065 and CAN/CSA-C22.2

No. 60065-03 Meets ICES–003 Class B requirements Meets FCC Class B requirements

*English, German, French, Italian, Spanish, Swedish,

Table of Signals Supported

Supported resolution (PD-4265)

• When the screen mode is NARROW, each signal is converted to a 768 dots⳯768 lines signal. (Except for *

• When the screen mode is STANDARD, each signal is converted to a 1024 dots⳯768 lines signal.

Computer input signals supported by this system

Model

Signal Type

IBM PC/AT*

compatible computers

Apple Macintosh*6 *

Work Station (EWS4800)

Work Station(HP)

Work Station

(SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

Dots ⳯ lines

640⳯400 640⳯480

848⳯480

852⳯480*

800⳯600

1024⳯768

1152⳯864 1280⳯768

1280⳯768* 1280⳯800* 1280⳯854*

1360⳯765 1360⳯768 1376⳯768

1280⳯1024

1680⳯1050*

1600⳯1200

1920⳯1200*

1920⳯1200RB

640⳯480

832⳯624 1024⳯768 1152⳯870

1440⳯900* 1280⳯1024

1280⳯1024

1152⳯900

1280⳯1024

1024⳯768

1280⳯1024

768⳯576

640⳯480

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

69.8

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

60.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

56.0

49.7

53.1

47.7

48.3

64.0

80.0

91.1

108.5

65.3

75.0

81.3

87.5

93.8

106.3

74.6

74.0

35.0

49.7

60.2

68.7

56.0

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity Presence

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS NEG NEG NEG POS POS NEG POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS NEG POS NEG NEG POS POS POS POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

NARROW

YES*

YES* YES* YES* YES* YES*

YES* YES* YES* YES*

YES*

YES* YES* YES*

YES* YES*

2, *4

)

Screen mode

STANDARD

(4:3)

YES YES YES YES YES YES

– –

– – YES YES YES YES YES YES YES

YES

– –

– – YES YES YES YES YES

– –

– – YES YES

YES

– –

YES YES

(16:9)

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES YES* YES*

YES

YES*

RGB

select*

YES

STILL

– –

STILL

– – – –

– – WIDE2 WIDE1

STILL STILL

– –

STILL

– –

STILL

– –

STILL WIDE1 WIDE3 WIDE1 WIDE1 WIDE2 WIDE1 WIDE1 WIDE2

STILL

– – – – – –

WIDE4

– – – – – – – –

– – WIDE2 WIDE3

– –

– – WIDE1 WIDE1

– –

MOTION

Memory

4 5 7 8

9 41 42 19 17 11 12 13 14 15 43 44 24 25 26 27 45 51 52 80 66 21 37 22 22 53 29 30 40 47 38 54 55 56 57 58 81 88

6 16 28 39 89 29 48 59 60 61 30 62 29

31 32

*1 Only when using a graphic accelerator board that is capable of displaying 852⳯480. *2 Display only 640 lines with the screen center of the vertical orientation located at the center. *3 The picture is displayed in the original resolution. The picture will be compressed for other signals. *4 The aspect ratio is 5:4. This signal is converted to a 720 dots⳯768 lines signal. *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above. *6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer’s video port. *7 Other screen modes (EXPAND and STRETCH) are available as well. *8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy).

If this occurs, please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when

sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”. *9 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine picture because of errors in synchronization of your computer.

• This monitor has a resolution of 1024 dots ⳯ 768 lines. It is recommended that the input signal should be XGA, wide XGA, or

equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

• “IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Table of Signals Supported

Supported resolution (PD-5065)

• When the screen mode is NARROW, each signal is converted to a 1024 dots⳯768 lines signal. (Except for *

2, 3, 4

• When the screen mode is STANDARD, each signal is converted to a 1365 dots⳯768 lines signal. (Except for *3)

Computer input signals supported by this system

Model

Signal Type

IBM PC/AT*

compatible computers

Apple Macintosh*6 *

Work Station (EWS4800)

Work Station(HP)

Work Station

(SUN)

Work Station (SGI) IDC-3000G

PAL625P

NTSC525P

Dots ⳯ lines

640⳯400 640⳯480

848⳯480

852⳯480*

800⳯600

1024⳯768

1152⳯864 1280⳯768

1280⳯768* 1280⳯800* 1280⳯854*

1360⳯765 1360⳯768 1376⳯768

1280⳯1024

1680⳯1050*

1600⳯1200

1920⳯1200* 1920⳯1200RB

640⳯480

832⳯624 1024⳯768 1152⳯870

1440⳯900*

1280⳯1024

1152⳯900

1280⳯1024

1024⳯768

1280⳯1024

768⳯576

640⳯480

Vertical frequency (Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

69.8

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

60.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal frequency (kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

56.0

49.7

53.1

47.7

48.3

64.0

80.0

91.1

108.5

65.3

75.0

81.3

87.5

93.8

106.3

74.6

74.0

35.0

49.7

60.2

68.7

56.0

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

Sync Polarity Presence

Horizontal

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS POS NEG NEG NEG POS POS NEG POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Vertical

NEG NEG NEG NEG NEG NEG NEG POS NEG POS POS POS POS POS POS POS NEG NEG POS POS NEG POS POS NEG POS NEG NEG POS POS POS POS POS POS POS NEG POS POS POS POS POS NEG NEG

Sync on G Sync on G Sync on G Sync on G

NEG NEG NEG

– –

C Sync C Sync C Sync

– – – –

NEG NEG

Horizontal

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

Vertical

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

– – – – – –

– – YES YES YES

– –

YES YES

Screen mode

NARROW

(4:3)

YES*

YES YES YES YES YES YES

– –

– – YES YES YES YES YES YES YES

YES* YES* YES* YES* YES*

YES

– –

YES* YES* YES* YES*

– – YES YES YES YES YES

– –

– – YES YES

YES*

YES

– –

YES* YES* YES*

YES YES

YES* YES* YES*

YES* YES*

)

STANDARD

(16:9)

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES*

YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES

YES*

RGB

select*

YES

STILL

– –

STILL

– – – –

– – WIDE2 WIDE1

STILL STILL

– –

STILL

– –

STILL

– – – –

STILL WIDE1 WIDE3 WIDE1 WIDE1 WIDE2 WIDE1 WIDE1 WIDE2

STILL

– – – – – –

WIDE4

– – – – – – – –

– – WIDE2 WIDE3

– –

– – WIDE1 WIDE1

– –

MOTION

Memory

4 5 7 8

9 41 42 19 17 11 12 13 14 15 43 44 24 25 26 27 45 51 52 80 66 21 37 22 22 53 29 30 40 47 38 54 55 56 57 58 81 88

6 16 28 39 89 29 48 59 60 61 30 62 29

31 32

*1 Only when using a graphic accelerator board that is capable of displaying 852⳯480. *2 This signal is converted to a 1024 dots ⳯ 640 lines signal. *3 The picture is displayed in the original resolution. *4 The aspect ratio is 5:4. This signal is converted to a 960 dots⳯768 lines signal. *5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above. *6 To connect the display to Macintosh computer, use a monitor adapter (NOT INCLUDED). *7 Other screen modes (EXPAND and STRETCH) are available as well. *8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy).

If this occurs, please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (567 interlaced lines, 50Hz refresh rate) when

sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”. *9 CVT standard compliant.

NOTE:

• While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size of the

picture or the fine picture because of errors in synchronization of your computer.

• When a 1280 dots ⳯ 1024 lines signal or 1600 dots ⳯ 1200 lines signal is input to the monitor, the picture will be compressed.

• This display has a resolution of 1365 dots ⳯ 768 lines. It is recommended that the input signal should be XGA, wide XGA, or

equivalent.

• With digital input some signals are not accepted.

• The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

• If you are connecting a composite sync signal, use the HD terminal.

• “IBM PC/AT” and “XGA” are registered trademarks of International Business Machines, Inc. of the United States.

• “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

Mitsubishi Plasma Display Panel Limited Warranty

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC. (“MDEA”) warrants to the original purchaser of this Plasma Display Panel that if purchased from an authorized MITSUBISHI Audio/Video Dealer, should it prove defective by reason of improper workmanship and/or material:

a. Parts. All parts are warranted for a period of one year from the date of the original purchase at retail. We will repair or replace, at our option, any defective part without charge for the part. Parts used for replacement may be replaced with those of like kind and quality and may be new or remanufactured. Parts used for replacement are warranted for the remainder of the original warranty period.

b. Labor. We will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one year from the original date of purchase at retail.

c. Notice. To obtain warranty service, you must notify an authorized MITSUBISHI service center of any defect within the applicable warranty time period.

1. TO OBTAIN WARRANTY SERVICE:

a. Contact your nearest authorized MITSUBISHI service center, whose name and address can be obtained from your MITSUBISHI dealer or by writing or calling MDEA at the address and telephone number provided below.

b. Warranty service will be provided in your home or, if required, at an authorized MITSUBISHI service center, provided that your television is located within the geographic territory customarily covered by an authorized MITSUBISHI service center. If not, you must either deliver your television to an authorized service location at your own expense, or pay for any travel and/or transportation costs the service center may charge to and from your home. Actual service labor will be provided without charge.

c. Proof of purchase date from an authorized MITSUBISHI dealer is required when requesting warranty service. Present your sales receipt or other document which establishes proof and date of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION OF WARRANTY COVERAGE. However, please return the Owner Registration Card so that we can contact you should a question of safety arise which could affect you.

3. This Plasma Display Panel uses a revolutionary technology, gas plasma, to create the screen image. This technology creates the image using small dots, or picture elements (pixels). Your Plasma Display Panel is manufactured to a high level of perfection, in fact, 99.99% perfect in the number of properly functioning. As in tube television, sometimes a pixel is continuously active or inactive. Our standard is clear, your pixels must be 99.99% perfect in the number of properly functioning pixels.

4. THIS WARRANTY DOES NOT COVER:

a. .......... Up to .01% pixel outages (small dot picture elements that are dark or incorrectly illuminated).

b. .......... Cosmetic damage or damage to this Plasma Display Panel or to any other products where such damage is caused by

unauthorized modification, alteration, repairs to or service of the product by anyone other than an authorized MITSUBISHI service center; physical abuse to or misuse of the product (including any failure to carry out any maintenance as described in the Owner’s Guide or any product damaged by excessive physical or electrical stress); any products that have had a serial number or any part thereof altered, defaced or removed; product use in any manner contrary to the Owner’s Guide (including, but not limited to, uneven phosphor aging and imprinted images on the viewing screen); freight damage or damage due to improper shipping methods; damage caused by use of third party mounting brackets or stands or any damage caused by acts of God or other factors beyond the reasonable control of MDEA, such as power surge damage caused by electrical system or lightning. This warranty also excludes service calls where no defect in the product covered under this warranty is found, service calls related to unsatisfactory audio or visual reception or signal unless caused by a defect in the product that is covered under this warranty, all costs, expenses or any other damages arising from product installation, or set-ups, any adjustments of user controls (including, contrast, brightness, color, tint, fine tuning, sharpness), other adjustment necessary to prepare the unit for display or use, connection with any external TV tuner, audio receiver, antenna, cable or satellite systems, or service of products purchased or serviced outside the U.S.A. Please consult the operating instructions contained in the Owner’s Guide furnished with the product for information regarding user controls.

5. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY WHICH, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR.

6. UNDER NO CIRCUMSTANCES SHALL MDEA BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE.

7. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental, special or consequential damages, so the above limitations or exclusions may not apply to you.

8. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

9. BEFORE REQUESTING SERVICE, please review the instruction booklet to insure proper installation and correct customer control adjustment. If the problem persists, contact your nearest MITSUBISHI Dealer for the name(s) of authorized MITSUBISHI Service Center(s). If you are unable to obtain this information, please call 800-332-2119, or write us at the address below.

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.

9351 Jeronimo Road Irvine, CA 92618-1904

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device ma not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: Address:

Tel. No.:

Type of Product:

Equipment Classification:

Models:

Mitsubishi Digital Electronics America 9351 Jeronimo Road Irvine, CA 92618 (949) 465-6000

Plasma Display

Class B Peripheral

PD-4265/PD-5065

We hereby declare that the equipment specified above

conforms to the technical standards as specified in the FCC Rules.

Mitsubishi Digital Electronics America

9351 Jeronimo Road

Irvine, CA 92618

Printed in Japan

7S802311
