FLOOR AND CEILING TYPE AIR CONDITIONERS

HFC

utilized

R410A

OUTDOOR UNIT

SERVICE MANUAL

Wireless type Models

Revision A:

● RoHS PARTS LIST has been added. Please void OB383.

No. OB383

REVISED EDITION-A

MUCF-GA35VB MUCF-GA50VB MUCF-GA60VB -

MUCF-GA50VB

Indoor unit service manual

MCF-GA•VB Series (OB382)

CONTENTS

1. TECHNICAL CHANGES ····································2

2. PART NAMES AND FUNCTIONS······················5

3. SPECIFICATION·················································5

4. NOISE CRITERIA CURVES·······························6

5. OUTLINES AND DIMENSIONS·························7

6. WIRING DIAGRAM ············································8

7. REFRIGERANT SYSTEM DIAGRAM··············10

8. PERFORMANCE CURVES······························13

9. TROUBLESHOOTING······································22

10. DISASSEMBLY INSTRUCTIONS·····················24

11. PARTS LIST······················································31

12. RoHS PARTS LIST···········································34

NOTE:

This service manual describes technical data of the outdoor units.

RoHS compliant products have <G> mark on the spec name plate. For servicing of RoHS compliant products, refer to the RoHS PARTS LIST (RoHS compliant).

Refrigeration

oil

Refrigerant

New refrigerant

R410A

HFC-32: HFC-125 (50%:50%)

Pseudo-azeotropic refrigerant

Not included

A1/A1

72.6

-51.4

1.557 64

Non combustible

1730

From liquid phase in cylinder

Possible

Incompatible oil

Non Non

Previous refrigerant

R22

R22 (100%)

Single refrigerant

Included

86.5

-40.8

0.94

44.4

Non combustible

0.055 1700

Gas phase

Possible

Compatible oil

Light yellow

Non

Refrigerant Composition (Ratio) Refrigerant handling Chlorine Safety group (ASHRAE) Molecular weight Boiling point (:) Steam pressure [25:](Mpa) Saturated steam density [25:](Kg/K) Combustibility ODP w1 GWP w2 Refrigerant charge method Additional charge on leakage Kind Color Smell

w1:Ozone Destruction Parameter : based on CFC-11 w2 :Global Warmth Parameter : based on CO

Revision A :

• RoHS PARTS LIST has been added.

MUCF-A12WV - ➔ MUCF-GA35VB -

1. Model name has been changed.

MUCF-A18WV - ➔ MUCF-GA50VB -

1. Model name has been changed.

MUCF-A24WV - ➔ MUCF-GA60VB -

1. Model name has been changed.

TECHNICAL CHANGES

E1E1

INFORMATION FOR THE AIR CONDITIONER WITH R410A REFRIGERANT

• This room air conditioner adopts HFC refrigerant (R410A) which never destroys the ozone layer.

• Pay particular attention to the following points, though the basic installation procedure is same as that for R22 conditioners. 1 As R410A has working pressure approximate 1.6 times as high as that of R22, some special tools and piping parts/

materials are required. Refer to the table below.

2 Take sufficient care not to allow water and other contaminations to enter the R410Arefrigerant during storage and

installation, since it is more susceptible to contaminations than R22.

3 For refrigerant piping, use clean, pressure-proof parts/materials specifically designed for R410A. (Refer to 2. Refrigerant

piping.)

4 Composition change may occur in R410A since it is a mixed refrigerant. When charging, charge liquid refrigerant to prevent

composition change.

NOTE : The unit of pressure has been changed to MPa on the international system of units(SI unit system).

New Specification Current Specification

The incompatible refrigeration oil easily separates from refrigerant and is in the upper layer inside the suction muffler. Raising position of the oil back hole enables to back the refrigeration oil of the upper layer to flow back to the compressor.

Since refrigerant and refrigerating oil are compatible each, refrigeration oil goes back to the compressor through the lower position oil back hole.

Compressor

Suction muffler

Oil back hole

Refrigeration oil

Refrigerant

Compressor

Suction muffler

Oil back hole

Refrigeration oil /Refrigerant

Compressor

-30 -20 -10 0 10 20

40 50 60

-0.5

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

(MPa [Gauge])

R410A R22

Conversion chart of refrigerant temperature and pressure

Saturated liquid pressure

(:)

R410A tools

Can R22 tools be used?

Gas leak detector

R410A has high pressures beyond the measurement range of existing gauges. Port diameters have been changed to prevent any other refrigerant from being charged into the unit.

Hose material and cap size have been changed to improve the pressure resistance.

Dedicated for HFC refrigerant.

6.35 mm and 9.52 mm

Description

Clamp bar hole has been enlarged to reinforce the spring strength in the tool. Provided for flaring work (to be used with R22 flare tool).

Provided to prevent the back flow of oil. This adapter enables you to use vacuum pumps.

It is difficult to measure R410A with a charging cylinder because the refrigerant bubbles due to high pressure and high-speed vaporization

Yes

New

Gauge manifold

Charge hose

Torque wrench

Flare tool Flare gauge

Vacuum pump adapter

Electronic scale for refrigerant charging

No : Not Substitutable for R410A Yes : Substitutable for R410A

No 12.7 mm and 15.88 mm

The conversion factor is: 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])

NOTE : The unit of pressure has been changed to MPa on the

international system of units(SI unit system).

The conversion factor is: 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])

1.Tools dedicated for the air conditioner with R410A refrigerant

The following tools are required for R410A refrigerant. Some R22 tools can be substituted for R410A tools. The diameter of the service port on the stop valve in outdoor unit has been changed to prevent any other refrigerant being charged into the unit. Cap size has been changed from 7/16 UNF with 20 threads to 1/2 UNF with 20 threads.

Electronic scale for refrigerant charging

Outdoor unit

Refrigerant gas cylinder operating valve

Refrigerant gas cylinder for R410A with siphon

Refrigerant (liquid)

Service port

Gauge manifold valve (for R410A)

Union

Liquid pipe Gas pipe

Stop valve

Indoor unit

Charge hose (for R410A)

R410A

Pipe diameter

6.35

9.52

12.7

15.88

17 22 26 29

Dimension of flare nut

R22

17 22 24 27

2.Refrigerant piping

Wall thickness

Outside diameter

Pipe

For liquid

For gas

6.35

9.52

12.7

15.88

0.8 mm

1.0 mm

Heat resisting foam plastic Specific gravity 0.045 Thickness 8 mm

Insulation material

1 Specifications

Use the refrigerant pipes that meet the following specifications.

• Use a copper pipe or a copper-alloy seamless pipe with a thickness of 0.8 mm (6.35, 9.52, 12.7), 1.0 mm (15.88). Never use any pipe with a thickness less than 0.8 mm (6.35, 9.52, 12.7), 1.0 mm (15.88), as the pressure resistance is insufficient.

2 Flaring work and flare nut

Flaring work for R410A pipe differs from that for R22 pipe. For details of flaring work, refer to Installation manual “FLARING WORK”.

3.Refrigerant oil

Apply the special refrigeration oil (accessories: packed with indoor unit) to the flare and the union seat surfaces.

4.Air purge

• Do not discharge the refrigerant into the atmosphere.

Take care not to discharge refrigerant into the atmosphere during installation, reinstallation, or repairs to the refrigerant

circuit.

• Use the vacuum pump for air purging for the purpose of environmental protection.

5.Additional charge

For additional charging, charge the refrigerant from liquid phase of the gas cylinder. If the refrigerant is charged from the gas phase, composition change may occur in the refrigerant inside the cylinder and the outdoor unit. In this case, ability of the refrigeration cycle decreases or normal operation can be impossible. However, charging the liquid refrigerant all at once may cause the compressor to be locked. Thus, charge the refrigerant slowly.

Drain hose

Piping

Air inlet

Drain outlet

(back and side)

Air outlet

Outdoor model

Function

Power supply

Capacity Dehumidification Air flow(High) Power outlet Runnning current Power input Power factor Starting current Compressor motor current Fan motor current

Model Output Winding resistance(at 20:) Model Winding resistance(at 20:) Dimensions WOHOD Weight Sound level(High) Fan speed(High) Fan speed regulator Refrigerant filling capacity(R410A) Refrigeration oil (Model)

r/h

K /h

A W %

rpm

kg cc

MUCF-GA50VB

Cooling

Single phase

230V, 50Hz

4.8

2.4

2,196

7.98

1,744

95 37

7.59

0.39

2.65

RN196VHSHT

1,300 C-R 1.80 C-S 3.00

RA6V50-PA WHT-BLK 79.5 BLK-RED 83.0

850o605o290

44 52

825

1.45

520 (NEO22)

MUCF-GA60VB

Cooling

Single phase

230V, 50Hz

6.0

3.1

2,322

10.62 2,370

97 74

10.07

0.55

2.45

NN29VBAHT

1,900 C-R 0.80 C-S 1.64

RA6V60-MA

WHT-BLK 71

BLK-RED 89

850o605o290

60 53

873

1.85

1,200 (NEO22)

Electrical

data

Compressor

Fan

motor

Special

remarks

Coefficient of performance(C.O.P)

Capacity

MUCF-GA35VB

Cooling

Single phase

230V, 50Hz

3.5

1.5

1,914

4.89

1,104

98 29

4.58

0.31

3.02

RN135VHSHT

900 C-R 2.79 C-S 3.36

RA6V33-JC

WHT-BLK 215

BLK-RED 307 780o540o255

36 49

825

0.75

620

(NEO22)

Piping

Drain hose

Air outlet

Air inlet

Drain outlet

(back and side)

PART NAMES AND FUNCTIONS

MUCF-GA35VB

SPECIFICATION

MUCF-GA50VB MUCF-GA60VB

NOTE: Test conditions are based on ISO 5151

Cooling : Indoor DB27°C WB19°C

Outdoor DB35°C WB(24°C)

Indoor-Outdoor piping length : 5m

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

Test conditions, Cooling : Dry-bulb temperature 35: Wet-bulb temperature 24:

SPL(dB(A)) LINE

COOLING

FUNCTION

High

FAN SPEED

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

Test conditions, Cooling : Dry-bulb temperature 35: Wet-bulb temperature 24:

SPL(dB(A)) LINE

COOLING

FUNCTION

High

FAN SPEED

OUTDOOR UNIT

MICROPHONE

SPL(dB(A)) LINE

COOLING

FUNCTION

High

FAN SPEED

63 125 250 500 1000 2000 4000 8000

NC-60

NC-50

NC-40

NC-30

NC-20

NC-70

OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR

BAND CENTER FREQUENCIES, Hz

APPROXIMATE THRESHOLD OF HEARING FOR CONTINUOUS NOISE

Test conditions, Cooling : Dry-bulb temperature 35: Wet-bulb temperature 24:

NOISE CRITERIA CURVES

MUCF-GA35VB

MUCF-GA50VB

MUCF-GA60VB

100mm or more

r m

ore

100mm or more

350mm or more

r m

Drainage 3 holes [33

Air out

Air in

Service panel

Liquid refrigerant pipe joint

Refregerant pipe (flared) [6.35

Gas refregerant pipe joint

Refregerant pipe (flared) [12.7 (MUCF-GA50VB) [15.88 (MUCF-GA60VB)

35-

100

161

157

850

500

183

292

605

248

350

290

310

345

355

Drainage hole [16.2

320

43-

155

104

260

780

500

122

540

320

285

255

Service panel

Gas refrigerant pipe joint Refrigerant pipe (flared) [12.7

Liquid refrigerant pipe joint Refrigerant pipe (flared) [6.35

Air out

Air in

109

110

147

Drainage 3 holes [33

100mm or more

350mm or more

REQUIRED SPACE

400m

or m

ore

OUTLINES AND DIMENSIONS

MUCF-GA35VB

Unit: mm

MUCF-GA50VB MUCF-GA60VB

Unit: mm

BRN

WHT WHT

POWER SUPPLY 230V 50Hz

~/N

TB1

CIRCUIT BREAKER

BLU

GRN/YLW

BRN

NO COM

52C

TB2

CONNECTING 12V

INDOOR UNIT

BLK

WHT

52C

WHT

ORN

RED

2 3

RED

BLK

ORN WHT

RED

DSAR

BLU

1.About the indoor side electric wiring refer to the indoor unit electric wiring diagram for servicing.

2.Use copper conductors only. (For field wiring)

3.Symbols below indicate. : Connector

: Terminal block

NOTES:

SYMBOL

C1 C2

DSAR

NAME COMPRESSOR CAPACITOR OUTDOOR FAN CAPACITOR SURGE ABSORBER

SYMBOL

MC MF

TB1,TB2

NAME COMPRESOR (INNER PROTECTOR) OUTDOOR FAN MOTOR (INNER PROTECTOR) TERMINAL BLOCK

SYMBOL

52C

NAME

COMPRESSOR CONTACTOR

CIRCUIT BREAKER

POWER SUPPLY ~/N 230V 50Hz

12V

GRN/YLW

TB2

RED

WHT

BLK

WHT BLU

RED

TO INDOOR UNIT CONNECTING

WHT

BLU

BLK

RED

WHT

52C

TB1

WHT

BLK

52C

COM

DSAR

BRN

SYMBOL

TB1,TB2

52C

SYMBOL

MC MF

SYMBOL

C1 C2

DSAR

NAME

NAME NAME COMPRESSOR CAPACITOR OUTDOOR FAN CAPACITOR SURGE ABSORBER

COMPRESSOR(INNER PROTECTOR)

TERMINAL BLOCK COMPRESSOR CONTACTOR

OUTDOOR FAN MOTOR (INNER FUSE)

WIRING DIAGRAM

MUCF-GA35VB

NOTE:1. About the indoor side electric wiring refer to the indoor unit electric wiring diagram for servicing.

2. Use copper conductors only. (For field wiring)

3. Symbols below indicate.

/: Terminal block, : Connector

MUCF-GA50VB

MUCF-GA60VB

TB1

RED

~/N 230V 50Hz

POWER SUPPLY

52C

GRN/YLW

CIRCUIT BREAKER

REDRED

WHT

BLU

ORN

WHT

BLK

1 2

ORN

COM

BLU

COM

52C

BLK

12V

INDOOR UNIT CONNECTING

BLK

BRN

WHT

TB2

DSAR

WHT

BLU

BRN

WHT

BRN

1.About the indoor side electric wiring refer to the indoor unit electric wiring diagram for servicing.

2.Use copper conductors only. (For field wiring)

3.Symbols below indicate. : Connector

: Terminal block

NOTES:

SYMBOL

C1 C2

DSAR

NAME COMPRESSOR CAPACITOR OUTDOOR FAN CAPACITOR SURGE ABSORBER

SYMBOL

MC MF

TB1,TB2

NAME COMPRESSOR (INNER PROTECTOR) OUTDOOR FAN MOTOR (INNER PROTECTOR) TERMINAL BLOCK

SYMBOL

52C

NAME RELAY COMPRESSOR CONTACTOR

REFRIGERANT SYSTEM DIAGRAM

MUCF-GA35VB

Refrigerant pipe [6.35 (with heat insulator)

Refrigerant pipe [12.7 (with heat insulator)

Flared connection

Stop valve (with service port)

Stop valve

Unit:mm

Muffler

Outdoor heat exchanger

Compressor

Strainer #100

Capillary tube [3.0x[1.4x550

Refrigerant flow in cooling

MUCF-GA50VB

Refrigerant pipe [12.7 (with heat insulator)

Flared connection

Refrigerant pipe[6.35 (with heat insulator)

Stop valve (with service port)

Stop valve

Capillary tube

[2.5o[0.6o1,000

Capillary tube

[3.0o[1.6o650

Oil separator

Compressor

Outdoor heat

Strainer

#100

Refrigerant flow in cooling

exchanger

MUCF-GA60VB

Refrigerant pipe [15.88 (with heat insulator)

Flared connection

Stop valve (with service port)

Muffler

Unit:mm

Muffler

#100

Outdoor heat exchanger

Compressor

Refrigerant pipe [6.35 (with heat insulator)

Stop valve

Capillary tube [3.0X[2.0X1000

Refrigerant flow in cooling

A: Refrigerant piping Max. length 25m

Max. Height

difference *

10m

*Height difference should be within 10m regardless of which unit,

indoor or outdoor position is high.

Indoor unit

Outdoor unit

If pipe length exceeds 7m, additional refrigerant (R410A) charge is required.

Model

MUCF-GA35VB MUCF-GA50VB MUCF-GA60VB

Refrigerant piping length (one way)

Outdoor unit precharged

750 1,450 1,850

15m

160

20m

260

25m

360

10m

REFRIGERANT PIPING MAX. LENGTH & MAX. HEIGHT DIFFERENCE

Models

MUCF-GA35VB MUCF-GA50VB MUCF-GA60VB

Refrigerant piping

Max. length : m

Piping size O.D. : mm

Gas

{12.7

{15.88

Liquid

{6.35

ADDITIONAL REFRIGERANT CHARGE (R410A : g)

Calculation : Xg=20g/m ✕ (Refrigerant piping length (m)–7)

Air in

Air out

Wet-and dry-bulb thermometers

FRONT VIEW

MCF-GA50VB

MUCF-GA50VB

MCF-GA60VB

MUCF-GA60VB

11.3

7.3

9.2

8.3

10.3

12.4

MCF-GA35VB

MUCF-GA35VB

8.9

5.8

7.3

6.6

8.1

9.7

13.1

10.6

9.5

8.4

11.8

14.4

Wet-and dry-bulb thermometers

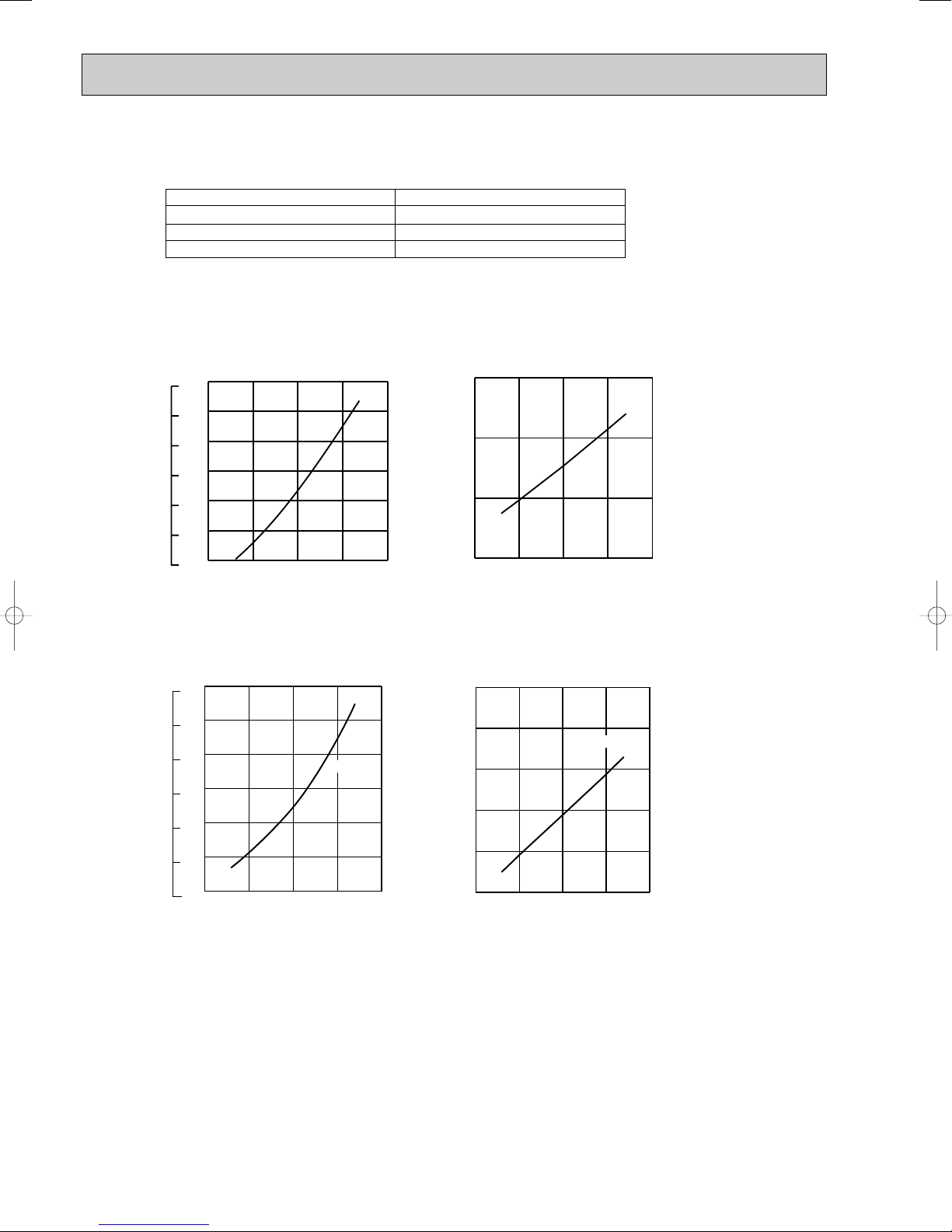

PERFORMANCE CURVES

MUCF- GA35VB MUCF-GA50VB MUCF-GA60VB

The standard data contained in these specifications apply only to the operation of the air conditioner under normal conditions,

since operating conditions vary according to the areas where these units are installed. The following information has been provided to clarify the operating characteristics of the air conditioner under the conditions indicated by the performance curve.

(1) GUARANTEED VOLTAGE

198 ~ 264V, 50Hz

(2) AIR FLOW

Air flow should be set at MAX.

(3) MAIN READINGS

(1) Indoor intake air wet-bulb temperature : °CWB (2) Indoor outlet air wet-bulb temperature : °CWB (3) Outdoor intake air dry-bulb temperature : °CDB (4) Total input: W

Indoor air wet/dry-bulb temperature difference on the left side of the chart on this page shows the difference between the indoor intake air wet/dry-bulb temperature and the indoor outlet air wet/dry-bulb temperature for your reference at service.

How to measure the indoor air wet-bulb/dry-bulb temperature difference

1. Attach at least 2 sets of wet-and dry-bulb thermometers to the indoor air intake as shown in the figure, and at least 2 sets of wet-and dry-bulb thermometers to the indoor air outlet. The thermometers must be attached to the position where air speed is high.

2. Attach at least 2 sets of wet-and dry-bulb thermometers to the outdoor air intake. Cover the thermometers to prevent direct rays of the sun.

3. Check that the air filter is cleaned.

4. Open windows and doors of room.

5. Press the EMERGENCY OPERATION switch once to start the EMERGENCY COOL MODE.

6. When system stabilizes after more than 15 minutes, measure temperature and take an average temperature.

7. 10 minutes later, measure temperature again and check that the temperature does not change.

}

Cooling

INDOOR UNIT

OUTDOOR UNIT

OUTDOOR LOW PRESSURE AND OUTDOOR UNIT CURRENT

70 (%)

Ambient temperature (:)

Ambient humidity (%)

Outdoor low pressure

50 60 70 (%)

Ambient temperature (:)

Ambient humidity (%)

Outdoor unit current (A)

15 20 25 30 35(:)

0.6

0.7

0.8

0.9

1.0

1.1

1.2

230V

15 20 25 30 35(:)

230V

18 32

230V

15 20

25 6030 70(%)

35(:)

18 32

230V

15 20

25 6030 70(%)

35(:)

0.7

0.8

0.9

1.0

1.1

1.2

1.3

COOL operation 1 Both indoor and outdoor units are under the same temperature/humidity condition.

Dry Bulb temperature (˚C)

20 25 30

Relative humidity (%)

50 60 70

2 Air flow should be set at MAX.

3 The unit of pressure has been changed to MPa on the international system of units(SI unit system).

The conversion factor is : 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])

MUCF-GA35VB

Outdoor low pressure

(kgf/F[Gauge])(MPa[Gauge])

Ambient temperature(˚C)

Ambient humidity(%)

Outdoor unit current (A)

Ambient temperature(˚C)

Ambient humidity(%)

MUCF-GA50VB

(kgf/F[Gauge])(MPa[Gauge])

MUCF-GA60VB

1.1

1.0

0.9

0.8

0.7

Outdoor low pressure

0.6

(kgf/F[Gauge])(MPa[Gauge])

230V

Outdoor unit current (A)

230V

0.5

15 20 25 30 35(:)

Ambient temperature (:)

Ambient humidity (%)

70 (%)

15 20 25 30 35(:)

50 60 70 (%)

Ambient temperature (:)

Ambient humidity (%)

PERFORMANCE DATA COOL operation (230V)

21 18 4.11 2.14 0.52 928 3.94 2.05 0.52 974 3.78 1.97 0.52 1021 3.64 1.89 0.52 1067 21 20 4.29 1.72 0.40 974 4.11 1.65 0.40 1032 3.99 1.60 0.40 1056 3.85 1.54 0.40 1102 22 18 4.11 2.30 0.56 928 3.94 2.21 0.56 974 3.78 2.12 0.56 1021 3.64 2.04 0.56 1067 22 20 4.29 1.89 0.44 974 4.11 1.81 0.44 1032 3.99 1.76 0.44 1056 3.85 1.69 0.44 1102 22 22 4.46 1.43 0.32 1009 4.31 1.38 0.32 1073 4.20 1.34 0.32 1102 4.03 1.29 0.32 1148 23 18 4.11 2.47 0.60 928 3.94 2.36 0.60 974 3.78 2.27 0.60 1021 3.64 2.18 0.60 1067 23 20 4.29 2.06 0.48 974 4.11 1.97 0.48 1032 3.99 1.92 0.48 1056 3.85 1.85 0.48 1102 23 22 4.46 1.61 0.36 1009 4.31 1.55 0.36 1073 4.20 1.51 0.36 1102 4.03 1.45 0.36 1148 24 18 4.11 2.63 0.64 928 3.94 2.52 0.64 974 3.78 2.42 0.64 1021 3.64 2.33 0.64 1067 24 20 4.29 2.23 0.52 974 4.11 2.14 0.52 1032 3.99 2.07 0.52 1056 3.85 2.00 0.52 1102 24 22 4.46 1.79 0.40 1009 4.31 1.72 0.40 1073 4.20 1.68 0.40 1102 4.03 1.61 0.40 1148 24 24 4.69 1.31 0.28 1056 4.52 1.26 0.28 1114 4.41 1.23 0.28 1148 4.27 1.20 0.28 1206 25 18 4.11 2.80 0.68 928 3.94 2.68 0.68 974 3.78 2.57 0.68 1021 3.64 2.48 0.68 1067 25 20 4.29 2.40 0.56 974 4.11 2.30 0.56 1032 3.99 2.23 0.56 1056 3.85 2.16 0.56 1102 25 22 4.46 1.96 0.44 1009 4.31 1.89 0.44 1073 4.20 1.85 0.44 1102 4.03 1.77 0.44 1148 25 24 4.69 1.50 0.32 1056 4.52 1.44 0.32 1114 4.41 1.41 0.32 1148 4.27 1.37 0.32 1206 26 18 4.11 2.96 0.72 928 3.94 2.84 0.72 974 3.78 2.72 0.72 1021 3.64 2.62 0.72 1067 26 20 4.29 2.57 0.60 974 4.11 2.47 0.60 1032 3.99 2.39 0.60 1056 3.85 2.31 0.60 1102 26 22 4.46 2.14 0.48 1009 4.31 2.07 0.48 1073 4.20 2.02 0.48 1102 4.03 1.93 0.48 1148 26 24 4.69 1.69 0.36 1056 4.52 1.63 0.36 1114 4.41 1.59 0.36 1148 4.27 1.54 0.36 1206 26 26 4.83 1.16 0.24 1114 4.69 1.13 0.24 1172 4.62 1.11 0.24 1206 4.48 1.08 0.24 1241 27 18 4.11 3.13 0.76 928 3.94 2.99 0.76 974 3.78 2.87 0.76 1021 3.64 2.77 0.76 1067 27 20 4.29 2.74 0.64 974 4.11 2.63 0.64 1032 3.99 2.55 0.64 1056 3.85 2.46 0.64 1102 27 22 4.46 2.32 0.52 1009 4.31 2.24 0.52 1073 4.20 2.18 0.52 1102 4.03 2.09 0.52 1148 27 24 4.69 1.88 0.40 1056 4.52 1.81 0.40 1114 4.41 1.76 0.40 1148 4.27 1.71 0.40 1206 27 26 4.83 1.35 0.28 1114 4.69 1.31 0.28 1172 4.62 1.29 0.28 1206 4.48 1.25 0.28 1241 28 18 4.11 3.29 0.80 928 3.94 3.15 0.80 974 3.78 3.02 0.80 1021 3.64 2.91 0.80 1067 28 20 4.29 2.92 0.68 974 4.11 2.80 0.68 1032 3.99 2.71 0.68 1056 3.85 2.62 0.68 1102 28 22 4.46 2.50 0.56 1009 4.31 2.41 0.56 1073 4.20 2.35 0.56 1102 4.03 2.25 0.56 1148 28 24 4.69 2.06 0.44 1056 4.52 1.99 0.44 1114 4.41 1.94 0.44 1148 4.27 1.88 0.44 1206 28 26 4.83 1.55 0.32 1114 4.69 1.50 0.32 1172 4.62 1.48 0.32 1206 4.48 1.43 0.32 1241 29 18 4.11 3.45 0.84 928 3.94 3.31 0.84 974 3.78 3.18 0.84 1021 3.64 3.06 0.84 1067 29 20 4.29 3.09 0.72 974 4.11 2.96 0.72 1032 3.99 2.87 0.72 1056 3.85 2.77 0.72 1102 29 22 4.46 2.68 0.60 1009 4.31 2.58 0.60 1073 4.20 2.52 0.60 1102 4.03 2.42 0.60 1148 29 24 4.69 2.25 0.48 1056 4.52 2.17 0.48 1114 4.41 2.12 0.48 1148 4.27 2.05 0.48 1206 29 26 4.83 1.74 0.36 1114 4.69 1.69 0.36 1172 4.62 1.66 0.36 1206 4.48 1.61 0.36 1241 30 18 4.11 3.62 0.88 928 3.94 3.47 0.88 974 3.78 3.33 0.88 1021 3.64 3.20 0.88 1067 30 20 4.29 3.26 0.76 974 4.11 3.13 0.76 1032 3.99 3.03 0.76 1056 3.85 2.93 0.76 1102 30 22 4.46 2.86 0.64 1009 4.31 2.76 0.64 1073 4.20 2.69 0.64 1102 4.03 2.58 0.64 1148 30 24 4.69 2.44 0.52 1056 4.52 2.35 0.52 1114 4.41 2.29 0.52 1148 4.27 2.22 0.52 1206 30 26 4.83 1.93 0.40 1114 4.69 1.88 0.40 1172 4.62 1.85 0.40 1206 4.48 1.79 0.40 1241 31 18 4.11 3.78 0.92 928 3.94 3.62 0.92 974 3.78 3.48 0.92 1021 3.64 3.35 0.92 1067 31 20 4.29 3.43 0.80 974 4.11 3.29 0.80 1032 3.99 3.19 0.80 1056 3.85 3.08 0.80 1102 31 22 4.46 3.03 0.68 1009 4.31 2.93 0.68 1073 4.20 2.86 0.68 1102 4.03 2.74 0.68 1148 31 24 4.69 2.63 0.56 1056 4.52 2.53 0.56 1114 4.41 2.47 0.56 1148 4.27 2.39 0.56 1206 31 26 4.83 2.13 0.44 1114 4.69 2.06 0.44 1172 4.62 2.03 0.44 1206 4.48 1.97 0.44 1241 32 18 4.11 3.95 0.96 928 3.94 3.78 0.96 974 3.78 3.63 0.96 1021 3.64 3.49 0.96 1067 32 20 4.29 3.60 0.84 974 4.11 3.45 0.84 1032 3.99 3.35 0.84 1056 3.85 3.23 0.84 1102 32 22 4.46 3.21 0.72 1009 4.31 3.10 0.72 1073 4.20 3.02 0.72 1102 4.03 2.90 0.72 1148 32 24 4.69 2.81 0.60 1056 4.52 2.71 0.60 1114 4.41 2.65 0.60 1148 4.27 2.56 0.60 1206 32 26 4.83 2.32 0.48 1114 4.69 2.25 0.48 1172 4.62 2.22 0.48 1206 4.48 2.15 0.48 1241

CAPACITY :3.5(kW) SHF :0.70 INPUT :1160(W)

OUTDOOR DB(:)

INDOOR INDOOR

21 25 27 30

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA35VB : MUCF-GA35VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

PERFORMANCE DATA COOL operation (230V)

21 18 3.43 1.78 0.52 1137 3.15 1.64 0.52 1206 3.03 1.57 0.52 1230 21 20 3.61 1.44 0.40 1183 3.36 1.34 0.40 1241 3.24 1.30 0.40 1276 22 18 3.43 1.92 0.56 1137 3.15 1.76 0.56 1206 3.03 1.70 0.56 1230 22 20 3.61 1.59 0.44 1183 3.36 1.48 0.44 1241 3.24 1.42 0.44 1276 22 22 3.82 1.22 0.32 1230 3.57 1.14 0.32 1299 3.45 1.10 0.32 1322 23 18 3.43 2.06 0.60 1137 3.15 1.89 0.60 1206 3.03 1.82 0.60 1230 23 20 3.61 1.73 0.48 1183 3.36 1.61 0.48 1241 3.24 1.55 0.48 1276 23 22 3.82 1.37 0.36 1230 3.57 1.29 0.36 1299 3.45 1.24 0.36 1322 24 18 3.43 2.20 0.64 1137 3.15 2.02 0.64 1206 3.03 1.94 0.64 1230 24 20 3.61 1.87 0.52 1183 3.36 1.75 0.52 1241 3.24 1.68 0.52 1276 24 22 3.82 1.53 0.40 1230 3.57 1.43 0.40 1299 3.45 1.38 0.40 1322 24 24 4.03 1.13 0.28 1276 3.78 1.06 0.28 1334 3.68 1.03 0.28 1363 25 18 3.43 2.33 0.68 1137 3.15 2.14 0.68 1206 3.03 2.06 0.68 1230 25 20 3.61 2.02 0.56 1183 3.36 1.88 0.56 1241 3.24 1.81 0.56 1276 25 22 3.82 1.68 0.44 1230 3.57 1.57 0.44 1299 3.45 1.52 0.44 1322 25 24 4.03 1.29 0.32 1276 3.78 1.21 0.32 1334 3.68 1.18 0.32 1363 26 18 3.43 2.47 0.72 1137 3.15 2.27 0.72 1206 3.03 2.18 0.72 1230 26 20 3.61 2.16 0.60 1183 3.36 2.02 0.60 1241 3.24 1.94 0.60 1276 26 22 3.82 1.83 0.48 1230 3.57 1.71 0.48 1299 3.45 1.65 0.48 1322 26 24 4.03 1.45 0.36 1276 3.78 1.36 0.36 1334 3.68 1.32 0.36 1363 26 26 4.24 1.02 0.24 1322 3.99 0.96 0.24 1380 3.87 0.93 0.24 1409 27 18 3.43 2.61 0.76 1137 3.15 2.39 0.76 1206 3.03 2.30 0.76 1230 27 20 3.61 2.31 0.64 1183 3.36 2.15 0.64 1241 3.24 2.07 0.64 1276 27 22 3.82 1.98 0.52 1230 3.57 1.86 0.52 1299 3.45 1.79 0.52 1322 27 24 4.03 1.61 0.40 1276 3.78 1.51 0.40 1334 3.68 1.47 0.40 1363 27 26 4.24 1.19 0.28 1322 3.99 1.12 0.28 1380 3.87 1.08 0.28 1409 28 18 3.43 2.74 0.80 1137 3.15 2.52 0.80 1206 3.03 2.42 0.80 1230 28 20 3.61 2.45 0.68 1183 3.36 2.28 0.68 1241 3.24 2.20 0.68 1276 28 22 3.82 2.14 0.56 1230 3.57 2.00 0.56 1299 3.45 1.93 0.56 1322 28 24 4.03 1.77 0.44 1276 3.78 1.66 0.44 1334 3.68 1.62 0.44 1363 28 26 4.24 1.36 0.32 1322 3.99 1.28 0.32 1380 3.87 1.24 0.32 1409 29 18 3.43 2.88 0.84 1137 3.15 2.65 0.84 1206 3.03 2.54 0.84 1230 29 20 3.61 2.60 0.72 1183 3.36 2.42 0.72 1241 3.24 2.33 0.72 1276 29 22 3.82 2.29 0.60 1230 3.57 2.14 0.60 1299 3.45 2.07 0.60 1322 29 24 4.03 1.93 0.48 1276 3.78 1.81 0.48 1334 3.68 1.76 0.48 1363 29 26 4.24 1.52 0.36 1322 3.99 1.44 0.36 1380 3.87 1.39 0.36 1409 30 18 3.43 3.02 0.88 1137 3.15 2.77 0.88 1206 3.03 2.66 0.88 1230 30 20 3.61 2.74 0.76 1183 3.36 2.55 0.76 1241 3.24 2.46 0.76 1276 30 22 3.82 2.44 0.64 1230 3.57 2.28 0.64 1299 3.45 2.21 0.64 1322 30 24 4.03 2.09 0.52 1276 3.78 1.97 0.52 1334 3.68 1.91 0.52 1363 30 26 4.24 1.69 0.40 1322 3.99 1.60 0.40 1380 3.87 1.55 0.40 1409 31 18 3.43 3.16 0.92 1137 3.15 2.90 0.92 1206 3.03 2.79 0.92 1230 31 20 3.61 2.88 0.80 1183 3.36 2.69 0.80 1241 3.24 2.59 0.80 1276 31 22 3.82 2.59 0.68 1230 3.57 2.43 0.68 1299 3.45 2.34 0.68 1322 31 24 4.03 2.25 0.56 1276 3.78 2.12 0.56 1334 3.68 2.06 0.56 1363 31 26 4.24 1.86 0.44 1322 3.99 1.76 0.44 1380 3.87 1.70 0.44 1409 32 18 3.43 3.29 0.96 1137 3.15 3.02 0.96 1206 3.03 2.91 0.96 1230 32 20 3.61 3.03 0.84 1183 3.36 2.82 0.84 1241 3.24 2.72 0.84 1276 32 22 3.82 2.75 0.72 1230 3.57 2.57 0.72 1299 3.45 2.48 0.72 1322 32 24 4.03 2.42 0.60 1276 3.78 2.27 0.60 1334 3.68 2.21 0.60 1363 32 26 4.24 2.03 0.48 1322 3.99 1.92 0.48 1380 3.87 1.86 0.48 1409

CAPACITY :3.5(kW) SHF :0.70 INPUT :1160(W)

OUTDOOR DB(:)

INDOOR INDOOR

35 40 43

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA35VB : MUCF-GA35VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

PERFORMANCE DATA COOL operation(230V)

21 18 5.64 2.65 0.47 1448 5.40 2.54 0.47 1520 5.18 2.44 0.47 1593 4.99 2.35 0.47 1665 21 20 5.88 2.06 0.35 1520 5.64 1.97 0.35 1611 5.47 1.92 0.35 1647 5.28 1.85 0.35 1720 22 18 5.64 2.88 0.51 1448 5.40 2.75 0.51 1520 5.18 2.64 0.51 1593 4.99 2.55 0.51 1665 22 20 5.88 2.29 0.39 1520 5.64 2.20 0.39 1611 5.47 2.13 0.39 1647 5.28 2.06 0.39 1720 22 22 6.12 1.65 0.27 1575 5.90 1.59 0.27 1674 5.76 1.56 0.27 1720 5.52 1.49 0.27 1792 23 18 5.64 3.10 0.55 1448 5.40 2.97 0.55 1520 5.18 2.85 0.55 1593 4.99 2.75 0.55 1665 23 20 5.88 2.53 0.43 1520 5.64 2.43 0.43 1611 5.47 2.35 0.43 1647 5.28 2.27 0.43 1720 23 22 6.12 1.90 0.31 1575 5.90 1.83 0.31 1674 5.76 1.79 0.31 1720 5.52 1.71 0.31 1792 24 18 5.64 3.33 0.59 1448 5.40 3.19 0.59 1520 5.18 3.06 0.59 1593 4.99 2.95 0.59 1665 24 20 5.88 2.76 0.47 1520 5.64 2.65 0.47 1611 5.47 2.57 0.47 1647 5.28 2.48 0.47 1720 24 22 6.12 2.14 0.35 1575 5.90 2.07 0.35 1674 5.76 2.02 0.35 1720 5.52 1.93 0.35 1792 24 24 6.43 1.48 0.23 1647 6.19 1.42 0.23 1738 6.05 1.39 0.23 1792 5.86 1.35 0.23 1882 25 18 5.64 3.55 0.63 1448 5.40 3.40 0.63 1520 5.18 3.27 0.63 1593 4.99 3.14 0.63 1665 25 20 5.88 3.00 0.51 1520 5.64 2.88 0.51 1611 5.47 2.79 0.51 1647 5.28 2.69 0.51 1720 25 22 6.12 2.39 0.39 1575 5.90 2.30 0.39 1674 5.76 2.25 0.39 1720 5.52 2.15 0.39 1792 25 24 6.43 1.74 0.27 1647 6.19 1.67 0.27 1738 6.05 1.63 0.27 1792 5.86 1.58 0.27 1882 26 18 5.64 3.78 0.67 1448 5.40 3.62 0.67 1520 5.18 3.47 0.67 1593 4.99 3.34 0.67 1665 26 20 5.88 3.23 0.55 1520 5.64 3.10 0.55 1611 5.47 3.01 0.55 1647 5.28 2.90 0.55 1720 26 22 6.12 2.63 0.43 1575 5.90 2.54 0.43 1674 5.76 2.48 0.43 1720 5.52 2.37 0.43 1792 26 24 6.43 1.99 0.31 1647 6.19 1.92 0.31 1738 6.05 1.87 0.31 1792 5.86 1.82 0.31 1882 26 26 6.62 1.26 0.19 1738 6.43 1.22 0.19 1828 6.34 1.20 0.19 1882 6.14 1.17 0.19 1937 27 18 5.64 4.00 0.71 1448 5.40 3.83 0.71 1520 5.18 3.68 0.71 1593 4.99 3.54 0.71 1665 27 20 5.88 3.47 0.59 1520 5.64 3.33 0.59 1611 5.47 3.23 0.59 1647 5.28 3.12 0.59 1720 27 22 6.12 2.88 0.47 1575 5.90 2.77 0.47 1674 5.76 2.71 0.47 1720 5.52 2.59 0.47 1792 27 24 6.43 2.25 0.35 1647 6.19 2.17 0.35 1738 6.05 2.12 0.35 1792 5.86 2.05 0.35 1882 27 26 6.62 1.52 0.23 1738 6.43 1.48 0.23 1828 6.34 1.46 0.23 1882 6.14 1.41 0.23 1937 28 18 5.64 4.23 0.75 1448 5.40 4.05 0.75 1520 5.18 3.89 0.75 1593 4.99 3.74 0.75 1665 28 20 5.88 3.70 0.63 1520 5.64 3.55 0.63 1611 5.47 3.45 0.63 1647 5.28 3.33 0.63 1720 28 22 6.12 3.12 0.51 1575 5.90 3.01 0.51 1674 5.76 2.94 0.51 1720 5.52 2.82 0.51 1792 28 24 6.43 2.51 0.39 1647 6.19 2.41 0.39 1738 6.05 2.36 0.39 1792 5.86 2.28 0.39 1882 28 26 6.62 1.79 0.27 1738 6.43 1.74 0.27 1828 6.34 1.71 0.27 1882 6.14 1.66 0.27 1937 29 18 5.64 4.46 0.79 1448 5.40 4.27 0.79 1520 5.18 4.10 0.79 1593 4.99 3.94 0.79 1665 29 20 5.88 3.94 0.67 1520 5.64 3.78 0.67 1611 5.47 3.67 0.67 1647 5.28 3.54 0.67 1720 29 22 6.12 3.37 0.55 1575 5.90 3.25 0.55 1674 5.76 3.17 0.55 1720 5.52 3.04 0.55 1792 29 24 6.43 2.77 0.43 1647 6.19 2.66 0.43 1738 6.05 2.60 0.43 1792 5.86 2.52 0.43 1882 29 26 6.62 2.05 0.31 1738 6.43 1.99 0.31 1828 6.34 1.96 0.31 1882 6.14 1.90 0.31 1937 30 18 5.64 4.68 0.83 1448 5.40 4.48 0.83 1520 5.18 4.30 0.83 1593 4.99 4.14 0.83 1665 30 20 5.88 4.17 0.71 1520 5.64 4.00 0.71 1611 5.47 3.89 0.71 1647 5.28 3.75 0.71 1720 30 22 6.12 3.61 0.59 1575 5.90 3.48 0.59 1674 5.76 3.40 0.59 1720 5.52 3.26 0.59 1792 30 24 6.43 3.02 0.47 1647 6.19 2.91 0.47 1738 6.05 2.84 0.47 1792 5.86 2.75 0.47 1882 30 26 6.62 2.32 0.35 1738 6.43 2.25 0.35 1828 6.34 2.22 0.35 1882 6.14 2.15 0.35 1937 31 18 5.64 4.91 0.87 1448 5.40 4.70 0.87 1520 5.18 4.51 0.87 1593 4.99 4.34 0.87 1665 31 20 5.88 4.41 0.75 1520 5.64 4.23 0.75 1611 5.47 4.10 0.75 1647 5.28 3.96 0.75 1720 31 22 6.12 3.86 0.63 1575 5.90 3.72 0.63 1674 5.76 3.63 0.63 1720 5.52 3.48 0.63 1792 31 24 6.43 3.28 0.51 1647 6.19 3.16 0.51 1738 6.05 3.08 0.51 1792 5.86 2.99 0.51 1882 31 26 6.62 2.58 0.39 1738 6.43 2.51 0.39 1828 6.34 2.47 0.39 1882 6.14 2.40 0.39 1937 32 18 5.64 5.13 0.91 1448 5.40 4.91 0.91 1520 5.18 4.72 0.91 1593 4.99 4.54 0.91 1665 32 20 5.88 4.65 0.79 1520 5.64 4.46 0.79 1611 5.47 4.32 0.79 1647 5.28 4.17 0.79 1720 32 22 6.12 4.10 0.67 1575 5.90 3.96 0.67 1674 5.76 3.86 0.67 1720 5.52 3.70 0.67 1792 32 24 6.43 3.54 0.55 1647 6.19 3.41 0.55 1738 6.05 3.33 0.55 1792 5.86 3.22 0.55 1882 32 26 6.62 2.85 0.43 1738 6.43 2.77 0.43 1828 6.34 2.72 0.43 1882 6.14 2.64 0.43 1937

CAPACITY :4.8(kW) SHF :0.65 INPUT :1810(W)

OUTDOOR DB(:)

INDOOR INDOOR

21 25 27 30

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA50VB : MUCF-GA50VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

PERFORMANCE DATA COOL operation(230V)

21 18 4.70 2.21 0.47 1774 4.32 2.03 0.47 1882 4.15 1.95 0.47 1919 21 20 4.94 1.73 0.35 1846 4.61 1.61 0.35 1937 4.44 1.55 0.35 1991 22 18 4.70 2.40 0.51 1774 4.32 2.20 0.51 1882 4.15 2.12 0.51 1919 22 20 4.94 1.93 0.39 1846 4.61 1.80 0.39 1937 4.44 1.73 0.39 1991 22 22 5.23 1.41 0.27 1919 4.90 1.32 0.27 2027 4.73 1.28 0.27 2063 23 18 4.70 2.59 0.55 1774 4.32 2.38 0.55 1882 4.15 2.28 0.55 1919 23 20 4.94 2.13 0.43 1846 4.61 1.98 0.43 1937 4.44 1.91 0.43 1991 23 22 5.23 1.62 0.31 1919 4.90 1.52 0.31 2027 4.73 1.47 0.31 2063 24 18 4.70 2.78 0.59 1774 4.32 2.55 0.59 1882 4.15 2.45 0.59 1919 24 20 4.94 2.32 0.47 1846 4.61 2.17 0.47 1937 4.44 2.09 0.47 1991 24 22 5.23 1.83 0.35 1919 4.90 1.71 0.35 2027 4.73 1.65 0.35 2063 24 24 5.52 1.27 0.23 1991 5.18 1.19 0.23 2082 5.04 1.16 0.23 2127 25 18 4.70 2.96 0.63 1774 4.32 2.72 0.63 1882 4.15 2.62 0.63 1919 25 20 4.94 2.52 0.51 1846 4.61 2.35 0.51 1937 4.44 2.26 0.51 1991 25 22 5.23 2.04 0.39 1919 4.90 1.91 0.39 2027 4.73 1.84 0.39 2063 25 24 5.52 1.49 0.27 1991 5.18 1.40 0.27 2082 5.04 1.36 0.27 2127 26 18 4.70 3.15 0.67 1774 4.32 2.89 0.67 1882 4.15 2.78 0.67 1919 26 20 4.94 2.72 0.55 1846 4.61 2.53 0.55 1937 4.44 2.44 0.55 1991 26 22 5.23 2.25 0.43 1919 4.90 2.11 0.43 2027 4.73 2.03 0.43 2063 26 24 5.52 1.71 0.31 1991 5.18 1.61 0.31 2082 5.04 1.56 0.31 2127 26 26 5.81 1.10 0.19 2063 5.47 1.04 0.19 2154 5.30 1.01 0.19 2199 27 18 4.70 3.34 0.71 1774 4.32 3.07 0.71 1882 4.15 2.95 0.71 1919 27 20 4.94 2.92 0.59 1846 4.61 2.72 0.59 1937 4.44 2.62 0.59 1991 27 22 5.23 2.46 0.47 1919 4.90 2.30 0.47 2027 4.73 2.22 0.47 2063 27 24 5.52 1.93 0.35 1991 5.18 1.81 0.35 2082 5.04 1.76 0.35 2127 27 26 5.81 1.34 0.23 2063 5.47 1.26 0.23 2154 5.30 1.22 0.23 2199 28 18 4.70 3.53 0.75 1774 4.32 3.24 0.75 1882 4.15 3.11 0.75 1919 28 20 4.94 3.11 0.63 1846 4.61 2.90 0.63 1937 4.44 2.80 0.63 1991 28 22 5.23 2.67 0.51 1919 4.90 2.50 0.51 2027 4.73 2.41 0.51 2063 28 24 5.52 2.15 0.39 1991 5.18 2.02 0.39 2082 5.04 1.97 0.39 2127 28 26 5.81 1.57 0.27 2063 5.47 1.48 0.27 2154 5.30 1.43 0.27 2199 29 18 4.70 3.72 0.79 1774 4.32 3.41 0.79 1882 4.15 3.28 0.79 1919 29 20 4.94 3.31 0.67 1846 4.61 3.09 0.67 1937 4.44 2.97 0.67 1991 29 22 5.23 2.88 0.55 1919 4.90 2.69 0.55 2027 4.73 2.60 0.55 2063 29 24 5.52 2.37 0.43 1991 5.18 2.23 0.43 2082 5.04 2.17 0.43 2127 29 26 5.81 1.80 0.31 2063 5.47 1.70 0.31 2154 5.30 1.64 0.31 2199 30 18 4.70 3.90 0.83 1774 4.32 3.59 0.83 1882 4.15 3.45 0.83 1919 30 20 4.94 3.51 0.71 1846 4.61 3.27 0.71 1937 4.44 3.15 0.71 1991 30 22 5.23 3.09 0.59 1919 4.90 2.89 0.59 2027 4.73 2.79 0.59 2063 30 24 5.52 2.59 0.47 1991 5.18 2.44 0.47 2082 5.04 2.37 0.47 2127 30 26 5.81 2.03 0.35 2063 5.47 1.92 0.35 2154 5.30 1.86 0.35 2199 31 18 4.70 4.09 0.87 1774 4.32 3.76 0.87 1882 4.15 3.61 0.87 1919 31 20 4.94 3.71 0.75 1846 4.61 3.46 0.75 1937 4.44 3.33 0.75 1991 31 22 5.23 3.30 0.63 1919 4.90 3.08 0.63 2027 4.73 2.98 0.63 2063 31 24 5.52 2.82 0.51 1991 5.18 2.64 0.51 2082 5.04 2.57 0.51 2127 31 26 5.81 2.27 0.39 2063 5.47 2.13 0.39 2154 5.30 2.07 0.39 2199 32 18 4.70 4.28 0.91 1774 4.32 3.93 0.91 1882 4.15 3.78 0.91 1919 32 20 4.94 3.91 0.79 1846 4.61 3.64 0.79 1937 4.44 3.51 0.79 1991 32 22 5.23 3.51 0.67 1919 4.90 3.28 0.67 2027 4.73 3.17 0.67 2063 32 24 5.52 3.04 0.55 1991 5.18 2.85 0.55 2082 5.04 2.77 0.55 2127 32 26 5.81 2.50 0.43 2063 5.47 2.35 0.43 2154 5.30 2.28 0.43 2199

CAPACITY :4.8(kW) SHF :0.65 INPUT :1810(W)

OUTDOOR DB(:)

INDOOR INDOOR

35 40 43

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA50VB : MUCF-GA50VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

PERFORMANCE DATA COOL operation(230V)

21 18 7.05 3.24 0.46 1960 6.75 3.11 0.46 2058 6.48 2.98 0.46 2156 6.24 2.87 0.46 2254 21 20 7.35 2.50 0.34 2058 7.05 2.40 0.34 2181 6.84 2.33 0.34 2230 6.60 2.24 0.34 2328 22 18 7.05 3.53 0.50 1960 6.75 3.38 0.50 2058 6.48 3.24 0.50 2156 6.24 3.12 0.50 2254 22 20 7.35 2.79 0.38 2058 7.05 2.68 0.38 2181 6.84 2.60 0.38 2230 6.60 2.51 0.38 2328 22 22 7.65 1.99 0.26 2132 7.38 1.92 0.26 2266 7.20 1.87 0.26 2328 6.90 1.79 0.26 2426 23 18 7.05 3.81 0.54 1960 6.75 3.65 0.54 2058 6.48 3.50 0.54 2156 6.24 3.37 0.54 2254 23 20 7.35 3.09 0.42 2058 7.05 2.96 0.42 2181 6.84 2.87 0.42 2230 6.60 2.77 0.42 2328 23 22 7.65 2.30 0.30 2132 7.38 2.21 0.30 2266 7.20 2.16 0.30 2328 6.90 2.07 0.30 2426 24 18 7.05 4.09 0.58 1960 6.75 3.92 0.58 2058 6.48 3.76 0.58 2156 6.24 3.62 0.58 2254 24 20 7.35 3.38 0.46 2058 7.05 3.24 0.46 2181 6.84 3.15 0.46 2230 6.60 3.04 0.46 2328 24 22 7.65 2.60 0.34 2132 7.38 2.51 0.34 2266 7.20 2.45 0.34 2328 6.90 2.35 0.34 2426 24 24 8.04 1.77 0.22 2230 7.74 1.70 0.22 2352 7.56 1.66 0.22 2426 7.32 1.61 0.22 2548 25 18 7.05 4.37 0.62 1960 6.75 4.19 0.62 2058 6.48 4.02 0.62 2156 6.24 3.87 0.62 2254 25 20 7.35 3.68 0.50 2058 7.05 3.53 0.50 2181 6.84 3.42 0.50 2230 6.60 3.30 0.50 2328 25 22 7.65 2.91 0.38 2132 7.38 2.80 0.38 2266 7.20 2.74 0.38 2328 6.90 2.62 0.38 2426 25 24 8.04 2.09 0.26 2230 7.74 2.01 0.26 2352 7.56 1.97 0.26 2426 7.32 1.90 0.26 2548 26 18 7.05 4.65 0.66 1960 6.75 4.46 0.66 2058 6.48 4.28 0.66 2156 6.24 4.12 0.66 2254 26 20 7.35 3.97 0.54 2058 7.05 3.81 0.54 2181 6.84 3.69 0.54 2230 6.60 3.56 0.54 2328 26 22 7.65 3.21 0.42 2132 7.38 3.10 0.42 2266 7.20 3.02 0.42 2328 6.90 2.90 0.42 2426 26 24 8.04 2.41 0.30 2230 7.74 2.32 0.30 2352 7.56 2.27 0.30 2426 7.32 2.20 0.30 2548 26 26 8.28 1.49 0.18 2352 8.04 1.45 0.18 2475 7.92 1.43 0.18 2548 7.68 1.38 0.18 2622 27 18 7.05 4.94 0.70 1960 6.75 4.73 0.70 2058 6.48 4.54 0.70 2156 6.24 4.37 0.70 2254 27 20 7.35 4.26 0.58 2058 7.05 4.09 0.58 2181 6.84 3.97 0.58 2230 6.60 3.83 0.58 2328 27 22 7.65 3.52 0.46 2132 7.38 3.39 0.46 2266 7.20 3.31 0.46 2328 6.90 3.17 0.46 2426 27 24 8.04 2.73 0.34 2230 7.74 2.63 0.34 2352 7.56 2.57 0.34 2426 7.32 2.49 0.34 2548 27 26 8.28 1.82 0.22 2352 8.04 1.77 0.22 2475 7.92 1.74 0.22 2548 7.68 1.69 0.22 2622 28 18 7.05 5.22 0.74 1960 6.75 5.00 0.74 2058 6.48 4.80 0.74 2156 6.24 4.62 0.74 2254 28 20 7.35 4.56 0.62 2058 7.05 4.37 0.62 2181 6.84 4.24 0.62 2230 6.60 4.09 0.62 2328 28 22 7.65 3.83 0.50 2132 7.38 3.69 0.50 2266 7.20 3.60 0.50 2328 6.90 3.45 0.50 2426 28 24 8.04 3.06 0.38 2230 7.74 2.94 0.38 2352 7.56 2.87 0.38 2426 7.32 2.78 0.38 2548 28 26 8.28 2.15 0.26 2352 8.04 2.09 0.26 2475 7.92 2.06 0.26 2548 7.68 2.00 0.26 2622 29 18 7.05 5.50 0.78 1960 6.75 5.27 0.78 2058 6.48 5.05 0.78 2156 6.24 4.87 0.78 2254 29 20 7.35 4.85 0.66 2058 7.05 4.65 0.66 2181 6.84 4.51 0.66 2230 6.60 4.36 0.66 2328 29 22 7.65 4.13 0.54 2132 7.38 3.99 0.54 2266 7.20 3.89 0.54 2328 6.90 3.73 0.54 2426 29 24 8.04 3.38 0.42 2230 7.74 3.25 0.42 2352 7.56 3.18 0.42 2426 7.32 3.07 0.42 2548 29 26 8.28 2.48 0.30 2352 8.04 2.41 0.30 2475 7.92 2.38 0.30 2548 7.68 2.30 0.30 2622 30 18 7.05 5.78 0.82 1960 6.75 5.54 0.82 2058 6.48 5.31 0.82 2156 6.24 5.12 0.82 2254 30 20 7.35 5.15 0.70 2058 7.05 4.94 0.70 2181 6.84 4.79 0.70 2230 6.60 4.62 0.70 2328 30 22 7.65 4.44 0.58 2132 7.38 4.28 0.58 2266 7.20 4.18 0.58 2328 6.90 4.00 0.58 2426 30 24 8.04 3.70 0.46 2230 7.74 3.56 0.46 2352 7.56 3.48 0.46 2426 7.32 3.37 0.46 2548 30 26 8.28 2.82 0.34 2352 8.04 2.73 0.34 2475 7.92 2.69 0.34 2548 7.68 2.61 0.34 2622 31 18 7.05 6.06 0.86 1960 6.75 5.81 0.86 2058 6.48 5.57 0.86 2156 6.24 5.37 0.86 2254 31 20 7.35 5.44 0.74 2058 7.05 5.22 0.74 2181 6.84 5.06 0.74 2230 6.60 4.88 0.74 2328 31 22 7.65 4.74 0.62 2132 7.38 4.58 0.62 2266 7.20 4.46 0.62 2328 6.90 4.28 0.62 2426 31 24 8.04 4.02 0.50 2230 7.74 3.87 0.50 2352 7.56 3.78 0.50 2426 7.32 3.66 0.50 2548 31 26 8.28 3.15 0.38 2352 8.04 3.06 0.38 2475 7.92 3.01 0.38 2548 7.68 2.92 0.38 2622 32 18 7.05 6.35 0.90 1960 6.75 6.08 0.90 2058 6.48 5.83 0.90 2156 6.24 5.62 0.90 2254 32 20 7.35 5.73 0.78 2058 7.05 5.50 0.78 2181 6.84 5.34 0.78 2230 6.60 5.15 0.78 2328 32 22 7.65 5.05 0.66 2132 7.38 4.87 0.66 2266 7.20 4.75 0.66 2328 6.90 4.55 0.66 2426 32 24 8.04 4.34 0.54 2230 7.74 4.18 0.54 2352 7.56 4.08 0.54 2426 7.32 3.95 0.54 2548 32 26 8.28 3.48 0.42 2352 8.04 3.38 0.42 2475 7.92 3.33 0.42 2548 7.68 3.23 0.42 2622

CAPACITY :6.0(kW) SHF :0.64 INPUT :2450(W)

OUTDOOR DB(:)

INDOOR INDOOR

21 25 27 30

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA60VB : MUCF-GA60VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

PERFORMANCE DATA COOL operation(230V)

21 18 5.88 2.70 0.46 2401 5.40 2.48 0.46 2548 5.19 2.39 0.46 2597 21 20 6.18 2.10 0.34 2499 5.76 1.96 0.34 2622 5.55 1.89 0.34 2695 22 18 5.88 2.94 0.50 2401 5.40 2.70 0.50 2548 5.19 2.60 0.50 2597 22 20 6.18 2.35 0.38 2499 5.76 2.19 0.38 2622 5.55 2.11 0.38 2695 22 22 6.54 1.70 0.26 2597 6.12 1.59 0.26 2744 5.91 1.54 0.26 2793 23 18 5.88 3.18 0.54 2401 5.40 2.92 0.54 2548 5.19 2.80 0.54 2597 23 20 6.18 2.60 0.42 2499 5.76 2.42 0.42 2622 5.55 2.33 0.42 2695 23 22 6.54 1.96 0.30 2597 6.12 1.84 0.30 2744 5.91 1.77 0.30 2793 24 18 5.88 3.41 0.58 2401 5.40 3.13 0.58 2548 5.19 3.01 0.58 2597 24 20 6.18 2.84 0.46 2499 5.76 2.65 0.46 2622 5.55 2.55 0.46 2695 24 22 6.54 2.22 0.34 2597 6.12 2.08 0.34 2744 5.91 2.01 0.34 2793 24 24 6.90 1.52 0.22 2695 6.48 1.43 0.22 2818 6.30 1.39 0.22 2879 25 18 5.88 3.65 0.62 2401 5.40 3.35 0.62 2548 5.19 3.22 0.62 2597 25 20 6.18 3.09 0.50 2499 5.76 2.88 0.50 2622 5.55 2.78 0.50 2695 25 22 6.54 2.49 0.38 2597 6.12 2.33 0.38 2744 5.91 2.25 0.38 2793 25 24 6.90 1.79 0.26 2695 6.48 1.68 0.26 2818 6.30 1.64 0.26 2879 26 18 5.88 3.88 0.66 2401 5.40 3.56 0.66 2548 5.19 3.43 0.66 2597 26 20 6.18 3.34 0.54 2499 5.76 3.11 0.54 2622 5.55 3.00 0.54 2695 26 22 6.54 2.75 0.42 2597 6.12 2.57 0.42 2744 5.91 2.48 0.42 2793 26 24 6.90 2.07 0.30 2695 6.48 1.94 0.30 2818 6.30 1.89 0.30 2879 26 26 7.26 1.31 0.18 2793 6.84 1.23 0.18 2916 6.63 1.19 0.18 2977 27 18 5.88 4.12 0.70 2401 5.40 3.78 0.70 2548 5.19 3.63 0.70 2597 27 20 6.18 3.58 0.58 2499 5.76 3.34 0.58 2622 5.55 3.22 0.58 2695 27 22 6.54 3.01 0.46 2597 6.12 2.82 0.46 2744 5.91 2.72 0.46 2793 27 24 6.90 2.35 0.34 2695 6.48 2.20 0.34 2818 6.30 2.14 0.34 2879 27 26 7.26 1.60 0.22 2793 6.84 1.50 0.22 2916 6.63 1.46 0.22 2977 28 18 5.88 4.35 0.74 2401 5.40 4.00 0.74 2548 5.19 3.84 0.74 2597 28 20 6.18 3.83 0.62 2499 5.76 3.57 0.62 2622 5.55 3.44 0.62 2695 28 22 6.54 3.27 0.50 2597 6.12 3.06 0.50 2744 5.91 2.96 0.50 2793 28 24 6.90 2.62 0.38 2695 6.48 2.46 0.38 2818 6.30 2.39 0.38 2879 28 26 7.26 1.89 0.26 2793 6.84 1.78 0.26 2916 6.63 1.72 0.26 2977 29 18 5.88 4.59 0.78 2401 5.40 4.21 0.78 2548 5.19 4.05 0.78 2597 29 20 6.18 4.08 0.66 2499 5.76 3.80 0.66 2622 5.55 3.66 0.66 2695 29 22 6.54 3.53 0.54 2597 6.12 3.30 0.54 2744 5.91 3.19 0.54 2793 29 24 6.90 2.90 0.42 2695 6.48 2.72 0.42 2818 6.30 2.65 0.42 2879 29 26 7.26 2.18 0.30 2793 6.84 2.05 0.30 2916 6.63 1.99 0.30 2977 30 18 5.88 4.82 0.82 2401 5.40 4.43 0.82 2548 5.19 4.26 0.82 2597 30 20 6.18 4.33 0.70 2499 5.76 4.03 0.70 2622 5.55 3.89 0.70 2695 30 22 6.54 3.79 0.58 2597 6.12 3.55 0.58 2744 5.91 3.43 0.58 2793 30 24 6.90 3.17 0.46 2695 6.48 2.98 0.46 2818 6.30 2.90 0.46 2879 30 26 7.26 2.47 0.34 2793 6.84 2.33 0.34 2916 6.63 2.25 0.34 2977 31 18 5.88 5.06 0.86 2401 5.40 4.64 0.86 2548 5.19 4.46 0.86 2597 31 20 6.18 4.57 0.74 2499 5.76 4.26 0.74 2622 5.55 4.11 0.74 2695 31 22 6.54 4.05 0.62 2597 6.12 3.79 0.62 2744 5.91 3.66 0.62 2793 31 24 6.90 3.45 0.50 2695 6.48 3.24 0.50 2818 6.30 3.15 0.50 2879 31 26 7.26 2.76 0.38 2793 6.84 2.60 0.38 2916 6.63 2.52 0.38 2977 32 18 5.88 5.29 0.90 2401 5.40 4.86 0.90 2548 5.19 4.67 0.90 2597 32 20 6.18 4.82 0.78 2499 5.76 4.49 0.78 2622 5.55 4.33 0.78 2695 32 22 6.54 4.32 0.66 2597 6.12 4.04 0.66 2744 5.91 3.90 0.66 2793 32 24 6.90 3.73 0.54 2695 6.48 3.50 0.54 2818 6.30 3.40 0.54 2879 32 26 7.26 3.05 0.42 2793 6.84 2.87 0.42 2916 6.63 2.78 0.42 2977

CAPACITY :6.0(kW) SHF :0.64 INPUT :2450(W)

OUTDOOR DB(:)

INDOOR INDOOR

35 40 43

DB(:)WB(:)

Q SHC SHF INPUT Q SHC SHF INPUT Q SHC SHF INPUT

MCF-GA60VB : MUCF-GA60VB

NOTE Q : Total capacity (kW) SHF : Sensible heat factor DB : Dry-bulb temperature

SHC : Sensible heat capacity (kW) INPUT : Total power input (W) WB : Wet-bulb temperature

Start

Indoor unit operates. Outdoor unit doesn't operate.

Indoor unit doesn't receive the signal from remote controller.

OPERATION INDICATOR lamp on the indoor unit is flashing on and off.

Outdoor unit operates only in Test Run operation.w1

Outdoor unit doesn't operate even in Test Run operation.w1

Indoor unit operates when the EMERGENCY OPERATION switch is pressed.

Indoor unit doesn't operate when the EMERGENCY OPERATION switch is pressed.

Check room temperature thermistor. Refer to "Test point diagram and voltage".

Check of wiring diagram of outdoor unit on page 8.w2

Refer to "Check of remote controller and receiver P.C. board".

Refer to "Check of indoor electronic control P.C. board".

2-time flash Cause: Indoor unit

• Trouble of room temperature/ indoor coil thermistor

Check room tempreture thermistor and indoor coil thermistor. Refer to "Test point diagram and voltage".

When the remote controller is pressed or when the EMERGENCY OPERATION switch is pressed, the fan doesn't rotate, with OPERATION INDICATOR lamp on.

Refer to "Check of indoor fan motor".

Refer to indoor unit service manual.

w2 Before checking the outdoor unit, make sure if any signal or power is being transmitted from the indoor unit.

4-time flash Cause: Indoor unit

• Trouble of indoor unit control system

Replace the indoor electronic control P.C. board.

w1 "Test Run operation" means the operation within 30 minutes after EMERGENCY OPERATION switch is pressed.

TROUBLESHOOTING

MUCF-GA35VB MUCF-GA50VB MUCF-GA60VB

9-1. Cautions on troubleshooting

1. Before troubleshooting, check the following:

(1) Check the power supply voltage. (2) Check the indoor/outdoor connecting wire for mis-wiring.

2. Take care the following during servicing.

(1) Before servicing the air conditioner, be sure to turn OFF the main unit first with the remote controller, and then after con-

firming the horizontal vane is closed, turn OFF the breaker and / or disconnect the power plug.

(2) Be sure to turn OFF the power supply before removing the front panel, the cabinet, the top panel, and the electronic

control P.C. board.

(3) When removing the electronic control P.C. board, hold the edge of the board with care NOT to apply stress on the com-

ponents.

(4) When connecting or disconnecting the connectors, hold the housing of the connector. DO NOT pull the lead wires.

3. Troubleshooting procedure

(1) First, check if the OPERATION INDICATOR lamp on the indoor unit is flashing on and off to indicate an abnormality. To

make sure, check how many times the abnormality indication is flashing on and off before starting service work. (2)Before servicing that the connector and terminal are connected properly. (3) If the electronic control P.C. board is supposed to be defective, check the copper foil pattern for disconnection and the

components for bursting and discoloration. (4) When troubleshooting, refer to the flow chart on this page.

9-2. Instruction of troubleshooting

9-3. Trouble criterion of main parts

Part name FigureCheck method and criterion

Measure the resistance between the terminals with a tester. (Part temperature –10˚C ~ 40˚C)

MUCF-GA35VB

MUCF-GA50/GA60VB

Compressor (MC) INNER PROTECTOR

MUCF-GA35VB

155i 5: OPEN

90i 10: CLOSE

MUCF-GA50/GA60VB

160i 5: OPEN 90i10: CLOSE

Normal

MUCF-GA50VB

Terminal

C – R C – S

1.59 " ~ 1.95 "

2.65 " ~ 3.24 "

MUCF-GA35VB

2.46 " ~ 3.01 "

2.96 " ~ 3.63 "

MUCF-GA60VB

0.71 " ~ 0.87 "

1.45 " ~ 1.77 "

Abnormal

Open or

short-circuit

w Reference value

MUCF-GA50VB MUCF-GA60VB

Measure the resistance between the terminals with a tester. (Part temperature –10˚C ~ 40˚C)

Color of

lead wire WHT – BLK BLK – RED

Open or

short-circuit

70 " ~ 86 "

74 " ~ 89 "

MUCF-GA35VB

191 " ~ 231 " 272 " ~ 330 "

62 " ~ 77 " 78 " ~ 96 "

Normal

Abnormal

Outdoor fan motor(MF) INNER FUSE

MUCF-GA35VB

145i 2: CUT OFF INNER PROTECTOR

MUCF-GA50VB

135i 5: OPEN ( 87i15: CLOSE

)

MUCF-GA60VB

130i 5: OPEN ( 83i15: CLOSE

)

WHTRED

BLK

MAIN

AUX.

FUSE

BLK

MAIN

AUX

RED

WHT

MAIN

AUX

BLK

RED

WHTORN

:INNER PROTECTOR

MUCF-GA35VB MUCF-GA50VB MUCF-GA60VB

DISASSEMBLY INSTRUCTIONS

<"Terminal with locking mechanism" Detaching points>

The terminal which has the locking mechanism can be detached as shown below. There are two types ( Refer to (1) and (2)) of the terminal with locking mechanism. The terminal without locking mechanism can be detached by pulling it out. Check the shape of the terminal before detaching.

(1) Slide the sleeve and check if there is a locking lever or not.

Sleeve

1Slide the sleeve. 2Pull the terminal while

Locking lever

pushing the locking lever.

10-1. MUCF-GA35VB

OPERATING PROCEDURE

1. Removing the cabinet

(1) Remove the screws of the top panel. (2) Remove the screw of the service panel. (3) Remove the screws of the cabinet. (4) Remove the screws of the front panel and motor support. (5) Remove the service panel, and remove the screw from

the insides. (6) Remove the top panel. (7) Remove the cabinet.

Photo 3

Screws of the service panel

Screws of the top panel

(2) The terminal with this connector has the locking mechanism.

1Hold the sleeve, and pull out the terminal slowly.

Connector

PHOTOS

Photo 1

Screws of the front panel and motor support

Screws of the cabinet

Service panel

Photo 2

Screws of the top panel

Screws of the cabinet

OPERATING PROCEDURE PHOTOS

2. Removing the electrical parts

(1) Remove the service panel and the cabinet.(Refer to 1.) (2) Remove the following parts.

• Compressor capacitor (C1)

• Outdoor fan capacitor (C2)

• Terminal block

3. Removing the propeller and the outdoor fan motor

(1) Remove the cabinet. (Refer to 1.) (2) Remove the propeller nut. (3) Remove the propeller.

NOTE : Loose the propeller in the rotating direction for

removal.

When attaching the propeller, align the mark on the propeller and the motor shaft cut section. Set the propeller in position by using the cut on the shaft and the mark on the propeller.

(4) Remove lead clamps and disconnect the outdoor fan motor

connector. (5) Remove screws fixing the fan motor. (6) Remove the outdoor fan motor.

Photo 4

Relay panel

Screw

Photo 5

Screws of the outdoor fan motor

Propeller nut

Compressor capacitor

Contractor

Outdoor fan capacitor

Hook

Screws

Terminal block

Lead clamps

Outdoor fan motor connector

Propeller

Screws of the outdoor fan motor

Outdoor

fan motor

OPERATING PROCEDURE

PHOTOS

4. Removing the compressor

(1) Remove the cabinet. (Refer to 1.) (2) Remove the relay panel. (3) Remove the soundproof felt. (4) Remove the terminal cover on the compressor. (5) Disconnect lead wires from the glass terminal of the com-

pressor.

(6) Recover gas from the refrigerant circuit.

NOTE : Recover gas from the pipes until the pressure gauge

shows 0 kg/cm (7) Disconnect the welded part of the discharge pipe. (8) Disconnect the welded part of the suction pipe. (9) Remove nuts fixing the compressor.

)

(

Remove the compressor.

(0MPa).

Photo 6

Glass terminal

Compressor

Discharge pipe

Compressor nuts

Suction pipe

Terminal cover

10-2. MUCF-GA50VB

OPERATING PROCEDURE

1. Removing the cabinet

(1) Remove the screws of the cabinet. (2) Hold the bottom of the cabinet on both sides and remove

the cabinet.

Photo 2

Screws of the cabinet

2. Removing the electrical parts

(1) Remove the service panel and the cabinet. (2) Remove the following parts.

•Compressor capacitor (C1)

•Outdoor fan capacitor (C2)

•Terminal block (TB1, TB2)

•Compressor contactor (52C)

Photo 1

Service panel

Photo 3

PHOTOS

Outdoor fan capacitor(C2)

Connector

Screws of the cabinet

Compressor contactor(52C)

Compressor capacitor(C1)

Terminal blocks (TB1, TB2)

OPERATING PROCEDURE

PHOTOS

3. Removing the outdoor fan motor

(1) Remove the cabinet. (Refer to 1.) (2) Disconnect the connector and remove the hooked lead

wire from the fan motor. (3) Remove the propeller nut and remove the propeller. (4) Remove screws fixing the outdoor fan motor. (5) Remove the outdoor fan motor.

4. Removing the compressor

pressor.

(6) Recover gas from the refrigerant circuit.

NOTE : Recover gas from the pipes until the pressure gauge

shows 0 kg/cm (7) Disconnect the welded part of the discharge pipe. (8) Disconnect the welded part of the suction pipe. (9) Remove nuts fixing the compressor.

)

(

Remove the compressor.

(0MPa).

Photo 4

Propeller

Photo 5

Discharge pipe

Hook

Propeller nut

Soundproof felt

Compressor

Suction pipe

Compressor nuts

10-3. MUCF-GA60VB

OPERATING PROCEDURE

1. Removing the cabinet

(1) Remove the screws of the cabinet. (2) Hold the bottom of the cabinet on the both side to remove

the cabinet.

PHOTOS

Photo 1

Screws

Service panel

Photo 2

2. Removing the electrical parts

(1) Remove the cabinet . (Refer to 1.) (2) Remove the following parts.

•Compressor capacitor (C1)

•Outdoor fan capacitor (C2)

•Terminal block(TB1, TB2)

•Relay (X1)

•Compressor contactor (52C)

Screws

Photo 3

Compressor capacitor (C1)

Outdoor fan capacitor (C2)

Connector

Compressor contactor (52C)

Relay (X1)

Terminal blocks (TB1, TB2)

OPERATING PROCEDURE

PHOTOS

3. Removing the outdoor fan motor

(1) Remove the cabinet. (Refer to 1.) (2) Disconnect the connector and remove the hocked lead

wire from the fan motor. (3) Remove the propeller nut and remove the propeller. (4) Remove the screws fixing the fan motor. (5) Remove the outdoor fan motor.

4. Removing the compressor

(1) Remove the cabinet. (Refer to 1.) (2) Remove the relay panel. (3) Remove the soundproof felt. (4) Remove the terminal cover on the compressor. (5) Disconnect the lead wires from the glass terminal of the

compressor.

(6) Recover gas from the refrigerant circuit.

NOTE : Recover gas from the pipes until the pressure gauge

shows 0 kg/cm (7) Disconnect the welded part of the discharge pipe. (8) Disconnect the welded part of the suction pipe. (9) Remove nuts fixing the compressor.

)

(

Remove the compressor.

(0MPa).

Photo 4

Propeller

Photo 5

Discharge pipe

Hook

Propeller nut

Suction pipe

Compressor

Compressor nuts

No.

Part No.

Part name

Remarks

Symbol

in Wiring

Diagram

Q'ty/unit

1 2 3 4 5 6 7 8

9 10 11 12 13

E02 832 630 E02 815 232 E02 815 521 E02 754 900 E02 075 506 E02 832 290 E02 910 661 E02 910 662 E02 815 245 E02 835 233 E02 336 515 E02 815 297 E02 441 936

OUTDOOR HEAT EXCHANGER CABINET GRILLE(OUT) COMPRESSOR COMPRESSOR RUBBER SET BASE STOP VALVE(GAS) STOP VALVE(LIQUID) SERVICE PANEL BACK PANEL MOTOR SUPPORT TOP PANEL CAPILLARY TUBE

RN135VHSHT 3RUBBERS/SET

{12.7 {6.35

{3.0x{1.4x550

1 1 1 1 3 1 1 1 1 1 1 1 1

MUCF-GA35VB-

PARTS LIST (non-RoHS compliant)

MUCF-GA35VB

11-1. OUTDOOR UNIT STRUCTURAL PARTS

Part number that is circled is not shown in the illustration.

1 2 3 4 5 6 7 8

E02 665 501 E02 677 301 E02 900 351 E02 696 353 E02 817 374 E02 832 374 E02 466 340 E02 890 383

PROPELLER OUTDOOR FAN MOTOR OUTDOOR FAN CAPACITOR COMPRESSOR CAPACITOR TERMINAL BLOCK TERMINAL BLOCK COMPRESSOR CONTACTOR SURGE ABSORBER

RA6V33-

2.0+ /440V AC 30+ /440V AC 3P 2P

C1 TB1 TB2

52C

DSAR

1 1 1 1 1 1 1 1

No.

Part No.

Part name

Remarks

Symbol

in Wiring

Diagram

Q'ty/unit

MUCF-GA35VB- E1

PARTS LIST (non-RoHS compliant)

MUCF-GA35VB 11-2. OUTDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS

Part numbers that are circled are not shown in the illustration.

MUCF-GA50VB-

MUCF-GA60VB-

Symbol

in Wiring

Diagram

Q'ty/unit

Remarks

Part No. Part Name

No.

E02 817 233 E02 817 232 E02 817 521 E02 141 501 E02 139 515 E02 075 506 E02 527 506 E02 817 900 E02 821 900 E02 817 290 E02 818 290 E02 817 661 E02 818 661 E02 817 662 E02 817 245 E02 816 301 E02 818 301 E02 817 630 E02 818 630 E02 895 383 E02 818 374 E02 817 374 E02 895 351 E02 888 353 E02 889 353 E07 012 340 E02 817 009 E02 746 937 E02 825 936 E02 820 936 E02 466 340 E02 466 340

1 2 3 4 5

13 14

15 16 17

18 19

22 23

BACK PANEL(OUT) CABINET GRILLE(OUT) PROPELLER MOTOR SUPPORT COMPRESSOR RUBBER SET COMPRESSOR RUBBER SET COMPRESSOR COMPRESSOR BASE BASE STOP VALVE(GAS) STOP VALVE(GAS) STOP VALVE(LIQUID) SERVICE PANEL OUTDOOR FAN MOTOR OUTDOOR FAN MOTOR OUTDOOR HEAT EXCHANGER OUTDOOR HEAT EXCHANGER SURGE ABSORBER TERMINAL BLOCK TERMINAL BLOCK OUTDOOR FAN CAPACITOR COMPRESSOR CAPACITOR COMPRESSOR CAPACITOR COMPRESSOR CONTACTOR HANDLE CAPILLARY TUBE CAPILLARY TUBE CAPILLARY TUBE COMPRESSOR CONTACTOR RELAY

1 1 1 1 1 3

1 1 1

1 1 1 1 1

1 1

1 1 1 1 1

1 1 1

1 1 1 1 1

1 1 1

3RUBBERS/SET 4RUBBERS/SET RN196VHSHT NN29VBAHT

{12.7 {15.88 { 6.35

RA6V50 RA6V60 -

2P 3P

3.0+/440V AC 40+/440V AC 55+/440V AC

{3.0o{1.6o650 {3.0o{2.0o1000 {2.5o{0.6o1000

MC MC

MF MF

DSAR

TB2 TB1

C2 C1 C1

52C

PARTS LIST (non-RoHS compliant)

MUCF-GA50VB MUCF-GA60VB 11-3. OUTDOOR UNIT STRUCTURAL PARTS, ELECTRICAL PARTS AND FUNCTIONAL PARTS

Part numbers that are circled are not shown in the illustration.

17 16

15 14 13

12 11

No.

Part No.

Part name

Remarks

Symbol

in Wiring

Diagram

Q'ty/unit

1 2 3 4 5 6 7 8

9 10 11 12 13

RoHS

G G G G G G G G G G G G G

E12 832 630 E12 815 232 E12 815 521 E12 754 900 E12 075 506 E12 832 290 E12 910 661 E12 910 662 E12 815 245 E12 835 233 E12 336 515 E12 815 297 E12 441 936

OUTDOOR HEAT EXCHANGER CABINET GRILLE(OUT) COMPRESSOR COMPRESSOR RUBBER SET BASE STOP VALVE(GAS) STOP VALVE(LIQUID) SERVICE PANEL BACK PANEL MOTOR SUPPORT TOP PANEL CAPILLARY TUBE

RN135VHSHT 3RUBBERS/SET

{12.7 {6.35

{3.0x{1.4x550

1 1 1 1 3 1 1 1 1 1 1 1 1

MUCF-GA35VB-

RoHS PARTS LIST (RoHS compliant)

MUCF-GA35VB

12-1. OUTDOOR UNIT STRUCTURAL PARTS

Part number that is circled is not shown in the illustration.

RoHS PARTS LIST (RoHS compliant)

MUCF-GA35VB

12-2. OUTDOOR UNIT ELECTRICAL PARTS AND FUNCTIONAL PARTS

Part numbers that are circled are not shown in the illustration.

No.

1 2 3 4 5 6 7 8

Part No.

RoHS

E12 665 501

E12 677 301

E12 900 351

E12 900 353

E12 817 374

E12 832 374

E12 466 340

E12 890 383

Part name

PROPELLER OUTDOOR FAN MOTOR OUTDOOR FAN CAPACITOR COMPRESSOR CAPACITOR TERMINAL BLOCK TERMINAL BLOCK COMPRESSOR CONTACTOR SURGE ABSORBER

Symbol

in Wiring

Diagram

MF C2

C1 TB1 TB2 52C

DSAR

Q'ty/unit

MUCF-GA35VB- E1

1 1 1 1 1 1 1 1

Remarks

RA6V33-

2.0+ /440V AC 30+ /440V AC 3P 2P

MUCF-GA50VB-

MUCF-GA60VB-

Symbol

in Wiring

Diagram

Q'ty/unit

Remarks

Part No. Part Name

No.

RoHS

E12 817 233 E12 817 232 E12 817 521 E12 141 501 E12 139 515 E12 075 506 E12 527 506 E12 817 900 E12 821 900 E12 817 290 E12 818 290 E12 817 661 E12 818 661 E12 817 662 E12 817 245 E12 816 301 E12 818 301 E12 817 630 E12 818 630 E12 895 383 E12 818 374 E12 817 374 E12 895 351 E12 888 353 E12 889 353 E17 012 340 E12 817 009 E12 746 937 E12 825 936 E12 820 936 E12 466 340 E12 466 340

1 2 3 4 5

13 14

15 16 17

18 19

22 23

G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G G

1 1 1 1 1 3

1 1 1

1 1 1 1 1

1 1

1 1 1 1 1

1 1 1

1 1 1 1 1

1 1 1

3RUBBERS/SET 4RUBBERS/SET RN196VHSHT NN29VBAHT

{12.7 {15.88 { 6.35

RA6V50 RA6V60 -

2P 3P

3.0+/440V AC 40+/440V AC 55+/440V AC

{3.0o{1.6o650 {3.0o{2.0o1000 {2.5o{0.6o1000

MC MC

MF MF

DSAR

TB2 TB1

C2 C1 C1

52C

RoHS PARTS LIST (RoHS compliant)

MUCF-GA50VB MUCF-GA60VB 12-3. OUTDOOR UNIT STRUCTURAL PARTS, ELECTRICAL PARTS AND FUNCTIONAL PARTS

Part numbers that are circled are not shown in the illustration.

17 16

15 14 13

12 11

HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN

New publication, effective May 2006 Specifications subject to change without notice.

Mitsubishi Electric MUCF-GA35VB, MUCF-GA50VB, MUCF-GA60VB Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
