Mitsubishi Electric MR-L650EH-DB-A, MR-L650EH-PWH-A, MR-L650EH-ST-A User Manual
OPERATING INSTRUCTIONS
SERIES MODEL
MR-L650EH,
MR-L710EH
It is strongly recommended to use only lukewarm water and a soft cloth when cleaning.
Cleaning agents can cause cracking to the plastic components of your refrigerator.
Cleaning Instruction - Important!
This refrigerator is manufactured for refrigerating and freezing foods in general households. For industrial use,
please use a commercial refrigerator-freezer.
The photographs and illustrations contained in this manual are for the MR-L710EH. While the capacity and
dimensions of the MR-L710EH are different from the MR-L650EH the operation is the same.
The material names are indicated on the main plastic parts to facilitate recycling.
Vitamin Factory
The vitamins in vegetables
are boosted by the LED.
ECO MODE
Use when you want to save power.
When the temperature inside the refrigerator is
stable, the power-saving operation is performed
automatically.
When in troubleBefore Use Operation Cleaning
Contents
Safety Precautions
4 -5
From Installation to Operation
6 - 7

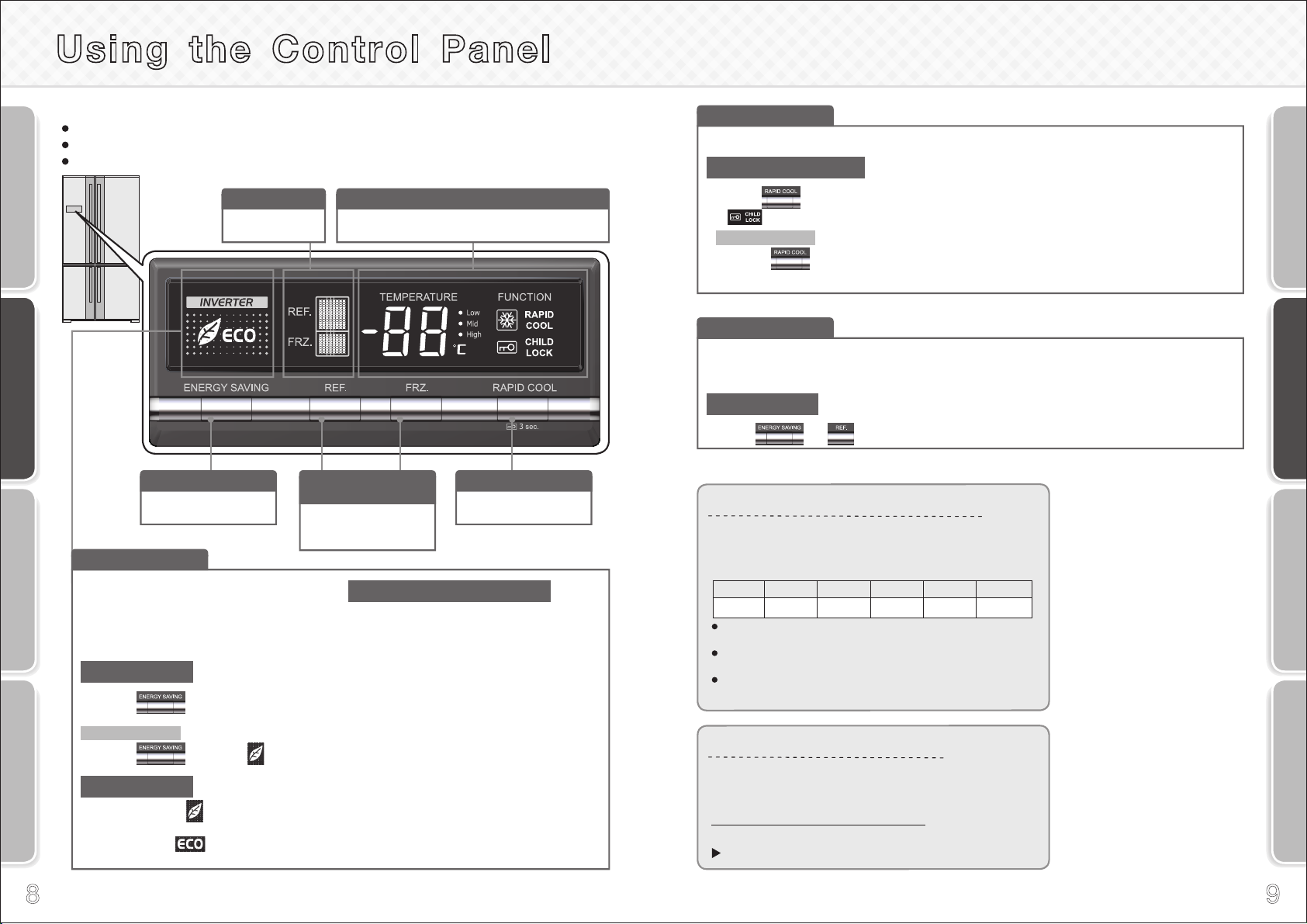

Using Control Panel
8 - 9
Setting the Refrigerator and
Freezer compartment
1 0
Refrigerator Compartment
1 1 - 1 2
Freezer Compartment
1 3

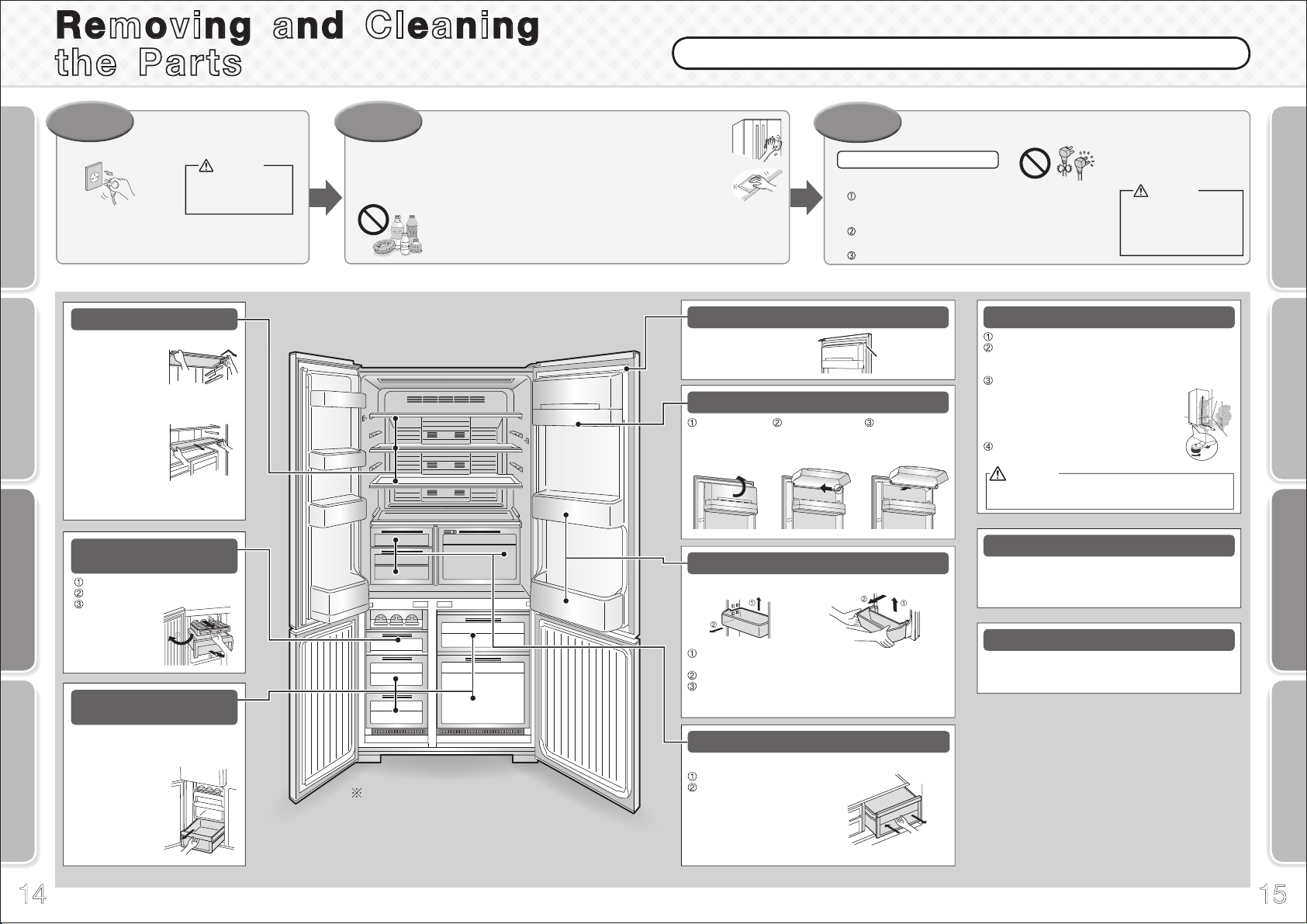

Removing and Cleaning the Parts
1 4 - 1 5
Other lssues
1 6 - 1 7
Specifications
1 7

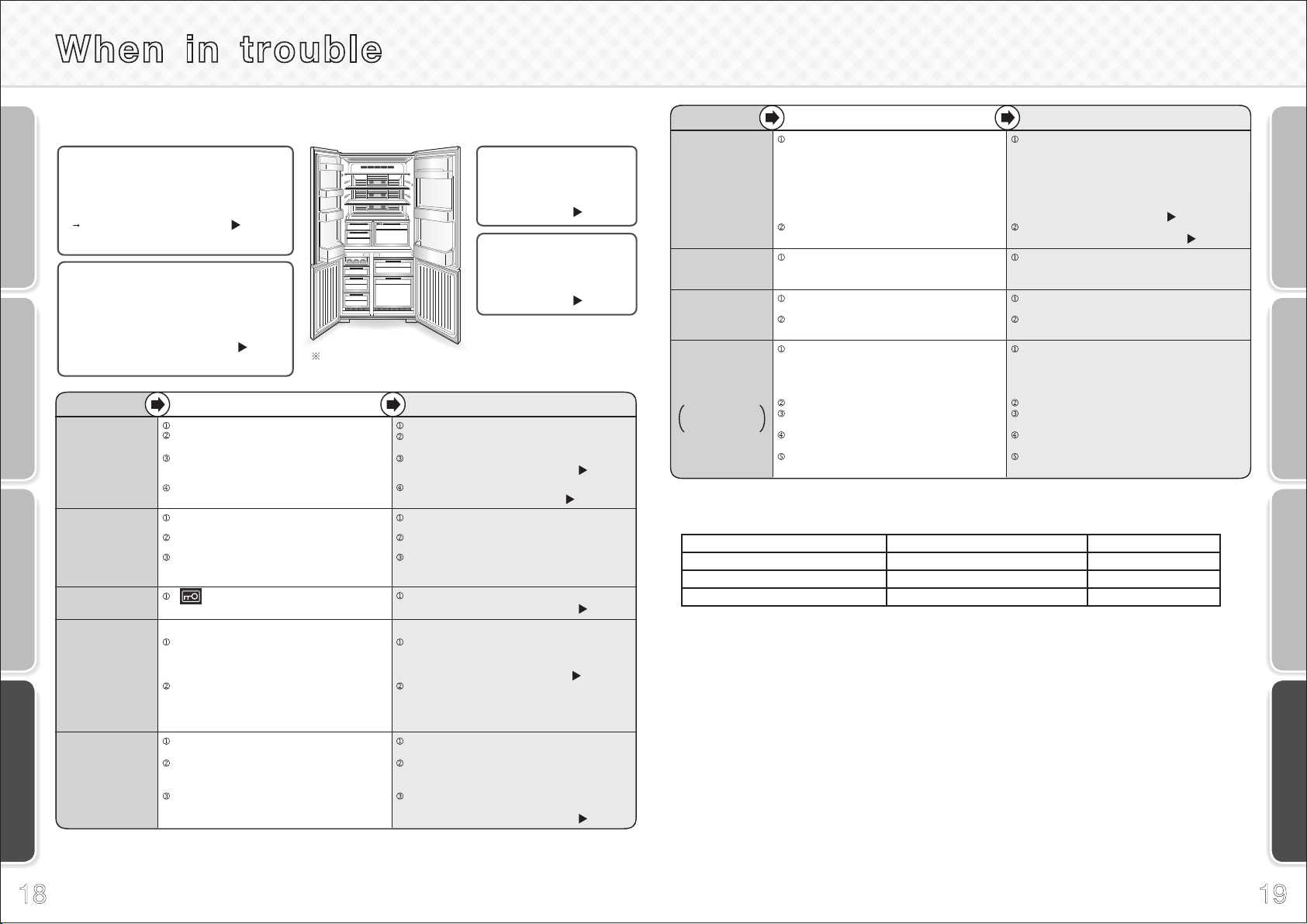

When in trouble
1 8 - 1 9
Page
Function Overview
Illustration of the MR-L710EH
4 5
When in troubleBefore Use Operation Cleaning
When in troubleBefore Use Operation Cleaning
Do not use
Water prohibited
Prohibited
Prohibited
Remove door seal
Dry Dispose properly
Remove plug
Do not disassemble
Prohibited
Service Call
Only use an outlet that meets the specified rating.
Cord facing down
Water prohibited
Prevent tipping
Romove and put back shelves property
Do not use
Never do
Never touch
Never attempt to
disassemble, repair
or alter
Never expose to
water
Never touch with
wet hands
Be sure to follow
the instructions
Be sure to remove
the power plug
from the socket
Danger and degree of
danger caused by improper
handling are categorized
and described by the
following indicators.
Meaning of symbols.
Operation
Do not place water containers on top
of the refrigerator.
Exposing electrical parts
to water may cause an
electric shock or fire.
Do not use electrical appliances inside
the refrigerator.
Do not place volatile, inflammable
objects inside the refrigerator.
Benzene, cosmetics
and hair dressing
products may catch
fire or explode.
Do not place objects on top of the
refrigerator.
Objects may fall when
the doors are opened or
closed and cause injury.
Do not store chemicals or scientific
specimens in the refrigerator.
Substances that require
strict control must not
be stored in household
refrigerators.
Do not hang from the door or handle.
Do not climb on an open door.
Do not apply a heavy load.
The refrigerator may tip
over and cause injury.
Do not wash with water or spill soup
or juice onto the refrigerator.
Water or other liquid may
cause an electric shock
or fire. Wipe off any
liquid immediately.
Do not use combustible sprays near
the refrigerator.
Sparks from an
electrical contact may
cause an ignition and
fire.
Do not use in a shed or garage.
Pet animals may damage the electrical
wiring and cause an electric shock or fire.
Malfunctions and long-term storage
If an abnormality occurs (such as a
burning odor), unplug the power plug
and stop the refrigerator operation.
Continuing to operate
with an abnormality may
cause an electric shock
or fire.
Do not disassemble, repair or alter.
Do not use while parts are damaged.
Doing so may cause
injury, electric shock
or fire.
If there is a possibility of a child getting
trapped in the refrigerator during storage,
pull out and remove
the door seal.
Children getting
trapped in refrigerators
is very dangerous.
When not using the refrigerator for a
long time, unplug the power plug and
open the doors to dry the refrigerator.
Contact the retail store or municipal
government for details about correct
refrigerator disposal.
If an abnormality or
malfunction occurs,
stop operation
immediately and contact
the retail store where you
purchased the refrigerator
or MITSUBISHI ELECTRIC
SERVICE CENTRE
or Customer Service
representative.
Remove dust
Remove plug
Do not use
Prohibited
Prohibited
Wet hands
prohibited
Water prohibited
Prohibited
Do not storeProhibited
Do not store
Prohibited
Operation
Do not pack in
excessive amounts
of food. Do not pull
the shelves with
excessive force.
Food may fall out and
cause injury.
Prohibited
Do not place
glass bottles
in the freezer
compartments.
The bottle may break
if the liquid inside
freezes, causing an
injury.
Do not store
Observe the following when opening
and closing the doors.
Do not open or close the doors when anothcr!
person is touching the refrigerator.
Do not put your fingers on the top edge of!
a drawer-type door while closing it.
Do not open or close the doors with excessive force.!
(Food may fall out and cause injury.)
Be careful not to trap your fingers or any other part!
of your body.
!Be careful not hit a part of your body.
Do not trap your feet with bottom drawer.!
(Danger of your toes caught by the drawer.)
Do not eat food
that is discolored
or has a bad odour.
Doing so may result in
food poisoning or illness.
Prohibited
Do not touch food
or containers in the
freezer compartment
with wet hands.
Doing so may cause a
cold injury.
Wet hands
prohibited
Do not put
your hands or
feet under the
refrigerator.
The steel plates or other
parts may cause injury.
Do not touch
While cleaning the refrigerator, be sure
to remove the shelves (made of tempered
glass) and put them back properly
Or else, the falling or smashed shelf could
cause personal injuries.
Installation
Do not install the refrigerator outdoors
or in places exposed to water or
excessive humidity.
Water may cause
insulation failure,
resulting in an electric
shock or fire.
Page 6
Use a dedicated outlet for the power supply
that meets the rating specified on the rating
label. (The rating label is located on the
door-liner of the refrigerator compartment.)
!"#$%&'()'$"#*$&+*,-"&.$-&
/01%%#$%&)**&2.$3&0'.-"&#$)*&
.&"#$%0'&"*+4')&+.$&+.1"'&5'.)&
61#0-71/&*,&8#,'9
Page 6
Anchor the refrigerator to a strong
wall or post to protect against damage
during earthquakes.
The refrigerator may tip
over and cause injury.
Pages 6 - 7
Insert the power plug with the cord
facing down, and fully insert
the prongs.
Inserting the plug upsidedown places stress on the
cord and may cause heat
generation or fire.
If the power cord is damaged, call our MITSUBISHI
ELECTRIC SERVICE CENTRE for the replacement.
If the power cord is damaged, purchase
a new cord from MITSUBISHI ELECTRIC
SERVICE CENTRE. Make sure that the
power cord is designed for this model.
Page 6
Power and power plug
Remove the power plug before
cleaning.
Otherwise an electric
shock or injury may
result.
Do not crush the power plug with the rear
of the refrigerator.
Do not damage the power cord.
Pressing, folding, bundling
or placing heavy objects on
the power cord may cause an
electric shock or fire.
Do not use damaged cords or plugs, or
loose sockets.
Doing so may cause an
electric shock or fire.
Do not pull the cord when unplugging
the power plug.
The cord may be
damaged, resulting in
electric shock or fire.
Remove dust periodically from the
power plug.
Dust may cause
insulation failure,
resulting in fire.
Do not plug in or out the power plug with
wet hands.
Doing so may cause an
electric shock.
Improper handling can result
in death or serious injury.
Warning
Improper handling can result
in personal injury or damage
to your house, household
furnishings, etc.
Caution
Warning
Caution
Installation and transportation
Anchor the refrigerator to a strong and level
floor by adjusting the adjustable supports.
Otherwise, the refrigerator may move and cause injury.
Pages 6 - 7
Install level
Use the transportation hand-holds
when transporting the refrigerator.
Holding other parts may result in injury.
Page 16
Use the hand-holds
Be careful not to damage the
floor or injure yourself when
moving the refrigerator.
Lay a protective sheet on the floor and move
the refrigerator slowly.
Use protective
material
Safety Precautions
When opening and closing the door,
be careful not to let it hit any
surrounding furniture.
There is a risk of injury and
damaged to the door or furniture.
Only use refrigerant specified
by the company.
See rating label inside Refrigerator
for refrigerant type.
!
This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person
to ensure that they can use the appliance safely.
!
Young children should be supervised
to ensure that they do not play with
the appliance.
Leave space
Leave space around the refrigerator.
If refrigerant leaks, it
may accumulate and
catch fire or explode.
Page 6
The refrigerant gas leaking
into the compartment with
sparks from an electrical
contact may cause fire and
explosion.
Ventilate
If the refrigerant circuit (pipe) is damaged,
do not touch the refrigerator and avoid
using flames. Open windows to ventilate.
If the refrigerant circuit
is damaged, contact
the retail store.
If the refrigerator is not dried sufficiently,
refrigerant may leak due to condenser
corrosion and cause a fire or explosion.
Improper disposal may cause
refrigerant leaks, resulting in a fire
or explosion if exposed to a flame.
Do not do
Do not damage the refrigerant circuit (piping)
of the refrigerator; do not drive in screws.
Because a flammable
refrigerant (gas) is used,
there is the danger of
igniting or explosion.
6 7
When in troubleBefore Use Operation Cleaning
When in troubleBefore Use Operation Cleaning
Install the refrigerator at:
A place with good ventilation not
exposed to direct sunlight or hot air
To prevent a diminishing in cooling
performance and to reduce power costs.
A place with low humidity
To prevent rusting, electric shock and fire.
A strong and level place
To prevent vibration and noise, and ajar
or tilting doors.
If the refrigerator supports sink easily into the floor
material, lay a strong plate or board underneath.
(To prevent deformation or discoloration
due to the weight or heat.)
A place away from other devices
To prevent noise or video interference
with devices such as televisions.
A place with at least 3 cm of
space beside the left and right of
the refrigerator, 10 cm of space from
the top and 6 cm from the back.
To allow heat to dissipate from the sides,
top and the back of the refrigerator.
Use a dedicated outlet
Use a dedicated outlet for the power supply that meets the rating specified
on the rating label. (The rating label is located on the door-liner of the
refrigerator compartment.)
The refrigerator will not be damaged even if the power
is supplied soon after installation.
It takes a while for the refrigerator to cool, therefore
supply power as soon as possible.
Electrical Connections
Make sure this unit is properly grounded.
The refrigerator should always be plugged into its dedicated electrical outlet.
This will provide the best performance and prevent electrical circuits
from being overloaded and causing a fire.
Make sure that the electrical outlet provides the proper voltage.
Extension cords are not recommended.
If your refrigerator is installed in the high humidity location, not only
ground connection but also installation of the earth leakage breaker is
recommended.
If the power cord is damaged, purchase a new cord from
MITSUBISHI ELECTRIC SERVICE CENTRE.
Make sure that the power cord is designed for this model.
A qualified service person should only replace the power cord.
Preventing ajar doors
Adjusting a tilted door or unevenness
If the door is still tilted after adjustment of the supports
Installing the support cover
While the freezer door is open
Insert the support cover horizontally
and fully, until it makes contact with
the rear side.
Installation
1
The outside of the refrigerator and the
rotating partition get hot.
Cooling takes time after turning
on the refrigerator.
Support cover
The support cover is stored inside
the refrigerator compartment
at shipment.
Connect the power supply
*Connect power supply soon after installing the refrigerator
4
2
Warning
Using outlets that do not meet the specified rating
or plugging in too many leads into a single socket
can cause heat buildup or fire.
Adjustment and anchoring
Turn the adjustable supports until they touch the floor and
the front casters are raised from the floor.
3
Adjust the supports to
make the refrigerator
level.
If the front of the
refrigerator is slightly
raised, the doors are
easier to close.
When installing the refrigerator in the corner of a room, one
of the rear supports may sink, causing the refrigerator to tilt.
If this happens, use a caster support or strong board for
adjustment.
(Normally, use a board with a thickness of about 2 to 3 mm.)
Readjust the adjustable supports as
shown in the figures below.
The right door tilts down
Raise the right side
Right Left
The left door tilts down
Support cover
The support covers are designed for the
left and right adjustable supports respectively.
Adjustable
support
Raise the left side
Rear support
Caster support or
strong board
If the installation
location is not level or
the supports sink after
a few days due to the
weight of the food,
the doors may appear
tilted.
Readjust the supports.
Rotating
partition
!"#$%&"'(&%)"&*+",+-,%.+,$&/,"*$0"-'))1"2//)+3"4+-/,+"0&/,%(."
non-cooled food or ice cream.
!"5/"(/&"/6+("&*+"3//,0"7/,+"&*$("(+2+00$,18"$(3"2)/0+"
them as soon as possible.
Adjustable
support
Flat-blade
screwdriver
Caster
Insert the blade of the screwdriver
Turn the adjustable supports
in the arrow direction until
they touch the floor.
Support cover
(To prevent vibration, noise, movement, and ajar doors)
Bottom front of refrigerator
In the summer, it may take more than 24 hours.
Heat radiation causes
the temperature to rise to
about 50
o
C to 60oC when
operation is first started,
and during the summer. The
rotating partition may get hot
when heated by the heater.
When making ice for the first time
A gap of
at least 10 cm
A gap of
at least 6 cm
Dedicated
outlet that meets
the specified rating.
A gap of
at least 3 cm
Turn on the power of the
refrigerator as soon as
possible.
The refrigerator will not be
damaged even if you turn on
the power immediately after
the installation.
If the supports are not
adjusted properly, the
refrigerator may move
and cause injury.
Caution
Prepare for earthquakes.
(for earthquake prone areas)
Strong belts
Warning
Thread 2 strong belts through the hand-holds on the top rear of the
refrigerator and anchor them to a strong location, such as wall or post.
To obtain the refrigerator tipping prevention belts.
The refrigerator may tip
over and cause injury.
From Installation
to Operation
Warning
5/"(/&"/40&,'2&"&*+",+-,%.+,$&/,"9+(&0
or the space around the refrigerator.
If refrigerant leaks, it may accumulate
and catch fire or explode.
Corrosion control treatment may be
required for the refrigerant circuit (pipe)
due to generation of corrosive gases.
Contact the retail store where you
purchased the refrigerator.
Use in hot spring areas
The operation noise gets
louder immediately after
installation.
Immediately after instillation, when:
the weather is hot, the doors are
frequently opened or closed, or
any similar situation; the operation
noise will get louder because the
refrigerator will switch to high-speed
operation to cool with high power.
Although R600a refrigerants are combustible, the refrigerant
circuit is hermetically sealed and normally leaks will not occur.
Warning
Should the refrigerant circuit be damaged:
1. Do not use flames or electrical appliances nearby.
2. Open the windows to fully ventilate the room.
Then, contact the retail store where you purchased the refrigerator.
Do not damage the refrigerant
circuit (pipes) or drive screws into it.
Warning
If you notice a gas leak,
do not touch the refrigerator.
Open windows to ventilate.
Ventilate
Sparks from an electrical contact
may cause an explosion or fire.
Loading...
