Mitsubishi Electronics L75-A94 User Manual

Basic Owner’s Guide

MODEL L75-A94

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the

user of the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

MAINS DISCONNECTION: The mains plug is used as the disconnect device. The mains plug shall remain readily operable.

WARNING: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.

TV WEIGHT: This TV is heavy. Exercise extreme care when lifting or moving it. Lift or move the TV with a minimum of two adults. To prevent damage to the TV, avoid jarring or moving it while it is turned on. Always power off your TV, unplug the power cord, and disconnect all cables before moving it.

St and Requirement

Mitsubishi does not design, manufacture or sell matching bases for the L75-A94 model television. When selecting a stand, base, or other furniture to support the TV, please make sure it is designed with the appropriate dimensions for stability and to support the TV’s weight plus the weight of any additional equipment you plan to store.

FCC Declaration of Conformity

Product: Projection Television Receiver

Models: L75-A94

Responsible Party:

Telephone: 1 (800) 332-2119

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Mitsubishi could cause harmful interference and would void the user’s authority to operate this equipment.

Mitsubishi Electric Visual Solutions America, Inc. 9351 Jeronimo Road Irvine, CA 92618-1904

Custom cabinet installation must allow for proper air circulation around the television.

NOTE TO CATV SYSTEM INSTALLER:

PROVIDED TO CALL THE CATV SYSTEM INSTALLER’S ATTENTION TO ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR THE PROPER GROUNDING AND, IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS PRACTICAL.

Children and TV Viewing

The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

THIS REMINDER IS

WARNING: To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or moisture.

This apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

For assistance call 1(877) 675-2224

Important Safety Instructions

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

EXAMPLE OF ANTENNA GROUNDING

ANTE NNA LEAD IN WIRE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC — NATIONAL ELECTRICAL CODE

ANTE NNA DISCH AR G E UNIT (NE C AR TICLE 810-20)

GROUNDING CONDUCTORS (NEC ARTICLE 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NE C AR T 250, P AR T H)

Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.

Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

ENERGY STAR

This is an ENERGY STAR® qualified TV. Products that earn the ENERGY STAR prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency and the U.S. Department of Energy.

This TV uses power within ENERGY STAR guidelines unless:

• Picture Mode is set to Brilliant or Super Bril- liant (Picture > Video menu)

• Ambient Light Sensor is set to Off (Setup >

Energy menu)

For assistance call 1(877) 675-2224

Contents

Important Safety Instructions ................ 2

Cleaning Recommendations ................. 3

Laser Safety

1 Basic Setup and Operation

Package Contents

Installing the Remote Control Batteries ......... 5

TV Overview ........................... 5

Before You Begin

Remote Control ......................... 6

Setting Up and Using TV Inputs .............. 7

Basic TV Operation....................... 9

TV Menus

2 TV Connec tions

Before You Begin ....................... 13

Connection Types and Audio/Video Quality .... 13

Cable Routing

Input and Output Jacks ................... 14

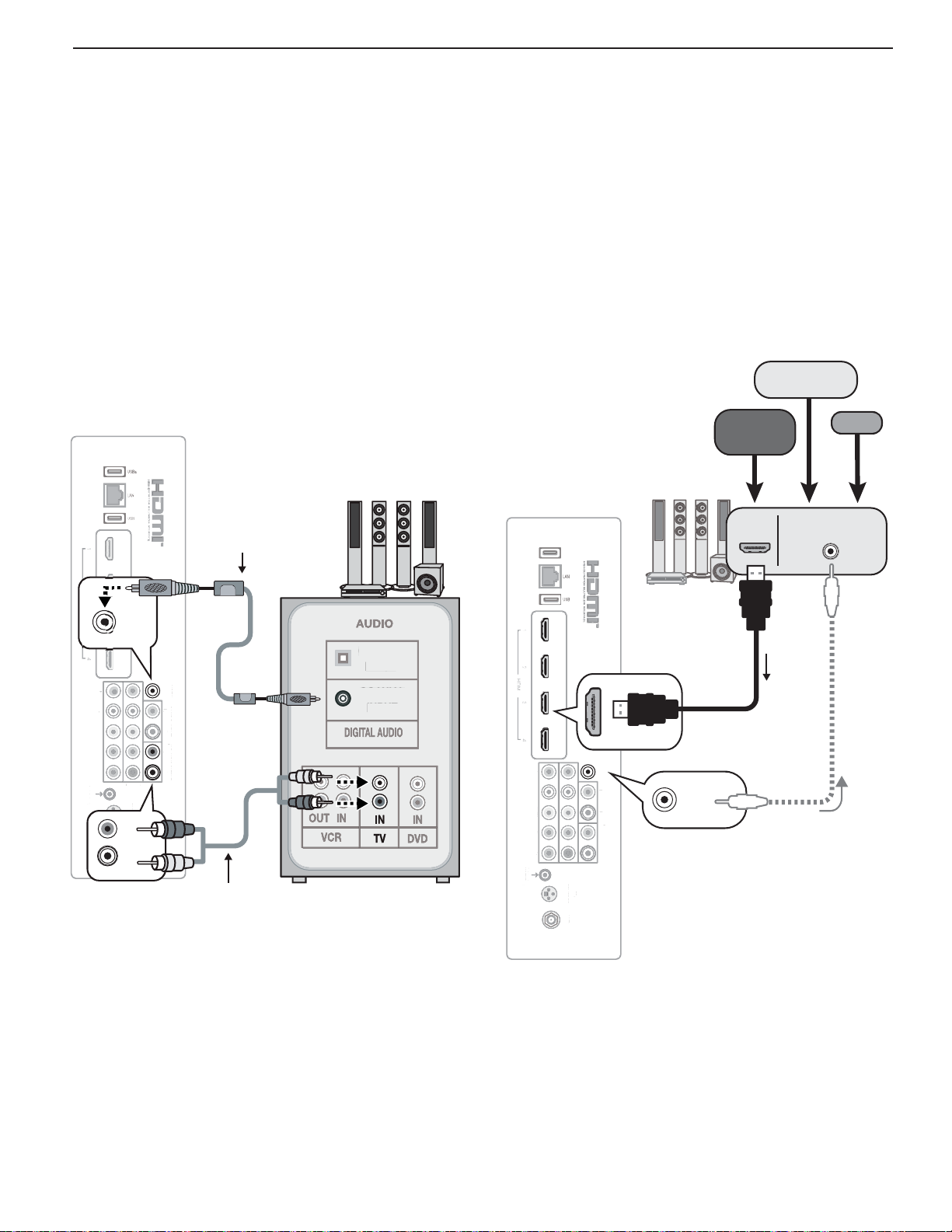

Connection Diagrams .................... 15

............................. 4

....................... 5

........................ 5

............................ 12

......................... 13

Cl eaning Recommendations

Normally, light dusting with a dry, non-scratching duster will keep your TV clean. If cleaning beyond this is needed, please use the following guidelines:

First, turn off the TV and unplug the power cord from the power outlet.

Occasionally clean dust build-up from the air-intake grilles on the back and sides of the TV. Clean using a vacuum cleaner with a brush attachment.

Top and Sides of the TV

• Gently wipe down your TV with a soft, non-abrasive

cloth such as cotton flannel, microfiber, or a clean cloth diaper, lightly moistened with water. Dry with a second dry, soft, non-abrasive cloth.

3 TV Feature s

FAV (Favorites) Sleep Timer

ChannelView Channel Listings .............. 20

StreamTV™ Internet ..................... 21

3D Video ............................. 24

Appendices

Appendix A: Auto Input Sensing

Appendix B: Troubleshooting .............. 28

Mitsubishi TV Software

Warranty .............................. 36

MEVSA Internet Applications Policy .......... 37

TV Software

• Do not attempt to update the software of this TV with software or USB drives not provided by or authorized by Mitsubishi Electric Visual Solutions America, Inc. Non-authorized software may damage the TV and will not be covered by the warranty.

• Automatic software updates will be downloaded over the internet to the TV if StreamTV is set up and connected to the internet.

......................... 19

........................... 19

............ 27

.................... 32

• For oily dirt, add a few drops of mild liquid detergent, such as dishwashing detergent, to the water used to moisten the cloth. Rinse with a second cloth moistened only with water. Dry with a third dry, soft, non-abrasive cloth.

Screen

• Follow the instructions for the top and sides, wiping gently in an up and down motion.

• Clean the entire screen evenly, not just sections of the screen.

• Do not allow liquid to drip down the screen, as some liquid may enter the TV through the gap between the screen and screen frame.

• You may purchase Mitsubishi Screen Cleaner, part number CLEANER-VSS, by calling 1 (800) 553-7278.

General Cleaning Precautions

• DO NOT allow liquid to enter the TV through the ventilation slots or any crevice.

• DO NOT use any strong or abrasive cleaners, as these can scratch the surfaces.

• DO NOT use any cleaners containing ammonia, bleach, alcohol, benzene, or thinners, as these can dull the surfaces.

• DO NOT spray liquids or cleaners directly on the

TV’s surfaces.

• DO NOT scrub or rub the TV harshly. Wipe it gently.

Note: Features and specifications described in this owner’s guide are subject to change without notice.

For assistance call 1(877) 675-2224

Laser Safety

• This TV is in compliance with the requirements of IEC 60825-1 Ed. 2(2007).

• This TV is a CLASS 1 laser product. This TV poses no risk to eyes or skin during normal use. An exposure hazard may exist only if the protective housing is removed.

• This TV contains a CLASS 4 laser device, which by itself may be hazardous. However, this TV incorporates a protective housing, optics and electronics such that there should be no exposure to unsafe levels of laser light during normal operation and proper service.

• Do not open this product. No consumer controls are inside. Only a trained LASERVUE® technician should service this TV. Please call Mitsubishi for assistance at

Safe Operation

• Always inspect the TV for damage after moving it. If the cabinet or screen is physically damaged, DO NOT connect the TV to an AC outlet. 1 (877) 675-2224 for assistance.

DO NOT power on the TV until it has been repaired by qualified service personnel authorized by Mitsubishi. See “Service and Customer Support” page 29 .

• Caution. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Use external or remote controls to operate the product. Connection to signal sources and power are accomplished through the external connectors.

1 (877) 675-2224.

Call

This label is located on the right lower back of the television set.

CLASS 4 LASER LIGHT WHEN

CAUTION

OPEN AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIAITON

This class-4 label and similar service warning labels are located inside the back cover of the television in an area that should not be accessed by the user under any circumstances.

An additional class-4 label is located at the lower front access panel under the front decorative bezel.

LUMIÈRE LASER DE CLASSE 4 - EN CAS D’OUVERTURE EXPOSITION DANGEREUSE AU RAYONNEMENT DIRECT OU DIFFUS DES YEUX OU DE LA PEAU

ATTENTION

Damage and Repair

• There are no user serviceable components in this TV. Do not attempt to disassemble any part of the TV.

• If damaged, the device must not be powered on or used until it is repaired by qualified service personnel authorized by Mitsubishi. See “Service and Customer Support” page 29 .

• Under no circumstances shall attempts be made to operate this device without the screen in place or if any portion of the enclosure, including the screen, is cracked, broken, a liquid is spilled onto the TV or is otherwise damaged.

For assistance call 1(877) 675-2224

This class-4 label is located at the center back of the TV under the outer cover.

POWER

Basic Setup and Operation

Package Contents

Please take a moment to review the following list of items to ensure that you have received everything.

Remote

Control

Two AA

Batteries

Quick Setup Guide

Product Registration Card

Basic

Owner’s

Guide

Cable Tie

Installing the R emote Control Batteries

Remove the remote control’s back cover by gently pressing in the tab and lifting off the cover.

Load the batteries, making sure the polarities (+) and (-) are correct. For best results, insert the negative (-) end first.

Snap the cover back in place.

TV Overview

Internal IR

Emitters for 3D

Glasses

• IR Sensor

• Ambient Light Sensor

Note: Do not block the area in front of the sensors and emitters.

Control Panel. To display the main menu without using the remote control, press INPUT and VOL+ simultaneously for about 10 seconds. Press and hold INPUT and VOL+ for 10 seconds to clear the menu.

Indicator Light

POWER

( page 31 )

Location of internal antennas. Keep this area clear of external wireless transmitters.

Rear Connection Jacks

The remote control requires two AA batteries.

Review the important safety, installation, and operating information at the beginning of this book.

Choose a location for your TV.

• See the stand requirements on page 1 .

• Allow at least four inches of space on all sides of the TV to help prevent overheating. Overheating may cause premature failure of the TV.

• Avoid locations where light may reflect off the screen.

Install the batteries in the remote control.

Plug the TV into an AC power outlet.

For assistance call 1(877) 675-2224

Before You Begin

8 1. Basic Setup and Operation

Re mote Control

Sleep Timer, page 19

Number/letter keys

Channel tuning, page 8 Pass-code entry

TOOLS

key shortcuts, this page

Adds a separator in digital channel numbers. Clears some menu entries.

MUTE

TOOLS

GUIDE

Mutes the TV speakers.

Displays shortcuts for the number keys. Press to check if shortcuts are available for the current device.

VOL

Controls volume of TV speakers.

Changes channels; moves to another

PAGE

page in a menu or list.

ENTER

Selects a channel number or menu item.

Navigation and adjustment controls

ChannelView channel listings. Set the TV clock to receive correct updates.

INFO

TV status or TV help ( page 11 )

(

PAUSE

)

Freezes a broadcast TV picture

Powers TV on or off.

Returns to the previous channel.

LAST

In menus, steps back one menu.

FAV

FORMAT

INTERNET

INPUT

AUDIO

VIDEO

Displays up to nine favorite sources, page 19 .

Changes picture shape, page 10

Connects to internet content, page 21 .

Press to select a TV input, page 8 .

Audio settings

Video settings

Displays or clears the TV main menu ( page 12 ). back one menu.

EXIT

Clears all menus and on-screen displays.

Also steps

Playback controls for StreamTV internet services. May apply to compatible devices under HDMI control. See the supplemental Owner’s Guide at www.mitsubishi-tv.com for setup of HDMI control.

The TO OLS Key and Menu

Press the number keys to activate shortcuts. Your Tools menu may differ from the sample, depending on your setup.

• Shortcuts specific to the current device are in the

• Shortcuts may be available for a CEC-enabled

TOOLS

key to see the Too ls menu. Press

third column.

device. See the supplemental Owner’s Guide at

www.mitsubishi-tv.com.

Picture shortcuts

Sound shortcuts

PICTURE SOUND

F1–F4.

Function keys for some

StreamTV internet services.

Mitsubishi on Apple Devices

Visit the iTunes store for a free app that turns your Apple iPhone, iPad, or iTouch into a second remote control for the TV.

Device-Specific Shortcuts

Availability varies, depending on equipment features and setup.

3 CC. Turns closed captions on/off (

Sample Tools menu

ANT

input only)

For assistance call 1(877) 675-2224

1. Basic Setup and Operation 9

First-Time Power-On

Install batteries in the remote control. See page 5 .

Welcome Screen Energy Options

Aim the emitter (bulb) end of the remote control at the TV and press the

POWER

key . Wait for the

Welcome screen.

If you wish to change the menu language to Español, press and press

ENTER

• Mitsubishi recommends the Home setting,

which uses power within ENERGY STAR® guidelines.

• The Retail setting looks best under the bright

lighting often found in commercial settings. In this mode, the TV uses power in excess of ENERGY STAR guidelines.

This table compares energy choices offered in the

Welcome screen.

Press to move to the energy-mode selections. Select Home.

Press to highlight Press ENTER

to clear the menu.

EXIT.

Settin g Up and Using TV Inputs

The ANT ( Antenna) Input

If using an antenna or direct cable service (no cable box), connect the incoming coaxial cable to the TV’s

ANT

input. Refer to page 16 .

You must perform a channel scan to enable reception of digital channels. If you skip this step, the TV can receive only analog channels. The channel scan

will search for high-definition and standard-definition channels available in your area. Note: Direct cable service will not include scrambled or premium channels.

Home Retail

Picture Mode Bright Ambient Light

Sensor Sensitivity

Use the Picture > Video menu to change the Picture Mode. Use the Setup > Energy menu to control sensitivity of the Ambient Light Sensor.

Highlight Ant Air if connected to an over-the-air antenna. Highlight Ant Cable for service over direct cable (no cable box). Press check.

Select the scan type.

• For first-time setup, highlight All channels.

• To scan for channels not already in memory,

highlight Add only new channels. Press

ENTER

to add a check.

Maximum Off

ENTER

Super Brilliant

to add a

M emorizing Channels with Channel Scan

Power on the TV.

Press

and open the Setup > Channel menu.

Start channel memorization from the Setup > Channel menu.

Press to enter the menu.

Highlight Scan and press Channel memorization may take up to 15 minutes to complete.

To stop channel memorization before completion, press

CANCEL

At any time after Channel Scan,

• Use the Setup > Channel > Edit menu to add or delete individual channels to or from memory.

• Repeat the All channels scan if you reposition the antenna or move the TV to a new geographic area with a different channel line-up.

ENTER

For assistance call 1(877) 675-2224

10 1. Basic Setup and Operation

Setting Up and Using TV Inputs, continued

Settin g Up Inputs with Auto Input Sensing

Learn more about Auto Input Sensing on page 27 .

Power on the TV.

Power on the devices to ensure detection.

Connect one device to the TV, making note of the TV input jack.

The TV will display the New Device Found screen if the connection type is detectable.

Highlight the device type in the on-screen list and press

ENTER

. The name you select here will appear

in the Input Selection menu.

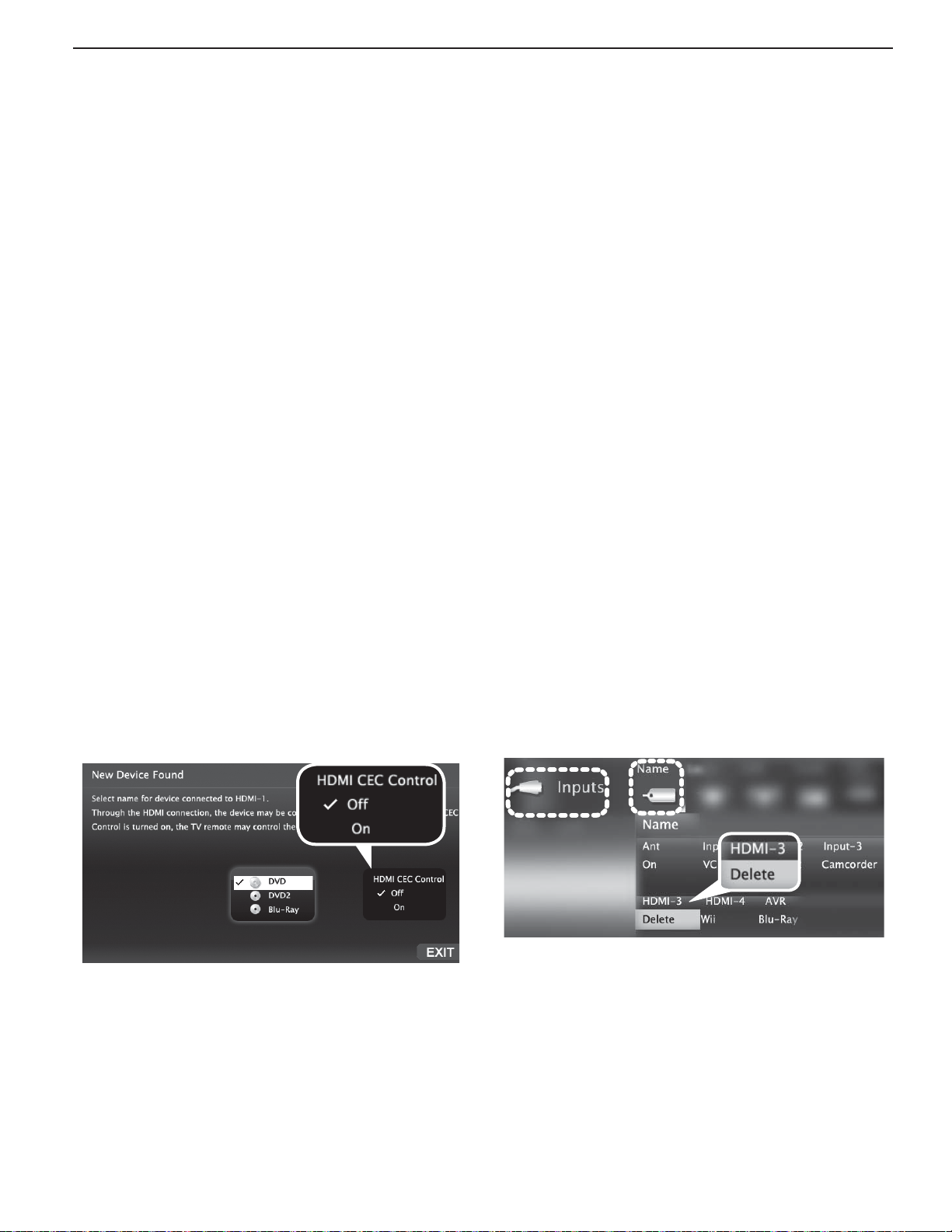

Sample New Device Found screen.

More About the Input Selection Menu

• To assign helpful names to the icons, see the Inputs > Name menu.

• To remove unwanted Antenna or HDMI device icons from the Input Selection menu, see the Inputs > Name menu.

• To rearrange the icons, use the Inputs > Order menu.

Detailed information on using these menus is in the supplemental Owner’s Guide at www.mitsubishi-tv.com.

Wa tching Broadcast TV

TV Connected to an Antenna or Direct Cable Service (no cable box)

Note: Perform channel memorization to enable recep-

tion of digital channels. See page 7 .

Press

INPUT

to display the Input Selection menu.

Highlight the antenna or cable icon and press

ENTER

Press

EXIT

to close the New Device Found screen.

Repeat the preceding steps for each additional device you want to add.

Selecting an In put to Watch

Press

INPUT

Press and to highlight an input icon.

Sample Input Selection menu, DVD input selected

Press

ENTER

to switch to the input.

Note: In most cases, to see a named icon for a con-

nected device (as in the samples), you must ﬁ rst assign a name either

• When the device is first connected and the New Device Found menu offers a choice of names.

• By using the Inputs > Name menu to assign or change a name at any time after the TV has detected the connection.

Sample Input Selection menu, antenna input selected

To tune to a channel from the

these methods.

• Enter the channel number using the number keys on the remote control and press

For a two-part digital channel, such as 3-1, press 3

• Press CH to change channels one channel at a time.

• Press and hold

• Press

• Use the Fav (Favorites) feature to tune to up to nine favorite channels. See page 19 .

• Press listings. Highlight a channel number, then press

• Set up ChannelView custom channel banks and use the CH key to tune within predefined groups of channels.

—

CANCEL

LAST

GUIDE

ENTER

to return to the previous channel.

to display ChannelView channel

to tune.

ANT

input, use any of

ENTER

to speed through channels.

For assistance call 1(877) 675-2224

1. Basic Setup and Operation 11

Basic TV Operation

Picture Settings

To get the best picture under different viewing conditions, set the Picture Mode first before changing other video settings.

Press

VIDEO.

Press until the Picture Mode option displays.

Press to make one of these selections:

Name When to Use

Super Brilliant

Brilliant

Game

Bright For most daytime viewing

Natural For most nighttime viewing

Cinema

Note: If the picture is too dim for your viewing envi-

ronment, even after changing the Picture Mode, go to the Setup > Energy menu and set Ambi- ent Light Sensor Sensitivity to Off.

Press to display the name of another adjustment.

Press to make the adjustment.

Wait a few seconds and the display will clear.

More picture adjustments can be found in these menus:

• Picture > Video

• Picture > Picture Plus

• Picture > Perfect

• Picture > 3D Mode ( page 24 )

Under retail lighting; not recommended for home use.

Under very bright lighting

With gaming consoles (inputs named

When viewing movies made for theatrical release; offers an extended color gamut.

Game

or PC only)

Audio Controls

Controlling Sound Volume

Press

VOL

to adjust the sound level of

the TV speakers.

Changing Audio Settings (TV Speakers Only)

Press

AUDIO

Press to display the name of the adjustment you want.

Press to change.

Using an External So und System

To switch from the internal TV speakers to an external sound system:

Press

AUDIO

Press to display the TV Speakers option.

Press to select either On (to hear sound from the TV speakers) or Off (to hear sound from an external sound system).

See page 17 for suggestions on connecting your sound system to the TV.

Disconnecting an A/V Receiver When you disconnect an A /V receiver, change the TV

Speakers setting to On to hear sound from the TV

speakers. Use the Sound > Audio > TV Speakers menu.

HDMI Control (CEC-Enabled HDMI A/V Receiver)

The TV’s remote control may operate some functions of your HDMI A/V receiver. See the supplemental Owner’s Guide at www.mitsubishi-tv.com.

For assistance call 1(877) 675-2224

12 1. Basic Setup and Operation

Basic TV Operation, continued

The FO RMAT Key and Picture Shape

Press the t

o cycle through picture shapes for the current image. The TV will remember the format you last used on each input.

For more on TV formats and signal types, see the supplemental Owner’s Guide at www.mitsubishi-tv.com.

Important

Black bars at the edges of the screen are common in HD pictures. Black bars are not a defect of the TV.

• Broadcasters add black bars to fill the 16:9 screen area while preserving the original aspect ratio of older material not created for modern HD TVs.

• Your cable box, satellite receiver, or other device may also have controls for altering the shape of the broadcast picture. If your device offers output in native format, try using it with the TV picture formats.

FORMAT

key

Sample Uses of the

You can use the to reduce or eliminate black areas at the edges.

High-definition signal with squarish 4:3 image embedded. The image is narrower than the 16:9 screen; unused areas at the sides are filled with black.

Standard 2.35:1 anamorphic DVD image; unused areas at the top and bottom are filled with black (letterbox effect).

FORMAT

Key

key to display the image as originally intended or

Press

Wide Expand mode stretches the picture sideways to fill the screen.

Press

Zoom mode. The picture fills the screen. All four edges are cropped in this mode.

More TV Features

See the supplemental Owner’s Guide at www.mitsubishi-tv.com for more on these and other topics.

• Parental controls (Lock menu). Requires first setting a pass code.

• TV Clock (Setup > Clock menu). Set the TV Clock if you plan to use the TV Timer, ChannelView channel listings, or the TV’s

• Changing input names in the Input Selection menu (Inputs > Name menu)

• Viewing digital camera images

• HDMI (CEC) control of other A/V devices

• Using the TV with a computer

Lock by Time

feature.

For assistance call 1(877) 675-2224

1. Basic Setup and Operation 13

St atus Display

Press the

INFO

key to see the on-screen status display. The most

common displays are shown here.

Sleep 30 min

Tuesday 9:10 PM

1080i Standard

INFO

About Channel Numbers

Channel Numbers for Over-the-Air Reception or Reception by Direct Cable

Note: All signals are automatically

converted to 1080p for display.

Standard-Definition Analog Channels

Cable Reception

Cable 3

480i Stretch

Receiving Standard-Definition Analog Signal (480i)

Standard-Definition Digital Channels

Over-the-Air Antenna

Reception

Ant 7-1 KABC-SD

480i Stretch

Receiving Standard-Definition Digital Signal (SD)

Channel 3

Main Channel 7 Sub-Channel 1

402-101 KABC Monday Night Football

TV-PG DLSV St. Louis vs. Tampa Bay, played in Tampa for

English Surround

Current Input. Examples:

2. Audio Indicator. Key:

TV speakers External sound system Mute

3. Channel number (antenna source only)

Digital channel includes major and sub-channel numbers.

4. Digital channel name (if broadcast); antenna source only.

V-Chip rating

• Antenna source only for digital signal

• Antenna or

VIDEO

6. Program name (if broadcast); digital antenna source only

7. Program description (if broadcast); digital source,

only. Press the

INFO

key additional times to see more of the

description.

8. Sleep Timer remaining time

9. Day and time

10. Signal type being received. All signals are automatically

converted to 1080p for display. See “Signal Definitions” on this page .

11. Screen format in use

12. Program audio indicator (antenna source only)

13. Available language (digital source, antenna only)

14. Signal-strength indicator (digital source, antenna only)

Sample information from the on-screen status display

Antenna

DVD

composite jack for

DVR

Game

analog signal

Sat. Rcvr.

antenna

High-Definition Digital Channels

Over-the-Air Antenna

Reception

Main Channel 7 Sub-Channel 1

Ant 7-1 KABC-HD

1080i Standard

Receiving High-Definition Digital Signal (HD)

Sign al Definitions

480i: Standard-definition, older type interlaced signals from the

composite

VIDEO

, component

Y Pb Pr

, or

HDMI

jacks.

480p: Standard-definition progressive-scan signals on the component

Y Pb Pr,

HDMI

jacks.

720p and 1080i: High-definition signals received through the component

Y Pb Pr,

HDMI

jacks. These signals are always 16:9

(widescreen), but may contain embedded 4:3 images with sidebars.

1080p: High-definition signals from a PC, Blu-ray player, or some

satellite and set-top boxes; HDMI inputs only.

ANT

ANT,

For assistance call 1(877) 675-2224

14 1. Basic Setup and Operation

TV M enus

Press

on the remote control to open the main

menu. Find detailed descriptions of all menus in the supplemental Owner’s Guide at www.mitsubishi-tv.com.


Video Basic picture settings

Picture+ Specialized picture controls

Reset Reset of sound and picture adjustments

for the current input

Perfect

Advanced Highly customized picture adjust-

3D Mode

Audio Basic audio settings

Global Settings for the

Fine-tuning of color settings

ments for each input. Mitsubishi

recommends these adjustments be made only by a trained professional installer.

Setup for 3D viewing. See page 24 .

Sound

AVR AUDIO OUTPUT

jacks (analog audio output)

Inputs

Name Name assignments for TV inputs

HDMI

Control

Order Setup of icons in the Input Selection

StreamTV Account deactivation; clears your per-

Demo Demonstrations of selected TV features

Update Instructions for updating TV software.

Setup for HDMI Control (CEC) of external devices

sonal data from the TV.

Lock

Parental Controls to limit TV use by content

ratings (composite video and antenna input only)

Time Setup to lock the TV by time of day. Set

the TV clock before using this menu.

Channel Setup to lock specific channels (antenna

input only)

Panel Control-panel lock

Captions

Settings for closed captions

Setup

Language Menu language

Clock Set the TV clock to use the TV Timer, to

use ChannelView listings, or to lock the TV by time.

Timer Setup for the TV Timer. The Timer tells

the TV to power on automatically at a time you set. Set the TV clock before using the TV Timer.

Channel Setup for a channel scan on the

input; addition to or deletion of channels from TV memory

Energy Controls for TV energy usage

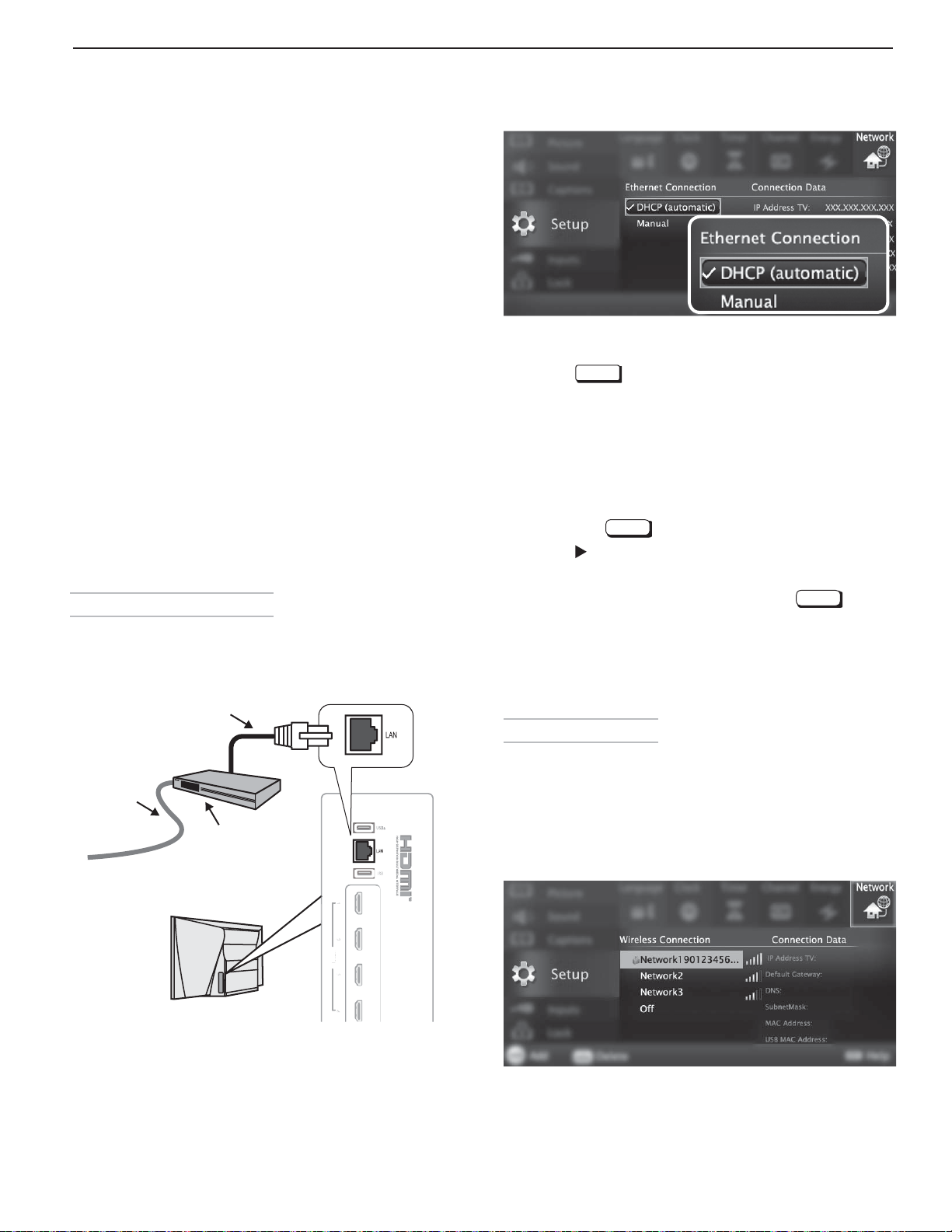

Network Setup for internet connectivity. See

page 21 .

ANT

Other Controls to limit TV use based on rating

systems that may come into effect in the future (digital channels on the antenna input only)

For assistance call 1(877) 675-2224

+ 30 hidden pages
