PROJECTOR COMMUNICATIONS KIT
ATTENTION!
PLEASE READ THIS DOCUMENT FOR IMPORTANT
INSTALLATION INSTRUCTIONS
THIS KIT HAS BEEN SHIPPED WITH THE FOLLOWING COMPONENTS:
Kit Type: MITSUBISHI
Included Communications Adapter(s):
Quantity Part Number Description
1 26-473-01 ADP, UNV, “E”
1 26-475-01 ADP, UNV, “G”
1 26-458-01 ADP, UNV, “NEC-LCD MT”
THE TABLE BELOW LISTS THE POSSIBLE CONFIGURATION(S) AND CORRESPONDING
COMMUNICATIONS ADAPTER(S) FOR YOUR PROJECTOR MANUFACTURER’S VARIOUS
MODELS. PLEASE NOTE THAT YOUR SWITCHER HAS BEEN CONFIGURED AS
INDICATED BY THE “✔” IN THE “CONFIG AS” COLUMN. IF Y OUR PROJECT OR MODEL
DIFFERS FROM THIS CONFIGURATION, YOU MUST RECONFIGURE Y OUR SWITCHER
WITH THE CORRECT SETTINGS.
PLEASE REFER TO THE FOLLOWING PAGES FOR COMPLETE CONFIGURATION AND
SIGNAL CONNECTION INSTRUCTIONS.
THIS SWITCHER HAS BEEN CONFIGURED FOR: MITSUBISHI VS
CONFIG MODEL SW1 SW2 SW3 SW4 SW5 SW6 PROJ COMM
AS 1 2 3 4 CABLE ADAPTER
✔ VS off on off on 0 0 8 5 0 J15 26-473-01
LVP-X100 off on off on 0 0 6 F 0 J15 26-475-01
LVP-X200X300 off on off on 0 1 6 F 0 J15 26-475-01
LVP-X400 off on off on 0 2 6 F 0 J15 26-458-01
Extron • System 4
xixi
xi
Switcher Series • User’s Manual • P/N 68-401-02 Rev. C
xixi
Page 1
Page 1
Mitsubishi Installation
y
)
Configuration and Connections
Connecting System 4
[System 4NE model and software
version displayed here]
(See note.)
(See note.)
(See note.)
(Note: Information depends on
stem 4NE
S
(See note.)
setup.
}
xixi
xi to Mitsubishi LVP-X100
xixi
If the System 4xi is already configured for a Mitsubishi LVP-X100 projector, go
to step 4. If it is not set up correctly, it will be necessary to change switch
settings on the System 4xi ’s Main Controller Board. Begin at Step 1 to verify the
correct configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Mitsubishi LVP-X100. Apply power to the System 4xi
and do the following:
a. Press
b. Press
to display the MENU SELECT on the LCD screen.
or to step to Menu 8.
c. Press to select this menu.
d. Press or to display the configuration. The example to the left is general,
yours will show the System 4xi model name, the software version and the
following information:
PRJ = MITS
PRJ BAUD = 9600
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the
System 4xi User’s Manual
to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
Config Projector SW1: 1-2-3-4 SW2 SW3 SW4 SW5 SW6 Prj Cable Comm
as Adapter
Mits. LVP-X100 off-on-off-on 0 0 6 F 0 J15 26-475-01
SW3
SW2
SW4
J15
SW1
4
SW5
3
2
1
ON
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Extron • System 4
Refer to the following connection diagram and continue.
5. The Mitsubishi LVP-X100 Comm Adapter (26-475-01) has a 9-pin male
connector that accommodates the Comm Extension cable. The other end of the
Comm Adapter plugs into the projector’s RS-232C port.
xixi
xi
Switcher Series • User’s Manual • P/N 68-401-02 Rev. C
xixi
Page 2
Mitsubishi Installation
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
into the PJ Comm port on the System 4xi.
______ Secure all of the connector screws.
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable onto the System 4xi output. Connect the 15-pin connector on the other end
of the RGBS/HV cable to the PC-1 Input connector on the Mitsubishi LVP-X100
connector panel.
System 4xi Series – Mitsubishi LVP-X100 Projector Connections
Use the illustration below as a guide when connecting the System 4xi to a
Mitsubishi LVP-X100 Projector. Refer to Mitsubishi LVP-X100 documentation to
continue the installation.
15-Pin Male
Configuration and Connections
ComAdapter
26-475-01 "G"
G
SY-VGA
26-173-01
9-Pin Female
RGBHV 5 BNC
15-Pin
Male
RS 232
OUTPUT
H/HV
V
R/C G/Y BR/C G/Y B
INPUT 1
H/HV V
R/C G/Y B
INPUT 2
H/HV V
AUDIO AUDIO AUDIO AUDIO AUDIO
R/C G/Y B
INPUT 3
H/HV V
R/C G/Y B
INPUT 4
H/HV V
PJ COMM
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4xi. See page 2-5 for cabling guidelines.
Extron • System 4
xixi
xi
Switcher Series • User’s Manual • P/N 68-401-02 Rev. C
xixi
Page 3
Mitsubishi Installation
y
)
Configuration and Connections
Connecting System 4
[System 4NE model and software
version displayed here]
(See note.)
(See note.)
(See note.)
(Note: Information depends on
stem 4NE
S
(See note.)
setup.
}
xixi
xi to Mitsubishi VS Projector
xixi
If the System 4xi is already configured for a Mitsubishi VS Projector, go to step
4. If it is not set up correctly, it will be necessary to change switch settings on the
System 4xi ’s Main Controller Board. Begin at Step 1 to verify the correct
configuration.
1. Use the Front Panel to display the Information Menu to verify that the System 4xi
is already set up for the Mitsubishi VS projector. Apply power to the System 4xi
and do the following:
a. Press
b. Press
to display the MENU SELECT on the LCD screen.
or to step to Menu 8.
c. Press to select this menu.
d. Press or to display the configuration. The example to the left is general,
yours will show the System 4xi model name, the software version and the
following information:
PRJ = MITS
PRJ BAUD = n/a
UNIT No. = 000
HST BAUD = 9600 (value depends upon setup Menu 3)
2. Go to the procedure on page 2-3 of the
System 4xi User’s Manual
to remove the
System 4xi cover. Then go to page 2-4 and refer to the configuration below to
set up the Main Controller board. Continue with Step 3 (below) when the
configuration is correct.
Config Monitor SW1: 1-2-3-4 SW2 SW3 SW4 SW5 SW6 Prj Cable Comm
as Adapter
✔ Mitsubishi VS off-on-off-on 0 0 8 5 0 J15 26-473-01
SW3
SW2
SW4
J15
SW1
4
SW5
3
2
1
ON
3. Double-check your work and be sure the System 4xi cover is on securely.
4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.
__________ Changes in some switch configurations are not detected until the power is
removed at the AC cord, and then restored.
Extron • System 4
Refer to the following connection diagram and continue.
5. The Mitsubishi VS Comm Adapter (26-473-01) has a two 9-pin male connectors.
Plug the Comm Extension cable into the Comm Adapter. Plug the other end of
the Comm Adapter into the “Remote 1” connector of the projector.
xixi
xi
Switcher Series • User’s Manual • P/N 68-401-02 Rev. C
xixi
Page 4
Mitsubishi Installation
______ Secure all of the connector screws.
Configuration and Connections
6. Plug the 15-pin HD connector of the Projector Communications Extension cable
(shown as CC 50') into the PJ Comm port on the System 4xi. The other end
plugs into the other 9-pin male D connector on the Comm Adapter (mentioned in
Step 5).
7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV
cable onto the System 4xi output and those on the other end onto the matching
BNCs on the Mitsubishi VS projector connector panel. See connection diagram
below.

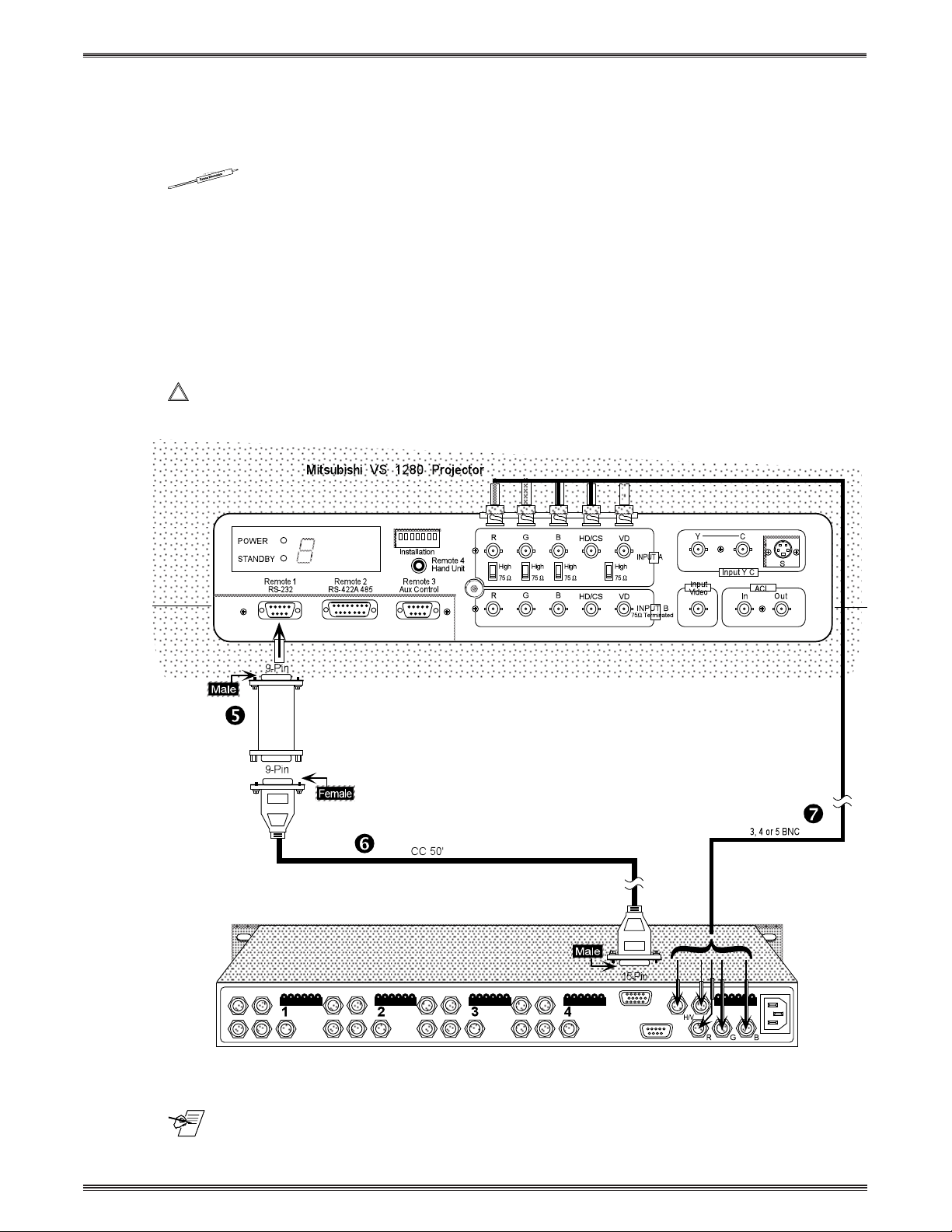

System 4
xixi
xi Series – Mitsubishi VS Projector Connections
xixi
Use the illustration below as a guide when connecting the System 4xi to a
Mitsubishi VS projector. Refer to Mitsubishi VS documentation to continue the
installation.
____________ In a rack mount, do NOT allow the weight of the cables to be supported by the
System 4xi. See page 2-5 for cabling guidelines.
26-473-01
"E"
"E"
Extron • System 4
__________ System 4xi channel numbers correspond to the projector’s “Group” numbers.
