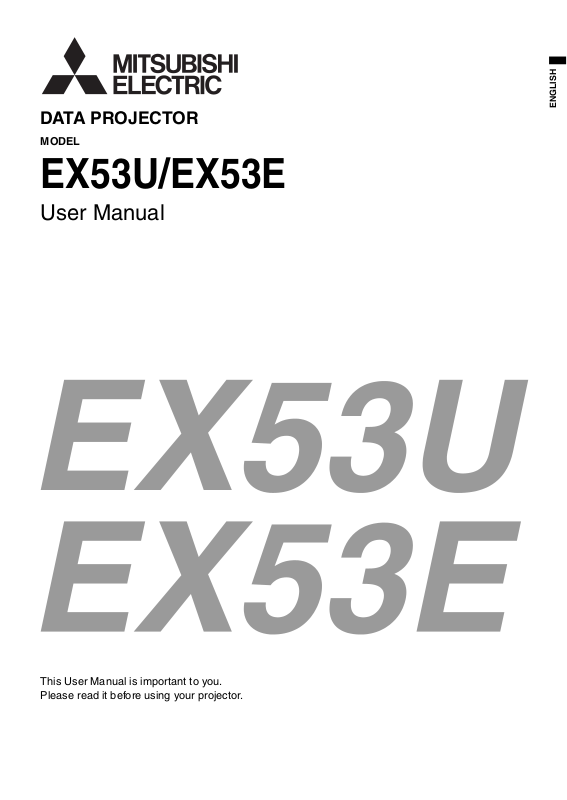

Mitsubishi Electronics EX53E, EX53U User Manual
DATA PROJECTOR
EN
MODEL
EX53U/EX53E
User Manual
ENGLISH
This User Manual is important to you.
Please read it before using your projector.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND
SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If you use another
power supply cord, it may cause interference with radio and television
reception.
Use the attached RGB cable with this equipment so as to keep interference within the limit of an FCC Class B device. (only for EX53U)
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE
PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the Standard for the
Protection of Electronic Computer/Data Processing Equipment,
ANSI/NFPA 75.
The attached power cords are to be used exclusively for this product.
Never use them for other products.
Note: This symbol mark is for
EU countries only.
This symbol mark is according to
the directive 2002/96/EC Article
10 Information for users and
Annex IV.
EN-2
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality
materials and components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-of-life, should
be disposed of separately from your household waste.
Please, dispose of this equipment at your local community waste collection/recycling
centre.
In the European Union there are separate collection systems for used electrical and
electronic product.
Please, help us to conserve the environment we live in!
When using the projector in Europe (only for EX53E):
COMPLIANCE NOTICE
This Projector complies with the requirements of the EC Directive
99/5/EC "R&TTE Directive".
The electro-magnetic susceptibility has been chosen at a level that
gains proper operation in residential areas, on business and light
industrial premises and on small-scale enterprises, inside as well as
outside of the buildings. All places of operation are characterized by
their connection to the public low voltage power supply system.
WARNING
Use the attached RGB cable with this equipment so as to keep interference within the limits of an EN55022 Class B device.
Please follow WARNING instructions.
Contents
Important safeguards................................................................................................................................ 4
Overview...................................................................................................................................................7
Remote control .........................................................................................................................................9
Installation .............................................................................................................................................. 10
Basic connections................................................................................................................................... 11
Preparation ............................................................................................................................................. 14
Basic operation....................................................................................................................................... 15
Safety instructions for wireless ............................................................................................................... 18
Security precautions for wireless............................................................................................................ 19
Software license agreement for wireless ................................................................................................20
Projecting images wirelessly .................................................................................................................. 21
How to use the connection software....................................................................................................... 24
How to use the administration screen..................................................................................................... 26
Uninstalling the connection software ...................................................................................................... 29
How to use wired LAN connection.......................................................................................................... 30
Menu operation....................................................................................................................................... 31
Image adjustment ................................................................................................................................... 36
Advanced features.................................................................................................................................. 38
Lamp replacement.................................................................................................................................. 40
Troubleshooting ...................................................................................................................................... 42
Indicators ................................................................................................................................................ 46
Specifications ......................................................................................................................................... 47
ENGLISH
Declaration of Conformity
Model Number : EX53U
Trade Name : MITSUBISHI ELECTRIC
Responsible party : Mitsubishi Digital Electronics America, Inc.
Telephone number : +1-(949) 465-6000
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
9351 Jeronimo Road, Irvine, CA 92618 U.S.A
Trademark, Registered trademark
Macintosh is registered trademark of Apple Computer Inc.
TM
, Digital Micromirror Device, DMD, and BrilliantColorTM are all trademarks of Texas Instruments.
DLP
Microsoft, Windows, Windows 2000, Windows XP, Windows Vista, and Internet Explorer are registered trademarks, trademarks, or trade names of
Microsoft Corporation in the U.S. and/or other countries.
Pentium is registered trademarks, trademarks, or trade names of Intel Corporation and its affiliate companies in the U.S. and/or other countries.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
Important safeguards
Please read all these instructions regarding your projector and retain
them for future reference. Follow all warnings and instructions marked
on the projector.
1. Read instructions
All the safety and operating instructions should be read before
the appliance is operated.
2. Retain instructions
The safety and operating instructions should be retained for
future reference.
3. Warnings
All warnings on the appliance and in the operating instructions
should be adhered to.
4. Instructions
All operating instructions must be followed.
5. Cleaning
Unplug this projector from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
6. Attachments and equipment
Never add any attachments and/or equipment without the
approval of the manufacturer as such additions may result in the
risk of fire, electric shock or other personal injury.
7. Water and moisture
Do not use this projector near water or in contact with water.
8. Accessories
Do not place this projector on an unstable cart, stand, tripod,
bracket or table. Use only with a cart, stand, tripod bracket, or
table recommended by the manufacturer or sold with the projector. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory
recommended by the manufacturer.
An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause
the appliance and cart combination to overturn.
9. Ventilation
Slots and openings in the cabinet are provided for ventilation,
ensuring reliable operation of the projector and to protect it from
overheating. Do not block these openings or allow them to be
blocked by placing the projector on a bed, sofa, rug, or bookcase. Ensure that there is adequate ventilation and that the manufacturer’s instructions have been adhered to.
10. Power sources
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power, please consult your appliance dealer or local
power company.
11. Power-cord protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords at plugs, convenience
receptacles, and points where they exit from the appliance. Do
not put the power cord under a carpet.
12. Overloading
Do not overload wall outlets and extension cords as this can
result in a fire or electric shock.
13. Objects and liquids
Never push objects of any kind through openings of this projector as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the projector.
14. Servicing
Do not attempt to service this projector yourself. Refer all servicing to qualified service personnel.
15. Damage requiring service
Unplug this projector from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
(a) If the power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the pro-
jector.
(c) If the projector does not operate normally after you follow
the operating instructions. Adjust only those controls that
are covered by the operating instructions. An improper
adjustment of other controls may result in damage and may
often require extensive work by a qualified technician to
restore the projector to its normal operation.
(d) If the projector has been exposed to rain or water.
(e) If the projector has been dropped or the cabinet has been
damaged.
(f) If the projector exhibits a distinct change in performance -
this indicates a need for service.
16. Replacement parts
When replacement parts are required, be sure that the service
technician has used replacement parts specified by the manufacturer or parts having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock
or other hazards.
17. Safety check
Upon completion of any service or repair to this projector, ask
the service technician to perform safety checks determining that
the projector is in a safe operating condition.
18. Do not use the wireless function in the vicinity of other wireless
appliances.
The following appliances may use the same radio wave band as
the projector. If the projector is used in the vicinity of the following appliances, the projector may not be able to communicate or
the communication speed may drop due to radio wave interference.
• A microwave oven and other appliances
• Industrial, scientific, or medical appliances
• A wireless base station typically installed at factory's manu-
facturing lines for use in classification of moving objects
• A low-power wireless base station
EN-4
WARNING:
Unplug immediately if there is something wrong with
your projector.
Do not operate if smoke, strange noise or odor comes out of your projector. It may cause fire or electric shock. In this case, unplug immediately and contact your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An inadvertent contact
may result in an electric shock. Except as specifically explained in
User Manual, do not attempt to service this product by yourself.
Please contact your dealer when you want to fix, adjust, or inspect the
projector.
Do not modify the projector.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged, unplug the
projector and contact your dealer for inspection. It may lead to fire if
you keep using the damaged projector.
Do not face the projection lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projector on a level and stable surface only.
Do not look into the lens when the projector is operating.
It may hurt your eyes. Never let children look into the lens when the
projector is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or other trouble. Wait
for the fan to stop before unplugging the power cord.
Do not touch the air outlet grilles and bottom plate.
Do not touch them or put other equipment close to the air outlet grilles
because they become hot during operation. The heated air outlet
grilles and bottom plate may cause injury or damage to other equipment. Also, do not put the projector on a desk that is easily affected by
heat.
Do not look into the air outlet grilles when projector is
operating.
Heat, dust, etc. may blow out of them and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the projector, causing deterioration in the projector quality and fire.
Do not use flammable solvents (benzene, thinner, etc.)
and flammable aerosols near the projector.
Flammable substances may ignite causing fire or breakdown because
the temperature inside the projector rises very high while the lamp is
illuminating.
Place of installation
For safety’s sake, do not use the projector at any place subjected to
high temperature and high humidity. Please maintain an operating
temperature, humidity, and altitude as specified below.
• Operating temperature: between +41°F (+5°C) and +95°F (+35°C)
• Operating humidity: between 30% and 90%
• Never put any heat-producing device under the projector to prevent the projector from being overheated.
• Do not install the projector at a place that is unstable or subject to
vibration.
• Do not install the projector near any equipment that produces a
strong magnetic field. Also refrain from installing the projector near
any cable carrying a large amount of current.
• Place the projector on a solid, vibration-free surface. Otherwise it
may fall, causing serious injury or damage.
• Do not stand the projector on its end. It may fall, causing serious
injury or damage.
• Slanting the projector more than ±10° (right and left) or ±15° (front
and rear) may cause trouble or explosion of the lamp.
• Do not place the projector near air-conditioning unit or heater to
avoid the air outlet and inlet grilles from being exposed to hot air.
Lamp replacement
Be sure to use the lamp attachment unit designed specifically for this
projector when replacing the lamp with a new one. Lamp fragments
may fall from the inside if the lamp were broken.
ENGLISH
COMPLIANCE NOTICE OF FCC for EX53U
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio / TV technician for help.
You are cautioned that changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment.
COMPLIANCE NOTICE OF INDUSTRY CANADA
• This Class B digital apparatus complies with Canadian ICES-003.
EN-5
WARNING:
Model Name: EX53U
• The wireless function of this projector can be used only in the United States and Canada.
This function cannot be used legally in countries other than the above.
Model Name:
• The wireless function of this projector can be used only in France, Germany, Italy, Ireland,Spain, Sweden, Netherlands, and the United
Kingdom. This function cannot be used legally in countries other than the above.
EX53E
FR DE IT UK
ES SE NL IE
"Hereby, Mitsubishi, declares that this projector is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC."
Model Name:
The equipment was passed. The test was performed according to the following European standards:
• EN 300 328 V.1.,7.1:2006
• EN 301 489-1 V.1.,6.1: 2005 / EN 301 489-17 V1.2.1:2002
• EN 50371:2002
• EN 60950-1:2001+All:2004
EX53E
Regulatory statement (R&TTE)
• European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz;
• In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to do indoor use.
Operation of this device is subjected to the following National regulations and may be prohibited to use if certain restriction should be applied.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio / TV technician for help.
EN-6
Overview
11 8 9 12 11 7
Control panel
3
9
5
4
Terminal board
11
3 6415 16 1714 2 1
513
10
14
8 6 712 5 4 132
91 10
3
1FOCUS ring
2ZOOM ring
3 Control panel
4 Air inlet grille
5 Remote control sensor (Front)
6 Air inlet grille
7 Air outlet grille
8 Terminal board
9 Speaker
10 Adjustment feet (front)
11 Adjustment feet (rear)
12 Lock bar
13 Foot Adjustment button (Front)
14 Lamp cover
15 Wireless LAN antenna
16 Wireless LAN ANTENNA terminal
17 LAN terminal (RJ-45)
ENGLISH
Caution:
Do not replace the lamp immediately after using the projector because the lamp would be extremely hot and it
may cause burns.
1 Power button
2
8
6
2 AUTO POSITION / S button
3 COMPUTER / W button
4 MENU button
5 STATUS indicator
6 POWER indicator
7 KEYSTONE/ENTER button
8 VIDEO/ X button
9 T button
Important:
1
7
• While the menu or the screen for the keystone adjustment or password entry is being displayed, the COMPUTER, VIDEO, and AUTO POSITION buttons
function as the W, X, and S buttons respectively.
• While the menu is on the screen, the KEYSTONE button functions as the ENTER button.
1Power jack
2 COMPUTER-IN terminal (1, 2) (Mini D-SUB 15-pin)
3 MONITOR OUT terminal (Mini D-SUB 15-pin)
4 Remote control sensor (Rear)
5 USB (COMPUTER) terminal
6 AUDIO-IN terminal (Mini jack)
7 AUDIO-OUT terminal (Mini jack)
8 S-VIDEO terminal
9 VIDEO terminal
10 Lock bar
11 SERIAL (RS-232C) terminal (D-SUB 9-pin)
12 AUDIO-L/R terminals
13 Kensington Lock
14 DVI-D (HDCP) terminal
Kensington Lock
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington
Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
EN-7
Overview (continued)
Bottom side
Remote control
1
2
3
4
5
6
7
This model does not have
this function.
16
2
1 Adjustment feet (rear)
2 Adjustment feet (front)
1
ON
KEYSTONE
MENU
AV
MUTE
VIEWER
UNPLUG
WIRELESS DVI
VOL PAGE
DOWN
ENTER
1
COMPUTER
2
STANDBY
ASPECTMAGNIFY
UP
AUTO
POSITION
FREEZE
VIDEO
S-VIDEO
8
9
10
11
12
13
14
17
15
1ON button
2 MAGNIFY button
3 VOLUME UP, DOWN buttons
4 KEYSTONE button
5 MENU button
6ENTER button
7 AV (Audio/Video) MUTE button
8 OFF button
9 ASPECT button
10 PAGE UP, DOWN buttons
11 AUTO POSITION button
12 Direction buttons
13 FREEZE button
14 VIDEO, S-VIDEO buttons
15 COMPUTER (1, 2) buttons
16 WIRELESS button
17 DVI button
• The UP and DOWN buttons are used in the KEYSTONE adjustment in addition to the volume control.
EN-8
Remote control
Battery installation
Use two (AA, R6) size batteries.
1. Remove the back cover of the remote control by pushing the battery compartment door in the direction of the arrow.
2. Load the batteries making sure that they are positioned correctly (+ to +, and - to -).
• Load the batteries from - spring side, and make sure to set them tightly.
3. Replace the back cover.
Caution:
• Use of a battery of wrong type may cause explosion.
• Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
• Dispose of used batteries according to your local regulations.
• Batteries may explode if misused. Do not recharge, disassemble, or dispose of in fire.
• Be sure to handle the battery according to the instructions.
• Load the battery with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
• Keep batteries out of reach of children and pets.
• Remove the battery, if the remote control is not used for a long time.
• Do not combine a new battery with an old one.
• If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them
with water and then consult your doctor.
Operation range (of the remote control)
The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control
sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should
be 5 m or less. However, the operation distance varies depending on the type of the screen used.
Reception angle (vertical)
ENGLISH
Reception angle (horizontal) Reception angle (vertical), ceiling mount
Important:
• Do not expose the remote control sensor to direct sunlight or fluorescent. Keep a distance at least 2 m (6.5 feet) between the remote control sensor and the fluorescent light to ensure correct operation of the remote control.
Inverted fluorescent light, if located near the projector, may interfere the remote control.
• When you use the remote control too close to the remote control sensor, the remote control may not work correctly.
EN-9
Installation
Layout of the projector
Image size varies depending on the distance between the screen and the projector.
Front projection
W
BA
H
Hd
L
Screen Distance from the screen : L
Diagonal size Width : W Height : H Shortest (WIDE) Longest (TELE)
inch cm inch cm inch cm inch m inch m inch cm
4010232812461 51 1.3 62 1.6 1.8 5
60 152 48 122 36 91 77 2.0 94 2.4 2.7 7
80 203 64 163 48 122 103 2.6 125 3.2 3.6 9
100 254 80 203 60 152 129 3.3 157 4.0 4.5 11
150 381 120 305 90 229 195 4.9 236 6.0 6.8 17
200 508 160 406 120 305 260 6.6 315 8.0 9.0 23
250 635 200 508 150 381 326 8.3 394 10.0 11.3 29
300 762 240 610 180 457 391 9.9 – – 13.5 34
A=B
L : Between the screen and the front edge of the projector
Hd : Height of the projected image
Hd
• The above figures are approximate and may be slightly different from the actual measurements.
Front projection, ceiling mounting
For ceiling mounting, you need the ceiling mount kit designed for this
Rear projection
Ask a specialist for installation. For details, consult your dealer.
projector. Ask a specialist for installation.
For details, consult your dealer.
The warranty on this projector does not cover any damage caused
•
by use of any non-recommended ceiling mount kit or installation of
the ceiling mount kit in an improper location
.
• When using the projector mounted on the ceiling, be sure to tilt the
antenna downward. If you tilt the antenna upward, the projector
cannot be installed properly.
• When using the projector mounted on the ceiling, set IMAGE
REVERSE in the INSTALLATION menu to MIRROR INVERT. See
page 33.
• When the projector is mounted on the ceiling, images may appear
darker than those projected in the case of tabletop mounting. This
isn’t a product malfunction.
EN-10
• For rear projection, set IMAGE REVERSE in the INSTALLATION
menu to MIRROR. See page 33.
Caution:
• Placing the projector directly on a carpet impairs ventilation by the
fans, causing damage or failure. Put a hard board under the projector to facilitate ventilation.
• Place the projector at least 50 cm (or 20 inch) away from the wall
to prevent the air inlet grille and the air outlet grilles that emit hot
air from being blocked.
• Do not use the projector in the following locations and manners,
which may cause fire or electric shock.
• In a dusty or humid place.
• In a sideways or upside-down position.
• Near a heater.
• In an oily, smoky, or damp place such as a kitchen.
• In direct sunlight.
• Where the temperature rises high, such as in a closed car.
• Where the temperature is lower than +41°F (or +5°C) or higher
than +95°F (or +35°C ).
Important:
• Do not apply force to the lens, because the lens may be damaged.
• We don't recommend using the projector at an altitude of 1500
meters or higher. Use at an altitude of 1500 meters or higher may
affect the projector's life.
Basic connections
This projector can be connected with various devices such as a VCR, video camera, videodisc player, and personal computer that have analog RGB
output connectors.
Important:
• Make sure that the connected device is turned off before star ting connection.
• Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord.
• When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference.
• See the owner’s guide of each device for details about its connections.
Projector + AV device
S-VIDEO IN
(option)
ENGLISH
AUDIO-IN
(option)
AUDIO-R
(option)
AUDIO-L
to audio output (R)
VCR, etc.
to audio output (L)
to S-video output
Important:
• Match the colors of the video and audio plugs on the Audio cable with those of the terminals.
• Speaker output is mono.
* A mini-plug audio cable can also be used.
EN-11
Basic connections (continued)
Projector + DVD player or HDTV decoder
Some DVD players have an output connector for 3-line fitting (Y, CB, CR). When connecting such DVD player with this projector, use the
COMPUTER-IN terminal.
Audio cable (option)
DVD player or HDTV decoder
to audio output
BNC - RCA connector (option)
No connection
BR
Mini D-SUB 15-pin - BNC conversion
cable (option)
COMPUTER-IN
Important:
• The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder is connected.
• The terminal’s names vary depending on the connected devices.
• Use a Mini D-SUB 15-pin - BNC conversion cable for connection.
• Image may not be projected correctly with some DVD players.
• When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu.
• Speaker output is mono.
• Only the RGB signal is supported. Color difference signals are not supported.
EN-12
Basic connections (continued)
Projector + Computer
For computer with Mini D-SUB or DVI-D
RGB cable for PC
DVI-D ca bl e for PC
ENGLISH
to DVI-D port
COMPUTER-IN
MONITOR OUT
AUDI O-I N
Necessary when outputting to both
DVI-D (HDCP)
AUDIO-OUT
Audio cable (option)
RGB cable for PC (option)
to monitor port
Computer
AUDIO OUT
MONITOR OUTPUT DVI-D
a PC monitor and the projector.
PC audio cable (option)
to PC audio output
For analog connection:
1. Connect one end of the supplied RGB cable to the COMPUTER-IN terminal (1, 2) of the projector.
2. Connect the other end of the RGB cable to the monitor port of the computer.
For digital connection:
1. Connect one end of the DVI-D cable to the DVI-D (HDCP) terminal of the projector.
2. Connect the other end of the DVI-D cable to the monitor port of the computer.
• If you start the computer first, images may not be displayed.
• The DVI-D (HDCP) terminal of this projector supports DDC2B. If the projector is connected to a computer which supports the standard, the computer automatically reads out the information about the projector to output appropriate images.
• If the projector is connected to a computer which supports DDC, plug the power plug of the projector into the wall outlet, and then start the computer.
• The DVI type that the projector supports is DVI-D (digital). DVI-A (analog) cannot be used with the projector.
• If a computer has a DVI-I (digital and analog) output connector, you can connect the projector with a DVI-D cable.
• Use the AUDIO-IN terminal for the audio input.
For monitor connection:
Connect the RGB cable from the monitor to the MONITOR OUT terminal of the projector.
• Images may not be displayed correctly depending on the type of the input signal. See the instruction manual of the monitor.
• Signals are coming from the COMPUTER-IN terminal (1 or 2) of the projector.
• When signals are coming from both COMPUTER-IN terminals (1, 2), images are projected from the terminal (1 or 2) currently or last selected in
the projector's menu.
Important:
• When you use a longer RGB cable instead of the provided cable, the image may not be projected correctly.
• Some computers require additional connectors or analog RGB output adapters to be connected with this projector. Contact your dealer for further information.
• This projector uses stereo pin jack for its audio input. Check the type of the audio output terminal of the connected computer and prepare a
proper cable for connection. Some computers don’t have the audio output terminal.
• Speaker output is mono.
• When the audio cable is connected to the AUDIO-OUT terminal, the speaker output is muted.
• While the DVI-D terminal is being used or while an image is being projected wirelessly, you cannot use the MONITOR OUT terminal.
For Macintosh
• If your Macintosh has no video port, a monitor output adapter is required. Contact your dealer for further information.
• Some Macintoshes require a MAC adapter for the RGB cable for connection with this projector. Contact your dealer for further information.
About DDC
The COMPUTER/COMPONENT VIDEO IN-1 terminal of this projector complies with the DDC 1/2B standard. When a computer supporting this
standard is connected to this terminal, the computer will automatically load the information from this projector and prepare for output of appropriate
images.
• After connecting a computer supporting this standard to this terminal, plug the power cord of the projector in the wall outlet first, and then boot up
the computer.
EN-13
Preparation
Preparation for projection
1. Attach the provided power cord to the projector.
2. Plug the power cord in the wall outlet.
3. Remove the lens cap.
Warning:
• Do not look into the lens directly when the projector is on.
• The lens cap is for protecting the lens. If you leave the lens cap on
the lens with the projector turned on, it may be deformed because
of heat build-up. Remove the lens cap when you turn on the projector.
• One of power cords for the U.S., Europe and U.K. is provided
appropriately.
• This projector uses the power plug of three-pin grounding type. Do
not remove the grounding pin from the power plug. If the power
plug doesn’t fit your wall outlet, ask an electrician to change the
wall outlet.
• In case that the power cord for the U.S is provided with this projector, never connect this cord to any outlet or power supply using
other voltages or frequencies than rated. If you want to use a
power supply using other voltage than rated, prepare an appropriate power cord separately.
• Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
• Do not place any objects on the power cord or do not place the
projector near heat sources to prevent damage to the power cord.
If the power cord should be damaged, contact your dealer for
replacement because it may cause fire or electric shock.
• Do not modify or alter the power cord. If the power cord is modified
or altered, it may cause fire or electric shock.
Caution:
• Plug in the power cord firmly. When unplugging, hold and pull the
power plug, not the power cord.
• Do not plug in or out the power cord with your hand wet. It may
cause electric shock.
Adjustment of the projection angle
For the best projection, project images on a flat screen installed at 90
degrees to the floor. If necessary, tilt the projector using the two
adjustment feet on the bottom of the projector.
Using the adjustment feet (front)
1. Tilt up the projector to the appropriate angle.
2. Press the foot adjustment button (front).
3. Release the foot adjustment button (front) after fine adjusting a
position of lengthwise direction of the image.
Using the adjustment feet (rear)
1. Tilt up the projector to the appropriate angle.
2. Rotate the adjustment feet (rear) for fine adjustment.
Important:
• Install the screen on a flat wall at 90 degrees to the floor.
• Slanting the projector more than ±10° (right and left) or ±15° (front
and rear) may cause trouble or explosion of the lamp. You can tilt
the projector up to 8 degrees using the adjustment feet only.
• Images may not be projected in a shape of a regular rectangle or
with its aspect ratio 4:3, depending on the installation conditions of
the projector and the screen.
• To correct vertical keystone distortion, press the KEYSTONE button on the projector or the remote control to display KEYSTONE,
and adjust the image by pressing the S, T button (or VOLUME
S, T button on the remote control).
In the following cases:
Press the T
button.
Important:
• When the keystone adjustment is carried out, the adjustment
value is indicated. Note that this value doesn’t mean a projection
angle.
• The allowable range of the adjustment value in the keystone
adjustment varies depending on the installation conditions.
• When the keystone adjustment takes effect, the resolution
decreases. In addition, stripes may appear or straight lines may
bend in images with complicated patterns. They are not due to
product malfunctions.
• Noise may appear on the screen during the keystone adjustment
because of the type of the video signal being projected and the
setting values of the keystone adjustment. In such cases, set the
keystone adjustment values in the range where the image is displayed without noise.
• When the keystone adjustment is carried out, the image may not
be displayed correctly because of the type of input signal.
Press the S
button.
Foot adjustment button
After using the projector:
4. Put the adjustment feet (front) back into the projector by pressing
the foot adjustment buttons.
EN-14
Basic operation
4
FOCUS
6
ZOOM
STANDBYON
3
KEYSTONE
ASPECTMAGNIFY
UP
VOL PAGE
DOWN
1, 2
ENGLISH
5 5
Power-on
1. Turn on the device connected to the projector first.
2. Plug the power cord in the wall outlet.
• The POWER indicator lights up.
• If the power cord is unplugged from the wall outlet before the
projector is cooled down completely after use, the fans may
start rotating when the power cord is plugged in next time
and the POWER button may not function. In this case, wait
for the fans to stop and press the POWER button to light the
indicator.
3. Press the POWER button on the control panel or the ON button
on the remote control.
• It may take about one minute for the lamp to light up.
• The lamp occasionally fails to light up. Wait a few minutes
and try to light the lamp again.
• After the POWER button is pressed, the image may flicker
before the lamp becomes stable. This is not a product malfunction.
• Regardless of the setting of LAMP MODE in the INSTALLA-
TION menu, the STANDARD lamp mode is activated by
default. The LAMP MODE is set to either STANDARD or
LOW depending on the setting last selected, and you cannot
switch the LAMP MODE in about one minute after the lamp
is on.
Condition
Indicator
Stand-by - Red
When the lamp is on. Green Green
Important:
• If the lamp exceptionally turned off due to the power interruption or
voltage drop, it can happen that the lamp does not turn on even if
you switch again the power supply on. In that case, please pull the
electric cord out of the consent and put it again in the consent
about 10 minutes later.
• Do not cover the lens with the lens cap while the lamp is on.
• The projector starts warming up when the POWER button is
pressed. During the warm-up process, images may appear dark
and no commands are accepted.
STATUS POWER
ENTER
1
COMPUTER
2
AUT O
POSITION
FREEZE
VIDEO
S-VIDEO
5
5
3, 1, 2
MENU
MUTE
AV
VIEWER
UNPLUG
WIRELESS DVI
• By blinking red, the STATUS indicator indicates that the lamp
should be replaced soon. Replace the lamp when the STATUS
indicator blinks red. (See page 42 and 46.)
• Images may not be projected with good quality in an extremely hot
or cold environment. (This is not a product malfunction.)
4. Adjust the focus by turning the focus ring.
5. Choose your desired external input source using the COM-
PUTER or VIDEO or DVI button.
• The input source is switched from VIDEO to COMPUTER at
the press of the COMPUTER button on the control panel.
• The input source is switched between VIDEO and S-VIDEO
at every press of the VIDEO button on the control panel.
• Each time you press the COMPUTER button on the control
panel, the input source is switched in the order of "COMPUTER 1" → "COMPUTER 2" → "DVI" → "WIRELESS".
• The projector automatically selects the appropriate signal
format. The selected signal format is displayed on the
screen.
• The COMPUTER and VIDEO buttons don’t function while
the menu is being displayed.
• When COMPUTER is chosen as the source, images supplied from the computer may flicker. Press the W or X button
on the remote control to reduce flicker, if it occurs.
• To avoid permanently imprinting a fixed image onto your projector, please do not display the same stationary images for
long period.
• If you want to project images wirelessly, see page 21.
6. Adjust the image size by turning the zoom ring.
• If necessary, adjust the focus and zoom again.
When fine streaks are seen on projected images
This is due to interference with the screen surface and is not a malfunction. Replace the screen or displace the focus a little.
