Digital-Analog
Converter Module
User’s Manual
(Hardware)
AJ65SBT2B-64DA
Thank you for purchasing the Mitsubishi programmable controller .
Prior to use, please read this and relevant manuals thorougly to fully
understand the product.
MODEL AJ65S-64DA-U-HW
MODEL
CODE
IB(NA)-
0800418-A(0805)MEE
13JY75
© 2008 MITSUBISHI ELECTRIC CORPORATION
SAFETY PRECAUTIONS
(Be sure to read these instructions before use.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The instructions given in this manual are concerned with this product. For the
safety instructions of the programmable controller system, please read the CPU
module user’s manual.
In this manual, the safety instructions are ranked as "DANGER" and "CAUTION".
Indicates that incorrect handling may cause
DANGER
CAUTION
Note that the CAUTION level may lead to a serious consequence according
to the circumstances.
Always follow the instructions of both levels because they are important to
personal safety.
Please save this manual to make it accessible when required and always forward
it to the end user.
hazardous conditions, resulting in death or severe
injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in minor or moderate
injury or property damage.
A-1
[Design Precautions]
DANGER
Configure a safety circuit so that the safety of the overall system is
maintained even if an external power failure or a programmable controller
failure occurs.
Incorrect output or malfunction can lead to an accident.
(1) The status of analog output changes depending on the setting of various
functions that control the analog output. Take sufficient caution when
setting for those functions.
For details of analog output status, refer to Section 3.4.1 "Combinations
of functions in each part" in the User's Manual.
(2) Normal output may not be obtained due to malfunctions of output
elements or the internal circuits.
For output signals that may cause a serious accident, provide an
external monitoring circuit.
CAUTION
Do not install the control or communication cable(s) together with the main
circuit or power cables.
Keep a distance of 100mm or more between them.
Failure to do so may cause malfunctions due to noise.
At power ON/OFF, voltage or current may instantaneously be output from the
output terminal of this module.
In such case, wait until the analog output becomes stable to start controlling
the external device.
A-2
[Installation Precautions]
CAUTION
Use the module in an environment that meets the general specifications
given in this manual.
Operating it in any other environment may cause an electric shock, fire,
malfunction, product damage or deterioration.
For protection of the switches, do not remove the cushioning material before
installation.
Securely fix the module with the DIN rail or fixing screws. Fixing screws must
be tighten within the specified torque range.
A loose screw may cause a drop of the module or malfunction.
Overtightening may damage the screw, resulting in a drop or malfunction of
the module.
Do not directly touch any conductive part of the module.
Doing so may result in a malfunction or failure of the module.
A-3
[Wiring Precautions]
CAUTION
Be sure to shut off all phases of the external power supply used by the
system before installation or wiring.
Failure to do so may cause a damage to the product and/or malfunctions.
Always ground the FG terminal to the protective ground conductor.
Failure to do so may result in malfunctions.
Be sure to tighten any unused terminal screws within a tightening torque
range.
Failure to do so may cause a short circuit due to contact with a solderless
terminal.
Use applicable solderless terminals and tighten them with the specified
torque.
If any solderless spade terminal is used, it may be disconnected when the
terminal screw comes loose, resulting in failure.
Check the rated voltage and terminal layout and then wire the module
correctly.
Connecting a power supply of a different voltage rating or incorrect wiring
may cause a fire or failure.
Tighten terminal screws within the specified torque range.
A loose terminal screw may cause a short circuit or malfunction.
Overtightening can cause a short circuit or malfunction due to damage of the
screws or module.
Take care to prevent foreign matter such as dust or wire chips from entering
the module.
Failure to do so may cause a fire, failure or malfunctions.
Place the connection wires and cables in a duct or clamp them.
If not, dangling cables may swing or inadvertently be pulled, resulting in
damage to the module and/or cables or malfunctions due to poor cable
connection.
A-4
[Wiring Precautions]
CAUTION
Do not install the control cable(s) together with the communication cable(s).
Doing so may cause malfunctions due to noise.
When disconnecting the cables from the module, do not hold and pull the
cable part.
Disconnect the cables after loosening the screws in the portions connected
to the module.
Pulling the cable that is still connected to the module may damage the
module and/or cable and cause malfunctions due to poor cable connection.
[Starting and Maintenance Precautions]
CAUTION
Do not touch the terminals while the power is on.
Doing so may cause malfunction.
Be sure to shut off all phases of the external power supply used by the
system before cleaning or retightening the terminal screws.
Not doing so can cause the module to fail or malfunction.
Undertightening can cause a drop, short circuit or malfunction.
Overtightening can cause a drop, short circuit or malfunction due to damage
of the screws or module.
Never disassemble or modify the module.
This may cause breakdowns, malfunction, injury and/or fire.
Do not drop or apply any strong impact to the module. Doing so may damage
the module.
Be sure to shut off all phases of the external power supply used by the
system before mounting or dismounting the module to or from the panel.
Not doing so can cause the module to fail or malfunction.
Do not install/remove the terminal block more than 50 times after the first use
of the product. (IEC 61131-2 compliant)
Before handling the module, always touch grounded metal, etc. to discharge
static electricity from the human body.
Failure to do so can cause the module to fail or malfunction.
[Disposal Precautions]
CAUTION
When disposing of this product, treat it as industrial waste.
A-5
Revisions
* The manual number is given on the bottom right of the cover.
Print Date *Manual Number Revision
May., 2008 IB(NA)-0800418-A First edition
This manual confers no industrial property rights or any rights of any other kind, nor does it
confer any patent licenses. Mitsubishi Electric Corporation cannot be held responsible for any
problems involving industrial property rights which may occur as a result of using the contents
noted in this manual.
© 2008 MITSUBISHI ELECTRIC CORPORATION
A-6
CONTENTS
1. OVERVIEW .................................................................................................... 1
2. SPECIFICATIONS .......................................................................................... 2
2.1 General Specifications ............................................................................. 2
2.2 Performance Specifications...................................................................... 4
3. PART NAMES AND SETTINGS ..................................................................... 6

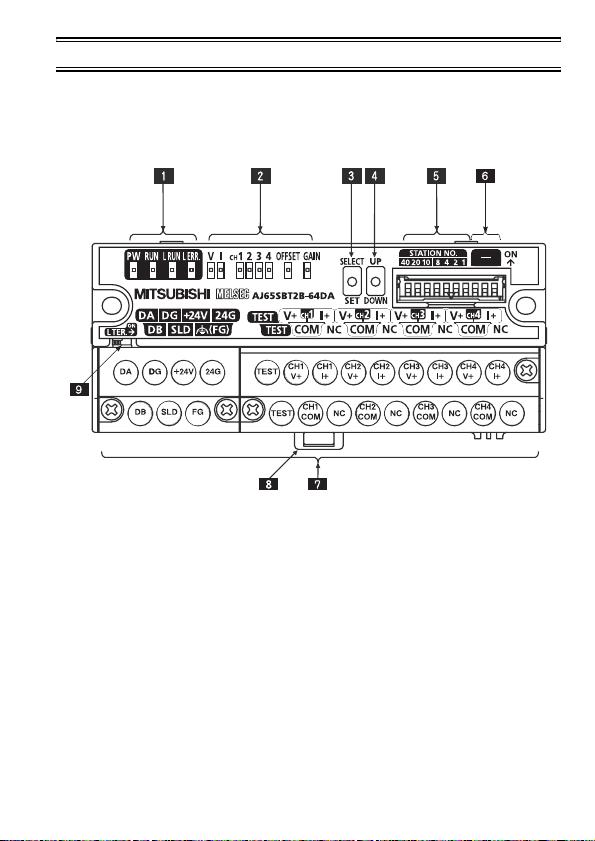

3.1 Part names ............................................................................................... 6
4. LOADING AND INSTALLATION .................................................................... 9
4.1 Handling Precautions ............................................................................... 9
5. DATA LINK CABLE WIRING ........................................................................ 11
5.1 Wiring Precautions ................................................................................. 11
5.2 CC-Link Dedicated Cable Connection Method.......................................11
5.3 Connection of Terminating Resistor ....................................................... 11
6. WIRING ........................................................................................................ 12
6.1 Wiring Precautions ................................................................................. 12
6.2 Wiring with External Devices .................................................................. 12
7. EXTERNAL DIMENSIONS ........................................................................... 14
A-7
About Manual
The following manual is also related to this product.
If necessary, place an order.
Related Manual
Manual name
Digital-Analog Converter Module T ype AJ65SBT2B-64DA User's
Manual
Manual Number
(Model code)
SH-080768ENG
(13JZ19)
COMPLIANCE WITH THE EMC AND LOW VOLTAGE DIRECTIVES
(1) For programmable controller system
To configure a system meeting the requirements of the EMC and
Low Voltage Directives when incorporating the Mitsubishi
programmable controller (EMC and Low Voltage Directives
compliant) into other machinery or equipment, refer to the "EMC
AND LOW VOLTAGE DIRECTIVES" chapter of the User's Manual
for the CPU module used.
The CE mark, indicating compliance with the EMC and Low Voltage
Directives, is printed on the rating plate of the programmable
controller.
(2) For the product
For the compliance of this product with the EMC and Low Voltage
Directives, refer to the "CC-Link module" section in the "EMC AND
LOW VOLTAGE DIRECTIVES" chapter of the User's Manual for
the CPU module used.
A-8
1. OVERVIEW
This user's manual explains the specifications, names of the
components and wiring for the type AJ65SBT2B-64DA digital-analog
converter module (hereafter AJ65SBT2B-64DA) which are used as a
remote device station of a CC-Link system.
1
2. SPECIFICATIONS
2.1 General Specifications
The general specifications for the AJ65SBT2B-64DA are shown in the
following table.
Table 2.1 General specifications
Item Specification
Operating ambient
temperature
Storage ambient
temperature
Operating ambient
humidity
Storage ambient
humidity
Compliant
Vibration resistance
Shock resistance
Operating atmosphere No corrosive gases
Operating altitude
Installation location Inside control panel
Overvoltage category
Pollution degree
with JIS B
IEC 61131-2
Compliant with JIS B 3502, IEC 61131-2 (147m/s2, 3 times each in X,
*3
*1
*2
10 to 90%RH, condensation not allowed
10 to 90%RH, condensation not allowed
Frequency Acceleration Amplitude
10 to 57Hz - 0.075mm
57 to 150Hz 9.8m/s
3502,
Frequency Acceleration Amplitude
10 to 57Hz - 0.035mm
57 to 150Hz 4.9m/s
0 to 55
-20 to 75
For intermittent vibration
2
For continuous vibration
2
Y and Z directions)
2000m or lower
II or lower
2 or lower
No. of
sweeps
10 times
-
each in X,
Y and Z
directions
(for 80
minutes)
-
2
*1 It indicates the device is to be connected to which power distribution part,
within the area from the public electricity network to machinery in the
premise. Category II applies to devices to which power is supplied from fixed
installations.
The surge voltage withstand for devices rated up to 300V is 2500V.
*2 This is an index showing the degree of the conductive pollution that can
occur in the environment where the device is used.
In Pollution degree 2, only nonconductive pollution occurs. Occasionally,
however, temporary conductivity caused by condensation can be expected.
*3 Do not operate or store the programmable controller in the environment
where the pressure applied is equal to greater than the atmospheric pressure
at the altitude of 0m. Doing so may cause a malfunction. Please consult our
branch office when the programmable controller is to be operated under
pressure.
3
2.2 Performance Specifications
The performance specifications for the AJ65SBT2B-64DA are shown in
the following table.
Table 2.2 Performance specifications
Item AJ65SBT2B-64DA
Digital input
value
Analog output
value
I/O characteristics,
maximum resolution,
accuracy (accuracy
relative to maximum
analog output value)
conversion speed 200 s/1channels
Output short-circuit
protection
Number of analog
output points
Maximum number of
writes for Flash memory
CC-Link station type Remote device station
No. of occupied stations 1 station (RX/RY: 32 points each, RWr/RWw: 4 points each)
Connection cable CC-Link dedicated cable
Withstand voltage
Isolation system
Voltage
Current 16-bit signed binary(-288 to 12287)
Voltage -10 to 10VDC (External load resistance: 1k to 1M )
Current 0 to 20mADC (External load resistance: 0 to 600 )
(-12288 to 12287, -16384 to 16383, -288 to 12287)
Digital
input
value
-16000
to
16000
0 to
Voltage
12000
-12000
to
12000
0 to
Current
12000
500V AC for 1 minute across all powe r supply and communication
system terminals and all analog output terminals
Between communication system terminals and all analog output
Between power supply system terminals and all analog output
16-bit signed binary
*2
Analog
output
*1
range
-10 to 10V
0 to 5V
1 to 5V 0.333mV
User range
setting 2
(-10 to 10V)
0 to 20mA
4 to 20mA 1.33 A
User range
setting 1
(0 to 20mA)
4 channels/1 module
MAX. 10,000 times
terminals: Photocoupler isolated
terminals: Transformer isolated
Between channels: Non-isolated
Ambient
temperature
0 to 55
0.3%
(30mV)
0.3%
(15mV)
0.3%
(30mV)
0.3%
(60A)
Available
Accuracy
temperature
Ambient
25 5
0.2%
(20mV)
0.2%
(10mV)
0.2%
(20mV)
0.2%
(40A)
Maximum
resolution
0.625mV
0.416mV
0.333mV
1.66 A
0.95 A
4
Table 2.2 Performance specifications
Item AJ65SBT2B-64DA
Noise immunity
Communic
ation area,
External
wiring
connection
system
Applicable wire size 0.3 to 2.0mm
Applicable solderless
terminals
Module fixing screw
Applicable DIN rail TH35-7.5Fe, TH35-7.5Al (Compliant with IEC 60715)
External power supply
Weight 0.25kg
module
power
supply
area
I/O area
Noise voltage : 500Vp-p, tested by noise simulator of noise width of
• RAV1.25-3 (conforming to JIS C 2805)
[Applicable wire size :0.3 to 1.25mm2]
• V2-MS3, RAP2-3SL, TGV2-3N
[Applicable wire size: 1.25 to 2.0mm2]
1 s and noise frequency of 25 to 60Hz
7-point 2-piece terminal block
M3 5.2 Tightening torque: 59 to 88N•cm
Applicable solderless terminals: 2 max.
Direct-coupled, 18-point terminal block
M3 5.2 Tightening torque: 59 to 88N•cm
Applicable solderless terminals: 2 max.
M4 screw 0.7mm 16mm or larger
(tightening torque range: 78 to 108N•cm)
DIN-rail mounting is also possible.
24V DC (20.4 to 28.8V DC)
Inlush current: 1.8A, 2.4ms
Current consumption: 0.24A (24V DC)
2
*1 Factory setting is -10 to +10V.
*2 The accuracy does not apply when noise exists.
5
3. PART NAMES AND SETTINGS
3.1 Part names
This section explains the names of the components for the AJ65SBT2B64DA.
Figure 3.1 Appearance of the AJ65SBT2B-64DA
6
Table 3.1 Part names
No. Name Description
Operation
1
status
display LED
Offset/gain
adjusting
2
LEDs
SELECT/
3
SET switch
UP/DOWN
4
switch
On: Power supply on
PW LED
Off: Power supply off
On:
Normal operation
Flashing:
0.1s intervals indicate an output range
Normal
mode
RUN
LED
Test
mode
L RUN
On: Normal communication
LED
Off: Communication cutoff (time expiration error)
On:
Flicker at fixed intervals:
L ERR.
Flicker at unfixed intervals:
LED
Off :
V
Normal
I
mode
CH
Test
OFFSET
mode
GAIN
Used to make offset/gain setting in the test mode.
Used to adjust the offset value and gain value of the channel specified by
the SELECT/SET switch.
setting error.
0.5s intervals indicate a digital value setting
error.
Off:
Indicates that 24V DC power supply
interrupted, watchdog timer error occurr ed,
write error for flash memory occured.
On:
Indicate that the SELECT/SET switch is in
the SET position.
Flashing:
FIndicates that making offset/gain setting
was attempted outside the setting range.
Off:
Indicates that the SELECT/SET switch is in
the SELECT or center position.
Indicates that station number setting
is outside the range.
Indicates that station number setting
was changed from that at power-on.
Indicates that you forgot fitting the
terminating resistor or the module or
CC-Link dedicated cable is affected
by noise.
Indicates normal communications.
Normally OFF.
The LEDs lit change every time the SELECT/SET
switch is moved to SELECT.
7
Table 3.1 Part names
No. Name Description
Station
number
5
setting
switches
Use
6
prohibited
Terminal
7
block
DIN rail
8
hook
L TER. (Line
Termination)
9
switch
Use the switches in STATION NO. "10", "20" and "40" to set the tens of the
station number.
Use the switches in STATION NO. "1", "2", "4" and "8" to set the units of the
station number.
The switches are all factory-set to OFF.
Always set the station number wit hin the range 1 to 64.
Cannot set the same station number to two or more stations.
Setting any other number than 1 to 64 will result in an error, flickering the "L
ERR." LED.
Station
number
1 OFF OFF OFF OFF OFF OFF ON
2 OFF OFF OFF OFF OFF ON OFF
3 OFF OFF OFF OFF OFF ON ON
4 OFF OFF OFF OFF ON OFF OFF
10 OFF OFF ON OFF OFF OFF OFF
11 OFF OFF ON OFF OFF OFF ON
64 ON ON OFF OFF ON OFF OFF
(Example) To set the station number to "32", set the switches as indicated
below.
Station
number
32 OFF ON ON OFF OFF ON OFF
Set all station number to OFF.
Used to connect the module power supply, transmission and analog I/O
signals.
Used to mount the module to the DIN rail.
Turned ON to validate the terminating resistor stored in the AJ65SBT2B64DA.
Used when the AJ65SBT2B-64DA is used on the network edge.
Tens Units
40 20 10 8 4 2 1
Tens Units
40 20 10 8 4 2 1
* The transmission speed is automatically set depending on the setting of the
master module.
8
4. LOADING AND INSTALLATION
4.1 Handling Precautions
The following is an explanation of handling precautions of the
AJ65SBT2B-64DA.
CAUTION
Do not touch the terminals while the power is on. Doing so may cause
malfunction.
Take care to prevent foreign matter such as dust or wire chips from entering
the module. Failure to do so may cause a fire, failure or malfunctions.
Never disassemble or modify the module.This may cause breakdowns,
malfunctioning, injury and/or fire.
Do not directly touch the conductive area or electronic components of the
module. Doing so may cause malfunction or failure in the module.
Because it is made of resin, do not drop or apply any strong impact to the
module. Doing so may damage the module.
Tighten terminal screws within the specified torque range.
A loose terminal screw may cause a short circuit or malfunction.
Overtightening a terminal screw may damage the screw, resulting in a short
circuit or malfunction.
When disposing of this product, treat it as industrial waste.
Use the module in an environment that meets the general specifications
given in this manual. Operating it in any other environment may cause an
electric shock, fire, malfunction, product damage or deterioration.
For protection of the switches, do not remove the cushioning material before
installation.
Securely fix the module with the DIN rail or installation screws. Installation
screws must be tighten within the specified torque range.
A loose screw may cause a drop of the module or malfunction.
Overtightening may damage the screw, resulting in a drop of the module or
malfunction.
Be sure to shut off all phases of the external power supply used by the
system before mounting or dismounting the module to or from the panel.
Not doing so can cause the module to fail or malfunction.
Always make sure to touch the grounded metal to discharge the electricity
charged in the body, etc., before touching the module.
Failure to do so may cause a failure or malfunctions of the module.
9
(1) Tighten the module fixing screws and terminal block screws within
the following ranges.
Table 4.1 Tightening torque range
Module fixing screw (M4 screw) 78 to 108N•cm
Terminal block terminal screw (M3 screw) 59 to 88N•cm
Terminal block installation screw (M3.5 screw) 68 to 98N•cm
Screw location Tightening torque range
(2) When using the DIN rail, pay attention to the followings.
(a) Applicable DIN rail type (Compliant with IEC 60715)
TH35-7.5Fe
TH35-7.5Al
(b) DIN rail installation screw pitch
When installing a DIN rail, tighten the screws at a pitch of
200mm or less.
(3) When mounting the AJ65SBT2B-64DA to the DIN rail, press with
your finger the centerline of the DIN rail hook at the bottom of the
module until it clicks.
DIN rail
DIN rail hook
Figure 4.1 Installation to DIN rail
(4) Refer to the Master Module user's manual for the name,
specification, and manufacturers of supported cables for the use
with AJ65SBT2B-64DA.
10
5. DATA LINK CABLE WIRING
5.1 Wiring Precautions
When replacing existing AJ65SBT-62DA with the AJ65SBT2B-64DA,
since their communication terminal blocks differ, rewire the system
using communication terminal block for the AJ65SBT2B-64DA.
5.2 CC-Link Dedicated Cable Connection Method
The following shows how to connect the AJ65SBT2B-64DA to a master
module and a remote module with CC-Link dedicated cables.
Master module I/O module, etc.
DG
SLD
FG
(Blue)
DA
(White)
DB
(Yellow)
Terminating
resistor
Figure 5.1 Connection of the CC-Link dedicated cables
5.3 Connection of Terminating Resistor
The AJ65SBT2B-64DA stores the terminating resister of 110 , so there
is no need the external wiring
(1) Precautions
(a) Move the L TER. switch until it clicks.
(b) Make sure that between DA and DB is high resistance (when
the L TER. switch is off) or is 110 (When the L TER. switch is
on) with a tester before wiring the system with CC-Link
dedicated cables.
(c) The built-in terminating resistor cannot be used in the following
cases. Wire a terminating resistor (110 or 130 ).
• A CC-Link system is configured using CC-Link cables of
130 .
• The AJ65SBT2B-64DA may be replaced during data link.
CC-Link
dedicated cable
AJ65SBT2B-64DA
DA
DB
DG
SLD
CC-Link
FG
dedicated cable
Click
SLD
DA
DB
DG
FG
Terminating
resistor
11

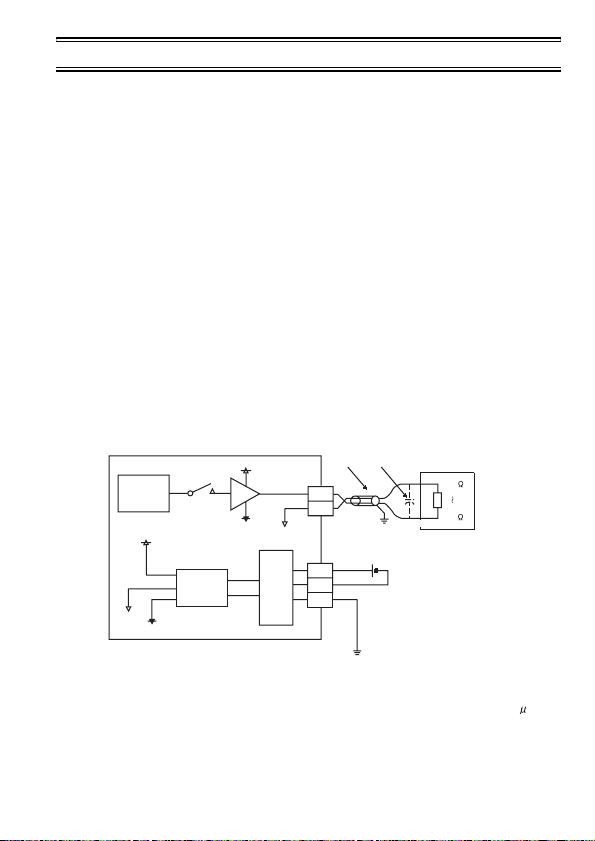

6. WIRING
6.1 Wiring Precautions
External wiring that is less susceptible to noise is required as a
condition of enabling a highly reliable system and making full use of the
capabilities of AJ65SBT2B-64DA.
The precautions when performing external wiring are as follows:
(1) Use separate cables for the AC control circuit and the external
output signals of the AJ65SBT2B-64DA or the external power
supply to avoid the influence of the AC side surges and induction.
(2) Do not mount the cables close to or bundle them with the main
circuit line, a high-voltage cable or a load cable from other than the
programmable controller .
This may increase the effects of noise, surges and induction.
(3) The shield wire or the shielded cable must be grounded at one end.
6.2 Wiring with External Devices
(1) For voltage output
D/A
conversion
COM
*1 *2
V+
Motor drive module, etc.
GND
1k
1M
DC/DC
converter
Filter
24V
24G
FG
Figure 6.1 Wiring for voltage output
*1 Use a twisted two core shielded wire for the power wire.
*2 If there is noise or ripples in the external wiring, connect a 0.1 to 0.47 F
capacitor (25V or higher voltage-resistant product) to the output terminals of
the external device.
12
(2) For current output
D/A
conversion
DC/DC
converter
Filter
COM
24V
24G
*1 *2
I+
FG
Motor drive module, etc.
0
600
GND
Figure 6.2 Wiring for current output
*1 Use a twisted two core shielded wire for the power wire.
*2 If there is noise or ripples in the external wiring, connect a 0.1 to 0.47 F
capacitor (25V or higher voltage-resistant product) to the output terminals of
the external device.
13
7. EXTERNAL DIMENSIONS
The external dimensions of the AJ65SBT2B-64DA is shown below.
54 (2.13)
122 (4.80)
109.5 0.5 (4.31 0.02)
2-4.5 5.1 M4
7.9 (0.31)
105
16.5
(0.65)
50
(1.97)
4.5
14
DIN rail center
(0.18)
7.5
(0.30)
Unit: mm (inch)
Warranty
Mitsubishi will not be held liable for damage caused by factors found not to be the cause of
Mitsubishi; machine damage or lost profits caused by faults in the Mitsubishi products; damage,
secondary damage, accident compensation caused by special factors unpredictable by
Mitsubishi; damages to products other than Mitsubishi products; and to other duties.
For safe use
• This product has been manufactured as a general-purpose part for general industries, and
has not been designed or manufactured to be incorporated in a device or system used in
purposes related to human life.
• Before using the product for special purposes such as nuclear power, electric power,
aerospace, medicine or passenger movement vehicles, consult with Mitsubishi.
• This product has been manufactured under strict quality control. However, when installing the
product where major accidents or losses could occur if the product fails, install appropriate
backup or failsafe functions in the system.
Country/Region Sales office/Tel
U.S.A Mitsubishi Electric Automation Inc.
500 Corporate Woods Parkway Vernon
Hills, IL 60061, U.S.A.
Tel : +1-847-478-2100
Brazil MELCO-TEC Rep. Com.e Assessoria
Tecnica Ltda.
Rua Correia Dias, 184,
Edificio Paraiso Trade Center-8 andar
Paraiso, Sao Paulo, SP Brazil
Tel : +55-11-5908-8331
Germany Mitsubishi Electric Europe B.V. German
Branch
Gothaer Strasse 8 D-40880 Ratingen,
GERMANY
Tel : +49-2102-486-0
U.K Mitsubishi Electric Europe B.V. UK
Branch
Travellers Lane, Hatfield, Hertfordshire.,
AL10 8XB, U.K.
Tel : +44-1707-276100
Italy Mitsubishi Electric Europe B.V. Italian
Branch
Centro Dir. Colleoni, Pal. Perseo-Ingr.2
Milano, Italy
Tel : +39-039-60531
Spain Mitsubishi Electric Europe B.V. Spanish
Branch
Carretera de Rubi 76-80,
E-08190 Sant Cugat del Valles,
Barcelona, Spain
Tel : +34-93-565-3131
France Mitsubishi Electric Europe B.V. French
Branch
25, Boulevard des Bouvets, F-92741
Nanterre Cedex, France
TEL: +33-1-5568-5568
South Africa Circuit Breaker Industries Ltd.
Private Bag 2016, ZA-1600 Isando,
South Africa
Tel : +27-11-928-2000
Via Paracelso 12, I-20041 Agrate Brianza.,
HEAD OFFICE : TOKYO BUILDING, 2-7-3 MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
NAGOYA WORKS : 1-14, YADA-MINAMI 5-CHOME, HIGASHI-KU, NAGOYA, JAPAN
When exported from Japan, this manual does not require application to the Ministry
of Economy, Trade and Industry for service transaction permission.
Country/Region Sales office/Tel
Hong Kong Mitsubishi Electric Automation
(Hong Kong) Ltd.
10th Floor, Manulife Tower, 169 Electric
Road, North Point, Hong Kong
Tel : +852-2887-8870
China Mitsubishi Electric Automation
(Shanghai) Ltd.
4/F Zhi Fu Plazz, No.80 Xin Chang Road,
Shanghai 200003, China
Tel : +86-21-6120-0808
Taiwan Setsuyo Enterprise Co., Ltd.
6F No.105 Wu-Kung 3rd.Rd, Wu-Ku
Hsiang, Taipei Hsine, Taiwan
Tel : +886-2-2299-2499
Korea
1480-6, Gayang-dong, Gangseo-ku
Seoul 157-200, Korea
Tel : +82-2-3660-9552
Singapore Mitsubishi Electric Asia Pte, Ltd.
Electric Building, Singapore 159943
Tel : +65-6470-2460
Thailand Mitsubishi Electric Automation (Thailand)
Co., Ltd.
Bang-Chan Industrial Estate No.111
Moo 4, Serithai Rd, T.Kannayao,
A.Kannayao, Bangkok 10230 Thailand
Tel : +66-2-517-1326
Indonesia P.T. Autoteknindo Sumber Makmur
Muara Karang Selatan, Block A/Utara
No.1 Kav. No.11 Kawasan Industri
Pergudangan Jakarta - Utara 14440,
P.O.Box 5045 Jakarta, 11050 Indonesia
Tel : +62-21-6630833
India Messung Systems Pvt, Ltd.
Electronic Sadan NO:III Unit No15,
M.I.D.C Bhosari, Pune-411026, India
Tel : +91-20-2712-3130
Australia Mitsubishi Electric Australia Pty. Ltd.
348 Victoria Road, Rydalmere,
N.S.W 2116, Australia
Tel : +61-2-9684-7777
Mitsubishi Electric Automation Korea Co., Ltd.
307 Alexandra Road #05-01/02, Mitsubishi
Specifications subject to change without notice.
Loading...
