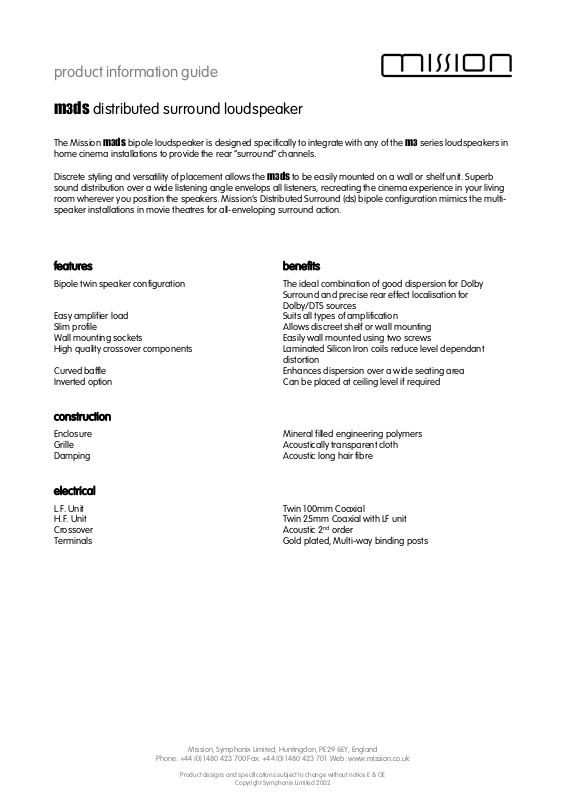

product information guide
m3ds distributed surround loudspeaker
The Mission m3ds bipole loudspeaker is designed specifically to integrate with any of the m3 series loudspeakers in
home cinema installations to provide the rear “surround” channels.
Discrete styling and versatility of placement allows the
sound distribution over a wide listening angle envelops all listeners, recreating the cinema experience in your living
room wherever you position the speakers. Mission’s Distributed Surround (ds) bipole configuration mimics the multispeaker installations in movie theatres for all-enveloping surround action.
features benefits
Bipole twin speaker configuration The ideal combination of good dispersion for Dolby
Easy amplifier load Suits all types of amplification
Slim profile Allows discreet shelf or wall mounting
Wall mounting sockets Easily wall mounted using two screws
High quality crossover components Laminated Silicon Iron coils reduce level dependant
Curved baffle Enhances dispersion over a wide seating area
Inverted option Can be placed at ceiling level if required
construction
Enclosure Mineral filled engineering polymers
Grille Acoustically transparent cloth
Damping Acoustic long hair fibre
electrical
L.F. Unit Twin 100mm Coaxial
H.F. Unit Twin 25mm Coaxial with LF unit
Crossover Acoustic 2
Terminals Gold plated, Multi-way binding posts
m3ds to be easily mounted on a wall or shelf unit. Superb
Surround and precise rear effect localisation for
Dolby/DTS sources
distortion
nd
order
Phone: +44 (0) 1480 423 700 Fax: +44 (0) 1480 423 701 Web: www.mission.co.uk
Mission, Symphonix Limited, Huntingdon, PE29 6EY, England
Product designs and specifications subject to change without notice E & OE
Copyright Symphonix Limited 2002
specifications
Enclosure type 2-way reflex loaded
In-room Frequency Bandwidth -6dB at 72Hz and 22 kHz
Frequency response ±3dB 75Hz — 20 kHz
Nominal Impedance 8 Ohms compatible (min. 5.6)
Sensitivity SPL/m/2.83v 89dB
Recommended amplifier power 25 - 100W
Crossover frequency 2.5 kHz
Effective volume 4.5 litres
Cabinet dimensions (HxWxD) 230 x 360 x 110
(mm), 9.1 x 14.2 x 4.3 (inches)
Weight 2.4 Kg, 5.3 lbs. (per speaker cabinet)
Finish Graphite Black and Satin Silver
setting up
• RUN IN for at least 24 hours before serious listening.
• Wall or shelf mount on rear or sidewalls.
• Mount above seated head height to improve sound distribution.
• May be used with any competent budget electronics.
Will clearly show improvements as source improves.
