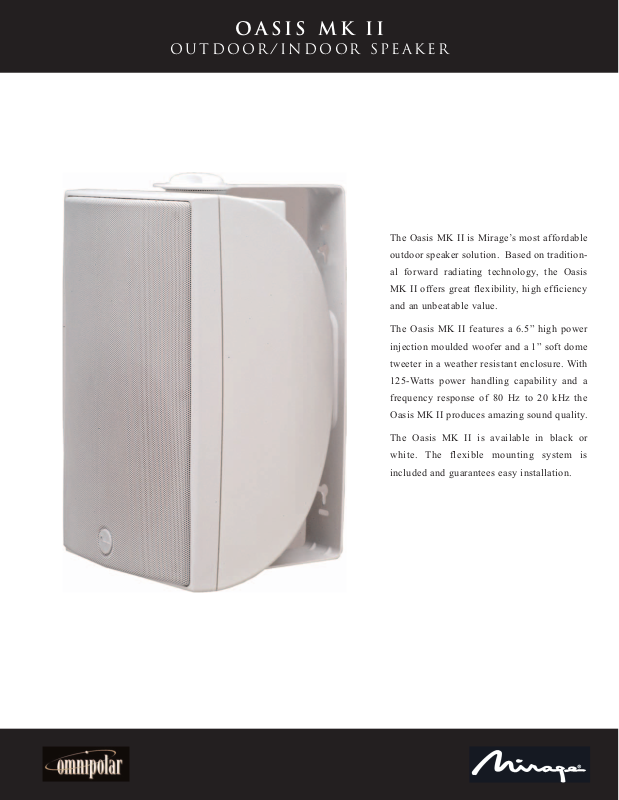

Mirage Oasis Mk2 Brochure

Oasis MK II

outdoor/indoor speaker

The Oasis MK II is Mirage’s most affordable

outdoor speaker solution. Based on tradition-

al forward radiating technology, the Oasis

MK II offers great flexibility, high efficiency

and an unbeatable value.

The Oasis MK II features a 6.5” high power

injection moulded woofer and a 1” soft dome

tweeter in a weather resistant enclosure. With

125-Watts power handling capability and a

frequency response of 80 Hz to 20 kHz the

Oasis MK II produces amazing sound quality.

The Oasis MK II is available in black or

white. The flexible mounting system is

included and guarantees easy installation.

Mirage OMNIPOLAR speakers. Intelligent. Intuitive. Incredible.

www.miragespeakers.com

3641 McNicoll Avenue, Toronto, Ontario Canada M1X 1G5 Telephone [phone]

#3PMB075E Printed in Canada

MODEL: Oasis MK II

DESIGN: Outdoor / Indoor speaker

SYSTEM TYPE: 2 Way

RECOMMENDED AMPLIFIER POWER: 10 to 125 Watts

NOMINAL IMPEDANCE: 8 Ohms

MINIMUM IMPEDANCE: 4 Ohms

FREQUENCY RESPONSE (+/- 3dB): 80Hz-20 kHz

SENSITIVITY 1W / 1M: 89 dB

CROSSOVER POINTS: 2.2 kHz

BOUNDARY COMPENSATION: None

COMPONENTS: 1" (2.5cm) Soft Dome Tweeter

6.5" Injection Molded Polypropylene w/ Rubber Surround

OVERALL DIMENSIONS (H x D x W): 8” x 13.1” x 8.4” / 20.3 x 33.3 x 21.3 cm

CONNECTORS: Spring Loaded

UNIT WEIGHT: 7.5 lbs / 3.4 kg (accessories included)

COLOR: White or Black
