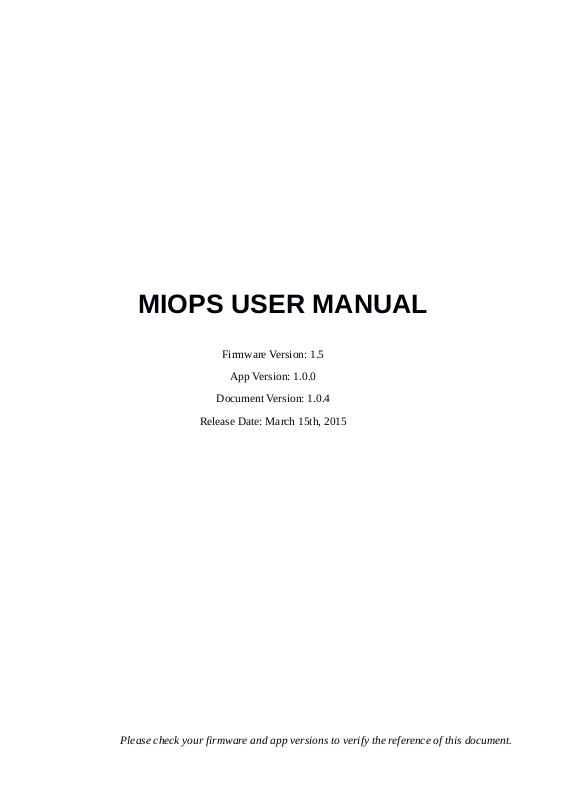

MIOPS USER MANUAL
Firmware Version: 1.5
App Version: 1.0.0
Document Version: 1.0.4
Release Date: March 15th, 2015
Please check your firmware and app versions to verify the reference of this document.
Please check your firmware and app versions to verify the reference of this document.
Contents
1. Introduction ......................................................................................................................... 4
2. Specifications ...................................................................................................................... 6
3. Charging and Operation ..................................................................................................... 6
4. Smartphone App ................................................................................................................. 7
4.1 Installing the Application ..........................................................................................7

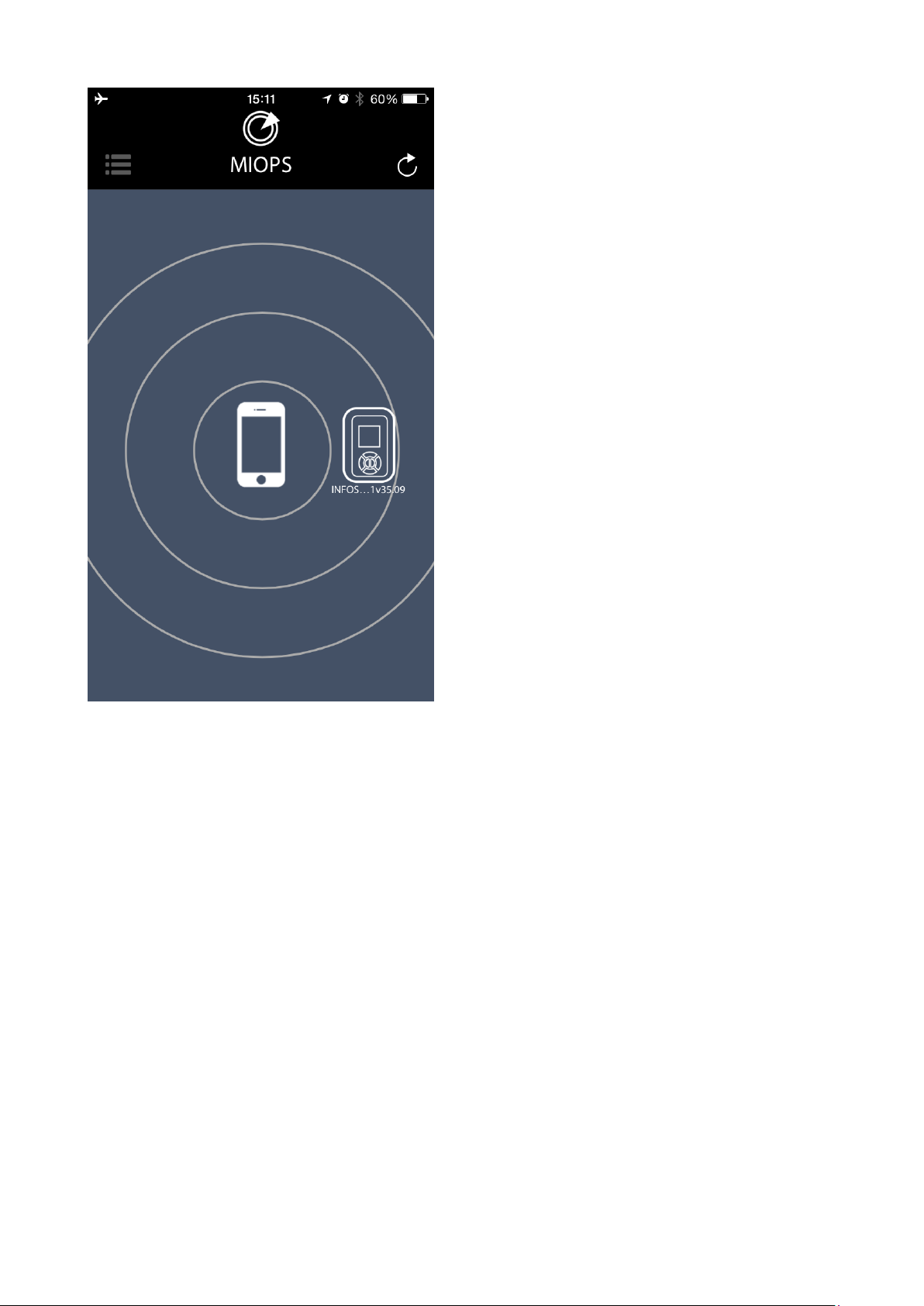

4.2 Starting the Application ............................................................................................7

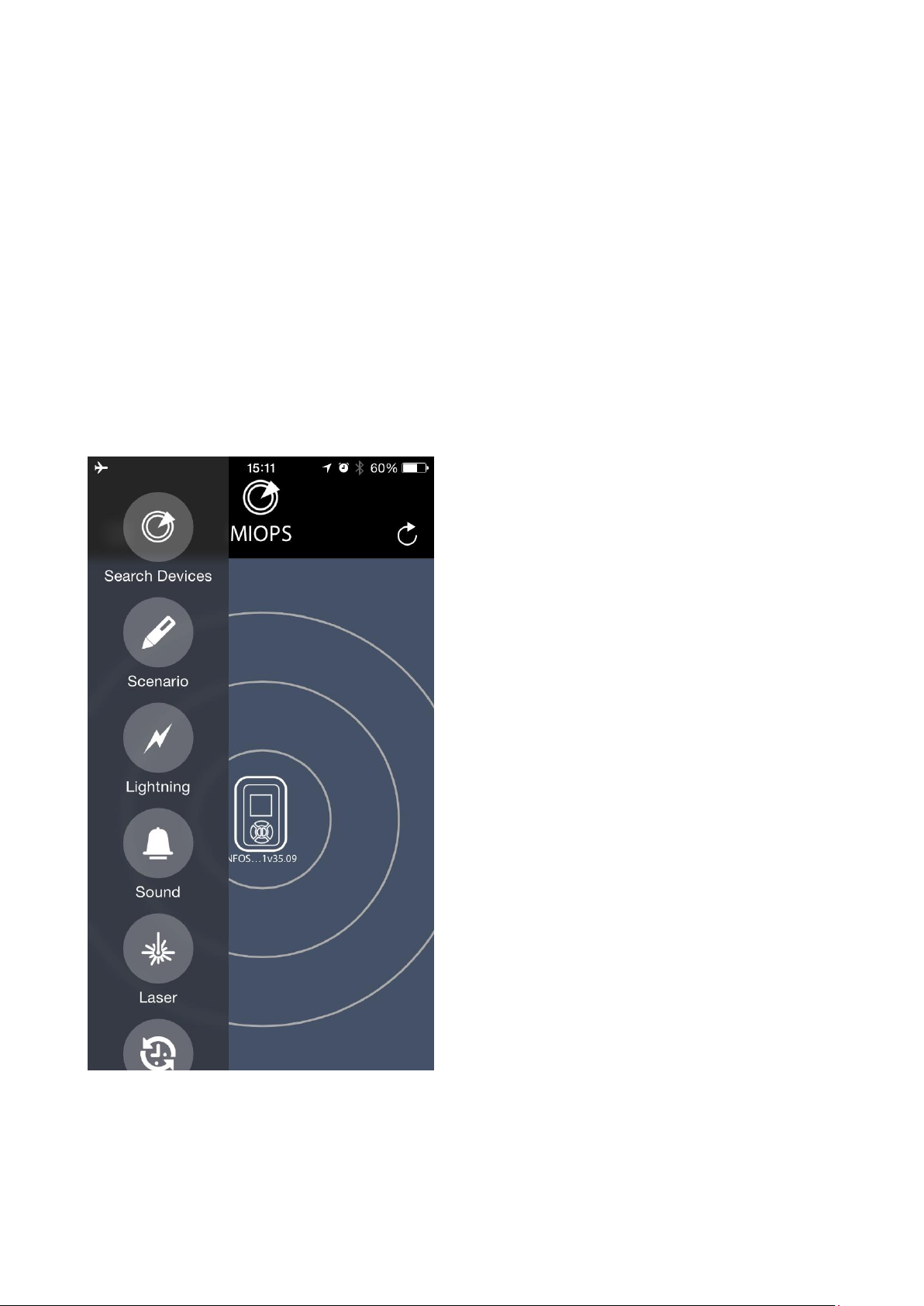

4.3 Using the Application ................................................................................................9

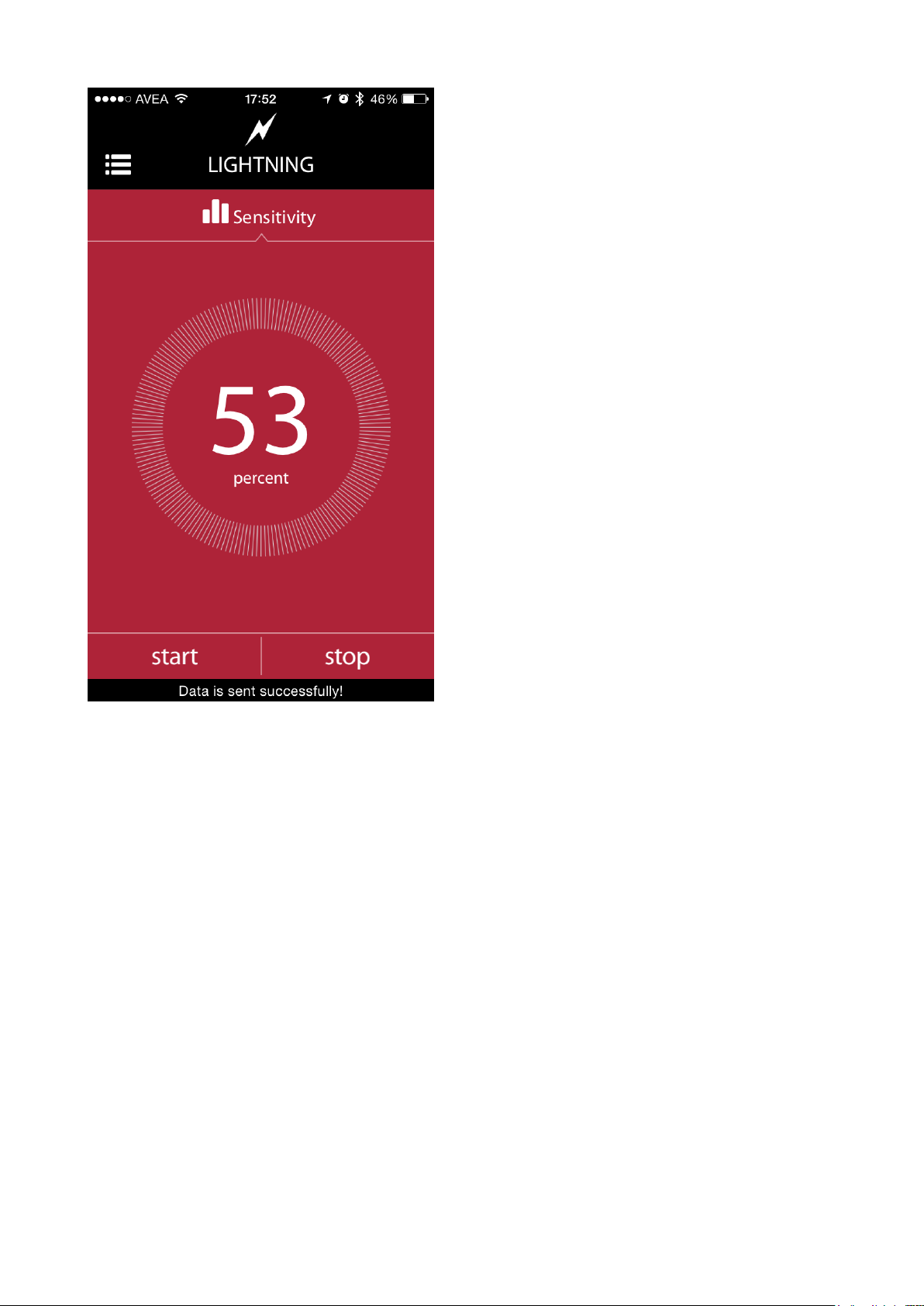

4.3.2 Lightning Mode .................................................................................................. 10

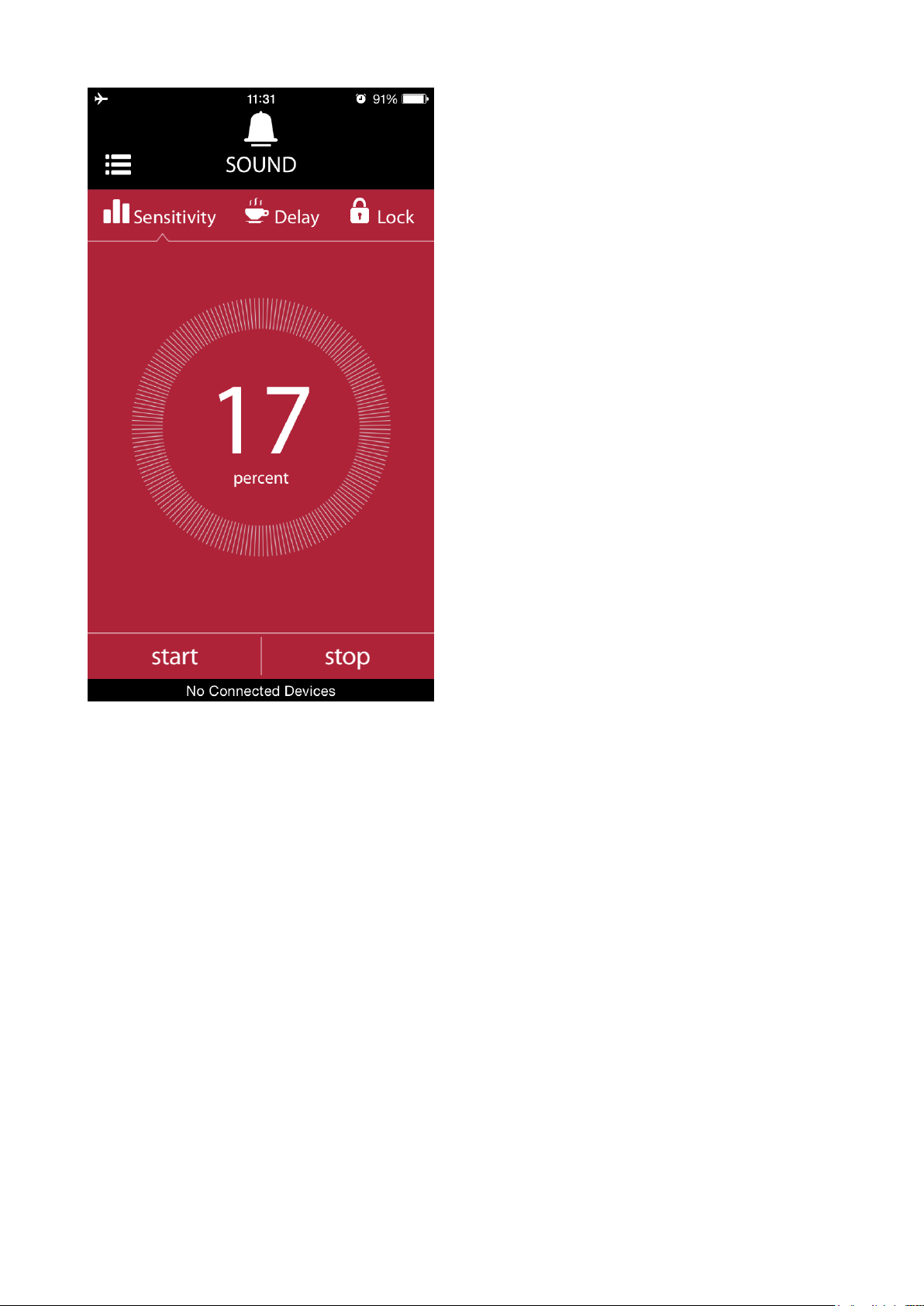

4.3.3 Sound Mode ....................................................................................................... 11

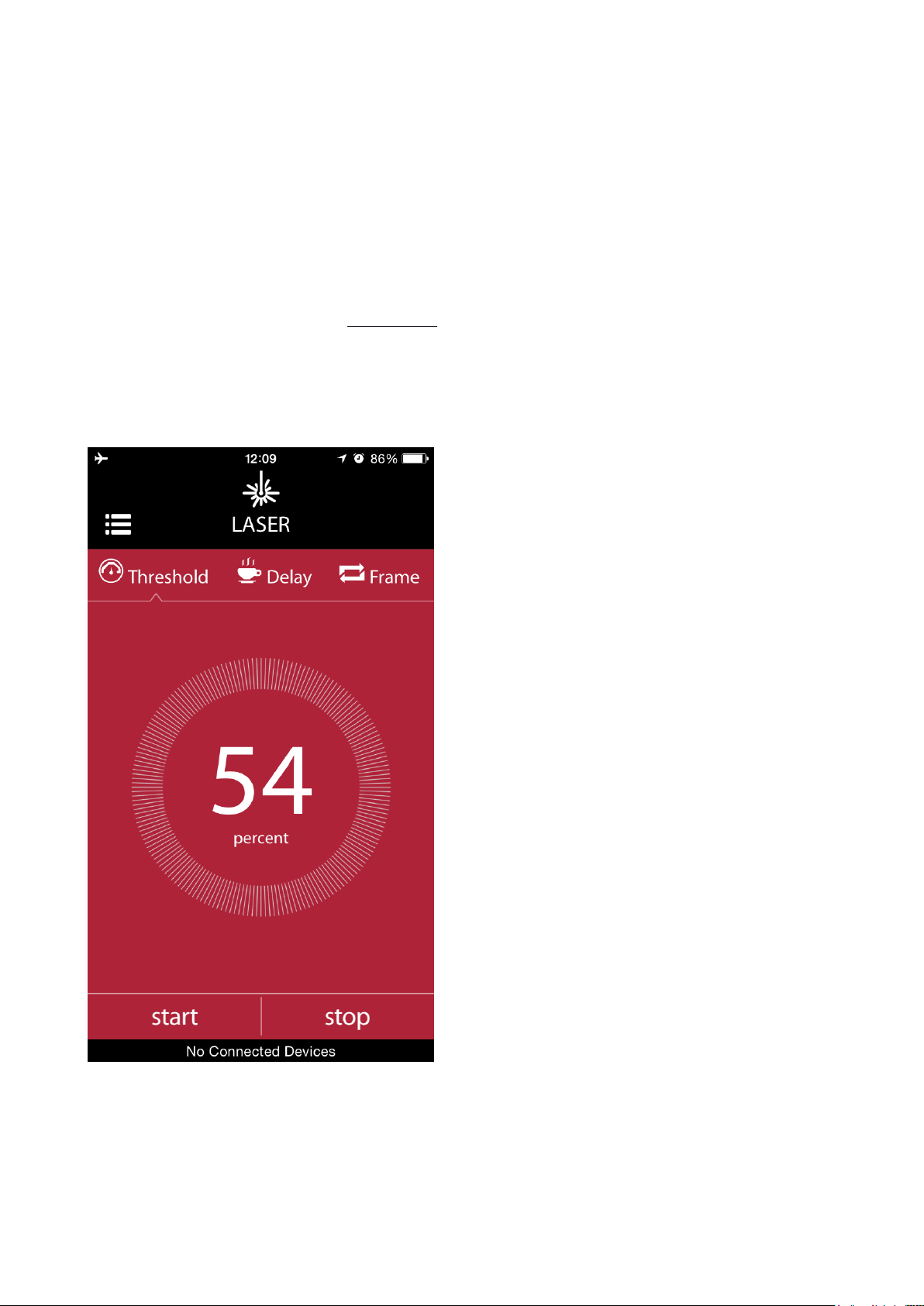

4.3.4 Laser Mode ......................................................................................................... 13

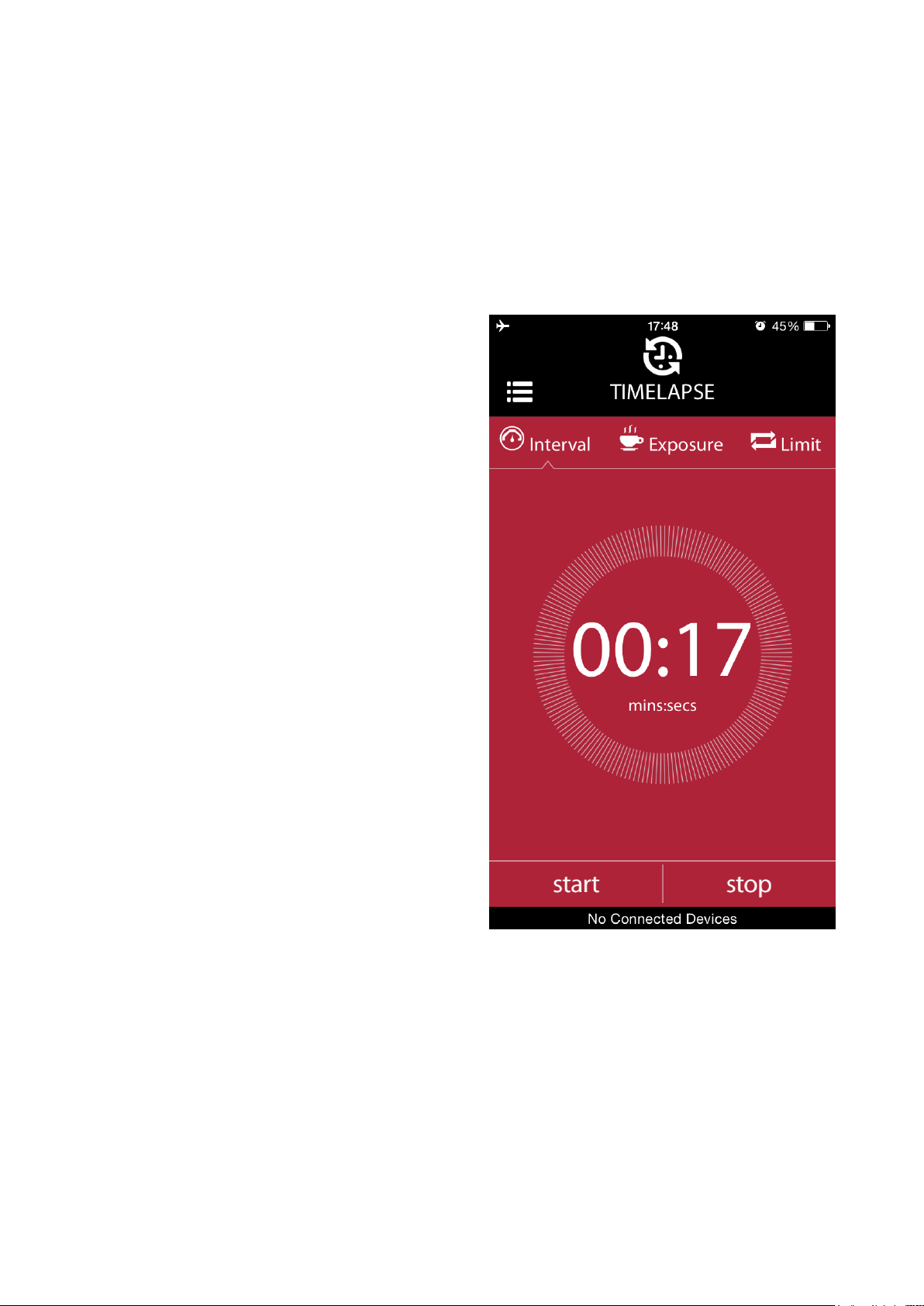

4.3.5 Time Lapse Mode ............................................................................................... 14
4.3.6 DIY (Do It Yourself) Mode .................................................................................. 14
4.3.7 HDR (High Dynamic Range) .............................................................................. 15
4.3.8 Press & Hold ....................................................................................................... 15
4.3.8 Press & Lock ....................................................................................................... 15
4.3.9 Timed Release .................................................................................................... 15

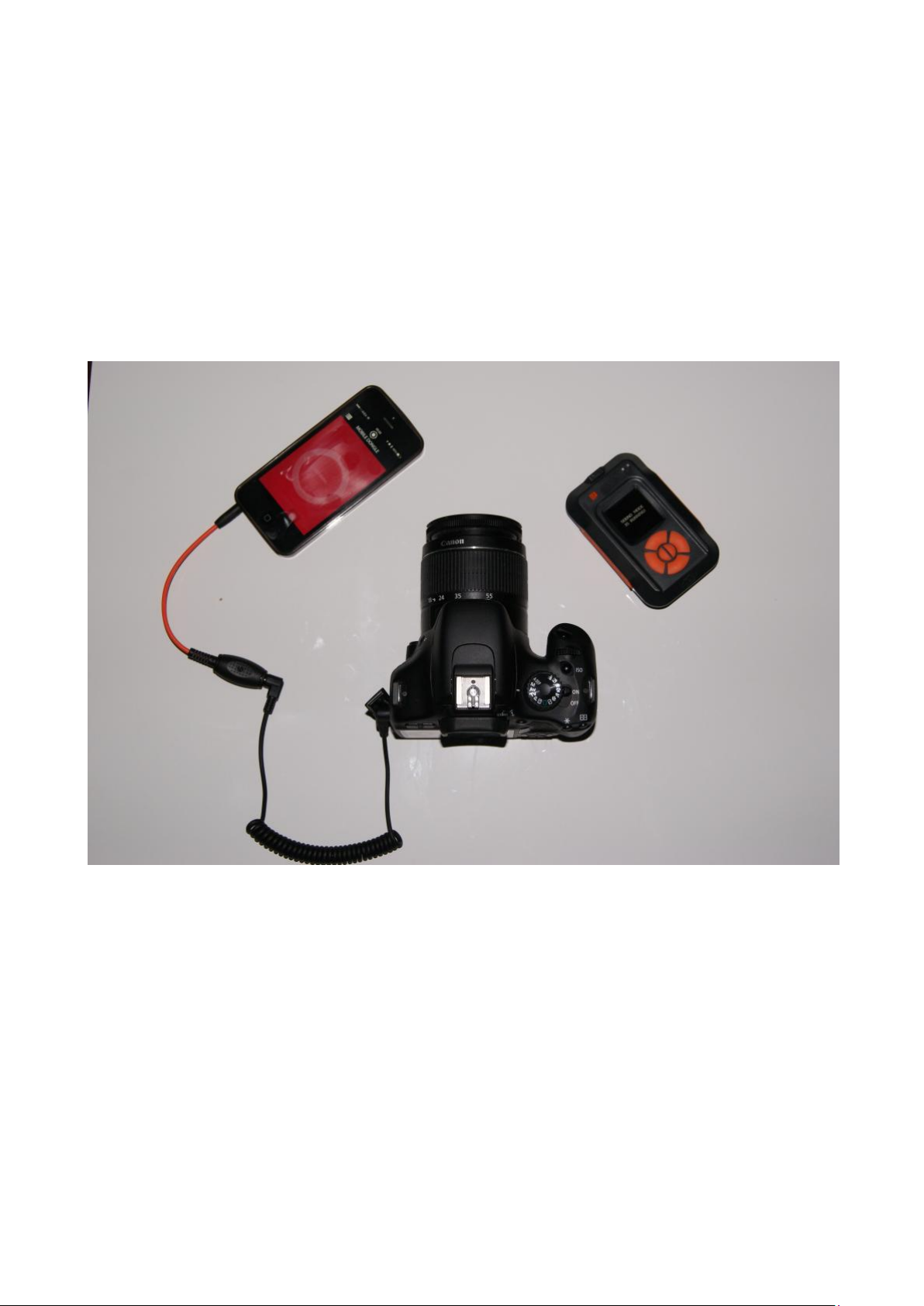

4.3.10 Mobile Dongle .................................................................................................. 15
5. Standalone Operation ......................................................................................................17
6. Warranty ............................................................................................................................18
7. Disclaimer ..........................................................................................................................19
8. FCC Approval .....................................................................................................................20
Please check your firmware and app versions to verify the reference of this document.
1. Introduction
Thank you for choosing MIOPS High-Speed Camera Trigger. MIOPS is revolutionary
photography equipment, which combines power of electronics with the flexibility
of smartphone platform. It will deliver high performance with reliable and easy
operation. MIOPS is always open to new features with the upgradeable firmware.
On top of that, the dedicated smartphone application is open to unlimited options.
With every version of the app, you will get new features. In other words, MIOPS is a
platform for high-speed photography rather than a gadget with firm capabilities.
This document will be your reference for the overall operation of MIOPS including
the app. Please note that the document can be out of date with the release of new
app and firmware version. You can get the latest version of this manual from our
website www.miops.com You can see the version of the firmware and app this
document refers to, in the cover page of the document.
This manual includes the information you need to use MIOPS with all features, so
please read it carefully before using MIOPS. You can check the FAQ section to find
answers of some common questions. If your question is not listed, please contact
us.
MIOPS combines different functions in a single unit. You can use it either as a
standalone device or as a smartphone controllable device. If you use MIOPS as a
standalone device, it will offer six different modes: Lightning, Sound, Laser, Time
Lapse, HDR and DIY. You can fully configure these modes, using the buttons on the
device. If you configure MIOPS using your smartphone, you can use advanced
functions on top of basic modes as well. The advanced features are but not limited
to: Scenario mode, Cable Release, Press and Hold, Press and Lock, Timed Release.
With the new versions of the app, other functions may be available.
Thank you very much again for choosing MIOPS. We hope that MIOPS will help you
to bring your photography skills to the next level.
Please check your firmware and app versions to verify the reference of this document.
Figure 1 Buttons, Ports and LEDs
Please check your firmware and app versions to verify the reference of this document.
2. Specifications
In this section you can find the technical specifications of MIOPS. The
specifications of your MIOPS may change depending on your model and some of
the specifications may not be applicable for your device.
LCD Screen: 128 x 128 pixels
Battery: 3.7 Vdc, 1020 mAh, 3.8 Wh
Bluetooth: Bluetooth 4.0 (Low Power)
USB Interface: 5 Vdc
3. Charging and Operation
MIOPS can only be used with the provided rechargeable battery and USB connection.
The battery will be charged when you connect MIOPS to a USB power source. You can
use your computer USB port for this purpose. You can power MIOPS directly from the
USB port if the battery is not in the device. Using MIOPS with other type of battery and
power source may harm your device.
When you connect your MIOPS to a USB power source, it will start to charge the
battery automatically. The power led will light up when the battery is charging. When
the battery is full, the Power LED will dim. You can see the remaining battery
percentage on the screen of MIOPS in any mode.
