Mio Discover Plus User Manual

Cyclo™ Discover Plus

User Manual

Welcome

Thank you for purchasing this Mio. Please read this manual carefully before using your Mio for the first time. Keep this manual in a safe place and use as your first point of reference.

Important information for using the manual

It is important to understand the terms and typographical

conventions used in this manual.

Bold — Components or items displayed on screen, including

buttons, headings, field names and options.

Disclaimer

Not all models are available in all regions.

Depending on the specific model purchased, the colour and

look of your device and accessories may not exactly match the

graphics shown in this document.

Mio operates a policy of ongoing development. Mio reserves the

right to make changes and improvements to any of the products

described in this document without prior notice. Mio does not

warrant that this document is error-free. The screenshots and

other presentations shown in this manual may differ from the

actual screens and presentations generated by the actual

product. All such differences are minor and the actual product

will deliver the described functionality as presented in this User

Manual in all material respects.

Copyright

registered trademark or trademark of MiTAC Digital Technology

Corporation (“MiTAC”). and is used under licence by Mio

All other trademarks and registrations are the property of their

respective owners.

Revision: R00 (05/2020)

Welcome 2

Important information for using the manual ..................... 2

Disclaimer ........................................................................2

Contents 3

Knowing your device 5

Main unit ..........................................................................5

Accessories......................................................................5

Getting started 6

Charging the battery ........................................................6

Performing the initial start-up ........................................... 6

Connecting your device to the computer ......................... 7

Registering your Cyclo device with MioShare..................7

Installing the device 8

Mounting the device on your bike .................................... 8

Operating basics 8

Using the POWER button ................................................8

Using the touch screen ....................................................9

Unlocking the screen .......................................................9

Main menu 9

System icons..................................................................10

Keyboard screen ............................................................10

Managing data on the device 11

MioShare........................................................................ 11

CycloAgent..................................................................... 11

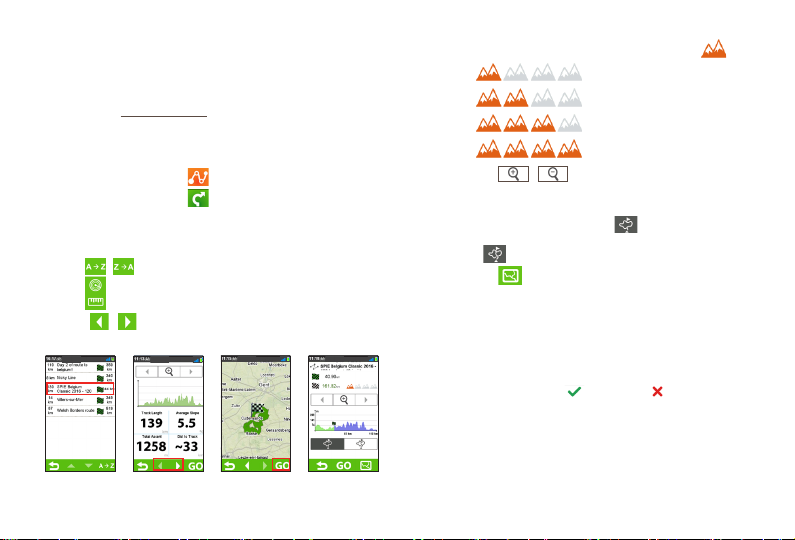

Planning your tour 12

Starting the tour .............................................................12

NeverMiss™: Notifications of POI (Point of Interest) ..... 12

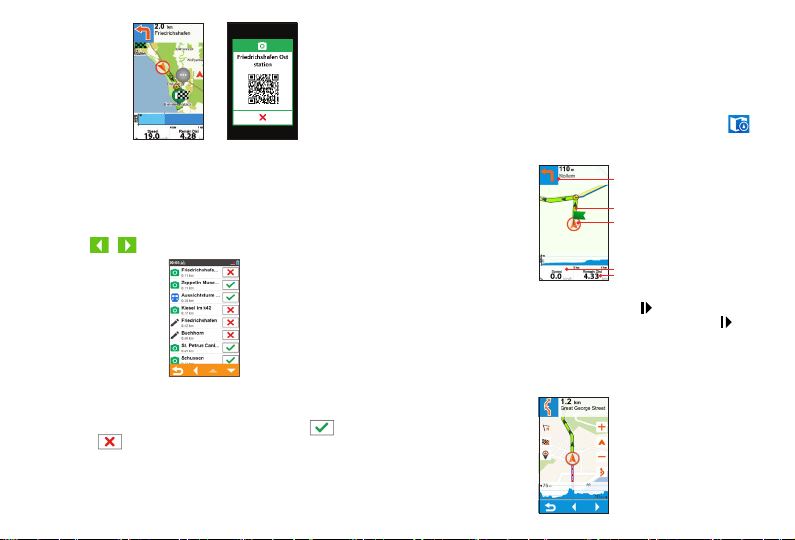

Viewing Map screens 13

Viewing the dashboard screens .....................................14

Starting navigation 14

Using the Navigate wizard ............................................. 14

Navigating to Home .......................................................15

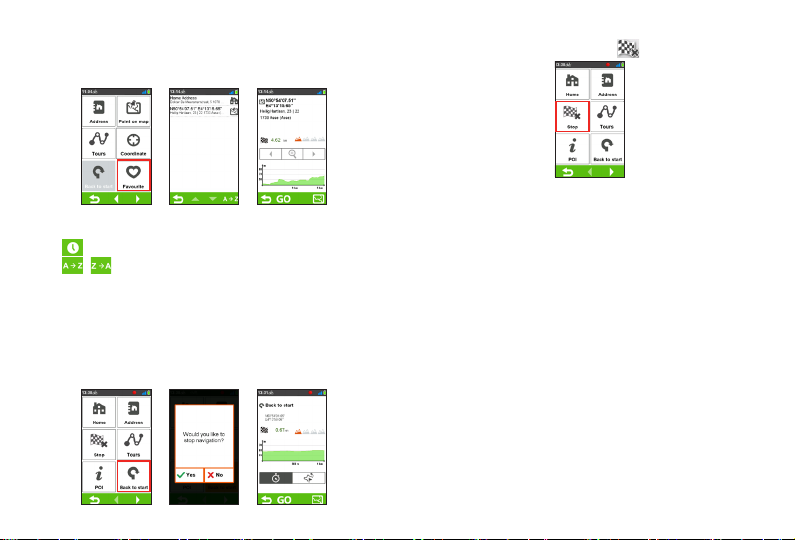

Other navigating options ................................................ 17

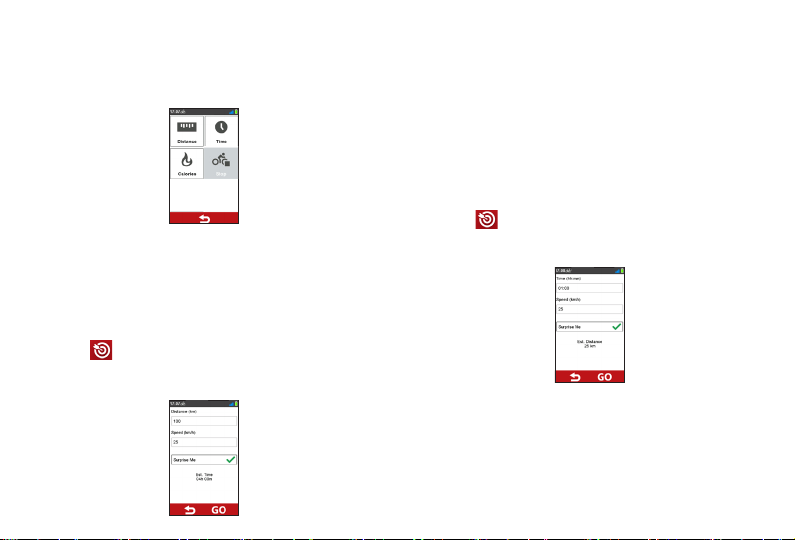

Surprise Me 18

Loop ...............................................................................18

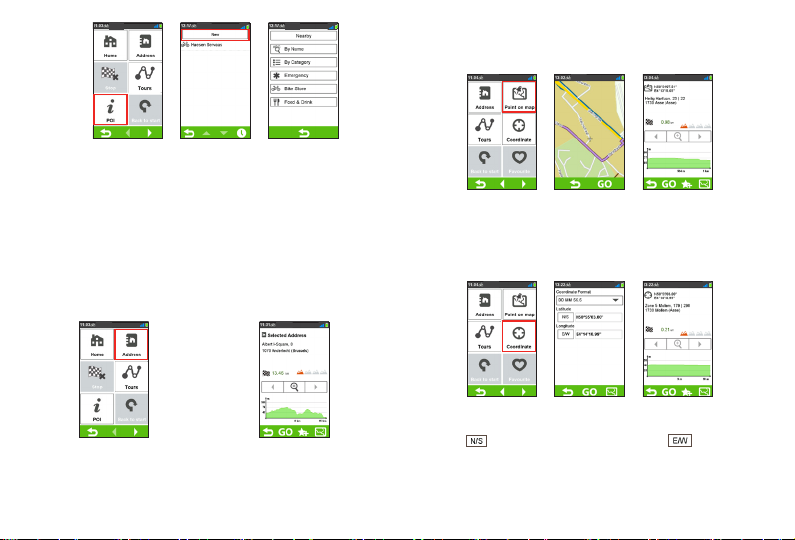

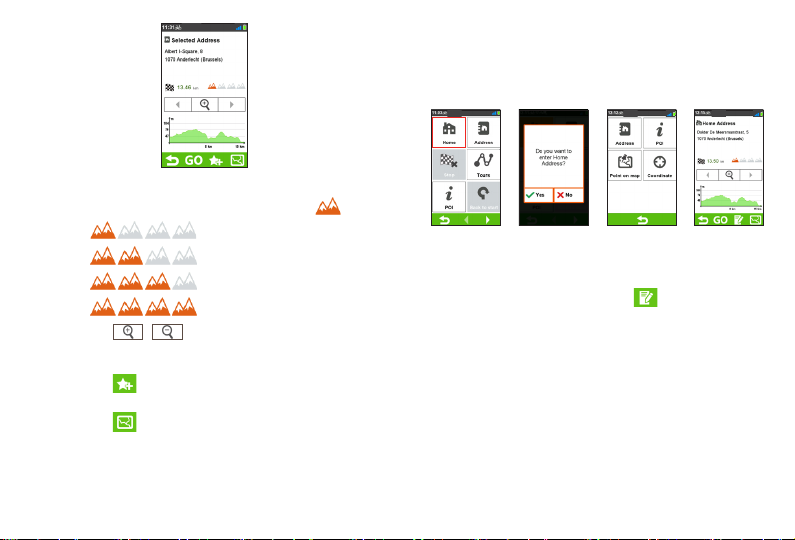

A to B (Address, POI, Favourite, or Point on map) ........18

Fitness mode 20

Exercise by Distance .....................................................20

Exercise by Time............................................................20

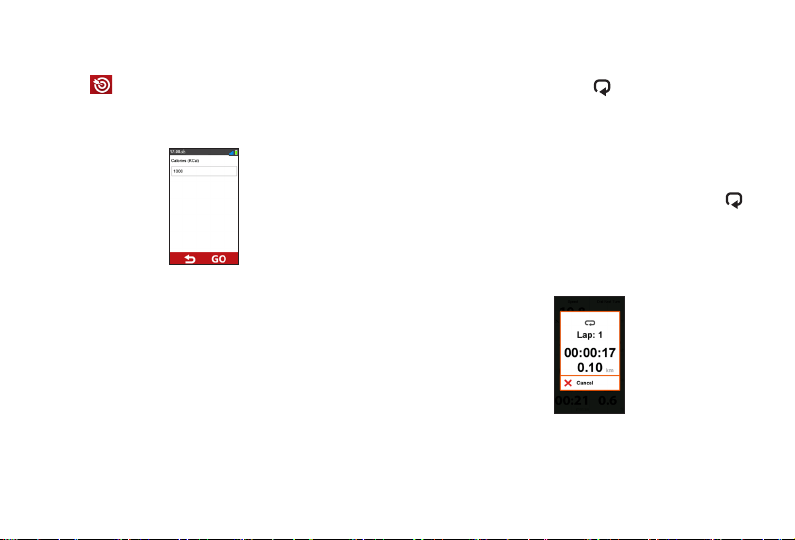

Exercise by Calories ......................................................21

Using the lap feature 21

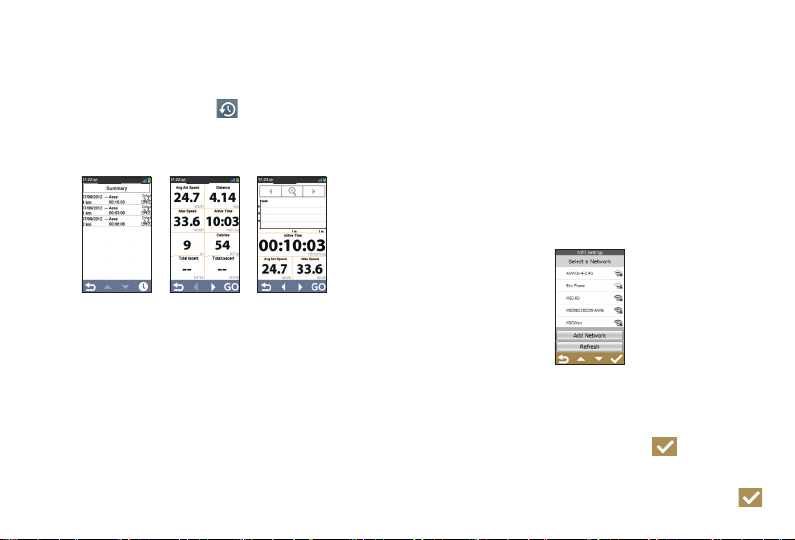

Viewing the History 22

Viewing the summary of recorded data .........................22

Using WIFI 22

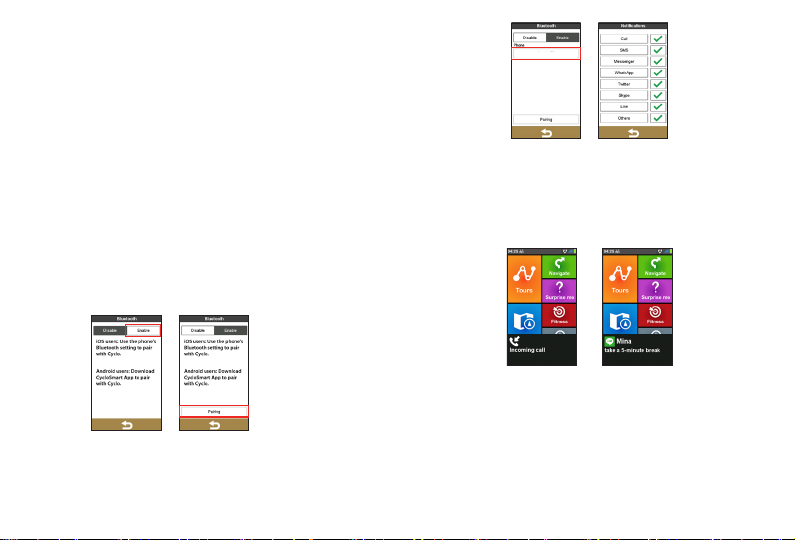

Pairing with your smartphone 24

Notifications of incoming calls and text messages.........24

Customising your device 25

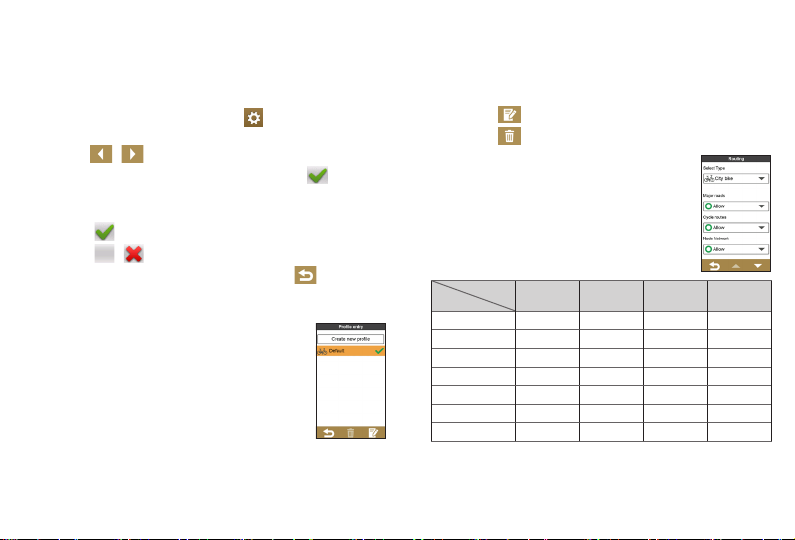

Profiles ...........................................................................25

Routing...........................................................................25

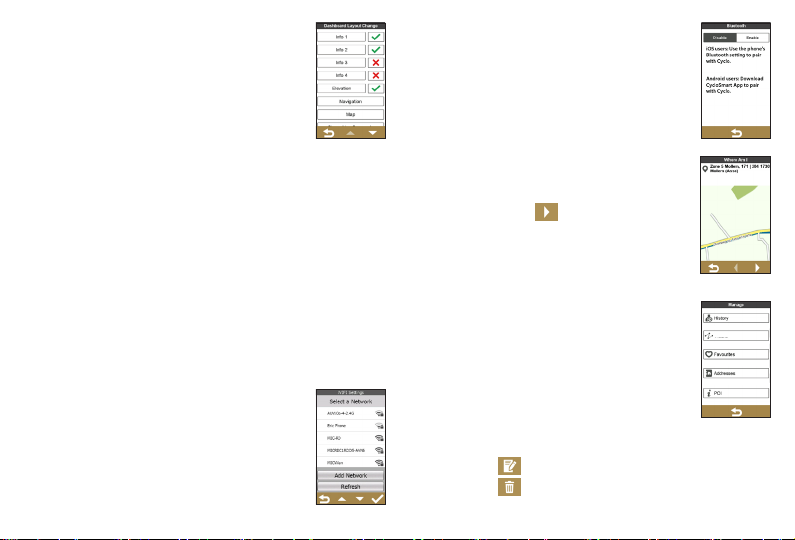

Dashboard .....................................................................26

WIFI Sync ......................................................................26

Phone.............................................................................26

Where Am I .................................................................... 26

Manage ..........................................................................26

Tours .............................................................................. 26

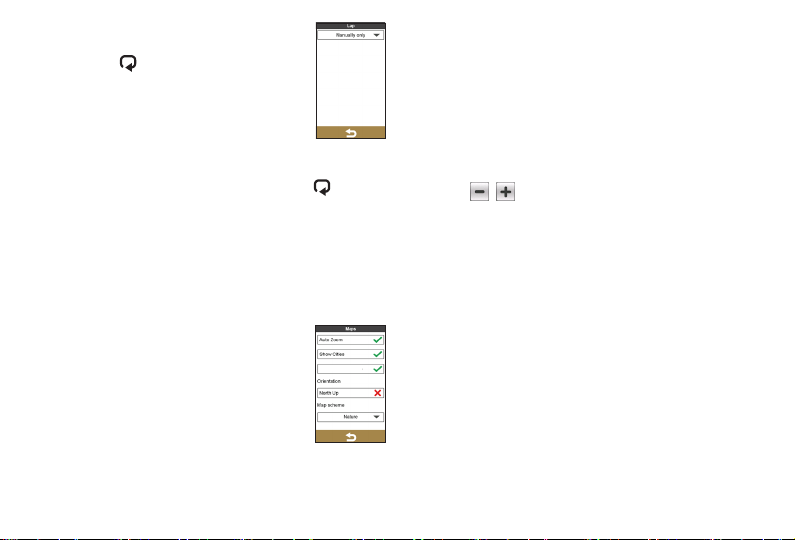

Lap .................................................................................27

Maps ..............................................................................27

System ...........................................................................27

Elevation ........................................................................27

For more information 29

Online support................................................................29

Caring for your Mio ........................................................29

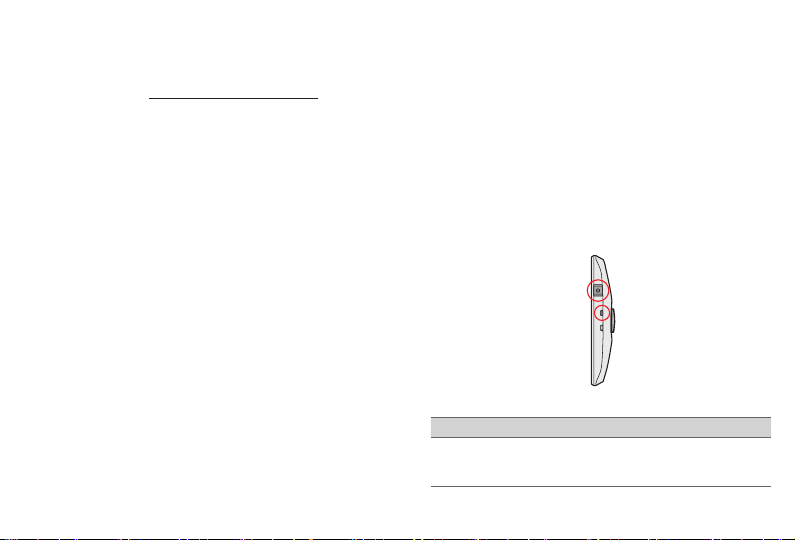

Resetting the device ......................................................29

Troubleshooting .............................................................29

What is GPS? ................................................................30

IPX7 ...............................................................................31

Safety precautions .........................................................31

Regulatory information ...................................................32

WEEE ............................................................................32

End user license agreement .......................................... 32

Knowing your device

Main unit

Status indicator

• Glows in amber: battery charging

• Glows in green: battery full

• Flashes in green: when the backlight is turned off.

Touch screen

POWER button

• Press and hold to turn your device on and off.

• Press to adjust backlight.

START/STOP button

Starts or stops recording.

LAP button

Starts a new lap.

Bike mount socket

For the device mount.

Speaker

Micro-USB connector

Connects to the charger or USB cable.

Lanyard hole

Accessories

Your device comes with the following accessories. To use your device on a bike, ensure you use the specific bike mount kit that came with your device. Mio may provide optional accessories for specific models. Please visit Mio website (www.mio.com) for information.

• USB cable

• Bike mount kit

• Lanyard

Getting started

Charging the battery

Your device has an internal battery that may not be fully charged when you purchase it. You should charge the battery for at least 8 hours before you start using it for the very first time.

To charge the battery:

• Via the computer

Connect your device to the computer by using the provided USB cable. For more information, see “Connecting your device to the computer” in this section.

• Using a USB power adapter

Connect your device to the power adapter by using the USB cable. Plug the mains power charger into the power socket.

Caution! For optimal performance of the lithium battery, note the following:

• Do not charge the battery where the temperature is high (e.g. in direct sunlight).

• Failure to follow the battery usage instructions could cause damage to your device, battery and even bodily injury or property damage and will void the warranty.

• When storing the product for a long period of time, charge the battery to 50% – 80% capacity to prevent excess discharge.

Performing the initial start-up

1. Mount the device and accessories on to your bike. For more information, see the “Installing the device” section.

2. Press and hold the POWER button for 3 seconds to turn your device on.

3 SEC

3. Follow the prompts to personalise your device, including:

• Select your preferred language.

• Set the date and time.

• Set the units format.

• Create your user profile.

You can change these settings while using the device by tapping

Main menu > Settings.

4. Activate the map.

Enter the Startup Key (which is printed on the bottom of the box) and then tap OK to unlock your device. You will only

have to do this the first time you use the device.

5. Once your device is turned on, it will search for satellite signals automatically. This may take several seconds depending on the location.

When GPS is fixed, the GPS signal icon ( ) on the screen indicates the GPS status.

Connecting your device to the computer

1. Turn on the computer.

2. Turn on your device.

3. Connect the Micro-USB end of the USB cable to the back of your device and the other end to a USB port on your computer.

4. Select the desired connection type from the pop-up message window:

• Connect to PC: Your device will be recognised as

two external mass-storage drives: Mio_system and Mio_data. You can use Windows File Explorer to copy/ move the files from the computer to your device. A USB Connection screen appears to prevent you from using your device.

DO NOT delete any files that are pre-installed on

the device. Deleting the files can cause the device to crash. Mio is not responsible for product quality caused by file deletion.

• Charge only: You will be able to continue using

your device with the battery in charging mode via the computer.

Registering your Cyclo device with MioShare

1. Go to MioShare to download and install CycloAgent to your computer.

2. Connect your Cyclo device to the computer and select Connect to PC.

3. Open CycloAgent and click My Device > Register to start synchronising data with the MioShare website.

For the detailed information on using CycloAgent, refer to the CycloAgent

documentation.

Installing the device

Mounting the device on your bike

The bike mount kit includes two types of rubber pads, allowing you to attach the bike mount to your bike securely.

1. Select the rubber pad that best fits the handle bars on your bike and then attach it using the two plastic straps.

2. Align the latch on the back of the device with the slot on the bike mount, and then rotate the device clockwise to lock the device to the bike mount.

You can choose to mount the device on the handlebar or

on the stem. See the following figure for the examples of mounting the device.

To remove the device from the bike mount, rotate it counterclockwise.

Operating basics

Using the POWER button

• Turning on the device

Press and hold the POWER button for 3 seconds to turn on your device.

• Turning off the backlight

You can set the device to turn off the backlight automatically to reduce the battery consumption: Main menu > Settings > System > Screen > Backlight Timer.

Resume using the device to turn on the backlight.

• Turning off the device

Press and hold the POWER button for 3 seconds to pop up the Power Off/Cancel screen. Choose Power Off to turn off the device or Cancel to continue operating the device.

Your device will automatically turn off after 10 minutes (by default) of inactivity. The Power Off/Cancel screen will pop up and the device will be turned off if you do not make a selection.

Yo u can change the auto power off setting by tapping Main menu >

Settings > System > Screen > Auto Power Off Timer.

• Navigating through the screens

While the device is turned on and you are navigating through the menu screens, tap to return to the previous screen.

Using the touch screen

To operate your device, touch the screen with your finger. You can perform the following actions:

• Tap

Quick touch the screen once to open menus or select onscreen button/option.

• Drag

While navigating on the map, tap and hold on the screen without releasing your finger to move the map to the desired position.

• Slide

Depending on your model, drag your finger vertically or horizontally across the screen.

• Drag to the left/right to switch to another menu screen.

• Drag to the top/bottom to scroll up/down a list.

Not all slide gestures are applicable to all screens.

Unlocking the screen

Your device will automatically lock the screen after 30 seconds (by default) of inactivity. When the screen is locked, press the POWER button briefly to unlock the screen.

Yo u can change the screen lock setting by tapping Main menu > Settings

> System > Screen > Screen Lock Timer.

Main menu

The Main menu is your starting place for various tasks, providing quick access to applications and settings. Tap a button to start a task or open another menu.

The Tours includes the recorded routes from the websites,

giving the best experience for cycling.

The Map displays the view of functions, including the map

and navigation screens.

Start to plan your route by selecting the locations, such as

home, address, tours, POI, etc.

Based on distance or time, the device will plan 3 routes for

you to choose from.

You can set exercise by entering your goals, such as by

distance, by time or by calories.

Your trip/fitness can be saved in the history records. When

your ride is finished, you can check the history data such as date/time, distance, speed, altitude, etc.

There are various customisation options available to

enhance your riding experience. You can customise the system settings, user profiles and more.

System icons

Various System icons in the title bar at the top of the screen provide the status information of your device. Depending on your settings, the icons may be different to provide various information of your device. Please note that these icons will not be always displayed during your trip/fitness.

1 2 3 4 5 6

Time display

Displays the current time. The device will automatically set the correct time based on the current GPS fixes.

User profile

: City bike mode

: Mountain bike mode

: Race bike mode

: Run & walk mode

Recording status

: The device is recording your trip/fitness.

: Recording has been paused.

Bluetooth status

When the Bluetooth function is enabled:

: No phone is connected. The icon flashes when a

connection is being made.

: A phone is connected.

: There are missed calls or new text messages on the

connected phone.

GPS signal

The GPS signal icon indicates the GPS status. A bar shows the strength of the GPS signal being received; the more bars the stronger the signal.

Battery status

The Battery icon indicates the remaining battery power.

Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a street name. Search results will be listed in matching order, with the closest matches appearing on the screen. The Keyboard screen can display with various layouts depending on the information you need to enter.

Example: entering the street name while searching for an address

Tap to switch between the ABC keyboard and Numeric keypad.

• Tap the keys to enter letters or numbers.

The keyboard features the “Predictive text” technology that allows addresses to be searched easily and quickly. As you

Numeric keypadABC keyboard

enter a letter of an address, your device will compare all possible combinations against the maps.

• Tap to delete the character.

• When done, tap .

The device supports Russian, Bulgarian, and Greek keyboard for local

users. You can enable (or disable) the desired keyboard from Main menu > Settings > System > Keyboard.

Managing data on the device

MioShare

By using MioShare, you can easily create or search a tour for your Cyclo device to navigate. It stores your cycling data for you to view online or synchronise with other third-party services.

For more information, visit: http://mioshare.com/

CycloAgent

CycloAgent™ is a tool for synchronising data between your Cyclo™ device and the MioShare™ website, and for managing and updating your Cyclo device via your computer.

Visit the MioShare website (http://www.mioshare.com/help) to download CycloAgent.

Make sure that you have an active Internet connection for this feature.

Please make sure of the stable Internet connection and bandwidth for the possible large file of the map update.

For the detailed information on using CycloAgent, refer to the CycloAgent

documentation.

+ 24 hidden pages
