Minox GT-S, ECX, TLX, GT-E, MX DATASHEET
T
HE CLASSIC CAMERAS
For further details please contact your MINOX specialist:
Design, features, supply and price are subject to change.
Walter-Zapp-Straße 4
D-35578 Wetzlar
Telefon ++49 64 41 / 917-0
Telefax ++49 64 41 / 917-612
e-mail info@minox.com
Internet http://www.minox.com
960 209 X/01/FY/B
Graphic Design: Heussinger, Solms / Photography: Binhack Studios, Solms
Ur-MINOX
M
INOX PAST,PRESENT UND FUTURE
3
A camera that has ambitions to become a classic
has to feature an ingenious design which will enthuse photographers for years to come.
The concept at MINOX has always been to provide
cameras with the smallest possible dimensions,
demonstrating absolute precision and a top-class
design. That’s MINOX. Past, present, future.
There’s always a clever mind behind every classic
design. And the MINOX story must always be told
with reference to the name Walter Zapp.The legendary designer who wrote photographic history with
his revolutionary invention of the first Ur-MINOX in
1938. The ingenious idea was to be seen in its
dimensions. A camera smaller than a cigar and
weighing less than a cigarette lighter.And featuring
an excellent lens. This was a stroke of lasting
genius - as the MINOX ECX and the MINOX CLX still
proof today.
And of course, it was no surprise to see these miniature cameras with the 8x11mm film format go on
to become world famous as espionage cameras.

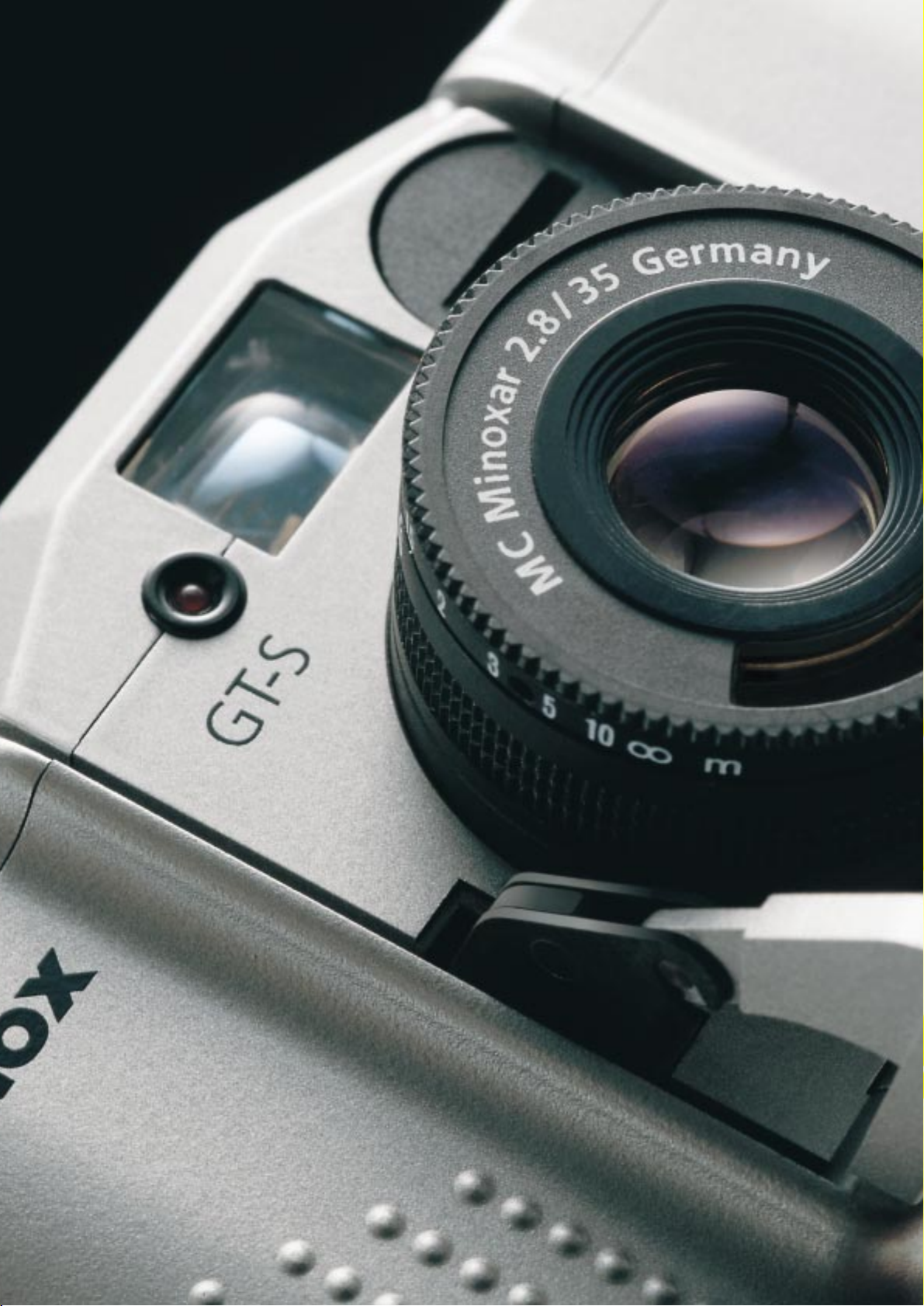

The MINOX GT-E and GT-S are almost equally
famous: with nearly 2 million sold cameras they
are one of the world’s smallest 35 mm viewfinder
cameras. Classic cameras with more than just
excellent design. MINOX stands for proven lens
quality and robust mechanics – Made in Germany.
Enough possibilities for creative imagination of the
photographer. All products from MINOX are made
in this tradition.
Dr. h.c. Walter Zapp, the inventor
of the subminiature camera MINOX,
was born on September 4th, 1905
in Riga (Latvia)
MINOX CAMERAS
THE MAKING OF
A CLASSIC CAMERA
MINOX CLX
5
TLX AND CLX
HIGHEST PRECISION IN
THE SMALLEST FORMAT
T
HE
M
INOX8X
11
RANGE
MINOX TLX (1:1)
MINOX CLX (1:1)
The quintessence of photographic miniaturisation.
Masterpieces of optical and mechanical precision,
intricately manufactured to the tightest tolerances.
The compact MINOX miniature cameras with the
legendary film format of 8 x 11 millimetres.
Small and handy in size, big in technology and
imaging performance. This applied in 1938 to the
legendary Riga Model of the inventor, Walter Zapp,
and still applies today to the MINOX TLX and the
MINOX CLX and the Special Edition such as MINOX
LX Gold. The advantages of this 8 x 11 classic are
not only appreciated by professionals. You can
always rely on the smallest of the MINOX cameras
for providing superb family and holiday photos. It
is light, robust and can be used for all purposes. It’s
a camera you never leave at home!
MINOX TLX
• Subminiature camera with 8x11mm film format
• Four-element 15 mm MINOX lens f/3,5/15mm
• Electronic exposure measuring
• Aluminium housing with titanium anodized finish
• Range setting from 20 cm to infinity
• Aperture priority (1/2000 s - B)
• Manual setting (1/2000 s - 1/30 s)
• Retractable neutral density filter
• Push-pull rapid wind
MINOX CLX
• All technical data as of MINOX TLX
• Brass body, chrome-plated and highly polished,
unique surface (Guillochierung)
