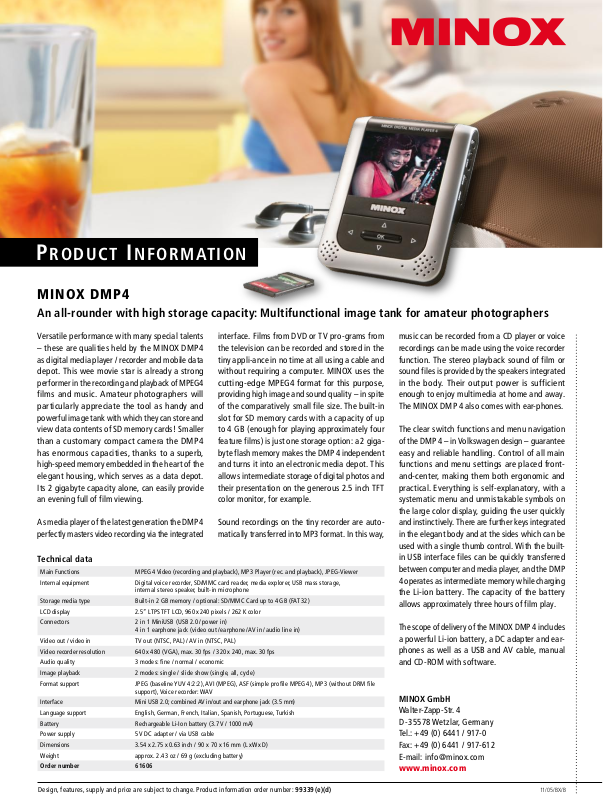

Minox DMP4 DATASHEET

Product InformatIon

MIN OX DM P4

An all-rounder with high storage capacity: Multifunctional image tank for amateur photogra

Versatile performance with many special talents
– these are qualities held by the MINOX DMP 4
as digital media player / recorder and mobile data
depot. This wee movie star is already a strong
performer in the recording and playback of MPEG4
films and music. Amateur photographers will
particularly appreciate the tool as handy and
powerful image tank with which they can store and
view data contents of SD memory cards! Smaller
than a customary compact camera the DMP 4
has enormous capacities, thanks to a superb,
high-speed memory embedded in the heart of the
elegant housing, which serves as a data depot.
Its 2 gigabyte capacity alone, can easily provide
an evening full of film viewing.

As media player of the latest generation the DMP4
perfectly masters video recording via the integrated

Technical data

Main Functions MPEG 4 Video (recording and playback), MP3 Player (rec. and playback), JPEG-Viewer
Internal equipment Digital voice recorder, SD/MMC card reader, media explorer, USB mass storage,

Storage media type Built-in 2 GB memory / optional: SD/MMC Card up to 4 GB (FAT 32)
LCD display 2.5” LTPS TFT LCD, 960 x 240 pixels / 262 K color
Connectors 2 in 1 MiniUSB (USB 2.0 / power in)

Video out / video in TV out (NTSC, PAL) / AV in (NTSC, PAL)
Video recorder resolution 640 x 480 (VGA), max. 30 fps / 320 x 240, max. 30 fps
Audio quality 3 modes: fine / normal / economic
Image playback 2 modes: single / slide show (single, all, cycle)
Format support JPEG (baseline YUV 4:2:2), AVI (MPEG), ASF (simple profile MPEG 4), MP3 (without DRM file

Interface Mini USB 2.0; combined AV in/out and earphone jack (3.5 mm)
Language support English, German, French, Italian, Spanish, Portuguese, Turkish
Battery Rechargeable Li-Ion battery (3.7 V / 1000 mA)
Power supply 5 V DC adapter / via USB cable
Dimensions 3.54 x 2.75 x 0.63 inch / 90 x 70 x 16 mm (L x W x D)
Weight approx. 2.43 oz / 69 g (excluding battery)

Order number 61606

internal stereo speaker, built-in microphone

4 in 1 earphone jack (video out / earphone / AV in / audio line in)

support), Voice recorder: WAV

interface. Films from DVD or TV pro-grams from
the television can be recorded and stored in the
tiny appli-ance in no time at all using a cable and
without requiring a computer. MINOX uses the
cutting-edge MPEG4 format for this purpose,
providing high image and sound quality – in spite
of the comparatively small file size. The built-in
slot for SD memory cards with a capacity of up
to 4 GB (enough for playing approximately four
feature films) is just one storage option: a 2 giga­byte flash memory makes the DMP 4 independent
and turns it into an electronic media depot. This
allows intermediate storage of digital photos and
their presentation on the generous 2.5 inch TFT
color monitor, for example.

Sound recordings on the tiny recorder are auto­matically transferred into MP3 format. In this way,

music can be recorded from a CD player or voice
recordings can be made using the voice recorder
function. The stereo playback sound of film or
sound files is provided by the speakers integrated
in the body. Their output power is sufficient
enough to enjoy multimedia at home and away.
The MINOX DMP 4 also comes with ear-phones.

The clear switch functions and menu navigation
of the DMP 4 – in Volkswagen design – guarantee
easy and reliable handling. Control of all main
functions and menu settings are placed front­and-center, making them both ergonomic and
practical. Everything is self-explanatory, with a
systematic menu and unmistakable symbols on
the large color display, guiding the user quickly
and instinctively. There are further keys integrated
in the elegant body and at the sides which can be
used with a single thumb control. With the built­in USB interface files can be quickly transferred
between computer and media player, and the DMP
4 operates as intermediate memory while charging
the Li-ion battery. The capacity of the battery
allows approximately three hours of film play.

The scope of delivery of the MINOX DMP 4 includes
a powerful Li-ion battery, a DC adapter and ear­phones as well as a USB and AV cable, manual
and CD-ROM with software.

MINOX GmbH

Walter-Zapp-Str. 4
D- 35578 Wetzlar, Germany
Tel.: [phone] / 917-0
Fax: [phone] / 917-612
E-mail: [e-mail]

www.minox.com

phers

Design, features, supply and price are subject to change. Product information order number: 99339 (e)(d) 11/05/BX/B
