DD1
MINOX –
a name that spells exclusiveness
Just like the legendary MINOX spy camera which
stands for fine mechanical precision in miniature size,
the new MINOX DD1 also creates excitement through
its unique design and technology concept.
Pin-sharp definition and brilliance are guaranteed by
the 5-element multi-coated glass lens. In combination
with the 2.1 megapixel chip, the refined electronics
and the specially developed software, you can be sure
of brilliant images with natural rendition.
Concentration on essentials.
This basic principle also applies to the
MINOX DD1.
All major functions are ergonomically
designed and incorporated in the
“mode” button on the back of the
camera. No need to spend all your time
looking up the operating instructions
and you can get down to sheer photographic enjoyment straight away.
M1:1
Technical Data
Minox DD1
Image sensor 3.0 MP CMOS (2.1 MP hardware resolution)
Image resolution Still image: Super High Resolution (3MP): 2048 x 1536 Pixels (Interpolation)
Fine High Resolution (2.1 MP) or Fine Low Resolution (2.1 MP): 1600 x 1200 Pixels
Super Low Resolution (2.1 MP): 1600 x 1200 Pixels;Web-Cam / Video: 320 x 240 Pixels
Image memory
(internal memory) 32 MB (FLASH)
Image compression (ratio) super/high (3 MP): 1:9 / fine/high (2.1 MP): 1:5
fine/low (2.1 MP): 1:7,5 / super/low (2.1 MP): 1:12
Image memory capacity Super High Resolution (3 MP): approx. 40
Fine High Resolution (2.1 MP): approx. 40
Fine Low Resolution (2.1 MP): approx. 60
Super Low Resolution (2.1 MP): approx. 99
Main memory (camera) 16 MB SD-RAM
Viewfinder Integrated optical viewfinder
LCD status display 2 digit
Lens 5 elements, glass lens element with IR filter
Lens aperture F 2.8
Focal length 9,6 mm / 0,38 inch related to small picture: approx. 48 mm
Focus range 0,5 m / 3,2 ft to infinity
White balance automatic
Exposure Auto exposure
Self-timer 10 seconds
Power supply 1 x CR2 battery / via USB connection (PC)
Menue control Shutter Button and On/Mode Button
Beep signal Yes
Automatic off Off mode, after 30 seconds of non-use
PC connection USB cable
Dimensions 83 x 75 x 32 mm / 3.27 x 2.95 x 1.26 inch (LxHxW)
Weight approx. 120 g / approx. 4.23 oz
System requirements Microsoft Windows 98/SE/ME/2000/XP Pentium-Processor or later; MacOS 9.x
64 MB recommended; Video with 2 MB RAM for displaying at least 16 Bit (High Color)
CD-ROM with 4x velocity; USB-port
This was the set task for the development team.
And based on an entirely new interpretation of camera aesthetics the
skilled designers managed once again
to furnish another milestone in
MINOX history.

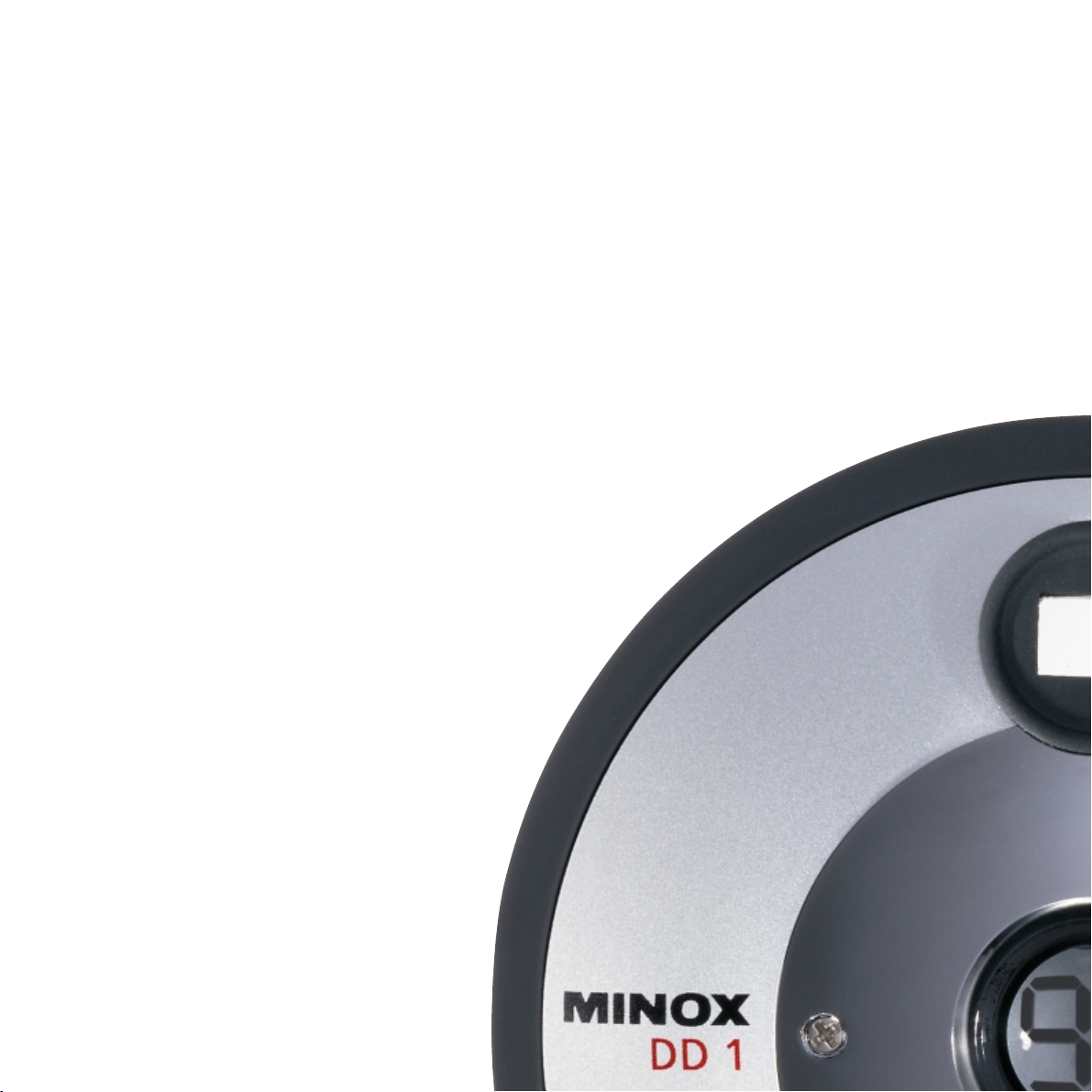

The body of the DDI is shaped as a
round and flat basic form. The heart of
the camera – the lens – is the core
element and also forms the major component in the quality chain. The stylish
shutter release, battery compartment
and USB connection are arranged as
marked features on the outer edge of
the camera body and award the MINOX
DDI the distinguished and unmistakable
character that makes a classic camera.
This extremely compact digital camera,
which weighs just 120 grams / 4.23 oz
and measures a mere 75 mm / 2.95 inch
in diameter, is designed to become your
very personal chronicler – which
accompanies you wherever you go to
record those moments that have to be
captured.
Precision that fits into every pocket.
Graphic Design: Heussinger, Solms / Photography: Maik Scharfscheer, Frankfurt/M.
MINOX GmbH
Walter-Zapp-Str. 4
D-35578 Wetzlar, Germany
Tel.: +49 (0) 6441 / 917-0
Fax: +49 (0) 6441 / 917-612
e-mail: info@minox.com
www.minox.com
Design, features,supply and price are subject to change.
07/03/LX/B / Product information order number: 99246
